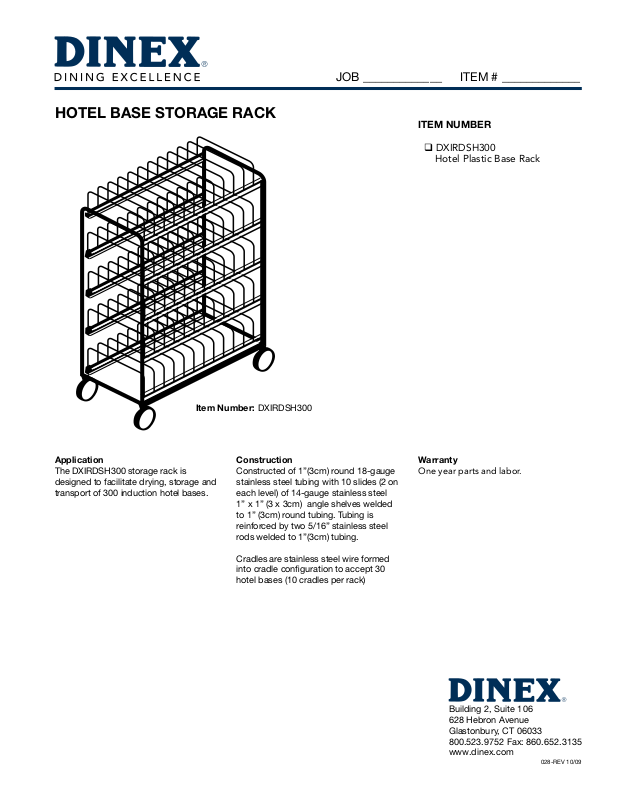

HOTEL BASE STORAGE RACK
Item Number: DXIRDSH300
ITEM NUMBER
q DXIRDSH300
Hotel Plastic Base Rack
Application
The DXIRDSH300 storage rack is
designed to facilitate drying, storage and
transport of 300 induction hotel bases.
Construction
Constructed of 1”(3cm) round 18-gauge
stainless steel tubing with 10 slides (2 on
each level) of 14-gauge stainless steel
1” x 1” (3 x 3cm) angle shelves welded
to 1” (3cm) round tubing. Tubing is
reinforced by two 5/16” stainless steel
rods welded to 1”(3cm) tubing.
Cradles are stainless steel wire formed
into cradle configuration to accept 30
hotel bases (10 cradles per rack)
Warranty
One year parts and labor.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
028-REV 10/09
HOTEL BASE STORAGE RACK
Length
Depth
Height
Height
Items and Dimensions
ITEM
NUMBER
DXIRDSH300 IRDSH/300
MODEL
NUMBER
17.25”
18”
LENGTH DEPTH HEIGHT
38.25”
(97.2cm)
18.63”
(47.3cm)
67.75”
(172.1cm)
CRADLE
CAPACITY
30 Hotel
Bases
.875”
CRADLE
ITEM
NUMBER
DX0115847 300
RACK
CAPACITY
SHIP
WEIGHT
755 lb.
(70kg)
SHIP
CUBE
29.7
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex® reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
