Dinex IDPC30180 User Manual
JOB ____________

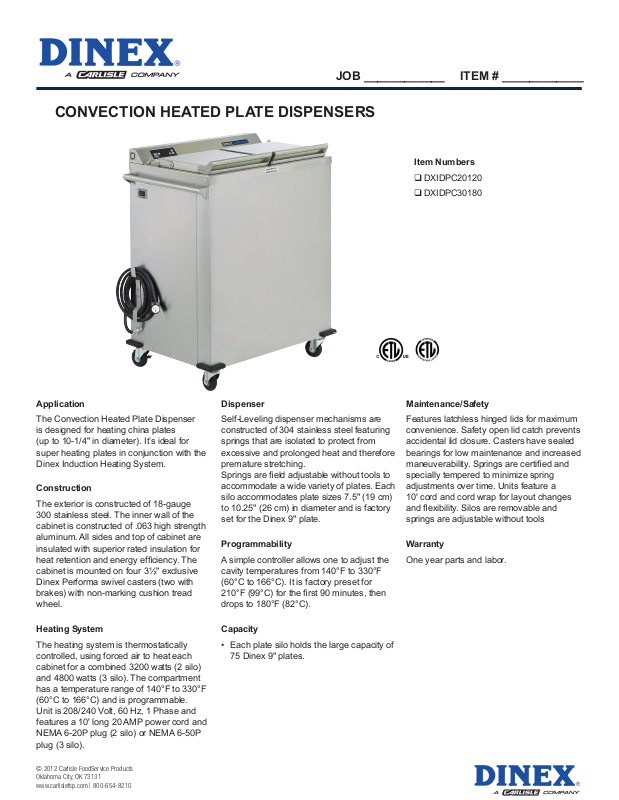

CONVECTION HEATED PLATE DISPENSERS
ITEM # ____________
Item Numbers
q DXIDPC20120
q DXIDPC30180
Application
The Convection Heated Plate Dispenser
is designed for heating china plates
(up to 10-1/4" in diameter). It’s ideal for
super heating plates in conjunction with the
Dinex Induction Heating System.
Construction
The exterior is constructed of 18-gauge
300 stainless steel. The inner wall of the
cabinet is constructed of .063 high strength
aluminum. All sides and top of cabinet are
insulated with superior rated insulation for
heat retention and energy efciency. The
cabinet is mounted on four 3½" exclusive
Dinex Performa swivel casters (two with
brakes) with non-marking cushion tread
wheel.
Heating System
The heating system is thermostatically
controlled, using forced air to heat each
cabinet for a combined 3200 watts (2 silo)
and 4800 watts (3 silo). The compartment
has a temperature range of 140°F to 330°F
(60°C to 166°C) and is programmable.
Unit is 208/240 Volt, 60 Hz, 1 Phase and
features a 10' long 20 AMP power cord and
NEMA 6-20P plug (2 silo) or NEMA 6-50P
plug (3 silo).
© 2012 Carlisle FoodService Products
Oklahoma City, OK 73131
www.carlislefsp.com | 800-654-8210
Dispenser
Self-Leveling dispenser mechanisms are
constructed of 304 stainless steel featuring
springs that are isolated to protect from
excessive and prolonged heat and therefore
premature stretching.
Springs are eld adjustable without tools to
accommodate a wide variety of plates. Each
silo accommodates plate sizes 7.5" (19 cm)
to 10.25" (26 cm) in diameter and is factory
set for the Dinex 9" plate.
Programmability
A simple controller allows one to adjust the
cavity temperatures from 140°F to 330°F
(60°C to 166°C). It is factory preset for
210°F (99°C) for the rst 90 minutes, then
drops to 180°F (82°C).
Capacity
• Each plate silo holds the large capacity of
75 Dinex 9" plates.
Maintenance/Safety
Features latchless hinged lids for maximum
convenience. Safety open lid catch prevents
accidental lid closure. Casters have sealed
bearings for low maintenance and increased
maneuverability. Springs are certied and
specially tempered to minimize spring
adjustments over time. Units feature a
10' cord and cord wrap for layout changes
and exibility. Silos are removable and
springs are adjustable without tools
Warranty
One year parts and labor.
CONVECTION HEATED PLATE DISPENSERS
7
6
5
4
3
2
1
E
F
D
C
B
4
3
2
1
E
F
42.957
23.681
33.931
D
C
B
6
5
4
3
2
1
E
F
DO NOT SCALE DRAWING
DATE
ENG
DRAWN
RS31606
DN
8/10/2012
LENGTH
35.359
HEIGHT
42.957
3.530
TOP VIEW
Items and Dimensions
ITEM
NUMBER
DXIDPC20120 IDPC20120
DXIDPC30180 IDPC30180
33.931
MODEL
NUMBER
23.681
DEPTH
LENGTH DEPTH HEIGHT
35.36"
(89.8 cm)
45.00"
(114.3 cm)
23.68"
(60.1 cm)
23.68"
(60.1 cm)
(109.2 cm)
(109.2 cm)
42.96"
42.96"
CASTERS ELECTRICAL SPECIFICATIONS
TYPE DIA. WATT
4 Swivel
2 w/brake
4 Swivel
2 w/brake
3 ½" 3200 15.4
3 ½" 4800 23.1
AMP.
(at 208V)
Nema 6-20P Nema 6-50P
SHIP
VOLTS
208/240
60 HZ
208/240
60 HZ
WEIGHT
260 lb
(117.9 kg)
320 lb
(145 kg)
G
Nema 6-50P
SHIP
NEMA
CUBE
PLUG
21.9 6-20P
28.4 6-50P
Please conrm that you have the most current specication sheet by visiting www.dinex.com.
Dinex® reserves the right to change specications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
© 2012 Carlisle FoodService Products
Oklahoma City, OK 73131
www.carlislefsp.com | 800-654-8210
024-ConvectionPlateHeater-Rev10/12
