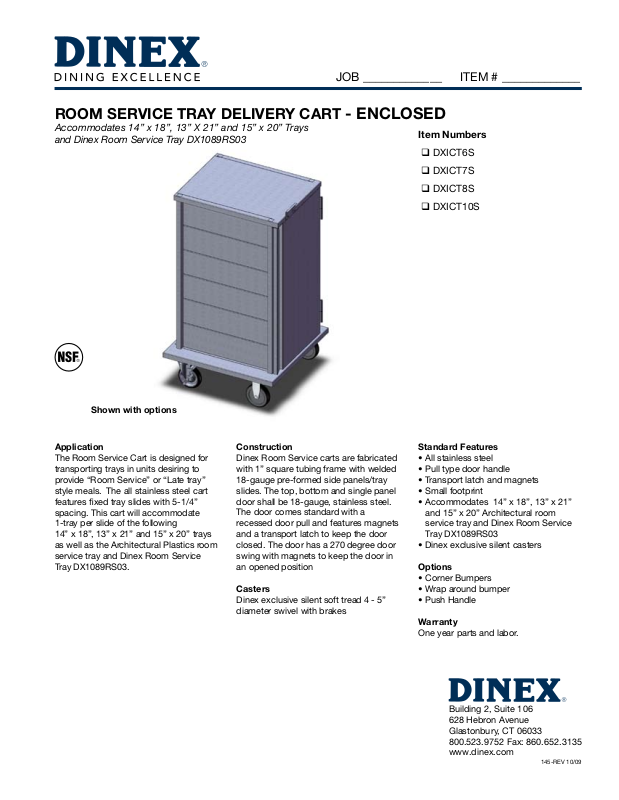

Dinex ICT-6S User Manual
JOB _____________
ROOM SERVICE TRAY DELIVERY CART - ENCLOSED
Accommodates 14” x 18”, 13” X 21” and 15” x 20” Trays
and Dinex Room Service Tray DX1089RS03
Item Numbers
q DXICT6S
q DXICT7S
q DXICT8S
q DXICT10S
ITEM # _____________
Shown with options
Application
The Room Service Cart is designed for
transporting trays in units desiring to
provide “Room Service” or “Late tray”
style meals. The all stainless steel cart
features fixed tray slides with 5-1/4”
spacing. This cart will accommodate
1-tray per slide of the following
14” x 18”, 13” x 21” and 15” x 20” trays
as well as the Architectural Plastics room
service tray and Dinex Room Service
Tray DX1089RS03.
Construction
Dinex Room Service carts are fabricated
with 1” square tubing frame with welded
18-gauge pre-formed side panels/tray
slides. The top, bottom and single panel
door shall be 18-gauge, stainless steel.
The door comes standard with a
recessed door pull and features magnets
and a transport latch to keep the door
closed. The door has a 270 degree door
swing with magnets to keep the door in
an opened position
Casters
Dinex exclusive silent soft tread 4 - 5”
diameter swivel with brakes
Standard Features
• All stainless steel
• Pull type door handle
• Transport latch and magnets
• Small footprint
• Accommodates 14” x 18”, 13” x 21”
and 15” x 20” Architectural room
service tray and Dinex Room Service
Tray DX1089RS03
• Dinex exclusive silent casters
Options
• Corner Bumpers
• Wrap around bumper
• Push Handle
Warranty
One year parts and labor.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
145-REV 10/09
ROOM SERVICE TRAY DELIVERY CART - ENCLOSED
Accommodates 14” x 18”, 13” X 21” and 15” x 20” Trays
and Dinex Room Service Tray DX1089RS03
53.875”
(136.8cm)
42.625”
(108.3cm)
48.25”
(122.6cm)
65.125”
(165.4cm)
23.75”
(60.3cm)
DXICT6S DXICT7S DXICT8S DXICT10S
Items and Dimensions
ITEM
NUMBER
DXICT6S ICT/6S
DXICT7S ICT/7S
DXICT8S ICT/8S
DXICT10S ICT/10S
MODEL
NUMBER
23.75”
(60.3cm)
23.75”
(60.3cm)
LENGTH DEPTH HEIGHT
23.75”
(60.3cm)
23.75”
(60.3cm)
23.75”
(60.3cm)
23.75”
(60.3cm)
24.50”
(62.2cm)
24.50”
(62.2cm)
24.50”
(62.2cm)
24.50”
(62.2cm)
42.625”
(108.3cm)
48.250”
(122.6cm)
53.875”
(136.8cm)
65.125”
9165.4cm)
23.75”
(60.3cm)
SHIP
WEIGHT
150 lb.
(68.0kg)
185 lb.
(83.9kg)
200 lb.
(90.7kg)
215 lb.
(97.5kg)
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex® reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
145-REV 10/09
