JOB _____________
ITEM # _____________
VALUE LINE HOT FOOD COUNTER
Item Numbers
q DXDVLHF2
q DXDVLHF3
q DXDVLHF2SL
q DXDVLHF3SL

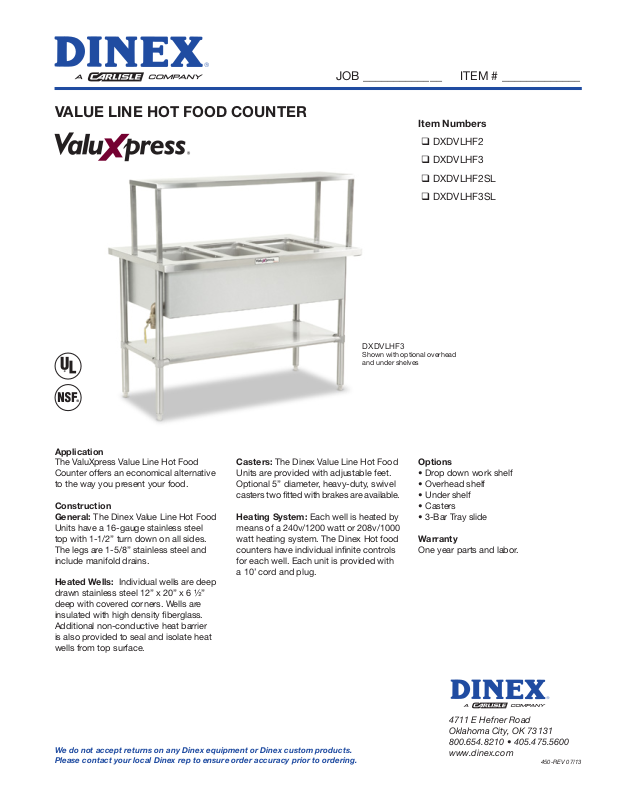

DXDVLHF3
Shown with optional overhead
and under shelves
Application
The ValuXpress Value Line Hot Food
Counter offers an economical alternative
to the way you present your food.
Construction
General: The Dinex Value Line Hot Food
Units have a 16-gauge stainless steel
top with 1-1/2” turn down on all sides.
The legs are 1-5/8” stainless steel and
include manifold drains.
Heated Wells: Individual wells are deep
drawn stainless steel 12” x 20” x 6 ½”
deep with covered corners. Wells are
insulated with high density berglass.
Additional non-conductive heat barrier
is also provided to seal and isolate heat
wells from top surface.
We do not accept returns on any Dinex equipment or Dinex custom products.
Please contact your local Dinex rep to ensure order accuracy prior to ordering.
Casters: The Dinex Value Line Hot Food
Units are provided with adjustable feet.
Optional 5” diameter, heavy-duty, swivel
casters two tted with brakes are available.
Heating System: Each well is heated by
means of a 240v/1200 watt or 208v/1000
watt heating system. The Dinex Hot food
counters have individual innite controls
for each well. Each unit is provided with
a 10’ cord and plug.
Options
• Drop down work shelf
• Overhead shelf
• Under shelf
• Casters
• 3-Bar Tray slide
Warranty
One year parts and labor.
4711 E Hefner Road
Oklahoma City, OK 73131
800.654.8210 • 405.475.5600
www.dinex.com
450-REV 07/13
VALUE LINE HOT FOOD COUNTER
14”
(35.6cm)
16”
(40.6cm)
36”
(91.4cm)
30”
(76.2cm)
Length
19”
(48.3cm)
Items and Dimensions
ITEM
NUMBER
DXDVLHF2 DVLHF/2
DXDVLHF3 DVLHF/3
DXDVLHF2SL DVLHF/2SL
DXDVLHF3SL DVLHF/3SL
MODEL
NUMBER
PLUG CONFIGURATION
18.89”
(48.1cm)
LENGTH DEPTH HEIGHT
35”
(88.9cm)
49”
(124.5cm)
53”
(134.6cm)
77”
(195.6cm)
30”
(76.2cm)
30”
(76.2cm)
19”
(48.3cm)
19”
(48.3cm)
36”
(91.4cm)
36”
(91.4cm)
36”
(91.4cm)
36”
(91.4cm)
Item Number: DXDVLHF2SL
WATTS AMPS
240v 208v 240v 208v
NEMA
NUMBER
2400 2000 10 9.6 6-20P
3600 3000 15 14.4 6-20P
2400 2000 10 9.6 6-20P
3600 3000 15 14.4 6-20P
SHIP
WEIGHT
145 lb.
(65.8kg)
190 lb.
(86.2kg)
145 lb.
(65.8kg)
190 lb.
(86.2kg)
NEMA 6-20P
Please conrm that you have the most current specication sheet by visiting www.dinex.com.
Dinex® reserves the right to change specications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
