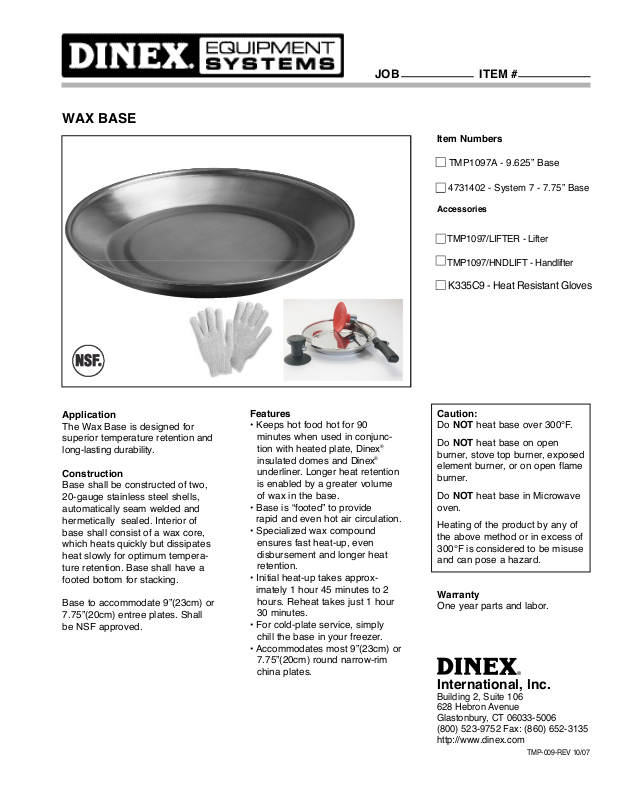

Dinex 4731402 User Manual
Item Numbers
TMP1097A - 9.625” Base
4731402 - System 7 - 7.75” Base
Accessories
TMP1097/LIFTER - Lifter
T M P 1 0 9 7 / H N D L I F T - Handlifter
K335C9 - Heat Resistant Gloves
Application
The Wax Base is designed for
superior temperature retention and
long-lasting durability.
Construction
Base shall be constructed of two,
20-gauge stainless steel shells,
automatically seam welded and
hermetically sealed. Interior of
base shall consist of a wax core,
which heats quickly but dissipates
heat slowly for optimum temperature retention. Base shall have a
footed bottom for stacking.
Base to accommodate 9”(23cm) or
7.75”(20cm) entree plates. Shall
be NSF approved.
Features
• Keeps hot food hot for 90
minutes when used in conjunction with heated plate, D i n e x
®
insulated domes and D i n e x
®
underliner. Longer heat retention
is enabled by a greater volume
of wax in the base.
• Base is “footed” to provide
rapid and even hot air circulation.
• Specialized wax compound
ensures fast heat-up, even
disbursement and longer heat
retention.
• Initial heat-up takes approx-
imately 1 hour 45 minutes to 2
hours. Reheat takes just 1 hour
30 minutes.
• For cold-plate service, simply
chill the base in your freezer.
• Accommodates most 9”(23cm) or
7.75”(20cm) round narrow-rim
china plates.
Caution:
Do NOT heat base over 300°F.
Do NOT heat base on open
burner, stove top burner, exposed
element burner, or on open flame
burner.
Do NOT heat base in Microwave
oven.
Heating of the product by any of
the above method or in excess of
300°F is considered to be misuse
and can pose a hazard.
Warranty
One year parts and labor.
ITEM #
WAX BASE
International, lnc.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033-5006
(800) 523-9752 Fax: (860) 652-3135
http://www.dinex.com
TMP-009-REV 10/07
JOB
International, lnc.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033-5006
(800) 523-9752 Fax: (860) 652-3135
http://www.dinex.com
TMP-009-REV 10/07
WAX BASE
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex®reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
Item and Dimensions
Diameter
Height
Cut-away
view
Wa x
c o m p o u n d
MODEL
NUMBER
TMP1097A
9.625”
(24cm)
1.5625”
(4cm)
12
per case
27 lbs.
(12.3kg)
.60
7.75””
(20cm)
1.5625”
(4cm)
10
per case
12.4 lbs.
(5.6kg)
.344731402
DIAMETER HEIGHT
PACK
SHIP
WEIGHT
SHIP
CUBE
