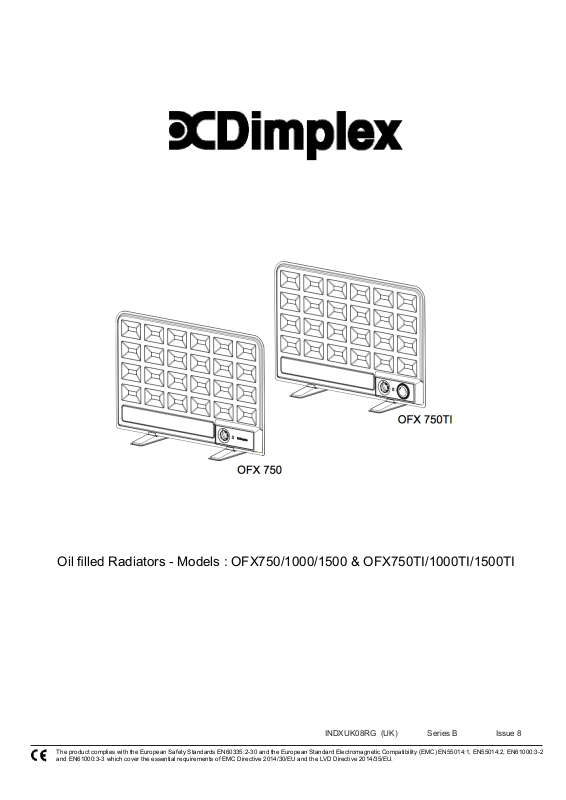

Page 1
OFX 750
Oil lled Radiators - Models : OFX750/1000/1500 & OFX750TI/1000TI/1500TI
INDXUK08RG (UK) Series B Issue 8
The product complies with the European Safety Standards EN60335:2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014:1, EN55014:2, EN61000:3-2
and EN61000:3-3 which cover the essential requirements of EMC Directive 2014/30/EU and the LVD Directive 2014/35/EU.
Page 2
1
Dimensions
(millimetres)
Models Watts A B C D
OFX750/OFX750TI 0.75kw 741 500 230 393
OFX1000/OFX1000TI 1.0kw 854 586 230 506
OFX1500/OFX1500TI 1.5kw 1084 670 230 736
2
3
4
OFX750/1000/1500
OFX750TI/1000TI/1500TI
OFX750TI/1000TI/1500TI
6
5
Page 3
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
As with all portable appliances - This product is only suitable for well insulated spaces or occasional use
IMPORTANT SAFETY ADVICE
WARNING: The heater should only be used
on a horizontal and stable surface with the
feet securely tted.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they
have been given supervision or instruction
concerning the use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised. Children
aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that
it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children
aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or
perform user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
WARNING: In order to avoid overheating, do
not cover the heater.
DO NOT use this heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
IMPORTANT: If the supply cord is damaged,
it must be replaced by the manufacturer, its
service agent or similarly qualied persons in
order to avoid a hazard.
WARNING - DO NOT USE THIS APPLIANCE IN A
BATHROOM.
DO NOT COVER THE RADIATOR or place material or
garments on it, or obstruct the air circulation around the
heater, for example with curtains or furniture, as this could
cause overheating and a re risk.
DO NOT use the heater if it has been dropped or damaged,
contact our Customer Helpline for further advice.
DO NOT use the heater if it develops an oil leak. Unplug
the heater and contact your supplier or our Customer
Helpline. If the heater is tipped over, unplug it and allow
it to cool before standing it back upright.
DO ENSURE that the mains lead cannot be tripped over.
DO NOT operate the heater with the mains lead
overhanging the heated surfaces.
Electrical connection
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and
the voltage marked on the heater must correspond to the
supply voltage. This heater is tted with a rewirable plug
incorporating a 13 amp fuse. In the event of replacing the
fuse in the plug supplied, a 13 amp fuse approved by ASTA
to BS 1362 must be used. If any other type of plug is used,
a 15 amp fuse must be tted in the plug, the adaptor, or at
the distribution board.
IMPORTANT : If the plug is not suitable for your socket,
the 13 amp plug should be removed.
Before wiring the appropriate plug, please note that the
wires in this mains lead are coloured in accordance with
the following code :
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
Connect the GREEN AND YELLOW wire to the terminal
marked ‘E’ or by the earth symbol , or coloured GREEN
or GREEN AND YELLOW.
Connect the BROWN wire to the terminal marked ‘L’ or
coloured RED.
Connect the BLUE wire to the terminal marked ‘N’ or
coloured BLACK.
Preparation for Use
The heater may only be used free standing on feet. The
heater should only be operated when in the upright position
as shown in Fig. 1.
WARNING - THIS HEATER MUST ONLY BE USED IN THE
UPRIGHT POSITION ON A HORIZONTAL AND STABLE
SURFACE WITH THE FEET SECURELY FITTED.
THIS RADIATOR MUST NOT BE LOCATED IMMEDIATELY
BELOW A FIXED SOCKET OUTLET.
Free standing on feet
Never use the radiator free standing without the feet
tted.
Lay the radiator on its front and offer each foot up to its
mounting bracket, as shown in Fig. 2. Fix each foot using
the three screws provided and tighten them fully.
Stand the radiator on its feet and place it in position ready
for use.
WARNING - Do not use the heater on deep pile carpets
or the long hair type of rugs. Keep combustible
materials such as drapes and other furnishings clear
from the front, sides and rear of the heater. Do not use
the heater to dry your laundry.
Please Note: Although this heater is manufactured
to comply with the relevant safety standards, certain
types of carpets could become discoloured by the
temperatures under a portable heater. If you are
concerned about this, we recommend that you contact
the carpet manufacturer for guidance. Alternatively,
either stand the heater on a suitable base to shield the
carpet or call our Helpline for further advice.
Page 4
Using the radiator
THE HEATER CARRIES A WARNING ‘DO NOT COVER’ TO
ALERT THE USER TO THE RISK OF FIRE THAT EXISTS
IF THE HEATER IS ACCIDENTALLY COVERED.
Operation
When you have completed the installation, plug in and
switch on the mains supply.
The mains neon indicator light will glow showing that power
is available - see ‘A’ in Fig. 3 and Fig. 4.
When the radiator is not in use, switch off the power supply
and pull the plug out from the socket.
Controls
Thermostat (see ‘B’ in Fig. 3 and Fig. 4)
The thermostat controls the heat output according to the
room temperature.
This ensures that the heater will not produce heat
unnecessarily when the room is warm.
To set the temperature you require, turn the thermostat
knob clockwise until the desired temperature is reached.
Alternatively to heat a cold room quickly, turn the thermostat
knob up fully.
When the room has reached the desired temperature, turn
the thermostat knob anti-clockwise until the thermostat just
clicks off.
The heater will now automatically operate at this temperature.
Mechanical Timer (TI models only)
Note: The timer clock will only operate when the product is
connected to the mains supply
Operation modes
There are two operating modes on the timer, Manual
operation and Auto operation. The operation mode is set
using the slide switch on the timer - see Fig 5.
Manual operation (Position - I )
This setting allows power to the product uninterrupted by
the timer, however other product controls will continue
to function as normal.
Auto operation (Position - )
This setting allows the heater to be controlled by the
timer. The product will be switched on and off depending
on the pre-set timer program.
Setting the ‘Auto’ ON and OFF times
To set the timer :
1. Using your nger tip or the tip of a pencil, push in as
many segments as necessary around the dial, according to
the times you don’t require heat – see Fig. 6. Each segment
pushed in switches the heater OFF for that part of the hour.
All other segments will be ON. For example, Fig. 6 shows
the timer set to switch the heater OFF between 11pm and
1.45am.
2. You can select as many ON periods as you like, within the
24-hour day. The settings will repeat every day until changed.
3. To change ON and OFF times, simply push in any ‘ON’
segments you wish to cancel and pull out new ‘ON’ segments
as required.
Switching to Auto
Ensure the thermostat and/or the heat selector are set for
the desired heat output.
Check that the clock shows the correct time of day. Set the
mode slide switch to , the heater will switch ON and OFF
according to the timer settings (see Fig. 6).
IMPORTANT NOTES
Remember to observe all safety warnings when operating
the heater on auto setting unattended or attended .
If the mains supply to the heater is interrupted, the timer
clock will stop until power is restored ; reset the time of day
to ensure correct ON and OFF times.
Safety – Overheat Protection - all models
The heater is tted with a thermal safety cut-out which will switch
off the heater should it overheat for any reason. If the cut-out
operates it is the result of abnormal overheating, and the
Customer Services Helpline should be contacted for further
advice.
Cleaning
WARNING – ALWAYS DISCONNECT FROM THE POWER
SUPPLY AND ALLOW THE RADIATOR TO COOL BEFORE
CLEANING.
Do not use detergents, abrasive cleaning powder or polish
of any kind on the body of the radiator, as these can damage
the nish.
Wipe the radiator with a dry cloth to remove dust and a damp
cloth (not wet) to clean off stains.
Be careful not to allow moisture to enter the control box
Setting the Time of Day
To set the time of day, rotate the timer dial clockwise
(indicated by the arrow) until the correct time of day is
opposite the reference mark -
see Fig. 5. The 24-hour clock is used ; e.g. 4pm is ‘16’
(16:00hrs).
Recycling
For electrical products sold within the European
Community. At the end of the electrical products
useful life it should not be disposed of with household
waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice in
your country.
Page 5
After Sales Service and Guarantee terms and conditions
Your product is guaranteed for 3 years from the date of
purchase. If you experience a problem with our Dimplex
product, which is found to be defective due to faulty
materials or workmanship within the Guarantee Period, this
Dimplex Guarantee will cover repair or - at the discretion
of Dimplex– replacement with a functionally equivalent
Dimplex product.
Within the guarantee period we undertake to repair or
exchange this product free of charge providing:
a) Proof of purchase such as a sales receipt should be
provided, showing that the appliance was bought within the
36-months prior to registering the defect/fault.
b) The appliance was correctly installed and operated in
accordance with the manufacturer’s instructions and used
solely for domestic purposes.
c) The defect/fault was not as a result of accident, misuse,
unauthorised modication or inexpert repair
Your rights under this guarantee are additional to your
statutory rights, which in turn are not affected by this
guarantee.
If after following these steps your product still does not
operate you should return it to your point of purchase.
Please do not return a faulty product to us as this may
result in loss or damage and delay in providing you with a
satisfactory service.
Please retain your receipt as proof of purchase.
What is not covered by a Dimplex Guarantee?
The Dimplex Guarantee does not cover any of the following:
Any fault or damage to your Dimplex product due to faulty
materials or workmanship occurring outside the [three year]
Guarantee Period.
Normal wear and tear including parts that might wear out
over time or consumables, such as [lters].
Any fault or damage occurring to any pre-owned Dimplex
product or to any other equipment or property.
Accidental damage to your Dimplex product or damage to
your Dimplex product from external sources (for example,
transit, weather, electrical outages or power surges).
Fault or damage to your Dimplex product which is:
• not due to faulty materials or workmanship or which is
due to circumstances outside Dimplex’s control.
• caused by use of your Dimplex product for anything
other than normal domestic household purposes in the
country where it was purchased.
• caused by any misuse, abuse or negligent use of the
Dimplex product, including but not limited to any failure
to use it in accordance with the Operating Instructions
supplied with the product.
• caused by any failure to assemble, install clean and
maintain your Dimplex product in accordance with the
Operating Instructions supplied with the product unless
this was carried out by Dimplex or its authorised dealers.
• caused by repairs or alterations to your Dimplex product
not carried out by Dimplex service personnel or its
authorised dealer(s).
Please retain your receipt as proof of purchase.
Terms and Conditions
The Dimplex Guarantee is valid for three calendar years
from the date of purchase of your Dimplex product from a
recognised retailer in the country of purchase and use, or
the date of delivery of the product if later, always provided
the original receipt has been retained and is produced as
proof of purchase.
You must provide to Dimplex or its authorised agents on
request the original receipt as proof of purchase and - if
required by Dimplex - proof of delivery. If you are unable to
provide this documentation, you will be required to pay for
any repair work required.
Any repair work under the Dimplex Guarantee will be carried
out by Dimplex or its authorised dealer(s) and any parts
that are replaced will become the property of Dimplex. Any
repairs performed under the Dimplex Guarantee will not
extend the Guarantee Period.
Any replacement of your Dimplex product by Dimplex during
the Guarantee Period will start the three-year Guarantee
Period afresh from the date of delivery of the replacement
Dimplex product to you.
The Dimplex Guarantee does not entitle you to recovery of
any indirect or consequential loss or damage including but
not limited to loss or damage to any other property.
The Dimplex Guarantee is in addition to your statutory rights
as a consumer and your statutory rights are not affected by
this Dimplex Guarantee.
Contact Dimplex
If you have any questions about what the Dimplex
Guarantee covers and does not cover or how to claim under
the Dimplex Guarantee, please contact us:
Glen Dimplex Heating & Ventilation, Millbrook House,
Grange Drive, Hedge End, Southampton SO30 2DF
Telephone: 0344 879 3588
Email: aftersales@dimplex.co.uk
Visit: www.dimplex.co.uk
Model Identier(s):
Heat output
Nominal heat output Pnom 0.75 1.0 1.5 0.75 1.0 1.5 kW
Minimum heat output (indicative) Pmin 0.75 1.0 1.5 0.75 1.0 1.5 kW
Maximum continuous heat output Pmax,c 0.75 1.0 1.5 0.75 1.0 1.5 kW
Auxiliary electricity Consumption
At nominal heat output elmax 0.0 0.0 0.0 0.0 0.0 0.0 kW
At minimum heat output elmin 0.0 0.0 0.0 0.0 0.0 0.0 kW
In standby mode elSB 0.0 0.0 0.0 0.0 0.0 0.0 kW
Type of heat output/ room temperature control
With mechanical thermostat room temperature control Yes
Contact Details Glen Dimplex Heating & Ventilation, Milbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF
OFX750 OFX1000 OFX1500 OFX750TI OFX1000TI OFX1500TI
Page 6
Millbrook House
Grange Drive
Hedge End
Customer Helpline: 0344 879 3588
Email: aftersales@dimplex.co.uk
Website: www.dimplex.co.uk
Southampton
SO30 2DF
© GDC Group LTD. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in
writing. A division of the GDC Group LTD, Millbrook house, Grange Drive, Hedge End, Southampton SO30 2DF.
Republic of Ireland: 01 842 8222
Loading...
