Electronic Convector
PPC Series
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electric shock
and injury to person, including the following:
1. Read all instructions before using this heater.
2. Do not operate any heater after it malfunctions. Disconnect power at the service panel and have the heater
inspected by a reputable electrician before reusing.
3. To disconnect the heater, turn the controls to the OFF
position, and turn off the power to the heater circuit at the
main disconnect panel.
4. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric
shock or re, or damage the heater.
5. To prevent a possible re, do not block the air intakes or
exhaust in any manner.
6. A heater has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or ammable
vapors or liquids are used or stored.
7. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause re, electric shock, or injury to persons.
8. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes,
etc. and curtains at least 3 ft. (0.9 m) from the front and
sides of the heater.
9. Extreme caution is necessary when any heater is used
by or near children or invalids, and whenever the heater
is left operating and unattended.
10. Do not use outdoors.
11. Changes or modications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
SAVE THESE INSTRUCTIONS
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re-
ceiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC CAUTION: Any changes or modications not expressly ap-
proved by the party responsible for compliance could void the user’s
authority to operate this equipment.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Installation Instructions
WARNING: Do not install the heater where the controls
can be reached by a person bathing or showering.
CAUTION: The heater must not be located directly be-
neath a wall socket outlet.
CAUTION: The supplied hanging components are de-
signed for use with this heater only. Improper use, or use
for purposes other than intended, may cause damage or
injury.
1. Remove the mounting bracket from the back of the con-
vector.
2. Using the mounting bracket as a guide determine the lo-
cation of the convector, see Figure 1 for minimum clearances.
3. Attach the mounting bracket securely to the wall using
the appropriate hardware (not included) for the mounting
surface.
4. Mount the convector to the mounting bracket.
!
NOTE: Ensure that the air can enter and leave the heater
freely, through the inlets at the bottom and the outlets at the
front.
Electrical Connection
WARNING: Heater and controls should be installed by a
qualied contractor. Wiring procedures and connections
Figure 1
8.6"
(102 mm)
MIN
4.6"
(118 mm)
8.1"
(206 mm)
MIN
(218 mm)
4"
MIN
A
(150 mm)
Model A
PPC0500 4.6 in. (116 mm)
PPC1000 11.2 in. (285 mm)
PPC1500 14.0 in. (356 mm)
PPC2000 20.7 in. (526 mm)
5.9"
MIN
7.25"
(184mm)
4.1"
(105 mm)
5.9"
(150 mm)
MIN
16.9"
(430 mm)
4"
(102 mm)
MIN
7212840100R06

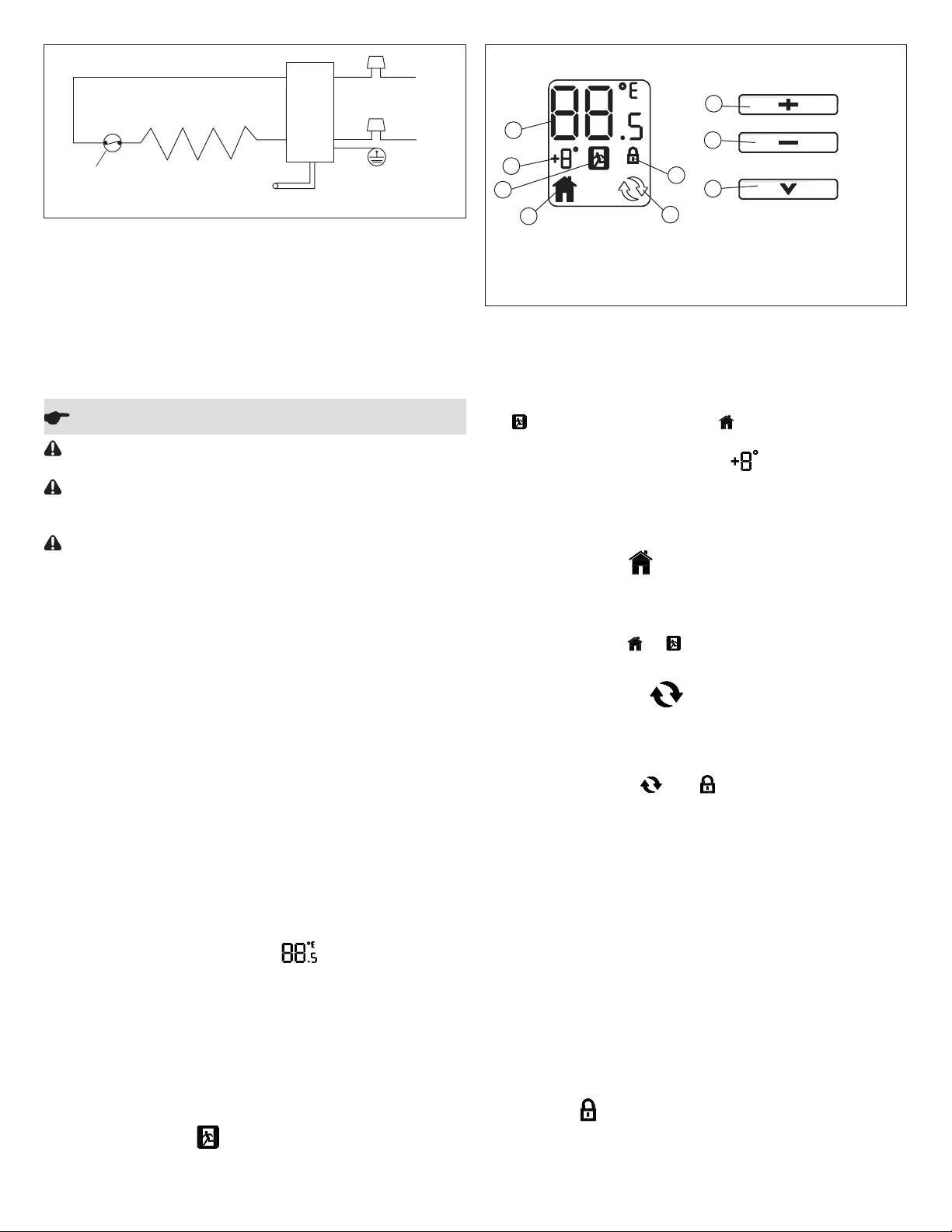

Wiring Diagram
Sensor
L1
L2
Thermal Cutout
Temperature
should be in accordance with the National Electric Code
(CEC & NEC) and local codes.
Connect the supply wire into a properly rated recess box.
!
NOTE: Consult your local electrical code for applicable
wire gauge.
Connect L1 from the power supply to the L1 labelled wire
from the unit, connect the L2 wire from the power supply to
the L2 labelled wire from the unit, and connect the ground to
the ground screw on the unit.
Ground
Figure 2
H
A
C
B
D
A - Setting/Temperature Display
B - Economy Setting Icon
C - Set Back Temperature Setting
D - Comfort Setting Icon
E - Synchronized Icon
G
F
I
E
F - Lock Icon
G - Decrease Button
H - Increase Button
I - Menu Button
Temperature for a variable period of time. By pressing the V
the Economy Setting will be enabled - signied by the icon
ashing. After the Set Back Temperature has been set, the
icon will become solid after three seconds and the Set Back
Temperature will be enabled.
To return back to the Comfort Setting press the V button and
Operation
CAUTION: This panel convector must be properly
installed before it is used.
CAUTION: Prior to energization remove all construction
dirt (plaster, sawdust, etc.) from interior and exterior of panel
convector.
CAUTION: Avoid direct contact of paper, fabric, or
furniture with panel convector, to prevent a possible re.
Dimplex panel convectors are designed and tested for safe
and trouble-free operation. Free airow throughout the panel
convector is very important for the most efcient operation
of the panel convector. All Dimplex panel convectors are
protected against overheating by a built-in thermal cutout.
A thermal cutout will switch off the heater if for any reason
it overheats. Should the cutout operate, disconnect heater
from power supply and determine the reason for overheating.
Resolve the reason for overheating before attempting to use
the heater again. To reset the heater it is necessary to switch
off the power to the heater for several minutes.
The PPC features CONNEXTM, a wireless technology that
works with Dimplex single and multi-zone CONNEXTM
controllers to provide simple whole home connectivity and
comfort. CONNEXTM controllers are available to control one
or multiple CONNEXTM heaters within a 50 ft. (15 m) radius.
When power is rst supplied to the PPC the Setpoint
Temperature will ash in the temperature display area. At
any time either the + or � button can be pressed to have the
temperature setpoint displayed again.
A. Setting/Temperature Display
The PPC is designed to control the temperature of a room
anywhere from 32-86°F (0-30°C). Pressing the + or
increase or decrease the desired temperature for the room to
be heated by 0.5° (in either °C or °F).
After 5 seconds the Setpoint Temperature will switch to
display the intake temperature of the room.
!
NOTE: Pressing the + and � at the same time will toggle
between °C and °F.
B. Economy Setting
The Economy Setting can be used to change the Setpoint
2 www.dimplex.com
�
will
the icon will disappear and the icon will appear.
C. Set Back Temperature Setting
The Set Back Temperature Setting is used during periods
when the Economy setting feature is active. This temperature
adjustment can be set by pressing the V followed by the + or
�
.
D. Comfort Setting
The Comfort Setting icon will be displayed when the heater
is in normal operation based on the Setpoint Temperature for
the room.
!
NOTE: Either the or icon will always be visible,
dependent on the setting being used.
E. Synchronized Icon
The PPC and the controller will need to be synchronized, to
operate together. To do this:
1. On the PPC heater press and hold the V button for 3
seconds, both the and icons will begin to ash.
2. Press the � , + and then V, on the PPC heater.
3. Within 10 seconds press any button once on the
CONNEXTM controller.
!
NOTE: There is a 3 second delay between pressing the
last button the CONNEXTM controller and the PPC heater.
!
NOTE: To desynchronize a PPC heater from the
synchronized CONNEXTM controller, on the PPC heater:
1. Press and hold the V for 3 seconds.
2. Press the V, + and then �.
Nothing needs to be done to the CONNEXTM controller.
Dimplex single and multi-zone CONNEXTM controllers are
sold separately and are available for purchase from your
authorized Dimplex dealer.
To nd your local Dimplex dealer, visit www.dimplex.com.
F. Lock Icon
The Panel Proportional Convector Heater has a Button Lock
feature, to prevent settings from accidentally being changed.
1. Press and hold the V for 3 seconds. Both the and
Icons will begin to ash.
2. To Enable: Within 5 seconds press +, then �, then +,
then �. The icon will now be visible.
To Disable: Within 5 seconds press �, then +, then �,
then +. The icon will not be visible.
!
NOTE: The PPC can be locked in either the Comfort or
Economy Setting. Ensure that the desired icons are present
when locking is complete.
Maintenance
WARNING: Disconnect power and allow the unit to com-
pletely cool before attempting any maintenance or clean-
ing to reduce the risk of re, electric shock, or damage to
persons.
CAUTION: The heater should not be operated with an
accumulation of dust or dirt on or in the unit, as this can
cause a build up of heat and eventual damage. For this
reason the heater must be inspected regularly, depending
upon conditions and at least at yearly intervals.
The outer surface can be wiped with a soft damp cloth.
!
NOTE: Do not use scouring powder or furniture polish,
as these can damage the surface.
Dust that collects within the unit can be removed from the
outside using a vacuum cleaner.
Warranty
The Manufacturer warrants the convector heater and components of
the enclosed product against any defect in material or workmanship
for a period of two years from the date of purchase, with the
exception of the elements which are warranted to be free from
defect in material and workmanship for ten years. In full satisfaction
of any claims under this Warranty the Manufacturer will repair or
replace without charge, in its factory or in the eld as it alone may
decide, any parts which in its opinion are defective.
The Manufacturer shall not be responsible for any transportation
or shipping costs in relation to such repair or replacement except
as specically assumed by it. Misuse of this product or repairs by
persons other than the Manufacturer’s authorized personnel without
the Manufacturer’s written approval, will void this Warranty.
This Warranty is in lieu of all other warranties or conditions
whether expressed or implied including but not limited to those of
merchantability or tness for purpose and shall constitute the sole
remedy of the Purchaser and the sole liability of the Manufacturer in
respect of the sale of the product, whether in the nature of breach or
breach of fundamental term, or of negligence or otherwise.
The Manufacturer shall not be liable for any special, indirect or
consequential damages or for any damages resulting from removal
or replacement of a convector heater subject to warranty claim
without the Manufacturer’s authorization.
Any claims under this Warranty must be submitted in writing to the
Service Manager, Dimplex North America Ltd., 1367 Industrial Rd.,
Cambridge, Ontario N1R 7G8, Canada.
Replacement Parts
1. Display Board .....................6001880100RP
2. Sensor Assembly ..................2500750100RP
3. Power Board Assembly ..............6001870100RP
4. Mounting Bracket
500W Heater ....................PPC500MBKT-RP
1000W Heater ..................PPC1000MBKT-RP
1500W Heater ..................PPC1500MBKT-RP
2000W Heater ..................PPC2000MBKT-RP
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
© 2015 Dimplex North America Limited
3
Loading...
