Owner’s Manual

Model DF2624L 6908931359

IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to install or use this replace. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit www.dimplex.com

7213540100R06

Page 2

Table of Contents

Welcome & Congratulations ..................3

IMPORTANT INSTRUCTIONS ................4

Fireplace Installation .......................6

Operation .................................9

Maintenance .............................12

Warranty ...............................13

Replacement Parts ........................15

Always use a qualied technician or service agency to repair this stove.

2 www.dimplex.com

NOTE: Procedures and techniques that are considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not carefully followed, will expose the user to the risk of re, serious injury, or death.

Page 3

Welcome & Congratulations

Thank you and congratulations for purchasing an electric replace from Dimplex. Please use our convenient online registration page to record your model and serial numbers for future reference at

www.dimplex.com/register

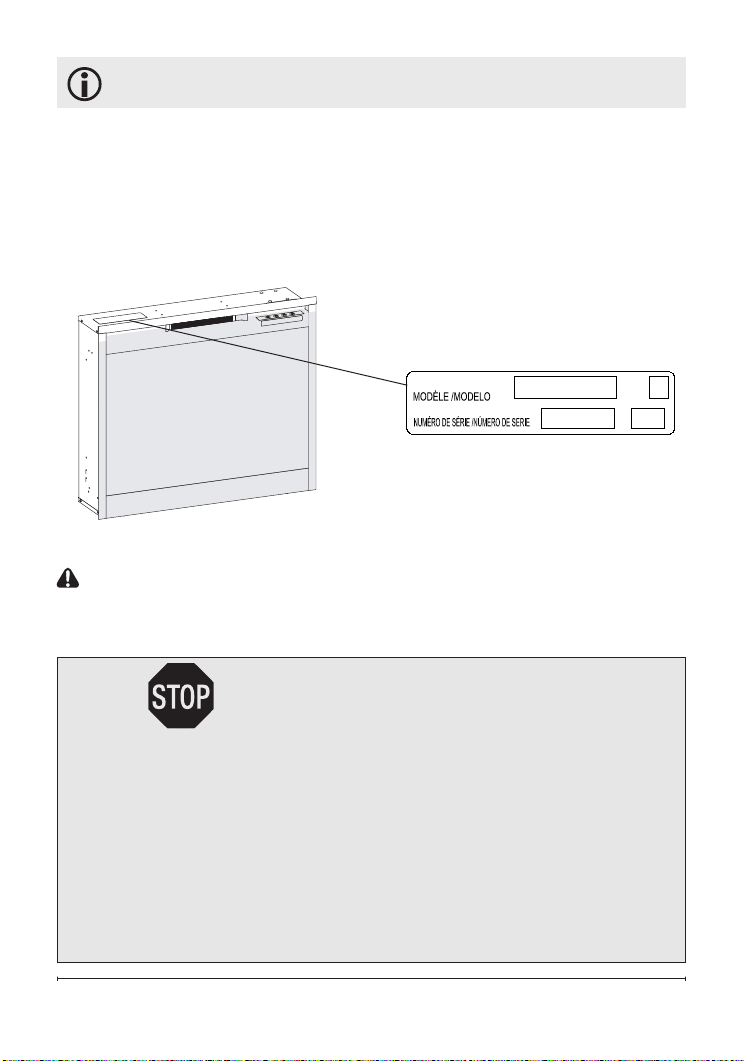

MODE L

S ER IAL No.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a possible electric shock, re hazard and will void the warranty.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR  Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

In order to better serve you, please have your model and serial number

ready or register your product online before calling (See above)

MOD.

Page 4

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

① Read all instructions before using this heater.

② This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim around the heater outlet becomes hot during heater operation.

WARNING: High tempera-

tures may be generated under

certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the heater when

not in use.

⑤ Do not operate any heater with

a damaged cord or plug, or if the heater has malfunctioned, or if it

has been dropped or damaged

in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.

⑥ Do not use outdoors. ⑦ Never locate this heater where

it may fall into a bathtub or other

water container. ⑧ Do not run cord under

carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from trafc

area and where it will not be

tripped over. ⑨ To disconnect heater, turn

controls to off, then remove plug from outlet.

⑩ Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or damage the heater.

⑪ To prevent a possible re, do not block air intakes or exhaust in any manner.

⑫ All electrical heaters have hot and arcing or sparking parts inside. Do not use in areas where

gasoline, paint, or ammable liquids are used or stored.

⑬ Do not modify the heater. Use it only as described in this manual. Any other use not recommended by the manufacturer may cause re, electric shock, or injury to persons.

4 www.dimplex.com

Page 5

IMPORTANT INSTRUCTIONS

⑭ To reduce the risk of electric shock, this heater has a polarized

plug (one blade is wider than

the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet. Do not change the plug in any way. Always plug heaters directly into a wall outlet/ receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

⑮ Do not burn wood or other

materials in the replace.

⑯ Do not strike the front glass. ⑰ Always use a certied

electrician should new circuits or outlets be required.

⑱ Always use properly grounded,

fused and polarized outlets.

⑲ Disconnect all power supply

before performing any cleaning, maintenance or relocation of the heater.

⑳ When transporting or storing

the heater and cord, keep in a dry place, free from excessive

vibration and store so as to avoid

damage.

WARNING: Remote control contains a small battery. Keep away from children. If

swallowed, seek medical attention immediately.

WARNING: Do not install

battery backwards, charge, put in re or mix with used or other

battery types - may explode or

leak causing injury.

NOTE: Changes or

modications not expressly

approved by the party responsible

for compliance could void

user's authority to operate the

equipment.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

SAVE THESE INSTRUCTIONS

Page 6

Fireplace Installation

WARNING: To reduce the risk of

re, do not store or use gasoline or other ammable vapors or liquids in the vicinity of the heater.

WARNING: Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of re, electric shock or injury to persons.

WARNING: Construction and electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of re, electric shock and injury to persons.

WARNING: Do not attempt to wire your own new outlets or

circuits. To reduce the risk of re, electric shock or injury to persons, always use a licensed electrician.

NOTE: A 15 Amp, 120 Volt alternating current (VAC) circuit is required. A dedicated circuit

is preferred but not essential in

all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse

blows on a regular basis when the

heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker.

Glass Installation

(if applicable)

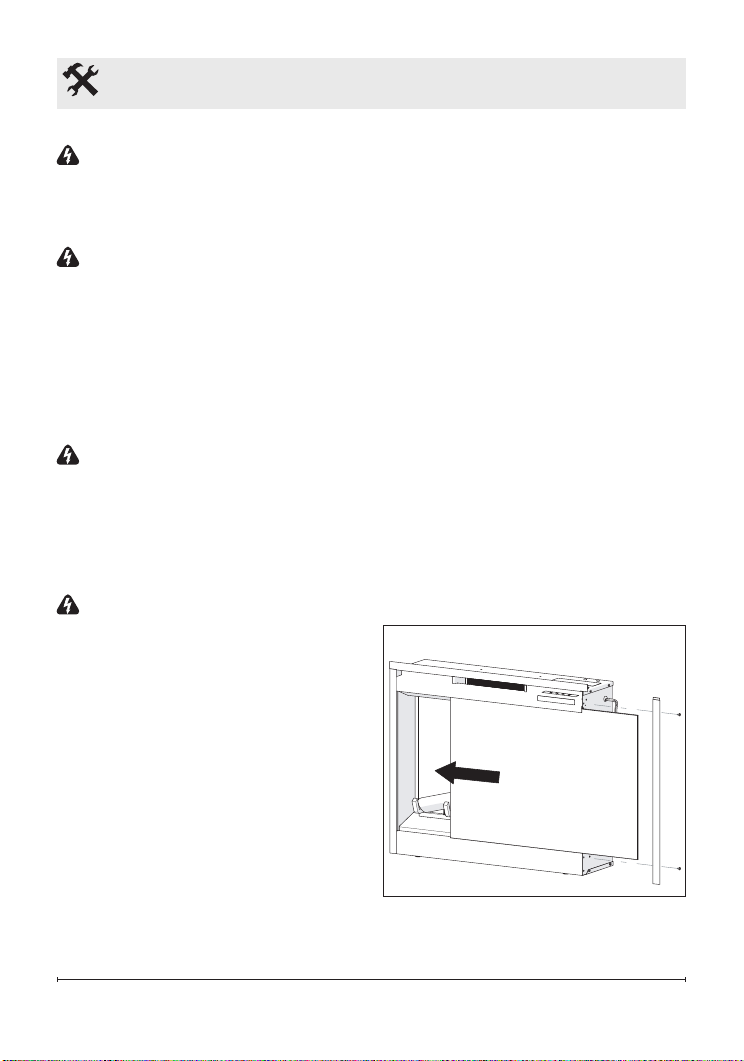

1. Unpack the rebox and the front glass.

2. Remove the glass retaining bracket from one side of the rebox. (Figure 1)

3. Slide the glass into the glass support track on both the top and the bottom, until it is fully inserted.

4. Replace the glass retaining bracket.

Figure 1

6 www.dimplex.com

Page 7

Fireplace Installation

Mantel Installation

For use with a new or existing

mantel. Depending on the available space within the mantel cavity, the unit can be secured to the mantel at the bottom side or back. Remove the screw on the bottom ange in the most appropriate place for securing and using the provided L-bracket and the screw that was removed attach the rebox to the mantel. (Figure 2)

NOTE: There are no guide

holes provided for the L-Brackets in the mantel.

If not installing the unit into a Dimplex mantel the required opening

dimensions for the replace are:

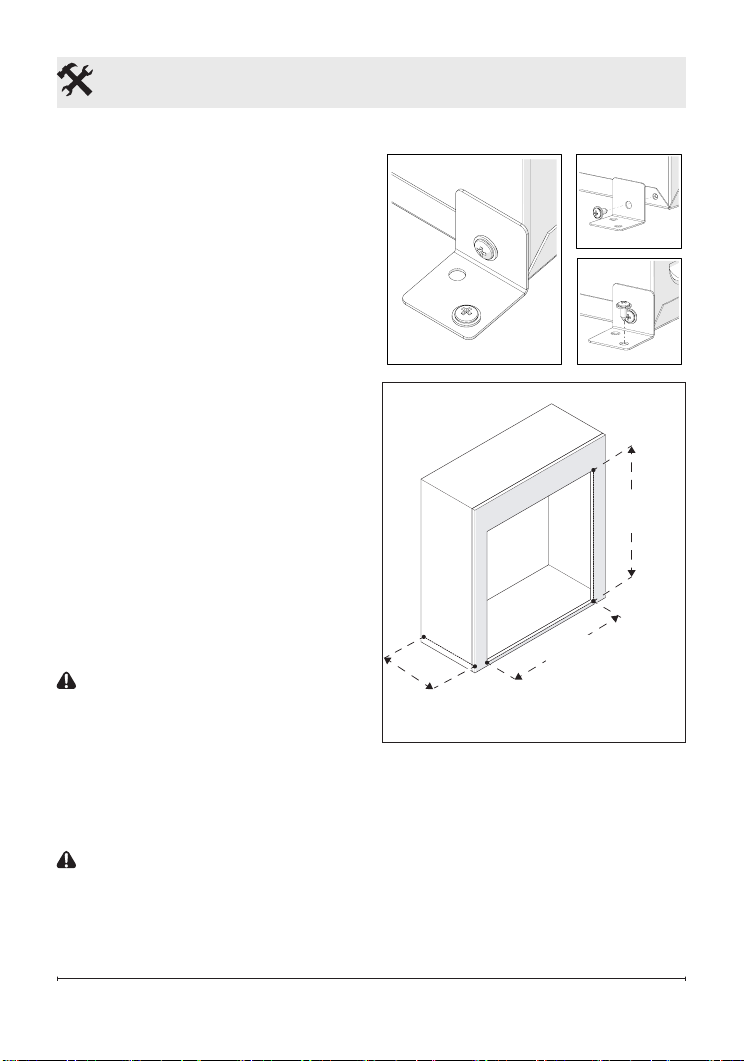

27.0 in. (686 mm) wide x 23 ⅛ in. (587 mm) high x 7 ½ in. (191 mm) deep (Figure 3).

CAUTION: Clearance for air circulation beneath the replace insert is provided by four felt feet.

Do not install the replace insert directly on carpet or similar surfaces which may restrict air circulation.

CAUTION: If installing the

replace in a carpeted area, place a one-piece, solid, at surface under the replace. Ensure that

Figure 2

Figure 3

23 ⅛ in.

(587 mm)

27.0 in.

(686 mm)

7 ½ in.

(191 mm)

all of the feet rest securely on this surface.

NOTE: The rebox is to be

installed from the front of the mantel and inserted so that the

anges are ush against the front surface of the mantel.

Page 8

Fireplace Installation

Bathroom Installation

This rebox must be protected by a GFI receptacle or circuit. If a receptacle is used it must be readily accessible.

To prevent electrical shock this unit is an electrical appliance

that is not watertight and must be installed as to prevent water from

entering the unit. This unit must be installed away from showers, tubs, etc. Never locate replace

where it may fall into a bathtub or

other water containers.

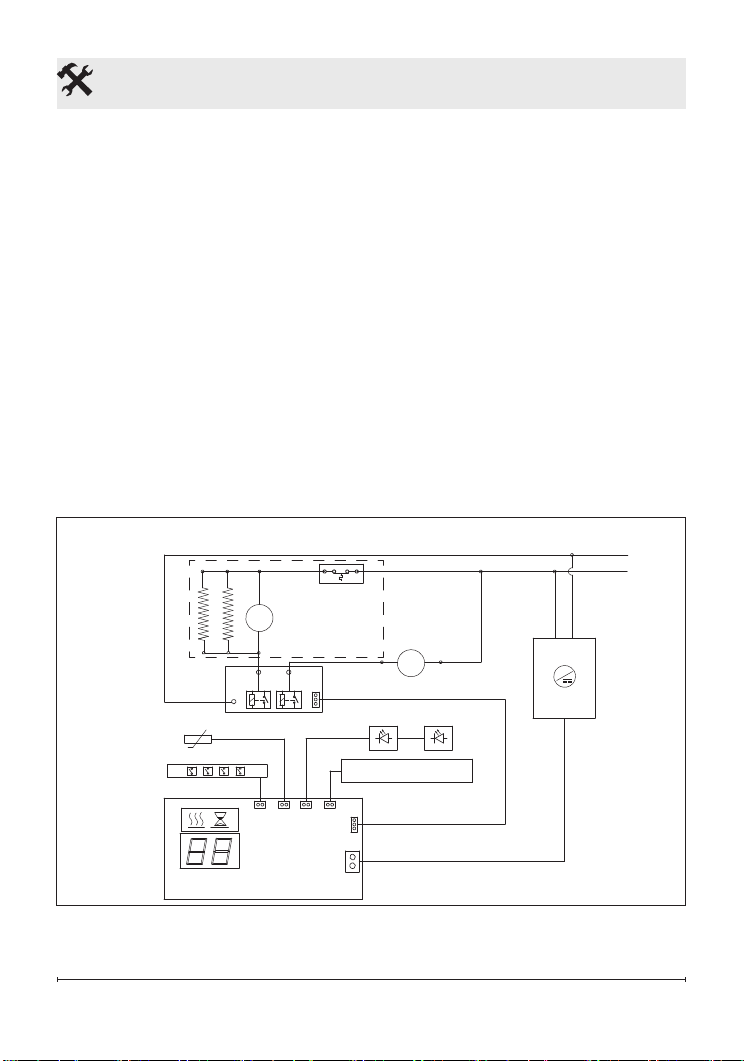

Wiring Diagram

HEATER ASSEMBLY

120V / 12V

AC / DC

AC / DC ADAPTER

THERMISTOR

SWITCHBOARD

DISPLAY-CONTROL BOARD

RELAY BOARD

FLICKER MOTOR

FLAME LED LIGHT ASSEMBLY

LOGSET ASSEMBLY

8 www.dimplex.com

Page 9

Operation

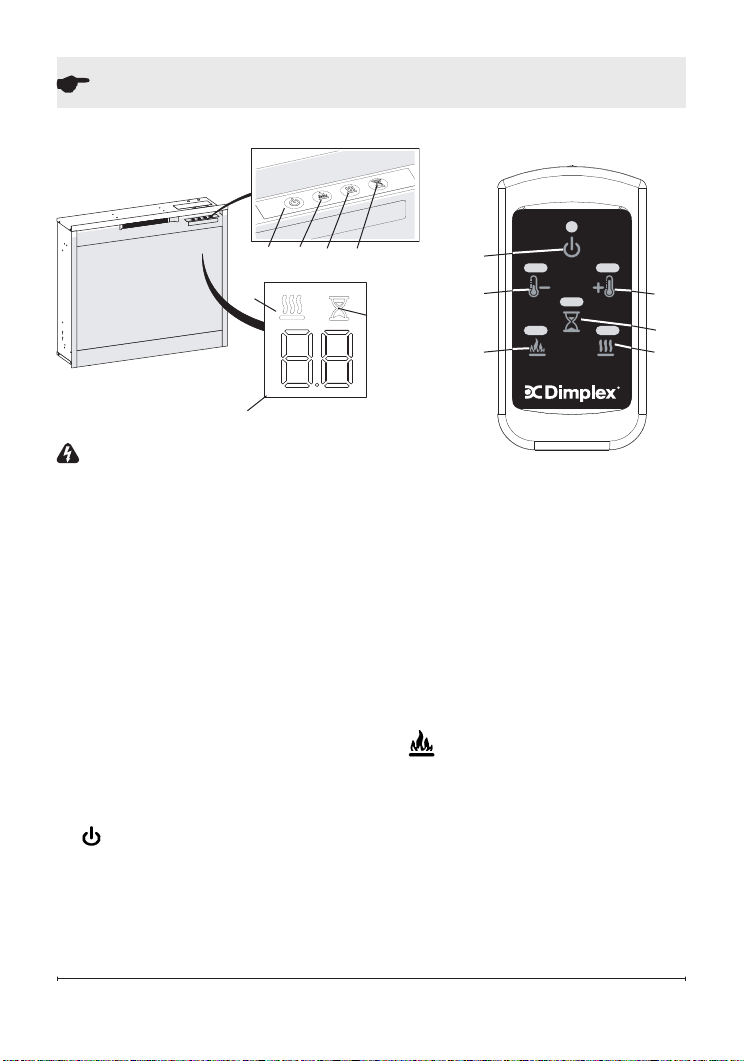

Figure 4

A B C F

On Screen Display

WARNING: This electric rebox must be properly installed before it is used.

The unit can be controlled by either the manual controls which are located on the upper right of the replace or the remote (Figure 4 & 5).

The replace is supplied with an IR multifunction remote control. This remote control has a range of approximately 16 ft (5 m). To operate correctly, the remote con-

trol must be pointed towards the

On Screen Display.

A. Standby

Turns the unit On and Off.

→ Activated by pressing the

Standby button on the remote or

the unit.

Figure 5

• The unit will turn on with the same functions that it was set

to when it was turned Off and the intake temperature will be

indicated on the On Screen Display.

NOTE: When any button is

pressed the intake temperature will be displayed on the On

Screen Display for 5 seconds.

B. Flame Effects

Cycles through the different Lighting Effects: Flames and Log, Flame only, Log Only, Flames and Log Off.

→ Activated by pressing the button on the remote or the unit.

F C

Page 10

Operation

C. Heat ON/OFF

Turns the heater function On

and Off based on the thermostat

setpoint.

→ Activated by pressing the button on the unit or the remote.

• Indicated by the icon and

the intake temperature being

displayed on the On Screen Display, for 5 seconds before turning off.

NOTE: The unit can be operated in Heat Only Mode. When the unit is only running with the

heater, the icon and the intake temperature will continuously be displayed on the On Screen Display.

NOTE: The heater may emit

a slight, harmless odor when rst used. This odor is a normal condition caused by initial heating of

internal heater parts and will not

occur again.

D & E. Thermostat Controls

Adjusts the temperature set point

to your individual requirements. Once the desired set temperature is reached the heater will turn off. The heater will cycle on and off

to maintain the desired set tem-

perature. The default temperature setting is 72°F (22°C).

→ Adjusted by pressing the to decrease the setpoint and the

to increase the setpoint on the

remote.

• The On Screen Display will indicate the temperature setpoint as it is adjusted.

NOTE: Holding the button

down on the unit will change the temperature from °C to °F, or vice versa.

Disable Heat

If desired, depending on the season, the heater on the unit can be disabled. The unit will operate in the same fashion, with remainder of the controls.

Pressing the and buttons on the unit at the same time and

holding for 2 seconds will disable and enable the heater.

NOTE: When the heater has

been disabled and either the

or the is pressed the On

Screen Display will indicate "--".

F. Sleep Timer

The Sleep Timer can be set to automatically shut off the replace

after a preset time (from 30 min-

10 www.dimplex.com

Page 11

Operation

utes to 8 hours).

→ To set the timer press the timer

button on either the remote or the

unit, repeatedly, until the desired time is displayed.

• The On Screen Display will

display the different times as it

is adjusted. Once the timer has begun, pressing the button

will display the time remaining

before the unit turns Off.

NOTE: The Sleep Timer can

be cancelled at any time by

pressing the button repeatedly until the sleep timer displays

nothing.

Resetting the Temperature Cutoff Switch

Should the heater overheat, an automatic cut out will turn the heater off and it will not come back on without being reset. It can be reset by unplugging the

unit and waiting 5 minutes before

plugging the unit back in.

Remote Control Battery Replacement

To replace the battery:

1. On the back of the remote

control, turn the battery cover counter-clockwise to remove the cover.

2. Correctly install one 3 Volt

(CR2032) battery in the battery holder.

3. Close the battery cover.

Battery must be recycled or disposed of properly.

Check with your Local Authority or Retailer for recycling advice in your area

CAUTION: If you need to continuously reset the heater, unplug the unit and call technical support at 1-888-346-7539.

Page 12

Maintenance

WARNING: Disconnect

power before attempting any

maintenance or cleaning to reduce the risk of re, electric shock or damage to persons.

Glass Cleaning

The glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the front glass panel may collect dust particles; these can be removed by dusting lightly with a clean dry cloth.

To remove ngerprints or other marks, the front glass panel can be cleaned with a damp cloth.

The front glass panel should be

completely dried with a lint free cloth to prevent water spots. To prevent scratching, do not use abrasive cleaners or spray liquids on the glass surface.

Compact Fireplace Surface Cleaning

Use warm water only to clean painted surfaces of the Compact Fireplace. Do not use abrasive cleaners.

Servicing

Except for the cleaning described above, an authorized service rep-

resentative should perform any

other servicing.

12 www.dimplex.com

Page 13

Warranty

One Year Limited Warranty

Products to which this limited warranty applies

This limited warranty applies to your newly

purchased Dimplex electric compact replace. This limited warranty applies only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in

any of the 50 States of the USA (and the

District of Columbia) except for Hawaii and Alaska. This limited warranty applies to the original purchaser of the product only and is not transferable.

Products excluded from this limited warranty

Light bulbs are not covered by this limited

warranty and are the sole responsibility of

the owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories, Hawaii, or Alaska are not covered by this limited warranty. Products purchased in these States, provinces, or

territories are sold AS IS without warranty

or condition of any kind (including, without limitation, any implied warranties or conditions of merchantability or tness for a particular purpose) and the entire risk of as to the quality and performance of the products is with the purchaser, and in the event of a defect the purchaser assumes the entire cost of all necessary servicing or repair.

What this limited warranty covers and for how long

Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this warranty, Dimplex warrants such

products to be free from defects in

material and workmanship for a period

of 12 months from the date of the rst purchase of such product.

The limited 12 month warranty period also applies to any implied warranties that

may exist under applicable law. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so

the above limitation may not apply to the

purchaser.

What this limited warranty does not cover

This limited warranty does not apply to

products that have been repaired (except by Dimplex or its authorized service representatives) or otherwise altered. This

limited warranty does further not apply

to defects resulting from misuse, abuse, accident, neglect, incorrect installation, improper maintenance or handling, or operation with an incorrect power source.

What you must do to get service under this limited warranty

Defects must be brought to the attention of Dimplex Technical Service by contacting Dimplex at 1-888-346-7539, or 1367 Industrial Road, Cambridge Ontario, Canada N1R 7G8. Please have proof of purchase, catalogue/model and serial numbers available when calling. Limited warranty service requires a proof of purchase of the product.

What Dimplex will do in the event of a defect

In the event a product or part covered

by this limited warranty is proven to be

defective in material or workmanship

during the 12 month limited warranty period you have the following rights:

Page 14

Warranty

• Dimplex will in its sole discretion

either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.

• Limited warranty service will be

performed solely by dealers or

service agents of Dimplex authorized to provide limited warranty services.

• The purchaser is responsible for

removal and transportation of such product or part (and any repaired or replacement product or part) to and from the authorized dealer’s or service agent’s place of business.

• This limited warranty does not

entitle the purchaser to on-site or in-home services. On-site or in-home services may be performed at the purchaser’s specic request and expense at Dimplex’s then-current rates for such services.

• Dimplex will not be responsible for,

and the limited warranty services shall not include, any expense incurred for installation or removal of the product or part (or any replacement product or part) or any labour or transportation costs. Such costs shall be the purchaser’s responsibility.

What Dimplex and its dealers and service agents are also not responsible for:

IN NO EVENT WILL DIMPLEX, OR ITS

DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE TO THE PURCHASER OR

ANY THIRD PARTY, WHETHER IN

CONTRACT, IN TORT, OR ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE SALE, MAINTENANCE, USE, OR INABILITY TO USE THE PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS, OFFICERS, OR AGENTS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR DAMAGES ARE FORESEEABLE. IN NO EVENT WILL DIMPLEX, OR ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT LOSSES, COSTS, OR DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO THE PURCHASER.

How State and Provincial law apply

This limited warranty gives you specic legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction. The provisions of the United Nations Convention on Contracts for

the Sale of Goods shall not apply to this

limited warranty or the sale of products covered by this limited warranty.

14 www.dimplex.com

Page 15

Replacement Parts

Flicker Motor ................................ 2000500100RP

Heater Assembly (with Cutout) .................. 2203610100RP

Thermistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001380100RP

Cord Set ...................................4100090204RP

Flicker Rod .................................5902620100RP

Partially Reective Panel ....................... 5902580300RP

Front Glass ................................. 5902570200RP

Felt Feet Pads (set of 4) ....................... 8600140101RP

Log Set Assembly ............................ 0439560400RP

Display/ Control Board. . . . . . . . . . . . . . . . . . . . . . . . . 3001350200RP

Switchboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001370100RP

Relay Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001360100RP

AC/DC Adapter .............................. 2100250100RP

LED Light Assembly (2 LED's). . . . . . . . . . . . . . . . . . . 3001390100RP

LED Light Assembly (3 LED's). . . . . . . . . . . . . . . . . . . 3001390200RP

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6700510200RP

Dimplex North America Limited

1367 Industrial Road

Cambridge ON Canada N1R 7G8
