Service Manual
Model
TFA36E
CFA36BS
UL Part Number
6905580100
6909590100
IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to service this replace. For your
safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road
1-888-346-7539
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2011 Dimplex North America Limited
Cambridge ON Canada N1R 7G8
www.dimplex.com
REV PCN DATE
00 - 3-OCT-11
7400510000R00
Page 2
TABLE OF CONTENTS
OPERATION .........................................................3
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
EXPLODED PARTS DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WIRING DIAGRAM ....................................................5
BATTERY REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FLICKER MOTOR REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LIGHT HARNESS REPLACEMENT .......................................8
CIRCUIT BOARD REPLACEMENT / LED DRIVER PCB CIRCUIT BOARD .......9
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Always use a qualied technician or service agency to repair this replace.
!
NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re, serious
injury, or death.
2 www.dimplex.com
Page 3
OPERATION
Figure 1
A
Charging Cord
B
This electric replace is operated by a momentary switch
located on the bottom of the replace, under the right hand
corner (Figure 1-A).
Press the momentary switch to toggle the replace’s ame
effect on or off.
The battery charge LEDs (Figure 1-B) will indicate the
charge level of the battery. The LEDs read green, yellow
and red from right to left. Once the red battery charge LED
is lit, the electric replace should be plugged in to recharge.
The replace can operate while charging.
MAINTENANCE
WARNING: Disconnect power before attempting
any maintenance or cleaning to reduce the risk of re,
electric shock or damage to persons.
!
NOTE: Even if the replace is not used regularly, the
battery should be fully recharged at minimum every three
(3) months to prolong battery life.
Partially Reective Glass Cleaning
The partially reective glass is cleaned in the factory during
the assembly operation. During shipment, installation,
handling, etc., the partially reective glass may collect dust
particles; these can be removed by dusting lightly with a
clean dry cloth.
To remove ngerprints or other marks, the partially
reective glass can be cleaned with a damp cloth. The
partially reective glass should be completely dried with a
lint free cloth to prevent water spots. To prevent scratching,
do not use abrasive cleaners.
Fireplace Surface Cleaning
Use only a damp cloth to clean painted surfaces of the
replace. Do not use abrasive cleaners.
Servicing
Except for battery replacement and cleaning described
above, an authorized service representative should perform
any other servicing.
!
NOTE: The replace will shut off automatically if it is
unplugged during operation. The momentary On/Off Switch
will need to be activated to turn the replace on again.
3
Page 4
EXPLODED PARTS DIAGRAM
7
3
10
2
8
5
1
4
6
Replacement Parts List
Flicker Motor1. .....................3000240200KIT
Flicker Rod2. . . . . . . . . . . . . . . . . . . . . . . 5901590100RP
Battery, 12V, 8Ah, .25” terminals3. ......3700150100RP
Switch, ON/OFF Momentary SPDT4. . . . 2800220100RP
PCB; Driver Board; Charger; DC Jack5. . 3000750100RP
AC/DC Power Supply with cord6. . . . . . . 3700180100RP
4 www.dimplex.com
Partially Reective Glass Assembly 7. ...5901550100RP
LED Light Assembly8. . . . . . . . . . . . . . . . 6908300100RP
Battery Wire Harness9. . . . . . . . . . . . . . . 2500560100RP
Wall Mounting Bracket 10. .............1021650100RP
River Rocks, Large11. ................1400060100RP
Page 5

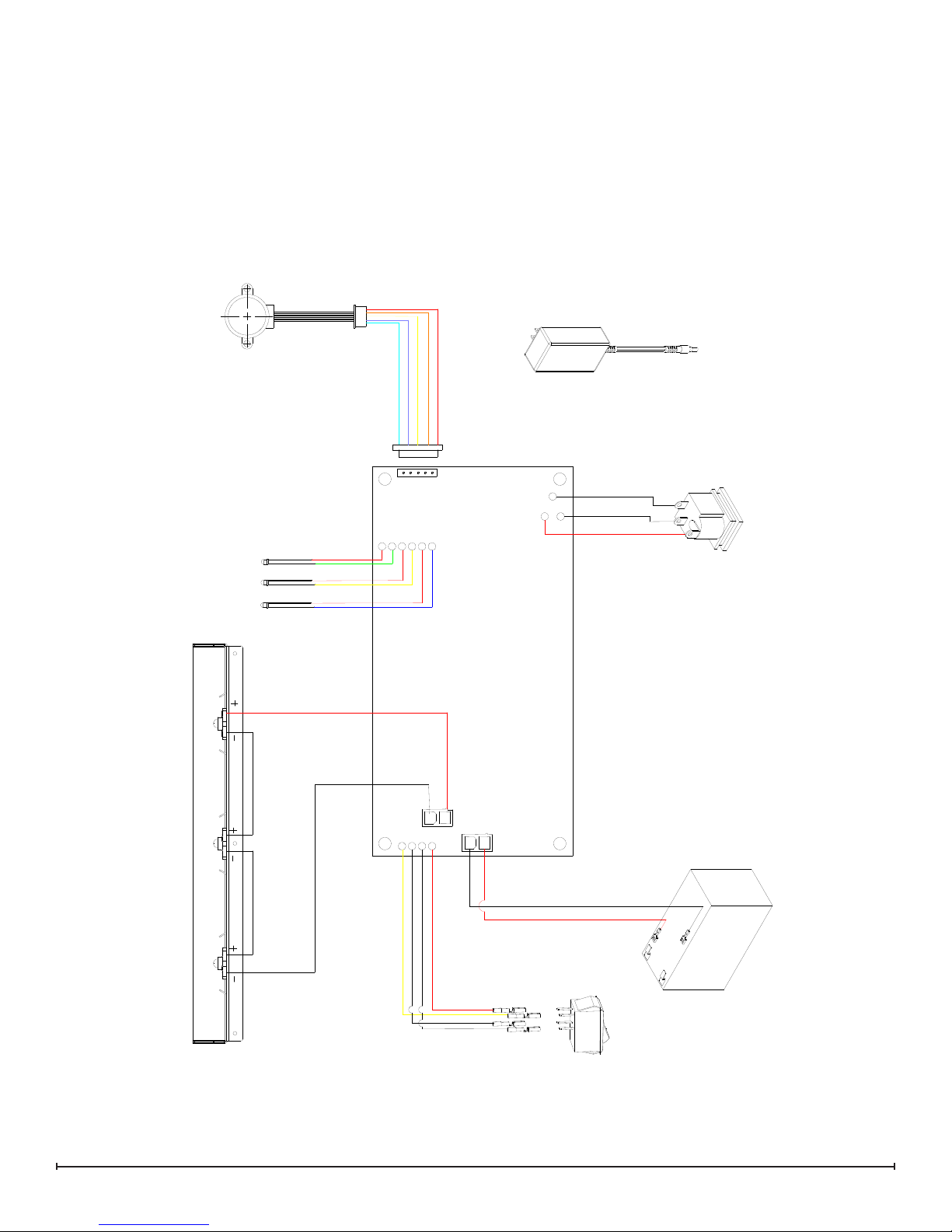

WIRING DIAGRAM
FLICKER MOTOR
P/N 3000240200
(HARNESS INCLUDED)
RED, ORANGE AND GREEN
BATTERY LEVEL INDICATOR LED'S
SUPPLIED WITH PCB
1 WATT LED
FLAME LIGHT
P/N 3700140100
1 WATT LED
FLAME LIGHT
P/N 3700140100
1 WATT LED
FLAME LIGHT
P/N 3700140100
WIRE AND CONNECTORS
PART OF PCB
ON/OFF
SWITCH
P/N 2800220100
BATTERY CHARGER /
LED DRIVER
CIRCUIT BOARD
12V, 8Ah SLA BATTERY
P/N 3700150100
UL APPROVED (COMPONENT)
DC JACK
POWER SUPPLY
INPUT: 120VAC, 50/60Hz
OUTPUT: 12VDC, 3A MAX
UL APPROVED
P/N 3700180100
5
Page 6
BATTERY REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempting any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace
and to prevent bodily harm, only use Dimplex replacement
rechargeable batteries.
WARNING: Improper handling of battery may result in
possible explosion hazard, electric shock and severe bodily
injury.
Do not dispose of battery in a re, the battery may •
explode
Do not open or mutilate battery. The battery contains •
chemicals that are toxic to the eyes and skin
To decrease risk of electric shock, remove wrist •
watches and jewelry such as rings and bracelets when
replacing battery.
To decrease risk of electric shock, only use tools with •
insulated handles.
To prevent damage to the electric replace and to •
prevent bodily harm, only replace battery with Dimplex
replacement rechargeable batteries.
To prevent damage to the electric replace and to •
prevent bodily harm, only use Dimplex approved DC
power supply to power and recharge battery.
To dispose of spent battery, return it to place of •
replace purchase, deliver it to a local recycling facility
or ship it to Dimplex North America Limited in the
replacement battery packaging material.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace

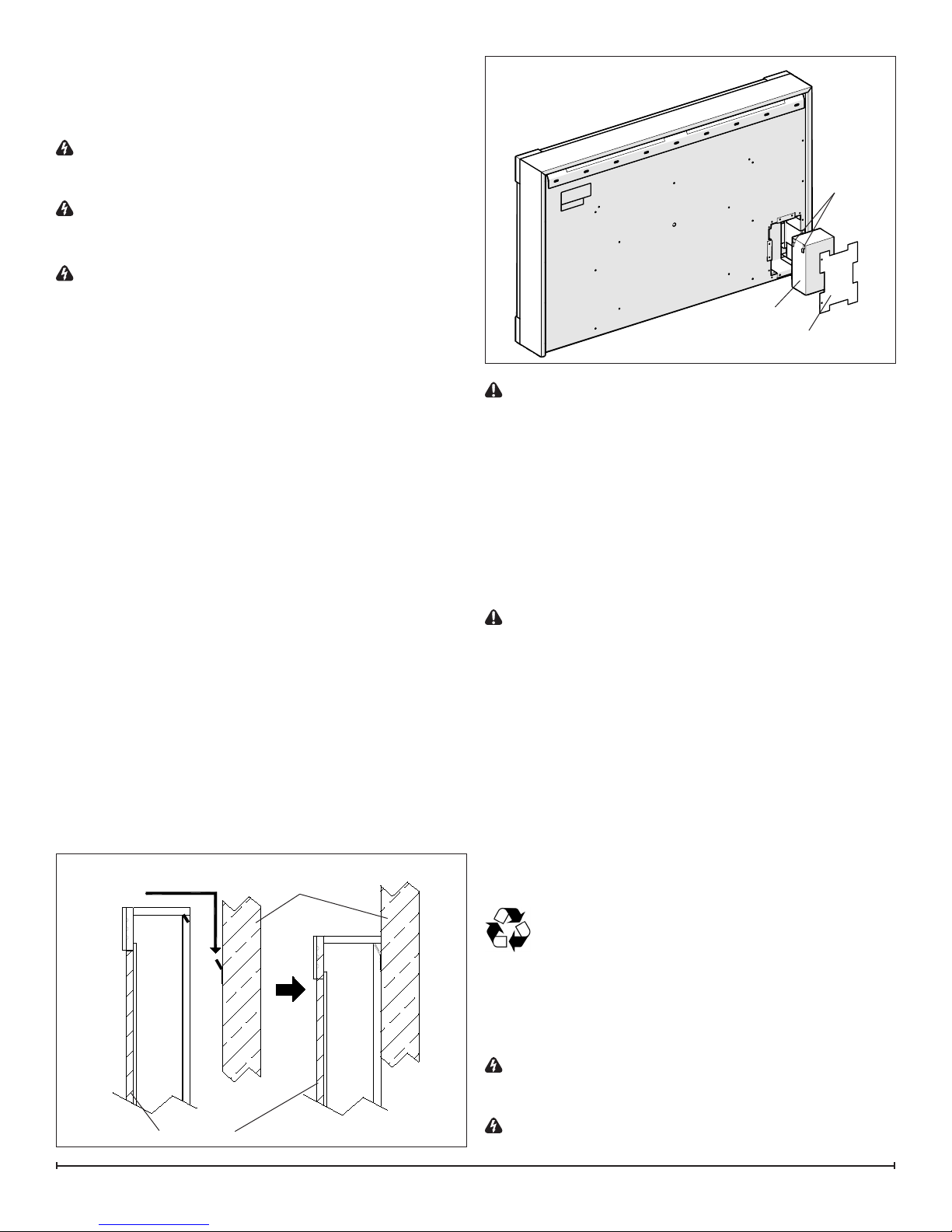

Lift and remove the electric replace from the wall-4.
mounting bracket (Figure 2) and carefully place it
upright on a at surface.
Figure 2
Wall
Segment
Figure 3
Battery
Terminals
Battery
Battery Cover
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (8) 5.
screws securing the battery cover to the unit, located in
the bottom, right corner of the back panel (Figure 3).
Lift and remove the battery access cover.6.
Tilt the unit backwards, to allow the battery to slide out 7.
of the opening.
!
NOTE: The battery is heavy so ensure that it will slide
out onto the at surface.
CAUTION: Take care not to damage the 2 wire con-
nections on the left side of the battery. (Figure 3)
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery terminals taking
note of their original conguration.
!
NOTE: These wire connectors can be carefully re-
moved one at a time by using needle nosed pliers.
Reconnect the wire leads with black leading to black 9.
and red leading to red to ensure correct polarity and
that they are not pinched when replacing the access
cover.
Insert the replacement battery into the opening, careful-10.
ly orienting the wire leads so that they are not pinched.
Replace the access cover and screws.11.
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for
recycling advice in your area.
Front of Fireplace
6 www.dimplex.com
FLICKER MOTOR REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempting any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace
Page 7
LED
Flicker Motor
Retaining Clip
Circuit Board
and to prevent bodily harm, only use Dimplex replacement
rechargeable batteries.
WARNING: Improper handling of battery may result in
possible explosion hazard, electric shock and severe bodily
injury.
Do not dispose of battery in a re, the battery may •
explode
Do not open or mutilate battery. The battery contains •
chemicals that are toxic to the eyes and skin
To decrease risk of electric shock, remove wrist •
watches and jewelry such as rings and bracelets when
replacing battery.
To decrease risk of electric shock, only use tools with •
insulated handles.
To prevent damage to the electric replace and to •
prevent bodily harm, only replace battery with Dimplex
replacement rechargeable batteries.
To prevent damage to the electric replace and to •
prevent bodily harm, only use Dimplex approved DC
power supply to power and recharge battery.
To dispose of spent battery, return it to place of •
replace purchase, deliver it to a local recycling facility
or ship it to Dimplex North America Limited in the
replacement battery packaging material.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace
Lift and remove the electric replace from the wall-4.
mounting bracket (Figure 2) and carefully place it
upright on a at surface.
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (8) 5.
screws securing the battery cover to the unit, located in
the bottom, right corner of the back panel (Figure 3).
Lift and remove the battery access cover.6.
Tilt the unit backwards, to allow the battery to slide out 7.
of the opening.
!
NOTE: The battery is heavy so ensure that it will slide
out onto the at surface.
CAUTION: Take care not to damage the 2 wire con-
nections on the left side of the battery. (Figure 3)
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery terminals taking
note of their original conguration.
!
NOTE: These wire connectors can be carefully re-
moved one at a time by using needle nosed pliers.
Set the Battery aside.9.
Remove the remainder of the 17 screws which secure 10.
the back panel on to the replace. 3 along the top; 3
along the right (battery side); 5 along the left (switch
side); and 6 on the bottom lip of the back panel.
Figure 4
Lift the back panel off the unit, exposing the internal 11.
components and set it aside.

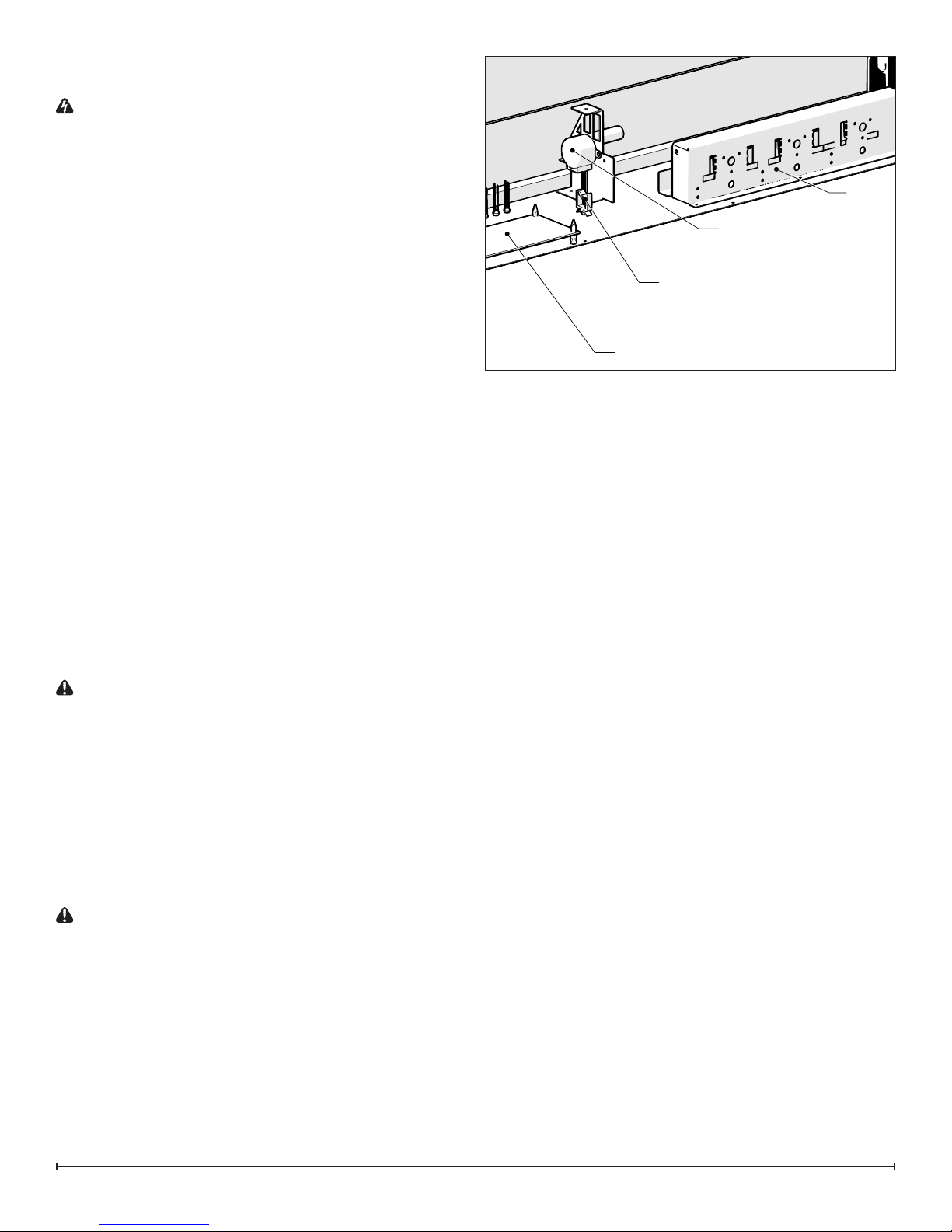

Looking at the unit from behind, locate the icker motor 12.
on the left beside the circuit board. (Figure 4) Unplug
the motor wire connector from the circuit board and
unhook the wires from the retaining clip(s) on the bottom panel.
Remove the icker motor mounting bracket, by remov-13.
ing the 2 screws that attach to the bottom panel.
Grasp the icker motor with the mounting bracket and 14.
icker rod still attached. Slide the icker rod out of the
icker assembly mounting bracket located on the op-
posite end.
Separate the icker motor and icker rod, by holding 15.
the motor in one hand, grasping the rubber icker con-
nector and rod with the other hand, then twisting and
pulling them apart. Set the icker rod with the rubber
connector aside.
Remove the 2 screws which secure the icker motor to 16.
the motor mounting bracket.
Replace with the new icker motor onto the mounting 17.
bracket and secure the motor to the bracket using the
original 2 screws.
Push the icker rod with rubber connector onto the mo-18.
tor shaft and slide it back into the 2nd icker assembly
mounting bracket.
!
NOTE: Ensure that the rod has not been bent. If it has
it may cause noises and limited ame effect during usuage.
Secure the mounting bracket to the bottom panel of the 19.
replace with the original 2 screws.
Re-assemble the remainder of the unit in reverse order.20.
!
NOTE: Before placing the battery back into the open-
ing, reconnect the wires in their original position with black
leading to black and red leading to red to ensure correct
polarity and that they are not pinched when replacing the
access cover.
7
Page 8
LIGHT HARNESS REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempting any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace
and to prevent bodily harm, only use Dimplex replacement
rechargeable batteries.
WARNING: Improper handling of battery may result in
possible explosion hazard, electric shock and severe bodily
injury.
Do not dispose of battery in a re, the battery may •
explode
Do not open or mutilate battery. The battery contains •
chemicals that are toxic to the eyes and skin
To decrease risk of electric shock, remove wrist •
watches and jewelry such as rings and bracelets when
replacing battery.
To decrease risk of electric shock, only use tools with •
insulated handles.
To prevent damage to the electric replace and to •
prevent bodily harm, only replace battery with Dimplex
replacement rechargeable batteries.
To prevent damage to the electric replace and to •
prevent bodily harm, only use Dimplex approved DC
power supply to power and recharge battery.
To dispose of spent battery, return it to place of •
replace purchase, deliver it to a local recycling facility
or ship it to Dimplex North America Limited in the
replacement battery packaging material.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace
Lift and remove the electric replace from the wall-4.
mounting bracket (Figure 2) and carefully place it
upright on a at surface.
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (8) 5.
screws securing the battery cover to the unit, located in
the bottom, right corner of the back panel (Figure 3).
Lift and remove the battery access cover.6.
Tilt the unit backwards, to allow the battery to slide out 7.
of the opening.
!
NOTE: The battery is heavy so ensure that it will slide
out onto the at surface.
CAUTION: Take care not to damage the 2 wire con-
nections on the left side of the battery. (Figure 3)
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery terminals taking
note of their original conguration.
!
NOTE: These wire connectors can be carefully re-
moved one at a time by using needle nosed pliers.
Set the Battery aside.9.
Remove the remainder of the 17 screws which secure 10.
the back panel on to the replace. 3 along the top; 3
along the right (battery side); 5 along the left (switch
side); and 6 on the bottom lip of the back panel.
Lift the back panel off the unit, exposing the internal 11.
components and set it aside.
Looking at the unit from behind, locate the light harness 12.
plug on the main circuit board and unplug it from the
circuit board. (Figure 4)
Release the wires leads from the retaining clips and 13.
wire ties, which secure them to the bottom panel of the
replace.
!
NOTE: Be sure to cut the wire ties which secure the
light harness and the battery wire harness to the light housing panel taking care not to damage the wires.
Remove the 3 screws holding the light housing to the 14.
bottom panel of the replace.
Remove the light harness assembly, and replace with 15.
the new assembly.
Secure the new light housing panel to the bottom panel 16.
with the original screws.
Secure the wires to the retaining clips and plug the light 17.
harness connector to the circuit board.
Re-assemble the remainder of the replace in reverse 18.
order.
!
NOTE: Before placing the battery back in the housing/
brackets, ensure that the battery wire leads are re-connected in their original position with black leading to black and
red leading to red to ensure correct polarity and that they
are not pinched when replacing the access cover.
ON/OFF MOMENTARY SWITCH REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempting any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace
and to prevent bodily harm, only use Dimplex replacement
rechargeable batteries.
WARNING: Improper handling of battery may result in
possible explosion hazard, electric shock and severe bodily
injury.
Do not dispose of battery in a re, the battery may •
explode
Do not open or mutilate battery. The battery contains •
chemicals that are toxic to the eyes and skin
8 www.dimplex.com
Page 9
SWITCH
ON/OFF
To decrease risk of electric shock, remove wrist •
watches and jewelry such as rings and bracelets when
replacing battery.
To decrease risk of electric shock, only use tools with •
insulated handles.
To prevent damage to the electric replace and to •
prevent bodily harm, only replace battery with Dimplex
replacement rechargeable batteries.
To prevent damage to the electric replace and to •
prevent bodily harm, only use Dimplex approved DC
power supply to power and recharge battery.
To dispose of spent battery, return it to place of •
replace purchase, deliver it to a local recycling facility
or ship it to Dimplex North America Limited in the
replacement battery packaging material.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace
Lift and remove the electric replace from the wall-4.
mounting bracket (Figure 2) and carefully place it
upright on a at surface.
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (8) 5.
screws securing the battery cover to the unit, located in
the bottom, right corner of the back panel (Figure 3).
Lift and remove the battery access cover.6.
Tilt the unit backwards, to allow the battery to slide out 7.
of the opening.
!
NOTE: The battery is heavy so ensure that it will slide
out onto the at surface.
CAUTION: Take care not to damage the 2 wire con-
nections on the left side of the battery. (Figure 3)
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery terminals taking
Figure 5
note of their original conguration.
!
NOTE: These wire connectors can be carefully re-
moved one at a time by using needle nosed pliers.
Set the Battery aside.9.
Remove the remainder of the 17 screws which secure 10.
the back panel on to the replace. 3 along the top; 3
along the right (battery side); 5 along the left (switch
side); and 6 on the bottom lip of the back panel.
Lift the back panel off the unit, exposing the internal 11.
components and set it aside.

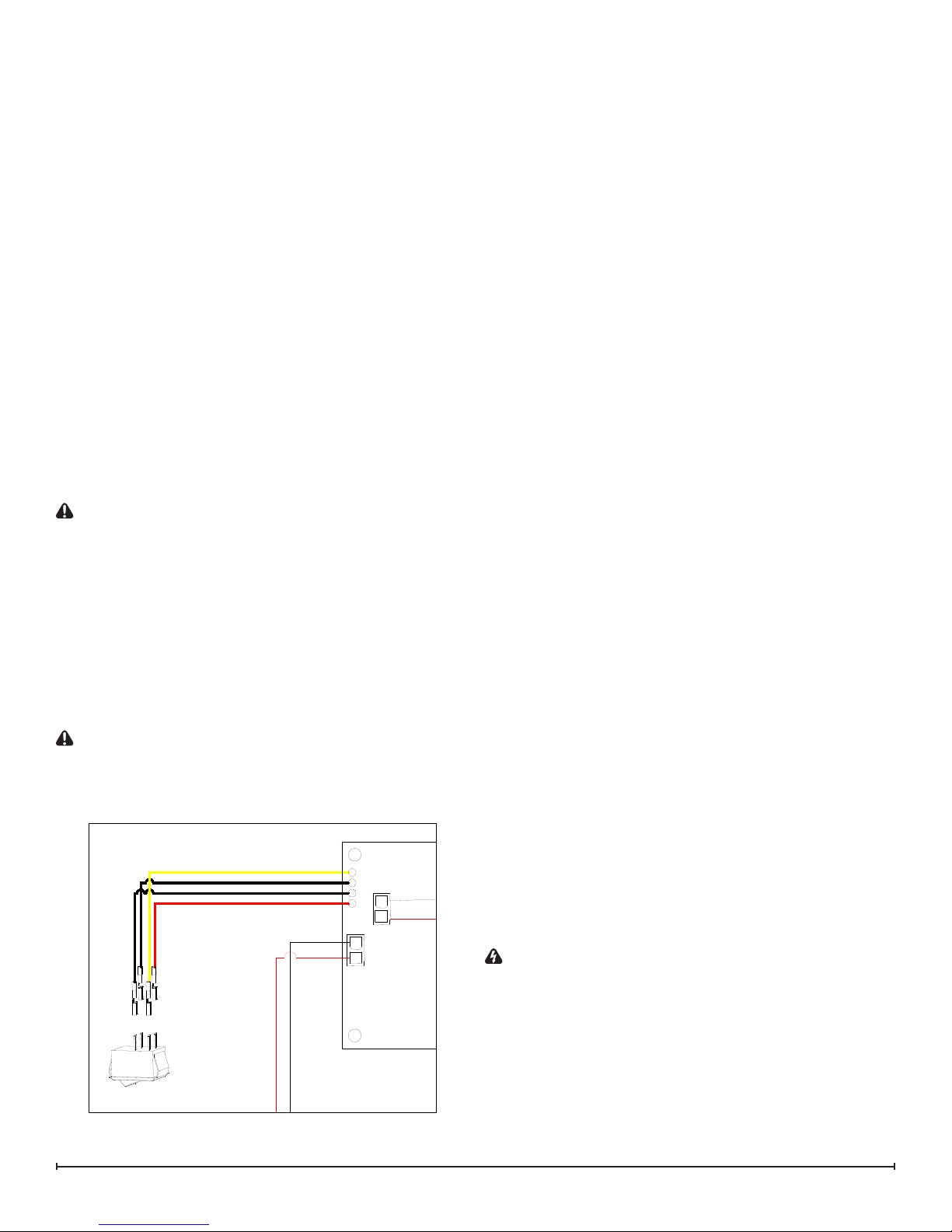

Looking at the unit from behind, locate the ON/OFF 12.
switch on the left side of the bottom panel.
Disconnect the wire lead connectors on the switch 13.
coming from the circuit board noting the original con-
guration. (Figure 5).
!
NOTE: Using a at head screwdriver gently pry be-
tween the end of the connector and the switch to release
the wires.
!
NOTE: Try not to reverse the two black wires on the
switch.
Remove the switch from the bottom panel by depress-14.
ing the 4 mounting tabs and pushing the switch out-
ward through the bottom panel of the replace.
!
NOTE: Pliers or a at head screw driver may be help-
ful in getting a better grasp or putting more pressure on the
tabs to release them.
Push the new switch into place through the bottom 15.
panel according to the original position.
Re-connect the wire connectors from the board. (Figure 16.
5)
Re-assemble the remainder of the replace in reverse 17.
order.
!
18. NOTE: Before placing the battery back in the
housing/brackets, ensure that the battery wire leads are
re-connected in their original position with black leading
to black and red leading to red to ensure correct polarity and that they are not pinched when replacing the
access cover.
CIRCUIT BOARD REPLACEMENT / LED
DRIVER PCB CIRCUIT BOARD
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempting any maintenance to reduce the risk of electric shock or
damage to persons.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace
Lift and remove the electric replace from the wall-4.
9
Page 10
mounting bracket (Figure 2) and carefully place it on a
at surface with the partially reective glass side down.
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (16) 5.
screws from the battery access cover and the battery
mounting brackets located in the bottom, right corner of
the back panel (Figure 3).
Lift and remove the battery access cover.6.
Lift and remove the battery out of the housing. 7.
!
NOTE: The battery is heavy so you will need to use
the brackets for leverage to lift it out of the opening. A
at head screwdriver may be helpful for additional leverage behind the battery bracket when lifting the battery and
brackets out of the replace.
CAUTION: Take care not to damage the 2 wire connec-
tions on the left side of the battery Figure 8).
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery spade connec-
tors taking note of their original conguration (Figure 4).
!
NOTE: These wire lead connectors can be pulled off
by using needle nosed pliers to carefully pull the connec-
tors, or a at head screw driver to pry the connectors off the
spades on the battery.
Set the Battery aside.9.
Remove the remainder of the (17) screws which secure 10.
the back panel on to the replace. (3) along the top; (3)
along the right (battery side); (5) along the left (switch
side); and (6) on the bottom lip of the back panel.
Lift the back panel off the unit, exposing the internal 11.
components and set it aside.
Looking at the unit from behind, locate the circuit board 12.
(control panel), on the left hand side of the bottom
panel.
Unplug the wire harness plug connectors on the circuit 13.
board (icker motor; LED light harness, battery wire
harness).
Guide the battery charger input jack out from the left 14.
side of the bottom panel by sliding it up towards you.
Disconnect the wire lead connectors coming from the 15.
circuit board to the switch noting the original conguration.
!
NOTE: Pliers can be used for a better grip on the con-
nector, or a at head screw driver can be used to carefully
pry up between the switch and connector if you are unable
to pull it off.
!
NOTE: Try not to reverse the two black wires on the
switch. Their positioning on the circuit board to the switch
is: (Figure 5)
Red-1, Black-2 goes to the side of the switch farthest •
from the circuit board, Black-2 on the spade in the cen-
ter of the switch and Red-1 on the spade on the right
side;
Black-3, Yellow-4 goes to the side of the switch closest •
to the circuit board, Black-3 on the spade in the center
of the switch and Yellow-4 on the spade on the right
side of the switch.
Carefully pull the (3) charge level indicator lights with 16.
wires out from their mounting clips near the switch
noting their original order, (Green in the clip to the left
closest to the switch, Yellow in the center; Red in the
clip on the right).
!
NOTE: There is rubberized glue securing these in the
clip. When pulling on the indicator lights, the glue will come
off with the bulb & wires.
!
NOTE: If necessary, using pliers may allow for a bet-
ter grip when pulling these bulbs out.
Remove the circuit board from the mounting clips 17.
located on the 4 corners of the board. Use a pair of pliers to pinch the tip of each mounting clip or cut the tabs
off so the original board can be pulled off.
Push the remainder of the old tabs out through the bot-18.
tom panel and replace with the new tabs provided with
the replacement circuit board.
Line up the 4 corners of the replacement board to the 19.
(4) mounting tabs and carefully push the new board
down onto the tabs.
Connect all of the wires and harnesses according to 20.
their original conguration.
!
NOTE: Ensure that the switch wires and the battery
level indicator lights are in their correct order and locations
as described in step 15 and 16.
Re-assemble the remainder of the replace in reverse 21.
order.
!
NOTE: Before placing the battery back in the housing/
brackets, ensure that the battery wire leads are re-connected in their original position with black leading to black and
red leading to red to ensure correct polarity and that they
are not pinched when replacing the access cover.
10 www.dimplex.com
Page 11
TROUBLESHOOTING GUIDE
PROBLEM CAUSE SOLUTION
Appearance
Fireplace does not turn On Improper operation Refer to Operation Section
Battery not Charged Charge Battery
Loose wiring Check wiring connections
Dead Battery Replace Battery
Defective LED PCB Replace LED PCB
Flame Frozen Defective icker motor Replace icker motor
Loose wiring Check wiring connections
Flame not bright or ame not
visible
Flame Shudder Defective icker motor Replace icker motor
Loose wiring Check wiring connections
Defective light harness Replace light harness
11
Loading...
