WIRELESS LAN
USB 2.0 ADAPTER
USER´s GUIDE
(DN-70031)
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
This manual may not be copied in any media or form without the written consent of original maker.
Information To User ..................................................……..i
1. Introduction .........................................................…… 1
2. Wireless LAN Basics ................................................……. 3
3. IP ADDRESS ..........................................................……. 4

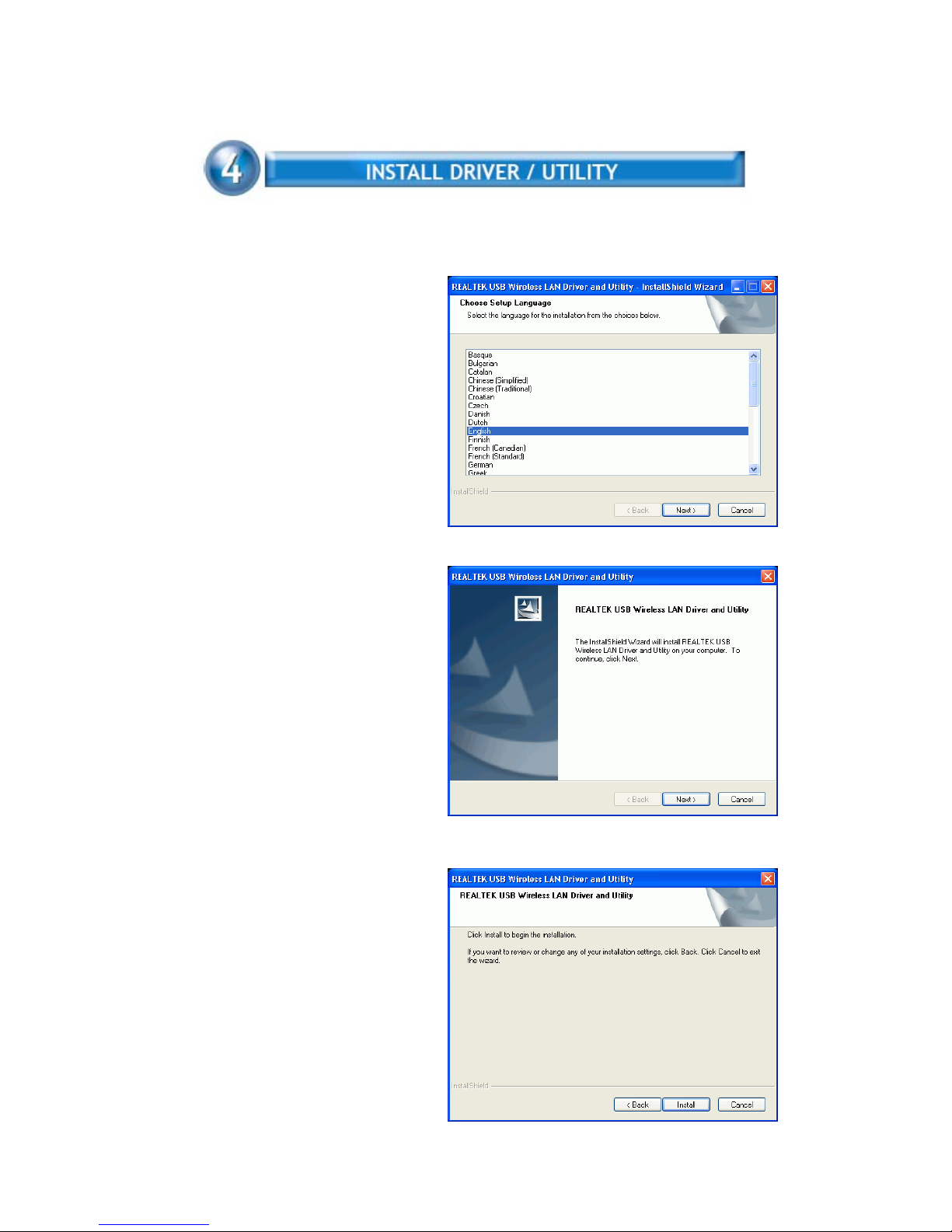

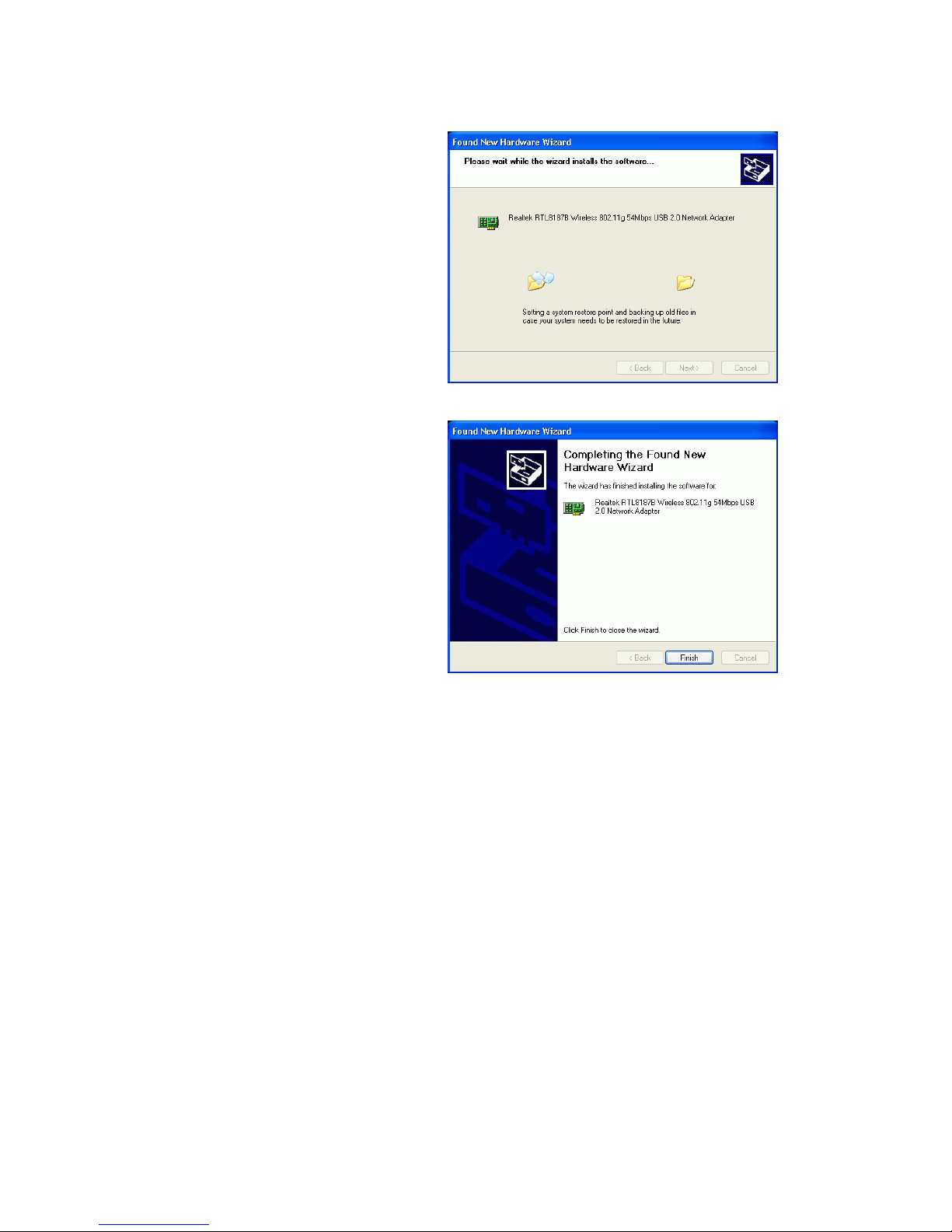

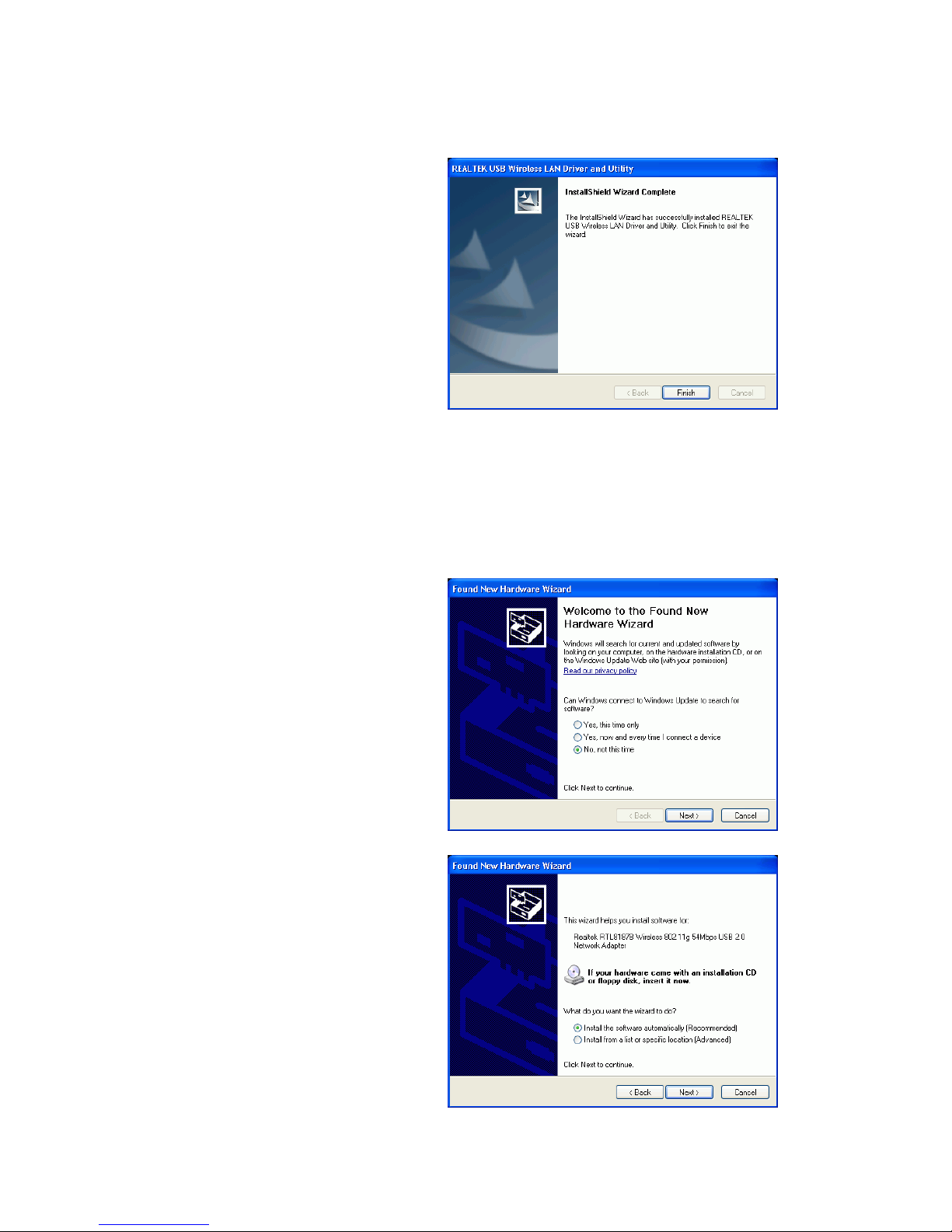

4. Install Driver/Utility ...............................................……. 5
5. Wireless Network Configuration ................................……… 8

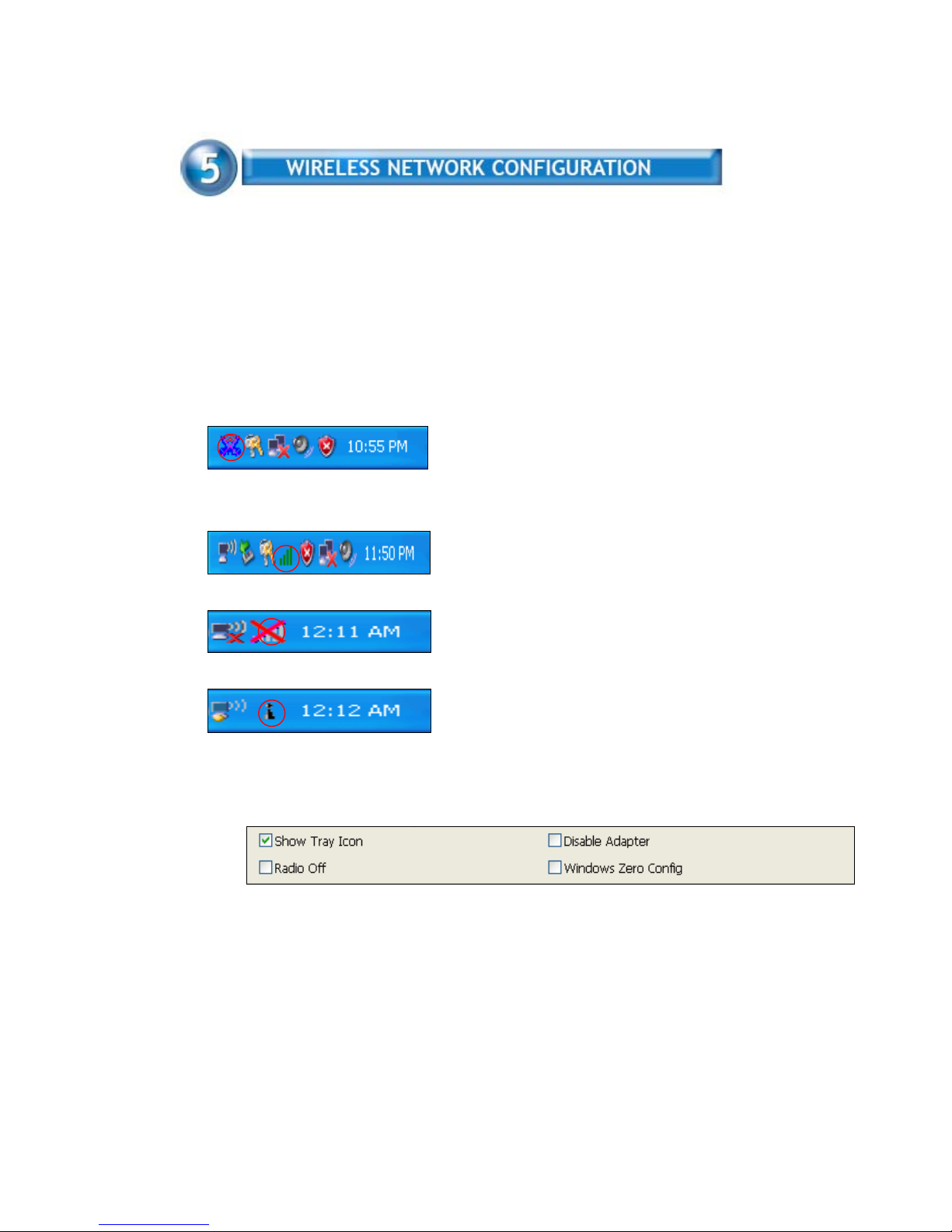

5.1 Utility Icon ........................................................ 8

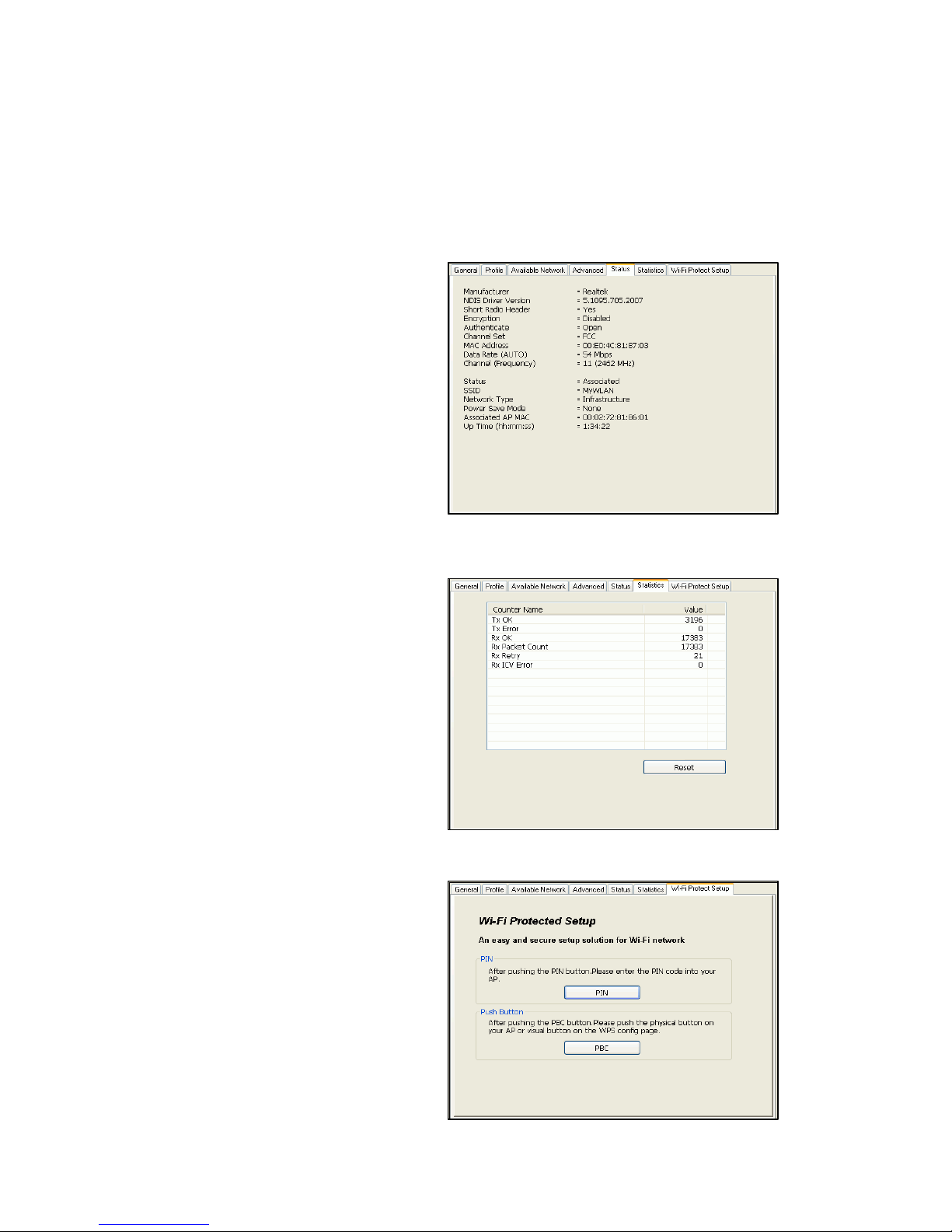

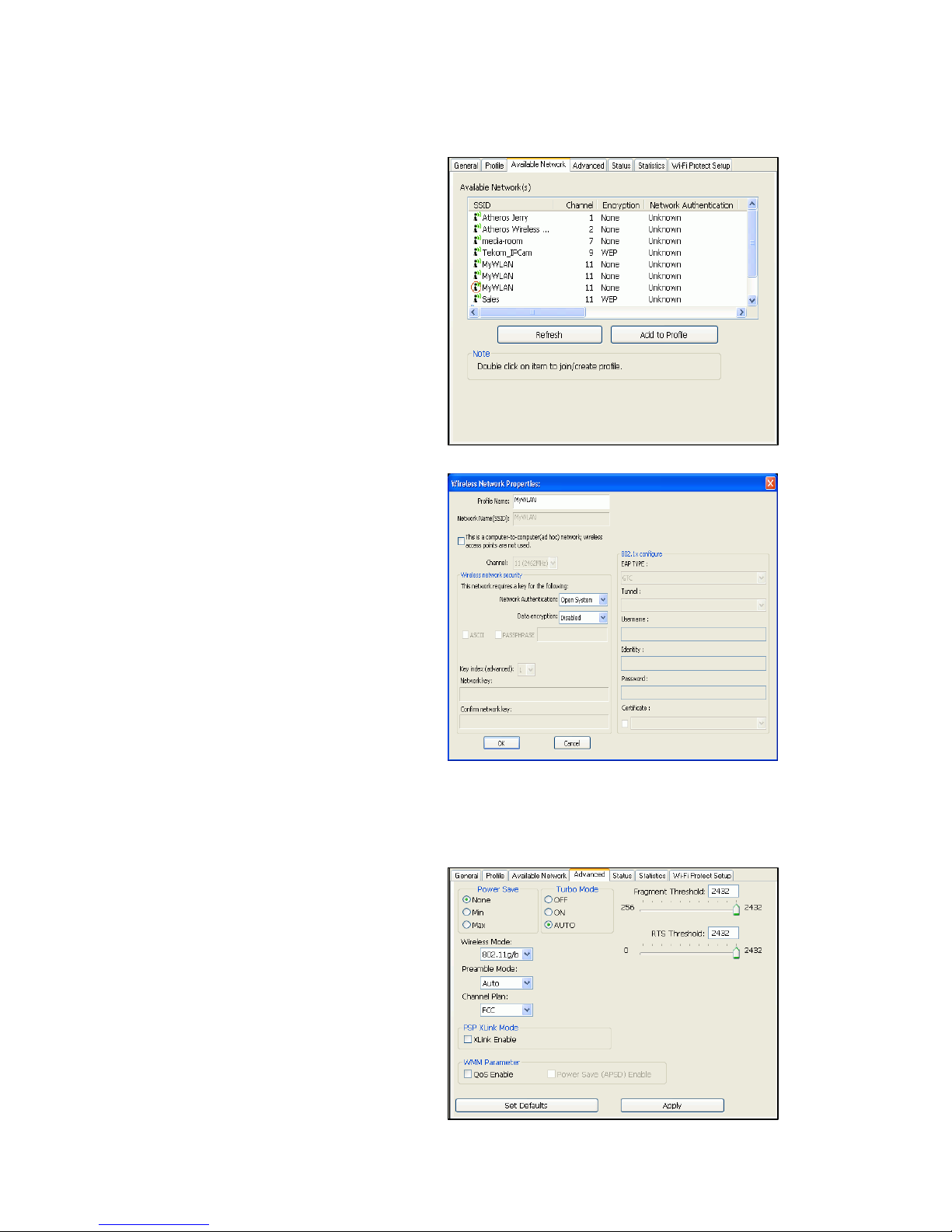

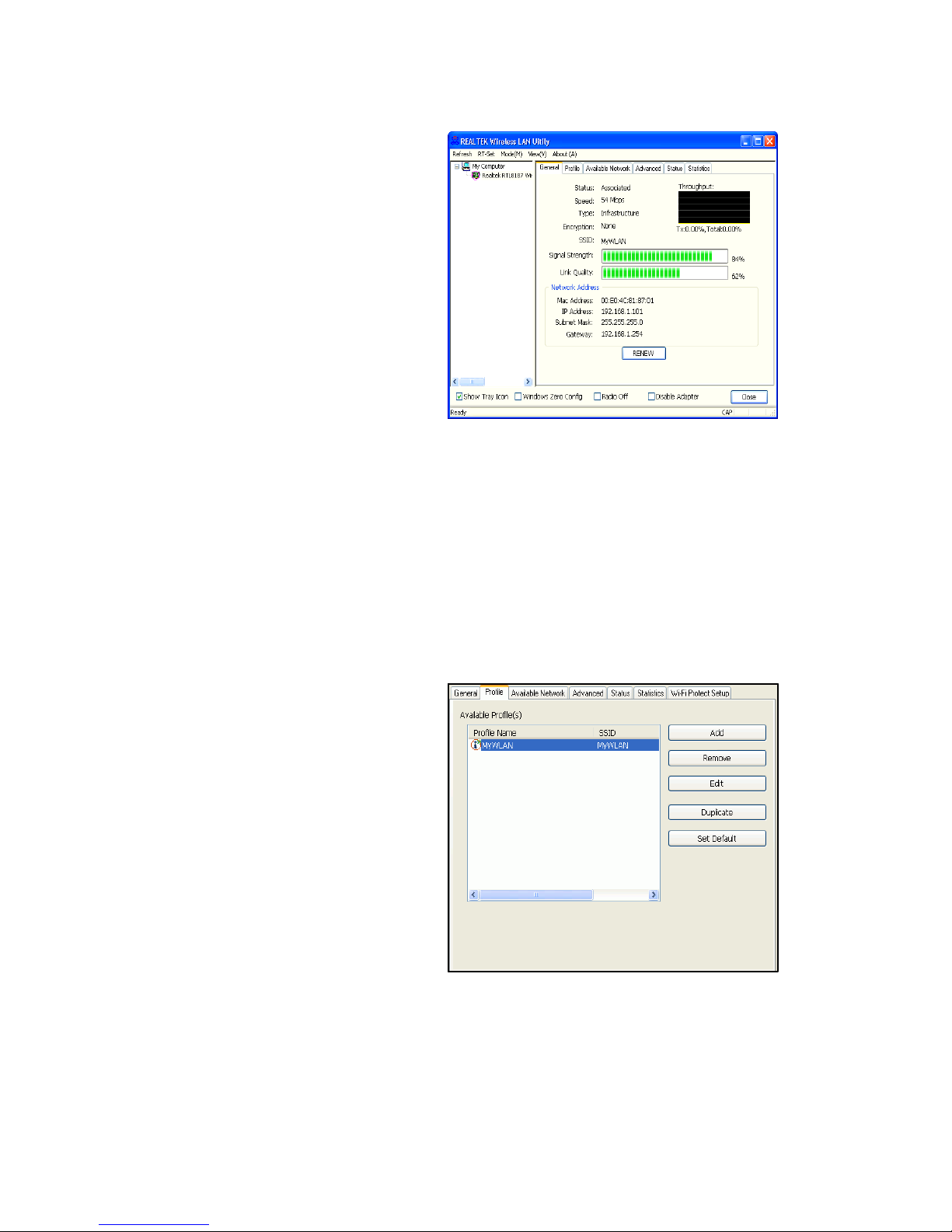

5.2 Client Mode (Default Setting)................................... 9

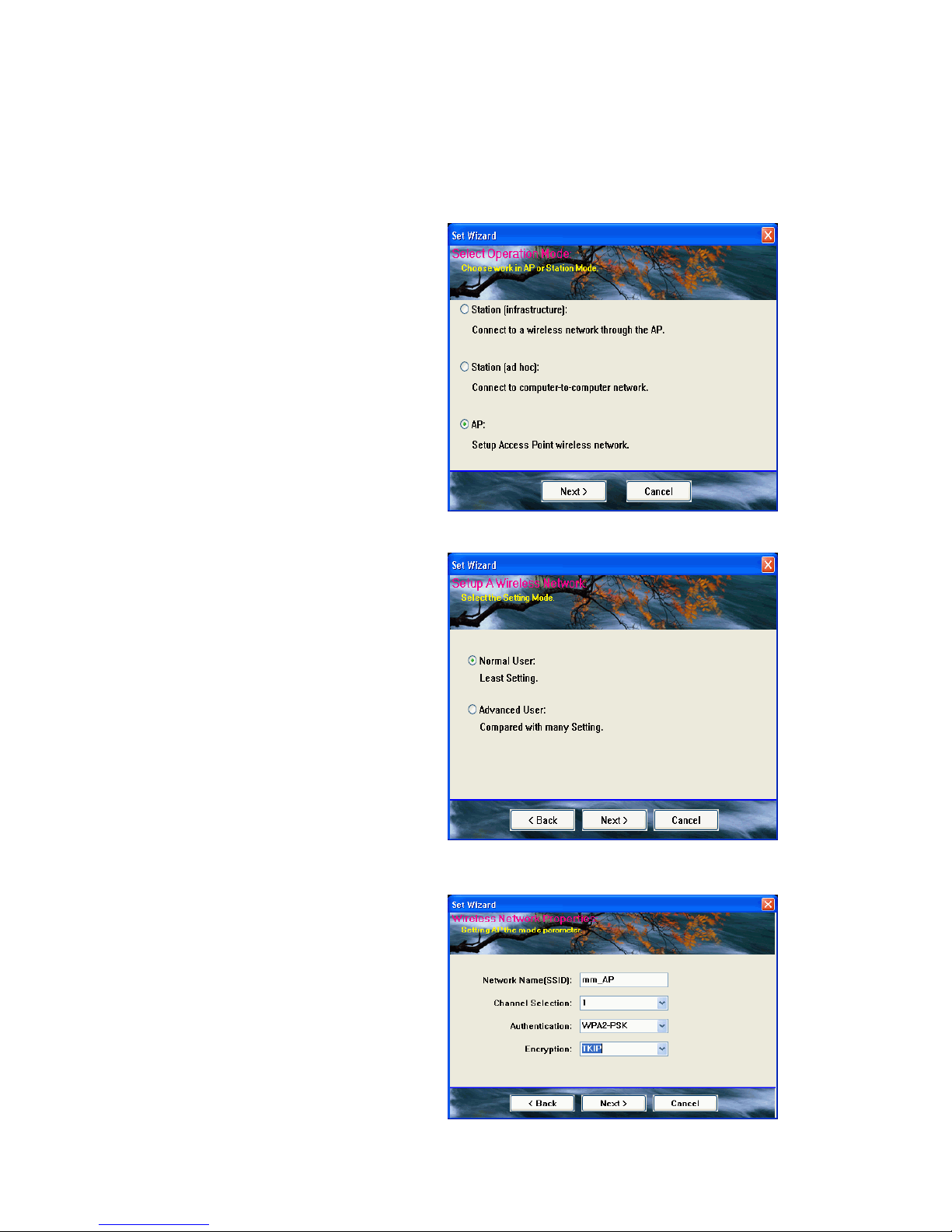

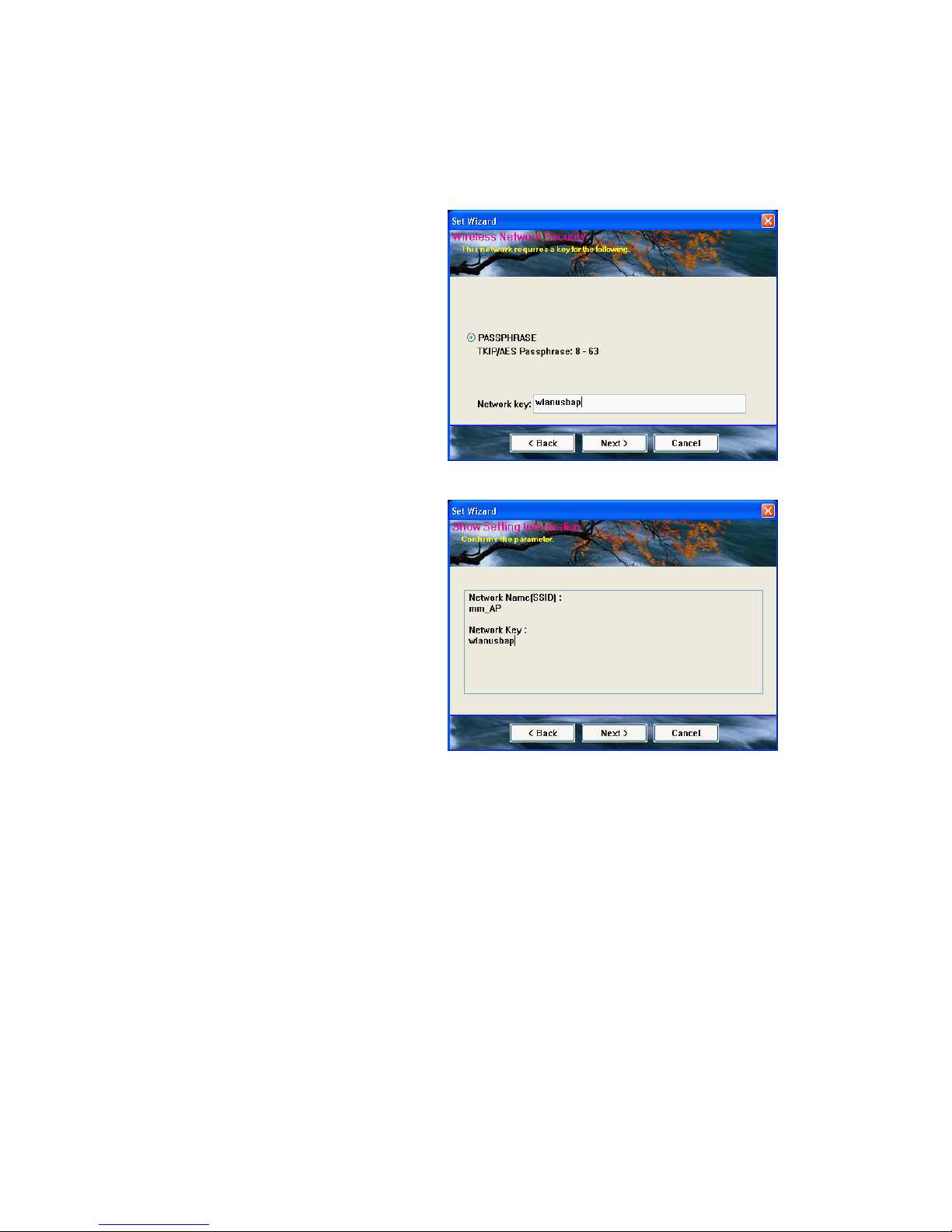

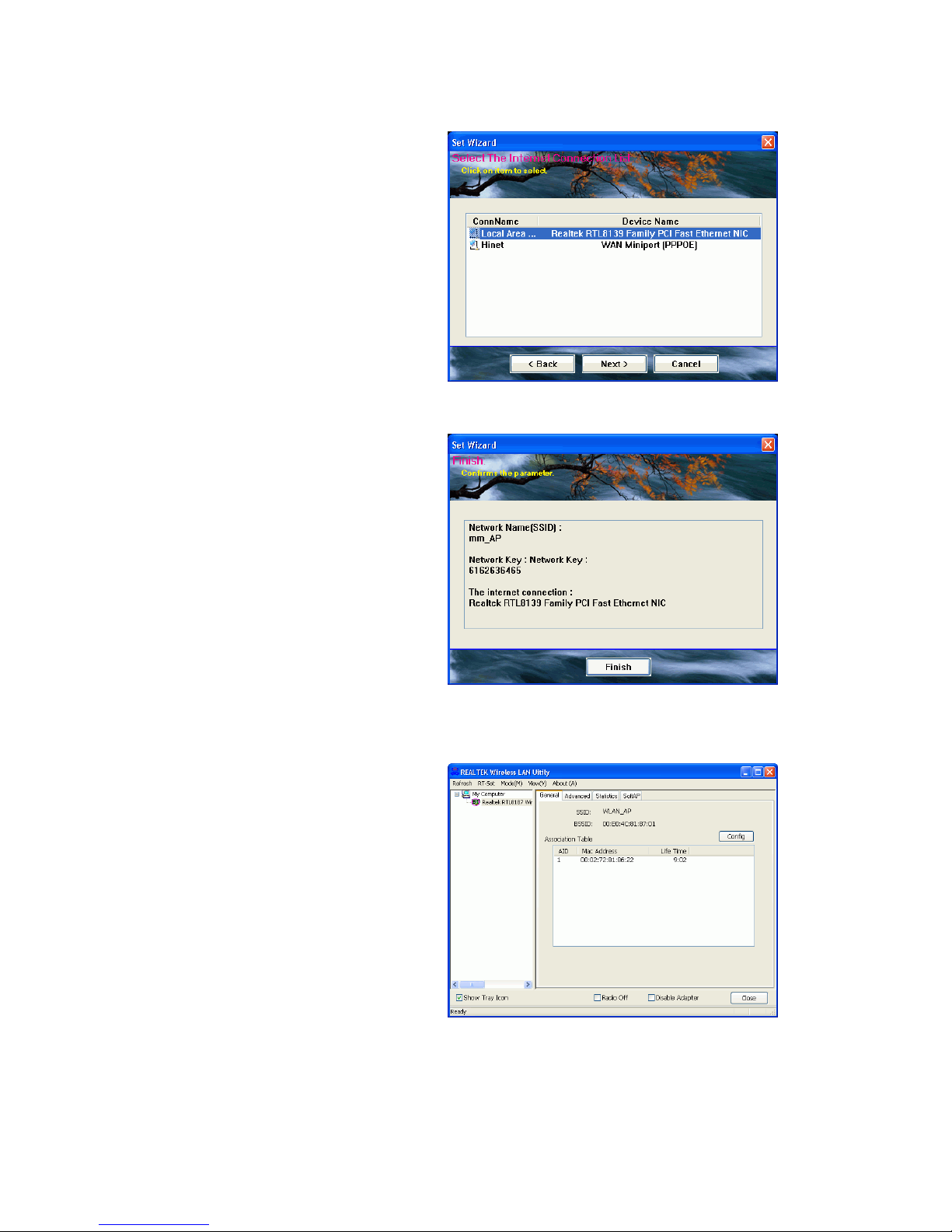

5.3 AP and Wizard Setup............................................. 12
5.4 AP Mode ........................................................... 14
6. Technical Specifications ............................................... 15
7. Troubleshooting ......................................................... 16
8. Glossary ................................................................... 17
INFORMATION TO USER
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
* This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment.
* This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
* We declare that this US model is limited in CH1~CH11 for 2.4G band by
specific firmware controlled by the manufacturer and is not user changeable.
i
REGULATORY INFORMATION
WLAN 11b/g Adapter must be installed and used in strict accordance with the
instructions. This device complies with the following radio frequency and
safety standards.
USA - Federal Communications Commission (FCC)
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may cause undesired
operation.
Europe- R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE
OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio
equipment and telecommunication terminal Equipment and the mutual
recognition of their conformity (R&TTE)
CE Declaration of Conformity
This product is herewith confirmed to comply with the requirements set out in the
Council (European parliament) Directive on the Approximation of the Laws of the
Member States relating to Electromagnetic Compatibility of Radio and Telecom
device (1999/5/EC). For the evaluation regarding this Directive, the following
standards were applied:
EN 300 328 V1.6.1 (2004-11)
EN 301 489-1 V1.4.1 (2002-08), EN 301 489-17 V1.2.1 (2002-08)
EN 60950-1: 2001
Ii
EU Countries Not intended for use
None.
Potential restrictive use
France: Only channels 10,11,12, and 13
The channel identifiers, channel center frequencies, and
regulatory domains of each 22-MHz-wide channel are shown in
following Table.
Channel
Identifier
Center
Frequency
(MHZ)
Regulatory Domains
Japan ETSI
North
America
Israel France Mexico
1 2412
ˇ ˇ ˇ
ˇ
2 2417
ˇ ˇ ˇ
ˇ
3 2422
ˇ ˇ ˇ ˇ ˇ
4 2427
ˇ ˇ ˇ ˇ ˇ
5 2432
ˇ ˇ ˇ ˇ ˇ
6 2437
ˇ ˇ ˇ ˇ ˇ
7 2442
ˇ ˇ ˇ ˇ
8 2447
ˇ ˇ ˇ ˇ
9 2452
ˇ ˇ ˇ ˇ
10 2457
ˇ ˇ ˇ
ˇ
11 2462
ˇ ˇ ˇ
ˇ
12 2467
ˇ ˇ
13 2472
ˇ ˇ
14 2484
ˇ
iii
1
Thank you for your purchase of the WLAN Mini USB Adapter.
Featuring wireless technology, this wireless networking solution has
been designed for both large and small businesses, and it is scalable
so that you can easily add more users and new network features
depending on your business scale.
FEATURES
Support Microsoft Windows 2000, XP and Vista.
Operating distance of up to 300 meters in free space.
54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps selectable Data Rate.
Support USB 2.0 interface.
64-bit or 128-bit WEP (Wired Equivalent Privacy); WPA
(Wi-Fi Protected Access),WPA2
2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band.
Modulation Method :
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum).
IEEE 802.11g : OFDM (Orthogonal Frequency Division Multiplexing).
Easy operation and setting up.
SYSTEM REQUIREMENTS
Windows System : 2000, XP and Vista.
PCs must have a device driver installed. It allows you to communicate
with WLAN Mini USB Adapter.
2
BEFORE YOU START
1. Confirm Box Contents
CONNECTING YOUR WLAN
USB ADAPTER TO PC
Quick Start Guide
Connect your WLAN USB
dongle to your PC.
Install driver.
GETTING TO KNOW WIRELESS LAN USB ADAPTER
LED
LED turns on when POWER is applied to the WLAN Mini USB Adapter.
LED is blinking when PC is sending data through WLAN Mini USB
Adapter.
3
Wireless LAN network defined by IEEE 802.11b/g standard committee
could be configured as :
Ad Hoc wireless LAN.
Infrastructure wireless LAN.
Ad Hoc network is a group of PCs installed with wireless LAN cards, this
group of PCs is called a BSS (Basic Service Set). PCs in this group can use
their wireless LAN cards to communicate with each other, but can not
connect to the Internet.
Ad Hoc Wireless Network Infrastructure Wireless Network
The most obvious difference between Infrastructure wireless network
and Ad Hoc wireless network is that the PCs in Infrastructure wireless
network can access the resource in the Internet through Access Point.
Depending on your requirement, you can easily set up your PC’s
network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally
speaking, if in your network, there is an Access Point in it, we recommend
you to set your network as an “Infrastructure”, so it can connect to
the Internet.
