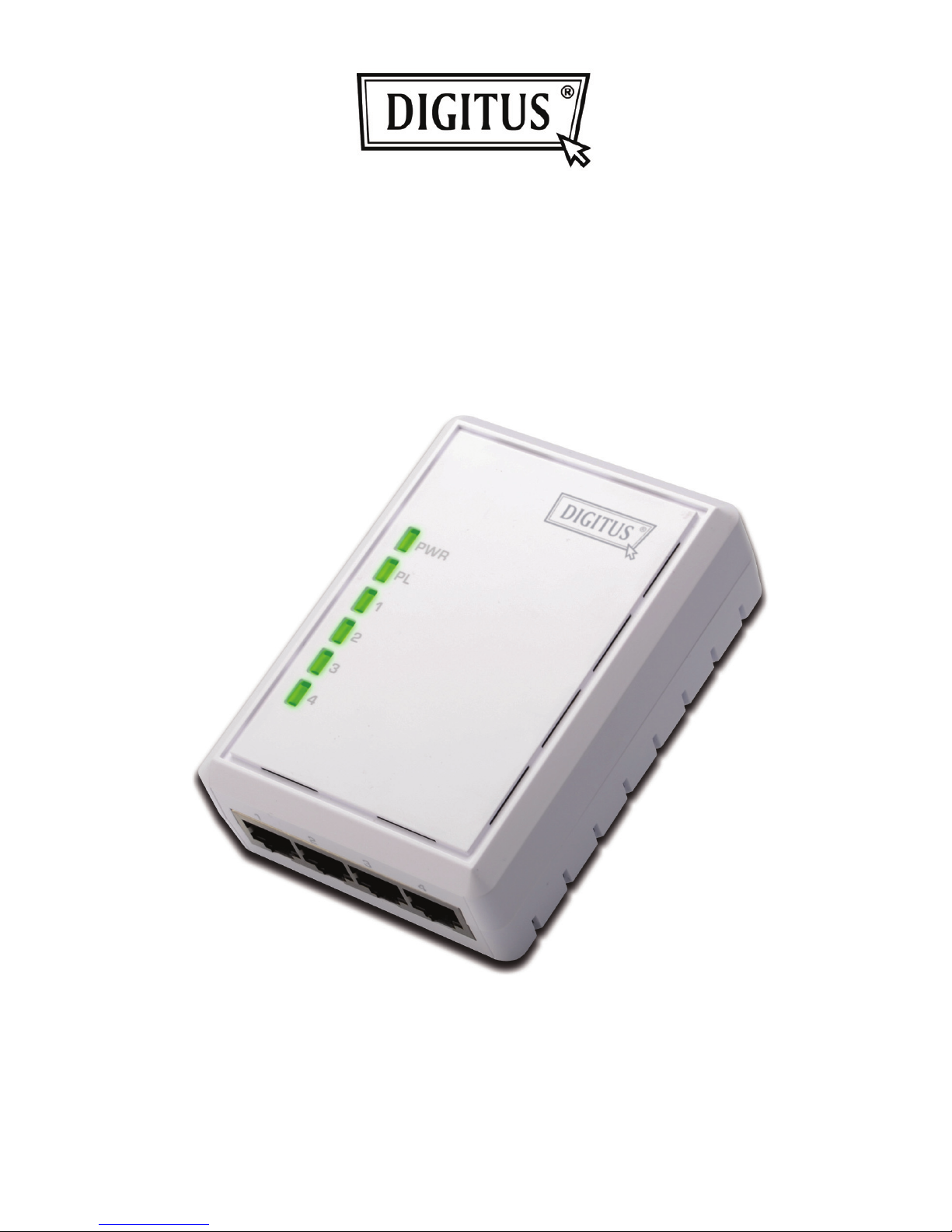

POWERLINE HIGH SPEED
NETWORK BRIDGE
Quick Installation Guide
DN-15028
Page 2
Attention:
EN: For further details and instructions please refer to the multilingual
user manual, which you can find on the enclosed CD.
DE: Für weitere Einzelheiten und Anleitungen siehe mehrsprachige Bedienungsanleitung
auf der mitgelieferten CD.
FR: Pour plus de détails, veuillez vous reporter au mode d’emploi multilingue consultable sur le CD ci-joint.
NL: Voor verdere details en instructies verwijzen wij u naar de meertalige handleiding,
die u op de bijgeleverde CD kunt vinden.
IT: Per ulteriori dettagli e istruzioni, cfr. il manuale per l'uso multilingue, disponibile nel CD in dotazione.
ES: Para mas detalles e instrucciones, por favor refiérase al manual del usuario multi-idioma disponible
en el CD que se incluye.
RU: Дальнейшие детали и инструкции вы можете найти в многоязычном Руководстве
для пользователя, который находится на включенном в комплект CD.
PL: Dalsze szczegóły i wskazówki są w wielojęzycznym podręczniku użytkownika,
znajdującym się w załączonym CD.
PT: Para mais detalhes e instruções, consulte o manual de instruções em vários idiomas
que acompanha o CD fornecido com o aparelho.
TR: Ayrıntılı bilgi ve talimatlar için lütfen eklenen CD’de bulabileceğiniz çok dilli kullanım kılavuzuna bakınız.
Important Safety Instructions
This product is intended for connection to the AC power line.
The following pre-cautions should be taken when using this product:
Please read all instructions before installing and operating this product.
Please follow all warnings and instructions marked on the product.
Do not operate this product near water.
This product should never be place near or over radiator, or heat register.
This product relies on a building’s electrical installation for short-circuit (over
current) protection.
Ensure that a fuse or circuit breaker is used on the phase conductors (all
current-carrying conductors).
Do not allow anything to reset on the product interconnect cords.
Do not locate this product where people may walk on the cords.
The power cord should be plugged directly into a specification AC wall outlet.
Only a qualified technician should service this product. Opening or removing
covers may result in exposure to dangerous voltage points or other risk.
Unplug this product from the wall outlet and refer the product to qualified service
personal for the following conditions:
1. When the interconnect cords are damaged or frayed.
2. If liquid has been spilled onto the product.
3. If the product has been exposed to rain or water.
4. If the product does not operate normally when the operating instructions
have been followed.
5. If the product exhibits a distinct change in performance.
Page 3
Package Content
500Mbps Powerline Ethernet Adapter
RJ-45 Cat.5 Cable
Quick Installation Guide, and CD-ROM(Include Utility and user manual)
Quick Installation Guide
If any of the above items are missing or damaged, contact your local dealer
for support.
LED Definition
LED Color Status Description
Power
Green On Power is on
Green Blink
● System enters the power save mode.
● System is resetting.
● System is in the process of security setup.
- Off Power is off
Ethernet
Green On
The device is connecting to other devices via the
Ethernet interface but not communicating with
them.
Green Blink
The device is receiving or transmitting data via the
Ethernet interface.
- Off
The device is not connecting to other devices via
the Ethernet interface.
Data
Green/
Red
On
The device has connected to the power line
network. The Data LED color will vary according
to the physical rate.
● Green: Link Rate > 100 Mbps+
● Orange: 50 Mbps< Link Rate <100 Mbps
● Red: Link Rate< 50 Mbps
Red Blink
When the device is scanning other PLC devices,
the Data indicator blink quickly.
- Off
The adapter has not found any other compatible
power line devices that use the same encryption
key.
Page 4
Button Definition
Connecting Powerline Ethernet Adapter

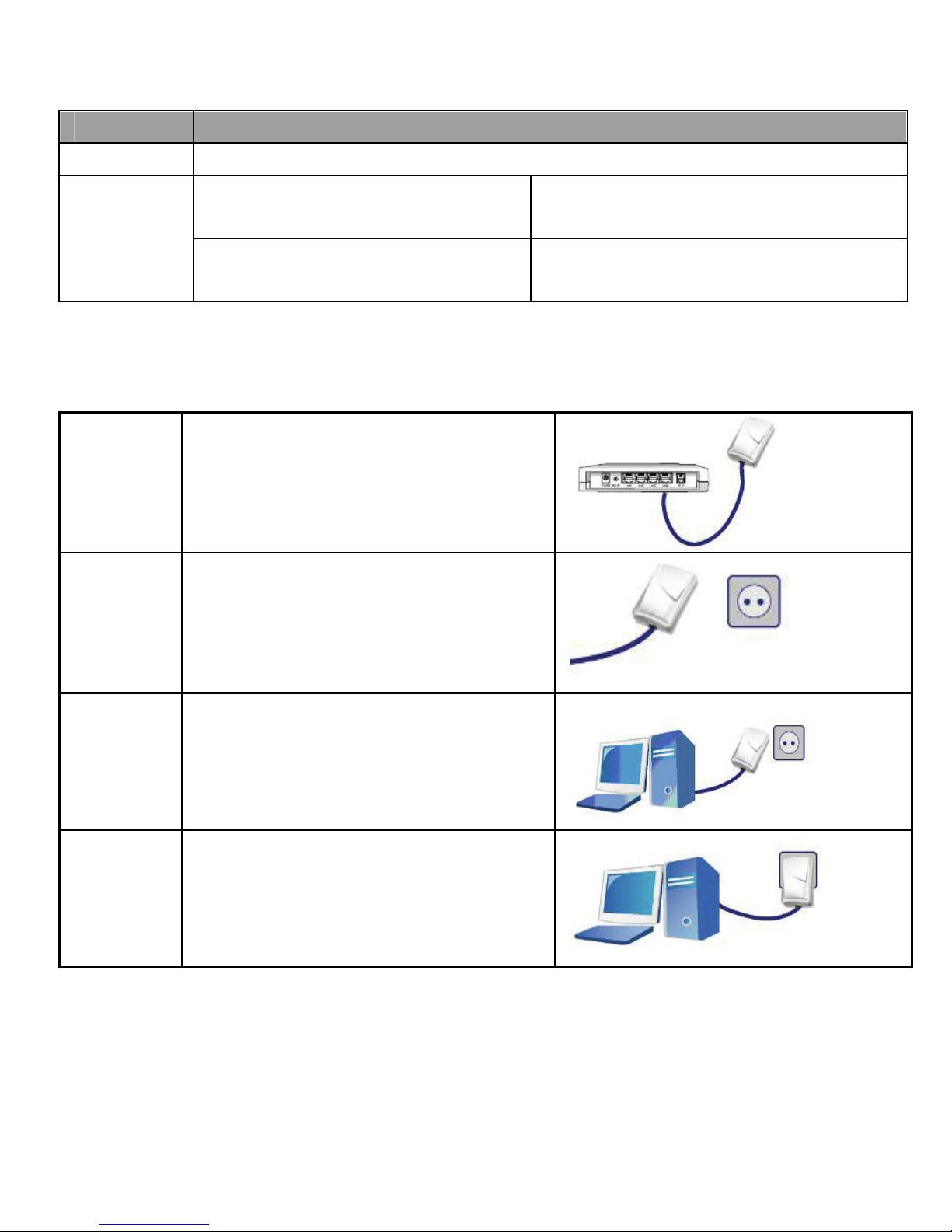

Hardware Installation
Step 1.
Connect one Powerline Ethernet
bridge to your ADSL or Cable
modem’s Ethernet port.
Step 2.
Plug it into the nearest power
socket.
Step 3.
Plug in the second Powerline
Ethernet bridge next to your PC
and connect the Ethernet ports.
Step 4.
Internet access from any power
socket in your home.
Further Configuration
If you want to configure more detail settings of the Powerline Adapter,
please refer to user’s manual on the bundled CD.
Button Description
Reset Reset to factory default
Security
Press security button during
1~3 seconds
Join a another HomePlugAV
network
Press security button more
than 10 seconds
Set its security to random value
