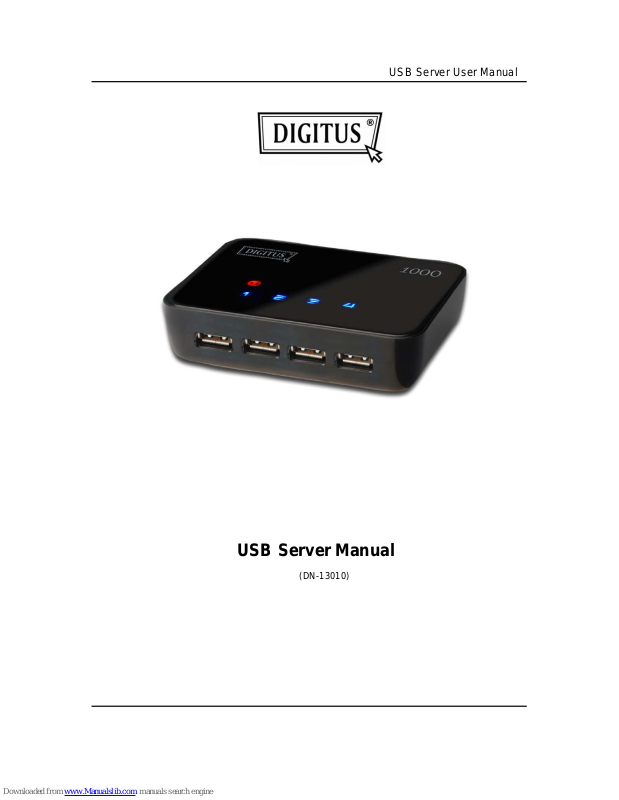

Digitus DN-13010 User Manual
USB Server User Manual
USB Server Manual
(DN-13010)
Copyright Notice
Copyright 2010. Al rights reserved.
Disclaimer
USB Server User Manual
Incorporated shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use of this product.
Incorporated reserves the right to change product specifications without notice.
Information in this document may change without notice.
Trademarks
Microsoft, Windows XP, Windows VISTA and Windows 7 are registered trademarks of
the Microsoft Corporation. Al other brand and product names mentioned herein may be
registered trademarks of their respective owners.
Customers should ensure that their use of this product does not infringe upon any
patent rights. Trademarks mentioned in this publication are issued for identification
purposes only and are properties of their respective companies.
REV: 1.1 - 2 -
Table of Content
USB Server User Manual
Introduction.............................................................................................................................4
Features...........................................................................................................................................4
Installation.......................................................................................................................................5
Running Program............................................................................................................................6
System Firewall......................................................................................................................7
Main Dialog Box...................................................................................................................10
Status of USB Servers and Devices .......................................................................................11
Accessing a Device.......................................................................................................................14
Server Configuration.....................................................................................................................16
Configuration with Web-based UI........................................................................................17

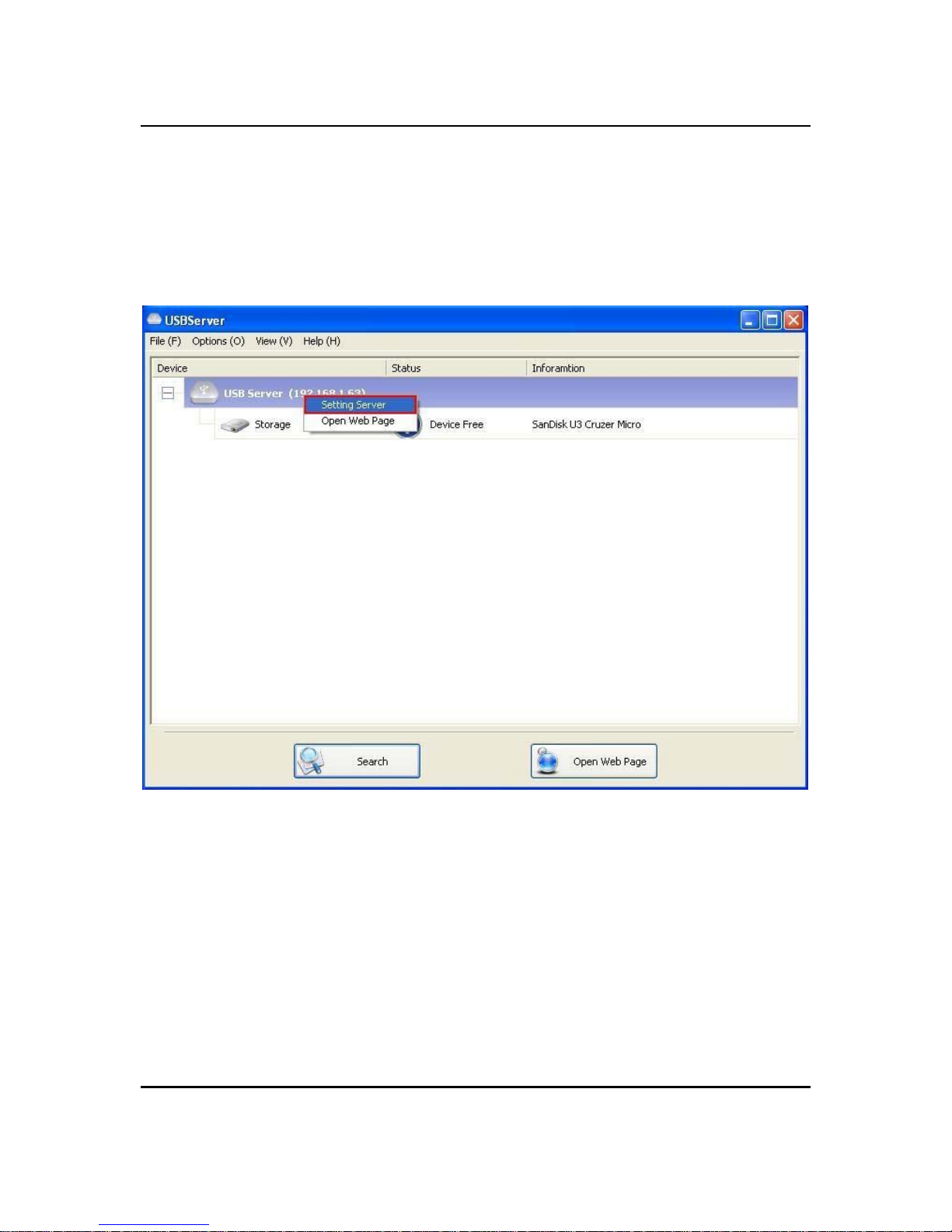

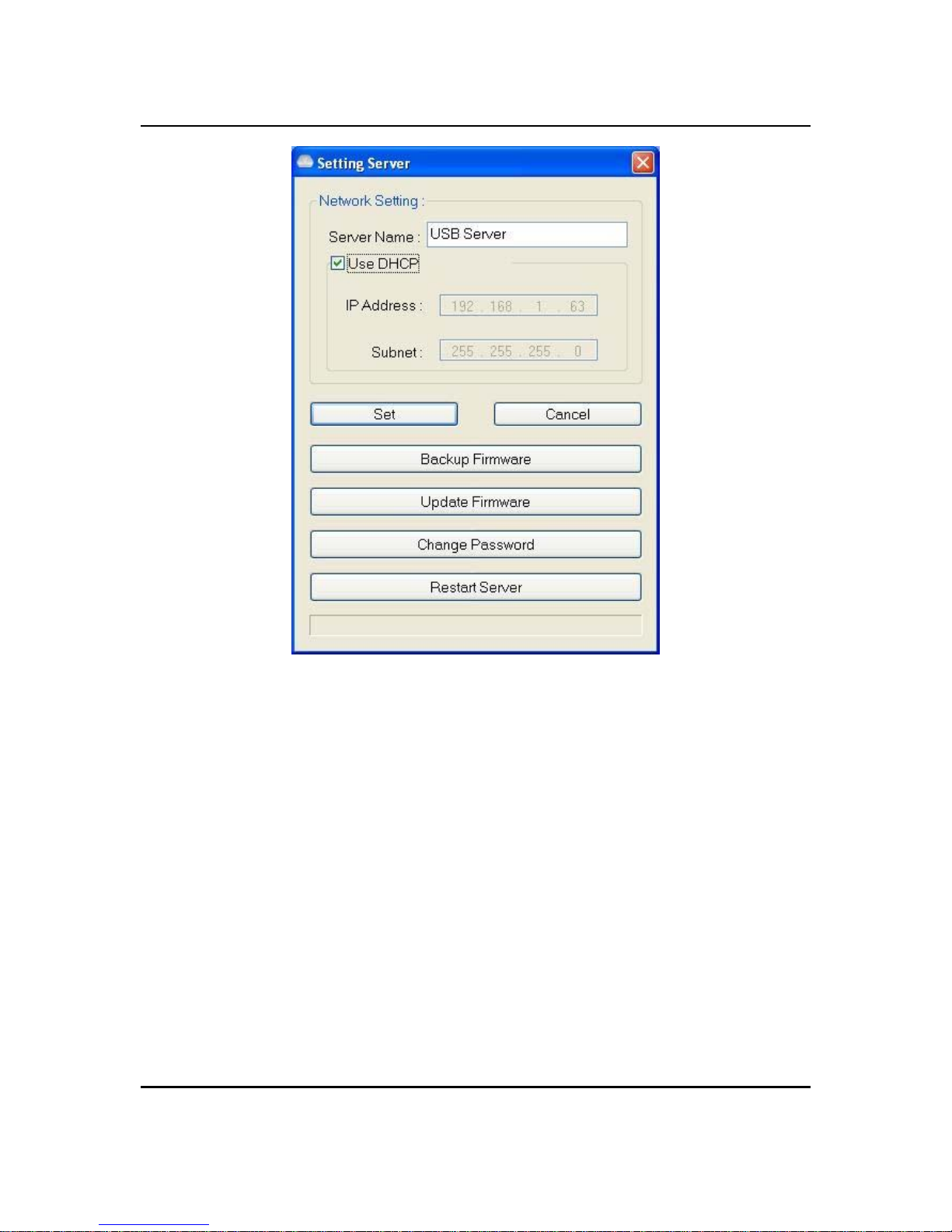

Configuration with the Utility...............................................................................................23
Featured Function.................................................................................................................. 26

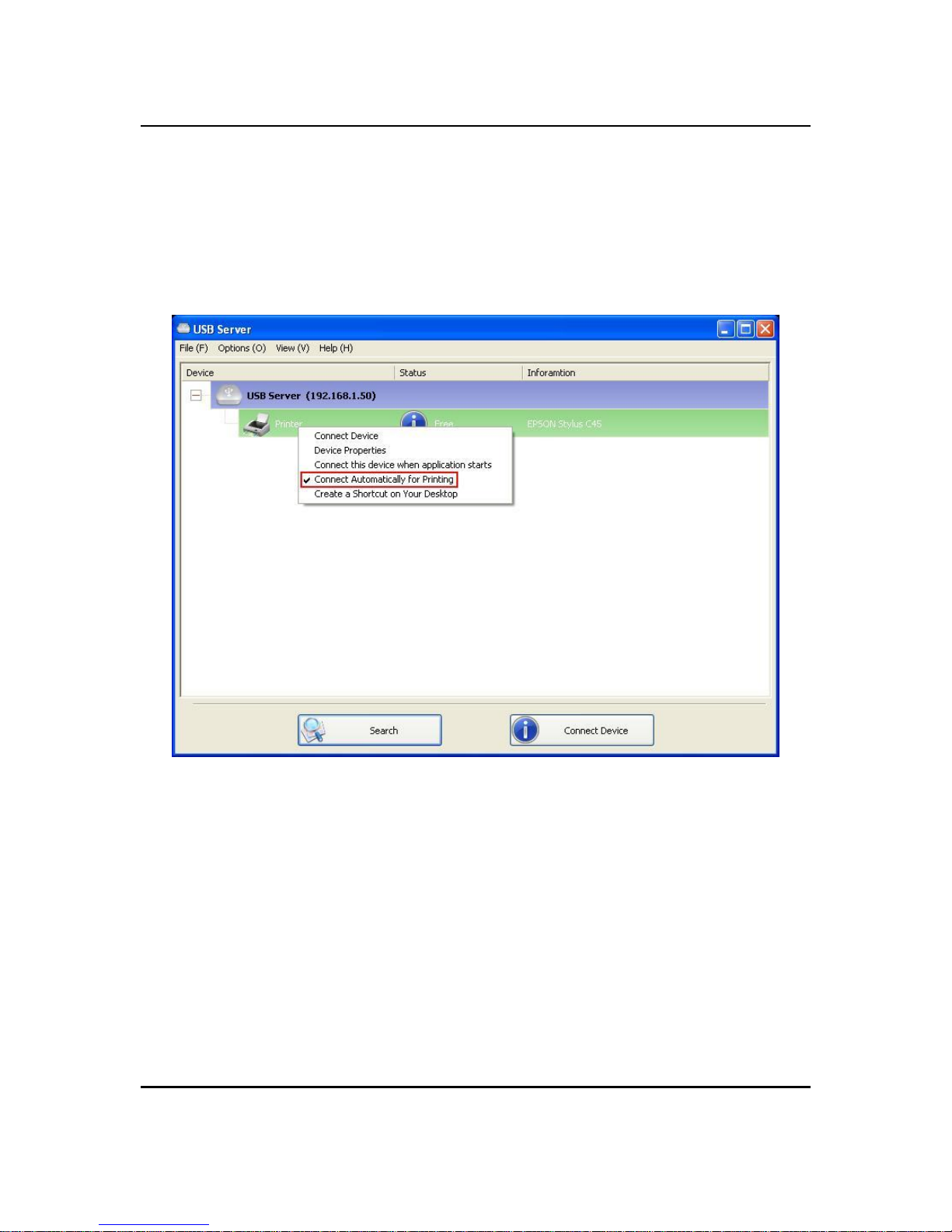

Connect Automatically for Printing ...................................................................................... 26

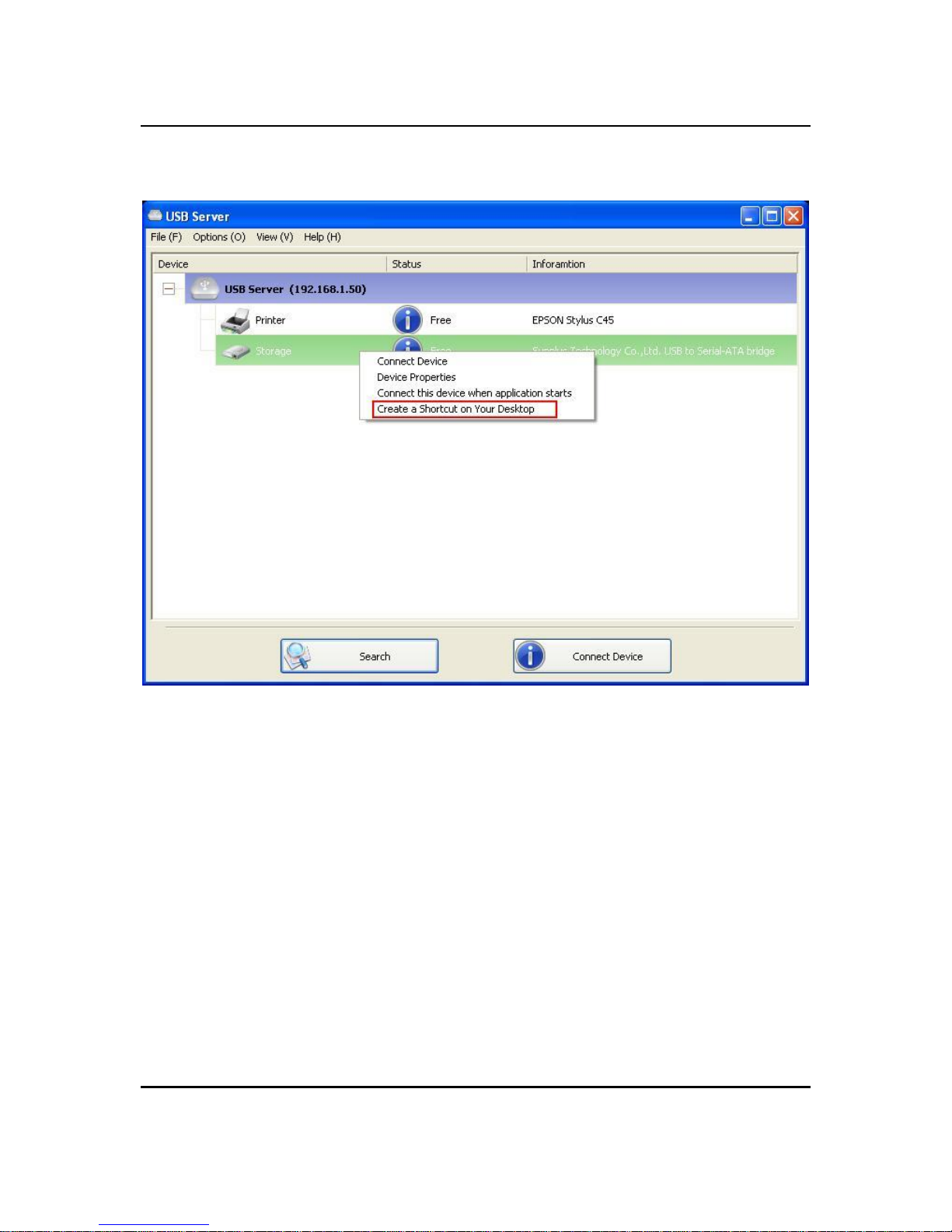

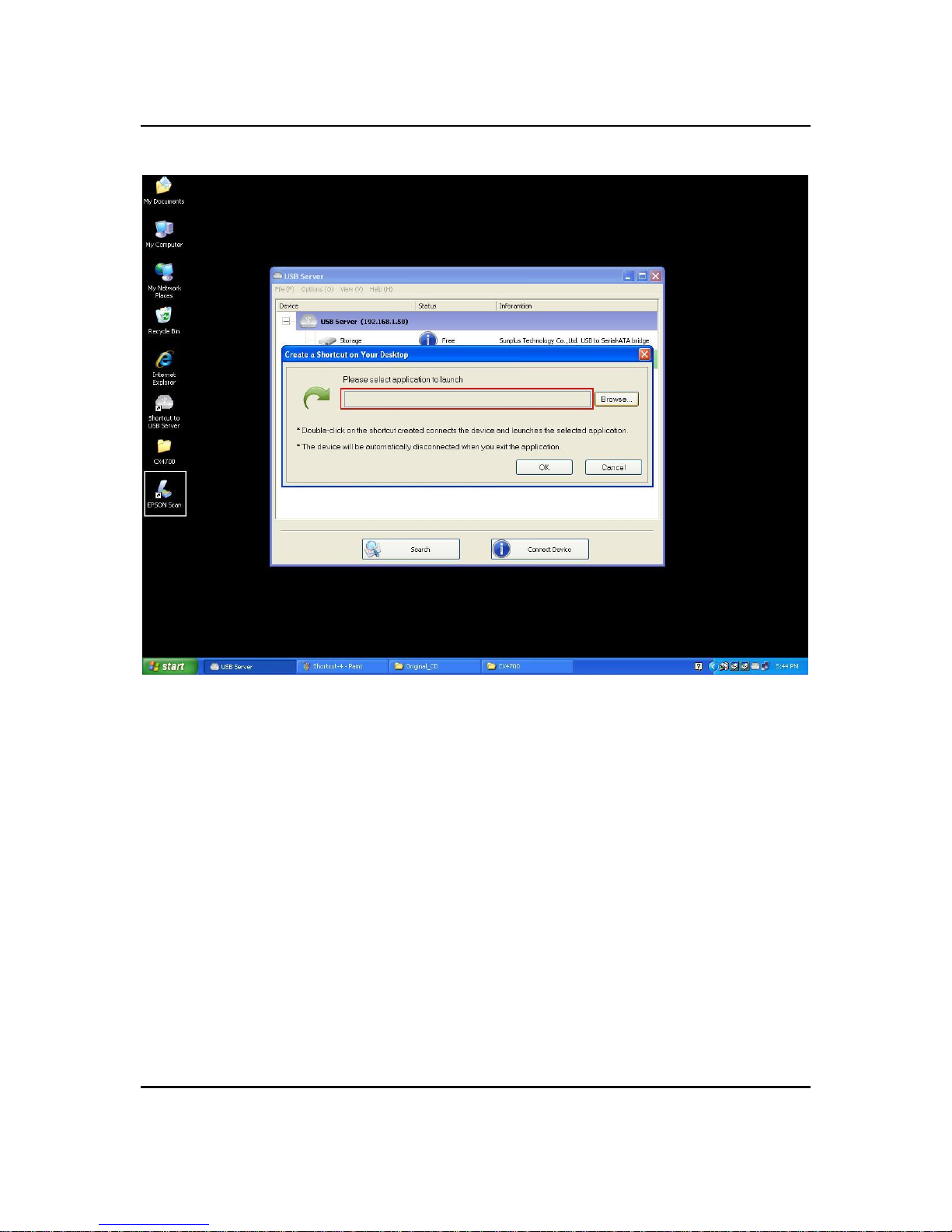

Create a Shortcut on Your Desktop ...................................................................................... 27
Connect this device when application starts ......................................................................... 35
Auto Disconnect Printer/MFP/Storage Device........................................................ ............. 36

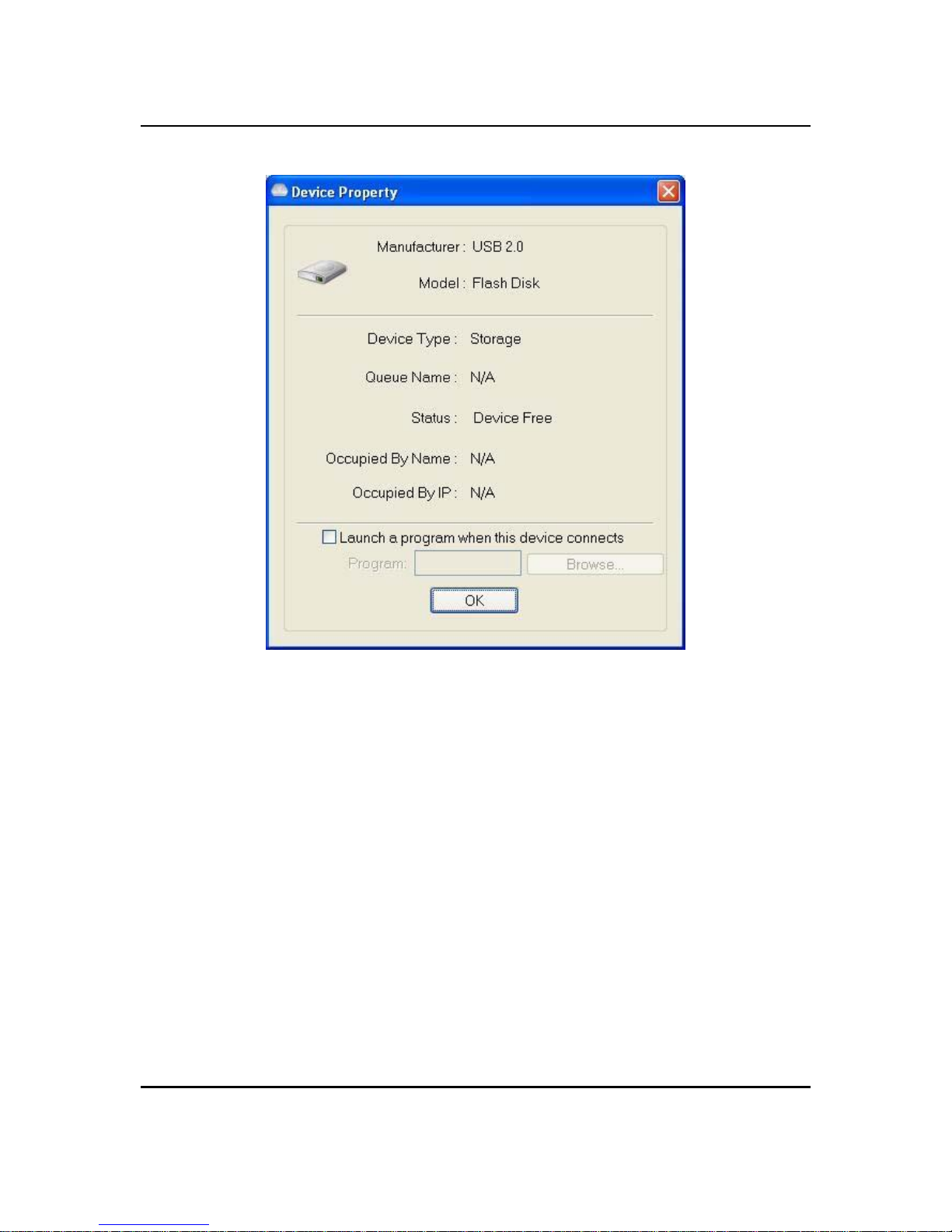

Device Property .................................................................................................................... 39
File ........................................................................................................................................ 41
Options.................................................................................................................................. 42
Language............................................................................................................................... 42
Server Settings ...................................................................................................................... 43

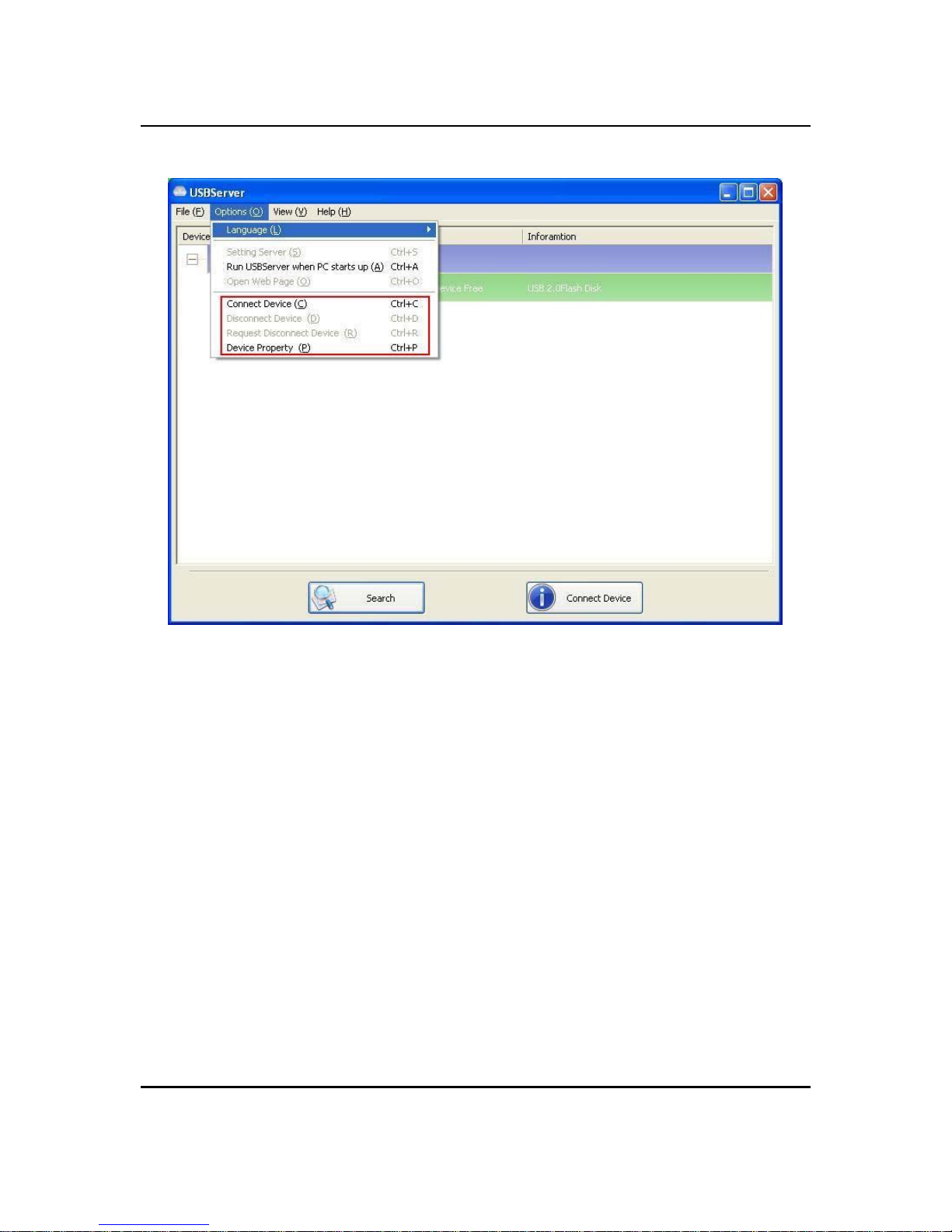

Device Settings ..................................................................................................................... 44

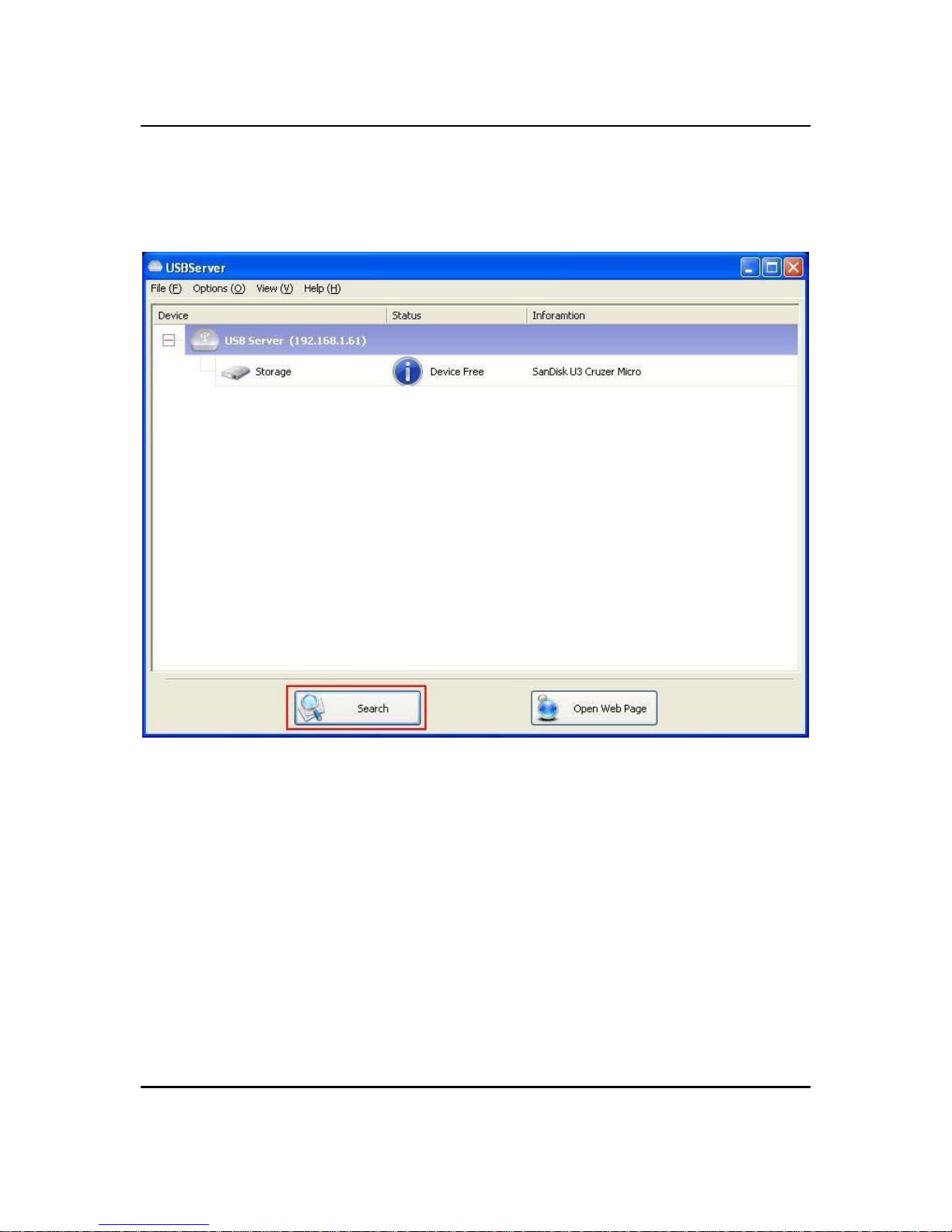

Search......................................................................................................................................45
View..........................................................................................................................................46
Help -> About .......................................................................................................................... 47
Technical Support .....................................................................................................................48
REV: 1.1 - 3 -
USB Server User Manual
Features
• Centralized remote USB Server Management
• Centralized remote USB Server Status Monitoring
• Centralized remote USB Device Management
• Centralized remote USB Device Status Monitoring
REV: 1.1 - 4 -
Installation
USB Server User Manual
To install the USB Server program, please double click the USB Server setup file.
Then please follow the instructions of the wizard to complete the installation process.
Please reboot the system as requested by the installer when the process ends,
otherwise the software might not work properly.
REV: 1.1 - 5 -
Running Program
USB Server User Manual
To start the USB Server program, please double click the shortcut icon of the USB
Server on the Desktop.

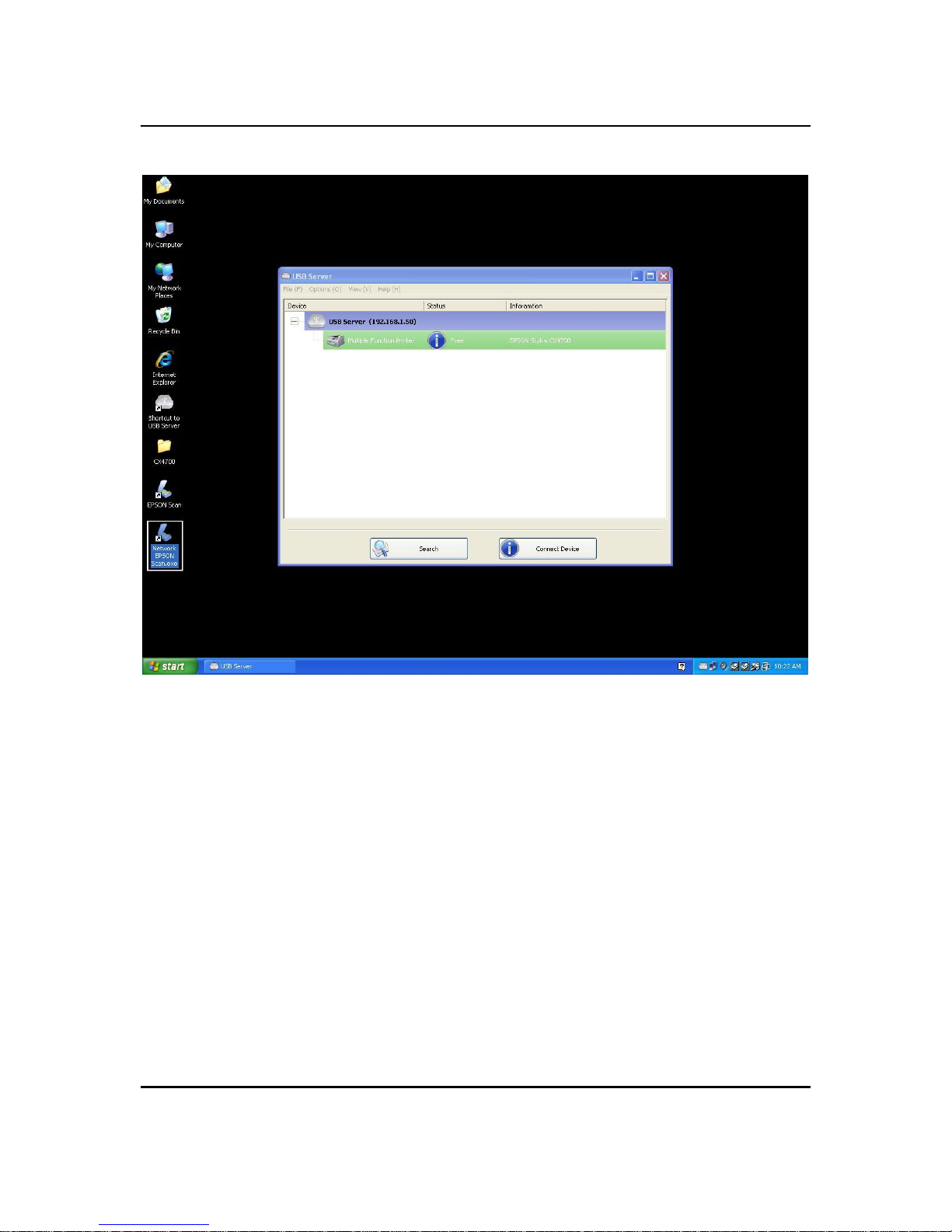

This would bring up the main dialog as shown below.
REV: 1.1 - 6 -
System Firewall
USB Server User Manual
When you start the program for the time, your Windows OS will prompt you for Firewall
Access. Please make sure you unblock the software or grant it access, otherwise the
program will not work correctly.
Windows XP Firewall Access Alert
Please make sure you “Unblock” the program.
REV: 1.1 - 7 -
Windows Vista Firewall Alert
USB Server User Manual
If your system is running Windows Vista, please make sure you “Unblock” the program.
REV: 1.1 - 8 -
Windows 7 Firewall Alert
USB Server User Manual
If your system is running Windows 7, please make sure you click on “Allow access”
when you see this alert.
Once you have done this once, the system will remember your setting and will not
prompt you again next time you run the software.
REV: 1.1 - 9 -
Main Dialog Box
USB Server User Manual

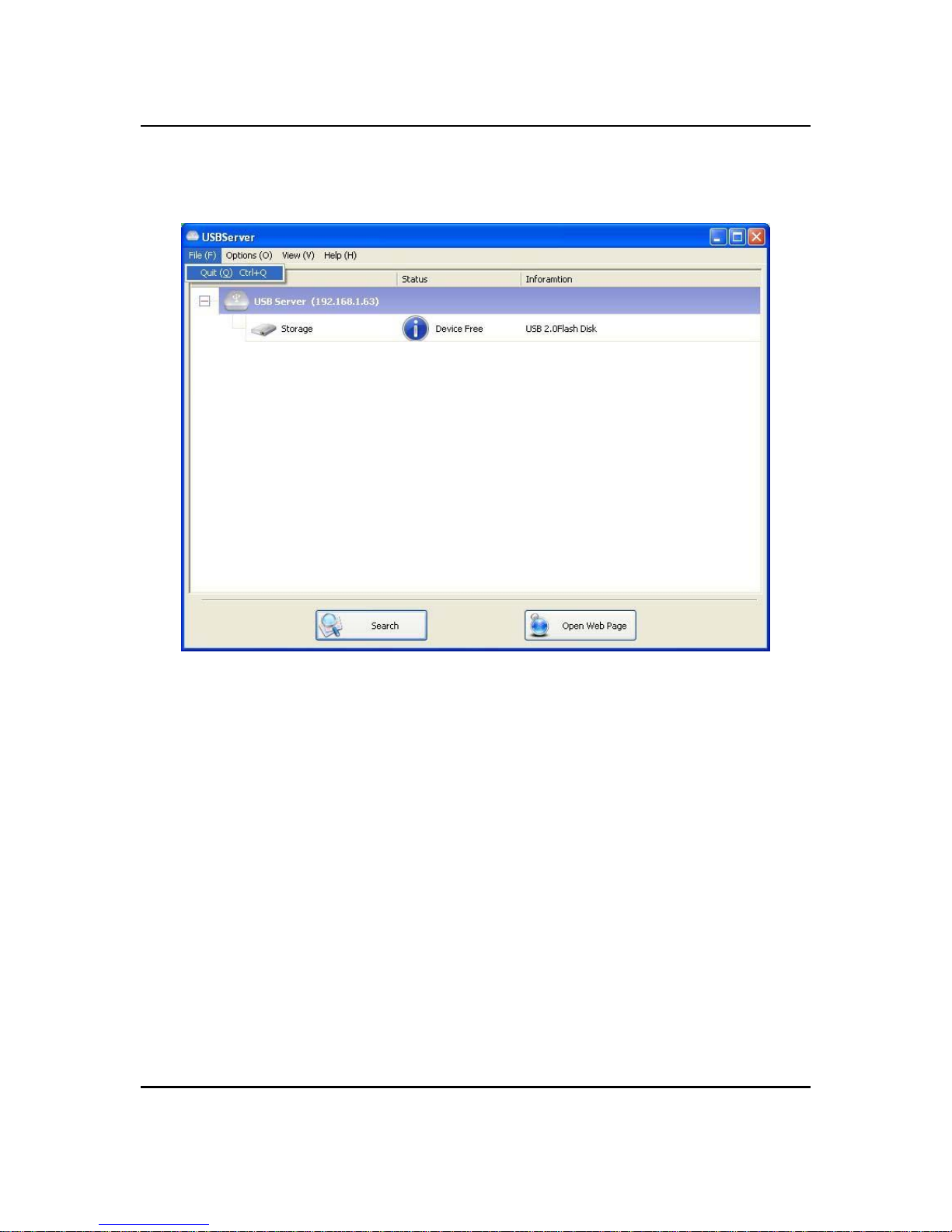

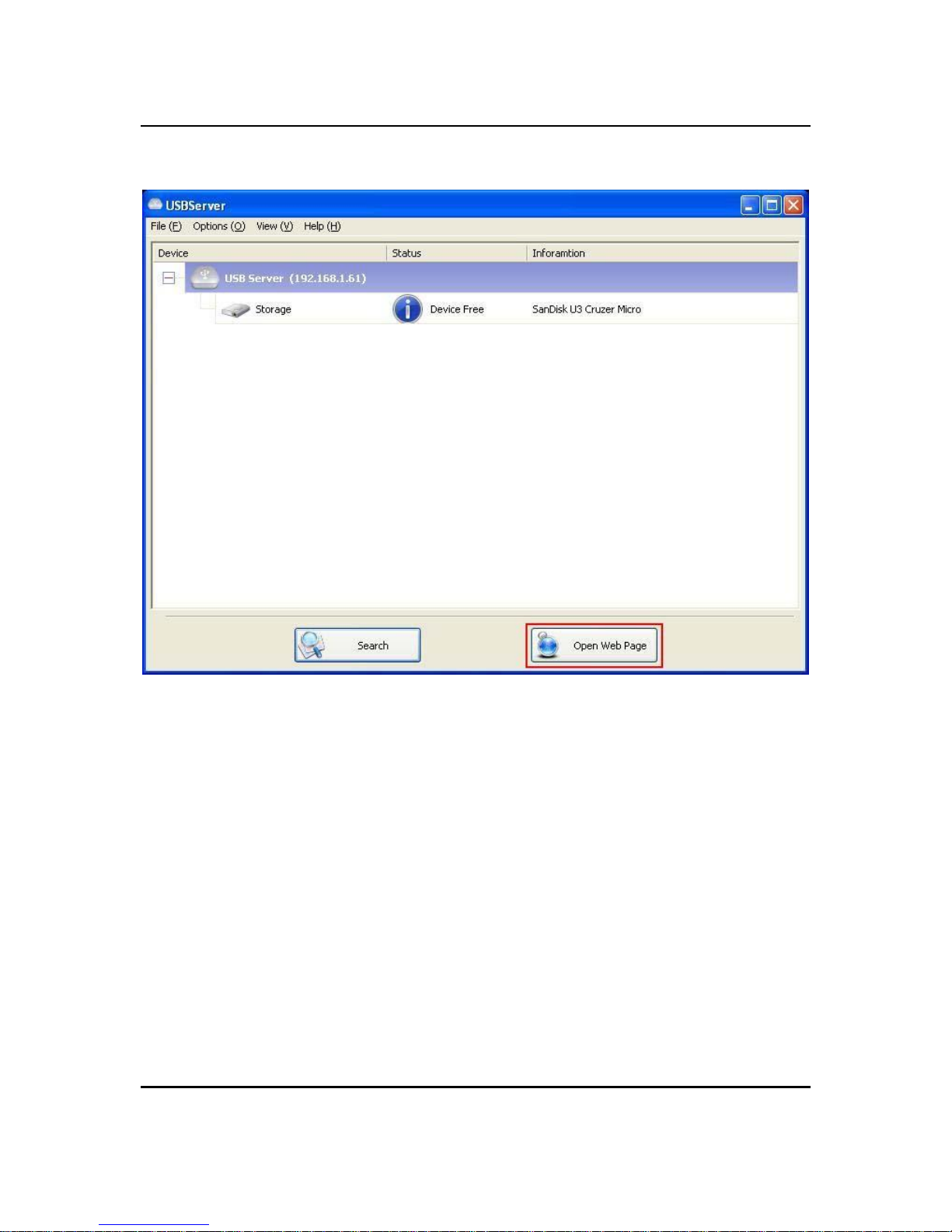

Once you have start up the program and grant it access through the firewall, you will
see this main dialog box.
The main dialog box is consisted of a Control Menu (File, Options, View and Help), a
tree view in the middle that displays a list of all the server and devices discovered on
the network, a Search button to get the current status of all USB Servers and devices,
and a button that toggles between Open Web Page and Connect Device depending
on the node you select on the tree view. The Open Web Page button toggles to
Connect Device when a device is highlighted.
REV: 1.1 - 10 -
Status of USB Servers and Devices
USB Server User Manual
The tree view also tells you the status of all the USB Servers and devices that are
discovered on the network. An inaccessible USB Servers might or might now show up
on the list. It is either disconnected from the network, powered off or suffering from other
technical difficulties.
The device might be in one of the following states and there are different things you can
do with it in each of the states. Each status is represented by a specific icon.
Device Free
A device with Device Free status is unoccupied and ready to be connected.
REV: 1.1 - 11 -
Occupied by Yourself
USB Server User Manual
When you are Connected to a device, the green icon turns into an orange icon to
signify the establishment of the connection.
REV: 1.1 - 12 -
Occupied By Other User
USB Server User Manual
This status icon indicates the device is occupied by another user on your network and
you can not connect to that device at the moment.
Device on Different Segment
This icon with question mark indicates that the server’s IP address is on a different
network segment from your PC. You can NOT connect to a device attached to such
server. Please check your network settings. However you can still change its network
settings.
Unsupported Device
Some of the devices are not supported by USB server. Such device will be
identified by a stop sign icon as shown. Of course, connecting to an unsupported device
is not allowed.
REV: 1.1 - 13 -
Accessing a Device
USB Server User Manual
To connect to a USB device, please select it on the tree view and click on Connect
Device button or double-click on it. This process might take a few seconds up to a
minute, depending on the complexity of the device. Then you can operate a
connected USB device as if it is connected to your PC’s USB port directly.
REV: 1.1
- 14 -
USB Server User Manual

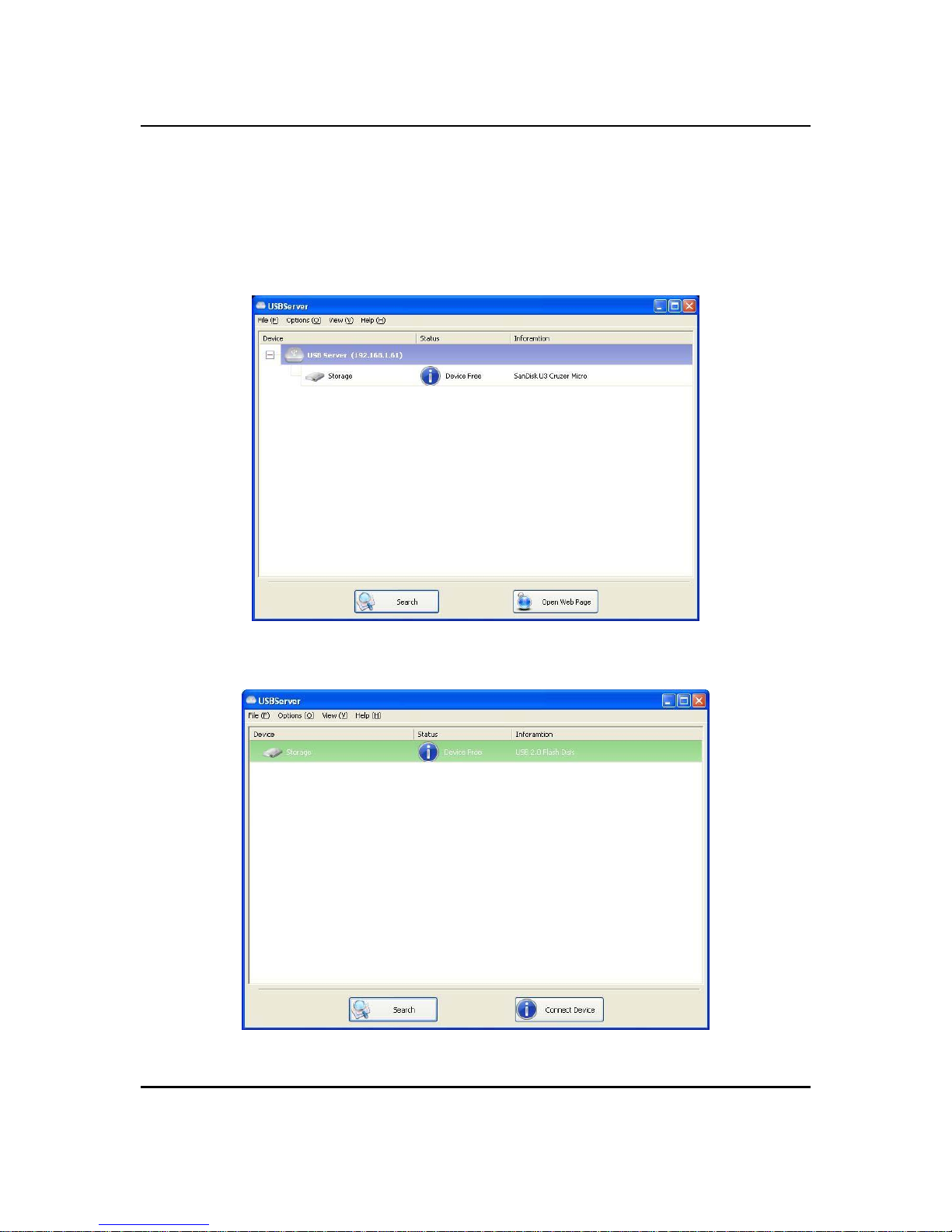

If you select a connected device on the UI, you can see that the Connect Device button
is changed to Disconnect Device:
Clicking on this button releases the selected device for other users. Once you see the
icon turns back, the device has been disconnected and other users will then be able to
connect to it.
This operation is exactly like when you unplug a USB device from your PC’s USB
port.
REV: 1.1 - 15 -
