DN-13007

2 USB 2.0 Hi-Speed Ports/MFP Server

User`s Manual

Version 1.17

Table of Contents

CHAPTER1 INTRODUCTION .........................................................................................................4

1.1 About this Manual...........................................................................................4

1.2 Support Services .............................................................................................4

CHAPTER2 PRODUCT OVERVIEW..............................................................................................4

2.1 Package Contents ...........................................................................................4

2.2 Product CD.....................................................................................................4

2.2.1 Start-up Procedures for Windows...................................................................4

2.3 Physical Description.......................................................................................5

2.3.1 Ethernet Connector.........................................................................................5

2.3.2 USB Host Ports...............................................................................................5

2.3.3 Init Button.......................................................................................................5

2.3.4 Indicators........................................................................................................5

2.4 Installation Methods.......................................................................................6

2.4.1 Installation and Integration............................................................................6

2.4.2 Configuration and Management.....................................................................6

2.5 Features and Benefits.....................................................................................6

CHAPTER3 BASIC INSTALLATION..............................................................................................8

3.1 Connecting the Hardware...............................................................................8

3.2 Assigning an IP Address to the Server............................................................8

3.2.1 Preliminary.....................................................................................................8

3.2.2 Ethernet Address.............................................................................................8

3.2.3 IP Address.......................................................................................................8

3.2.4 Methods for Setting the IP Address.................................................................8

3.2.5 Host Names and Host Name Rules.................................................................9

3.2.6 Set the IP Address Using DHCP.....................................................................9

3.2.7 Set the IP Address Using Control Center .......................................................9

3.2.8 Set the IP Address Using Server’s Web Pages..............................................11

3.3 Naming Your USB Devices ...........................................................................13

3.3.1 Printer Names...............................................................................................13

3.3.2 Storage Names..............................................................................................15

3.3.3 Scanner Names .............................................................................................15

CHAPTER4 ADDING PRINTERS IN WINDOWS.......................................................................16

4.1 Overview of Installation Methods.................................................................16

4.2 Connecting the Server...................................................................................16

4.2.1 The Server and Windows PC on Same LAN .................................................17

4.2.2 The Server and Windows PC on Different LANs..........................................17

4.3 Setting up Local Windows Printer Driver.....................................................17

4.4 Adding Network Printers in Windows...........................................................18

4.4.1 Using Standard Windows Methods for LPR Printing Protocol....................18

4.4.2 Using Control Center for LPR Printing .......................................................22

4.4.3 Using Standard Windows Method for Raw TCP Printing ............................23

4.4.4 Using Control Center for Raw TCP/JetDir ect Printing...............................25

4.4.5 Using Standard Windows Methods for SMB/CIFS Printing.........................26

4.4.6 Using Control Center for SMB/CIFS Printing.............................................27

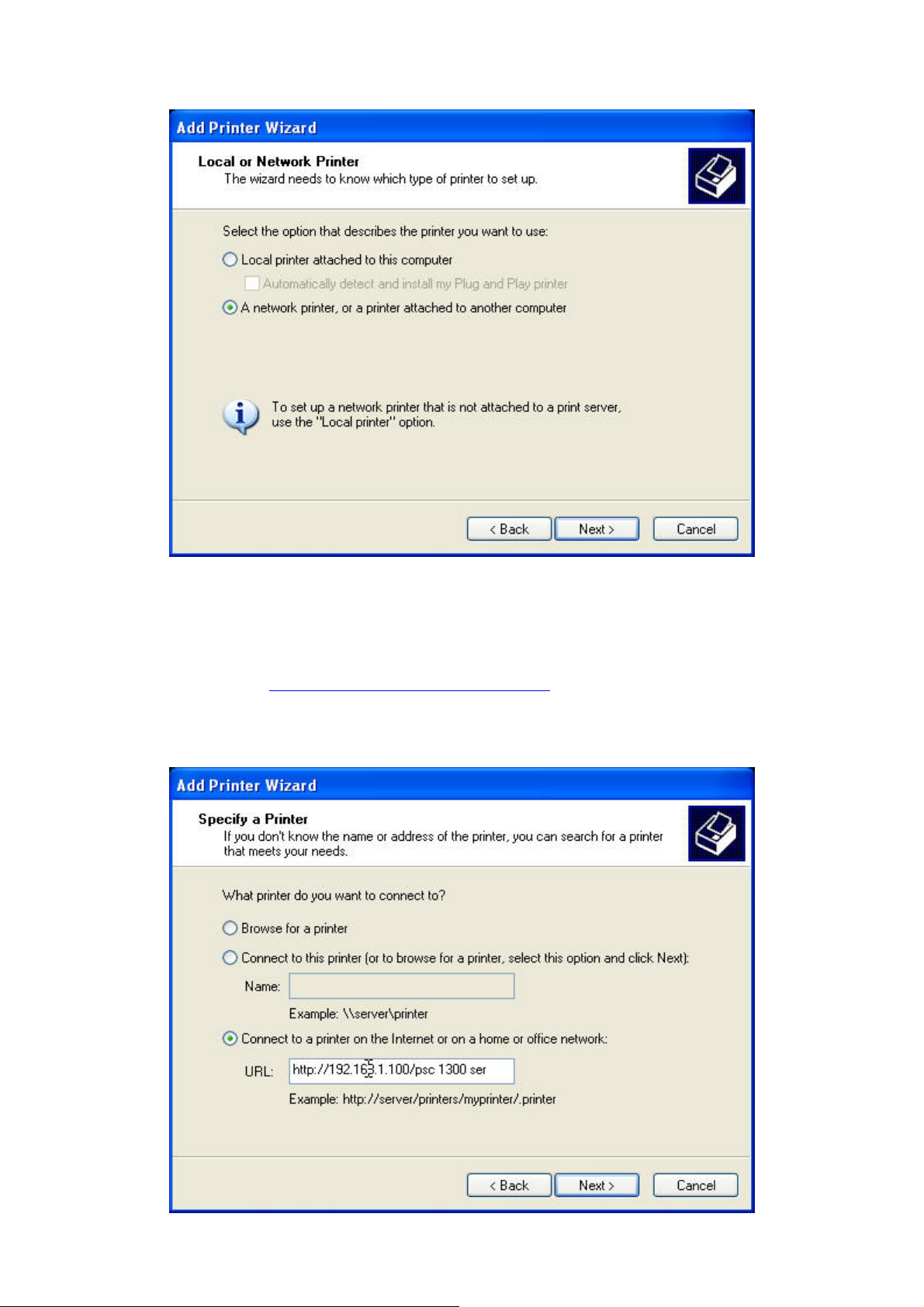

4.4.7 Using Standard Windows Method for IPP Printing......................................29

CHAPTER5 ADDING PRINTERS IN UNIX/LINUX .................................................................32

5.1 Configuring Host File...................................................................................32

5.2 Printing by LPD/LPR ...................................................................................32

5.3 Using the Server on BSD UNIX/Linux..........................................................32

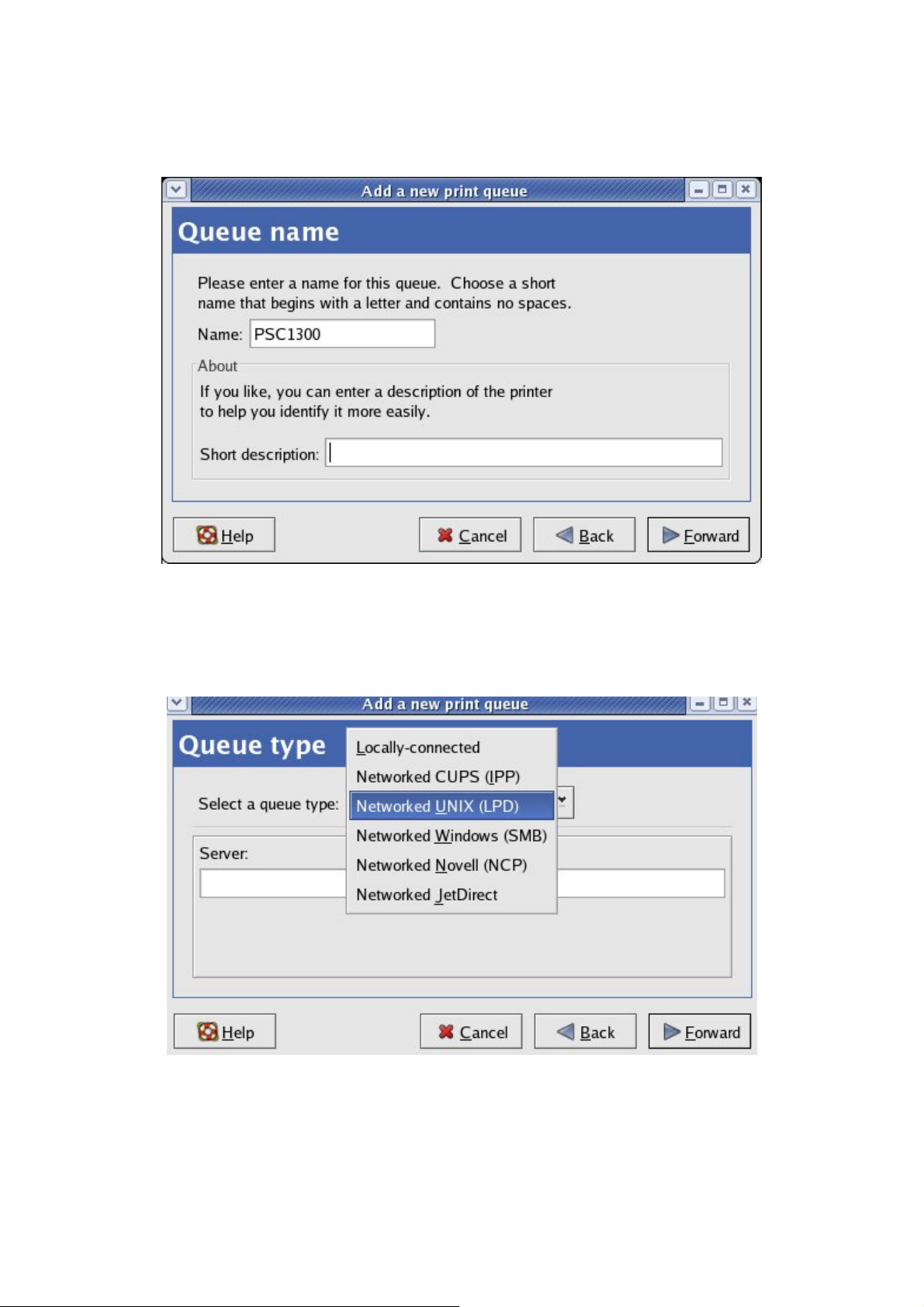

5.4 Using the Server on RedHat Linux (Fedora Core).......................................33

CHAPTER6 FILE SERVER FUNCTION.......................................................................................40

6.1 Preliminary...................................................................................................40

6.2 Storage Names..............................................................................................40

6.3 Connecting USB Mass Storage to the Server...............................................40

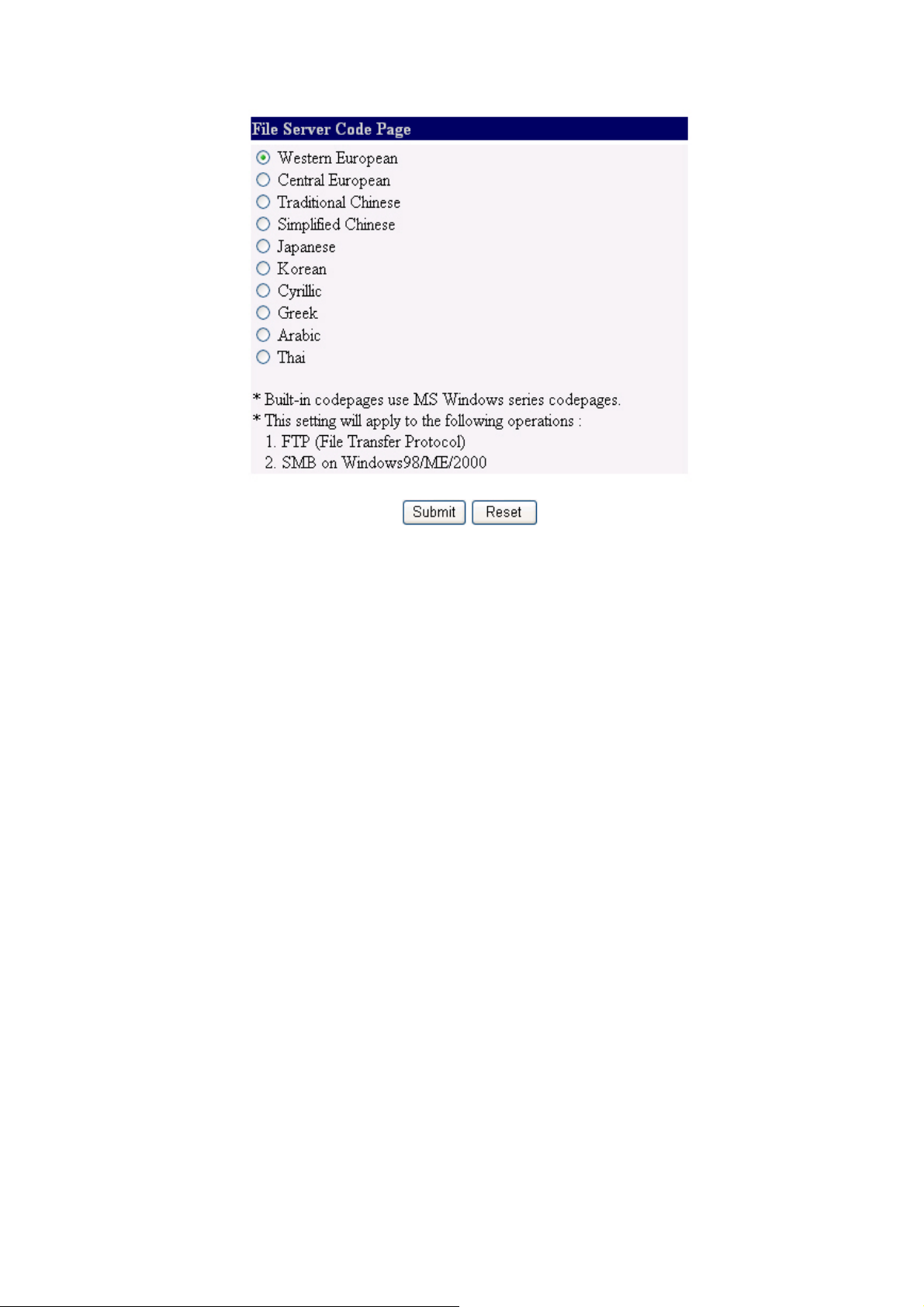

6.4 Supported Codepages...................................................................................41

6.5 Adding Your USB Mass Storages to Network with Security.........................43

6.5.1 Setting up File Server Using Control Center................................................43

6.5.2 Setting up File Server Using Web Pages .........................................................45

6.5.3 Use Shared Storages by SMB/CIFS Method for Windows............................46

6.5.4 Use Shared Storage by FTP Methods for Windows......................................47

6.6 Formatting Disk............................................................................................48

CHAPTER7 SCAN SERVER FUNCTION.....................................................................................50

7.1 Connecting HP All-in-one MFP to the Server..............................................50

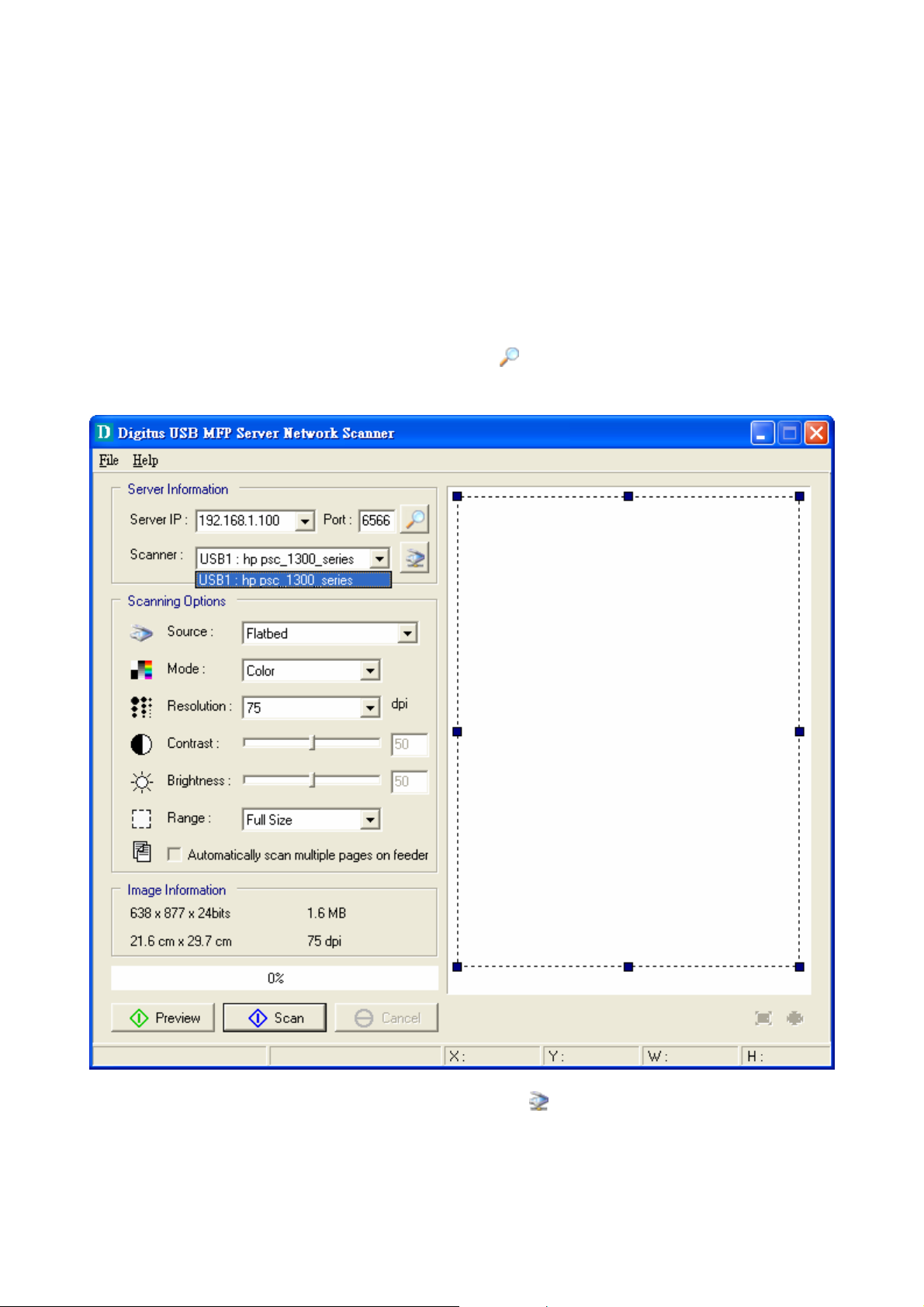

7.2 Using the Shared Scanner in Windows.........................................................50

7.2.1 Using Control Center....................................................................................50

7.2.2 Using Windows Applications........................................................................52

7.3 Using the Shared Scanner in Linux..............................................................53

7.3.1 Using XSane in Redhat Linux.......................................................................53

CHAPTER8 CONTROL CENTER..................................................................................................55

8.1 Installing Control Center..............................................................................55

8.2

Using Control Center....................................................................................55

8.2.1 Use Tools of Control Center .........................................................................55

8.2.2 Display Server’s Status .................................................................................56

8.2.3 Set up Server’s Configuration.......................................................................56

CHAPTER9 SERVER’S WEB PAGES ...........................................................................................63

9.1 Introduction ..................................................................................................63

9.2 Using Server’s Web Pages ............................................................................63

9.2.1 Display Server Status....................................................................................63

9.2.2 Set up Server Configuration .........................................................................64

CHAPTER10 EMAIL ALERTING....................................................................................................70

CHAPTER11 SNMP............................................................................................................................70

CHAPTER12 TROUBLESHOOTING..............................................................................................71

12.1 LED Indicators .............................................................................................71

12.2 USB Device Status........................................................................................71

CHAPTER13 RESTORE FACTORY DEFAULTS ..........................................................................72

13.1 Using Server’s Web Pages ............................................................................72

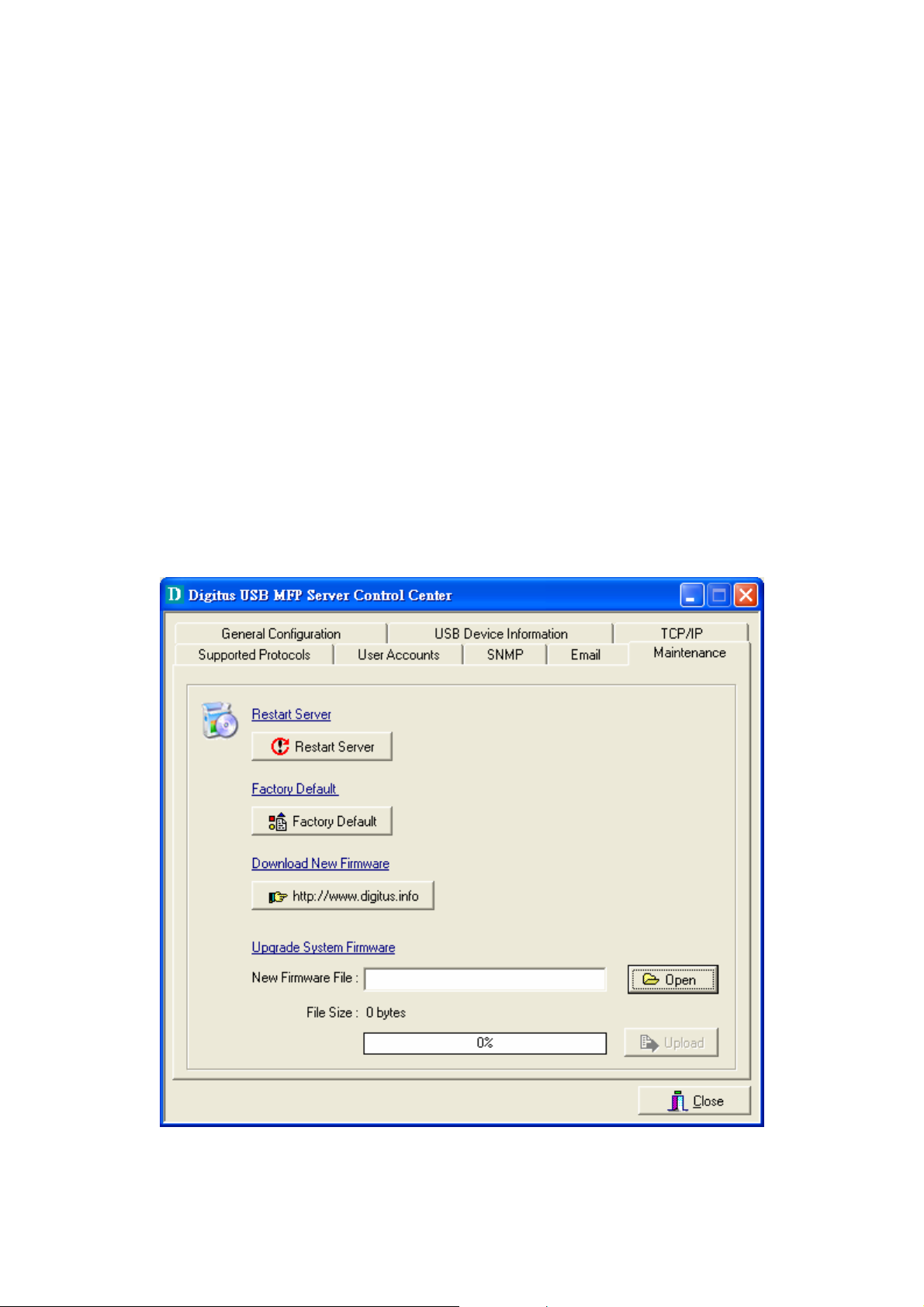

13.2 Using Control Center....................................................................................73

13.3 Using Init Button...........................................................................................73

13.4 Default Parameters List................................................................................73

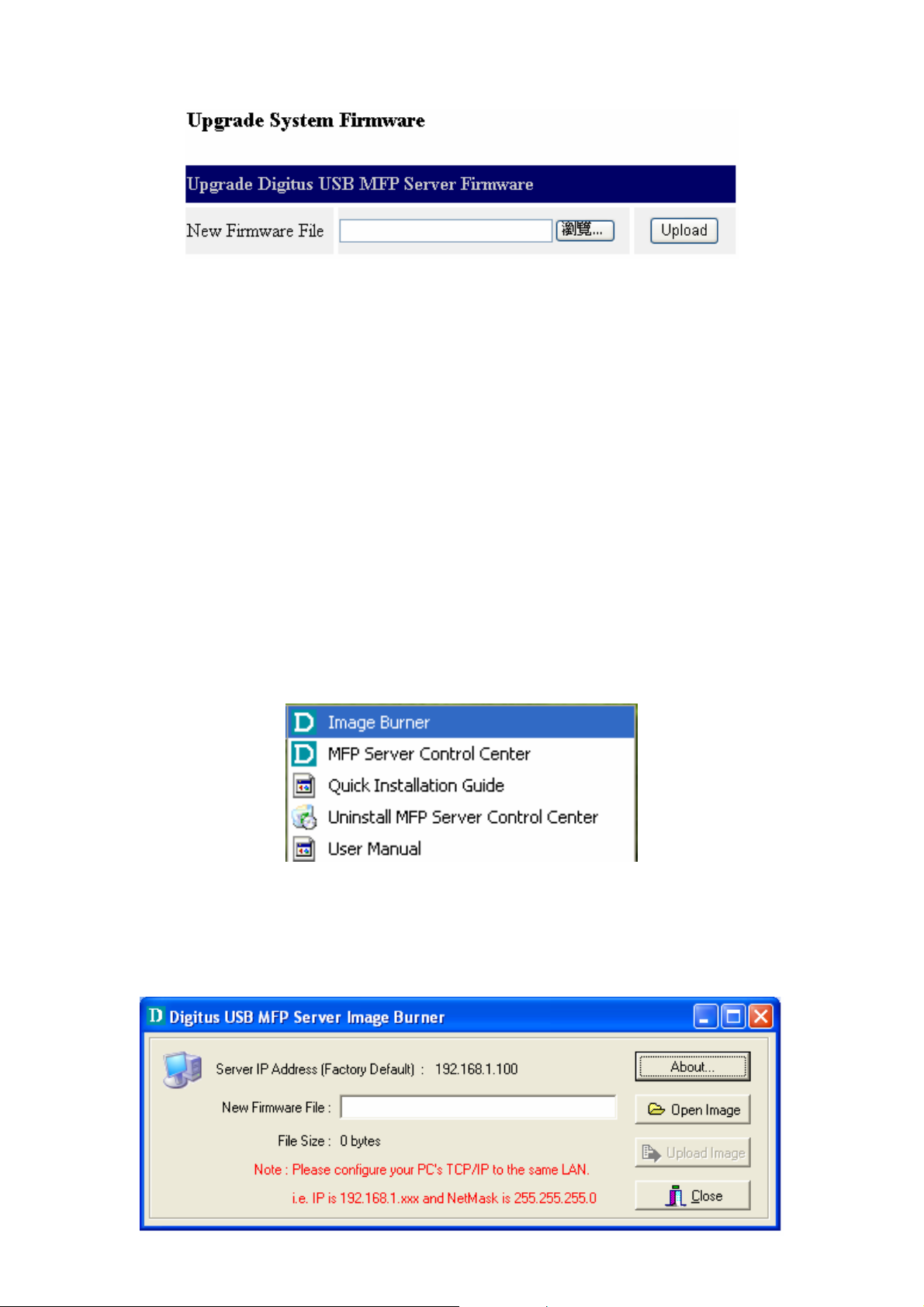

CHAPTER14 UPGRADE NEW FIRMWARE .................................................................................75

CHAPTER15 INIT BUTTON.............................................................................................................79

Chapter1 Introduction

Thank you for purchasing this Digitus DN-13007 USB MFP Server (in the following referred to as “Server”). This server is designed to connect your AIO/MFPs (All-In-One/Multifunction Peripher al), printers, USB mass storages (hard drives, flash drives, and memory card readers), and scanners, to your network, allowing all network users access to these shared USB devices resources.

1.1 About this Manual

This manual provides introductory information as well as detailed instructions on how to set up and manage this server in various network environments. To fully benefit from this manual, you should be familiar with basic networking principles. These instructions are based on the settings in a new MFP server. T o reload the F actory Parameters, y ou can reset this server back to F actory Default, which will restore most of the settings. For details, please refer to the chapter “R estore Factory Defaults”.

1.2 Support Services

Should you require any technical assistance, please contact your product reseller. Or you can visit our website at http://www.digotus.info for latest product information. This manual is subject to changes without prior notice.

Chapter2 Product Overview

2.1 Package Contents

Verify that nothing is missing from the package by using the checking list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below:

 This Server  CD (Control Center and User’s Manual)  Power Adaptor  Quick Installation Guide

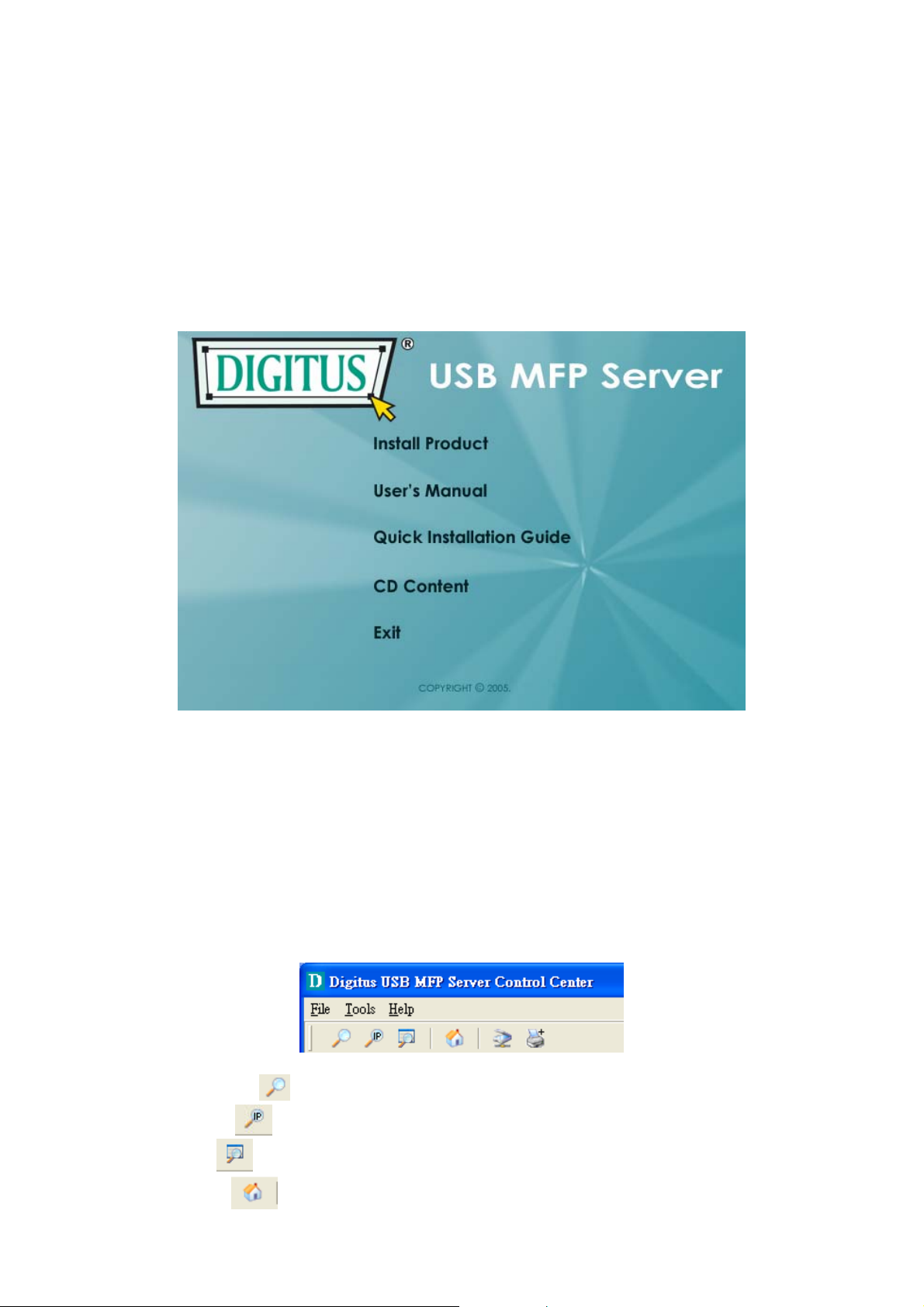

2.2 Product CD

This CD provides an easy-to-use Control Center software for Windows PC, and the User’s Manual.

2.2.1 Start-up Procedures for Windows

If your computer is configured to auto start CDs, this CD will start automatically when inserted. Y ou can also navigate to the CD and start the autorun.exe file from within the Windows file manager.

2.3 Physical Description

2.3.1 Ethernet Connector

The network connector of this Server is designed for 10 Mbps or 100 Mbps Ethernet networks and connects to the network via a twisted pair category 5 cable (10baseT and 100baseTX) or better.

2.3.2 USB Host Ports

This Server has two USB host ports which are USB 1.1/2.0 low, full, and high speed compliant and successfully tested with USB 1.1/2.0 printers, Mass Storage, and AIP/MFPs.

2.3.3 Init Button The Init button is used for:

 performing a Factory Default of the Server, which will restore most of the

parameters and settings to factory default values

 performing the new firmware upgrade using in fallback

2.3.4 Indicators

 Power Indicator is lit while power is applied. If it is not lit, or if it blinks, there

is a problem with MFP server or Power Adapter.

 Link Status is lit w hile network is applied. If it is not lit, it indicates that the

server does not connect to network.

 Status Indicator blinks to indicate network activity.  USB1 Indicator is lit while an USB device connects to USB1 Port of MFP server.

If it is not lit, or if it blinks, there is a problem with the USB device or the MFP server.

 USB2 Indicator is lit while an USB device connects to USB2 Port of the MFP

server. If it is not lit, or if it blinks, there is a problem with the USB device or the MFP server.

2.4 Installation Methods

2.4.1 Installation and Integration

Please refer to the table below to select the appropriate installation method. The Control Center tool is available on the CD or from Digitus’s website.

Functi on

Print Server

OS Method Description

Windows

Standard Windows Add Printer Wizard Control Center Tool

Installation of LPR, Raw TCP (JetDirect), Local Port Using SMB, and IPP Installation of LPR, Raw TCP, Local Port Using SMB

Apple MAC OS x Printer Setup

Tool

Unix/Linux

File Server

Scan Server

2.4.2 Configuration and Management

Windows None Don’t need installation Apple MAC OS X None

Unix/Linux Samba Use smbclient in Samba Windows MFP Server

Apple MAC OS X Download and

Unix/Linux Download and

Edit /etc/printcap File

RedHat Linux Printer System Manager

Control Center tool

install SANE

install SANE Frontends

LPR, Raw TCP (JetDirect) SMB, IPP Using vi or other editors to edit the printcap file

Using X-Windows Interface to operate

Installation of SANE Client and SANE-Twain Driver

Use terminal

Use SANE Applications such as XSANE

This Server can be configured and managed from its internal web pages or from Control Center, a user software. These web pages or PC tools offer you a management tool suitable for all supported network environments.

2.5 Features and Benefits

This Server provides the following features and benefits:

1. Reliability: The MFP server provides high performance and reliability combined with low power consumption.

2. Flexibility: The MFP server supports print/File/Scan sharing in all major computer systems and environments.

3. Easy to Install: The MFP server installs, operates and is managed in a reliable and easy fashion.

4. Security: Y ou can assign administrator name and password to restrict login.

5. Monitoring: The MFP server’s web pages and user software allow you to continuously monitor MFP status.

6. Future Proof: The firmware stored in the MFP server Flash memory can be upgraded over the network. This allows y ou to quickly update and enhance its operational features when new MFP server software becomes available.

Chapter3 Basic Installation

3.1 Connecting the Hardware

1. Make sure that your USB devices are switched off and that the MFP server’s Power Adapter is disconnected.

2. Connect the USB devices to the USB ports using the USB cables.

3. Connect the MFP server to the network using a twisted pair category 5 cable, 10baseT or 100baseTX.

4. Turn on the USB devices and make sure it is ready for use.

5. Connect the Power Adapter to the server. The power indicator will light up and USB1 and USB2 indicators will flash in turn. When the Link indicator lights up, the server is correctly connected to the network. When USB1 and USB2 indicators do not flash, the server starts to work normally.

6. If you connected USB HP printers to server, please press the Init button for 3 seconds on the server once to print a page of server configuration report.

3.2 Assigning an IP Address to the Server

3.2.1 Preliminary

 If you have a DHCP server on your netw ork, your MFP server will receive an IP

address automatically. The IP address will then appear on user software: Digitus DN-13007 MFP Server Control Center or on the page of configuration report that you printed earlier. If your DHCP server does not give IP address to the server, the server will use the Factory IP address: 192.168.1.100.

 If you are not working in a DHCP network, you need to set an IP address of

MFP server manually.

3.2.2 Ethernet Address

You do not need to know the Ethernet address of your Digitus DN-13007 USB MFP server for assigning an IP address to it. MFP Server Control Center software can automatically search MFP servers and list their Ethernet addresses. Besides, you can find Ethernet address that is located on the backside label of the server.

3.2.3 IP Address

Unless you are assigning an IP address using DHCP, you must obtain an unused IP address from your network administrator.

3.2.4 Methods for Setting the IP Address

Y ou can set the IP address of your Digitus DN-13007 USB MFP server using one of the

following methods, depending on your network operating environment:

 Automatic IP Address Assignment  Manual IP Address Assignment

3.2.5 Host Names and Host Name Rules

The Host Name of the Server is specified by “DN-13007”in Factory Parameter. If you put two or more MFP servers in your local area network, to avoid using same Host Names you have to change the Host Names by using MFP Server Control Center or server’s web pages. If your Host Name is longer than 15 characters, Digitus DN-13007 USB MFP server limits the length of Host Name to 15 characters.

3.2.6 Set the IP Address Using DHCP

Follow the instructions below to get an IP address using DHCP:

1. Edit or create a scope in the DHCP manager of the DHCP daemon. The entries included in this scope should contain the following parameters:

y range of IP addresses y subnet mask y default router IP address y DNS server IP address y lease duration

2. Activate the scope. The MFP serv er automatically gets the DHCP par ameters. If you are using DNS, you may include at least one DNS server IP address in the DHCP scope or manually set DNS server IP in MFP server’s web pages or MFP Server Control Center tool.

3.2.7 Set the IP Address Using Control Center

1. Install MFP Server Control Center. MFP Server Control Center is available in the Digitus DN-13007 USB MFP Server Product CD.

2. Start MFP Server Control Center and Auto-searching MFP server window will appear.

3. If the tool finds MFP servers in your local area network, then y ou have to select a MFP server from the server list.

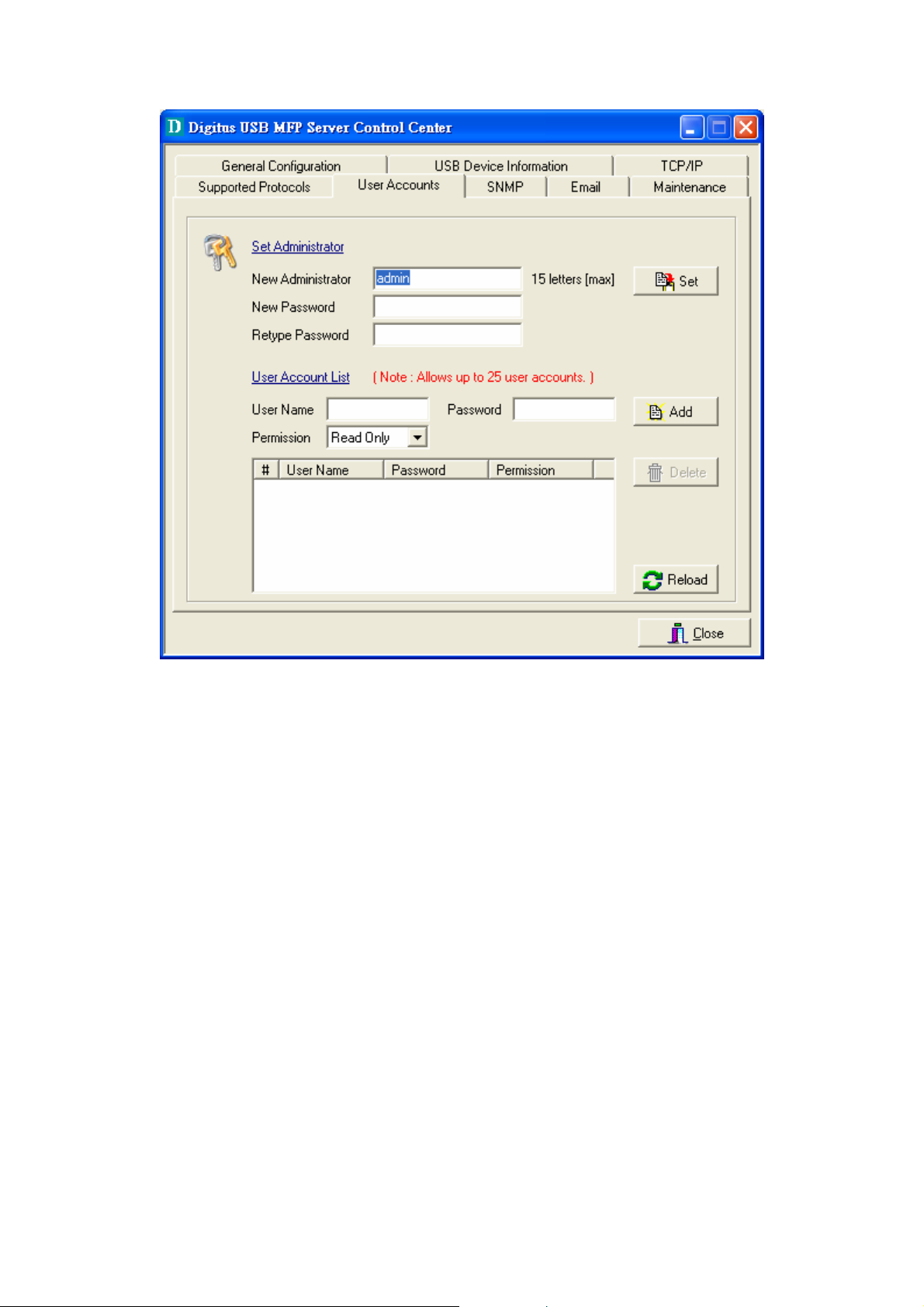

4. Double click the highlight list and type the server’ s administrator (default: admin) and password (default: admin).

5. After you login successfully, from the Server’s menu, select TCP/IP. The Set IP Address dialog appears.

6. Click the button that corresponds to your choice of IP setting method (static or dynamic using DHCP). When assigning a static IP address you also have to define Subnet Mask and Default Gateway. If you choose Automatically get IP by DHCP, you can use desired DNS by clicking the Manual DNS button and manually assigning a DNS.

7. Click Apply to save your settings. And the server will reboot.

8. You have now finished the procedure of setting the IP address.

3.2.8 Set the IP Address Using Server’s Web Pages

1. If you don’t know the current IP of server, you have to do the Step1~Step4 of

Set the IP Address Using MFP Server Control Center.

2. You can see the IP address of MFP server in the server list. Open IE Browser

and type server’s IP address or click the Home Icon Center.

of MFP Server Control

3. Go to the web page and click CONFIG icon.

4. Login your administrator (default: admin) and password (default: admin).

5. Click TCP/IP icon.

6. Click the button that corresponds to your choice of IP setting methods (static

or dynamic using DHCP). When assigning a static IP address you also have to define Subnet Mask and Default Gateway.

7. Click Submit to save your settings. And the server will reboot. You have now

finished the procedure of setting the IP address.

3.3 Naming Your USB Devices

3.3.1 Printer Names

 Default Printer Name

1. The system will set the printer model names as the default printer names. The system only allows a 12 characters long USB device name. For example, the printer model name is “psc 1300 series” and then the default printer name will be set as “psc 1300 ser”.

2. If system can not get the printer model (For ex, you use some parallel printers and use Parallel-to-USB cables to connect the printers), the default printer names are set as: USB1_Printer and USB2_Printer with respect to USB1 port and USB2 port.

 Set Printer Name

You can set yourself printer names by MFP Server Control Center or server’ s web pages.

A. Using MFP Server Control Center

1. Start MFP Server Control Center and Auto-searching MFP server window will appear.

2. If the tool finds MFP servers in your local area network, then you have to select a MFP server from the server list.

3. Double click the highlight list and type the server’s administrator (default: admin) and password (default: admin).

4. After you login successfully, from the Server menu, select USB Device Information. The Set USB Device Information dialog appears.

5. Set your printer names in Printer Name box and then click Apply.

B. Using Server’s Web Pa ges

1. Go to the web page and click CONFIG icon.

2. Login your administrator (default: admin) and password (default: admin).

3. Click USB Device Information

4. Set your printer names in Printer Name box and then click Apply.

3.3.2 Storage Names

The local drives of the two storages in USB1 port and USB2 port are named as USBx_DxPx, where USBx represents the USBx port, Dx represents the the x-th Disk (in particular to card reader plugging in multiple cards) and Px represents the x-th partition.

3.3.3 Scanner Names

The name of connected scanner of HP office jet series consists of the “vender” + “model” . F or example, the scanner name of HP PSC 1300 series office jet is named as “HP PSC 1300 series”.

Chapter4 Adding Printers in Windows

4.1 Overview of Installation Methods

This chapter describes how to add network printers to Windows PC.

Table List for Installing Network Printer

Windows Platform

Windows 98, ME, 2000,XP and 2003

Windows 2000, XP and 2003

Printing Protocols

SMB/CIFS Printing

IPP Printing Standard Windows Add Printer LPR Printing

Raw TCP/JetDi rect Printing

Method

Standard Windows Add Printer Wizard

MFP Server Control Center’ s Add Printer

Wizard Standard Windows Add Printer Wizard

MFP Server Control Center’ s Add Printer

Standard Windows Add Printer Wizard MFP Server Control Center’ s Add Printer

Steps for Installing Network Printer

Step 1 Step 2 Step 3

Window Printer

Step 6 Step 4

Turn on “Use Printer Online” in Installed Window

Printer Driver

Set up Local

Driver

Connect Your Printer to

MFP Server and Connect

MFP Server to Network

Step 5

Add Network Printer by

- Windows Standard

Method

- PC User Software

Turn on Your Printer

and MFP Server

Configure Your MFP

Server

4.2 Connecting the Server

To configure your server correctly, you have to know your server connecting to what type of network topology.

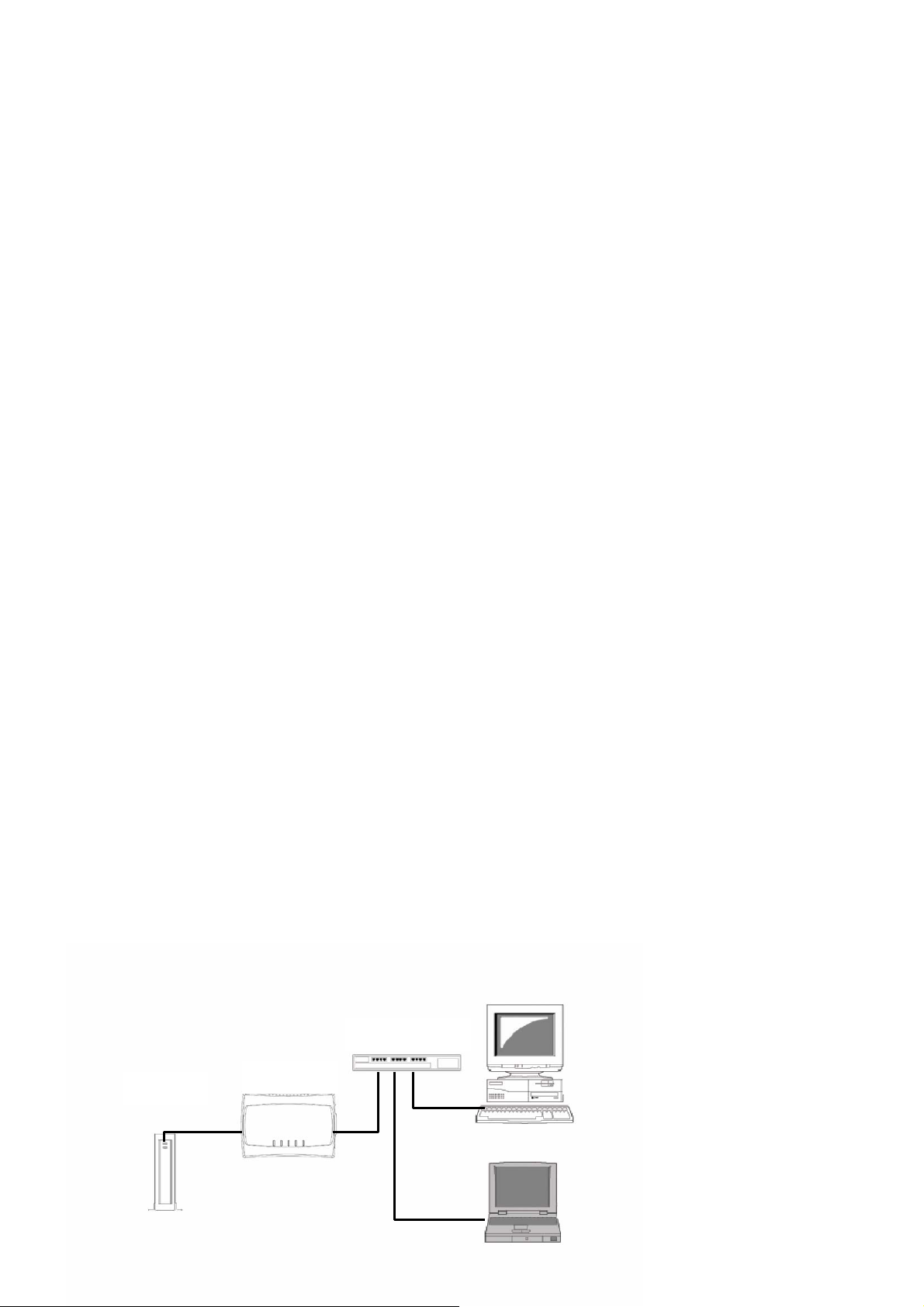

4.2.1 The Server and Windows PC on Same LAN

LAN HUB/Switch

MFP Server PC

USB Printer

4.2.2 The Server and Windows PC on Different LANs Example: Wired Windows PC across Internet

Router

LAN HUB/Switch

MFP Server

USB Printer

Internet

Router

LAN HUB/Switch

4.3 Setting up Local Windows Printer Driver

You are advised to install your Windows printer driver in advance. For most printers, you can install the printer drivers as the following procedure:

1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.

2. Double click Add Printer to start the Add Printer Wizard, and then click Next.

3. Click Local printer, clear the Automatically detect and install my Plug-n-Play printer check box to avoid having to wait for the completion of another printer search, and then click Next. If you leave this option selected, Windows will attempt to find the printer itself and figure out what kind it is. If Windows does not find the printer, the wizard will continue as described in this task.

4. Select a Windows driver for your printer. Click Next.

5. Choose whether you want to share the printer with other network users. Do you want to print a test page? Select the appropriate radio button and click

Next and Finish.

4.4 Adding Network Printers in Windows

Follow the instructions below to use the standard Windows Add Printer Wizard and MFP Server Control Center for adding a network printer in Windows 98 SE, ME, 2000, XP and 2003.

# Note:

1. Before adding a network printer, you are advised to install the local Windows printer driver in advance.

2. Before using network printer, you have to turn on “Use Printer Online” in installed network printer driver and then you can use the printer.

4.4.1 Using Standard Windows Methods for LPR Printing Protocol

Windows Platform: Windows 2000, XP and 2003

1. Open Printers and Fax e s

2. Right-click the printer for which you want to change settings, and then click

Properties/ports

3. Clear Enable bidirectional support and click Add port, and then click Standard TCP/IP Port from the dropdown and click New port.

4. The "Add Standard TCP/IP Printer Port Wizard" will pop up and click Next.

5. In the Printer Name or IP Address box, type Host Name of the MFP server (default: DN-13007) or IP address of MFP server. In the Port Name box, type your desired names or USB1_LPR or USB2_LPR for printer connected to USB1 port and USB2 port, respectively.

# If your server is running on a different LAN than your Windows PC such as

Internet PC, you must type server’s IP address in Printer Name or IP

Address box.

6. Click Next.

7. Click Custom/settings.

8. Click Settings and confirm that the settings are as below. The queue names are

USB1_LQ, USB2_LQ for USB1 port 1 and USB2 port, respectively. Click OK.

9. Click Finish

4.4.2 Using Control Center for LPR Printing

Windows Platform: Windows 2000, XP and 2003

1. Start MFP Server Control Center, select your MFP server and click Add Printer.

2. Select USB1 Port or USB2 Port to add the printer in Add the printer box, choose to use Host Name or IP address to represent MFP server in Select IP address or Host Name in printer port box, and select the network printing protocol of Printing with LPR (Line Printer Remote).

# If your server is running on a different LAN than your Windows PC such as

Internet PC, you must choose IP address in Select IP address or Host Name

in printer port box.

3. Click Apply.

4. Select the desired printer driver and click Set Port to Printer.

5. If you can not find any printer driver in Printer List, please install your printer driver first or click Add New Printer to install the printer driver.

4.4.3 Using Standard Windows Method for Raw TCP Printing

Windows Platform: Windows 2000, XP and 2003

1. Open Printers and Faxes

2. Right-click the printer for which you want to change settings, and then click

Properties

3. Clear Enable bidirectional support and click Add port, and then click Standard TCP/IP Port from the dropdown and click New port.

4. The "Add Standard TCP/IP Printer Port Wizard" will pop up and click Next.

5. In the Printer Name or IP Address box, type Host Name of the MFP server

(default: DN-13007) or IP address of MFP server. In the Port Name box, type USB1_RAW or USB2_RAW for printer connected to USB1 port and USB2 port,

respectively.

# If your server is running on a different LAN than your Windows PC such

Internet PC, you must type server’s IP address in Printer Name or IP Address box.

6. Click Next.

7. Click Custom/settings.

8. The click Settings and confirm that the settings are as below. The default Port

Number values are 9100, 9101 for USB port 1 and USB port 2, respectively. Refer to server’s web pages or MFP Server Control Center tool, you can get exact values. Click OK.

9. Click Finish.

4.4.4 Using Control Center for Raw TCP/JetDirect Printing

Windows Platform: Windows 2000, XP and 2003

1. Start MFP Server Control Center, select your MFP server and click Add Printer.

2. Select USB1 Port or USB2 Port to add the printer in Add the printer box, choose to use or IP address to represent MFP server in Select IP Address or

Host Name in printer port box, and select the network printing protocol of Print with Raw TCP Mode.

# If your server is running on a different LAN than your Windows PC such as

Internet PC, you must choose IP address in Select IP Address or Host Name in printer port box.

3. Click Apply.

4. Select the desired printer driver and click Set Port to Printer.

5. If you can not find any printer driver in Printer List, please install your printer driver first or click Add New Printer to install the printer driver.

4.4.5 Using Standard Windows Methods for SMB/CIFS Printing

# Before using SMB/CIFS printing, you have to login the SMB/CIF Print/File

server in advance and then you may use it; otherwise you have to disable SMB/CIFS Print/File Server Authentication.

# If you use SMB on Windows 98 SE/ME with Server Authentication, you must

Windows Platform: Windows 98SE, ME, 2000, XP and 2003

1. Open Printers and Faxes

2. Right-click the printer for which you want to change settings, and then click

Properties.

3. Click the Ports tab.

4. Clear Enable bidirectional support and click add port, and click Local Port,

and then click New Port… in the Printer Ports box.

5. In the Port Name box, type the path to the printer in the following format: ”\\ server’s Host Name\printer name” or ”\\ server’s IP address\printer name”

(Please refer to server’s web pages or MFP Server Control Center tool to know exact path). For example: if y o u set server’s Host Name as “DN-13007” and printer name (USB1 port) as psc 1300 ser, then the network path is expressed as: \\DN-13007\psc 1300 ser

#　If your server is running on a different LAN than your windows PC such as

Internet PC, you must type IP address in Port Name box.

6. Click OK, and then select a Windows driver for your printer. If you already have the printer’s driver installed, you will be ask ed whether to keep it or to replace it. Click Next.

7. Choose whether you want to share the printer with other network users. Do you want to print a test page? Select the appropriate radio button and click Next and Finish.

4.4.6 Using Control Center for SMB/CIFS Printing

# Before using SMB/CIFS printing, you have to login the SMB/CIF Print/File

server in advance and then you may use it; otherwise you have to disable SMB/CIFS Print/File Server authentication.

# If you use SMB on Windows 98 SE/ME with Server Authentication, you must

Windows Platform: Windows 98, ME, 2000, XP and 2003

1. Start MFP Server Control Center, select your MFP server and click Add Printer.

2. Select USB1 Port or USB2 Port to add the printer in Add the printer box, choose to use Host Name or IP address to represent MFP server in Select IP Address or Host Name in printer port box, and select the network printing protocol of Printing with Network Path (SMB).

# If your server is running on a different LAN than your Windows PC such as

Internet PC, you must choose IP address in Select IP address or Host Name in printer port box.

3. Click Apply.

4. Select the desired printer driver and click Set Port to Printer.

5. If you can not find any printer driver in Printer List, please install your printer driver first or click Add New Printer to install the printer driver.

4.4.7 Using Standard Windows Method for IPP Printing

Windows Platform: Windows 98 SE, ME, 2000, XP and 2003

1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Fax e s.

2. Double click Add Printer to start the Add Printer Wizard, and then click Next.

3. In this window, select A network printer, or a printer attached to another computer and click Next.

4. Click the Next button. On the next window , select Connect to a printer on the Internet or on a home or office network. In the URL: field, enter the following to connect to MFP server: http:/server’s IP address /printer name For example,

http://DN-13007/psc1300 ser

http://sercver’s Host Name /printer name or

#　If your server is running on a different LAN than your windows PC such as

Internet PC, you must type IP address in URL: Field.

5. Click Next and then continue Windows Add Printer Wizard.

Chapter5 Adding Printers in Unix/Linux

This chapter describes how to add network printers to Unix/Linux PC.

5.1 Configuring Host File

If using IP administration system like DNS, manually registering the Host Name and IP address may be not required. Otherwise, you hav e to edit hosts file and contact your network administrator.

1. Log in to Linux machine by “root”.

# login root

2. Register Digitus DN-13007 MFP serv er’s Host Name and IP address to /etc/hosts file.

To edit host file, use an editor, e.g. “vi”.

Example: The IP address is “192.168.1.100”, Host Name is “DN-13007”

192.168.1.1 dns # DNS Server

192.168.1.2 mail # Mail Server

192.168.1.100 DN-13007 # MFP-Server

3. Switch on the MFP server. Verify the network connection by using ping command.

# ping DN-13007

If there is no response or error is indicated, there may be problems with IP address configuration, host file editing or network status. Please contact your network administrator.

5.2 Printing by LPD/LPR

This section explains how to print using LPD protocol of TCP/IP. For further information on “lpr” and “lp” commands, refer to your workstation manual.

LPD Protocol: LPD (Line Printer Daemon) is a protocol that enables you to execute printing to a printer on the network.

Remote-Printer Queue: Digitus DN-13007 has two remote printer queues USB1_LQ and USB2_LQ with respect to USB port 1 and UB port2. To print files using a printer driver, use “lp” or “lpr”.

5.3 Using the Server on BSD UNIX/Linux

1. Log in to the BSD Unix machine through “root”.

# login root

2. Register the Digitus DN-13007 MFP server to /etc/printcap file. Example: To register the printer of USB1 port by the printer name “Printer1”. Printer1:\ ---(A)

:lp=:rm=DN-13007:rp=USB1_LQ:\ ---(B) :sd=/var/spool/lpd/Printer1:\ ---(C) :lf=/var/spool/lpd/Printer1/Printer1_errs: ---(D)

where

(A) Describes the printer name. (B) lp: Device file name to connect printer. No name designation required on the network. rm: Host Name for the remote printer. Type the Host Name registered to /etc/hosts file. rp: Remote printer name. Please input the remote printer queue name. (C) sd: Spool directory name. It must be the absolute path. (D) lf: Error log file name. It must be the absolute path.

3. Create the spool directory and error log file registered to /etc/printcap file. Example: To create the spool directory “Printer1” and error log file “Printer1_errs”. # mkdir /var/spool/lpd/Printer1 Create the spool directory # touch /var/spool/lpd/Printer1/Printer1_errs Create the error log file # chown -R daemon /var/spool/lpd/Printer1 Change the owner to daemon # chgrp -R daemon /var/spool/lpd/Printer1 Change the group to daemon

4. Start Printing.

A. Use the "lp" command.

- # lp -d Printer1 <Print file name>

- # lp -d Printer2 <Print file name>

B. Use the “lpr” command.

- # lpr -P Printer1 <print file name>

- # lpr -P Printer2 <Print file name>

5.4 Using the Server on RedHat Linux (Fedora Core)

In the RedHat (Fedora Core) x-window user interface, do the steps as follows:

1. To start the application, select Main Menu button (on the Panel)->

Applications->System Settings -> Printing.

2. Click on the New button in the Printer configuration window.

3. Click on the Forward button in the Add a new print queue window.

4. Fill in your desired printer name and description (optional) in Queue name

window and then click on the Forward button.

5. In Queue type window, you will now be asked to specify which Printer Queue

type you are using, select the one option form Networked Unix (LPD),

Networked CUPS (IPP), Networked Windows (SMB) and Networked JetDirect options. Click on the Forward button.

6. Fill in parameters for Queu e type window:

A. Networked Unix (LPD): Fill in MFP server’s IP address and queue name

and then click the Forward button. Example: If your MFP server’s IP address is 192.168.1.100 and it connects HP PSC 1300 MFP via USB1 port. You can type IP in server box as 192.168.1.100 and Queue name in Queue box as USB1_LQ.

B. Networked JetDirect: Fill in MFP server’s IP address and protocol’s TCP

port and then click the Forward button. Example: If your MFP server’s IP address is 192.168.1.100 and it connects HP PSC 1300 MFP via USB1 port. You can type IP in server box as 192.168.1.100 and TCP Port in Port box as 9100.

C. Networked Windows (SMB):

i. Click on the Specify button to specify SMB server Authentication.

ii. Fill in the Workgroup, Host Name, User name and Password in

Authentication window and then click on the OK button.

iii. Click on the Forward button.

D. Networked CUPS (IPP): Fill in MFP server’s IP address and printer

name then click the Forward button. Example: If your MFP server’s IP address is 192.168.1.100 and its printer name is psc 1300 ser. You can type IP in Server box as 192.168.1.100 and printer name in Path box as psc 1300 ser.

7. Select your printer driver. Click on the Forward button. Windows will display

the Finish, and create the new print queue folder.

8. Click Finish button.

Chapter6 File Server Function

This chapter describes the file server function of Digitus DN-13007 MFP server which allows USB storage devices to be shared across a network by using SMB: NetBIOS over TCP/IP and FTP protocol.

6.1 Preliminary

1. This product supports a file format of FAT12/16/32. It will not support a drive formatted by NTFS, etc.

2. Digitus technology is not responsible for the loss or corruption of data in memory devices, including hard disk; Digitus is not responsible for the leak, manipulation, loss, or corruption of data in memory devices connected to MFP server after unauthorized access.

3. In order to use the USB Mass Storage device connected to the MFP server, the SMB protocol or FTP protocol must be set up.

4. This product does not support to magnet optical drive devices such as CD/DVD.

5. This product allows shared two USB storage devices over the network in Windows through the USB ports.

6. This product does not support the USB devices through USB hub.

6.2 Storage Names

The local drives of the two storages in USB1 port and USB2 port are named as USBx_DxPx, where USBx represents the USBx port, Dx represents the the x-th Disk and Px represents the x-th partition.

6.3 Connecting USB Mass Storage to the Server

Storage

DN-13007

LAN HUB/Switch

6.4 Supported Codepages

- What is codepage?

Used by the system to encode and interpret string characters. Codepage formats are not the same for each language. Some languages, such as Japanese have multibyte characters, while others, such as English and German, need only one byte to represent each character.

- Filename Encoding of FAT File System

This is known as an 8.3 file name, a short file name using codepage encoding. The FAT file system also supports file names that can be up to 255 characters long. This is known as a long file name using Unicode (UTF-16) encoding.

- When do you need to configure codepage?

MFP Server supports Windows codepages. If users want to communicate files using FTP client tool or SMB on Windows 98/Me/2000 with Digitus DN-13007 MFP server, they have to set their MFP server codepage to be same as the codepage that their Windows PC is using.

1. FTP

2. SMB on Windows 98/Me/2000

- Configuring Digitus DN-13007 Codepages

Users can use the following methods to set MFP server codepage. A. Using Control Center

1. Start Control Center and Auto-searching MFP server window will appear.

2. If the tool finds MFP servers in your local area network, then you have to select

a MFP server from the server list.

3. Double click the highlight list and type the server’s administrator (default: admin) and password (default: admin).

4. After you login successfully, setting General Configuration dialog appears.

5. Select your codepage form File Server Codepage box and click Apply.

B. Using Server’s Web Pages

1. Go to the web page, click CONFIG

2. Login your administrator (default: admin) and password (default: admin).

3. After you login successfully, setting General Configuration dialog appears.

4. Select your codepage form File Server Codepage box and click Apply.

6.5 Adding Your USB Mass Storages to Network with Security

You can use the following protocols to share your USB Mass Storages with user level security in network:

 SMB/CIFS: NetBIOS over TCP/IP  FTP

The protocols are shown in Supported Protocols box of MFP Control Center or server’s web pages.

6.5.1 Setting up File Server Using Control Center

1. Start Digitus DN-13007 MFP Server Control Center and Auto-searching MFP server window will appear.

2. If the tool finds MFP servers in your local area network, then you have to select a MFP server from the server list.

3. Double click the highlight list and type the server’s administrator (default: admin) and password (default: admin).

4. After you login successfully, click Supported Protocols.

5. Set up File Server Configuration:

A. Set SMB/CIFS Print/File Server

 Enable SMB/CIFS Print/File Server: select the item, if you want to

support SMB/CIFS print/File server.

 Enable Internet Access: clear the item, if you do not allow that users

can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.

 Enable Server Authentication: select the item, if you want to share

your storage with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.

B. Set FTP Server:

 Enable FTP Server: select the item, if you want to support FTP server.  FTP port: type the desired FTP port. The default value is 21.  Maximum Session Number: select the item and fill in desired

number.

 Enable Passive Mode: select the item, if you want to allow that your

FTP server can accept passive mode command.

 Enable Server Authentication: select the item, if you want t o share

your storage with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.

 Allow Anonymous Login: select the item, if you want to allow the

user “anonymous” to login your FTP server with read-only permission and server will not check the password. If you clear the item, your FTP server will not support anonymous login function.

6.5.2 Setting up File Server Using Web Pages

1. Go to the web page, click CONFIG

2. Login your administrator (default: admin) and password (default: admin).

3. After you login successfully, click Supported Protocols.

4. Set up File Server Configuration:

A. Set SMB/CIFS Print/File Server

 Enable SMB/CIFS Print/File Server: select the item, if you want to

support SMB/CIFS print/File server.

 Enable Internet Access: clear the item, if you do not allow that users

can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.

 Enable Server Authentication: select the item, if you want to share

your storage or printer with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.

B. Set FTP Server:

number.

 Enable Passive Mode: select the item, if you want to allow that your

FTP server can accept passive mode command.

 Enable Server Authentication: select the item, if you want t o share

your storage with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.

 Allow Anonymous Login: select the item, if you want to allow the

user “anonymous” to login your FTP server with read-only permission and server will not check the password. If you clear the item, your FTP server will not support anonymous login function.

6.5.3 Use Shared Storages by SMB/CIFS Method for Windows

1. Connect a USB storage device to this product.

2. Select My Network Places

3. Click Display the Computers of Workgroup

4. Double click Microsoft Windows Network icon.

5. Double click the Workgroup that MFP server belongs to. The default Workgroup name is “WORKGROUP”. You can refer to Control Center or the Server’s web pages to get it. You will see that the MFP server will be displayed

as the default Host Name "DN-13007" or the Host Name that you have set.

6. If you can not find Workgroup name of MFP server in Microsoft Windows Network, you can select Search for Computer… in My Network Places and type the hostname of MFP server (For example, default Host Name “DN-13007” or server’s IP address) to find it.

7. Double click this Host Name icon.

8. If you clear Enable SMB/CIFS Print/File Server Authentication in Supported Protocols, you login to the SMB server without requiring authentication; otherwise you have to type user name and pa ssword to login to the server. You can add user name and password in User Account bo x by MFP control center or server’s Web page.

# Note:

If you use SMB on Windows 98 SE/ME, you must login to your Windows 98 SE/ME using the same user name as in server’s User Account.

9. The shared folders will be listed as USB1_DxPx, and USB2_DxPx where Dx represents the x-th disk and Px represents the x-th partition with respect to USB1 port and USB2 port.

10. Perform Open, Paste, Remove or Copy the files to the shared folders.

6.5.4 Use Shared Storage by FTP Methods for Windows

A. Use Microsoft IE to the shared USB Mass Storages

1. Open Microsoft IE

2. In Web Address List, type command: “ftp://server’s Host Name“ or “ftp:// the new value, you hav e to add the new port number in the tail of command as

“

ftp://server’s Host Name: ftp port” or “ftp://server’s IP address: ftp port”.

3. If you set Enable Server Authentication in FTP server protocol settings you have to type user name and password to login to the server; if you set Allow Anonymous Login, you can use the user name “anonymous” to login with Read-only permission. If you clear server authentication, you do not need username or password to login to the server. You can add user name and password in User Account box by MFP control center or server’s Web page.

4. The shared folders will be listed in IE.

5. Perform Paste, Remove or Copy the files to the shared folders.

B. Use Microsoft Dos’s FTP client

server’s IP address”. If you have changed the default FTP port : 21 to

1. Type Dos command as “ftp”

2. Type “open server’s Host Name” or “open server’s IP address”. If you have changed the default FTP port : 21 to the new value, you hav e to add the new port number in the tail of command as “open server’s Host Name ftp port” or “open server’s IP address ftp port” .

3. If you set Enable Server Authentication in FTP server protocol settings you have to type user name and password to login to the server; if you set Allow Anonymous Login, you can use the user name “anonymous” to login with Read-only permission. If you clear server authentication, you do not need username or password to login server. You can add user name and password in User Account box by MFP control center or server’s Web page.

4. Perform FTP commands to use this FTP server.

6.6 Formatting Disk

1. Go to the Server’s web page and click CONFIG

2. Login your administrator (default: admin) and password (default: admin).

3. Click Maintenance.

4. Click Format Disk.

5. Now you can format the inserted USB disk or USB flash disk to F A T16 or F A T32

file system. All data in the disk will be destroyed. Just choose F A T or FA T32 file system, then click “format” button to begin formatting the disk.

Chapter7 Scan Server Function

This chapter explains how to use the scan server function of this product. The scan server function enables a USB scanner of HP all-in-one series, connected to this product, to be shared as a network scanner. The scan server function is available in any platform that can use SANE client.

7.1 Connecting HP All-in-one MFP to the Server

HP MFP Scanner

DN-13007

LAN HUB/Switch

7.2 Using the Shared Scanner in Windows

7.2.1 Using Control Center

1. Start MFP Server Control Center, select your MFP server, and click Digitus Network Scanner.

2. Select your scanner for USB1 port or USB2 port.

3. Set the options. The options are defined as follows:

- Source: choose flatbed scanning or scrolledbed scanning

- Mode: choose lineart (black/white), Gray and color mode

- Resolution: choose the image resolution

- Contrast: tune the contrast of the image

- Brightness: tune brightness of the image

- Range: define the scanning range of the image

Note: Not all the MFP scanners support the options above. In such a case, the options will show as gray color and not accessible.

4. Click Preview button.

5. Adjust the window size to be scanned.

6. Click Scan button.

7. Save as your images to the file.

7.2.2 Using Windows Applications

Prior to using scanning functions in Windows applications such as MS Word, Photoshop …etc, you have to install network scanner’s TWAIN driver in advance. When you install MFP Server Control Center tool, it will also install this TW AIN driv er.

Example: Using Photoshop

1. Start Photoshop, click File ->Import->Digitus DN-13007 Network Scanner

2. Select a server’s IP address or type a server IP address in Server Information box. You can click Search Server button your network.

to search existing MFP servers in

3. Click Connect to Network Scanner button

4. Select your scanner in Server Information box.

in Server Information box.

5. Click Preview button.

6. Adjust the window size to be scanned.

7. Click Scan button.

7.3 Using the Shared Scanner in Linux

7.3.1 Using XSane in Redhat Linux

1. Download SANE-Backends from

2. Download and install SANE-frontends: XSane (UNIX binary) from

http://www.xsane.org.

3. Edit \etc\sane.d\net.conf and put the IP address of the MFP server where the

scanner is connected into one line, e.g:

192.168.1.100.

4. To start the application, select Main Menu button (on the Panel)->

Applications->Grphics -> Scanning.

http://www.sane-project.org.

5. Perform scan function.

Chapter8 Control Center

This chapter describes how to use MFP Server Control Center in your Windows.

8.1 Installing Control Center

1. Click Install Product button.

2. Click Next, if you see Next button in installation windows.

3. Click Finish.

8.2 Using Control Center

8.2.1 Use Tools of Control Center

You can use the following tools to help you using the MFP server:

 Auto Search : renew to auto search the existing MFP servers in network  IP Search : search the MFP server by IP address

 Refresh : refresh the highlight list’s server status  Go to web : go to web pages of the highlight list’s server

 Network Scanning : perform network scanner function of the highlight list’s

server

 Add Printer : perform add printer function of the highlight list’s server

8.2.2 Display Server’s Status

You can start MFP Server Control Center and select your MFP server to see the serv er status which includes Host Information, TCP/IP, USB Devices Status and Supported Protocols.

8.2.3 Set up Server’s Configuration

 General Configuration

 Set Host Information: You have to set some information for networking

using SMB protocol:

5 Comment: optionally set to describe the server 5 Host Name: the name to represent the server for Windows networking

using SMB/CIFS protocol

5 Workgroup: the SMB/CIFS workgroup name that the server belongs

to.

 File Server Codepage: If users want to communicate files using FTP

client tool or SMB on Windows 98 SE/Me/2000 with the Server, they have to set their MFP server codepage to be same as the codepage that their Windows PC is using. Generally, the criteria of choosing codepage are based on your Windows codepage. For example, if your Windows codepage is Traditional Chinese, you have to select Traditional Chinese (Big5) in server. Please refer to Chapter 6 File Server Function.

 USB Device Information: You can set printer names and display some

information of USB mass storages and scanners. Please refer to Chapter 4, Chapter 6 and Chapter 7.

 TCP/IP: You have to set the server’ s TCP/IP configuration to connect TCP/IP

network. Please see Chapter 3 Basic Installation for more details.

 Supported Protocols: The server supports the following TCP/IP protocols:

 TCP/IP

5 Enable LPR (Line Printer Remote) Printing: select or clear Enable LPR

Printing support. It is enabled in Factory Default.

5 Enable IPP Printing: select or clear Enable IPP Printing support. It is

enabled in Factory Default.

5 Enable Raw TCP Printing: select or clear Enable Raw TCP Printing

support. It is enabled in Factory Default and users may set the protocol’s TCP ports as following boxes:

- TCP Port 1: set TCP port for the printer of USB1 port (default: 9100)

- TCP Port 2: set TCP port for the printer of USB2 port (default: 9101)

5 Enable SMB/CIFS Print/File Server: select or clear Enable

SMB/CIFS Print/File Server support. It is enabled in Factory

Default.

- Enable Internet Access: select or clear Enable Internet Access support. If you clear the item, you do not allow that users can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.

- Enable Server Authentication: select or clear Enable Server Authentication support. Select the item, if y ou w ant to share your

storage or printer with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.

5 Enable FTP Server: select or clear Enable FTP Server support. It is

enabled in Factory Default and users may set some parameters as follows:

- FTP Port: type an integer number to set FTP server’s TCP port (default: 21)

- Set Maximum Session Number: select or clear Set Maximum Session Number support. Y ou can limit the FTP session number by

selecting the support and type an integer to set the allowable maximum session number. If you clear the support, it means that FTP server will have not any limitation in session number.

- Set Passive Mode: select or clear Set Passive Mode support that FTP server can accept passive mode.

- Enable Server Authentication: select or clear Enable Server Authentication support. If you select the support, you need to

type user name and password to login to the server. If you clear the support, you do not need user name and password to enter the server.

- Allow Anonymous Login: select the item, if you want to allow the user “anonymous” to login to your FTP server with Read-Only permission and FTP server will not check the password. If you clear the item, your FTP server will not support anonymous login function.

5 Enable SANE (Scanner Access Now Easy) Server: select or clear

Enable SANE Server support. It is enabled in Factory Default and users may set the TCP port as follows:

- SANE Port: set SANE server’s TCP port (default: 6566)

5 Enable UPnP (Universal Plug and Play): select or clear Enable UPnP

support. It is enabled in Factory Default.

 User Accounts: You can change administrator name and password or add a

user account for SMB/CIFS Print/File server and FTP File server. If you forgot administrator name and password, you must to perform Restore Factory Default action by pressing Init button and plugging Power adaptor simultaneously. Please refer to Chapter 14 Restore Factory Default. Administrator owns the Read-Write Permission for File servers.

 Set Administrator

5 New Administrator: type your desired administrator name. 5 New Password: type your desired password. 5 Retype Password: confirm your previous password typing.

 User Accounts list

5 User name: add a new user account for accessing the storage

attached to MFP server.

5 Password: set a password for added user. 5 Permission: select Read-Only or Read-W rite permission to access File

servers.

5 Add: click Add button, after entering the user name, corresponding

password, and Permission selection. The account will take effect once shown in the blank below.

5 Delete: delete the existing user account.

 SNMP: Yo u can set community and some parameters for SNMP server.

Furthermore, you can enable SNMP v3 for more security.

 Set SNMP Configuration

5 Authentic Community: set Community name of SNMP server. 5 Trap Community: set Trap Community name for SNMP server to send trap

packets.

5 Trap Address: type an IP address to send the Trap packet. 5 SysContact: type some letters for variable of SysContact that represents

the name of system contact.

5 SysName: type some letters for variable of SysName that represents the

name of system.

5 SysLocation: type some letters for variable of SysLocation that represents

the location of system.

5 EnableAuthenTrap: type 1 or 2 for the variable of EnableAuthenTrap that

represents to enable (1) or disable (2) to send Trap packets receiving the wrong Community name.

 SNMP V3

5 Enable SNMP V3: select or clear Enable SnmpV3 support 5 User Security name: set user security name of SNMP v3 5 Auth Password: set authentication password of SNMP v3. 5 Privacy Password: set privacy password of SNMP v3.

 Email: If you want to receive some alerting mail from the server, you have to

enable SMTP Protocol, and set Email configuration. Y ou can set new SMTP port number (default: 25).

 Set Email Configuration

5 SMTP Protocol: select or clear Enable SMTP support 5 SMTP Server Name: type your SMTP server’s Host Name or IP

address.

5 SMTP Port Number: set new SMTP server’ s TCP port number (default:

25).

5 Subject: type the subject of the e-mail. 5 From Address: type the sender’s e-mail address. 5 To Address: type an e-mail address to send that mail to a person. 5 Cc: stands for carbon copy; type an e-mail address to send that mail

to a second person.

5 SMTP Server requires authentication: login to remote SMTP server

which requires authentication.

5 Account Name: type account name for remote SMTP server. 5 Password: type account’s password for remote SMTP server.

 Maintenance: If you want to restart server, restore factory default values of

the server, download new firmware file from product’s public website and upgrade new firmware, you can use the Maintenance tool.

 Restart Server: click the button, the server will be restarted.  Factory Default: click the button, the server will restore factory default

values.

 Download New Firmware: click the button and you can download new

firmware or user software from product’s public website.

 Upgrade New Firmware: click Open to find the system firmware file to

be upgraded. Click Upgrade to do the real firmware upgrading task.

Chapter9 Server’s Web Pages

9.1 Introduction

The Server runs the daemon of http server, httpd on TCP port: 80. Users may use the web pages to see the server’s system status and configure the server.

9.2 Using Server’s Web Pages

9.2.1 Display Server Status

You can see the status of Host Information, TCP/IP and USB devices.

9.2.2 Set up Server Configuration

T o set up the server configur ation, the system will request user to enter administrator (default: admin) and password (default: admin) to login.

 General Configuration

 Set Host Information: You have to set some information for networking

using SMB protocol:

5 Comment: optionally set to describe the server 5 Host Name: the name to represent the server for Windows networking

using SMB protocol

5 Workgroup: the SMB workgroup name that the server belongs to.

 File Server Codepage: if users want to communicate files using FTP

client tool or SMB on Windows 98 SE/Me/2000 with Digitus DN-13007 MFP server, they have to set their MFP server codepage to be same as the codepage that their Windows PC is using. Generally, the criteria of choosing codepage are based on your Windows codepage. For example, if your Windows codepage is Traditional Chinese, you have to select Traditional Chinese (Big5) in server. Please refer to Chapter 6 File Server Function.

 USB Device Information: You can set printer names and displa y some

information of USB mass storages and scanners. Please refer to Chapter 4, Chapter 6 and Chapter 7.

 TCP/IP: You have to set the server’s TCP/IP configuration to connect TCP/IP

network. Please see Chapter 3 Basic Installation for more details.

 Supported Protocols: The server supports the following TCP/IP protocols:

 TCP/IP

5 Enable LPR (Line Printer Remote) Printing: select or clear Enable LPR

Printing support. It is enabled in Factory Default.

5 Enable IPP Printing: select or clear Enable IPP Printing support. It is

enabled in Factory Default.

5 Enable Raw TCP Printing: select or clear Enable Raw TCP Printing

support. It is enabled in Factory Default and users may set the protocol’s TCP ports as following boxes:

- TCP Port 1: set TCP port for the printer of USB1 port (default: 9100)

- TCP Port 2: set TCP port for the printer of USB2 port (default: 9101)

5 Enable SMB/CIFS Print/File Server: select or clear Enable

SMB/CIFS Print/File Server support. It is enabled in Factory

Default.

- Enable Internet Access: select or clear Enable Internet Access support. If you clear the item, you do not allow that users can

access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.
