Digitus DK-1511-0025 User Manual

Twisted Pair Patch Cable - Category 5e Class D - U/UTP

✔ PVC

✔ Blue colored plug for CAT 5e

✔ Kink prot., strain relief, latch prot.

✔ various lengths and colors available

Abstract

CAT 5e Class D, U/UTP, Twisted Pair Patch Cable, Cu, PVC, AWG 26/7, various lengths and colors available

Features

- 2x RJ45 (8P8C) connectors

- Boots with kink protection, strain relief and latch protection

- Length marking on boot

- Conductor: Cu (Copper)

- Shielding: U/UTP (unshielded)

- Structure: 4x 2 AWG 26/7, twisted pair

- Sheath: PVC

- PoE ready

Product Overview

The DIGITUS® Category 5e Class D patch cables are manufactured and tested to the ISO/IEC 11801 and
DIN EN 50173 Category 5e specifications. They will guarantee the installed cabling system is compliant
with the ISO & EN channel specification requirements and will provide optimum performance levels
of DIGITUS® Category 5e cabling. The performance is tested up to 100 MHz inclusive performance
characteristics such as near end cross talk (“NEXT”).
DIGITUS® patch cables are designed and produced to fulfill the highest requirements of various
application areas in full volume.
Each cable is fitted with a molded boot which comes with kink protection and strain relief.
Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.
You can easily identify the Category 5e, because of the transparent blue colored connector.

Patch Cable Matrix and Configuration

Patch cables can be wide-ranging. Therefore we prepared
a complete overview of our range, which guides you
to the cable you require.
One E-Mail or one call will be enough and we will send
you the latest version as a PDF file.
You can also check our Patch Cable Configuration tool
on our website www.digitus-professional.com

Freq.

Insertion

Loss

NEXT

RL

ACR-N

ACR-F

PS NEXT

PS ACR-N

PS ACRF

MHz

dB

dB

dB

dB

dB

dB

dB

dB

1.00

4.00

60.00

17.00

56.00

57.40

57.00

53.00

54.40

4.00

4.50

53.50

17.00

49.00

45.40

50.50

46.00

42.40

8.00

6.40

48.60

17.00

42.20

39.30

45.60

39.20

36.30

10.00

7.20

47.00

17.00

39.80

37.40

44.00

36.80

34.40

16.00

9.10

43.60

17.00

34.50

33.30

40.60

31.50

30.30

20.00

10.20

42.00

17.00

31.80

34.40

39.00

28.80

28.40

25.00

11.50

40.30

16.00

28.90

29.40

37.30

25.90

26.40

31.25

12.90

38.70

15.10

25.80

27.50

35.70

22.80

24.50

62.50

18.60

33.60

12.00

15.00

21.50

30.60

12.00

18.50

100.00

24.00

30.10

10.00

6.10

17.40

27.10

3.10

14.40

Performance- and Specification Overview

Conductor Stranded AWG 26/7 bare copper, 0.145 ± 0.005 mm
Insulations HD-PE (High Density Polyethylene)
Outer sheath PVC
Overall diameter 4.6 mm ± 0.30 mm
Bending radius 8x OD
RJ45 connector 3 μ nominal gold flash over 60 μ nickel undercoat contact pins
Color code Orange x White, Green x White, Blue x White, Brown x White
Wiring standard EIA/TIA 568B
Pin assignment 1:1
Durability 750 insertion cycles
Contact resistance 30 mΩ maximum
Resistance unbalance 5% maximum
Dielectric strength 2500 VDC for 3 seconds
Uninsulated resistance 150 MΩ/km minimum
Operating temperature -20 °C up to +60 °C
NVP 69%
Typical applications IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-2
Colors Various colors available on request
Marking Brand name, cable length and cable information

Transmission Properties

The results in the table above are typical for Category 5e Class D, Patch cables 2 m, 5 m up to 10 m length

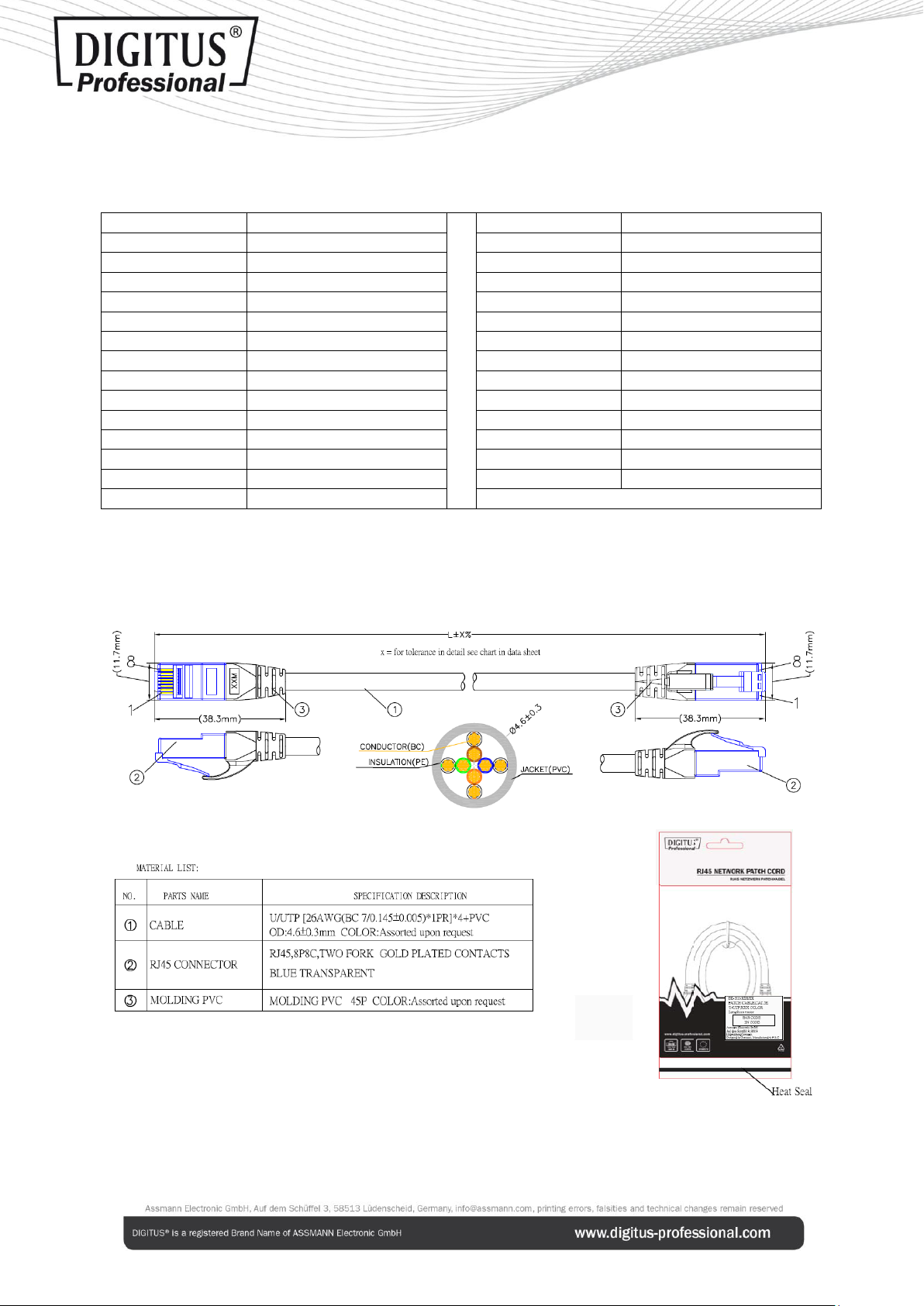

Product Number Information
