Digitech AA-0378 User Manual

Programmable Interval

12V Timer Module

User Manual

AA-0378

Distrib ute d b y:
Te c hBra nd s b y Ele c tus Distrib utio n Pty. Ltd .
320 Vic to ria Rd , Ryd a lme re
NSW 2116 Austra lia
Ph: 1300 738 555
Int’ l: [phone]
Fa x: 1300 738 500
www .te c hb ra nd s.c o m

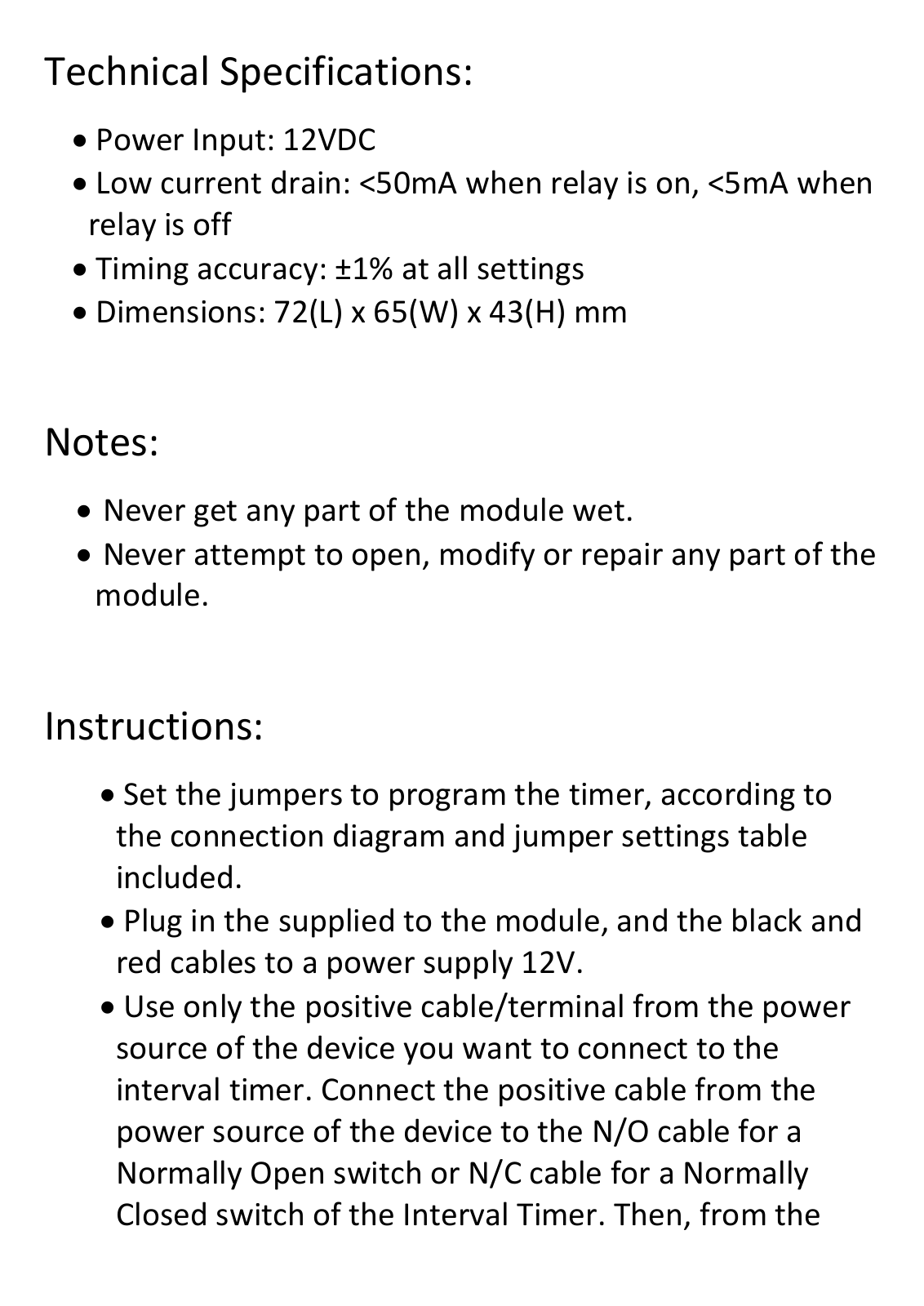

Technical Specifications:

• Power Input: 12VDC

• Low current drain: <50mA when relay is on, <5mA when

relay is off

• Timing accuracy: ±1% at all settings

• Dimensions: 72(L) x 65(W) x 43(H) mm

Notes:

• Never get any part of the module wet.

• Never attempt to open, modify or repair any part of the

module.

Instructions:

• Set the jumpers to program the timer, according to
the connection diagram and jumper settings table
included.

• Plug in the supplied to the module, and the black and
red cables to a power supply 12V.

• Use only the positive cable/terminal from the power
source of the device you want to connect to the
interval timer. Connect the positive cable from the
power source of the device to the N/O cable for a
Normally Open switch or N/C cable for a Normally
Closed switch of the Interval Timer. Then, from the

COM cable of the Interval timer to run to the device
positive input .The NO1, COM1 and NC1 are
independent from NO2, COM2 and NC2 so please
ensure you connect to the correct corresponding wire.

• Press the reset button to restart the selected timer
function.

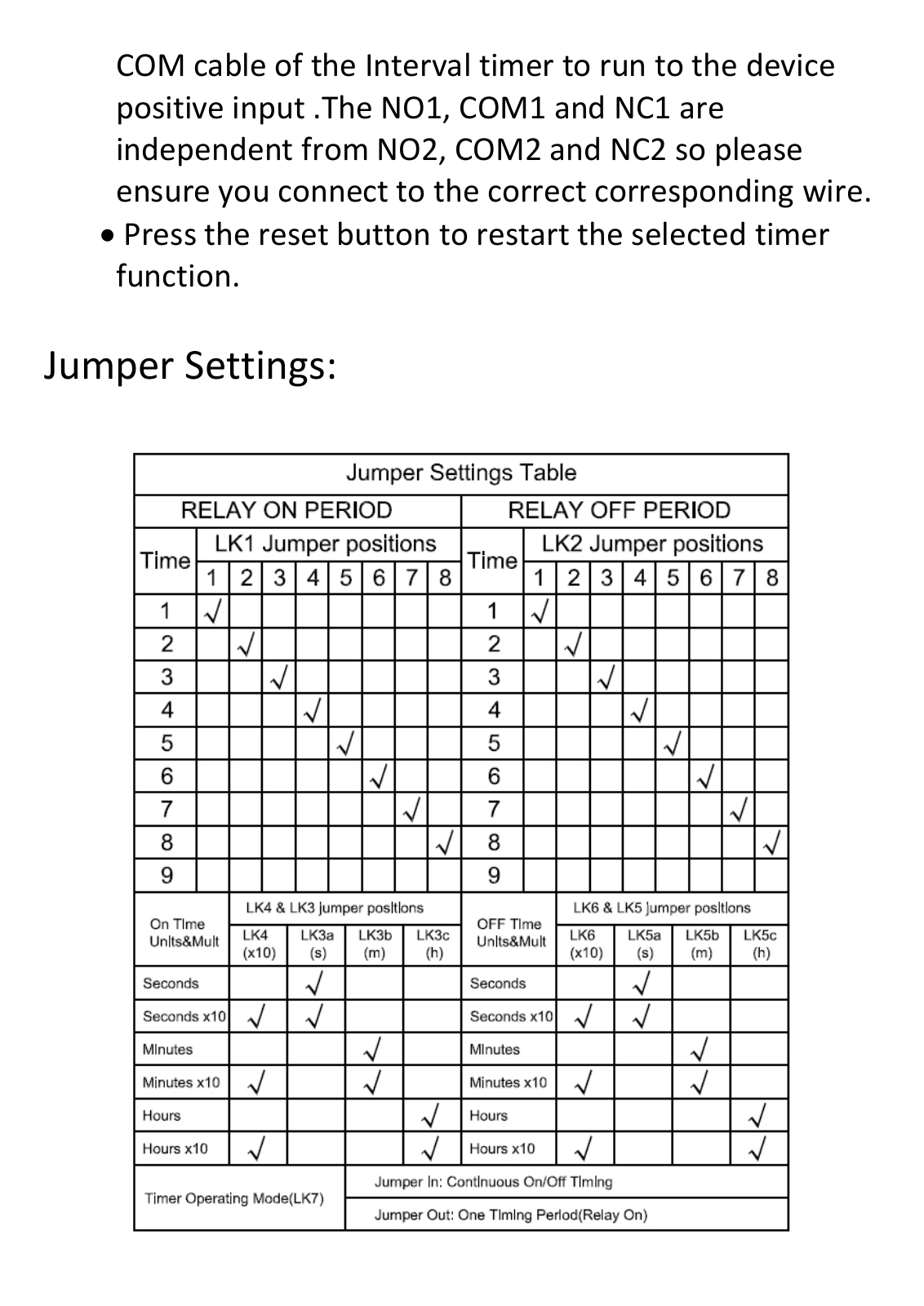

Jumper Settings:

c b a c b a

8-------1

Reset

Circuit Diagram:
