Indoor Dome Camera
DWC-D362D
DWC-D362DIR
User Manual
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
02222012
PRECAUTIONS
Do not open or modify.
Do not open the case except during maintenence and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning :
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface :
The material of the mounting surface must be strong enough to support the camera.
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful
interference. when the equipment is operated in a residential environment. This equipment generates, uses,
and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction
manual, it may cause harmful interference to radio communications.
WARNING : Changes or modifications are not expressly approved by the manufacturer.
22
Table of Contents
Introduction
Installation
Camera OSD Menu and Glossary
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Included Accessories
Easy Installations
Base Installations
Connecting to Monitors
Adjusting the Camera
Adjusting the 3-Axis Gimbal
4-5
6
7
8
9
10
11
12
13
14-17
18
19-20
21
3
FEATURES*
DWC-D362D
Sharp 1/3” CCD
540 TV Lines
2.8 ~ 11mm Varifocal Auto Iris Lens
Electronic Day and Night
DRC (Dynamic Range Compressor)
HME (Highlight Masking Exposure)
SLC (Side Light Compensation)
AGC / BLC / AWB
Mirror Image Control
RS485 Built-In (Optional)
Programmable Privacy Zone (4) & Motion Detection
Easy Icon Driven OSD Menu with Built-In Joystick
Auto Sensing 12VDC or 24VAC with Line Lock
Secondary Video-BNC Output
Video Test Output Included
4
FEATURES*
DWC-D362DIR
Sharp 1/3” CCD
540 TV Lines
2.8 ~ 11mm Varifocal Auto Iris Lens
85ft Range IR with Intelligent Camera Sync
Electronic Day and Night
DRC (Dynamic Range Compressor)
HME (Highlight Masking Exposure)
SLC (Side Light Compensation)
AGC / BLC / AWB
Mirror Image Control
RS485 Built-In (Optional)
Programmable Privacy Zone (4) & Motion Detection
Easy Icon Driven OSD Menu with Built-In Joystick
Auto Sensing 12VDC or 24VAC with Line Lock
Secondary Video-BNC Output
Video Test Output Included
5
PART & DESCRIPTIONS*
2
6
No IR
IR
9
4
5
3
Lens
8
7
1
1
Power Input Connctor
2
12VDC/24VAC Dual Voltage
Video Output Connector - BNC
3
Upper case
4
Bubble
5
6
Control board
7
Power board
Bottom case
8
Mounting screw
9
6
DIMENSIONS IN MILLIMETERS*
3-
Ø
4.5
(3-
Ø
0.18”)
82.3
(3.24”)
10.1
(0.4”)
39.4
(1.6”)
118.0
Ø
4.65”)
(Ø
Ø
(Ø
Ø
(Ø
118.0
4.65”)
89.0
Ø
3.5”)
(Ø
Ø
(Ø
14.5
0.57”)
20.0
0.79”)
7
INSTALLATION*
Included with Value Line Indoor Dome Camera
1. User Manual
2. Mounting Template
8
3. Second Video Jack
4. Mounting Screw (3)
1 2
Ø5.0
Mounting template
Ø20.0
Ø15.0
PD79
Ø118.0
3 4
EASY INSTALLATION*
Install the Enclosure Cover
To install the dome cover, align the dome cover
with the camera base and push until
it securely snaps into place.
Dome Cover
Camera Base
Remove the Dome Cover
Before you can mount or adjust your PD79,
you must remove the dome cover. Insert a
coin or screwdriver in the slot on the dome
cover, then twist to pry the dome cover
from the camera base.
9

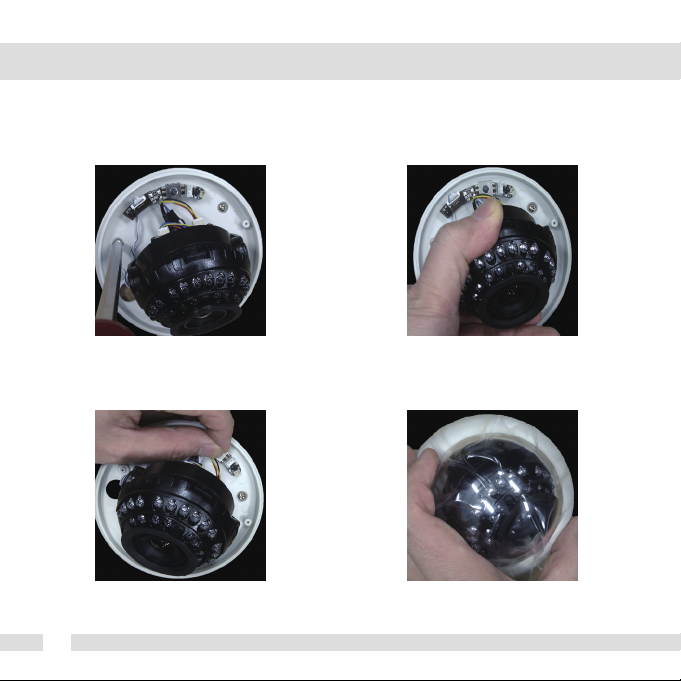

BASE INSTALLATION*
1.Pull wires through and make connections,
Refer to page 11. Use mounting template to
mount camera with dry wall mounts and wood
screws.
3. Use the joystick to adjust the OSD menu.
See page 14~17 for details.
10
2. Adjust the camera’s pan,tilt and zoom.
See page 13 for details.
4. Attach the camera housing to the
junction box using the assembly scrws.
CONNECTING TO MONITORS*
12VDC/24VAC
IR
No IR
2nd Video Output
CCTV Monitor
Left
Down
Right
Up
Monitor
11.8in
Power connection - 12VDC/24VAC Dual Voltage.(Auto polarity detection and protection)
All camera are equipped with a 2nd video output on the camera Main Board.
11
ADJUSTING THE CAMERA*
ZOOM
FOCUS
NO IR IR
Loosen the Zoom & Focus Handles by rotating them counter-clockwise.
1
Adjust the Field of view by moving the handle to the RIGHT(Tele) to zoom in, or to the
2
LEFT(Wide) to zoom out.
Adjust the Focus the same way as described above AFTER the desires Zoom position
3
is established.
Once the desired adjustments have been made, please tighten the handles back by
4
turning them clockwise.
Zoom:
Tele - Wide
Focus:
Far - Near
12
ADJUSTING THE 3-AXIS GIMBAL*
The Gimbal mechanism yields maximum rotation and placement as shown below.
Rotation 360º
1
Panning 360º
3
Tilting 70º
2
13
MODULE OSD MENU*
14
EXPOSURE
FUNCTION
SETUP
LENS
E.SHUTTER
BLC
AGC
MIRROR
SHARPNESS
GAMMA
SLC
HME
DRC
CAMERA ID
TITLE EDIT
TITLE RESET
TITLE POSITION
DPC SET
LANGUAGE
PC CONT.
PRIVACY RGB
COLOR
MOTION
EXIT
WB MODE
R-Y GAIN
B-Y GAIN
ALARM
EXIT
SAVE & EXIT
FACTORY SET
DAY&NIGHT
PRIVACY
D&N MODE
MASK 1
MASK 2
MASK 3
MASK 4
COLOR SET
MODULE OSD MENU AND GLOSSARY*
EXPOSURE
LENS
E.SHUTTER
BLC
AGC
COLOR
WB MODE
R-Y GAIN
B-Y GAIN
DAY & NIGHT
Day & Night Mode
MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31)
1/60 / 1/100FLC / 1/250 ~ 100000 / AUTO
OFF / ON(Set Level 0~255)
BLC (Back Light Compensation)
OFF ~ 36dB
AGC (AUTO GAIN CONTROL)
AWC / ATW / MANUAL / PUSH LOCK
0 ~ 255
0 ~ 255
AUTO / COLOR / BW
COLOR ▬►BW : Switching from COLOR to BW; If the number is higher, the camera will only switch during a super low light condition.
BW ▬►COLOR : Switching from BW to COLOR; This number should be always lower than COLOR to BW
Read Time : time interval to switch from COLOR to BW
COLOR
B&W : (BURST : OFF/ON) When the burst is OFF, the picture will have less noise.
15
FUNCTION
MIRROR
SHARPNESS
GAMMA
SLC
HME
DRC
MOTION
ALARM
16
OFF / ON
0 ~ 49
USER / 0.45 / 0.6 / 1.00
OFF / ON (0 ~ 50)
SLC (Side Light Compensation)
OFF / ON (0 ~ 155)
HME (Highlight Masking Exposure)
OFF / ON
DRC (Dynamic Range Compressor)
OFF / ON
SET WINDOW
ALL SET (Set the Entire Screen)
ALL CLEAR (Clear the Entire Screen)
SENSITI. (0 ~ 55)
SHOW INDI. (OFF / ICON / TRACE)
DELAY OUT(1 ~ 15)
Motion Alarm Zoom-In Delay
PRIVACY
MASK 1
MASK 2
MASK 3
MASK 4
COLOR SET
SETUP
CAMERA ID
TITLE EDIT
TITLE RESET
TITLE POS.
DPC SET
LANGUAGE
PC CONT.
EXIT
EXIT
SAVE & EXIT
FACTORY SET
OFF / ON
OFF / ON
OFF / ON
OFF / ON
BLACK / GRAY / COLOR 1~ 6
0 ~ 254
OFF / ON
DPC ( Dead Pixel Cancellation)
English / Chinese
OFF / ON
Exit the menu
Exit the menu and save the setting
Reset the menu setting to factory default
17
TROUBLESHOOTING
Before sending your camera for repair, check the following or contact our technical specialist.
No VIDEO
Check the coaxial cable and make sure it is connected securely.
Check the lens’ iris adjustment at the menu setup of the camera.
Check the power supply and make sure the camera has the proper voltage and current.
Out-of-Focus VIDEO
Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.
Check the lens manual focal and zoom adjustment. Field test monitor is recommended.
18
WARRANTY INFORMATION*
Digital Watchdog (referred to as “the Warrantor”)
warrants the Digital Watchdog Camera against defects in
materials or workmanship as follows:
LABOR : For the initial two (2) years and one (1) year on IR LED
from the original purchase date,
if the camera is determined to be defective, the Warrantor will
repair or replace the unit with a new or refurbished product at its
option at no charge.
PARTS : In addition, the Warrantor will supply
replacement parts for the initial two (2) years and one (1) year on IR LED.
To obtain warranty or out of warranty service,
please contact a Technical Support Representative at
1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM
Eastern Standard Time.
A purchase receipt or other proof of the original purchase date is required
before warranty service is rendered. This warranty only covers failures due to
defects in materials and workmanship which arise during normal use.
This warranty does not cover damage which occurs in shipment or failures
which are caused by products not supplied by the Warrantor or failures
which result from accident, misuse, abuse, neglect, mishandling,
misapplication, alteration, modification, faulty installation, set-up adjustments,
improper antenna, inadequate signal pickup, maladjustment of consumer controls,
improper operation, power line surge, improper voltage supply, lightning damage,
rental use of the product or service by anyone other than an authorized repair
facility or damage that is attributable to acts of God.
19
LIMITS AND EXCLUSIONS*
There are no express warranties except as listed above.
The Warrantor will not be liable for incidental or consequential
damages (including without limitation or damage to recording media),
resulting from the use of these products or arising out of any breach
of the warranty. All express and implied warranties, including the
warranties of merchantability and fitness for particular purpose,
are limited to the applicable warranty period set forth above.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the exclusions or limitations listed above may not
apply to you. This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
If the problem is not handled to your satisfaction,
then write to the Address listed on the next page.
Service calls which do not involve defective materials or
workmanship as determined by the Warrantor, in its sole
discretion, are not covered. Costs of such service calls are
the responsibility of the purchaser.
20
SPECIFICATION*
MODEL
General Spec
CCD Type
Total number of pixels
Min. Illumination
Resolution
Shutter speed
S/N Ratio
Gamma 0.45
Sync System
Electric Spec
Voltage
Power Consumption
Mechanical Spec
Operation temp
In storage temp
Operation humidity
DWC-D362D, DWC-D362DIR
NTSC
1/3” 410K Pixels Color
811(H) x 508(V)
0.1Lux [(F1.2, 24IRE), (at COLOR)]
0.001Lux [(F1.2, 24IRE), (at B/W)]
540 TV Lines [at COLOR]
580 TV Lines [at B/W]
50dB or more (AGC off)
DC 12V (10V ~ 16V), AC 24V (20V ~ 28V)
LED OFF : 1.8W,150mA(DC12V) / 1.8W,75mA(AC24V)
LED ON : 5.0W,417.7mA(DC12V) / 4.6W,191.7mA(AC24V)
-10 � ~ +50 � (14°F ~ 122°F)
-20 � ~ +70 � (-4°F ~ 158°F)
Under 90% (Non-condensing)
1/60s - 1/100,000s
Internal
21
5436 W Crenshaw St. Tampa, FL 33634
Tel : 866-446-3595
Fax : 813-888-9262
www.Digital-Watchdog.com
technicalsupport@dwcc.tv
Technical Support Hours : Monday-Friday
8:30am to 8:00pm Eastern Time
Loading...
