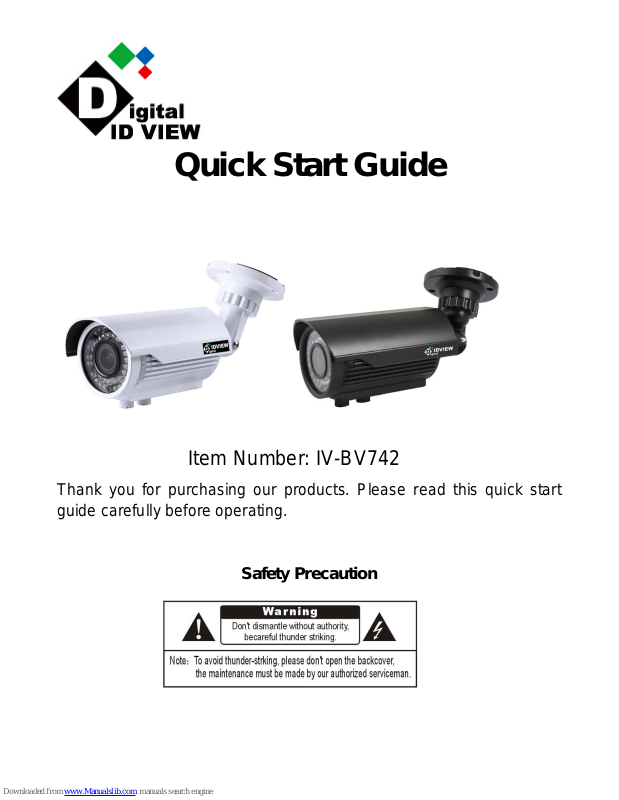

Digital View IV-BV742 Quick Start Manual

Quick Start Guide

Item Number: IV-BV742

Thank you for purchasing our products. Please read this quick start
guide carefully before operating.

Safety Precaution

Warning

* To prevent fire or shock hazard, please do not expose the unit to water for a
long period of time.
* Please make sure the adapter is consistent with product specifications,
otherwise it might cause fire, electric shock or damage.
* Pay attention to polarity of the adapter, it might create problems like damage to
the camera and possibly even fire.
* Please don’t connect multiple cameras to the same adapter without verifying the
capacity of the adapter, exceeding the adapter’s capacity may cause fire.
* Power supply must be firmly connected to prevent fire.
* If the device emits an abnormal smell or smoke, please disconnect power
immediately and contact our customer service center.
* If the camera doesn’t work properly, please do not dismantle / disassemble it by
yourself. Please contact your local distributor or our authorized dealer, otherwise
you may void the warranty.
* Please do not splash water on unsealed connections the product components
when cleaning.

Technical Specifications

Item Number: IV-BV742
Signal System: NTSC
Sensor CCD: 1/3”Sony CCD
Horizontal resolution : 700 TV lines
Lens: 2.8-12mm
OSD: YES
Minimum Illumination: 0 LUX (IR ON)
S/N Ratio: More than 48 dB
Distance: 105~120 ft
LED : 42PCS LED
Video Output: 1Vp-p 75Ω . Y/C Separated
Connector video : BNC
Operation Temperature: -4°F to +122°F

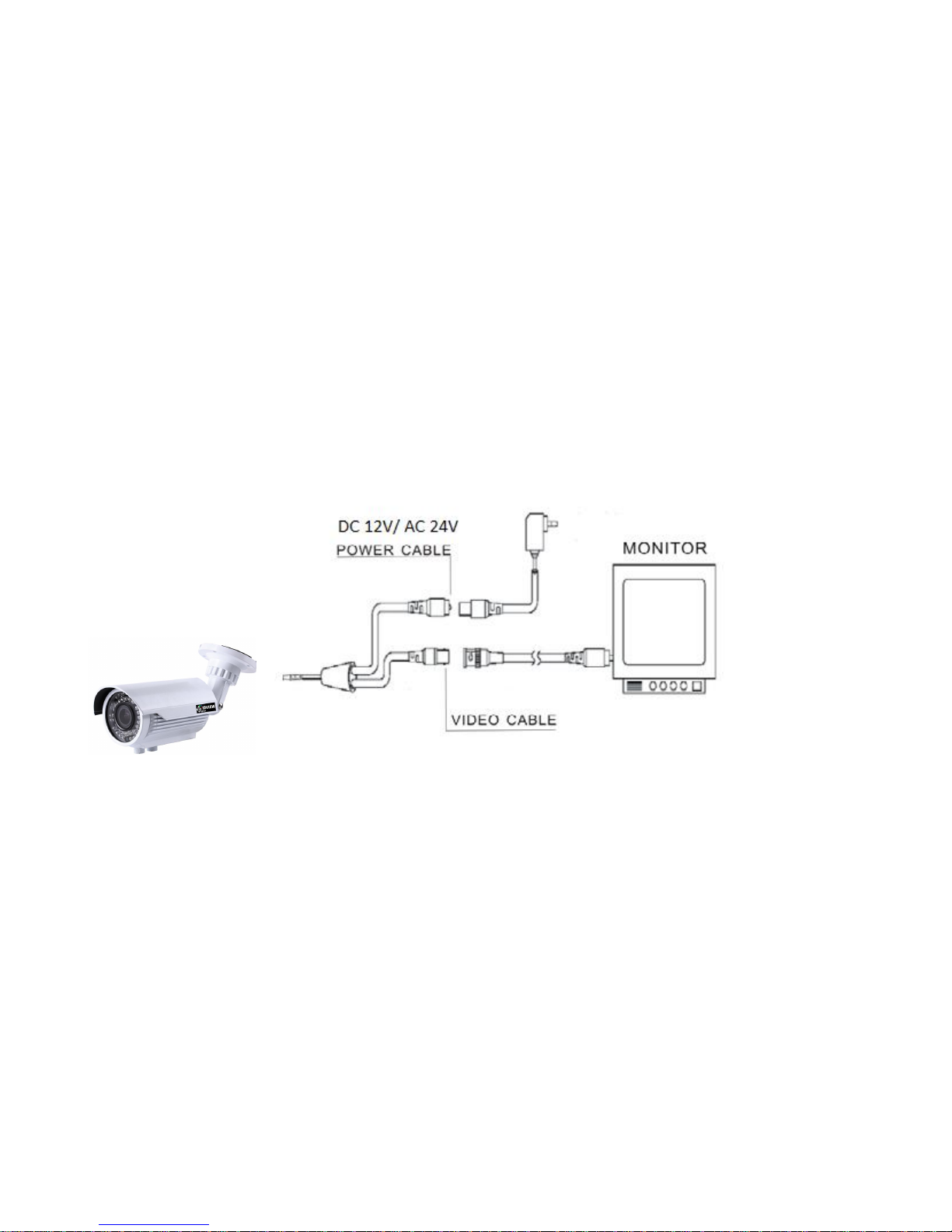

Supplied Power: 24VAC/12VDC(+/-10%);
