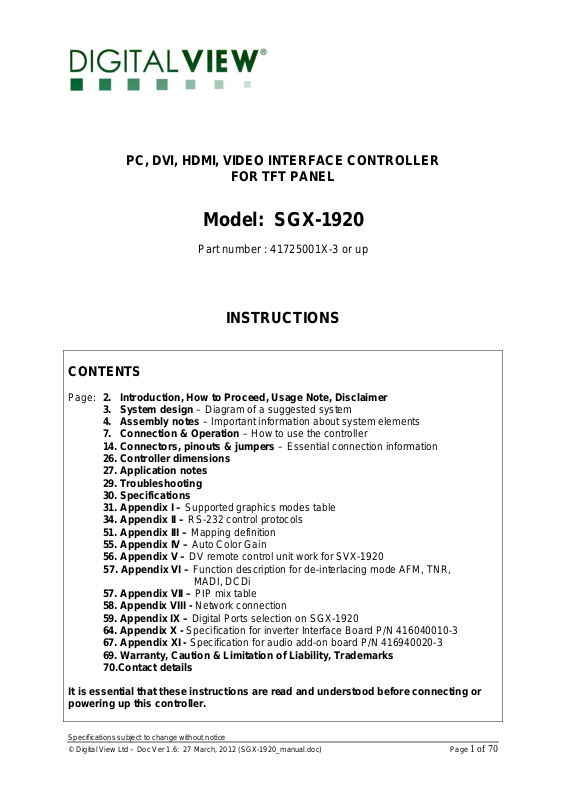

Page 1
PC, DVI, HDMI, VIDEO INTERFACE CONTROLLER
FOR TFT PANEL
Model: SGX-1920
Part number : 41725001X-3 or up
INSTRUCTIONS
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design – Diagram of a suggested system
4. Assembly notes – Important information about system elements
7. Connection & Operation – How to use the controller
14. Connectors, pinouts & jumpers – Essential connection information

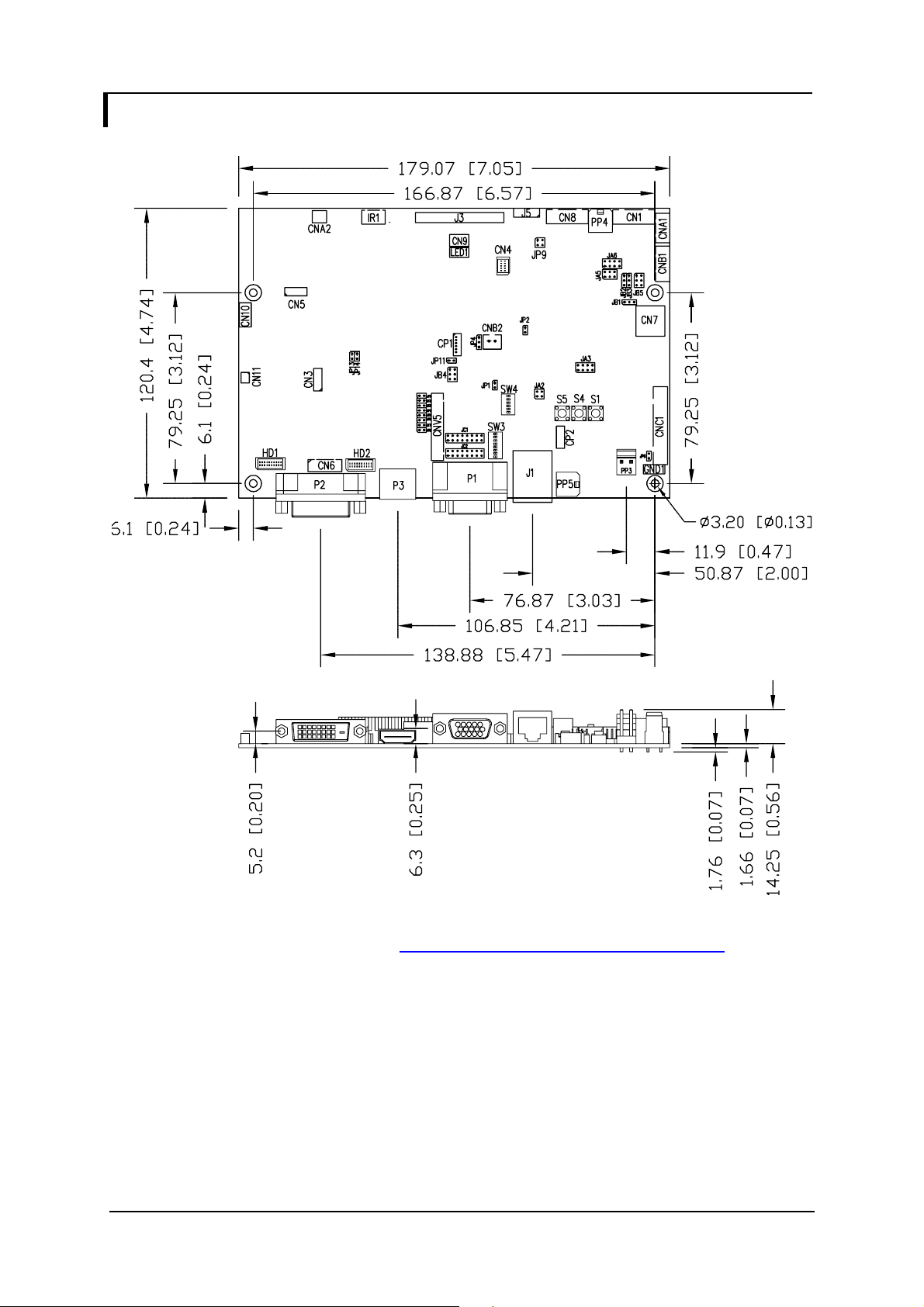

26. Controller dimensions
27. Application notes
29. Troubleshooting
30. Specifications
31. Appendix I – Supported graphics modes table
34. Appendix II – RS-232 control protocols
51. Appendix III – Mapping definition
55. Appendix IV – Auto Color Gain

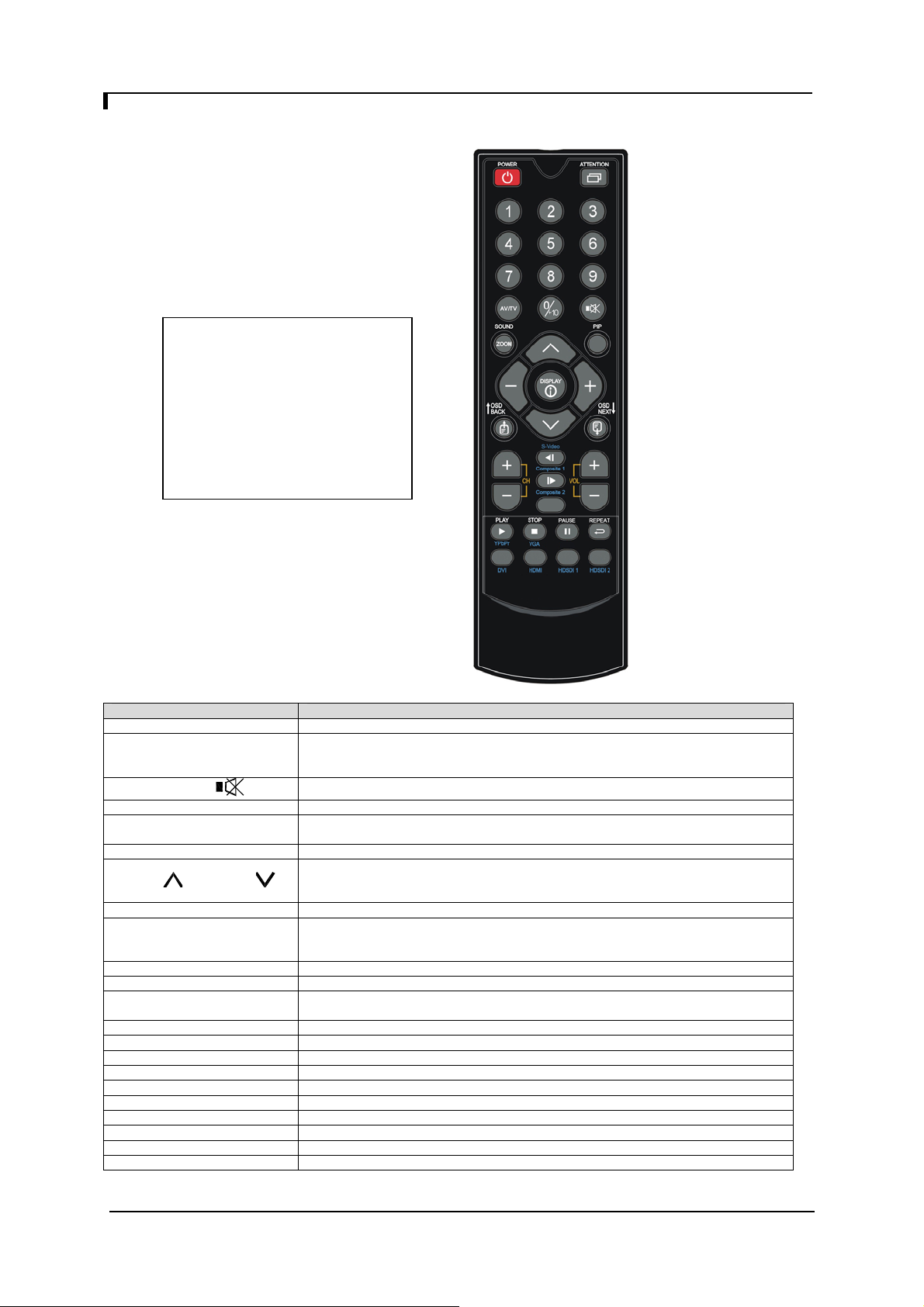

56. Appendix V – DV remote control unit work for SVX-1920
57. Appendix VI – Function description for de-interlacing mode AFM, TNR,
MADI, DCDi
57. Appendix VII – PIP mix table
58. Appendix VIII - Network connection

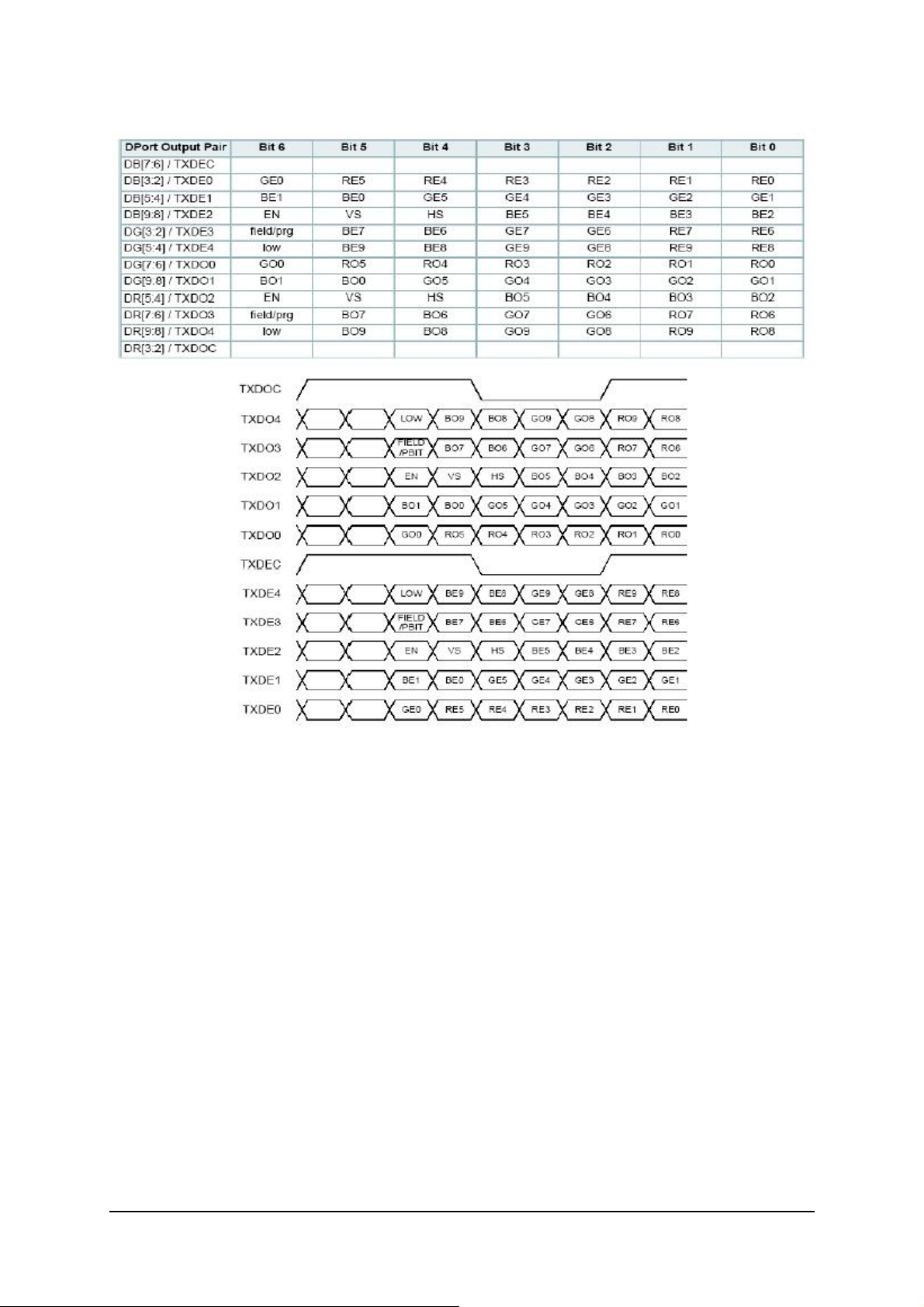

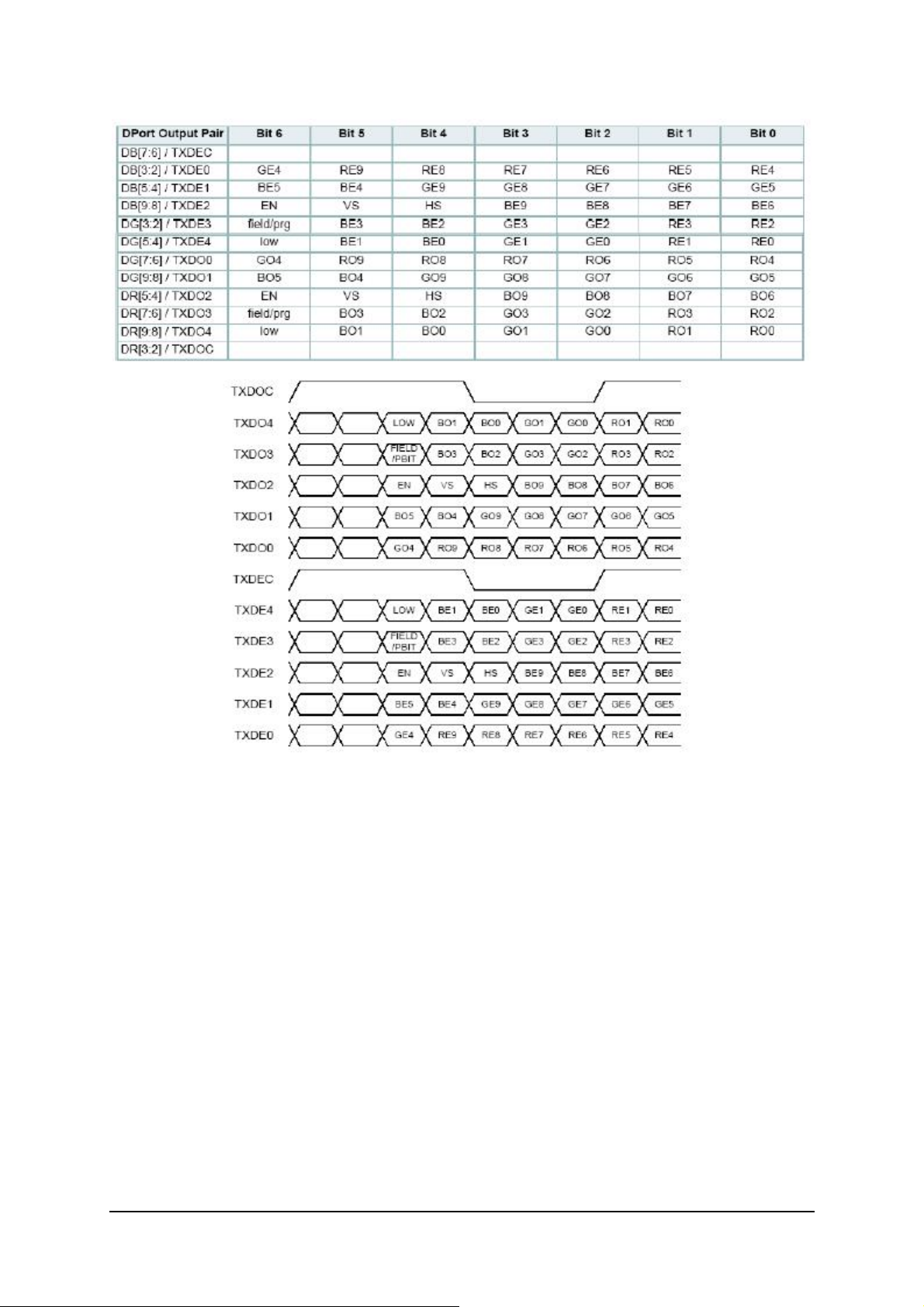

59. Appendix IX – Digital Ports selection on SGX-1920

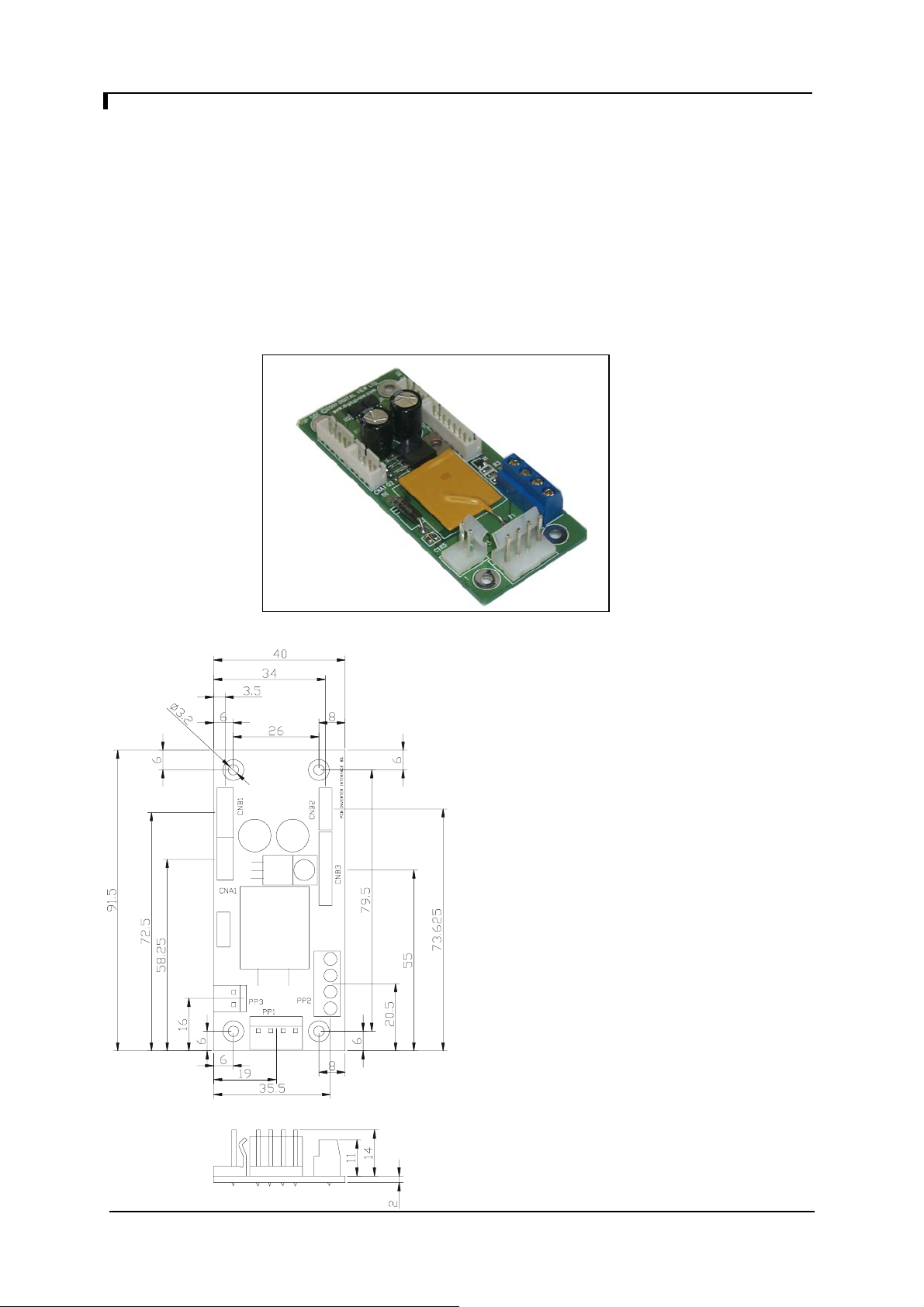

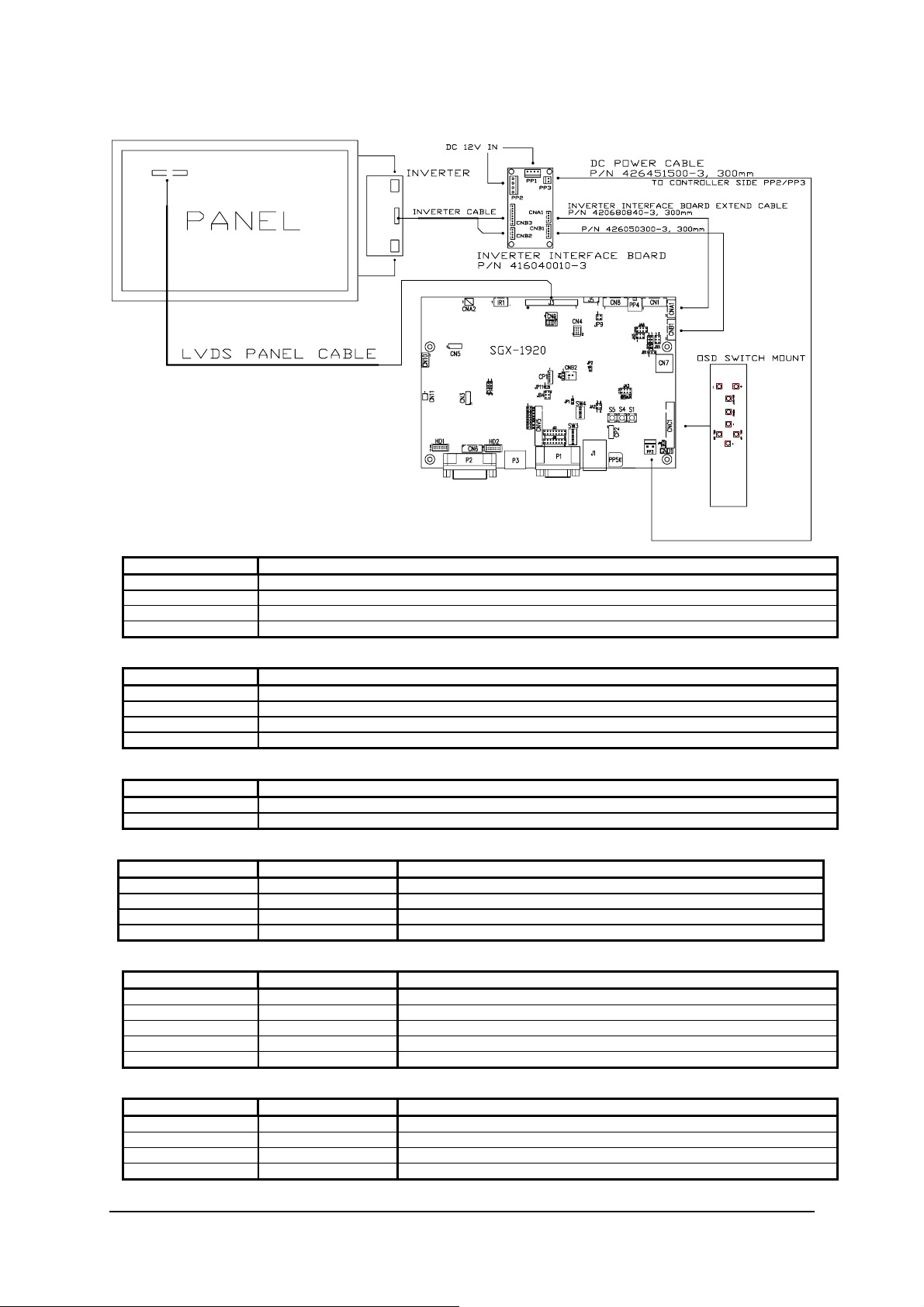

64. Appendix X - Specification for inverter Interface Board P/N 416040010-3

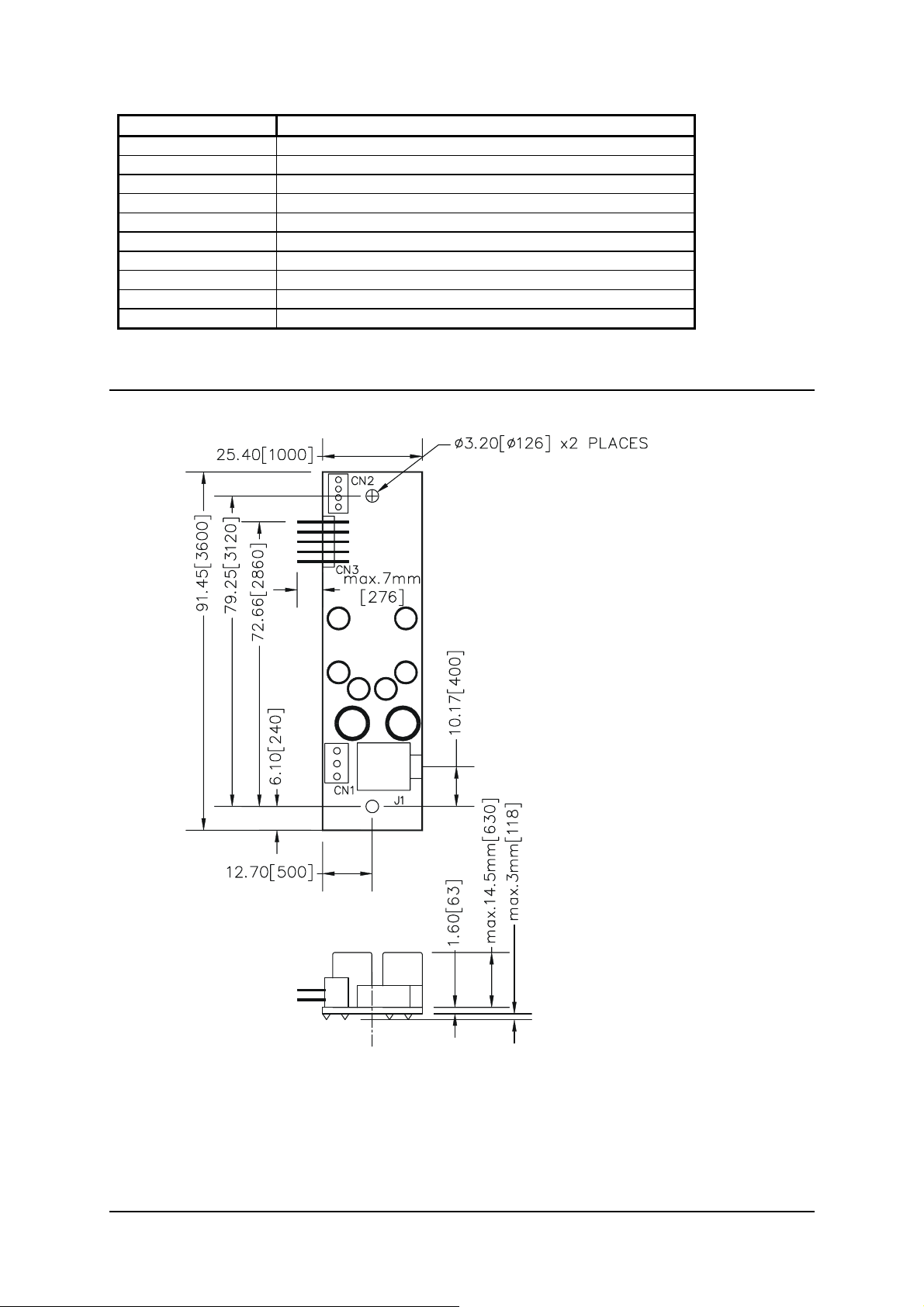

67. Appendix XI - Specification for audio add-on board P/N 416940020-3
69. Warranty, Caution & Limitation of Liability, Trademarks
70.Contact details
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
1 of 70
Page 2
Introduction
Designed for LCD monitor and other flat panel display applications, the SGX-1920 is a feature rich interface controller
for :
TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200, 1600x900, 1440x900,
1366x768, 1280x1024, 1280x800, 1280x768 1024x768, 1024x600, 800x600, 800x480 and 640x480 resolutions.
Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.
Video signals of NTSC, PAL and SECAM standard.
Dual digital input port (DVI / HDMI / Auxiliary digital video inputs) support up to 1920x1200 60Hz input signals
Support HDMI input
Support true 10 bits panel
Support HDMI, DVI, VGA, S-Video, Composite Video input
Support on screen marker
Ordering information :
Controller Part number Ordering part number
SGX-1920 P/N 41726001X-3 P/N 4172600XX-3
HOW TO PROCEED
Ensure you have all parts & that they are correct, refer to:
• Connection diagram
Check controller switch & jumper settings (errors may damage the panel)
Prepare the PC
Connect the parts
Understand the operation & functions
IMPORTANT USAGE NOTE
This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury
caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:
• Ensure that all necessary and appropriate safety measures are taken.
• Obtain suitable regulatory approvals as may be required.
• Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
Controller Solution Generator
Full web resource matching controllers & panels with connection diagrams for download.
See at : http://www.digitalview.com/csg
• Connector reference (in following section)
• Assembly notes
2 of 70
Page 3
SYSTEM DESIGN
A typical LCD based display system utilizing this controller is likely to comprise the following:
Summary:
1. LCD panel
2. LCD controller card, SGX-1920
3. LCD signal cable (use for LVDS panel)
4. Inverter for backlight (if not built into LCD)
5. Inverter cable
6. Function controls
7. Function controls cable
8. Status LED (optional)
9. IR sensor (optional)
10. RS-232 control interface
11. Second RS-232 control interface
12. External panel power output
13. Panel control signal
14. Audio add-on board (optional)
15. Auxiliary +5VDC, max 500mA output
16. Ambient light sensor connection
17. Backlight status input
18. Auxiliary Video input
19. Auxiliary Digital Input Port – HD1
20. Auxiliary Digital Input Port – HD2
21. Reserved
22. HDMI Audio output
23. SPDIF Audio output
24. DVI-D input
25. HDMI input
26. Analog RGB input
27. Control over network connection
28. +12V / +24V DC power input
29. External panel power input
Digital View provides a range of parts, such as listed above, to make up complete display solutions.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
3 of 70
Page 4
ASSEMBLY NOTES
This controller is designed for monitor and custom display projects using 1920x1200 or 1920x1080 or 1600x1200 or 1680x1050
or 1440x900 or 1366x768 or 1280 x 1024 or 1024 x 768 or 800x600 or 640x480 resolution TFT panels with a VGA, SVGA,
WXGA, XGA, SXGA, UXGA or WUXGA signal input. The following provides some guidelines for installation and preparation of
a finished display solution.
Preparation: Before proceeding it is important to familiarize yourself with the parts making up the system and the various
connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides
to connectors and mounting holes are shown in the following relevant sections.
1. LCD Panel: This controller is designed for typical LVDS interfaced panels with panel voltage 3.3V, 5V, 12V or 18V,
External for 12V~18V interface. Due to the variation between manufacturers of panels signal timing and other panel
characteristics, factory setup and confirmation should be obtained before connecting to a panel. (NOTE: Check panel
power jumper settings before connection)
2. Controller: Handle the controller with care as static charge may damage electronic components. Make sure correct
jumper and dip switches settings to match the target LCD panel.
3. LCD signal cable (LVDS panel): In order to provide a clean signal it is recommended that LVDS signal cables are no
longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care
should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to
add ferrite cores to the cable to minimize signal noise.
4. Inverter: This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels may
have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to match
the inverter in order to obtain optimum performance. See Application notes page 27 for more information on connection.
5. Inverter Cables: Different inverter models require different cables and different pin assignment. Make sure correct cable
pin out to match inverter. Using wrong cable pin out may damage the inverter.
6. Function Controls: The following section discusses the controls required and the section on connectors provides the

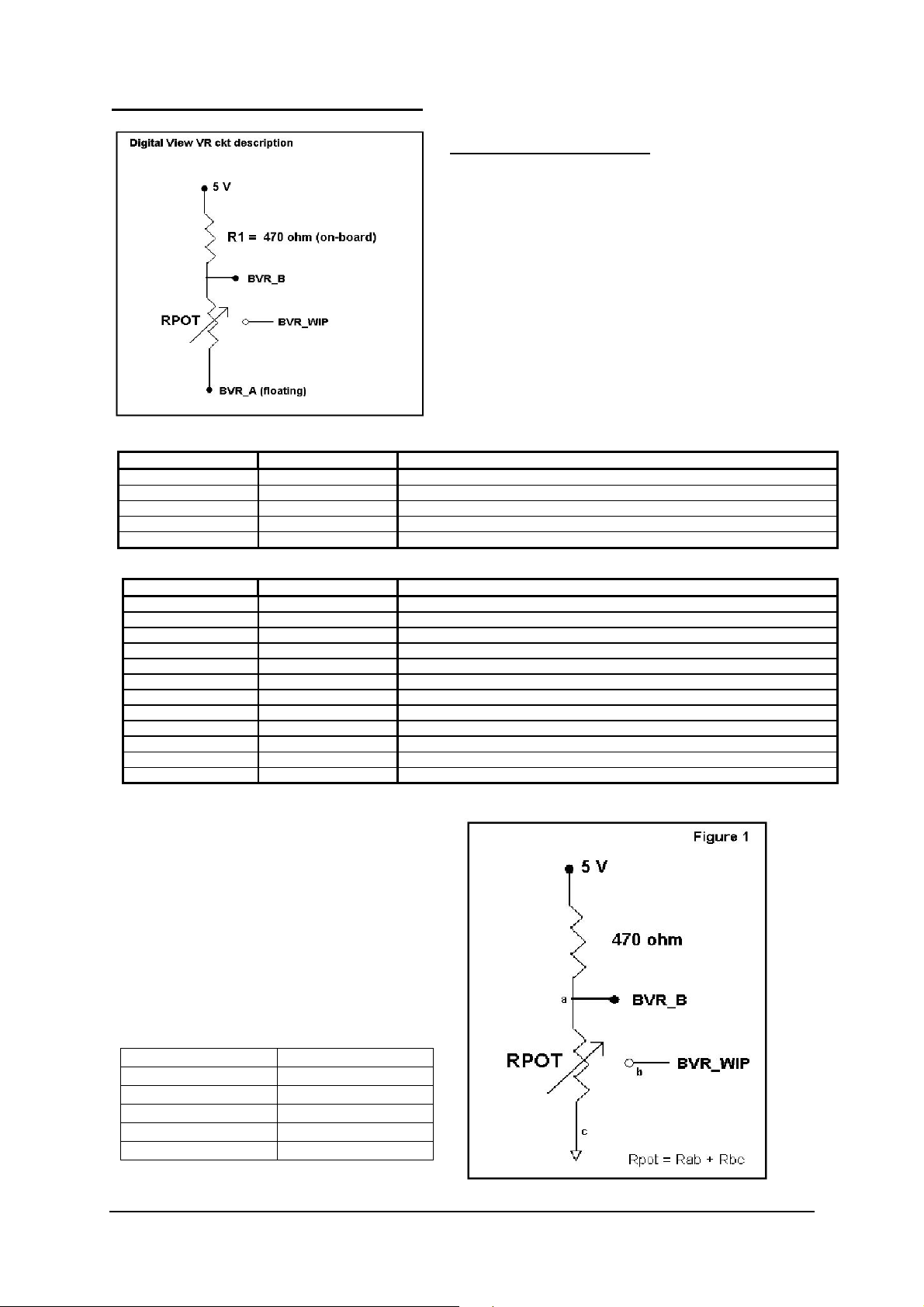

detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog
VR type or (8 momentary buttons) digital type.
The 8 momentary buttons OSD switch mount P/N 416100520-3 or OSD membrane interface P/N 416100120-3 must be
used when 24VDC input.
7. Function controls cable: The cables to the function switches should be of suitable quality and length so that impedance
does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.
8. Status LED: The pin direction of the LED should be corrected for right colour indication. Red colour stands for standby.
Green colours stands for signal on. The status LED is an optional part only, can be unconnected.
9. IR sensor: It is an optional part only, can be unconnected if not using IR remote control. See Appendix V in details.
10. RS-232 control interface : Firmware upgrade and serial control via this interface port.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
4 of 70
Page 5
11. Second RS-232 control interface : This interface support controlled under “Programming mode” .
Press and hold “MENU” button on the OSD switch mount and turn on the controller to enter the “Programming mode”.
Choose “Set Uart 1 Input Port” shown below :
.
Set “Uart 1 to IP-50 : Enable Ethernet network (J1) support and disable second RS-232 serial control (CN1) support
Set “Uart 1 to CN1 : Enable second RS-232 serial control (CN1) support. Disable Ethernet network (J1) support
12. External panel power output : User for specific panel model.
13. Panel control signal : Use for specific panel model.

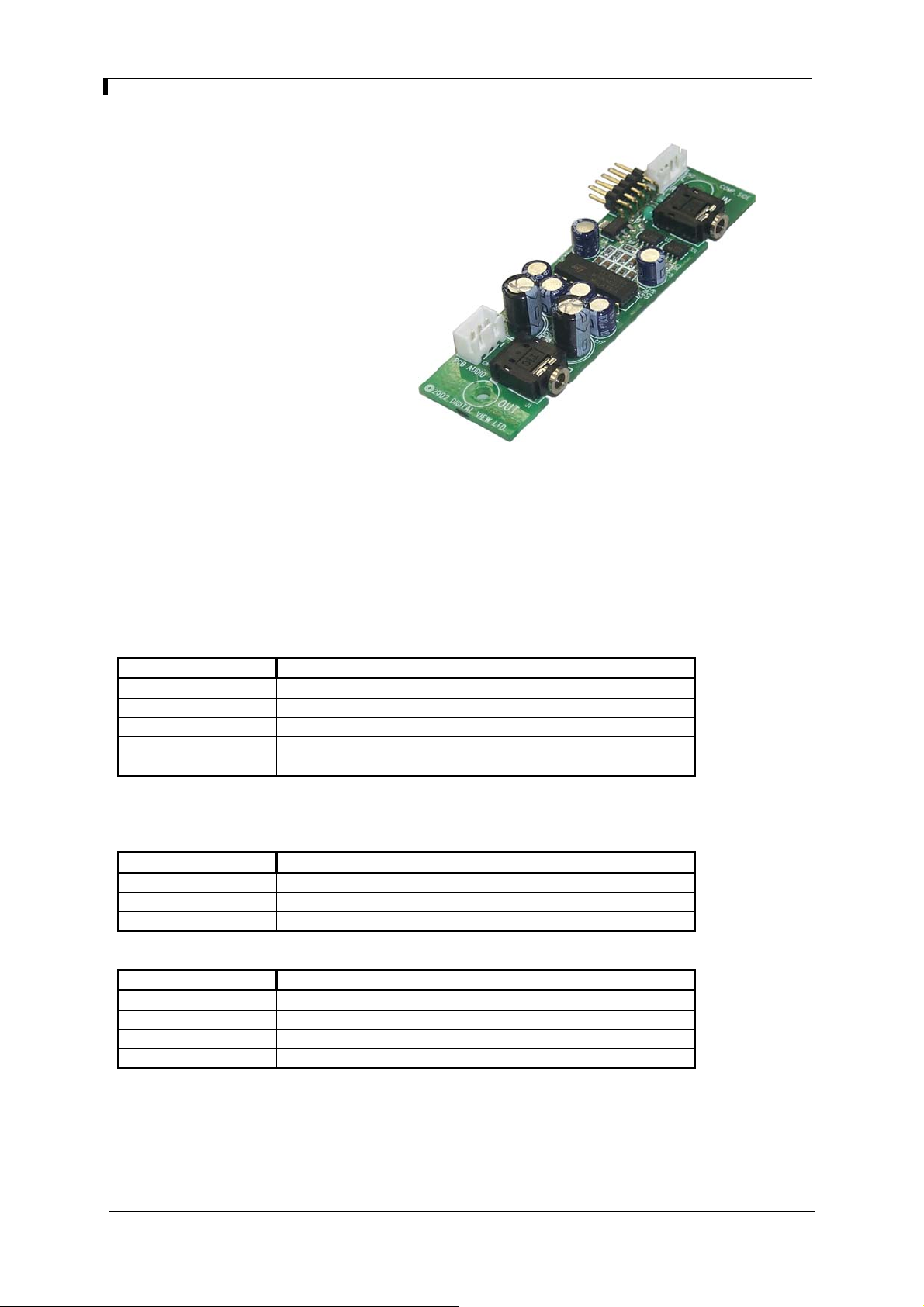

14. Audio add-on board P/N 416940020-3: Provide the interface for the audio add-on board P/N 416940020-3 to be
connected. The audio add-on board gives the audio input and output signal connection. The volume can be controlled by
the OSD menu on the controller. It is an optional part only, can be unconnected if not using audio.
CAUTION : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.
15. Auxiliary +5VDC output : 2 ways connector provides +5VDC output.
16. Ambient light sensor connection : 3 ways connector provides interface for ambient light sensor connection by using Kit
70220-3.
17. Backlight status input : 2 ways connector provides interface for connection with the specific panel type which support the
panel with backlight status monitoring function.
18. Auxiliary video input : It provides alternate video input for S-Video 1, Composite Video 1 & Component Video 1. And it
also provide S-Video 2, Composite Video 2 & Component Video 2 input. Plug the auxiliary video cable P/N 426301700-3 on
CNV5 connector.

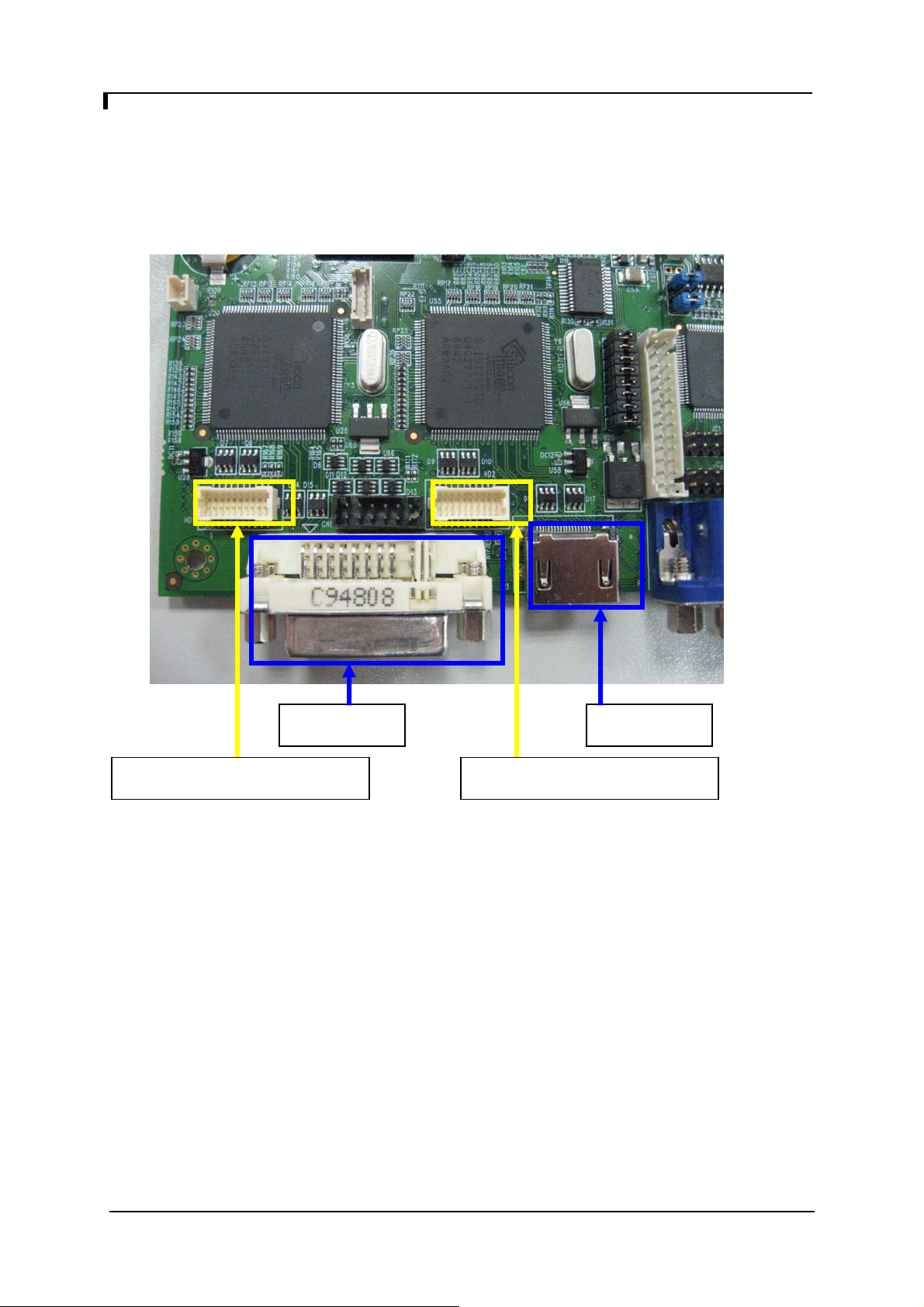

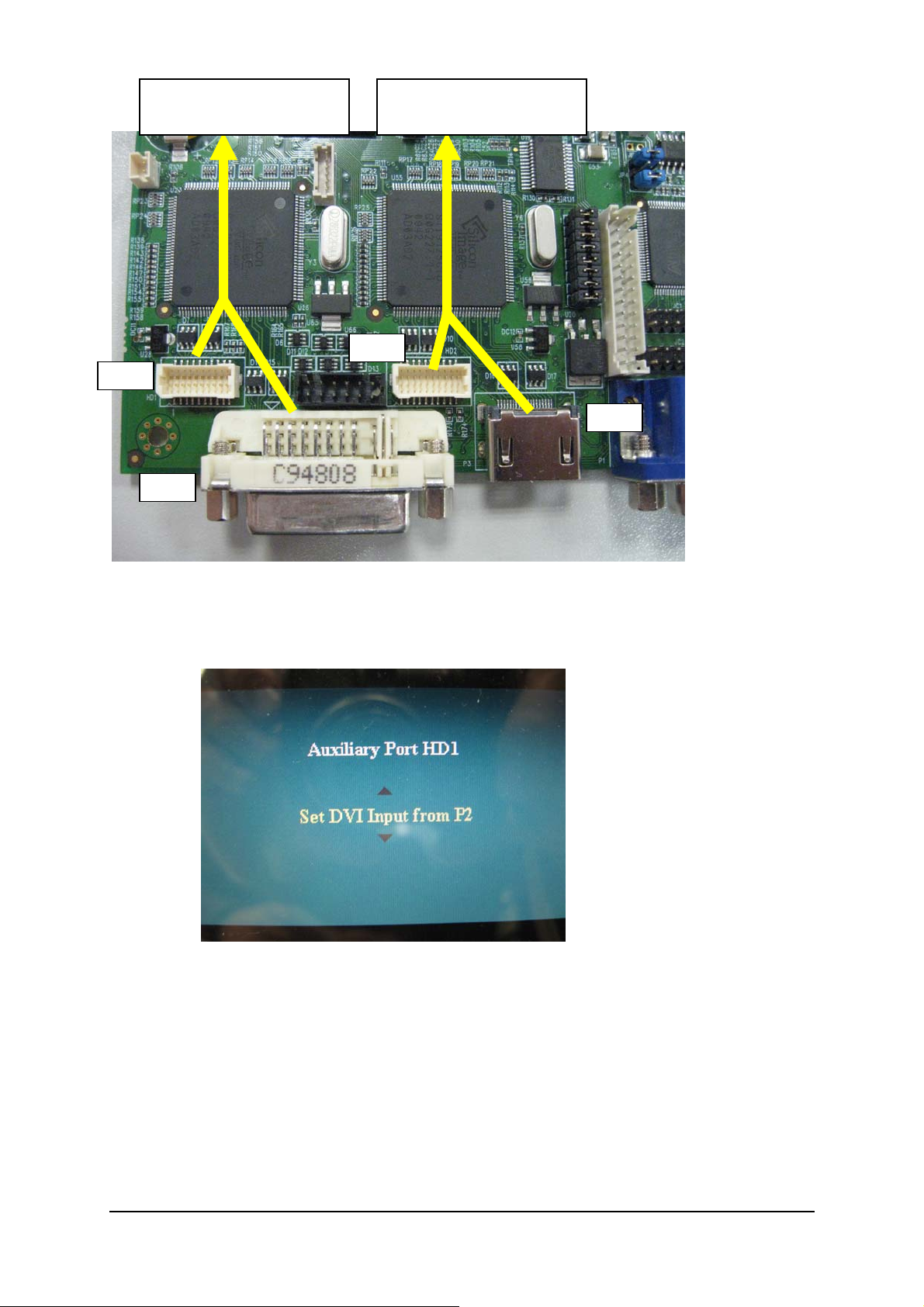

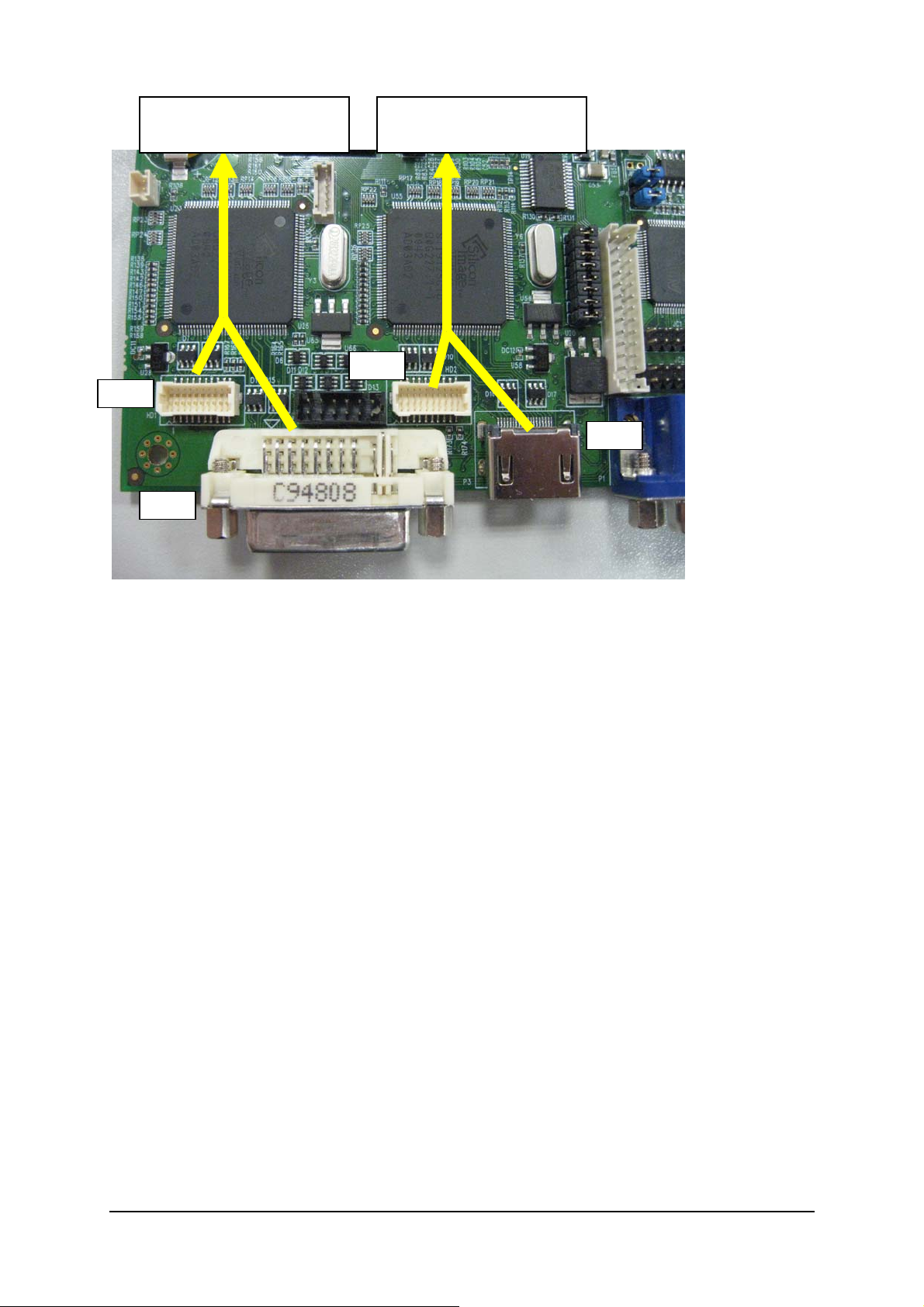

19. Auxiliary Digital Input Port – HD1 : Support Digital video signal input (e.g HDMI, DVI, HD-SDI (from HD-1000/-2000/3000/-3000S)). Please refer to Appendix IX to configure this auxiliary digital input port – HD1. Reasonable quality cable
should be used to avoid image quality degradation.

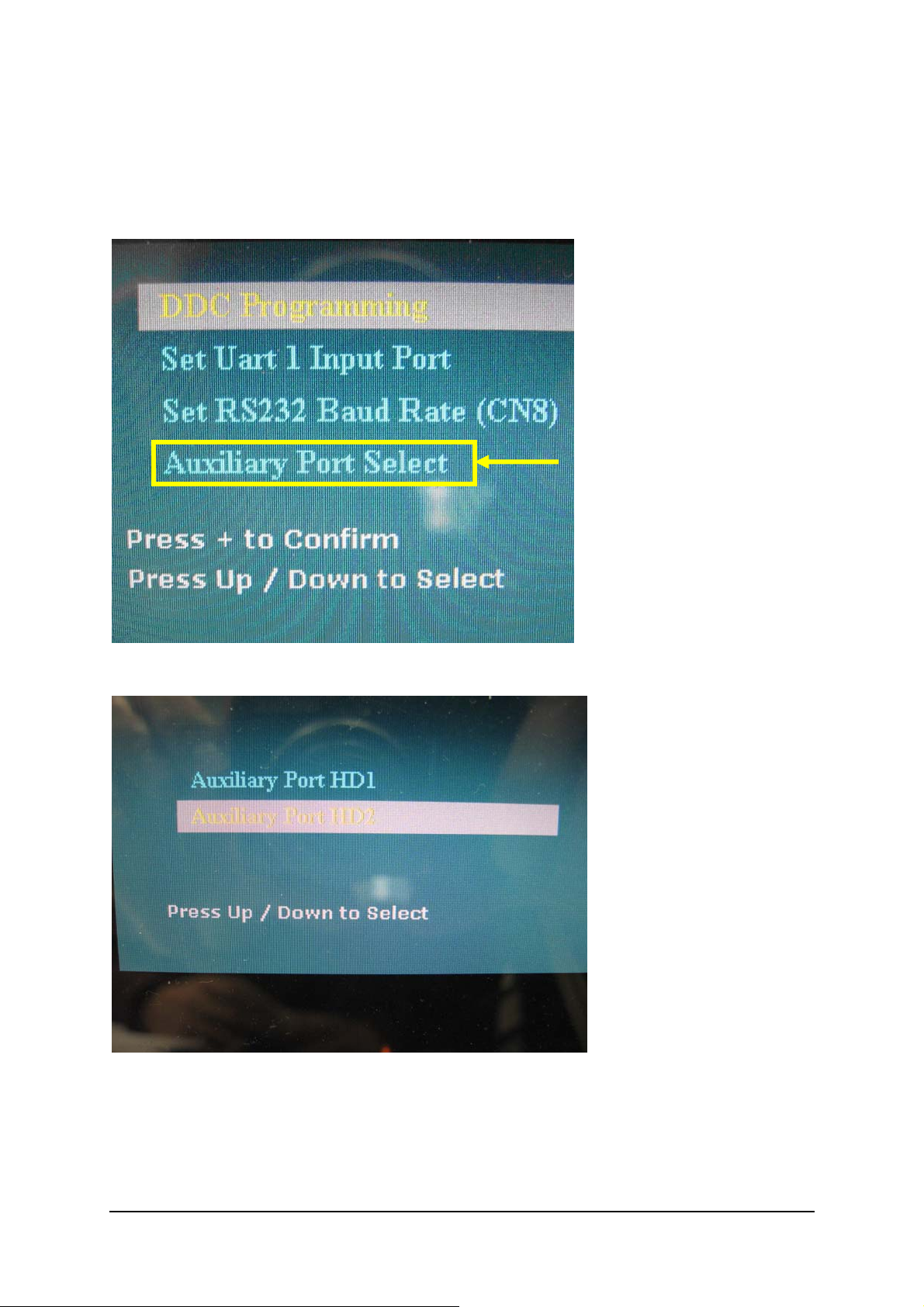

20. Auxiliary Digital Input Port – HD2 : Support Digital video signal input (e.g HDMI, DVI, HD-SDI (from HD-1000/-2000/-
3000/-3000S)). Please refer to Appendix IX to configure this auxiliary digital input port – HD2. Reasonable quality cable
should be used to avoid image quality degradation.
21. Reserved : No function, reserved for future development.
22. HDMI audio output : Support HDMI audio with stereo output.
The HDMI audio output can be connected to Audio add-on board P/N 416940020-3 by using the audio cable P/N
426451800-3 (310mm) connected between SGX-1920 (connector : CN10) and Audio add-on board P/N 416940020-3
(connector : CN2).
23. SPDIF Audio output : This port support SPDIF audio output from the HDMI audio source inputted.
24. DVI-D input cable : Plug the DVI cable to the connector P3 on the controller board.
25. HDMI input : Plug the HDMI cable to the connector P2 on the controller board. This port is not supported when CN5 is
connected.
26. Analog RGB Input : As this may affect regulatory emission test results and the quality of the signal to the controller a
suitably shielded cable should be utilized.
27. Control over network connection : This is a network device that allow to control RS-232 enable devices over a TCP/IP
based Ethernet and the Internet using a web browser. Please refer to Appendix VIII in details.
28. Power Input: 12V/24VDC is required, this should be a regulated supply. The power rating is depending on the panel and
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
5 of 70
Page 6
inverter used. Normally, power supply with 3.5Amp current output should enough for most of 4x CCFT panels. Although
the controller provides power regulation for the LCD power this does not relate to the power supplied to the backlight
inverter. If an unregulated power supply is provided to an inverter any fluctuations in power may affect operation,
performance and lifetime of the inverter and or backlight tubes.
29. External panel power input : Allow to supply external power to the panel separately for max 3.3V (7A) or 5V (7A) or 12V
(5A) or 18V (3.5A) via PP4 power input connector. Corresponding jumper setting of JA3, JA5 & JA6 are required for each
panel power input by referring to page 17.
• Power output: Note the controller has an overall 3Amp current limit and the current available from the auxiliary power
output will be dependent on the power input and other system requirements.
• Power Safety: Note that although only 12V / 24VDC is required as ‘power-in’ a backlight inverter for panel backlighting
produces significantly higher voltages (the inverter does not connect to the ground plane). We strongly advise appropriate
insulation for all circuitry.
• EMI: Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC
signal cable can affect the result.
• Ground: The various PCB mounting holes are connected to the ground plane.
• Servicing: The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the
controller and is invalidated by unauthorized modification or repairs.
• Controller Mounting: It is recommended that a clearance of at least 10mm is provided above and 5mm below the
controller when mounted. Additionally consideration should be given to:
• Electrical insulation.
• Grounding.
• EMI shielding.
• Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to
prevent signal interference.
• Heat & Ventilation: Heat generated from other sources, for example the backlight of a very high brightness panel may
generate significant heat which could adversely affect the controller.
• Other issues that may affect safety or performance.
• PC Graphics Output: A few guidelines:
• Signal quality is very important, if there is noise or instability in the PC graphics output this may result in visible noise
on the display.
• Refer to graphics modes table in specifications section for supported modes.
• Non-interlaced & interlaced video input is acceptable.
IMPORTANT: Please read the Application Notes section for more information.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
6 of 70
Page 7
CONNECTION & OPERATION
CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious
damage.
CONNECTION
Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time):
1. LCD panel & Inverter: Connect the inverter (if it is not built-in the panel) to the CCFT lead connector of the LCD panel.
2. LVDS type panels: The controller board has the built-in LVDS transmitter driver. Plug the LVDS cable to J3. Insert the
panel end of the cable the LCD panel connector.
3. Inverter & Controller: Plug the inverter cable to CNB1 and CNA1 (if necessary). Plug another end to the connector on
the inverter.
4. Function switch & Controller: Plug the OSD switch mount cable to CNC1 on the controller board and another to the
OSD switch mount.
5. LED & Controller: Plug in a 3-way with dual colour LED to connector LED1 on the controller board.
6. IR & Controller: Plug in a 3-way with IR sensor to connector IR1 on the controller board.
7. Jumpers & Switches: Check all jumpers and switches (SW3, SW4) are set correctly. Details referring the connection
diagram (a separate document) or the jumpers and switches setting table (in the following section).
8. Jumpers & Inverter & Panel voltage: Particularly pay attention to the settings of JA3, JA5, JA6, JB2 and JB3. JB2 & JB3
are used for inverter control (read inverter specification and information on the jumper table to define the correct settings).
JA3 & JA5 & JA6 is used for panel voltage input (read panel specification and information on the jumper table to define the
correct settings).
9. VGA cable & Controller: Plug the VGA cable to the connector P1 on the controller board.
10. Power supply & Controller: Plug the DC 12V/24V power in to the connector PP5 or PP2/3. You can consider to use
DigitalView mating power cable P/N 426013800-3, 160mm for PP5 connection.
11. External panel power input : Plug power cable : P/N 426013700-3 for external panel power input (3.3 (max 7A) / 5V
(max 7A) / 12V (max 5A) / 18V (max3.5))
12. Power on: Switch on the controller board and panel by using the OSD switch mount.
13. Audio Board : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.
14. HDMI audio output : The HDMI audio output can be connected to Audio add-on board P/N 416940020-3 by using the
audio cable P/N 426451800-3 connected between SVX-1920 (connector : CN10) and Audio add-on board P/N
416940020-3 (connector : CN2).
15. Auxiliary Digital Input Port – HD1 / HD2 : Allow the user to configure the input port configuration for supporting Digital
video signal input (e.g HDMI, DVI, HD-SDI (from HD-1000/-2000/-3000/-3000S)). Please refer to Appendix IX to configure
this auxiliary digital input port – HD1 & HD2.
General:
• If you are using supplied cables & accessories, ensure they are correct for the model of panel and controller.
• If you are making your own cables & connectors refer carefully to both the panel & inverter specifications and the section
in this manual, “Connectors, Pinouts & Jumpers” to ensure the correct pin to pin wiring.
PC SETTINGS
The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance
we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker.
OPERATION
Once the system has been connected and switched on there are a number of functions available to adjust the display
image as summarized in the following sections. The settings chosen will be saved for each mode independently.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
7 of 70
Page 8
LCD DISPLAY SYSTEM SETTINGS
NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition
to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions
which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type):
Controls Analog VR type Digital type
On/Off – turns controller board power on VR toggle switch On/Off button
Brightness – controls backlight brightness Rotary VR Brightness +/- buttons
Menu
– Turns OSD menu On or Off (it will auto time
off)
– Back to previous OSD menu page
Select down
– Moves the selector to the next function (down)
Select up
– Moves the selector to the previous function
(up)
+
– Increase the OSD parameter values
– Go into the sub-menu page from the top
– Confirm to select the OSD function
-
– Decrease the OSD parameter values
- Go into the sub-menu page from the bottom
Reset to Factory Defaults Press and hold SEL DN button,
Access “Programming Mode” Press and hold MENU button,
Menu button Menu button
SEL DN SEL DN
SEL UP SEL UP
+ +
- -
then power on the controller
then power on the controller
Press and hold SEL DN button,
then power on the controller
Press and hold MENU button,
then power on the controller
ON/Off/Brightness
-
Menu
Analog VR type
Digital type
SEL UP
SEL DN
+
12V / 24VDC power input :
Analog 10K VR Type OSD
switch mount uses
P/N 410680550-3 or up
12V / 24VDC power input :
Digital 10K Type OSD
switch mount uses
P/N 416100520-3 or up
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
8 of 70
Page 9
OSD functions
Picture :
###
Volume
Brightness
Contrast
Saturation
Hue **
Sharpness*
Backlight
light detector sets OFF)
Position
Increase/decrease volume level, total: 100 steps
Increase/decrease panel brightness level, total: 100 steps
Increase/decrease panel contrast level, total: 100 steps
Increase/decrease saturation, total: 100 steps
Increase/decrease Hue level, total: 100 steps
Increase/decrease sharpness, total: 30 steps
Backlight brightness adjustment (Functions when
##
Move the image position upward
Move the image position downward
Move the image position to the left
Move the image position to the right
Aspect / Size 4
- Fill Screen : Enable full screen expansion for lower resolution Image
- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution
image according to aspect ratio
- 4 : 3 : scaling format in 4:3
- 16 : 9 : scaling format in 16:9
- 16 : 10 : scaling format in 16:10
- 2.35 : 1 : scaling format in 2.35:1
- 2 : 1 : scaling format in 2:1
- 1 : 1 : Display the exact image resolution on the screen without
image expansion.
- Custom Sizing* : (The name will change depends on the scaling mode
selected.)
- Overscan
- Normal
- Custom/Underscan Sizing 4
Blue Only
H Size
V Size
H Pan
V Pan
ON / OFF : Turn off the "Red" & "Green" channel (i.e. output all
zero to Red & Green channel)
[This function will display on OSD menu when JP4 – 5-6 closed]
* : DISPLAY IN VIDEO MODE ONLY
** : FUNCTION IN ARGB/ DVI / VIDEO NTSC MODE ONLY
# : DISPLAY IN ARGB / DVI MODE ONLY
## : FUNCTION IN ARGB MODE ONLY
### : DISPLAY WHEN AUDIO ADD-ON BOARD CONNECTED
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
9 of 70
Page 10
Source : Select the input video signal
Main Port Change 4
VGA
+
DVI
+
HDMI
HD/SD SDI 1
HD/SD SDI 2
++
++
Composite 1
Composite 2***
S-Video 1
S-Video 2***
Component 1
Component 2***
PIP Port change4
PIP Off / Composite 1 / Composite 2*** / S-Video 1 / S-Video 2*** / Component 1 / Component
2*** / VGA / DVI
+
/ HDMI+ / HD/SD SDI 1++ / HD/SD SDI 2++)
PIP Size4: Off / PIP Size/ 1~18 / Size by Size / Size by Size Tall
The PIP capability on display input sources refer to Appendix VII – PIP mix table
PIP Position :
Move the PIP position upward
Move the PIP position downward
Move the PIP position to the left
Move the PIP position to the right
PIP Blend Level : 6.25% ~ 100%
PIP Swap : Swap between the main window and PIP window
PIP Auto Turn off :
: OFF / ON
ON : When PIP is no signal input after 30 seconds, the PIP
window will turn off automatically.
OFF : PIP window keeps on
*** DISPLAY WHEN SETTING ON UNDER SETUP AUTO SOURCE SEEK
+ FUNCTION DISABLE WHEN HD-3000 CONNECTED
++ DISPLAY WHEN HD-3000 CONNECTED
Utilities :
Setup 4
Auto Picture Setup
Auto Color Gain
Wide Screen Mode detection
#
: Auto adjust the image position, phase and size
#
: Auto Color Calibration (See appendix IV)
#
4 : Recognize the wide screen mode coming from ARGB port
- Off
- 1280x768
- 1360x768
- 1366x768
Manual Clock
Manual Phase
#
: Adjust the image horizontal size
#
: Fine tune the data sampling position (adjust image
quality)
Auto Source Seek :
- Auto : : OFF / ON
ON – Auto source select always enable
OFF – Disable auto source select function
- Setup4 Selection for the corresponding input sources detection
VGA
DVI
HDMI
HD/SD SDI 1
HD/SD SDI 2
++
++
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
10 of 70
Page 11
Composite 1
Composite 2
S-Video 1
S-Video 2
Component 1
Component 2
The corresponding input port name display on OSD menu will disappear once
setting “OFF”.
De-interlacing Mode* 4
AFM
TNR
MADI
DCDi
[See Appendix VI for AFM, TNR, MADI, DCDi function description]
Auto Power :
ON – Enable soft power off function if absence of input signals
OFF – Disable soft power function
Enable RGB SOG:
Video Standard (SD)* : Auto / NTSC / NTSC 4.43 / PAL / PAL M / SECAM
Gamma : 0.6 / 0.7/ 0.8 / 1.0 / 1.6 / 1.8 / 1.9 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.5 / 2.6 / User Setting
OSD 4
OSD position :
H POS
V POS
OSD Timeout (sec) : ON – 60 : Adjust the OSD menu timeout period in a step of 5
seconds (max 60 seconds)
ON =
60 = 60 seconds later will turn off the OSD menu.
Screen Marker 4
Screen Marker : On/Off
Center Marker : On/Off
Safe Area Enable : On/ Off
Aspect Marker Enable : On/Off
Safe Area Market : 80%~99%
Aspect Marker : 4:3 / 16:9
Transparency Level : 0% / 25% / 50% / 75% / 100%
Exit menu
Language : English / Spanish / French / German / Chinese :Select OSD menu language display
Transparency :
Display Input :
IR Remote Control : IR Enable / IR Disable : Enable or disable the IR function control.
Real time clock 4 show and edit the real time clock (This function is valid when “Display Input”
sets ON.)
DATE : DD/MM/YYYY : Date/Month/Year
TIME : HH/MM/SS (AM/PM): Hour/Minute/Second
SETUP 4
Month / Day / Year
Hour / Minute / AM/PM
Display Clock
display video source info after switching source.
Freeze : Freeze the image (use “+” button)
Zoom 4
Zoom level :
Use “+” button to zoom in the image
Use “-“ button to decrease the zoomed image
Horizontal pan :
Vertical pan :
Factory Reset
Note : Freeze state will be cleared when you using zoom function.
Color Temperature 4
5000K
OFF / ON : Display input source info after switching source.
: Auto Film Mode
: Temporal Noise Reduction
: Motion Adaptive De-interlacing
: Low Angled De-interlacing
OFF / ON
OFF / ON
: Move the OSD menu image horizontally
: Move the OSD menu image vertically
Continuous to display OSD menu.
OFF / ON : Set OSD transparency
: Disable or enable to display the real time clock when
: Enable the zoom in function on the image displayed.
: Pan the image horizontally
: Pan the image vertically
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
11 of 70
Page 12
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
6500K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
8000K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
9300K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
User setting :
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
Reset All to Defaults : Resume all color temperature settings to the default values.
Hot Key 4
Hot key 1 : Volume / Brightness / Contrast / Inputs / Aspect Ratio/ Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / Markers / No Function
Hot key 2 : Volume / Brightness / Contrast / Inputs / Aspect Ratio / Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / Markers / No Function
Monochrome Mode 4
Backlight Setup4
- B/L Invert :
- Color
- Red Monochrome
- Green Monochrome
- Blue Monochrome
- Red Only
- Green Only
- Blue Only
: Invert for the backlight brightness
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
12 of 70
Page 13
- B/L Control : D/A / PWM : Selection for voltage level dimming control / PWM
dimming control
- Backlight Frequency :
- Light Detector :
70220-3
Default Setting 4
Reset to Factory Defaults 4 (Activate when JC1 position 4 sets open)
Are you sure ? Yes/No
Reset to Factory Defaults with (Color Temp.) 4 (Activate when JC1 position 4 sets open)
Are you sure ? Yes/No
Save Current Settings as Calibrated Values 4 (Activate when JC1 position 2 sets closed)
Are you sure ? Yes/No
Recall Stored Calibrated Values 4
Are you sure ? Yes/No
Firmware V0.39.00.00 or up
: Enable ambient light detector function by using KIT
+ FUNCTION DISABLE WHEN HD-3000 CONNECTED
100 ~ 440Hz in a step of 20
* : DISPLAY IN VIDEO MODE ONLY
# : DISPLAY IN ARGB MODE ONLY
++ DISPLAY WHEN HD-3000 CONNECTED
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
13 of 70
Page 14
CONNECTORS, PINOUTS & JUMPERS
The various connectors are:
Summary: Connectors
Ref Purpose Description
CN1 Second RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6)
CN3 Reserved for factory use Reserved
CN4 Panel control signal connector Hirose 10-pin, DF20G-10DP-1V (Matching type : DF20A-10DS-1C)
CN5 Reserved for factory use Reserved
CN6 No function Reserved
CN7 Audio board connector DIL socket header 5x2 right angle
(Matching audio Add-on Board P/N 416940020-3)
CN8 RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6)
CN9 Ambient light sensor connector JST 3-way, B3B-PH-K (Matching type : PHR-3)
CN10 HDMI audio (Stereo) output JST 4 way, PHD-4 (Matching type : PHR-4)
(Matching audio cable P/N 426451800-3 for connection to audio add-
on board P/N 416940020-3 (connector : CN2))
CN11 SPDIF Audio output JST B2B-ZR (Matching type : ZHR-2)
(Matching extend cable P/N 426007400-3)
CP1 Reserved for factory use Reserved
CP2 Reserved for factory use Reserved
CNA1 Auxiliary power output JST 4-way, B4B-XH-A (Matching type : XHP-4)
(Matching cable P/N 426040200-3)
CNA2 Auxiliary +5VDC output JST 2 way, B2B-PH-K (Matching type : PHR-2)
CNB1 Backlight inverter JST 5-way, B5B-XH-A (Matching type : XHP-5)
(Matching cable P/N 426058300-3)
CNB2 Backlight status input connector JST 2 way, B2B-XH-A (Matching type : XHP-2)
CNC1 OSD controls JST 12-way, B12B-XH-A (Mating type : XHP-12)
CNV5 Auxiliary video input JST B26B-PHDSS, 26 ways (Matching video cable P/N 426301700-3)
HD1 Auxiliary digital input connector – HD1 JST BM20B-SRDS (Matching type : SHDR-20V-S-B)
HD2 Auxiliary digital input connector – HD2 JST BM20B-SRDS (Matching type : SHDR-20V-S-B)
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
14 of 70
Page 15
J1 Ethernet for network connection RJ45 connector
J3 Panel signal for LVDS panel JAE FI-RE51S-HF (Matching type : FI-RE51HL)
J5 External panel power output Molex 53261-0871 (Matching type : 51021-0800)
IR1 Infra-Red sensor connector JST 3-way, B3B-XH-A (Matching type : XHP-3)
LED1 Dual color LED connector Header pin 3x1
P1 VGA analog input DB-15 way high density 3 row
P2 DVI-D input DVI-I connector
P3 HDMI input HDMI connector
PP2/PP3 Power input (alternative) DC power Molex 2 pin 0.156” pitch
PP4 External panel power input Molex 43045-0400 compatible
PP5 Power input Molex 43650-0200 compatible
SW3 Panel selection 8-way DIP Switch
SW4 Function selection 6-way DIP Switch
(Matching connector type : Molex 43025-0400 compatible)
(Matching power cable : P/N 426013700-3)
(Matching connector type : Molex 43645-0200 compatible)
(Matching power cable : P/N 426013800-3)
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
15 of 70
Page 16
Summary: Jumpers setting
Ref
JA2 On board +3.3V logic power enable 1-2 & 3-4 closed, factory set, do not remove
JA3 Panel power voltage select
CAUTION: Incorrect setting can damage
panel
JA5 Panel power voltage select
CAUTION: Incorrect setting will cause panel
damage
JA6 Panel power voltage select
CAUTION: Incorrect setting will cause panel
damage
JB1 Backlight brightness voltage range 1-2 closed = 5V max
JB2 Backlight inverter on/off control – signal level 2-3 = On/Off control signal ‘High’ = +5V
JB3 Backlight inverter on/off control – polarity 1-2 = control signal ‘high’ = CCFT ON
JB4 GPIO pins voltage selection 1-2 = 3.3V
JB5 Backlight control type selection 1-2 = VR/Digital switch mount control
JC1 Custom configuration Position 2 :
JC2 Custom configuration Position 1 : Enable J3 – pin 5 (OP1) controlled by JB4
JP1 Factory use Default Open
JP2 Factory use Default Open
JP4 Custom configuration 1-2 closed = Reserved
JP6 Input power control Short = External switch control
JP9 Factory use Default Open
JP13 Factory use Default Open
JP14 Factory use Default Open
JT1 S-Video Chroma -in terminator enable Open = S-video chroma input is not terminated
JT2 S-Video luma-in terminator enable Open = S-video luma input is not terminated
JT3 Composite video-in terminator enable Open = composite input is not terminated
JT4 Component luma-in terminator enable Open = component luma input is not terminated
JT5 Component Cb/Pb-in terminator enable Open = component Cb/Pb input is not terminated
JT6 Component Cr/Pr-in terminator enable Open = component Cr/Pr input is not terminated
JT7 Composite video 2-in terminator enable Open = composite video 2 input is not terminated
JT8 Reserved Reserved
S1 Reserved Reserved
S4 Reserved Reserved
S5 Reserved Reserved
SW3 Panel & function selection See table 2
SW4 Panel & function selection See table 3
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
Purpose Note
See panel voltage setting table 1
See panel voltage setting table 1
See panel voltage setting table 1
2-3 closed = 3.3V max
1-2 = On/Off control signal ‘High’ = +3.3V
Open = On/Off control signal ‘High’ = Open collector
CAUTION: Incorrect setting can damage inverter.
2-3 = control signal ‘low’ = CCFT ON
2-3 = 5V
3-4 = Analog backlight brightness - voltage range 0~5V
5-6 = PWM (Pulse Width Modulation) brightness
Closed = Enable save Current Settings as Calibrated
Values on OSD menu
Position 3 :
Closed = Enable baud rate selection function in
programming mode
Position 4 :
Closed = Hide “Reset to Factory Defaults” and “Reset to
Factory Defaults with (Color Temp.)” from OSD menu.
Position 2 : Enable J3 – pin 6 (OP2) controlled by JB4
Position 3 : Enable J3 – pin 21 (OP3) controlled by JB4
Position 4 : Enable J3 – pin 22 (OP4) controlled by JB4
3-4 closed = On-board programming
5-6 closed = Display “Blue only”, “Green only”, “Red
only” function on OSD menu
Open = Switch mount control
Close = S-video chromainput is terminated with 75Ω
Close = S-video luma input is terminated with 75Ω
Close = composite input is terminated with 75Ω
Close = component luma input is terminated with 75Ω
Close = component Cb/Pb input is terminated with 75Ω
Close = component Cr/Pr input is terminated with 75Ω
Close = composite video 2 input is terminated with 75Ω
16 of 70
Page 17
Table 1 : Panel voltage setting table :
Input voltage via
PP2/PP3, PP5 Panel Voltage JA3 JA5
3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4
JA6 Jumper on board
12VDC
5V 5V closed 1-3 & 2-4 1-3 & 2-4
12V OPEN 1-3 & 2-4 5-7 & 6-8
CAUTION: Incorrect setting can damage panel & controller
Input voltage via
PP2/PP3, PP5 Panel Voltage JA3
3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4
5V 5V closed 1-3 & 2-4 1-3 & 2-4
24VDC**
JA5 JA6 Jumper on board
12V 12V closed 1-3 & 2-4 3-5 & 4-6
18V
CAUTION: Incorrect setting can damage panel & controller
18V closed 1-3 & 2-4 3-5 & 4-6
** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input.
Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2/PP3 or PP5.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
17 of 70
Page 18
Input voltage via
PP4 Panel Voltage JA3 JA5 JA6 Jumper on board
3.3V OPEN 3-5 & 4-6 1-3 & 2-4
3.3 / 5 / 12 /
18VDC*
5V OPEN 3-5 & 4-6 1-3 & 2-4
12V OPEN 3-5 & 4-6 3-5 & 4-6
18V
OPEN 3-5 & 4-6 3-5 & 4-6
* Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V =
3.5A
JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5
& JA6 which are red in color)
!
JA3
!
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
18 of 70
Page 19
Table 2 : DIP Switch selection – SW3
Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution
OFF ON ON OFF LG LM260WU1-SLB1 1920x1200
ON ON ON OFF LG LM240WU2-SLA1 1920x1200
OFF OFF OFF OFF Sharp LQ445D3LZ19 1920x1080
ON OFF OFF OFF Samsung LTA460H2-L02 1920x1080
OFF ON OFF OFF Sharp LQ170M1LZ04 1920x1200
ON ON OFF OFF Samsung LTA700HH-LH1 (1st trial testing) 1920x1080
OFF OFF ON OFF Samsung LTA700HH-LH1 (2nd trial testing) 1920x1080
OFF OFF ON ON AU Optronics P645HW03 V0 (1920x1080) 1920x1080
OFF OFF ON ON AU Optronics P645HW03 V0 1920x1080
OFF OFF OFF OFF Fujitsu FLC59UXC8V-02A 1600x1200
ON OFF OFF OFF Samsung LTM213U6-L01 1600x1200
OFF OFF OFF OFF LG LC420W02-A4 1366x768
ON OFF OFF OFF Sharp LQ315T3LZ24 1366x768
ON ON OFF OFF Samsung LTA320W2-L01 / LTA230W1-L02 1366x768
ON ON ON ON NEC NL12876BC26-21 / Samsung LTM170W1-L01 1280x768
OFF ON ON ON CHI MEI N154I4-L01 1280x800
OFF OFF ON OFF AU Optronics M190PW01 1440x900
OFF OFF ON ON Sharp LQ072K1LA03 1280x768
OFF OFF OFF OFF Sharp LQ181E1LW31 1280x1024
ON OFF OFF OFF AU Optronics M170EN05 1280x1024
OFF OFF OFF OFF Sharp LQ150X1LGN2A 1024x768
Sharp LQ150X1LGB1 1024x768
OFF OFF OFF OFF Sharp LQ121S1DG11/41 800x600
Toshiba LTM08C351 800x600
OFF OFF OFF OFF NEC NL8048BC24-01 800x480
ON OFF OFF OFF Kyocera TCG085WV1AB-G00 800x480
ON OFF ON OFF Sharp LQ070Y3LG4A 800x480
OFF OFF OFF OFF Sharp LQ104V1DG51 640x480
ON OFF OFF OFF Sharp LQ104V1DG21 640x480
ON OFF ON OFF Kyocera TCG075VG2AC-G00 640x480
OFF ON OFF OFF AU Optronics M201EW02 V8 1680x1050
OFF OFF ON OFF Samsung LTI430LA01 1920x480
OFF ON ON OFF NEC NL10260BC19-01D 1024x600
ON ON ON OFF AU Optronics M200RW01 1600x900
Samsung LTM200KP01 1600x900
Remark : The above panel timings are copy the panel data direct from SVX-1920. Some of the panel timings settings
may not exactly to match the panel model we specified in this table.
Pos #5 Pos #6 Pos #7 Description
OFF OFF OFF WUXGA
ON OFF OFF UXGA
OFF ON OFF SXGA
ON ON OFF WXGA
OFF OFF ON XGA
ON OFF ON SVGA
OFF ON ON VGA
ON ON ON WVGA / Others
Pos. #8 Video lock ON – Disable : The output refresh rate locks to the input for 50Hz / 60Hz mode
(other resolution lock the output be 60Hz. )
OFF – Enable : Always fix the output be 60Hz.
For WUXGA panels
For UXGA panels
For WXGA panels
For SXGA panel
For XGA panel
For SVGA panel
For WVGA panel
For VGA panel
Others
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
19 of 70
Page 20
Table 3 : DIP switch selection – SW4
Pos. # Function Description
1 Reserved
2 Panel pixel format OFF : Double Pixel
3 Panel selection ON : LVDS panel
4 LVDS data mapping select
(Refer to Table 2)
If SW4 position 5 = ON (10 bit)
5 Output LVDS display mode selection OFF : 8 bit
6 Reserved
ON : Single Pixel
OFF : Reserved
If SW4 position 5 = OFF (8 bit)
OFF : Mapping B
ON : Mapping A
Please adjust to get the correct picture. See as Appendix I for details of
mapping of A and B.
OFF : JEIDA (LVDS panel)
ON : VESA (LVDS panel)
Please adjust to get the correct picture. See as Appendix I for details of
mapping of VESA and JEIDA.
ON : 10 bit
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
20 of 70
Page 21

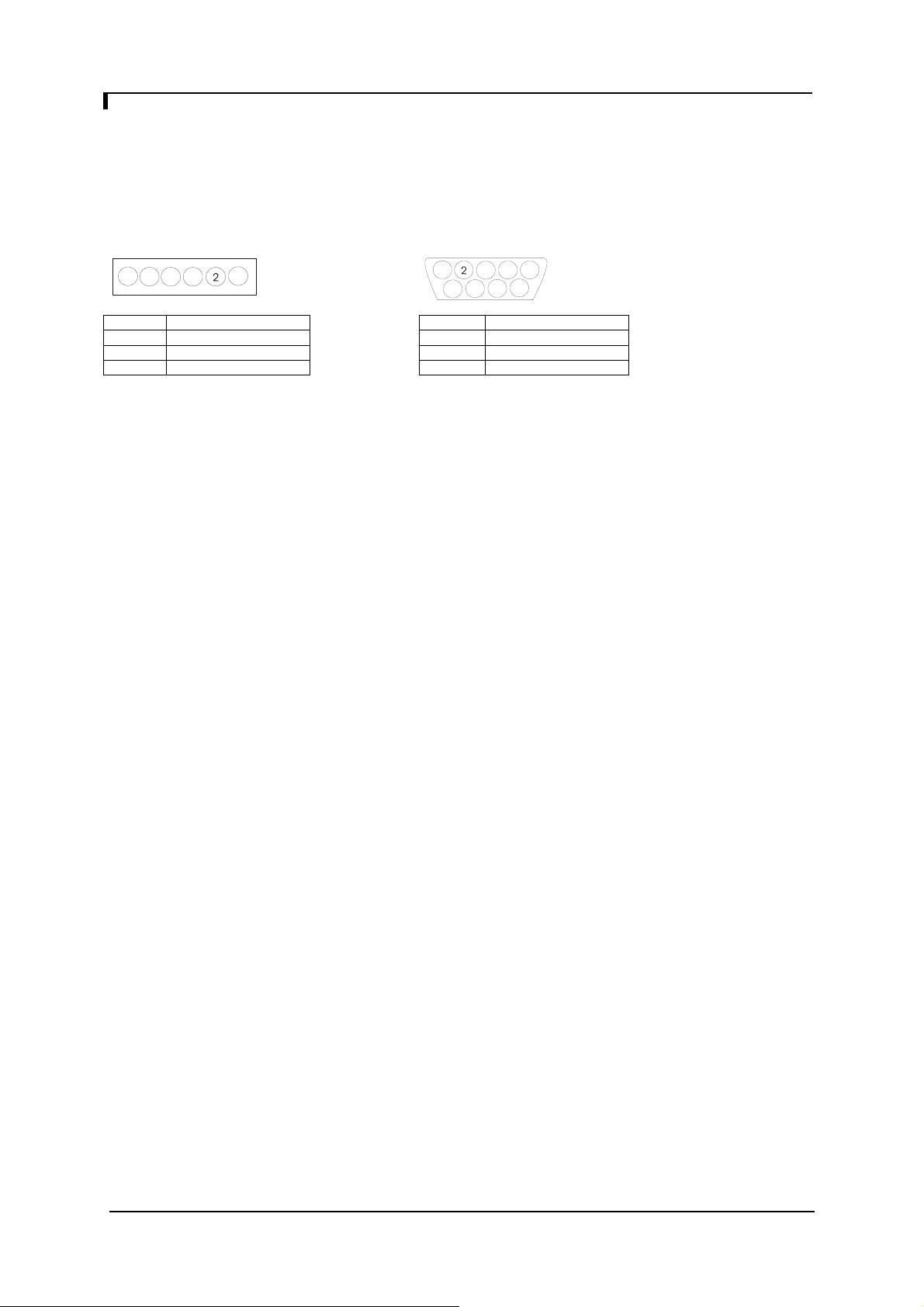

CN1 – Slave RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)
PIN SYMBOL DESCRIPTION
1 SDATA Reserved
2 SCLK Reserved
3 VCC +5V
4 TXD RS-232 Tx data
5 GND Ground
6 RXD RS-232 Rx data
CN4 – Panel connector: HIROSE DF20G-10DP-1V (Matching type : DF20A-10DS-1C)
PIN SYMBOL DESCRIPTION
1 OP1 Reserved
2 OP2 Reserved
3 OP3 Reserved
4 OP4 Reserved
5 IP1 Reserved
6 IP2 Reserved
7 IP3 Reserved
8 IP4 Reserved
9 EXT_MSTR2_SDA Reserved
10 EXT_MSTR2_SCL Reserved
CN7 - Audio connector: DIL socket header 5x2 right angle [OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
PIN SYMBOL DESCRIPTION
1 VCC Audio board logic power supply, +5V
2 VOLSEL0 Reserved
3 VOLSEL1 Reversed
4 TUNAUDSEL Reserved
5 CLK/CNT Reserved
6 GND Ground
7 +12V/+24V Audio board power supply, +12V/+24V
8 NC No connection
9 NC No connection
10 GND Ground
CN8 – RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)
PIN SYMBOL DESCRIPTION
1 SDATA Reserved
2 SCLK Reserved
3 VCC +5V
4 TXD RS-232 Tx data
5 GND Ground
6 RXD RS-232 Rx data
CN9 – Ambient light sensor connector : JST B3B-PH-K (Matching type : PHR-3)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VCC_5V VCC 5V
3 ALSF Ambient light sensing feedback
CN10 - HDMI Audio out (Matching type : XHP-4)
PIN SYMBOL DESCRIPTION
1 GND GND
2 AUDIO LOUT HDMI LEFT OUT
3 GND GND
4 AUDIO ROUT HDMI RIGHT OUT
CN11 – SPDIF audio output connector : JST B3B-PH-K (Matching type : PHR-3)
PIN SYMBOL DESCRIPTION
1 SPDIF SPDIF Digital audio output
2 GND Ground
CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4)
PIN SYMBOL DESCRIPTION
1 AUX 12V / 24V +12V / +24V DC, 500mA max
2 GND Ground
3 GND Ground
4 AUX 5V +5V DC, 500mA max
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
21 of 70
Page 22
CNA2 - Auxiliary power output: JST B2B-PH-K (Matching type : PHR-2)
PIN SYMBOL DESCRIPTION
1 Vcc_5V +5V DC, 500mA max with fuse
2 GND Ground
CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VBKL +12V / +24V DC, backlight power supply
3 BLCTRL On/Off control (enable) – see JB2 & JB3
4 BVR_WIP Brightness VR – WIP
5 BVR_A Brightness VR A
CNB2 – Backlight status input inverter connector: JST B2B-XH-A (Matching type : XHP-2 )
PIN SYMBOL DESCRIPTION
1 BL_STATUS Backlight status (Normal = High)
2 GND Ground
CNC1 – Function controls connector: JST B12B-XH-A (Matching type : XHP-12)
PIN SYMBOL DESCRIPTION
1 PSWIN Power switch A
2 SW_ON Power switch B
3 BVR_A Backlight brightness VR pin A
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_B
6 GND Ground
7 MENU OSD menu button
8 -/LEFT OSD -/Left button
9 +/RIGHT OSD +/Right button
10 SEL_DN OSD Select down button
11 SEL_UP OSD Select up button
12 NC No connection
The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.
CNV5 – Auxiliary Video input connector, JST B26B-PHDSS, 26 ways (Matching video cable P/N 426301700-3)
PIN DESCRIPTION
1 S-Video 1 : Chroma in
2 Ground
3 S-Video 1 : Luma in
4 Ground
5 Composite video 1 in
6 Ground
7 Y in_1
8 Ground
9 Cb/Pb in_1
10 Ground
11 Cr/Pr in_1
12 Ground
13 S-Video 2 : Chroma in
14 Ground
15 S-Video 2 : Luma in
16 Ground
17 Composite video in 2
18 Ground
19 Cr/Pr in_2
20 Ground
21 Y in_2
22 Ground
23 Cb/Pb in_2
24 Ground
25 Reserved
26 Ground
HD1 – Auxiliary Digital input connector – HD1 : JST BM20B-SRDS
PIN SYMBOL DESCRIPTION
1 GND Digital Ground
2 GND Digital Ground
3 RXC TMDS Clock+
4 /RXC TMDS Clock5 RX0 TMDS Data 0+
Backlight brightness VR pin B (470Ω resistor to +5V Vcc)
(Matching type : SHDR-20V-S-B)
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
22 of 70
Page 23
6 /RX0 TMDS Data 07 RX1 TMDS Data 1+
8 /RX1 TMDS Data 1-
9 RX2 TMDS Data 2+
10 /RX2 TMDS Data 211 GND Ground (+5, Analog H/V Sync)
12 GND Digital Ground
13 EXT_MSTR2_SCL Reserved
14 EXT_MSTR2_SDA Reserved
15 DDC_5V +5V power supply for DDC (optional)
16 HPD Hot plug detect
17 IN_SEC1_SCL DDC Clock
18 IN_SEC1_SDA DDC Data
19 VCC Analog horizontal sync
20 VCC Ground
HD2 – Auxiliary Digital Input connector – HD2 : JST BM20B-SRDS
PIN SYMBOL DESCRIPTION
1 GND Digital Ground
2 GND Digital Ground
3 RXC TMDS Clock+
4 /RXC TMDS Clock-
5 RX0 TMDS Data 0+
6 /RX0 TMDS Data 0-
7 RX1 TMDS Data 1+
8 /RX1 TMDS Data 1-
9 RX2 TMDS Data 2+
10 /RX2 TMDS Data 211 GND Ground (+5, Analog H/V Sync)
12 GND Digital Ground
13 EXT_MSTR2_SCL Reserved
14 EXT_MSTR2_SDA Reserved
15 DDC_5V +5V power supply for DDC (optional)
16 HPD Hot plug detect
17 IN_SEC1_SCL DDC Clock
18 IN_SEC1_SDA DDC Data
19 VCC Analog horizontal sync
20 VCC Ground
IR1 – Infra-Red sensor connector: JST B3B-XH-A (Matching type : XHP-3)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 STDBY_Vcc Stand by voltage
3 IR Data IR data
J3 – LVDS output connector: JAE FI-RE51S-HF (Matching type : JAE FI-RE51HL)
PIN SYMBOL DESCRIPTION
1 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
2 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
3 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
4 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
5 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
6 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
7 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
8 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
9 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
10 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
11 GND Ground
12 GND Ground
13 GND Ground
14 GND Ground
15 GND Ground
16 OP1 17 OP2 18 OP3 19 OP4 20 GND Ground
21 GND Ground
22 TXA4+ Positive differential LVDS data bit A4
23 TXA4- Negative differential LVDS data bit A4
(Matching type : SHDR-20V-S-B)
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
23 of 70
Page 24
24 TXA3+ Positive differential LVDS data bit A3
25 TXA3- Negative differential LVDS data bit A3
26 GND Ground
27 TXAC+ Positive LVDS clock for A channel
28 TXAC- Negative LVDS clock for A channel
29 GND Ground
30 TXA2+ Positive differential LVDS data bit A2
31 TXA2- Negative differential LVDS data bit A2
32 TXA1+ Positive differential LVDS data bit A1
33 TXA1- Negative differential LVDS data bit A1
34 TXA0+ Positive differential LVDS data bit A0
35 TXA0- Negative differential LVDS data bit A0
36 GND Ground
37 TXB4+ Positive differential LVDS data bit B4
38 TXB4- Negative differential LVDS data bit B4
39 TXB3+ Positive differential LVDS data bit B3
40 TXB3- Negative differential LVDS data bit B3
41 GND Ground
42 TXBC+ Positive LVDS clock for B channel
43 TXBC- Negative LVDS clock for B channel
44 GND Ground
45 TXB2+ Positive differential LVDS data bit B2
46 TXB2- Negative differential LVDS data bit B2
47 TXB1+ Positive differential LVDS data bit B1
48 TXB1- Negative differential LVDS data bit B1
49 TXB0+ Positive differential LVDS data bit B0
50 TXB0- Negative differential LVDS data bit B0
51 GND Ground
J5 – LVDS Panel connector: Molex 53261--0871, (Matching type : 51021-0800)
PIN SYMBOL DESCRIPTION
1 VDD (3,3V/5V) Panel power supply (3,3V/5V)
2 VDD (3,3V/5V) Panel power supply (3,3V/5V)
3 GND Ground
4 GND Ground
5 GND Ground
6 VDD (12V/18V) Panel power supply (12V/18V)
7 VDD (12V/18V) Panel power supply (12V/18V)
8 VDD (12V/18V) Panel power supply (12V/18V)
LED1 – Status LED connector: 3-pin header
PIN DESCRIPTION
1 Green LED pin (anode)
2 LED pin common (cathode)
3 Red LED pin (anode)
P1 - Analog VGA in - 15 way connector
PIN SYMBOL DESCRIPTION
1 PCR Red, analog
2 PCG Green, analog
3 PCB Blue analog
4 ID2 Reserved for monitor ID bit 2 (grounded)
5 DGND Digital ground
6 AGND Analog ground red
7 AGND Analog ground green
8 AGND Analog ground blue
9 DDC_5V +5V power supply for DDC (optional)
10 DGND Digital ground
11 ID0 Reserved for monitor ID bit 0 (grounded)
12 DDC_SDA DDC serial data
13 HS_IN Horizontal sync or composite sync, input
14 VS_IN Vertical sync, input
15 DDC_SCL DDC serial clock
P2 – DVI-D in
PIN SYMBOL DESCRIPTION
1 /RX2 TMDS Data 2-
2 RX2 TMDS Data 2+
3 GND Digital Ground
4 NC No connection
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
24 of 70
Page 25
5 NC No connection
6 DDC_CLK DDC Clock
7 DDC_DAT DDC Data
8 NC No connection
9 /RX1 TMDS Data 110 RX1 TMDS Data 1+
11 GND Digital Ground
12 NC No connection
13 NC No connection
14 DDC_5V +5V power supply for DDC (optional)
15 GND Ground (+5, Analog H/V Sync)
16 NC No connection
17 /RX0 TMDS Data 018 RX0 TMDS Data 0+
19 GND Digital Ground
20 NC No connection
21 NC No connection
22 GND Digital Ground
23 RXC TMDS Clock+
24 /RXC TMDS Clock-
C1 NC No connection
C2 NC No connection
C3 NC No connection
C4 HS_IN Analog horizontal sync
C5 GND Ground
C6 NC No connection
PP2/PP3 – Alternate 12V/24VDC power supply
PIN DESCRIPTION
1 +12VDC / 24VDC in
2 Ground
PP4 – External panel power input
PIN DESCRIPTION
1 External panel power
2 Ground
3 External panel power
4 Ground
PP5 - 12VDC power supply
PIN DESCRIPTION
1 +12V / +24VDC
2 Ground
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
25 of 70
Page 26
CONTROLLER DIMENSIONS
Ready-made 3D Pro-E (SLDPRT) drawing files - Save time and effort for your system volumetric analysis design.
Includes jpg file previews. Please go to download at http://www.digitalview.com/products/sgx-1920-lcd-controller
The maximum thickness of the controller is 17.67mm with or without video add-on board (measured from bottom of
PCB to top of components, including any underside components & leads). We recommend clearances of:
• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation
material is added to the mounting plate surface.
• 10mm above the components
• 3~5mm around the edges
Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.
CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high
voltage parts such as the inverter.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
26 of 70
Page 27
APPLICATION NOTES
USING THE CONTROLLER WITHOUT BUTTONS ATTACHED
This is very straightforward:
• Firstly setup the controller/display system with the buttons. With controls attached and display system active make any
settings for colour, tint and image position as required then switch everything off.
• Remove the control switches, the 12-way (CNC1) cable.
• Use a jumper or similar to connect pins 1 & 2 on CNC1, this will fix the board On.
• Refer to inverter specifications for details as to fixing brightness to a desired level, this may require a resistor, an open
circuit or closed circuit depending on inverter.
Summary: On CNC1 the only pins that are used are for On/Off and Brightness (if controller mounted inverter is used). On
CNC1 the pins are for momentary type buttons so it doesn’t matter that no buttons are attached.
INVERTER CONNECTION
There are potentially 3 issues to consider with inverter connection:
• Power
• Enable
• Brightness
Please read the following sections for a guide to these issues.
Inverter Power: As per the table for CNB1 pin 1 is ground and pin 2 provides 12V/24V DC. This should be matched with the
inverter specification: see table.
CNB1
PIN DESCRIPTION
1 Ground
2 +12V/+24VDC
Remark: For higher power inverter, more current (for 12V/24V) can be taken from CNA1 pin 1.
Enable: This is a pin provided on some inverters for On/Off function and is used by this panel controller for VESA DPMS
compliance. If the inverter does not have an enable pin or the enable pin is not used then DPMS will not be operational. Pin 3
should be matched to the inverters specification for the ‘enable’ or ‘disable’ pin.
CNB1
PIN DESCRIPTION
3 Enable
Further, jumpers JB2 & JB3 should be set to match the inverters specification for the enable pin power and High or Low setting:
see table.
Ref
JB2 Inverter enable voltage 1-2 H = 12V/24V, 2-3 H = 5V (Vcc), OPEN H = open collector
JB3 Inverter control 1-2 H = On, 2-3 L = On
Brightness: There are various methods for brightness control and it is important to consider the specifications for the inverter to
be used. Generally the situation is:
• Brightness can control by using a resistor or VR (Variable Resistor).
• Brightness controlled by adding a circuit such as PWM (Pulse Width Modulation).
• No adjustment of brightness is possible.
CNB1 pins 4 & 5 are available for connecting to an inverter or circuit where VR control is supported.
CNB1
PIN DESCRIPTION
4 VR WIP
5 VR A
This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table.
CNC1
PIN DESCRIPTION
3 VR A
4 VR WIP
5 VR B
Purpose Note
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
27 of 70
Page 28
p
Design Guideline for making VR circuitry :
Signal description / Notes :
1) R1 : 470ohm on board
2) RPOT is an external potentiometer (in-line dip
style) that can be plugged directly into CNC1 pins
3,4,5. RPOT must be supplied / installed by user.
3) BVR_B : Voltage tapped from “top” of
potentiometer, the node of R1 and RPOT.
4) BVR_WIP : Voltage tapped from wiper arm of
RPOT.
5) BVR_A : Voltage tapped from “bottom” of
RPOT.
Note : BVR_A voltage is left floating on the
controller board. To use this circuit, you need
to tie this point to a potential (usually GND,
available at CNC1
in 6).
CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VBKL +12V/24VDC, backlight power supply
3 BLCTRL On/Off control (enable) – see JB2 & JB3
4 BVR_WIP Brightness VR - WIP
5 BVR_A Brightness VR A
CNC1 – Control switch, JST B12B-XH-A (Matching type : XHP-12)
PIN SYMBOL DESCRIPTION
1 PSWIN Power button A
2 SW_ON Power button B
3 BVR_A Backlight Brightness VR pin A
4 BVR_WIP Backlight Brightness R pin WIP
5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc)
6 GND Ground
7 MENU OSD menu
8 -/LEFT OSD -/Left
9 +/RIGHT OSD +/Right
10 SEL_DN OSD Select down
11 SEL_UP OSD Select up
12 NC No connection
The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.
Example for circuit design :
1.)Choose RPOT = 10K
2.) Tie BVR_A to GND
3.) Circuit analysis gives BVR_WIP as the
following (see Figure 1)
BVR_WIP = 5 x (Rbc/10.47)
where BVR_WIP is in Volts.
And Rbc is the resistance from the wiper arm
to bottom of pot in Kohms.
To evaluate, plug in different values of Rbc :
Rbc BVR_WIP
0 0 V
2.5 K 1.2 V
5 K 2.4 V
7.5 K 3.6 V
10 K 4.8 V
So this circuit could provide Brightness
adjust voltage ranging from 0V to 5V.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
28 of 70
Page 29
TROUBLESHOOTING
General
A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:
Controller (jumpers, PC settings)
Panel (controller, cabling, connection, panel, PC settings)
Backlight (inverter, cabling, backlight tubes)
Cabling
Computer system (display settings, operating system)
Through step by step cross checking with instruction manuals and a process of elimination to isolate the problem it is usually
possible to clearly identify the problem area.
No image:
If the panel backlight is not working it may still be possible to just see some image on the display.
A lack of image is most likely to be caused by incorrect connection, lack of power, failure to provide a signal or incorrect
graphic card settings.
Image position:
If it is impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then
test using another graphics card. This situation can occur with a custom graphics card that is not close to standard timings or if
something is in the graphics line that may be affecting the signal such as a signal splitter (please note that normally a signal
splitter will not have any adverse effect).
Image appearance:
A faulty panel can have blank lines, failed sections, flickering or flashing display
Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, to
scroll, flicker badly or possibly even no image.
Incorrect jumper settings on the controller may cause everything from total failure to incorrect image. CAUTION: Do not set
the panel power input incorrectly.
Sparkling on the display: faulty panel signal cable.
Backlight:
Items to check include: Power input, Controls, Inverter and Tubes generally in this order.
If half the screen is dimmer than the other half:
Check cabling for the inverter.
For a specific backlight tube check the AC pins orientation (CAUTION: Never reverse any DC power pins).
Also:
If adjusting brightness control has no effect the chances are that the VR rating or method of adjusting brightness is not
compatible or correctly connected to the inverter.
If system does not power down when there is a loss of signal
Continued failure:
If unit after unit keeps failing consider and investigate whether you are short circuiting the equipment or doing something else
seriously wrong.
Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to
isolate the problem.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
29 of 70
Page 30
SPECIFICATIONS
Panel compatibility Compatible with 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200,
No. of colours Up to 3 x 10 bit providing 1.06 billion colours.
Panel power DC 3.3V, 5V, 12V, 18V
Panel signal LVDS
Vertical refresh rate 60Hz at 1920x1200, 60Hz at 1920x1080, 60Hz at UXGA and up to 75Hz other
Display clock maximum 165MHz
ADC clock maximum 195 MHz
DVI differential input clock maximum 165MHz
Graphics formats Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA
Graphics auto mode detect VGA, SVGA, XGA, SXGA, WXGA, UXGA & WUXGA interlaced and non-interlaced
Standard input at source (analog RGB) VGA analog (15 pin) standard with automatic detection of:
Video formats PAL, NTSC & SECAM
Video inputs ARGB
Functions display On screen display (OSD) of functions
OSD menu functions Image controls:
OSD menu controls available Power On/Off
Control interface Buttons, RS-232, Remote control
Settings memory Settings are stored in non volatile memory
PC Connectivity VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
Controller dimensions 179mm x 120.4mm (7.” x 4.74”)
Power consumption 10w approx. (not including panel power consumption)
Power load maximum The controller has an overall 3Amp current limit.
Input voltage 12V/24VDC +/- 5%
Power protection Fuse fitted (Resettable)
DC Power handling Reverse power polarity protection is equipped on the board
Storage temperature limits -40oC to +70oC
Operating temperature limits 0oC to +60oC
NOTES
Please note the following:
• For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full
technical specifications for the panel from the manufacturer.
• Re-layout and custom development services are available.
1600x900, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768 1024x768,
1024x600, 800x600, 800x480 and 640x480 resolutions of TFT LCD panels.
A specified BIOS and some factory adjustment may be required for individual panel
timings.
lower resolution
Other special formats through specified BIOS and factory adjustment.
Digital Separate Sync;
Composite Sync
Sync On Green.
DVI-D
Composite video 1
Composite video 2
S-Video 1
S-Video 2
Component video 1
Component video 2
HD-SDI 1(with optional adaptor board)
HD-SDI 2 (with optional adaptor board)
HDMI
Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Video
Scaling, PIP, OSD position, OSD timeout, Image orientation, Auto Source Seek,
etc.
Backlight brightness
OSD Menu
OSD Select up
OSD Select down
Setting +
Setting -
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
30 of 70
Page 31
APPENDIX I – SIGNAL SUPPORT MODE TABLE
ARGB (P1) PORT :
Mode Resolution Clk [MHz] Horizontal
freq [KHz]
T_70 720x400
70Hz
T_70 720x400
70Hz
28.322 31.469 70.087 Digital Separate Sync
28.322 31.469 70.087 Sync On Green
Vertical
freq [Hz]
Sync Mode
V_60 640x480
60Hz
V_60 640x480
60Hz
V_60 640x480
60Hz
V_72 640x480
72Hz
V_72 640x480
72Hz
V_72 640x480
72Hz
V_75 640x480
75Hz
V_75 640x480
75Hz
V_75 640x480
75Hz
SV_56 800x600
56Hz
SV_56 800x600
56Hz
SV_56 800x600
56Hz
25.175 31.469 59.940 Digital Separate Sync
25.175 31.469 59.940 Sync On Green
25.175 31.469 59.940 Composite Sync
31.500 37.861 72.809 Digital Separate Sync
31.500 37.861 72.809 Sync On Green
31.500 37.861 72.809 Composite Sync
31.500 37.500 75.000 Digital Separate Sync
31.500 37.500 75.000 Sync On Green
31.500 37.500 75.000 Composite Sync
36.000 35.156 56.250 Digital Separate Sync
36.000 35.156 56.250 Sync On Green
36.000 35.156 56.250 Composite Sync
SV_60 800x600
60Hz
SV_60 800x600
60Hz
SV_60 800x600
60Hz
SV_72 800x600
72Hz
SV_72 800x600
72Hz
SV_72 800x600
72Hz
SV_75 800x600
75Hz
SV_75 800x600
75Hz
SV_75 800x600
75Hz
X_60 1024x768
60Hz
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
40.000 37.879 60.317 Digital Separate Sync
40.000 37.879 60.317 Sync On Green
40.000 37.879 60.317 Composite Sync
50.000 48.077 72.188 Digital Separate Sync
50.000 48.077 72.188 Sync On Green
50.000 48.077 72.188 Composite Sync
49.500 46.875 75.000 Digital Separate Sync
49.500 46.875 75.000 Sync On Green
49.500 46.875 75.000 Composite Sync
65.000 48.363 60.004 Digital Separate Sync
31 of 70
Page 32
X_60 1024x768
60Hz
X_60 1024x768
60Hz
65.000 48.363 60.004 Sync On Green
65.000 48.363 60.004 Composite Sync
X_70 1024x768
70Hz
X_70 1024x768
70Hz
X_70 1024x768
70Hz
X_75 1024x768
75Hz
X_75 1024x768
75Hz
X_75 1024x768
75Hz
SX_60 1280x1024
60Hz
SX_60 1280x1024
60Hz
SX_60 1280x1024
60Hz
SX_75 1280x1024
75Hz
SX_75 1280x1024
75Hz
SX_75 1280x1024
75Hz
75.000 56.476 70.069 Digital Separate Sync
75.000 56.476 70.069 Sync On Green
75.000 56.476 70.069 Composite Sync
78.750 60.023 75.029 Digital Separate Sync
78.750 60.023 75.029 Sync On Green
78.750 60.023 75.029 Composite Sync
108 63.81 60.020 Digital Separate Sync
108 63.81 60.020 Sync On Green
108 63.81 60.020 Composite Sync
135 79.976 75 Digital Separate Sync
135 79.976 75 Sync On Green
135 79.976 75 Composite Sync
UX_60 1600x1200
60Hz
UX_60 1600x1200
60Hz
UX_60 1600x1200
60Hz
WUX_60 1920x1080
60Hz
WUX_60 1920x1080
60Hz
WUX_60 1920x1080
60Hz
WUX_60 1920x1200
60Hz
WUX_60 1920x1200
60Hz
WUX_60 1920x1200
60Hz
Remark :
The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics
performance we recommend choosing 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the
LCD panel may not support.
162 75.000 60 Digital Separate Sync
162 75.000 60 Sync On Green
162 75.000 60 Composite Sync
172.8 67.5 60 Digital Separate Sync
172.8 67.5 60 Sync On Green
172.8 67.5 60 Composite Sync
193.2 74.5 60 Digital Separate Sync
193.2 74.5 60 Sync On Green
193.2 74.5 60 Composite Sync
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
32 of 70
Page 33
COMPOSITE, S-VIDEO & COMPONENT VIDEO INPUT PORT :
System Resolution Horizontal freq
[KHz]
NTSC 720x480i 15.7 60
NTSC 4.43 720x480i 15.7 60
PAL 720x576i 15.6 50
PAL M 720x576i 15.6 50
SECAM 720x576i 15.6 50
Vertical freq
[Hz]
HDMI / DVI / Auxiliary digital video (HD1&HD2) input port :
Mode Resolution Clk [MHz] Horizontal
freq [KHz]
T_70 720x400 70Hz 28.322 31.469 70.087
V_60 640x480 60Hz 25.175 31.469 59.940
V_67 640x480 67Hz 31.5 37.5 67
V_75 640x480 75Hz 31.5 37.5 75
SV_56 800x600 56Hz 36 35.156 56
SV_60 800x600 60Hz 40.000 37.879 60.317
SV_72 800x600 72Hz 50 48.077 72
SV_75 800x600 75Hz 49.5 46.875 75
X_60 1024x768 60Hz 65.000 48.363 60.004
X_70 1024x768 70Hz 75 56.476 70
X_75 1024x768 75Hz 78.75 60.023 75
SX_60 1280x1024 60Hz 108 63.81 60.020
SX_75 1280x1024 75Hz 135 79.976 75
UX_60 1600x1200 60Hz 162 75.000 60
WUX_60 1920x1080 60Hz 172.8 67.5 60
WUX_60 1920x1200 60Hz 193.2 74.5 60
1080p60 1920x1080p 60Hz 135 67.5 60
1080p59 1920x1080 59Hz 148.35 67.433 60
1080p50 1920x1080 50Hz 149 62.75 50
1080i60 1920x1080i 60Hz 74.14 33.7 60
1080i50 1920x1080i 50Hz 74.184 28.1 50
1080i24 1920x1080i 24Hz 74.25 27 24
1080i23 1920x1080i 23 Hz 74.25 27 23
720p60
576p50
480p60
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
1280x720P 60Hz
720x576P 50Hz
720x480P 60Hz
74.25 45 60
26.9568 31.2 50
26.9568 31.4 60
Vertical
freq [Hz]
33 of 70
Page 34
Appendix II – RS-232 control protocols
RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity)
Physical connection :
Controller side Computer side
Connector interface : CN8 / CN1 Connector interface : Serial port
Mating connector : JST XHP-6 Mating connector : DB9 Female
5 463
1
Mating face of CN8 Mating face of RS-232 DB9 Male
1
7
6
54
3
9
8
PIN# Description PIN# Description
4 RS-232 Tx Data 2 RS-232 Rx Data
5 Ground 3 RS-232 Tx Data
6 RS-232 Rx Data 5 Ground
Remark :
(1) : RS-232 connection cable, 600mm P/N 4260902-00 can be ordered separately for connection.
Software connection :
The OSD function can be controlled through sending the RS-232 protocol.
The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport,
Telix or Serial Utility program developed by DigitalView. Please contact your local support for information.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
34 of 70
Page 35
1. Commands to implement switch mount control buttons
Function Command Description Remark
Menu button 0xf7 Menu button pressed Button equivalent
Select-down
button
Select-up button 0xfb Select-up button pressed Button equivalent
Right/+ button 0xfc Right/+ button pressed Button equivalent
Left/- button 0xfd Left/- button pressed Button equivalent
2. Parameter setting - immediate, relative, reset and query
Function Command Description Acknowledge (if enabled)
Volume control left+right channel
Volume control on/off (mute)
Brightness control 0x81,
Contrast control all channels
Saturation control 0x83,
Hue control 0x84,
Phase (tuning)
control
Image H position 0x86, Set img_hpos = Image horizontal position.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
0xfa Select-down button pressed Button equivalent
0x80, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”
0x80, “m” | “M”,
“0” |
“1” |
“r” | “R” |
“?”
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,
0x82, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i ” , ss, nn
“o”, ss,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,
0x85,
nn | “+” | “-” |
“?”
Set audio (L+R) volume =
value/increment/decrement
Reset
Query
Disable audio output.
Enable audio output.
Reset
Query
Set brightness =
value/increment/decrement
Reset
Query Current Source
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1
Set all contrast =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1
Set color =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1
Set tint =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1
Set dot clock phase =
value/increment/decrement
Query
volume
Range : “0””0”-“1””E”
Default : “0””F”
“0” - audio off (muted).
“1” - audio on.
Brightness.
Range : “4””E”-“B””2”
Default : “8””0”
ss - reference by Input main
select(0x98)
Contrast
Range : “1””C”-“E””4”
Default : “8””0”
ss - reference by Input main
select(0x98)
PAL/NTSC color (In video mode
only )
Range : “0””1”-“F””F”
Default : “8””0”
ss - reference by Input main
select(0x98)
NTSC tint (In NTSC mode only)
Range : “5””3”-“9””F”
Default : “7””9”
ss - reference by Input main
select(0x98)
Dot clock phase.
(In PC mode only)
35 of 70
Page 36
nnnn | “+” | “-” |
“?”
Image V position 0x87,
nnnn | “+” | “-” |
“?”
Sharpness 0x8a,
nn | “+” | “-” |
“r” | “R” |
“?”
Frequency 0x8b,
nnnn | “+” | “-“ |
“?”
Scaling Mode 0x8c,
“0” | “1” | “2” | “3” |
“9” | “A” |
“B” | “C” | “D” |
“r” | “R” |
“?”
value/increment/decrement
Query
Set img_vpos =
value/increment/decrement
Query
Set sharpness =
value/increment/decrement
Reset
Query
Set frequency =
Value/increment/decrement
Query
Set graphic image scaling mode
=
value
Reset
Query
(In PC mode only)
Image vertical position.
(In PC mode only)
Sharpness.
(Video Mode Source only)
Range : “F””4”-“0””C”
Default : “0””0”
Graphic mode H active size (in
pixels)
Image expansion on/off.
“0” – 1:1
“1” – fill screen
“2” – fill to aspect ratio
“9” – 4:3
“A” – 16:9
“B” – 16:10
“C” – 2.35:1
“D” – 2:1
OSD H position 0x90,
nnn | “+” | “-” |
“r” | “R” |
“?”
OSD V position 0x91,
nnn | “+” | “-” |
“r” | “R” |
“?”
OSD
Transparency
0x92,
n | “+” | “-” |
“r” | “R” |
“?”
OSD menu
timeout
0x93,
nn | “+” | “-” |
“r” | “R” |
“?”
Set osd_hpos =
value/increment/decrement
Reset
Query
Set osd_vpos =
value/increment/decrement
Reset
Query
Set OSD transparency =
value/increment/decrement
Reset
Query
Select menu timeout =
value/increment/decrement
Reset
Query
OSD horizontal position.
Range : “0””0”-“F””F”
Default : “8””0”
OSD vertical position.
Range : “0””0”-“F””F”
Default : “8””0”
OSD transparency.
“0” – ON
“1” - OFF
OSD menu timeout value.
“0””0” – Continuous.
value – Round up to nearest
available step.
if value > max available step, set
it to the max available step.
Range : “0””5”-“3””C”
Default : “0””A”
Select OSD
language
0x95,
n |
“r” | “R” |
“?”
Select language =
English, Chinese,…
Reset
Query
“0” – English.
“2” - French
“3” – Spanish
“6” - German
“8” – Chinese
Input main select 0x98,
nn | “+” | “-” |
“r” | “R” |
“?”
Select input main =
PC or VIDEO or next available
Reset
Query
Main selected.
“0x41,0x31” ARGB
“0x42,0x31” Composite
“0x42,0x32” Composite2
“0x43,0x31” S-video
“0x43,0x32” S-video2
“0x44,0x31” Component
“0x44,0x32” Component2
“0x45,0x31” HDSDI
“0x45,0x32” HDSDI2
“0x46,0x31” DVI
“0x48,0x31” HDMI
Auto Source Seek 0x99,
nn ,
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
Set Auto source enable = *1
Source
“nn” =
“0x41,0x31”- ARGB
36 of 70
Page 37
“0” | “1” |
“?” |
”o”
Source Layout 0x9a,
n |
“r” | “R” |
“?”
Video System
(Composite, Svideo and
Component Only)
0x9b,
“0” | “1” | “2” | “3” |
“r” | “R” |
“S” | “s”|
“?”
GAMMA value
select
0x9d,
n |
“r” | “R”
“?”
Auto power off 0x9f,
“0” | “1” |
“r” | “R” |
“?”
Hotkey 1
0xa0, “1”,
n |
“r” | “R” |
“?”
Disable/ Enable
Query
Valid Source query
Select source layout =
Single, PIP, PBP, PBPT
Reset,
Query
Set video system =
Auto/NTSC/PAL/SECAM
Reset
Video State Query
Query
Select GAMMA value =
Value
Reset
Query
Set power down option =
On/Off
Reset
Query
Set Hotkey 1=
Value
Reset
Query
“0x42,0x31”- Composite
“0x42,0x32”- Composite 2
“0x43,0x31”- S-video
“0x43,0x32”- S-video 2
“0x44,0x31”- Component
“0x44,0x32”- Component 2
“0x45,0x31”- HDSDI
“0x45,0x32”- HDSDI2
“0x46,0x31”- DVI
“0x48,0x31” HDMI
Query:
“0”- Single
“1”- Picture in Picture (PIP)
“2”- Picture by Picture (PBP)
“3”- Picture by Picture Tall
(PBPT)
Query
“0” – Auto.
“1” – NTSC_M_358
“2” – PAL_N_443
“3” – SECAM
“4” – NTSC_M_443
“5” - PAL_M_358
“7” – PAL_M_443
“9” – PAL_N_358
Video State Query
“0” – No video.
“1” – NTSC
“2” – PAL
“3” – SECAM
“4” – NTSC 443
“5” – PAL M 358
GAMMA value:
“0” – 1.0, “1” – 1.6
“2” – 2.2, “3” – User Defined
“4” – 1.7, “5” – 1.8,
“6” – 1.9, “7” – 2.0,
“8” – 2.1, “9” – 2.3,
“A” – 2.4, “B” – 2.5,
“C” – 2.6,
“D” – 0.6, “E” – 0.7,
“F” – 0.8, “G” – 0.9,
“H” – 1.1, “I” – 1.2,
“J” – 1.3, “K” – 1.4,
“L” – 1.5
“0” – Off.
“1” – On.
“1” – volume.
“2” – brightness.
“3” – contrast.
“4” – colour.
“5” – input source.
“7” – zoom
“8” – freeze
“9” – PIP
“B” – No function
“D” – PIP Swap
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
37 of 70
Page 38
Hotkey 2
0xa0, “2”,
n |
“r” | “R” |
“?”
Runtime counter 0xa1,
nnnnn |
“r” | “R” |
“?”
PIP brightness
control
0xa2,
nn | “+” | “-” |
“r” | “R” |
“?”
PIP contrast
control
0xa3,
nn | “+” | “-” |
“r” | “R” |
“?”
PIP H position 0xa4,
nnn | “+” | “-” |
“r” | “R” |
“?”
PIP V position 0xa5,
nnn | “+” | “-” |
“r” | “R” |
“?”
PIP window size
select
0xa6,
nn |
“r” | “R” |
“?”
PIP source select 0xa7,
n |
“r” | “R” |
“?”
Zoom level
0xa8,
nnnn | “+” | “-” |
Set Hotkey 2 =
value
Reset
Query
runtime counter value =
nnnnn (* 0.5 hour)
Reset
Query
Set PIP window brightness =
value/increment/decrement
Reset
Query
Set PIP window contrast =
value/increment/decrement
Reset
Query
Set PIP_hpos =
value/increment/decrement
Reset
Query
Set PIP_vpos =
value/increment/decrement
Reset
Query
Select PIP window size =
PIP window size value
Reset
Query
Select input main =
Video source value
Reset
Query
Set Zoom level =
value/increment/decrement
“E” – Aspect Ratio
“G” – Hue
“H” – Backlight
“I” – Auto Picture Setup
“1” – volume.
“2” – brightness.
“3” – contrast.
“4” – colour.
“5” – input source.
“7” – zoom
“8” – freeze
“9” – PIP
“B” – No function
“D” – PIP Swap
“E” – Aspect Ratio
“G” – Hue
“H” – Backlight
“I” – Auto Picture Setup
Runtime = nnnnn.
PIP window brightness.
Range : “4””E”-“B””2”
Default : “8””0”
PIP window contrast.
Range : “1””C”-“E””4”
Default : “8””0”
PIP window horizontal position.
Range : “0””0””0”-“0””6””4”
Default : “0””5””5”
PIP window vertical position.
Range : “0””0””0”-“0””6””4”
Default : “0””1””4”
Main selected.
PIP off if “nn” = “0””0”.
“0””0”~”1””2”
“0””0” ~ “1””2”
“1””9” : Size by Size
“1””A” : Size by Size Tall
Main selected.
0x40 0x30 : PIP OFF
0x41, 0x31 : ARGB
0x42, 0x31 : Composite
0x43, 0x31 : S-video
0x44, 0x31 : Component 1
0x45, 0x31 : HDSDI 1
0x46, 0x31 : DVI
0x42, 0x32 : Composite 2
0x43, 0x32 : S-video 2
0x44, 0x32 : Component 2
0x45, 0x32 : HDSDI 2
“0x48,0x31” HDMI
Zoom level.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
38 of 70
Page 39
“r” | “R” |
“?”
Zoom H position 0xa9,
nnnn | “+” | “-” |
“r” | “R” |
“?”
Zoom V position 0xaa,
nnnn | “+” | “-” |
“r” | “R” |
“?”
Horizontal Size 0xad,
nnn | “+” | “-” |
“r” | “R” |
“?”
Vertical Size 0xb0,
nnn | “+” | “-” |
“r” | “R” |
“?”
Horizontal Pan 0xb1,
nnn | “+” | “-” |
“r” | “R” |
“?”
Vertical Pan 0xb2,
nnn | “+” | “-” |
“r” | “R” |
“?”
Colour
temperature select
Red level for
selected colour
temperature
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
0xb3,
n |
“r” | “R” |
“?”
0xb4,
nn | “+” | “-” |
“r” | “R” |
“?”
Reset
Query
Set Zoom_hpos =
value/increment/decrement
Reset
Query
Set Zoom_vpos =
value/increment/decrement
Reset
Query
Set horizontal size for
Aspect Size =
value/increment/decrement
Reset
Query
Set Vertical Size for
Aspect Size =
value/increment/decrement
Reset
Query
Set horizontal pan position
for Aspect Size =
value/increment/decrement
Reset
Query
Set Vertical pan position
for Aspect Size =
value/increment/decrement
Reset
Query
Select colour temperature =
value
Reset
Query
Set the level of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Min : 0x30 0x30 0x30 0x30
(Default)
Max : 0x30 0x30 0x41 0x33
Zoom window horizontal
position.
Default : 0x30 0x30 0x30 0x30
The min and max values will
change depends on input
resolution.
Zoom window vertical position.
Default : 0x30 0x30 0x30 0x30
The min and max values will
change depends on input
resolution.
Scalar horizontal stretch
PAL(576i) / NTSC (480i) :
Min : 0x30 0x30 0x30 (Default)
Max : 0x30 0x46 0x30
Scalar vertical stretch.
PAL(576i) / NTSC (480i) :
Min : 0x30 0x30 0x30 (Default)
Max : 0x30 0x46 0x30
Scalar horizontal pan position
PAL(576i) / NTSC (480i) :
Assume max H-Size & max Vsize :
Min : 0x46 0x38 0x38
Max : 0x30 0x37 0x38
Default : 0x30 0x30 0x30
The min and max values will
change depends on different
value of H-Size, V-Size and input
resolution.
Scalar vertical pan position
PAL(576i) / NTSC (480i) :
Assume max H-Size & max Vsize :
Min : 0x46 0x38 0x38
Max : 0x30 0x37 0x38
Default : 0x30 0x30 0x30
The min and max values will
change depends on different
value of H-Size, V-Size and input
resolution.
Main selected.
“0” – 9500K.
“1” – 8000K.
“2” – 6500K.
“3” – 5000K
“4” - User
Red level for selected colour
temperature.
Range : “9””C”-“F””F”
Default : “E””C”
39 of 70
Page 40
Green level for
selected colour
temperature
Blue level for
selected colour
temperature
Graphic horizontal
resolution enquiry
Graphic vertical
resolution enquiry
Graphic horizontal
sync frequency
enquiry
Graphic vertical
sync frequency
enquiry
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xb5,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xb6,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xb7 Horizontal resolution (in pixels)
0xb8 Vertical resolution (in lines) in 3
0xb9 Horizontal sync frequency (in
0xba Vertical sync frequency (in units
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
Set the level of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
Set the level of the blue channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
in 3 digit hex number
digit hex number
units of 100Hz) in 3 digit hex
number
of Hz) in 3 digit hex number and
1 char
c – reference by Color
Temperature
ss - reference by Input main
select(0x98)
Green level for selected colour
temperature
Range : “9””C”-“F””F”
Default : “E””C”
c – reference by Color
Temperature
ss - reference by Input main
select(0x98).
Blue level for selected colour
temperature.
Range : “9””C”-“F””F”
Default : “E””C”
c – reference by Color
Temperature
ss - reference by Input main
select(0x98).
“nnn” = horizontal resolution
“nnn” = vertical resolution
“nnn” = horizontal frequency
“nnnn” = vertical frequency
nnn = 3 digit hex
c= “i” or “p”
interlace or Progressive
0xba added the interlace(i)
or Progressive(p) feedback.
OSD status
enquiry
0xbb Status of OSD “0” – OSD turned off
“1” – OSD turned on
“2” – Text Overlay on
“3” – Display Mark on
“4” – Screen Marker on
Display Video
Source Select
0xbc,
“?” |
“0” |
“1”
Display Video source select
Query
Name of video source not
displayed.
“0” – Disabled.
“1” – Enabled.
After switching to a new video
source, the name of the video
source is displayed for 5
seconds.
OSD turn off 0xbd Turn off the OSD. “0” – fail.
“1” – successful.
Set gamma data
for user defined
gamma curve
0xbf, mm, c, “?”
0xbf, “R” | “r”
0xbf, mm, c, nn
Query gamma data for color c
index mm ( c = 0 for color Red,
c=1 for color Green,
c=2 for color Blue)
Set user gamma curve to linear
Set gamma data for color c
“nn” = gamma data
“1”
“nn” = gamma data
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
40 of 70
Page 41
index mm. (If c= 3, then gamma
data for red, green & blue will be
set at the same time.)
Query External
Memory
Query Revision
Number
Backlight control 0xe0,
Backlight On/Off 0xe1,
Color
Monochrome
mode selection
(Output Channel
Select)
PIP Swap 0xe3 Swap Main and PIP source
Backlight D/A /
PWM
Backlight PWM
Frequency
0xcb, “2” Check External Menory 24c256 “0” – Not Installed
0xcb, “3” Read Revision Number “nn” = Revision number
Set Backlight =
nn | “+” | “-” |
“R” | “r” |
“?”
“0” | “1” |
“R” | “r”
”?”
“S” | “s”
0xe2
“0” | “1” | “2” | “3” |
| “4” | “5” | “6” |
“R” | “r”|
”?”
0xe5
“0” | “1” |
“R” | “r”
”?”
0xe6,
nnn | “+” | “-” |
“R” | “r” |
“?”
value/increment/decrement
Reset
Query
Backlight Off / Backlight On
/Status
Off/
Blue Only/
Red Only/
Green Only/
Blue Mono/
Red Mono/
Green Mono/
Set : PWM or D/A
Reset
Query
Set Backlight PWM Frequency =
value/increment/decrement
Reset
Query
“1” – Installed
“?” – Not Support
Backlight.
Range:
D/A : “0””0” ~ “1””F”
100Hz : “0””0” ~ “B””F”
120Hz : “0””0” ~ “9””F”
140Hz : “0””0” ~ “8””8”
160Hz : “0””0” ~ “7””7”
180Hz : “0””0” ~ “6””A”
200Hz : “0””0” ~ “5””F”
220Hz : “0””0” ~ “5””6”
240Hz : “0””0” ~ “4””F”
260Hz : “0””0” ~ “4””9”
280Hz : “0””0” ~ “4””4”
300Hz : “0””0” ~ “3””F”
320Hz : “0””0” ~ “3””B”
340Hz : “0””0” ~ “3””7”
360Hz : “0””0” ~ “3””4”
380Hz : “0””0” ~ “3””1”
400Hz : “0””0” ~ “2””F”
420Hz : “0””0” ~ “2””D”
440Hz : “0””0” ~ “2””B”
“0” – Backlight Off
“1” – Backlight On.
“?” – Backlight On/Off Query
“S”|”s” – Backlight Status Query
“0” – Off
“1” – Blue Only
“2” – Red Only
“3” – Green Only
“4” – Blue Mono
“5” – Red Mono
“6” – Green Mono
"0" - Fail.
"1" - Successful.
“0” – PWM
“1” – D/A
+/- 20Hz
Value
100Hz : “0”,”6”,”4”
120Hz : “0”,”7”,”8”
140Hz : “0”,”8”,”C”
160Hz : “0”,”A”,”0”
180Hz : “0”,”B”,”4”’
200Hz : “0”,”C”,”8”
220Hz : “0”,”D”,”C”
240Hz : “0”,”F”,”0”
260Hz : “1”,”0”,”4”
280Hz : “1”,”1”,”8”
300Hz : “1”,”2”,”C”
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
41 of 70
Page 42
Backlight Invert 0xe7
“0” | “1” |
“R” | “r”
”?”
Red Offset for
selected colour
temperature
Green Offset for
selected colour
temperature
Blue Offset for
selected colour
temperature
PIP Window Blend
Level
PIP Window Auto
Off
ScreenMarker
CenterMarker
0xe8,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xe9,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xea,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn
“o”, ss, c
0xed,
nn | “+” | “-” |
“R” | “r” |
“?”
“0xee”, “0x41”
“0” |”1”
“?”
“0xee”, “0x42”
“0” |”1”
“0xee”, “0x43”
“0” |”1”
Set On or Off
Reset
Query
Set the Offset of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
Set the Offset of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
Set the Offset of the blue
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1
Select PIP Transparency Level
PIP Transparency value
Reset
Query
Auto Off / Auto On
Query
Screen Marker Off / Screen
Marker On
Center Marker Off / Center
Marker On
320Hz : “1”,”4”,”0”
340Hz : “1”,”5”,”4”
360Hz : “1”,”6”,”8”
380Hz : “1”,”7”,”C”
400Hz : “1”,”9”,”0”
420Hz : “1”,”A”,”4”
440Hz : “1”,”B”,”8”
“0” – Off
“1” – On
Red Offset for selected colour
temperature.
c – reference by Color
Temperature
ss - reference by Input main
select(0x98)
Green Offset for selected colour
temperature.
c – reference by Color
Temperature
ss - reference by Input main
select(0x98)
Blue Offset for selected colour
temperature.
c – reference by Color
Temperature
ss - reference by Input main
select(0x98)
PIP Transparency
“0”F” = 6.25% “0”E” = 12.5%
“0”D” = 18.75% “0”C” = 25%
“0”B” = 31.25% “0”A” = 37.5%
“0”9” = 43.75% “0”8” = 50%
“0”7” = 56.25% “0”6” = 62.5%
“0”5” = 68.75% “0”4” = 75%
“0”3” = 81.25% “0”2” = 87.5%
“0”1” = 93.75% “0”0” = 100%.
“0”- Off
“1”- On
“0”- Off
“1”- On
“0”- Off
“1”- On
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
42 of 70
Page 43
AspectMarker
“0xee”, “0x44”
“0” |”1”
Preliminary
4:3 /16:9
“0”- 4:3
“1”- 16:9
Marker
Background
Transparency
Safe Area Marker* “0xee”, “0x47”
“0xee”, “0x45”
“0” |”1” |”2” |”3”
“0x53”~”0x63”
Preliminary
0% /25%/50%/95%
Preliminary
80%~99%
“0”- 0%
“1”- 25%
“2”- 50%
“3”- 95%
“36”, “33”- 99%
“36”, “32”- 98%
“36”, “31”- 97%
“36”, “30”- 96%
“35”, “46”- 95%
“35”, “45”- 94%
“35”, “44”- 93%
“35”, “43”- 92%
“35”, “42”- 91%
“35”, “41”- 90%
“35”, “39”- 89%
“35”, “38”- 88%
“35”, “37”- 87%
“35”, “36”- 86%
“35”, “35”- 85%
“35”, “34”- 84%
“35”, “33”- 83%
“35”, “32”- 82%
“35”, “31”- 81%
“35”, “30”- 80%
IR Lock* “0xee”, “0x48”
n | “0” | “1” |
“r” | “R” |
“?”
Light Detector
“0xee”, “0x4A”
“0” | “1” |
“R” | “r”
”?”
“S” | “s”
Safe Area Marker
Enable
Aspect Marker
Enable
Display real time
clock
“0xee”, “0x4B”
“0” |”1”
“0xee”, “0x4C”
“0” |”1”
“0xee”, “0x4D”
“0” |”1”
Custom Sizing 0xef,
“0” | “1” | “2”
”?”
IR Lock Disable / IR Lock
Enable
Reset
Query
Light Detector Off / Light
Detector On
Light Detector On/Off Query
Light Detector Value Query
Safe Area Marker Off / Safe
Area Marker On
Aspect Marker Off / Aspect
Marker On
Real Time Clock Display Off /
Real Time Clock Display
Custom sizing selection :
Overscan / Normal / Custom
Query
“0” – IR Lock Disable
“1” – IR Lock Enable
“0” –Light Detector Off
“1” –Light Detector On.
“?” – Light Detector On/Off
Query “S”|”s” –Light Detector
Value Query 0x00~0xFF
“0”- Off
“1”- On
“0”- Off
“1”- On
“0”- Off
“1”- On
“0” – Overscan
“1” – Custom / Underscan
“2” – Normal
Function Command Description Acknowledge (if enabled)
Send Display
Mark
0xF1,
”S” |
”0x21” | ”0x40”
”0x60” | ”0x7E”
Return “1”
“S” = “0x53 or 0x73”
ASCII “0x21,0x40,0x60,0x7E”
Return “ 0x31”
“S” – Send Command
“Text” – Character
“1” - successful.
e.g Send Display Mark
RS232 Code: “0xF1 0x53 0x21”
Return Code: “0xF1 0x53 0x21 0x31”
Clear Display
Mark
0xF1,
”C”
Return “1”
“C” = “0x43 or 0x63”
Return “ 0x31”
“C” – Clear command
“1” - successful.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
43 of 70
Page 44
e.g Clear Display Mark
RS232 Code: “0xF1 0x43”
Return Code: “0xF1 0x43 0x31”
Display Mark
Horizontal
Position
0xF1,
|”H” |”ss”|
Return “nn”
“H” = “0x48 or 0x68”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“H” – Horizontal Position command
“ss” – Set Horizontal Position number
“nn” – Return Position number
e.g Set Display Mark Horizontal Position
RS232 Code: “0xF1 0x48 0x30 0x31”
Return Code: “0xF1 0x48 0x30 0x31 0x30 0x31”
Display Mark
Vertical
Position
0xF1,
|”V” |”ss”|
Return “nn”
“V” = “0x56 or 0x76”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“V” – Vertical Position command
“ss” – Set Vertical Position number
“nn” – Return Position number
e.g Set Display Mark Vertical Position
RS232 Code: “0xF1 0x56 0x30 0x31”
Return Code: “0xF1 0x56 0x30 0x31 0x30 0x31”
Display Mark
Background
Transparency
0xF1,
|”B”|”N”|
Return “n”
“B” = “0x42 or 0x62”
Set Transparency command
-----------------------------------------“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)
“B” - Transparency command
“N” – Transparency Value
“n”- Return Value
0x00 =opaque
Set Display Mark background Transparency value is 8
RS232 Code: “0xF1 0x42 0x38”
Return Code: “0xF1 0x42 0x38 0x38”
3. Other control
Function Command Description Acknowledge (if enabled)
Select RS-232
acknowledge
Auto-setup 0xc3 Start auto-setup of current
Command
availability
Auto-calibration 0xc5 Start auto-calibration of gain
Freeze frame
Soft Power On/Off 0xc8,
0xc1, “0” | “1” Disable/enable command
acknowledge.
vmode.
0xc4, n Check whether a command is
available.
of the RGB amplifier.
0xc6, “0” | “1”
Unfreeze / freeze frame
Soft power
“0” | “1” |
“?”
off/on
query
“0” – acknowledge disabled.
“1” – acknowledge enabled.
“0” – fail.
“1” – successful.
“0” – not available.
“1” – available.
“0” – fail.
“1” – successful.
“0” – unfreeze.
“1” – freeze.
“0” – Turn off the LCD power and
backlight. Turn off memory
controller, Power down DVI
Power down ADC, Power
down Fclk PLL
“1” – Turn on the unit
Query video input
status
0xc9 Query the status of the
primary & pip status
“nn,nn” = input status
“nn,xx” digit = primary status:
“0”,”0” : invalid
“A”,”1” ARGB
“B”,”1” Composite
“B”,”2” Composite 2
“C”,”1” S-video
“C”,”2” S-video 2
“D”,”1” Component
“D”,”2” Component 2
“E”,”1” HDSDI
“E”,”2” HDSDI 2
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
44 of 70
Page 45
“F”,”1” DVI
“H” “1” HDMI
“xx,nn”= PIP input status:
“0”,”0”: invalid
“A”,”1” ARGB
“B”,”1” Composite
“B”,”2” Composite 2
“C”,”1” S-video
“C”,”2” S-video 2
“D”,”1” Component
“D”,”2” Component 2
“E”,”1” HDSDI
“E”,”2” HDSDI 2
“F”,”1” DVI
“H” “1” HDMI
Video de-interlace
method
0xca,
“0” | “1”
“r” | “R”
“?”
De-interlace mode
Reset
Query
“3” ”1”- enable AFM
“3” ”0”- disable AFM
“4” ”1”- enable TNR
“4” ”0”- disable TNR
“5” ”1”- enable MADI
“5” ”0”- disable MADI
“7” ”1”- enable DCDi
“7” ”0”- disable DCDi
Query BIOS
version
0xcb, “0” Read BIOS version BIOS version “VV.YY.ZZ”
VV = V0 or E0,
V0 = Release version
E0 = Engineering Sample
YY= Version Number
ZZ= Customer Number
Query PCBA
number
Reset to Factory
Defaults
Reset to Factory
Defaults with
(color temp)
Saved Calibrated
default
Load Calibrated
default
Wide Screen
Mode Selection
ScreenMarker
CenterMarker
AspectMarker
Marker
Background
Transparency
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
0xcb, “1” Read PCBA number “nnnnn” = PCBA number
SVX-1920= “41721”
0xce Reset all parameters to
“1” – successful.
default value
0xcf Reset all parameters for all
video modes to default value
0xd7 Saving all parameters to user
“1” - successful.
“1” - successful.
default value
0xd8 Loading all parameters to
user default value
“1” - successful.
“0” - not successful
“E” – Checksum Error
0xd9,
“0” | “1”| “2”
“r” | “R”
“?”
“0xee”, “0x42”
“0” |”1”
Wide Screen Mode
Reset
“0” – Normal Mode
“1” – 1280x768
“2” – 1366x768
Query
Screen Marker Off / Screen Marker On
“0”- Off
“1”- On
“0xee”, “0x43”
“0” |”1”
Center Marker Off / Center Marker On
“0”- Off
“1”- On
“0xee”, “0x44”
“0” |”1”
Preliminary
4:3 /16:9
“0”- 4:3
“1”- 16:9
“0xee”, “0x45”
“0” |”1” |”2” |”3”
Preliminary
0% /25%/50%/95%
“0”- 0%
“1”- 25%
“2”- 50%
45 of 70
Page 46
“3”- 95%
Safe Area Marker “0xee”, “0x46”
“0x53”~”0x63”
Preliminary
64%~98%
“36”, “33”- 98%
“36”, “32”- 96%
“36”, “31”- 94%
“36”, “30”- 92%
“35”, “46”- 90%
“35”, “45”- 88%
“35”, “44”- 86%
“35”, “43”- 84%
“35”, “42”- 83%
“35”, “41”- 81%
“35”, “39”- 79%
“35”, “38”- 77%
“35”, “37”- 76%
“35”, “36”- 74%
“35”, “35”- 72%
“35”, “34”- 71%
“35”, “33”- 69%
“35”, “32”- 67%
“35”, “31”- 66%
“35”, “30”- 64%
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
46 of 70
Page 47
The following commands for sending texts by using RS-232 command.
Function Command Description Acknowledge (if enabled)
Send Line 0xF0,
|”S” |”LL”|”TEXT”|
“0x0A”
Return “1”
“S” = “0x53 or 0x73”
Send command
-------------------------------------------
“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)
“S” – Send Command
“LL” – Line Number
“Text” – Character
“0x0A” – End of Line
“1” - successful.
-------------------------------------------
“Text”= ASCII code,
“0x20~0x7E”
Character( Rang 0~34 )
-------------------------------------------
0x0A = End of line
e.g Display “Send Text” message on screen:
RS232 Code:“0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A”
Return Code: “0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A 0x31”
Clear Line 0xF0,
|”C” |”LL”|
Return “nn”
“C” = “0x43 or 0x63”
Clear command
-------------------------------------------
“C” – Clear command
“LL” – Line Number
“nn” – Return Line number
“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)
e.g Clear Line 1
RS232 Code: “0xF0 0x43 0x30 0x31”
Return Code: “0xF0 0x43 0x30 0x31 0x30 0x31”
Text Window
Horizontal Position
0xF0,
|”H” |”ss”|
Return “nn”
“H” = “0x48 or 0x68”
------------------------------------------
--“nn” = “0x30,0x30~0x46,0x46”
“H” – Horizontal Position
command
“ss” – Set Horizontal Position
number
“nn” – Return Position number
e.g Set Text Window Horizontal Position
RS232 Code: “0xF0 0x48 0x30 0x31”
Return Code: “0xF0 0x48 0x30 0x31 0x30 0x31”
Text Window
Vertical Position
0xF0,
|”V” |”ss”|
Return “nn”
“V” = “0x56 or 0x76”
------------------------------------------
--“nn” = “0x30,0x30~0x46,0x46”
“V” – Vertical Position command
“ss” – Set Vertical Position
number
“nn” – Return Position number
e.g Set Text Window Vertical Position
RS232 Code: “0xF0 0x56 0x30 0x31”
Return Code: “0xF0 0x56 0x30 0x31 0x30 0x31”
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
47 of 70
Page 48
Left offset 0xF0,
|”O” |”SSS”|
Return “nnn”
“O” = “0x4F or 0x6F”
Set Left Offset command
-------------------------------------------
“SSS” = “0x30,0x30,0x30~
“O” – Left Offset Command
“SSS”- Offset Value (pixels)
“nnn”- Return Value(pixels)
0x33,0x46,0x46”
Offset Value (Rang 000~3ff)
e.g Set Left Offset = 100 pixels ( 0x64 (HEX))
RS232 Code: “0xF0 0x4F 0x30 0x36 0x34”
Return Code: “0xF0 0x4F 0x30 0x36 0x34 0x30 0x36 0x34”
Text Window
Horizontal Size
0xF0,
|”X” |”SSS”|
Return “nnn”
“X” = “0x58”
Set Horizontal Size command
-------------------------------------------
“SSS” = “0x31,0x45,0x30~
“X” –Horizontal Size
“SSS”- Size Value (pixels)
“nnn”- Return Value(pixels)
0x37,0x38,0x30”
Horizontal Size Value (Rang
000~3ff)
e.g Set Text Window Horizontal Size = 640 pixels ( 0x280 (HEX))
RS232 Code: “0xF0 0x58 0x32 0x38 0x30”
Return Code: “0xF0 0x58 0x32 0x38 0x30 0x32 0x38 0x30”
Background
Transparency
0xF0,
|”B”|”N”|
Return “n”
“B” = “0x42 or 0x62”
Set Transparency command
------------------------------------------“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)
“B” - Transparency command
“N” – Transparency Value
“n”- Return Value
0x00 =opaque
Set background Transparency value is 8
RS232 Code: “0xF0 0x42 0x38”
Return Code: “0xF0 0x42 0x38 0x38”
Text Overlay
Background
On or Off
0xF0,
|”Q”|
“N”
Return “n”
“Q” = “0x51 or 0x71”
Set Background Enable or
Disable ---------------------“N” = “0x30~0x31”
“B” - command
“1” Turn On Text Overlay
Background
“0” Turn Off Text Overlay
Background
“n”- Return Value
Set background Transparency value is 8
RS232 Code: “0xF0 0x51 0x31”
Return Code: “0xF0 0x51 0x31 0x31”
Please set the "Background Transparency” and "Left offset" commands before the "Send Line"
command.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
48 of 70
Page 49
Display Mark Command
Function Command Description Acknowledge (if enabled)
Send Display Mark 0xF1,
”S” |
”0x21” | ”0x40”
”0x60” | ”0x7E”
Return “1”
“S” = “0x53 or 0x73”
ASCII “0x21,0x40,0x60,0x7E”
Return “ 0x31”
“S” – Send Command
“Text” – Character
“1” - successful.
e.g Send Display Mark
RS232 Code: “0xF1 0x53 0x21”
Return Code: “0xF1 0x53 0x21 0x31”
Clear Display Mark 0xF1,
”C”
Return “1”
“C” = “0x43 or 0x63”
Return “ 0x31”
“C” – Clear command
“1” - successful.
e.g Clear Display Mark
RS232 Code: “0xF1 0x43”
Return Code: “0xF1 0x43 0x31”
Display Mark
Horizontal Position
0xF1,
|”H” |”ss”|
Return “nn”
“H” = “0x48 or 0x68”
------------------------------------------
--“nn” = “0x30,0x30~0x46,0x46”
“H” – Horizontal Position
command
“ss” – Set Horizontal Position
number
“nn” – Return Position number
e.g Set Display Mark Horizontal Position
RS232 Code: “0xF1 0x48 0x30 0x31”
Return Code: “0xF1 0x48 0x30 0x31 0x30 0x31”
Display Mark
Vertical Position
0xF1,
|”V” |”ss”|
Return “nn”
“V” = “0x56 or 0x76”
------------------------------------------
--“nn” = “0x30,0x30~0x46,0x46”
“V” – Vertical Position command
“ss” – Set Vertical Position
number
“nn” – Return Position number
e.g Set Display Mark Vertical Position
RS232 Code: “0xF1 0x56 0x30 0x31”
Return Code: “0xF1 0x56 0x30 0x31 0x30 0x31”
Display Mark
Background
Transparency
0xF1,
|”B”|”N”|
Return “n”
“B” = “0x42 or 0x62”
Set Transparency command
------------------------------------------“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)
“B” - Transparency command
“N” – Transparency Value
“n”- Return Value
0x00 =opaque
Set Display Mark background Transparency value is 8
RS232 Code: “0xF1 0x42 0x38”
Return Code: “0xF1 0x42 0x38 0x38”
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
49 of 70
Page 50
The RS-232 command strings sent in one time can support up to 380 bytes via CN8 port
The RS-232 command string sent in one time can support up to 50 bytes via CN1 or J1 port.
n = 1-byte ascii-coded hex number, e.g., parameter value of 0x1 is represented by “1” (0x31).
mn or nn = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E”
(0x31, 0x6e|0x4e).
Please refer to the ASCII to Hex convert table below.
Hex to ASCII conversion table
Hex ASCII Hex ASCII Hex ASCII Hex ASCII
0x30 0 0x41 A 0x61 a 0x2B +
0x31 1 0x42 B 0x62 b 0x2D -
0x32 2 0x43 C 0x63 c 0x3F ?
0x33 3 0x44 D 0x64 d
0x34 4 0x45 E 0x65 e
0x35 5 0x46 F 0x66 f
0x36 6 0x47 G 0x67 g
0x37 7 0x48 H 0x68 h
0x38 8 0x49 I 0x69 i
0x39 9 0x4A J 0x6A j
0x4B K 0x6B k
0x4C L 0x6C l
0x4D M 0x6D m
0x4E N 0x6E n
0x4F O 0x6F o
0x50 P 0x70 p
0x51 Q 0x71 q
0x52 R 0x72 r
0x53 S 0x73 s
0x54 T 0x74 t
0x55 U 0x75 u
0x56 V 0x76 v
0x57 W 0x77 w
0x58 X 0x78 x
0x59 Y 0x79 y
0x5A Z 0x7A z
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
50 of 70
Page 51
Appendix I – Mapping definition

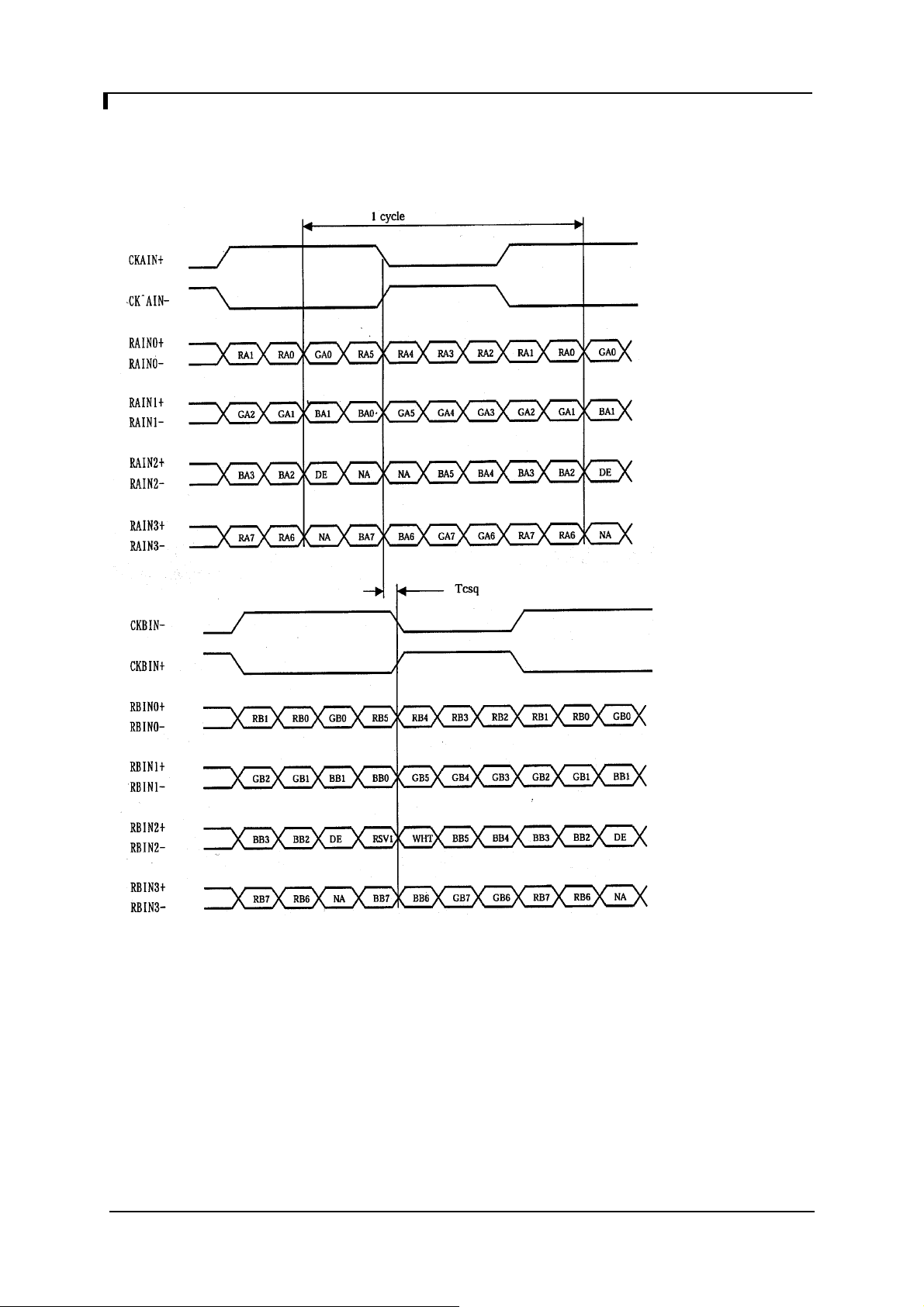

• Definition of Mapping A :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
51 of 70
Page 52

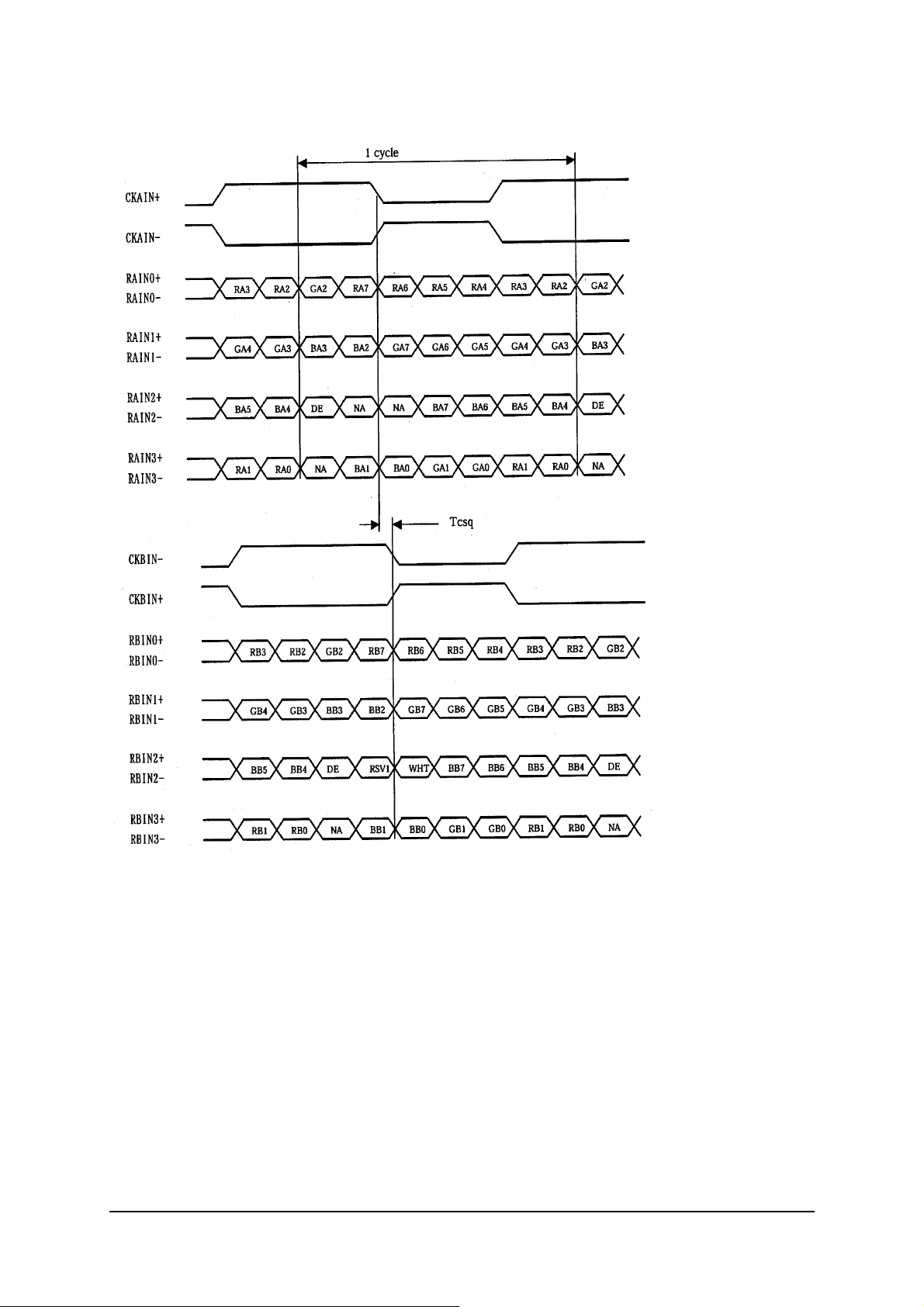

• Definition of Mapping B :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
52 of 70
Page 53
• Definition of VESA :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
53 of 70
Page 54
• Definition of JEIDA :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
54 of 70
Page 55

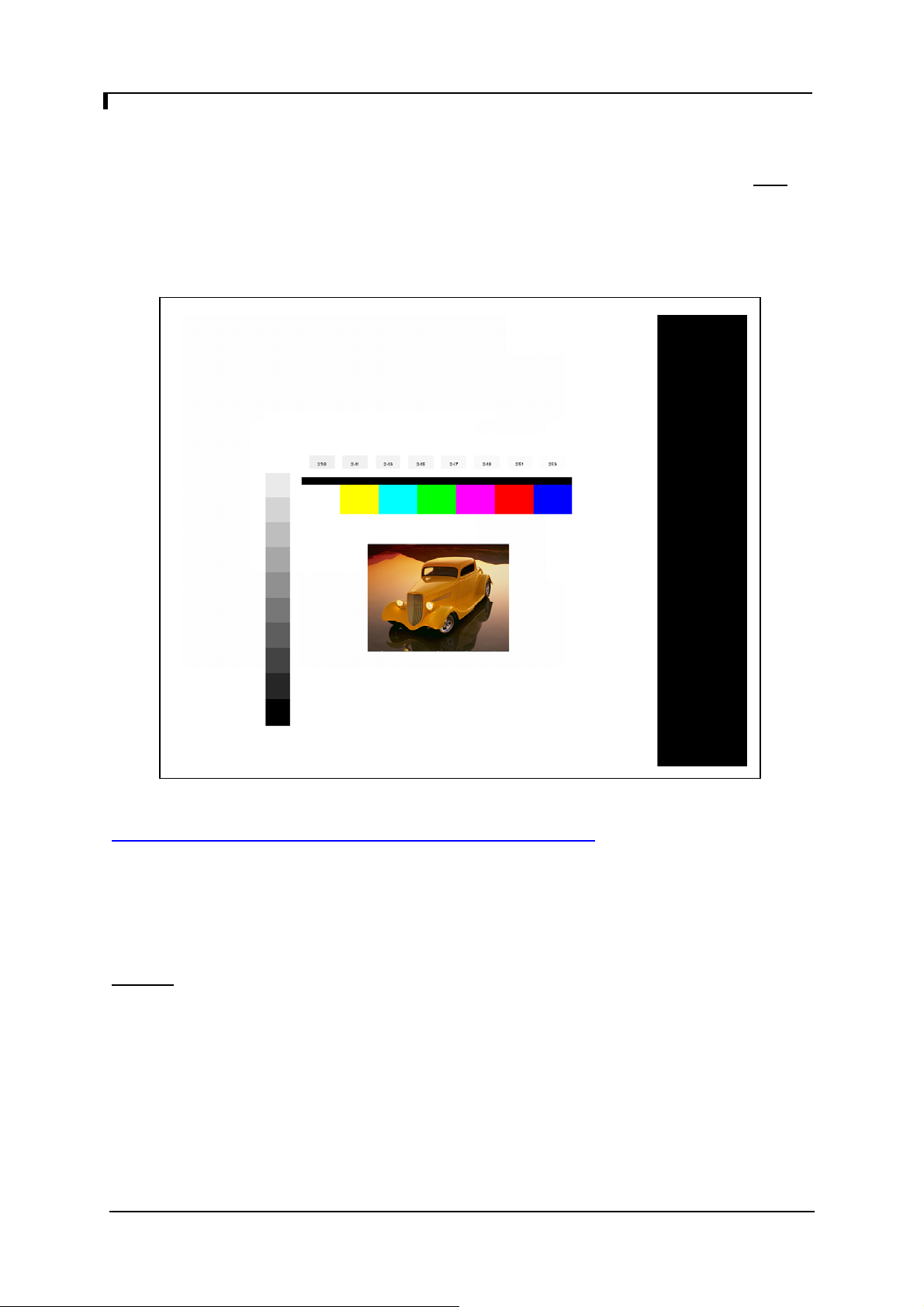

Appendix IV – Auto Color Gain
The Auto Color Gain function is supported in the ARGB mode only and is designed to
calibrate the controller to the incoming video signal. In order to calibrate correctly, the display must be
displaying an image containing both black and white data (see illustration below) when the function is
used. The internal processor of the video controller chip will then execute a process to adjust the
relative values of the RGB signals to achieve the best performance. The parameters of the corrected
RGB values are then stored in the controller and are unaffected by the Reset Factory Defaults
function.
The reference pattern can be downloaded at :
http://www.digitalview.com/support/downloads/TestPattern_1280.BMP
This reference pattern is for 1280x1024 resolution and it needs to set your ARGB input source to
1280x1024 resolution before performing the Auto Color Gain function. The position of the black
vertical bar in the pattern at the right side is important. It will affect the calibration result if you are
setting the ARGB input to other resolution.
Warning
- If the Auto Color Gain is executed without an appropriate image being displayed, then the
process will set incorrect values and the display colors will be distorted. If this occurs, then it can
either be corrected by performing the process correctly or if this is not possible then the Reset Color
Gain function can be used. This function will reset the stored RGB values to a set of approximate
values.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
55 of 70
Page 56
Appendix V – DV remote control unit work for SGX-1920
P/N 559000106-3 :
DigitalView remote control unit
(without DV logo silk screen
printing)
P/N 559000105-3 :
DigitalView remote control unit
(with DigitalView logo silk
screen printing)
POWER BUTTON Soft power ON/OFF button.
ATTENTION BUTTON
MUTE BUTTON ( )
AV/TV BUTTON Use to select the input source. (VGA/DVI/HDMI/..)
SOUND (ZOOM) BUTTON
PIP BUTTON Use to select the PIP (Picture in Picture) setting
SEL UP ( ) / SEL DN ( )
VOLUME (-/+) BUTTON Press the “+” button to increase the volume and the “-” to decrease the volume.
+ / - BUTTON
OSD BACK BUTTON Use to display the OSD menu and go to the previous OSD screen.
OSD NEXT BUTTON Use to display the OSD menu and go to the next OSD screen.
DISPLAY BUTTON
TRACK (S-Video) BUTTON Press this button in the non OSD menu display mode to select S-Video 1 source.
TRACK (Composite 1) BUTTON Press this button in the non OSD menu display mode to select Composite 1 source.
Composite 2 BUTTON Press this button in the non OSD menu display mode to select Composite 2 source.
PLAY (YPbPr) BUTTON Press this button in the non OSD menu display mode to select Component 1 source.
STOP (VGA) BUTTON Press this button in the non OSD menu display mode to select VGA source.
FREEZE (II) BUTTON Use this button to freeze and release the picture on your screen.
DVI BUTTON Press this button in the non OSD menu display mode to select DVI source.
HDMI BUTTON Press this button in the non OSD menu display mode to select HDMI source.
HDSDI1 BUTTON Press this button in the non OSD menu display mode to select HD-SDI 1 source.
HDSDI2 BUTTON Press this button in the non OSD menu display mode to select HD-SDI 2 source.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
BUTTON FUNCTION
Use combined with digit keys to enable/disable the IR function.
SGX-1920 : “Attention” + “1”
Switch to mute on/off mode.
Use to display the zoom menu. Press the “+” to zoom in the picture and the
“-” to zoom out the picture.
Use this button to direct control the hotkey function. Press the “SEL UP” button to
increase the pre-set hotkey parameter value and the “SEL DN” button to decrease the
pre-set hotkey parameter value. In OSD menu, pressing this button to select the items.
Use this button to direct control the hotkey function. Press the “+” button to increase
the pre-set hotkey parameter value and the “-” button to decrease the pre-set hotkey
parameter value. In OSD menu, pressing this button to adjust the settings.
Use to view an on-screen information. When OSD menu displayed, press this button to
turn it off.
56 of 70
Page 57
Appendix VI – Function description for de-interlacing mode AFM, TNR, MADI, DCDi
AFM = Auto Film Mode :
It is a frame based method which used for the input ODD and EVEN fields have a fixed relation
between each other, such as static image, 3:2 pull down mode.
If two fields are correctly merged, it can get the best quality. But if it merges two wrong fields, it will
have artifact and get the worst quality.
TNR = Temporal Noise Reduction :
It is a frame based method which assume field to field have a fixed relationship.
If the object moving too fast, it will have image artifact and get worst quality.
MADI = Motion adaptive de-interlacing :
It is a pixel based method which used for the input fields have no fixed relation between them
If the object moving very too fast, it will get worst quality.
DCDi = Directional Correlation Deinterlacing :
It is a digital enhancement method developed by Faroudja. DCDi technology is primarily used for
improving the image quality of low resolution images. This is done by deinterlacing the image and
blending rough edges occurring in diagonal lines.
Appendix VII – PIP mix table
VGA Composite 1 Composite 2 S-Video 1 S-Video 2 Component
INPUT SOURCES
1
Component
2
DVI /
Auxiliary
port HD1
HDMI /
Auxiliary
port HD2
VGA X
Composite 1
Composite 2
S-Video 1
S-Video 2
Component 1
INPUT SOURCE
Component 2
DVI / Auxiliary port
HD1
HDMI / Auxiliary
port HD2
X
X
X
X
X
X
X
X
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
57 of 70
Page 58
Appendix VIII – Network connection
The SGX-1920 LCD interface controller has an RJ-45 Ethernet port for control and monitoring
over a network. This application note introduces the two user interface modes:
• Browser based web server mode
• Command line direct mode (this is the default mode)
There is also a short overview of the command set and how it is implemented.
QUICK GUIDE
For experienced users the following quick guide to trying out the network connection and
functions may be useful.
• The SGX-1920 ships with the browser based web-server mode installed as default.
• Works with a normal network with DHCP, i.e. must use a router.
• Connect the SGX-1920 to the network and ensure power is on.
• Use the IP-50 IP Locator utility available from the IP-50 web-page.
http://www.digitalview.com/media/downloads/IPLocator.zip
• Double click on the IP address in the IP Locator window, it will open the SGX-1920
browser page in your default browser. Alternatively copy the IP address into your
browser address line.
• Test the functions that come up on the browser.
Command line direct mode: This is relevant when a PC application is used to send and
receive commands over the network port. The network port will require an alternative
firmware version if the Command line direct mode is required.
For details, please refer to the separate application note.
(Windows only)
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
58 of 70
Page 59
Appendix IX – Digital Ports selection on SGX-1920
Port definition :
P2 : DVI
P3 : HDMI
HD1 : Auxiliary digital input port
HD2 : Auxiliary digital input port
DVI-D – P2 HDMI – P3
Auxiliary digital input port - HD1 Auxiliary digital input port – HD2
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
59 of 70
Page 60
2
(1) SGX-1920 without connect any I
C control on CN8 (i.e : HD-1000/-2000/-3000S/-3000)
(i) The board allows the user to configure the digital signal path via P2, P3, HD1, HD2.
Press and hold “MENU” button on the OSD switch mount and turn on the controller to enter the
“Programming mode”.
Choose “Auxiliary Port Select” shown below :
(ii) Choose Digital signal port path :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
60 of 70
Page 61
Digital signal path –
Auxiliary Port HD1
HD1
P2
Digital signal path –
Auxiliary Port HD2
HD2
P3
(iii) Choose the Auxiliary port HD1/HD2 configuration selection :
Auxiliary port HD1 :
1. Set DVI Input from HD1 : Input DVI signal from HD1 port and disable P2 (DVI) port.
2. Set DVI Input from P2 : Input DVI signal from P2 (DVI) port and disable HD1.
Auxiliary port HD2 :
1. Set HDMI input from HD2 : Input HDMI signal from HD2 port and disable P3 (HDMI) port.
2. Set HDMI Input from P3 : Input HDMI signal from P3 (HDMI) port and disable HD2.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
61 of 70
Page 62
2
(2) SGX-1920 connect with HD-1000/-2000/-3000S via I
C control on CN8
(i) The board allows the user to configure the digital signal path via P2, P3, HD1, HD2.
Press and hold “MENU” button on the OSD switch mount and turn on the controller to enter the
“Programming mode”.
Choose “Auxiliary Port Select” shown below :
(ii) Choose Digital signal port path :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
62 of 70
Page 63
Digital signal path –
Auxiliary Port HD1
HD1
P2
Digital signal path –
Auxiliary Port HD2
HD2
P3
(iii) Choose the Auxiliary port HD1/HD2 configuration selection :
Auxiliary port HD1 :
1. Set HD/SDI Input from HD1 : Input digital signal coming from HD-1000/-2000/-3000S to HD1
port and disable P2 (DVI) port.
2. Set HD/SDI Input from P2 : Input digital signal coming from HD-1000/-2000/-3000S to P2
(DVI) port and disable HD1 port.
3. Set DVI Input from P2 : Input DVI signal from P2 (DVI) and disable HD1 port.
Auxiliary port HD2 :
1. Set HD/SDI Input from HD2 : Input digital signal coming from HD-1000/-2000/-3000S to HD2
port and disable P3 (HDMI) port.
2. Set HD/SDI Input from P3 : Input digital signal coming from HD-1000/-2000/-3000S to P3
(HDMI) port and disable HD2 port.
3. Set HDMI Input from P3 : Input DVI signal from P3 (HDMI) port and disable HD2 port.
*** The controller will factory default to HD2 for digital signal coming from HD-1000/-2000/-3000S
(3) SGX-1920 connect with HD-3000 via I
2
C control on CN8
The controller will disable P2 (DVI) & P3 (HDMI) port and enable HD1 for HD-SDI 1 input & enable
HD2 for HD-SDI 2 input automatically when connect with HD-3000 via I
2
C control on CN8.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
63 of 70
Page 64
Appendix X - Inverter Interface Board P/N 416040010-3
[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
The Inverter interface board provides interface to drive up the high current
consumption panel inverter in excess of 3.5A. This board enables current of up to 8
Amps to be managed safely while retaining the capability for inverter dimming and
management of the inverter enable signal according to VESA DPMS standards.
Additionally, the inverter interface board provides over-voltage protection via a
resettable fuse when the input voltage exceeds 13V and reverse polarity protection
against accidental misconnection.
Connector Type :
CNA1, CNB2 : JST 4 ways, B4B-XH-A
CNB1 : JST 5 ways, B5B-XH-A
CNB3 : JST 8 ways, B8B-XH-A
PP1 : PWR 4 way
PP2 : Terminal Block 2 poles x 2
PP3 : PWR 2 ways
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
64 of 70
Page 65
Illustrated Diagram
PP1 - 12VDC power supply – input, Power header 4 ways 0.156” pitch
PIN DESCRIPTION
1 +12VDC
2 +12VDC
3 Ground
4 Ground
PP2 – Alternate 12VDC power supply – input, Terminal Block 2 poles
PIN DESCRIPTION
1 +12VDC
2 +12VDC
3 Ground
4 Ground
PP3 – 12VDC power supply to controller – Output, Power header 2 ways, 0.156” pitch
PIN DESCRIPTION
1 +12VDC
2 Ground
CNA1 - Inverter interface to controller, JST B4B-XH-A
PIN SYMBOL DESCRIPTION
1 NC No connection
2 AUX_GND Ground
3 AUX_GND Ground
4 AUX_Vcc +5V DC, 500mA max
CNB1 – Inverter interface to controller, JST B5B-XH-A
PIN SYMBOL DESCRIPTION
1 GND Ground
2 BL_ON Backlight power
3 BLCTRL Backlight on/off control signal
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_A Backlight brightness VR pin A
CNB2 – Inverter interface to backlight inverter, JST B4B-XH-A
PIN SYMBOL DESCRIPTION
1 VLCD12 Panel power
2 AUX_GND Ground
3 AUX_GND Ground
4 AUX Vcc +5V DC, 500mA max
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
65 of 70
Page 66
CNB3 – Inverter interface to backlight inverter, JST B8B-XH-A
PIN SYMBOL DESCRIPTION
1 VLCD12 Panel power
2 VLCD12 Panel power
3 GND Ground
4 GND Ground
5 VLCD12 Panel power
6 BLCTRL Backlight on/off control signal
7 BVR_WIP Backlight brightness VR pin WIP
8 BVR_A Backlight brightness VR pin A
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
66 of 70
Page 67
Appendix XI - Audio Add-on Board P/N 416940020-3
[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
The Audio add-on board P/N
416940020-3 design for connection with
DV controllers on the audio connector
CN7. It provides audio input ports and
output port for sound amplification.
Electrical Specification :
Supply Voltage : +12V, +5V
Supply current : 35mA for +12V, 6mA for +5V
Input impedance 6.8kohm
Output power : 2.0W for 4ohm load
1.0W for 8ohm load
Distortion : <2%
Voltage gain : 0 to 21 dB
Use of connectors :
Connector Connector type
CN1 JST B3B-XH-A
CN2 JST B4B-PH-K
CN3 0.1 inches 2 row x 5 pin header strips (right angle)
J1 Ø3.5mm stereo jack socket
J2
Pin Assignments :
CN1: Output alternate connector
Pin Number Description
1 Speaker out left
2 Ground
3 Speaker out right
CN2: Input alternate connector
Pin Number Description
1 Ground
2 Audio input left
3 Ground
4 Audio input right
Ø3.5mm stereo jack socket
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
67 of 70
Page 68
CN3 : Controller interface connector
Pin Number Description
1 +5V
2 Left trimpot chip select
3 Right trimpot chip select
4 Trimpot serial data
5 Trimpot serial clock
6 Digital Ground
7 +12V
8 Audio input left
9 Audio input right
10 Audio Ground
Mechanical Drawing :
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
68 of 70
Page 69
WARRANTY
The products are warranted against defects in workmanship and material for a period of three (3) year from the date of
purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with the
instruction manual.
The warranty does not apply to:
• Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical short circuit
is caused.
• Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).
• Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or electrical.
• Ordinary wear and tear.
Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder, including
all implied warranties of merchantability and fitness for a particular application or purpose. The stated express warranties are in
lieu of all obligations or liabilities on the part of the manufacturer for damages, including but not limited to special, indirect
consequential damages arising out of or in connection with the use of or performance of the products.
CAUTION
Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as
an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature
of the work they are doing and are able to take suitable precautions and design and produce a product that is safe
and meets regulatory requirements.
LIMITATION OF LIABILITY
The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in
no event exceed the purchase price of said product.
TRADEMARKS
The following are trademarks of Digital View Ltd:
• Digital View
• SGX-1920
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
69 of 70
Page 70
CONTACT DETAILS
Digital View has offices in Asia, Europe and USA :
USA
Digital View Inc.
18440 Technology Drive
Building 130
Morgan Hill,
California, 95037
USA
EUROPE
Digital View Ltd.
The Lake House
Knebworth Park
Herts, SG3 6PY
UK
ASIA
Digital View Ltd
16 th Floor Millennium City 3
370 Kwun Tong Road
Kwun Tong
Hong Kong
WEBSITE
www.digitalview.com
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.6: 27 March, 2012 (SGX-1920_manual.doc) Page
70 of 70
Loading...
