Universal
Grain Drill
Scale System
Instructions
And
Repair Parts
Ft. Atkinson, Wisconsin USA
Panningen, The Netherlands
www.digi-star.com
D3887-US-Rev A October 13, 2010
Table Of Contents
TABLE OF CONTENTS
INTRODUCTION ............................................................................................................................................................................................... 1
Charging Battery and Welding ....................................................................................................................................................................... 1
SCALE BRACKET AND LOAD CELL MOUNTING INSTALLATION ................................................................................................................. 2
Universal Grain Drill Scale Kit ........................................................................................................................................................................ 4
JUNCTION BOX MOUNTING ............................................................................................................................................................................ 5
Connect Load Cell and J-Box Cable .............................................................................................................................................................. 5
Installing Wires into Terminal Block ............................................................................................................................................................... 5
INDICATOR MOUNTING ................................................................................................................................................................................... 6
Power Connection: ........................................................................................................................................................................................ 6
Load Cell Connection:.................................................................................................................................................................................... 6
TROUBLE SHOOTING ...................................................................................................................................................................................... 7
How to Check the Drill Scale After Installation ............................................................................................................................................... 7
REPAIR PARTS ................................................................................................................................................................................................ 8
Kit – Scale System – Universal ...................................................................................................................................................................... 8
Indicator Swivel Mount ................................................................................................................................................................................... 9
LICENSE AGREEMENT .................................................................................................................................................................................. 10
All rights reserved. Reproduction of any part of this manual in any form whatsoever without Digi-Star’s express written permission is forbidden. The contents of this manual are subject
to change without notice. All efforts have been made to assure the accuracy of the contents of this manual. However, should any errors be detected, Digi-Star would greatly appreciate
being informed of them. The above notwithstanding, Digi-Star can assume no responsibility for errors in this manual or their consequence.
© Copyright! 2008 Digi-Star, Fort Atkinson (U.S.A.).
Universal Grain Drill Scale Mount D3887
Introduction
p
INTRODUCTION
Congratulations on the purchase of your new Digi-Star Grain Drill Scale System. This scale system is
specifically designed to weigh the seed hopper on a Grain Drill or other seeding hoppers. The scale kit can be
used to record and monitor seed weight going into or out of the seed hopper.
This scale system is covered by the following US patents: 6732667, 7059258 and 7273017. The single-use
license is included with this document (see page 10).
This
SAFETY ALERT SYMBOL
symbol, be alert to the possibility of
NEVER OPERATE WITHOUT ALL COVERS, SHIELDS AND GUARDS IN PLACE. KEEP
HANDS, FEET AND CLOTHING AWAY FROM MOVING PARTS. FAILURE TO HEED MAY RESULT IN
SERIOUS PERSONAL INJURY OR DEATH.
Some covers and guards have been removed for illustrative/photographic purposes only in this manual.
For information on ordering repair parts, refer to Parts Section in this book.
This supersedes all previous published instructions.
indicates important safety messages in the manual. When you see this
PERSONAL INJURY
and carefully read the message that follows.
Important!
Charging Battery and Welding
Disconnect all cables from the weighing indicator before charging the battery or welding on the machine. If
cables are left connected, the weighing indicator and connected load cells could be damaged.
Important:
Do not weld near indicator, load cells or cables; remove from area to be welded. Place ground
close to area to be welded to prevent current from passing through electronic parts.
Scale Indicator
Remote Indicator
O
tional
Disconnect
all cords
J-Box
D3887 Universal Grain Drill Scale Mount 1
Scale Bracket and Load Cell Mounting Installation
SCALE BRACKET AND LOAD CELL MOUNTING INSTALLATION
The Universal Scale Kit consists of four load cells, J-Box and scale indicator. The universal scale kit is
designed to mount to the outside of a box drill hopper or other seeding hoppers. Brackets may be
mounted facing in or out, together or opposing. The front to back orientation of the load cells is
reversible and the cells may be oriented in the same way or different ways, depending on the specific
needs of your application, see Figures 1 and 2. Drilling new mounting holes will be required.
FIGURE 1 LOAD CELL MOUNTING, FRONT TO BACK
FIGURE 2 LOAD CELL MOUNTED, REVERSED
2 Universal Grain Drill Scale Mount D3887
Scale Bracket and Load Cell Mounting Installation
1. Assemble upper and lower bracket weldments to the four 1.5 SQ DB load cells. Refer to Detail A for
the proper technique for tightening the 3/4-16 x 2.0 bolt to the upper weldment.
2. Position the assembled Load Cell/Brackets on the four hopper corners. Mark and drill .531Ø holes for
mounting the upper bracket to the hopper. Tighten the upper weldment to the hopper with 1/2 bolt and
1/2 serrated flange mounting hardware.
3. Loosen the original bolts holding the hopper to the drill frame. Do not remove.
4. Remove the hopper mounting bolts on the left side and lift the hopper approximately 3/4” - 1”.
NOTE:
Typically the hopper is raised 3/4”-1” to separate the hopper from the main frame.
It is recommended the hopper be supported by two methods when installing the load cells and brackets. In
addition to lifting the hopper with a chain or nylon strap, the hopper should be supported in the middle with
a hydraulic jack or stands.
Important:
The lifting chains, bucket attachments, loader/skid steer or winch must be capable of lifting
and controlling 1000 lbs.
5. Mark and drill .531Ø holes for the left side bottom brackets. Install bolts to secure to main frame, two
per side.
6. Repeat for right hopper supports.
After hopper is supported, inspect the hopper drive chain or clutch to determine if additional chain links
may be required.
D3887 Universal Grain Drill Scale Mount 3
Scale Bracket and Load Cell Mounting Installation
Universal Grain Drill Scale Kit
4 Universal Grain Drill Scale Mount D3887
Junction Box Mounting
JUNCTION BOX MOUNTING
The junction box is water resistant, not water-proof. It should be mounted to avoid submersion during wet
weather and to avoid physical abuse. The junction box can be mounted on the front or rear of the drill,
planter or seeder. All load cell cables must reach the J-Box. Install by removing the double sided tape
backing and apply to cleaned surface.
Connect Load Cell and J-Box Cable
1. Route front and rear load cell cables to J-box location.
Make sure they are not bound or pinched. Cable tie
(customer provided) load cell cables in place.
2. Insert load cell and J-box cables through each of the
water-tight strain-reliefs.
3. Remove each terminal block from the J-box.
4. Connect wires of the same color to the same terminal
block. See instructions below.
5. Install terminal block into the J-box as shown (location
not important).
6. Tighten nuts on the water-tight strain-reliefs.
7. Assure that gasket is properly installed in the cover.
8. Attach cover using 4 screws (provided).
Installing Wires into Terminal Block
1. Open levers 90º to locked position.
2. Insert individual wires into terminal.
3. Close lever.
4. Tug wire to assure solid connection.
Note: Wire strip length is 7/16” (11mm).
Strain
Relief
406232 J-Box Lever Nut 4Pt (Planter)
141837 Cable - 30Ft J-Box
406074 Cable - 45Ft J-Box
403335 Cable - Power 17Ft 2-Wire
406073 Cable - Power 36Ft 2-Wire
406072 Cable - Power 6Ft 2-Wire
824316 Cable - 15Ft-J-Box
145096 Cable - 70Ft-J-Box
406276 Cable – Power 65Ft 2-Wire
D3887 Universal Grain Drill Scale Mount 5
Indicator Mounting

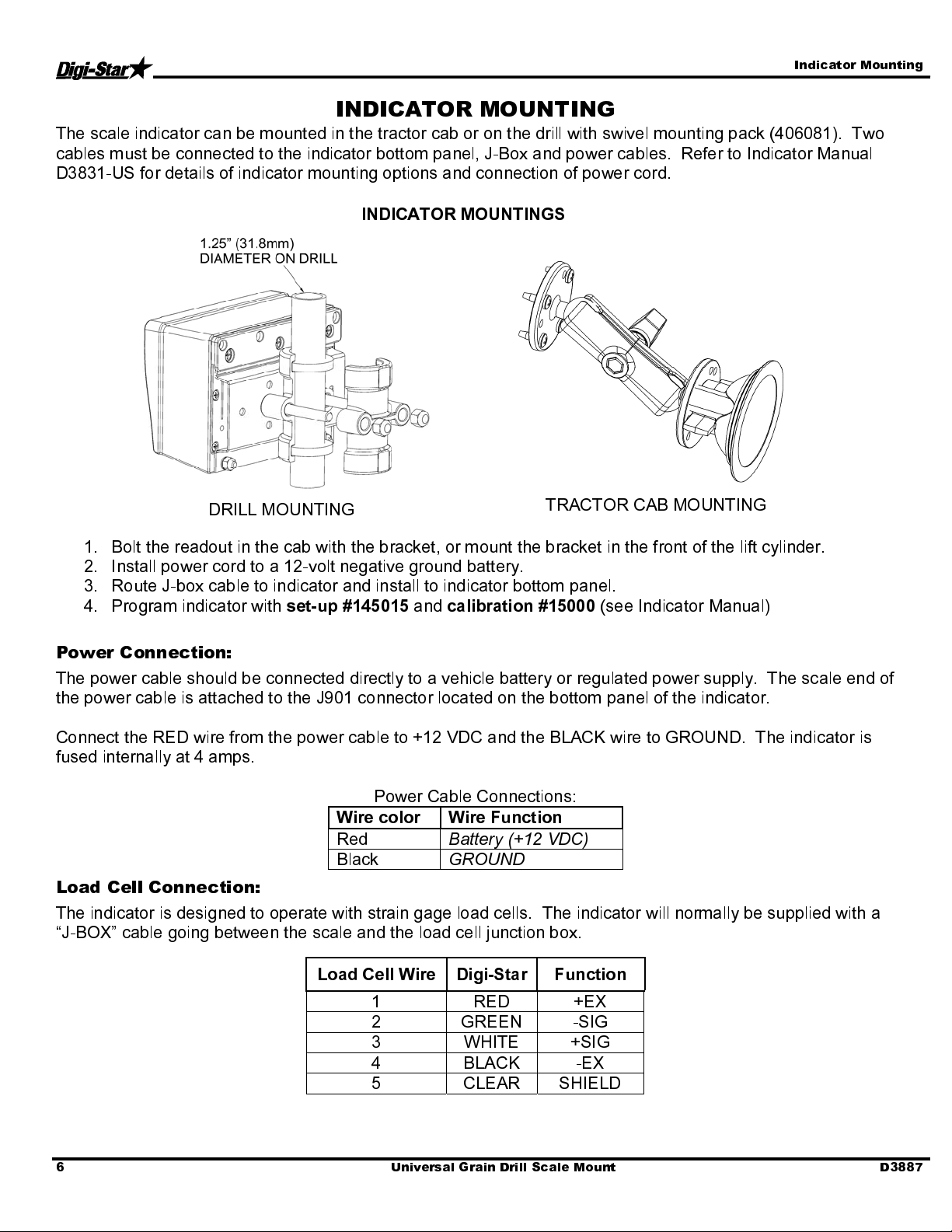

INDICATOR MOUNTING
The scale indicator can be mounted in the tractor cab or on the drill with swivel mounting pack (406081). Two
cables must be connected to the indicator bottom panel, J-Box and power cables. Refer to Indicator Manual
D3831-US for details of indicator mounting options and connection of power cord.
DRILL MOUNTING
1. Bolt the readout in the cab with the bracket, or mount the bracket in the front of the lift cylinder.
2. Install power cord to a 12-volt negative ground battery.
3. Route J-box cable to indicator and install to indicator bottom panel.
4. Program indicator with
set-up #145015
INDICATOR MOUNTINGS
TRACTOR CAB MOUNTING
and
calibration #15000
(see Indicator Manual)
Power Connection:
The power cable should be connected directly to a vehicle battery or regulated power supply. The scale end of
the power cable is attached to the J901 connector located on the bottom panel of the indicator.
Connect the RED wire from the power cable to +12 VDC and the BLACK wire to GROUND. The indicator is
fused internally at 4 amps.
Power Cable Connections:
Wire color Wire Function
Red
Black
Battery (+12 VDC)
GROUND
Load Cell Connection:
The indicator is designed to operate with strain gage load cells. The indicator will normally be supplied with a
“J-BOX” cable going between the scale and the load cell junction box.
Load Cell Wire Digi-Star Function
1 RED +EX
2 GREEN -SIG
3 WHITE +SIG
4 BLACK -EX
5 CLEAR SHIELD
6 Universal Grain Drill Scale Mount D3887
Trouble Shooting

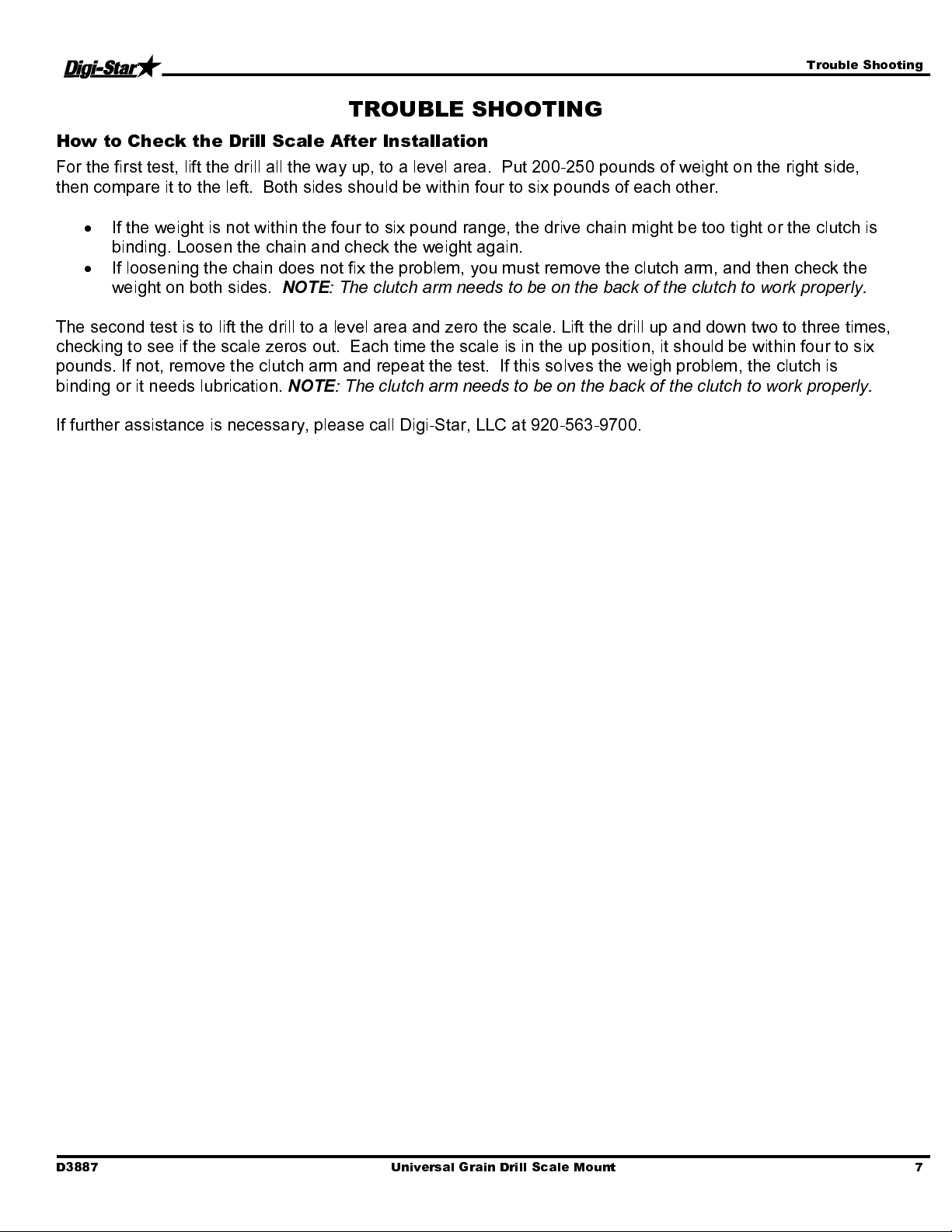

TROUBLE SHOOTING
How to Check the Drill Scale After Installation
For the first test, lift the drill all the way up, to a level area. Put 200-250 pounds of weight on the right side,
then compare it to the left. Both sides should be within four to six pounds of each other.
•
If the weight is not within the four to six pound range, the drive chain might be too tight or the clutch is
binding. Loosen the chain and check the weight again.
•
If loosening the chain does not fix the problem, you must remove the clutch arm, and then check the
weight on both sides.
The second test is to lift the drill to a level area and zero the scale. Lift the drill up and down two to three times,
checking to see if the scale zeros out. Each time the scale is in the up position, it should be within four to six
pounds. If not, remove the clutch arm and repeat the test. If this solves the weigh problem, the clutch is
binding or it needs lubrication.
If further assistance is necessary, please call Digi-Star, LLC at 920-563-9700.
NOTE
NOTE
: The clutch arm needs to be on the back of the clutch to work properly.
: The clutch arm needs to be on the back of the clutch to work properly.
D3887 Universal Grain Drill Scale Mount 7
Repair Parts

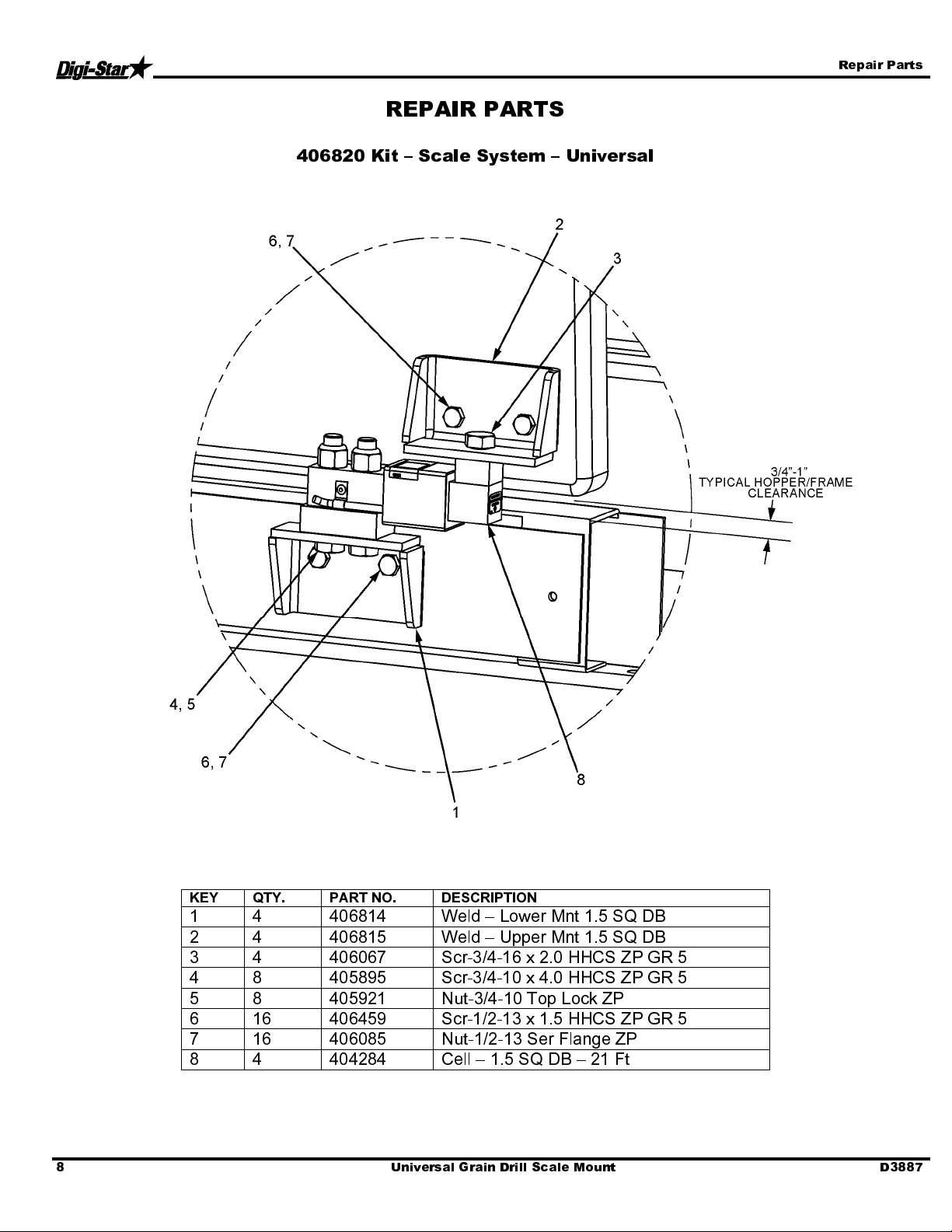

REPAIR PARTS
406820 Kit – Scale System – Universal
KEY QTY.
PART NO.
DESCRIPTION
1 4 406814 Weld – Lower Mnt 1.5 SQ DB
2 4 406815 Weld – Upper Mnt 1.5 SQ DB
3 4 406067 Scr-3/4-16 x 2.0 HHCS ZP GR 5
4 8 405895 Scr-3/4-10 x 4.0 HHCS ZP GR 5
5 8 405921 Nut-3/4-10 Top Lock ZP
6 16 406459 Scr-1/2-13 x 1.5 HHCS ZP GR 5
7 16 406085 Nut-1/2-13 Ser Flange ZP
8 4 404284 Cell – 1.5 SQ DB – 21 Ft
8 Universal Grain Drill Scale Mount D3887
Repair Parts
Indicator Swivel Mount
406081
406385
3
2
1
406081
KEY QTY. PART NO. DESCRIPTION
1 1 403980 Brkt – Robo Mtg
2 2 406086 Brkt – Swivel Cast (JD H161618)
3 2 406087 Gasket – 1.813OD x 1.218 ID x .313
WID
4 2 400036 Scr – 1/4-20 x 3/4 HHCS ZP
5 2 400038 Washer – Lock 1/4 ZP
6 2 400035 Nut – 1/4-20 ZP
7 2 405989 Scr – 3/8-16 x 3.0 HHCS ZP Grd 5
8 2 404292 Nut – 3/8-16 Nyloc ZP
9 2 405612 GT400 Indicator (Not included in kit
406081)
406385
KEY QTY. PART NO. DESCRIPTION
1 1 404230 Ram Suction Cup with Twist Lock
2 2 403180 Assembly – 1” Ram Mount
3 2 403779 Scr - #10 x 5/8 PHSTS 48-2 Blk ZP
D3887 Universal Grain Drill Scale Mount 9
License Agreement

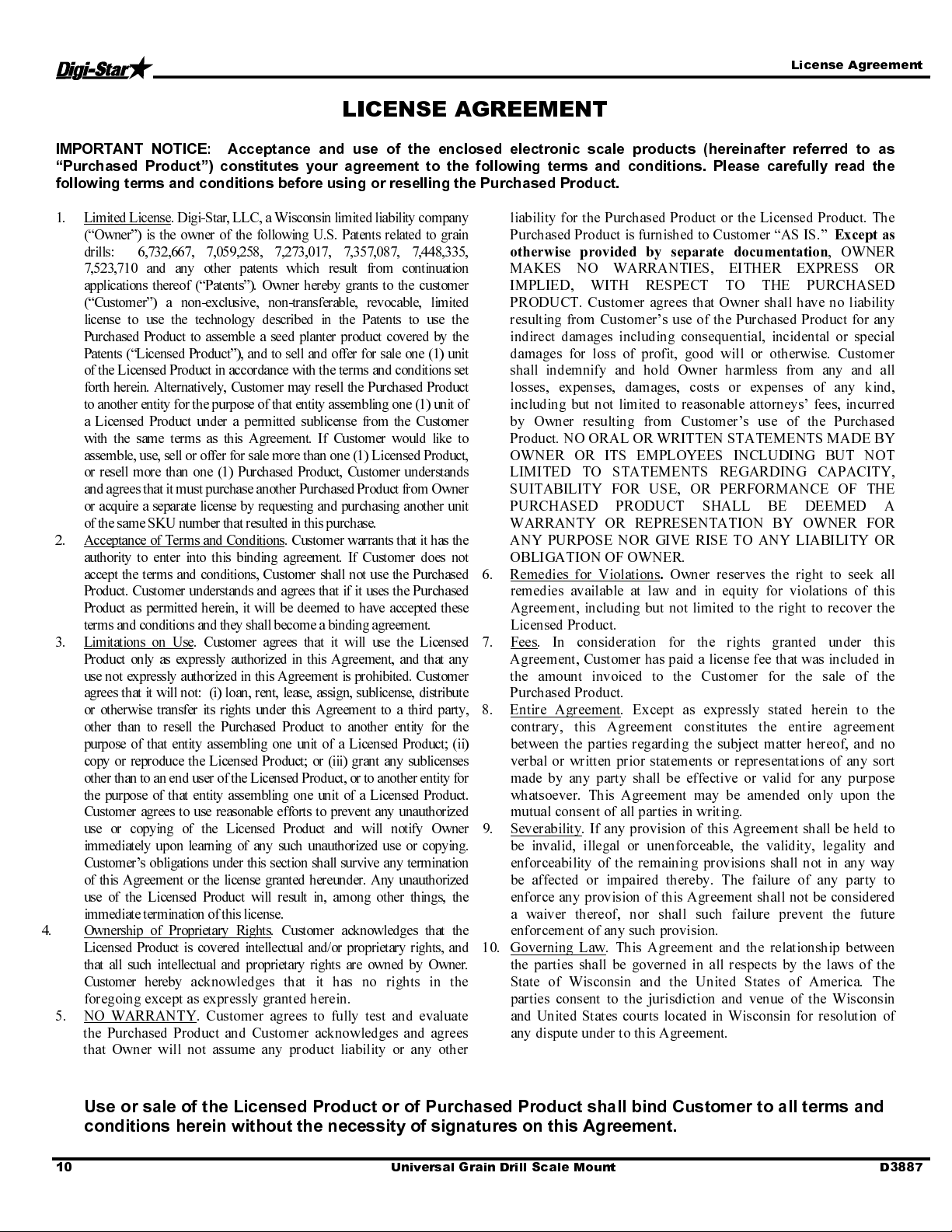

LICENSE AGREEMENT
IMPORTANT NOTICE: Acceptance and use of the enclosed electronic scale products (hereinafter referred to as
“Purchased Product”) constitutes your agreement to the following terms and conditions. Please carefully read the
following terms and conditions before using or reselling the Purchased Product.
1. Limited License
(“Owner”) is the owner of the following U. S. Patents related to grain
drills: 6,732,667, 7,059,258, 7,273,017, 7,357,087, 7,448,335,
7,523,710 and any other patents which result from continuation
applications thereof (“Patents”). Owner hereby grants to the customer
(“Customer”) a non-exclusive, non-transferable, revocable, limited
license to use the technology described in the Patents to use the
Purchased Product to ass emble a seed planter prod uct covered by the
Patents (“Licensed Product”), and to sell and offer for sale o ne (1) unit
of the Licensed Product in accordance with the terms and conditions set
forth herein. Alternatively, Customer may resell the Purchased Product
to another entity for the purpose of that entity assembling one (1) unit of
a Licensed Product under a permitted sublicense from the Customer
with the same terms as this Agreement. If Customer would like to
assemble, use, sell or offer for sale more than one (1) L icense d Pr oduc t,
or resell more than on e (1) Purchased Product, Cust omer understands
and agrees that it must purchase ano ther Purc hased Produc t from Owner
or acquire a separate license by reque sting and purcha sing another uni t
of the same SKU number that resulted in this purchase.
2. Acceptance of Terms and Conditions
authority to enter into this binding agreement. If Customer does not
accept the terms and con ditions, Custo mer shall not us e the Purchased
Product. Customer understands and agrees that if it uses the Purchased
Product as permitted herein, it will be deemed to have accepted these
terms and conditions and they shall become a binding agreement.
3. Limitations on Use
Product only as expressly authorized in this Agreement, and that any
use not expressly authorized in th is Agr ee ment is prohibi ted. Cu stom er
agrees that it will not: (i) loan, rent, lea se, as sign, sublic ense, di stribut e
or otherwise transfer its rights under this Agreement to a third party,
other than to resell the Purchased Product to another entity for the
purpose of that entity asse mbling one unit of a Licensed Pro duct; (ii)
copy or reproduce the Licensed Product; or (ii i) grant any sublicenses
other than to an end user of the Licensed Product, or to another entity for
the purpose of that entity asse mbling one unit of a Licensed Pro duct.
Customer agrees to use reasonable efforts to prevent any unauthorized
use or copying of the Licensed Product and will notify Owner
immediately upon l earning of any such unauthorized use or copying.
Customer’s obligations under thi s section sh all survive any termi nation
of this Agreement or the license granted hereunder. Any unauthorize d
use of the Licensed Product will result in, among other things, the
immediate termination of this license.
4.
Ownership of Proprietary Rights
Licensed Product is covered intellectual and/or proprietary rights, and
that all such intellectual a nd proprietary rights are owned by Owner.
Customer hereby acknowledges that it has no rights in the
foregoing except as expressly granted herein.
5. NO WARRANTY
the Purchased Product and Customer acknowledges and agree s
that Owner will not assume any product liability or any other
. Digi-Star, LLC, a Wisconsin limited liability company
. Customer warrants that it has the
. Customer agrees that it will use the Licensed
. Customer acknowledges that the
. Customer agrees to fully test and evaluate
liability for the Purchased Product or the Licensed Product. The
Purchased Product is furnished to Customer “AS IS.”
otherwise provided by separate documentation
MAKES NO WARRANTIES, EITHER EXPRESS OR
IMPLIED, WITH RESPECT TO THE PURCHASED
PRODUCT. Customer agrees that Owner shall have no liabil ity
resulting from Customer’s use of the Purchased Product for any
indirect damages including consequential, incidental or special
damages for loss of profit, good will or otherwise. Customer
shall indemnify and hold Owner harmless from any and all
losses, expenses, damages, costs or expenses of any kind,
including but not limited to reasonable attorneys’ fees, incurred
by Owner resulting from Customer’s use of the Purchased
Product. NO ORAL OR WRITTEN STATEMENTS MADE BY
OWNER OR ITS EMPLOYEES INCLUDING BUT NOT
LIMITED TO STATEMENTS REGARDING CAPACITY,
SUITABILITY FOR USE, OR PERFORMANCE OF THE
PURCHASED PRODUCT SHALL BE DEEMED A
WARRANTY OR REPRESENTATION BY OWNER FOR
ANY PURPOSE NOR GIVE RISE TO ANY LIABILITY OR
OBLIGATION OF OWNER.
.
6. Remedies for Violations
remedies available at law and in equity for violations of this
Agreement, including but not limited to the right to recover t he
Licensed Product.
7. Fees
8. Entire Agreement
9. Severability
10. Governing Law
. In consideration for the rights granted under this
Agreement, Customer has paid a license fee that was included in
the amount invoiced to the Customer for the sale of the
Purchased Product.
. Except as expressly stated herein to the
contrary, this Agreement constitutes the entire agreement
between the parties regarding the subject matter hereof, and no
verbal or written prior statements or representations of any sort
made by any party shall be effective or valid for any purpose
whatsoever. This Agreement may be amended only upon the
mutual consent of all parties in writing.
. If any provision of this Agreement shall be held to
be invalid, illegal or unenforceable, the validity, legality and
enforceability of the remaining provisions shall not in any way
be affected or impaired thereby. The failure of any party to
enforce any provision of this Agreement shall not be considered
a waiver thereof, nor shall such failure prevent the future
enforcement of any such provision.
. This Agreement and the relationship between
the parties shall be governed in all respects by the laws of t he
State of Wisconsin and the United States of America. The
parties consent to the jurisdiction and venue of the Wisconsin
and United States courts located in Wisconsin for resolution of
any dispute under to this Agreement.
Owner reserves the right to seek all
Except as
, OWNER
Use or sale of the Licensed Product or of Purchased Product shall bind Customer to all terms and
conditions herein without the necessity of signatures on this Agreement.
10 Universal Grain Drill Scale Mount D3887
Loading...
