Using this Guide

This guide provides information about the Digi ConnectCore for i.MX6 embedded core module family.

Conventions used in this guide

This table describes the typographic conventions used in this guide:

This convention Is used for

italic type monospaced type

Digi Information

Emphasis, new terms, variables, and document titles.

Filenames, pathnames, and code examples.

Document Updates

Please always check the product specific section on the Digi support website at

www.digiembedded.com/support

for the most current revision of this document.

Contact Information

For more information about your Digi products, or for customer service and technical support, contact Digi International.

To contact Digi International by Use

Digi International

Mail

World Wide Web http://www.digiembedded.com/support/

Telephone (U.S.) (952) 912-3444 or (877) 912-3444

Telephone (other locations) +1 (952) 912-3444 or (877) 912-3444

1101 Bren Road East Minnetonka, MN 55343 U.S.A.

Additional Resources

Refer to the most recent Freescale i.MX6 processor reference manual and related documentation (available on the Freescale web site at: http://www.freescale.com/imx6) for additional information.

ConnectCore for i.MX6 Hardware Reference Manual

About the ConnectCore 6

The ConnectCore 6 is an ultra-compact and highly integrated system-on-module solution based on the Freescale i.MX6 Cortex-A9 processor family.

With processor speeds up to 1.2 GHz and fully interchangeable single-/dual-/quad-core variants, the ConnectCore 6 offers a truly future-proof platform solution with scalable performance and pre-certified wireless 802.11a/b/g/n and Bluetooth 4.0, including Bluetooth Low Energy connectivity.

Its innovative and scalable design maximizes integration flexibility and significantly reduces design risk in a highly cost-effective, reliable, low-profile surface mount form factor with optimal thermal management even in the most demanding quad-core system configurations.

Seamless Cloud Connector integration as part of the Digi Linux and Android software platform support offers secure remote management and web services capabilities through the scalable Device Cloud™ by Etherios™.

In addition, Digi offers complete professional Etherios custom hardware and wireless design services as well as end-to-end solutions services for cloud integration and app development.

ConnectCore 6 Features and Functionality

The ConnectCore for i.MX6 module is based on the i.MX6 processor from Freescale. This processor offers a high number of interfaces. Most of these interfaces are multiplexed and are not available simultaneously. The module has the following features:

• i.MX6 single/dual/quad ARM Cortex-A9 cores operating at speeds up to 1.2GHz.

• 32Kbytes L1 Instruction cache

• 32Kbytes L1 Data cache

• Up to 1MB unified Instruction/Data L2 cache

• NEON MPE (Media Processing Engine) co-processor

• Graphical Hardware accelerators:

• IPU (Image Processing Unit)

• Optional VPU (Video Processing Unit)

• Optional 2D/3D GPU (Graphics Processing Unit)

• 64-bit DDR3-1066 memory interface with a density up to 2GBytes.

• 8-bit eMMC support up to revision 4.4/4.41

• Dialog DA9063 Power Management IC (PMIC)

• 6x DC/DC buck converters

• 11x LDO regulators

• RTC with rechargeable coin cell battery support

• 10-bit ADC channels

• GPIO pins

• Optional IEEE802.11a/b/g/n WLAN interface with spatial diversity support.

• SoftAP (Software Access Point) support

• Optional Bluetooth 4.0 dual mode

• Optional Cortex-M0+/Cortex-M4 MCA (Microcontroller Assist) subsystem

• Debug interfaces:

• Standard JTAG controller IEEE 1149.1

ConnectCore for i.MX6 Hardware Reference Manual

• ETM/ETB support

• Support of i.MX6 typical interfaces:

• 16/32-bit data/address bus

• SATA II, 3.0Gbps (24-bit parallel bus, LVDS, HDMI, MIPI/DSI)

• Cameras (20-bit parallel bus, MIPI/CSI)

• MMC/SD/SDIO

• 1x USB OTG with integrated PHY

• 3x USB Host

• 1x Host with integrated PHY

• 2x Host with integrated HS-IC USB PHY

• PCI Express Gen 2.0 lane

• Gigabit Ethernet MAC

• 10/100M Ethernet MAC

• UART, SPI, I2C, PWM, CAN, I2S and GPIO

• Ultra-miniature SMT module (50x50mmx5mm) based on 400-LGA pads

IEEE 802.11 a/b/g/n and Bluetooth Features and Functionality

The RF interface of the ConnectCore for i.MX6 is handled by a Qualcomm-Atheros module capable of 2.4 GHz and 5 GHz connections using 802.11 a/b/g/n and Bluetooth 4.0 (Dual mode with Blueooth Low Energy support).

The module is built with coexistence in mind and handles the BT coexistence internally. Cellular coexistence filtering is onboard to aid in designing systems susceptible to cellular interference.

Module Variants

The ConnectCore for i.MX6 module supports population options such as network interface (Wi-Fi), memory (flash, RAM), MCU-assist, processor (single, dual and quad-cores), and others.

ConnectCore for i.MX6 Hardware Reference Manual

Block Diagram of the Freescale i.MX6

The figure below shows the block diagram of the Freescale i.MX6 application processor. Not all functions are available on all processor variants.

Block diagram of the ConnectCore 6 CPU

The following figure below provides a high-level block diagram of the ConnectCore for i.MX6 module.

ConnectCore for i.MX6 Hardware Reference Manual

Block diagram of ConnectCore 6

Power Supply Architecture of the ConnectCore 6

The ConnectCore for i.MX6 provides a primary 5V power supply input. This supply is the main power domain to the on-module Dialog DA9063 power management IC (PMIC), which generates all required supply voltages for the module components as well as the carrier board.

The module provides support for a backup battery (coin-cell or super cap) powering the realtime clock (RTC) on the module. In addition, rechargeable backup batteries (ML414, others) are also supported.

The PMIC generates the following power domains that are available on the module pads:

• 3.3V (GEN_3V3)

Power domain

3.3V DC/DC +/-3% 1500mA - 1µA 1.2ms -

Regulator type

Note: The maximum current consumption mentioned above is a combination of the current

consumed by the module and by the carrier board.

Moreover, 5x PMIC LDO outputs are also available on the module pads:

Output accuracy

Maximum current

Dropout voltage (MAX)

Turn on time (MAX)

Turn off time (MAX)

Quiescent current in OFF mode (TYP)

• VLDO3

• VLDO4

• VLDO6

• VLDO7

• VLDO8

ConnectCore for i.MX6 Hardware Reference Manual

The table below provides the characteristics of the optional LDO outputs:

Turn

LDO

Output voltage

Output accuracy

Default voltage

Maximum current

Dropout voltage (MAX)

Turn on time (MAX)

off time (MAX)

VLDO3 0.9-3.44V +/-3% 3.3V 200mA 150mV 1µA 300µs 1ms

VLDO4 0.9-3.44V +/-3% 3.3V 200mA 150mV 1µA 300µs 1ms

VLDO6 0.9-3.6V +/-3% 3.3V 200mA 150mV 1µA 200µs 1ms

VLDO7 0.9-3.6V +/-3% 1.8V 200mA 150mV 1µA 300µs 1ms

VLDO8 0.9-3.6V +/-3% 3.3V 200mA 150mV 1µA 300µs 1ms

Quiescent current in OFF mode (TYP)

Note:

• For information about using the LDOs options, please contact Digi.

• VLDO3 is used for supplying MCA processor on the module.

The power management IC located on the module is responsible for generating all required i.MX6 processor supply voltages. The following i.MX6x supplies are available on the module pads:

• NVCC_ENET

• NVCC_EIM

• NVCC_LCD

• NVCC_CSI

• NVCC_RGMII

Some of the I/O supplies are set on the module. See the table following table:

Power domain Connection

NVCC_GPIO GEN_3V3

NVCC_JTAG GEN_3V3

NVCC_NANDF GEN_3V3

NVCC_SD1 GEN_3V3

NVCC_SD2 GEN_3V3

NVCC_SD3 GEN_3V3

The remaining I/O voltages must be set externally and are left open on the ConnectCore for i.MX6 module. See the following table for operating ranges of the remaining I/O supplies.

Power domain Min Type Max

NVCC_ENET 1.65V 1.8V 3.6V

NVCC_EIM 2.8V

NVCC_LCD 3.3V

NVCC_CSI -

NVCC_RGMII in HSIC 1.2V mode 1.15V - 1.30V

NVCC_RGMII in RGMII 1.5V mode 1.43V - 1.58V

NVCC_ 1.8V mode 1.70V - 1.90V

NVCC_RGMII in RGMII 2.5V mode 2.25V - 2.625V

ConnectCore for i.MX6 Hardware Reference Manual

As shown in the table above, the supplies have a wide operating range. In order to provide the most cost-effective and flexible solution for a given use-case, the supplies listed in the table need to be provided by the carrier board integrating the ConnectCore for i.MX6 module. However, PMIC power domains 3.3V - and LDO3/4/6/7/8 options - are dedicated power sources for supplying i.MX6 power domains.

The MCU - assist specific power domain (LDO3_MCA) available on the ConnectCore for i.MX6 LGA pads is a power supply output powering the on-module Kinetis processor.

The following diagram outlines the power supply approach of the ConnectCore for i.MX6. Inputs are marked red, blue marks outputs.

ConnectCore 6 power supply diagram

ConnectCore for i.MX6 Hardware Reference Manual

Bootstrap

The ConnectCore 6 is configured by default to boot in “Internal boot” mode. See the following table:

BOOT_MODE [1:0] Boot type

00 Boot from fuses

01 Serial Downloader

10 Internal Boot (default)

11 Reserved

Note:

• 10K pull-up populated on BOOT_MODE1

• 10K pull-down populated on BOOT_MODE0

By default, the boot media configured on the ConnectCore for i.MX6 module is the on-module eMMC. This is achieved by having the following resistors populated on the module:

• 10K pull-down on EIM_DA4 (BOOT_CFG1[4])

• 10K pull-up on EIM_DA5 (BOOT_CFG1[5])

• 10K pull-up on EIM_DA5 (BOOT_CFG1[6])

• 10K pull-up on EIM_DA7 (BOOT_CFG1[7]

• 10K pull-down on EIM_DA11 (BOOT_CFG2[3])

• 10K pull-up on EIM_DA12 (BOOT_CFG2[4])

When selecting “Internal Boot”, bootstrap pins shall be protected to insure a proper boot process. “Internal Boot” has the benefit that multiple boot media can be supported. For mass production, Digi recommends to use “Boot from fuses” for more security.

ConnectCore for i.MX6 Hardware Reference Manual

Module Pinout of the ConnectCore 6

The module has a LGA pad structure based on 400 pads. See the following diagram for the general layout.

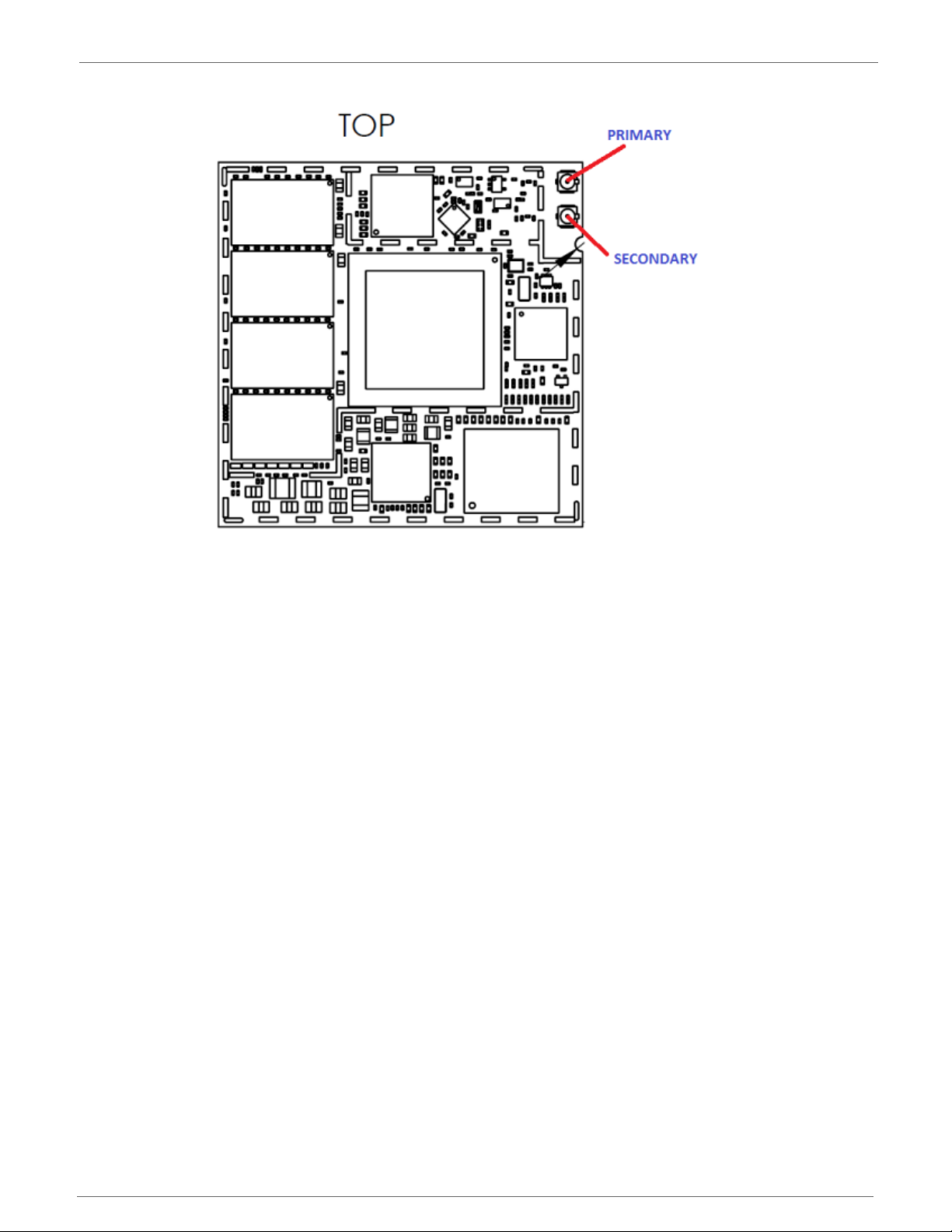

ConnectCore top view module pinout

ConnectCore for i.MX6 Hardware Reference Manual

ConnectCore 6 Pinout Information

The following table provides pinout information of the ConnectCore for i.MX6 module.

Additional timing and electrical information can be found in either Freescale i.MX6 processor datasheet (www.freescale.com) or in Dialog DA9063 product datasheet (www.dialog-

semiconductor.com).

LGA pad Pad name Multiplexing IO type Comments

ALT0: IPU1_CSI0_HSYNC ALT1: ALT2:

A5 CSI0_MCLK

A6 CSI0_DAT11

A7 CSI0_DAT17

A8 GND -

A9 HDMI_D0_N HDMI_VPH

A10 GND -

A11 CSI_CLK0_P NVCC_MIPI

A12 GND -

A13 CSI_D1_N NVCC_MIPI

A14 PCIE_RX_N PCIE_VPH

A15 PCIE_TX_N PCIE_VPH

A16 CLK2_P VDD_HIGH_CAP

A17 GND -

A18 CLK1_P VDD_HIGH_CAP

A19 MLB_DP VDD_HIGH_CAP

A20 MLB_DN VDD_HIGH_CAP

B4 LVDS0_TX2_P NVCC_LVDS_2P5

B5 GND -

ALT3: CCM_CLKO1 ALT4: ALT5: GPIO5_IO19 ALT6: ALT: ARM_TRACE_CTL

ALT0: IPU1_CSI0_DATA11 ALT1: AUD3_RXFS ALT2: ECSPI2_SS0 ALT3: UART1_RX_DATA ALT4: ALT5: GPIO5_IO29 ALT6: ALT7: ARM_TRACE08

ALT0: IPU1_CSI0_DATA17 ALT1: EIM_DATA13 ALT2: ALT3: UART4_CTS_B ALT4: ALT5: GPIO6_IO03 ALT6: ALT7: ARM_TRACE14

NVCC_CSI

Connected on module to MCA processor

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_CSI0_DATA14 ALT1: EIM_DATA10 ALT2:

B6 CSI0_DAT14

ALT3: UART5_TX_DATA ALT4:

NVCC_CSI

ALT5: GPIO6_IO00 ALT6: ALT7: ARM_TRACE11

ALT0: IPU1_CSI0_DATA04 ALT1: EIM_DATA02 ALT2: ECSPI1_SCLK

B7 CSI0_DAT4

ALT3: KEY_COL5 ALT4: AUD3_TXC

NVCC_CSI

ALT5: GPIO5_IO22 ALT6: ALT7: ARM_TRACE01

B8 HDMI_D1_N HDMI_VPH

B9 HDMI_D0_P HDMI_VPH

B10 DSI_D0_P NVCC_MIPI

B11 CSI_CLK0_N NVCC_MIPI

B12 CSI_D2_N NVCC_MIPI

B13 CSI_D1_P NVCC_MIPI

B14 PCIE_RX_P PCIE_VPH

B15 PCIE_TX_P PCIE_VPH

B16 CLK2_N VDD_HIGH_CAP

B17 GND -

B18 CLK1_N VDD_HIGH_CAP

B19 GND -

B20 GND -

ALT0: SD3_CLK ALT1: UART2_RTS_B ALT2: FLEXCAN1_RX

B21

SD3_CLK/ BT_UART_RTS

ALT3: ALT4:

NVCC_SD3 (GEN_3V3)

Connected to

Bluetooth module ALT5: GPIO7_IO03 ALT6: ALT7:

ALT0: ECSPI1_SS3

Connected to MCA

processor and PMIC.

Not recommended as

main I2C port.

4,7K pull-up on

module.

C3 KEY_COL3

ALT1: ENET_CRS ALT2: HDMI_TX_DDC_SCL ALT3: KEY_COL3 ALT4: I2C2_SCL ALT5: GPIO4_IO12 ALT6: SPDIF_IN

NVCC_GPIO (GEN_3V3)

ALT7:

C4 LVDS0_TX2_N NVCC_LVDS_2P5

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_CSI0_DATA06 ALT1: EIM_DATA04 ALT2: ECSPI1_MISO

C5 CSI0_DAT6

ALT3: KEY_COL6 ALT4: AUD3_TXFS

NVCC_CSI

ALT5: GPIO5_IO24 ALT6: ALT7: ARM_TRACE03

ALT0: IPU1_CSI0_DATA13 ALT1: EIM_DATA09 ALT2:

C6 CSI0_DAT13

ALT3: UART4_RX_DATA ALT4:

NVCC_CSI

ALT5: GPIO5_IO31 ALT6: ALT7: ARM_TRACE10

ALT0: IPU1_CSI0_DATA05 ALT1: EIM_DATA03 ALT2: ECSPI1_MOSI

C7 CSI0_DAT5

ALT3: KEY_ROW5 ALT4: AUD3_TXD

NVCC_CSI

ALT5: GPIO5_IO23 ALT6: ALT7: ARM_TRACE02

C8 HDMI_D1_P HDMI_VPH

C9 GND -

C10 DSI_D0_N NVCC_MIPI

C11 GND -

C12 CSI_D2_P NVCC_MIPI

C13 GND -

C14 GND -

C15 GND -

C16 USB_H1_DN VDD_USB_CAP

C17 TAMPER VDD_SNVS_IN

C18 Reserved -

C19 MLB_SP VDD_HIGH_CAP

C20 MLB_SN VDD_HIGH_CAP

ALT0: SD3_DATA7 ALT1: UART1_TX_DATA ALT2:

C21 SD3_DAT7

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO6_IO17 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: SD3_DATA4 ALT1: UART2_RX_DATA ALT2:

C22

SD3_DAT4/ BT_UART_RXD

ALT3: ALT4:

NVCC_SD3

(GEN_3V3)

Connected to

Bluetooth module ALT5: GPIO7_IO01 ALT6: ALT7:

ALT0: FLEXCAN2_RX ALT1: IPU1_SISG5 ALT2: USB_OTG_PWR

D2 KEY_ROW4

ALT3: KEY_ROW4 ALT4: UART5_CTS_B

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO15 ALT6: ALT7:

ALT0: ECSPI1_SS0 ALT1: ENET_COL ALT2: AUD5_RXD

D3 KEY_ROW1

ALT3: KEY_ROW1 ALT4: UART5_RX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO09 ALT6: SD2_VSELECT ALT7:

D4 GND -

ALT0: IPU1_CSI0_DATA09 ALT1: EIM_DATA07 ALT2: ECSPI2_MOSI

D5 CSI0_DAT9

ALT3: KEY_ROW7 ALT4: I2C1_SCL

NVCC_CSI

Connected on module

to MCA processor ALT5: GPIO5_IO27 ALT6: ALT7: ARM_TRACE06

ALT0: IPU1_CSI0_DATA08 ALT1: EIM_DATA06 ALT2: ECSPI2_SCLK

D6 CSI0_DAT8

ALT3: KEY_COL7 ALT4: I2C1_SDA

NVCC_CSI

Connected on module

to MCA processor ALT5: GPIO5_IO26 ALT6: ALT7: ARM_TRACE05

D7 HDMI_DDCCEC HDMI_VPH

D8 GND -

D9 DSI_D1_P NVCC_MIPI

D10 GND -

D11 CSI_D3_P NVCC_MIPI

D12 Reserved -

D13 #BT_DISABLE WLAN/BT_3V3

D14 JTAG_TDI

NVCC_JTAG (GEN_3V3)

ConnectCore for i.MX6 Hardware Reference Manual

D15 #JTAG_TRST

NVCC_JTAG (GEN_3V3)

D16 USB_H1_DP VDD_USB_CAP

D17 TEST_MODE VDD_SNVS_IN

D18 ON/OFF VDD_SNVS_IN

Must be connected to a

power button

D19 SATA_TX_N SATA_VPH

D20 GND -

ALT0: SD3_DATA1 ALT1: UART1_RTS_B ALT2: FLEXCAN2_RX

D21 SD3_DAT1

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO05 ALT6: ALT7:

ALT0: SD3_RESET ALT1: UART3_RTS_B ALT2:

D22 SD3_RST

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO08 ALT6: ALT7:

ALT0: SD3_DATA5 ALT1: UART2_TX_DATA ALT2:

D23

SD3_DAT5/ BT_UART_TXD

ALT3: ALT4:

NVCC_SD3

(GEN_3V3)

Connected to

Bluetooth module ALT5: GPIO7_IO00 ALT6: ALT7:

E1 LVDS1_CLK_N NVCC_LVDS_2P5

ALT0: ECSPI1_MOSI ALT1: ENET_TX_DATA3 ALT2: AUD5_TXD

E2 KEY_ROW0

ALT3: KEY_ROW0 ALT4: UART4_RX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO07 ALT6: DCIC2_OUT ALT7:

ALT0: ECSPI1_MISO ALT1: ENET_MDIO ALT2: AUD5_TXFS

E3 KEY_COL1

ALT3: KEY_COL1 ALT4: UART5_TX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO08 ALT6: SD1_VSELECT ALT7:

E4 LVDS0_TX1_P NVCC_LVDS_2P5

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_CSI0_DATA_EN ALT1: EIM_DATA00 ALT2:

E5 CSI0_DATA_EN

ALT3: ALT4:

NVCC_CSI

ALT5: GPIO5_IO20 ALT6: ALT7: ARM_TRACE_CLK

ALT0: IPU1_CSI0_DATA15 ALT1: EIM_DATA11 ALT2:

E6 CSI0_DAT15

ALT3: UART5_RX_DATA ALT4:

NVCC_CSI

ALT5: GPIO6_IO01 ALT6: ALT7: ARM_TRACE12

E7 GND -

E8 HDMI_CLK_N HDMI_VPH

E9 DSI_D1_N NVCC_MIPI

E10 DSI_CLK0_N NVCC_MIPI

E11 CSI_D3_N NVCC_MIPI

E12 Reserved -

E13 Reserved -

E14 JTAG_TDO

NVCC_JTAG

(GEN_3V3)

E15 Reserved -

E16 GND -

E17 BOOT_MODE0 VDD_SNVS_IN

E18 #POR VDD_SNVS_IN

E19 SATA_TX_P SATA_VPH

E20 GEN_3V3

NVCC_SD3

(GEN_3V3

ALT0: SD3_DATA6 ALT1: UART1_RX_DATA ALT2:

E21 SD3_DAT6

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO6_IO18 ALT6: ALT7:

ALT0: NAND_CLE ALT1: IPU2_SISG4 ALT2:

E22

NANDF_CLE/ BT_WAKE

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO07 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: SD3_CMD ALT1: UART2_CTS_B ALT2: FLEXCAN1_TX

E23

SD3_CMD/ BT_UART_CTS

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO02 ALT6: ALT7:

ALT0: SD3_DATA2 ALT1: ALT2:

E24 SD3_DAT2

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO06 ALT6: ALT7:

F1 LVDS1_CLK_P NVCC_LVDS_2P5

ALT0:

F2 KEY_ROW3

ALT1: ASRC_EXT_CLK ALT2: HDMI_TX_DDC_SDA ALT3: KEY_ROW3 ALT4: I2C2_SDA ALT5: GPIO4_IO13 ALT6: SD1_VSELECT

NVCC_GPIO

(GEN_3V3)

Connected to MCA processor and PMIC. Not recommended as main I2C port. 4,7K pull-up on module.

ALT7:

ALT0: ESAI_TX5_RX0 ALT1: XTALOSC_REF_CLK_32K ALT2: EPIT2_OUT

F3 GPIO_8

ALT3: FLEXCAN1_RX ALT4: UART2_RX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO08 ALT6: SPDIF_SR_CLK ALT7: USB_OTG_PWR_CTL_WAKE

F4 LVDS0_TX1_N NVCC_LVDS_2P5

F5 GND -

ALT0: IPU1_CSI0_DATA18 ALT1: EIM_DATA14 ALT2:

F6 CSI0_DAT18

ALT3: UART5_RTS_B ALT4:

NVCC_CSI

ALT5: GPIO6_IO04 ALT6: ALT7: ARM_TRACE15

F7 HDMI_D2_N HDMI_VPH

F8 HDMI_CLK_P HDMI_VPH

F9 GND -

F10 DSI_CLK0_P NVCC_MIPI

F11 GND -

F12 GND -

F13 JTAG_TCK

NVCC_JTAG

(GEN_3V3)

ConnectCore for i.MX6 Hardware Reference Manual

F14 JTAG_TMS

NVCC_JTAG

(GEN_3V3)

F15 BOOT_MODE1 VDD_SNVS_IN

F16 USB_H1_VBUS -

F17 MLB_CP -

F18 MLB_CN -

F19 GND -

ALT0: SD3_DATA0 ALT1: UART1_CTS_B ALT2: FLEXCAN2_TX

F20 SD3_DAT0

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO04 ALT6: ALT7:

ALT0: NAND_CE0_B ALT1: ALT2:

F21 NANDF_CS0

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO11 ALT6: ALT7:

ALT0: NAND_WP_B ALT1: IPU2_SISG5 ALT2:

F22 #NANDF_WP

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO09 ALT6: ALT7:

ALT0: NAND_CE3_B ALT1: IPU1_SISG1 ALT2: ESAI_TX1

F23 NANDF_CS3

ALT3: EIM_ADDR26 ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO16 ALT6: IPU2_SISG1 ALT7:

ALT0: SD3_DATA3 ALT1: UART3_CTS_B ALT2:

F24 SD3_DAT3

ALT3: ALT4:

NVCC_SD3

(GEN_3V3) ALT5: GPIO7_IO07 ALT6: ALT7:

G1 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: CCM_CLKO1 ALT1: ALT2: KEY_COL5

G2 GPIO_0

ALT3: ASRC_EXT_CLK ALT4: EPIT1_OUT

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO00 ALT6: USB_H1_PWR ALT7: SNVS_VIO_5

ALT0: ESAI_TX_FS ALT1: ALT2: KEY_ROW6

G3 GPIO_2

ALT3: ALT4:

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO02 ALT6: SD2_WP ALT7: MLB_DATA

G4 GND -

ALT0: IPU1_CSI0_PIXCLK ALT1: ALT2:

G5 CSI0_PIXCLK

ALT3: ALT4:

NVCC_CSI

ALT5: GPIO5_IO18 ALT6: ALT7: ARM_EVENTO

ALT0: IPU1_CSI0_DATA19 ALT1: EIM_DATA15 ALT2:

G6 CSI0_DAT19

ALT3: UART5_CTS_B ALT4:

NVCC_CSI

ALT5: GPIO6_IO05 ALT6: ALT7:

G7 HDMI_D2_P HDMI_VPH

G8 GND -

G9 HDMI_HPD HDMI_VPH

G10 GND -

G11 CSI_D0_P NVCC_MIPI

G12 CSI_D0_M NVCC_MIPI

G13 JTAG_MOD

NVCC_JTAG

(GEN_3V3)

G14 USB_OTG_VBUS USB_OTG_VBUS

G15 #USB_OTG_CHD VDD_USB_CAP

G16 USB_OTG_DN VDD_USB_CAP

G17 USB_OTG_DP VDD_USB_CAP

G18 GND -

G19 SATA_RX_N SATA_VPH

G20 GEN_3V3 NVCC_NANDF

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: NAND_DATA02 ALT1: SD1_DATA6 ALT2:

G21 NANDF_D2

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO02 ALT6: ALT7:

ALT0: NAND_DATA06 ALT1: SD2_DATA6 ALT2:

G22 NANDF_D6

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO06 ALT6: ALT7:

ALT0: NAND_DATA03 ALT1: SD1_DATA7 ALT2:

G23 NANDF_D3

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO03 ALT6: ALT7:

ALT0: NAND_ALE ALT1: SD4_RESET ALT2:

G24 NANDF_ALE

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO08 ALT6: ALT7:

H1 LVDS1_TX0_N NVCC_LVDS_2P5

ALT0: ECSPI1_SS2 ALT1: ENET_TX_DATA2 ALT2: FLEXCAN1_RX

H2 KEY_ROW2

ALT3: KEY_ROW2 ALT4: SD2_VSELECT

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO11 ALT6: HDMI_TX_CEC_LINE ALT7:

ALT0: ESAI_RX_FS ALT1: WDOG1_B ALT2: KEY_COL6

H3 GPIO_9

ALT3: CCM_REF_EN_B ALT4: PWM1_OUT

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO09 ALT6: SD1_WP ALT7:

H4 LVDS0_TX0_P NVCC_LVDS_2P5

H5 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_CSI0_DATA16 ALT1: EIM_DATA12 ALT2:

H6 CSI0_DAT16

ALT3: UART4_RTS_B ALT4:

NVCC_CSI

ALT5: GPIO6_IO02 ALT6: ALT7: ARM_TRACE13

H19 SATA_RX_P SATA_VPH

H20 GND -

ALT0: NAND_CE1_B ALT1: SD4_VSELECT ALT2: SD3_VSELECT

H21

NANDF_CS1/ #MCA_INT

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3)

Connected to MCA

processor ALT5: GPIO6_IO14 ALT6: ALT7:

ALT0: NAND_DATA01 ALT1: SD1_DATA5 ALT2:

H22 NANDF_D1

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO01 ALT6: ALT7:

ALT0: NAND_DATA07 ALT1: SD2_DATA7 ALT2:

H23 NANDF_D7

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO07 ALT6: ALT7:

ALT0: NAND_CE2_B ALT1: IPU1_SISG0 ALT2: ESAI_TX0

H24 NANDF_CS2

ALT3: EIM_CRE ALT4: CCM_CLKO2

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO15 ALT6: IPU2_SISG0 ALT7:

J1 LVDS1_TX0_P NVCC_LVDS_2P5

ALT0: ECSPI1_SCLK ALT1: ENET_RX_DATA3 ALT2: AUD5_TXC

J2 KEY_COL0

ALT3: KEY_COL0 ALT4: UART4_TX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO06 ALT6: DCIC1_OUT ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ESAI_TX_CLK ALT1: ALT2: I2C3_SDA

J3 GPIO_6

ALT3: ALT4:

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO06 ALT6: SD2_LCTL ALT7: MLB_SIG

J4 LVDS0_TX0_N NVCC_LVDS_2P5

ALT0: IPU1_CSI0_VSYNC ALT1: EIM_DATA01 ALT2:

J5 CSI0_VSYNC

ALT3: ALT4:

NVCC_CSI

ALT5: GPIO5_IO21 ALT6: ALT7: ARM_TRACE00

J20 GEN_3V3 NVCC_SD1

ALT0: SD1_DATA2 ALT1: ECSPI5_SS1 ALT2: GPT_COMPARE2

J21 SD1_DAT2

ALT3: PWM2_OUT ALT4: WDOG1_B

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO19 ALT6: WDOG1_RESET_B_DEB ALT7:

ALT0: SD1_DATA1 ALT1: ECSPI5_SS0 ALT2: PWM3_OUT

J22 SD1_DAT1

ALT3: GPT_CAPTURE2 ALT4:

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO17 ALT6: ALT7:

ALT0: SD1_CMD ALT1: ECSPI5_MOSI ALT2: PWM4_OUT

J23 SD1_CMD

ALT3: GPT_COMPARE1 ALT4:

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO18 ALT6: ALT7:

ALT0: NAND_DATA00 ALT1: SD1_DATA4 ALT2:

J24 NANDF_D0

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO00 ALT6: ALT7:

K1 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ECSPI1_SS1 ALT1: ENET_RX_DATA2 ALT2: FLEXCAN1_TX

K2 KEY_COL2

ALT3: KEY_COL2 ALT4: ENET_MDC

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO10 ALT6: USB_H1_PWR_CTL_WAKE ALT7:

ALT0: ESAI_RX_CLK ALT1: WDOG2_B ALT2: KEY_ROW5

K3 GPIO_1

ALT3: USB_OTG_ID ALT4: PWM2_OUT

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO01 ALT6: SD1_CD_B ALT7:

K4 GND -

ALT0: IPU1_CSI0_DATA10 ALT1: AUD3_RXC ALT2: ECSPI2_MISO

K5 CSI0_DAT10

ALT3: UART1_TX_DATA ALT4:

NVCC_CSI

ALT5: GPIO5_IO28 ALT6: ALT7: ARM_TRACE07

K20 GEN_3V3 NVCC_SD2

ALT0: SD2_DATA1 ALT1: ECSPI5_SS0 ALT2: EIM_CS2

K21 SD2_DAT1

ALT3: AUD4_TXFS ALT4: KEY_COL7

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO14 ALT6: ALT7:

ALT0: SD2_CLK ALT1: ECSPI5_SCLK ALT2: KEY_COL5

K22 SD2_CLK

ALT3: AUD4_RXFS ALT4:

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO10 ALT6: ALT7:

ALT0: SD2_DATA3 ALT1: ECSPI5_SS3 ALT2: KEY_COL6

K23 SD2_DAT3

ALT3: AUD4_TXC ALT4:

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO12 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: NAND_DATA04 ALT1: SD2_DATA4 ALT2:

K24 NANDF_D4

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO04 ALT6: ALT7:

L1 LVDS1_TX1_P NVCC_LVDS_2P5

ALT0: FLEXCAN2_TX ALT1: IPU1_SISG4 ALT2: USB_OTG_OC

L2 KEY_COL4

ALT3: KEY_COL4 ALT4: UART5_RTS_B

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO14 ALT6: ALT7:

ALT0: ESAI_TX_HF_CLK ALT1: ALT2: KEY_COL7

L3 GPIO_4

ALT3: ALT4:

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO04 ALT6: SD2_CD_B ALT7:

L4 LVDS0_CLK_P NVCC_LVDS_2P5

ALT0: IPU1_CSI0_DATA12 ALT1: EIM_DATA08 ALT2:

L5 CSI0_DAT12

ALT3: UART4_TX_DATA ALT4:

NVCC_CSI

ALT5: GPIO5_IO30 ALT6: ALT7: ARM_TRACE09

ALT0: SD1_DATA3 ALT1: ECSPI5_SS2 ALT2: GPT_COMPARE3

L20 SD1_DAT3

ALT3: PWM1_OUT ALT4: WDOG2_B

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO21 ALT6: WDOG2_RESET_B_DEB ALT7:

ALT0: SD1_CLK ALT1: ECSPI5_SCLK ALT2:

L21 SD1_CLK

ALT3: GPT_CLKIN ALT4:

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO20 ALT6: ALT7:

L22 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ADC0_SE12/CMP0_IN2

L23 MCA_SWD_CLK

ALT1: PTA0/IRQ_0/LLWU_P7 ALT2: TPM1_CH0

LDO3_MCA

ALT3: SWD_CLK

ALT0: NAND_DATA05 ALT1: SD2_DATA5 ALT2:

L24 NANDF_D5

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO2_IO05 ALT6: ALT7:

M1 LVDS1_TX1_N NVCC_LVDS_2P5

ALT0: KEY_COL5 ALT1: ENET_1588_EVENT0_OUT ALT2: SPDIF_OUT

M2 GPIO_19

ALT3: CCM_CLKO1 ALT4: ECSPI1_RDY

NVCC_GPIO

(GEN_3V3) ALT5: GPIO4_IO05 ALT6: ENET_TX_ER ALT7:

ALT0: ESAI_TX3_RX2 ALT1: ENET_1588_EVENT2_IN ALT2: ENET_REF_CLK

M3 GPIO_16

ALT3: SD1_LCTL ALT4: SPDIF_IN

NVCC_GPIO

(GEN_3V3) ALT5: GPIO7_IO11 ALT6: I2C3_SDA ALT7: JTAG_DE_B

M4 LVDS0_CLK_N NVCC_LVDS_2P5

ALT0: IPU1_CSI0_DATA07 ALT1: EIM_DATA05 ALT2: ECSPI1_SS0

M5 CSI0_DAT7

ALT3: KEY_ROW6 ALT4: AUD3_RXD

NVCC_CSI

ALT5: GPIO5_IO25 ALT6: ALT7: ARM_TRACE04

ALT0: SD2_CMD ALT1: ECSPI5_MOSI ALT2: KEY_ROW5

M20 SD2_CMD

ALT3: AUD4_RXC ALT4:

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO11 ALT6: ALT7:

ALT0:

M21 MCA_IO12

ALT1: PTB3/IRQ_14 ALT2: I2C0_SCL

LDO3_MCA

ALT3: UART0_TX

M22 LDO3_MCA LDO3_MCA

ConnectCore for i.MX6 Hardware Reference Manual

ALT0:

M23 MCA_SWD_DIO

ALT1: PTA2 ALT2: CMP0_OUT

LDO3_MCA

ALT3: SWD_DIO

ALT0: NAND_READY ALT1: IPU2_DI0_PIN01 ALT2:

M24 NANDF_RB0

ALT3: ALT4:

NVCC_NANDF

(GEN_3V3) ALT5: GPIO6_IO10 ALT6: ALT7:

N1 GND -

ALT0: ESAI_TX1 ALT1: ENET_RX_CLK ALT2: SD3_VSELECT

N2 GPIO_18

ALT3: SDMA_EXT_EVENT1 ALT4: ASRC_EXT_CLK

NVCC_GPIO

(GEN_3V3) ALT5: GPIO7_IO13 ALT6: SNVS_VIO_5_CTL ALT7:

N3 VCC_LICELL VCC_LICELL

N4 GND -

N5 GEN_3V3 NVCC_GPIO

ALT0: ADC0_SE11

N20 MCA_IO/USB0_P

ALT1: PTB8 ALT2: TPM0_CH3

ALT3:

LDO3_MCA

ALT0:

N21 MCA_IO13

ALT1: PTB4/IRQ_15/LLWU_P6 ALT2: I2C0_SDA

LDO3_MCA

ALT3: UART0_RX

ALT0: ADC0_SE0/CMP0_IN0 ALT1: PTA12/IRQ_17/

N22 MCA_IO7

LPTMR0_ALT2

LDO3_MCA ALT2: TPM1_CH0 ALT3: TPM_CLKIN0

ALT0:

N23 #MCA_RESET

ALT1: PTA1/IRQ_1/LPTMR0_ALT1 ALT2: TPM_CLKIN0

LDO3_MCA

ALT3: RESET_b

ALT0: SD1_DATA0 ALT1: ECSPI5_MISO ALT2:

N24 SD1_DAT0

ALT3: GPT_CAPTURE1 ALT4:

NVCC_SD1

(GEN_3V3) ALT5: GPIO1_IO16 ALT6: ALT7:

P1 LVDS1_TX2_N NVCC_LVDS_2P5

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ENET_RX_EN ALT1: ESAI_TX_CLK ALT2: SPDIF_EXT_CLK

P2 ENET_CRS_DV

ALT3: ALT4:

NVCC_ENET

ALT5: GPIO1_IO25 ALT6: ALT7:

ALT0: ESAI_TX4_RX1 ALT1: ECSPI5_RDY ALT2: EPIT1_OUT

P3 GPIO_7

ALT3: FLEXCAN1_TX ALT4: UART2_TX_DATA

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO07 ALT6: SPDIF_LOCK ALT7: USB_OTG_HOST_MODE

P4 LVDS0_TX3_P NVCC_LVDS_2P5

P5 NVCC_CSI NVCC_CSI

ALT0: ADC0_SE10

P20 MCA_IO/USB0_N

ALT1: PTB9 ALT2: TPM0_CH2

ALT3:

LDO3_MCA

ALT0: ADC0_SE1/CMP0_IN1

P21 MCA_IO14

ALT1: PTB5/IRQ_16 ALT2: TPM1_CH1

LDO3_MCA

ALT3: NMI_b

ALT0: TSI0_IN9

P22 MCA_IO8

ALT1: PTA13 ALT2:

ALT3:

LDO3_MCA

ALT0:

P23 MCA_IO1

ALT1: PTA6/LLWU_P2 ALT2: TPM0_CH4

LDO3_MCA

ALT3: SPI0_MISO

ALT0: SD2_DATA0 ALT1: ECSPI5_MISO ALT2:

P24 SD2_DAT0

ALT3: AUD4_RXD ALT4: KEY_ROW7

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO15 ALT6: DCIC2_OUT ALT7:

R1 LVDS1_TX2_P NVCC_LVDS_2P5

ALT0: USB_OTG_ID ALT1: ENET_RX_ER ALT2: ESAI_RX_HF_CLK

R2 ENET_RX_ER

ALT3: SPDIF_IN ALT4: ENET_1588_EVENT2_OUT

NVCC_ENET

ALT5: GPIO1_IO24 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ESAI_TX2_RX3 ALT1: ALT2: KEY_ROW7

R3 GPIO_5

ALT3: CCM_CLKO1 ALT4:

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO05 ALT6: I2C3_SCL ALT7: ARM_EVENTI

R4 LVDS0_TX3_N NVCC_LVDS_2P5

R5 NVCC_RGMII NVCC_RGMII

ALT0: ADC0_SE9/TSI0_IN7

R20 MCA_IO19

ALT1: PTB10 ALT2: TPM0_CH1

LDO3_MCA

ALT3:

ALT0:

R21 MCA_IO16

ALT1: PTB7/IRQ_3 ALT2: TPM0_CH2

ALT3:

LDO3_MCA

ALT0: ADC0_SE6/TSI0_IN4

R22 MCA_IO9

ALT1: PTB0/IRQ_8/LLWU_P4 ALT2: EXTRG_IN

LDO3_MCA

ALT3: SPI0_SCK

ALT0: ADC0_SE7/TSI0_IN5

R23 MCA_IO2

ALT1: PTA7/IRQ_7/LLWU_P3 ALT2: SPI0_MISO

LDO3_MCA

ALT3: SPI0_MOSI

ALT0: SD2_DATA2 ALT1: ECSPI5_SS1 ALT2: EIM_CS3

R24 SD2_DAT2

ALT3: AUD4_TXD ALT4: KEY_ROW6

NVCC_SD2

(GEN_3V3) ALT5: GPIO1_IO13 ALT6: ALT7:

T1 GND -

T2 GND -

ALT0: ESAI_RX_HF_CLK ALT1: ALT2: I2C3_SCL

T3 GPIO_3

ALT3: XTALOSC_REF_CLK_24M ALT4: CCM_CLKO2

NVCC_GPIO

(GEN_3V3) ALT5: GPIO1_IO03 ALT6: USB_H1_OC ALT7: MLB_CLK

T4 GND -

T5 GND -

ALT0: ADC0_SE8/TSI0_IN6

T20 MCA_IO24

ALT1: PTB11 ALT2: TPM0_CH0

LDO3_MCA

ALT3:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: ADC0_SE13

T21 MCA_IO22

ALT1: PTB13 ALT2: TPM1_CH1

LDO3_MCA

ALT3: RTC_CLKOUT

ALT0: ADC0_SE5/TSI0_IN3/ DAC0_OUT/CMP0_IN3

T22 MCA_IO10

ALT1: PTB1/IRQ_9

LDO3_MCA ALT2: UART0_TX ALT3: UART0_RX

ALT0:

T23 MCA_IO0

ALT1: PTA5/LLWU_P1/RTC_CLK_IN ALT2: TPM0_CH5

LDO3_MCA

ALT3: SPI0_SS_b

ALT0: ADC0_SE3/TSI0_IN1

T24 MCA_IO3

ALT1: PTA8 ALT2:

ALT3:

LDO3_MCA

U1 LVDS1_TX3_N NVCC_LVDS_2P5

ALT0: ALT1: ENET_TX_DATA0 ALT2: ESAI_TX4_RX1

U2 ENET_TXD0

ALT3: ALT4:

NVCC_ENET

ALT5: GPIO1_IO30 ALT6: ALT7:

U3 GND -

ALT0: USB_H2_DATA ALT1: RGMII_TXC ALT2: SPDIF_EXT_CLK

U4 RGMII_TXC

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO19 ALT6: ALT7: XTALOSC_REF_CLK_24M

ALT0: HSI_TX_READY ALT1: RGMII_TD0 ALT2:

U5 RGMII_TD0

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO20 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA21 ALT1: IPU2_DISP0_DATA21 ALT2: ECSPI1_MOSI

U6 DISP0_DAT21

ALT3: AUD4_TXD ALT4:

NVCC_LCD

ALT5: GPIO5_IO15 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DA03 ALT1: IPU1_DISP1_DATA06 ALT2: IPU2_CSI1_DATA06

U19 EIM_DA3

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO03 ALT6: ALT7: SRC_BOOT_CFG03

ALT0: EIM_AD00 ALT1: IPU1_DISP1_DATA09 ALT2: IPU2_CSI1_DATA09

U20 EIM_DA0

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO00 ALT6: ALT7: SRC_BOOT_CFG00

ALT0: EIM_LBA ALT1: IPU1_DI1_PIN17 ALT2: ECSPI2_SS1

U21 EIM_LBA

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO27 ALT6: ALT7: SRC_BOOT_CFG26

ALT0: ADC0_SE4/TSI0_IN2

U22 MCA_IO11

ALT1: PTB2/IRQ_10/LLWU_P5 ALT2: UART0_RX

LDO3_MCA

ALT3: UART0_TX

ALT0: EIM_AD06 ALT1: IPU1_DISP1_DATA03 ALT2: IPU2_CSI1_DATA03

U23 EIM_DA6

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO06 ALT6: ALT7: SRC_BOOT_CFG06

ALT0: ADC0_SE2/TSI0_IN0

U24 MCA_IO4

ALT1: PTA9 ALT2:

ALT3:

LDO3_MCA

V1 LVDS1_TX3_P NVCC_LVDS_2P5

ALT0: MLB_CLK ALT1: ENET_TX_DATA1 ALT2: ESAI_TX2_RX3

V2 ENET_TXD1

ALT3: ALT4: ENET_1588_EVENT0_IN

NVCC_ENET

ALT5: GPIO1_IO29 ALT6: ALT7:

V3 NVCC_ENET NVCC_ENET

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: USB_H3_DATA ALT1: RGMII_RX_CTL ALT2:

V4 RGMII_RX_CTL

ALT3: ALT4: ALT5: GPIO6_IO24 ALT6: ALT7:

ALT0: HSI_RX_FLAG ALT1: RGMII_TD1 ALT2:

V5 RGMII_TD1

ALT3: ALT4: ALT5: GPIO6_IO21 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA16 ALT1: IPU2_DISP0_DATA16 ALT2: ECSPI2_MOSI

V6 DISP0_DAT16

ALT3: AUD5_TXC ALT4: SDMA_EXT_EVENT0 ALT5: GPIO5_IO10 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA22 ALT1: IPU2_DISP0_DATA22 ALT2: ECSPI1_MISO

V7 DISP0_DAT22

ALT3: AUD4_TXFS ALT4: ALT5: GPIO5_IO16 ALT6: ALT7:

ALT0: IPU1_DI0_PIN03 ALT1: IPU2_DI0_PIN03 ALT2: AUD6_TXFS

V8 DI0_PIN3

ALT3: ALT4: ALT5: GPIO4_IO19 ALT6: ALT7:

ALT0: IPU1_DI0_DISP_CLK ALT1: IPU2_DI0_DISP_CLK ALT2:

V9 DI0_DISP_CLK

ALT3: ALT4: ALT5: GPIO4_IO16 ALT6: ALT7:

NVCC_RGMII

NVCC_LCD

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DI0_PIN15 ALT1: IPU2_DI0_PIN15 ALT2: AUD6_TXC

V10 DI0_PIN15

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO17 ALT6: ALT7:

V11 VSYS VSYS

V12 PMIC_GPIO11 - PMIC

V13 PMIC_GPIO15 - PMIC

V14 CHG_WAKE - PMIC

ALT0: EIM_OE ALT1: IPU1_DI1_PIN07 ALT2: ECSPI2_MISO

V15 EIM_OE

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO25 ALT6: ALT7:

ALT0: EIM_EB1 ALT1: IPU1_DISP1_DATA10 ALT2: IPU2_CSI1_DATA10

V16 EIM_EB1

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO29 ALT6: ALT7: SRC_BOOT_CFG28

ALT0: EIM_DATA17 ALT1: ECSPI1_MISO ALT2: IPU1_DI0_PIN06

V17 EIM_D17

ALT3: IPU2_CSI1_PIXCLK ALT4: DCIC1_OUT

NVCC_EIM

ALT5: GPIO3_IO17 ALT6: I2C3_SCL ALT7:

ALT0: EIM_DA11 ALT1: IPU1_DI1_PIN02 ALT2: IPU2_CSI1_HSYNC

V18 EIM_DA11

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO11 ALT6: ALT7: SRC_BOOT_CFG11

ALT0: EIM_DA9 ALT1: IPU1_DISP1_DATA00 ALT2: IPU2_CSI1_DATA00

V19 EIM_DA9

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO09 ALT6: ALT7: SRC_BOOT_CFG09

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DA13 ALT1: IPU1_DI1_D0_CS ALT2:

V20 EIM_DA13

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO13 ALT6: ALT7: SRC_BOOT_CFG13

ALT0: EIM_DA10 ALT1: IPU1_DI1_PIN15 ALT2: IPU2_CSI1_DATA_EN

V21 EIM_DA10

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO10 ALT6: ALT7: SRC_BOOT_CFG10

ALT0: EIM_DA12 ALT1: IPU1_DI1_PIN03 ALT2: IPU2_CSI1_VSYNC

V22 EIM_DA12

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO12 ALT6: ALT7: SRC_BOOT_CFG12

V23 GND -

ALT0: EIM_DA02 ALT1: IPU1_DISP1_DATA07 ALT2: IPU2_CSI1_DATA07

V24 EIM_DA2

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO02 ALT6: ALT7: SRC_BOOT_CFG02

W1 GND -

W2 GND -

ALT0: MLB_DATA ALT1: ENET_MDC ALT2: ESAI_TX5_RX0

W3 ENET_MDC

ALT3: ALT4: ENET_1588_EVENT1_IN

NVCC_ENET

ALT5: GPIO1_IO31 ALT6: ALT7:

ALT0: USB_H2_STROBE ALT1: RGMII_TX_CTL ALT2:

W4 RGMII_TX_CTL

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO26 ALT6: ALT7: ENET_REF_CLK

W5 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA20 ALT1: IPU2_DISP0_DATA20 ALT2: ECSPI1_SCLK

W6 DISP0_DAT20

ALT3: AUD4_TXC ALT4:

NVCC_LCD

ALT5: GPIO5_IO14 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA15 ALT1: IPU2_DISP0_DATA15 ALT2: ECSPI1_SS1

W7 DISP0_DAT15

ALT3: ECSPI2_SS1 ALT4:

NVCC_LCD

ALT5: GPIO5_IO09 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA13 ALT1: IPU2_DISP0_DATA13 ALT2:

W8 DISP0_DAT13

ALT3: AUD5_RXFS ALT4:

NVCC_LCD

ALT5: GPIO5_IO07 ALT6: ALT7:

W9 GND -

ALT0: IPU1_DI0_PIN02 ALT1: IPU2_DI0_PIN02 ALT2: AUD6_TXD

W10 DI0_PIN2

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO18 ALT6: ALT7:

W11 VSYS VSYS

W12 VSYS VSYS

W13 PMIC_PWR_EN - PMIC

W14 GND -

ALT0: EIM_RW ALT1: IPU1_DI1_PIN08 ALT2: ECSPI2_SS0

W15 EIM_RW

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO26 ALT6: ALT7: SRC_BOOT_CFG29

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DATA29 ALT1: IPU1_DI1_PIN15 ALT2: ECSPI4_SS0

W16 EIM_D29

ALT3: ALT4: UART2_RTS_B

NVCC_EIM

ALT5: GPIO3_IO29 ALT6: IPU2_CSI1_VSYNC ALT7: IPU1_DI0_PIN14

W17 GND -

ALT0: EIM_ADDR25 ALT1: ECSPI4_SS1 ALT2: ECSPI2_RDY

W18 EIM_A25

ALT3: IPU1_DI1_PIN12 ALT4: IPU1_DI0_D1_CS

NVCC_EIM

ALT5: GPIO5_IO02 ALT6: HDMI_TX_CEC_LINE ALT7:

ALT0: EIM_DATA20 ALT1: ECSPI4_SS0 ALT2: IPU1_DI0_PIN16

W19 EIM_D20

ALT3: IPU2_CSI1_DATA15 ALT4: UART1_RTS_B

NVCC_EIM

ALT5: GPIO3_IO20 ALT6: EPIT2_OUT ALT7:

ALT0: EIM_DATA24 ALT1: ECSPI4_SS2 ALT2: UART3_TX_DATA

W20 EIM_D24

ALT3: ECSPI1_SS2 ALT4: ECSPI2_SS2

NVCC_EIM

ALT5: GPIO3_IO24 ALT6: AUD5_RXFS ALT7: UART1_DTR_B

ALT0: EIM_DA14 ALT1: IPU1_DI1_D1_CS ALT2:

W21 EIM_DA14

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO14 ALT6: ALT7: SRC_BOOT_CFG14

ALT0: EIM_DA8 ALT1: IPU1_DISP1_DATA01 ALT2: IPU2_CSI1_DATA01

W22 EIM_DA8

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO08 ALT6: ALT7: SRC_BOOT_CFG08

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DA1 ALT1: IPU1_DISP1_DATA08 ALT2: IPU2_CSI1_DATA08

W23 EIM_DA1

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO01 ALT6: ALT7: SRC_BOOT_CFG01

ALT0: EIM_DA4 ALT1: IPU1_DISP1_DATA05 ALT2: IPU2_CSI1_DATA05

W24 EIM_DA4

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO04 ALT6: ALT7: SRC_BOOT_CFG04

ALT0: ALT1: ENET_TX_CLK ALT2: ESAI_RX_FS

Y1 ENET_REF_CLK

ALT3: ALT4:

NVCC_ENET

ALT5: GPIO1_IO23 ALT6: SPDIF_SR_CLK ALT7:

ALT0: ALT1: ENET_RX_DATA0 ALT2: ESAI_TX_HF_CLK

Y2 ENET_RXD0

ALT3: SPDIF_OUT ALT4:

NVCC_ENET

ALT5: GPIO1_IO27 ALT6: ALT7:

ALT0: ALT1: ENET_MDIO ALT2: ESAI_RX_CLK

Y3 ENET_MDIO

ALT3: ALT4: ENET_1588_EVENT1_OUT

NVCC_ENET

ALT5: GPIO1_IO22 ALT6: SPDIF_LOCK ALT7:

Y4 GND -

ALT0: HSI_RX_DATA ALT1: RGMII_TD2 ALT2:

Y5 RGMII_TD2

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO22 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA19 ALT1: IPU2_DISP0_DATA19 ALT2: ECSPI2_SCLK

Y6 DISP0_DAT19

ALT3: AUD5_RXD ALT4: AUD4_RXC

NVCC_LCD

ALT5: GPIO5_IO13 ALT6: ALT7: EIM_CS3

ALT0: IPU1_DISP0_DATA11 ALT1: IPU2_DISP0_DATA11 ALT2:

Y7 DISP0_DAT11

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO5_IO05 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA10 ALT1: IPU2_DISP0_DATA10 ALT2:

Y8 DISP0_DAT10

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO31 ALT6: ALT7:

Y9 NVCC_LCD NVCC_LCD

Y10 PMIC_GPIO14 -

Y11 GND -

Y12 GND -

Y13 NVCC_EIM NVCC_EIM

ALT0: EIM_EB0 ALT1: IPU1_DISP1_DATA11 ALT2: IPU2_CSI1_DATA11

Y14 EIM_EB0

ALT3: ALT4: CCM_PMIC_READY

NVCC_EIM

ALT5: GPIO2_IO28 ALT6: ALT7: SRC_BOOT_CFG27

ALT0: EIM_DATA30 ALT1: IPU1_DISP1_DATA21 ALT2: IPU1_DI0_PIN11

Y15 EIM_D30

ALT3: IPU1_CSI0_DATA03 ALT4: UART3_CTS_B

NVCC_EIM

ALT5: GPIO3_IO30 ALT6: USB_H1_OC ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DATA21 ALT1: ECSPI4_SCLK ALT2: IPU1_DI0_PIN17

Y16 EIM_D21

ALT3: IPU2_CSI1_DATA11 ALT4: USB_OTG_OC

NVCC_EIM

ALT5: GPIO3_IO21 ALT6: I2C1_SCL ALT7: SPDIF_IN

ALT0: EIM_DATA19 ALT1: ECSPI1_SS1 ALT2: IPU1_DI0_PIN08

Y17 EIM_D19

ALT3: IPU2_CSI1_DATA16 ALT4: UART1_CTS_B

NVCC_EIM

ALT5: GPIO3_IO19 ALT6: EPIT1_OUT ALT7:

ALT0: EIM_DATA22 ALT1: ECSPI4_MISO ALT2: IPU1_DI0_PIN01

Y18 EIM_D22

ALT3: IPU2_CSI1_DATA10 ALT4: USB_OTG_PWR

NVCC_EIM

ALT5: GPIO3_IO22 ALT6: SPDIF_OUT ALT7:

Y19 GND -

ALT0: EIM_DA15 ALT1: IPU1_DI1_PIN01 ALT2: IPU1_DI1_PIN04

Y20 EIM_DA15

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO15 ALT6: ALT7: SRC_BOOT_CFG15

ALT0: EIM_DA7 ALT1: IPU1_DISP1_DATA02 ALT2: IPU2_CSI1_DATA02

Y21 EIM_DA7

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO07 ALT6: ALT7: SRC_BOOT_CFG07

Y22 MCA_IO27 LDO3_MCA

Y23 MCA_IO23 LDO3_MCA

ALT0: EIM_EB2 ALT1: ECSPI1_SS0 ALT2:

Y24 EIM_EB2

ALT3: IPU2_CSI1_DATA19 ALT4: HDMI_TX_DDC_SCL

NVCC_EIM

ALT5: GPIO2_IO30 ALT6: I2C2_SCL ALT7: SRC_BOOT_CFG30

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: MLB_SIG ALT1: ENET_RX_DATA1 ALT2: ESAI_TX_FS

AA2 ENET_RXD1

ALT3: ALT4: ENET_1588_EVENT3_OUT ALT5: GPIO1_IO26 ALT6: ALT7:

ALT0: ALT1: ENET_TX_EN ALT2: ESAI_TX3_RX2

AA3 ENET_TX_EN

ALT3: ALT4: ALT5: GPIO1_IO28 ALT6: ALT7:

ALT0: HSI_RX_READY ALT1: RGMII_RD0 ALT2:

AA4 RGMII_RD0

ALT3: ALT4: ALT5: GPIO6_IO25 ALT6: ALT7:

ALT0: HSI_RX_WAKE ALT1: RGMII_TD3 ALT2:

AA5 RGMII_TD3

ALT3: ALT4: ALT5: GPIO6_IO23 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA23 ALT1: IPU2_DISP0_DATA23 ALT2: ECSPI1_SS0

AA6 DISP0_DAT23

ALT3: AUD4_RXD ALT4: ALT5: GPIO5_IO17 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA12 ALT1: IPU2_DISP0_DATA12 ALT2:

AA7 DISP0_DAT12

ALT3: ALT4: ALT5: GPIO5_IO06 ALT6: ALT7:

NVCC_ENET

NVCC_RGMII

NVCC_LCD

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA08 ALT1: IPU2_DISP0_DATA08 ALT2: PWM1_OUT

AA8 DISP0_DAT8

ALT3: WDOG1_B ALT4:

NVCC_LCD

ALT5: GPIO4_IO29 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA04 ALT1: IPU2_DISP0_DATA04 ALT2: ECSPI3_SS1

AA9 DISP0_DAT4

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO25 ALT6: ALT7:

AA10 VLDO6 VLDO6

AA11 VLDO7 VLDO7

AA12 GEN_3V3 GEN_3V3

ALT0: EIM_WAIT ALT1: EIM_DTACK_B ALT2:

AA13 EIM_WAIT

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO5_IO00 ALT6: ALT7: SRC_BOOT_CFG25

ALT0: EIM_ADDR23 ALT1: IPU1_DISP1_DATA18 ALT2: IPU2_CSI1_DATA18

AA14 EIM_A23

ALT3: IPU2_SISG3 ALT4: IPU1_SISG3

NVCC_EIM

ALT5: GPIO6_IO06 ALT6: ALT7: SRC_BOOT_CFG23

ALT0: EIM_DATA31 ALT1: IPU1_DISP1_DATA20 ALT2: IPU1_DI0_PIN12

AA15 EIM_D31

ALT3: IPU1_CSI0_DATA02 ALT4: UART3_RTS_B

NVCC_EIM

ALT5: GPIO3_IO31 ALT6: USB_H1_PWR ALT7:

AA16 GND -

ALT0: EIM_DATA25 ALT1: ECSPI4_SS3 ALT2: UART3_RX_DATA

AA17 EIM_D25

ALT3: ECSPI1_SS3 ALT4: ECSPI2_SS3

NVCC_EIM

ALT5: GPIO3_IO25 ALT6: AUD5_RXC ALT7: UART1_DSR_B

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_EB3 ALT1: ECSPI4_RDY ALT2: UART3_RTS_B

AA18 EIM_EB3

ALT3: UART1_RI_B ALT4: IPU2_CSI1_HSYNC

NVCC_EIM

ALT5: GPIO2_IO31 ALT6: IPU1_DI1_PIN03 ALT7: SRC_BOOT_CFG31

ALT0: EIM_DA5 ALT1: IPU1_DISP1_DATA04 ALT2: IPU2_CSI1_DATA04

AA19 EIM_DA5

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO3_IO05 ALT6: ALT7: SRC_BOOT_CFG05

AA20 MCA_IO21 LDO3_MCA

AA21 MCA_IO26 LDO3_MCA

AA22 MCA_IO25 LDO3_MCA

AA23

MCA_IO6/ PMIC_GP_FB2

LDO3_MCA

ALT0: HSI_TX_FLAG ALT1: RGMII_RD1 ALT2:

AB3 RGMII_RD1

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO27 ALT6: ALT7:

AB4 GND -

ALT0: IPU1_DISP0_DATA17 ALT1: IPU2_DISP0_DATA17 ALT2: ECSPI2_MISO

AB5 DISP0_DAT17

ALT3: AUD5_TXD ALT4: SDMA_EXT_EVENT1

NVCC_LCD

ALT5: GPIO5_IO11 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA09 ALT1: IPU2_DISP0_DATA09 ALT2: PWM2_OUT

AB6 DISP0_DAT9

ALT3: WDOG2_B ALT4:

NVCC_LCD

ALT5: GPIO4_IO30 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA06 ALT1: IPU2_DISP0_DATA06 ALT2: ECSPI3_SS3

AB7 DISP0_DAT6

ALT3: AUD6_RXC ALT4:

NVCC_LCD

ALT5: GPIO4_IO27 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA03 ALT1: IPU2_DISP0_DATA03 ALT2: ECSPI3_SS0

AB8 DISP0_DAT3

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO24 ALT6: ALT7:

AB9 PMIC_GPIO7 - PMIC

AB10 GND -

AB11 Reserved -

ALT0: EIM_BCLK ALT1: IPU1_DI1_PIN16 ALT2:

AB12 EIM_BCLK

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO6_IO31 ALT6: ALT7:

ALT0: EIM_CS0 ALT1: IPU1_DI1_PIN05 ALT2: ECSPI2_SCLK

AB13 EIM_CS0

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO23 ALT6: ALT7:

AB14

PMIC_ADCIN1/ GPIO0

-PMIC

ALT0: EIM_ADDR18 ALT1: IPU1_DISP1_DATA13 ALT2: IPU2_CSI1_DATA13

AB15 EIM_A18

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO20 ALT6: ALT7: SRC_BOOT_CFG18

ALT0: EIM_ADDR20 ALT1: IPU1_DISP1_DATA15 ALT2: IPU2_CSI1_DATA15

AB16 EIM_A20

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO18 ALT6: ALT7: SRC_BOOT_CFG20

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DATA28 ALT1: I2C1_SDA ALT2: ECSPI4_MOSI

AB17 EIM_D28

ALT3: IPU2_CSI1_DATA12 ALT4: UART2_CTS_B

NVCC_EIM

ALT5: GPIO3_IO28 ALT6: IPU1_EXT_TRIG ALT7: IPU1_DI0_PIN13

ALT0: EIM_DATA18 ALT1: ECSPI1_MOSI ALT2: IPU1_DI0_PIN07

AB18 EIM_D18

ALT3: IPU2_CSI1_DATA17 ALT4: IPU1_DI1_D0_CS

NVCC_EIM

ALT5: GPIO3_IO18 ALT6: I2C3_SDA ALT7:

AB19 PMIC_PWR1_EN

AB20

#PMIC_VDD_FAUL T

AB21 GND -

AB22 #PMIC_OFF

ALT0: HSI_TX_DATA ALT1: RGMII_RD2 ALT2:

AC4 RGMII_RD2

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO28 ALT6: ALT7:

ALT0: HSI_TX_WAKE ALT1: RGMII_RD3 ALT2:

AC5 RGMII_RD3

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO29 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA14 ALT1: IPU2_DISP0_DATA14 ALT2:

AC6 DISP0_DAT14

ALT3: AUD5_RXC ALT4:

NVCC_LCD

ALT5: GPIO5_IO08 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA07 ALT1: IPU2_DISP0_DATA07 ALT2: ECSPI3_RDY

AC7 DISP0_DAT7

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO28 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA00 ALT1: IPU2_DISP0_DATA00 ALT2: ECSPI3_SCLK

AC8 DISP0_DAT0

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO21 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA01 ALT1: IPU2_DISP0_DATA01 ALT2: ECSPI3_MOSI

AC9 DISP0_DAT1

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO22 ALT6: ALT7:

AC10 MCA_VREFH -

AC11 Reserved -

AC12 GND -

AC13 GND -

AC14

PMIC_ADCIN2/ GPIO1

-PMIC

ALT0: EIM_CS1 ALT1: IPU1_DI1_PIN06 ALT2: ECSPI2_MOSI

AC15 EIM_CS1

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO24 ALT6: ALT7:

ALT0: EIM_ADDR21 ALT1: IPU1_DISP1_DATA16 ALT2: IPU2_CSI1_DATA16

AC16 EIM_A21

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO17 ALT6: ALT7: SRC_BOOT_CFG21

ALT0: EIM_ADDR17 ALT1: IPU1_DISP1_DATA12 ALT2: IPU2_CSI1_DATA12

AC17 EIM_A17

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO21 ALT6: ALT7: SRC_BOOT_CFG17

AC18 GND -

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_ADDR22 ALT1: IPU1_DISP1_DATA17 ALT2: IPU2_CSI1_DATA17

AC19 EIM_A22

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO16 ALT6: ALT7: SRC_BOOT_CFG22

ALT0: EIM_DATA23 ALT1: IPU1_DI0_D0_CS ALT2: UART3_CTS_B

AC20 EIM_D23

ALT3: UART1_DCD_B ALT4: IPU2_CSI1_DATA_EN

NVCC_EIM

ALT5: GPIO3_IO23 ALT6: IPU1_DI1_PIN02 ALT7: IPU1_DI1_PIN14

AC21 MCA_IO28 LDO3_MCA

ALT0: USB_H3_STROBE ALT1: RGMII_RXC ALT2:

AD5 RGMII_RXC

ALT3: ALT4:

NVCC_RGMII

ALT5: GPIO6_IO30 ALT6: ALT7:

ALT0: IPU1_DISP0_DATA18 ALT1: IPU2_DISP0_DATA18 ALT2: ECSPI2_SS0

AD6 DISP0_DAT18

ALT3: AUD5_TXFS ALT4: AUD4_RXFS

NVCC_LCD

ALT5: GPIO5_IO12 ALT6: ALT7: EIM_CS2

ALT0: IPU1_DISP0_DATA05 ALT1: IPU2_DISP0_DATA05 ALT2: ECSPI3_SS2

AD7 DISP0_DAT5

ALT3: AUD6_RXFS ALT4:

NVCC_LCD

ALT5: GPIO4_IO26 ALT6: ALT7:

ALT0: IPU1_DI0_PIN04 ALT1: IPU2_DI0_PIN04 ALT2: AUD6_RXD

AD8 DI0_PIN4

ALT3: SD1_WP ALT4:

NVCC_LCD

ALT5: GPIO4_IO20 ALT6: ALT7:

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: IPU1_DISP0_DATA02 ALT1: IPU2_DISP0_DATA02 ALT2: ECSPI3_MISO

AD9 DISP0_DAT2

ALT3: ALT4:

NVCC_LCD

ALT5: GPIO4_IO23 ALT6: ALT7:

AD10 VLDO4 -

AD11 VLDO8 -

AD12 PMIC_GP_FB3 - PMIC

AD13

AD14

PMIC_GP_FB1/ GPIO13

PMIC_ADCIN3/ GPIO2

-PMIC

ALT0: EIM_ADDR16 ALT1: IPU1_DI1_DISP_CLK ALT2: IPU2_CSI1_PIXCLK

AD15 EIM_A16

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO22 ALT6: ALT7: SRC_BOOT_CFG16

ALT0: EIM_ADDR19 ALT1: IPU1_DISP1_DATA14 ALT2: IPU2_CSI1_DATA14

AD16 EIM_A19

ALT3: ALT4:

NVCC_EIM

ALT5: GPIO2_IO19 ALT6: ALT7: SRC_BOOT_CFG19

ALT0: EIM_ADDR24 ALT1: IPU1_DISP1_DATA19 ALT2: IPU2_CSI1_DATA19

AD17 EIM_A24

ALT3: IPU2_SISG2 ALT4: IPU1_SISG2

NVCC_EIM

ALT5: GPIO5_IO04 ALT6: ALT7: SRC_BOOT_CFG24

ALT0: EIM_DATA27 ALT1: IPU1_DI1_PIN13 ALT2: IPU1_CSI0_DATA00

AD18 EIM_D27

ALT3: IPU2_CSI1_DATA13 ALT4: UART2_RX_DATA

NVCC_EIM

ALT5: GPIO3_IO27 ALT6: IPU1_SISG3 ALT7: IPU1_DISP1_DATA23

ConnectCore for i.MX6 Hardware Reference Manual

ALT0: EIM_DATA26 ALT1: IPU1_DI1_PIN11 ALT2: IPU1_CSI0_DATA01

AD19 EIM_D26

AD20 EIM_D16

ALT3: IPU2_CSI1_DATA14 ALT4: UART2_TX_DATA ALT5: GPIO3_IO26 ALT6: IPU1_SISG2 ALT7: IPU1_DISP1_DATA22

ALT0: EIM_DATA16 ALT1: ECSPI1_SCLK ALT2: IPU1_DI0_PIN05 ALT3: IPU2_CSI1_DATA18 ALT4: HDMI_TX_DDC_SDA ALT5: GPIO3_IO16 ALT6: I2C2_SDA ALT7:

Signal Usage Limitations

The following signals available on ConnectCore for i.MX6 pads have a limited usage:

NVCC_EIM

• SD1_CLK (pad L21), SD1_CMD (pad J23), SD1_DAT[3:0] (pads L20, J21, J22 and N24) are only available externally on modules which don't have Wi-Fi populated.

• SD3_DAT4/BT_UART_RXD (pad C22), SD3_DAT5/BT_UART_TXD (pad D23), SD3_CLK/ BT_UART_RTS (pad B21), SD3_CMD/BT_UART_CTS (pad E23) are only available externally on modules which don't have Bluetooth populated.

• NANDF_CLE/BT_WAKE (pad E22) is only available externally on modules which don't have Bluetooth populated.

• I2C2_SCL/KEY_COL3 (pad C3) and I2C2_SDA/KEY_ROW3 (pad F2) are used on the module as I2C signals connected to the PMIC and MCA processor. Using these signals externally should be done with caution, since it could prevent the module from working properly. It is recommended that you use another I2C port for connecting external devices to the ConnectCore i.MX6 module in order to avoid excessive bus load.

• NANDF_CS1/#MCA_INT (pad H21), CSI0_DAT11/ECSPI2_SS0 (pad A6), CSI0_DAT8/ ECSPI2_SCLK (pad D6), CSI0_DAT10/ECSPI2_MISO (pad K5) and CSI0_DAT9/ECSPI2_MOSI (pad D5) are connected to MCA processor. #MCA_INT is a signal reserved as interrupt between MCA processor and i.MX6 processor. The other signals are a SPI bus shared between i.MX6 and MCA processor. The usage and availability of these signals is depending on the firmware running in the MCA processor.

• ON/OFF (pad D18) signal is connected to PMIC and MCA.

• #POR (pad E18) is connected to PMIC and i.MX6 processor.

ConnectCore for i.MX6 Hardware Reference Manual

Module Specifications

Mechanical specifications

Note that all dimensions are in millimeters.

ConnectCore 6 module weight is 27 grams.

ConnectCore for i.MX6 Hardware Reference Manual

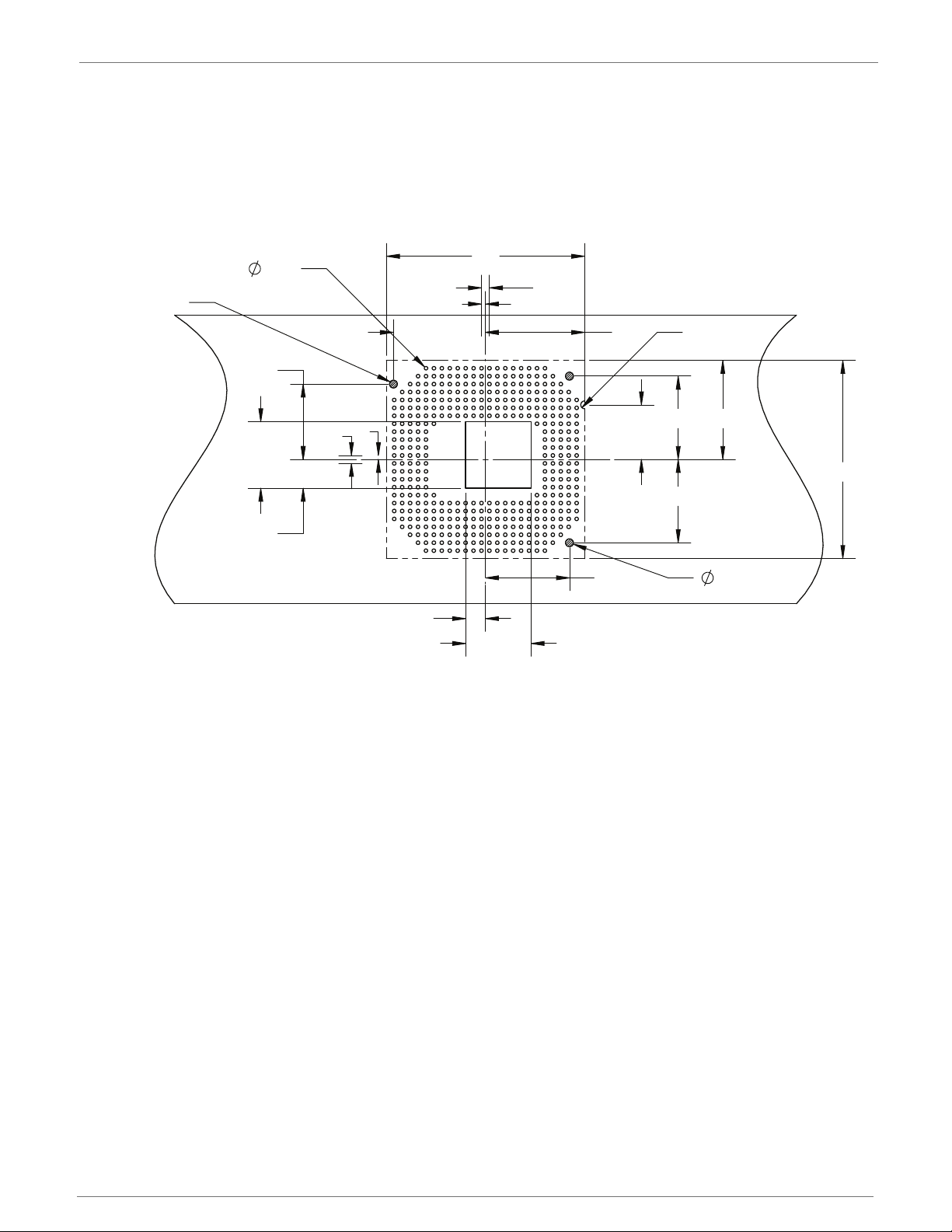

16.50

16.75

7.25

13.75

0.89

21.20

23.20

NON ROUTING AREA

(3X)

There must be a recess in the host PCB to accommodate the components on the bottom side of the SOM.

All dimensions are in millimeters.

For additional information, see Digi Application Note #31-31-14-x on the Digi technical support website.

Host PCB Footprint

Note: Minimum thickness of the host board shall be 2mm.

ConnectCore for i.MX6 Hardware Reference Manual

Specifications for the ConnectCore 6

Environmental Specifications

The Freescale i.MX6 thermal specification is based on maximum junction temperature (Tj) of the specific application processor variant used. In order to support thermal management assistance through software, the Freescale i.MX6 processor has a built-in junction temperature sensor/ monitor.

The table below outlines the three temperature related operational threshold modes with severity related recovery actions as defined in software.

Mode Temperature (Tj) Recovery Action

Critical

Hot

Active

Linux - Android Users

> Max Tj - 5

> Max Tj - 15

< Max Tj - 25

• Automatic system reboot to protect  i.MX6 from damage

• i.MX6 core and GPU frequencies are reduced

• Additional actions may be initiated depending on actual system implementation

• Limitations applied in Hot mode are removed again

At any time, the processor junction temperature can be measured by entering the following shell command:

cat /sys/class/thermal/thermal_zone0/temp

Note: Depending on the operating system, the junction temperature is displayed in milli °C

or °C.

The ConnectCore 6 multichip module was designed to provide customers with unique options to simplify and support the implementation of thermal management approaches in their designs, as needed:

• The ConnectCore 6 offers a fully shielded design (including internal thermal compounds) with optimized heat transfer and heat spreading for specific internal components (processor and PMIC). It is ideally suited for more efficient heat dissipation by providing a single, uniform surface for thermal management via enclosures, heat sinks or other means.

• The surface mount design of the ConnectCore 6 allows for additional dissipation of heat through the carrier board it is mounted on.

Evaluation of the ConnectCore 6 thermal performance has successfully demonstrated that the ambient operating temperatures specified can be support by the module. However, actual ambient operating temperature performance may vary and is highly dependent on the specific use-case, such as, enclosure design, system design, i.MX6 processor variant, GPU/VPU activity,

ConnectCore for i.MX6 Hardware Reference Manual

on-module peripherals used.Your specific system design and application may require additional thermal management such as passive (heatsink/-spreader) or active (airflow) cooling at elevated temperatures.

ConnectCore 6 Variant

Industrial

Commercial

Please note that ambient operating temperature ratings are highly dependent on the specific use-case, e.g. enclosure design, system design, i.MX6 processor variant, GPU/VPU activity, peripherals used. Your specific system design and application may require additional thermal management such as passive (heatsink/-spreader) or active (airflow) cooling.

Ambient Operating Temperature

-40 to 85

0 to 70

C -40 to 125oC

Please contact Digi if you need information and/or guidance related to thermal management in your specific application.

Moisture Sensitivity and Shelf Life

1 The ConnectCore for i.MX6 module is classified as a Level 3 Moisture Sensitive Device in

accordance with IPC/JEDEC J-STD-020.

2 Calculated shelf life in sealed packaging: 12 months at <40°C and <90% relative humidity

(RH).

3 Environmental condition during production: 30°C /60% RH according to IPC/JEDEC J-STD -

033A, paragraph 5.

4 Maximum time between opening of the sealed packaging and reflow process must not exceed

168 hours, based on condition b), IPC/JEDEC J-STD -033A, paragraph 5.2. 5 Baking is required, if conditions b) or c) do not apply. See above. 6 Baking is required, if the packaging humidity indicator indicates 10% RH or higher. 7 If baking is required, bake modules in trays 4-6 hours at 125°C; maximum stacking height is

10 trays.

Storage Temperature

Mounting

The ConnectCore 6 module has been designed with easy integration into existing SMT processes in mind. Guidance for mounting the module on your carrier board is given in this section of the document.

The ConnectCore 6 modules are not sealed and therefore they should not be subjected to a wash cycle or similar treatment where condensation could occur. Contact Digi International for additional guidance to discuss conformal coating approaches and options, if needed.

Solder Paste

The following solder paste type has been approved for mounting the module on a carrier board:

• SAC305 (Lead-free: Alpha OM-340 Type 4 or equivalent)

ConnectCore for i.MX6 Hardware Reference Manual

Solder Paste Print

The following solder paste printing parameters are recommended:

• Stencil Thickness: 0.15 mm/5 mil

• Stencil Diameter: One to one of Pad diameter (to +20% of pad)

• Paste alignment: 20% off the pad max (offset <20% pad diameter)

Stencil

The recommendation is to use a laser cut and/or electro-formed stencil for placing the ConnectCore 6 module. Based on the actual coplanarity characteristics of your carrier board, adjustments may be required to determine the optimal solder paste volume.

It is also recommended to perform an X-ray analysis of the initial production run of your assembly with the ConnectCore 6. Please contact Digi for additional support.

Coplanarity

The coplanarity measured on the ConnectCore for 6 is <0.003" bow and twist (98% confidence interval). It is important that the carrier board is also coplanar. If the carrier board is thinner than the ConnectCore 6 it is recommended that the assembly be supported during the reflow process, i.e. reflow fixture should be used to minimize the potential bow of the carrier card.

Bow and twist measurements have been done with SmartScope Flash 500 equipment which has a Z accuracy up to (2.0 + 8L/1000) µm.

SMT Pick and Place

• Placement Nozzle: Large is available on the machine

• Nozzle Pick Surface: Center of Shield on i.MX6 SOM

• Placement Speed: Slowest speed for the machine

• Placement alignment: 10% of pad diameter (compensating for module weight and supporting

alignment). The module should be placed last as part of the assembly/mounting process to

eliminate unexpected shifting.

SMT Process Parameter Reference

Process SMT process Specification recommendations

Solder paste

Leaded: Indium NC-SMQ92J / Lead-free: Alpha OM-340

Screen print

Stencil thickness 0.15mm / 5 mil

Stencil diameter 1.47mm / 58mil

Paster alignment 25% off the pad (offset <0.25* diameter

ConnectCore for i.MX6 Hardware Reference Manual

Placement nozzle 0>15mm vacuum

Nozzle Pick Surface PnP cap center

PnP

Reflow

Speed Slowest speed for the machine

Placement Sequence Place the SoM last

Placement Alignment 50% off the pad (offset <.5* diameter)

Belt speed 0.6-1.1 m/sec

Refer to SMT profile recommendation in the next page

Reflow Profile Using Seven Zone Oven, SAC 305Lead-Free Solder Paste (Alpha OM-340)

Time Above Liquidous (TAL) is recommended to be between 56 to 63 seconds. Use of 40AWG K-type thermal couple and M.O.L.E or equivalent thermal profiler is recommended. The first recommended thermal probe location is on the outer row of pads, to be on the out most row of pins preferably a ground pad. The second thermal probe location is on the inner row of pads preferably a signal pad.

The following image shows the reflow profile based on a seven zone convection oven.

The reflow profile shown above is valid for the combination solder paste/reflow machine and Digi reference carrier board. Optimization of a reflow profile will depend on the selected solder paste/ reflow machine (reflow or vapor phase) and carrier board design.

The ConnectCore i.MX6 is approved to withstand a maximum of six reflow cycles. Two reflow cycles are required for manufacturing the ConnectCore i.MX6 SOM. Digi strongly recommends to solder the ConnectCore i.MX6 module during the last reflow cycles of the carrier board manufacturing process.

ConnectCore for i.MX6 Hardware Reference Manual

Network Interface

WLAN Standard:

• IEEE 802.11a/b/g/n standards

• HT20, and HT40 IEEE 802.11n

Frequency Band:

• 2.40-2.50 GHz (low band)

• 5.18-5.825 GHz (High band)

Data Rates:

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11a/g: 6, 9, 12, 18, 24, 35, 48, 54 Mbps

• 802.11n HT20 FGI: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps

• 802.11n HT20 HGI: 7.2, 14.4, 21.7, 29.9, 43.3, 57.8, 65, 72.2 Mbps

• 802.11n HT40 FGI (5GHz only): 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

• 802.11n HT40 HGI (5GHz only): 15, 30, 45, 60, 90, 120, 135, 150 Mbps

Antenna ports:

ConnectCore for i.MX6 module variants supporting both Bluetooth and WLAN are populated with one single antenna port covering both 2.4 and 5GHz frequencies.

Module variants supporting only WLAN provide additionally antenna diversity feature. Two antenna ports supporting the same transmit and receive signals are populated on the product. The software running on the ConnectCore SOM switches from one antenna port to the other depending on the RSSI (Receive Signal Strength Indication) of the received beacon, which guarantees that the antenna with the best signal is always used and thus improve the quality and reliability of the wireless link. The interval between comparisons of RSSI values on the two antennas is by default 10 seconds, but can be configured in software. Furthermore, when the RSSI measured is too low, the software will automatically switch to the other antenna regardless of the 10 second interval. Hence, antenna diversity is an option and it is absolutely safe to mount only one antenna in the system, connected for instance to the primary antenna port.

ConnectCore for i.MX6 Hardware Reference Manual

The picture below shows the location of the primary and secondary antennas.

Note: Modules with Bluetooth capabilities will not support spatial diversity.

Modulation

Mode

802.11b 1 DBPSK 802.11g 6 BPSK 802.11a 6 BPSK

Data rate

2 DQPSK 9 BPSK 9 BPSK

5.5 CCK 12 QPSK 12 QPSK

11 CCK 18 QPSK 18 QSPK

Modulation Mode

Mode MCS Modulation Data rate

Data rate

24 16-QAM 24 16-QAM

35 16-QAM 35 16-QAM

48 64-QAM 48 64-QAM

54 64-QAM 54 64-QAM

Modulation Mode

Data rate

Modulation

802.11n

MCS0 BPSK 6.5 7.2 13.5 15

MCS1 QPSK 13 14.4 27 30

HT20 (2.4 GHz and 5GHz) HT40 (5GHz only)

FGI HGI FGI HGI

ConnectCore for i.MX6 Hardware Reference Manual

MCS2 QPSK 19.5 21.7 40.5 45

MCS3 16-QAM 26 29.9 54 60

MCS4 16-QAM 39 43.3 81 90

MCS5 64-QAM 52 57.8 108 120

MCS6 64-QAM 58.5 65 121.5 135

MCS7 64-QAM 65 72.2 135 150

Security/Interoperability

• WPA-PSK

• WPA-Enterprise

• WPA2-Personal

• WPA2-Enterprise

• Wi-Fi Direct

• Soft AP

• WAPI (optional, China)

• Cisco CCXv4 ASD certification ready (optional)

• Wi-Fi Alliance Logo certification ready

The listed capabilities are dependent on software platform in use. Refer to the corresponding software platform documentation for additional information.

Please contact Digi if your end product requires a Wi-Fi Alliance Logo and/or Cisco CCX certification.

Frequency Bands

US, Canada

• 2.412 to 2.462 GHz; 11 channels

• 5.180 to 5.320 GHz; 8 channels

• 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.650 GHz)

• 5.745 to 5.825 GHz; 5 channels

Europe

• 2.412 to 2.472 GHz; 13 channels

• 5.180 to 5.320 GHz; 8 channels

• 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)

Australia, New Zealand

• 2.412 to 2.462 GHz; 11 channels

• 5.180 to 5.320 GHz; 8 channels

• 5.745 to 5.825 GHz; 5 channels

ConnectCore for i.MX6 Hardware Reference Manual

Japan

• 2.412 to 2.472 GHz; 13 channels

• 5.180 to 5.320 GHz; 8 channels

• 5.500 to 5.700 GHz; 11 channels

Ad-Hoc Mode Channels

• 2.4GHz Band - Channels 10 and 11

• 5GHz Band US, Australia, New Zealand - Channels 36, 40, 44, 45, 149, 157, 161, and 165

Channels 36, 40, 44, and 45 are for indoor use only

• 5GHz Band Europe and Japan - per 802.11d

5GHz HT20 and HT40 channel available:

Channel number Frequency (MHz) Mode Secondary channel allowed

36 5180 HT40 PLUS

38 5190 HT20

40 5200 HT40 MINUS

44 5220 HT40 PLUS

46 5230 HT20

48 5240 HT40 MINUS

52 5260 HT40 PLUS

54 5270 HT20

56 5280 HT40 MINUS

60 5300 HT40 PLUS

62 5310 HT20

64 5320 HT40 MINUS

100 5500 HT40 PLUS

102 5510 HT20

104 5520 HT40 MINUS

108 5540 HT40 PLUS

110 5550 HT20

112 5560 HT40 MINUS

116 5580 HT40 PLUS

118 5590 HT20

120 5600 HT40 MINUS

124 5620 HT40 PLUS

126 5630 HT20

128 5640 HT40 MINUS

132 5660 HT40 PLUS

134 5670 HT20

136 5680 HT40 MINUS

ConnectCore for i.MX6 Hardware Reference Manual

140 5700 HT20

159 5745 HT40 PLUS

151 5755 HT20

153 5765 HT40 MINUS

157 5785 HT40 PLUS

159 5795 HT20

161 5805 HT40 MINUS

165 5825 HT20

Receive Sensitivity

Network type Sensitivity

802.11b -88 dBm

802.11g -88 dBm

802.11n (2.4GHz) -89 dBm

802.11a -90 dBm

802.11n (5GHz, HT20) -90 dBm

802.11n (5GHz, HT40) -86 dBm

Transmit Power

Network type Transmit power

802.11b 10.5 dBm

802.11g/n 11 dBm

802.11a/n 13 dBm

Bluetooth

• Bluetooth 3.0 + HS (BT3.0 + HS)

• Bluetooth 4.0 (BT4.0)

• Class 1.5 Bluetooth with integrated TX/RX switch

Electrical Characteristics

Voltage supplies

Parameter Min Typ Max Unit

5V supply 4.2 5 5.5 V

VCC_LICELL 2.0 3.0 TBD V

LDO3_MCA 1.71 3.3 3.6 V

ConnectCore for i.MX6 Hardware Reference Manual

Note: No specific ESD protection components have been implemented on the ConnectCore

for i.MX6 module. ESD protection level on the module’s I/Os is the same as what is specified

in the freescale datasheet. Any required ESD protection must be implemented on the carrier

board.

Power Consumption

The following image displays the current consumption of the ConnectCore for i.MX6 module when booting respectively through U-Boot, Linux kernel and Android user space.

Power consumption of the ConnectCore 6

On this graph, we see current peaks above 1.5A. For additional margin, the recommendation is to design a power supply solution for ConnectCore 6 SOM which is able to source up to 2A.

See below some power consumption use cases:

Use case Description

Android 4.2.2

Power Off

Deep Sleep Mode

(DSM) -

Suspend to RAM

For going into power off mode, press power button for > 4 seconds. Android needs a confirmation that you want to go in power off mode.

Android 4.2.2

For going into DSM mode, press power button for 2

seconds.

Power consumption

5VDC – 15mA

5VDC - 41mA

ConnectCore for i.MX6 Hardware Reference Manual

Use case Description

Android 4.2.2:

- No WiFi

- No Bluetooth

Idle Mode

Idle Mode - no USB

Idle Mode with WiFi

- No Ethernet (Gigabit Ethernet PHY on SBC is disabled)

- HDMI display (standard PC display)

- USB mouse

- Console port

Android 4.2.2:

- No WiFi

- No Bluetooth

- No Ethernet (Gigabit Ethernet PHY on SBC is disabled)

- HDMI display (standard PC display)

- USB mouse disconnected

- Console port

Android 4.2.2:

- WiFi

- No Bluetooth

- No Ethernet (Gigabit Ethernet PHY on SBC is disabled)

- HDMI display (standard PC display)

- USB mouse

- Console port

Power consumption

5VDC - 435mA

5VDC - 375mA

5VDC - 455mA

Idle Mode with Ethernet

Idle Mode with Ethernet (frequency reduced to 396MHz)

Playing 1080p video on HDMI

Android 4.2.2:

- No WiFi

- No Bluetooth

- Ethernet

- HDMI display (standard PC display)

- USB mouse

- Console port

Android 4.2.2:

- No WiFi

- No Bluetooth

- Ethernet

- HDMI display (standard PC display)

- USB mouse

- Console port

- CPU frequency reduced to 396MHz

Android 4.2.2 up and running:

- No WiFi

- No Bluetooth

- No Ethernet (Gigabit Ethernet PHY on SBC is disabled)

- HDMI display (standard PC display)

- USB mouse

- Console port

- Cactus Player playing big_buck_bunny_1080p_h264.mov

5VDC - 620mA

5VDC - 585mA

5VDC - 700mA

Note: All measurements above have been made on ConnectCore 6 SBC (Single Board

Computer) supporting a Quad-Core 1.2GHz i.MX6 processor.

ConnectCore for i.MX6 Hardware Reference Manual

Certifications

Agency Certifications

United States FCC

The ConnectCore™ for i.MX6 Module complies with Part 15 of the FCC rules and regulations. Compliance with the labeling requirements, FCC notices and antenna usage guidelines is required. To fulfill FCC Certification, the OEM must comply with the following regulations:

• The system integrator must ensure that the text on top side of the module is placed on the

outside of the final product.

• ConnectCore™ for i.MX6 Module may only be used with antennas approved [refer to the

antenna tables in this section].

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC

labeling requirements are met. This includes a clearly visible label on the outside of the final product enclosure that displays the contents shown in the figure below. Required FCC Label for OEM products containing the ConnectCore™ for i.MX6 Module.

For WiFi/Bluetooth variant:

For WiFi only variant:

FCC Notices

Contains FCC ID: MCQ-CCIMX6B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept ant interference received, including interference that may cause undesired operation.

Contains FCC ID: MCQ-CCIMX6

IMPORTANT: The ConnectCore™ for i.MX6 module has been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Modifications not expressly approved by Digi could void the user's authority to operate the equipment.

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section

15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules.

ConnectCore for i.MX6 Hardware Reference Manual

IMPORTANT: The ConnectCore™ for i.MX6 module has been certified for remote and base radio applications. If the module will be used for portable applications, the device must undergo SAR testing. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect equipment and receiver to outlets on different circuits, or Consult the dealer or an experienced radio/TV technician for help.

FCC-Approved Antennas

The ConnectCore™ for i.MX6 can be installed utilizing antennas and cables constructed with nonstandard connectors (RPSMA, RPTNC, and so on).

The modules are FCC approved for fixed base station and mobile applications for the channels indicated in the tables below. If the antenna is mounted at least 20cm (8 in.) from nearby persons, the application is considered a mobile application. Antennas not listed in the table must be tested to comply with FCC Section 15.203 (Unique Antenna Connectors) and Section 15.247 (Emissions).

The antennas in the tables below have been approved for use with this module. Digi does not carry all of these antenna variants. Contact Digi Sales for available antennas.

Antennas Approved for Use with the ConnectCore™ for i.MX6 Wi-Fi Modules

Omni- directional antennas

Part number Type (description) Peak Gain 2.4 GHz Peak Gain 5 GHz

Digi International A24-HASM-450

Linx Technologies Inc ANT-DB1-RAF-RPS

Yageo ANTX100P001B24003

Ethertronics 1001932 2.4 - 5GHz PCB antenna 1.5-2.5dBi 3-5dBi

Note: If using the RF module in a portable application (for example - if the module is used

in a hand-held device and the antenna is less than 20cm from the human body when the

device is in operation): The integrator is responsible for passing additional SAR (Specific

Absorption Rate) testing based on FCC rule 2.1093 and FCC Guidelines for Human Exposure

to Radio Frequency Electromagnetic Fields, OET Bulletin and Supplement C. The testing

results will be submitted to the FCC for approval prior to selling the integrated unit. The

required SAR testing measures emissions from the module and how they affect the person.

Dipole (articulated RPSMA,

2.4GHz antenna) Dipole (articulated RPSMA,

2.4GHz and 5GHz antenna)

2.4GHz PCB antenna

1.8dBi

2.5dBi 4.6dBi

4dBi (@2.4GHz)

4.4dBi (@2.45GHz)

4.1dBi (@2.5GHz)

ConnectCore for i.MX6 Hardware Reference Manual

RF Exposure

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices,

a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. The preceding statement must be included as a CAUTION statement in OEM product manuals in order to alert users of FCC RF Exposure compliance.

Europe (ETSI)

The ConnectCore™ for i.MX6 Module has been certified for use in several European countries. For a complete list, refer to www.digi.com

If the ConnectCore™ for i.MX6 module is incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized EMC and low-voltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive.

Furthermore, the manufacturer must maintain a copy of the ConnectCore™ for i.MX6 Hardware Reference manual documentation and ensure the final product does not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user manual. If any of these specifications are exceeded in the final product, a submission must be made to a notified body for compliance testing to all required standards.

OEM Labeling Requirements

The CE marking must be affixed to a visible location on the OEM product.

CE Labeling Requirements

The CE mark shall consist of the initials CE taking the following form:

• If the CE marking is reduced or enlarged, the proportions given in the above graduated

drawing must be respected.

• The CE marking must have a height of at least 5mm except where this is not possible on

account of the nature of the apparatus.

• The CE marking must be affixed visibly, legibly, and indelibly.

ConnectCore for i.MX6 Hardware Reference Manual

Declarations of Conformity

Digi has issued Declarations of Conformity for the ConnectCore™ for i.MX6 module concerning emissions, EMC and safety. Files can be obtained by contacting Digi Support.

Note: Digi does not list the entire set of standards that must be met for each country. Digi

customers assume full responsibility for learning and meeting the required guidelines for each

country in their distribution market.

Approved Antennas

The same antennas have been approved for Europe as stated in the FCC table for use with the ConnectCore™ for i.MX6 module.

Canada (IC)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on the outside of the final product enclosure must display the following text:

For WiFi/Bluetooth variant:

Contains Model for ConnectCore i.MX6 WiFi/Bluetooth radio, IC: 1846ACCIMX6B

For WiFi only variant:

Contains Model ConnectCore for i.MX6 Radio, IC: 1846A-CCIMX6

The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003.

Transmitters with Detachable Antennas

This radio transmitter (IC: 1846A-CCIMX6 / IC: 1846A-CCIMX6B) has been approved by Industry Canada to operate with the antenna types listed in the table above with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

ConnectCore for i.MX6 Hardware Reference Manual

Le présent émetteur radio (IC: 1846A-CCIMX6 / IC: 1846A-CCIMX6B) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

Japan

この製品は、周波数帯域 5.15 ~ 5.35 GHz で動作しているときは、屋内においてのみ使⽤可能です。

This device has been granted a designation number by Ministry of Internal Affairs and Communications according to:

Ordinance concerning Technical Regulations Conformity Certification etc. of Specified Radio Equipment (

• Article 2 clause 1 item 19 Approval n°: TBD

• Article 2 clause 1 item 19 (2) Approval n°: TBD

• Article 2 clause 1 item 19 (3) Approval n°: TBD

• Article 2 clause 1 item 19 (3) (2) Approval n°: TBD

This device should not be modified (otherwise the granted designation number will be invalid).

特定無線設備の技術基準適合証明等に関する規則 ).

Digi CCIMX6B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Using this Guide

Conventions used in this guide

Digi Information

Document Updates

Contact Information

Additional Resources

About the ConnectCore 6

ConnectCore 6 Features and Functionality

IEEE 802.11 a/b/g/n and Bluetooth Features and Functionality

Module Variants

Block Diagram of the Freescale i.MX6

Power Supply Architecture of the ConnectCore 6

Bootstrap

Module Pinout of the ConnectCore 6

ConnectCore 6 Pinout Information

Signal Usage Limitations

Module Specifications

Mechanical specifications

Specifications for the ConnectCore 6

Environmental Specifications

Moisture Sensitivity and Shelf Life

Mounting

Solder Paste

Solder Paste Print

Stencil

Coplanarity

SMT Pick and Place

SMT Process Parameter Reference

Reflow Profile Using Seven Zone Oven, SAC 305Lead-Free Solder Paste (Alpha OM-340)

Network Interface

WLAN Standard:

Frequency Band:

Data Rates:

Antenna ports:

Modulation

Security/Interoperability

Frequency Bands

US, Canada

Europe

Australia, New Zealand

Japan

Ad-Hoc Mode Channels

5GHz HT20 and HT40 channel available:

Receive Sensitivity

Transmit Power

Bluetooth

Electrical Characteristics

Voltage supplies

Power Consumption

Certifications

Agency Certifications

United States FCC

FCC Notices

FCC-Approved Antennas

Antennas Approved for Use with the ConnectCore™ for i.MX6 Wi-Fi Modules

RF Exposure

Europe (ETSI)

OEM Labeling Requirements

CE Labeling Requirements

Declarations of Conformity

Approved Antennas

Canada (IC)

Labeling Requirements

Transmitters with Detachable Antennas

Japan
