1. 9XTend RS-232/422/485 RF Modem

The 9XTend RF Modem affords OEMs and integrators an easy-to-use RF solution that sustains reliable delivery of data between remote devices.

Out-of-box, the modem is configured to immediately sustain long range wireless links between devices. Simply feed serial data into one modem, then the data will surface on the other end of the wireless link. The modem transfers a standard asynchronous serial data stream between devices.

1.1. Key Features

Long Range Data Integrity

1 Watt Power Output (variable 1mW - 1W)

Range (@9,600 bps throughput data rate):

• Indoor/Urban: up to 3000’ (900 m)

• Outdoor RF line-of-sight: up to 14 miles (22 km) w/dipole antenna

• Outdoor RF line-of-sight: up to 40 miles (64 km) w/high-gain antenna

Range (@115,200 bps throughput data rate):

• Indoor/Urban: up to 1500’ (450 m)

• Outdoor RF line-of-sight: up to 7 miles (11 km) w/dipole antenna

• Outdoor RF line-of-sight: up to 20 miles (32 km) w/high-gain antenna

Continuous RF data stream up to 115,200 bps Receiver Sensitivity: -110 dBm (@ 9600 baud),

–100 dBm (@ 115200 baud)

Advanced Networking & Security

True Peer-to-Peer (no Master device required), Point-to-Point, Point-to-Multipoint & Multidrop

Retries and Acknowledgements FHSS (Frequency Hopping Spread Spectrum) 10 hopping channels, each with over 65,000

unique network addresses available

256-bit AES Encryption

(AES algorithm is FIPS-197 certified)

Low Power

7 - 28 V Supply Voltage Pin, Serial Port and Cyclic

software sleep modes supported

Easy-to-Use

No configuration necessary for out-of box RF communications

External DIP Switch configuration Free X-CTU Software

(Testing and configuration software) RF Modems easily configured using

standard AT & binary commands Transparent Operation

(Wireless links replace serial wires) Portable

(small form-factor easily fits into a wide range of data systems)

Software-selectable I/O interfacing rates MODBUS, CTS

I/O Support Multiple data formats supported

(parity, start and stop bits, etc.) XII™ Interference Immunity

Free & Unlimited Technical Support

, RTS, DCD, DTR (& more)

1.1.1. Worldwide Acceptance

FCC Approved (USA) Refer to “Appendix A: Agency Certifications” on page 60 for

FCC Requirements. Systems that include XTend RF Modems inherit Digi’s Certifications.

ISM (Industrial, Scientific & Medical) license-free 902-928 MHz frequency band Manufactured under ISO 9001:2000 registered standards ESD (Electrostatic Discharge) immunity - ESD-hardened and IEC1000-4-2 (Level 4) tested

9XTend™ RS-232/422/485 RF Modem User’s Guide

9XTend RF Modems are optimized for use in the US, Canada, Australia and Israel

1.2. Specifications

Out-of-box, the 9XTend RF Modem is configured to provide immediate long range wireless links between devices. The modem can be configured to support additional functional ity through the use of standard AT and binary commands. Refer to p21 and p23 for more information..

Table 1-01. 9XTend-PKG-R RS-232/422/485 RF Modem Specifications

9XTend 900 MHz RS-232/422/485 RF Modem Specifications

Performance @9600 bps Throughput Data Rate @115200 bps Throughput Data Rate Transmit Power Output

(software selectable using PL command) Indoor/Urban Range Up to 3000’ (900 m) Up to 1500’ (450 m) Outdoor

RF line-of-sight Range Interface Data Rate

(software selectable using BD command) Throughput Data Rate

(software selectable using BR command) RF Data Rate 10,000 bps 125,000 bps Receiver Sensitivity -110 dBm -100 dBm

Power Requirements

Supply Voltage 7 - 28V 7 - 28V Receive Current 110 mA 110 mA Pin Sleep Power-down 17 mA 17 mA Serial Port Sleep Power Down 45 mA 45 mA

16 sec cyclic sleep (SM=8) 20 mA 19 mA 8 sec cyclic sleep (SM=7) 21 mA 19 mA

Idle Currents

Networking & Security

Frequency 902-928 MHz Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Modulation FSK (Frequency Shift Keying) Network Topologies Supported Peer-to-Peer (“Master/Slave” relationship not required), Point-to-Point, Point-to-Multipoint & Multidrop Channel Capacity 10 hop sequences share 50 frequencies Encryption 256-bit AES Encryption – To implement, refer to the “KY (AES Encryption Key) Command” on page 35

Physical Properties

RF Modem Board Size 2.750” x 5.500” x 1.125” (6.99cm x 13.97” x 2.86cm) Weight 7.1 oz. (200g) Serial Connector DB-9 Operating Temperature -40 to 85º C (industrial)

Antenna

Connector RPSMA (Reverse-polarity SMA) Impedance 50 ohms unbalanced Certifications (partial list) FCC Part 15.247 OUR-9XTEND Industry Canada (IC) 4214A-9XTEND

4 sec cyclic sleep (SM=6) 24 mA 20 mA 2 sec cyclic sleep (SM=5) 30 mA 22 mA 1 sec cyclic sleep (SM=4) 39 mA 25 mA

1mW - 1 Watt 1mW - 1 Watt

Up to 14 miles (22 km) w/ dipole antenna

Up to 40 miles (64 km) w/ high-gain antenna

1200 – 230400 bps 1200 – 230400 bps

9,600 bps 115,200 bps

Up to 7 miles (1 1 km ) w/ dipole antenna

Up to 20 miles (32 km) w/ high-gain antenna

Table 1-02. 9XTend-PKG-R RS-232/422/485 RF Modem Specifications - Relative to user-selected TX Power Output

Power Requirements (TX currents relative to each TX Power Output option)

Transmit Power Output 1 mW 10 mW 100 mW 500 mW 1 W

Typical Transmit Current @9.6 Kbps (9 VDC supply voltage)

110 mA 145 mA 250 mA 510 mA 900 mA

9XTend™ RS-232/422/485 RF Modem User’s Guide

Table 1-02. 9XTend-PKG-R RS-232/422/485 RF Modem Specifications - Relative to user-selected TX Power Output

Power Requirements (TX currents relative to each TX Power Output option)

Typical Transmit Current @11 5.2 Kbps) (9 VDC supply voltage)

110 mA 140 mA 245 mA 500 mA 800 mA

9XTend™ RS-232/422/485 RF Modem User’s Guide

1.3. External Interface

1-01a. Config (Configuration) Switch

Figure 1-01. Front View

1-01c. DB-9 Seria l P ort

1-01d RSSI LEDs

1-01b. I/O & Power LEDs

1-01a. Config Switch

* Note: The XTend RF modem can accept voltages as low as 5V.

Contact Digi Technical Support to implement this option.

1-01e. Power Connector

The Config Switch provides an alternate method for entering into Command Mode. T o enter Command Mode at the default RF data rate of the modem, hold the Config Switch down for two seconds.

1-01b. I/O & Power LEDs

LEDs indicate modem activity as follows:

Yellow (top LED)= Serial Data Out (to host) Green (middle) = Serial Data In (from host) Red (bottom) = Power/TX Indicator (Red light is on when powered; it pulses on/off briefly during RF transmission.)

1-01c. DB-9 Serial Port

Standard female DB-9 (RS-232) connector. This connector can be also used for RS-485 and RS-422 connections.

1-01d. RSSI LEDs

RSSI LEDs indicate the amount of fade margin present in an active wireless link. Fade margin is defined as the difference between the incoming signal strength and the modem's receiver sens itivity.

3 LEDs ON = Very Strong Signal (> 30 dB fade margin) 2 LEDs ON = Strong Signal (> 20 dB fade margin) 1 LED ON = Moderate Signal (> 10 dB fade margin) 0 LED ON = Weak Signal (< 10 dB fade margin)

1-01e. Power Connector

7-28 VDC* power connector (Center positive, 5.5/2.1mm)

1-02a. DIP Switch

Figure 1-02. Back View During each power-on sequence (reset or boot), the modem is auto-

matically configured according to the positions of the DIP Switch. The DIP Switch provides integrators with a limited number of external programming options. [Refer to Figure 1-03 for confi gur ati on options]

1-02b. Antenna Port

The antenna port is a 50Ω RF signal connector for connecting to an external antenna. The connector type is RPSMA (Reverse Polarity

1-02a. DIP Switch

Figure 1-03. DIP Switch Settings of the XTIB-R (RS-232/485) Interface Board

1-02b. Antenna Conector

SMA) female. The connector has threads on the outside of a barrel and a male center conductor.

Refer to the tables in “Automatic

DIP Switch Configurations” on

page 23 regarding configurations

triggered by the positions of the

DIP Switch (during power-up).

9XTend™ RS-232/422/485 RF Modem User’s Guide

2. Interfacing Protocol

The 9XTend RS-232/422/485 RF Modem supports the following interfacing protocols:

• RS-232

• RS-485 (2-wire) Half-duplex

• RS-485 (4-wire) and RS-422

2.1. RS-232 Operation

2.1.1. DIP Switch Settings and Pin Signals

Figure 2-01. RS-232 DIP Switch Settings

DIP Switch settings are read and applied only while powering-on.

Table 2-01. RS-232 Signals and their implementations on the XTend RF Modem

DB-9 Pin

(Low-asserted signals are distinguished by horizontal line over pin name.)

RS-232

Name

1 DCD GPO2 Data-Carrier-Detect Connected to DSR (pin6) 2 RXD DO Received Data Serial data exiting the RF modem (to host) 3 TXD DI Transmitted Data Serial data entering into the RF modem (from host) 4 DTR GPI2 Data-Terminal-Ready Can enable Power-Down on the RF modemy

Pin Reference

Name*

Figure 2-02. Pins used on the female RS-232 (DB-9)

Description Implementation

5 GND - Ground Signal Ground 6 DSR GPO2 Data-Set-Ready Connected to DCD (pin1)

8 CTS GPO1 Clear-to-Send Provides CTS flow control

9 RI - Ring Indicator

* The ‘Pin Reference Name’ provides an associative tag that references commands used to define pin behaviors. GPI stands for "General Purpose Input" and GPO stands for "General Purpose Output". As an example, the CD command is used to define the behavior of GPO2 (DB-9 pin number 1). The ‘Pin Reference Name’ is the name used when referring to XTend commands and parameters.

RTS

CMD

GPI1

Request-to-Send /

Command Mode

Provides RTS

Optional power input that is connected internally to the

flow control or enables Command Mode

positive lead of the front power connector

9XTend™ RS-232/422/485 RF Modem User’s Guide

2.1.2. Wiring Diagrams

Figure 2-03. RS-232 DTE Device (male DB-9 connector) wired to a DCE RF modem (female DB-9)

Figure 2-04. DCE RF modem (female DB-9 connector) wired to an RS-232 DCE Device (male DB-9)

Sample Wireless Connection: DTE <--> DCE DCE <--> DCE

Figure 2-05. Typical wireless link between DTE and DCE devices

9XTend™ RS-232/422/485 RF Modem User’s Guide

2.2. RS-485 (2-wire) Operation

2.2.1. DIP Switch Settings and Pin Signals

Figure 2-06. RS-485 (2-wire) Half-duplex DIP Switch Settings

Figure 2-08. RS-485 (2-wire) w/ Termination (optional)

Termination is the 120 Ω resistor between T+ and T-.

DIP Switch settings are read and applied only while powering-on.

Note: Refer to Figure 2-15 and Figure 2-16 for the RJ-45 connector pin designations used in RS-485/422 environments.

Table 2-02. RS-485 (2-wire half-duplex) signals and their implementations on the XTend RF Modem

DB-9 Pin RS-485 Name Description Implementation

2 T/R- (TRA) Negative Data Line Transmit serial data to and from the RF modem 5 GND Ground Signal Ground 8 T/R+ (TRB) Positive Data Line Transmit serial data to and from the RF modem

9PWR Power

1, 3, 4, 6, 7 not used

Figure 2-07. Pins used on the female RS-232 (DB-9) Serial Connector

Optional power input that is connected internally

to the front power connector

2.2.2. Wiring Diagram

Figure 2-09. XTend RF Modem in an RS-485 (2-wire) half-duplex environment

9XTend™ RS-232/422/485 RF Modem User’s Guide

2.3. RS-485 (4-wire) & RS-422 Operation

2.3.1. DIP Switch Settings and Pin Signals

Figure 2-10. RS-485 (2-wire) Half-duplex DIP Switch Settings

Figure 2-12. RS-485 (2-wire) w/ Termination (optional)

Termination is the 120 Ω resistor between T+ and T-.

DIP Switch settings are read and applied only while powering-on.

Table 2-03. RS-485/422 (4-wire) Signals and their implementations on the XTend RF Modem

DB-9 Pin

2T- (TA)

3R- (RA) 5 GND Signal Ground Ground 7 R+ (RB)

8T+ (TB)

9PWR Power

1, 4, 6 not used

RS-485/422

Name

Description Implementation

Transmit Negative

Data Line

Receive Negative

Data Line

Receive Positive

Data Line

Transmit Positive

Data Line

Figure 2-11. Pins used on the female RS-232 (DB-9) Serial Connector

Serial data sent from the RF modem

Serial data received by the RF modem

Serial data sent from the RF modem

Optional power input that is connected internally

to the front power connector

2.3.2. Wiring Diagrams

Figure 2-13. XTend RF Modem in an RS-485 (4-wire) environment

9XTend™ RS-232/422/485 RF Modem User’s Guide

Figure 2-14. XTend RF Modem in an RS-422 environment

RS-485/422 Connection Guidelines

The RS-485/422 protocol provides a solution for wired communications that can tolerate high noise and push signals over long cable lengths. RS-485/422 signals can communicate as far as 4000 feet (1200 m). RS-232 signals are suitable for cable distances up to 100 feet (30.5 m).

RS-485 offers multi-drop capability in which up to 32 nodes can be connected. The RS-422 protocol is used for point-to-point communications.

Suggestions for integrating the XTend RF Modem with the RS-485/422 protocol:

1. When using Ethernet twisted pair cabling: Select wires so that T+ and T- are connected to

each wire in a twisted pair. Likewise, select wires so that R+ and R- are connected to a twisted pair. (For example, tie the green and white/green wires to T+ and T-.)

2. For straight-through Ethernet cable (not cross-over cable) - The following wiring pattern

works well: Pin3 to T+, Pin4 to R+, Pin5 to R-, Pin6 to T-

3. Note that the connecting cable only requires 4 wires (even though there are 8 wires).

4. When using phone cabling (RJ-11) - Pin2 in the cable maps to Pin3 on opposite end of

cable and Pin1 maps to Pin4 respectively.

Figure 2-15. Male DB-9 to RJ-45 Adapter (yellow)

Figure 2-16. Female DB-9 to RJ-45 Adapter (green)

An XTend RS-232/422/485 RF Modem ‘Accessories Kit’ is available that includes connectors that facilitate RS-485/422 and other serial communications. Refer to “Appendix B: Development Guide” on page 65 for information regarding the connectors and tools included in the kit.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3. RF Modem Operation

WARNING: When operating at 1 Watt power output, observe a minimum separation distance of 2' (0.6m) between modems. Transmitting in close proximity of other modems can damage modem front ends.

3.1. Serial Communications

3.1.1. RS-232 and RS-485/422 Data Flow

The XTend RS-232/422/485 RF Modem interfaces to a host device through a standard DB-9 connector. Devices that have a standard DB-9 (RS-232) serial port can connect directly through the pins of the modem as shown in the figure below.

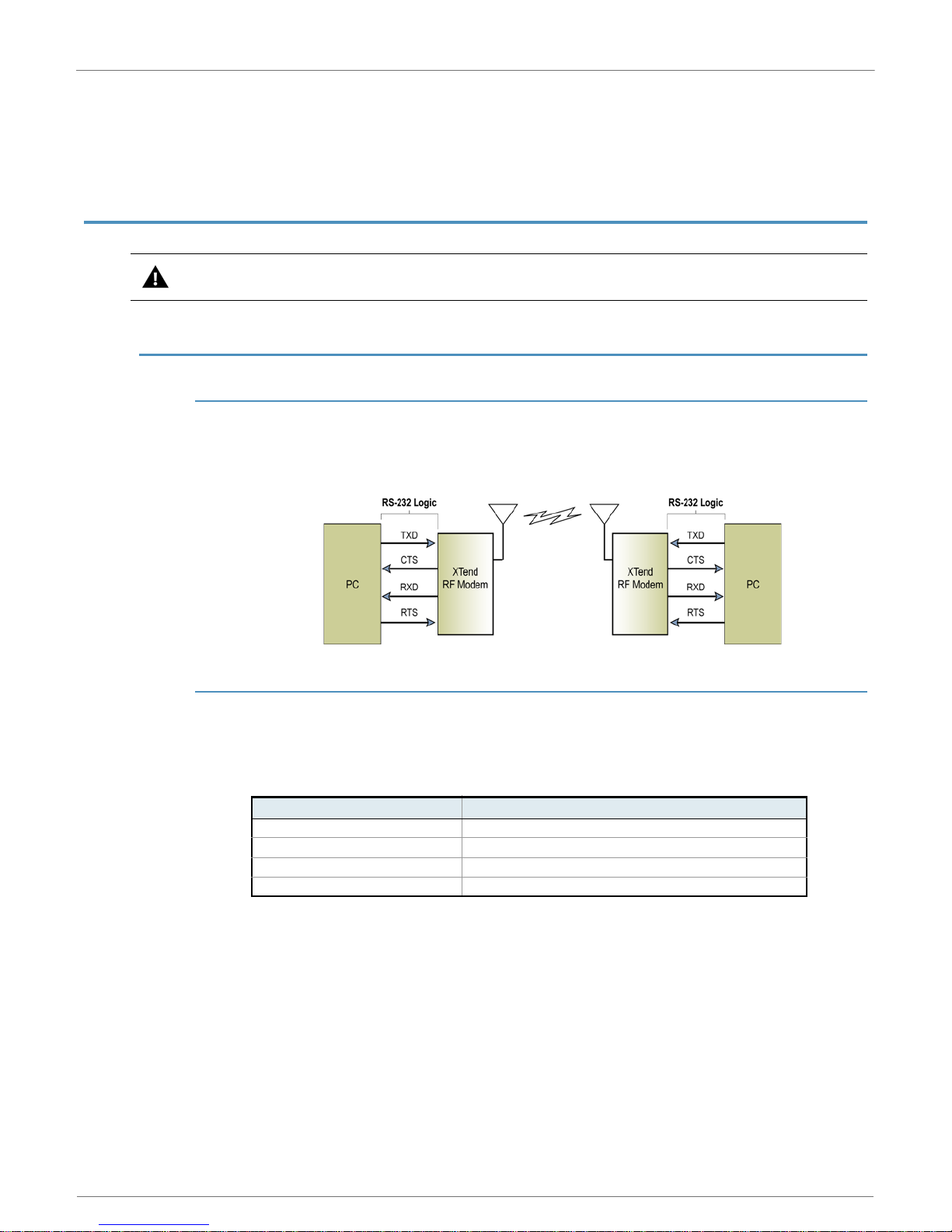

Figure 3-01. System Data Flow in an RS-232 environment

3.1.2. Host and RF Modem Settings

Serial communications between a host and an XTend RF Modem are dependent upon having matching baud rate, parity, stop bit & number of data bits settings. Failure to enter the modem into AT Command Mode is most co mmonly due to baud r ate mismatc h. Ref er to the table below to ensure host serial port settings match those of the modem.

Table 3-01. Parameter Values Critical to serial communications between RF Modem and host

Parameter Setting XTend RF Modem Default Parameter Value

Baud (Serial Data Rate) 9600 bps (BR parameter = 3) Number of Data Bits 8 (NB parameter = 0) Parity None (NB parameter = 0) Number of Stop Bits 1 (NB parameter = 0)

Both the RF modem and host (PC) settings can be viewed and adjusted using Digi's proprietary XCTU Software. After connecting an RF modem to a PC via their respective serial connections, use the "Terminal" or "Modem Configuration" tabs to configure RF modem settings. Use the "PC Settings" tab to configure host settings.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.1.3. Flow Control

Figure 3-02. Internal Data Flow Diagram (The five most commonly-used pin signals shown)

DI (Data In) Buffer and Flow Control

When serial data enters the modem through the DI pin (Data In), the data is stored in the DI Buffer until it can be processed.

When the RB and RO parameter thresholds are satisfied (refer to ‘Transmit Mode’ section for mor e information), the modem attempts to initialize an RF connection. If the modem is already receiving RF data, the serial data is stored in the modem's DI Buffer. The DI buffer stores at least 2.1 KB. If the DI buffer becomes full, hardware or software flow control must be implemented in order to prevent overflow (loss of data between the host and RF modem).

How to eliminate the need for flow control:

1. Send messages that are smaller than the DI buffer size. The size of the DI buffer varies

according to the packet size (PK parameter) and the parity setting (NB parameter) used.

2. Interface at a lower baud rate (BD parameter) than the RF data rate (BR parameter).

Two cases in which the DI Buffer may become full and possibly overflow:

1. If the serial interface data rate is set higher than the RF data rate of the modem, the

modem will receive data from the host faster than it can transmit the data over-the-air.

2. If the modem is receiving a continuous stream of RF data or if the modem is monitoring

data on a network, any serial data that arrives on the DI pin (Data In) is placed in the DI Buffer. The data in the DI buffer will be transmitted over-the-air when the modem no longer detects RF data in the network.

Hardware Flow Control (CTS

the modem de-asserts CTS (Flow Control Threshold) and CS (GPO1 Configuration) Commands]. CTS DI Buffer has 34 bytes of memory available.

Software Flow Control (XON). XON/XOFF software flow control can be enabled using the FL (Software Flow Control) Command. This option only works with ASCII data.

DO (Data Out) Buffer

When RF data is received, the data enters the DO buffer and is sent out the serial port to a host device. Once the DO Buffer reaches capacity, any additional incoming RF data is lost. The DO buffer stores at least 2.1 KB.

Two cases in which the DO Buffer may become full and possibly overflow:

1. If the RF data rate is set higher than the interface data rate of the modem, the modem will

receive data from the transmitting modem faster th an it can send the data to the host.

2. If the host does not allow the modem to transmit data out from the DO buffer because of

being held off by hardware or software flow control.

). When the DI buffer is 17 bytes away from being full; by default,

(high) to signal to the host device to stop sending data [refer to FT

is re-asserted after the

Hardware Flow Control (RTS

not be sent out the DO Buffer as long as RTS Software Flow Control (XOFF). XON/XOFF software flow control can be enabled using the FL

(Software Flow Control) Command. This option only works with ASCII data.

). If RTS is enabled for flow control (RT Parameter = 2), data will

(GPI1) is de-asserted.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.1.4. Transparent Operation

By default, XTend RF Modems operate in Transparent Mode. The modems act as a serial line replacement - all UART data received through the DI pin is queued up for RF transmission. When RF data is received, the data is sent o u t the DO pin.

When the RO (Packetization Timeout) paramete r threshold is satis fied, the modem attemp ts to initialize an RF transmission. If the modem cannot immediately transmit (for instance, if it is already receiving RF data), the serial data continues to be stored in the DI Buffer. Data is packetized and sent at any RO timeout or when the maximum packet size is received.

The modem operates as described above unless the Command Mode Sequence is detected. The Command Mode Sequence consists of three copies of the command sequence character [CC parameter] surrounded by the before and after guard times [BT & AT parameters].

If the DI buffer becomes full, hardware or software flow control must be implemented in order to prevent overflow (loss of data between the host and modem).

3.1.5. API Operation

API (Application Programming Interface) Operation is an alternative to the default Transparent Operation. The API is frame-based and extends the level to which a host application can interact with the networking capabilities of the module. When in API mode, all data entering and leaving the RF modem is contained in frames that define operations or events within the modem.

Transmit Data Frames (received through the DI (Data In) pin) include:

• 16-bit address

Receive Data Frames (sent out the DO (Data Out) pin ) include:

• Showing a received RF packet (16 bits only)

• Response to a TX (Transmit) packet

• Showing events such as hardware reset, watchdog reset, asynchronous events, etc.

The modem will send data frames to the application containing status packets; as well as source, RSSI and payload information from received data packets.

API operation option facilitates many operations such as the examples cited below:

-> Change destination addresses without having to enter command mode

-> Receive success/failure status of each RF packet

-> Identify the source address of each received packet

To implement API operations, see “API Operation” on page 46.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.2. Modes of Operation

XTend RF Modems operate in five modes.

Figure 3-03. Modes of Operation

3.2.1. Idle Mode

When not receiving or transmitting data, the RF modem is in Idle Mode. The modem shifts into the other modes of operation under the following conditions:

• Transmit Mode (Serial data is received in the DI Buffer)

• Receive Mode (Valid RF data is received through the antenna)

• Sleep Mode (Sleep Mode condition is met)

• Command Mode (Command Mode Sequence is issued)

3.2.2. Transmit Mode

When the first byte of serial data is received from the UART in the DI buffer, the modem attempts to shift to Transmit Mode and initiate an RF connection with o ther modems. After transmission is complete, the modem returns to Idle Mode.

RF transmission begins after either of the following criteria is met:

1. RB bytes have been received by the UART and are pending for RF transmission.

[Refer to the RB (Packetization Threshold) Command]

2. At least one character has been received by the UART and is pending for RF tra nsmission;

and RO character times of silence been observed on the UART. [Refer to the RO (Packetization Timeout) Command]

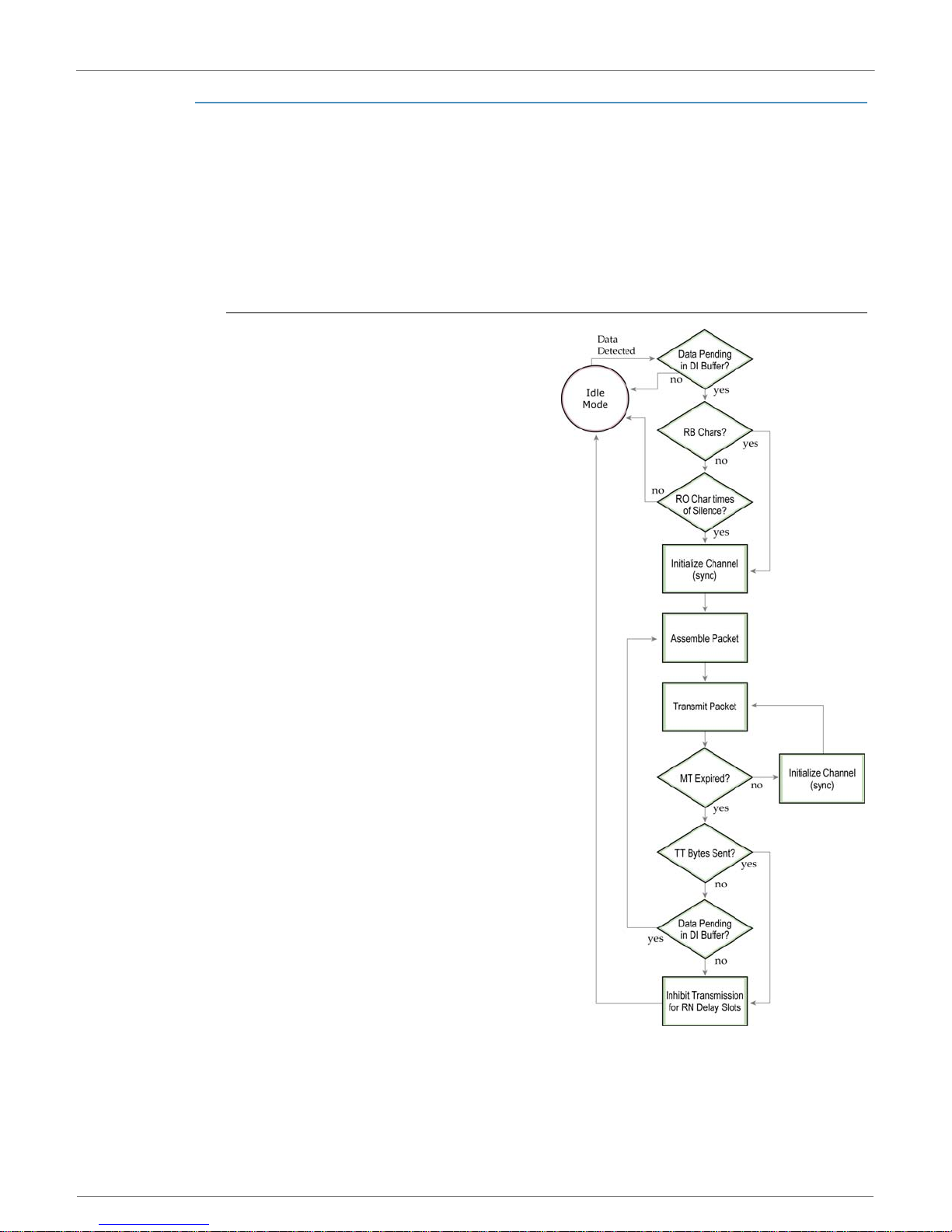

Figure 3-04. Transmit Mode Data Flow

The character timeout trigger can be disabled by setting RO to zero. In this case, transmission will not begin until RB bytes have been received and are pending for RF transmission. The RB parameter may be set to any value between 1 and the RF packet size [refer to PK (Max RF Packet Size) parameter], inclusive. Note that transition to Transmit Mode cannot take place during RF reception; the RF reception must complete before the radio can trans ition into Transmit Mode.

If RB or RO conditions are met, the modem initializes a communications channel. Serial da ta in the DI buffer is grouped into RF packets (up to 2048 bytes in each packet, refer to PK Command), converted to RF data and is transmitted over-the-a ir un til the DI buffer is empty.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Channel initialization is the process of sending an RF initializer that synchronizes receiving modems with the transmitting modem. During channel initialization, incoming serial data accumulates in the DI buffer.

RF data, which includes the payload data, follows the RF initializer. The payload includes up to the maximum packet size (PK Command) bytes. As the TX modem near s the end of th e tr an smis sion , it inspects the DI buffer to see if more data exists to be transmitted. This could be the case if more than PK bytes were originally pending in the DI buffer or if more bytes arrived from the UART after the transmission began. If more data is pending, the transmitting modem assembles a subsequent packet for transmission.

Refer to the ‘RF Communication Modes’ section to view state diagrams that illustrate channel initialization and the sequence of events that follow.

RF Packet

Figure 3-05. RF Packet Components

* When streaming multiple RF packets, the RF Initializer is only sent in front of the first packet.

RF Initializer

An RF initializer is sent each time a new connection sequence begins. The RF initializer contains channel information that notifies receiving modems of information such as the hopping pattern used by the transmitting modem. The first transmission always sends an RF initializer.

An RF initializer can be of various lengths depending on the amount of time determined to be required to prepare a receiving modem. For example, a wake-up initializer is a type of RF initializer used to wake remote modems from Sleep Mode (Refer to the FH, LH, HT and SM Commands for more information). The length o f the wake-up initializer should be longer than the length of time remote modems are in cyclic sleep.

Header

The header contains network addressing information that filters incoming RF data. The receiving modem checks for matching a Hopping Channel, VID and Destination Address. Data that does not pass through all three network filter layers is discarded.

Refer to the ‘Addressing’ section of the “RF Communication Modes” chapter for more information.

CRC (Cyclic Redundancy Check)

To verify data integrity and provide built-in error checking, a 16-bit CRC (Cyclic Redundancy Check) is computed for the transmitted data and attached to the end of each RF packet. On the receiving end, the receiving modem computes the CRC on all incoming RF data. Received data that has an invalid CRC is discarded [refer to the ‘Receive Mode’ section].

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.2.3. Receive Mode

If a modem detects RF data while operating in Idle Mode, the modem transitions to Receive Mode to start receiving RF packets. Once a packet is received, the modem checks the CRC (cyclic redundancy check) to ensure that the data was transmitted without error. If the CRC data bits on the incoming packet are invalid, the packet is discarded. If the CRC is valid, the packet proceeds to the DO Buffer.

Figure 3-06. Receive Mode Data Flow

* Refer to the ‘Address Recognition’ section for more information regarding address recognition.

The modem returns to Idle Mode when valid RF data is no longer detected or after an error is detected in the received RF data. If serial data is stored in the DI buffer while the modem is in Receive Mode, the serial data will be transmitted after the modem is finished receiving data and returns to Idle Mode.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.2.4. Sleep Mode

Software Sleep

Sleep Modes enable the modem to enter states of low-power consumption when not in use. Three software Sleep Modes are supported:

• Pin Sleep (Host Controlled)

• Serial Port Sleep (Wake on Serial Port activity)

• Cyclic Sleep (Wake on RF activity)

In order to enter Sleep Mode, one of the following conditions must be met (in addition to the modem having a non-zero SM parameter value):

1. The modem is idle (no data transmission or reception) for the amount of time defined by

the ST (Time before Sleep) parameter. [NOTE: ST is only active when SM = 4-5.]

2. GPI2 (SLEEP) is asserted (only for the ‘Pin Sleep’ option).

When in Sleep Mode, the modem will not transmit or receive data until the modem first transitions to Idle Mode. All Sleep Modes are enabled and disabled using SM Command. Transitions into and out of Sleep Modes are triggered by various mechanisms as shown in the table below.

Table 3-02. Summary of Sleep Mode Configurations

Sleep Mode (Setting)

Pin Sleep (SM = 1)

Serial Port Sleep (SM = 2)

Cyclic Sleep (SM = 4 - 8)

Transition into Sleep Mode

Assert GPI2 pin - A micro controller can shut down and wake modems via the GPI2 pin.

Note: The modem will complete a transmission or reception before activating Pin Sleep.

Automatic transition to Sleep Mode occurs after a user-defined period of inactivity (no transmitting or receiving of data).

Period of inactivity is defined by the ST (Time before Sleep) Command.

RF modem transitions in and out of Sleep Mode in cycles (user-selectable wake-up interval of time is set using the SM command). The cyclic sleep interval of time must be shorter than the interval of time that is defined by the LH (Wake-up Initializer TImer) command .

Note: The modem can be forced into Idle Mode using the GPI2 pin if the PW (Pin Wake-up) command is issued.

Transition out of Sleep Mode (wake)

De-assert GPI2 pin (SM) < 17 mA

When a serial byte is received on the DI pin

Related Commands

(SM), ST < 45 mA

(SM), ST, HT, LH, PW

Power Consumption

< 25 mA when sleeping (SM=4, 1 sec., @120K baud)

The SM (Sleep Mode) command is central to setting all Sleep Mode configurations. By default, Sleep Modes are disabled (SM = 0) and the modem remains in Idle/Receive Mode. When in this state, the modem remains constantly ready to respond to serial or RF activity.

Pin Sleep (SM = 1)

• Pin/Host-controlled

• Typical power-down current: < 17 mA

This mode is voltage level activated. When the GPI2 pin is asserted, the modem will finish any transmitting or receiving activity; enter Idle Mode; then enter a state of sleep. When in Pin Sleep Mode, the modem will not respond to serial or RF activity.

After enabling Pin Sleep, the GPI2 pin controls whether the modem is active or sleeping. When GPI2 is de-asserted, the modem is fully operational. When GPI2 is asserted, the modem transitions to Sleep Mode and remains in its lowest power-consuming state until the pin is de-asserted. This pin is only active if the modem is setup to operate in this mode; otherwise the pin is ignored.

Once in Pin Sleep, CTS modem. The PWR pin is also de-asserted (low) when the modem is in Pin Sleep Mode.

Note: The modem will complete a transmission or reception before activating Pin Sleep.

(GPO1) is de-asserted (high), indicating that data should not be sent to the

9XTend™ RS-232/422/485 RF Modem User’s Guide

Serial Port Sleep (SM = 2)

• Wake on serial port activity

• Typical power-down current: < 45 mA

Serial Port Sleep is a Sleep Mode in which the modem runs in a low power state until serial data is detected on the DI pin.

The period of time the modem sleeps is determined by ST (Time before Sleep) Command. Once a character is received through the DI pin, the modem returns to Idle Mode and is fully operational.

Cyclic Sleep (SM = 4-8)

• Typical Power-down Current: < 25 mA (when asleep)

Cyclic Sleep Modes allow modems to periodically wake and check for RF data. The modem wakes according to the times designated by the Cyclic sleep settings. If the modem detects a wake-up initializer during the time it is awake, the modem synchronizes with the transmitting modem and receives data after the wake-up initializer runs its duration. Otherwise, the modem returns to Sleep Mode and continues to cycle in and out of activity until a wake-up initializer is detected.

While the modem is in Cyclic Sleep Mode, CTS should not be sent to the modem. When the modem awakens to listen for data, GPO1 is asserted and any data received on the DI Pin is transmitted. The PWR pin is also de-asserted (low) when the modem is in Cyclic Sleep Mode.

The modem remains in Sleep Mode for a user-defined period of time ranging from 0.5 seconds to 16 seconds (SM parameters 4 through 8). After this interval of time, the modem returns to Idle Mode and listens for a valid data packet for 100 ms. If the modem does not detect valid data (on any frequency), the modem returns to Sleep Mode. If valid data is detected, the modem transitions into Receive Mode and receives the incoming RF packets. The modem then returns to Sleep Mode after a period of inactivity determined by the ST "Time before Sleep" parameter.

The modem can also be configured to wake from cyclic sleep when the GPI2 pin is de-asserted. To configure a modem to operat e in th i s m ann e r, PW (Pin Wake-up) Command must be issued. Once the GPI2 pin is de-asserted, the modem is forced into Idle Mode and can begin transmitting or receiving data. It remains active until data is no longer detected for the period of time specified by the ST Command, at which point it resumes its low-power cyclic state.

Cyclic Scanning. Each RF transmission consists of an RF Initializer and payload. The RF initializer contains initialization information and al l r eceiving modems must wake during the wake-up initializer portion of data transmission in order to be synchronized with the transmitting modem and receive the data.

(GPO1) is de-asserted (high) to indicate that data

The cyclic interval time defined by the SM (Sleep Mode) command must be shorter than the interval time defined by LH (Wake-up Initializer Timer) command.

Figure 3-07. Correct Configuration (LH > SM):

The length of the wake-up initializer exceeds the time interval of Cyclic Sleep. The receiver is guaranteed to detect the wake-up initializer and receive the accompanying payload data.

9XTend™ RS-232/422/485 RF Modem User’s Guide

3.2.5. Command Mode

To modify or read modem parameters, the modem must first enter into Command Mode (state in which incoming characters are interpreted as commands). Two command types are supported:

• AT Commands

• Binary Commands

For modified parameter values to persist in the modem registry, changes must be saved to nonvolatile memory using the WR (Write) command. Otherwise, parameters are restored to previously saved values when the modem is powered off and then on again.

AT Command Mode

To Enter AT Command Mode:

1. Send the 3-character command sequence "+++" and observe guard times before and after

the command characters. [refer to ‘Default AT Command Mode Sequence’ below.] The ‘Terminal’ tab (or other serial communications software) of the X-CTU Software can be used to enter the sequence.

[OR]

2. Assert (low) the CONFIG

pulse the SHDN

[If the modem is mounted to a Digi RS-232/485 Interface Board, the result can be achieved

by pressing the configuration switch down for 2 seconds.]

Default AT Command Mode Sequence (for transition to Command Mode):

• No characters sent for one second [refer to the BT (Guard Time Before) Command]

• Input three plus characters (“+++”) within one second [refer to the CC (Command Sequence Character) Command.]

• No characters sent for one second [refer to the AT (Guard Time After) Command.]

All of the parameter values in the sequence can be modified to reflect user preferences.

To Send AT Commands:

Send AT commands and parameters using the syntax shown below.

pin and turn the power going to the modem off and back on (or

pin).

Figure 3-08. Syntax for sending AT Commands

To read a parameter value stored in the modem register, leave the parameter field blank.

The preceding example would change the modem’s Destination Address to "0x1F". To store the new value to non-volatile (long term) memory, the Write (ATWR) command must subsequently be sent before powering off the modem.

System Response. When a command is sent to the modem, the modem will parse and execute the command. Upon successful execution of a command, the modem returns an “OK” message. If execution of a command results in an error, the modem returns an “ERROR” message.

To Exit AT Command Mode:

1. If no valid AT Commands are received within the time specified by CT (Command Mode Timeout) Command, the modem automatically returns to Idle Mode.

[OR]

2. Send ATCN (Exit Command Mode) Command.

For an example of programming the RF modem using AT Commands and descriptions of each configurable parameter, see “RF Modem Configuration” on page 23.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Binary Command Mode

Sending and receiving parameter values using binary commands is the fastest way to change operating parameters of the modem. Binary commands are used most often to sample signal strength [refer to DB (Received Signal Strength) parameter] and/or error counts; or to change modem addresses and channels for polling systems when a quic k response is necessary. Since the sending and receiving of parameter values takes place through the same serial data path as 'live' data (received RF payload), interference between the two types of data can be a concern.

Common questions about using binary commands:

• What are the implications of asserting CMD while live data is being sent or received?

• After sending serial data, is there a minimum time delay before CMD can be asserted?

• Is a time delay required after CMD is de-asserted before payload data can be sent?

• How does one discern between live data and data received in response to a command?

The CMD pin (GPI1) must be asserted in order to send binary commands to the modem. The CMD pin can be asserted to recognize binary commands anytime during the transmission or reception of data. The status of the CMD signal is only checked at the end of the stop bit as the byte is shifted into the serial port. The application does not allow control over when data is received, except by waiting for dead time between bursts of communication.

If the command is sent in the middle of a stream of payload data to be transmitted, the command will essentially be executed in the order it is received. If the modem is continuousl y receiving data, the radio will wait for a break in the receiv ed data before ex ecuting the command. The CTS will frame the response coming from the binary command request [refer to figure below].

A minimum time delay of 100 µs (after the stop bit of the command byte has been sent) must be observed before the CMD pin can be de-asserted. The command executes after all parameters associated with the command have been sent. If all parameters are not received within 0.5 seconds, the modem returns to Idle Mode.

Note: When parameters are sent, th ey are two bytes long wi th the l east si gnificant byte sen t first. Binary commands that return one parameter byte must be written with two parameter bytes.

Commands can be queried for their current value by sending the command logically ORed (bitwise) with the value 0x80 (hexadecimal) with CMD asserted. When the binary value is sent (with no parameters), the current value of the command parameter is sent back through the DO pin.

Figure 3-09. Binary Command Write then Read

Signal #4 is CMD

Signal #1 is the DI signal

Signal #2 is the DO signal from the radio

Signal #3 is CTS

signal

In this graph, a value was written to a register and then read out to verify it. While not in the middle of other received data, note that the CTS response out of the modem.

IMPORTANT: In order for the modem to recognize a binary command, the RT (GPI1 Configuration) parameter must be set to one. If binary programming is not enabled (RT parameter value is not equal to ‘1’), the modem will not recognize that the CMD pin is asserted and therefore will not recognize the data as binary commands.

For a binary programming example, see “Binary Commands” on page 25 (DT command example returns two bytes).

signal outlines the data

9XTend™ RS-232/422/485 RF Modem User’s Guide

4. RF Modem Configuration

4.1. Automatic DIP Switch Configurations

Each time the RF modem is powered-on, AT commands are sent to the on-board module as dictated by the positions of the DIP switches. DIP switch configurations are sent automatically during the power-on sequence and affect modem parameter values as shown in the table below.

Figure 4-01. RF Modem DIP Switches

Table 4-01. Power-up Options - Commands sent as result of DIP Switch Settings (SW = DIP Switch)

Switches Condition Behavior Commands Sent During Power-up

Switches 1 & 2 (Restore Defaults / Serial Interfacing)

Switches 5 & 6 (TX/RX Modes)

If SW1 & SW2 are ON (up)

If SW1 is ON (up) RS-232 Operation ATCS 0 (RS-232, CTS flow control)

If SW1 is OFF (down)

If SW5 & SW6 are OFF (down)

If SW5 is OFF (down) & SW6 is ON (up)

If SW5 is ON (up) & SW6 is OFF (down)

If SW5 is ON (up) & SW6 is ON (up)

Restore Defaults

RS-485 or RS-422 Operation

Multipoint Base

Multipoint Remote

Point-to-Point

User Defined

ATRE ATWR

ATCS 3 (RS-485 or RS-422 Operation)

ATMY 0 ATDT FFFF ATMT 3

ATAM ATDT 0 ATMT 0 ATRR A

ATAM ATDT FFFF ATMT 3

Processor is disabled and AT Commands are not sent to the modem (except for CS command as shown below.)

(Restore Defaults) (Write defaults to non-volatile memory)

(Source Address) (Destination Address) (Multi-Transmit option)

(Auto-set MY, MY = unique) (Destination Address) (Multi-Transmit option) (Retries)

(Auto-set MY, MY = unique) (Destination Address) (Multi-Transmit option)

IMPORTANT: To avoid overwriting previously stored custom configurations (due to the automatic configurations that take place each time the RF modem is powered-on), it is necessary to disable a processor located inside the modem.

To disable the processor, turn switches 5 and 6 ON (up). When switches 5 and 6 are ON, only the CS command is sent [refer to table below].

Table 4-02. User Defined Mode (Switches 5 and 6 are ON (up))

Only DIP Switches ON (up) Condition Command Sent During Power-up

SW1, SW5 and SW6

SW2, SW5 and SW6

SW5 and SW6 only

Note: The results of SW 2, 5 & 6 ON and SW 5 & 6 ON are the same.

If CS = 0, 1, 2 or 4 CS parameter remains the same If CS = 3 ATCS 0 (RS-232 operation, CTS flow control) If CS = 2 ATCS 2 (GPO1 high) If CS = 0, 1, 3 or 4 ATCS 3 (RS-485/422 Operation) If CS = 2 ATCS 2 (GPO1 high) If CS = 0, 1, 3 or 4 ATCS 3 (RS-485/422 Operation)

9XTend™ RS-232/422/485 RF Modem User’s Guide

4.2. Programming Examples

Refer to “Command Mode” on page 21 for information regarding entrance into Command Mode, sending AT commands and exiting Command Mode.

4.2.1. AT Commands

Digi has provided X-CTU software for programming the modem using an extensive list of AT Commands. The X-CTU software provides an interface that is divided into four tabs that facilitate the following functions:

• PC Settings tab - Setup PC serial port to interface with an RF modem

• Range Test tab - Test RF modem's range in varying environments

• Terminal tab - Configure and read XTend RF modem parameters using AT Commands

• Modem Configuration tab - Configure and read RF modem parameters

To install the X-CTU Software:

Double-click the ‘setup_X-CTU .exe’ fil e that is located o n the Digi CD and under the ‘Downloads’ section of the following web page: www.maxstream.net/helpdesk/download.php. Then follow the prompts of the installation screens.

PC Settings Tab (X-CTU Software)

As stated in “Serial Communications” on page 13, in order to communicate data to the RF modem through the PC, the baud (serial data rate), data bit, parity and stop bit settings on the PC serial port must match those of the modem. The 'PC Settings' tab provides a software user interface that facilitates the modification of PC serial port setting.

Note: Do not send com-

Note: Do not send commands to the modem

mands to the modem during flash program-

during flash programming (when parameters

ming (when parameters are being written to the

are being written to the modem registry).

modem registry).

Wait for the "OK" sys-

Wait for the "OK" system response that fol-

tem response that follows the ATWR

lows the ATWR command before enter-

command before entering the next command

ing the next command or use flow control.

or use flow control.

PC Setup

1. Set the DIP Switch to RS-232 mode. [Switches 1 & 5 are ON (up) and the remaining 4

switches are OFF (down).]

2. Connect the male DB-9 connector of the PC with the female DB-9 connector of the RF

modem using an RS-232 cable.

3. Power the RF modem through the power connector.

4. Go to the PC Settings tab and select parameter values from the drop-down lists that match

the current parameter values of the RF modem.

Figure 4-02. Setup for RF Modem Configurations through X-CTU Software

Terminal Tab (X-CTU Software)

A terminal program has been built into the X -CTU software and is located under the 'Terminal' tab. The Terminal tab provides an easy-to-use interface for programming the modem.

Multiple AT Commands. Multiple AT commands can be entered on one line with one carriage return at the end of the line. Each command must be delimited by a comma (spaces in between are optional). The "AT" prefix is only sent before the first command and should not be included with subsequent commands in a line.

System Response. When a command is sent to the modem, the modem will parse and execute the command. Upon successful execution of a command, the modem returns an "OK" message. If execution of a command results in an error, the modem returns an "ERROR" message.

Restore RF Modem Default Parameters (Using the ‘Termina l’ tab of the X-CTU Software)

Example: Both of the following examples restore the XTend Modem's factory defaults and save the parameters to non-volatile memory.

Method 1 (One line per command)

9XTend™ RS-232/422/485 RF Modem User’s Guide

Send AT Command

+++ ATRE <Enter> ATWR <Enter> ATCN <Enter>

Method 2 (Multiple commands on one line)

Send AT Command

+++ ATRE, WR <Enter> ATCN <Enter>

NOTE: Default parameter values of the RF Modem can also be restored by selecting the 'Restore' button located on the “Modem Configuration” tab [refer to the example below].

Modem Configuration Tab Sample Configuration: Restore RF Modem Defaults

Example: Utilize the X-CTU “Modem Configuration” tab to restore default parameter values. After establishing a connection between the modem and a PC [refer to the 'Setup' section

above], select the “Modem Configuration” tab of the X-CTU Software.

1. Select the 'Read' button.

2. Select the 'Restore' button.

System Response

OK <CR> (Enter into Command Mode) OK <CR> (Restore RF modem default parameter values) OK <CR> (Write to non-volatile memory) OK <CR> (Exit Command Mode)

System Response

OK <CR> (Enter into Command Mode) OK <CR> (Execute multiple commands) OK (Exit AT Command Mode)

4.2.2. Binary Commands

To Send Binary Commands:

Example: Use binary commands to change the RF modem's destination address to 0x1A0D and save the new address to non-volatile memory.

1. RT Command must be set to '1' in AT Command Mode to enable binary programming.

2. Assert CMD (Pin 10 is driven high). (Enter Binary Command Mode)

3. Send Bytes [parameter bytes must be 2 bytes long]:

00 (Send DT (Destination Address) Command) 0D (Least significant byte of parameter bytes) 1A (Most significant byte of parameter bytes) 08 (Send WR (Write) Command)

4. De-assert CMD (GPI1 is driven low). (Exit Binary Command Mode)

Note: CTS (GPO1) is high when a command is being executed. Hardware flow control must be disabled as CTS will hold off parameter bytes.

9XTend™ RS-232/422/485 RF Modem User’s Guide

4.3. Command Reference Table

Table 4-03. XTend Commands (The RF modems expect numerical values in hexadecimal. Hexadecimal values are designated by a “0x”

AT Command

%V 0x3B (59d) Board Voltage 0x2CCCA - 0x5BFFA [read-only] Diagnostics 4 -AM 0x40 (64d) Auto-set MY -- Networking & Security -- -AP v2.x20* -- API Enable 0 - 2 Serial Interfacing 1 0 AT 0x05 (5d) Guard Time After 2 - (ATST-3) [x 100 msec] Command Mode Options 2 0x0A (10d)

BD 0x15 (21d) Interface Data Rate BR 0x39 (57d) RF Data Rate 0 - 1 RF Interfacing 1 1

BT 0x04 (4d) Guard Time Before 0 - 0xFFFF [x 100 msec] Command Mode Options 2 0x0A (10d) CC 0x13 (19d) Command Sequence Character 0x20 - 0x7F Comman d Mode Options 1 0x2B ["+"] (43d) CD 0x28 (40d) GPO2 Configuration 0 - 4 Serial Interfacing 1 2 CF -- Number Base 0 - 2 Command Mode Options 1 1 CN 0x09 (9d) Exit Command Mode -- Command Mode Options -- -CS 0x1F (31d) GPO1 Configuration 0 - 4 Serial Interfacing 1 0 CT 0x06 (6d) Command Mode Timeout 2 - 0xFFFF [x 100 ms] Comman d Mode Options 2 0xC8 (200d) DB 0x36 (54d) Received Signal Strength 0x6E - 0x28 [read-only] Diagnostics 2 -DT 0x00 (0d) Destination Address 0 - 0xFFFF Networking & Security 2 0 E0 0x0A (10d) Echo Off -- Command Mode Options -- -E1 0x0B (11d) Echo On -- Command Mode Options -- -ER 0x0F (15d) Receive Error Count 0 - 0xFFFF Diagnostics 2 0 FH 0x0D (13d) Force Wa ke-up Initializer -- Sleep (Low Power) -- -FL 0x07 (7d) Software Flow Control 0 - 1 Serial Interfacing 1 0 FS 0x3E (62d) Forced Sync Time 0 - 0xFFFF [x 10 msec] RF Interfacing 2 0

FT 0x24 (36d) Flow Control Threshold 0 - (DI buffer size - 0x11) [Bytes] Serial Interfacing 2 GD 0x10 (16d) Receive Good Count 0 - 0xFFFF Diagnostics 2 0

HP 0x11 (17d) Hopping Channel 0 - 9 Networking & Security 1 0 HT 0x03 (3d) Time before Wake-up Initializer 0 - 0xFFFF [x 100 msec] Sleep (Low Power) 2 HV -- Hardware Version 0 - 0xFFFF [read-only] Diagnostics 2 -ID 0x27 (39d) Modem VID KY 0x3C (60d) AES Encryption Key 0 - (Any other 64-digit hex valid key) Networking & Security 2 0

LH 0x0C (12d) Wake-up Initializer Timer 0 - 0xFF [x 100 msec] Sleep (Low Power) 1 1 MD v2.x20* 0x31 (49d) RF Mode 0 - 6 Networking & Security 1 0

MK 0x12 (18d) Address Mask 0 - 0xFFFF Networking & Security 2 MT 0x3D (61d) Multi-Transmit 0 - 0xFF Networking & Security 1 0 MY 0x2A (42d) Source Address 0 - 0xFFFF Networking & Security 2 NB 0x23 (35d) Parity 0 - 4 Serial Interfacing 1 0

PB v2.x20* 0x45 (69d) Polling Begin Address 0 - 0xFFFF Networking & Security 2 0 PD v2.x20* 0x47 (71d) Minimum Polling Delay

prefix. Decimal equivalents are designated by a “d” suffix.)

Binary Command

AT Command Name Parameter Range

0 - 8 (standard rates) 0x39 - 0x1C9C38 (non-standard rates)

0x11 - 0x7FFF (user-settable) 0x8000 - 0xFFFF (factory-set, read-only)

0 - 0xFFFF (Base: (x 1 ms), Remote: [x 10 ms])

Command Category

Serial Interfacing 4 3

Networking & Security 2

Networking & Security 2 0

# Bytes Returned

Factory Default

DI buffer size minus 0x11

0xFFFF (65535d)

0x3332 (13106d)

0xFFFF (65535d)

9XTend™ RS-232/422/485 RF Modem User’s Guide

Table 4-03. XTend Commands (The RF modems expect numerical values in hexadecimal. Hexadecimal values are designated by a “0x”

AT Command

PE v2.x20* 0x46 (70d) Polling End Address 0 - 0xFFFF Networking & Security 2 0 PK 0x29 (41d) Maximum RF Packet Size 1 - 0x800 [Bytes] RF Interfacing 2 varies PL 0x3A (58d) TX Power Level 0 - 4 RF Interfacing 1 4 (1 Watt) PW 0x1D (29d) Pin Wake-up 0 - 1 Sleep (Low Power) 1 0 RB 0x20 (32d) Packetization Threshold 1 - Current value of PK Serial Interfacing 2 0x800 (2048d) RC -- Ambient Power - Single Channel 0 - 0x31 [dBm, read-only] Diagnostics 1 -RE 0x0E (14d) Restore Defaults -- (Special) -- -RM -- Ambient Power - All Channels No parameter - 0x7D0 Diagnostics 2 -RN 0x19 (25d) Delay Slots 0 - 0xFF [slots] Networking & Security 1 0 RO 0x21 (33d) Packetization Timeout 0 - 0xFFFF [x UART character time] Serial Interfacing 2 3 RP 0x22 (34d) RSSI PWM Timer 0 - 0xFF [x 100 msec] Diagnostics 1 0x20 (32d) RR 0x18 (24d) Retries 0 - 0xFF Networking & Security 1 0x0A (10d) RT 0x16 (22d) GPI1 Configuration 0 - 2 Serial Interfacing 1 0 SB 0x37 (55d) Stop Bits 0 - 1 Serial Interfacing 1 0 SH 0x25 (37d) Serial Number High 0 - 0xFFFF [read-only] Diagnostics 2 varies SL 0x26 (38d) Serial Number Low 0 - 0xFFFF [read-only] Diagnostics 2 varies SM 0x01 (1d) Sleep Mode 0 - 8 (3 is reserved) Sleep (Low Power) 1 0 ST 0x02 (2d) Time before Sleep (ATAT+3) - 0x7FFF [x 100 msec] Sleep (Low Power) 2 0x64 (100d) TP 0x38 (56d) Board Temperature 0 - 0x7F [read-only] Diagnostics 1 -TR 0x1B (27d) Delivery Failure Count 0 - 0xFFFF [read-only] Diagnostics 2 0 TT 0x1A (26d) Streaming Limit 0 - 0xFFFF [0 = disabled] Networking & Security 2 0 TX 0x3F (63d) Transmit Only 0 - 1 RF Interfacing 1 0 VL -- Firmware Version - verbose Returns string Diagnostics -- -VR 0x14 (20d) Firmware Version 0 - 0xFFFF [read-only] Diagnostics 2 -WA -- Active Warning Numbers Returns string Diagnostics -- -WN -- Warning Data Returns string Diagnostics -- -WR 0x08 (8d) Write -- (Special) -- -WS -- Sticky Warning Numbers Returns string Diagnostics -- --

prefix. Decimal equivalents are designated by a “d” suffix.)

Binary Command

AT Command Name Parameter Range

Command Category

# Bytes Returned

Factory Default

* Firmware version in which command and parameter options were first supported

9XTend™ RS-232/422/485 RF Modem User’s Guide

4.4. Command Descriptions

Commands in this section are listed alphabetically. Command categories are designated between the "< >" symbols that follow each command title. By default, XTend RF Modems expect numerical values in hexadecimal since the default value of the CF (Number Base) Parameter is '1'. Hexadecimal values are designated by the "0x" prefix and decimal values by the "d" suffix.

%V (Board Voltage) Command

<Diagnostics> %V Command is used to read the current voltage of the modem circuit board.

Sample Output:

5.02 V (when ATCF = 0) 5051F (when ATCF = 1) *

5.02 (when ATCF = 2)

* When CF = 1 (default), a hex integer is shown that is equal to (voltage * 65536d).

AM (Auto-set MY) Command

<Networking & Security> AM Command is used to automatically set the MY (Source Address) parameter from the factory-set serial number of the modem. The address is formed with bits 29, 28 and 13-0 of the serial number (in that order). The resulting value is displayed as a result of this command.

AP (API Enable) Command

<Serial Interfacing> The AP command is used to enable the modem to operate using the framebased API operation.

AT (Guard Time After) Command

AT Command: AT%V

Binary Command: 0x3B (59 decimal)

Parameter Range (read-only):

Number of bytes returned: 4

AT Command: ATAM

Binary Command: 0x40 (64 decimal)

AT Command: ATAP

Parameter Range: 0 - 2

Default Parameter Value:0

Number of Bytes Returned:1

Minimum Firmware Version Required: 2.x20

0x2CCCA - 0x5BFFA (2.80 - 5.75 decimal)

Parameter Configuration

API Disabled

(Transparent Operation)

API enabled

(w/out escaped

characters)

API enabled

(with escaped

characters)

<Command Mode Options> A T Comman d is us ed to set/read the time-of-silence that follows the command sequence character (CC Command) of the AT Command Mode Sequence (BT + CC + AT). By default, 1 second must elapse before and after the command sequence character.

The times-of-silence surrounding the command sequence character are used to prevent inadvertent entrance into AT Command Mode.

AT Command: ATAT

Binary Command: 0x05 (5 decimal)

Parameter Range: 2 - (ATST-3), up to 0x7FFC

[x 100 milliseconds]

Default Parameter Value: 0x0A (10 decimal)

Number of bytes returned: 2

Related Commands: BT (Guard Time Before), CC (Command Sequence Character)

9XTend™ RS-232/422/485 RF Modem User’s Guide

BD (Interface Data Rate) Command

<Serial Interfacing> The BD command is used to set and read the serial interface data rate (baud rate) used between the RF modem and host. This parameter determines the rate at which serial data is sent to the modem from the host. Modified interface data rates do not tak e effect until the CN (Exit AT Command Mode) command is issued and the system returns the 'OK' response.

When parameters 0-8 are sent to the modem, the respective interface data rates are used (as shown in the table on the right).

The RF data rate is not affecte d by the BD parameter. If the interface data rate is set higher than the RF data rate, a flow control configuration may need to be implemented.

The range between standard and non-standard baud rates (0x09 - 0x38) is invalid.

Non-standard Interface Data Rates: Any value above 0x38 will be interpreted as an actual baud rate. When a value above 0x38 is sent, the closest interface data rate represented by the number is stored in the BD register. For example, a rate of 19200 bps can be set by sending the following command line "ATBD4B00". NOTE: When using Digi’s X-CTU Software, non-standard interface data rates can only be set and read using the X- CTU ‘Terminal’ tab. Non-standard rates are not accessible through the ‘Modem Configuration’ tab.

When the BD command is sent with a non-standard interface data rate, the UART will adjust to accommodate the requested interface rate. In most cases, the clock resolution will cause the stored BD parameter to vary from the parameter that was sent (refer to the table below). R eading the BD command (send "ATBD" command without an associated parameter value) will return the value actually stored in the modem’s BD register.

Parameters Sent Versus Parameters Stored

BD Parameter Sent (HEX) Interface Data Rate (bps) BD Parameter Stored (HEX)

0 1200 0 4 19,200 4 7 115,200 7

12C 300 12B

1C200 115,200 1B207

AT Command: ATBD

Binary Command: 0x15 (21 decimal)

Parameter Ranges: 0 - 8 (standard rates) 0x39 - 0x1C9C38 (non-standard rates)

Parameter Configuration (bps)

01200

12400

24800

39600

4 19200

5 38400

6 57600

7 115200

8 230400

Default Parameter Value: 3

Non-standard baud rates supported as of firmware v2.x20

Number of bytes returned: 4

BR (RF Data Rate) Command

<RF Interfacing> The BR command is used to set and read the RF data rate (rate that RF data is transmitted over-the-air) of the modem.

AT Command: ATBR

Binary Command: 0x39 (57 decimal)

Parameter Range: 0 - 1

Parameter

09600

1 115200

Default Parameter Value:1

Number of bytes returned: 1

Baud (bps)

Configuration

9XTend™ RS-232/422/485 RF Modem User’s Guide

BT (Guard Time Before) Command

<AT Command Mode Options> The CC command is used to set/read the ASCII character used between guard times of the AT Command Mode Sequence (BT + CC + AT). This sequence enters the modem into AT Command Mode so that data entering the modem (from the host ) is recognized as commands instead of payload.

CC (Command Sequence Character) Command

CD (GPO2 Configuration) Command

<Serial Interfacing> CD Command is used to select/read the behavior of the GPO2 line (pin 3).

CF (Number Base) Command

AT Command: ATCC

Binary Command: 0x13 (19 decimal)

Parameter Range: 0x20 - 0x7F

Default Parameter Value: 0x2B (ASCII “+”)

Number of bytes returned: 1

Related Commands: AT (Guard Time After), BT (Guard Time Before)

AT Command: ATCC

Binary Command: 0x13 (19 decimal)

Parameter Range: 0x20 - 0x7F

Default Parameter Value: 0x2B (ASCII “+”)

Number of bytes returned: 1

Related Commands: AT (Guard Time After), BT (Guard Time Before)

AT Command: ATCD

Binary Command: 0x28 (40 decimal)

Parameter Range: 0 - 8 (standard rates)

Parameter Configuration

0RX LED

1Default High

2Default Low

3(reserved)

Default Parameter Value: 2

Number of bytes returned: 1

RX LED

(valid address only)

<Command Mode Options> CF command is used to set/read the command formatting setting.

The following commands are always entered and read in hex, no matter the CF setting:

VR (Firmware Version) HV (Hardware Version) KY (AES Encryption Key)

AT Command: ATCF

Parameter Range: 0 – 2

Parameter Configuration

Commands utilize default

Default Parameter Value: 1

Number of bytes returned: 1

number base; decimal

commands may output units

All commands forced to unsigned, unit-less hex

Commands utilize their

default number base; no

units are output

9XTend™ RS-232/422/485 RF Modem User’s Guide

CN (Exit AT Command Mode) Command

<Command Mode Options> The CN command is used to explicitly exit the modem from AT Command Mode.

CS (GPO1 Configuration) Command

<Serial Interfacing> CS Command is used to select the behavior of the GP01 pin (pin 9). This output can provide RS-232 flow control, control the TX enable signal (for RS-485 or RS-422 operations).

By default, GP01 provides RS-232 CTS Send) flow control.

CT (Command Mode Timeout) Command

<Command Mode Options> The CT command is used to set and read the amount of inactive time that elapses before the modem automatically exits from AT Command Mode and returns to Idle Mode.

Use the CN (Exit AT Command Mode) command to exit AT Command Mode manually.

DB (Received Signal Strength) Command

(Clear-to-

AT Command: ATCN

Binary Command: 0x09 (9 decimal)

AT Command: ATCS

Binary Command: 0x1F (31 decimal)

Parameter Range: 0 - 4

Parameter Configuration

0 RS-232 CTS

1 RS-485 TX enable low

2High

3 RS-485 TX enable high

4Low

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: RT (GPI1 Configuration), TO (GP01 Timeout)

AT Command: ATCT

Binary Command: 0x06 (6 decimal)

Parameter Range: 2 - 0xFFFF

[x 100 milliseconds]

Default Parameter Value: 0xC8 (200d)

Number of bytes returned: 2

Related Command: CN (Exit AT Command Mode)

flow control

<Diagnostics> DB Command is used to read the receive signal strength (in decibels relative to milliWatts) of the last received packet. This parameter is useful in determining range characteristics of the RF modems under various conditions.

In default mode, this command shows the power level in signed decimal format with the units (dBm). If CF = 1, the magnitude of the value is presented in unsigned hex. If CF = 2, the value is presented in decimal, but without the units.

Sample Output: -88 dBm(when ATCF = 0)

58 (when ATCF = 1)

-88 (when ATCF = 2)

NOTE: If the DB register is read before the modem has received an RF packet, the modem will return a value of 0x8000 (which means an RF packet has not yet been received).

AT Command: ATDB Binary Command: 0x36 (54 decimal) Parameter Range (read-only): 0x6E - 0x28

(-110 to -40 Decimal) Number of bytes returned: 2

9XTend™ RS-232/422/485 RF Modem User’s Guide

DT (Destination Address) Command

<Networking & Security> DT Command is used to set/read the networking address of an RF modem. The modems utilize three filtration layers: Vendor ID Number (ATID), Channel (ATHP), and Destination Address (ATDT). The DT command assigns an address to a modem that enables it to communicate only with other modems having the same address. All modems that share the same DT parameter can communicate with each other.

RF modems in the same network with a different destination address (than that of the transmitter) will listen to all transmissions to stay synchronized, but will not send any of the data out their serial ports.

E0 (Echo Off) Command

<Command Mode Options> E0 Command turns off character echo in AT Command Mode.

By default, echo is off.

E1 (Echo On) Command

<Command Mode Options> E1 Command enables character echo in A T Command Mode. Each typed character will be echoed back to the terminal when ATE1 is active. E0 (Echo Off) is the default.

AT Command: ATDT

Binary Command: 0x00

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: HP (Hopping Channel), ID (Modem VID), MK (Address Mask), MY (Source Address)

AT Command: ATE0

Binary Command: 0x0A (10 decimal)

AT Command: ATE1

Binary Command: 0x0B (11 decimal)

ER (Receive Error Count) Command

<Diagnostics> The ER command is used to set/ read the number of receive-errors. The error count records the number of packets partially received then aborted on a reception error. This value returns to 0 after a reset and is not nonvolatile (Value does not persist in the modem's memory after a power-up sequence). Once the Receive Error Count reaches its maximum value (up to 0xFFFF), it remains at its maximum count value until the maximum count value is explicitly changed or the modem is reset.

The ER parameter is not reset by pin, serial port or cyclic sleep modes.

FH (Force Wake-up Initializer) Command

<Sleep (Low Power)> The FH command is used to force a Wake-up Initializer to be sent on the next transmission. Use only with cyclic sleep modes active on remote modems. ATFH will not send a long header if ATHT = 0xFFFF. WR (Write) Command does not need to be issued with FH Command.

AT Command: ATER

Binary Command: 0x0F (15 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: GD (Receive Good Count)

AT Command: ATFH

Binary Command: 0x0D (13 decimal)

9XTend™ RS-232/422/485 RF Modem User’s Guide

FL (Software Flow Control) Command

<Serial Interfacing> The FL command is used to configure software flow control. Hardware flow control is implemented with the modem as the GP01 pin (CTS regulates when serial data can be transferred to the modem.

FL Command can be used to allow software flow control to also be enabled. The XON character used is 0x11 (17 decimal). The XOFF character used is 0x13 (19 decimal)

FS (Forced Synch Time) Command

<RF Interfacing> The FS command only applies to streaming data. Normally , only the fi rst pack et of a continuous stream contains the full RF initializer. The RF modems then remain synchronized for subsequent packets of the stream. This parameter can be used to periodically force an RF initializer during such streaming. Any break in UART character reception long enough to drain the DI Buffer (UART receive buffer) and cause a pause in RF data transmission will also cause an RF initializer to be inserted on the next transmission.

FT (Flow Control Threshold) Command

pin of the OEM RF module), which

AT Command: ATFL

Binary Command: 0x07 (7 decimal)

Parameter Range: 0 - 1

Parameter Configuration

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATFS

Binary Command: 0x3E (62 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Disable software

flow control

Enable software

flow control

[x 10 milliseconds]

<Serial Interfacing> The FT command is used to set/read the flow control threshold. When FT bytes have accumulated in the DI buffer (UART Receive), CTS ware flow control character is transmitted.

GD (Receive Good Count) Command

<Diagnostics> The GD command is used to set/ read the count of good received RF packets. Its parameter value is reset to 0 after every reset and is not non-volatile (The parameter value does not persist in the RF modem's memory after a power-up sequence). Once the "Receive Good Count" reaches its maximum value (up to 0xFFFF), it remains at its maximum count value until the maximum count value is manually changed or the modem is reset.

The GD parameter is not reset by pin, serial port or cyclic sleep modes.

is de-asserted or the XOFF soft-

AT Command: ATFT

Binary Command: 0x24 (36 decimal)

Parameter Range: 0 - (DI buffer size minus 0x11) [Bytes]

Default Parameter Value: DI Buffer size minus 0x11 (17 decimal)

Number of bytes returned: 2

AT Command: ATGD

Binary Command: 0x10 (16 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: ER (Receive Error Count)

9XTend™ RS-232/422/485 RF Modem User’s Guide

HP (Hopping Channel) Command

<Networking & Security> The HP command is used to set/read the RF modem's hopping channel number. A channel is one of three layers of filtration available to the modem.

In order for modems to communicate with each other, the modems mu st have the same channel number since each channel uses a different hopping sequence. Different channels can be used to prevent modems in one network from listening to transmissions of another.

HT (Time before Wake-up Initializer) Command

<Sleep (Low Power)> The HT command is used to set/read the time of inactivity (no serial or RF data is sent or received) before a wake-up initializer is sent by a TX (transmitting) RF modem. The HT parameter should be set shorter than inactivity timeout [ST Command] time of any RX (receiving) modems operating in Cyclic Sleep (SM=4-8). The wake-up initializer sent by the TX modem instructs all RX modems to remain awake to receive RF data.

From the RX modem perspective: After HT time elapses and the inactivity timeout [ST Command] is met, the RX modem goes into cyclic sleep. In cyclic sleep, the RX modem wakes once per sleep interval [SM Command] to check for a wake-up initializer. When a wake-up initializer is detected, the modem stays awake to receive data. The wake-up initialize r must be longer than the cyclic sleep interval to ensure that sleeping modems detect incoming data.

When HT time elapses, the TX modem knows it needs to send a wake-up Initializer for all RX modems to remain awake and receive the next transmission.

AT Command: ATHP

Binary Command: 0x11 (17 decimal)

Parameter Range: 0 - 9

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: ID (Modem VID), DT (Destination Address), MK (Address Mask)

AT Command: ATHT

Binary Command: 0x03 (3 decimal)

Parameter Range: 0 - 0xFFFF

[x 100 milliseconds]

Default Parameter Value: 0xFFFF (wake-up initializer will not be sent)

Number of bytes returned: 2

Related Commands: LH (Wake-up Initializer Timer), SM (Sleep Mode), ST (Time before Sleep)

HV (Hardware Version) Command

<Diagnostics> The HV command is used to read the hardware version of the RF modem.

ID (Modem VID) Command

<Networking & Security> The ID command is used to set/read the VID (Vendor Identification Number) of the RF modem. RF modems must have matching VIDs in order to communicate.

AT Command: ATHV

Parameter Range: 0 - 0xFFFF [Read-only]

Minimum Firmware Version Required: v1.x80

AT Command: ATID

Binary Command: 0x27 (39 decimal)

Parameter Range: 0x11 - 0x7FFF (user-settable) 0 - 0x10 & 0x8000 - 0xFFFF (factory-set)

Default Parameter Value: 0x3332 (13106d)

Number of bytes returned: 2

9XTend™ RS-232/422/485 RF Modem User’s Guide

KY (AES Encryption Key) Command

<Networking & Security> The KY command is used to set the 256-bit AES (Advanced Encryption Standard) key for encrypting/decrypting data. Once set, the key cannot be read out of the modem by any means. The entire payload of the packet is encrypted using the key and the CRC is computed across the ciphertext. When encryption is enabled, each packet carries an additional 16 bytes to convey the random CBC Initialization Vector (IV) to the receiver(s). The KY value may be “0” or any 256-bit value (= 6 4 hex digits = 32 bytes). An y other v alue, incl uding entering ATKY by itself with no parameters, causes an error.

A modem with the wrong key (or no key) will receive encrypted data, but the data driven out the serial port will be meaningless. Likewise, a modem with a key will receive unencrypted data sent from a modem without a key, but the output will be meaningless. Because CBC mode is utilized, repetitive data appears differently in different transmissions due to the randomly-generated IV.

LH (Wake-up Initializer Timer) Command

<Sleep (Low Power)> The LH Command is used to set/read the duration of time during which the wake-up initializer is sent. When receiving modems are in Cyclic Sleep Mode, they powerdown after a period of inactivity (as specified by the ST parameter) and will periodically wake and listen for transmitted data. In order for the receiving modems to remain awake, they must detect ~35ms of the wake-up initializer.

LH Command must be used whenever a receiving modem is operating in Cyclic Sleep Mode. The Wake-up Initializer Time must be longer than the cyclic sleep time that [as determined by SM (Sleep Mode) parameter]. If the wake-up initializer time were less than the Cyclic Sleep interval, the connection would be at risk of missing the wake-up initializer transmission.

Refer to figures loated under the SM command description to view diagrams of correct and incorrect configurations. The images emphasize that the LH value must be greater than the SM value.

AT Command: ATKY

Binary Command: 0x3C (60 decimal)

Parameter Range: 0 - (any other 64-digit hex valid key)

Default Parameter Value: 0 (disabled)

Number of bytes returned: 2

Number Base: Always Hexadecimal

AT Command: ATLH

Binary Command: 0x0C (12 decimal)

Parameter Range: 0 - 0xFF

[x 100 milliseconds]

Default Parameter Value: 1

Number of bytes returned: 1

Related Commands: HT (Time before Wake-up Initializer), SM (Sleep Mode), ST (Time before Sleep)

MD (RF Mode) Command

<Networking & Security> The MD command is used to select/read the settings that enable the Polling and Repeater Modes on the modem.

Polling Mode - A ‘Polling Base’ is responsible for polling remotes. A ‘Polling Remote’ requires a poll in order to transmit.

Repeater Mode - A ‘Repeater’ re-sends RF data unless the transmission is addressed to it or if the transmission has already been detected. A ‘Repeater End Node’ handles repeated messages, but will not repeat the message over-the-air.

Refer to the Polling and Repeater Mode sections of the ‘RF Communication Modes’ chapter for more information.

AT Command: ATMD

Binary Command: 0x31 (49 decimal)

Parameter Range: 0 - 6

Parameter Configuration

1 [reserved - not used]

3Polling Base

4 Polling Remote

5 Repeater

6 Repeater End Node

Default Parameter Value: 0

Number of bytes returned: 1

Minimum Firmware Version Required: 2.x20

Transparent Operation

(Repeater Base)

[reserved - not used]

9XTend™ RS-232/422/485 RF Modem User’s Guide

MK (Address Mask) Command

<Networking & Security> The MK command is used to set/read the Address Mask of a modem.

All RF data packets contain the Destination Address of the TX (transmitting) modem. When a packet is received, the TX modem Destination Address is logically "ANDed" (bitwise) with the Address Mask of the RX (receiving) modem. The resulting value must match the Destination Address or Address Mask of the RX modem for the packet to be received and sent out the RX modem's DO (Data Out) pin. If the "ANDed" value does not match the Destination Address or Address Mask of the RX modem, the packet is discarded.

Sniffer Mode (when MK = 0): ACK requests are ignored and every RX (receive) frame is sent to the UART, without regard for repeated frames.

All “0” values are treated as irrelevant values and ignored.

MT (Multi-transmit) Command

<Networking & Security> The MT command is used to enabled multiple transmissions of RF data packets. When Multi-transmit Mode is enabled (MT > 0), packets do not request an ACK (acknowledgement) from the receiving RF modem(s). MT takes precedence over RR, so if both MT and RR are non-zero, then MT+1 packets will be sent (with no ACK requests).

When a receiving modem receives a packet with remaining forced retransmissions, it calculates the length of the packet and inhibits transmission for the amount of time required for all retransmissions. Thereafter, a random number of delay slots are inserted between 0 and RN before transmission is allowed from the receiving modem(s). This prevents all listening modems from transmitting at once upon conclusion of a multiple transmission event (when RN > 0).

NOTE: The actual number of forced transmissions is the parameter value plus one. For example, if MT = 1, two transmissions of each packet will be sent.

AT Command: ATMK

Binary Command: 0x12 (18 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0xFFFF (65535d)

Number of bytes returned: 2

Related Commands: DT (Destination Address), HP (Hopping Channel), ID (Modem VID), MY (Source Address)

AT Command: ATMT

Binary Command: 0x3D (61 decimal)

Parameter Range: 0 - 0xFF

Default Parameter Value:0 (no forced retransmissions)

Number of bytes returned: 1

Related Commands: Networking (DT, MK, MY, RN, TT), Serial Interfacing (BR, PK, RB, RO), RF Interfacing (FS)

MY (Source Address) Command

<Networking & Security> The MY command is used to set/read the Source Address of the RF modem.

AT Command: ATMY

Binary Command: 0x2A (42 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0xFFFF (Disabled DT (Destination Address) parameter serves as both source and destination address.)

Number of bytes returned: 2

Related Commands: DT (Destination Address), HP (Hopping Channel), ID (Modem VID), MK (Address Mask)

9XTend™ RS-232/422/485 RF Modem User’s Guide

NB (Parity) Command

<Serial Interfacing> The NB command is used to select/read the parity settings of the RF mo dem for UART communications.

PB (Polling Begin Address) Command

<Networking & Security> PB command is used to set/read the modem’s Polling Begin Address - the first address polled Polling Mode is enabled.

Polling Operations: The ‘Polling Base’ (MD = 3) cycles through a sequential range of addresses, polling each ‘Polling Remote’ (MD = 4). The base then waits for a response & proceeds to the next ‘Polling Remote’. Each ‘Polling Remote’ responds by sending the data from the Data In buffer following the RB & RO parameters. When the re is no eligible data to send, the ‘Polling R emote’ will not respond. The ‘P olling Base’ will mov e to the next address in the polling sequence after a short delay.

AT Command: ATNB Binary Command: 0x23 (35 decimal) Parameter Range: 0 - 4

Parameter Configuration

18-bit even 28-bit odd 38-bit mark

48-bit space Default Parameter Value: 0 Number of bytes returned: 1

AT Command: ATPB

Binary Command: 0x45 (69 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PE (Polling End Address), PD (Minimum Polling Delay)

8-bit (no parity or

7-bit (any parity)

PD (Minimum Polling Delay) Command

<Networking & Security> The PD command is used to set/read Polling Delay (Base, MD=3) or Polling Timeout (Remote, MD=4).

Polling Delay (Base) is the time between polling cycles. The Polling Base will start the polling cycle after sending the first poll. After the polling cycle has completed, the timer is restarted.

Polling Timeout (Remote) is the amount of time the remote unit will hold data from the serial port before discarding it. Data entered within the PD time of the poll is transmitted and not discarded.

PE (Polling End Address) Command

<Networking & Security> PE command is used to set/read the modem’s Polling End Address - the last address polled when Polling Mode is enabled.

Polling Operations: The ‘Polling Base’ (MD = 3) cycles through a sequential range of addresses, polling each ‘Polling Remote’ (MD = 4). The base then waits for a response & proceeds to the next ‘Polling Remote’. Each ‘Polling Remote’ responds by sending data from the DI buffer following the RB & RO parameters. When there is no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will move to the next address in the polling sequence after a short delay.

AT Command: ATPD

Binary Command: 0x47 (71 decimal)

Parameter Range: 0 - 0xFFFF (Base: [x 1ms], Remote: [x 10ms])

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PB (Polling Begin Address), PE (Polling End Address)

AT Command: ATPE

Binary Command: 0x46 (70 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PB (Polling Begin Address), PD (Minimum Polling Delay)

9XTend™ RS-232/422/485 RF Modem User’s Guide

PK (Maximum RF Packet Size) Command

<RF Interfacing> The PK command is used to set/ read the maximum size of RF packets transmitted from an RF modem. The maximum packet size can be used along with the RB and RO parameters to implicitly set the channel dwe ll time.

If PK is set above 256 and BR is subsequently changed to 0, PK will automatically be lowered to 256 and a warning will be raised (refer to the BR (RF Data Rate) and WN (Warning Data) commands for details).

Changes to the PK parameter may have a secondary effect on the RB (Packetization Threshold) parameter . RB must always be less than or equal to PK. If PK is changed to a value that is less than the current value of RB, the RB value is automatically lowered to be equal to PK.

* When BR = 0 (9600 baud), the maximum PK value is 0x100 (256d). When BR = 1 (115,200 baud), the maximum PK value is 0x800 (2048d).

PL (TX Power Level) Command

<RF Interfacing> The PL command is used to set/ read the power level at which the RF modem transmits data

AT Command: ATPK

Binary Command: 0x29 (41 decimal)

Parameter Range: 1 - 0x800 [Bytes]

Default Parameter Value:0x100* or 0x800* (256 or 2048 decimal)

Number of bytes returned: 2

Related Commands: BR (RF Data Rate) RB (Packetization Threshold), RO (Packetization Timeout), WN (Warning Data)

AT Command: ATPL

Binary Command: 0x3A (58 decimal)

Parameter Range: 0 - 4

Parameter Configuration

01 mW

110 mW

2 100 mW

3 500 mW

4 1000 mW (1 Watt)

Default Parameter Value: 4

Number of bytes returned: 1

PW (Pin Wake-up) Command

<Sleep (Low Power)> Under normal operation, an RF modem in Cyclic Sleep Mode cycles from an active state to a low-power state at regular intervals until data is ready to be received. If the PW parameter is set to 1, the GPI2 pin (SLEEP) can be used to awaken the modem from Cyclic Sleep. When the GPI2 Pin is de-asserted (low), the modem will be fully operational and will not go into Cyclic Sleep.

Once the GPI2 pin is asserted, the modem will remain active for the period of time specified by the ST (Time before Sleep) parameter and will return to Cyclic Sleep Mode (if no data is ready to be transmitted). PW Command is only valid if Cyclic Sleep has been enabled.

AT Command: ATPW

Binary Command: 0x1D (29 decimal)

Parameter Range: 0 - 1

Parameter Configuration

0 Disabled

1Enabled

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: SM (Sleep Mode), ST (Time before Sleep)

9XTend™ RS-232/422/485 RF Modem User’s Guide

RB (Packetization Threshold) Command

<Serial Interfacing> The RB command is used to set/read the character threshold value.

RF transmission begins after data is received in the DI Buffer and either of the following criteria is met:

• RB characters received by the UART

• RO character times of silenc e detected on the UART receive lines (after receiving at least 1 Byte of data)

If PK (Max. RF Packet Size) is lowered below the value of RB, RB is automatically lowered to match the PK value. If (RO = 0), RB bytes must be received before beginning transmission.

Note: RB and RO criteria only apply to the first packet of a multi-packet transmission. If data remains in the DI Buffer after the first packet, transmissions will continue in a streaming manner until there is no data left in the DI Buffer (UART receive buffer).

RC (Ambient Power - Single Channel) Command

<Diagnostics> The RC command is used to examine and report the power level on a given channel.

Sample output: -78 dBm [when CF = 0]

4e [when CF = 1]

-78 [when CF = 2]

RE (Restore Defaults) Command

AT Command: ATRB

Binary Command: 0x20 (32 decimal)

Parameter Range: 0 - PK parameter value

(up to 0x800 Bytes)

Default Parameter Value: 0x800 Bytes

Number of bytes returned: 2

Related Commands: BR (RF Data Rate), PK (RF Packet Size), RO (Packetization Timeout)

AT Command: ATRC

Parameter Range (read-only): 0 - 0x31 [dBm]

Number of bytes returned: 1

Related Commands: RM (Ambient Power - All Channels)

<Diagnostics> The RE command is used to restore all configurable parameters to their factory default settings.

The RE Command does not cause default values to be stored to non-volatile (persistent) memory. F or the restored default settings to persist in the modem’s non-volatile memory and be saved in the event of RF modem reset or power-down, the WR (Write) command must be issued prior to power-down or reset.

RM (Ambient Power - All Channels) Command

<Diagnostics> The RM command is used to examine and report power levels on all channels. If no parameter is given, the channels are scanned one time. If a parameter is given, the channels are repeatedly scanned for that number of seconds. The maximum power level seen for each channel is reported (i.e. peak hold).

A graphical spectrum analyzer can be implemented by repeatedly sending the RM command (with no arguments) and reading the resultant 50 power levels (this is easiest to do when CF = 1 or 2).

Sample output [when CF = 0]: Ch 0: -100 dBm

Ch 1: -103 dBm ... Ch 49: -99 dBm

Sample output [when CF = 1]: 64

67 ... 63

Sample output [when CF = 2]: 100

-103 …

-99

AT Command: ATRE

Binary Command: 0x0E (14 decimal)

AT Command: ATRM

Parameter Range: no parameter - 0x7D0)

Number of bytes returned: 2

Related Commands: RC (Ambient Power Single channel)

9XTend™ RS-232/422/485 RF Modem User’s Guide

RN (Delay Slots) Command

<Networking & Security> The RN command is used to set/read the time dela y that the transmitting RF modem inserts before attempting to resend a packet. If the transmitting modem fails to receive an acknowledgement after sending a packet, it inserts a random number of delay slots (ranging from 0 to (RN minus 1)) before attempting to resend the packet. Each delay slot is 5 msec (when BR=1) and 54 msec (when BR=0).

If two modems attempt to transmit at the same time, the random time delay after packet failure allows only one modem to transmit the packet successfully; while the other m odem waits until the channel available for RF transmissio n.

RN Command is only applicable if retries have been enabled [RR (Retries) Command] or if forced delays will be inserted into a transmission [TT (Streaming Limit) Command].

RO (Packetization Timeout) Command

<Serial Interfacing> The RO command is used to set/read the Packetization Timeout setting. RF transmission begins when data is in the DI buffer and either of the following criteria are met:

• RO character times of silence on the UART receive lines (after receiving at least 1 byte)

• RB characters have been received by the UART

RB and RO criteria only apply to the first packet of a multi-packet transmission. If data remains in the DI Buffer (UART receive) after the first packet, transmissions will continue in a streaming manner until there is no data left in the DI Buffer.

When RO is the transmission-beginning criteria: The actual time between the reception of the last character from the UART and the beginning of RF transmission will be at least 800 µsec longer than the actual RO time to allow for transmissio n setup. Additionally, it is subject to 100200 µsec of additional uncertainty, which could be significant for small values of RO at high UART bit rates.

The correct UART character time (10, 11, or 12 bits) is calculated based on the following criteria:

•1 start bit

• 8 data bits

• 0 or 1 parity bit [as determined by the NB (Parity) Command)

• 1 or 2 stop bits [as determined by SB (Stop Bits) Command]

AT Command: ATRN

Binary Command: 0x19 (25 decimal)

Parameter Range: 0 - 0xFF [38 ms slots]

Default Parameter Value: 0 (no delay slots inserted)

Number of bytes returned: 1

Related Commands: RR (Retries), TT (Streaming Limit)

AT Command: ATRO

Binary Command: 0x21 (33 decimal)

Parameter Range: 0 - 0xFFFF

[ x UART character times ]

Default Parameter Value: 3

Number of bytes returned: 2

Related Commands: RB (Packetization Threshold)

9XTend™ RS-232/422/485 RF Modem User’s Guide

RP (RSSI PWM Timer) Command

<Diagnostics> RP Command is used to enable a PWM ("Pulse Width Modulation") output on the Config/RSSI pin (pin 11 of the OEM RF Module). The pin is calibrated to show the difference between received signal strength and the sensitivity level of the RF modem. PWM pulses vary from zero to 95 percent. Zero percent means the received RF signal is at or below the published sensitivity level of the modem .

The following table shows dB levels above sensitivity and PWM values (The total time period of the PWM output is 8.32 ms. PWM output consists of 40 steps and therefore the minimum step size is

0.208 ms.):

Table 4-04. PWM Values

dBm above sensitivity

10 20% 20 35% 30 50%

A non-zero value defines the time that PWM output is active with the RSSI value of the last received RF packet. After the set time when no RF pack et s are receiv ed, PWM output is se t low (0 percent PWM) until another RF packet is received. PWM output is also set low at power-up. A parameter value of 0xFF permanently enables PWM output and always reflects the value of the last received RF packet.

The Config/RSSI pin is shared between PWM output and Config input. When the modem is powered, the Config pin is an input. During the power-up sequence, if RP parameter is a non-zero value, the Config pin is configured as an output and set low until the first RF packet is received. With a non-zero RP parameter, the Config pin is an input for RP ms after power up.

(high period / total period)

AT Command: ATRP

Binary Command: 0x22 (34 decimal)

Parameter Range: 0 - 0xFF

[x 100 milliseconds]

Default Parameter Value: 0x20 (32d)

Number of bytes returned: 1

PWM percentage

RR (Retries) Command

<Networking & Security> The RR command is used to set/read the maximum number of retries sent for a given RF packet. When RR Command is enabled (RR>0), RF packet retries and ACKs (acknowledgements) are enabled.

Exceptions: If the MT command in enabled (MT>0) or if a broadcast Destination Address is used (DT = 0xFFFF); RF packet retries and ACKs are disabled.

After transmitting a packet, the transmitting RF modem waits to receive an acknowledgement from a receiving modem. If the acknowledgement is not received in the period of time specified by RN (Delay Slots) Command, the original packet is transmitted again. The RF packet is transmitted repeatedly until an acknowledgement is received or until the packet is sent RR times.

AT Command: ATRR

Binary Command: 0x18 (24 decimal)

Parameter Range: 0 - 0xFF

Default Parameter Value: 0x0A (10 decimal)

Number of bytes returned: 1

9XTend™ RS-232/422/485 RF Modem User’s Guide

RT (GPI1 Configuration) Command

<Serial Interfacing> The RT command is used to set/read the behavior of the GPI1 pin (GPI1) of the OEM RF Module. The pin can be configured to enable binary programming or RTS

SB (Stop Bits) Command

<Serial Interfacing> The SB Command is used to set/read the number of stop bits in the data packet.

SH (Serial Number High) Command

flow control.

AT Command: ATRT

Binary Command: 0x16 (22 decimal)

Parameter Range: 0 - 2

Parameter Configuration

0 Disabled

2 Enable RTS

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATSB

Binary Command: 0x37 (55 decimal)

Parameter Range: 0 - 1

Parameter Configuration

01 stop bit

12 stop bits

Default Parameter Value: 0

Number of bytes returned: 1

Enable Binary

Programming

Flow Control

<Diagnostics> SH Command is used to set/read the serial number high word of the RF modem.

SL (Serial Number Low) Command

<Diagnostics> SL Command is used to set/read the serial number low word of the RF modem.

AT Command: ATSH

Binary Command: 0x25 (37 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Default Parameter Value: varies

Number of bytes returned: 2

Related Commands: SL (Serial Number Low)

AT Command: ATSL

Binary Command: 0x26 (38 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Default Parameter Value: varies

Number of bytes returned: 2

Related Commands: SH (Serial Number High)

9XTend™ RS-232/422/485 RF Modem User’s Guide

SM (Sleep Mode) Command

<Sleep Mode (Low Power)> The SM Command is used to set/read the RF modem's Sleep Mode settings that configure the modem to run in states that require minimal power consumption.

ST (Time before Sleep) Command

AT Command: ATSM

Binary Command: 0x01

Parameter Range: 0 - 8 (3 is reserved)

Parameter Configuration

0 Disabled

1Pin Sleep

2 Serial Port Sleep

3 [reserved]

Cyclic 1.0 second sleep

5 Cyclic 2.0 second sleep

6 Cyclic 4.0 second sleep

7 Cyclic 8.0 second sleep

8 Cyclic 16.0 second sleep

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: Pin Sleep - PC (Power-up Mode), PW (Pin

Wake-up) Serial Port Sleep - ST (Time before Sleep) Cyclic Sleep - ST (Time before Sleep), LH

(Wake-up Initializer Timer), HT (Time Before Wake-up Initializer), PW (Pin Wake-up)

(RF modem wakes every

1.0 seconds)

<Sleep Mode (Low Power)> The ST Command is used to set/read the period of time (in milliseconds) in which the RF modem remains inactive before entering Sleep Mode.

For example, if the ST Parameter is set to 0x64 (100 decimal), the modem will enter into Sleep mode after 10 seconds of inactivity (no transmitting or receiving).

This command can only be used if Cyclic Sleep or Serial Port Sleep Mode settings have been selected using SM (Sleep Mode) Command.

TP (Board Temperature) Command

<Diagnostics> TP Command is used to read the current temperature of the board.

Sample Output: 26 C [when ATCF = 0]

1A [when ATCF = 1] 26 [when ATCF = 2].

AT Command: ATST

Binary Command: 0x02 (2 decimal)

Parameter Range: (ATAT+3) - 0x7FFF

[x 100 milliseconds]

Default Parameter Value: 0x64 (100 decimal)

Number of bytes returned: 2

Related Commands: SM (Sleep Mode), LH (Wake-up Initializer Timer), HT (Time before Wake-up Initializer)

AT Command: ATTP

Binary Command: 0x38 (56 decimal)

Parameter Range (read-only): 0- 0x7F

Number of bytes returned: 1

Related Command: WN (Warning Data)

9XTend™ RS-232/422/485 RF Modem User’s Guide

TR (Transmit Error Count) Command

<Diagnostics> The TR command is used to report the number of retransmit failures. This number is incremented each time a packet is not acknowledged within the number of retransmits specified by the RR (Retries) parameter. The number of packets therefore are counted that were not successfully received and subsequently d iscarded.

The TR parameter is not non-volatile and is reset to zero when the RF modem is reset.

TT (Streaming Limit) Command

<Networking & Security> The TT command is used to set/read the limit on the number of bytes that can be sent out before a random delay is issued.

If an RF modem is sendin g a continuous str eam of RF data, a delay is inserted which sto p s its transmission and allows other modems time to transmit (once it sends TT bytes of data). Inserted random delay lasts between 1 & 'RN + 1' delay slots, where each delay slot lasts 38 ms.

The TT command can be used to simulate full-duplex behavior.

TX (Transmit Only) Command

<RF Interfacing> The TX command is used to set/ read the transmit/receive behaviors of the RF modem. Setting a modem to TX-only (TX = 1) may reduce latency because the transmitting modem will never be confined to receiving data from other modems.

AT Command: ATTR

Binary Command: 0x1B (27 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: RR (Retries)

AT Command: ATTT

Binary Command: 0x1A (26 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0 (disabled)

Number of bytes returned: 2

Related Commands: RN (Delay Slots)

AT Command: ATTX

Binary Command: 0x3F (63 decimal)

Parameter Range: 0 - 1

Parameter Configuration

0TX & RX

1TX-only

Default Parameter Value: 0

Number of bytes returned: 1

VL (Firmware Version - Verbose)

<Diagnostics> The VL command is used to read the verbose firmware version of the RF modem.

VR (Firmware Version - Short) Command

<Diagnostics> The VR command is used to read the firmware version of the RF modem.

Note: Firmware versions contain four significant digits - “A.B.C.D”. If B=2, the modem is programmed for operation in Australia only.

AT Command: ATVL

Parameter Range: returns string

Default Parameter Value: 0

Number of bytes returned: 2

AT Command: ATVR

Binary Command: 0x14 (20 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Number of bytes returned: 2

9XTend™ RS-232/422/485 RF Modem User’s Guide

WA (Active Warning Numbers) Command

<Diagnostics> The WA command reports the warning numbers of all active warnings - one warning number per line. No further information is shown and warning counts are not reset.

Sample Output (indicates warnings 1 and 3 are currently active): 1

WN (Warning Data) Command

<Diagnostics> WN command is used to report the following data for all active and sticky warnings:

• Warning number & description

• Number of occurrences since the last WN or WS command

• Whether the warning is currently active

Warnings, which are not currently active and have not been active since the last issuance of the WN or WS commands, are not displayed. The WN command also resets all non-zero warning counts; except for warnings that are presently active, which are set to 1.

Sample output: Warning 4: Over-temperature

5 occurrences; presently inactive.

Warning # Description

1 2 Over-voltage. This is caused if the supply voltage exceeds 5.75 V. Transmission is not allowed while this warning is active. 3

4 5 6

Under-voltage. This is caused if the supply voltage falls below the minimum threshold for the lowest power level (2.8 V). If/when the voltage rises above the threshold, the warning is deactivated. The module will not transmit below this voltage threshold.

Under-temperature. This is caused if the temperature sensed by the module is less than -40 C. The module does not artificially limit operation while this warning is active, but module functionality is not guaranteed.

Over-temperature. This is caused if the temperature sensed by the module is greater than 105 C. The module does not allow transmission nor reception while this warning is active. The warning is deactivated when the temperature falls to 100 C.

Power reduced. This is caused if the transmit power has to be reduced from the level programmed by PL Command due to insufficient supply voltage. The 1 W power level requires 4.75 V or higher; 500 mW requires 3.0 V or higher; 100 mW, 10 mW and 1 mW require 2.8 V or higher.

Default calibration data in flash. This is caused if the module-specific power calibration data is either not present or is invalid, or if none of the parameters have been modified from their default values. Power levels may be incorrect.

Default configuration parameters in flash. This is cause d if user-modifi able paramete rs (i.e. those s tored by a 'WR' command) in fl ash are all the compiled-in default values. This is caused if the user configuration is found to be not prese nt or invalid at power-up and there is no custom configuration, or if no user-modifiable parameters have been modified from the compiled-in defaults. Modification of one or more parameters without the subsequent WR to commit the changes to flash will not deactivate this warning, since it reflects the status of the parameters in flash. Note that this warning does not reflect usage of the custom configuration defaults, on ly usage of the compiled-in defaults.

Default factory configuration parameters in flash. This is c aused if the facto ry parameters in flas h are all the def ault values . Th is is caused if the factory configuration is found to be not present or invalid at power-up, or if no factory parameters have been modified.

AT Command: ATWA

Parameter Range: Returns string - one warning number per line.

3 OK

AT Command: ATWN

Parameter Range: returns string

WR (Write) Command

<(Special)> The WR command is used to write configurable parameters to non-volatile memory (Values remain in the modem's memory until overwritten by another use of WR Command).

If changes are made without writing them to non-volatile memory, the modem will revert back to previously saved parameters the next time the modem is powered-on.

If the non-volatile user configuration is not correct, WR will re-attempt (up to 3x). If all three attempts fail, the command will return an ERROR alert.

WS (Sticky Warning Numbers) Command

<Diagnostics> The WS command reports warning numbers of all warnings active since the last use

of the WS or WN command (including any warnings which are currently active). This command also resets all non-zero warning counts, except for warnings that are presently active, which are set to 1.

AT Command: ATWR

Binary Command: 0x08

AT Command: ATWS

Parameter Range (read-only): 1 - 8

Number of bytes returned: 1

9XTend™ RS-232/422/485 RF Modem User’s Guide

4.5. API Operation

By default, XTend RF Modems act as a serial line replacement (Transparent Operation) - all UART data received through the DI pin is queued up for RF transmission. When the modem receives an RF packet, the data is sent out the DO pin with no additional information.

Inherent to Transparent Operation are the following behaviors:

• If modem parameter registers are to be set or queried, a special operation is required for transitioning the modem into Command Mode [see p21].

• In point-to-multipoint systems, the application must send extra information so that the receiving modem(s) can distinguish between data coming from different remotes.

As an alternative to the default Transparent Operation, API (Application Programming Interface) Operations are available. API operation requires that communication with the modem be done through a structured interface (data is communicated in frames in a defined order). The API specifies how commands, command responses and modem status messages are sent and received from the modem using a UART Data Frame.

4.5.1. API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable) command. Use the following AP parameter values to configure the modem to operate in a particular mode:

• AP = 0 (default): Transparent Operation (UART Serial line replacement) API modes are disabled.

•AP = 1: API Operation

•AP = 2: API Operation (with escaped characters)

Any data received prior to the start delimiter is silently discarded. If the frame is not received correctly or if the checksum fails, the data is silently discarded.

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), th e UART data frame structure is defined as follows:

Figure 4-03. UART Data Frame Structure:

Start Delimiter

(Byte 1)

Length

(Bytes 2-3)

Frame Data

(Bytes 4-n)

Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

MSB = Most Significant Byte, LSB = Least Significant Byte

API Operation - with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), the UA RT data frame structure is defined as follows:

Figure 4-04. UART Data Frame Structure - with escape control characters:

Start Delimiter

(Byte 1)

Length

(Bytes 2-3)

Frame Data

(Bytes 4-n)

Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Characters Escaped If Needed

MSB = Most Significant Byte, LSB = Least Significant Byte

Escape characters. When sending or receiving a UART data frame, specific data values must be escaped (flagged) so they do not interfere with the UART or UART data frame oper ation. To escape an interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Data bytes that need to be escaped:

• 0x7E – Frame Delimiter

•0x7D – Escape

• 0x11 – XON

• 0x13 – XOFF

Example - Raw UART Data Frame (before escaping interfering bytes): 0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame: 0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Note: In the above example, the length of the raw data (excluding the checksum) is 0x0002 and the checksum of the non-escaped data (excluding frame delimiter and length) is calculated as: 0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data. To calculate: Not including frame delimiters and length, add all bytes keeping only the lowest 8

bits of the result and subtract from 0xFF. To verify: Add all bytes (include checksum, but not the delimiter and length). If the checksum is

correct, the sum will equal 0xFF.

4.5.2. API Types

Frame data of the UART data frame forms an API-specific structure as follows:

Figure 4-05. UART Data Frame & API-specific Structure:

Start Delimiter

(Byte 1)

0x7E

Length

(Bytes 2-3)

MSB LSB 1 Byte

API Identifier

cmdID

Frame Data

(Bytes 4- n)

API-specific Structure

Identifier-specific Data

cmdData

Checksum

(Byte n + 1)

The cmdID frame (API-identifier) indicates which API messages will be contained in the cmdData frame (Identifier-specific data). Refer to the sections that follow for more information regarding the supported API types. Note that multi-byte values are sent big endian.

RF Modem Status

API Identifier: 0x8A

RF modem status messages are sent from the modem in response to specific conditions.

Figure 4-06. RF Modem Status Frames

Length ChecksumStart Delimiter Frame Data

MSB LSB0x7E 1 ByteAPI-specifi c Structure

Identifier-specific DataAPI Identifier

cmdData0x8A

Status (Byte 5)

0 = Hardware reset 1 = Watchdog ti mer reset

9XTend™ RS-232/422/485 RF Modem User’s Guide

TX (Transmit) Request: 16-bit address

API Identifier Value: 0x01

A TX Request message will cause the modem to send RF Data as an RF Packet.

Figure 4-7. TX Packet (16-bit address) Frames

Length Checksu mStart Delimiter F rame Data

MSB LSB0x7E 1 ByteAPI- sp ecific Stru ct u re

Identifier-sp ecific DataAPI Identifier

cmdData0x01

Fr ame I D ( B yte 5)

Identifies t he UART data fr am e for the host t o correlate wit h a subs equent ACK (ack now ledgement). Setti ng Frame ID to ‘ 0' will dis ab le res ponse frame.

Figure 4-8. Example: TX Packet API Frames

Byte 1

0x7E

Start Delimiter

* Length [Bytes] = API Identifier + Frame ID + Option + RF Data

** “R” value was arbitrarily selected

Bytes 2-3

0x00 0x08

Length*

Byte 4

0x01

API I dentifier

TX (Transmit) Status

API Identifier Value: 0x89

When a TX Request is completed, the modem sends a TX Status message. This message will indicate if the packet was transmitted successfully or if there was a failure.

Figure 4-9. TX Status Frames

Identifies UART data fram e being reported. Note: I f Frame ID = 0 in th e TX Request, no AT Comm and Response will be given.

Desti nation A ddress (Bytes 6- 7)

MSB first, LSB last. Broadcast = 0xFFFF

Byte 5

R (0x52)

Frame ID**

Length C hecksumStart Delimiter Frame Data

MSB LSB0x7E 1 ByteAPI- sp ecific Stru ctu re

Fr ame I D ( B yte 5) Status (B yte 6)

Bytes 6-7

0xFFFF

Destination Address

Identifier-specific DataAPI Identifier

cmdData0x89

Opti o n s (B yte 8)

0 = Standard 1 = D isa ble ACK

Byte 8

0x00

Option

1 (0x31) 2 (0x32) 3 (0x33)

0 = Success 1 = No ACK (Ack now ledgement) r eceived

RF D ata ( B yte( s) 9-n)

Up to 2048 Bytes per packet

Bytes 9-11

RF Data

Checksum

Byte 12

0x18

NOTE: “STATUS = 1” occurs when all retries are expired and no ACK is received. “STATUS = 3” occurs when a packet is purged due to a ‘Polled Remote’ not receiving a poll.

RX (Receive) Packet: 16-bit address

API Identifier Value: 0x81

When the modem receives an RF packet, it is sent out the UART using this message type.

Figure 4-10. RX Packet (16-bit address) Frames

Source Address (Bytes 5-6) RSSI (Byte 7)

MS B ( m ost signifi cant byte) firs t, LSB ( least signif icant) last

Length ChecksumStart Delimiter Frame Data

MSB LSB0x7E 1 ByteAPI-sp ecific Stru ct u r e

Identifier-specific Dat aAPI Identifier

cmdData0x81

Received Si gnal Strength I ndicator Hexadecimal equivalent of (- dBm) value. (For example: If RX signal str ength = -40 dBm, “0x28” (40 deci m al) is r etur ned)

Opti o ns (Byte 8) RF D at a (B yt e(s) 9-n)

bit 0 = AC K bit 1 = Indicate broadcas t bits 2-7 [ reser ved]

Up to 2048 B ytes per packet

9XTend™ RS-232/422/485 RF Modem User’s Guide

5. RF Communication Modes

The network configurations covered in this chapter are described in terms of the following:

• Network Topology (Point-to-Point, Point-to-Multipoint or Peer-to-Peer)

• RF Communication Type (Basic or Acknowledged)

• RF Mode (Streaming, Multi-Transmit, Repeater, Acknowledged or Polling)

The following table provides a summary of the network configurations supported.

Table 5-01. Summary of network topologies supported by the XTend RS-232/422/485 RF Modem

Point-to-Point

Definition An RF data link between two modems. Sample Network Profile *

(Broadcast Communications) Sample Network Profile *

(Acknowledged Communications) Basic RF Modes Streaming, Multi-Transmit, Repeater Acknowledged RF Mode Acknowledged Mode

Point-to-Multipoint

Definition RF data links between one base and multiple remotes.

Sample Network Profile * (Basic Communications)

Sample Network Profile * (Acknowledged Communications)

Basic RF Modes Streaming, Multi-Transmit, Repeater, Polling Acknowledged RF Modes Acknowledged, Polling

Peer-to-Peer

Definition

Sample Network Profile * (Basic Communications)

Sample Network Profile * (Acknowledged Communications)

Basic RF Mode Streaming Acknowledged RF Mode Acknowledged

Use default values for all modems.

All modems:

Base:

Remotes:

Base:

Remotes:

RF modems remain synchronized without use of master/server dependencies. Each modem shares the roles of master and slave. Digi's peer-to-peer architecture features fast synch ti mes (35ms to synchronize modems) and fast cold start times (50ms before transmission).

Use default values for all modems.

All modems:

ATAM [auto-set MY (Source Address) parameter] ** ATDT FFFF [set Destination Address to 0xFFFF]

ATMY 0 [set Source Address t o 0x00] ATDT FFFF [set Destination Address to 0xFFFF]

ATAM [auto-set MY (Source Address) parameter] ** ATDT 0 [set Destination Add ress to 0x00]

ATMY 0 [set Source Address t o 0x00] ATDT FFFF [set Destination Address to 0xFFFF] ATRR 3 [set number of Retries to 3]

ATAM [auto-set MY (Source Address) parameter] ** ATDT 0 [set Destination Add ress to 0x00] ATRR 3 [set number of Retries to 3]

ATAM [auto-set MY (Source Address) parameter] ** ATDT FFFF [set Destination Address to 0xFFFF] ATRR 3 [set number of Retries to 3]

* Assume default values for parameters not listed. Profiles do not reflect addressing implementations.

** AM (Auto-set MY) Command must be issued through a terminal program such as the one incorporated in the X-CTU 'Terminal' tab.

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.1. Addressing

Each RF packet contains addressing information that is used to filter incoming RF data. Receiving modules inspect the Hopping Channel (HP parameter), Vendor Identification Number (ID parameter) and Destination Address (DT parameter) contained in each RF packet. Data that does not pass through all three network security layers is discarded.

Figure 5-01. Addressing layers contained in the RF packet header

5.1.1. Address Recognition

Transmissions can be addressed to a specific modem or group of modems using the DT (Destination Address) and MK (Address Mask) commands. A receiving modem will only accept a packet if it

determines the packet is addressed to it, either as a global or local packet. The receiving modem makes this determination by inspecting the destination address of the packet and comparing it to its own address and address mask [refer to the figure below].

Figure 5-02. Address Recognition (@ the Receiving RF Modem)

TX_DT = Destination Address of transmitting modem RX_DT = Destination Address of receiving modem RX_MK = Address Mask of receiving modem RX_MY = Source Address of receiving modem

The transmitting modem determines whether the packet is intended for a specific node (local address) or multiple nodes (global address) by comparing the packet's destination address (DT) and its own address mask (MK) [refer to the figure below]. It is assumed that the address masks on the transmitting modem and receiving modem have been programmed to the same value for proper operation in each RF Communication Mode.

Figure 5-03. Address Recognition (@ the Transmitting RF Modem)

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.2. Basic Communications

Basic Communications are accomplished through two sub-types:

• Broadcast - By default, XTend RF Modems communicate through Broadcast communications and within a peer-to-peer network topology. When any modem transmits, all other modems within range will receive the data and pass it directly to their host device.

• Addressed - If addressing parameters match are in order, received RF data is forwarded to the DO (Data Out) buffer; otherwise, the RF data is discarded.

When using Basic Communications, any functions such as acknowledgements are handled at the application layer by the OEM/integrator. The Broadcast Modes provide transparent communications, meaning that the RF link simply replaces a wired link.

5.2.1. Streaming Mode (Default)

Characteristics:Highest data throughput

Lowest latency and jitter Reduced immunity to interference Transmissions never acknowledged (ACK) by receiving module(s)

Required Parameter Values (TX modem): RR (Retries) = 0 Related Commands: Networking (DT, MK, MY), Serial Interfacing (PK, RB, RO, TT) Recommended Use: Mode is most appropriate for data systems more sensitive to latency and/or

jitter than to occasional packet loss. For example: streaming audio or video.

Connection Sequence

Figure 5-04. Streaming Mode State Diagram (TX Module)

• Events & processes in this mode are common to all of the other RF Modes.

• When streaming data, RB and RO parameters are only observed on the first packet.

After transmission begins, the transmission event will continue uninterrupted until the DI buffer is empty or the streaming limit (TT parameter) is reached. As with the first packet, the payload of each subsequent packet includes up to the maximum packet size (PK parameter).

The TT parameter (streaming limit) is specified by the TX (transmitting) modem as the maxi mum number of bytes the TX module can send in one tr ansm issi on ev en t. Aft er th e TT parameter threshold is reached, the TX modem will force a random delay of 1 to RN delay slots (exactly 1 delay slot if RN = 0).

Subsequent packets are sent without an RF initializer since RX (receiving) modems remain synchronized with the TX modem for the duration of the transmi ssion (from preceding packet information). However, due to interference, some RX modems may lose data (and synchronization to the TX modem), particularly during long transmission events.

Once the TX modem has sent all pending data or has reached the TT limit, the transmission event ends. The TX modem will not transmit again for exactly RN delay slots if the local (i.e. TX modem's) RN parameter is set to a nonzero value. The RX modem(s) will not transmit for a random number of delay slots between 0 and (RN-1) if the local (i.e. receiving module's) RN parameter is set to a non-zero value. These delays are intended to lessen congestion following long bursts of packets from a single TX modem, during which several RX modems may have become ready to transmit.

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.2.2. Multi-Transmit Mode

Attributes: Reliable Delivery through forced transmission of every RF packet

Every RF packet is sent exactly (MT + 1) times with no delays between packets Diminished throughput and increased latency

Required Parameter Values (TX modem): MT (Multi-Transmit) >= 1 Other Related Commands: Networking (DT, MK, MY, RN, TT), Serial Interfacing (BR, PK, RB,

RO), RF Interfacing (FS) Recommended Use: Use for applications that require Reli able Deli very without using retries and

acknowledgements.

Connection Sequence

Figure 5-05. Multi-Transmit Mode State Diagram

In Multi-Transmit Mode, each packet is retransmitted MT times, for a total of (MT+1) transmissions. There is no delay between retransmissions, and the TX (transmitting) modem will never receive RF data between retransmissions. Each retransmission includes an RF initializer. A transmission event may include follow-on packets, each of which will be retransmitted MT times. The Forced Sync (FS) parameter is ignored in Multi-Transmit Mode.

The RB and RO parameters are not applied to follow-on packets, meaning that once transmission has begun, it will continue uninterrupted until the DI buffer is empty or the streaming limit (TT parameter) has been reached. As with the first packet, the payload of each follow-on packet includes up to the maximum packet size (PK parameter) bytes, and the TX modem checks for more pending data near the end of each packet. Follow-on packets are not sent until all retransmissions of the previous packet are finished.

The streaming limit (TT) is specified at the TX modem as the maximum number of bytes that the TX modem can send in one transmission event, which may consist of many packets. If the TT parameter is reached, the TX modem will force a random delay of 1 t o RN delay slots (exactly 1 delay slot if RN is zero). In MultiTransmit Mode, each packet is counted only once when tracking the streaming limit (TT), no matter how many times it is retransmitted.

When an RX (receiving) module receives a Multi-Transmit packet, it calculates the amount of time remaining in the Multi-Transmit event, and inhibits its own transmissions for the duration of the Multi-Transmit event, plus a random number of delay slots between 0 and (RN-1). If the local RN parameter is zero, the delay is only for the calculated duration of the Multi-Transmit event. Thus, an RX modem need only receive one of the transmissions, and it will keep off the channel until the TX modem is done. If follow-on packets are coming, the RX modems will move to the new frequency and listen for the follow-on packet for a specific period of time.

(TX Module)

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.2.3. Repeater Mode

Attributes: Low power consumption

Minimized interference Each RF packet is tagged with a unique Packet ID (PID). Each repeater will repeat a packet only once (tracked by the PID). Increased latency and decreased throughput

(Latency and throughput is determined by number of hops, not by number of repeaters. Multiple repeaters within range of source node count as one hop.)

All RF packets propagate to every modem in the network (filtering rules apply). Packet destination addresses (DT) determine which packets are sent out serial

port and/or retransmitted. Broadcast communications - each packet comes out every node exactly once. Addressed communications - all modems see every packet. Only the modem

with a matching address will forward it to the DO buffer (UART IN).

Constraints: Requires that each modem have a unique MY (Source Address) parameter.

System must introduce just one packe t at a time to the network for tran smission (Maximum number of bytes is determined by the PK parameter).

Each hop (H) decreases network throughput by a factor of 1/(H+1). Additional repeaters add network redundancy without decreasing throughput.

Suggestions: Insert a variable delay before repeating packets to avoid collisions

(based on RSSI). Buffer any incoming serial data and delay response packet transmissions until

previous packet has cleared out of network. For best results, use the RO and RB commands to ensure that the RF packets

align with the underlying protocol packets as the network can only accept one RF packet at a time.

Required Parameter Values (TX modem): MD = 5 or 6, MY = unique value (can be accomplished by issuing the AM (Auto-set MY) and WR (Write) commands to all modems in the n etwork)

Related Commands: Networking (MD, DT, MY, AM), Serial Interfacing (RN, PK, RO, RB) Recommended Use: Use in networks where intermediary modems are needed to relay data to

modems beyond the transmission range of the base modem.

Theory of Operation

OEMs and integrators can extend the effective range and reliability of their data radio system by forwarding traffic through one or more repeaters. Instead of using routing tables and path discovery to establish dynamic paths through a network, the repeater system uses a sophisticated algorithm to propagate each RF packet through the entire network.

The network supports RF packets up to 2048 bytes (when the RF data rate is set at 9600 bps (BR = 0)). The repeater network can operate using broadcast or addressed communications for multidrop networks and works well in many systems with no special configuration.

When in Repeater Mode, the network repeats each message among all available modems exactly one time. This mechanism eliminates the need for configuring specific routes.

Figure 5-06. Repeater Network Topology

9XTend™ RS-232/422/485 RF Modem User’s Guide

Repeater Network Configuration

A network may consist of End Nodes (EN), End/Repeater No des (ERN) and a Base Node (BN). The base node initiates all communications.

A repeater network can be configured to operate using Basic Broadcast or Basic Addressed communications. The addressing capabilities of the modem allow integrators to send a packet as a global packet (DT = 0xFFFF) and shift out of every modem in the network (Basic Broadcast). Alternatively, the packet can be sent with a specific DT (Destination Address) parameter so that it is only accepted by a specific remote node (Basic Addressed).

Configuration Instruction (Basic Broadcast Communications)

Assign each modem a unique MY (source) address. (The AM (Auto-set MY) command will configure a unique source address that is based on modem serial number.)

Enable Basic Broadcast Communications (DT = 0xFFFF) or Addressed Broadcast Communications (DT specifies a specific destination)

Configure PK, RO and RB to ensure that RF packet aligns wit h protocol pac ket. ( ex. PK=0x100, RB=0x100, RO depends on baud rate).

Configure one or more repeaters in the system (MD = 5). Configure remote nodes as destinations (MD = 6). This will ensure that the remote node waits

for the repeater traffic to subside before it transmits a response.

The configuration instructions above reflect configuration for a Basic Broadcast Repeater system. To config ure a Basic Addressed Repeater system, use the DT (Destination Address) parameter to assign unique addresses to each modem in the network.

Algorithm Details

• Packet ID (PID) is composed of TX (transmitting) modem MY address and packet sequence number.

• Incoming packets with a PID already found in the PID buffer will be ignored.

• Each modem maintains a PID buffer 4 deep of previously received packets (managed as FIFO).

Packets may be shifted out the serial port and/or repeated depending on the DT parameter contained in the RF packet.

Table 5-02. DT (Destination Address) parameter truth table

Address Match Send out serial port? Repeat?

Global Yes Yes

Local Yes No None No Yes

Repeat Delay Based on RSSI

A transmitted packet may be received by more that one repeater at the same time. In order to reduce the probability that the repeaters will transmit at the same instant, resulting in a collision and possible data loss; an algorithm has been developed that will allow a variable back-off prior to retransmission of the packet by a repeater. The algorithm allows radios that receive the packet with a stronger RF signal (RSSI) to have the first opportunity to retransmit the packet.

The RN (Delay Slots) parameter is used to configure this delay. Set RN=0 (no delays) for small networks with few repeaters or repeaters that are not within range of each other. Set RN=1 for systems with 2 to 5 repeaters that may be within range of each other.

The actual length of the delay is computed by the formula: Delay (ms) = L * DS DS = (-41-RSSI)/10*RN)+RandomInt(0,RN) Where L is the length of the transmitted packe t in mi llis econds, DS is the number of dela y slo ts to

wait, RSSI is the received signal strength in dBm, RN is the value of the RN register and RandomInt(A,B) is a function that returns a random integer from A to B-0

9XTend™ RS-232/422/485 RF Modem User’s Guide

Response Packet Delay

As a packet propagates through the repeater network, if any node receives the data and generates a quick response, the response needs to be delayed so as not to collide with subsequent retransmissions of the original packet. To reduce collisions, both repeater and end node radios in a repeater network will delay transmission of data shifted in the serial port to allow any repeaters within range to complete their retransmissions.

The time for this delay is computed by the formula: Maximum Delay (ms) = L * DS DS = ((-41-(-100))/10)*RN)+RN+1 Where L is the length of the transmitted packe t in mi llis econds, DS is the number of dela y slo ts to

wait, RSSI is the received signal strength in dBm, and RN is the value of the RN register.

Use Case - Broadcast Repeater Network

Consider modems R1 through R10 each communicating to a PLC using the ModBus protocol and spaced evenly in a line. All ten modems are configured as 'destinations & repeaters' within the scope of Basic Broadcast Communications (MD=5, AM, DT=0xFFFF, PK=0x100, RO=0x03, RB=0x100, RN=1). The Base Host (BH) shifts payload that is destined for R10 to R1. R1 initializes RF communication and transmits payload to nodes R2 through R5 which are all within range of R1. The modems R2 through R5 receive the RF packet and retransmit the packet simultaneously. They also send the data out the serial ports, to the PLCs.

Table 5-03. Commands used to configure repeater functions

Command

AM 0x3A (58d) Auto-set MY - - DT 0x00 (0d) Destination Address 0 - 0xFFFF 2 0 MD 0x3C (60d) RF Mode 0 - 6 1 0 MY 0x2A (42d) Source Address 0 - 0xFFFF 2 0xFFFF RN 0x19 (25d) Delay Slots 0 - 0xFF [slots] 1 0

WR 0x08 (8d) Write - - -

Command

Binary

AT Command

Name

Range

# Bytes

Returned

Factory

Default

Bandwidth Considerations

Using broadcast repeaters in a network reduces the overall network data throughput as each repeater must buffer an entire packet before retransmitting it. For example: if the destination is within range of the transmitter and the packet is 32-bytes long, the transmission will take 12ms on an XTend modem operating at 115,200 baud. If the same packet must propagate through two repeaters, it will take 12ms to arrive at the first repeater, 12ms to get to the second and a final 12ms to reach the destination for a total of 36ms. Taking into account UART transfer times (~1ms/byte at 9600 baud), a server to send a 32-byte query and receive a 32-byte response is about 200ms, allowing for 5 polls per second. With the two repeaters in the path, the same qu ery/ response sequence would take about 500ms for 2 polls per second.

Generally, network throughput will decrease by a factor of 1/(R+1), with R representing the number of repeaters between the source and destination.

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.2.4. Polling Mode (Basic)

NOTE: Polling Mode (Basic) and Polling Mode (Acknowledged) [p59] operate in the same way. The only difference between the two modes is in their means of achieving reliable delivery of data. In Polling Mode (Basic), reliable delivery is achieved using multiple transmissions.

Attributes: Utilizes high percentage of available network bandwidth

Eliminates collisions Works with reliable delivery (RR or MT parameters) Supports binary data transfers Base modem requests packets from remote modem by polling a sequential

range of addresses Base modem is configured to specify the range of addresses being polled Uses inter-character delay to create RF packet lengths aligned with protocol

packet lengths up to 2048 bytes long.

Required Parameter Values (Base): MD (RF Mode) = 3, PB (P ollin g Begin Address), PE (Polling End Address)

Required Parameter Value (Remote): MD (RF Mode) = 4 Related Commands: Networking (MT, PD, DT, MY, AM) Constraints: The minimum time interval between polling cycles is configurable. However, if the

remote modems cannot all be processed within that time interval, the polling cycle is ineffective (i.e. it will impose no additional delay). In order to ensure a pause between polling cycles, PD must be set to a value which is large enough to accommodate the pause.

Recommended Use: Use for point-to-multipoint applications that require Reliable Delivery of data. Use this mode when it is critical that a base modem be able to discern data coming from multiple modems.

Theory of Operation

A ‘Polling Base’ modem will cycle through a sequential range of addresses. The ‘Polling Base’ will poll each ‘Polling Remote’ modem, wait for a response, then poll the next remote address in the sequence. Each ‘Polling Remote’ will respond by sending the data from its DI (Data In) buffer following the RB (Packetization Threshold) & RO (Packetization Timeout) parameters. When there is no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will poll the next address in the polling sequence after a short delay.

Polling Base Configuration:

Set the MD (RF Mode) parameter (MD = 3). Set MY (Source Address) parameter (MY = 0). Set the sequential range of Polling Addresses using the PB (Polling Begin Address) and PE

(Polling End Address) parameters. (Optional) Enable Basic Reliable Delivery (MT >= 0). Note: Acknowledged Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Acknowledged’ section for more information. (Optional) Use the PD (Minimum Polling De lay) command to configure a delay between polls to

slow down system (if needed). (Optional) Enable API Mode to address remotes within polling range on a packet-by-packet

basis.

Polling Remote Configuration:

Set the MD (RF Mode) parameter (MD = 4). Configure sequential source addresses for all remote modems using the MY (Source Address)

command. Set the DT (Destination Address) parameter to point to ‘Polling Base’ (DT = 0x0000). (Optional) Enable Basic Reliable Delivery (MT >= 0). Note: Acknowledged Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Acknowledged’ section for more information.

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.3. Acknowledged Communications

5.3.1. Acknowledged Mode

Attributes: Reliable delivery through positive acknowledgements for each packet

Throughput, latency and jitter vary depending on the quality of the channel and the strength of the signal.

Required Parameter Values (TX modem): RR (Retries) >= 1 Related Commands: Networking (DT, MK, RR), Serial Interfacing (PK, RN, RO, RB, TT) Recommended Use: Use for applications that require Reliable Delivery. If messages are smaller

than 256 bytes, use RB and RO commands to align RF packets to application packets.

Connection Sequence

Figure 5-07. Acknowledged Mode State

After sending a packet while in Acknowledged Mode, the TX (transmitting) modem listens for an ACK (acknowledgement). If it receives the ACK, it will either move on to sending a subsequent packet (if more transmit data is pending) or will wait for exactly RN random dela y slots before allowing another transmission (if no more data is pending to be transmitted).

If the TX modem does not receive the ACK within the allotted time, it will retransmit the packet with a new RF initializer following the ACK slot. There is no delay between the first ACK slot and the first retransmission. Subsequent retransmissions incur a delay of a random number of delay slots, between 0 and RN. If RN is set to 0 on the TX modem, there are never any back-off delays between retransmissions. Note that during back-off delays, the TX modem will go into Idle Mode and may receive RF data. This can have the effect of increasing the back-off delay, as the modem cannot return to Transmit (or retransmit) Mode as long as it is receiving RF data.

After receiving and acknowledging a packet, the RX (receiving) modem will move to the next frequency and listen for either a retransmission or new data for a specific period of time. Even if the TX modem has indicated that it has no more pending transmit data, it may not have received the previous ACK, and so may retransmit the packet, possibly with no delay after the ACK slot. In this case, the RX modem will always de te ct th e imm edi ate re transmission, which will hold off the communications channel and thereby reduce collisions. RX modems acknowledge each retransmission they receive, but they only pass the first copy of a packet they receive out the UART.

RB and RO parameters are not applied to subsequent packets, meaning that once transmission has begun, it will continue uninterrupted until the DI buffer is empty or the streaming limit (TT parameter) has been reached. As with the first packet, the payload of each subsequent packet includes up to the maximum packet size (PK parameter), and the TX modem checks for more pending data near the end of each packet.

Diagram (TX modem)

9XTend™ RS-232/422/485 RF Modem User’s Guide

The TT parameter (streaming limit) specifies the maximum number of bytes that the TX modem will send in one transmission event, which may consist of many packets and retries. If the TT parameter is reached, the TX modem will force a random delay of 1 to RN delay slots (exactly 1 delay slot if RN is zero). Each packet is counted only once toward TT, no matter how many times the packet is retransmitted.

Subsequent packets in Acknowledged Mode are similar to those in Streaming Mode, with the addition of an ACK between each packet, and the possibility of retransmissions. Subsequent packets are sent without an RF initializer, as the RX modems are already synchronized to the TX modem from the preceding packet(s) and they remain synchronized for the duration of the transmission event. Each retransmission of a packet includes an RF initializer.

Once the TX modem has sent all pending data or has reached the TT limit, the acknowledged transmission event is complet ed. The TX modem will not tr ansmit again for exactly RN dela y slots, if the local RN parameter is set to a non-zero value. The RX modem will not transmit for a random number of delay slots between 0 and (RN-1), if the local RN parameter is set to a non-zero value. These delays are intended to lessen congestion following long bursts of packets from a single TX modem, during which several RX modems may have themselves become ready to transmit.

9XTend™ RS-232/422/485 RF Modem User’s Guide

5.3.2. Polling Mode (Acknowledged)

NOTE: Polling Mode (Acknowledged) and Polling Mode (Basic) [p56] operate in the same way . The only difference between the two modes is in their means of achieving reliable delivery of data. In Polling Mode (Acknowledged), reliable delivery is achieved using retries and acknowledgements.

Attributes: Utilizes high percentage of available network bandwidth

Eliminates collisions Works with reliable delivery (RR or MT parameters) Supports binary data transfers Base modem requests packets from remote modem by polling a sequential

range of addresses Base modem is configured to specify the range of addresses being polled Uses inter-character delay to create RF packet lengths aligned with protocol

packet lengths up to 2048 bytes long.

Required Parameter Values (Base): MD (RF Mode) = 3, PB (P ollin g Begin Address), PE (Polling End Address)

Required Parameter Values (Remote): MD (RF Mode) = 4 Related Commands: Networking (RR, PD, DT, MY, AM) Constraints: The minimum time interval between polling cycles is configurable. However, if the

Theory of Operation

Polling Base Configuration:

Set the MD (RF Mode) parameter (MD = 3). Set MY (Source Address) parameter (MY = 0). Set the sequential range of Polling Addresses using the PB (Polling Begin Address) and PE

(Polling End Address) parameters. (Optional) Enable Acknowledged Reliable Delivery (RR >= 0). Note: Basic Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Basic section for more information. (Optional) Use the PD (Minimum Polling De lay) command to configure a delay between polls to

slow down system (if needed). (Optional) Enable API Mode to address remotes within polling range on a packet-by-packet

basis.

Polling Remote Configuration:

Set the MD (RF Mode) parameter (MD = 4). Configure sequential source addresses for all remote modems using the MY (Source Address)

command. Set the DT (Destination Address) parameter to point to ‘Polling Base’ (DT = 0x0000). (Optional) Enable Acknowledged Reliable Delivery (RR >= 0). Note: Basic Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Basic section for more information.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Appendix A: Agency Certifications

FCC (United States) Certification

The XTend RS-232/422/485 RF Modem complies with Part 15 of the FCC rules and regulations. Compliance with the labeling requirements, FCC notices and antenna usage guidelines is required.

In order to operate under Digi’s FCC Certification, OEMs/integrators must comply with the following regulations:

1. The OEM/integrator must ensure that the text provided with this device [Figure A-01] is placed on the outside of the final product and within the final product operation manual.

2. The XTend RS-232/422/485 RF Modem may only be used with antennas that have been tested and approved for use with this modem [refer to ‘FCC-approved Antennas’ section].

Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling requirements are met. This includes a clearly visible label on the outside of the final product enclosure that displays the text shown in the figure below.

Figure A-01. Required FCC Label for OEM products containing the XTend RS-232/422/485 RF Modem

Contains FCC ID: OUR-9XTEND The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.

FCC Notices

IMPORTANT: The XTend RS-232/422/485 RF Modem has been certified by the FCC for use with

other products without any further certification (as per FCC section 2.1091). Modifications not expressly approved by Digi could void the user's authority to operate the equipment.

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section

15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules. IMPORTANT: The RF modem has been certified for remote and base radio applications. If the

modem will be used for portable applications, the device must undergo SAR testing. This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect equipment and receiver to outlets on different circuits, or Consult the dealer or an experienced radio/TV technician for help.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Limited Modular Approval

Power output is conducted at the antenna terminal and can be adjusted from 1 mill-watt to 1 Watt at the OEM level. This is an RF modem approved for Limited Modular use operating as a mobile transmitting device with respect to section 2.1091 and is limited to OEM installation for Mobile and Fixed applications only. During final installation, end-users are prohibited from access to any programming parameters. Professional installation adjustment is required for setting module power and antenna gain to meet EIRP compliance for high gain antenna(s).

Final antenna installation and operating configurations of this transmitter including antenna gain and cable loss must not exceed the EIRP of the configuration used for calculating MPE. Grantee (Digi) must coordinate with OEM integrators to ensure the end-users and installers of products operating with the modem are provided with operating instructions to satisfy RF exposure requirements.

The FCC grant is valid only when the device is sold to OEM integrators. Integrators are instructed to ensure the end-user has no manual instructions to remove, adjust or install the device.

FCC-approved Antennas

WARNING: This device has been tested with Reverse Polarity SMA connectors with the antennas listed in the tables of this section. When integrated into OEM products, fixed antennas require installation preventing end-users from replacing them with nonapproved antennas. Antennas not listed in the tables must be tested to comply with FCC Section 15.203 (unique antenna connectors) and Section 15.247 (emissions).

Fixed Base Station and Mobile Applications

Digi RF Modems are pre-FCC approved for use in fixed base station and mobile applications. When the antenna is mounted at least 20cm (8") from nearby persons, the application is considered a mobile application.

Portable Applications and SAR Testing

When the antenna is mounted closer than 20cm to nearby persons, then the application is considered "portable" and requires an additional test be performed on the final product. This test is called Specific Absorption Rate (SAR) testing and measures th e emissions from the modem and how they affect the person.

RF Exposure

This statement must be included as a CAUTION statement in OEM produc t manuals.

WARNING: This equipment is approved only for mobile and base station transmitting devices. Antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

NOTE: The separation distance indicated in the above is 30 cm, but any distance greater than or equal to 23 cm can be used (per MPE evaluation).

Antenna Options (1-watt transmit power output or lower)

Table A-01. Half-wave antennas (approved when operating at 1-watt power output or lower)

Part Number Type Connector Gain Application

A09-HSM-7 Straight half-wave RPSMA 3.0 dBi Fixed / Mobile

A09-HASM-675 Articulated half-wave RPSMA 2.1 dBi Fixed / Mobile

A09-HABMM-P6I Articulated half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HABMM-6-P6I Articulated half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HBMM-P6I Straight half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HRSM Right angle half-wave RPSMA 2.1 dBi Fixed

A09-HASM-7 Articulated half-wave RPSMA 2.1 dBi Fixed

A09-HG Glass mounted half-wave RPSMA 2.1 dBi Fixed

A09-HATM Articulated half-wave RPTNC 2.1 dBi Fixed

A09-H Half-wave dipole RPSMA 2.1 dBi Fixed

9XTend™ RS-232/422/485 RF Modem User’s Guide

Table A-02. Yagi antennas (approved when operating at 1-watt power output or lower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-Y6 2 Element Yagi RPN 6.1 dBi 0.1 dB* Fixed / Mobile A09-Y7 3 Element Yagi RPN 7.1 dBi 1.1 dB* Fixed / Mobile

A09-Y8 4 Element Yagi RPN 8.1 dBi 2.1 dB* Fixed / Mobile A09-Y6TM 2 Element Yagi RPTNC 6.1 dBi 0.1 dB* Fixed / Mobile A09-Y7TM 3 Element Yagi RPTNC 7.1 dBi 1.1 dB* Fixed / Mobile A09-Y8TM 4 Element Yagi RPTNC 8.1 dBi 2.1 dB* Fixed / Mobile

Table A-03. Omni-directional base station antennas (approved when operating at 1-watt power output or lower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-F0 Fiberglass Base Station RPN 0 dBi - Fixed A09-F1 Fiberglass Base Station RPN 1.0 dBi - Fixed A09-F2 Fiberglass Base Station RPN 2.1 dBi - Fixed A09-F3 Fiberglass Base Station RPN 3.1 dBi - Fixed A09-F4 Fiberglass Base Station RPN 4.1 dBi - Fixed A09-F5 Fiberglass Base Station RPN 5.1 dBi - Fixed A09-F6 Fiberglass Base Station RPN 6.1 dBi 0.1 dB* Fixed A09-F7 Fiberglass Base Station RPN 7.1 dBi 1.1 dB* Fixed A09-F8 Fiberglass Base Station RPN 8.1 dBi 2.1 dB* Fixed

A09-W7 Wire Base Station RPN 7.1 dBi 1.1 dB* Fixed

A09-F0 Fiberglass Base Station RPSMA 0 dBi - Fixed A09-F1 Fiberglass Base Station RPSMA 1.0 dBi - Fixed A09-F2 Fiberglass Base Station RPSMA 2.1 dBi - Fixed A09-F3 Fiberglass Base Station RPSMA 3.1 dBi - Fixed A09-F4 Fiberglass Base Station RPSMA 4.1 dBi - Fixed A09-F5 Fiberglass Base Station RPSMA 5.1 dBi - Fixed A09-F6 Fiberglass Base Station RPSMA 6.1 dBi 0.1 dB* Fixed A09-F7 Fiberglass Base Station RPSMA 7.1 dBi 1.1 dB* Fixed A09-F8 Fiberglass Base Station RPSMA 8.1 dBi 2.1 dB* Fixed

A09-W7SM Wire Base Station RPSMA 7.1 dBi 1.1 dB* Fixed

A09-F0TM Fiberglass Base Station RPTNC 0 dBi - Fixed A09-F1TM Fiberglass Base Station RPTNC 1.0 dBi - Fixed A09-F2TM Fiberglass Base Station RPTNC 2.1 dBi - Fixed A09-F3TM Fiberglass Base Station RPTNC 3.1 dBi - Fixed A09-F4TM Fiberglass Base Station RPTNC 4.1 dBi - Fixed A09-F5TM Fiberglass Base Station RPTNC 5.1 dBi - Fixed A09-F6TM Fiberglass Base Station RPTNC 6.1 dBi 0.1 dB* Fixed A09-F7TM Fiberglass Base Station RPTNC 7.1 dBi 1.1 dB* Fixed A09-F8TM Fiberglass Base Station RPTNC 8.1 dBi 2.1 dB* Fixed

A09-W7TM Wire Base Station RPTNC 7.1 dBi 1.1 dB* Fixed

* FCC regulations stipulate a 36 dBm EIRP power requirement. Users implementing antenna gain greater than 6.0 dB must compensate for the added gain with cable loss. When operating at 1 W power output, the sum (in dB) of cable loss and antenna gain shall not exceed 6.0 dB.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Table A-04. Mag Mount antennas (approved when operating at 1-watt power output or lower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-M0SM Mag Mount RPSMA 0 dBi - Fixed A09-M2SM Mag Mount RPSMA 2.1 dBi - Fixed A09-M3SM Mag Mount RPSMA 3.1 dBi - Fixed A09-M5SM Mag Mount RPSMA 5.1 dBi - Fixed A09-M7SM Mag Mount RPSMA 7.1 dBi -1.1 dB* Fixed A09-M8SM Mag Mount RPSMA 8.1 dBi -2.1 dB* Fixed A09-M0TM Mag Mount RPTNC 0 dBi - Fixed A09-M2TM Mag Mount RPTNC 2.1 dBi - Fixed A09-M3TM Mag Mount RPTNC 3.1 dBi - Fixed A09-M5TM Mag Mount RPTNC 5.1 dBi - Fixed A09-M7TM Mag Mount RPTNC 7.1 dBi -1.1 dB* Fixed A09-M8TM Mag Mount RPTNC 8.1 dBi -2.1 dB* Fixed

Table A-05. Multi-path antennas (approved when operating at 1-watt power output or lower)

Part Number Type Connector Gain Application

A09-DPSM-P12F omni directional permanent mount w/ 12ft pigtail RPSMA 3.0 dBi Fixed

A09-D3NF-P12F omni directional magnetic mount w/ 12ft pigtail RPN 3.0 dBi Fixed

A09-D3SM-P12F omni directional w/ 12ft pigtail RPSMA 3.0 dBi Fixed

A09-D3PNF omni directional permanent mount RPN 3.0 dBi Fixed

A09-D3TM-P12F omni directional w/ 12ft pigtail RPTNC 3.0 dBi Fixed

A09-D3PTM omni directional permanent mount RPTNC 3.0 dBi Fixed A92-D4PNF 900 MHz / 2.4GHz permanent mount RPN 2.1 dBi Fixed

A92-D4P 900 MHz / 2.4GHz permanent mount RPSMA 2.1 dBi Fixed

A92-D4PTM 900 MHz / 2.4GHz permanent mount RPTNC 2.1 dBi Fixed

Antenna Options (100 mW transmit power output or lower)

Table A-06. Half-wave antennas (approved when operating at 100 mW power output or lower)

Part Number Type Connector Gain Application

A09-QW Quarter-wave wire Permanent 1.9 dBi Fixed / Mobile

A09-QRAMM 3 " Quarter-wave wire MMCX 2.1 dBi Fixed / Mobile

A09-QSM-3 Quarter-wave straight RPSMA 1.9 dBi Fixed / Mobile

A09-QSM-3H Heavy duty quarter-wave straight RPSMA 1.9 dBi Fixed / Mobile

A09-QBMM-P6I Quarter-wave w/ 6" pigtail MMCX 1.9 dBi Fixed / Mobile

A09-QHRN Miniature Helic al Right Angle solder Permanent -1 dBi Fixed / Mobile A09-QHSN Miniature Helical Right Angle solder Permanent -1 dBi Fixed / Mobile

A09-QHSM-2 2" Straight RPSMA 1.9 dBi Fixed / Mobile

A09-QHRSM-2 2" Right angle RPSMA 1.9 dBi Fixed / Mobile

A09-QHRSM-170 1.7" Right angle RPSMA 1.9 dBi Fixed / Mobile

A09-QRSM-380 3.8" Right angle RPSMA 1.9 dBi Fixed / Mobile

A09-QAPM-520 5.2" Articulated Screw mount Permanent 1.9 dBi Fixed / Mobile

A09-QSPM-3 3" Straight screw mount Permanent 1.9 dBi Fixed / Mobile A09-QAPM-3 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile

A09-QAPM-3H 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile

9XTend™ RS-232/422/485 RF Modem User’s Guide

Table A-07. Yagi antennas (approved when operating at 100 mW power output or lower)

Part Number Type Connector Gain Application

A09-Y6 2 Element Yagi RPN 6.1 dBi Fixed / Mobile A09-Y7 3 Element Yagi RPN 7.1 dBi Fixed / Mobile A09-Y8 4 Element Yagi RPN 8.1 dBi Fixed / Mobile A09-Y9 4 Element Yagi RPN 9.1 dBi Fixed / Mobile

A09-Y10 5 Element Yagi RPN 10.1 dBi Fixed / Mobile

A09-Y11 6 Element Yagi RPN 11.1 dBi Fixed / Mobile

A09-Y12 7 Element Yagi RPN 12.1 dBi Fixed / Mobile A09-Y13 9 Element Yagi RPN 13.1 dBi Fixed / Mobile A09-Y14 10 Element Yagi RPN 14. 1 dBi Fixed / Mobile A09-Y14 12 Element Yagi RPN 14. 1 dBi Fixed / Mobile A09-Y15 13 Element Yagi RPN 15. 1 dBi Fixed / Mobile

A09-Y15 15 Element Yagi RPN 15. 1 dBi Fixed / Mobile A09-Y6TM 2 Element Yagi RPTNC 6.1 dBi Fixed / Mobile A09-Y7TM 3 Element Yagi RPTNC 7.1 dBi Fixed / Mobile A09-Y8TM 4 Element Yagi RPTNC 8.1 dBi Fixed / Mobile A09-Y9TM 4 Element Yagi RPTNC 9.1 dBi Fixed / Mobile

A09-Y10TM 5 Element Yagi RPTNC 10.1 dBi Fixed / Mobile A09-Y11TM 6 Element Yagi RPTNC 11.1 dBi Fixed / Mobile A09-Y12TM 7 Element Yagi RPTNC 12.1 dBi Fixed / Mobile A09-Y13TM 9 Element Yagi RPTNC 13.1 dBi Fixed / Mobile A09-Y14TM 10 Element Yagi RPTNC 14.1 dBi Fixed / Mobile A09-Y14TM 12 Element Yagi RPTNC 14.1 dBi Fixed / Mobile A09-Y15TM 13 Element Yagi RPTNC 15.1 dBi Fixed / Mobile A09-Y15TM 15 Element Yagi RPTNC 15.1 dBi Fixed / Mobile

IC (Industry Canada) Certification

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on the outside of the final product enclosure must display the following text:

Contains Model 9XTend Radio, IC: 4214A-9XTEND

The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003.

C-TICK (Australia) Certification

Power Requirements

Regulations in Australia stipulate a maximum of 30 dBm EIRP (Effective Isotropic Radiated Power). The EIRP equals the sum (in dBm) of power output, antenna gain and cable loss and cannot not exceed 30 dBm.

Figure A-02. EIRP Formula for Australia

NOTE: The maximum EIRP for the FCC (United States) and IC (Canada) is 36 dBm.

9XTend™ RS-232/422/485 RF Modem User’s Guide

Appendix B: Development Guide

RS-232 Accessories Kit Contents

The accessories listed below are in cluded with X Tend RF Modems that carry the "-RA" suffix on th e product number. For example: Part number "XT09-PKC-RA" includes the listed accessories and part number "XT09-PKC-R" does not. The accessories kit includes hardware and software needed for developing long range wireless links. For testing the modem's range, Digi recommends the purchase of one RF Modem with the accessories and one without.

Table B-01. Contents of the XTend RS-232/422/485 Accessories Kit

Item Qty. Description Part Number

Quick Start Guide 1 Familiarizes users with some of the modem’s most important functions. MD0019 CD 1 Contains documentation, software and tools needed for RF operation. MD0030 XTend-PKG-R™

RS-232/485 RF Modem Antenna 1 900 MHz RPSMA, 6" Half-Wave, dipole, articulating A09-HASM-675

Serial Loopback Adapter 1

NULL Modem Adapter (male-to-male)

NULL Modem Adapter (female-to-female)

Male DB-9 to RJ-45 Adapter

Female DB-9 to RJ-45 Adapter

Power Adapter 1 Allows Interface Board to be powered by a 110 Volt AC power supply JP4P2-9V10-6F RS-232 Cable (6’) 1 Connects interface board to devices having an RS-232 serial port JD2D3-CDS-6F

1 Long Range 900 MHz RF Modem with RPSMA Connector XT09-PKG

Connects to the female RS-232 (DB-9) serial connector of the Digi Interface Board and can be used to configure the modem to function as a repeater (for range testing)

Connects to the female RS-232 (DB-9) serial connector of the Digi

Interface Board and can be used to connect the modem to another DCE (female DB9) device

1 Used to bypass radios to verify serial cabling is functioning properly JD3D3-CDN-A

Facilitates adapting the DB-9 Connector of the Digi Interface Board to a

CAT5 cable (male DB9 to female RJ45) Facilitates adapting the DB-9 Connector of the Digi Interface Board to a

CAT5 cable (female DB9 to female RJ45)

JD2D3-CDL-A

JD2D2-CDN-A

JE1D2-CDA-A

JE1D3-CDA-A

9XTend™ RS-232/422/485 RF Modem User’s Guide

Adapters

The development kit inc ludes several adapters that facilitate the following functions:

• Performing Range Tests

• Testing Cables

• Connecting to other RS-232 DCE and DTE devices

• Connecting to terminal blocks or RJ-45 (for RS-485/422 devices)

NULL Modem Adapter (male-to-male)

Part Number: JD2D2-CDN-A (Black, DB-9 M-M) The male-to-male NULL modem adapter is

used to connect two DCE devices. A DCE device connects with a straight-through cable to the male serial port of a computer (DTE).

Figure B-01. Male NULL modem adapter and pinouts

Figure B-02. Example of a Digi Radio Modem (DCE Device) connecting to another DCE device)

NULL Modem Adapter (female-to-female)

Part Number: JD3D3-CDN-A (Gray, DB-9 F-F) The female-to-female NULL modem adapter is

used to verify serial cabling is functioning properly. To test cables, insert the female-to-female NULL modem adapter in place of a pair of modem assemblies (RS-232 interface board + XTend RF Modem) and test the connection without modems in the connection.

Figure B-03. Female NULL modem adapter and pinouts

Serial Loopback Adapter

Part Number: JD2D3-CDL-A (Red, DB-9 M-F) The serial loopback adapter is used for range

testing. During a range test, the serial loopback adapter configures the modem to function as a repeater by looping serial data back into the radio for retransmission.

Figure B-04. Serial loopback adapter and pinouts

9XTend™ RS-232/422/485 RF Modem User’s Guide

Male DB-9 to RJ-45 Adapter

Part Number: JD2D2-CDN-A (Yellow) This adapter facilitates adapting the DB-9 Connector of

the Digi Interface Board to a CAT5 cable (male DB9 to female RJ45). Refer to the ‘RS-485 (4-wire) & RS-422 Operation’ sect ions for RS-485/ 422 connection guidelines.

Figure B-05. Male DB-9 to RJ-45 Adapter and pinouts

Female DB-9 to RJ-45 Adapter

Part Number: JD3D3-CDN-A (Green) This adapter Facilitates adapting the DB-9 Connector of

the Digi Interface Board to a CAT5 cable (female DB9 to female RJ45). Refer to the ‘RS-485 (4-wire ) & RS-422 Oper ation’ se ctions for RS-485/422 conne ction guidelines.

Figure B-6. Female DB-9 to RJ-45 Adapter and pinouts

9XTend™ RS-232/422/485 RF Modem User’s Guide

Appendix C: Additional Information

5-Year Warranty

WARRANTY PERIOD: Digi warranties hardware Product for a period of five (5) years. WARRANTY PROCEDURE: Upon return of the hardware Product Digi will, at its option, repair or

replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and replacement Product will be furnished on an exchange basis and will be either reconditioned or new. All replaced Product and parts become the property of Digi. If Digi determines that the Product is not under warranty, it will, at the Customers option, repair the Product using current Digi standard rates for parts and labor, and return the Product UPS Ground at no charge in or out of warranty.

Ordering Information

Figure C-01. Divisions of the XTend RF Modem Part Numbers

1 2

43 5 6

Divisions of the Digi PKG RF Modem part numbers:

Product Family

XC = XCite X = XStream XT = XTend

Operating Frequency

09 = 902-928 MHz 24 = 2.4000 - 2.4835 GHz

(XStream only) H9 = 923 MHz (XStream/XTend only)

Throughput Data Rate

001 = 1200 bps (XStream only) 009 = 9600 bps 019 = 19200 bps (XStream only) 038 = 38400 bps (XCite Only) (blank) All XTend RF Modems support

9600 & 115200 bps (software selectable)

Operating Temperature

PKC = Commercial: 0 to 70° C PKI = Industrial: -40 to 85° C. Embedded RF Module is Conformal Coated PKT = Tested Industrial: -40 to 85° C. Embedded RF Module

is Conformal Coated & 100% tested

Interface

R = RS-232, RS-485/422 U = USB E = Ethernet T = Telephone

Accessories Package

A = Accessories Package specific to the interface included (blank) indicates accessories package not included

9XTend™ RS-232/422/485 RF Modem User’s Guide

Contact Digi

For the best in wireless data solutions and support, please use the following resources: Documentation: www.maxstream.net/helpdesk/download.php

Technical Support: Phone. (866) 765-9885 toll-free U.S.A. & Canada

E-Mail. rf-xperts@maxstream.net

Office hours are 8:00 am - 5:00 pm [U.S. Mountain Standard Time]

(801) 765-9885 Worldwide

Live Chat. www.maxstream.net

Digi 9XTend-PKG-R RS-232, 9XTend-PKG-R RS-422, 9XTend-PKG-R RS-485 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
