1

1

Important Safety Instructions

Please read the following safety instructions before installing or cleaning your
Diamond Digital monitor:

1. This monitor must be operated from the type of power source indicated
on the rating label. If you are not sure of the type of power available in
your area, consult your dealer or local electricity supply company.

2. This monitor must be operated with a 3 wire electrical cable that has a
plug with a third (grounding) pin. The plug must only be connected to a
grounded power outlet. This is a safety feature. Australian and New
Zealand customers should use the power cable supplied with the
monitor.

3. Make sure that the power outlet that you plug the monitor into is easily
accessible.

4. Unplug the monitor’s power cable from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a soft cloth to clean the
monitor housing and screen.

5. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or in a
built-in installation unless proper ventilation is provided.

6. Never push objects of any kind, or spill liquid of any kind into the
monitor.

7. Do not attempt to service the monitor yourself as opening or removing
covers may expose you to dangerous voltages or other risks. Removing
the cover of the monitor may void warranty.

8. If any abnormal operation or an accident (such as dropping the unit)
occurs, disconnect the monitor from the wall power outlet and contact a
Mitsubishi Authorised Service Centre (see chapter 8 for details).

1

2

2

Your Diamond Digital DV1772FD Monitor has the followin g features:

♦ Plug and Play Compatibility

♦ Compatible with PC, Apple

♦ Flicker-free Image

♦ Larger Viewable Size

♦ Easy to Use On Screen Display

Features

™

With DDC-2B
features of Microsoft
Edition.

systems.

The monitor supports VESA standard graphics signals with flicker-free
refresh rates at resolutions up to 1024 x 768 pixels at 85Hz.

With its 40.6 cm (16”) diagonal viewable screen size, the DV1772FD
offers a larger viewable screen area than many other 17” CRT
monitors.

The On-Screen Display (OSD) allows you to adjust all settings simply
with on-screen menus.

, the DV1772FD is compatible with the Plug and Play

®

Windows® 95, 98, 2000, XP and Millennium

®

Macintosh® and most other computer

♦ Low Power Consumption

Maximum power consumption is 75 watts. Most other 17” CRT
monitors use 100 watts or more. The power management complies
with VESA DPMS standard. When the system is idle (off mode), the
monitor automatically cuts its power consumption to less than 2 watts.

♦ On Screen Display

Allows you to adjust all settings simply using on-screen menus.

♦ Green Commitment

No CFCs are used in the manufacturing process of your monitor.

2

3

3

Please check that the following items are included with your monitor. If they
are missing or damaged, please contact your place of purchase immediately.

Locate the model name and the serial number label on the back of your
monitor and write the details of the monitor and your place of purchase in the
space on page (ii) of this manual for future reference.

Unpacking the Monitor

♦ Monitor with attached signal cable
♦ Tilt/swivel base
♦ Power cord
♦ User’s manual

3

4

4

Your monitor is equipped with an automatic power supply with a voltage
range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz.

Installation

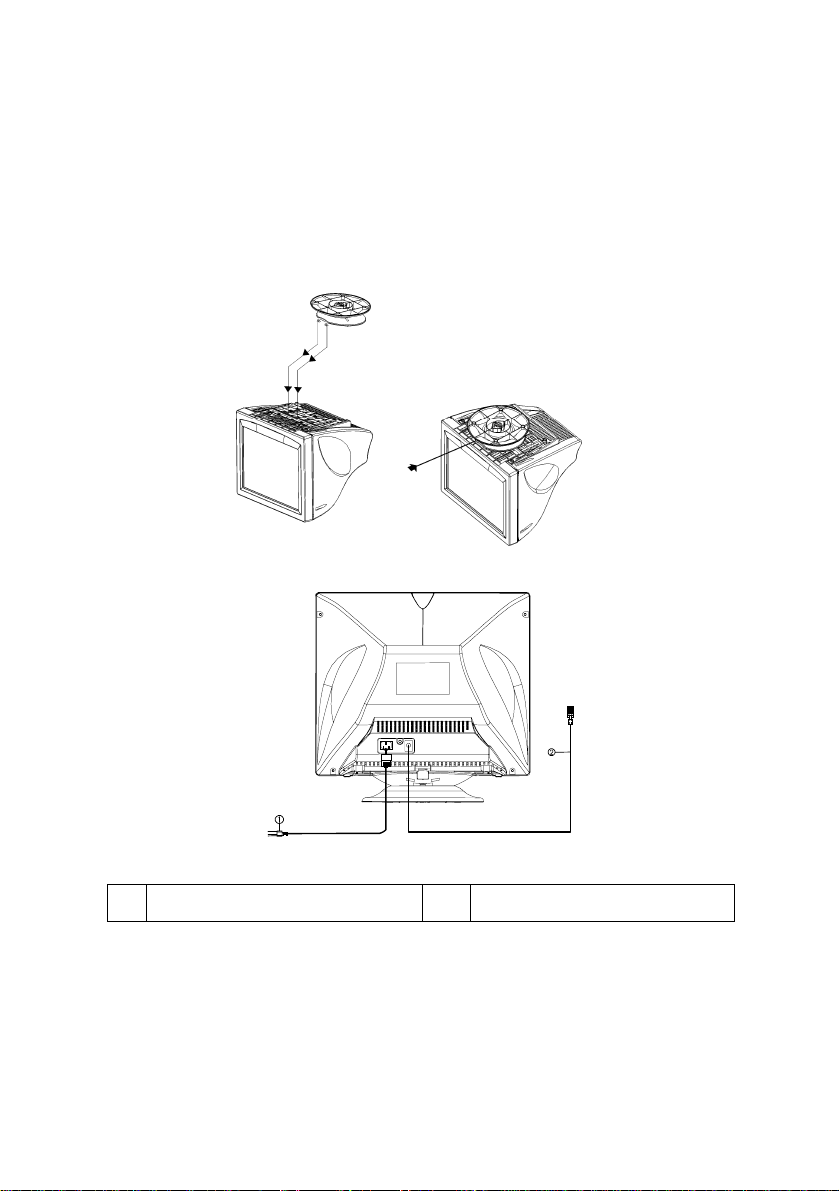

Install Remove

Connecting Cables

1. Power Cord 2. Signal Cable

To install your Diamond Digital DV1772FD monitor:

1. Make sure that the computer system’s power is turned off.

4

2. Place the monitor on its top on a soft surface, then use the arrow guides

to fit the swivel base onto the bottom of the display.

3. Place the monitor on its base and connect the power cord to the monitor,

then attach it to a power socket.

4. Connect the computer end of the D-SUB cable to the 15-pin output

connector on the video card of your computer.

5. Turn the monitor and the computer on.

If you wish to connect the monitor to an older-type Apple Macintosh
computer, you will need to use a Macintosh cable adaptor (sold separately).
The adaptor connects the video signal cable of your monitor to the video port
of the computer. Your computer dealer should be able to supply you with a
suitable adaptor.

Drivers for Windows 95, 98, 2000, XP and Millennium Edition
Windows will detect the Diamond Digital DV1772FD monitor the first time

you turn the computer on after installing it. The Add New Hardware wizard
will prompt for drivers. Install the standard Windows Plug & Play Monitor
driver. This driver will work correctly and allow you to use the monitor with its
optimal resolutions and refresh rates.

5

5

5

You can adjust the monitor using its On-Screen Display (OSD) menu system.
There are 4 buttons that control the monitor:

1. Power

2.

3. MENU

Adjusting the Monitor

To turn the monitor on and off
POWER INDICATOR

Activates OSD function or function adjustment
confirmation

4. / >

5.

/ <

6. EXIT

Moves to another menu item or increases the
selected parameter. Hotkey for contrast adjustment.

Moves to another menu item or decreases the
selected parameter. Hotkey for brightness
adjustment.

Exit a function or OSD menu

6

Selecting Functions and Making Adjustments

Contrast Hotkey

1. Press

2. Press < or > to adjust the contrast level.

3. Press the MENU button to save your changes.

Brightness Hotkey

1. Press

2. Press < or > to adjust the brightness level.

3. Press the MENU button to save your changes.

‘>‘ to open the contrast adjustment display.

‘<‘ to open the brightness adjustment display.

7

The Main Menu

The Diamond Digital DV1772FD’s controls are accessed by pressing the
MENU button, to open the OSD (On-Screen-Display). The main menu will be
displayed as follows.

Making Adjustments

H: 68.8KHz

Contrast

9300

1024 × 768

V: 85Hz

70

6500

8

The description for functional control icons

1. CONTRAST

:

Adjust the picture contrast.

2. BRIGHTNESS

:

Adjust the picture brightness.

3. H-CENTER

:

Adjust the horizontal position of the picture.

4. H-SIZE

:

Adjust the picture’s horizontal size.

5. V-CENTER

:

Adjust the vertical position of the picture.

6. V-SIZE

:

Adjust the picture’s vertical size.

7. ZOOM

:

Adjust the picture’s horizontal and vertical size simultaneously.

8. PINCUSHION

:

Adjust the pincushion and barrel.

9. TRAPEZOID

:

Adjust the picture’s trapezoid distortion.

10. PIN-BALANCE

:

Adjust to compensate the pincushion unbalance.

11. PARALLELOGRAM

:

Adjust the picture to be a rectangle.

12. ROTATION

:

Adjust the picture tilt to horizontal position.

9

13. 6500°K/9300°K (COLOR TEMPERATURE ) :
The color temperature for 6500°K is x=0.313, y=0.329 and 9300°K

is x=0.283, y=0.297. It presents two different color sets on the
screen. You can select 9300°K or 6500°K by pressing MENU Key.

14. USER COLOR ( Red / Blue )

:

If the 9300°K normal white or 6500°K warmer white do not satisfy
your desire, properly adjust RGB GAIN controls to obtain your
optimum whiteness level.

15. DEGAUSS

:

If color impurity occurs when moving or swivelling the monitor, press
the MENU key and degauss to fix the picture condition.

16. MOIRE REDUCE

:

Moire is the result of interference between the phosphor layout and
the video signal. In some cases, you may find the moire very
noticeable. Press the MENU key to enter in the moire reduce setting.
Please adjust the level to the optimum condition. Note: Too high of a
setting will cause the picture to shake.

17. RECALL

:

Press RECALL to restore the monitor to factory settings.

18. EXIT

:

Close OSD window.

19. SELECT LANGUAGE

:

Select the language as you like.

Note:

) The setting of each parameter is represented by a numeric value and

corresponding scale.

) The on-screen menu will automatically disappear after 10-seconds of

inactivity. If changes have been made, the monitor will automatically
save them.

10

Timing and Refresh Rate Setting

By making adjustments of your video card settings, you can set the timing
and the refresh rate of the graphics signal to match your requirements.
Please consult your operating system’s and graphics adaptor’s
documentation for details about how this may be done.

The monitor will automatically save the changes that you make and use the
new settings whenever you turn it on. The Diamond Digital DV1772FD
monitor can accept horizontal scanning frequencies ranging from 30 kHz to
72 kHz and vertical frequencies from 50 Hz to 160 Hz. However, due to the
requirements of signals with different resolutions, and to avoid possible
damage to your monitor, do not exceed the following maximum vertical
refresh rates.

Resolution Maximum Vertical

Refresh Rate (Hz)

640 x 480 100
800 x 600 100

1024 x 768 85

1280 x 1024 60

Factory Preset Timings

Resolution Vertical

Frequency (Hz)

640 x 480 60 31.5
640 x 480 85 43.3
720 x 400 70 31.5

800 x 600 85 53.7
1024 x 768 85 68.7
1152 x 864 75 67.5

1280 x 1024 60 64.0

11

Horizontal

Frequency (kHz)

6

6

If you encounter any trouble using the Diamond Digital DV1772FD monitor,
make sure that your monitor is properly installed. (For hardware installation,
see
chapter for possible solutions before calling Mitsubishi Electric or one of our
Authorised Service Centres.

No image is displayed

Troubleshooting

Chapter 4 of this manual.) If the problems persist, please check this

- Check that the light (LED) next to the monitor’s power button is lit and
is green in colour.

- If the LED is orange there is no signal from the computer and the
monitor is in power saving mode. Check that the computer is switched
on. Press a button on the computer keyboard or move the mouse to
wake the computer. If that does not help, check that the VGA cable is
securely plugged into the computer. Also check the pins of the VGA
cable’s connector. If any pins are bent or broken off, contact your
dealer.

- If the LED is not lit at all, check that the monitor is plugged into the
power socket and that the power switch is turned on at the wall. Check
that the monitor’s power switch is also turned on.

- Video sync signal. The video sync signal from the graphics card must
be as specified for the monitor.

The picture is scrolling or unstable.

- The most common cause of this problem is a loose VGA signal cable
or connector. Check that the cable is securely connected to the
computer.

- Check the VGA signal cable for damage. If any pins are bent or
broken off, contact your dealer or an authorised Mitsubishi Electric
service agent.

- Make sure that the graphics card settings are correct and within the
monitor’s specifications. Change the settings of your graphics card to
values within the monitor’s range.

12

- Remove any magnetic objects that are near the monitor. These
include speakers and power supplies (AC adaptors).

Colours are impure.

- Check that the cable is securely connected to the computer.

- Check the VGA signal cable for damage. If any pins are bent or

broken off, contact your dealer or an authorised Mitsubishi Electric
service agent (see Chapter 8 for details).

- Check the monitor’s colour settings. Press the OK button and select
the Color Adjustments menu. Select the ‘Reset to Factory Settings’
menu item to return to the factory preset colours and press OK.

- Degauss the monitor using the degauss function of the monitor’s On
Screen Display.

- Remove any obje cts that can create a m agnetic field that may be near
the monitor. These include speakers and power supplies
(AC adaptors).

The image is blurred or there is visible ghosting

- Have you used a VGA extension cable? If so, remove the extension
cable and check the displayed image. Is the image quality improved?
Depending on the characteristics and type of the extension cable,
some blurring or distortion may occur due to conduction losses in the
extension cable. You can minimise the distortion by using an
extension cable with lower conduction losses.

- Have you used a VGA splitter or a video amplifier? Depending on the
characteristics and type of the splitter or amplifier some blurring or
distortion may occur due to the limitations of the device’s bandwidth.
Problems caused by a limited bandwidth will increase as the signal’s
resolution and refresh rate increased. If you need to use a splitter or
amplifier with your monitor, make sure that it is a good quality device
that has sufficient bandwidth for the graphics resolution that you need
to use.

13

7

7

Specifications

Model DV1772FD

Display Characteristics

Display Type

Maximum Viewable Size
Dot pitch

Surface coating

Graphics Signals

Maximum Resolution
Recommended Resolution
Horizontal Frequency
Vertical Frequency
Video Bandwidth
Microprocessor Controlled
Graphics

Signal Connection
Video Input

Video Signal

17” (43.2 cm) diagonal cathode ray
tube

16” (40.6 cm) diagonal

0.25 mm
(0.21 mm horizontal dot pitch)

Anti-Glare, Anti-Reflective, Anti­Static coating

1280 x 1024 pixels (up to 60 Hz)
1024 x 768 pixels (at 85 Hz)
30 - 72 kHz
50 - 160 Hz
110 MHz
7 factory preset timings

15 user modes
15-pin mini D-sub cable

VGA-type (15 pin mini D-sub
connector)
RGB analog (Positive polarity)

0.7 Vpp/75 Ohm

Synchronisation
Plug & Play

TTL Level (separate sync.)
DDC-1/2B

14

User Interface

Controls

On-Screen Display Functions:

Contrast; Brightness; Horizontal Position; Horizontal Size; Vertical Position;
Vertical Size; Zoom; Pincushion, Balance, Trapezoid, Parallelogram, Rotate;
6500°K; User Colour; 9300°K; Degauss; Moire; Exit; OSD Language;

Physical Characteristics

Power Management
Maximum Power Consumption
Consumption in Power Saving

Modes
Operating Voltage

Dimensions (W x H x D)
Weight
Temperature (Operating/Storage)
Air Humidity (Operating/Storage)

Mains power switch, On-Screen
Display with 4 control buttons

VESA DPMS, Energy Star
75 Watts
< 2 Watts

Automatic switched mode power
supply, 100 - 240 V, 50 - 60 Hz

410 x 402 x 420 mm

15.2 kg
0 °C ~ 40 °C / -25 °C ~ 65 °C
10% ~ 85% / 5% ~ 95%

Regulatory Certification

Safety
EMI/EMC
X-Ray
Other

AS/NZS 60950
AS/NZS CISPR22:2002
DHHS
ISO 9241-3/7/8, ISO 14000, MPR-

II

15

8

8

If problems remain after checking this manual, please contact your place of
purchase or contact

Australian Service Contacts

Visit the Mitsubishi Electric Australia web site at

For details of your nearest Mitsubishi Electric Authorised Service Centre or
contact the Service Department for your state:

New South Wales and Australian Capital Territory

348 Victoria Road
Rydalmere, NSW, 2116

Telephone: [phone]
Fax: [phone]

Queensland

12 / 469 Nudgee Road
Hendra, Qld, 4011
(Airlink Business Park)

Service Contacts

www.mitsubishielectric.com.au

Telephone: [phone]
Fax: [phone]

South Australia and Northern Territory
77 Port Road

Hindmarsh, SA, 5007
Telephone: [phone]
Fax: [phone]

16

Victoria and Tasmania
4 / 303 Burwood Hwy

East Burwood, Vic, 3151
Telephone: [phone]
Fax: [phone]

Western Australia
5 / 329 Collier Road

Bassendean, WA, 6054
Telephone: [phone]
Fax: [phone]

17
