Diamond E17/PLCD8T-N User Manual

Mod: E17/PLCD8T-N

Production code: 373194

10/2011

15

INDEX

I. COMBINING APPLIANCES / TABLES ................................................................................................. 2

II. DATAPLATE and TECHNICAL DATA .................................................................................................16

III. GENERAL INSTRUCTIONS ............................................................................................................... 17

IV. THE ENVIRONMENT .......................................................................................................................... 18

1. PACKING............................................................................................................................................. 18

2. USE .............................................................................................................................................. 18

3. CLEANING .......................................................................................................................................... 18

4. DISPOSAL .......................................................................................................................................... 18

V. INSTALLATION................................................................................................................................... 18

1. REFERENCE STANDARDS ................................................................................................................ 18

2. UNPACKING ....................................................................................................................................... 18

3. POSITIONING ..................................................................................................................................... 18

4. FUME EXHAUST AND VENTILATION ................................................................................................ 19

5. CONNECTIONS .................................................................................................................................. 20

6. SAFETY THERMOSTAT...................................................................................................................... 21

7. BEFORE LEAVING ............................................................................................................................. 21

VI. INSTRUCTIONS FOR THE USER ...................................................................................................... 23

1. FRY TOP USE .................................................................................................................................... 23

VII. CLEANING ........................................................................................................................................ 24

1. EXTERNAL PARTS ............................................................................................................................. 24

2. OTHER SURFACES ............................................................................................................................ 24

3. PERIODS OF DISUSE ........................................................................................................................ 25

4. INTERNAL PARTS (every 6 months)................................................................................................... 25

VIII. MAINTENANCE ................................................................................................................................ 26

1. MAINTENANCE .................................................................................................................................. 26

16

II. DATAPLATE and TECHNICAL DATA

Important

This manual contains information relevant to various appliances. See the appliance dataplate located under the
control panel in order to identify the appliance (see fig. above).

TABLE A - Gas appl iance technical da ta

MODELS

ISO 7/1 connection Ø

1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"

Max.

7 7 7 14 14 14 7 7 7 14 14 14 14

Min.

3,2 3,2 3,2 6,4 6,4 6,4 3,2 3,2 3,2 6,4 6,4 6,4 6,4

A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1

TABLE A - Electrical appliance technical data

MODELS

Powe r supply voltage V

380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400 380-400

Phases No.

3N 3N 3N 3N 3N 3N 3N 3N 3N 3N 3N 3N 3N

Frequency Hz

50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60

Nominal max. Power kW

4,1-4,5 4,1-4,5 4,1-4,5 8,2-9 8,2-9 8,2-9 4,1-4,5 4,1-4,5 4,1-4,5 8,2-9 8,2-9 8,2-9 8,2-9

Power cable section

mm

2

1,5 1,5 1,5 2,5 2,5 2,5 1,5 1,5 1,5 2,5 2,5 2,5 2,5

TABLE A - Electrical appliance technical data

MODELS

Powe r supply voltage V

230 230 230 230 400 440 400 440 400 440 400 440

Phases No.

33333333 3 3 3 3

Frequency Hz

50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60

Nominal max. Power kW

4,1-4,5 8,2-9 8,2-9 8,2-9 4,1-4,5 4,1-4,5 4,1-4,5 8,2-9 8,2-9 8,2-9 8,2-9 8,2-9

Power cable section

mm

2

1,5 2,5 2,5 2,5 1,5 1,5 1,5 2,5 2,5 2,5 2,5 2,5

TECHNICAL DATA

+7FTMHSS05

800mm

+7FTMHSS06

800mm

+7FTMHSP05

800m m

+7FTMHSP06

800mm

+7FTM DSS05

400mm

+7FTMDSS06

400mm

+7FTMDSR05

400mm

+7FTMDSR06

400mm

+7FTEDSS0N

400mm

+7FTEHSS0N

800mm

+7FTEHSP0N

800mm

+7FTEHCP0N

800mm

+7FTEHCP00

800mm

TECHNICAL DATA

+E7FTEDCSO0

400mm

+7FTEHSSO0

800mm

+7FTEHSPO0

800m m

+7FTEHCSO0

800mm

+7FTEHSP00

800mm

+7FTEHCS00

800mm

+7FTEDSSO0

400mm

+7FTEDSRO0

400mm

+7FTEDSS00
+7FT EDHS00

400mm

+7FTEDSR00

400mm

+7FTEDCS00

400mm

+7FTEHSS00

800mm

+7FT GHHSO 0

800mm

+E7FTGHSPO0

800m m

+7FTGHCSO0

800mm

+7FTGHCP00

800mm

+7FTGHCS00

800mm

+7FT GDHSO 0

400mm

+E7FT GDSRO0

400mm

+7FTGDC SO0

400mm

+7FT GHHS0 0

800mm

+7FTGHSP00

800mm

+7FTGDSR00

400mm

Type of cons truction

TECHNICAL DATA

+7FT GDHS0 0

400mm

+7FTGDCS00

400mm

Nominal hea t output kW

17

III. GENERAL INSTRUCTIONS

• Carefully read the instruction handbook before using the appliance.

• After installation keep the instruction handbook for future consultation.

• FIRE HAZARD - Keep the area around the appliance clear and free from combustible materials. Do not

keep flammable materials in the vicinity of the appliance.

• Install the appliance in a well-ventilated place to avoid the creation of dangerous mixtures of unburnt
gases in the room.

• Air recirculation must take in account the air necessary for combustion, 2 m³/h/kW gas power, and

also the “well-being” of those working in the kitchen.

Inadequate ventilation causes asphyxia. Do not obstruct the ventilation system of the place where the
appliance is installed. Do not obstruct the vents or ducts of this or other appliances.

• Place emergency telephone numbers in a visible position.

• Installation, maintenance and conversion to another type of gas must only be carried out by qualified personnel authorised by the
manufacturer. For assistance, contact an authorised technical centre. Demand original spare parts.

• This equipment is designed for cooking food. It is intended for industrial use. Any other use is to be considered improper.

• This appliance is not intended for use by people (including children) with limited physical, sensory or mental abilities or without
experience and knowledge of it, unless they are supervised or instructed in its use by a person responsible for their safety.

• The appliance must be used by trained personnel. Do not leave the appliance unattended when operating.

• Turn the appliance off in case of fault or poor operation.

• Do not use products (even if diluted) containing chlorine (sodium hypochlorite, hydrochloric or muriatic
acid, etc.) to clean the appliance or the floor under it. Do not use metal tools to clean steel parts (wire
brushes or Scotch Brite type scouring pads).

• Do not allow oil or grease to come into contact with plastic parts.

• Do not allow dirt, fat, food or other residuals to form deposits on the appliance.

• Do not clean the appliance with direct jets of water.

• The symbol L given on the product indicates that it should not be considered domestic waste, but must be

correctly disposed of in order to prevent any negative consequences for the environment and the health of persons.
For further information regarding the recycling of this product, contact the product agent or local dealer, the
after-sales service or the local body responsible for waste disposal.

• Warnings:

• Do not store or use gasoline or other flammable vapours, liquids or items in the vicinity of this or any other appliance.

• Do not spray aerosols in the vicinity of this appliance while it is in operation.

• Never check for leaks with an open flame

• The appliance is not suitable for a marine environment.

.

Failure to observe the above can compromise the safety of the appliance. Failure
to observe the above invalidates the warranty.

sos

18

V. INSTALLATION

• Carefully read the installation and
maintenance procedures given in this instruction
manual before installing the appliance.

• Installation, maintenance and conversion to another type
of gas must only be carried out by qualified personnel
authorised by the manufacturer.

• Failure to observe the correct appliance installation, con­version and modification procedures can cause damage
to the appliance, danger to persons and invalidates the
Manufacturer’s warranty.

1. REFERENCE STANDARDS

• Install the appliance in accordance with the local safety

regulations and laws in the country of use.

• AUSTRALIA: this appliance shall be installed only by

authorised persons and in accordance with the manufacturer’s
installation instructions, local gas fitting regulations, local water
supply regulations, AS5601-gas installation, health authorities
and any other statutory regulations..

2. UNPACKING

ATTENTION!
Immediately check for any damage caused during transport.

• The forwarder is responsible for the goods during trans-

port and delivery.

• Inspect the packing before and after unloading.

• Make a complaint to the forwarder in case of visible or

hidden damage, reporting any damage or shortages on
the dispatch note at the time of delivery.

• The driver must sign the dispatch note: the forwarder can

reject the claim if the dispatch note is not signed (the
forwarder can provide the necessary form).

• Unpack, taking care not to damage the
equipment. Wear protective gloves.

• Carefully remove the protective film from metal surfaces

and clean any traces of glue with a suitable solvent.

• For hidden damage or shortages becoming apparent only

after unpacking, request the forwarder for inspection of
the goods within and not later than 15 days of delivery.

• Keep all the documentation contained in the packing.

3. POSITIONING

• Handle the equipment with care in order to avoid damage or

danger to persons. Use a pallet for handling and positioning.

• The installation diagram given in this instruction manual

gives the appliance dimensions and the position of con­nections (gas, electricity, water). Check that they are avail­able and ready for making all the necessary connections.

• The appliance can be installed separately or combined

with other appliances of the same range.

• The appliances are not suitable for built-in installation.

Leave at least 10 cm between the appliance and a side
wall and 15cm to the rear wall.

• Suitably insulate surfaces that are at distances less than

those recommended.

• Maintain an adequate distance between the appliance

and any combustible walls. Do not store or use flamma­ble materials and liquids near the appliance.

• Leave an adequate space between the appliance and any

side walls in order to enable subsequent servicing or
maintenance operations.

• Check and if necessary level the appliance after position-

ing. Incorrect levelling can cause appliance malfunctioning.

IV. THE ENVIRONMENT

1. PACKING

Packing materials are environment friendly and can
be stored without risk, or burned in a special waste
incineration plant.
Recyclable plastic components are marked with:

Polyethylene: outer wrapping, instruction booklet
bag, gas nozzle bag.

Polypropylene: roof packing panels, straps.

Polystyrene foam: corner protectors.

2. USE

Our appliances offer high performance and efficiency. To re­duce consumption of electricity, water or gas, do not use the
appliance empty or in conditions that compromise optimal
efficiency (e.g. with doors or lids open, etc.); the appliance is
used in a well-ventilated place to avoid the creation of
dangerous mixtures of unburnt gases in the room. Whenever
possible, pre-heat only before use.

3. CLEANING

In order to reduce the emission of pollutants into the envi­ronment, clean the appliance (externally and when neces­sary internally) with products that are more than 90% biode­gradable (for further information, see chap. V “CLEANING”).

4. DISPOSAL

Do not disperse in the environment. Our
appliances are manufactured using more
than 90% (in weight) recyclable metals
(stainless steel, iron, aluminium, galvanised
sheet, copper, etc.).

Make the appliance unusable by removing
the power cable and any compartment or cavity closing
mechanisms (when present) in order to avoid the risk of
someone becoming closed inside.

PE

PP

PS

19

3.1. COMBINING APPLIANCES

• (Fig.1A) Undo the 4 fixing screws and remove the control panels
of the appliances.

• (Fig.1B) Remove the fixing screw nearest the control panel, from
each side to be joined.

• (Fig.1D) Bring the appliances together and level them by turning
the feet until the tops match.

• (Fig.1C) Turn one of the two plates inside the appliances 180º.

• (Fig.1E) From inside the control panel of the same appliance,
join them at the front side, screwing one TE M5x40 screw
(supplied) on the opposite insert.

3.2. FLOOR FIXING

To avoid accidental tipping of built-in half-module appliances
installed separately, fix them to the floor carefully following the
instructions enclosed with the corresponding accessory (F206136).

3.3. INSTALLATION ON BRIDGE, CANTILEVER

FRAME OR CEMENT PLINTH

Carefully follow the instructions enclosed with the correspond­ing accessory. Follow the instructions supplied with the
optional product chosen.

3.4. SEALING GAPS BETWEEN APPLIANCES

Follow the instructions supplied with the optional sealing
paste pack.

4. FUME EXHAUST

For Australia, ventilation must be in accordance with
australian building codes and kitchen exhaust hoods must
comply with AS/NZS1668.1 and AS 1668.2

4.1. TYPE “A1” APPLIANCES

Position type “A1” appliances under an extraction hood to
ensure removal of fumes and steam produced by cooking.

4.2. TYPE “B” APPLIANCES

(in conformity with the definition given in the Installation
Technical Regulations DIN-DVGW G634: 1998)

Whenever the appliance dataplate specifies only type Axx, such
appliances are not designed for being directly connected to a flue or
fume exhaust pipe run to the outside. However, the same appliance
can be installed under an extractor hood or similar forced extraction
system for fumes.

4.2.1. CONNECTION FLUE

• Remove the grille from the fume exhaust.

• Install the connection flue, following the instructions
supplied with the accessory (optional).

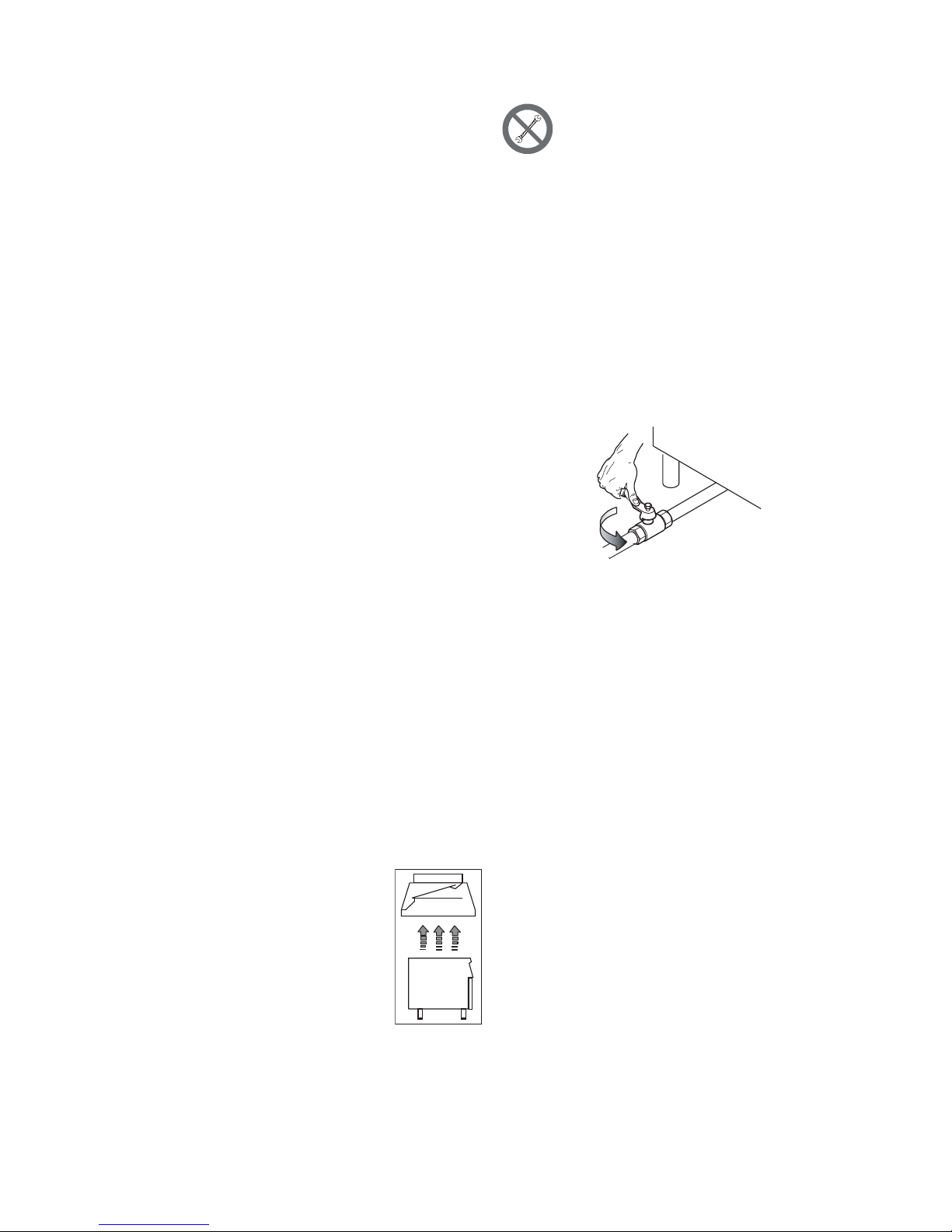

4.2.2. INSTALLATION UNDER AN EXTRACTOR HOOD

• Place the appliance under the extractor
hood (fig. opposite).

• Raise the fume exhaust pipe without altering
the section.

• Do not install dampers.

• The correct height of the exhaust pipe and
the relative distance from the extraction
hood must comply with current standards.

• The end of the exhaust pipe must be at least

1.8 m from the support surface of the appliance.

Note! The system must ensure that: a) the fume exhaust is not
obstructed; b) the length of the exhaust pipe does not exceed 3 m.
Use the adapter for connecting fume ducts of different diameters.

• SUB CLAUSES 4.1/4.2 are not relevant for australian

standard

5. CONNECTIONS

• Any installation or maintenance work on the
feed system (gas, electricity) must only be carried
out by the utility company or an authorised
installation technician.

• See the appliance dataplate for the product code.

• See the installation diagram for the type and position of
appliance connections.

5.1. GAS APPLIANCES

IMPORTANT! Ensure that the available gas supply matches

the data label; to convert the gas type, follow the instructions
in par. 5.1.6. in this chapter.

5.1.1 BEFORE CONNECTING

• Make sure the appliance is arranged for the type of gas

to be used. Otherwise, carefully follow the instructions
given in the chapter: “Gas appliance conversion / adjust­ment”.

• Fit a rapid gas shut-off cock/valve ahead of each appli-

ance. Install the cock/valve in an easily accessed place.

• Clean the pipes to remove any dust, dirt or foreign matter

which could block the supply.

• The gas supply line must ensure the gas flow necessary

for full operation of all the appliances connected to the
system. A supply line with insufficient flow will affect cor­rect operation of the appliances connected to it.

• Caution! Incorrect levelling of the appliance can affect

combustion and cause malfunctioning.

5.1.2 CONNECTION

• See the installation diagram for the position of the gas

connection on the bottom of the appliance.

• Remove the plastic protection cover (if present) from the

appliance gas union before connecting.

• After installation, use soapy water to check connections

for leaks.

•

The Gas Connection is male ½” BSP

5.1.3 SUPPLY PRESSURE CHECK (all versions)

Make sure the appliance is suitable for the type of gas avail­able, according to that given on the dataplate (otherwise,
follow the instructions given in par. “Conversion to another
type of gas”). The supply pressure must be measured with
the appliance operating, using a manometer (min. 0.1 mbar).

• Remove the control panel.

• Remove retaining screw “N” from the pressure point and

connect the manometer “O” (fig. 2A-2B).

• Compare the value read on the manometer with that given

in table B (see handbook Appendix)

• If the manometer gives a pressure outside the range of

values in table B, do not start the appliance, and consult
the gas company.

20

5.1.6.1 REPLACING THE MAIN BURNER NOZZLE

(all versions)

• Unscrew nozzle “C” and replace it with the corresponding
nozzle for the selected gas (Table B, fig.3B) complying
with that given in the following table B.

• The nozzle diameter is given in hundredths of mm on the
nozzle body.

• Fully retighten nozzle “C”.

5.1.6.2 REPLACING THE PILOT BURNER NOZZLE

(all versions)

• Undo screw coupling “H” and replace nozzle “G” with one
suitable for the type of gas (Table B, fig.3A).

• The nozzle identification number is given on nozzle body.

• Retighten screw coupling “H”.

5.1.6.3 MINIMUM FLAME SCREW (all versions)

• Unscrew minimum flame screw “M” from the cock/valve and
replace it with the one suitable for the type of gas (screw
down fully) (Table B, fig.2A).

5.1.6.4 REPLACING THE ADJUSTMENT SPRING OF

THE PRESSURE REGULATOR

• Replace the spring of the pressure regulator with one
suitable for the gas pressure type given in table B (see
handbook Appendix) as follows:

- Remove the seal cap, seal cap gasket, adjusting screw
and the spring.

- Insert the new spring and replace the adjusting screw.

- Connect a pressure gauge to the appliance’s test point
pressure (fig. 2A/2B).

- Ignite the appliance’s burners so to have the maximum
gas consumption.

- Regulate the adjustment screw until the pressure gauge
shows the working pressure value (section 5.1.4 Gas
pressure regulator).

- Replace the seal cap and gasket and screw tightly closed.

- Remove the pressure gauge and close the test point
pressure.

- Prior to operation, test the gas pressure regulator for leaks.

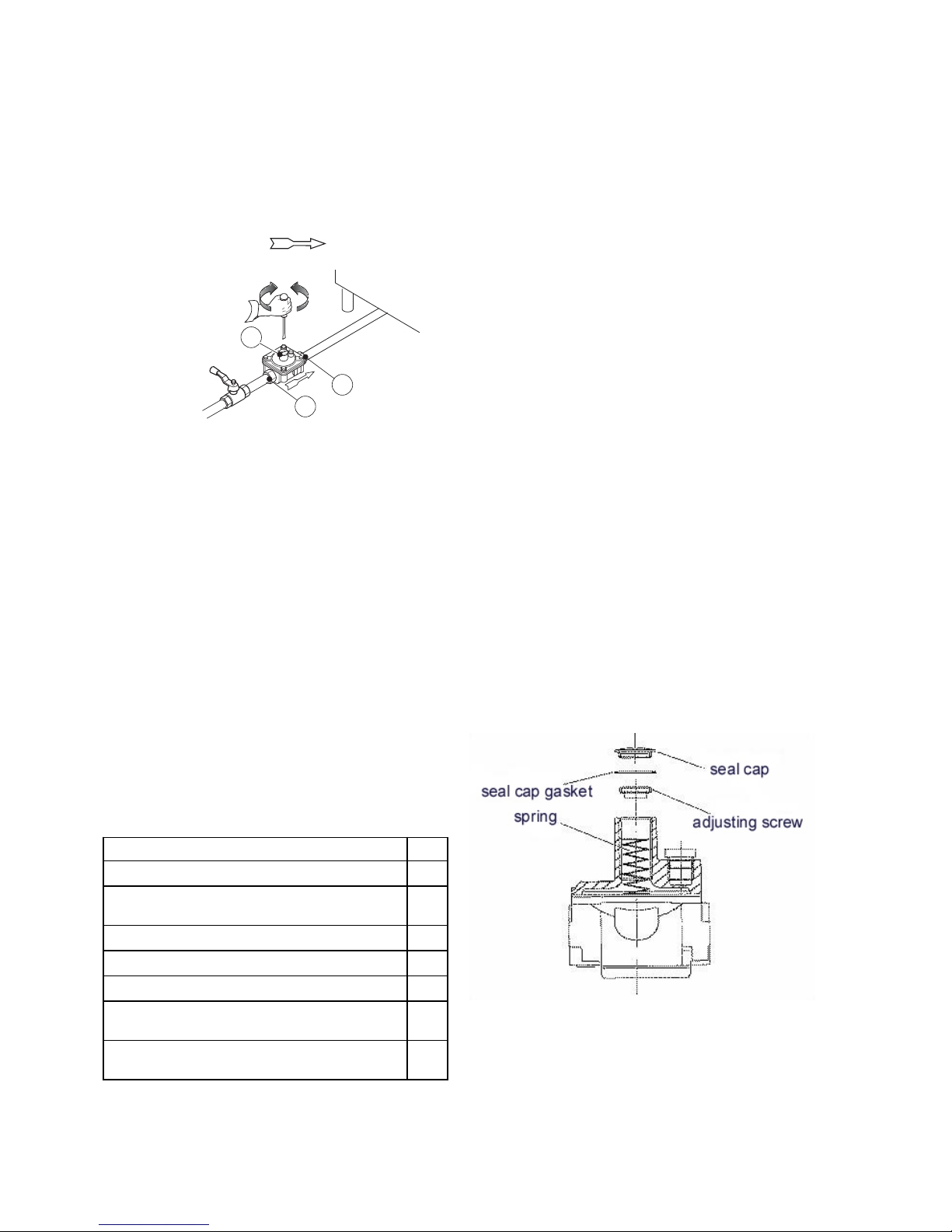

5.1.4 GAS PRESSURE REGULATOR

If the gas pressure is higher than that specified or is difficult
to regulate (not stable), install a gas pressure regulator
(accessory code 927225) in an easily accessed position
ahead of the appliance.
The pressure regulator should preferably be fitted horizontally,
to ensure the right outlet pressure:

•“1” connection side gas from mains.

•“2” pressure regulator;

•“3” connection side gas towards the appliance;
The arrow on the regulator (

) shows the gas flow

direction.

3

1

2

NOTE! These models are designed and certified for use with
natural or propane gas. For natural gas, the pressure regulator
on the header is set to 8" w.c. (20mbar).

AUSTRALIA: the gas pressure regulator supplied with the
appliance must be fitted to the appliance inlet. Adjust the
test point pressure with one burner operating at maximum
setting as follow:

- 1.0 KPa for Natural gas

- 2.65 KPa for Propane gas

5.1.5. CHECKING THE PRIMARY AIR SUPPLY(all versions)

When the primary air supply is correctly adjusted, the flame
does not “float” with burner cold and there is no flareback
with burner hot.

• Undo screw “A” and position aerator “E” at distance “H”
given on the Table B, retighten screw “A” and seal with
paint (fig. 3B - pag. 5).

5.1.6 CONVERSION TO ANOTHER TYPE OF GAS

Table B “technical data/gas nozzles” gives the type of noz­zles to be used when replacing those installed by the manu­facturer (the number is stamped on the nozzle body).
At the end of the procedure, carry out the following check-list:

Check Ok

• burner nozzle/s replacement

• correct adjustment of primary air supply to
burner/s

• pilot nozzle/s replacement

• minimum flame screw/s replacement

• correct adjustment pilot/s if ne cessary

• correct adjustment of supply pressure
(see technical data/gas nozzles table)

• apply sticker (supplied)
w ith d a ta o f ne w g as ty p e u se d

21

5.2. ELECTRIC APPLIANCES

5.2.1. ELECTRICAL CONNECTION (Fig. 4A-Table C).

IMPORTANT! Before making the connection, check the

compatibility of the dataplate specifications with the mains
voltage and frequency.

• To access the terminal board, remove the control panel of
the appliance by removing the fixing screws (fig. 4A 1-2).

• Connect the power supply cable to the terminal board
as shown in the wiring diagram enclosed with the
appliance.

• Secure the power supply cable with a cable clamp.

IMPORTANT! The manufacturer declines any responsibility

if the safety regulations are not respected.

5.2.2. POWER SUPPLY CABLE

Unless otherwise specified, our appliances do not come
equipped with a power supply cable. The installer must use
a flexible cable having characteristics at least equivalent to
H05RN-F rubber-insulated type cables. Protect the cable
section outside the appliance with a metal or rigid plastic
pipe.

5.2.3. CIRCUIT BREAKER

Install a circuit breaker ahead of the appliance. Contact
opening distance and maximum leakage current must comply
with current regulations.

5.3. EQUIPOTENTIAL NODE AND EARTH

CONNECTION

The appliance must be earthed; it must be included in an
equipotential node by means of the screw located under the
appliance frame at the front right. The screw is marked with
the symbol

.

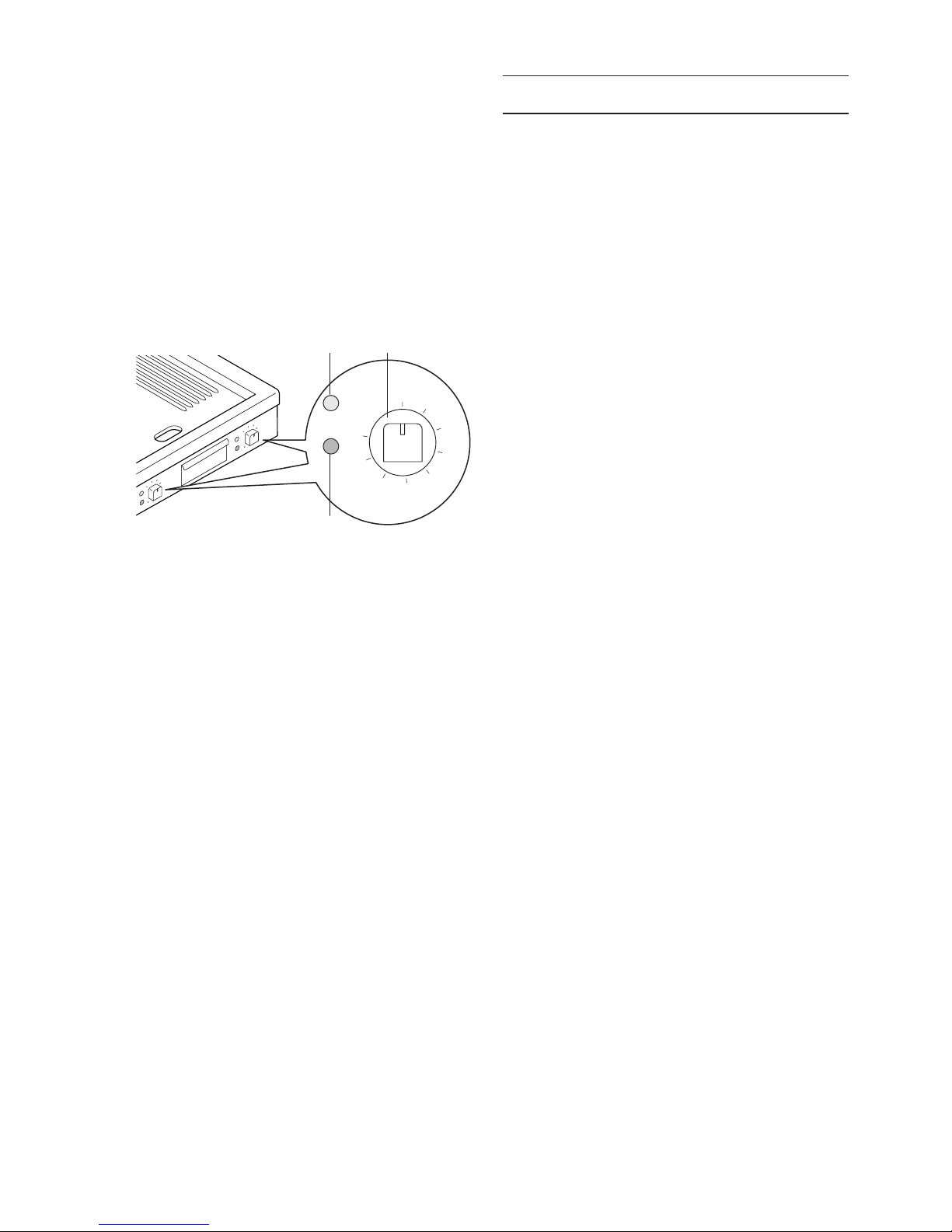

6. SAFETY THERMOSTAT

Some of our appliance models use a safety thermostat, which
cuts in automatically when temperatures exceed a preset
value, shutting off the gas supply (gas appliances) or the
electricity supply (electric appliances).

6.1. RESET

• Wait until the appliance has cooled down: a suitable

temperature for resetting is approx. 90°C.

• Press the red button on the safety thermostat body.

IMPORTANT! If resetting entails the removal of a protective
part (e.g. control panel) this must be carried out by a qualified
technician. Tampering with the safety thermostat invalidates
the warranty.

7. BEFORE LEAVING

Check all connection for gas leaks with soap and water. Do
not use a naked flame for detecting leaks. Ignite all burners
both individually and combined to ensure correct operation
of gas valves, burners and ignition. Turn gas taps to low flame
for each burner, individually and separately, when satisfied
with the appliance, please, instruct the user on the correct
method of operation. In case the appliancefails to operate
correctly after all checks have been carried out, refer to the
authorised service provider in your area.

22

VI. INSTRUCTIONS FOR THE
USER

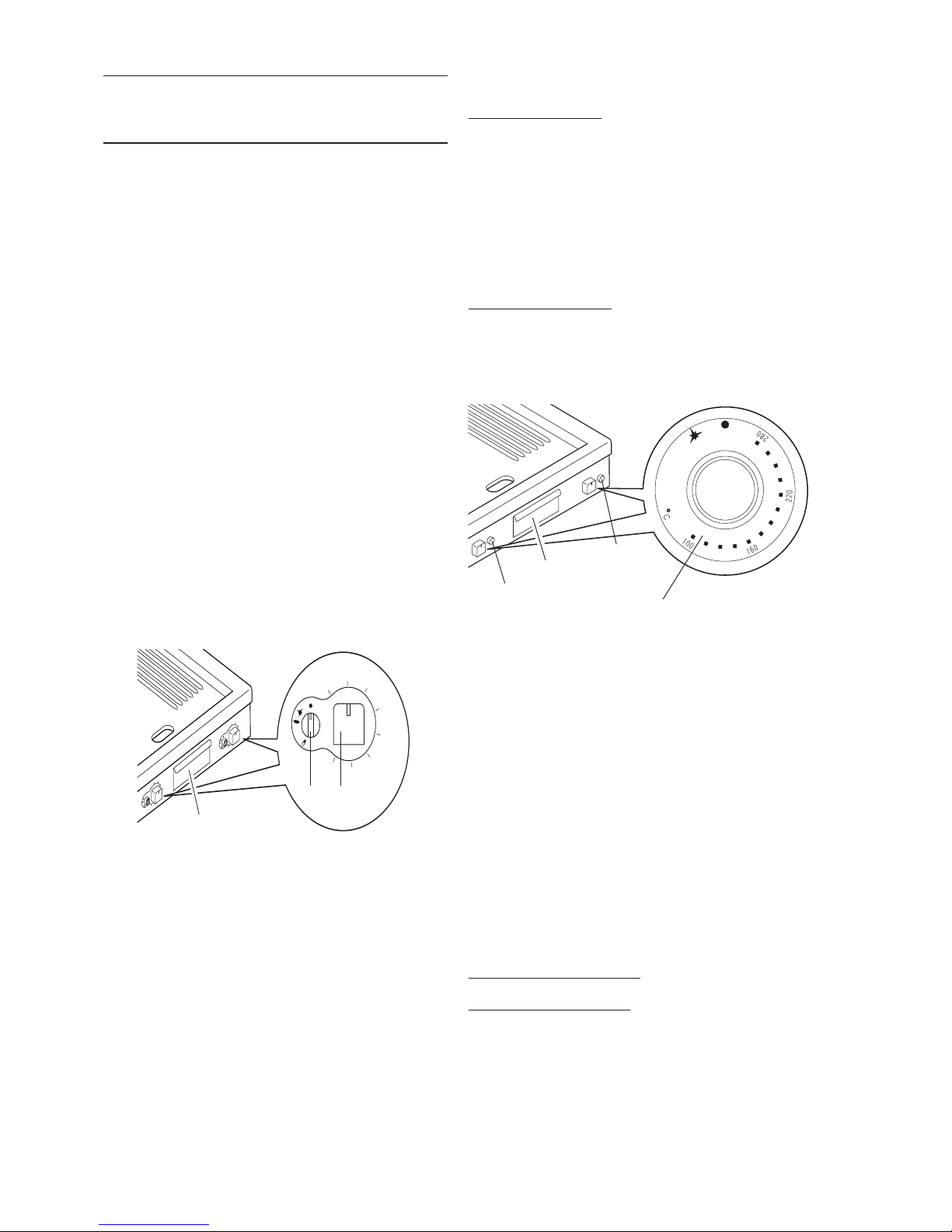

1. USE OF THE FRY TOP AND COOKING
PLATE

• The appliance is intended for industrial use and must be
used by trained personnel.

• Do not use the appliance empty or in conditions that com­promise its optimum efficiency. Also, if possible, pre-heat
the appliance immediately before use.

• The fry-top is designed for direct cooking of food on the
hot-plate (hamburgers, chops, eggs, sausages, fish, veg­etables, etc.). Any other use is to be considered improper.

• The cooking plate is designed for cooking food in contain­ers (pots, pans).

• Every day before use, empty the oil collection tray with
the appliance cold.

• Do not use the fry-top to warm pots or pans.

• Fry-top 400mm: it consists of a single cooking zone con­trolled by a thermostatic gas valve (gas version) or a
thermostat (electric version). The bulb for measuring the
temperature is located in the middle of the plate;

• Fry-top 800mm: it consists of two cooking zones (left
side and right) controlled by two thermostatic gas valves
(gas version) or by two thermostats (electric version), one
for each zone. The bulbs for measuring the temperature
are located in the middle of the plate (left and right side
respectively).

1.1. GAS MODELS WITH COCK

270

250

2

3

0

2
10

19

0

1

7

0

1
5

0

1

1

0

270

250

2

3

0

210

1
9
0

1
7
0

1

5

0

1

1

0

A

B

27

0

250

230

210

190

170

150

110

C

The gas control knob “A” for all burners has 4 positions:

VV

VV

V “Off”
CC

CC

C “Pilot on”
AA

AA

A “Max”
BB

BB

B “Min.”

Switching on

Lighting the pilot flame

• Press and turn knob “A” from “off” to “pilot on”.

• Press down knob “A” and at the same time press piezoelectric
switch “B” repeatedly, which will light the pilot flame. Check
lighting of the pilot flame through the holes in the control panel.
When knob “A” is released, the flame must remain alight;
otherwise, repeat the operation.

In case of emergency the pilot burner can be lit by bringing a
flame to it after removing the juice collection drawer and
keeping knob “A” pressed in the “pilot ignition” position.

Lighting the main burner

• Turn knob “A” from “pilot on” to “max”.

• For a minimum flame, turn knob “A” to “min”.

1.2. GAS MODELS WITH VALVE

C

B

B

A

Switching on

Control knob “A” has the following positions:

V off
C pilot ignition

- temperatures

Turn knob “A” anticlockwise from “off” to “pilot ignition” and
hold it down. At the same time press button “B” repeatedly
until the pilot burner lights. About 20" after lighting, release
knob “A” and the pilot flame must stay alight. Check lighting
through sight hole “C”.
If not lit, repeat the operation.
In case of emergency the pilot burner can be lit by bringing a
flame to it after removing the juice collection drawer and
keeping knob “A” pressed in the “pilot ignition” position.

• To light the main burner, press knob “A” lightly and turn it

anticlockwise to the required temperature.
The appliance is equipped with a thermostatic valve that
automatically keeps the tank temperature level constant.

Switching off Fry top with cock

Switching off the main burner

• Turn knob “A” from “max or min” to “pilot on”.
Switching off the pilot flame

• Press and turn knob “A” to “off”;

• At the end of the day, close the gas supply cock located

ahead of the appliance.

23

Switching off the fry-top with valve

• Turn knob “A” to “pilot ignition” to turn off the main burner.

• To shut off the pilot, press the knob “A” lightly and turn it to
“off”.

At end of service:

• Turn knob “A” to “off”.

• Close the gas shut-off cock.

1.2.1. INTERLOCK

The valve is equipped with a thermal device (called inter­lock) that prevents re-lighting for about 40 seconds (suffi­cient time for the safety thermocouple to cool) if the pilot
burner goes out.

1.3. ELECTRIC MODELS

2

70

2

5

0

23

0

210

1
9

0

1
7
0

1

5

0

1

1

0

2

7

0

2

5

0

2

3

0

210

1
9

0

1
7

0

1
5

0

1

1

0

0

140

170

190

210

230

250

280

320

B

C

A

Switching on

• Turn on the main switch located ahead of the appliance.

• Turn thermostat knob “A” to the required temperature.

• Lighting up of green indicator “C” signals that the power

is on.

• Lighting up of indicator “B” signals that the heating ele-

ments are on. The indicator goes off when the set tem­perature is reached.

Switching off

• Turn the control knobs to “0”.

VII. CLEANING

IMPORTANT!

Before carrying out any cleaning operation, disconnect the
appliance from the power supply.

Do not use ice or water to quickly cool the cooking plate:
do not use ice or water for cleaning when the cooking
plate is hot since, this will permanently deform it and
compromise appliance operation.
Improper cleaning automatically invalidates the warranty.

1. EXTERNAL PARTS

SATIN-FINISH STEEL SURFACES (daily)

• Clean all steel surfaces: dirt can be easily removed as
soon as it forms.

• Remove dirt, fat and food residuals from steel surfaces
when cool, using soapy water, applied with or without
detergent with a cloth or sponge. Dry the surfaces
thoroughly after cleaning.

• With stubborn dirt, fat or food residuals, wipe the cloth/
sponge with the grain of the satin finish and rinse often:
rubbing in a circular motion, combined with the particles
of dirt deposited on the cloth/sponge, could damage the
steel’s satin finish.

• Iron objects could ruin or damage the steel: damaged
surfaces become dirty more easily and are more liable to
corrode.

• Have the satin finish repaired if necessary.

SURFACES BLACKENED BY HEAT (when necessary)
Exposure to high temperatures can cause the formation of
dark marks. These do not constitute damage and can be
removed by following the instructions given in the previous
paragraph.

2. OTHER SURFACES

SURFACES IN SOFT IRON OR CAST IRON (daily)
Remove dirt using a damp cloth or, in the event of stubborn
deposits, the accessories (optional or supplied) specified in
the list. After cleaning, switch the appliance on to dry the
surface quickly, then coat the surface with a thin layer of
cooking oil.

24

VIII. MAINTENANCE

1. MAINTENANCE

All the components requiring maintenance are accessible
from the front of the appliance, after removing the control
panel and front panel. Disconnect the power supply before
opening the appliance

1.1 BRIEF TROUBLESHOOTING GUIDE

Even with normal appliance use, malfunctions can
occasionally occur.

The pilot burner does not light

Possible causes:

• The igniter is not properly fixed or connected.

• The ignition or igniter cable are damaged.

• Insufficient pressure in gas pipes.

• Blocked nozzle.

• Faulty gas valve.

• Faulty gas cock.

The pilot burner goes out when the igniter knob is released

Possible causes:

• The pilot burner is not heating the thermocouple
sufficiently.

• Faulty thermocouple.

• The gas valve knob is not being pressed enough.

• Lack of gas pressure at the valve.

• Faulty gas valve.

• Faulty gas cock.

The pilot burner is still lit but the main burner does not light

Possible causes:

• Loss of pressure in gas supply pipe.

• Blocked nozzle or faulty gas valve.

• Gas outlet holes on burner clogged.

The fry-top temperature cannot be adjusted.

Possible causes:

• Faulty thermostat bulb.

• Faulty gas valve.

ABNORMAL OPERATION

Any of the following are considered to be abnormal operation

and may require servicing:

• incomplete ignition of the burner;

• yellow tipping of the burner flame;

• burner failing to remain alight;

• gas valves are difficult to turn;

In case the appliance fails to operate correctly, contact the

authorised service provider in your area.

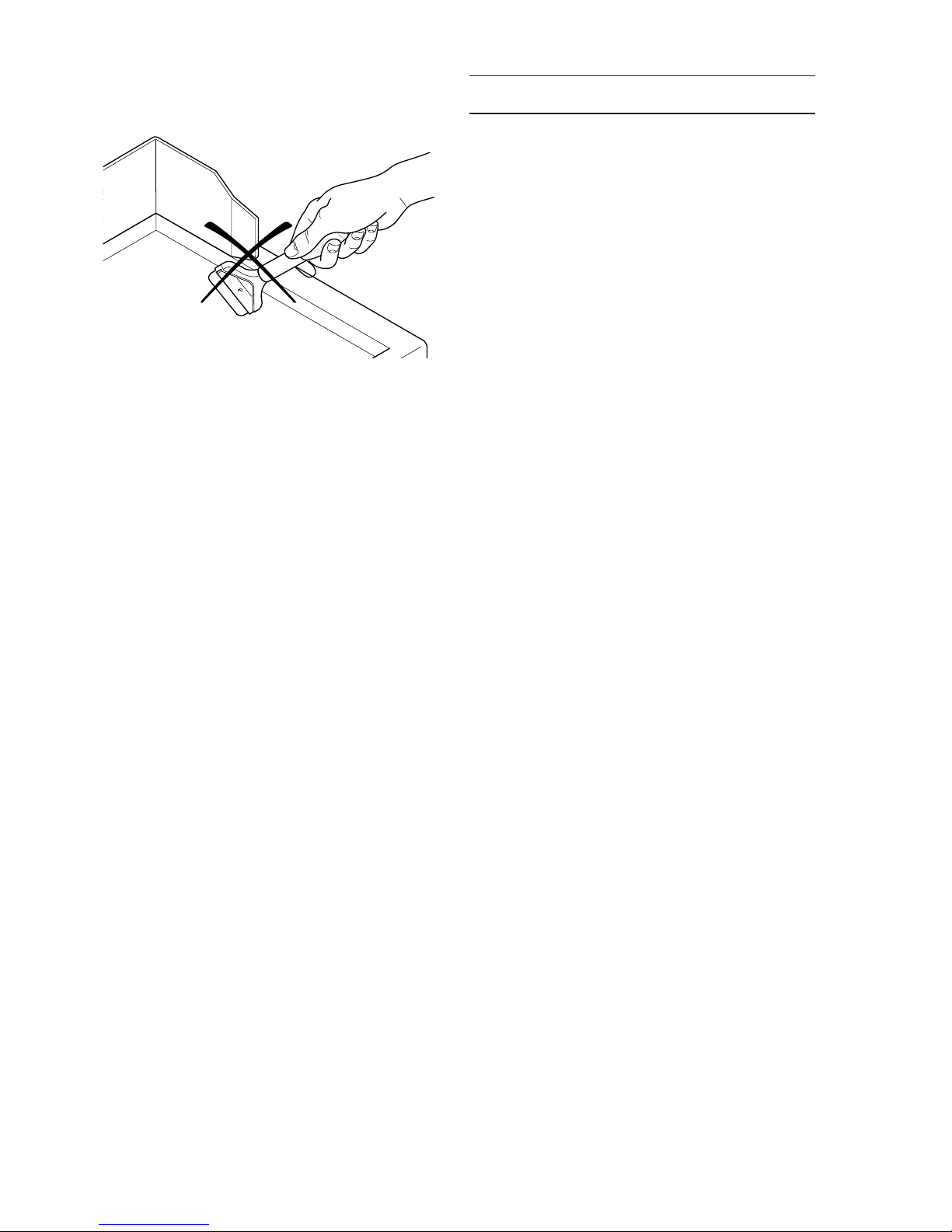

Important: do not use the edge scraper (see figure)

as it will scratch the plate, permanently compromising its
functionality and cleanability. Replace the blade whenever it
is not perfectly sharp.

TANKS AND COLLECTION DRAWERS (even several times a
day)
Remove any grease, oil, food residuals, etc., from trays,
drawers and containers in general used for collection. Always
clean these containers at the end of the day. While using the
appliance, empty them when they are nearly full.

3. PERIODS OF DISUSE

If the equipment is not going to be used for some time, take
the following precautions:

• Close any cocks or main switches installed ahead of the
appliances.

• Rub all stainless-steel surfaces vigorously with a cloth
moistened with vaseline oil in order to form a protective film.

• Periodically air the premises.

• Have the appliance checked before using it again.

• In order to avoid too rapid evaporation of accumulated
moisture and consequent breaking of the element, when
starting up again leave electric appliances on minimum
for at least 45 minutes.

4. INTERNAL PARTS (every 6 months)

IMPORTANT! Operations to be carried out only by
specialised technicians.

• Check the condition of internal components.

• Remove any deposits of dirt inside the appliance.

• Check and clean the discharge system.

NB! In particular ambient conditions (e.g. intensive use of
the appliance, salty environment, etc.) the above cleaning
should be more frequent.

25

INSTRUCTIONS FOR REPLACING
COMPONENTS

(to be carried out only by a specialised installer)

GAS VALVE/COCK

• Remove the knobs and control panel.

• Unscrew the pilot and thermocouple pipe.

• Unscrew the gas inlet and outlet connections.

• Lift the cooking plate at the front and remove the thermostat
bulb.

• For installation carry out the same procedure in reverse
order.

PILOT BURNER, THERMOCOUPLE, IGNITER ASSEMBLY
FRYTOP

• Remove the knobs and control panel.

• Replace the component.

FRYTOP MAIN BURNER

• Remove the knobs and control panel.

• Remove the cooking plate, firstly removing the thermostat
bulbs.

• Remove the clamp fixing the burner to the gas pipe and
nozzle holder.

• Remove the burner and replace it.
For installation carry out the same procedure in reverse
order.

1.2 MAINTENENCE SCHEDULE

• It is reccommended the appliance is inspected and
serviced by an authorized person at least every 12
months. For this purpose it is reccommended to draw up
a maintenece contract.

AUSTRALIA
For service and spare parts, please contact:

Electrolux - Tom Staddart Pty Ltd
Zanussi - JL Lennard Pty Ltd
