CONCRETE SAW
PARTS LIST
MODEL
CC4144DXL
January 2014
Part # 1801408
WARNING
The engine exhaust from this product
Contains chemicals known to the
State of California to cause cancer,
Birth defects or other reproductive harm.
Quick Reference Service Filters / Belts ........ 4
4.1” PTO Assembly ...................................... 32
Frame Upright Assembly (Low Profile) ......... 5
Instrument and Controls (Low Profile) .......... 6
Control Panel Configuration ......................... 7
Handle Assembly ......................................... 8
Speed Control Assembly .............................. 9
Control Lever Assembly ............................... 10
Control Grip Assembly ................................. 10
Quadco Speed Controller Set-up ................. 11
Fuel Tank Assembly..................................... 12
Battery Assembly ......................................... 13
Power Unit Assembly ................................... 14
Depth Indicator Assembly ............................ 15
Depth Stop Assembly................................... 16
Differential Jackshaft Assembly .................... 35
Differential Jackshaft Tension (14” & 20”) ..... 36
Differential Jackshaft Tension (26” & 30”) ..... 37
Engine Assembly ......................................... 38
Belt Drive Assembly ..................................... 40
Horizontal Muffler Kit .................................... 41
Fan Idler Assembly ...................................... 42
Cooling Fan Assembly (14’ & 20”) ................ 44
Cooling Fan Assembly (26” & 30”) ................ 45
Radiator Assembly ....................................... 46
Right Belt Guard Assembly .......................... 47
Left Belt Guard Assembly ............................. 48
14” Blade Guard Assembly ........................... 49
Water Supply Assembly ............................... 17
Air Filter Assembly ....................................... 18
Throttle Cable Assembly .............................. 19
Frame Base Assembly ................................. 20
Front Axle Assembly .................................... 21
Positraction Engagement Assembly ............. 22
Traction Bar Assembly ................................. 23
Differential Assembly ................................... 24
Blade Shaft Assembly (14” & 20”) ................ 26
Blade Shaft Assembly (26” & 30”) ................ 27
14” & 20” Enclosed Blade Shaft ................... 28
26” & 30” Enclosed Blade Shaft ................... 30
20” Blade Guard Assembly ........................... 50
26” Blade Guard Assembly ........................... 51
30” Blade Guard Assembly ........................... 52
Front Pointer Assembly ................................ 53
Pointer Stop Assembly .................................
54
Electric Water Pump Kit ............................... 55
Spotlight Kit .................................................. 56

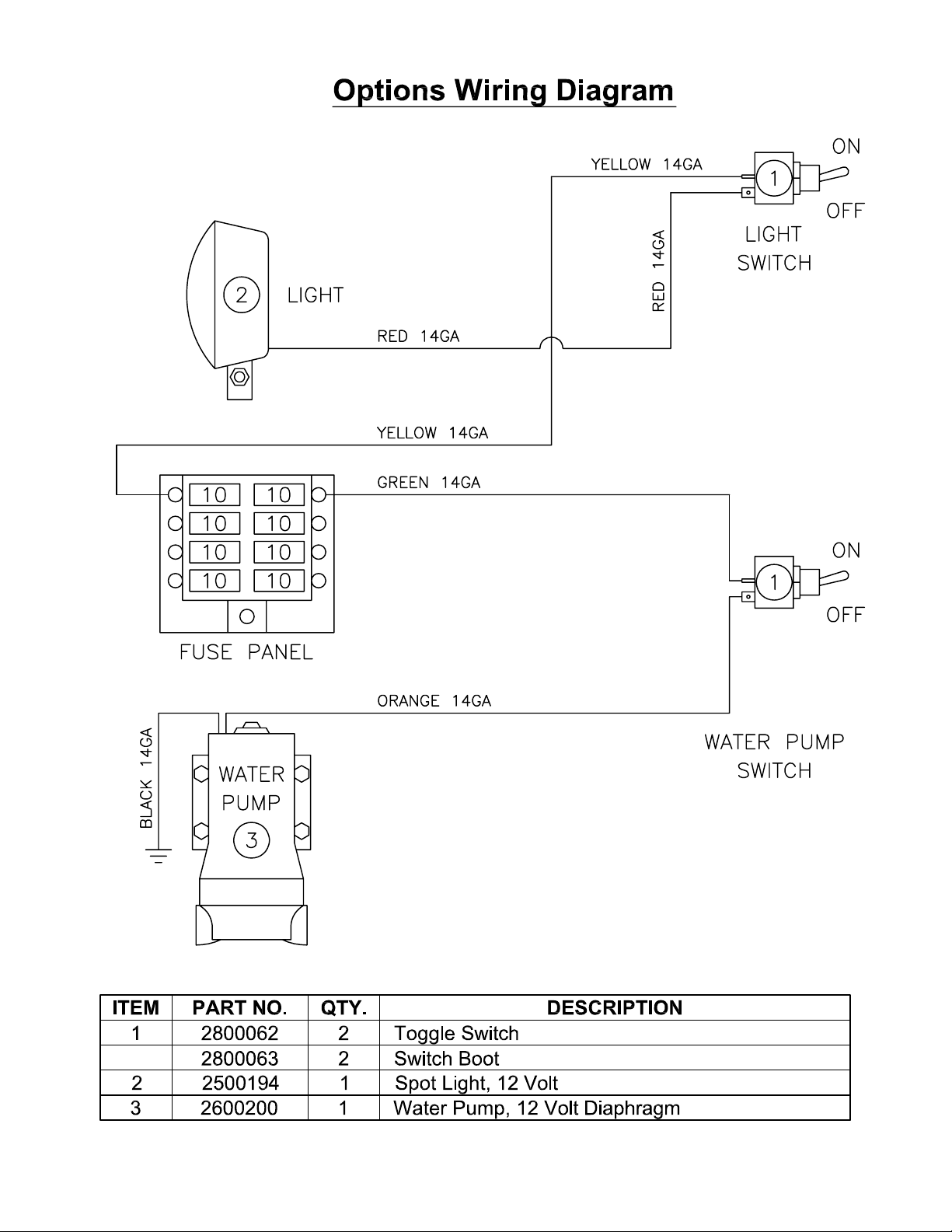

Wiring Diagram ............................................ 57
Options Wiring Diagram ............................... 58
Decal Set ..................................................... 59
Warranty ...................................................... 60
DP Part No.
Description
Manufacturer's Part N o .
2705012
Engine Oil Filter
(Kubota 16271-32090)
2705002 Water Separator/Fuel Filter (Stanadyne 33642)
2705157
Filter Element for Water Separtator/Fuel Filter
(Stanadyne 31873)
2504602
Outer Primary Air Filter
(Enginaire 2-E1)
2500380
Differential Jack Shaft Drive Belt
(Gates 3VX300)
2501781
Transmission Drive Belt (26”, 30” & 36”)
(Gates AX42)
2503924
Cooling Fan Belt (26”, 30”, & 36” Blades)
(Gates 4L540)
2500298
Blade Shaft Belt (26”, 30”, & 36” Blades)
(Gates 3VX475)
2503862
Differential Gear Oil
(80W90 Gear Oil)
(Medallian Plusguard Pink,
4
2501785 In-Line Fuel Tank Filter, Diesel (WIX 33007)
2504603 Inner Safety Air Filter (Enginaire 2-E2)
2502403 Transmission Drive Belt (14” & 20”) (Gates AX43)
2503186 Cooling Fan Belt (14” & 20”) (Gates 4L550)
2500794 Blade Shaft Belt (14” & 20” Blades) (Gates 3VX450)
2505080 Alternator Belt (Bando 9.5x940)
2500468 Engine & Lift Pump Oil (15W40 SAE Motor Oil)
2503719 Radiator Coolant
(Precharged)
Coolant/Antifreeze, Premixed
50/50 with De-Ionized Water)

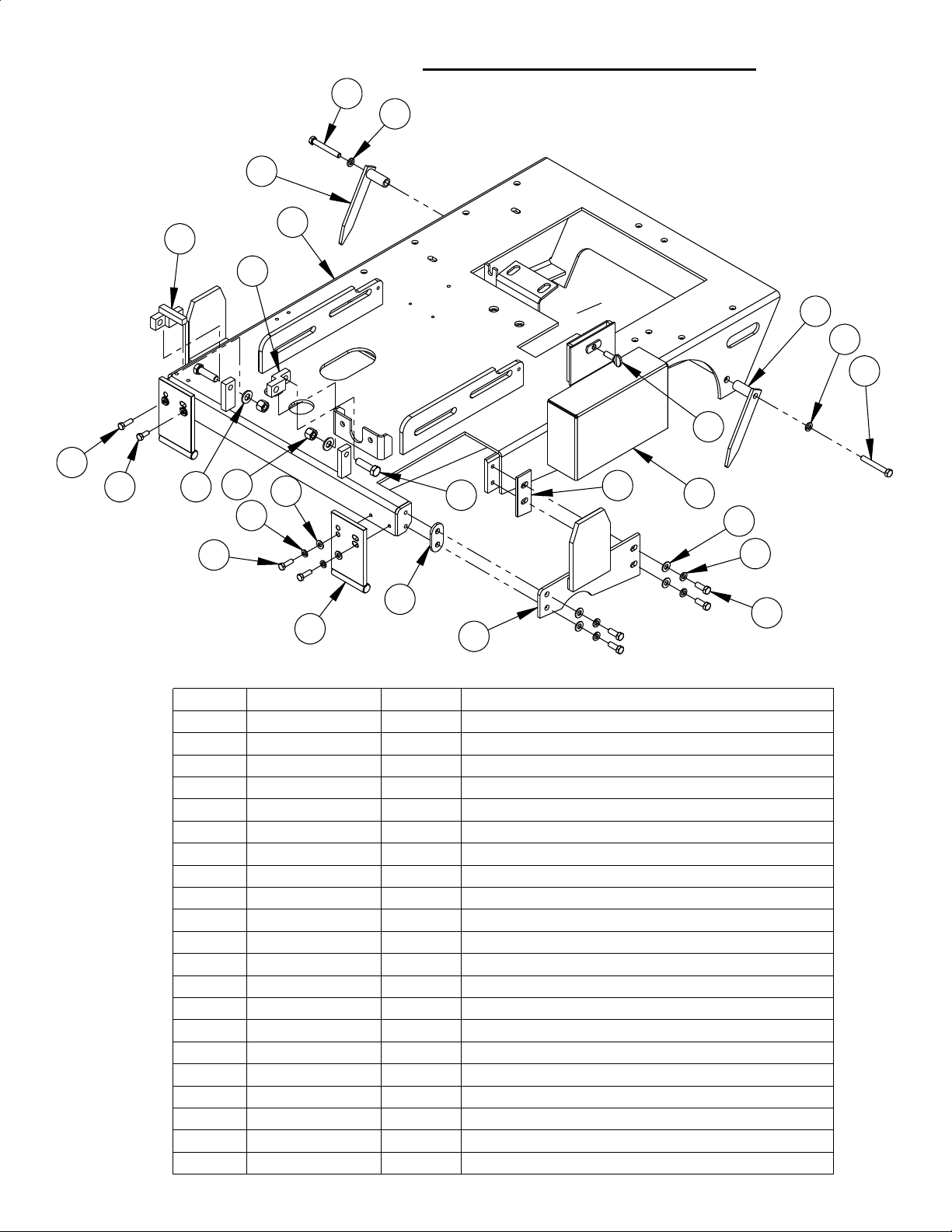

Frame Upright Assembly, Low Profile #6045144
5
5
12
13
11
11
7
6
42
3
13
11
14
11
1
16
15
5
8
12
9
10
ITEM PART NO. QTY. DESCRIPTION
1 6045140 1 CC4144D Upright Weldment (Low Profile)
2 2900022 8 Flat Washer, 5/16" SAE
3 2900031 8 Lock Washer, 5/16" Split
4 2900138 8 Cap Screw, Hex Hd., 5/16-18 x 1"
5 6011333 2 Handle Assembly
6 2501427 1 Rope Cleat
7 2900483 2 Tap Screw, Flat Hd., #10-24 x 1"
8 6045141 1 Frame Base Stiffener Weldment
9 6045064 1 Frame Base Stiffener Bracket
10 2900084 2 Lock Washer, 1/2" Split
11 2900058 8 Flat Washer, 1/2" SAE
12 2900499 4 Cap Screw, Hex Hd., 1/2-13 x 1-1/2"
13 2900026 4 Lock Nut, 1/2-13 Nylon
14 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
15 2900820 4 Cap Screw, Flange Hd., 1/4"-20 x 1"
16 6045094 1 Rear Cover Screen
Instruments & Control Panel Assembly
6
Low Profile #6045146
(Includes #1, #3- #27)
8
9
10
1
6
3
5
7
4
2
ITEM PART NO. QTY. DESCRIPTION
1 6045134 1 Gage Panel Weldment
2 2503183 1 Vernier Throttle Cable
3 2801367 1 E-Stop Switch
4 6045171 1 Switch Plate
5 2500204 2 Plug, 1/2" Hole
6 2900159 4 Machine Screw, Rd. Hd., #10-24 x 5/8"
7 2900016 6 Flat Washer, #10 USS
8 2900009 10 Flat Washer, 1/4" SAE
9 2900024 4 Lock Washer, 1/4" Split
10 2900082 4 Cap Screw, Hex Hd., 1/4-20 x 1/2"
11 2900840 2 Acorn Nut, #10-24
12 2900144 1 Cap Screw, Hex Hd., 1/4-20 x 3/4"
13 6010421 1 Tach/Hour Meter (VD)) Calibrated
14 2400628 1 O-Ring #152
15 2705003 1 Cluster Gauge, 4 Warning Light
16 6045459 1 Rubber Gasket, 1/8" x 2-1/2" x 3-3/8"
17 2800925 1 Fuse Block, 6 Circuit, Mini ATM
18 2900038 2 Lock Washer, #10 Split
19 2900172 2 Machine Screw, Rd. Hd., #10-24 x 1-1/4"
20 2800144 2 Relay, 50 Amp, 12V, SPDT
21 2503617 2 Vibration Isolator
22 2900010 6 Lock Nut, 1/4-20 Nylon
23 2800856 1 In-Line Fuse Holder
24 2800857 1 Fuse, 15 Amp
25 2800855 1 Wire Harness, Timer Relay
26 2801439 6 Fuse, 10 Amp Mini (Red)
27 6045245 1 Control Panel Wiring Assembly (Not Shown)
28 2705001 1 Ignition Switch 4144D
29 2705000 1 Ignition Keys Only (Pair)
30 2705006 1 Timer, 12V DC
Control Panel Configuration
7
117
7
11
128
13
15
19
29 28
14
20
8
22
To Bosch Relay
18
26
17
21
16
22 8 22
20
8
24
1
22
8
30
To Ignition Switch
22
To Ground
25
28
23
To Ignition Switch
14
15
13
29

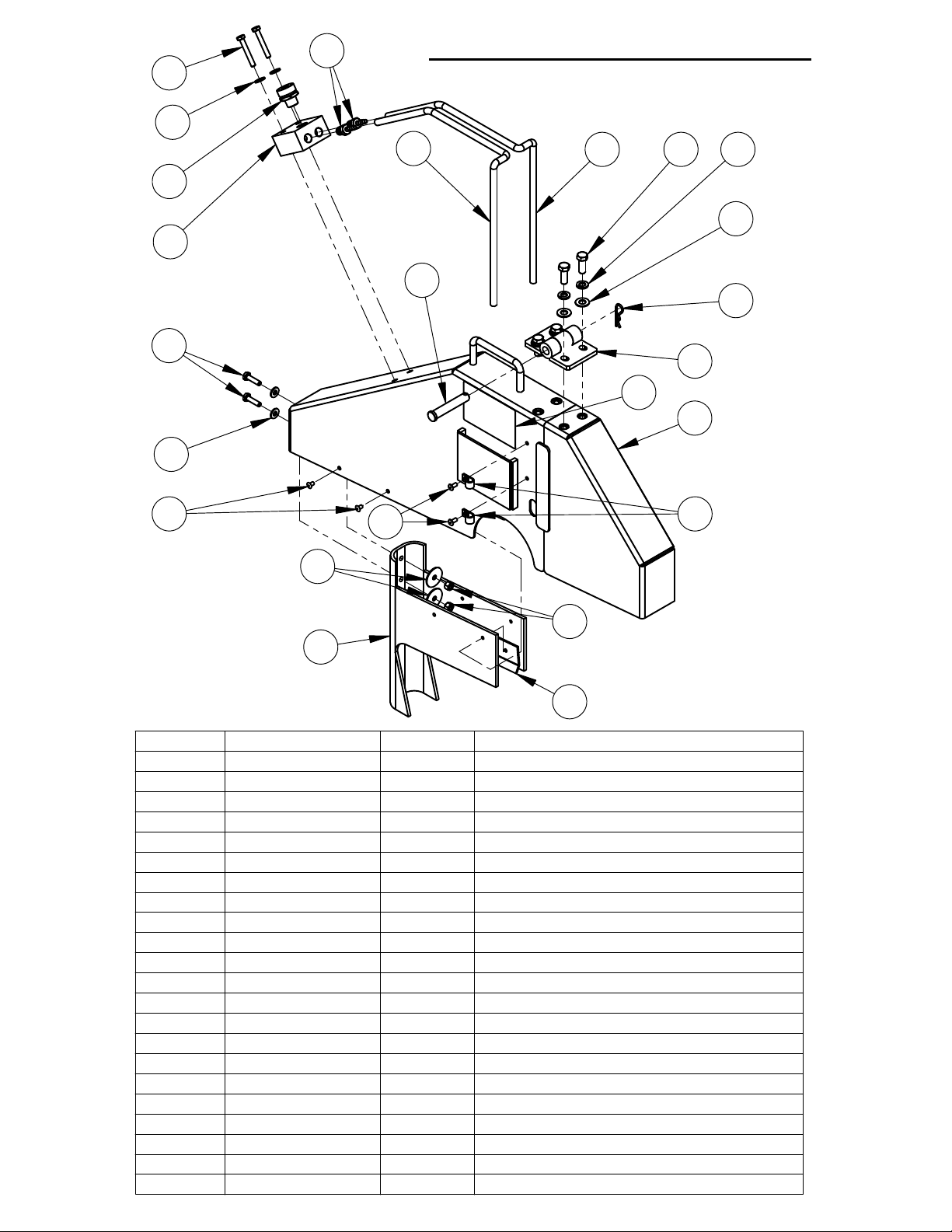

Handle Assembly #6011333
8
8
11
10
7
5
4
13
12
9
6
3
2
1
ITEM PART NO. QTY DESCRIPTION
1 2503903 1 Lever, Adjustable /w Stud
2 2900084 1 Lock Washer, 1/2" Split
3 6011375 1 Handle Bracket Assembly
4 2503971 1 Lever, Adjustable w/ 3/8"-16 Stud
5 2503943 1 Compression Spring, .960 x 1.00
6 6011372 1 Int Spur Gear, 6DP, 18T, 20PA
7 6011334 1 Handle Bracket Backing Plate Asm
8 2900207 2 Dowel Pin, 1/4" Dia. x 3/4"
9 2900022 8 Flat Washer, 5/16" SAE
10 2900031 4 Lock Washer, 5/16" Split
11 2900138 4 Cap Screw, Hex Hd., 5/16-18 x 1"
12 6010014 1 Handle Bar, 36" Long
13 2500636 1 Handle Grip
Speed Control Assembly #6045038
9
4
1
5
3
2
6
9
7
ITEM PART NO. QTY. DESCRIPTION
1 2501139 1 Speed Control Mount
8
2 6045086 1 Speed Control Lever Assembly
3 2503904 1 Control Cable, 56"
4 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
5 2900009 2 Flat Washer, 1/4" SAE
6 2900010 2 Lock Nut, 1/4-20 Nylon
7 2500791 1 Rod End, #10-32 Female
8 2900015 1 Machine Screw, Hex Hd., #10-24 x 3/4"
9 2900017 1 Lock Nut, #10-24 Nylon
Control Lever Assembly #6045086
10
DESCRIPTIONQTY.PART NO.ITEM
1
Control Grip Assembly160103191
Straight Speed Control Lever160450852
Cap Screw, Hex Hd., 1/4-20 x 1-1/2"229000483
Lock Nut, 1/4-20 Nylon229000104
2
Control Grip Assembly #6010319
4
4
3
6
8
1
3
2
4
5
7
9
ITEM PART NO. QTY. DESCRIPTION
1 2501280 1 Control Grip Body
2 2501281 1 Control Grip Cover
3 2500644 1 Plug, Rectangular
4 2500694 2 Plug, 5/8" Hole
5 2800372 1 Pushbutton Switch, Raise
6 2800373 1 Pushbutton Switch, Lower
7 2900453 1 Set Screw, Soc. Hd., M5 x 12mm
8 2900452 1 Machine Screw, Oval Hd., #4 x 5/8"
9 2800393 1 Harness, Hydraulic Pump
Quadco Speed Controller Setup
11
A
A
SECTION A-A
SCALE 1 : 2
Fuel Tank Assembly
12
#6045030
7
8
9
3
2
8
6
1
4
5
5
23
22
10
8 21
18
20
19
8
17 8 16 8 15
8
ITEM PART NO. QTY. DESCRIPTION
1 6045066 1 Fuel Tank
2 6045132 1 Fuel Filler Neck Assembly
3 2503933 1 Fuel Tank Cap, 23"
4 2900013 1 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
5 2900014 4 Flat Washer, 3/8" SAE
6 2900018 1 Lock Nut, 3/8-16 Nylon
7 3200070 1 Fitting, 3/8" MPT to 1/4" Pushlok
8 3200062 7 Hose Clamp #4
9 6010103 1 Fuel Return Hose, 1/4" I.D. x 32"
10 3200058 1 Adapter, 3/8" MPT to 1/4" FPT
11 3200059 1 Elbow, 1/4" Male to 1/4" Female Pipe
12 3200108 1 Fuel Shut-Off Valve, 1/4"
13 3200202 1 Fitting, 1/4" M. Pipe to 5/16" Pushlock
14 6010452 1 Fuel Line Hose, 5/6" ID x 10"
15 2501785 1 Filter, Diesel Fuel
16 6010456 1 Fuel Line Hose, 5/6" ID x 3"
17 2705005 1 Electric Fuel Pump
18 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
19 2900024 2 Lock Washer, 1/4" Split
20 2900009 2 Flat Washer, 1/4" SAE
21 6010457 1 Fuel Line Hose, 5/6" ID x 18-1/2"
22 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
23 2900006 2 Lock Washer, 3/8" Split
14
13 12 11
To Hydraulic Pump
13
Battery Assembly #6045039
18
To Starter Motor
16
6
5
17
7
15
To Engine Mount
13
10
9
8
11
12
To Control Panel
To Engine Mount
14
To Hydraulic Pump
14
To Right Side Guard
Mounting Tab
4
3
1 2
20
ITEM PART NO. QTY. DESCRIPTION
1 6045099 1 Battery Mounting Tray
2 2900022 2 Flat Washer, 5/16" SAE
3 2900031 2 Lock Washer, 5/16" Split
4 2900138 2 Cap Screw, Hex Hd., 5/16-18 x 1"
5 6010442 1 Battery Pad
6 2800561 1 Battery, 12 Volt Group Size 26
7 6045100 1 Battery Hold Down Bracket
8 2900009 1 Flat Washer, 1/4" SAE
9 2900024 1 Lock Washer, 1/4" Split
10 2900144 1 Cap Screw, Hex Hd., 1/4-20 x 3/4"
11 2800073 1 Battery Cable, Positive (Red)
12 2800095 1 Battery Cable, 14" Positive (Red)
13 2800256 1 Battery Boot, Large (Red)
14 2800197 2 Battery Boot, Small (Red)
15 2800072 1 Battery Cable, Negative (Black)
16 6048092 1 Battery Cable Assy., Black
17 2800257 1 Battery Boot, Large (Black)
18 2800198 1 Battery Boot, Small (Black)
19 2800853 1 Ground Cable, 4ga SAE J1127 x 18"
20 2800854 1 Ground Cable, 4ga SAE J1127 x 42"
19
Power Unit Assembly
14
#6045034
5
12
11
10
4
9
8
To Hydraulic
4
Cylinder
1
3
7
6
2
ITEM PART NO. QTY. DESCRIPTION
1 2600540 1 Electro/Hydraulic Pump Unit
2703228 1 Solenoid Switch 12VDC
2703229 1 Mounting Strap
2 3200214 1 Elbow, 1/4" M. O-Ring to 1/4" M. JIC
3 3201719 1 Hydraulic Hose Assembly, 1/4" x 15-1/2"
4 3200057 2 Elbow, 1/4" M. Pipe to 1/4" M. JIC
5 3200056 1 Flow Control Valve, 1/4" NPT
6 6045062 1 Flow Control Mount
7 2900009 2 Flat Washer, 1/4" SAE
8 2900024 2 Lock Washer, 1/4" Split
9 2900023 2 Cap Screw, Hex Hd., 1/4-20 x 5/8"
10 2900022 2 Flat Washer, 5/16" SAE
11 2900031 2 Lock Washer, 5/16" Split
12 2900019 2 Cap Screw, Hex Hd., 5/16-18 x 3/4"
Depth Indicator Assembly #6045024
15
3
2
8
4
5
17
4
9
6
1
10
ITEM PART NO. QTY. DESCRIPTION
9 11
1 6010092 1 Depth Indicator Mount Bracket
2 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
3 6010091 1 Depth Indicator Pointer
7
12
4 2900014 3 Flat Washer, 3/8" SAE
5 2500145 1 Flange Bearing, 3/8"
6 6010093 1 Cable Pulley, 2"
7 2900018 1 Lock Nut, 3/8-16 Nylon
8 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
9 2900010 5 Lock Nut, 1/4-20 Nylon
10 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
11 2500155 2 Cable Pulley, 1-1/4"
12 6011176 1 Depth Indicator Cable with Crimp, 52"
13 2500196 1 Spring, 3/8" x 15"
13
14 2501959 1 S-Hook, 60 Lb Load Rated
15 2500214 1 Cable Clamp
16 6045166 1 Depth Indicator Weldment
15
17 2900052 1 Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
18 2900083 2 Fender Washer, 1/4" x 1-1/4"
19
16
19 2900358 1 Jam Nut, 1/4-20
20 2900009 2 Flat Washer, 1/4" SAE
21 2900142 1 Set Screw, Soc. Hd., 5/16-18 x 3/8"
18
14
18
20
21
9
Depth Stop Assembly #6045040
16
6
4
5
3
2
1
7
15
3
13
3
14
3
ITEM PART NO. QTY. DESCRIPTION
1 6045083 1 Depth Stop Upper Assembly
2 2900665 4 Belleville Washer, 1/2"
3 2900058 4 Flat Washer, 1/2" SAE
4 2900239 1 Friction Washer, 1/2"
5 2900132 1 Roll Pin, 3/16 x 1-1/4"
6 6010095 1 Depth Stop Knob
7 6045084 1 1/2-13 x 7-1/12" Threaded Rod
8 2900037 1 Hex Nut, 1/2-13
9 2900084 1 Lock Washer, 1/2" Split
10 2900158 1 Yoke, 1/2-13
11 2900004 1 Cotter Pin, 1/8" x 1"
12 2900007 1 Clevis Pin, 1/2" Dia. x 1-3/8"
13 6045061 1 Depth Stop Pivot Arm
14 2901024 1 Capscrew, Hex Hd., 1/2-13 x 6"
15 2900026 1 Lock Nut, 1/2-13 Nylon
8
9
10
11
12
Water Supply Assembly #6045041
17
4
5
13 12
14
11
10
5
6
3
2
9
6
7
1
8
ITEM PART NO. QTY. DESCRIPTION
1 3200026 1 Water Valve, 1/2" FPT
2 6045447 1 Water Valve Mounting Bracket
3 2900117 2 Cap Screw, Soc. Hd., #10-24 x 3/8"
4 2900023 2 Cap Screw, Hex Hd., 1/4-20 x 5/8"
5 2900024 2 Lock Washer, 1/4" Split
6 2900009 2 Flat Washer, 1/4" SAE
7 3200013 1 Street Elbow, 1/2" NPT
8 3200399 2 Elbow, 1/2" M. Pipe x 1/2" F. Pipe Swivel
9 6045451 1 Water Hose Assembly, 1/2" x 7-1/2""
10 3200283 1 Adapter, 1/2" M. Pipe x 1/2" M. JIC
11 3200166 1 Elbow, 1/2" Male Pipe
12 3200022 1 Fitting, 1/2" F. Pipe to 3/4" F. Garden
13 3200025 1 Hose Filter Washer
14 6045112 1 Hose Assembly, 1/2" x 72"
8
Air Filter Assembly #6045104
18
2
4
3
5
3
6
3
14
15
10
18
17
19
16
1
9
8
7
13
12
11
ITEM PART NO. QTY. DESCRIPTION
1 2502407 1 Air Cleaner Assembly
2504602 1 Outer Primary Filter
2504603 1 Inner Safety Filter
2500239 1 Rubber Dust Ejector Boot
2 3200095 1 Hose Clamp #32
3 3400615 3 Hose Clamp, #20
4 2503177 1 Hose Reducer, 2.0"-1.5" ID
5 6045105 1 Hose Connector, 1-1/2" x 1-1/4" x 3"
6 6045142 1 Air Filter Hose
7 6045292 1 Water Bottle/Air Cleaner Mount
8 2900019 2 Cap Screw, Hex Hd., 5/16-18 x 3/4"
9 2900022 2 Flat Washer, 5/16" SAE
10 2900039 2 Lock Nut, 5/16-18 Nylon
11 2900329 2
Cap Screw, Hex Hd., M8-1.25 x 20mm
12 2900763 2 Lock Washer, M8 Split
13 2900022 2 Flat Washer, 5/16" SAE
14 2505106 1
Safety Filter Fitting, 1/8" NPT
15 2500423 1 Restriction Indicator
16 2901321 1 Stud, Threaded, M8 x 110
17 2901336 2
Flat Washer, M8
18 2900303 1 Lock Nut, M8 Nylon
19 2900343 1
Hex Nut, M8-1.25
Throttle Cable Assembly #6045044
19
14
5
12
2
11
13
9
10
3
6
4
1
8
7
ITEM PART NO. QTY. DESCRIPTION
1 2503183 1 Vernier Throttle Cable
2 6045115 1 Throttle Bracket
3 2900329 1 Cap Screw, Hex Hd., M8-1.25 x 20mm
4 2901021 1 Cap Screw, Hex Hd., M10-1.25 x 20mm
5 2900763 1 Lock Washer, M8 Split
6 2900321 1 Lock Washer, M10 Split
7 2901135 1 1/4" 'X' Washer
8 2501603 1 Set Collar, 3/8" with Set Screw
9 2503945 2 Cable Anchor
10 2900016 6 Flat Washer, #10 USS
11 2900301 2 Lock Nut, M5-0.8 Nylon Insert
12 2503918 1 Wire Stop Pivot Pin
13 2900034 1 Cotter Pin, 3/32" x 3/4"
14 2900114 1 M achine Screw, Rd. Hd., #8-32 x 3/8"
3345406# ylbmessA esaB emarF
20
02
9
91
1
11
21
91
9
02
61
6
41
7
31
4
51
5
81
12
8
6
71
3
METI.ON TRAP.YTQNOITPIRCSED
181454061 tnemdleW esaB emarF
261454061 tnemdleW revoC ediS
328054062 tnemdleW etalP dikS
422000924
513000924 tilpS "61/5 ,rehsaW kcoL
683100923 "1 x 81-61/5 ,.dH xeH ,wercS paC
791000921 "4/3 x 81-61/5 ,.dH xeH ,wercS paC
841000924
960000926 tilpS "8/3 ,rehsaW kcoL
0150000924 "1 x 61-8/3 ,.dH xeH ,wercS paC
1140254061 potS htiW
2167974061 noisnetxE retnioP
3185000922 EAS "2/1 ,rehsaW talF
4162000922 nolyN 315193100922 "4/3-1 x 31-2/1 ,.dH xeH ,wercS paC
6100500921 "1 x 61-8/3 ,wercS bmuhT
7195154061 tnorF ,re
8106154061 raeR ,recapS revoC ediS esaB emarF
9112254062 tnemdleW
0282000922 "4/3-2 x 61-8/3 ,.dH xeH ,wercS paC
1253454061 ylbmessA drauG tfahS
2
,rehsaW talF
,rehsaW talF
2/1 ,tuN kcoL
retnioP raeR
EAS "61/5
EAS "8/3
noisnetxE retnioP
9
01
capS revoC ediS esaB emarF

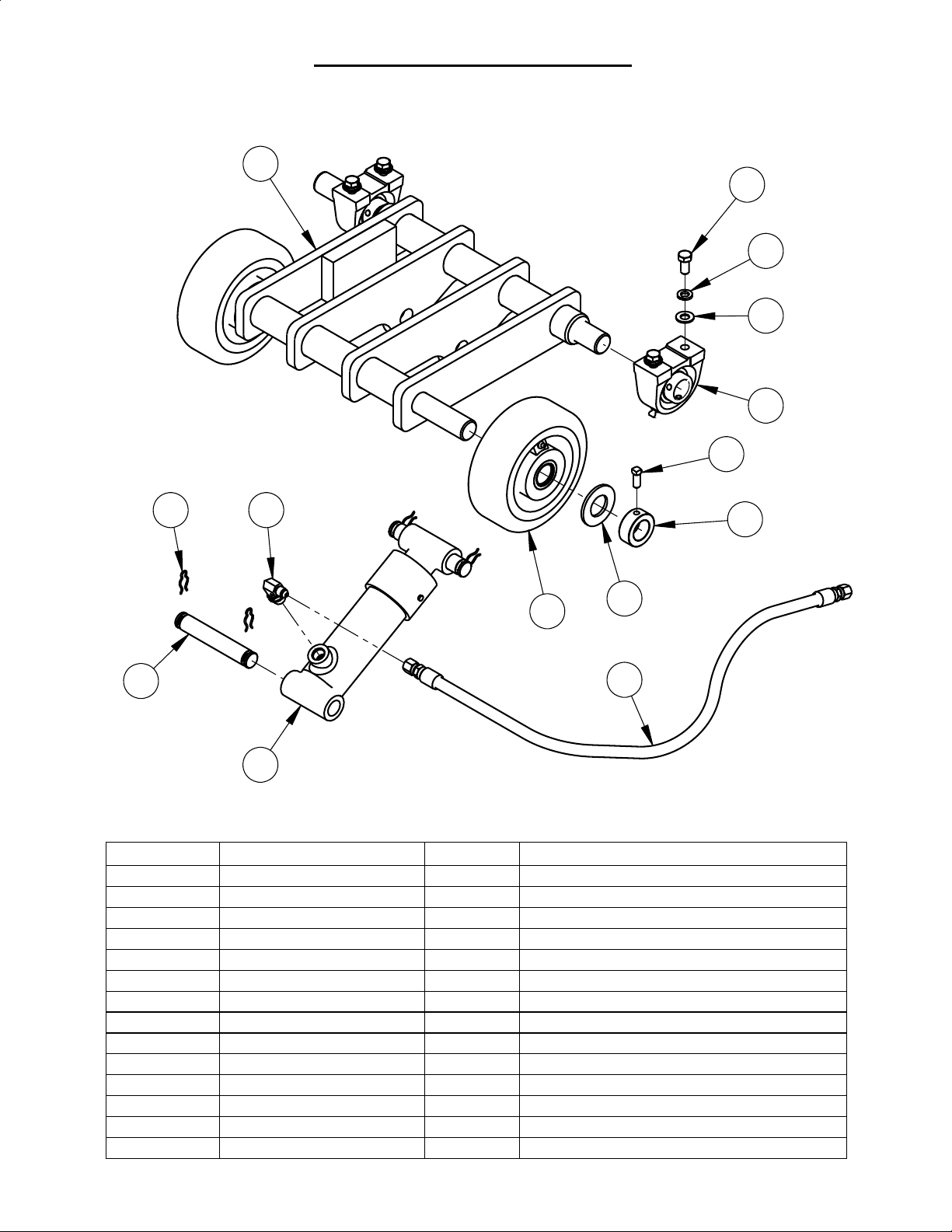

9205406# ylbmessA elxA tnorF
21
1
5
4
3
2
8
41
31
21
9
6
11
01
METI.ON TRAP.YTQNOITPIRCSED
156154061 tnemdleW elxA tnorF
223700522 "1 gniraeB kcolB wolliP
341000924 EAS "8/3 ,rehsaW talF
460000924 tilpS "8
/3 ,rehsaW kcoL
569100924 "4/3 x 61-8/3 ,.dH xeH ,wercS paC
699200522tnorF "6 ,leehW
790000522DI "1 ,ralloC teS
838700922
959200922 EAS "1 ,rehsaW talF
0114510521 "5 x "4/3-1 ,rednilyC ciluardyH
1148610231 gnoL "2/
2115500231 CIJ .M "4/1 ot gniR-O "8/3 ,woblE
3165054062
"4/3 ,niP rednilyC
4148700924 "2/1 ,pilC niP riaH
7
1-61/5 ,.dH .qS ,wercS teS
"4/3 x 8
1-25 ,ylbmessA esoH ciluardyH
"2/1-4 x
Positraction Engagement Assembly #6045033
22
20
5
4
19
16
26
11
13
3
6
7
12
11
10
18
18
17
15
14
2
8
25
24
23
1
9
22
21
5
7
4
6
ITEM PART NO. QTY. DESCRIPTION
1 2900193 1 Grease Fitting, 1/8" NPT x 45 degree
2 6045164 1 Traction Bar Assembly
3 6015036 1 Positraction Axle, 1" x 23-1/4"
4 6015035 2 Sprocket, 20T
5 2901015 2 Roll Pin, 1/4" x 1-3/4"
6 2900824 2 Shoulder Screw, 5/8" x 3-1/4" (1/2-13)
7 2900002 2 Flat Washer, 5/8" SAE
8 2900026 2 Lock Nut, 1/2-13 Nylon
9 2900266 1 Clevis Pin, 1/2 x 1-1/4"
10 2900004 1 Cotter Pin, 1/8" x 1"
11 2900058 2 Flat Washer, 1/2" SAE
12 6045014 1 Lower Positraction Arm Weldment
13 2901013 1 Coupling Nut, 1/2-13 x 4 LH/RH
14 2900084 1 Lock Washer, 1/2" Split
15 2900129 1 Hex Nut, Jam, 1/2"-13
16 2900037 1 Hex Nut, 1/2-13
17 6015044 1 Upper Positraction Arm Weldment
18 2900588 2 Shoulder Screw, 1/2" x 1/2" (3/8-16)
19 6045461 1 Stud, Angled, 1/2"-13 x 5-1/2" RH
20 2504032 1 Knob, 1/2-13 x 1-1/2 Dia
21 2503940 1 Extension Spring, 3/4 x .105 x 3.00"
22 2900720 1 Eyebolt, 5/16-18 x 1"
23 2900141 1 Hex Nut, 5/16-18
24 2900031 1 Lock Washer, 5/16" Split
25 2900022 1 Flat Washer, 5/16" SAE
26 6015117 1 Disengage Pivot Bar
4615406# ylbmessA raB noitcarT
23
2
1
METI.ON TRAP .YTQNOITPIRCSED
140054061 tnemdleW raB noitcarT
207120522 "2/1-1 x 4/1-1 x 1 gniraeB egnalF devoorG
2
7205406# ylbmessA laitnereffiD
24
62
31
7
61
2
82
9
42
52
51
7
9
41
01
7
9
92
9
03
11
21
81
71
22
7
9
91
72
3
8
32
12
02
4
1
7
9
6
5
METI.ON TRAP.YTQNOITPIRCSED
25
160200621 A-5231 elxasnarT sselreeP
280254061 raeG htiw snarT tfahS delpmiD 7 notaE
7205406# ylbmessA laitnereffiD
331000522
469900522 eroB 57.1 3 x 01 leehW
576800522 "1 ,gnihsuB euqrotnarT
692000924 "2/1-1 x 61-8/3 ,.dH xeH ,wercS paC
7410009201EAS "8/3 ,rehsaW talF
831000921 "4/1-1 x
9600009221tilpS "8/3 ,rehsaW kcoL
0195054061 tnemdleW
1133000921 61-8/3 ,tuN xeH
2182000923 "4/3-2 x 61-8/3 ,.dH xeH ,wercS paC
3184051061 tekcarB
4120000521pirG reveL
5185054061 reveL gnileehW eerF
6135100921 "8/3 ,rehsaW noitcirF
7194111061 evoorG A
8103154061 recapS yelluP naF
9191500521 "7 ,naF gnilooC
liP "1 ,gniraeB
reveL tfihS
-" 4 yelluP puC
kcolbwol
61-8/3 ,.dH xeH ,wercS paC
tnuoM leehW eerF
0242000921 tilpS "4/1 ,rehsaW kcoL
1244100921
2283000924 tilpS 01# ,rehsaW kcoL
3284400924 "2/1 x 23-01# ,.dH xeH ,wercS enihcaM
4210100921
5233110921 "8/3 x 02-4/1 ,tnioP enoC .coS ,wercS teS
6286000921
7233110521teksaG
8203030921 "4/1-3 x 61-8/3 ,.dH xeH ,wercS paC
9250000922 "1 x 61-
0385000922 EAS "2/1 ,rehsaW talF
8/3 ,.dH xeH ,wercS paC
2-4/1 ,.dH xeH ,wercS paC
2-4/1 ,.dH .coS ,wercS teS
"4/3 x 0
"8/3 x 0
1 x W "8/1 ,404# yeK ffurdooW
.aiD "2/
12
26

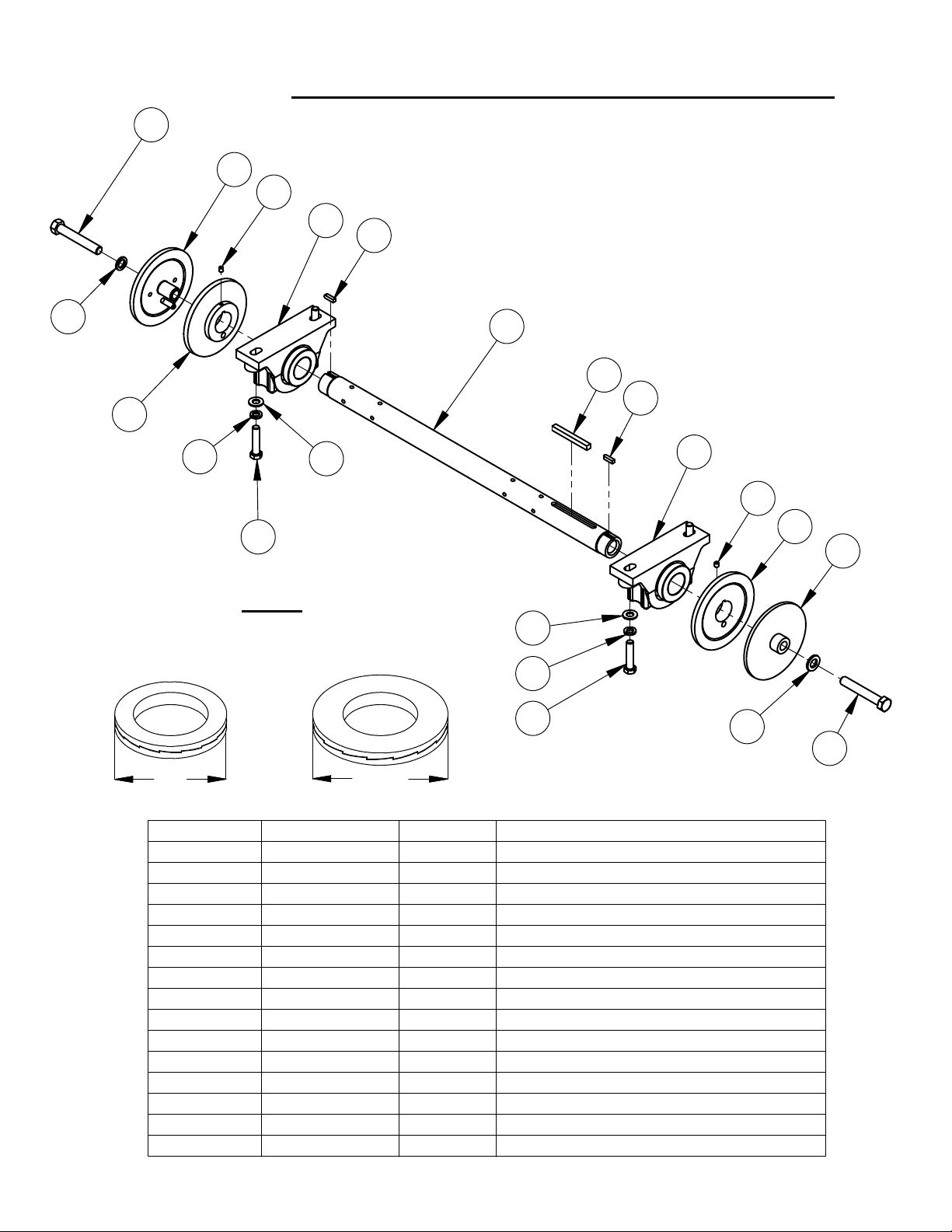

Blade Shaft Assembly #6045026A (Blades 14" & 20")
10
9
4
3
*
17
8
6
2901569
FOR LH THREADED
BOLTS ONLY
1"
7
* NOTE
5
1
2900412
FOR RH THREADED
BOLTS ONLY
3/4”3/4”
1.2"
2
3
4
9
11
*
16
5
6
7
8
13
ITEM PART NO. QTY. DESCRIPTION
1 6045055 1 Bladeshaft
2 6012065 1 Key, 3/8" Sq. x 3-1/2"
3 6010040 2 Key, 1/4" Sq. x 15/16"
4 2502401 2 Bearing, 1-11/16" Pillow Block
5 2900058 4 Flat Washer, 1/2" SAE
6 2900084 4 Lock Washer, 1/2" Split
7 2900192 4 Cap Screw, Hex Hd., 1/2-13 x 2-1/4"
8 6010255 2 Inner Flange 5"
9 2900142 2 Set Screw, Soc. Hd., 5/16-18 x 3/8"
10 6047907 1 Outer Flange 5" with Pin
11 6045213 1 Flange Cover Weldment 5"
12 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
13 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
16 2900412 1 Lock Washer, Wedge 5/8"
17 2901569 1 Lock Washer, Wedge 5/8" LH
* See Note
* See Note
12
27
Blade Shaft Assembly #6045026B (Blades 26" & 30")
10
9
4
*
17
8
6
7
5
3
1
2
3
4
9
8
11
* NOTE
2901569
FOR LH THREADED
BOLTS ONLY
2900412
FOR RH THREADED
BOLTS ONLY
5
6
7
1"
3/4”3/4”
1.2"
ITEM PART NO. QTY. DESCRIPTION
1 6045055 1 Bladeshaft
2 6012065 1 Key, 3/8" Sq. x 3-1/2"
3 6010040 2 Key, 1/4" Sq. x 15/16"
4 2502401 2 Bearing, 1-11/16" Pillow Block
5 2900058 4 Flat Washer, 1/2" SAE
6 2900084 4 Lock Washer, 1/2" Split
7 2900192 4 Cap Screw, Hex Hd., 1/2-13 x 2-1/4"
8 6010038 2 Inner Flange 6"
9 2900142 2 Set Screw, Soc. Hd., 5/16-18 x 3/8"
10 6010039 1 Outer Flange 6" with Pin
11 6045214 1 Flange Cover Weldment, 6"
12 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
13 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
16 2900412 1 Lock Washer, Wedge 5/8"
17 2901569 1 Lock Washer, Wedge 5/8" LH
*
16
13
* See Note
* See Note
14" & 20" Enclosed Blade Shaft Assembly #6045187A
28
27
24
29
25
12
31
13
11
10
34
*
30
13
16
18
26
24
28
23
21
22
19
20
18
17
9
8
7
3
6
5
2
13
16
15
*
33
2901569
FOR LH THREADED
BOLTS ONLY
1"
* NOTE
4
2900412
FOR RH THREADED
BOLTS ONLY
3/4”3/4”
1.2"
1
11
6
7
14
8
9
10
13
12
14" & 20" Enclosed Blade Shaft Assembly #6045187A
29
ITEM PART No. QTY DESCRIPTION
1 2900192 4 Cap Screw, Hex Hd., 1/2-13 x 2-1/4"
2 2900084 4 Lock Washer, 1/2" Split
3 2900058 4 Flat Washer, 1/2" SAE
4 6045373 1 Spur Gear, 50T 20P 20PA
5 2900036 2 Set Screw, Soc. Hd., 5/16-18 x 1/4"
6 2705832 4 Ball Bearing, 45 x 85 x 19mm
7 2502199 2 Retaining Ring, 85mm Internal
8 2503944 2 Oil Seal, 45 x 85 x 10mm
9 6018049 2 Seal Retainer
10 2900978 8 Cap Screw, Flat Hd., #10-24 x 1/2"
11 2500751 2 Seal, 1-3/4" V-Ring
12 6018028 2 V-Ring Cover
13 2900142 6 Set Screw, Soc. Hd., 5/16-18 x 3/8"
14 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
15 6045213 1 Flange Cover Weldment 5"
16 6010255 2 Inner Flange 5"
17 6045186 1 Blade Shaft
18 6010040 2 Key, 1/4" Sq. x 15/16"
19 6012065 1 Key, 3/8" Sq. x 3-1/2"
20 3201999 1 Magnetic Pipe Plug, 3/8" NPT
21 3200153 1 Pipe Plug, 3/8" NPT
22 6045184 1 Machined Blade Shaft Housing
23 3202082 1 Nipple, 1/4"NPT x 3"
24 3201110 2 Coupling, 1/4" NPT
25 3200063 4" 1/4" Pushlok Hose
26 3201270 2 Fitting, 1/4" M. Pipe to 1/4" Push Lock
27 3200067 1 Breather Vent, 1/4" NPT
28 2900805 1 Sealing Washer, 5/8"
29 2800169 1 Magnetic Sensor w/Jam Nut
30 6047907 1 Outer Flange 5" with Pin
31 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
32 2503862 3 Gear Oil, 80W90
33 2900412 1 Lock Washer, Wedge 5/8"
34 2901569 1 Lock Washer, Wedge 5/8" LH
* See Note
* See Note
31
30
34
26" & 30" Enclosed Blade Shaft Assembly #6045187B
27
24
29
*
30
13
25
26
12
13
11
10
16
18
23
24
28
21
22
20
19
18
17
13
16
9
8
7
6
5
4
2
1
3
15
33
*
2901569
FOR LH THREADED
BOLTS ONLY
1"
* NOTE
2900412
FOR RH THREADED
BOLTS ONLY
3/4”3/4”
1.2"
11
6
14
7
8
9
10
13
12
26" & 30" Enclosed Blade Shaft Assembly #6045187B
31
ITEM PART No. QTY DESCRIPTION
1 2900192 4 Cap Screw, Hex Hd., 1/2-13 x 2-1/4"
2 2900084 4 Lock Washer, 1/2" Split
3 2900058 4 Flat Washer, 1/2" SAE
4 6045373 1 Spur Gear, 50T 20P 20PA
5 2900036 2 Set Screw, Soc. Hd., 5/16-18 x 1/4"
6 2705832 4 Ball Bearing, 45 x 85 x 19mm
7 2502199 2 Retaining Ring, 85mm Internal
8 2503944 2 Oil Seal, 45 x 85 x 10mm
9 6018049 2 Seal Retainer
10 2900978 8 Cap Screw, Flat Hd., #10-24 x 1/2"
11 2500751 2 Seal, 1-3/4" V-Ring
12 6018028 2 V-Ring Cover
13 2900142 6 Set Screw, Soc. Hd., 5/16-18 x 3/8"
14 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
15 6045214 1 Flange Cover Weldment, 6"
16 6010038 2 Inner Flange 6"
17 6045186 1 Blade Shaft
18 6010040 2 Key, 1/4" Sq. x 15/16"
19 6012065 1 Key, 3/8" Sq. x 3-1/2"
20 3201999 1 Magnetic Pipe Plug, 3/8" NPT
21 3200153 1 Pipe Plug, 3/8" NPT
22 6045184 1 Machined Blade Shaft Housing
23 3202082 1 Nipple, 1/4"NPT x 3"
24 3201110 2 Coupling, 1/4" NPT
25 3200063 4" 1/4" Pushlok Hose
26 3201270 2 Fitting, 1/4" M. Pipe to 1/4" Push Lock
27 3200067 1 Breather Vent, 1/4" NPT
28 2900805 1 Sealing Washer, 5/8"
29 2800169 1 Magnetic Sensor w/Jam Nut
30 6010039 1 Outer Flange 6" with Pin
31 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
32 2503862 3 Gear Oil, 80W90
33 2900412 1 Lock Washer, Wedge 5/8"
34 2901569 1 Lock Washer, Wedge 5/8" LH
* See Note
* See Note
28
32
14
32
16
14

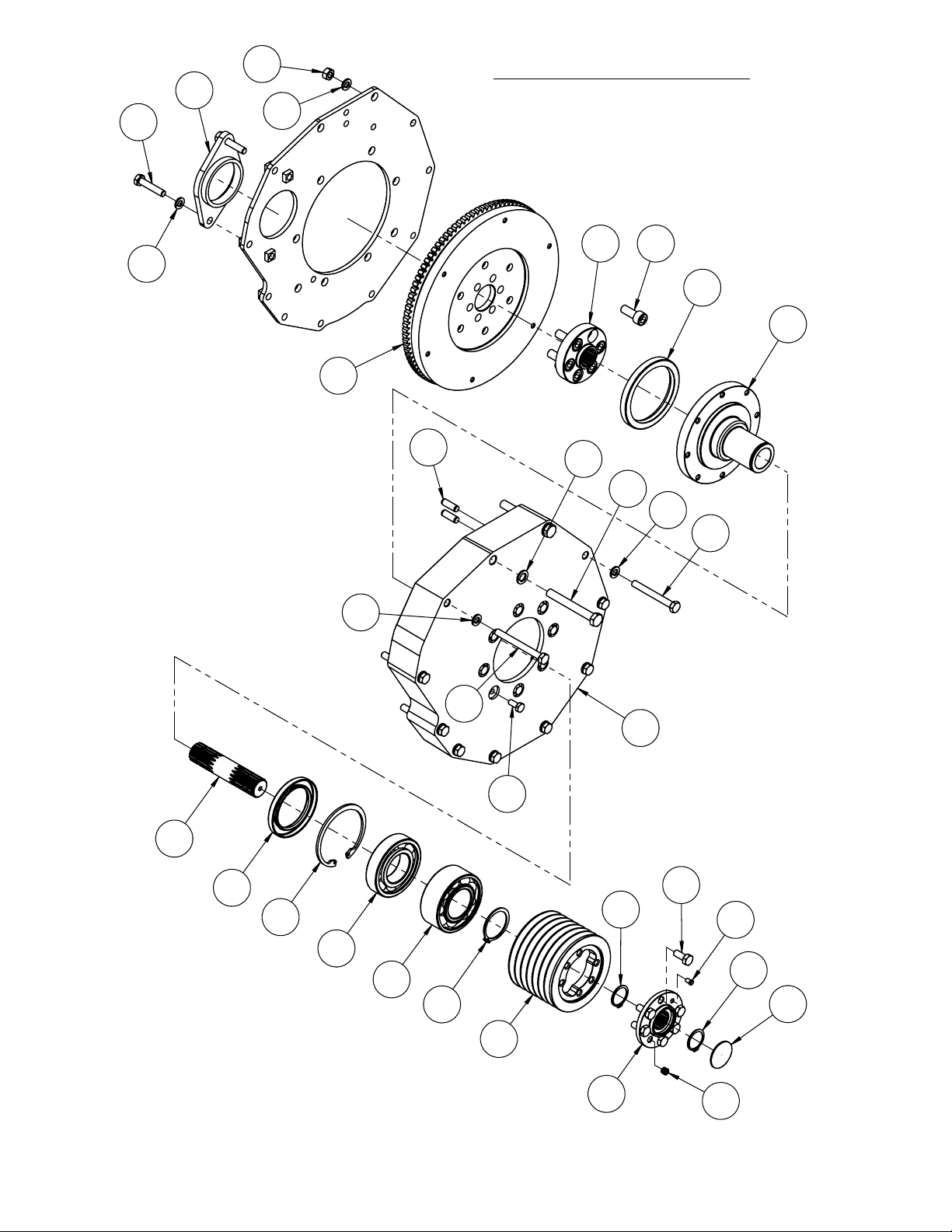

PTO Assembly #6045507
Includes items #1 - #27
Items #28 - #32 shown for reference
30 29
4
26
31
25
11
18
14
21
13
7
15
2
20
14
17
23
12
19
9
5
8
Assembly Notes:
Apply 2401316 Loctite #262 to all cap screw threads
1.
Apply 2501637 grease to seal lips and shaft journals
2.
Fill assembled PTO with 3oz 2501637 grease
3.
Lubricate splines with 2503829 Anti-Seize
4.
24
27
2
10
22
PTO Assembly #6045507
33
Includes items #1 - #27
Items #28 - #32 shown for reference
ITEM
1 2401316
2 2500711
3 2501637
4 2502372
5 2502409
6 2503829
7 2503900
8 2503901
9 2503961
10 2503976
11 2503977
12 2900019
13 2900023
14 2900031
15 2900321
16 2900343
17 2900777
18 2900791
19 2900793
20 2901022
21 2901141
22 3201727
23 6045025
24 6045503
25 6045504
26 6045505
27 6045506
28 2900792
29 2900807
30 6045005
31 6045011
32 6045050
PART NO.
DESCRIPTION
Loctite #262 Red
Retaining Ring,1"
Grease, Black Lithium
Grease Seal, 3 x 3-3/4 x 3/8"
Ball Brg, Dbl Row, 40 x 80 x 1.1875
Loctite Anti-Seize
Retaining Ring, 3-5/32" Internal
Retaining Ring, 1-9/16" External
Ball Bearing, 40 x 80 x 18mm Open
Plug, Expansion 1-7/16"
Seal, 55 x 80 x 8mm
Cap Screw, Hex Hd., 5/16-18 x 3/4"
Cap Screw, Hex Hd., 1/4-20 x 5/8"
Lock Washer, 5/16" Split
Lock Washer, M10 Split
Hex Nut, M8
Cap Screw, Hex Hd., M8 x 70mm
Dowel Pin, 8mm Dia x 24mm
Grease Fitting, 3/16" Flush Press-in
Cap Screw, Hex Hd., M10 x 1.25 x 80mm
Cap Screw, Hex Hd., M8 x 80mm
1/16" NPTF Pipe Plug
Machined PTO Cover
Sheave, 3V 4.12" 7 Groove PTO
Splined Drive Shaft
Shaft Support Sleeve
Splined End Plate
Cap Screw, Hex Hd., M8 x 40mm
Cap Screw, Soc. Hd., M10-1.25 x 25mm
Coupling Hub
CC4140D Flywheel
Starter Spacer
QTY
AR
2
3oz
1
1
AR
1
1
1
1
1
6
8
14
2
3
8
2
1
2
1
1
1
1
1
1
1
2
6
1
1
1
Service Notes:
Relubricate PTO with 1 oz grease every 25hrs
1.
PTO Lubrication
34
Grease Fitting for PTO Bearings
1/16" NPTF Pipe Plug Grease Fitting for PTO Shaft Splines
Lubricate PTO bearings and shaft splines with a high quality grease such as Mobil HTS
in accordance with the chart below.
1 PTO Bearings 4 Pumps every 25 hours
2 PTO Shaft Splines 2 Pumps every 25 hours
NOTE:
Ensure the pipe plug is removed prior to greasing the bearings to prevent
failure of the bearing seals. Reinsert the plug when grease flows out the hole.

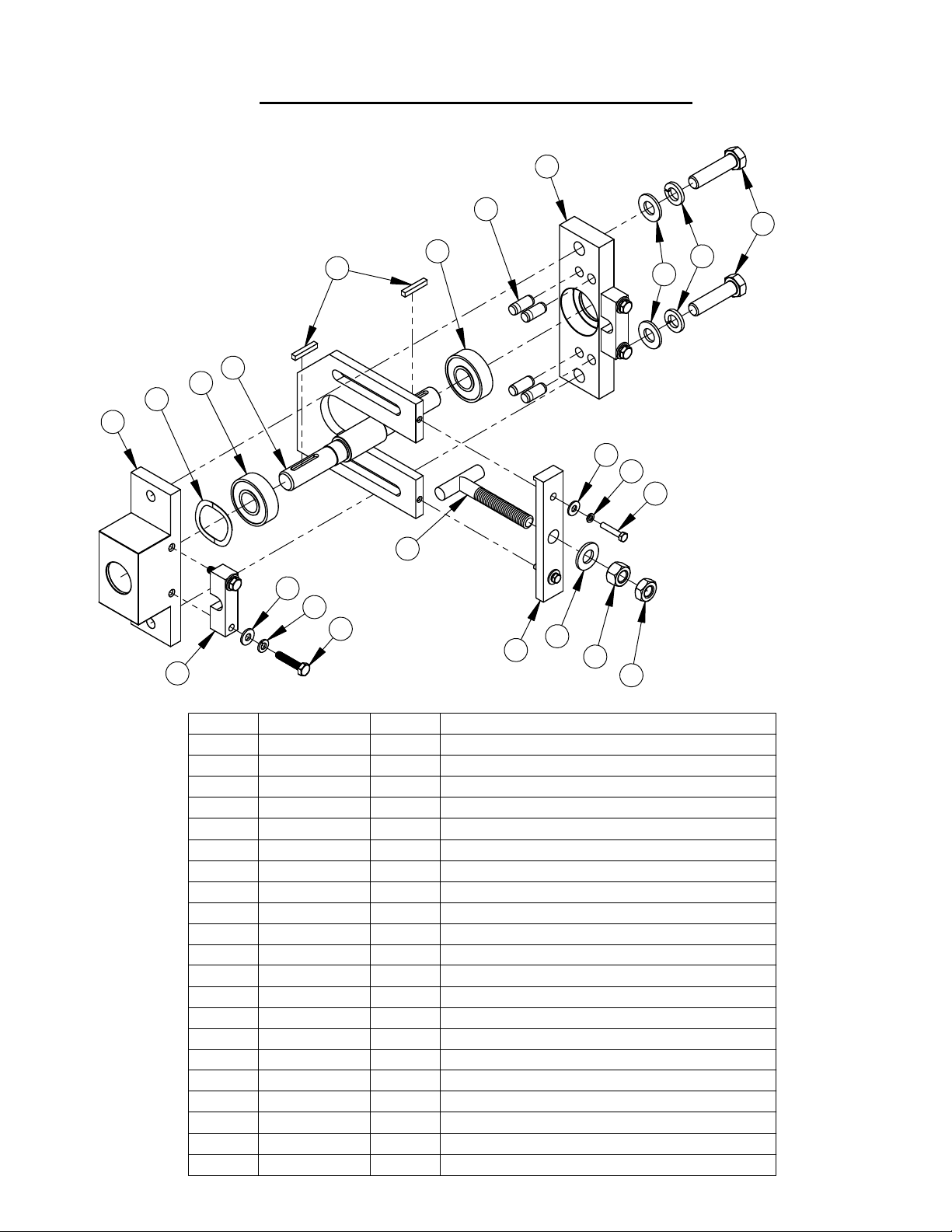

Differential Jackshaft Assembly #6045512
35
6
7
3
2
1
3
4
5
19
20
21
15
12
13
14
11
16
8
17
18
9
8
10
ITEM PART NO. QTY. DESCRIPTION
1 6045473 1 Differential Jackshaft
2 2501620 2 Key, 3/16" Sq. x 1-1/8"
3 2501601 2 Bearing, Worm Shaft
4 2501173 1 Wave Disc Spring, 1-3/8"
5 6045471 1 Outer Tension Block
6 6045472 1 Inner Tension Block
7 2901423 4 Dowel Pin, 10mm Dia x 24mm
8 2900058 3 Flat Washer, 1/2" SAE
9 2900084 2 Lock Washer, 1/2" Split
10 2900106 2 Cap Screw, Hex Hd., 1/2-13 x 2"
11 6045454 2 Tension Block Clamp
12 2900009 4 Flat Washer, 1/4" SAE
13 2900024 4 Lock Washer, 1/4" Split
14 2900052 4 1/4-20 x 1.25" Hex Head Cap Screw
15 2900632 1 T-Bolt, 1/2-13
16 6045455 1 Static Tension Plate
17 2900037 1 Hex Nut, 1/2-13
18 2900129 1 Hex Nut, Jam, 1/2"-13
19 2900016 2 Flat Washer, #10 USS
20 2900038 2 Lock Washer, #10 Split
21 2900054 2 Machine Screw, Hex Hd., #10-24 x 1"
Differential Jackshaft Tensioning Assembly #6045509
36
(CC4100D-XL, 14" & 20")
4
1
2
9
8
5
11
10
12
3
13
16
7
15
6
14
ITEM PART NO. QTY. DESCRIPTION
1 6045512 1 Differential Jackshaft Assembly
2 2501325 1 Sheave, 3V-3.6-1 Groove
3 2501191 1 Taper Bushing, 3/4" w/ setscrews
4 2500455 1 Pulley, 4" Single Groove w/Setscrews
5 2502403 1 V-Belt, AX43
6 6045074 1 Differential Belt Tensioner Mount
7 2502666 1 Idler Tensioner
8 2502669 1 Idler Pulley, 3" V-Type
9 2900587 1 Shoulder Screw, 1/2" x 1" (3/8-16)
10 2900006 1 Lock Washer, 3/8" Split
11 2900033 1 Hex Nut, 3/8-16
12 2900321 1 Lock Washer, M10 Split
13 2900223 1 Cap Screw, Hex Hd., M10-1.5 x 30mm
14 2900022 2 Flat Washer, 5/16" SAE
15 2900031 2 Lock Washer, 5/16" Split
16 2900217 2 Cap Screw, Hex Hd., 5/16-18 x 1-1/4"
Differential Jackshaft Tensioning Assembly #6045510
37
(CC4100D-XL, 26" & 30")
4
1
5
2
9
8
10
11
12
13
16
7
3
15
6
ITEM PART NO. QTY. DESCRIPTION
1 6045512 1 Differential Jackshaft Assembly
2 2501325 1 Sheave, 3V-3.6-1 Groove
3 2501191 1 Taper Bushing, 3/4" w/ setscrews
4 2500455 1 Pulley, 4" Single Groove w/Setscrews
5 2501781 1 V-Belt, AX42
6 6045074 1 Differential Belt Tensioner Mount
7 2502666 1 Idler Tensioner
8 2502669 1 Idler Pulley, 3" V-Type
9 2900587 1 Shoulder Screw, 1/2" x 1" (3/8-16)
10 2900006 1 Lock Washer, 3/8" Split
11 2900033 1 Hex Nut, 3/8-16
12 2900321 1 Lock Washer, M10 Split
13 2900223 1 Cap Screw, Hex Hd., M10-1.5 x 30mm
14 2900022 2 Flat Washer, 5/16" SAE
15 2900031 2 Lock Washer, 5/16" Split
16 2900217 2 Cap Screw, Hex Hd., 5/16-18 x 1-1/4"
14
27
38

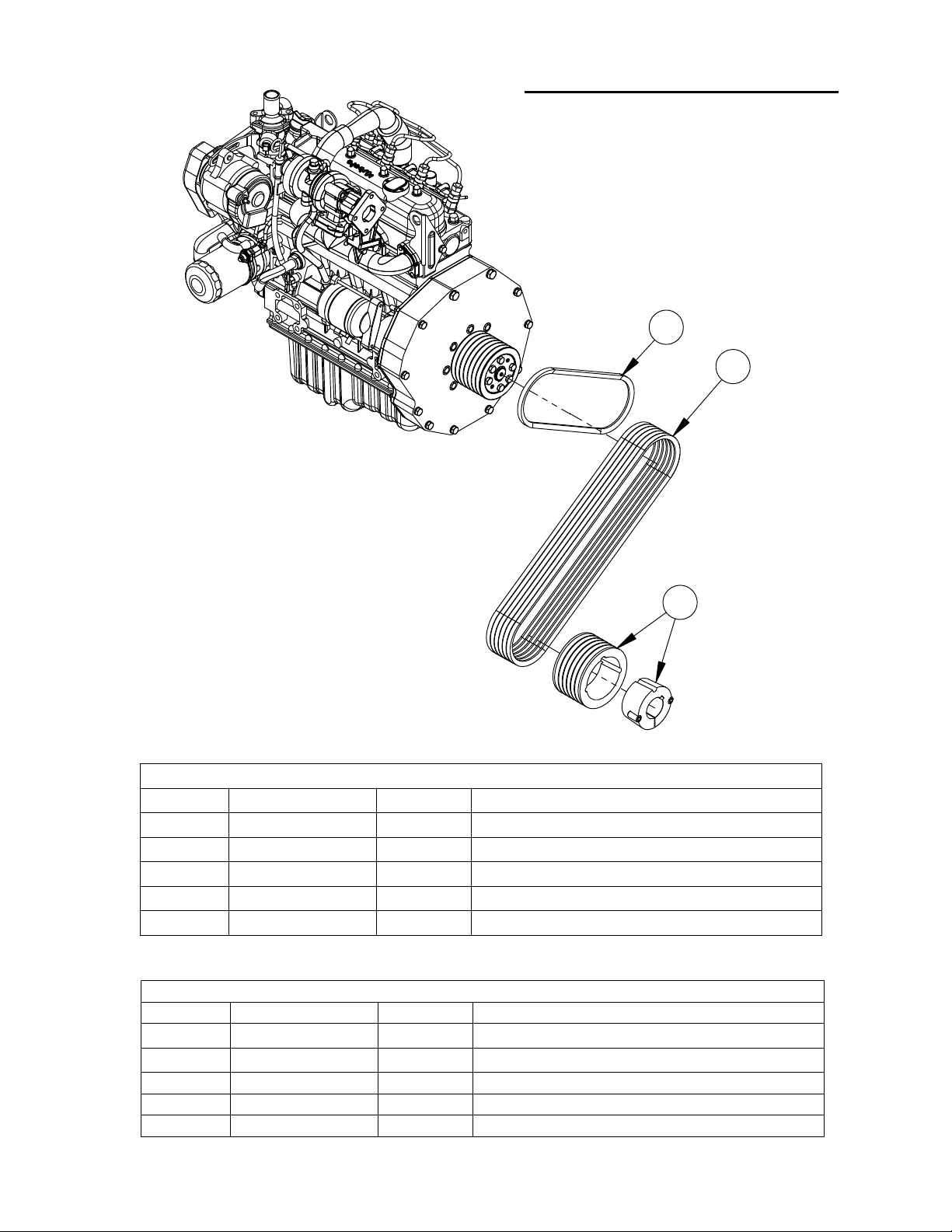

Engine Assembly #6045401
1
28
30
29
31
22
5
21
20
16
24
3
23
15
3
19
6
3
6
6
10
4
18
9
6
7
10
13
15
10
14
15
2
13
11
25
17
17
6 12
6 18
8 7 6
26
Engine Assembly #6045401
39
ITEM PART No. QTY. DESCRIPTION
1 2600461 1 Kubota V1505TE-1 Engine
2 6045028 1 Engine Mount Weldment
3 2900321 16 Lock Washer, M10 Split
4 2705002 1 Water Separator/Fuel Filter
5 2900799 2 Cap Screw, Hex Hd., M10-1.25 x 40mm
6 2900014 8 Flat Washer, 3/8" SAE
7 2900006 2 Lock Washer, 3/8" Split
8 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
9 6045070 1 Threaded Rod, 3/4-6 Acme
10 2900058 6 Flat Washer, 1/2" SAE
11 2900683 1 Coupling Nut, 1/2-13 x 1-3/4
12 6045128 1 Adjustment Plate
13 2901534 4 Lock Washer, 1/2" Split, GR8
14 2901533 4 Cap Screw, Hex Hd., 1/2-13 x 1-1/4"
15 2900749 11 Cap Screw, Hex Hd., M10-1.25 x 25mm
16 2900870 3 Cap Screw, Hex Hd., M10-1.25 x 30mm
17 2900013 2 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
18 2900018 2 Lock Nut, 3/8-16 Nylon
19 3200153 2 Pipe Plug, 3/8" NPT
20 3200062 2 Hose Clamp #4
21 3200599 1 1/4"MTP to 5/16"90deg Hose Barb
22 3200058 1
23 3201385 1 Fitting, 3/8" MPT to 5/16" Hose Barb
24 6013096 1 Fuel Line Hose 5/16 ID x 25"
25 2900703 1 Roll Pin, 3/16" x 11/16"
26 6045398 1 Adjustment Plate Weldment
27 6045309 1 Oil Drain Valve Assembly
Adapter, 3/8" MPT to 1/4" FPT
Oil Drain Valve Assembly, #6045309
ITEM PART NO. QTY. DESCRIPTION
28 3200813 1 Oil Drain Valve, M22x1.5
29 6045196 1 Oil Drain Hose, 5/8" I.D. x 18"
30 3200016 1 Hose Clamp #8
31 3201728 1 Hose Plug
Belt Drive Assembly #6045121
40
3
2
1
14" & 20" BLADE DRIVES #6045121A
ITEM PART NO. QTY. DESCRIPTION
1 6045119 1 Sheave, 4.75" x 6 Groove w/ Taper Bushing
2500367 1 Sheave, 4.75" x 6 Groove Taper Style
2502400 1 Taper Bushing, 1-11/16" w/Setscrews
2 2500794 6 V-Belt, 3VX450
3 2500380 1 V-Belt, 3VX300
26", 30" BLADE DRIVES #6045121C
ITEM PART NO. QTY. DESCRIPTION
1 6045412 1 Sheave, 6.0" x 6 Groove w/ Taper Bushing
2506462 1 Sheave, 3V x 6.0" x 6 Groove Taper Style
2502400 1 Taper Bushing, 1-11/16" w/Setscrews
2 2500298 6 V-Belt, 3VX475
3 2500380 1 V-Belt, 3VX300

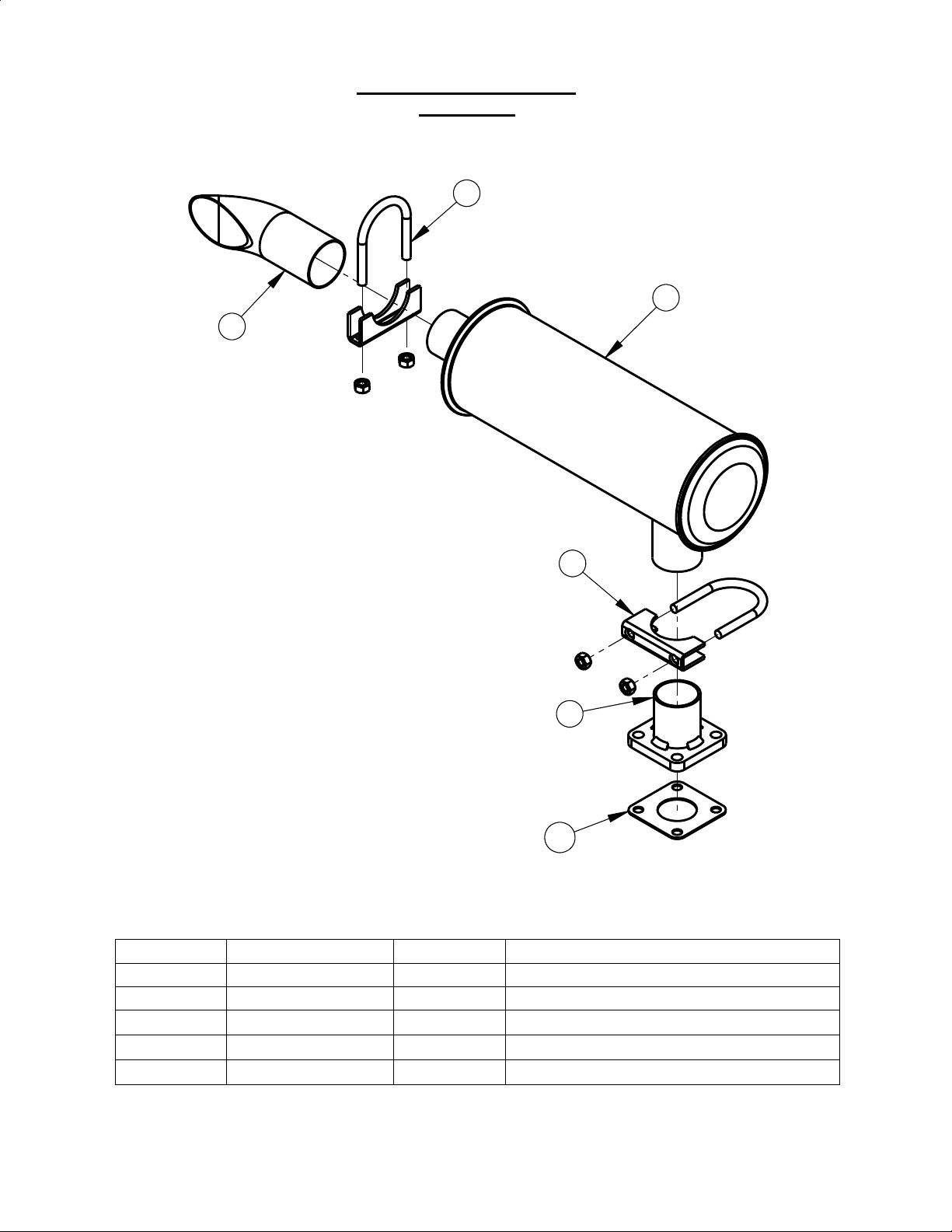

tiK relffuM latnoziroH
41
5415406#
5
1
2
5
3
4
.ON METIREBMUN TRAP.YTQNOITPIRCSED
119400721 tsuahxE ,relffuM
271500521 "8/7-1 ,rotcelfeD tsuahxE
360930521 egnalF tsuahxE tloB 4
470930521 teksaG e
590930522 "4/3-1 ,pmalC relffuM
gnalF tsuahxE tloB 4
Fan Idler Assembly #6045383
42
31
31
32
27
28
30
29
10
32
33
26
6
22
24
23
5
21
14
8
4
9
6
25
7
1110
14
10
11
24
8
11
10
3
25
12
13
16
6
17
18
15
19
6
1
10
20
2
26
Fan Idler Assembly #6045383
43
ITEM PART NO. QTY. DESCRIPTION
1 6045483 1 Fan Idler Mounting Weldment
2 6045475 1 Idler Pivot Arm Weldment
3 6045450 1 Top Idler Mounting Weldment
4 6045460 1 Tie Plate, Idler Mount
5 2500696 2 Bearing, 1/2 x 1-1/8 x 5/16
6 2900665 6 Belleville Washer, 1/2"
7 2900022 1 Flat Washer, 5/16" SAE
8 2900039 2 Lock Nut, 5/16-18 Nylon
9 2900048 3 Cap Screw, Hex Hd., 1/4-20 x 1-1/2"
10 2900009 7 Flat Washer, 1/4" SAE
11 2900010 5 Lock Nut, 1/4-20 Nylon
12 2503921 1 Idler Pulley, 3" Flat Type
13 2900587 1 Shoulder Screw, 1/2" x 1" (3/8-16)
14 2900782 2 Jam Nut, 3/8-16
15 2503635 1 Idler V-Pulley, 3"
16 2900663 1 Shoulder Screw, 5/8" x 1.25" (1/2-13)
17 2900478 1 Belleville Washer, 5/8"
18 2900002 1 Flat Washer, 5/8" SAE
19 6045474 1 Spacer Tube 7/8 x .39"
20 2900129 1 Jam Nut, 1/2-13
21 2503928 1 Idler Pulley, 3" Flat Type /w Bushing
22 2900260 1 Shoulder Screw, 1/2" x 1-3/4" (3/8"-16)
23 2500007 1 Set Collar, 1/2" with Set Screw
24 2900058 2 Flat Washer, 1/2" SAE
25 2500155 2 Cable Pulley, 1-1/4"
26 2900052 2 Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
27 2500070 1 Spring, Extension, 3/4 Dia x 4
28 6045478 1 Vibration Isolating Tube
29 2901591 1 Eyebolt, 5/16-18 x 1-1/8"
30 2901590 1 Shoulder Bolt, 1/2" x 1-3/8" (3/8-16)
31 6040563 2 Bushing, Steel 1/2 ID x 5/8 OD x 5/8 Long
32 2900014 2 Flat Washer, 3/8" SAE
33 2900018 1 Locknut, 3/8-16, Nylon
Cooling Fan Assembly #6045339
44
(14" & 20" Setup)
6
6
5
7
11
10
15
26
27
14
26
1
16
9
20
12
24
18
4
8
17
13
28
25
23
21
ITEM PART NO.
1 2501941
2 2502139
3 2503841
4 2503186
5 2900006
6 2900013
7 2900014
8 2900023
9 2900024
10 2900038
11 2900165
12 2900142
13 2900238
14 2900425
15 2900626
16 2900749
17 2900919
18 2901110
19 3202320
20 6045126
21 6045127
22 6045095
23 6045332
24 6045334
25 6045335
26 6045336
27 6045337
28 6048018
2
3
3
QTY. DESCRIPTION
AR Thrust Bearing Washer
1 Retaining Ring, 7/8" External
2 Bearing, 7/8" 2-Bolt Flange
1 V-Belt, 4L-550
2 Lock Washer, 3/8" Split
4 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
2 Flat Washer, 3/8" SAE
4 Cap Screw, Hex Hd., 1/4-20 x 5/8"
4 Lock Washer, 1/4" Split
2 Lock Washer, #10 Split
2 Machine Screw, Rd. Hd., #10-24 x 7/8"
1 Set Screw, Soc. Hd., 5/16-18 x 3/8"
3 Lock Washer, 7/16" Split
AR Flat Washer, 7/8" SAE
1 Jam Nut, 7/8-14
3 Cap Screw, Hex Hd., M10-1.25 x 25mm
1 Key, 3/16" Sq. x 9/16"
1 Lock Washer, 7/8" Split
1 Hose Clamp, 2-1/16" - 17"
1 7" Pulley Guard
1 Pulley Assembly, 4L x 6"
1 Vent Duct, 12" OD x 18"
1 Fan Shaft
1 Pulley, 4L x 3-1/4"
1 Fan Shaft Spacer
2 4.25" Pulley Guard
1 Fan Assembly
1 Key, 3/16" Sq. x 3/4"
19
22
11
45
10
26
Cooling Fan Assembly #6045414
(26" & 30" Setup)
6
13
28
17
23
21
24
12
26
27
1
14
16
6
5
7
22
2
19
3
25
3
15
18
4
ITEM PART NO. QTY. DESCRIPTION
1 2501941 AR Thrust Bearing Washer
2 2502139 1 Retaining Ring, 7/8" External
8
9
20
3 2503841 2 Bearing, 7/8" 2-Bolt Flange
4 2503924 1 V-Belt, 4L-540
5 2900006 2 Lock Washer, 3/8" Split
6 2900013 4 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
7 2900014 2 Flat Washer, 3/8" SAE
8 2900023 4 Cap Screw, Hex Hd., 1/4-20 x 5/8"
9 2900024 4 Lock Washer, 1/4" Split
10 2900038 2 Lock Washer, #10 Split
11 2900165 2 Machine Screw, Rd. Hd., #10-24 x 7/8"
12 2900142 1 Set Screw, Soc. Hd., 5/16-18 x 3/8"
13 2900238 3 Lock Washer, 7/16" Split
14 2900425 AR Flat Washer, 7/8" SAE
15 2900626 1 Jam Nut, 7/8-14
16 2900749 3 Cap Screw, Hex Hd., M10-1.25 x 25mm
17 2900919 1 Key, 3/16" Sq. x 9/16"
18 2901110 1 Lock Washer, 7/8" Split
19 3202320 1 Hose Clamp, 2-1/16" - 17"
20 6045126 1 7" Pulley Guard
21 6045127 1 Pulley Assembly, 4L x 6"
22 6045095 1 Vent Duct, 12" OD x 18"
23 6045332 1 Fan Shaft
24 6045334 1 Pulley, 4L x 3-1/4"
25 6045335 1 Fan Shaft Spacer
26 6045336 2 4.25" Pulley Guard
27 6045337 1 Fan Assembly
28 6048018 1 Key, 3/16" Sq. x 3/4"
11
46
51
51
81
31
8
8
51
51
01
9
8
7
7305406# ylbmessA rotaidaR
51
71
41
61
21
8
51
81
8
1
91
71
8
6
5
2
3
4
METI.ON TRAP .YTQNOITPIRCSED
183050521 ylbmessA rotaidaR
271930524 rotalosI noitarbiV
322000924 EAS "61/5 ,rehsaW talF
485900924
1-61/5 ,.dH xeH ,wercS paC
"2/1 x 8
513000924 tilpS "61/5 ,rehsaW kcoL
614100924 81-61/5 ,tuN xeH
777054061 ylbmessA duorhS naF
8900009201EAS "4/1 ,rehsaW talF
942000924 tilpS "4
/1 ,rehsaW kcoL
0128000924 "2/1 x 02-4/1 ,.dH xeH ,wercS paC
1120154061 esoH rot
aidaR reppU
2192120231 esoH rotaidaR rewoL
3113120231 esoH rotaidaR rewoL
4189054061 eveelS noitcennoC esoH
5151600436
lC esoH
02# ,pma
6161930521 "4/3-1 ,partS pooL leetS
7180000923 "1 x 02-4/1 ,.dH xeH ,wercS paC
8101000923 nolyN 02
-4/1 ,tuN kcoL
9142620521 ylbmessA knaT wolfrevO
Right Belt Guard Assembly #6045118
47
9
10
7
7
8
9
10
10
5
3
13
4
11
12
10
1
3
45
2
5
4
3
6
5
ITEM PART NO. QTY. DESCRIPTION
1 6045078 1 Belt Guard Assembly - Right Side
2 6045143 1 Fan Cover Weldment
3 2900005 6 Cap Screw, Hex Hd., 3/8-16 x 1"
4 2900006 6 Lock Washer, 3/8" Split
5 2900014 6 Flat Washer, 3/8" SAE
6 6045188 1 Fan Cover Gasket
7 6010558 2 Guard Mounting Tab, 3/8-16
8 2900019 4 Cap Screw, Hex Hd., 5/16-18 x 3/4"
9 2900031 4 Lock Washer, 5/16" Split
10 2900022 6 Flat Washer, 5/16" SAE
11 2900720 1 Eyebolt, 5/16-18 x 1"
12 2900141 1 Hex Nut, 5/16-18
13 2900039 1 Lock Nut, 5/16-18 Nylon
4
3
Left Belt Guard Assembly #6045117
48
5
2
3
6
1
ITEM PART NO. QTY. DESCRIPTION
1 6045068 1 Belt Guard
2 2900014 2 Flat Washer, 3/8" SAE
3 2900006 2 Lock Washer, 3/8" Split
4 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"

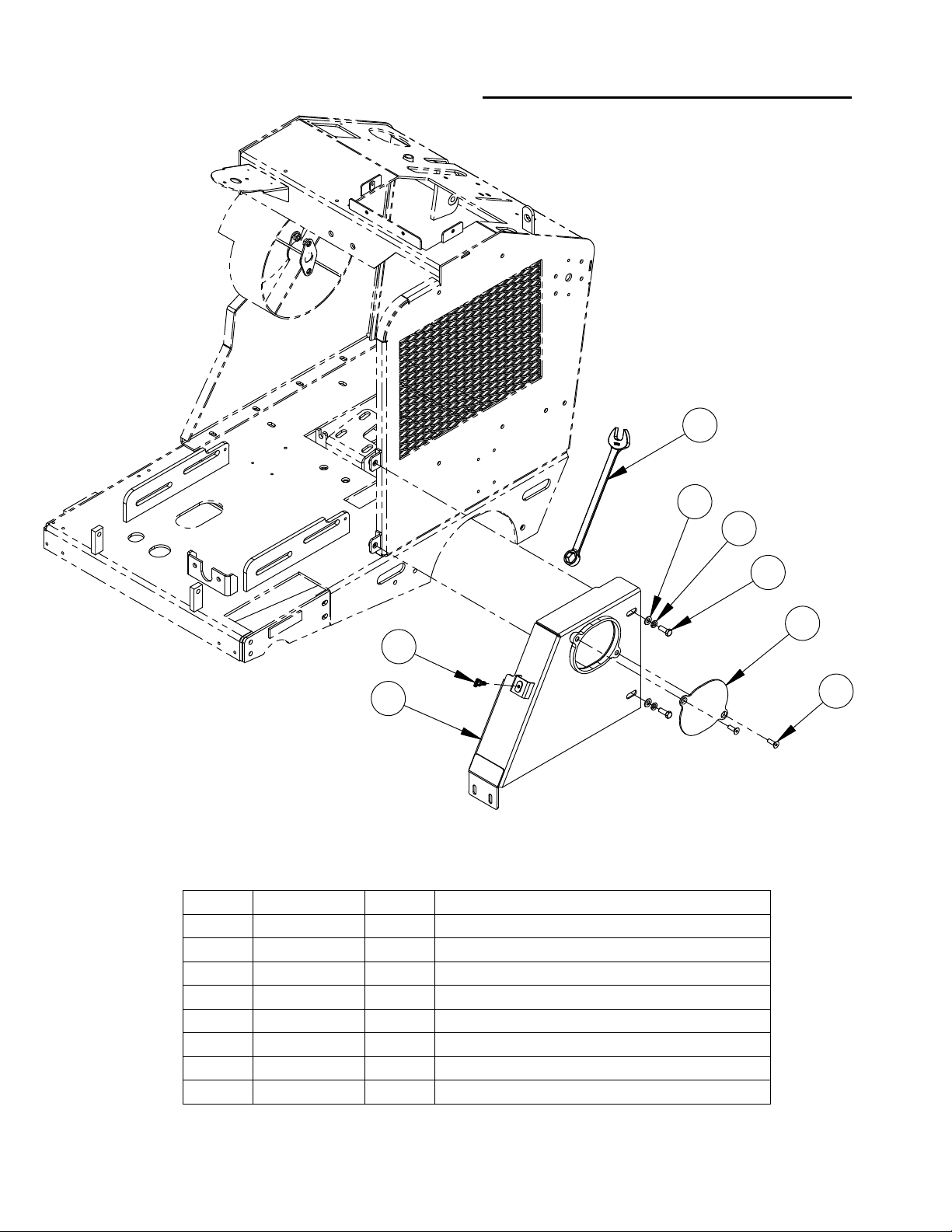

5 2503704 1 Wrench, 15/16" Combination
6 2900270 1 Thumb Screw, 5/16-18 x 3/4"
7 6045448 1 PTO Cover Plate
8 2900174 2 Cap Screw, Flat Hd., 5/16-18 x 1"
4
7
8
10
49

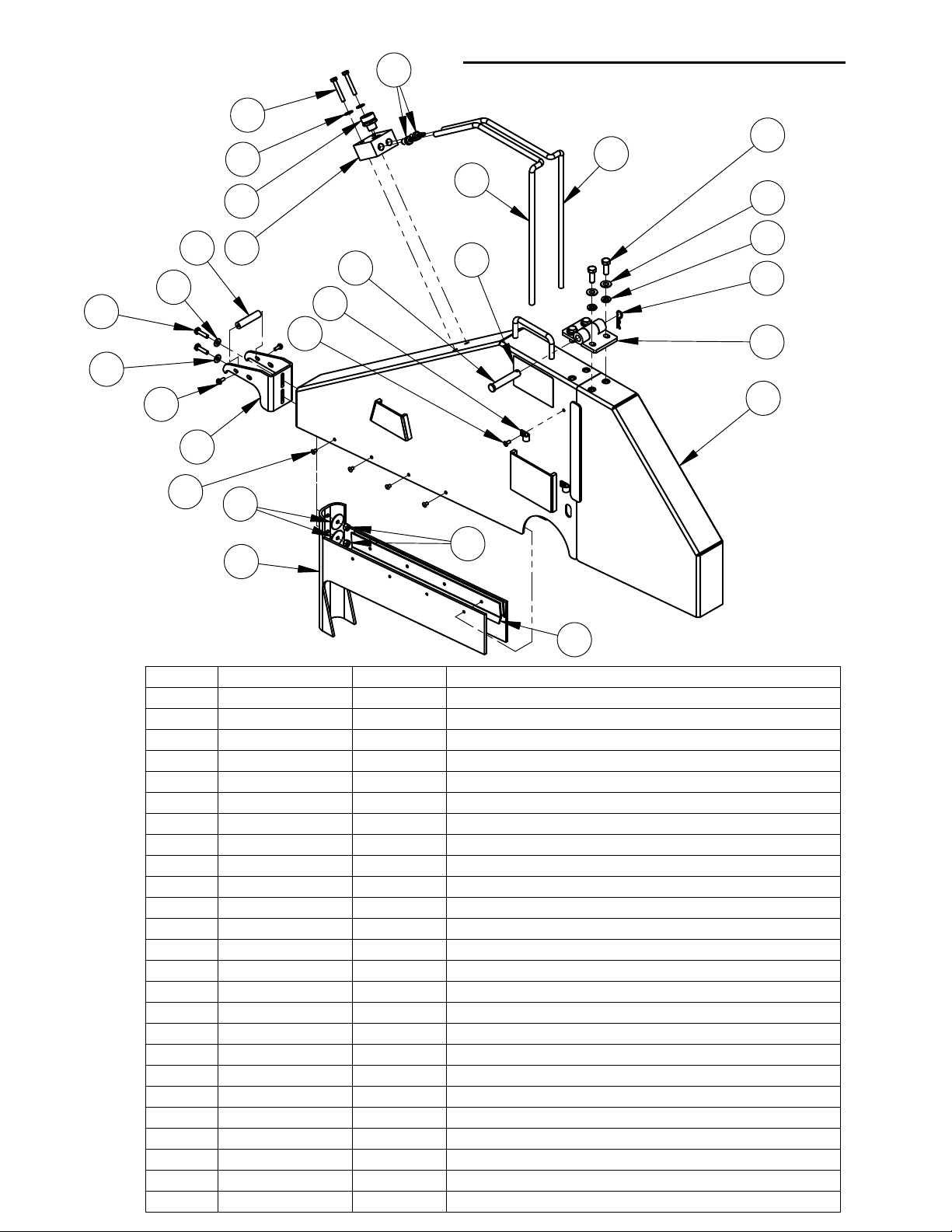

14" Blade Guard Assembly #6045419
12
11
9
8
10
16
22
17
19
21
15
18
14
1313
6
2
1
7
5
4
3
20
ITEM PART NO. QTY. DESCRIPTION
1 6045424 1 14" Blade Guard Only
2 6041135 1 Hinge
3 2900014 4 Flat Washer, 3/8" SAE
4 2900006 4 Lock Washer, 3/8" Split
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045110 2 Hose, 1/4" x 3/8" x 15"
14 3200039 2 Clamp, 3/8"
15 2900201 2 Rivet, 3/16" Dia.
16 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
17 2900083 2 Fender Washer, 1/4" x 1-1/4"
18 2900010 2 Lock Nut, 1/4-20 Nylon
19 6045178 1 Splash Flap (CC4144D)
20 6045179 2 SPLASH FLAP RETAINING STRIP
21 2900071 4 Rivet, 3/16"
22 1802090 2 Label, Wedge Locking Washer
11
50
10
12
9
8
20" Blade Guard Assembly #6045420
13
6
513
4
3
7
16
10
21
22
15
17
18
19
20
2
1
14
ITEM PART NO. QTY. DESCRIPTION
1 6045425 1 20" Blade Guard Only
2 6041135 1 Hinge
3 2900014 4 Flat Washer, 3/8" SAE
4 2900006 4 Lock Washer, 3/8" Split
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045109 2 Hose, 1/4" x 3/8" x 19"
14 3200039 4 Clamp, 3/8"
15 2900201 4 Rivet, 3/16" Dia.
16 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
17 2900083 2 Fender Washer, 1/4" x 1-1/4"
18 2900010 2 Lock Nut, 1/4-20 Nylon
19 6045178 1 Splash Flap (CC4144D)
20 6045179 2 SPLASH FLAP RETAINING STRIP
21 2900071 4 Rivet, 3/16"
22 1802090 2 Label, Wedge Locking Washer
11
51
12
26" Blade Guard Assembly #6045421
16
10
9
8
21
10
17
14
5
13
13
6
22
18
4
3
7
2
1
15
19
20
ITEM PART NO. QTY. DESCRIPTION
1 6045426 1 26" Blade Guard Only
2 6041135 1 Hinge
3 2900006 4 Lock Washer, 3/8" Split
4 2900014 4 Flat Washer, 3/8" SAE
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045106 2 Hose, 1/4" x 3/8" x 25"
14 3200039 4 Clamp, 3/8"
15 2900201 4 Rivet, 3/16" Dia.
16 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
17 2900083 2 Fender Washer, 1/4" x 1-1/4"
18 2900010 2 Lock Nut, 1/4-20 Nylon
19 6045174 1 Splash Flap (CC4144D)
20 6045172 2 Splash Flap Retaining Strip (Long)
21 2900071 8 Rivet, 3/16"
22 1802090 2 Label, Wedge Locking Washer
10
52
9
30" Blade Guard Assembly #6045422
12
11
5
13
13
4
21
10
16
18
8
6
14
15
25
17
19
23
10
24
22
20
ITEM PART NO. QTY. DESCRIPTION
1 6045427 1 30" Blade Guard Only
2 6041135 1 Hinge
3 2900006 4 Lock Washer, 3/8" Split
4 2900014 4 Flat Washer, 3/8" SAE
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045107 2 Hose, 1/4" x 3/8" x 25"
14 3200039 4 Clamp, 3/8"
15 2900201 4 Rivet, 3/16" Dia.
16 2900083 2 Fender Washer, 1/4" x 1-1/4"
17 2900010 2 Lock Nut, 1/4-20 Nylon
18 6045174 1 Splash Flap (CC4144D)
19 6045172 2 Splash Flap Retaining Strip (Long)
20 2900071 8 Rivet, 3/16"
21 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
22 6045411 1 Blade Guard Support
23 6045266 1 Blade Guard Support Spacer
24 2901412 2 Machine Screw, IHWH #10-24 x 1/2"
25 1802090 2 Label, Wedge Locking Washer
3
7
2
1
Front Pointer Assembly #6045479
53
10
17
16
9
1819
12
13
8
15
7
14
11
5
11
7
9
1
10
2
6 7
5
4 3
ITEM PART NO. QTY. DESCRIPTION
1 6011201 1 Front Pointer Frame
2 6011152 2 Front Pointer Arm
3 2900105 2 Cap Screw, Hex Hd., 1/2-13 x 2-3/4"
4 2900239 2 Friction Washer, 1/2"
5 2900026 3 Lock Nut, 1/2-13 Nylon
6 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
7 2900033 4 Hex Nut, 3/8-16
8 2501379 1 Caster, 3"
9 6010009 2 Front Pointer Rod
10 2500740 2 Pointer Cap
11 2900013 2 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
12 2901592 2 Tap Screw, Hex Hd., 3/8-16 x 1-3/4"
13 2900782 2 Jam Nut, 3/8-16
14 2900375 1 Cap Screw, Hex Hd., 3/8-16 x 4-1/2"
15 2900014 1 Flat Washer, 3/8" SAE
16 6010989 1 Spacer, 3" Long
17 2900885 1 Eye Nut, 3/8-16
18 6017241 1 Pointer Rope 11 Foot
19 3200221 2 Pinch Clamp, Two Ear
Pointer Stop Assembly #6045444
54
9
5
66
5
10
1
10
2
7
8
10
ITEM PART NO. QTY. DESCRIPTION
1 6045176 1 Pointer Stop Adapter Plate
2 6010583 1 Pointer Stop
3 2900083 2 Fender Washer, 1/4" x 1-1/4"
4 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
5 2900009 2 Flat Washer, 1/4" SAE
6 2900010 2 Lock Nut, 1/4-20 Nylon
7 2501093 1 Bumper, 1"
8 2900172 1 Machine Screw, Rd. Hd., #10-24 x 1-1/4"
9 2900017 1 Lock Nut, #10-24 Nylon
10 2500573 3 Plug, 1" Square Tube
3
3
4
351
55
3045406# tiK pmuP retaW cirtcelE
evlaV retaW morF
elggoT oT
hctiwS
ot dnuorG
gnitnuoM retratS
tloB
8
01
71
41
9
41
4561
METI.ON TRAP.YTQNOITPIRCSED
100200621 mgarhpaiD V21 ,pmuP retaW
249610722 eergeD 09 x braB "2/1 ,gnittiF troP
361000232 8# pmalC
490000928 EAS "4/1 ,rehsaW talF
542000928 tilpS "4/1 ,rehsaW kcoL
684000924 "2/1-1 x 02-4/1 ,.dH xeH ,wercS paC
701000924
820301061 tooF 4 ,ylbmessA esoH
969600821 tiucriC 8 ,lenaP esuF
017710082ni48GWA 41 deR ,eriW
1126000821 ffO/nO hc
2136000821 tooB hctiwS
3198300821 CTA/OTA deR pmA 01 ,esuF
4147000825 eulB )GWA 41-61( elameF "4/1 ,lanimreT DQ
5148400822 eulB )GWA
613300082ni21WTM kcalB GWA41
7165600821 eulB )GWA
3
2
01
esoH
4/1 ,tuN kcoL
tiwS elggoT
nolyN 02-
41-61( gniR "8/3 ,lanimreT
21
11
9
31
41
01
41-61( elaM "4/1 ,lanimreT DQ
drauG edalB oT
3715406# tiK thgiltopS
56575859
21
1
51
2
3
4
5
31
3
41
6
8
7
9
6
3
01
9
3
11
METI.oN TRAPYTQNOITPIRCSED
149100521 tloV 21 ,thgiL topS
221200821 rotcennoC ttuB egaG 61-41
37710082"08WTM deR GWA41
460101061
570101061 tekcarB tnuoM raB thgiL
690000924 EAS "4/1 ,rehsaW talF
701000922
842000922 tilpS "4/1 ,rehsaW kcoL
947000824 elameF ,nO hsuP egaG 61-41
0148400821 elaM ,nO hsuP egaG 61-41
1198300821 CTA/OTA
2136000821tooB hctiwS
3126000821 ffO/nO hctiwS elggoT
4180000922 "1 x 02-4/1 ,.dH xeH ,wercS paC
5175100422
L
raB thgi
-4/1 ,tuN kcoL
nolyN 02
deR pmA 01 ,esuF
61/5 ,bonK kcoL dnaH
"1 x 81-
EQUIPMENT AND PARTS
WARRANTY
Diamond Products warrants all equipment manufactured by it against defects
in workmanship or materials for a period of one (1) year from the date of
shipment to Customer.
The responsibility of Diamond Products under this Warranty is limited to
replacement or repair of defective parts at Diamond Products’ Elyria, Ohio
factory, or at a point designated by it, of such parts as shall appear to us upon
inspection at such parts, to have been defective in material or workmanship,
with expense for transportation and labor borne by Customer.
In no event shall Diamond Products be liable for consequential or
incidental damages arising out of the failure of any Product to operate properly.
Integral units such as engines, electric motors, batteries, transmissions,
etc., are excluded from this Warranty and are subject to the prime
manufacturer’s warranty.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, AND ALL SUCH OTHER WARRANTIES ARE HEREBY
DISCLAIMED.
333 Prospect Street, Elyria, Ohio 44035
(440) 323-4616 • (800) 321-5336 • Fax (440) 323-8689
www.diamondproducts.com
Printed in U.S.A. #1801408
Loading...
