DIAMOND
P R O D U C T S
CONCRETE SAW
PARTS LIST
MODEL
CC3535
February 2008
Part #1800950
2
Table of Contents
.
.
…
…
…
.
.
3
Pictorial Page Index…...…….……………. 4,5 Idler Assembly...……………………………. 32
Controls Legend…….…….….……………
6 Belt Guard Assembly…………………………33
Quick Reference Service Filters / Belts……7 Front Pointer Assembly………………………34
Frame Upright Assembly……….………….8,9 Notes...…………………...……………….…. 35
Instrument Panel Assembly……………….. 10 14” Blade Guard Assembly……………….…. 36,37
Control Grip Assembly…………………….11 20” Blade Guard Assembly…….……………. 38,39
Control Lever Assembly (Eaton)…………..12 26” Blade Guard Assembly……….…………. 40,41
Fuel Tank Assembly………………………. 13 30” Blade Guard Assembly……….…………. 42,43
Battery Assembly…………………………. 14 Optional Water Pump Assembly………….…. 44
Hydraulic Pump Assembly……...………… 15 Optional Water Safety Switch Assembly……. 45
Depth Indicator Assembly………………… 16 Optional Spot Light Assembly………………. 46
Depth Stop Assembly…………………….. 17 Optional Magnetic Spot Light Assembly……. 47
Water Supply Assembly………………….. 18 Optional Shaft Tachometer Assembly….……
48
Air Intake Assembly………………………. 19 Optional Speed Metering Valve Assembly…
49
Frame Base Assembly……………………. 20 Optional Parking Brake Assembly……..……. 50,51
Hydraulic Cylinder Assembly……………
Rear Drive Assembly (Eaton)…………….. 22,23 Optional Blade Spacing Assembly…………
Eaton Transmission Assembly…………….
21 Optional Blade Stacking Assembly…………..52,53
54,55
24 Optional Blade Spacing Assembly……………56,57
Linkage Assembly………………………… 25 Wiring Diagram………………………………58,59
Rear Axle Assembly (Eaton / Gear)………. 26 Decal Group……………………………….… 60
Front Axle Assembly……………………… 27 Notes..…………………...……………….…. 61
Blade Shaft Assembly………………….…. 28 Governor Setting……………...………….…. 62
Belt Drive Assembly………………………
29 Blade Speed Conversion Charts………….….. 63
Engine Assembly...……………………….. 30,31 Warranty…………………………….….……. 64
Pictorial Page Index
4
34
30
18
19
10
17
16
11
12
13
8
36
38
40
42
28
29
32
27
20
14
12
22
26
Pictorial Page Index
5
34
33
1830
10 819
11
13
12
15
14
22
20
29
28
27
24
26
36 38 40 42
Controls Legend
6
1 Hour M et er 12 Handle Lock Knobs
2 Volt M et er 13 Speed Cont r ol Lever
3 Choke Control 14 Lower Push button
4 Vern ier Th r ot t l e Con t r ol 15 Raise Pu shbu t t on
5 Ign ition Sw itch 16 Fuel T ank Cap
6 Pre-Cl eaner 17 T ransmission Engagemen t Lever
7 Air Clean er Restrict ion Indicator 18 Water Saf et y Switch (O ptional )
8 Depth St op Knob 19 Spotl igh t Sw it ch (O pt ion al)
9 Cut t ing Depth Indicator 20 Water Pump Swit ch (O pt ion al )
10 Water Val ve 21 Lower ing Speed Meter in g Val ve (O pt ional)
11 Emergency St op Button
6
3
2
1
4
5
7
8
9
20
18
19
10
11
10
12
16
17
15
13
14
21
12
Quick Reference Service Filters / Belts
7
DP Part No. Description Manufacturer's Part No.
2701812 Engine Oil Filter (Wiscon #RV52)
2702031 Spark Plug (4) (Champion #D16J)
2500201 In-Line Fuel Tank Filter (Fram #G1 or Wix #33001)
2501211 Outer Primary Air Filter (Donaldson #P821575)
2501212 Inner Safety Air Filter (Donaldson #P822858)
2500595 Blade Shaft Belt (2) (Gates #3/3VX475)
2502034 Eaton Transmission Belt (Gates #AX62)
Frame Upright Assembly #6011415
8
11
12
12
19
20
18
12
17
10
14
13
16
15
9
8
10
9
8
21
22
2
5
22
3
6
4
7
1
4
7
Frame Upright Assembly #6011415
9
ITEM PART NO. QTY. DESCRIPTION
1 6011401 1 Frame Upright Weldment
2 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
3 2900014 2 Flat Washer, 3/8" SAE
4 2900018 2 Lock Nut, 3/8-16 Nylon
5 2900025 4 Cap Screw, Hex Hd., 1/2-13 x 1-1/4"
6 2900058 4 Flat Washer, 1/2" SAE
7 2900026 4 Lock Nut, 1/2-13 Nylon
8 6010014 2 Handle Bar, 36" Long
9 2500636 2 Handle Grip
10 2900430 2 Hand Lock Knob, 1/2-13 x 1-1/2"
11 2503704 1 Wrench, 15/16" Combination
12 2501287 4 Plug, 7/16" Hole
13 2500549 1 Plug, 7/8" Hole
14 2500203 1 Grommet, 3/4" I.D.
15 1800169 1 Serial Number Plate, US
16 2900096 2 Rivet, 3/32" Dia.
17 1800377 1 Serial Number Plate, CE
18 2900287 2 Rivet, 1/8" Dia.
19 2501427 1 Cable Cleat
20 2900483 2 Tap Screw, Flat Hd., #10-24 x 1"
21 6011023 1 Rear Cover Screen
22 2900180 4 Cap Screw, Hex Flange Hd., 1/4-20 x 1"
Instrument Panel Assembly #6011416
10
9
1
11
8
16
17
18
14
5
3
4
6
2
11
7
9
19
10
11
12
13
14
15
ITEM PART NO. QTY DESCRIPTION
1 6011072 1
2 2800064 1 Hour Meter
3 2800271 1 Volt Meter
4 2500186 1 Choke Cable
5 2900148 1 Hex Nut, 3/8-24
6 2500376 1 Vernier Throttle Cable
7 2500220 1
8 6011024 1
9 2800461 1
10 2800462 1 Contact Block, N.C.
11 2900021 8
12 6010098 1 Switch Plate
13 2500204 3
14 2900445 6
15 2500463 1
16 2800388 1 Fuse Panel, 6 Circuit
17 2800389 6
18 2900913 2
19 2900017 2
Gauge Panel
Ignition Switch
Hydraulic Pump Cover Plate
Emergency Stop Button
Tap Screw, Pan Hd., #10-24 x 3/8"
Plug, 1/2" Hole
Tap Screw, Flat Hd., #10-24 x 1/2"
Plug, 3/4" Hole
Fuse, 10 Amp Red ATO/ATC
Cap Screw, Soc. Hd., #10-24 x 1"
Lock Nut, #10-24 Nylon
Control Grip Assembly #6010319
11
1
3
4
6
8
5
9
2
4
7
ITEM PART NO. QTY. DESCRIPTION
1
2
3
4 2500694 2 Plug, 5/8" Hole
5
6
7
8
9 2800393 1 Harness, Hydraulic Pump
2501280 1 Control Grip Body
2501281 1 Control Grip Cover
2500644 1 Plug, Rectangular
2800372 1 Pushbutton Switch, Raise
2800373 1
2900453 1
2900452 1 Machine Screw, Oval Hd., #4 x 5/8"
Pushbutton Switch, Lower
Set Screw, Soc. Hd., M5 x 12mm
Control Lever Assembly #6011417 (Eaton)
12
2
14
3
4
5
15
16
5
13
9
2
5
2
3
4
1
17
9
7
8
9
10
11
2
ITEM PART NO. QTY DESCRIPTION
1 6011410 1
2 2900144 5
3 2900024 2
4 2900009 2 Flat Washer, 1/4" SAE
5 2900010 3
6 6010055 1
7 2900782 2 Jam Nut, 3/8-16
8 6011414 1
9 2900153 5 Friction Washer, 3/8"
10 2900473 1 Flat Washer, 3/8" USS
11 2900474 2 Belleville Washer, 3/8"
12 2900781 1
13 6010057 1
14 2500002 1
15 2900780 1
16 6010058 1 Gate Plate
17 6010319 1
7
6
Lever Support Weldment
Cap Screw, Hex Hd., 1/4-20 x 3/4"
Lock Washer, 1/4" Split
Lock Nut, 1/4-20 Nylon
Friction Spacer
Speed Control Lever
Cap Screw, Hex Flange Hd.,3/8-16 x 2-1/4"
Engagement Lever Weldment
Lever Grip
Cap Screw, Hex Flange Hd., 3/8-16 x 1-3/4"
Control Grip Assembly
12
9
13
Fuel Tank Assembly #6012097
1
10
17
2
2
11
18
8
16
7
6
12
13
14
5
15
ITEM PART NO. QTY. DESCRIPTION
6
3
5
4
1 2500648 1 Fuel Tank
2 6011083 2 Fuel Tank Mount Bar
3 2900019 4
4 2900138 4
5 2900031 8
6 2900022 8 Flat Washer, 5/16" SAE
7 2501434 1
8 3200206 1
9 2500649 1
10 2500205 1 Fuel Tank Grommet
11 3200108 1 Fuel Shut-Off Valve, 1/4"
12 3200057 1
13 3200091 1
14 6010218 1 Fuel Line Hose, 1/4" I.D. x 4"
15 2500201 1 Filter, Gasoline Fuel
16 6011062 1 Fuel Line Hose, 1/4" I.D. x 20"
17 3200065 1
18 3200099 1
4
Cap Screw, Hex Hd., 5/16-18 x 3/4"
Cap Screw, Hex Hd., 5/16-18 x 1"
Lock Washer, 5/16" Split
Hose Clamp, 1/2" x 3/4" Wide
Pipe Plug, 1/4" NPT
Fuel Tank Cap
Elbow, 1/4" M. Pipe to 1/4" M. JIC
Fitting, 1/4" F. JIC to 1/4" Push Lock
Fitting, 1/8" Male Pipe to 1/4" Push Lock
Street Elbow, 1/8" NPT x 45 Deg.
Battery Assembly #6011418
14
18
19
18
12
13
14
2021 1922
17
9
22
21
20
3
3
4
2
7
5
6
4
1
15
16
11
8
10
3
4
5
9
ITEM PART NO. QTY. DESCRIPTION
1 6010670 1
2 6010554 1
3 2900019 5
4 2900022 5 Flat Washer, 5/16" SAE
5 2900039 4
6 2900031 1
7 6010017 1
8 6010018 2 Rod, 1/4-20 x 8-1/2"
9 2900010 4
10 6010016 1
11 2700208 1
12 2800073 1
13 2800072 1
14 2800095 1
15 2800182 1
16 2800256 1
17 2800257 1
18 2800197 2
19 2800198 2
20 2900014 2 Flat Washer, 3/8" SAE
21 2900006 2
22 2900196 2
Battery Platform
Battery Support Brace
Cap Screw, Hex Hd., 5/16-18 x 3/4"
Lock Nut, 5/16-18 Nylon
Lock Washer, 5/16" Split
Battery Top Brace
Lock Nut, 1/4-20 Nylon
Battery Pad
Battery, 12 Volt Group Size 34
Battery Cable, Positive (Red)
Battery Cable, Negative (Black)
Battery Cable, 14" Positive (Red)
Battery Cable, 14" Negative (Black)
Battery Boot, Large (Red)
Battery Boot, Large (Black)
Battery Boot, Small (Red)
Battery Boot, Small (Black)
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 3/4"
Hydraulic Pump Assembly #6011077
15
(Includes Items #1 - #11)
2
3
11
10
4
1
8
7
6
14
5
13
ITEM
1 2600070 1
2 2700321 1
3 3200120 1
4 3200123 1
5 3200115 1
6 3200060 1
7 3200056 1
8 3200057 1
9 2900014 2
10 2900006 2
11 2900005 2 Cap Screw, Hex Hd., 3/8-16 x 1"
12
13
14
PART NO. QTY.
3200116 1 Elbow, 1/4" O-Ring to 3/8" M. JIC
3200046 1 Fitting, 3/8" F. JIC to 3/8" Push Lock
6010059 1 Clear Hose, 3/8" I.D. x 19"
12
9
11
10
9
DESCRIPTION
Hydraulic Pump Unit
Breather Cap
Pipe Coupling, 3/8" NPT
Pipe Nipple, 3/8" NPT x 2"
Elbow, 3/8" O-Ring to 1/4" F. Pipe
Hex Nipple, 1/4" NPT
Flow Control Valve, 1/4" NPT
Elbow, 1/4" M. Pipe to 1/4" M. JIC
Flat Washer, 3/8" SAE
Lock Washer, 3/8" Split
Depth Indicator Assembly #6010214
16
11
10
5
1
3
4
7
4
2
12
7
6
9
8
13
14
15
ITEM PART NO. QTY. DESCRIPTION
1 6010092 1 Depth Indicator Mount Bracket
2 2500155 2 Cable Pulley, 1-1/4"
3 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
4 2900010 4 Lock Nut, 1/4-20 Nylon
5 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
6 2500145 1 Flange Bearing, 3/8"
7 2900014 3 Flat Washer, 3/8" SAE
8 6010091 1 Depth Indicator Pointer
9 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
10 6010093 1 Cable Pulley, 2"
11 2900018 1 Lock Nut, 3/8-16 Nylon
12 6010094 1
13 2500196 1 Spring, 3/8" x 15"
14 2900055 1 Cotter Pin, 3/16" x 1"
15 2500214 1 Cable Clamp
Depth Indicator Cable with Crimp, 48"
5
17
6
2
Depth Stop Assembly #6010215
4
3
10
1
ITEM PART NO. QTY. DESCRIPTION
9
11
8
7
1 6010097 1 Depth Stop Weldment
2 2900665 4 Belleville Washer, 1/2"
3 2900058 1 Flat Washer, 1/2" SAE
4 2900239 1 Friction Washer, 1/2"
5 6010095 1 Depth Stop Knob
6 2900132 1 Roll Pin, 3/16" x 1-1/4"
7 2900158 1 Yoke, 1/2-13
8 2900084 1 Lock Washer, 1/2" Split
9 2900037 1 Hex Nut, 1/2-13
10 2900007 1 Clevis Pin, 1/2" Dia. x 1-3/8"
11 2900004 1 Cotter Pin, 1/8" x 1"
Water Supply Assembly #6011419
18
10
12
6
7
14
8
9
13
14
13
1
3
11
12
5
4
3
2
6
7
8
ITEM PART NO. QTY. DESCRIPTION
1 6090067 1
2 3200045 1
3 3200008 2
4 3200022 1
5 3200025 1 Hose Filter Washer
6 3200013 2 Street Elbow, 1/2" NPT
7 3200027 2 Water Valve
8 3200155 2
9 6011055 1
10 3200173 1 Street Elbow, 1/2" NPT Steel
11 3200001 1
12 2900241 2
13 2900009 4 Flat Washer, 1/4" SAE
14 2900010 4
Water Supply Tube
Pipe Tee, 1/2" NPT
Close Nipple, 1/2" NPT
Fitting, 1/2" F. Pipe to 3/4" F. Garden
Fitting, 1/2" M. Pipe to 3/4" M. Garden
Water Hose Assembly, 30" Long
Plug, 1/8" NPT
U-Bolt, 1/2" Pipe
Lock Nut, 1/4-20 Nylon
Air Intake Assembly #6011420
19
3
9
10
4
10
1
5
2
6
7
8
8
ITEM PART NO. QTY. DESCRIPTION
1 2500985 1
2501211 1
2501212 1
2501213 1
2 2500173 1
3200095 1
3 2500423 1 Restriction Indicator
4 3200117 1
5 2500986 1
6 2900217 2
7 2900022 2 Flat Washer, 5/16" SAE
8 2900039 2
9 2500469 1 Air Intake Hose
10 3200095 2
Air Cleaner Complete
Outer Primary Filter
Inner Safety Filter
Rubber Dust Ejector Boot
Pre-Cleaner with Clamp
Hose Clamp #32
Close Nipple, 1/8" NPT
Mounting Band, Polymer
Cap Screw, Hex Hd., 5/16-18 x 1-1/4"
Lock Nut, 5/16-18 Nylon
Hose Clamp #32
7
6
Frame Base Assembly #6011422
20
8
4
7
1
2
3
5
4
2
3
6
ITEM PART NO. QTY. DESCRIPTION
1 6011400A 1 Frame Base
2 6011021 2 Skid Plate
3 2900473 4 Flat Washer, 3/8" USS
4 2900006 5
5 2900196 2
6 2900005 2
7 6010022 1 Rear Pointer
8 2900047 1
4
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 3/4"
Cap Screw, Hex Hd., 3/8-16 x 1"
Cap Screw, Hex Hd., 3/8-16 x 1-3/4"
Hydraulic Cylinder Assembly #6010714
21
4
7
4
6
4
3
5
1
2
ITEM PART NO. QTY. DESCRIPTION
1
2 6010031 1 Cylinder Pin, 3"
3 6010119 1 Cylinder Pin, 3-1/2"
4 2900064 4
5 3200067 1
6 3200057 1 Elbow, 1/4" M. Pipe to 1/4" M. JIC
7 3200054 1 Hose Assembly, 32" Long
2500177 1 Hydraulic Cylinder
Hair Pin Cotter, 3/4"
Cylinder Breather, 1/4" NPT
4
Rear Drive Assembly #6011423 (Eaton)
22
5
6
12
27
27
13
18
17
2
27
13
1
16
21
14
15
19
20
14
15
19
26
11
10
23
3
13
24
20
21
20
22
13
25
28
30
8
4
7
33
32
9
29
31
Rear Drive Assembly #6011423 (Eaton)
23
ITEM PART NO. QTY. DESCRIPTION
1 6010068 1 Transmission Platform Weldment
2 6010027 1 Mount Foot, Right Hand
3 6011408 1 Mount Foot, Adjustable
4 2500159 2 Pillow Block Bearing, 3/4"
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900006 4 Lock Washer, 3/8" Split
7 6011442 1 Transmission Jackshaft Assembly
8 6048229 1 Key, 3/16" Sq. x 1-1/4"
9 2500148 1 Sprocket, #40 x 45 Tooth
10 2500149 1 Q D Bushing, SDS x 3/4" w/Fasteners
11 6010069 1 Chain, #40 x 56 Pitch
12 6010671 1 Chain Guard
13 2900009 9 Flat Washer, 1/4" SAE
14 2900024 5 Lock Washer, 1/4" Split
15 2900023 5 Cap Screw, Hex Hd., 1/4-20 x 5/8"
16 6010679 1 Gear Guard
17 2900140 1 Set Screw, Sq. Hd., 5/16-18 x 1-1/2"
18 2900141 1 Hex Nut, 5/16-18
19 2900106 2 Cap Screw, Hex Hd., 1/2-13 x 2"
20 2900058 4 Flat Washer, 1/2" SAE
21 2900026 3 Lock Nut, 1/2-13 Nylon
22 2900542 1 Tap Bolt, Hex Hd., 1/2-13 x 3-1/2"
23 6011409 1 Fan Guard
24 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
25 2900010 2 Lock Nut, 1/4-20 Nylon
26 6011424 1 Eaton Transmission Assembly
27 6011425 1 Linkage Assembly
ITEM PART NO. QTY. DESCRIPTION
28 6011443 1 Gear Jackshaft
29 6011444 1 Spur Gear, 34 Tooth
30 2502531 1 Key, 5/16" Sq. x 1-1/4"
31 2900854 1 Fender Washer, 1/2" x 2"
32 2900084 1 Lock Washer, 1/2" Split
33 2900086 1 Cap Screw, Hex Hd., 1/2-13 x 1"
9
24
6
5
8
242122
Eaton Transmission Assembly #6011424
23
20
7
22
3
2
21
1
20
10
11
ITEM PART NO. QTY. DESCRIPTION
1 2600068 1 Eaton Hydrostatic Transmission
2 3200046 2 Fitting, 3/8" F. JIC to 3/8" Push Lock
3 6010060 1 Oil Recirculation Hose, 3/8" I.D. x 9"
4 2900143 1 Woodruff Key #61, 3/16" x 5/8"
5 2900063 1 Woodruff Key #405, 1/8" x 5/8"
6 2500150 1 Sprocket, #40 x 11 Tooth w/Setscrews
7 2900083 1 Fender Washer, 1/4" x 1-1/4"
8 2900024 1 Lock Washer, 1/4" Split
9 2900082 1 Cap Screw, Hex Hd., 1/4-20 x 1/2"
10 6010064 1 Shift Lever
11 2900058 1 Flat Washer, 1/2" SAE
12 2900026 1 Lock Nut, 1/2-13 Nylon
13 6011411 1 Transmission Pulley 10" w/Setscrew
14 2500519 1 Cooling Fan, 7"
15 2900038 4 Lock Washer, #10 Split
16 2900448 4 Machine Screw, Hex Hd., #10-32 x 1/2"
17 2900567 1 Flat Washer, 5/16" USS
18 2900031 1 Lock Washer, 5/16" Split
19 2900019 1 Cap Screw, Hex Hd., 5/16-18 x 3/4"
20 2900035 4 Cap Screw, Hex Hd., 3/8-16 x 3"
21 2900014 4 Flat Washer, 3/8" SAE
22 2900018 4 Lock Nut, 3/8-16 Nylon
23 3200062 1 Hose Clamp #4
24 6010059 1 Clear Hose, 3/8" I.D. x 19"
12
4
13
14
15
16
17
18
19
Linkage Assembly #6011425
25
7
6
7
3
7
11
3
8
6
3
7
8
12
ITEM PART NO. QTY DESCRIPTION
1 6011407 1 Extension Bar
2 2900013 2
3 2900018 9
4 6011406 1 Bell Crank
5 2900153 2 Friction Washer, 3/8"
6 2900029 5
7 2900014 14 Flat Washer, 3/8" SAE
8 2900047 2
9 2900006 2
10 2900033 2 Hex Nut, 3/8-16
11 6011412 2
12 6012095 1
Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
Lock Nut, 3/8-16 Nylon
Cap Screw, Hex Hd., 3/8-16 x 1-1/2"
Cap Screw, Hex Hd., 3/8-16 x 1-3/4"
Lock Washer, 3/8" Split
Linkage Assembly 7-3/4"
Linkage Assembly 10-1/2"
7
3
10
9
7
7
3
3
7
5
6
5
6
7
7
11
9
7
10
4
3
6
1
2

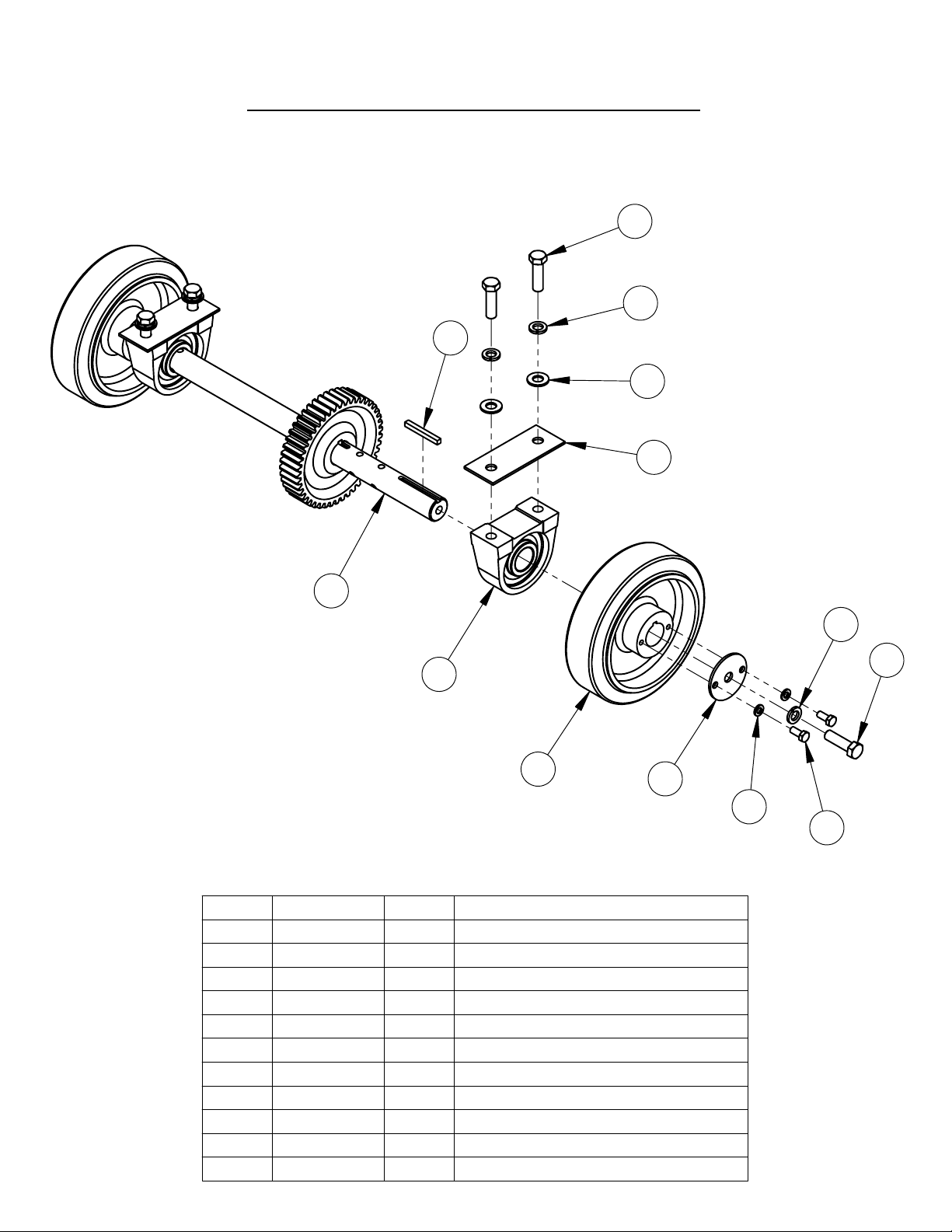

Rear Axle Assembly #6011402 (Eaton / Gear)
26
6
5
7
4
3
1
2
8
ITEM PART NO. QTY. DESCRIPTION
1 6011403 1 Rear Axle Weldment w/46 Tooth Gear
2 2500158 2
3 6010024 2
4 2900058 4 Flat Washer, 1/2" SAE
5 2900084 6
6 2900139 6
7 6048134 2
8 6011019 2 Wheel, 8" Rear
9 6010026 2 Wheel Mount Washer
10 2900031 4
11 2900019 4
Pillow Block Bearing 1-1/4"
Rear Axle Bearing Spacer, 1/8"
Lock Washer, 1/2" Split
Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
Key, 1/4" Sq. x 2-1/4"
Lock Washer, 5/16" Split
Cap Screw, Hex Hd., 5/16-18 x 3/4"
9
5
6
10
11
Front Axle Assembly #6011070
27
10
9
8
7
1
3
2
ITEM PART NO. QTY. DESCRIPTION
1 6011003 1 Front Axle Weldment
2 2500299 2 Wheel, 6" Front
3 2900295 4 Flat Washer, 1" SAE
4 2500009 2 Set Collar, 1" ID
5 2900431 2
6 2500158 2
7 2900058 4 Flat Washer, 1/2" SAE
8 2900084 4
9 2900025 4
10 2900184 1
Set Screw, Sq. Hd., 5/16-18 x 1/2"
Pillow Block Bearing 1-1/4"
Lock Washer, 1/2" Split
Cap Screw, Hex Hd., 1/2-13 x 1-1/4"
Grease Fitting, 1/4" NPT x 45 degree
5
6
3
4
Blade Shaft Assembly #6011197
28
11
13
3
8
7
6
12
2
9
8
7
5
3
4
5
1
9
8
7
6
7
2
ITEM PART NO. QTY DESCRIPTION
1 6011002 1 Blade Shaft
2 2500151 2
3 2900198 2
4 6011058 1
5 6010040 2
6 2900418 2 Set Screw, Soc. Hd., 5/16-18 x 5/8"
7 2900002 6 Flat Washer, 5/8" SAE
8 2900113 6
9 2900512 4
10 2900146 1
11 2900130 1
12 6010255 2
13 6047907 1
2900197 1 Dowel Pin, 3/8" Dia. x 2"
Blade Shaft Bearing, 1-3/4"
Grease Fitting, 1/8" NPT x 1-1/4"
Key, 3/8" Sq. x 2-3/4"
Key, 1/4" Sq. x 13/16"
Lock Washer, 5/8" Split
Cap Screw, Hex Hd., 5/8-11 x 1-1/4"
Cap Screw, Hex Hd., 5/8-11 x 4"
Cap Screw, Hex Hd., 5/8-11 x 4" LH
Inner Flange 5"
Outer Flange 5" with Pin
8
12
10
Belt Drive Assembly #6011433
29
2
3
14" & 20" BLADE DRIVE
ITEM PART NO. QTY DESCRIPTION
1 6011011 1
2 6011027 1
3 2900142 10 Set Screw, Soc. Hd., 5/16-18 x 3/8"
4 2502034 1 V-Belt, AX62
5 6011008 1 Sheave, 3.65" x 6 Groove x 1-7/16" Bore
6 6011009 1 Sheave, 3.65" x 6 Groove x 1-3/4" Bore
7 2500595 2 Banded Belt, 3/3VX475 - 3 Strand
Pulley, Accessory Drive
Key, 3/8" Sq. x 3-1/4" Bevel End
3
1
4
3
5
3
26" & 30" BLADE DRIVE
ITEM PART NO. QTY DESCRIPTION
1 6011011 1
2 6011027 1
3 2900142 10 Set Screw, Soc. Hd., 5/16-18 x 3/8"
4 2502034 1 V-Belt, AX62
5 6011084 1 Sheave, 3.12" x 6 Groove x 1-7/16" Bore
6 6011010 1 Sheave, 4.12" x 6 Groove x 1-3/4" Bore
7 2500595 2 Banded Belt, 3/3VX475 - 3 Strand
Pulley, Accessory Drive
Key, 3/8" Sq. x 3-1/4" Bevel End
6
3
7
Engine Assembly #6011430
30
2
20
14
21
3
4
6
1
8
9
5
22
18
9
15
22
17
16
23
10
11
12
13
10
13
11
10
16
17
10
10
9
9
19
7
24
25
26
27
Engine Assembly #6011430
31
ITEM PART NO. QTY. DESCRIPTION
1 2600052 1
2 2700491 1
3 3200151 1
4 2800386 1 Vacuum Switch
5 2500940 1
6 2900201 2 Rivet, 3/16" Dia.
7 6011005 1
8 2900192 4
9 2900058 7 Flat Washer, 1/2" SAE
10 2900026 8
11 2900104 2
12 2900112 2 Hex Nut, 5/8-11
13 2900446 2 Swivel Pad Nut, 5/8-11
14 6011022 1 Frame Lift
15 6010013 1 Frame Lift Brace
16 2900127 3 Flat Washer, 1/2" USS
17 2900139 2
18 2900106 1
19 2900288 1
20 2900013 1
21 2900005 1
22 2900018 2
23 6011065 1
Engine, 35hp Wisconsin Model W4-1770
Muffler with Clamp
Muffler Pipe Nipple 1-1/4"
Throttle Cable Clamp
Engine Base Weldment
Cap Screw, Hex Hd., 1/2-13 x 2-1/4"
Lock Nut, 1/2-13 Nylon
Tap Bolt, Hex Hd., 5/8-11 x 6"
Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
Cap Screw, Hex Hd., 1/2-13 x 2"
Cap Screw, Button Hd., 1/2-13 x 2"
Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
Cap Screw, Hex Hd., 3/8-16 x 1"
Lock Nut, 3/8-16 Nylon
Oil Drain Hose Assembly
ITEM PART NO. QTY. DESCRIPTION
24 3200165 1
25 6011075 1 Oil Drain Hose, 3/8" I.D. x 11"
26 3200164 1
27 3200153 1
Fitting, 3/8" M. Pipe to 3/8" Push Lock
Fitting, 3/8" F. Pipe to 3/8" Push Lock
Pipe Plug, 3/8" NPT
Idler Assembly #6010194
32
4
3
2
1
3
7
6
9
ITEM PART NO. QTY DESCRIPTION
1 6048218 1 Idler Arm
2 2500074 1
3 2900006 2
4 2900013 1
5 2900521 1
6 2900018 1
7 2900033 1 Hex Nut, 3/8-16
8 2500195 1
9 2900055 1 Cotter Pin, 3/16" x 1"
Idler Pulley 3"
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
Tap Bolt, Hex Hd., 3/8-16 x 2-1/2"
Lock Nut, 3/8-16 Nylon
Spring, 3/8" x 7-3/4"
8
5

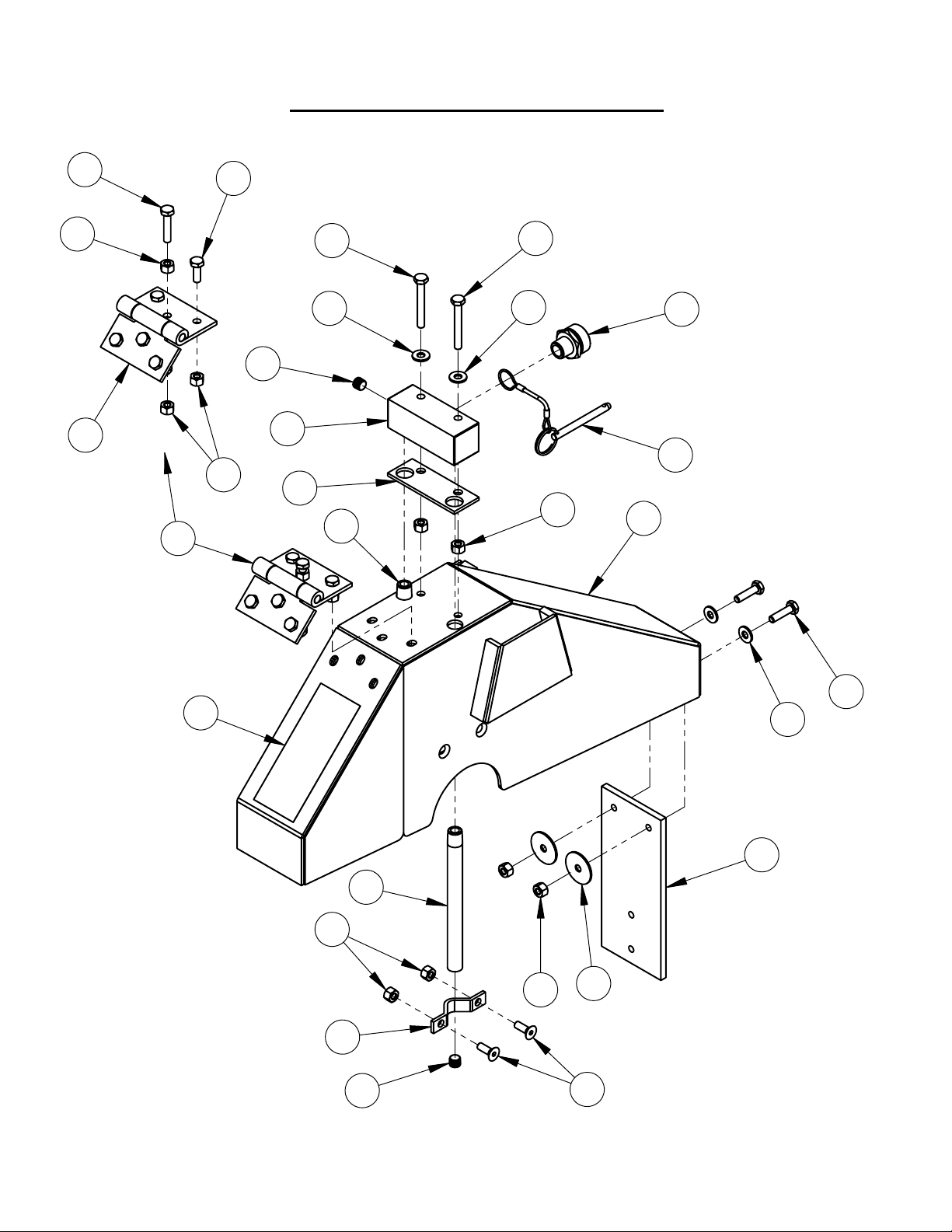

Belt Guard Assembly #6011428
33
6
7
8
2
1
6
7
8
8
7
6
2
2
3
4
5
3
4
5
10
11
3
4
5
ITEM PART NO. QTY DESCRIPTION
1 6011013A 1 Belt Guard Weldment
2 6010558 3
3 2900473 3 Flat Washer, 3/8" USS
4 2900006 3
5 2900005 3
6 2900022 6 Flat Washer, 5/16" SAE
7 2900031 6
8 2900019 6
9 6010555 1
10 2900307 1
11 2900156 1
Guard Mounting Tab, 3/8-16
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 1"
Lock Washer, 5/16" Split
Cap Screw, Hex Hd., 5/16-18 x 3/4"
Shaft/Flange Guard (Narrow)
Wing Screw, M6 x 16mm
Lock Pin with Ring
9
Front Pointer Assembly #6011220
34
11
5
10
6
3
4
1
12
10
9
2
3
7
8
ITEM PART NO. QTY.
1 6010541 1
2 6011152 2
3 6010009 1 Front Pointer Rod
4
5 2501409 1
6
7 2900105 2
8
9 2900005 2
10
11
12 6011226 1 Pointer Lanyard
2500740 1
2500007 2
2900026 2
2900033 4
2900013 2
Front Pointer Frame
Front Pointer Arm
Pointer Cap
Wheel, 6"
Set Collar, 1/2" with Set Screw
Cap Screw, Hex Hd., 1/2-13 x 2-3/4"
Lock Nut, 1/2-13 Nylon
Cap Screw, Hex Hd., 3/8-16 x 1"
Hex Nut, 3/8-16
Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
DESCRIPTION
2
7
35
Notes
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
14" Blade Guard Assembly #6010600
36
20
21
18
17
20
19
10
9
4
7
8
13
9
4
6
11
12
1
16
3
4
2
13
6
6
14
10
5
15
14" Blade Guard Assembly #6010600
37
ITEM PART NO. QTY. DESCRIPTION
1 6010601 1
2 6010081 1
3 2900008 2
4 2900009 4 Flat Washer, 1/4" SAE
5 2900083 2 Fender Washer, 1/4" x 1-1/4"
6 2900010 8
7 6010261 1 Water Manifold
8 2500830 1 Water Manifold Gasket
9 2900294 2
10 3200001 3
11 3200002 1
12 2900278 1
13 6048283 2 Water Tube for 14" Guard
14 6048155 2
15 2900020 4
16 1800001 1
17 6048150 1
14" Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Lock Nut, 1/4-20 Nylon
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/4" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Warning Label
Hinge Assembly for 14" Guard
ITEM PART NO. QTY. DESCRIPTION
18 2500270 1
19 2900144 5
20 2900010 7
21 2900052 1
Blade Guard Hinge
Cap Screw, Hex Hd., 1/4-20 x 3/4"
Lock Nut, 1/4-20 Nylon
Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
19
38
20" Blade Guard Assembly #6010602
18
17
20
10
9
4
7
8
13
9
4
12
6
11
1
16
3
4
2
13
6
6
5
14
10
15
20" Blade Guard Assembly #6010602
39
ITEM PART NO. QTY. DESCRIPTION
1 6010603 1
2 6010081 1
3 2900008 2
4 2900009 4 Flat Washer, 1/4" SAE
5 2900083 2 Fender Washer, 1/4" x 1-1/4"
6 2900010 8
7 6010261 1 Water Manifold
8 2500830 1 Water Manifold Gasket
9 2900294 2
10 3200001 3
11 3200002 1
12 2900278 1
13 6010085 2 Water Tube for 20" Guard
14 6048155 2
15 2900020 4
16 1800001 1
17 6010251 1
20" Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Lock Nut, 1/4-20 Nylon
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/4" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Warning Label
Hinge Assembly for 20" Guard
ITEM PART NO. QTY. DESCRIPTION
18 2500270 1
19 2900144 6
20 2900010 6
Blade Guard Hinge
Cap Screw, Hex Hd., 1/4-20 x 3/4"
Lock Nut, 1/4-20 Nylon
22
40
26" Blade Guard Assembly #6010604
23
21
19
20
24
11
7
8
18
14
1
10
9
4
12
13
17
3
4
14
6
15
6
11
16
5
2
26" Blade Guard Assembly #6010604
41
ITEM PART NO. QTY. DESCRIPTION
1 6010605 1
2 6010081 1
3 2900008 2
4 2900009 4 Flat Washer, 1/4" SAE
5 2900083 2 Fender Washer, 1/4" x 1-1/4"
6 2900010 6
7 6010261 1 Water Manifold
8 2500830 1 Water Manifold Gasket
9 2900024 2
10 2900294 2
11 3200001 3
12 3200002 1
13 2900279 1
14 6010086 2 Water Tube for 26" Guard
15 6048155 2
16 2900020 4
17 1800001 1
18 6010560 1
26" Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Lock Nut, 1/4-20 Nylon
Lock Washer, 1/4" Split
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/4" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Warning Label
Blade Guard Hinge Assembly
ITEM PART NO. QTY. DESCRIPTION
19 6010549 1
20 2900014 4 Flat Washer, 3/8" SAE
21 2900006 4
22 2900005 4
23 2900479 1
24 2900467 1
Blade Guard Hinge
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 1"
Cap Screw, Hex Hd., 3/4-10 x 4"
Lock Nut, 3/4-10 Nylon
26
42
30" Blade Guard Assembly #6010606
(Includes Items #1 - #18)
27
25
23
18
24
28
8
14
11
10
7
9
4
13
12
1
17
20
21
22
5
14
19
15
6
6
4
3
2
22
21
20
11
16
30" Blade Guard Assembly #6010606
43
(Includes Items #1 - #18)
ITEM PART NO. QTY DESCRIPTION
1 6010607 1
2 6010081 1
3 2900008 2
4 2900009 4 Flat Washer, 1/4" SAE
5 2900083 2 Fender Washer, 1/4" x 1-1/4"
6 2900010 6
7 6010261 1 Water Manifold
8 2500830 1 Water Manifold Gasket
9 2900024 2
10 2900294 2
11 3200001 3
12 3200002 1
13 2900279 1
14 6010087 2 Water Tube for 30" Guard
15 6048155 2
16 2900020 4
17 1800001 1
18 6010560 1
19 6011033 1 Blade Guard Brace
20 2900014 2 Flat Washer, 3/8" SAE
21 2900006 2
22 2900005 2
30" Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Lock Nut, 1/4-20 Nylon
Lock Washer, 1/4" Split
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/4" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Warning Label
Blade Guard Hinge Assembly
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 1"
ITEM PART NO. QTY. DESCRIPTION
23 6010549 1
24 2900014 4 Flat Washer, 3/8" SAE
25 2900006 4
26 2900005 4
27 2900479 1
28 2900467 1
Blade Guard Hinge
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 1"
Cap Screw, Hex Hd., 3/4-10 x 4"
Lock Nut, 3/4-10 Nylon
Optional Water Pump Assembly #6011032
44
9
10
5
6
2
1
3
5
6
7
4
3
8
7
8
ITEM PART NO. QTY.
1 2600200 1 Water Pump, 12V Diaphragm
2 2900008 4
3 2900009 8 Flat Washer, 1/4" SAE
4 2900010 4
5 2701694 2
6 3200016 2
7 6010302 1 Hose Assembly, 4 Foot
8 6010303 1
9 2800062 1 Toggle Switch
10 2800063 1
Cap Screw, Hex Hd., 1/4-20 x 1"
Lock Nut, 1/4-20 Nylon
Port Fitting, 1/2" Barb x 90 Degree
Hose Clamp #8
Hose Assembly, 5 Foot
Switch Boot
DESCRIPTION

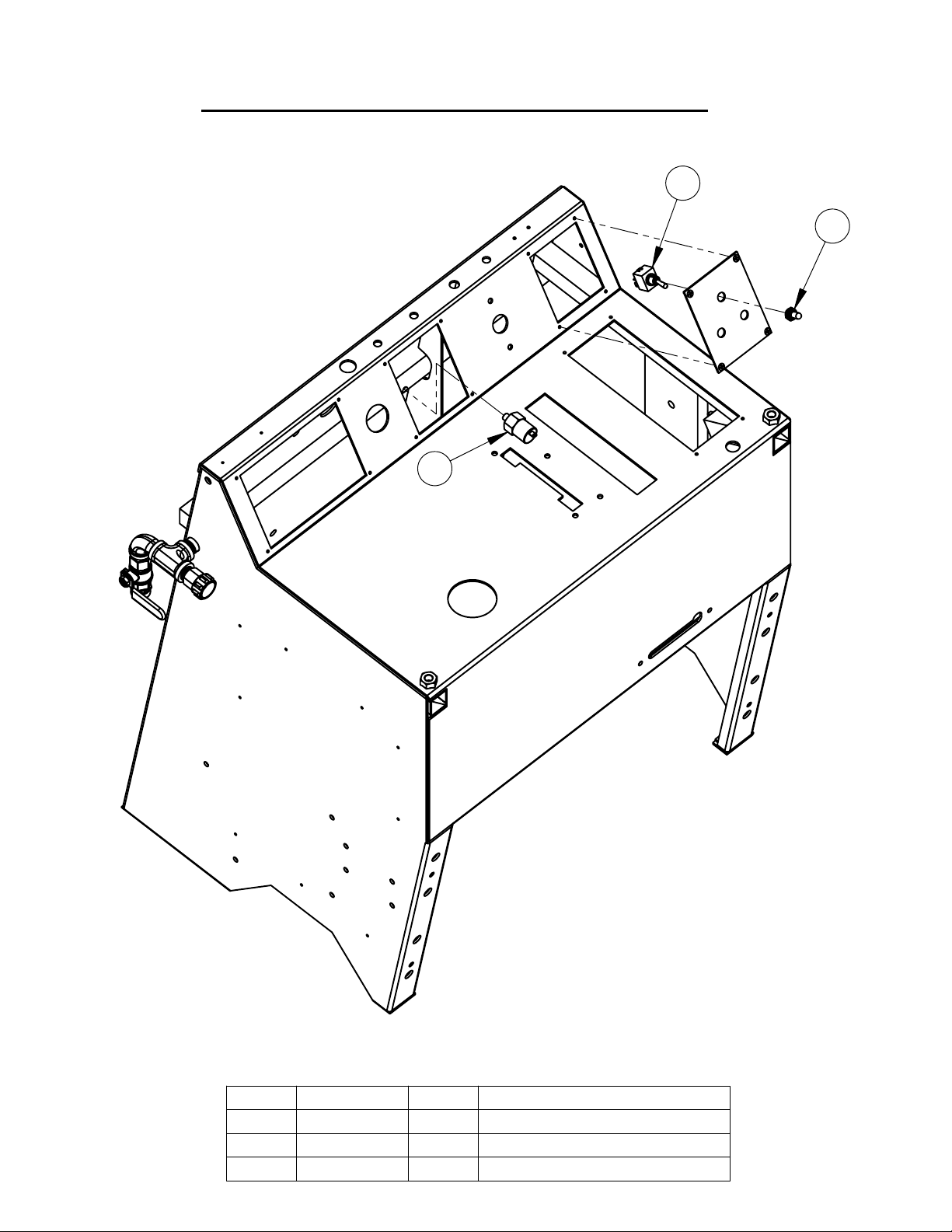

Optional Water Safety Switch Assembly #6047932
45
2
1
3
ITEM PART NO. QTY DESCRIPTION
1 2800060 1
2 2800062 1
3 2800063 1 Switch Boot
Water Pressure Safety Switch
Toggle Switch On/Off

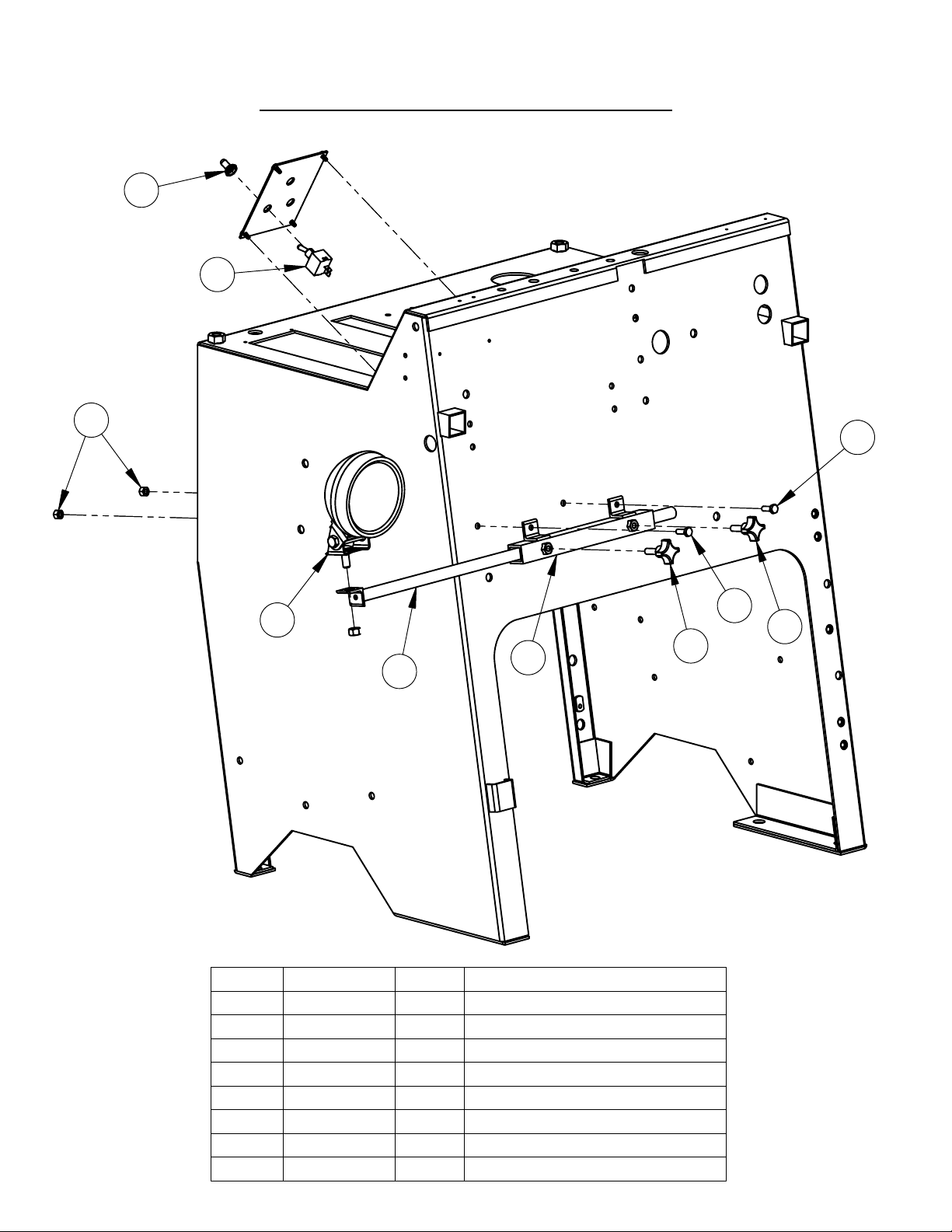

Optional Spot Light Assembly #6010112
46
8
7
6
5
1
2
ITEM PART NO. QTY.
1 2500194 1
2 6010106 1
3 6010107 1
4 2400157 2
5 2900144 2
6 2900010 2
7 2800062 1
8 2800063 1
3
DESCRIPTION
Spot Light, 12 Volt
Light Bar
Light Bar Mount Bracket
Hand Lock Knob, 5/16-18 x 1"
Cap Screw, Hex Hd., 1/4-20 x 3/4"
Lock Nut, 1/4-20 Nylon
Toggle Switch
Switch Boot
4
5
4
Optional Magentic Spot Light Assembly #6011170
47
1
5
2
4
1
2
3
ITEM PART NO. QTY.
1
2
3
4
5
2501087 1
2800374 1
2800375 1
2800062 1
2800063 1
DESCRIPTION
Light, 12V Magnetic Base
Outlet, 12 Volt Power
Cap, 12 Volt Power Outlet
Toggle Switch
Switch Boot

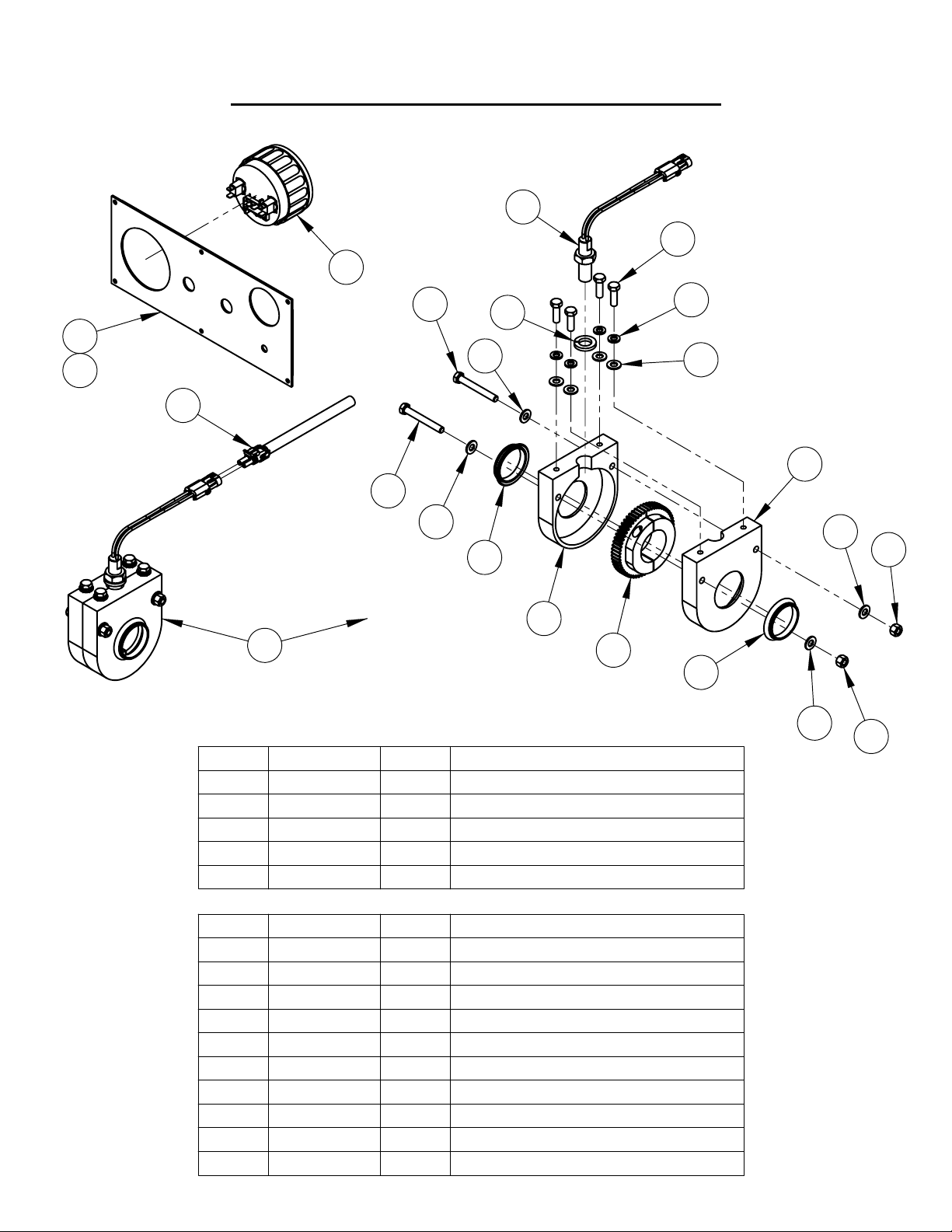

Optional Shaft Tachometer Assembly #6011434
48
8
15
3
13
1
2
4
13
11
5
ITEM PART NO. QTY. DESCRIPTION
9
11
10
7
6
Gauge Panel160110731
Blade RPM Decal118003432
Tach/Hour Meter (VDO) Calibrated160104163
Tach Sensor Wire Harness128003974
Shaft Tach Gear Assembly160114215
14
11
7
11
12
10
11
12
ITEM PART NO. QTY DESCRIPTION
6 6010230 1 Shaft Tach Gear, Split
7 6010669 2 Shaft Tach Gear Guard
8 2800169 1 Magnetic Sensor w/Jam Nut
9 2900113 1 Lock Washer, 5/8" Split
10 2501752 2 Seal, 1-3/4" V-Ring
11 2900022 8 Flat Washer, 5/16" SAE
12 2900039 2 Lock Nut, 5/16-18 Nylon
13 2900726 2 Cap Screw, Hex Hd., 5/16-18 x 2-1/2"
14 2900031 4 Lock Washer, 5/16" Split
15 2900138 4 Cap Screw, Hex Hd., 5/16-18 x 1"

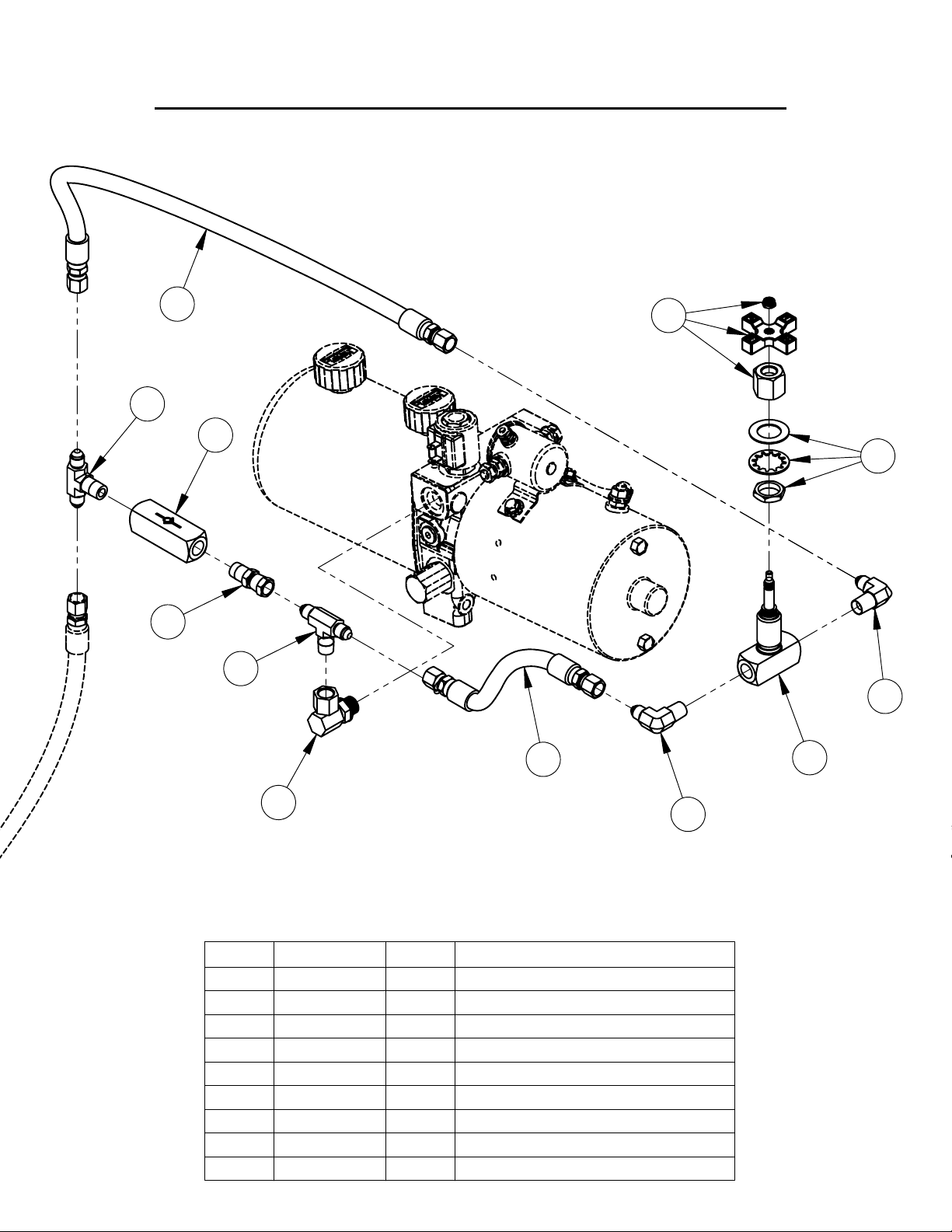

Optional Loweri ng Sp eed Metering Valve Assembly #6010227
49
9
5
7
6
5
1
2
3
4
ITEM PART NO. QTY.
1 3200211 1
2 3200212 1
3 3200057 2
4 3200115 1
5 3200213 2
6 3200219 1
7 3200218 1
8 6010247 1
9 6010248 1
8
3
DESCRIPTION
Valve, 1/4" Metering
Panel Mounting Kit
Elbow, 1/4" M. Pipe to 1/4" M. JIC
Elbow, 3/8" O-Ring to 1/4" F. Pipe
Tee, 1/4" M. JIC to 1/4" M. Pipe
Adapter, 1/4" M. Pipe to 1/4" F. JIC
Check Valve
Hose Assembly, 8" Long
Hose Assembly, 20" Long
1
20
50
Optional Parking Brake Assembly #6011228
8
23
9
23
19
7
6
22
22
21
21
12
11
10
1
4
16
13
3
17
18
2
14
15
5
Optional Parking Brake Assembly #6011228
51
ITEM PART NO. QTY.
1 6011229 1
2 2501664 1
3 6011230 1
4 6048229 1
5 6011231 1
6 2900083 1
7 2900024 1
8 2900082 1
9 6011232 1
10 2900473 1
11 2900474 1
12 2900005 1
13 6011234 1
14 2900632 1
15 2900037 1
16 2900014 2
17 2900006 2
18 2900196 2
19 6011233 1
20 2500002 1
21 2900022 2
22 2900019 2
23 2900039 2
DESCRIPTION
Bearing Housing Bar
Ball Bearing, 3/4" x 1-5/8" x 7/16"
Pivot Pin
Key, 3/16" Sq. x 1-1/4"
Pivot Arm
Fender Washer, 1/4" x 1-1/4"
Lock Washer, 1/4" Split
Cap Screw, Hex Hd., 1/4-20 x 1/2"
Brake Lever
Flat Washer, 3/8" USS
Belleville Washer, 3/8"
Cap Screw, Hex Hd., 3/8-16 x 1"
Friction Washer, 3/4" x 2-1/2" x 3/8"
T-Bolt, 1/2-13
Hex Nut, 1/2-13
Flat Washer, 3/8" SAE
Lock Washer, 3/8" Split
Cap Screw, Hex Hd., 3/8-16 x 3/4"
Lever Gate
Lever Grip
Flat Washer, 5/16" SAE
Cap Screw, Hex Hd., 5/16-18 x 3/4"
Lock Nut, 5/16-18 Nylon
Optional Blade Stacking Assembly #6010630
52
(Up to 1-1/2" width)
5
23
12
13
15
18
9
14
21
18
16
17
4
3
2
6
1
22
20
19
15
11
11
15
19
11
8
9
20
7
10
Optional Blade Stacking Assembly #6010630
53
(Up to 1-1/2" width)
ITEM PART NO. QTY. DESCRIPTION
1 6010159 1 Outer Flange 4-1/2" with Pin
2 2900002 1 Flat Washer, 5/8" SAE
3 2900113 1 Lock Washer, 5/8" Split
4 2900210 1 Cap Screw, Hex Hd., 5/8"-11 x 5" LH
5 6010620 1 20" Wide Blade Guard Assembly
ITEM PART NO. QTY.
6 6010621 1
7 6010296 1
8 2900008 2
9 2900009 4
10 2900083 2
11 2900010 8
12 6010288 1
13 2500988 1
14 2900294 2
15 3200001 3
16 3200002 1
17 2900278 1
18 6010085 2
19 6048155 2
20 2900020 4
21 3200208 1
22 1800001 1
23 6010251 1
DESCRIPTION
20" Wide Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Flat Washer, 1/4" SAE
Fender Washer, 1/4" x 1-1/4"
Lock Nut, 1/4-20 Nylon
Water Manifold
Water Manifold Gasket
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/8" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube for 20" Guard
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Nozzle, 1/4" NPT
Warning Label
Hinge Assembly for 20" Guard
Optional Blade Spacing Assembly #6010631
54
(Up to 2" width)
5
4
14
9
15
12
16
13
2
1
22
23
18
21
18
11
3
17
6
8
9
20
20
19
15
11
15
19
11
7
10
Optional Blade Spacing Assembly #6010631
55
(Up to 2" width)
ITEM PART NO. QTY. DESCRIPTION
1
2
3
4
5
6010186 1 Blade Shaft Extension, Left Hand Thread
6010187 1 Outer Flange 4-1/2"
2900218 1 Dowel Pin, 3/8" Dia. x 3-1/2"
2900212 1 Hex Nut, 1"-14 Left Hand
6010620 1 20" Wide Blade Guard Assembly
ITEM PART NO. QTY.
6 6010621 1
7 6010296 1
8 2900008 2
9 2900009 4
10 2900083 2
11 2900010 8
12 6010288 1
13 2500988 1
14 2900294 2
15 3200001 3
16 3200002 1
17 2900278 1
18 6010085 2
19 6048155 2
20 2900020 4
21 3200208 1
22 1800001 1
23 6010251 1
DESCRIPTION
20" Wide Blade Guard Front & Rear Only
Splash Flap
Cap Screw, Hex Hd., 1/4-20 x 1"
Flat Washer, 1/4" SAE
Fender Washer, 1/4" x 1-1/4"
Lock Nut, 1/4-20 Nylon
Water Manifold
Water Manifold Gasket
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/8" M. Pipe to 3/4" M. Garden
Lanyard with Lock Pin
Water Tube for 20" Guard
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Nozzle, 1/4" NPT
Warning Label
Hinge Assembly for 20" Guard
Optional Blade Spacing Assembly #6010632
56
(Up to 4" width)
5
4
24
14
16
2
1
23
22
15
12
13
21
9
3
17
6
8
9
18
11
15
11
18
11
7
10
19
20
Optional Blade Spacing Assembly #6010632
57
(Up to 4" width)
ITEM PART NO. QTY. DESCRIPTION
1
2
3
4
5 6010622 1 20" Wide Blade Guard Assembly
6010309 1 Blade Shaft Extension, Left Hand Thread
6010187 1 Outer Flange 4-1/2"
6010359 1 Drive Pin, 3/8" Dia. x 5"
2900212 1 Hex Nut, 1"-14 Left Hand
ITEM PART NO. QTY.
6 6010623 1
7 6010366 1 Splash Flap
8
9
10
11
12 6048123 2 Water Manifold
13 2500829 2 Water Manifold Gasket
14
15
16
17
18
19
20 2900020 4
21
22
23
24 6010588 1 Hose Assembly, Dual Inlet
2900008
2900009
2900083
2900010
2900294
3200001
3200002
2900278 1 Lanyard with Lock Pin
6010085 2
6048155 2
3200208
1800001 1
6010251
3
7
3
11
4
4
2
2
2
20" Wide Blade Guard Front & Rear Only
Cap Screw, Hex Hd., 1/4-20 x 1"
Flat Washer, 1/4" SAE
Fender Washer, 1/4" x 1-1/4"
Lock Nut, 1/4-20 Nylon
Cap Screw, Hex Hd., 1/4-20 x 2"
Plug, 1/8" NPT
Fitting, 3/8" M. Pipe to 3/4" M. Garden
Water Tube for 20" Guard
Water Tube Clamp
Cap Screw, Flat Hd., 1/4-20 x 3/4"
Nozzle, 1/4" NPT
Warning Label
Hinge Assembly for 20" Guard
DESCRIPTION
58
Wiring Diagram
q
q
59
Diagram
Number
1 2800390 1 Engine Harness (Includes #35) 28 2800271 1 Volt Meter
2 2800391 1 Control Panel Harness (Includes #36) 29 2800064 1 Hour Meter
3 2800392 1 Relay Harness 30 6010416 1 Optional Tach/Hour Meter (VDO) Calibrated
4 2800393 1 Hydraulic Pump Harness 2800611 2 (Light Socket)
5 2800073 1 Battery Cable, Positive (Red) 2800612 2 (Light Bulb, Wedge Base)
6 2800072 1 Battery Cable, Negative (Black) 31 2800169 1 Optional Magnetic Sensor (Includes #33)
7 2800095 1 Solenoid Cable, Positive (Red) 32 2800397 1 Optional Tach Sensor Harness
8 2800182 1 Ground Cable, Negative (Black) (Includes #33 & #34)
9 2700208 1 Battery, 12 Volt 33 2800145 2 Optional Connector, 2 Wire Shroud
10 2600070 1 Hydraulic Pump Unit (Includes #11 and #12) 2800114 4 Male Terminal, 14/16 Gage Wire
11 2700169 1 Solenoid, Motor 2800174 4 Cable Seal, Gray
12 2700243 1 Valve Coil 34 2800146 2 Optional Connector, 2 Wire Tower
13 2800372 1 Pushbutton Switch, Raise 2800174 4 Cable Seal, Gray
14 2800373 1 Pushbutton Switch, Lower 35 2800110 1 Connector, 6 Wire Shroud
15 2700205 1 Ignition Coil 2800114 4 Male Terminal, 14/16 Gage Wire
16 2701474 1 Distributor for 35HP Engine 2800112 2 Male Terminal, 12 Gage Wire
17 2700299 1 High Temperature Safety Switch 2800175 2 Cable Seal, Blue
18 2701634 1 Flywheel Alternator, 30 Amp 36 2800111 1 Connector, 6 Wire Tower
19 2701023 1 Rectifier/Regulator Module 2800115 4 Female Terminal, 14/16 Gage Wire
20 2700247 1 Starting Motor (Includes #21) 2800113 2 Female Terminal, 12 Gage Wire
21 2700282 1 Solenoid Switch 2800174 4 Cable Seal, Gray
22 2800386 1 Vacuum Switch 2800175 2 Cable Seal, Blue
23 2500220 1 Ignition Switch 37 2800062 3 Optional Toggle Switch
24 2800387 1 Circuit Breaker, 25 Amp 2800063 3 Switch Boot
25 2800144 1 Relay 39 2500194 1 Optional Spot Light, 12 Volt
26 2800461 1 Emergency Stop Button 2800375 1 Outlet Cap
27 2800388 1 Fuse Panel, 6 Circuit 43 2701030 1 Anti-Diesel Solenoid Valve
Part
No.
2700244 1 Valve Stem 2800115 4 Female Terminal, 14/16 Gage Wire
2701475 1 Distributor for 65HP Engine 2800174 4 Cable Seal, Gray
2800364 1 Circuit Breaker Boot, Red 38 2800060 1 Optional Water Pressure Safety Switch
2800263 1 Relay Connector 40 2501087 1 Optional Magnetic Base Light, 12 Volt
2800264 4 Wire Terminal, 1/4" Push-on 41 2800374 1 Optional Power Outlet, 12 Volt
2800462 1 Contact Block N.C. 42 2600200 1 Optional Water Pump, Diaphragm
2800389 6 Fuse, 10 Amp Red ATO/ATC for 65HP Engine Only
Qty.
Re
.
Description
Diagram
Number
Part
No.
Qty.
Re
.
Description
60
Decal Group
CORE CUT DECAL INSTRUMENT PANEL DECAL
#1800256 (Qty. 3) #1800342
RPM CHART DECAL WARNING DECAL
#1800949 #1800001
SAW LABELS SHEET
#1800351
61
Notes
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
____________________________________
62
Fig. 16
Blade Speed Conversion Charts
63
WARNING:
Do not exceed blade speed (RPM) shown for each blade size.
Excessive blade speed could result in blade breakage and serious personal injury!
Blade Size
No Load RPM Sheave Size No Load RPM Sheave Size
14" 3,000 3.65" 3,000 3.65" 12 4-3/8"
20" 2,500 3.65" 2,500 3.65" 9 7-3/8"
26" 1,900 4.12" 2,500 3.12" 9 10-3/8"
30" 1,650 4.12" 2,200 3.12" 8 12-3/8"
Blade Shaft Engine
Governor
Setting
Max. Depth
of Cut
WARNING:
Model CC3535
Blade Guard Assembly
Engine Sheave, 1-7/16" Bore
(Sheave Size)
Blade Shaft Sheave, 1-3/4" Bore
(Sheave Size)
When changing blade size, use chart shown below for selecting items that must be changed.
14" 20" 26" 30"
6010600 6010602 6010604 6010606
6011008
(3.65")
6011009
(3.65")
6011008
(3.65")
6011009
(3.65")
6011084
(3.12")
6011010
(4.12")
6011084
(3.12")
6011010
(4.12")
EQUIPMENT AND PARTS
WARRANTY
Diamond Products warrants all equipment manufactured by it against defects
in workmanship or materials for a period of one (1) year from the date of
shipment to Customer.
The responsibility of Diamond Products under this Warranty is limited to
replacement or repair of defective parts at Diamond Products’ Elyria, Ohio
factory, or at a point designated by it, of such parts as shall appear to us upon
inspection at such parts, to have been defective in material or workmanship,
with expense for transportation and labor borne by Customer.
In no event shall Diamond Products be liable for consequential or
incidental damages arising out of the failure of any Product to operate properly.
Integral units such as engines, electric motors, batteries, transmissions,
etc., are excluded from this Warranty and are subject to the prime
manufacturer’s warranty.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, AND ALL SUCH OTHER WARRANTIES ARE HEREBY
DISCLAIMED.
333 Prospect Street, Elyria, Ohio 44035
(440) 323-4616 • (800) 321-5336 • Fax (440) 323-8689
www.diamondproducts.com
Printed in U.S.A. #1800950
Loading...
