CB50E Controls & Components
r
Out of Electrical
Phase Warning Light
Hour Mete
Electrical Phase
Solector Switch
Belly Box Harness
Connection
High Motor
Temperature Light
Hand Saw & Wall
Saw Selector Switch
Travel Direction
Polarity Switch
Cutting Arm Polarity
Switch
Arm and Travel
Pressure Gauge
Saw Motor Pressure Gauge
Low Hydraulic Oil Level & High
Temperature Switch
Cooling Water Inlet
Saw Pressure Connection
Saw Tank Connection
Blade Down Connection
Travel Forward Connection
Saw Motor Case Drain Connection
Travel Reverse Connection
Blade Up Connection
Arm & Travel Pump
Cooling Water Outlet
Saw Pump
Electric Motor
Saw Motor Flow Meter
Cooling Water Drain and Blow-Off Valve
CB50E Reservoir & Filter
3
1
2
Item
1
2
3
3
Description Part Number
Filler Breather Cap 2401305
Reservoir Oil Level & Temperature Sight Glass HSG-55
Low Level & High Temperature Switch B4030N-65-N-N0
1
2
Item
1
2
3
Description Part Number
Filter Head SF1302513
Spin-On Hydraulic Filter, 10 Micron 3205552
Filter Indicator Pressure Gauge CI-20
CB50E Pumps
Item
1a
1b
1c
1d
2
3
1A & B
PUMP MOTOR ADAPTER, Steel 1202-230MM-X-8.5
Coupling Half, Electric Motor 4A0-41-00
Coupling Half, Pump 4A0-75-00
Coupling Flexible Insert 40H-00-00
Hydraulic Pump, Saw 7004207S
Hydraulic Pump, Travel & Blade Depth PF1003-J1069
2
Description Part Number
3

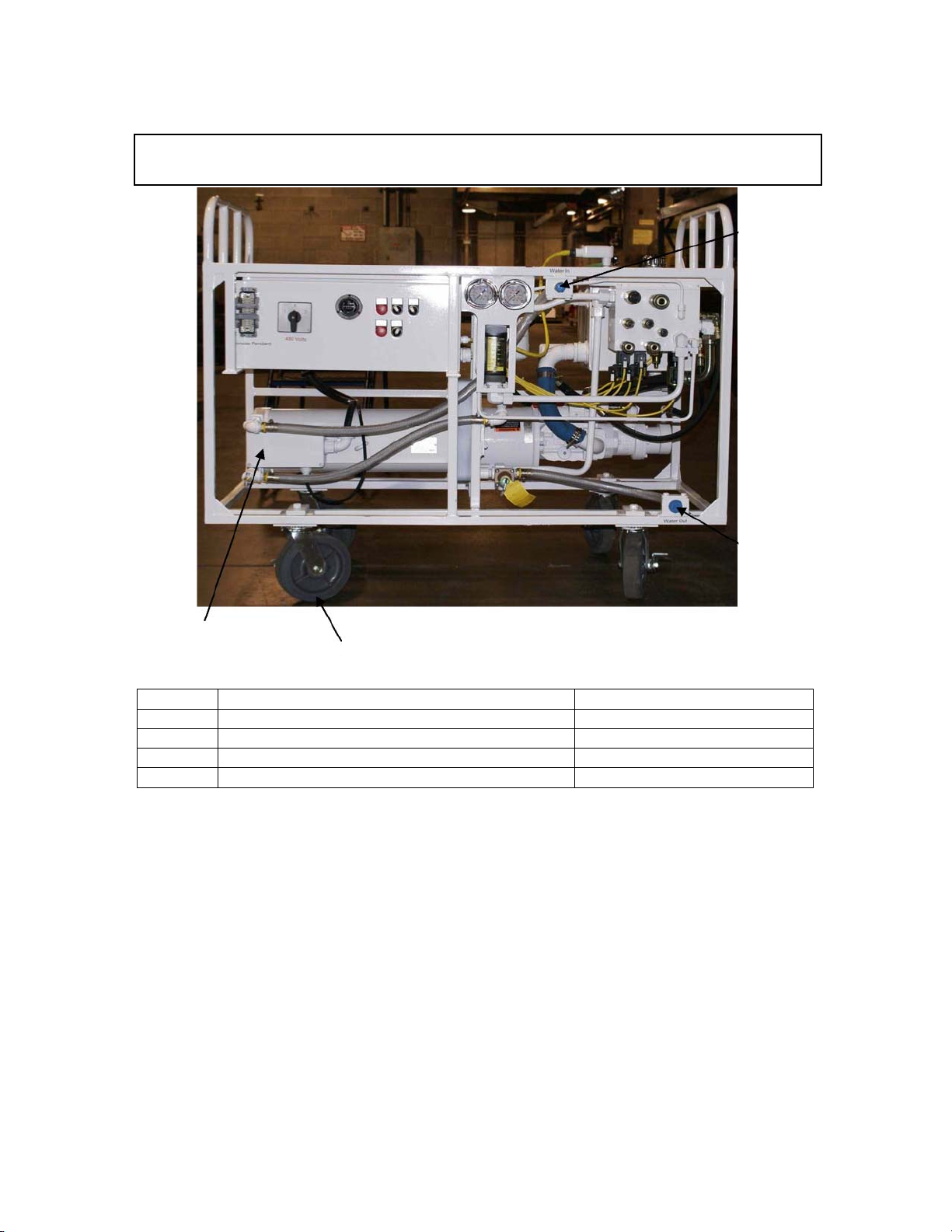

CB50E Motor, Casters, & Water
4
3
1
2
Item Description Part Number
1 Motor, Water Cooled Electric 2600497
2 Caster, Swivel 2504393
3,4 Fitting, Cooling Water Inlet / Outlet 4KG67
5 Caster, Rigid 2504392
CB50E Valve Manifold Quick
Disconnects
1A, B, C
7A, B, C
6A, B, C
Note: Manifold Shown looking at front face and left side
Item
1A
1B
1C
2A
2B
2C
3A
3B
3C
4A
4B
4C
5A
5B
5C
6A
6B
6C
7A
7B
7C
Saw Motor Pressure Quick Disconnect, Male 3200933
SAE #12 O-Ring to JIC Adapter 3200265
O-Ring Parker -912, 90 Durometer, Buna N 3201433
Saw Motor Tank Quick Disconnect, Female 3200932
SAE #12 O-Ring Male to #12 JIC Male Adapter 3200265
O-Ring Parker -912, 90 Durometer, Buna N 3201433
Travel Forward Quick Disconnect, Male 3201293
SAE #6 O-Ring Male to #6 JIC Male Adapter 3200263
O-Ring Parker -906, 90 Durometer, Buna N 3201432
Travel Reverse Quick Disconnect, Female 3201292
SAE #6 O-Ring Male to #6 JIC Male Adapter 3200263
O-Ring Parker -906, 90 Durometer, Buna N 3201432
Saw Motor Case Drain Quick Disconnect, Female FF04-S916M
SAE #6 O-Ring Male to #4 JIC Male Adapter 3200375
O-Ring Parker -906, 90 Durometer, Buna N 3201432
Blade Up Quick Disconnect, Male 3201293
SAE #6 O-Ring Male to #6 JIC Male Adapter 3200263
O-Ring Parker -906, 90 Durometer, Buna N 3201432
Blade Down Quick Disconnect, Female 3201292
SAE #6 O-Ring Male to #6 JIC Male Adapter 3200263
O-Ring Parker -906, 90 Durometer, Buna N 3201432
Description Part Number
2A, B, C
3A, B, C
5A, B, C
4A, B, C

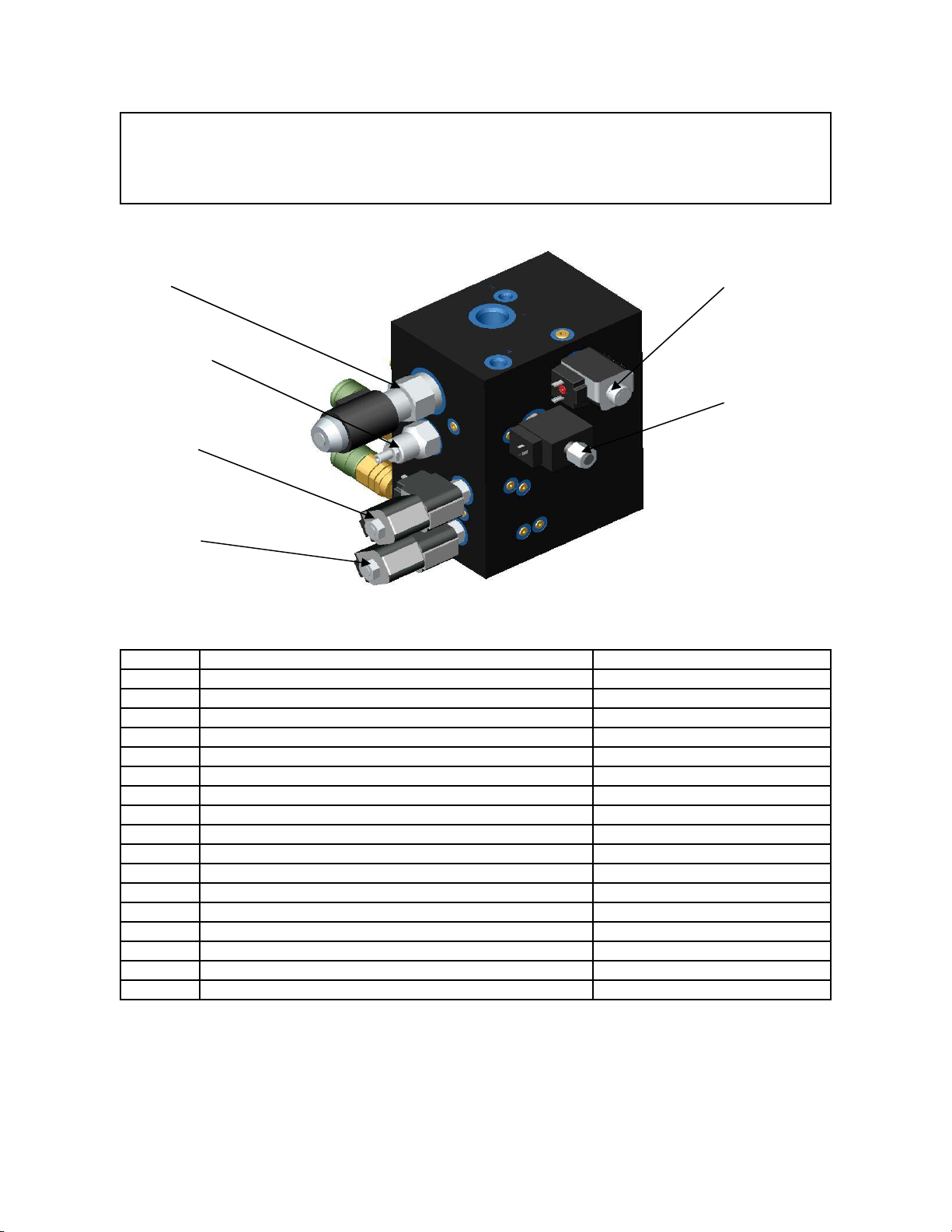

CB50E Manifold Cartridge Valves
6A, B
5
4A, B
3A, B
Note: Manifold Shown looking at rear face and bottom side
Item
1A
1B
2A
2B
3A
3B
4A
4B
5
6A
6B
Saw Pressure Proportional Relief Cartridge AP02A2-29-00N
Saw Pressure Proportional Relief Solenoid CAP024D
Seal Kit for Item 1 SK3006N-1
Travel & Blade Pressure Proportional Relief Cartridge ERV101N3M
Travel & Blade Pressure Proportional Relief Solenoid 851020-24
Seal Kit for Item 2 SK10-2
Blade Up/Down Valve Cartridge 3200178
Blade Up/Down Valve Solenoid 3202313
Seal Kit for Item 3 SK30078N-1
Travel Forward/Reverse Valve Cartridge 3200178
Travel Forward/Reverse Valve Cartridge 3202313
Seal Kit for Item 4 SK30078N-1
Main Safety Relief Valve, 4100 psi CP211-2-B-0-E-D
Seal Kit for Item 5 120017
Saw Propotional Flow Control Cartridge & Solenoid 3205847
Saw Propotional Flow Control Solenoid 02-154070
Seal Kit for Item 6 02-154069
Description Part Number
1A, B
2A, B
CB50E Belly Box
1
Item
1
Complete Box Assembly, Strap, Cord, Connector 6011315
2
3A
3B
3C
Connector Cable Gland (max cable OD 12-20mm) 2802992
4
2
Description Part Number
Strap 2704153
Connector Housing, Side Entry 2802991
Connector, Internal Parts male 2802937
Cable(Specify Footage) 2800685
3
4
CB50E Belly Box Parts
Item
1
1a
1b
1c
2
2a
2b
3
3a
4
4a
4b
5
5a
5b
6
6a
7
7a
7b
8
8a
8b
1
2
1a
Belly Box Housing(Cover & Base Only) 2704152
Arm Lower/Raise Switch (Operator Only) 2802965
NO contact block(2 required) 3402113
Arm L Off R (Legend Plate Yellow/Black) 2802984
Saw Pressure Potentiometer 2800663
Cut Force (Legend Plate Yellow/Black) 2802985
Travel Direction Switch (Operator Only) 2802964
NO contact block(2 required) 3402113
Travel L Off R (Legend Plate Yellow/Black) 2802986
E-Stop (Legend Plate Yellow/Black) 2802987
Tool Speed (Legend Plate White/Black) 2802988
Push Button w/Motor Run Light(Operator Only) 2802966
Start (Legend Plate White/Black) 2802989
Tool Off/On (Legend Plate White/Black) 2802990
4
3
Description Part Number
End Cover(2 required)
Protection Rod/Notched 2705009
Protection Tube 2705008
E-Stop (operator only) 2802983
NC contact block 3402114
Saw Speed Potentiometer 2800663
N.O Contact Block 3402113
Tool Switch (Operator Only) 2802963
N.O Contact Block 3402113
5
6
1c
8
1b
7
2705007
CB50E Gauges
1
3
2
4
Item
1
2
3
4
Description Part Number
Pressure Gauge, 0 to 3000 3200250
Pressure Gauge, 0 to 5000 2706874
Flow Meter
Water Pop-Off & Drain Valve 2707210
3201596
