Diamond CB21H-XL User Manual

DIAMOND

PRODUCTS

HYDRAULIC POWER UNIT

PARTS LIST &

OPERATOR’S MANUAL

MODEL:

CB21H-XL

AUGUST 2012

PART#: 1801397

Proposition 65

State of California

Warning !

Engine exhaust and some its constituents are known to the State of California to cause cancer, birth defects, and/or other reproductive harm.

Notification of Spark Arrester Requirement for

State of California

It is a violation of Section 4442 or 4443 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the engine is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order or the engine is constructed, equipped, and maintained for the prevention of fire pursuant to Section 4443.

1 6010869 1 Fuel Tank, 4.4 Gallon 2 2506716 1 Grommet 3 2505503 1 Roll Over Vent, 3/8" Hose Barb 4 2503294 1 Fuel Tank Cap, W/Gage 5 3200418 1 Adapter, 1/4" M. Pipe to 1/4" M. JIC 6 3200108 1 Ball Valve, 1/4" NPT 7 3200012 1 Street Elbow, 1/4" NPT 8 2900022 4 Flat Washer, 5/16" SAE 9 2900031 4 Lock Washer, 5/16" Split

10 2900019 4 Cap Screw, Hex Hd., 5/16-18 x 3/4"

8

9

10

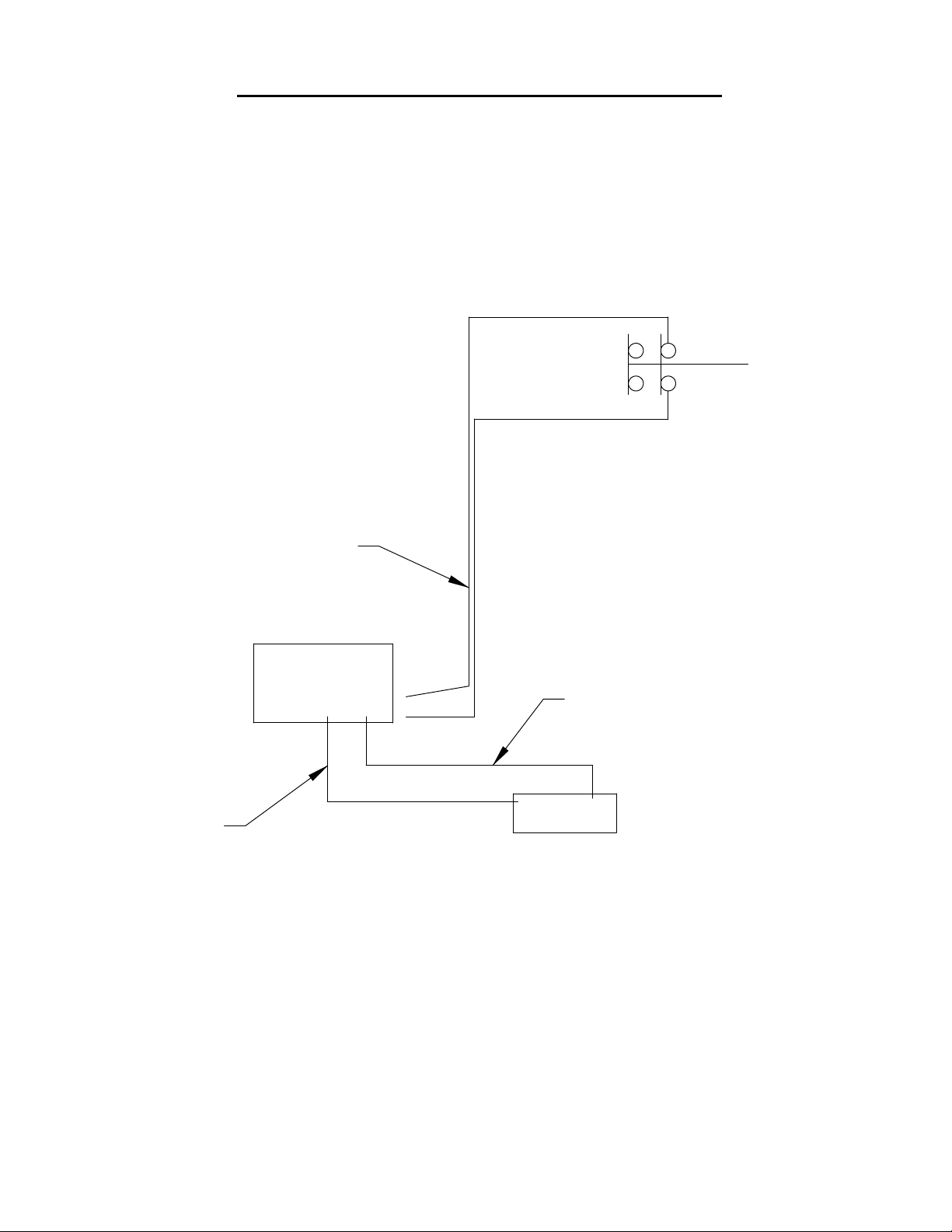

4646190 CB21XL ELECTRIC SCHEMATIC

14

4645036

STOP SWITCH TO

MATING CONNECTORS

AT IGNITION SWITCH

STOP

SWITCH

4646015

TO COIL

4646016

GROUND

ENGINE

TO ENGINE

MOUNTING BOLT

+ -

BATTERY

FOR EASE OF ASSEMBLY, ATTACH WIRES TO STOP SWITCH

BEFORE INSTALLING IN PANEL.

NOTES

15

____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________

4646173 HYDRAULIC TANK ASSEMBLY

16

22

23

21

13

6

18

17

16

15

14

11

8

5

10

12

19

20

4

2

1

3

7

9

2

3

4646173 HYDRAULIC TANK ASSEMBLY

17

ITEM PART NO. QTY. DESCRIPTION

1 4640120 1 Hydraulic Tank Weldment 2 3200409 2 Street Elbow, 1" NPT

3 3200427 2 Nipple, 1" NPT x 4" 4 3200289 1 Elbow, 1" M. Pipe to 1" M. JIC 5 3200431 1 NIpple, 1"MPT - 3/4" MPT 6 2400166 1 Sight Gauge, Liquid Level 7 3200160 1 Plug, 1/2-14 NPT

8 2703290 1 Filter Head, 3/4" NPT 9 3201175 1 Hydraulic Filter Element

10 3200156 1 Street Elbow, 1/8" NPT 11 3200502 1 Gauge, Hydraulic Pressure

12 3200097 1 Adapter, 3/4" M. JIC to 3/4" M. Pipe 13 2900441 10 Rivet Nut, 1/4-20 Round

14 4646083 1 Gasket, Hyd Tank 15 4640121 1 Cover, Hydraulic Tank

16 2800459 1 Thermometer, 2", 0 - 200 F 17 2401305 1 Filler/Breather Cap (Top Mount)

2900339 6 Cap Screw, Hex Hd., M5 x 12mm

18 2900567 2 Flat Washer, 5/16" USS 19 2900031 2 Lock Washer, 5/16" Split

20 2900138 2 Cap Screw, Hex Hd., 5/16-18 x 1" 21 2900024 10 Lock Washer, 1/4" Split 22 2900023 10 Cap Screw, Hex Hd., 1/4-20 x 5/8" 23 1800535 1 Decal, "Hydraulic Fluid Only"

4646189 CB21 XL PANEL ASSEMBLY

18

6x

2 3 4

41

26

30

40

36

2

43

7

33

31

34

35

42

39

32

8x

87

17

19

20

23

18

1

36 38

37

12

5

15

14

2122

24

13

29

9 7

28

27

11

8x

6

25

79

10

16

10

27

4646189 CB21 XL PANEL ASSEMBLY

19

ITEM PART NO. QTY. DESCRIPTION

1 4646141 1 Instrument Panel 2 2900022 8 Flat Washer, 5/16" SAE 3 2900031 6 Lock Washer, 5/16" Split 4 2900138 6 Cap Screw, Hex Hd., 5/16-18 x 1" 5 4646102 1 Manifold, SAE O-Ring 6 4646101 1 Manifold, 3/4 NPT 7 2900009 20 Flat Washer, 1/4" SAE 8 2901001 8 Cap Screw, Hex Hd., 1/4-20 x 2-1/2"

9 2900010 10 Lock Nut, 1/4-20 Nylon 10 3200479 2 Plug, 3/4" NPT Square Head 11 3201434 1 Plug, 1/2" SAE O-Ring Hex 12 3200285 1 Elbow, 1/2" O-Ring to 1/2" M. JIC 13 3201291 1 Adapter, 1/2"M.O-Ring to 1/4" MJIC 14 3200097 1 Adapter, 3/4" M. JIC to 3/4" M. Pipe

15 3200417 1 Elbow, 3/4" F. JIC to 3/4" M. JIC 16 3201522 1 Adapter, 3/4" M. Pipe to 1/2" M. JIC

17 3200330 1 Adapter, 3/4" M. Pipe to 3/4" O-Ring 18 3200371 1 Adaptor, 1/2" MPT to 1/2" O-Ring 19 3200105 1 Nipple, 1/2" Q.D. 20 3200101 1 Nipple, 3/4" Quick Disconnect 21 3200137 1 Hex Nipple, 3/4" NPT 22 3200383 1 Nipple, Hex, 3/4" MPT TO 1/2" MPT 23 3200100 1 Coupler, 3/4" Quick Disconnect 24 3200104 1 Coupler, 1/2" Q.D. 25 2400256 1 Heat Exchanger 26 2900303 2 Lock Nut, M8-1.25 Nylon Insert 27 3200400 2 Elbow, 3/4" O-Ring to 3/4" Male JIC 28 3201654 1 Valve, Flow Control 29 3200366 3 Elbow, 5/8" O-Ring to 1/2" Male JIC, 90 Deg. 30 2900245 2 Cap Screw, Soc. Hd., 1/4-20 x 2-5/8" 31 3200250 1 Gauge, Hydraulic, 3000 PSI 32 2800893 1 E-Stop Switch, DPST

33 2801502 1 Tach/Hour Meter, W/#6 Screws 34 2500204 1 Plug, 1/2" Hole

35 2503749 1 Plug, 5/16" Hole (Tapered) 36 3201659 2 Fitting, 3/4" M. Pipe to 3/4" M. Garden 37 3200177 1 Fitting, 3/4" F. Garden Union Swivel 38 1800536 1 "Return" Decal 39 1800941 1 Decal, Hydraulic Power Supply 40 1800531 1 "Hyd. Pressure" Decal

41 1801850 1 Decal, CB21 Flow Control 42 1801907 1 Decal, Stop

43 1801613 1 Decal, Core Bore CB21

4400267 AIR TO OIL COOLER OPTION, CB21XL & CB24XL

20

DETAIL C

DETAIL A

7 8

SCALE 1 : 4

11

12

SCALE 1 : 2

15

17

23

16 15

14

13

3

9

35

7

34

6

18

19

21 19 20

22

GROUND

STUD

4

11

3

24

5

7 10

DETAIL B

SCALE 1 : 2

28

25

97

33

TO HEAT

EXCHANGER

30

26

29

TO

FILTER

27

18

32

31

4400267 AIR TO OIL COOLER OPTION, CB21XL & CB24XL

21

1) ATTACH WIRES TO RELAY BEFORE BOLTING TO PANEL.

2) REMOVE ORIGINAL HOSE FROM HEAT EXCHANGER TO FILTER.

3) REPLACE ELBOW AT LOWER HEAT EXCHANGER PORT W/ 3200265.

4) ADD ELBOW 3200417 TO FILTER.

5) INSTALL LONGER HOSES.

BLACK

STOP

SWITCH

6) SECURE WIRES AND HOSES WITH WIRE TIES.

RADIATOR

4641154

TEMPERATURE

SWITCH

ITEM

PART NO. QTY. DESCRIPTION

1

2400641 1 CB Frame Weldment 2 4646141 1 Instrument Panel 3 4600083 2 Tube, Radiator Mounting 4 2400318 1 Heat Exchanger, Air/Oil, 12 Volt

+ -

BATTERY

RED

85

8787A

RELAY

86

BLACK

GREEN

RED GREEN

30

RED

FUSE

GROUND

4641155 STUD

ITEM PART NO. QTY. DESCRIPTION

18 2800481 1 Fuse Holder 19 2900009 2 Flat Washer, 1/4" SAE 20 2900024 1 Lock Washer, 1/4" Split 21 2900008 1 Cap Screw, Hex Hd., 1/4-20 x 1"

4641157

4641156

5 4641097 1 Heat Shield 6 4641159 1 Radiator Guard 7 2900022 16 Flat Washer, 5/16" SAE 8 2900248 4 Cap Screw, Hex Hd., 5/16-18 x 3" 9 2900039 8 Lock Nut, 5/16-18 Nylon

10 2900538 4 Cap Screw, Hex Hd., 5/16-18 x 1-3/4" 11 3200400 2 Elbow, 3/4" O-Ring to 3/4" Male JIC 12 3201012 1 1/2" O-ring - 1/2" FPT 13 2800697 1 Temperature Switch, 1/2 NPT 14 2800144 1 Relay, 50 Amp, 12V, SPDT 15 2900016 2 Flat Washer, #10 USS 16 2900159 1 Machine Screw, Rd. Hd., #10-24 x 5/8"

Lock Nut, #10-24 Nylon

1290001717

22 2900125 1 Hex Nut, 1/4-20 23 2803014 1 Fuse, 15 Amp, Slo Blow 24 4641154 1 Wire Assy., 4 Wire 25 4641155 1 Wire Assy., Red & Grn, 14 Ga. 26 4641156 1 Wire Assy, Black & Red 27 4641157 1 Wire Assy., 20 Ga., Brn, 8-1/2"

28 2800068 4 Wire Tie, 7-1/2" 29 4645028 1 Hose Assembly, 3/4 x 51.4" 30 4646161 1 Hose Assembly, 3/4 x 41-1/2" 31 3200458 1 3/4" O-Ring to 3/4" MJIC, 45 Deg.

32 3200417 1 Elbow, 3/4" F. JIC to 3/4" M. JIC 33 2800278 4 Wire Tie, 14" 34 1800537 1 Label, HOT 35 1801707 1 Decal, Caution, Fan

NOTES

22

____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________

RELIEF

23

FLOW

CARTRIDGE

WATER

CONTROL

EMERGENCY STOP

QUICK

DISCONNECTS

CONNECTIONS



OPTIONAL

RADIATORKIT



GAGE,OIL

FILTER

KEYSTART

CHOKE&

THROTTLE

GASLINEVALVE,

BELOWTANK

GENERAL SAFETY PRECAUTIONS

24

WARNING: Do not operate power unit without reading this entire manual and the engine operation manual first. Keep manuals with power unit at all times for reference.

This manual describes the operating procedures, care, maintenance, adjustments, and safety precautions for proper use of this machine. This equipment is intended for industrial applications by experienced operators. It is to be operated in conformance with applicable federal, state, and local codes or regulations pertaining to safety, air pollution, noise, etc.

Tool operators and maintenance personnel must always comply with the safety precautions given in this manual and on the stickers and tags attached to the equipment.

These safety precautions are given for your safety. Review them carefully before operating the tool and before performing general maintenance or repairs.

Supervising personnel should develop additional precautions relating to the specific work area and local safety regulations.

In addition to this manual, read and understand safety and operating instructions in the Engine Operation Manual furnished with the Power Unit in addition to this manual.

 Establish a training program for all operators to ensure safe operation.  Do not operate the power unit unless thoroughly trained or under the supervision of an

instructor.

 Do not inspect or clean the power unit while it is running.  Always use hoses and fittings rated at a minimum 2600 p.s.i. (179 bar) with a 4 to 1

safety factor for pressure lines.

 Be sure all hose connections are tight.  Make sure all hoses are connected for correct flow direction to and from the tool being

used.

 Do not inspect hoses and fittings for leaks by using bare hands. “Pin-hole” pressure leaks

can penetrate the skin.

 Never operate the gas power unit in a closed space. Inhalation of engine exhaust can

be fatal.

 Do not operate a damaged or improperly adjusted power unit.  Never wear loose clothing that can get entangled in the working parts of the power unit.  Keep all parts of your body away from the working parts of the power unit.

 Always wear appropriate safety equipment such as goggles, ear protection, head

25

protection and safety shoes. Certain tools used in conjunction with the power unit may require other safety equipment such as breathing filters.

 Keep clear of hot engine exhaust.  Do not add fuel to the power unit while the power unit is still running or is still hot.  Do not operate the power unit if a gasoline odor is present.  Do not use flammable solvents around the power unit engine.  Do not operate the power unit within 3 ft. (1 meter) of buildings or flammable objects.  Allow the engine to cool before storing the unit in an enclosed area.  To avoid personal injury or equipment damage, all tool repair, maintenance and service

must only be performed by authorized and properly trained personnel.

IMPORTANT: The red stop button at the front panel will immediately stop the engine. Hydraulic pressure and flow will go to zero. This button must be in the out position to start the unit.

DANGER: Improper use or alteration of this equipment may be extremely hazardous.

SAFETY SYMBOLS

Safety symbols are used to emphasize actions which could result in a life-threatening situation, bodily injury, or damage to equipment.

Always observe safety symbols. They are included for your safety and for the protection of the tool.

! DANGER !

This safety symbol may appear

on the tool. It is used to alert the operator of an action that could place him/her or others in a life threatening situation.

!WARNING: !

This safety symbol appears

in these instructions to identify an action that could cause bodily injury to the operator or to other threatening situation.

! IMPORTANT !

This safety symbol appears in

these instructions to identify an an action or condition that could result in damage to the tool or other equipment.

DESCRIPTION AND SPECIFICATIONS

Pump: Gear, pump rotation is clockwise (motor is CCW). Maximum GPM: 14.1 GPM (53.2L/M) at no load. Flow will decrease as pressure increases. Hydraulic Fluid Tank Capacity: 11 gallons (41.6Liters) Hose Couplings: Bruning quick disconnect, 3/4 inch & ½ inch Relief Pressure: Factory set at 2600 PSI /179.3 Bar (at valve outlet port). Adjustable

to750 PSI, A higher relief setting will stall the engine.

Engine: Honda 21.4 HP (16.0 KW) Net @ 3600RPM, Air-cooled, No load RPM set to 3850. Fuel tank: 4.4 Gal (16.6L).

This unit is compatible with most hydraulically driven sawing and drilling components. The system may not be compatible with components of some manufacturers.

The power unit was inspected and operated before shipment and should not require any additional adjustments prior to its initial use.

Hydraulic Fluid: The reservoir of the hydraulic power unit must be full prior to start-up. The use of high quality petroleum based hydraulic oil with the following properties is recommended:

 Anti-wear  Low foaming  Rust and oxidation inhibitors  Wide temperature range  Fluid viscosity: 8-1000 Centistokes

(52-4600 SUS). The unit is shipped with an ISO 46 Viscosity grade (8Cs/52SUS @ 212F/100C and 46Cs/210SUS @ 104F/40C).

The oil must be kept free of contamination to avoid damage to system components. The strainer in the fill cap must always be in place when adding oil. Quick disconnects must be cleaned before connections are made.

Control Valve: The pressure compensated flow control valve on this unit allows full flow control while the gas engine remains at its most efficient wide-open throttle. This allows a higher operating pressure at all flows. Flow settings are: 0-2, all flow routed to tank; 2-8, adjustable range, 8-10 full flow. Relief pressure can be adjusted by removing the cap at the top of the main

control and using an Allen wrench to adjust the relief cartridge. The relief can be set as low as 750 psi; do not exceed 2600 psi. To adjust, the flow control must be set at 10 and no tool should be attached. This will force all flow over relief. Securely replace the cap as oil seepage will occur through the relief cartridge. The relief is factory set at 2600 psi and should rarely need adjustment.

Hydraulic Oil Cooler and Radiator: The power unit is equipped with a brazed plate style oil cooler. Water should be passed through the cooler before being used for dust control or blade & bit cooling. Some tools will automatically shut off water flow when not actively cutting, drilling, etc. This may result in higher oil temperatures if the power unit continues to run for long periods without cooling water. The optional radiator fan will come on automatically when the oil temperature reaches ~120F. (49C.) and continue to run until the temperature switch cools, even if the engine is shut off. The fan will stop whenever the emergency stop switch is used.

IMPORTANT: If there is a risk of frost

the water must be drained from the cooler to prevent damage by freezing.

HOSES: Large diameters and short

27

lengths are preferred and offer the highest system efficiency. If one is operating 50 ft (15.2M) from the power source, there is also a 50 ft (15.2M) return for a 100 ft (35.5M) total hose length. With 12 GPM and oil at 100 deg. F (37.8C), this could result in a 300 psi (20.6 Bar) pressure loss with ½” hose and a 100 psi (6.9 Bar) loss with 5/8” hose. Pressure loss will change dramatically with oil temperature.

OPERATING INSTRUCTIONS

Operator Responsibilities

It is the operator’s responsibility to use this unit and any attached tools under safe working conditions and to follow proper safety procedures for themselves, coworkers, observers, and the public at large. The operator must be aware of the machine’s capabilities and limitations and follow the safety precautions in each section of this manual. Periodic maintenance is required, in accordance with the instructions herein, to promote safe and reliable operations.

WARNING: Keep bystanders out of the immediate work area.

Wear approved:

 Safety glasses  Ear protection  Hard hat  Gloves  Safety shoes

 Any other protective equipment

required for compliance with standard safety practices or federal, state, and local codes and regulations

Hose Connections: It is best to connect the hoses to the unit before starting as even very low residual pressure can make hose installation more difficult. Push couplings together until you hear it click. Turn locking ring of coupling to the secured position.

Gas Engine:

crankcase is filled with oil to the proper level! Refer to your engine manual for oil checking and changing procedures, along with oil specifications, etc.

IMPORTANT: Operating the engine without oil will ruin the engine.

Fuel: Use regular grade unleaded

gasoline to fuel the engine. Premium grade may be used if necessary. Fill the tank when the engine is off and has been allowed to cool. Care should be taken to prevent spilling fuel. Do not overfill the fuel tank. Always leave enough space for expansion due to environmental heating.

WARNING: In the event of fuel spillage, do not start the engine or operate any nearby electrical component until the spilled fuel has been removed.

Starting Procedure:

 Set the flow control valve to zero.  Open the fuel shut off valve below the

gas tank.

 Be certain the emergency off switch

has been pulled out.

 Set throttle at about 1/3, set choke if

necessary (cold engine). Turn key to start and release. Refer to engine manual for details of control functions.

 Let engine warm and gradually open

the choke and set the throttle to maximum.

DANGER: Exhaust from the gas engine contains carbon monoxide, a poisonous, odorless, invisible gas, which can cause serious illness or death. Do not operate the gas engine where ventilation is restricted. Open windows and doors may not be sufficient to prevent this hazard.

Make sure that the engine

28

Heating Cold Oil: Forcing the oil over relief will quickly increase the oil temperature. With no tool connected to the unit, move the valve setting toward 10. This will force an increasing percentage of oil over relief. Heat cold oil to room temperature or ~100F/38C maximum. Cold oil greatly increases pressure loss in hoses and fittings and may affect tool operation.

Maintaining Oil Temperature: With an ample water supply, it is unlikely overheating will be an issue except in the most extreme ambient temperatures. To force high oil temperatures down, run the unit with the flow control set to zero. This unloads the unit yet circulates oil through the cooling system. The rate of cooling will depend on the ambient temperature and how much water is being passed through the cooler.

Some control valves at the external tool may create backpressure and heat even when off. It is best to set the flow control to zero or shut the power unit down to avoid heating and conserve energy.

IMPORTANT: Monitor the thermometer at the top of the hydraulic tank. Maximum recommended oil temperature is 180 degrees Fahrenheit (82 deg C).

Shutting Down:

 Shift the flow control valve to zero to

unload the system.

 Throttle the engine back to a low RPM.  Turn the key to the off position.

IMPORTANT: The red emergency stop button at the front panel will immediately stop the engine and radiator fan (if equipped). Hydraulic pressure and flow will go to zero. This button must be in the out position to start the engine.

OPERATING DRIVEN

EQUIPMENT

The operator must know the hydraulic requirements and limitations of the driven equipment and the appropriate adjustments must be made on the controls. The introduction of other control devices may cause system heating or may render the system inoperative.

IMPORTANT: This power unit is equipped with a positive displacement gear pump. All tools must be equipped with a control valve that allows flow directly to return ports when not in use. Blocking oil flow or abruptly disconnecting the tool can send flow over relief and potentially overheat the system.

Instructions supplied with the driven equipment must be followed to ensure correct connection and operation of each individual piece of equipment. Equipment supplied by Diamond Products will be capable of being connected correctly and will be compatible with this power unit, providing neither has been modified from original factory configuration. With equipment of other manufacturers, it will be necessary to determine the following:  Correct direction of flow through the

equipment.

 Correct pressure and flow required by

the equipment.

 Compatibility of any valves or circuitry

and quick disconnects. Some handheld equipment uses a trigger control, which is operated frequently. These valves must be of the open center type for correct operation.

IMPORTANT must be clean when connecting hoses and devices. Dirty connections may result in contamination and premature failure of system or tool components.

: The quick disconnects

MAINTENANCE INSTRUCTIONS

 Oil Filter: change the filter when

indicated by the gage at the filter.

 Oil Change: establishing an oil analysis

program is the preferred method of determining oil condition and when to change it. If the oil is kept clean, dry, and operated at moderate temperatures, it can last for several years. With no analysis program an oil change every 200 hours is recommended. See the section Hydraulic Fluid for specifications. A ½” pipe thread oil drain port is at the bottom of the hydraulic tank.

 Gas Engine Oil: Change engine oil and

filter and perform other routine maintenance as recommended in the engine operation manual.

 Inspect hoses, couplings, and fittings

daily for leaks, tighten as required. Clean quick disconnects frequently. Replace any leaking or defective components immediately.

 Check hydraulic oil level daily. Fill tank

to upper end of sight tube with unit off.

 Grease the wheel bearings annually.

TROUBLESHOOTING

PROBLEM POSSIBLE SOLUTIONS

Gas engine will not start.

Low oil flow.

System builds high pressure with flow control valve set to zero.

Keep this manual and the engine manual readily available at all times for reference.

1) Pull out emergency stop button.

2) Open gas line valve below gas tank.

3) Dead battery?

4) Low engine oil? Check gas engine RPM at tachometer on front panel. Adjust governor to 3850 RPM if required. See engine manual. Contamination may have plugged an orifice in the CF port of the flow valve. Detach the valve from the front panel and remove the fitting from the CF port. A .015” orifice should be visible at the bottom of the port. Push a fine wire through the orifice and re-install.

NOTES

30

____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________

CBPOWERPACKFLOWANDPRESSURERATING

CBPOWERPACK MODEL

MAXIMUMNO LOADFLOW GPM/LPM

RELIEF SETTING

PSI/BAR 15Electric 12.75/48.2 2100/145 18BriggsVanguard 11.6 /43.9 2850/196.5 20Electric 14.9/56.4 2400 /165.5 21Honda 14.1 /53.2 2600 /179.3 30Electric 20.4/77.2 2300 /158.6 35BriggsVanguard 17.2 /65.1 3000 /206.9



Maximumnoloadflowisbasedonpumpandmotormanufacturer’s specificationsforpumpdisplacementandnoloadRPM.Reliefissettoinsuregas enginescannotreachtheirstalltorqueandelectricmotorswillnotexceedthe recommendedcurrentlimit.

  

MAXNO



LOADFLOW

                

FLOW



USEABLEFLOW/PRESSURE

BELOWDARKLINE

>>>PRESSURE>>> CRACKING

RELIEF

PRESSURE



Flowdecreasesasengine/motorRPMdropsunderload.Reliefvalvesbeginto openandshuntflowtotankat75‐80%ofthereliefsetting(crackingpressure). Thisfurtherreducesflowtothetool.Atrelief,allflowisdirectedtotank.

IssuedAugust2011



EQUIPMENT AND PARTS

WARRANTY

Diamond Products warrants all equipment manufactured by it against defects in workmanship or materials for a period of one (1) year from the date of shipment to Customer.

The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio factory, or at a point designated by it, of such parts as shall appear to us upon inspection at such parts, to have been defective in material or workmanship, with expense for transportation and labor borne by Customer.

In no event shall Diamond Products be liable for consequential or incidental damages arising out of the failure of any Product to operate properly.

Integral units such as engines, electric motors, batteries, transmissions, etc., are excluded from this Warranty and are subject to the prime manufacturer’s warranty.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND ALL SUCH OTHER WARRANTIES ARE HEREBY DISCLAIMED.

333 Prospect Street, Elyria, Ohio 44035

(440) 323-4616  (800) 321-5336  Fax (440) 323-8689

www.diamondproducts.com

Printed in U.S.A.

Diamond CB21H-XL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

GENERAL SAFETY PRECAUTIONS

OPERATING INSTRUCTIONS

WARRANTY
