Diamond BV200 User Manual

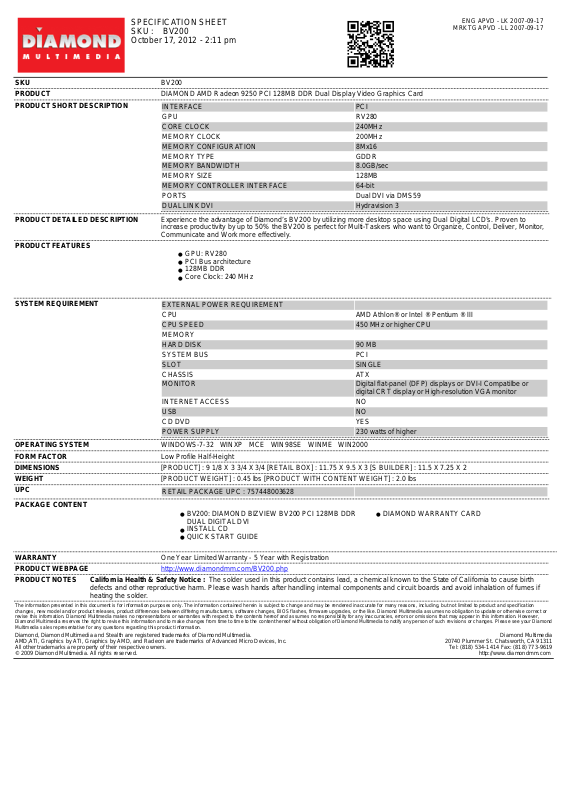

SPECIFICATION SHEET
SKU : BV200
ENG APVD - LK 2007-09-17
MRKTG APVD - LL 2007-09-17
October 17, 2012 - 2:11 pm
SKU BV200
PRODUCT DIAMOND AMD Radeon 9250 PCI 128MB DDR Dual Display Video Graphics Card
PRODUCT SHORT DESCRIPTION
PRODUCT DETAILED DESCRIPTION Experience the advantage of Diamond’s BV200 by utilizing more desktop space using Dual Digital LCD’s. Proven to
PRODUCT FEATURES
INTERFACE PCI
GPU RV280
CORE CLOCK 240MHz
MEMORY CLOCK 200MHz
MEMORY CONFIGURATION 8Mx16
MEMORY TYPE GDDR
MEMORY BANDWIDTH 8.0GB/sec
MEMORY SIZE 128MB
MEMORY CONTROLLER INTERFACE 64-bit
PORTS Dual DVI via DMS59
DUAL LINK DVI Hydravision 3
increase productivity by up to 50% the BV200 is perfect for Multi-Taskers who want to Organize, Control, Deliver, Monitor,
Communicate and Work more effectively.
GPU: RV280
●
PCI Bus architecture
●
128MB DDR
●
Core Clock: 240 MHz
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® III
CPU SPEED 450 MHz or higher CPU
MEMORY
HARD DISK 90 MB
SYSTEM BUS PCI
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB NO
CD DVD YES
POWER SUPPLY 230 watts of higher
OPERATING SYSTEM WINDOWS-7-32 WINXP MCE WIN98SE WINME WIN2000
FORM FACTOR Low Profile Half-Height
DIMENSIONS [PRODUCT] : 9 1/8 X 3 3/4 X 3/4 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.5 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : 0.45 lbs [PRODUCT WITH CONTENT WEIGHT] : 2.0 lbs
UPC
RETAIL PACKAGE UPC : 757448003628
PACKAGE CONTENT
BV200: DIAMOND BIZVIEW BV200 PCI 128MB DDR
●
DUAL DIGITAL DVI
INSTALL CD
●
QUICK START GUIDE
●
DIAMOND WARRANTY CARD
●
WARRANTY One Year Limited Warranty - 5 Year with Registration
PRODUCT WEBPAGE http://www.diamondmm.com/BV200.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
The information presented in this document is for information purposes only. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including, but not limited to product and specification
changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Diamond Multimedia assumes no obligation to update or otherwise correct or
revise this information. Diamond Multimedia makes no representations or warranties with respect to the contents hereof and assumes no responsibility for any inaccuracies, errors or omissions that may appear in this information. However,
Diamond Multimedia reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Diamond Multimedia to notify any person of such revisions or changes. Please see your Diamond
Multimedia sales representative for any questions regarding this product information.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
AMD,ATI, Graphics by ATI, Graphics by AMD, and Radeon are trademarks of Advanced Micro Devices, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
20740 Plummer St. Chatsworth, CA 91311
Tel: (818) 534-1414 Fax: (818) 773-9619
Diamond Multimedia
http://www.diamondmm.com
