Dialogic®
IPT10000C IP Board
Quick Install Card
Part Number 64-0082-02
Copyright © 2004-2007
Dialogic Corporation.
All Rights Reserved.
Before You Begin
Protecting the Board from Damage
CAUTION:
electrostatic discharge (“ESD”). Handle all staticsensitive boards and components at a static-safe work
area, and observe anti-static precautions at all times.
If you are not familiar with ESD safety precautions, visit
http://www.dialogic.com/support/hwinstall to learn more.
Unpack the Dialogic® IPT10000C IP Board (“board”)
according to the following steps:
1. Prepare a static-safeguarded work area.
2. Carefully remove the board from the shipping
3. Lay the board on the static-dissipative work
Note: Place boards in static-shielding bags when
carrying boards from station to station.
CAUTION: Do not remove the board from the anti-static
packaging until you are ready to install it. Observe
proper anti-static precautions at all times.
Note: The hardware must be installed before the system
software.
1. Turn the power to the chassis OFF if you do not have
a live insertion system. If you have live insertion
capability, the power to the chassis can remain ON.
All computer boards are sensitive to
Unpacking the Board
carton and anti-static packaging. Handle the
board by the edges and avoid touching the
board’s components.
surface.
Installing the Hardware

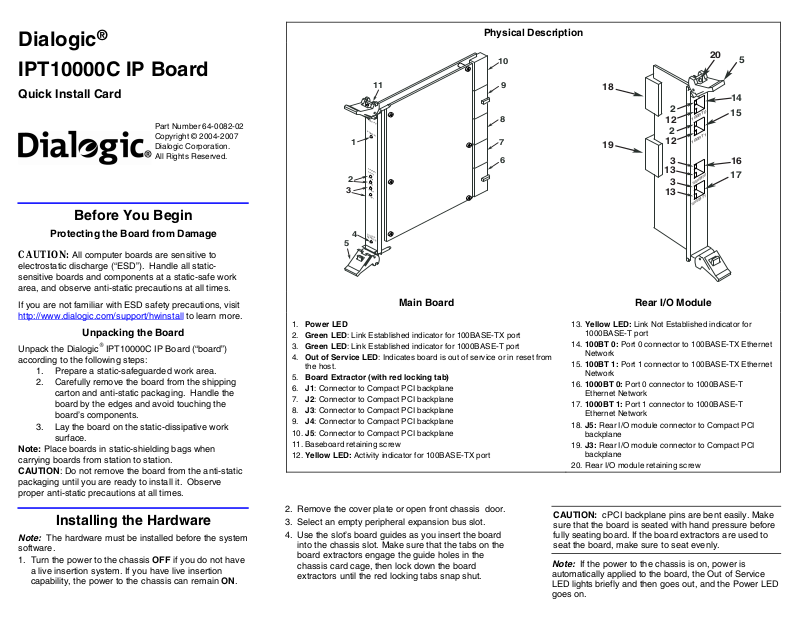

Physical Description
10
11
CompactPCI
POWER
1
ETHERNET
STATUS
100BT0
2
100BT1
1000BT0
3
1000BT1
OUT OF
4
SERVICE
9
8
7
6
5
Main Board Rear I/O Module
1. Power LED
2. Green LED: Link Established indicator for 100BASE-TX port
3. Green LED: Link Established indicator for 1000BASE-T port
4. Out of Service LED: Indicates board is out of service or in reset from
the host.
5. Board Extractor (with red locking tab)
6. J1: Connector to Compact PCI backplane
7. J2: Connector to Compact PCI backplane
8. J3: Connector to Compact PCI backplane
9. J4: Connector to Compact PCI backplane
10. J5: Connector to Compact PCI backplane
11. Baseboard retaining screw
12. Yellow LED: Activity indicator for 100BASE-TX port
2. Remove the cover plate or open front chassis door.
3. Select an empty peripheral expansion bus slot.
4. Use the slot’s board guides as you insert the board
into the chassis slot. Make sure that the tabs on the
board extractors engage the guide holes in the
chassis card cage, then lock down the board
extractors until the red locking tabs snap shut.
20
5
18
14
12
2
100BT0
15
2
100BT1
19
12
13
3
3
1000BT0
16
17
13
1000BT1
13. Yellow LED: Link Not Established indicator for
1000BASE-T port
14. 100BT 0: Port 0 connector to 100BASE-TX Ethernet
Network
15. 100BT 1: Port 1 connector to 100BASE-TX Ethernet
Network
16. 1000BT 0: Port 0 connector to 1000BASE-T
Ethernet Network
17. 1000BT 1: Port 1 connector to 1000BASE-T
Ethernet Network
18. J5: Rear I/O module connector to Compact PCI
backplane
19. J3: Rear I/O module connector to Compact PCI
backplane
20. Rear I/O module retaining screw
CAUTION: cPCI backplane pins are bent easily. Make
sure that the board is seated with hand pressure before
fully seating board. If the board extractors are used to
seat the board, make sure to seat evenly.
Note: If the power to the chassis is on, power is
automatically applied to the board, the Out of Service
LED lights briefly and then goes out, and the Power LED
goes on.
5. Tighten the retaining screws to secure the board
firmly in the chassis slot.
6. Connect the Rear I/O module to the rear of the slot
selected in Step 3.
CAUTION: Damage to the board will result if an
incorrect rear I/O module is used. Use a Rear I/O
module only and be careful to install the module in the
correct slot.
Use the slot’s board guides as you insert the board
into the chassis slot. Make sure that the tabs on the
board extractors engage the guide holes in the
chassis card cage, then lock down the board
extractors until the red locking tabs snap shut.
CAUTION: cPCI backplane pins are bent easily. Make
sure that the board is seated with hand pressure before
fully seating board. If the board extractors are used to
seat the board, make sure to seat evenly.
7. Tighten the retaining screws to secure the board
firmly in the chassis slot.
8. Select a new slot and repeat steps 4-7 for each board
you are installing.
9. If the power to the chassis was turned OFF in step 1,
turn the power to the chassis ON.
Connecting External Cables
Connect either the 100BASE-TX or 1000BASE-T
Ethernet cables to the appropriate Rear I/O module
connectors. When connecting the Ethernet cables, install
a snap-fit ferrite clamp on each cable as close as
possible to the connector on the Rear I/O module.
Ferrite C lam p
Diameter
5m m (a pp ro x .)
Ethernet C able
CAUTION: A ferrite clamp must be installed on all
cables that connect to Ethernet connectors to meet
EMC requirements. Two ferrite clamps have been
provided, therefore only two cables can be connected at
one time.
100BASE-TX Ethernet Connector Pinouts
Link
Established
In d ic a to r
(G re e n )
Activity
Indicator
(Y e llow )
100BT 0
Pin 1
Pin
1
2
3
4
5
6
7
8
Label
RD+
RDTD+
NC
NC
TDNC
NC
1000BASE-T Ethernet Connector Pinouts
Pin 1
Pin
1
2
3
4
5
6
7
8
Label
TP 0+
TP 0TP 1+
TP 2+
TP 2TP 1TP 3+
TP 3-
Link
Established
Indicator
(G reen)
Link Not
Established
Indicator
(Y e llow )
1000BT 0
After Installing Hardware
After installing the hardware, run the Dialogic®
Configuration Manager (DCM) as described in the
installation instructions included with the Dialogic
®
System Software to configure your system. For technical
specifications and product information go to:
http://www.dialogic.com/products.htm.
Uninstalling the Hardware
Removing the Main Board
Exercise caution when removing the board from a cPCI
chassis. The board extractors are equipped with red
locking tabs that lock when the board is correctly
positioned in the chassis.
CAUTION: When removing the board, if the red locking
tabs on the extractors are not pressed while applying
pressure to the extractors, there is a risk of breaking.
To remove the board from the chassis, simultaneously
press down both red locking tabs (see the figure below)
on the extractors before applying pressure away from the
center of the board to release the board from the
chassis.
Press and hold down
the red locking tabs on
both board extractors
before applying
pressure to the board
e xtra c to rs
Removing the Rear I/O Module
In a live insertion (powered-on) system, do not remove
and replace a Rear I/O module while the main (front)
board is in service. Remove the front board first, then
remove and replace the Rear I/O module, and then
reinsert the front board. Remove the Rear I/O module
using the red locking tabs as described above.
Warranty and Return Information
For specific warranty information for this board, refer to
the Warranty section of the Products page, located at
this URL: http://www.dialogic.com/warranties/.
Contacting Technical Support
Dialogic provides technical support for its products
through a network of value added distributors who are
trained to answer technical questions on installing and
configuring Dialogic® products. If you are unsure how to
contact your support channel, please call Dialogic in the
United States at 973-967-6600 (9am-5pm EST) and we
will assist in obtaining the appropriate support channel.
Outside the United States please refer to
http://www.dialogic.com/support/contact to obtain
local contact information. Dialogic also provides direct
support via Dialogic® Pro™ Services agreements. For
more details of direct support from Dialogic please refer
to: http://www.dialogic.com/support/DialogicPro.
Returning a Product
To return a board for warranty repair or any other
returns, please refer to the following:
http://www.dialogic.com/support/hwfaults.
Sales Assistance
If you have a sales question, please contact your
local Sales Representative or the Regional Sales Office
for your area. Address, telephone and fax numbers, are
available at the Dialogic website located at:
http://www.dialogic.com/contact.htm. To purchase
Dialogic® products, please refer to the following website
to locate the appropriate supplier:
http://www.dialogic.com/purchase.htm.
