Dialogic DM-IP601-CPCI-100BT User Manual

Dialogic

DM/IP601-CPCI-100BT IP Board

Quick Install Card

Before You Begin

Protecting the Board from Damage

CAUTION: All computer boards are sensitive to electrostatic discharge (“ESD”). Handle all static-sensitive boards and components at a static-safe work area, and observe anti-static precautions at all times.

If you are not familiar with ESD safety precautions, visit

http://www.dialogic.com/support/hwinstall to learn more.

Unpacking the Board

Unpack the Dialogic® DM/IP601-CPCI-100BT board (“board”) according to the following steps:

1. Prepare a static-safeguarded work area.

2. Carefully remove the board from the shipping

carton and anti-static packaging. Handle the board by the edges and avoid touching the board’s components.

3. Lay the board on the static-dissipative work

Note: Place boards in static-shielding bags when carrying boards from station to station. CAUTION: Do not remove the board from the anti-static packaging until you are ready to install it. Observe proper anti-static precautions at all times.

surface.

Installing the Hardware

NOTE: In a Windows environment, install the software first, the hardware second, and then run the Dialogic Configuration Manager (DCM) to configure the system.

1. Turn the power to the chassis OFF if you do not have a

live insertion system. If you do have live insertion capability, the power to the chassis can remain ON.

2. Remove the chassis cover plate or open the front door.

3. Select an empty expansion bus slot.

Dialogic Corporation.

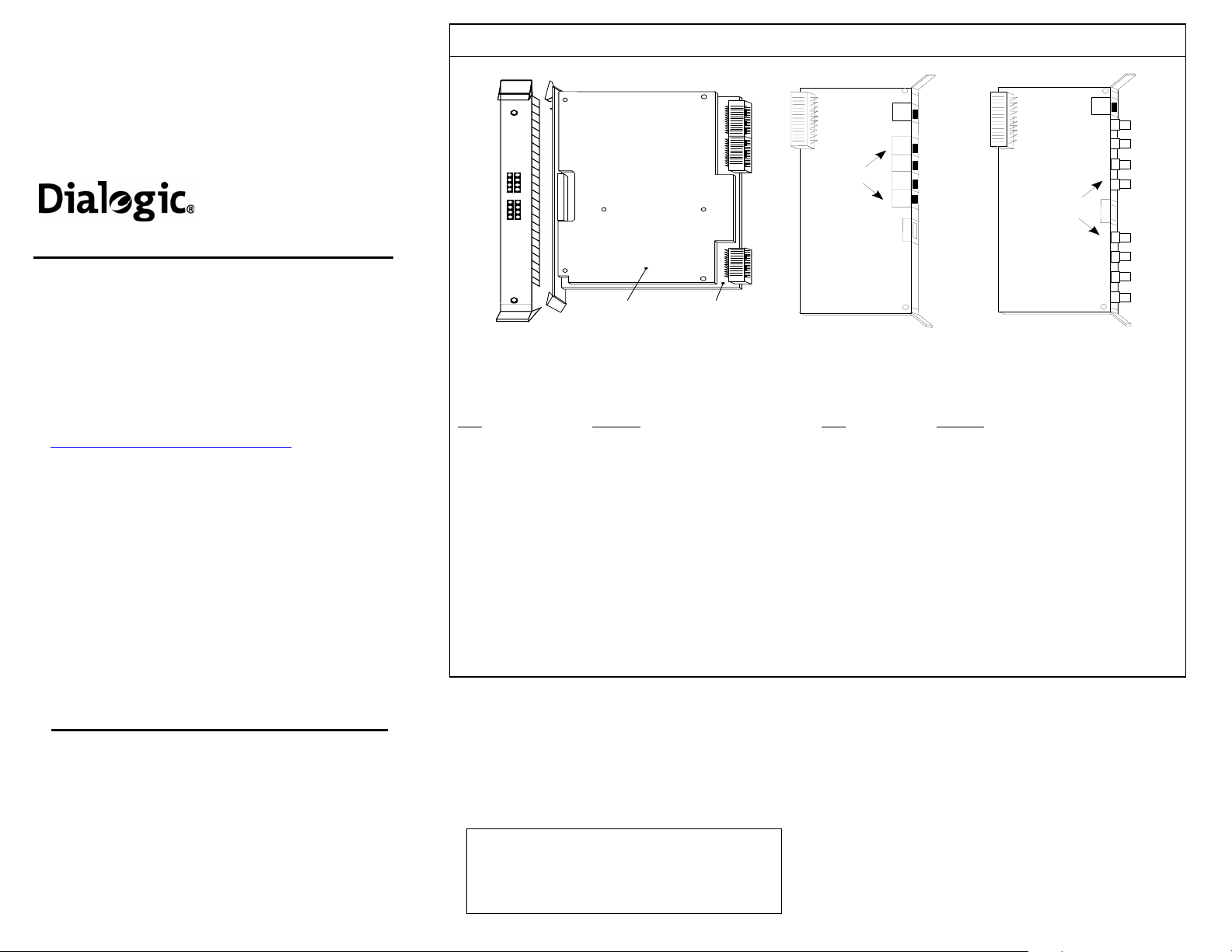

Physical Description

Board

Extractor

Alarm Status LEDs

Board

Extractor

POWER

A L

L A

A R

R M

M S

S / S

T A

A T

T U

U S

OUT OF

SERVICE

RED

RED YEL

YEL

CARR

CARR SGNL

SGNL LOOP

LOOP

RED

RED YEL

YEL

CARR

CARR SGNL

SGNL LOOP

LOOP

Daughterboard

Baseboard

Ethernet Interface Connector

J1-J4

RJ-48C Jacks

Trunk 1Trunk 1 Trunk 2 Trunk 3

Trunk 4

Faceplate Compact PCI Board T-1 and E-1 120-Ohm E-1 75-Ohm (front view) Rear I/O Module Rear I/O Module

Compact PCI Baseboard Rear I/O Modules

Part: Power LED Red Alarm LEDs Yellow Alarm LEDs Carrier Signal LEDs Loopback LEDs Out of Service LED

P1, P4, P5

NOTES: Rear I/O Modules are ordered separately and are available in two different forms depending

NOTE: When power is on, the Rear I/O module should be

installed first, before the main board.

4. Install the Rear I/O module in the rear of the slot

selected in step 3. Use the slot’s board guides as you insert the board into the chassis slot. Make sure that the tabs on the board extractors engage the guide holes in the chassis card cage, then lock down the board extractors until the red locking tabs snap shut.

cPCI backplane pins are bent easily. Make sure that

the board is seated with hand pressure before fully

seating board. If board extractors are used to seat

the board, make sure to seat evenly.

Function:

Indicates board is powered up. Not functional in this assembly. Not functional in this assembly. Not functional in this assembly. Not functional in this assembly. Indicates board is out of service

or in reset from host.

Compact PCI board connectors

Part: J1–J4 P2 P5

BNC Connectors

Ethernet Connector

Function:

Not functional in this assembly. Telephony network interface test port Rear I/O module connector to Compact PCI

backplane

Not functional in this assembly

Connection to Ethernet network

to backplane.

on the type of connectors used, guided or unguided. Select a Rear I/O Module that is compatible with your chassis type. See the PICMG 2.0 D3.0 Compact PCI Specification for more information on guided and unguided connectors.

5. Install the board in the front of the slot selected in step 3.

Use the slot’s board guides as you insert the board into the chassis slot. Make sure that the tabs on the board extractors engage the guide holes in the chassis card cage, then lock down the board extractors until the red locking tabs snap shut.

NOTE: If the power to the chassis is on, power is automatically applied to the board, the Out of Service LED lights briefly and then goes out, and the Power

CAUTION

LED goes on.

6. Tighten the retaining screws to secure the board firmly

in the chassis slot (optional).

7. Select a new slot and repeat steps 4-6 for each board you

Ethernet Inte rfa c e Connector

BNC Conn ectors

are installing.

8. If the power to the chassis was turned OFF in step 1,

turn the power to the chassis ON.

Connecting External Cables

Connect an Ethernet cable to the Ethernet Interface Connector on the Rear I/O module.

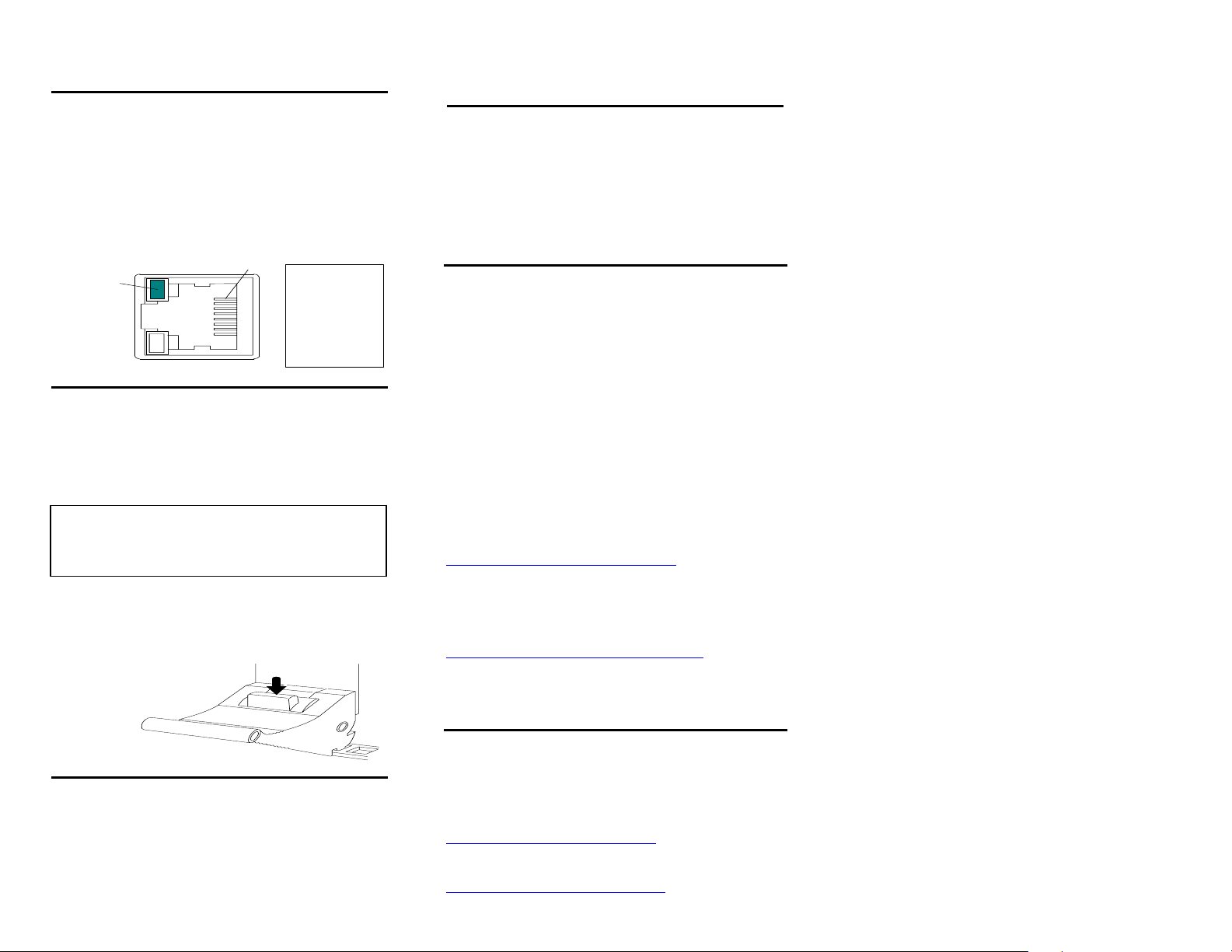

100BASE-TX Ethernet Connector Pinouts NOTE: Connectors for Trunks 1 to 4 (J1 to J4 or the BNC

connectors on the Rear I/O module) are not functional in this board.

Link

Status

In d ica to r

(G re e n)

Pin 1

1 2 3 4 5 6 7 8

Label

RD+ RDTD+ NC NC TDNC NC

Removing the Board

Exercise caution when removing the board from a cPCI chassis. The board extractors are equipped with red locking tabs that lock when the board is correctly positioned in the chassis.

CAUTION

When removing the board, if the red locking tabs on the extractors are not pressed while applying pressure to the

extractors, there is a risk of breaking the tabs.

To remove the board from the chassis, simultaneously press down both red locking tabs (see the figure below) on the extractors before applying pressure away from the center of the board to release the board from the chassis.

Press and hold dow n

the red locking tabs on

both board extractors

before applying

pressure to the board

extractors

Removing the

Rear I/O Module

NOTE: In a live insertion (powered-on) system, do not remove and replace a Rear I/O module while the main (front) board is in service. Remove the front board first, then remove and replace the Rear I/O module, and then

reinsert the front board. Remove the Rear I/O module using the red locking tabs as described above.

After Installing the

Hardware

After installing the hardware, proceed with the software installation as described in the instructions included with the Dialogic

System Software.

For technical specifications and product information go to: http://www.dialogic.com/products.htm.

Warranty and Return

Information

Warranty Period

For specific warranty information for this board, refer to the Warranty section of the Products page, located at this URL: http://www.dialogic.com/warranties/.

Contacting Technical Support

Dialogic provides technical support for its products through a network of value added distributors who are trained to answer technical questions on installing and configuring Dialogic

products. If you are unsure how to contact your support channel, please call Dialogic in the United States at 973-967-6600 (9am-5pm EST) and we will assist in obtaining the appropriate support channel. Outside the United States please refer to

http://www.dialogic.com/support/contact to obtain

local contact information. Dialogic also provides direct support via Dialogic® Pro™

Services agreements. For more details of direct support from Dialogic please refer to:

http://www.dialogic.com/support/DialogicPro.

Returning a Product

To return a board for warranty repair or any other returns, please refer to: http://www.dialogic.com/support/hwfaults

Sales Assistance

If you have a sales question, please contact your local Sales Representative or the Regional Sales Office for your area. Address, telephone and fax numbers, are
