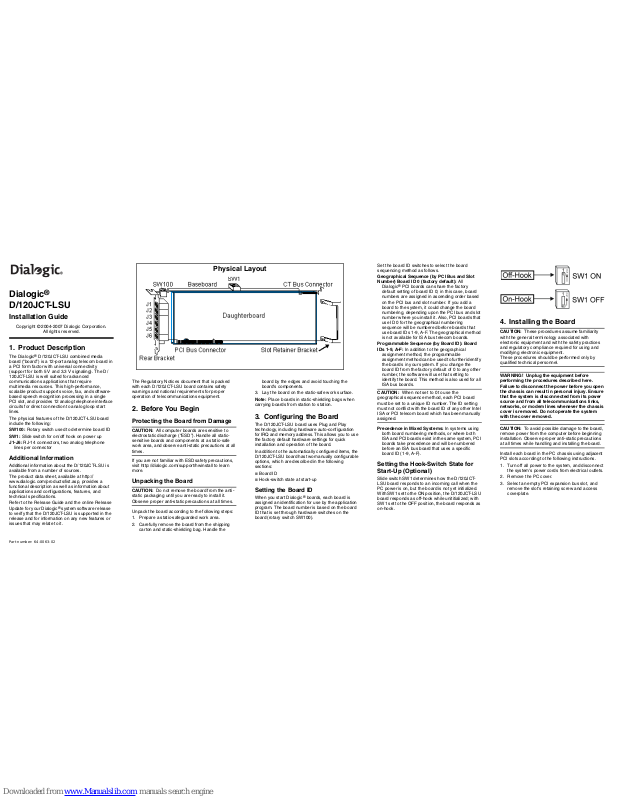

Part number: 64-0063-02
Dialogic®
D/120JCT-LSU
Installation Guide
Copyright © 2004-2007 Dialogic Corporation.
All rights reserved.
1. Product Description
The Dialogic® D/120JCT-LSU combined media
board (“board”) is a 12-port analog telecom board in
a PCI form factor with universal connectivity
(support for both 5 V and 3.3 V signaling). The D/
120JCT-LSU is well suited for advanced
communications applications that require
multimedia resources. This high-performance,
scalable product supports voice, fax, and softwarebased speech recognition processing in a single
PCI slot, and provides 12 analog telephone interface
circuits for direct connection to analog loop start
lines.
The physical features of the D/120JCT-LSU board
include the following:
SW100: Rotary switch used to determine board ID
SW1: Slide switch for on/off hook on power up
J1-J6: RJ-14 connectors, two analog telephone
lines per connector
Additional Information
Additional information about the D/120JCT-LSU is
available from a number of sources.
The product data sheet, available at http://
www.dialogic.com/products/list.asp, provides a
functional description as well as information about
applications and configurations, features, and
technical specifications.
Refer to the Release Guide and the online Release
Update for your Dialogic
®
system software release
to verify that the D/120JCT-LSU is supported in the
release and for information on any new features or
issues that may relate to it.
The Regulatory Notices document that is packed
with each D/120JCT-LSU board contains safety
warnings and national requirements for proper
operation of telecommunications equipment.
2. Before You Begin
Protecting the Board from Damage
CAUTION: All computer boards are sensitive to
electrostatic discharge (“ESD”). Handle all staticsensitive boards and components at a static-safe
work area, and observe anti-static precautions at all
times.
If you are not familiar with ESD safety precautions,
visit http://dialogic.com/support/hwinstall to learn
more.
Unpacking the Board
CAUTION: Do not remove the board from the anti-
static packaging until you are ready to install it.
Observe proper anti-static precautions at all times.
Unpack the board according to the following steps:
1. Prepare a static-safeguarded work area.
2. Carefully remove the board from the shipping
carton and static-shielding bag. Handle the
board by the edges and avoid touching the
board's components.
3. Lay the board on the static-safe work surface.
Note: Place boards in static-shielding bags when
carrying boards from station to station.
3. Configuring the Board
The D/120JCT-LSU board uses Plug and Play
technology, including hardware auto-configuration
for IRQ and memory address. This allows you to use
the factory default hardware settings for quick
installation and operation of the board.
In addition to the automatically configured items, the
D/120JCT-LSU board has two manually configurable
options, which are described in the following
sections:
■
Board ID
■
Hook-switch state at start-up
Setting the Board ID
When you start Dialogic® boards, each board is
assigned an identification for use by the application
program. The board number is based on the board
ID that is set through hardware switches on the
board (rotary switch SW100).
Set the board ID switches to select the board
sequencing method as follows.
Geographical Sequence (by PCI Bus and Slot
Number) Board ID 0 (factory default): All
Dialogic
®
PCI boards can share the factory
default setting of board ID 0; in this case, board
numbers are assigned in ascending order based
on the PCI bus and slot number. If you add a
board to the system, it could change the board
numbering, depending upon the PCI bus and slot
number where you install it. Also, PCI boards that
use ID 0 for the geographical numbering
sequence will be numbered before boards that
use board IDs 1-9, A-F. The geographical method
is not available for ISA bus telecom boards.
Programmable Sequence (by Board ID): Board
IDs 1-9, A-F: In addition to the geographical
assignment method, the programmable
assignment method can be used to further identify
the boards in your system. If you change the
board ID from the factory default of 0 to any other
number, the software will use that setting to
identify the board. This method is also used for all
ISA bus boards.
CAUTION: When not set to 0 to use the
geographical sequence method, each PCI board
must be set to a unique ID number. The ID setting
must not conflict with the board ID of any other Intel
ISA or PCI telecom board which has been manually
assigned.
Precedence in Mixed Systems: In systems using
both board numbering methods, or where both
ISA and PCI boards exist in the same system, PCI
boards take precedence and will be numbered
before an ISA bus board that uses a specific
board ID (1-9, A-F).
Setting the Hook-Switch State for
Start-Up (Optional)
Slide switch SW1 determines how the D/120JCTLSU board responds to an incoming call when the
PC power is on, but the board is not yet initialized.
With SW1 set to the ON position, the D/120JCT-LSU
board responds as off-hook while unititialized; with
SW1 set to the OFF position, the board responds as
on-hook.
4. Installing the Board
CAUTION: These procedures assume familiarity
with the general terminology associated with
electronic equipment and with the safety practices
and regulatory compliance required for using and
modifying electronic equipment.
These procedures should be performed only by
qualified technical personnel.
WARNING! Unplug the equipment before
performing the procedures described here.
Failure to disconnect the power before you open
the chassis can result in personal injury. Ensure
that the system is disconnected from its power
source and from all telecommunications links,
networks, or modem lines whenever the chassis
cover is removed. Do not operate the system
with the cover removed.
CAUTION: To avoid possible damage to the board,
remove power from the computer before beginning
installation. Observe proper anti-static precautions
at all times while handling and installing the board.
Install each board in the PC chassis using adjacent
PCI slots according to the following instructions.
1. Turn off all power to the system, and disconnect
the system's power cords from electrical outlets.
2. R emove the PC cover.
3. Select an empty PCI expansion bus slot, and
remove the slot's retaining screw and access
coverplate.
Physical Layout
4. Insert the board's edge connector into the bus
slot. Apply pressure only to the top edge of the
board, and gently rock the board forward and
backward to seat the edge connector into the
slot.
5. Install the retaining screw.
6. If installing multiple boards, select a new slot and
repeat steps 3 through 5 for each board you are
installing.
Connecting the CT Bus Cable
For the D/120JCT-LSU board to interoperate with
other telecom boards in the system, the boards
must be interconnected using a cable. The D/
120JCT-LSU board has an H.100 CT Bus connector,
which may be directly connected to other CT Bus
boards with an appropriate CT Bus cable. The D/
120JCT-LSU board can also interconnect with
SCbus boards by means of a CT Bus to SCbus
adaptor.
A CT Bus cable is not included with the D/120JCTLSU board. You must order an appropriate cable as
an accessory item. CT Bus cables are available in a
variety of configurations to accommodate different
numbers of interconnected boards. Always use a
cable that closely matches the number of boards
you are actually using; avoid using a cable that is
longer than necessary for your particular system. If
Installing a PCI Board
ISA Slot
PCI Slot
PCI
Board
Computer
Chassis
Remove
Cover
Plate
the cable is longer than necessary, connect it to the
boards so that all the unused connectors are at one
end of the cable.
Installing a CT Bus/SCbus Adapter
To connect a the D/120JCT-LSU board to one or
more boards that are interconnected via SCbus, you
must use an optional CT Bus to SCbus adapter. This
adapter assembly is installed on the CT Bus board
that is physically closest to the SCbus boards; only
one adaptor is used per system.
Refer to the documentation shipped with the adaptor
for more information on proper installation.
Completing the Installation
After installing all the boards required for your
system and interconnecting them with appropriate
cables, replace the cover on the computer to
complete the installation.
5. Connecting to External
Equipment
Each of the six RJ-14 jacks on the rear bracket of
the the D/120JCT-LSU board supports two analog
telephony channels. A standard telephone will not
function when directly connected to the board.
Note: The RJ-14 jacks use 2 tip/ring pairs with 2
earth recalls, one for each channel.
Note:
Your CT Bus cable may
have a different number
of connectors (drops).
CT Bus
Cable
Installing the CT Bus Cable
Colored
Stripe
(Pin 1)
6. After Installing the Board
After you install the D/120JCT-LSU board and any
other Dialogic
®
boards, you can proceed with the
following activities:
■
Installing the software - Install the Dialogic®
system release software as described in the
Software Installation Guide for your system
release.
■
Configuring the software - Configure the system
release software as described in the
Configuration Guide(s) for your system release.
■
Testing the board - Test the D/120JCT-LSU board
as described in the diagnostics documentation for
your system release.
■
Troubleshooting problems - The administration
and diagnostics guides for your system release
provide information on troubleshooting problems.
■
For technical specifications and product
information go to: http://www.dialogic.com/
products.htm.
7. Removing the Board
Removal of the board is a straightforward process.
Remove the board using the reverse of the
procedure described in Section 4, Installing the
Board above.
8. Warranty and Return
Information
Warranty Per iod
For specific warranty information for this board, refer
to the Warranty section of the Products page,
located at this URL: http://www.dialogic.com/
warranties/.
Line 2 Earth Recall
Line 2 Ring
Line 1 Tip
Line 1 Ring
Line 2 Tip
Line 1 Earth Recall
6
5
4
3
2
1
Pinout for RJ–14 Jacks on D/120JCT-LSU Bracket
6
5
4
3
2
1
Contacting Technical Support
Dialogic provides technical support for its products
through a network of value added distributors who
are trained to answer technical questions on
installing and configuring Dialogic® products. If you
are unsure how to contact your support channel,
please call Dialogic in the United States at 973-9676600 (9am-5pm EST) and we will assist in obtaining
the appropriate support channel.
Outside the United States please refer to http://
www.dialogic.com/support/contact to obtain local
contact information. Dialogic also provides direct
support via Dialogic
®
Pro™ Services agreements.
For more details of direct support from Dialogic
please refer to:http://www.dialogic.com/support/
DialogicPro
Returning a Product
To return a board for warranty repair or any other
returns, please refer to the following: http://
www.dialogic.com/support/hwfaults.
9. Sales Assistance
If you have a sales question, please contact your
local Sales Representative or the Regional Sales
Office for your area. Address, telephone and fax
numbers, are available at the Dialogic website
located at: http://www.dialogic.com/contact.htm.
To purchase Dialogic® products, please refer to the
following website to locate the appropriate supplier:
http://www.dialogic.com/purchase.htm.
All contents of this document are furnished for informational use
only and are subject to change without notice and do not represent
a commitment on the part of Dialogic Corporation or its subsidiaries
(“Dialogic”). Reasonable effort is made to ensure the accuracy of
the information contained in the document. However, Dialogic does
not warrant the accuracy of this information and cannot accept
responsibility for errors, inaccuracies or omissions that may be
contained in this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN
CONNECTION WITH DIALOGIC® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO
ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY
THIS DOCUMENT. EXCEPT AS PROVIDED IN A SIGNED
AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC
ASSUMES NO LIABILITY WHATSOEVER, AND DIALOGIC
DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY,
RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS
INCLUDING LIABILITY OR WARRANTIES RELATING TO
FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY,
OR INFRINGEMENT OF ANY INTELLECTUAL PROPERTY
RIGHT OF A THIRD PARTY.
Dialogic products are not intended for use in medical, life saving,
life sustaining, critical control or safety systems, or in nuclear facility
applications.
It is possible that the use or implementation of any one of the
concepts, applications, or ideas described in this document, in
marketing collateral produced by or on web pages maintained by
Dialogic may infringe one or more patents or other intellectual
property rights owned by third parties. Dialogic does not provide
any intellectual property licenses with the sale of Dialogic products
other than a license to use such product in accordance with
intellectual property owned or validly licensed by Dialogic and no
such licenses are provided except pursuant to a signed agreement
with Dialogic. More detailed information about such intellectual
property is available from Dialogic’s legal department at 9800
Cavendish Blvd., 5th Floor, Montreal, Quebec, Canada H4M 2V9.
Dialogic encourages all users of its products to procure all
necessary intellectual property licenses required to implement
any concepts or applications and does not condone or
encourage any intellectual property infringement and
disclaims any responsibility related thereto. These intellectual
property licenses may differ from country to country and it is
the responsibility of those who develop the concepts or
applications to be aware of and comply with different national
license requirements.
Dialogic, Diva, Eicon, Eicon Networks, Eiconcard, Dialogic Pro and
SIPcontrol, among others, are either registered trademarks or
trademarks of Dialogic. Dialogic's trademarks may be used publicly
only with permission from Dialogic. Such permission may only be
granted by Dialogic’s legal department at 9800 Cavendish Blvd.,
5th Floor, Montreal, Quebec, Canada H4M 2V9. Any authorized
use of Dialogic's trademarks will be subject to full respect of the
trademark guidelines published by Dialogic from time to time and
any use of Dialogic’s trademarks requires proper
acknowledgement. The names of actual companies and products
mentioned herein are the trademarks of their respective owners.
Loading...
