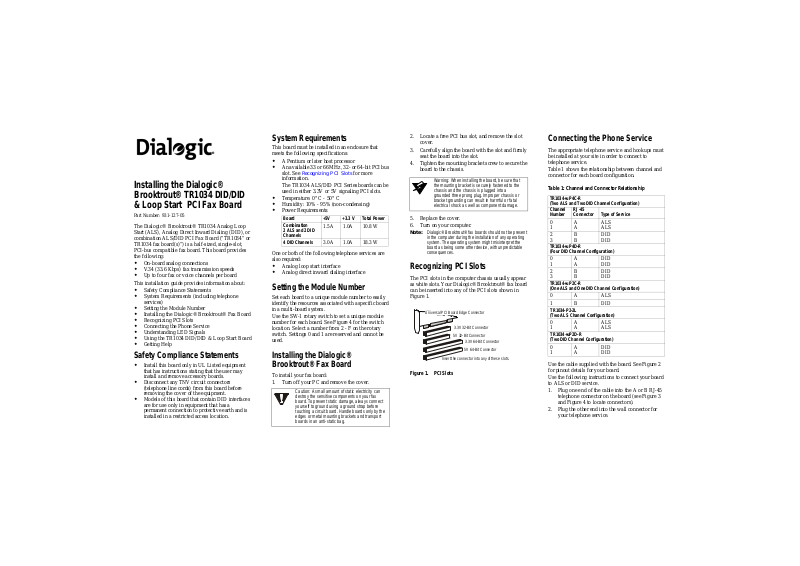

Installing the Dialogic®
Brooktrout® TR1034 DID/DID
& Loop Start PCI Fax Board
Part Number: 931-127-05
The Dialogic® Brooktrout® TR1034 Analog Loop
Start (ALS), Analog Direct Inward Dialing (DID), or
combination ALS/DID PCI Fax Board (“TR1034” or
TR1034 fax board(s)”) is a half-sized, single-slot,
PCI-bus compatible fax board. This board provides
the following:
On-board analog connections
V.34 (33.6 Kbps) fax transmission speeds
Up to four fax or voice channels per board
This installation guide provides information about:
Safety Compliance Statements
System Requirements (including telephone
services)
Setting the Module Number
Installing the Dialogic® Brooktrout® Fax Board
Recognizing PCI Slots
Connecting the Phone Service
Understanding LED Signals
Using the TR1034 DID/DID & Loop Start Board
Getting Help
Safety Compliance Statements
Install this board only in UL Listed equipment
that has instructions stating that the user may
install and remove accessory boards.
Disconnect any TNV circuit connectors
(telephone line cords) from this board before
removing the cover of the equipment.
Models of this board that contain DID interfaces
are for use only in equipment that has a
permanent connection to protective earth and is
installed in a restricted access location.
System Requirements
This board must be installed in an enclosure that
meets the following specifications:
A Pentium or later host processor
An available 33 or 66 MHz, 32- or 64-bit PCI bus
slot. See
information.
The TR1034 ALS/DID PCI Series boards can be
used in either 3.3V or 5V signaling PCI slots.
Recognizing PCI Slots for more
Temperature: 0° C - 50° C
Humidity: 10% - 95% (non-condensing)
Power Requirements:
Board +5V +3.3 V Total Power
Combination
2 ALS and 2 DID
Channels
4 DID Channels
One or both of the following telephone services are
also required:
1.5A 1.0A 10.8 W
3.0A 1.0A 18.3 W
Analog loop start interface
Analog direct inward dialing interface
Setting the Module Number
Set each board to a unique module number to easily
identify the resources associated with a specific board
in a multi-board system.
Use the SW-1 rotary switch to set a unique module
number for each board. See Figure 4 for the switch
location. Select a number from 2 - F on the rotary
switch. Settings 0 and 1 are reserved and cannot be
used.
Installing the Dialogic®
Brooktrout® Fax Board
To install your fax board:
1. Turn off your PC and remove the cover.
Caution: A small amount of static electricity can
destroy the sensitive components on your fax
board. To prevent static damage, always connect
yourself to ground using a ground strap before
touching a circuit board. Handle boards only by the
edges or metal mounting brackets and transport
boards in an anti-static bag.
2. Locate a free PCI bus slot, and remove the slot
cover.
3. Carefully align the board with the slot and firmly
seat the board into the slot.
4. Tighten the mounting bracket screw to secure the
board to the chassis.
Warning: When installing the board, be sure that
the mounting bracket is securely fastened to the
chassis and the chassis is plugged into a
grounded three prong plug. Improper chassis or
bracket grounding can result in harmful or fatal
electrical shock as well as component damage.
5. Replace the cover.
6. Turn on your computer.
Note: Dialogic® Brooktrout® fax boards should not be present
in the computer during the installation of any operating
system. The operating system might misinterpret the
board as being some other device, with unpredictable
consequences.
Recognizing PCI Slots
The PCI slots in the computer chassis usually appear
as white slots. Y our Dialogic® Brooktrout® fax board
can be inserted into any of the PCI slots shown in
Figure 1.
Universal PCI Board Edge Connec t o r
3.3V 32-Bit Connector
5V 32-Bit Conne ct or
3.3V 64-Bit Connector
5V 64-Bit Conne cto r
Insert the conne c to r into any of thes e slots.
Figure 1. PCI Slots
Connecting the Phone Service
The appropriate telephone service and hookups must
be installed at your site in order to connect to
telephone service.
Table 1 shows the relationship between channel and
connector for each board configuration.
Table 1: Channel and Connector Relationship
TR1034+uP4C-R
(Two ALS and Two DID Channel Configuration)
Channel
Number
0
1
2
3
TR1034+uP4D-R
(Four DID Channel Configuration)
0
1
2
3
TR1034+uP2C-R
(One ALS and One DID Channel Configuration)
0A ALS
1B DID
TR1034-P2-2L
(Two ALS Channel Configuration)
0
1
TR1034+uP2D-R
(Two DID Channel Configuration)
0
1
Use the cable supplied with the board. See Figure 2
for pinout details for your board.
Use the following instructions to connect your board
to ALS or DID service.
1. Plug one end of the cable into the A or B RJ-45
2. Plug the other end into the wall connector for
RJ-45
Connector Type of Service
A
A
B
B
A
A
B
B
A
A
A
A
telephone connector on the board (see Figure 3
and Figure 4 to locate connectors).
your telephone service.
ALS
ALS
DID
DID
DID
DID
DID
DID
ALS
ALS
DID
DID
Port A Port B
No connection No connection
No connection No connection
Tip 1 Tip 3
Ring 0 Ring 2
Tip 0 Tip 2
Ring 1 Ring 3
No connection No connection
No connection No connection
Port A = ALS or DID Port B = DID only
Figure 2. ALS and DID Connector Pinouts
Understanding LED Signals
LEDs on the Mounting Bracket
The LEDs on the mounting bracket provide
information about the status of the different systems
on the board. To identify and locate these LEDs, see
Figure 3.
Connector A
Connector B
Channel
LEDs
Board
Status LED
2 ALS and
2 DID
or 4 DID
1 ALS and
1 DID
2 ALS or
2 DID
T able 2 and Table 3 describe how the end panel LEDs
provide information.
Table 2: Channel LEDs
Channel LEDs Meaning
Off Channel is on hook
(inactive).
Flashing at 0.5 second rate Channel is off hook
(active).
Flashing at Ring Cadence
(varies by country)
RJ-45
Connector A
RJ-45
Connector B
Channel LEDs
Board
Status LED
Incoming ring signal
(ALS only).
Table 3: Board Status LED
Board Status LED Meaning
Flashing yellow
(1.5 second rate)
Solid red Board has failed power up tests.
Flashing yellow
and green
Flashing green
(1 second rate)
Off Board is not powered up.
PCI Connector
Board has successfully powered
up and is ready for firmware.
Application is downloading
firmware to the board.
Firmware is downloaded, and the
board is in service.
Module Number
Switch (SW-1)
Using the TR1034 DID/DID & Loop
Start Board
Once you have installed your TR1034 Fax Board, install
and configure your fax or voice software application
according to instructions included with the software.
Getting Help
Dialogic provides technical support for customers who have
purchased hardware or software products from Dialogic. If
you purchased products from a reseller, please contact that
reseller for technical support. This equipment contains no
user serviceable parts and is not intended for repair by
unauthorized personnel. If you experience problems with
your board, please use web site below for repair or warranty
information. If the equipment is causing harm to the
telephone network, the telephone company might request
that you disconnect the equipment until the problem is
resolved. www.dialogic.com/support
