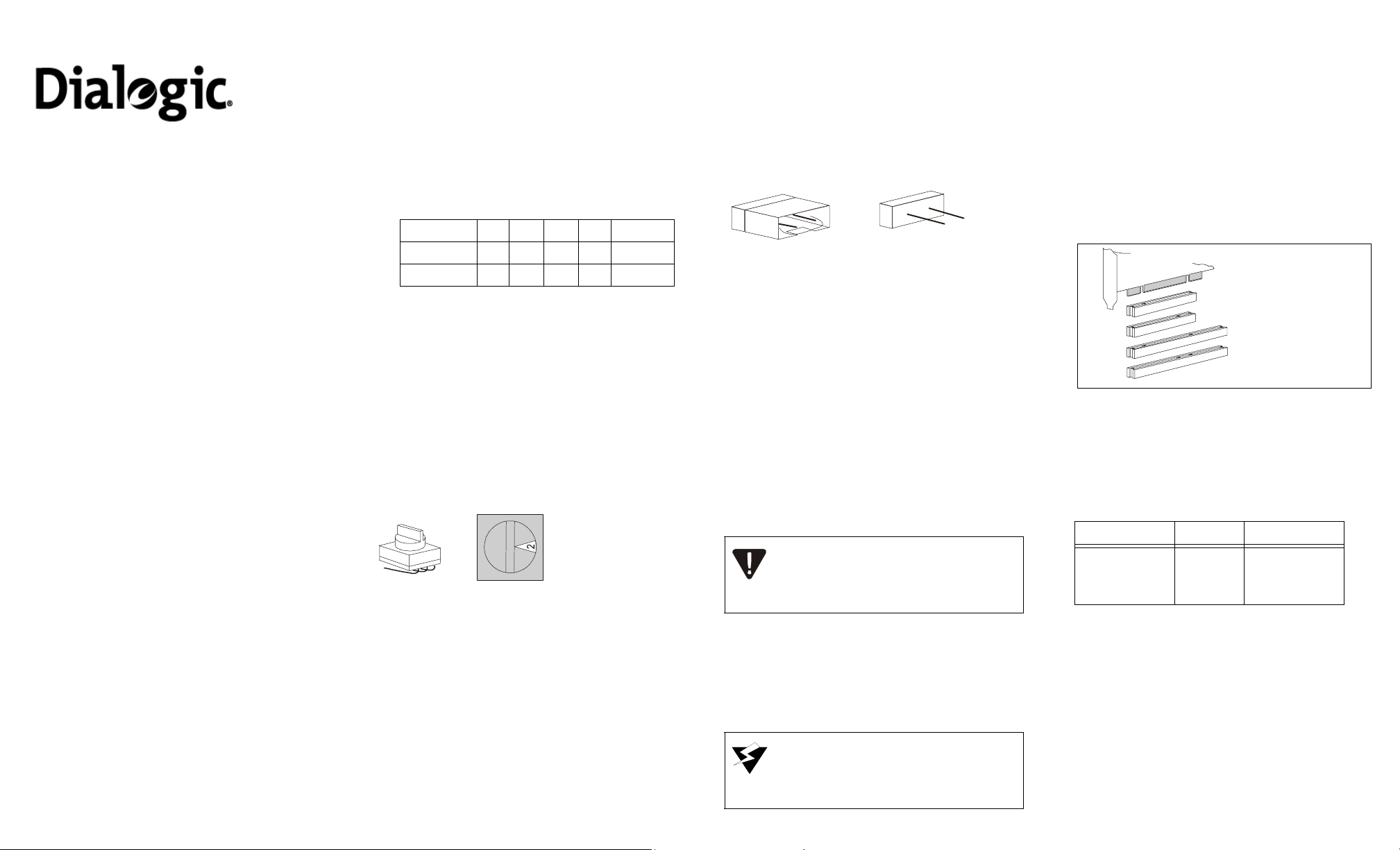

Installing the Dialogic®
Brooktrout® TruFax® BRI
PCI Board
Part Number: 931-107-05
The Dialogic® Brooktrout® TruFax® BRI
(Basic Rate Interface ISDN) PCI boards are halfsized, single-slot PCI-bus compatible fax processing
boards. They provide the following:
On-board BRI connections
Up to four V.17 fax channels per board
The TruFax® BRI PCI Series boards can be used in
either 3.3V or 5V bus (signaling) slots.
You need a fax application to use a TruFax® BRI
board. Dialogic does not provide the application or a
driver for this board. A driver comes with the
application that you purchase.
This installation guide provides information about:
System Requirements (including telephone
service)
Setting the Module Number
Setting Termination Jumpers for the BRI Line
Installing the Dialogic® Brooktrout® Board
Recognizing PCI Slots
Connecting the Phone Service
Understanding LED Signals
Using the Dialogic® Brooktrout® TruFax® BRI
Board
Getting Help
System Requirements
This board must be installed in an enclosure that
meets the following specifications:
A Pentium or later host processor
A PCI bus slot that runs at least 33 MHz and is
32 or 64 bits wide. See
more information.
Recognizing PCI Slots for
Temperature: 0 C - 50 C
Humidity: 10% - 95% (non-condensing)
Power Requirements:
Board +5 V +3.3 V +12 V -12 V Total Power
Single channel
Dual channel
The following is also required:
0.8A 0A 0A 0A 4.0 W
0.9A 0A 0A 0A 4.5 W
Telephone service: BRI interface
Setting the Module Number
Set each board to a unique module number to easily
identify the resources associated with a specific board
in a multi-board system.
Use the SW-1 rotary switch (Figure 1) to set a unique
module number for each Dialogic® Brooktrout®
board. See Figure 5 for the switch location. Select a
number from 2 - F on the rotary switch. Settings 0 and
1 are reserved and cannot be used.
Figure 1. Rotary Switch (SW-1)
Setting Termination Jumpers
for the BRI Line
Before installing your board, set termination for the
BRI line if necessary . See Figure 5 for the location of
the termination switches.
Set jumpers as follows (See Figure 2 for details):
Jumper is in place
(ISDN BRI line is terminated)
Figure 2. Termination Jumpers
Jumper is removed
(ISDN BRI line is not terminated)
When the jumpers are removed from both
switches for the appropriate port, there is no
termination.
When jumpers are present, the lines are
terminated with 100 ohms (this is how the boards
are shipped).
Dialogic does not support any configuration
except the two illustrated in Figure 2.
Installing the Dialogic®
Brooktrout® Board
To install your board:
1. Turn off your PC and remove the cover.
Caution: A small amount of static electricity can destroy
the sensitive components on your board. To prevent
static damage, always connect yourself to ground using
a ground strap before touching a circuit board. Handle
boards only by the edges or metal mounting brackets
and transport boards in an anti-static bag.
2. If the system has a PCI expansion hold-down bar,
remove it.
3. Locate a free PCI bus slot and remove the slot
cover.
4. Carefully align the board with the slot and firmly
seat the board into the slot.
5. Tighten the mounting bracket screw to secure the
board to the chassis.
Warning: When installing the board, be sure that the
mounting bracket is securely fastened to the chassis and
the chassis is plugged into a grounded three prong plug.
Improper chassis or bracket grounding can result in
harmful or fatal electrical shock as well as component
damage.
6. Replace the cover.
7. Turn on your computer.
Note: Dialogic® Brooktrout® boards should not be present in the
computer during the installation of any operating system.
The operating system might misinterpret the board as being
some other device, with unpredictable consequences.
Recognizing PCI Slots
The PCI connectors in the computer chassis usually
appear as white slots. The TruFax® BRI board has a
PCI board edge connector. It can be inserted into any
of the PCI slots shown in Figure 3.
Universal PCI Board Edge Connector
3.3V 32-Bit C onne c t or
5V 32-Bit Connector
3.3V 64-Bit Connector
5V 64-Bit Connector
Insert the connector into any of these slo ts.
Figure 3. PCI Slots
Connecting the Phone Service
The appropriate telephone service and hookups must
be installed at your site in order to connect to
telephone service. The following table shows the
channel/port relationship:
Channel Number RJ-45 Port Type of Service
0
1
2
3
Use the cable supplied with the board. Use these
instructions to connect your board to BRI service:
1. Plug one end of the cable into the telephone
connector on the board.
Connect to Port A for channels 0 and 1 or to
Port B for channels 2 and 3 (see Figure 5 to
locate ports).
2. Plug the other end into the wall connector for
your BRI service.
Note: Port B is not present on the TruFax® BRI single port
version.
A
A
B
B
BRI S/T
BRI S/T
BRI S/T
BRI S/T
Before using your BRI service, you must configure
certain parameters. See your LAN Fax documentation
for details.
See Figure 4 for pinout details for your board:
Pin
1
2
3
4
5
6
7
8
Port A
No connection
No connection
TX Tip 0
RX Tip 0
RX Ring 0
TX Ring 0
No connection
No connection
Port B
No connection
No connection
TX Tip 1
RX Tip 1
RX Ring 1
TX Ring 1
No connection
No connection
Figure 4. Connector Pinouts
Understanding LED Signals
LEDs on the Mounting Bracket
The LEDs on the mounting bracket provide
information about the status of the different systems
on the board. To identify and locate these LEDs, see
Figure 5.
The following tables describe how the end panel
LEDs provide information:
BRI Status LED
BRI LED Meaning
Red Layer 1 is down. This can occur if the
Yellow Layer 1 is up, but layer 2 is down.
Green Layer 1 is up, and layer 2 is up.
Red/green The board is currently receiving CRC
Channel LEDs
Channel LEDs Meaning
Off Channel is idle.
Flashing green Channel is being set up or is
cable is wired incorrectly or the CPE
or CO emulation is wrong.
This state can occur if the protocol
has not been initialized, the D
channel has not been enabled, or the
clocks have not synchronized.
errors.
connected.
Board Status LED
Board Status LED Meaning
Flashing yellow Board is powered up and is
passing self test checks.
Steady red Board is powered up, and the self
test has failed.
Flashing yellow
and green
Board is powered up and is
downloading firmware.
Flashing green Firmware is downloaded, and the
board is in service.
Solid green Board is hung, needs to be reset.
Flickering red Board has failed, needs to be reset.
Off Board has no power, or board is
hung and needs to be reset.
Port A ISDN
Module Number Switch (SW-1)
Termination Jumpers
Port A
RJ-45 Connector
Port B
RJ-45 Connector
BRI Status LEDs
Channel LEDs
Board Status LED
Mounting Bracket
Port B ISDN
Termination Jumpers
PCI Connector
This graphic displays a Dual BRI board.

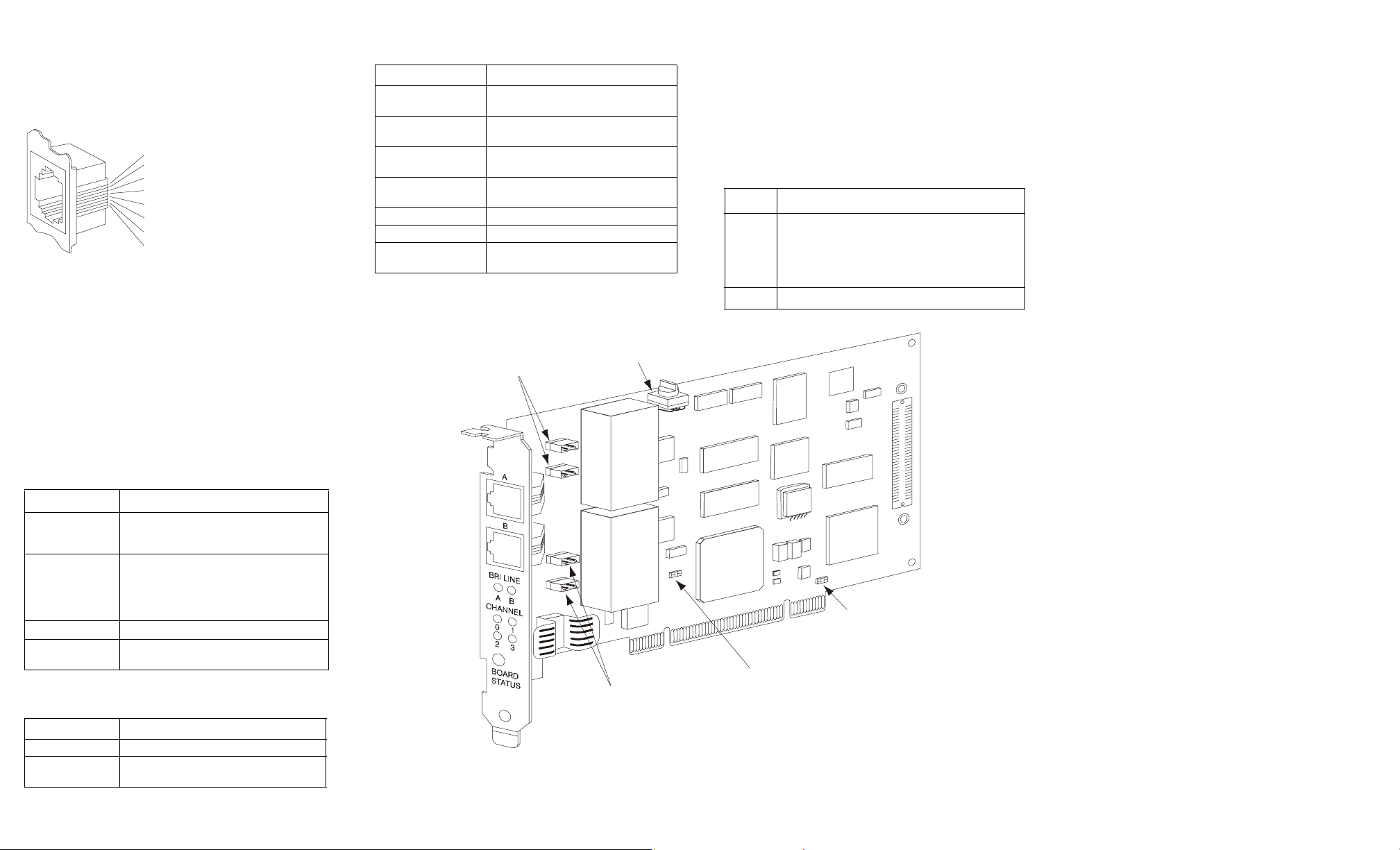

Figure 5. Dialogic® Brooktrout® TruFax® BRI PCI
Series Board
LEDs on the Dialogic® Brooktrout®
Board
The LEDs on the board provide information about the
status of the board. To locate these LEDs, see
Figure 5.
The following table describes how the LEDs on the
board provide information:
LED Meaning
DSP Displays the status for the DSP. After the
firmware is loaded and during normal
execution, this LED blinks about every
second. If the LED is not blinking, the DSP
firmware is not running.
Power Steady green indicates good board power.
DSP LED - D7
Power LED - D10
Using the Dialogic® Brooktrout®
TruFax® BRI Board
Once you have installed the TruFax® BRI board, install and
configure your voice or fax software application according
to instructions included with the software. After you have
set up your software to support the board, your board
provides support for your specific application.
Getting Help
Dialogic provides technical support for customers who have
purchased hardware or software products from Dialogic. If
you purchased products from a reseller, please contact that
reseller for technical support. This equipment contains no
user serviceable parts and is not intended for repair by
unauthorized personnel. If you experience problems with
the TruFax® BRI board, for repair or warranty information,
please use the website below. If the equipment is causing
harm to the telephone network, the telephone company
might request that you disconnect the equipment until the
problem is resolved. www .dialogic.com/support
Copyright and Legal Notice
Copyright © 2006-2008] Dialogic Corporation. All Rights Reserved. You may not
reproduce this document in whole or in part without permission in writing from Dialogic
Corporation at the address provided below.
All contents of this document are subject to change without notice and do not represent a
commitment on the part of Dialogic Corporation or its subsidiaries. Reasonable effort is
made to ensure the accuracy of the informati on co ntained in the d ocume nt. H owever, due
to ongoing product improvements an d re vi sio ns, D ial og ic Corporation and its subsidiaries
do not warrant the accuracy of this information and cannot accept responsibility for errors
or omissions that may be contained in this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH
DIALOGIC® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS
DOCUMENT. EXCEPT AS EXPLICITLY SET FORTH BELOW OR AS PROVIDED IN A
SIGNED AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC ASSUMES NO
LIABILITY WHATSOEVER, AND DIALOGIC DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY, RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS
INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY
INTELLECTUAL PROPERTY RIGHT OF A THIRD PARTY.
Dialogic products are not intended for use in medical, life saving, life sustaining, critical
control or safety systems, or in nuclear facility applications.
It is possible that the use or implementation of any one of the concepts, applications, or
ideas described in this document, in marketing collateral produced by or on web pages
maintained by Dialogic Corporation or its subsidiaries may infringe one or more patents or
other intellectual property rights owned by third parties. Dialogic Corporation or its
subsidiaries do not provide any intellectual property licenses with the sale of Dialogic
products other than a license to use such product in accordance with inte llec tua l prope rty
owned or validly licensed by Dialogic Corporation or its subsidiaries. More detailed
information about such intellectual property is available from Dialogic Corporation's legal
department at 9800 Cavendish Blvd., 5th Floor, Montreal, Quebec, Canada H4M 2V9.
The software referred to in this document is provided under a Software License
Agreement. Refer to the Software License Agreement for complete details governing the
use of the software.
Dialogic Corporation encourages all users of its products to procure all necessary
intellectual property licenses requir ed to imple ment any concepts or applicat ions and does
not condone or encourage any intellectual property infringement and disclaims any
responsibility related thereto. These intellectual property licenses may differ from country
to country and it is the responsibility of thos e who deve lop the concepts or applications to
be aware of and comply with different national license requirements.
Dialogic, Dialogic Pro, Brooktrout, Cantata, SnowShore, Eicon, Eicon Networks,
Eiconcard, Diva, SIPcontrol, Diva ISDN, TruFax, Realblocs, Realcomm 100, NetAccess,
Instant ISDN, TRXStream, Exnet, Exnet Connect, EXS, ExchangePlus VSE, Switchkit,
N20, Powering The Service-Ready Network, Vantage, Connecting People to Information,
Connecting to Growth and Shiva, among others as well as related logos, are either
registered trademarks or trademarks of Dialogic.
Dialogic Corporation © 1998-2008
Loading...
