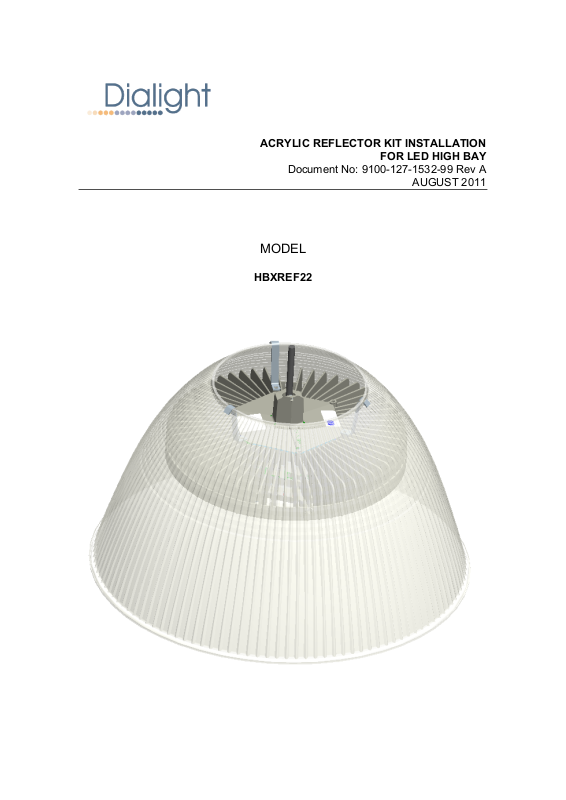

ACRYLIC REFLECTOR KIT INSTALLATION

FOR LED HIGH BAY

Document No: 9100-127-1532-99 Rev A

AUGUST 2011

MODEL

HBXREF22

Document No: 9100-127-1532-99 Rev A

8.5”

1: Introduction

This Acrylic Reflector kit provides several advantages including glare reduction when side viewing,
up lighting and aesthetics for retrofit installations.

Part Number Description of Reflector

HBXREF22 22” Acrylic Reflector

Note: Save these instructions for future reference.

2: Installation

Warning:

To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected,
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.

To avoid electric shock:

• Be certain electrical power is OFF before and during installation and maintenance.

• Luminaire must be connected to a wiring system with an equipment-grounding conductor.

To avoid personal injury:

• Allow the unit to cool down before performing maintenance.

Acrylic Reflector Installation Steps:

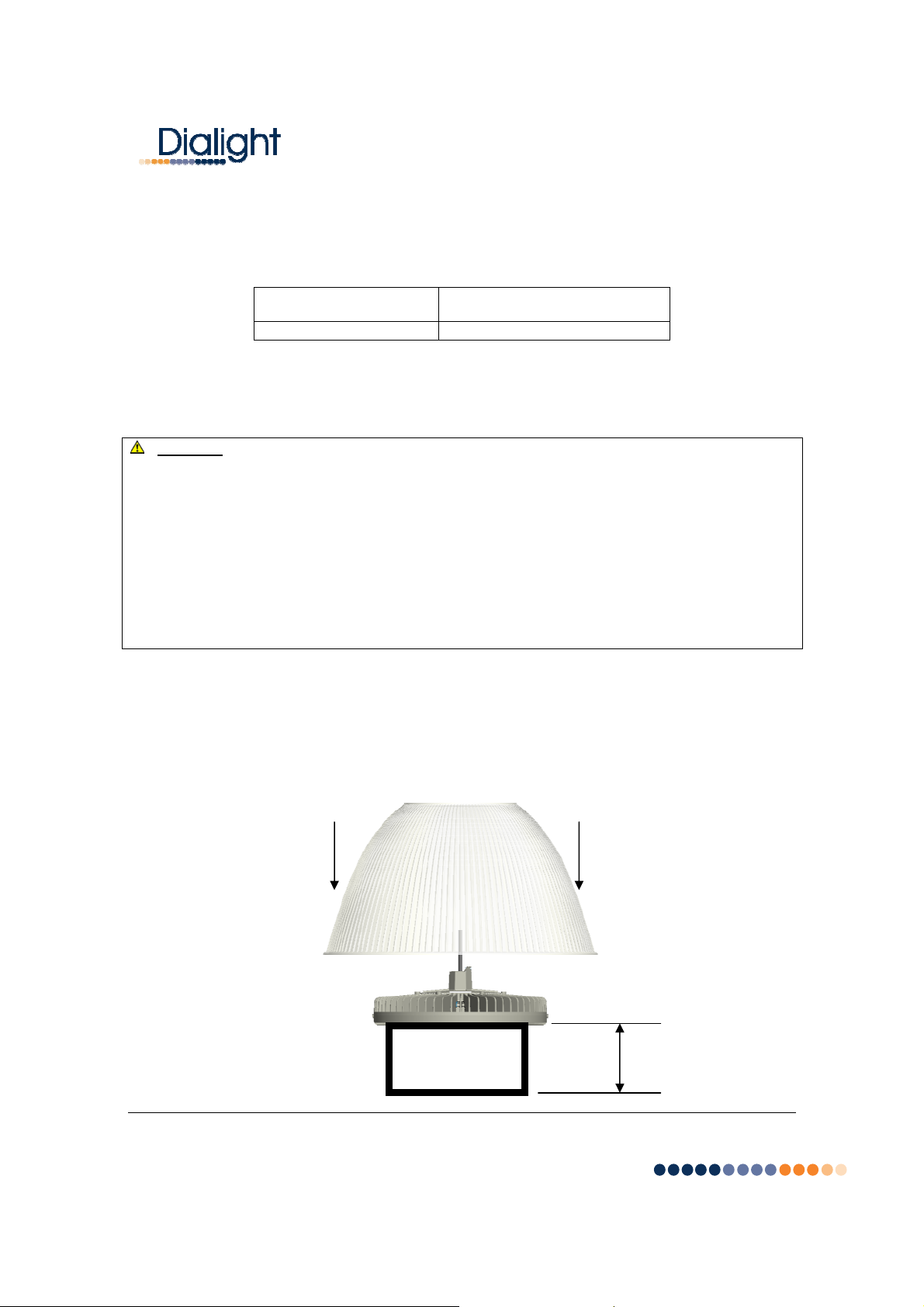

• Prior to mounting and electrical connections, place High Bay face down on a stable

elevated surface (at least 8.5” above the table) that does not exceed the outer diameter of
the High Bay. This is so that the reflector will be properly positioned on the High Bay unit.

• Position the Acrylic Reflector over High Bay resting on the outer edges of the fins and feed

the electrical wire through the top of the Reflector.

Page 2 of 4

1501 Route 34 South, Farmingdale, NJ 07727

Tel: [phone] Fax: [phone] www.dialight.com

Document No: 9100-127-1532-99 Rev A

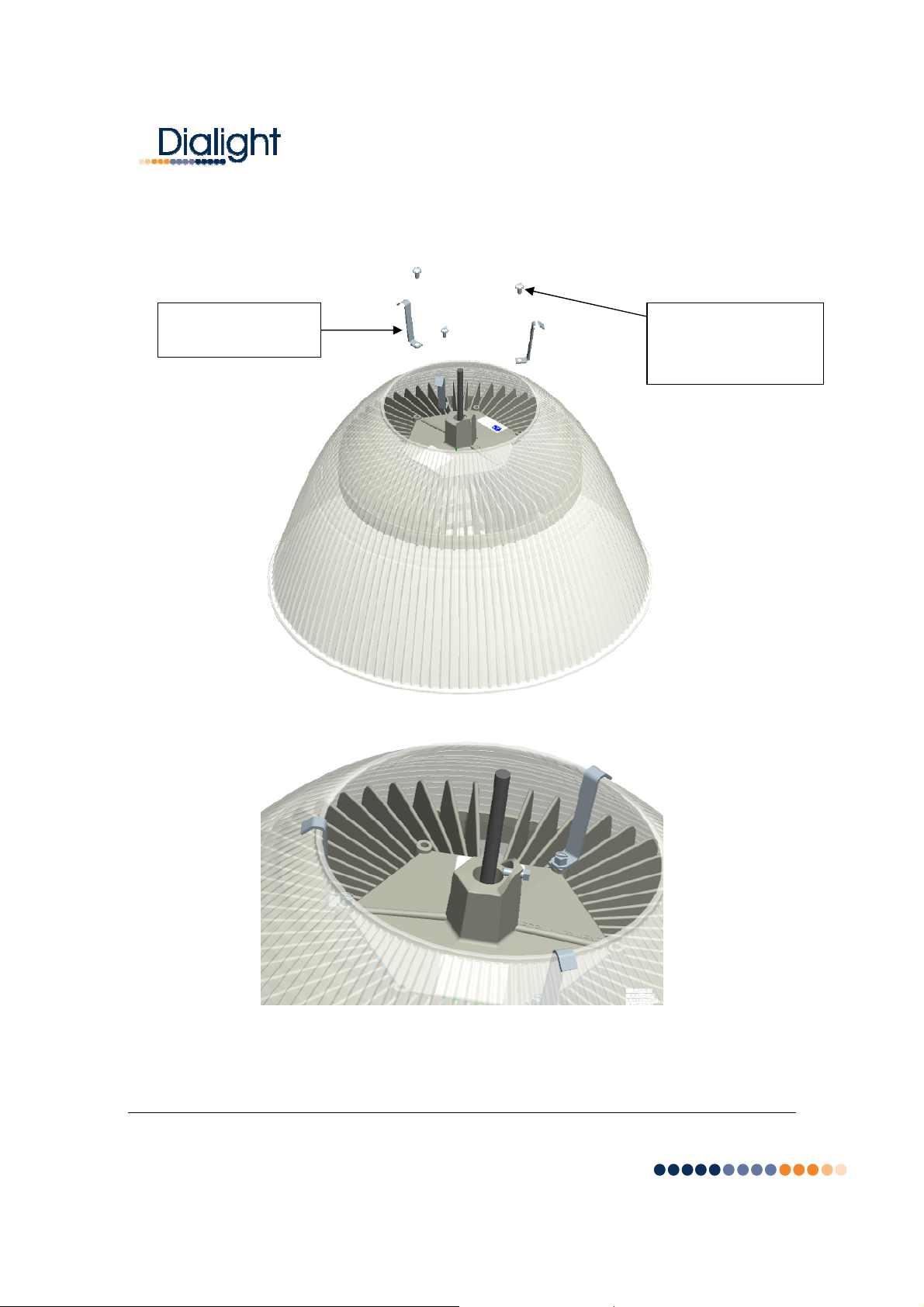

• Take the three included hook brackets and 1/4-20 self tapping screws, and fasten them to

every other hole located on the top of the High Bay. When screwing brackets into place
make sure that the hook of the bracket grabs the top of the Reflector. See image below.

Hook Brackets

Quantity 3

¼-20 x 1/2”

Form Thread Screws

Quantity 3

Page 3 of 4

1501 Route 34 South, Farmingdale, NJ 07727

Tel: [phone] Fax: [phone] www.dialight.com

Document No: 9100-127-1532-99 Rev A

DIMENSIONS ARE FOR REFERENCE ONLY.

All statements, technical information and recommendations contained herein are based on information and
tests we believe to be reliable. The accuracy or completeness thereof is not guaranteed. In accordance with
Dialight Corporation “Terms and Conditions of Sale”, and since conditions of use are outside our control, the
purchaser should determine the suitability of the product for his intended use and assumes all risk and liability
whatsoever in connection therewith.

REV. ECO No. DRN CHK APP QA CM DATE

A 4436 JD KJ SA RL JB 8/17/2011
