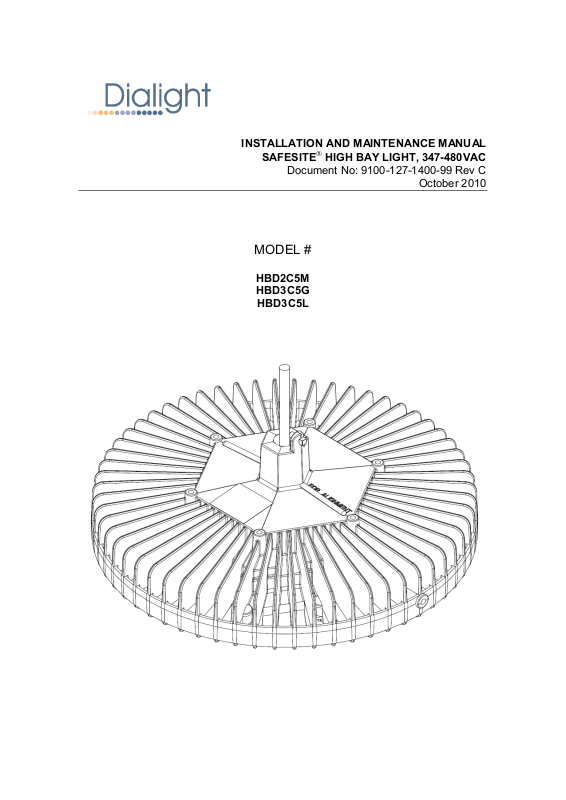

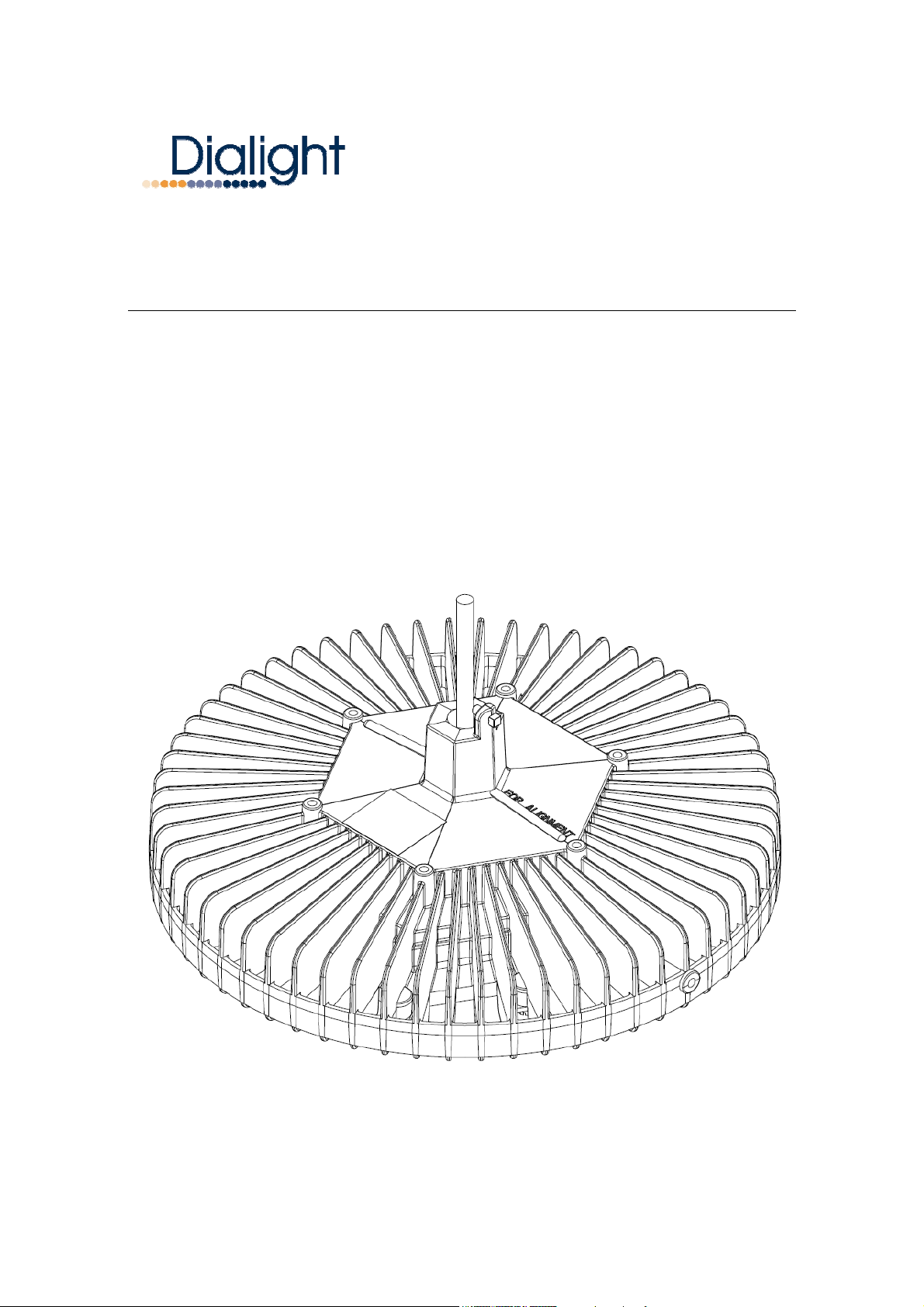

Dialight HBD3C5L User Manual

INSTALLATION AND MAINTENANCE MANUAL

SAFESITE

Document No: 9100-127-1400-99 Rev C



HIGH BAY LIGHT, 347-480VAC

October 2010

MODEL #

HBD2C5M
HBD3C5G

HBD3C5L

Document No: 9100-127-1400-99 Rev C

1: Introduction

This High Bay light is designed for illumination of industrial locations. It uses the latest in solid state
lighting technology for long life, low maintenance, and high efficiency.

The unique optical design focuses light downward to where it is needed, giving improved efficiency
over a conventional HID luminaire.

An internal power-factor-corrected switch-mode supply allows it to be used from any nominal 347V­480V, 60Hz AC supply without any variation in light output.

Models HBD2C5M, HBD3C5G, and HBD3C5L are suitable for use in the following locations:

• HAZARDOUS LOCATIONS: CLASS I DIV 2 GROUPS A, B, C, D
(Max Ambient Temp: +60°C) CLASS II DIV 2 GROUPS F, G
CLASS III DIV 1, 2

• Outdoor Type (Wet Locations)

Note: Save these instructions for future reference.

2: Installation

Warning:

To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected,
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.

Warning:

To avoid electric shock:

• Be certain electrical power is OFF before and during installation and maintenance.

• Luminaire must be connected to a wiring system with an equipment-grounding conductor.

Warning:

To avoid explosion:

• Make sure the supply voltage is the same as the rated luminaire voltage.

• Do not install where the marked operating temperatures exceed the ignition temperature of the

hazardous atmosphere.

• Do not operate in ambient temperatures above those indicated on the luminaire nameplate.

• Keep lens tightly closed when in operation.

For supply connections use wire rated for at least 110ºC
Recommended mounting height: 25-40 feet

Page 2 of 5

1501 Route 34 South, Farmingdale, NJ 07727

Tel: [phone] Fax: [phone] www.dialight.com

Document No: 9100-127-1400-99 Rev C

Pendent Mount Installation Steps:

• For maximum long term reliability and light output, the light must be installed in free air.

o The High Bay fixture design incorporates an over-temperature control circuit that

reduces input power should internal temperatures reach a maximum level. As a
result, light output may be reduced.

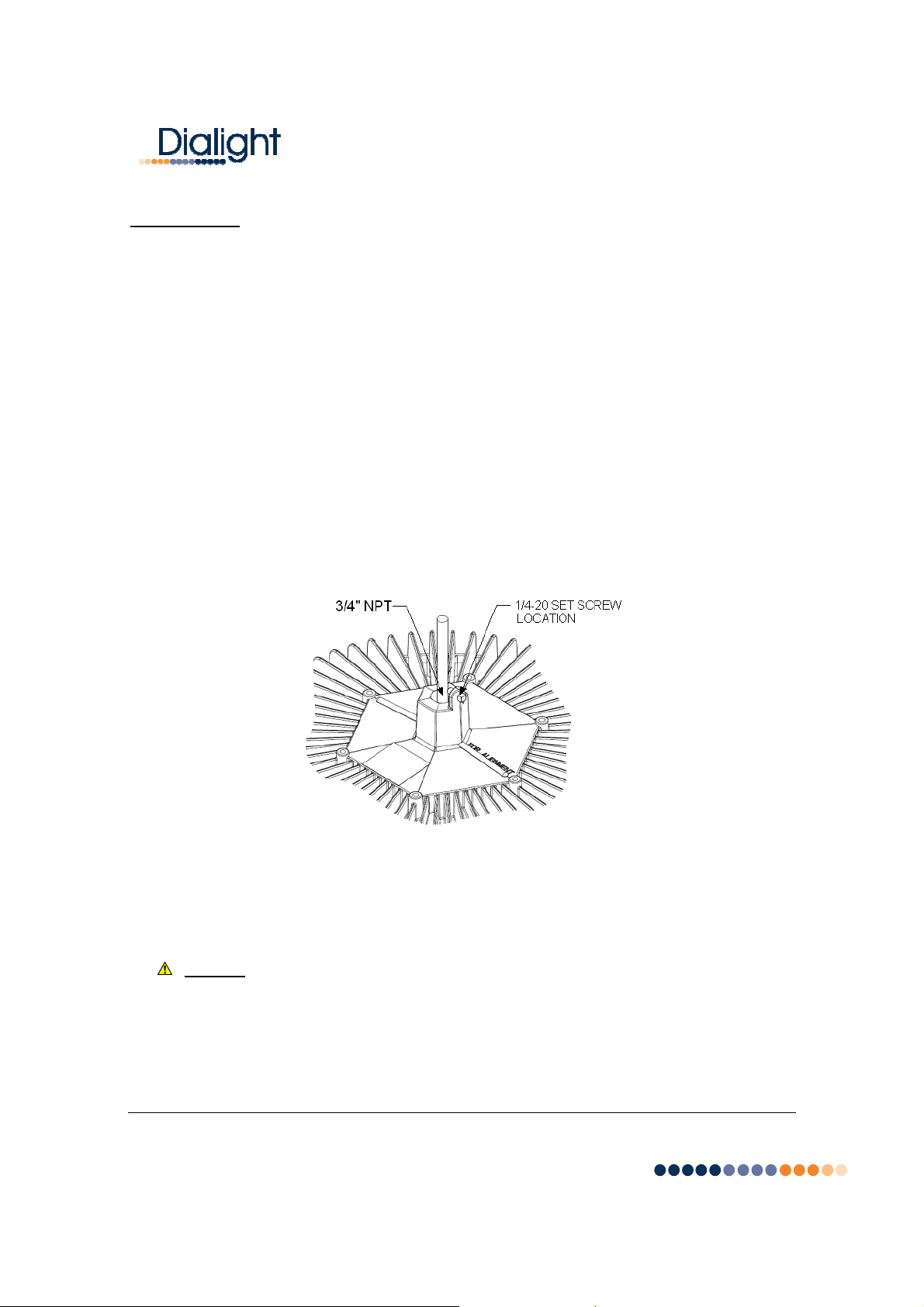

• The High Bay fixture is threaded for 3/4” NPT in order to be assembled to conduit.

o Calculate and measure required conduit length.
o Feed the power cable through the conduit and into the junction box.
o Attach the fixture to the conduit (using Teflon tape or pipe sealant).
o Insert 1/4-20 set screw in order to secure the fixture to the conduit.

• Connect power cable conductors as follows:

o For single phase (347 VAC):

 Green wire connects to Safety Ground.
 White wire connects to Neutral
 Black wire connects to Live

o For two phase (480 VAC):

 Green wire connects to Safety Ground.
 Black wire connects to Line 1.
 White wire connects to Line 2.

• Restore power and verify operation.

3: Maintenance

• To avoid personal injury, disconnect power to the light and allow the unit to cool down
before performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the
lens will void the warranty.

1) Perform visual, mechanical and electrical inspections on a regular basis. We recommend
routine checks to be made on a yearly basis. Frequency of use and environment should
determine this. It is recommended to follow an Electrical Preventive Maintenance Program
as described in NFPA 70B: Recommended Practice for Electrical Equipment.

Page 3 of 5

1501 Route 34 South, Farmingdale, NJ 07727

Tel: [phone] Fax: [phone] www.dialight.com

Document No: 9100-127-1400-99 Rev C

2) The lens should be cleaned periodically as needed to ensure continued photometric
performance. Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use
mild soap or a liquid cleaner. Do not use an abrasive, strong alkaline or acid cleaner as
damage may occur.

3) Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or
contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.

4. Specifications

Nominal AC Supply Voltage 347-480VAC, 60Hz

Power consumption 150W nominal

Operating temperature range -40°F to +140°F [-40°C to +60°C]

T5 @ -40°F to +113°F [-40°C to +45°C]

T4a @ -40°F to +140°F [-40°C to +60°C]

Power factor >0.95

ATHD <15%

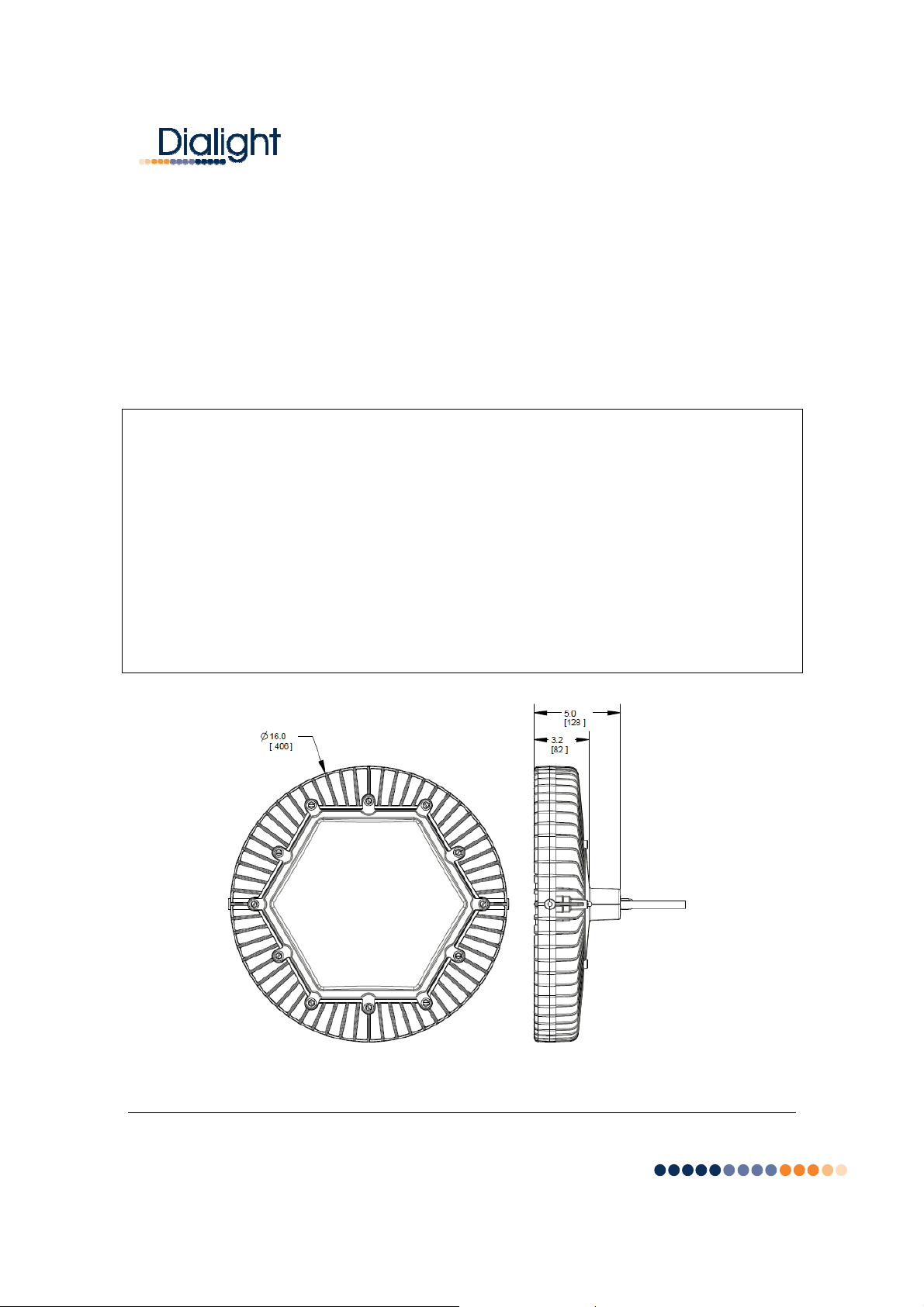

Dimensions (Height x Diameter) 5” x 16” [12.7cm x 40.6cm]

Weight 17 lbs [7.7 kg]

DIMENSIONS ARE FOR REFERENCE ONLY.

Page 4 of 5

1501 Route 34 South, Farmingdale, NJ 07727

Tel: [phone] Fax: [phone] www.dialight.com

Document No: 9100-127-1400-99 Rev C

All statements, technical information and recommendations contained herein are based on information and
tests we believe to be reliable. The accuracy or completeness thereof is not guaranteed. In accordance with
Dialight Corporation “Terms and Conditions of Sale”, and since conditions of use are outside our control, the
purchaser should determine the suitability of the product for his intended use and assumes all risk and liability
whatsoever in connection therewith.
