Page 1
3-11
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3
2mm

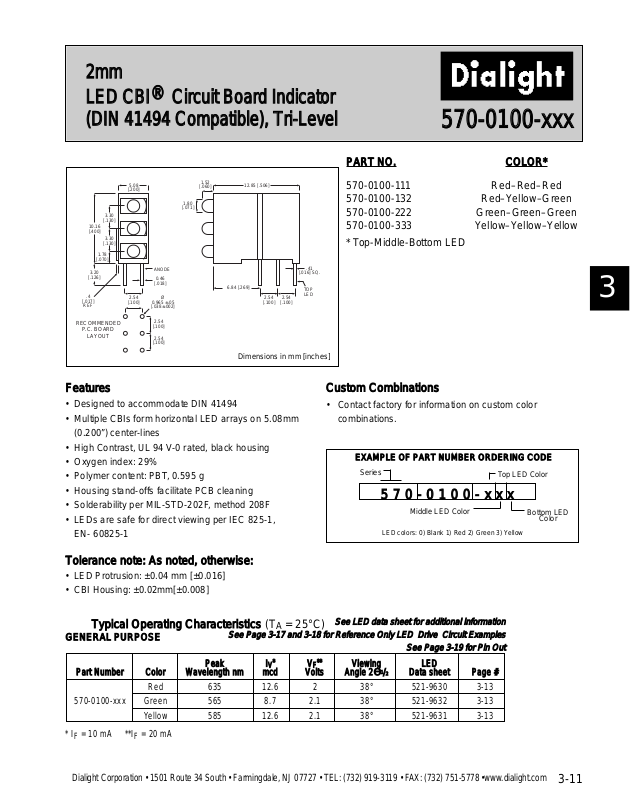

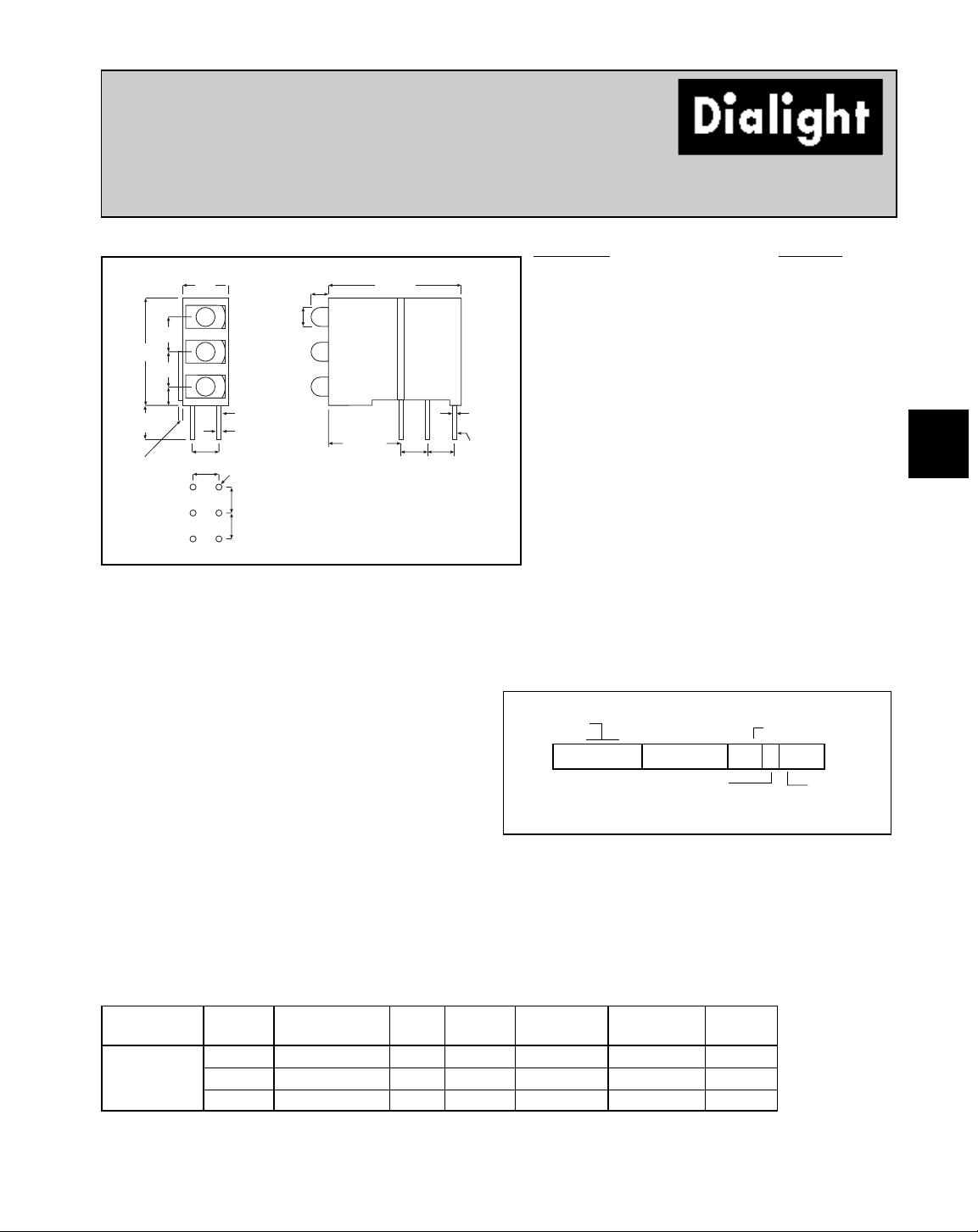

LED CBI®Circuit Board Indicator
(DIN 41494 Compatible), Tri-Level
570-0100-xxx
.
PART NO. COLOR*
570-0100-111 Red–Red–Red
570-0100-132 Red–Yellow–Green
570-0100-222 Green–Green–Green
570-0100-333 Yellow–Yellow–Yellow
* Top-Middle-Bottom LED
Features
• Designed to accommodate DIN 41494
• Multiple CBIs form horizontal LED arrays on 5.08mm
(0.200”) center-lines
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 29%
• Polymer content: PBT, 0.595 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1,
EN- 60825-1
Tolerance note: As noted, otherwise:
• LED Protrusion: ±0.04 mm [±0.016]
• CBI Housing: ±0.02mm[±0.008]
Dimensions in mm [inches]
5 7 0 - 0 1 0 0 - x x x
Top LED Color
Bottom LED
Color
Middle LED Color
Series
EXAMPLE OF PART NUMBER ORDERING CODE
LED colors: 0) Blank 1) Red 2) Green 3) Yellow
Peak I
V
*
V
F
**
Viewing LED
Part Number Color Wavelength nm mcd Volts Angle 2
ΘΘ1/
2
Data sheet Page #
Red 635 12.6 2 38° 521-9630 3-13
570-0100-xxx Green 565 8.7 2.1 38° 521-9632 3-13
Yellow 585 12.6 2.1 38° 521-9631 3-13
Custom Combinations
• Contact factory for information on custom color
combinations.
* IF= 10 mA **IF= 20 mA
Typical Operating Characteristics
(T
A
= 25°C)
See LED data sheet for additional information
GENERAL PURPOSE
See Page 3-17 and 3-18 for Reference Only LED Drive Circuit Examples
See Page 3-19 for Pin Out
1.80
[.071]
1.52
[.060]
12.85 [.506]
6.84 [.269]
2.54
2.54
[.100]
[.100]
5.08
[.200]
3.30
[.130]
10.16
[.400]
3.30
[.130]
1.78
[.070]
3.20
[.126]
.4
[.017]
REF
RECOMMENDED
P.C. BOARD
LAYOUT
2.54
[.100]
ANODE
0.46
[.018]
Ø
0.965 ±.05
[.038±.002]
2.54
[.100]
2.54
[.100]
.41
[.016] SQ
TOP
LED
Page 2
3-13
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3

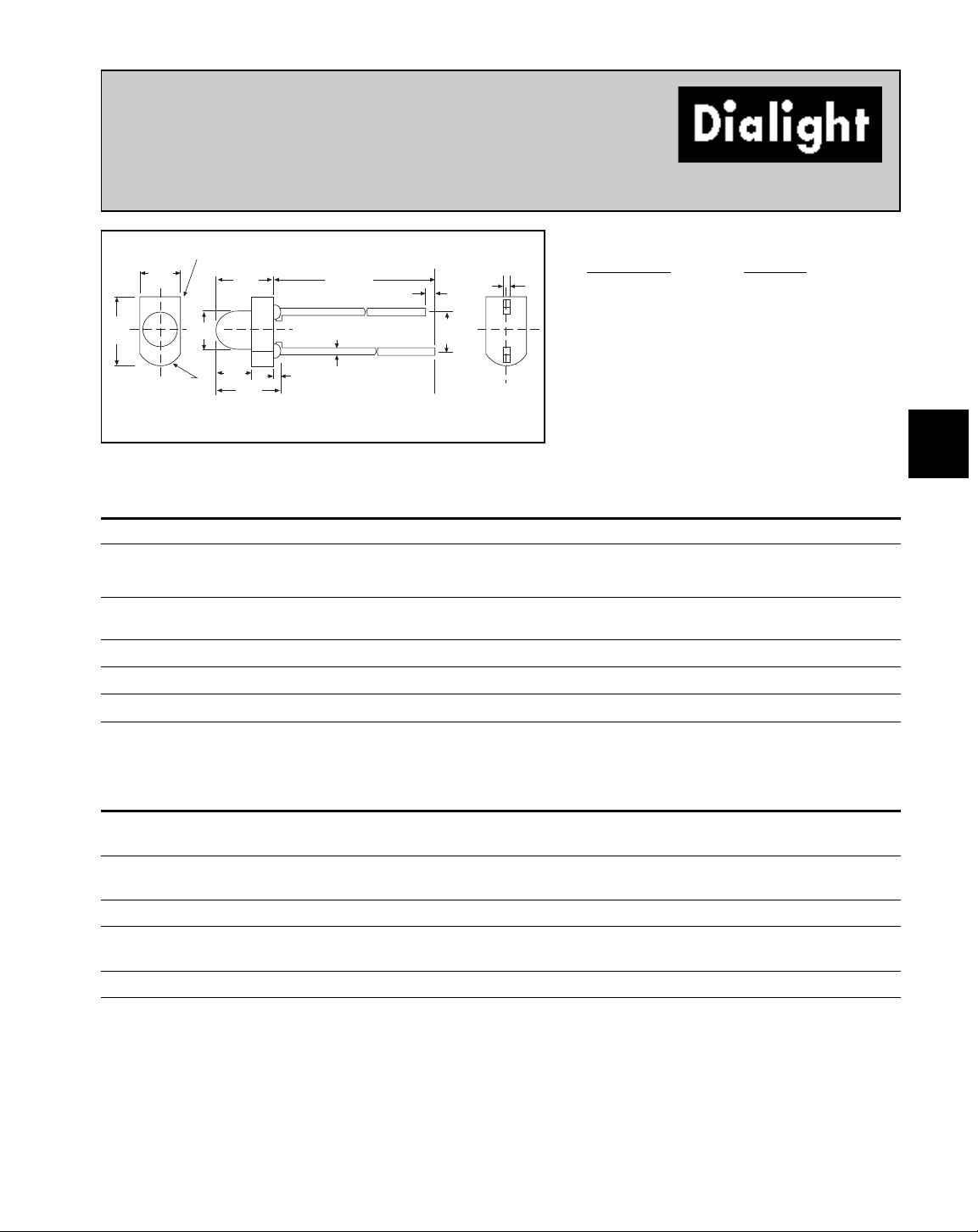

2mm Discrete LED
Diffused
521-9630, -9631, -9632
CATHODE I.D.
PART NO.
COLOR
521-9630 Red
521-9631 Yellow
521-9632 Green
Red Yellow Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9630 -9631 -9632
Power Dissipation (mW) 100 60 100
Forward Current (mA) 30 20 30
Derating (mA/°C)
From 25°C
.4 .25 .4
Peak Current (mA) 120 80 120
Pulse width = 10µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Yellow Green
OPERATING CHARACTERISTICS (TA=25°C)
-9630 -9631 -9632
Luminous Intensity (mcd) Min. 3.7 3.7 2.5
IF=10mA Typical 12.6 12.6 8.7
Peak Wavelength (nm) Typical 635 585 565
λ Peak
Viewing Angle (
2
ΘΘ1/
2
) Typical 38° 38° 38°
Forward Voltage (V) Typical 2 2.1 2.1
IF=20mA Max. 2.8 2.8 2.8
Reverse Voltage (V), IR=100µA Min. 5 5 5
Dimensions in mm [inches]
Θ
1
¼2is the off axis angle at which the luminous intensity is half the axial luminous intensity
2.40
[.095]
3.30
[.13]
R 1.65
[.065]
1.80
[.071]
1.52
[.060]
2.90
[.114]
3.30
[.130]
25.40
[1.00] MIN
CATHODE
.45
[.018]
TYP
1.50 [.059] MAX
1.00
[.04]
MIN
2.54
[.10]
NOM
.40
[.016]
TYP
