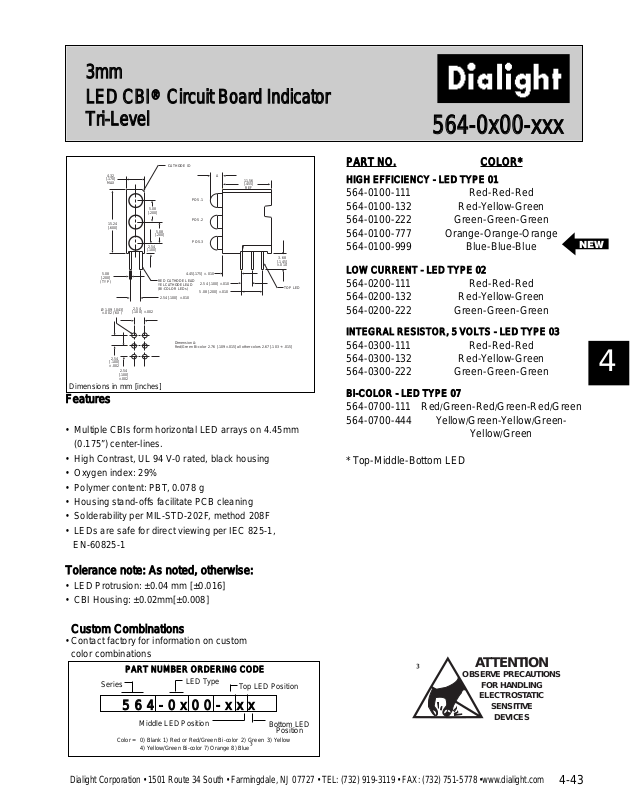

DIALIGHT DIAL 564-0100-13 Datasheet

4-43

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

4

3mm
LED CBI

®

Circuit Board Indicator

Tri-Level

564-0x00-xxx

PART NO. COLOR*

HIGH EFFICIENCY - LED TYPE 01

564-0100-111 Red-Red-Red
564-0100-132 Red-Yellow-Green
564-0100-222 Green-Green-Green
564-0100-777 Orange-Orange-Orange
564-0100-999 Blue-Blue-Blue

LOW CURRENT - LED TYPE 02

564-0200-111 Red-Red-Red
564-0200-132 Red-Yellow-Green
564-0200-222 Green-Green-Green

INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 03

564-0300-111 Red-Red-Red
564-0300-132 Red-Yellow-Green
564-0300-222 Green-Green-Green

BI-COLOR - LED TYPE 07

564-0700-111 Red/Green-Red/Green-Red/Green
564-0700-444 Yellow

/Green-Yellow/Green-

Yellow

/Green

* Top-Middle-Bottom LED

Features

• Multiple CBIs form horizontal LED arrays on 4.45mm
(0.175”) center-lines.

• High Contrast, UL 94 V-0 rated, black housing

• Oxygen index: 29%

• Polymer content: PBT, 0.078 g

• Housing stand-offs facilitate PCB cleaning

• Solderability per MIL-STD-202F, method 208F

• LEDs are safe for direct viewing per IEC 825-1,
EN-60825-1

Tolerance note: As noted, otherwise:

• LED Protrusion: ±0.04 mm [±0.016]

• CBI Housing: ±0.02mm[±0.008]

Custom Combinations

• Contact factory for information on custom

color combinations

Dimensions in mm [inches]

5 6 4 - 0 x 0 0 - x x x

Top LED Position

Bottom LED

Position

Middle LED Position

LED Type

Series

PART NUMBER ORDERING CODE

Color = 0) Blank 1) Red or Red/Green Bi-color 2) Green 3) Yellow

4) Yellow/Green Bi-color 7) Orange 8) Blue

³

NEW

³

4.32
[.170]
MAX

15.24

[.600]

5.08

[.200]

( TYP )

2.54

Ø 1.09 [.043]

[.100] ±.002

±.002 ( 6X )

2.54
[.100]
±.002

2.54
[.100]
±.002

CATHODE ID

5.08

[.200]

5.08

[.200]

2.54

[.100]

RED CATHODE LEAD
YEL CATHODE LEAD
(BI-COLOR LEDs)

2.54 [.100] ±.010

Dimension A:
Red/Green Bi-color 2.76 [.109 ±.015] all other colors 2.67 [.103 +- .015]

POS.1

POS.2

POS.3

4.45[.175] ±.010

2.54 [.100] ±.010

5.08 [.200] ±.010

A

11.56
[.455]

REF

3.68
[.145]
±.010

TOP LED

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

SENSITIVE

DEVICES

4-44

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

Peak I

V

V

F

Test Viewing LED

Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2

ΘΘ½Data sheet Page #

Red 635 10 2* 10 60° 521-9216 4-58

564-0100-xxx

Green 565 12.6 2.1* 10 60° 521-9210 4-58
Yellow 585 10 2.1* 10 60° 521-9211 4-58

Orange 600 7 2.2 10 60° 521-9498 4-58

Blue 428 12 3.5 10 70° 521-9831 4-57

* IF= 20mA

564-0x00-xxx

HIGH EFFICIENCY

Peak I

V

V

F

Test Viewing LED

Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2

ΘΘ½Data sheet Page #

Red 635 1.6 1.7 2 60° 521-9324 4-60

564-0200-xxx Green 565 1.6 1.9 2 60° 521-9326 4-60

Yellow 585 1.6 1.8 2 60° 521-9325 4-60

LOW CURRENT

Peak I

V

Test Forward Viewing LED

Part Number Color Wavelength nm mcd Voltage Current (mA) Angle 2

ΘΘ½Data sheet Page #

Red 635 29 5 10 60° 521-9215 4-59

564-0300-xxx Green 565 19 5 10 60° 521-9323 4-59

Yellow 585 12.6 5 10 60° 521-9322 4-59

INTEGRAL RESISTOR, 5 VOLTS

Peak I

V

V

F

Test Viewing LED

Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2

ΘΘ½Data sheet Page #

564-0700-111 Red/Green 635/565 4.7/10 2/2.1 10 50° 521-9459 4-63

564-0700-444 Yellow/Green 585/565 4.3/6.3 2.1*/2.1* 10 80° 521-9478 4-62

BI-COLOR

Typical Operating Characteristics

(T

A

=25°C)

See LED data sheet for additional information

See Pages 4-73 and 4-74 for LED Drive Circuit Examples

See Page 4-72 for Pin Out

* I

F

= 20mA

4-57

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

4

3mm Discrete LED
Tinted, Diffused

521-9831

SURFACE NOT FLAT

PART NO. COLOR
521-9831 Blue

³

Blue

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9831
Power Dissipation (mW) 100
Forward Current (mA) 20

Derating (mA/°C)

From 55°C

.44
Operating Temperature (°C) -40/+100
Storage Temperature (°C) -40/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case

Blue

OPERATING CHARACTERISTICS (TA=25°C)

-9831

Luminous Intensity (mcd) Min. 6.3

IF=10mA Typical 12

Peak Wavelength (nm) Typical 428

λ Peak

Viewing Angle (2

Θ½) Typical 70°

Forward Voltage (V) Typical 3.5

IF=10mA Max. 4.2

Reverse Voltage (V) IR=10µA Min. 3

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

³

NEW

0.7 [.028]

1.8 [.071]

1.2 [.047]

0.4 [.016]

4.8 [.189]

4.4 [.173]

2.9 [.114]
ø

2.7 [.106]

3.7 [.145]

3.5 [.138]

6.1 [.240]

5.7 [.224]

4.8 [.189]

4.4 [.173]

CATHODE

29 [1.142]
27 [1.063]

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

SENSITIVE

DEVICES

0.6 [.024]

0.4 [.016]

2.54 [.100]

3.4 [.134]

3.1 [.122]

0.6 [.024]

0.4 [.016]

4-58

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

Green Yellow Red Orange Red

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9210 -9211 -9216 -9498 -9636

Power Dissipation (mW) 100 60 100 135 100
Forward Current (mA) 30 20 30 25 40

Derating (mA/°C)

From 50°C

1

from 25°C .4 .25 .4 .5 .5

1

Operating Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from body

3mm Discrete LED
High Efficiency

Diffused

521-9210, -9211, -9216, -9498, -9636

PART NO. COLOR
521-9210 Green
521-9211 Yellow
521-9216 Red
521-9498 Orange
521-9636 Red

Green Yellow Red Orange Red

OPERATING CHARACTERISTICS (TA=25°C)

-9210 -9211 -9216 -9498 -9636

Luminous Intensity (mcd) Min. 4.7 7.4 7.4 3.4 8.7

1

IF=10mA1 IF=20mA Typical 12.6 10 10 7 48

1

Peak Wavelength (nm) Typical 565 585 635 600 660

λ Peak
Viewing Angle (2Θ ½) Typical 60° 60° 60° 60° 60°
Forward Voltage (V) Typical 2.1

1

2.1

1

2

1

2.2 1.8

1

IF=10mA1IF=20mA Max. 2.8

1

2.8

1

2.8

1

3 2.4

1

Reverse Voltage (V), IR=100µA Max. 5 5 5 5 4

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

short lead cathode all colors except 521-9636 Red.
For 521-9636 Red, short lead is anode.

NEW

[.016]

3.30
[.13]

2.54

[.100]

.40

4.45

[.175]

1.02

[.040]

3.00

[.118]

1.50
[.059]
MAX

6.00

[.236]

25.4

[1.0] MIN

.45

[.016 ]

1.02

[.040]

MIN

4-59

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

4

3mm Discrete LED
Integral Resistor, 5V

Diffused

521-9215, -9322, -9323

PART NO. COLOR
521-9215 Red

521-9322 Yellow
521-9323 Green

Red Yellow Green

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9215 -9322 -9323

Forward Voltage (V) 7.5 7.5 7.5

Derating (V/°C)

From 50°C

.086 .086 .071
Operating Temperature (°C) -40/+85 -40/+85 -20/+85
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case

Red Yellow Green

OPERATING CHARACTERISTICS (TA=25°C)

-9215 -9322 -9323

Luminous Intensity (mcd) Min. 8.7 3.7 5.6

VF=5V Typical 29 12.6 19

Peak Wavelength (nm) Typical 635 585 565

λ Peak

Viewing Angle (2

Θ½) Typical 60° 60° 60°

Forward Current (mA) Typical 10 10 10

VF=5V Max. 20 20 20

Reverse Voltage (V), IR=100µA Min. 5 5 5

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

4.40 [.175]

1.01

[.040]

2.90

3.20
[.115]

[.125]

5.97 [.235] 2.41 [.950] MAX

1.0

[.040]

.457

[.018]

SQ.

1.27

[.050]

2.54

[.100]

CATHODE

4-60

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

3mm Discrete LED
Low Current

Diffused

521-9324, -9325, -9326

4.4

PART NO. COLOR
521-9324 Red

521-9325 Yellow
521-9326 Green

Red Yellow Green

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9324 -9325 -9326
Power Dissipation (mW) 20 20 20
Forward Current (mA) 7 7 7

Derating (mA/°C)

From 90°C

.7 .7 .7

Peak Current (mA) 500 500 500

Pulse width = 10 µs

Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case

Red Yellow Green

OPERATING CHARACTERISTICS (TA=25°C)

-9324 -9325 -9326
Luminous Intensity (mcd) Min. 1 1 1

IF=2mA Typical 1.6 1.6 1.6

Peak Wavelength (nm) Typical 635 585 565

λ Peak

Viewing Angle (2

Θ

½

) Typical 60° 60° 60°

Forward Voltage (V) Typical 1.7 1.8 1.9

IF=2mA Max. 2.2 2.7 2.2

Reverse Voltage (V), IR=50µA Min. 5 5 5

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

[.175]

1.01

[.040]

3.3

[.130]

5.97

[.235]

1.0

[.040]

26.67
[1.05]

MIN.

[.016]

1.00

[.040]

.40

.40

[.016]

2.54

[.100]

CATHODE

4-62

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

3mm Discrete LED
Bi-Color

Non-Tinted, Diffused

521-9478, -9628, -9768

PART NO. COLOR
521-9478 Yellow/Green
521-9628 Red/Green
521-9768 Red/Yellow

Yellow/Green Red/Green Red/Yellow

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9478 -9628 -9768
Power Dissipation (mW) 60/100 140/100 100/60
Forward Current (mA) 20/30 40/30 30/20

Derating (mA/°C)

From 25°C 1From 50°C

.251/.40

1

.5/.4 .41/.25

1

Peak Current (mA) 80/120 200/120 120/80

Pulse width = 10µs

Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.66 mm from case

Yellow/Green Red/Green Red/Yellow

OPERATING CHARACTERISTICS (TA=25°C)

-9478 -9628 -9768

Luminous Intensity (mcd) Min. 2.5/2.5 3.7*/1.1* 1.7*/1.7*

IF=10mA * IF=20mA Typical 4.3/6.3 12.6*/3.7* 5.6*/5.6*

Peak Wavelength (nm) Typical 585/565 660/565 630/585

λ Peak

Viewing Angle (2

Θ

½

) Typical 80° 200° 80°

Forward Voltage (V) Typical 2.1/2.1 1.8/2.1 2/2.1

IF=20mA Max. 2.8/2.8 2.4/2.8 2.8/2.8

Reverse Voltage (V) IR=100ua Min. 5 5 5

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

25.40
[1.00]

MIN

RED CATHODE 521-9768
YELLOW CATHODE 521-9478
GREEN CATHODE 521-9628

[.020]

3.00

[.118]

1.02

[.040]

4.45

[.175]

5.20 ±.5

[.205 ±.02]

NOTE:
MENISCUS MAY EXTEND 1.0MM [.040]
DOWN FROM HOUSING

2.54

.50

TYP

[.100]

NOM

3.20

[.126]

MAX

2.54

[.100]

4-63

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

4

3mm Discrete LED
Bi-Color

Non-Tinted, Diffused

521-9459

PART NO. COLOR
521-9459 Red/Green

Red/Green

ABSOLUTE MAXIMUM RATINGS (TA=25°C)

-9459
Power Dissipation (mW) 140
Forward Current (mA) 45

Derating (mA/°C)

From 25°C

.6

Peak Current (mA) 1000

Pulse width = 10µs

Operating Temperature (°C) -55/+100
Storage Temperature (°C) -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case

Red/Green

OPERATING CHARACTERISTICS (TA=25°C)

-9459
Luminous Intensity (mcd) Min. 2.5/3.7

IF=10mA Typical 4.7/10

Peak Wavelength (nm) Typical 635/565

λ Peak

Viewing Angle (2

Θ½) Typical 50°

Forward Voltage (V) Typical 2/2.1

IF=10mA Max. 2.8/2.8

Dimensions in mm [inches]

Θ



is the off axis angle at which the luminous intensity is half the axial luminous intensity

Solder Adherence per MIL-STD-202E, Method 208C

MOUNTING CLIP:

515-0006

located on page 4-65

4.59 [.181]

4.0

[.158]

3.00

[.118]

6.10 [.240]

1.0

[.040]

.50

[.020] SQ.

NOM.

26.92 [1.06] MIN

1.80

[.071]

MAX

3.40

[.134]

MAX

CATHODE

GREEN

2.54

[.100]
