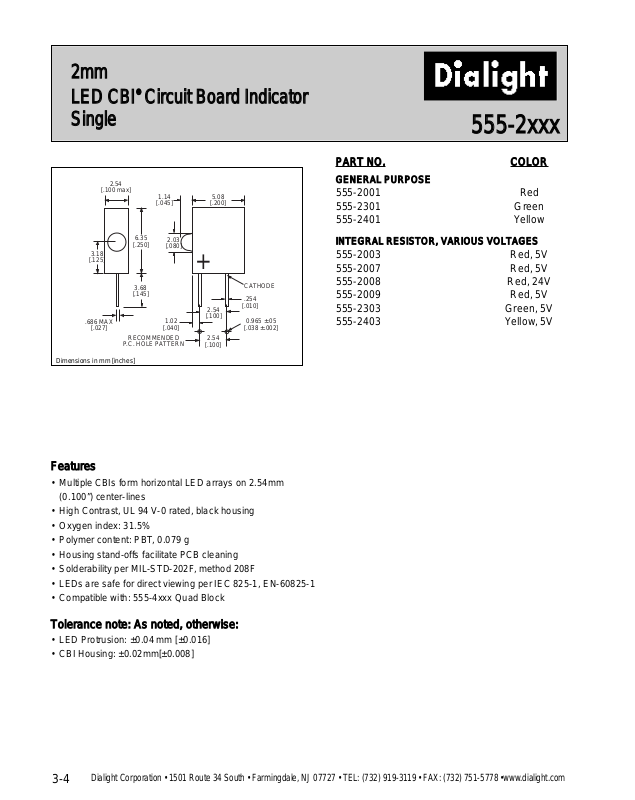

3-4
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
2mm
LED CBI
®
Circuit Board Indicator
Single
555-2xxx
2.54
]
PART NO. COLOR
GENERAL PURPOSE
555-2001 Red
555-2301 Green
555-2401 Yellow
INTEGRAL RESISTOR, VARIOUS VOLTAGES
555-2003 Red, 5V
555-2007 Red, 5V
555-2008 Red, 24V
555-2009 Red, 5V
555-2303 Green, 5V
555-2403 Yellow, 5V
Features
• Multiple CBIs form horizontal LED arrays on 2.54mm
(0.100”) center-lines
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 31.5%
• Polymer content: PBT, 0.079 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
• Compatible with: 555-4xxx Quad Block
Tolerance note: As noted, otherwise:
• LED Protrusion: ±0.04 mm [±0.016]
• CBI Housing: ±0.02mm[±0.008]

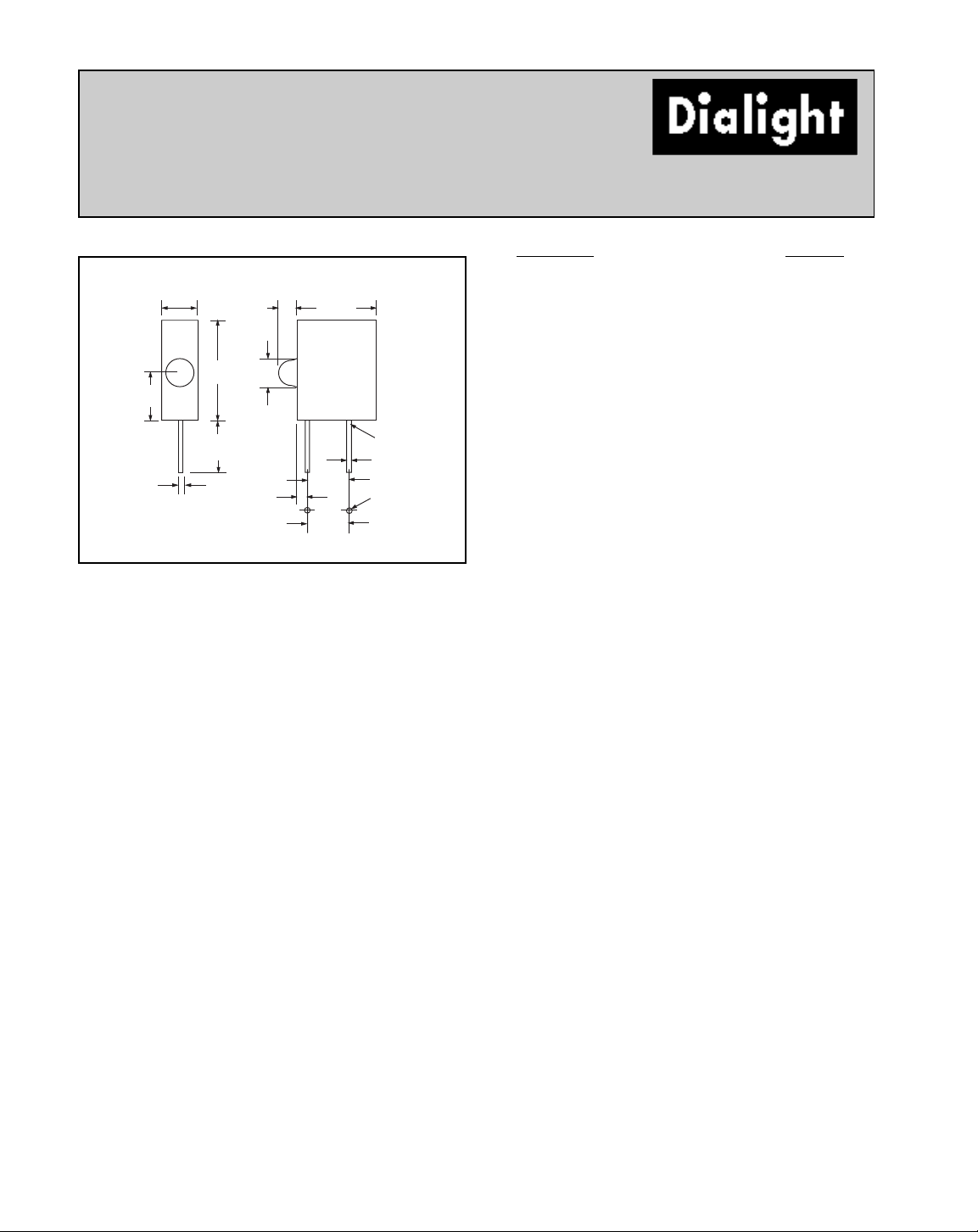

Dimensions in mm [inches]
[.100 max]
3.18
[.125]
.686 MAX
[.027]
1.14
[.045]
6.35
3.68
2.03
[.080]
1.02
[.040]
[.250]
[.145]
RECOMMENDED
P.C. HOLE PATTERN
+
5.08
[.200]
2.54
[.100]
2.54
[.100]
CATHODE
.254
[.010]
0.965 ±.05
[.038 ±.002
3-5
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3
555-2xxx
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ1/
2
Data sheet Page #
555-2001 Red 650 1.2 1.6 20 40° 2ND-9412 3-14
555-2301 Green 565 1 2.4 20 40° 2ND-9414 3-14
555-2401 Yellow 583 2 2.2 20 40° 2ND-9416 3-14
Typical Operating Characteristics
(T
A
= 25°C)
See LED data sheet for additional information
GENERAL PURPOSE
See Page 3-17 and 3-18 for Reference Only LED Drive Circuit Examples
See Page 3-19 for Pin Out
Peak I
V
I
F
Test Viewing LED
Part Number Color Wavelength nm mcd mA Voltage Angle 2
ΘΘ1/2Data sheet Page #
555-2003 Red 650 1.9 6 5 40° 2RD-9614 3-15
555-2007 Red 650 .9 3 5 40° 2RD-9613 3-15
555-2008 Red 650 .9 3 24 40° 2RD-9623 3-16
555-2009 Red 650 .6 1 5 40° 2RD-9618 3-15
555-2303 Green 565 2.5 4.7 5 40° 2RD-9615 3-15
555-2403 Yellow 583 2.1 4.7 5 40° 2RD-9616 3-15
INTEGRAL RESISTOR, VARIOUS VOLTAGES
3-14
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
2mm
General Purpose
Diffused
2ND-xxxx
TYPE COLOR
2ND-9412* Red
2ND-9414* Green
2ND-9416* Yellow
Red Green Yellow
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9412 -9414 -9416
Power Dissipation (mW) 80 80 80
Derating (mW/°C)
From 25°C
1.1 1.1 1.1
Forward Current (mA) 40 25 25
Peak Current (mA) 250 250 250
Pulse width = 1 µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Green Yellow
OPERATING CHARACTERISTICS (TA=25°C)
-9412 -9414 -9416
Luminous Intensity (mcd) Min. 1 .5 .6
IF=20mA Typical 1.2 1 2
Peak Wavelength (nm) Typical 650 565 583
λ Peak
Viewing Angle (
2
ΘΘ1/
2
) Typical 40° 40° 40°
Forward Voltage (V) Typical 1.6 2.4 2.2
IF=20mA Max. 2 3 3
Reverse Voltage (V), IR=10µA Min. 3 3 3
* NOT A VALID PART
NUMBER. THIS SHEET IS FOR
REFERENCE ONLY.
Θ
1
¼2is the off axis angle at which the luminous intensity is half the axial luminous intensity
3-15
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3
Red Red Green Yellow Red
OPERATING CHARACTERISTICS (TA=25°C)
- 9613 -9614 -9615 -9616 -9618
Luminous Intensity (mcd) Min. .4 .8 .8 1.3 .3
VF=5V Typical .9 1.9 2.5 2.1 .6
Peak Wavelength (nm) Typical 650 650 565 583 650
λ Peak
Viewing Angle (
2
Θ1/2
) Typical 40° 40° 40° 40° 40°
Forward Current (mA) Typical 3 6 4.7 4.7 1
VF=5V Max. 4 8 6.7 6.7 2.6
Reverse Voltage (V), IR=100µA Min. 66666
Red Red Green Yellow Red
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9613 -9614 -9615 -9616 -9618
Forward Voltage (V) 66666
Operating Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
2mm
Integral Resistor, 5 Volts
Diffused
2RD-9613 thru 2RD-9618
TYPE COLOR
2RD-9613* Red
2RD-9614* Red
2RD-9615* Green
2RD-9616* Yellow
2RD-9618* Red
* NOT A VALID PART
NUMBER. THIS SHEET IS FOR
REFERENCE ONLY.
3-16
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
Red 14V Red 3.6V Red 10V Red 15V Red 24V
OPERATING CHARACTERISTICS (TA=25°C)
-9619 -9620 -9621 -9622 -9623
Luminous Intensity (mcd) Min. 1.3 2.6 1.8 .3 .4
VF=Forward Voltage Typical 3.1 6.2 4.2 .9 .9
Peak Wavelength (nm) Typical 650 650 650 650 650
λ Peak
Viewing Angle (
2
ΘΘ1/
2
) Typical 40° 40° 40° 40° 40°
Forward Current (mA) Typical 10 20 14 3 3
VF=Forward Voltage Max. 15 25 18 3.8 3.8
Reverse Voltage (V), IR=100µA Typical 15 4.6 11 16 25
Red 14V Red 3.6V Red 10V Red 15V Red 24V
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9619 -9620 -9621 -9622 -9623
Forward Voltage (V) 14 3.6 10 15 24
Operating Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
TYPE COLOR
2RD-9619* Red, 14V
2RD-9620* Red, 3.6V
2RD-9621* Red, 10V
2RD-9622* Red, 15V
2RD-9623* Red, 24V
2mm
Integral Resistor, Various Voltages
Diffused
2RD-9619 thru 2RD-9623
* NOT A VALID PART
NUMBER. THIS SHEET IS FOR
REFERENCE ONLY.
