2-33
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
2

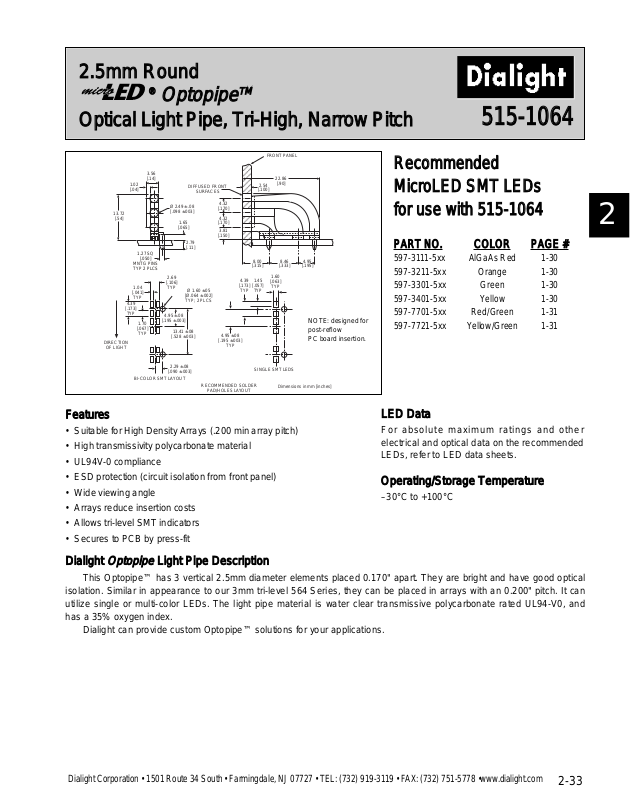

2.5mm Round
®
Optopipe
TM
Optical Light Pipe, Tri-High, Narrow Pitch
515-1064
]
Recommended
MicroLED SMT LEDs
for use with 515-1064
PART NO. COLOR PAGE #
597-3111-5xx AlGaAs Red 1-30
597-3211-5xx Orange 1-30
597-3301-5xx Green 1-30
597-3401-5xx Yellow 1-30
597-7701-5xx Red/Green 1-31
597-7721-5xx Yellow/Green 1-31
Features
• Suitable for High Density Arrays (.200 min array pitch)
• High transmissivity polycarbonate material
• UL94V-0 compliance
• ESD protection (circuit isolation from front panel)
• Wide viewing angle
• Arrays reduce insertion costs
• Allows tri-level SMT indicators
• Secures to PCB by press-fit
LED Data
For absolute maximum ratings and other
electrical and optical data on the recommended
LEDs, refer to LED data sheets.
Dialight
Optopipe
Light Pipe Description
This Optopipe™ has 3 vertical 2.5mm diameter elements placed 0.170" apart. They are bright and have good optical
isolation. Similar in appearance to our 3mm tri-level 564 Series, they can be placed in arrays with an 0.200" pitch. It can
utilize single or multi-color LEDs. The light pipe material is water clear transmissive polycarbonate rated UL94-V0, and
has a 35% oxygen index.
Dialight can provide custom Optopipe™ solutions for your applications.
Operating/Storage Temperature
–30°C to +100°C
NOTE: designed for
post-reflow
PC board insertion.
FRONT PANEL
3.56
[.14]
13.72
[.54]
DIRECTION
OF LIGHT
1.02
[.04]
1.27 SQ
[.050]
MNTG PINS
TYP 2 PLCS
1.04
[.041]
TYP
4.39
[.173]
TYP
1.70
[.067]
TYP
BI-COLOR SMT LAYOUT
Ø 2.49 ± .08
[.098 ±.003]
2.69
[.106]
TYP
4.95 ±.08
[.195 ±.003]
13.41 ±.08
[.528 ±.003]
2.29 ±.08
[.090 ±.003]
DIFFUSED FRONT
SURFACES
1.65
[.065]
2.79
[.11]
Ø 1.60 ±.05
[Ø.064 ±.002]
TYP; 2 PLCS
4.32
[.170]
4.32
[.170]
3.81
[.150]
4.39
[.173]
TYP
4.95 ±.08
[.195 ±.003]
TYP
RECOMMENDED SOLDER
PAD/HOLES LAYOUT
22.86
[.90]
2.54
[.100]
8.00
[.315]
[.333]
1.60
1.45
[.063]
[.057]
TYP
TYP
SINGLE SMT LEDS
Dimensions in mm [inches
8.46
4.95
[.195]
