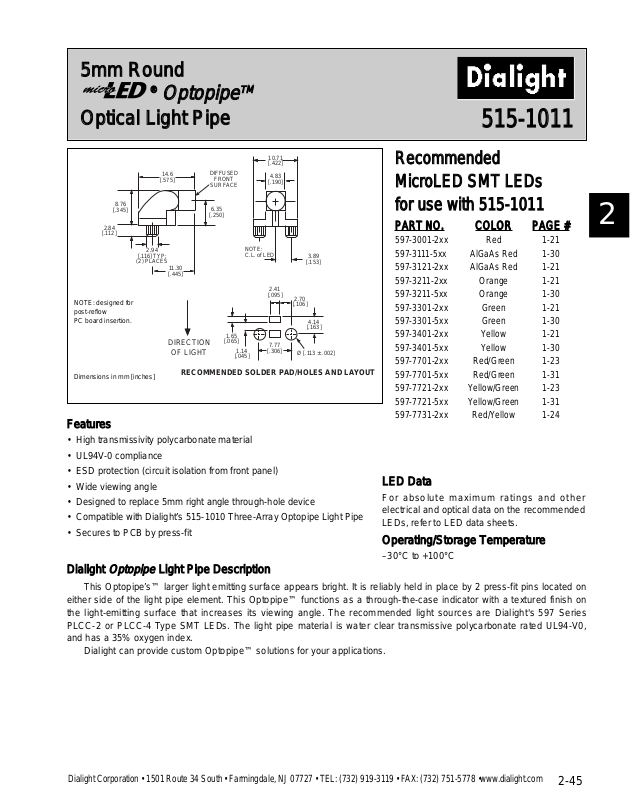

DIALIGHT DIAL 515-1011F Datasheet

2-45

Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: [phone] • FAX: [phone] •www.dialight.com

2

5mm Round

®

Optopipe

TM

Optical Light Pipe

515-1011

T

10.71

Dimensions in mm [inches]

NOTE: designed for
post-reflow
PC board insertion.

Recommended
MicroLED SMT LEDs
for use with 515-1011

PART NO. COLOR PAGE #

597-3001-2xx Red 1-21
597-3111-5xx AlGaAs Red 1-30
597-3121-2xx AlGaAs Red 1-21
597-3211-2xx Orange 1-21
597-3211-5xx Orange 1-30
597-3301-2xx Green 1-21
597-3301-5xx Green 1-30
597-3401-2xx Yellow 1-21
597-3401-5xx Yellow 1-30
597-7701-2xx Red/Green 1-23
597-7701-5xx Red/Green 1-31
597-7721-2xx Yellow/Green 1-23
597-7721-5xx Yellow/Green 1-31
597-7731-2xx Red/Yellow 1-24

Features

• High transmissivity polycarbonate material

• UL94V-0 compliance

• ESD protection (circuit isolation from front panel)

• Wide viewing angle

• Designed to replace 5mm right angle through-hole device

• Compatible with Dialight’s 515-1010 Three-Array Optopipe Light Pipe

• Secures to PCB by press-fit

LED Data

For absolute maximum ratings and other
electrical and optical data on the recommended
LEDs, refer to LED data sheets.

Dialight

Optopipe

Light Pipe Description

This Optopipe’s™ larger light emitting surface appears bright. It is reliably held in place by 2 press-fit pins located on
either side of the light pipe element. This Optopipe™ functions as a through-the-case indicator with a textured finish on
the light-emitting surface that increases its viewing angle. The recommended light sources are Dialight's 597 Series
PLCC-2 or PLCC-4 Type SMT LEDs. The light pipe material is water clear transmissive polycarbonate rated UL94-V0,
and has a 35% oxygen index.

Dialight can provide custom Optopipe™ solutions for your applications.

Operating/Storage Temperature

–30°C to +100°C

14.6

[.575]

8.76

[.345]

2.84

[.112]

2.94

[.116] TYP;

(2) PLACES

11.30
[.445]

DIRECTION

OF LIGHT

RECOMMENDED SOLDER PAD/HOLES AND LAYOU

DIFFUSED

FRONT

SURFACE

6.35

[.250]

1.65

[.065]

NOTE:
C.L. of LED

1.14

[.045]

[.422]

4.83

[.190]

2.41

[.095]

7.77

[.306]

3.89

[.153]

2.70

[.106]

4.14

[.163]

Ø [.113 ± .002]
