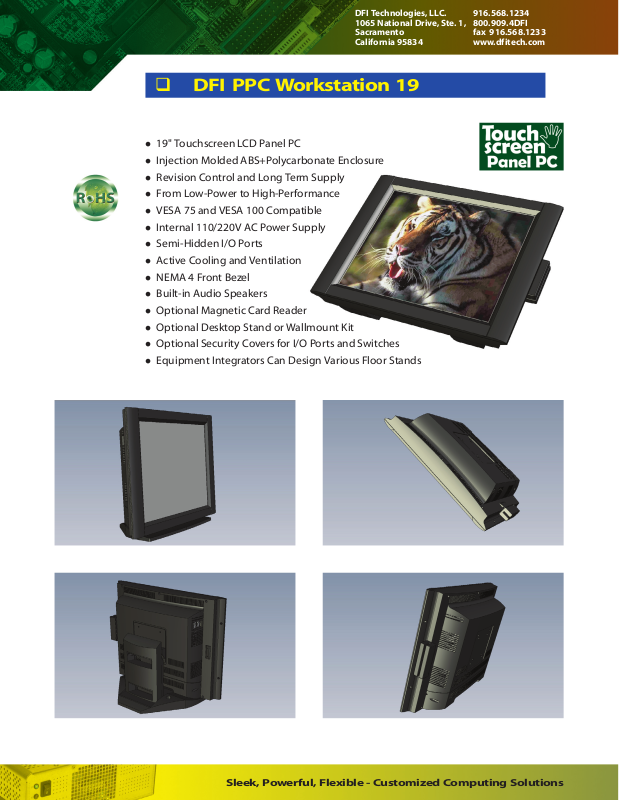

DFI PPC Workstation 19 485, PPC Workstation 19 480 User Manual

DFI Technologies, LLC. 1065 National Drive, Ste. 1, Sacramento California 95834

916.568.1234

800.909.4DFI fax 916.568.1233 www.dfitech.com



 19" Touchscreen LCD Panel PC

 Injection Molded ABS+Polycarbonate Enclosure

 Revision Control and Long Term Supply

 From Low-Power to High-Performance

 VESA 75 and VESA 100 Compatible

 Internal 110/220V AC Power Supply

 Semi-Hidden I/O Ports

 Active Cooling and Ventilation

 NEMA 4 Front Bezel

 Built-in Audio Speakers

 Optional Magnetic Card Reader

 Optional Desktop Stand or Wallmount Kit

 Optional Security Covers for I/O Ports and Switches

 Equipment Integrators Can Design Various Floor Stands

DFI PPC Workstation 19

Sleek, Powerful, Flexible - Customized Computing Solutions

PPC Workstation 19

480

PPC Workstation 19

485

Enclosure Internal aluminum and galvanized steel. External ABS with Polycarbonate - Charcoal gray color LCD Panel 19” TFT, 1280x1024, 300 nits, 700:1 Contrast, Windows True Color

Touchscreen

Elo AccuTouch 5-Wire Resistive, Elo IntelliTouch Surface Wave,

3M ClearTek II Capacitive, or without touchscreen

Main Board DFI-ACP G5C100-N DFI-ACP SR100-N

Processor Type

Intel Celeron M, Core Solo, Core Duo

or Core 2 Duo (Mobile type)

Intel Core 2 Duo

(Mobile type) Processor FSB 533 / 667 533 / 800 Main Chipsets Intel 945GME + ICH7M + GMA 950 Intel GME965 + ICH8M + GMA X3100

PCI Slot One Full-height, Half-length PCI Card Support

HDD and Optical Drive Bays

Typical Conguration: 1 Notebook-type Shockmounted HDD and 1 Notebook-type Optical Drive

Without Optical Drive: Up to 2 Notebook-type Shockmounted HDDs

PS/2 Keyboard and Mouse Ports 1 pair 1 pair

DB-9 Serial Port 3 2

Video Port 1x DB-15 1x DB-15 + 1x DVI-D

RJ45 LAN Port 2x (10/100/1000) 2x (10/100/1000)

USB Ports 6 6

Audio Jacks 3 3

Internal CF Card Slot 1 0

Speakers 2 (Stereo, Amplied)

Ventilation Two 60 mm enclosure fans

Dimension

(W x H x D)

Weight

Touchscreen Panel PC (main unit): 19.29” x 14.90” x 4.65” (489.9 x 378.5 x 118.0 mm)

Main unit with optional card reader: 19.70” x 14.90” x 4.65” (500.4 x 378.5 x 118.0 mm)

Main unit with optional stand: 19.29” x 15.66” x 9.99” (489.9 x 397.8 x 253.8 mm)

Main computer: Approximately 24.5 lbs (11.1 kg)

Optional desktop stand: Approximately 3.9 lbs (1.8 kg)

Power Supply Internal auto-110/220V 200W power supply with power factor correction and noise killer feature.

Operating Temperature

Note: The operating temperature is limited by the LCD’s thermal specs.

Ambient: 0ºC - 37ºC (32ºF - 99ºF), 10% - 90% RH.

Notebook-type CD, CD R/W, DVD or DVD R/W Optical Drive, or Compact Flash Drive Kit

Magnetic Card Reader (left side or right side mount)

Optional Items

Desktop Stand with Adjustable 0º-45º Angle, or Wallmount Kit

Security Cover for I/O Ports

Security Cover for Power and Brightness Switches

Keyboard and Mouse

Speaker, Power Switch and Brightness Adjustment Semi-Hidden I/O Ports - Under Access Cover Active Cooling and Ventilation

Internal AC Power Supply and Optional Optical Drive Optional Magnetic Card Reader and Desktop Stand VESA 75 and VESA 100 Compatible Mount

All pictures are conceptual and subject to change. The I/O port arrangement and motherboard inside will differ depending on the conguration.

of their respective companies. All specications, pictures and prices are subject to change without prior notice. OEM customers with long-term supply agreements and revision control agreements will certainly be notied. v20081029
