Page 1

NS30-SC/SL NS35-SC/SL

Rev. A+ System Board User’s Manual

56000204

Page 2

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Windows® 98, Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT® 4.0 and Windows® XP are registered trademarks of Microsoft Corporation. Intel® and Pentium® 4 are registered trademarks of Intel Corporation. SiS® is a registered trademark of Silicon Integrated Systems Corporation. Award is a registered trademark of Award Software, Inc. Other trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or ser vicing. After installation or servicing, cover the system chassis before plugging the power cord.

Page 3

Battery:

• Danger of explosion if battery incor rectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to the battery manufacturer’s instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than 10A current at 5V DC . There is a risk of fire for devices that exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tr y to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 4

Notice

This user’s manual contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in the multilingual manual, the multilingual manual should always be regarded as the most updated version. The multilingual manual is included in the system board package.

To view the user’s manual, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual”.

System Board

This user’s manual is for the NS30-SC, NS30-SL, NS35-SC and NS35-SL system boards. The differences between these boards are shown below.

VGA por t

Realtek RTL8100

RJ45 LAN por t

NS30-SC



NS35-SLNS35-SCNS30-SL









Page 5

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

1.2 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout ..........................................................................................

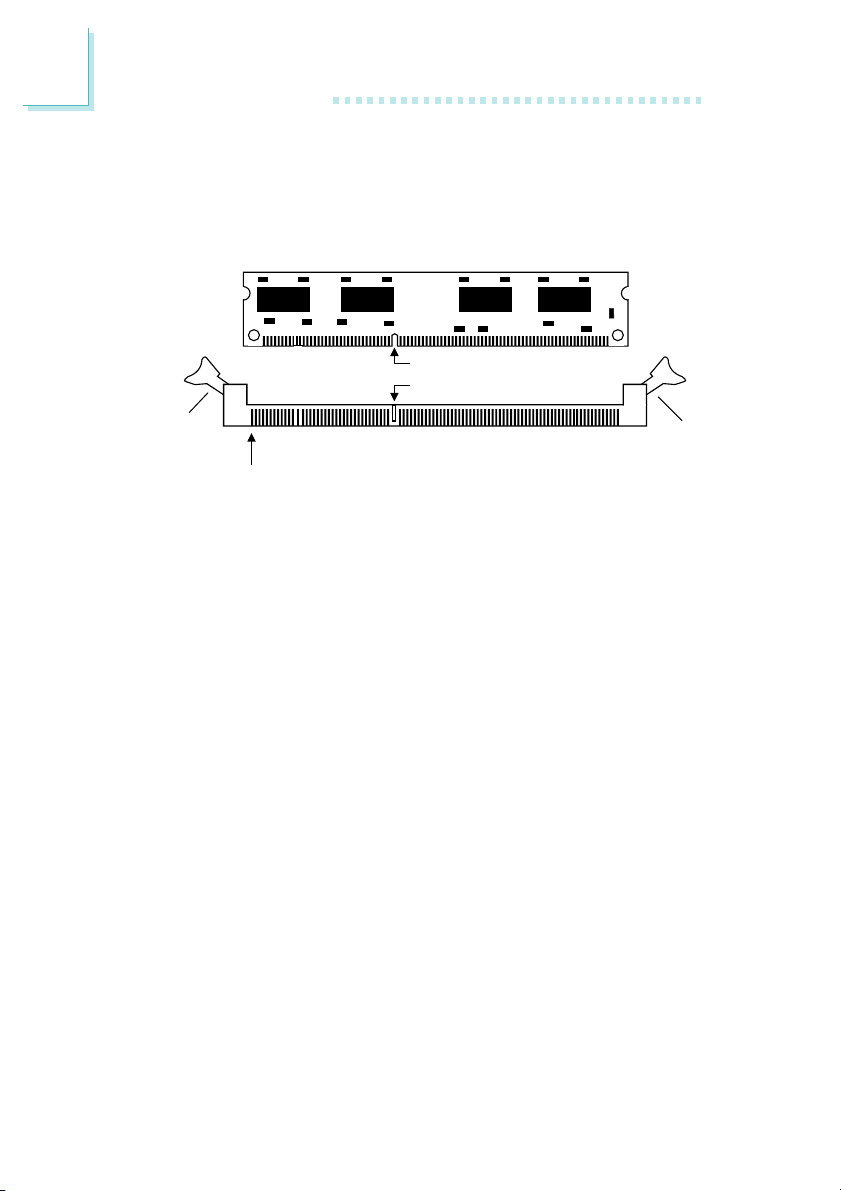

2.2 System Memory...........................................................................................................

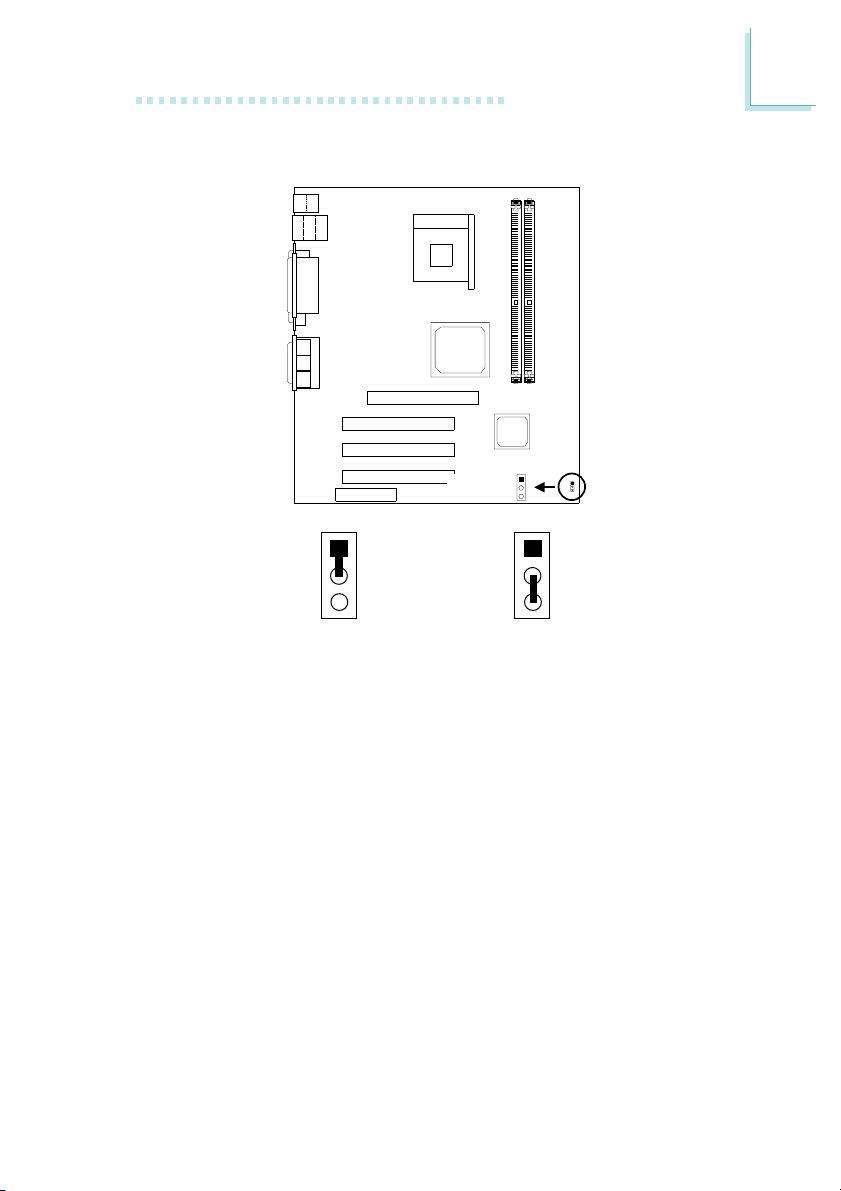

2.3 Jumper Settings for Clearing CMOS Data........................................

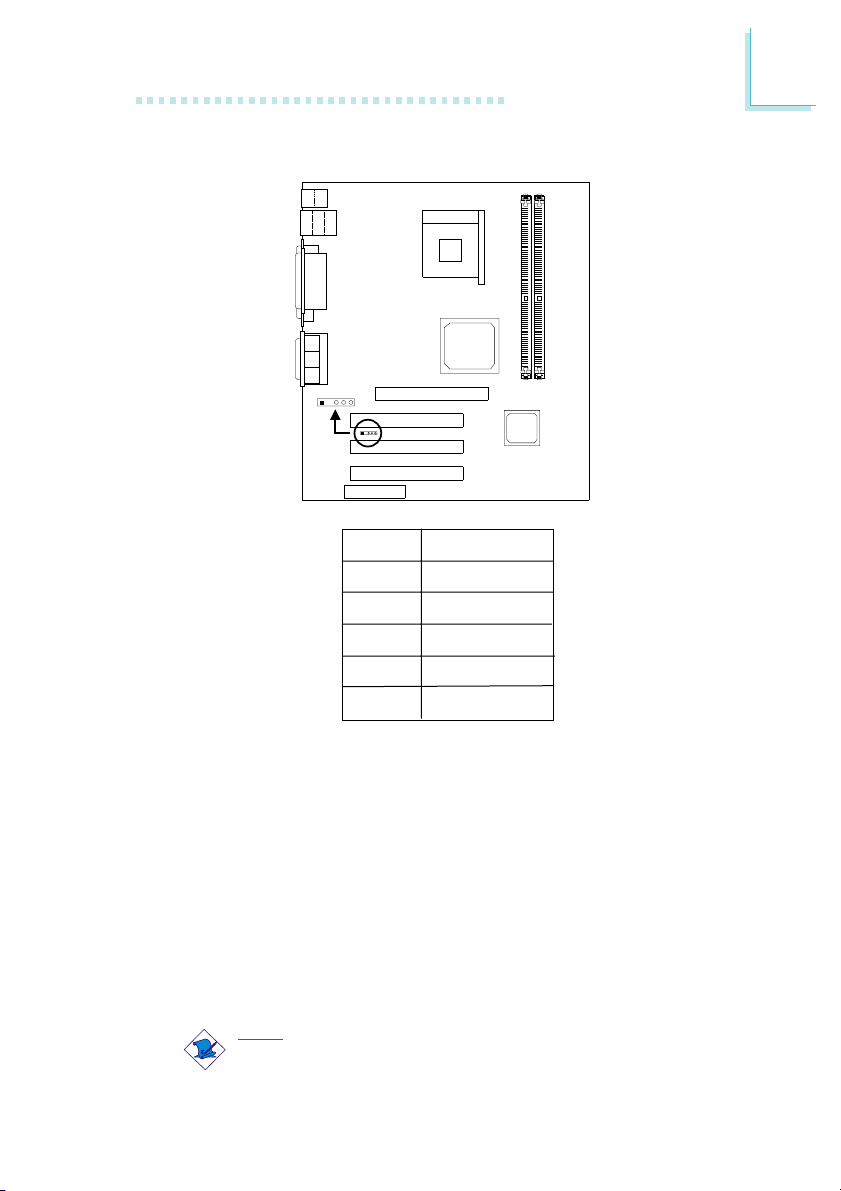

2.4 Jumper Settings for Wake-On-PS/2 KB/Mouse.............................

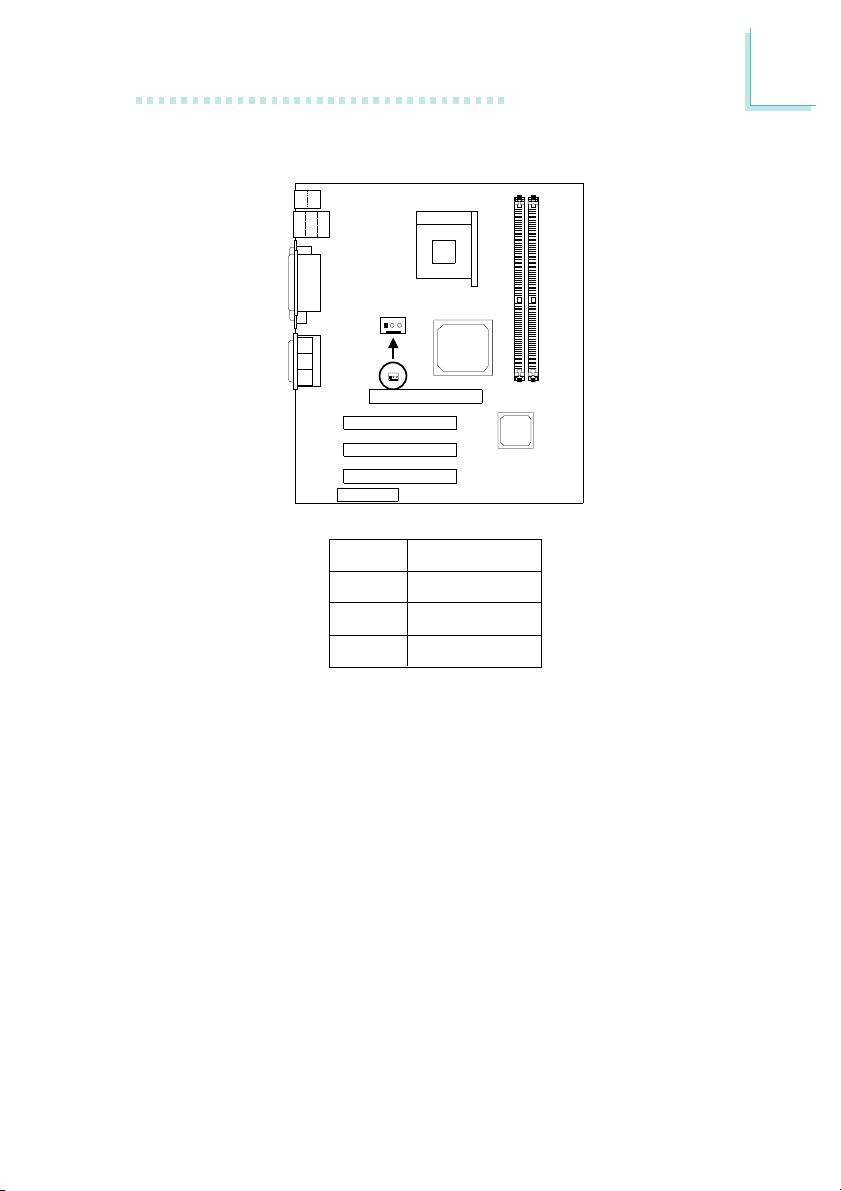

2.5 Jumper Settings for Wake-On-USB Keyboard................................

2.6 Por ts and Connectors...........................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System.....................................................................

3.1.1 Standard CMOS Features.............................................................

3.1.2 Advanced BIOS Features..............................................................

3.1.3 Advanced Chipset Features ......................................................

3.1.4 Integrated Peripherals.........................................................................

3.1.5 Power Management Setup............................................................

3.1.6 PnP/PCI Configurations....................................................................

3.1.7 PC Health Status...................................................................................

3.1.8 Frequency/Voltage Control............................................................

3.1.9 Load Fail-Safe Defaults.....................................................................

3.1.10 Load Optimized Defaults..............................................................

3.1.11 Set Super visor Password...............................................................

3.1.12 Set User Password..............................................................................

3.1.13 Save & Exit Setup.................................................................................

3.1.14 Exit Without Saving..............................................................................

3.2 Updating the BIOS.....................................................................................................

15 19 21 23 24 26

52 52 56 60 62 68 73 75 77 79 79 80 80 81 81 81

Page 6

Introduction

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface.....................................................................

4.2 Hardware Monitor........................................................................................................

4.3 SiS AGP Driver.................................................................................................................

4.4 Realtek Audio Drivers..............................................................................................

4.5 SiS VGA Drivers.............................................................................................................

4.6 Realtek LAN Drivers for Windows.............................................................

4.7 Microsoft DirectX 8.0 Driver.............................................................................

4.8 Drivers and Utilities Installation Notes.....................................................

Appendix A - Using the Suspend to RAM

Function

A.1 Using the Suspend to RAM Function........................................................

Appendix B - System Error Messages

B.1 POST Beep.......................................................................................................................

B.2 Error Messages..............................................................................................................

Appendix C - Troubleshooting

C.1 Troubleshooting Checklist....................................................................................

82 85 85 86 86 86 86 87

92 92

Page 7

Introduction

Chapter 1 - Introduction

1.1 Features and Specifications

1.1.1 Features

Chipset

•SiS® 645/961 (NS30-SC/SL)

•SiS® 650/961 (NS35-SC/SL)

Processor

The system board is equipped with Socket 478 for installing a Pentium® 4 processor.

• Intel® Pentium® 4 processor (478-pin)

• Supports up to 2GHz CPU speed

• 400MHz system data bus

System Memory

• Two 184-pin DDR DIMM sockets

• NS30-SC/SL: supports 4 banks up to 2GB using PC1600

(DDR200), PC2100 (DDR266) or PC2700 (DDR333) unbuffered DDR SDRAM DIMM, 2.5V type

NS35-SC/SL: supports 4 banks up to 2GB using PC1600

(DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM DIMM, 2.5V type

• 16Mb, 64Mb, 128Mb, 256Mb and 512Mb SDRAM technology with page size from 2KB up to 16KB

Page 8

Introduction

Expansion Slots

The system board is equipped with 1 AGP slot, 3 PCI slots (1 shared with CNR slot) and 1 CNR slot.

AGP is an interface designed to support high performance 3D graphics cards. It utilizes a dedicated pipeline to access system memory for texturing, z-buffering and alpha blending. The universal AGP slot supports AGP 2x with up to 533MB/sec. bandwidth and AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications. AGP in this system board will deliver faster and better graphics to your PC.

CNR (Communication and Networking Riser) is an interface that can support multi-channel audio and V.90 analog modem.

Onboard Graphics Features (NS35-SC and NS35-SL only)

•SiS® 315 VGA solution integrated in SiS® 650 chip

• Integrated Real256TM 2D/3D graphics accelerator

- 2 pixel rendering pipelines and 4 texture 3D graphic engine

- Ultra-AGPIITM technology delivering AGP 8x equalent 2GB/s bandwidth

- Advanced H/W acceleration for DVD playback

- Shared memory size up to 64MB

Onboard Audio Features

• AC'97 2.2 extension compliant codec

• Supports Microsoft® DirectSound/DirectSound 3D

• AC’97 supported with full duplex, independent sample rate converter for audio recording and playback

Onboard LAN Features (NS30-SL and NS35-SL only)

• Uses Realtek RTL8100 fast ethernet controller

• Integrated IEEE 802.3 10BASE-T and 100BASE-TX compatible PHY

• 32-bit PCI master interface

• Integrated power management functions

• Full duplex support at both 10 and 100 Mbps

Page 9

Introduction

• Supports IEEE 802.3u auto-negotiation

• Supports wire for management

ATX Double Deck Ports (PC 99 color-coded connectors)

• Two USB ports

• One RJ45 LAN port (NS30-SL and NS35-SL only)

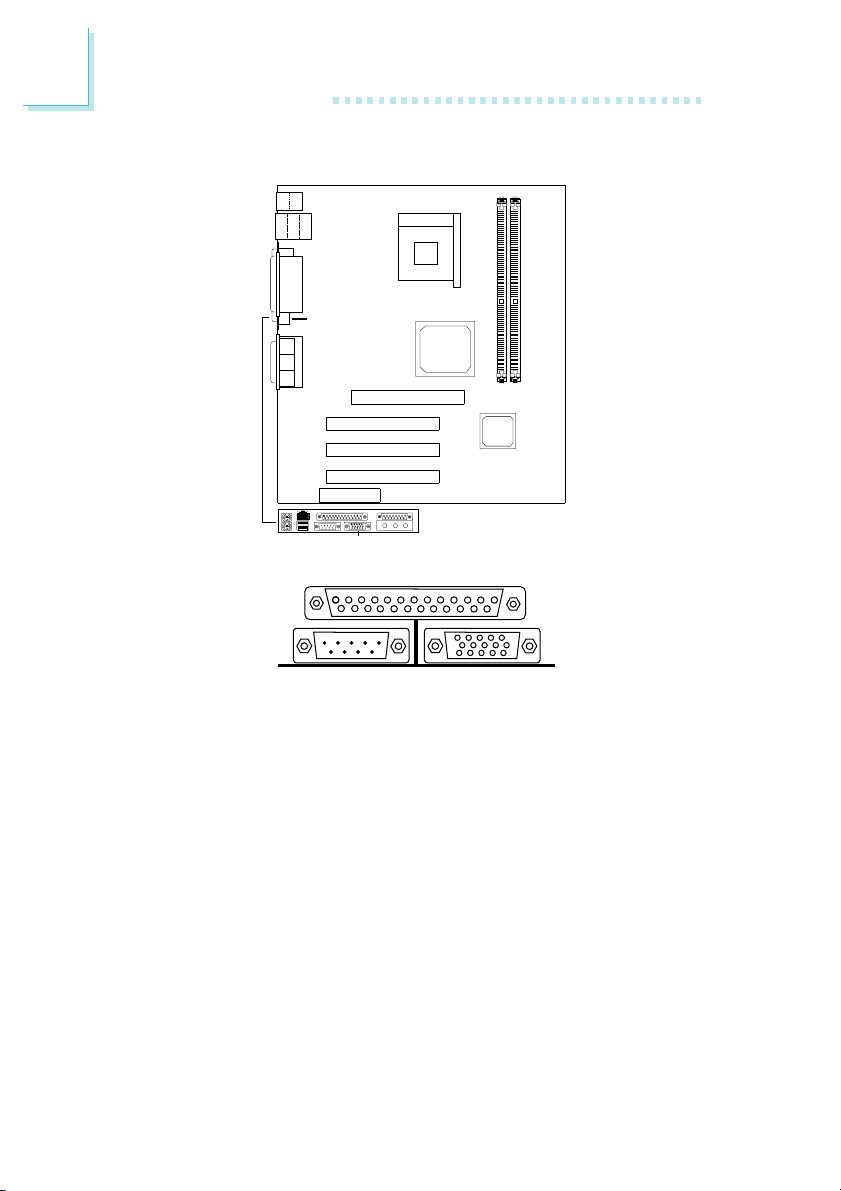

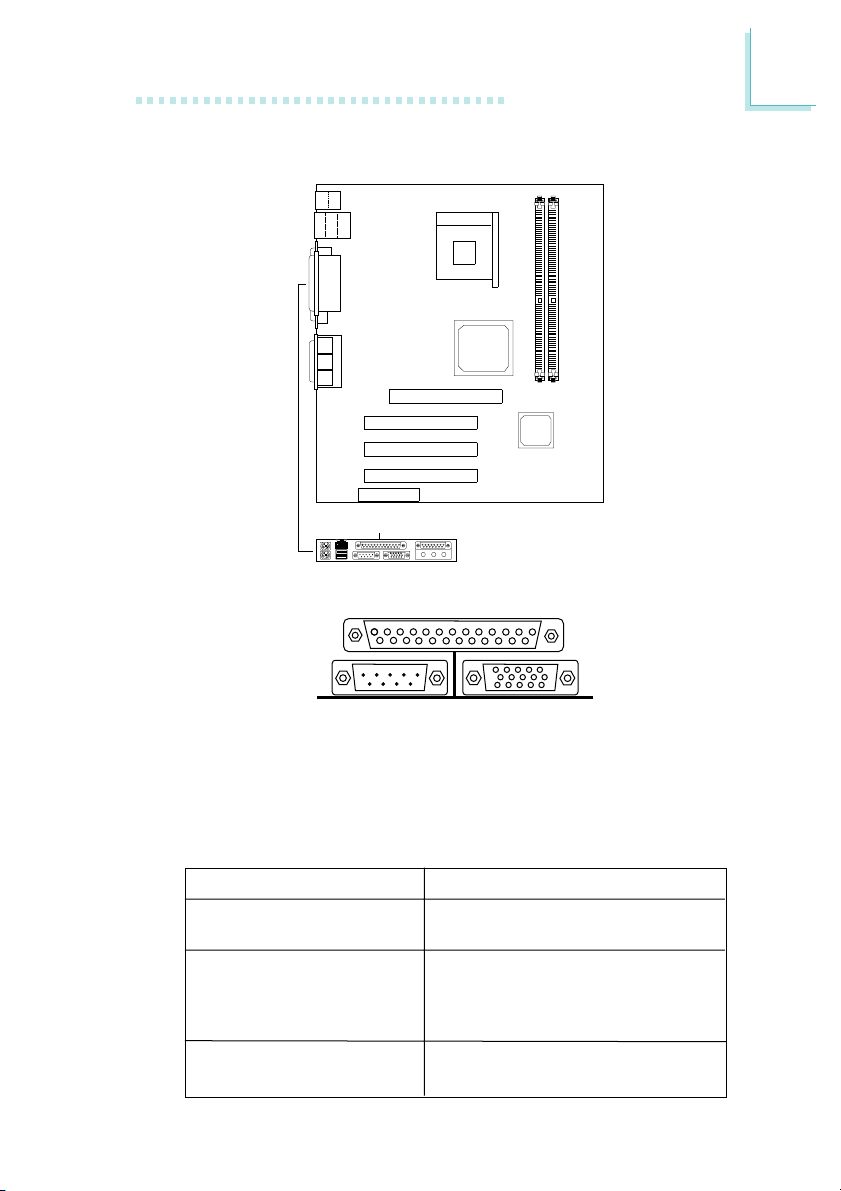

• One NS16C550A-compatible DB-9 serial port (NS35-SC and NS35-SL only) or two DB-9 serial por ts (NS30-SC and NS30SL only)

• One DB-15 VGA por t (NS35-SC and NS35-SL only)

• One DB-25 parallel port

• One mini-DIN-6 PS/2 mouse port

• One mini-DIN-6 PS/2 keyboard port

• One game/MIDI port

• Three audio jacks: line-out, line-in and mic-in

Connectors

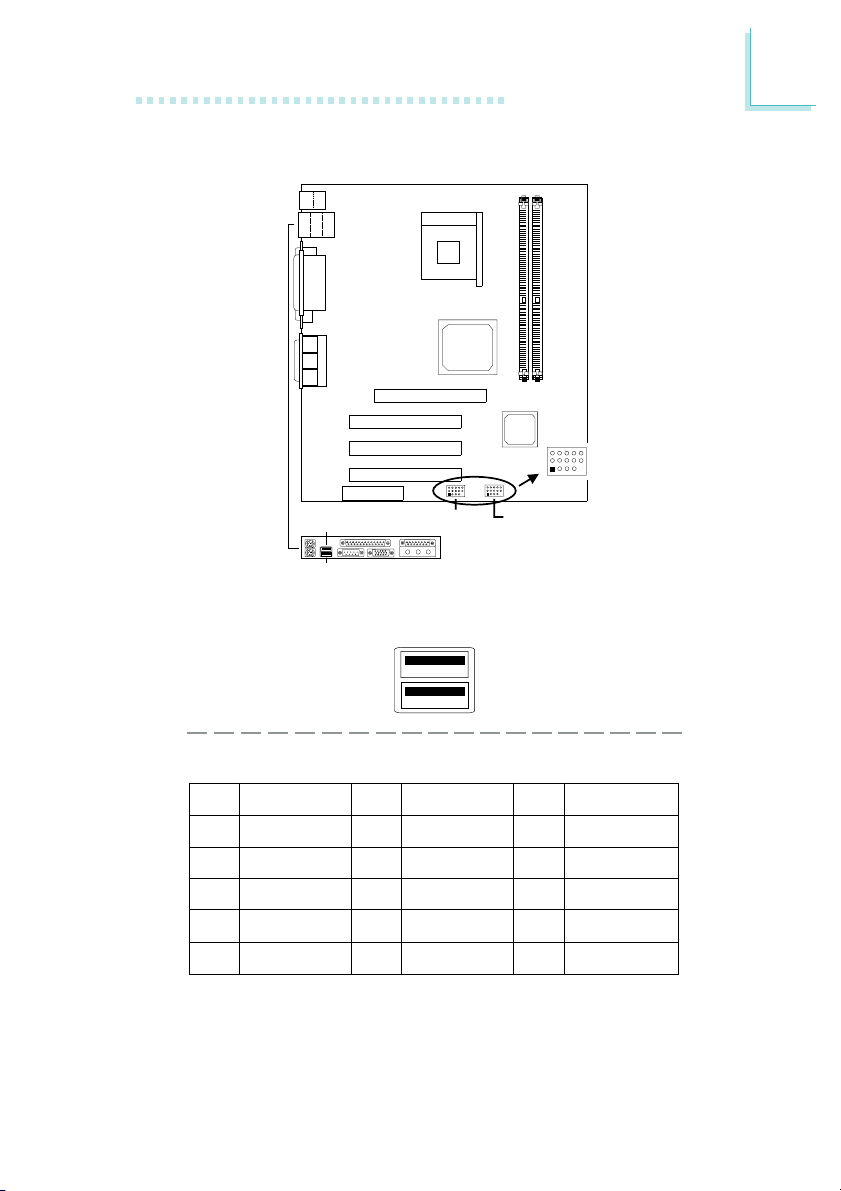

• Two connectors for 4 additional external USB ports

• One 9-pin connector for 1 external serial port (NS35-SC and NS35-SL only)

• One connector for external line-out and mic-in jacks

• Two internal audio connectors (AUX-in and CD-in)

• One connector for IrDA interface

• Two IDE connectors

• One floppy drive interface supports up to two 2.88MB floppy drives

• Two ATX power supply connectors

• One Wake-On-LAN connector

• One Wake-On-Ring connector

• CPU fan and system fan connectors

PCI Bus Master IDE Controller

• Two PCI IDE interfaces support up to four IDE devices

• Supports ATA/33, ATA/66 and ATA/100 hard drives

• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to 16.6MB/sec.)

• Bus mastering reduces CPU utilization during disk transfer

• Supports ATAPI CD-ROM, LS-120 and ZIP

Page 10

Introduction

IrDA Interface

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. It supports peripheral devices that meet the IrDA or ASKIR standard.

USB Ports

The system board supports 6 USB ports. Two onboard USB ports are located at the ATX double deck ports of the board. The J25 and J26 connectors on the system board allow you to connect 4 more optional USB ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

BIOS

• Award BIOS, Windows® 98/2000/ME/XP Plug and Play compatible

• Supports SCSI sequential boot-up

• Flash EPROM for easy BIOS upgrades

• Supports DMI 2.0 function

• 2Mbit flash memory

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The DMI utility in the BIOS automatically records various information about your system configuration and stores these information in the DMI pool, which is a part of the system board's Plug and Play BIOS. DMI, along with the appropriately networked software, is designed to make inventory, maintenance and troubleshooting of computer systems easier. Refer to chapter 4 for instructions on using the DMI utility.

Page 11

Introduction

1.1.2 System Health Monitor Functions

The system board is capable of monitoring the following “system health” conditions.

• Monitors CPU/system temperature and overheat alarm

• Monitors CPU/3.3V/±5V/±12V/VBAT/5VSB voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Automatic system fan on/off control

• Read back capability that displays temperature, voltage and fan speed

Refer to the “PC Health Status” section in chapter 3 and the “Hardware Monitor” section in chapter 4 for more information.

1.1.3 Intelligence

CPU Temperature Protection

The CPU Temperature Protection function has the capability of monitoring the CPU’s temperature during system boot-up. Once it has detected that the CPU’s temperature exceeded the CPU temperature limit defined in the BIOS, the system will automatically power-off after 5 warning beeps. Refer to “CPU Temp. Prot. Function and CPU Temp. Prot. Alarm” in the PC Health Status section in chapter 3 for more information.

Automatic System Fan Off

The system fan will automatically turn off once the system enters the Suspend mode.

Dual Function Power Button

Depending on the setting in the “Soft-Off By PWRBTN” field of the Power Management Setup, this switch will allow the system to enter

the Soft-Off or Suspend mode.

Page 12

Introduction

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming through an internal or external modem. Refer to “Wake-On-Ring Connector” in chapter 2 and “Ring Power Up Control” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support ≥720mA.

Wake-On-LAN

The Wake-On-LAN function allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. Your LAN card must support the remote wakeup function. Refer to “Wake-On-LAN Connector” in chapter 2 and “Ring Power Up Control” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-PS/2 Keyboard/Mouse

This function allows you to use the PS/2 keyboard or PS;/2 mouse to wake up a system from the S3/S4/S5 state. Refer to “Jumper Settings for Wake-On-PS/2 Keyboard/Mouse” in chapter 2; and “PS2 Mouse Power Up Control” and “KB Power On Password” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

Important:

• If you forgot the password, you must power-off the system, unplug the power cord and clear the CMOS data. Follow the steps in the “Jumper Settings for Clearing CMOS Data” section in chapter 2.

• The 5VSB power source of your power supply must support ≥720mA.

Page 13

Introduction

Wake-On-USB Keyboard

The Wake-On-USB Keyboard function allows you to use a USB keyboard to wake up a system from the S3/S4/S5 state. Refer to “Jumper Settings for Wake-On-USB Keyboard” in chapter 2 and “USB Port Wake Up Control” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

Important:

• If you are using the Wake-On-USB Keyboard function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard function for 4 to 6 USB ports, the 5VSB power source of your power supply must support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to automatically power-on on the set date and time. Refer to and “Power Up By Alarm” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Windows® 98/2000/ME/XP supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows® 98/2000/ME/XP without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left

Page 14

Introduction

off the next time you power-on the system. Refer to “Using the Suspend to RAM Function” in appendix A for more information.

Important:

The 5VSB power source of your power supply must support

≥

1A.

AC Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system manually, let the system power-on automatically or return to the state where you left off before power failure occurs. Refer to “PWR Lost Resume State” in the Power Management Setup section in chapter 3 for more information.

Virus Protection

Most viruses today destroy data stored in hard drives. The system board is designed to protect the boot sector and partition table of your hard disk drive.

1.2 Package Checklist

The system board package contains the following items:

 The system board  A user’s manual  One card-edge bracket with a serial port (NS35-SC and

NS35-SL only)

 One IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives  One 34-pin floppy disk drive cable  One “Main Board Utility” CD

If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

Page 15

Hardware Installation

Chapter 2 - Hardware Installation

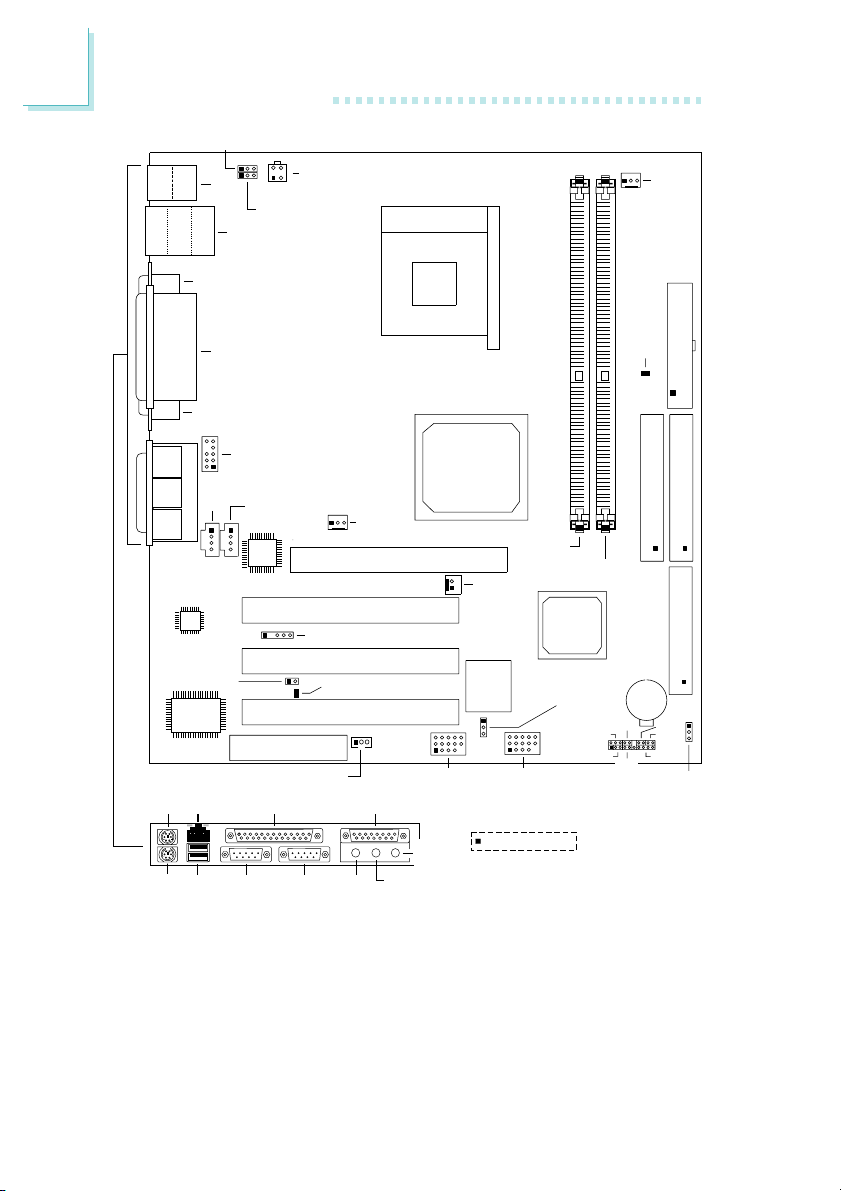

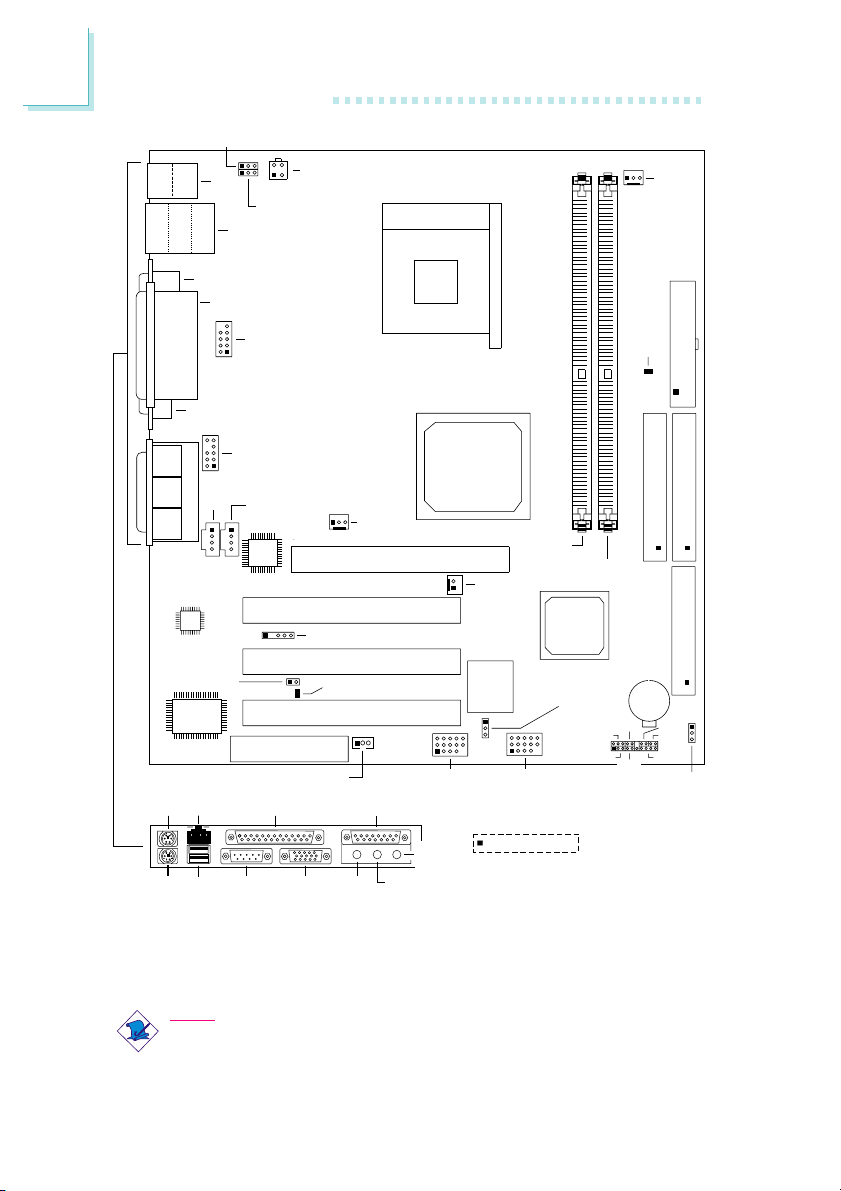

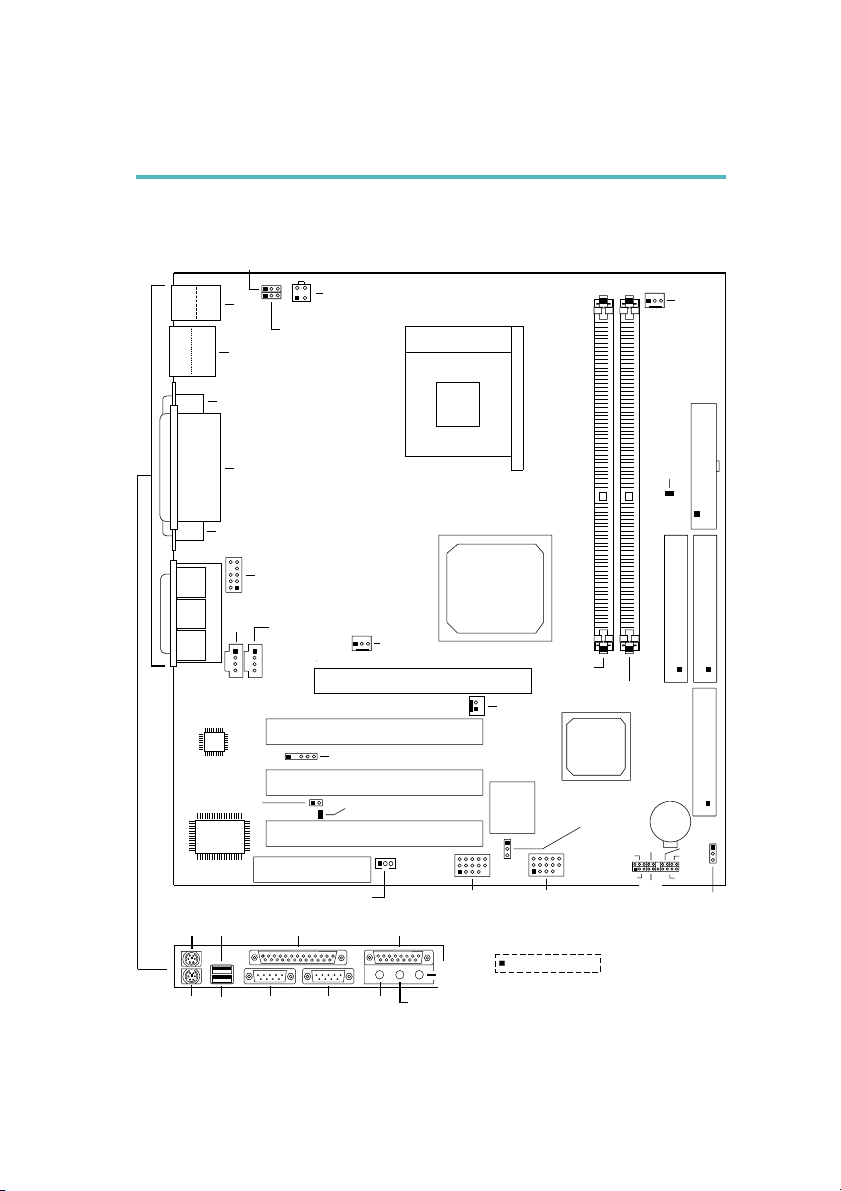

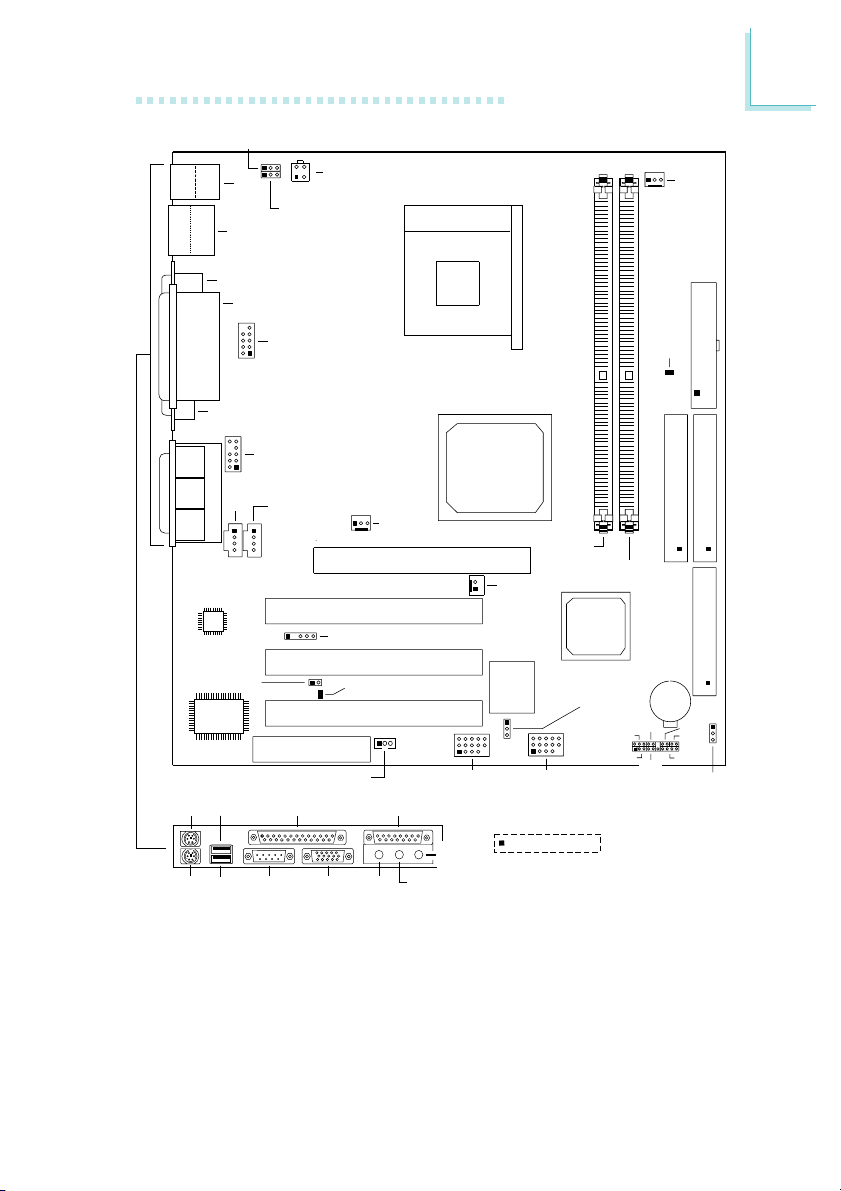

2.1 System Board Layout

Wake-On-PS/2 KB/Mouse (JP1)

+12V power

Mouse

USB 1

USB 2

COM 2 (CN1)

Line

out (J9)

Line

(J11)

Mic

Game/MIDI (J13)

(J14)

AC’97

3.3VSB standby for PCI (JP6)

I/O

chip

Mouse

USB 2

(Green)

(Black)

USB 1

(Black)

(Purple)

COM 1 (J4)

Parallel (J5)

Front audio (J10)

AUX-in (J15)

COM 1

(ATXP1)

Wake-On-USB KB forUSB1&2(JP2)

CD-in (J16)

IrDA (J20)

PCI standby power LED

CNR Slot

Wake-On-LAN (J23)

Parallel

(Burgundy)

COM 2

(Teal/Turquoise)

System fan (J12)

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

Game/MIDI

Line-Out

(Lime)

AGP Slot

(Gold)

Socket 478

11 15

USB3&4(J25)

Mic-In (Pink)

Line-In (Light Blue)

SiS

645

DDR SDRAM

Wake-On-Ring (J19)

BIOS

11 15

USB5&6(J26)

Square denotes pin 1

DIMM 1

DDR SDRAM

DIMM 2

SiS

961

Wake-On-USB KB forUSB3to6(JP3)

PWR-LED

J27

HD-LED

CPU fan (J1)

DIMM

standby

power

LED

ATX Power

Primary IDE (J18)

Seconary IDE (J17)

FDD (J22)

Battery

ATX-SW

G-LED G-SW

SPEAKER

RESET

Clear CMOS (JP5)

NS30-SC

(Uses SiS® 645/961 chipset)

Page 16

Hardware Installation

Wake-On-PS/2 KB/Mouse (JP1)

+12V power

Mouse

USB 1

USB 2

COM 2 (CN1)

Line out (J9)

Line

(J11)

Mic

Game/MIDI (J13)

(J14)

AC’97

3.3VSB standby for PCI (JP6)

I/O chip

RJ45

Mouse

LAN

(Green)

USB 1, 2

(Black)

(Purple)

LAN

COM 1 (J4)

Parallel (J5)

Front audio (J10)

AUX-in (J15)

COM 1

(ATXP1)

Wake-On-USB KB forUSB1&2(JP2)

CD-in (J16)

Realtek

RTL8100

IrDA (J20)

CNR Slot

Wake-On-LAN (J23)

Parallel

(Burgundy)

COM 2

(Teal/Turquoise)

System fan (J12)

PCI 1 Slot

PCI 2 Slot

PCI standby power LED

PCI 3 Slot

Game/MIDI

(Gold)

Line-Out

(Lime)

Socket 478

AGP Slot

USB3&4(J25)

Line-In (Light Blue)

11 15

Mic-In (Pink)

SiS 645

DDR SDRAM

Wake-On-Ring (J19)

BIOS

11 15

USB5&6(J26)

Square denotes pin 1

DIMM 1

DDR SDRAM

DIMM 2

SiS

961

Wake-On-USB KB forUSB3to6(JP3)

PWR-LED

J27

HD-LED

CPU fan (J1)

DIMM

standby

power

LED

ATX Power

Seconary IDE (J17)

FDD (J22)

Battery

ATX-SW

G-LED G-SW

SPEAKER

RESET

Clear CMOS (JP5)

Primary IDE (J18)

NS30-SL

(Uses SiS® 645/961 chipset; supports onboard LAN)

Page 17

Wake-On-PS/2 KB/Mouse (JP1)

Mouse

USB 1

USB 2

Wake-On-USB KB forUSB1&2(JP2)

COM 1 (J4)

Parallel (J5)

COM 2 (J6)

VGA (CN1)

AUX-in (J15)

Game/MIDI (J13)

Front audio (J10)

CD-in (J16)

Line out (J9)

Line

(J11)

Mic

(J14)

AC’97

3.3VSB standby for PCI (JP6)

I/O chip

CNR Slot

Wake-On-LAN (J23)

Mouse

(Green)

(Purple)

USB 2

(Black)

USB 1

(Black)

Parallel

(Burgundy)

COM 1

(Teal/Turquoise)

+12V power

(ATXP1)

IrDA (J20)

PCI standby power LED

VGA

(Blue)

System fan (J12)

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

Game/MIDI

Line-Out

(Lime)

AGP Slot

(Gold)

Socket 478

11 15

USB3&4(J25)

Mic-In (Pink)

Line-In (Light Blue)

Hardware Installation

DIMM

standby

power

SiS

650

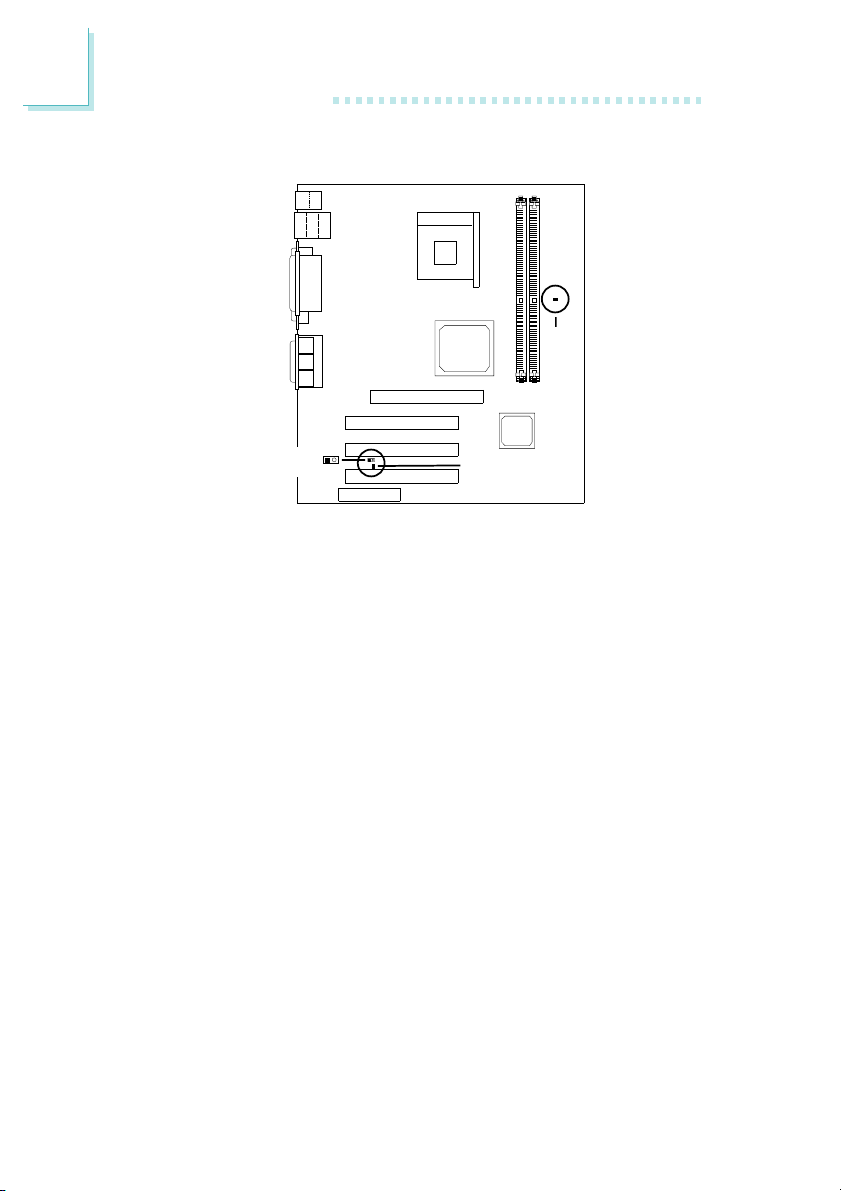

DDR SDRAM

DIMM 1

DDR SDRAM

Wake-On-Ring (J19)

Wake-On-USB KB

BIOS

for USB 3 to 6 (JP3)

11 15

USB5&6(J26)

Square denotes pin 1

DIMM 2

SiS

961

Battery

ATX-SW

PWR-LED

J27

HD-LED

RESET

Clear CMOS (JP5)

LED

CPU fan (J1)

Seconary IDE (J17)

G-LED G-SW

SPEAKER

ATX Power

Primary IDE (J18)

FDD (J22)

NS35-SC

(Uses SiS® 650/961 chipset)

Page 18

Hardware Installation

Wake-On-PS/2 KB/Mouse (JP1)

+12V power

Mouse

USB 1

USB 2

VGA (CN1)

Line

out

(J9) Line

(J11)

Mic

Game/MIDI (J13)

(J14)

AC’97

3.3VSB standby for PCI (JP6)

I/O chip

RJ45

Mouse

LAN

(Green)

USB 1, 2

(Black)

(Purple)

LAN

COM 1 (J4)

Parallel (J5)

Front audio (J10)

AUX-in (J15)

COM 1

(Teal/Turquoise)

(ATXP1)

Wake-On-USB KB forUSB1&2(JP2)

COM 2 (J6)

CD-in (J16)

Realtek

RTL8100

IrDA (J20)

CNR Slot

Wake-On-LAN (J23)

Parallel

(Burgundy)

VGA

(Blue)

System fan (J12)

PCI1Slot

PCI2Slot

PCI standby power LED

PCI3Slot

Game/MIDI

(Gold)

Line-Out

(Lime)

Socket 478

AGP Slot

USB3&4(J25)

Line-In (Light Blue)

11 15

Mic-In (Pink)

SiS

650

DDR SDRAM

Wake-On-Ring (J19)

BIOS

11 15

USB5&6(J26)

Square denotes pin 1

DIMM 1

DDR SDRAM

DIMM 2

SiS 961

Wake-On-USB KB forUSB3to6(JP3)

PWR-LED

J27

HD-LED

CPU fan (J1)

DIMM

standby

power

LED

ATX Power

Primary IDE (J18)

Seconary IDE (J17)

FDD (J22)

Battery

ATX-SW

G-LED G-SW

SPEAKER

RESET

Clear CMOS (JP5)

NS35-SL

(Uses SiS® 650/961 chipset; supports onboard LAN)

Note:

The illustrations on the following pages are based on the NS35-SL system board, which is the board that supports onboard VGA and onboard LAN.

Page 19

Hardware Installation

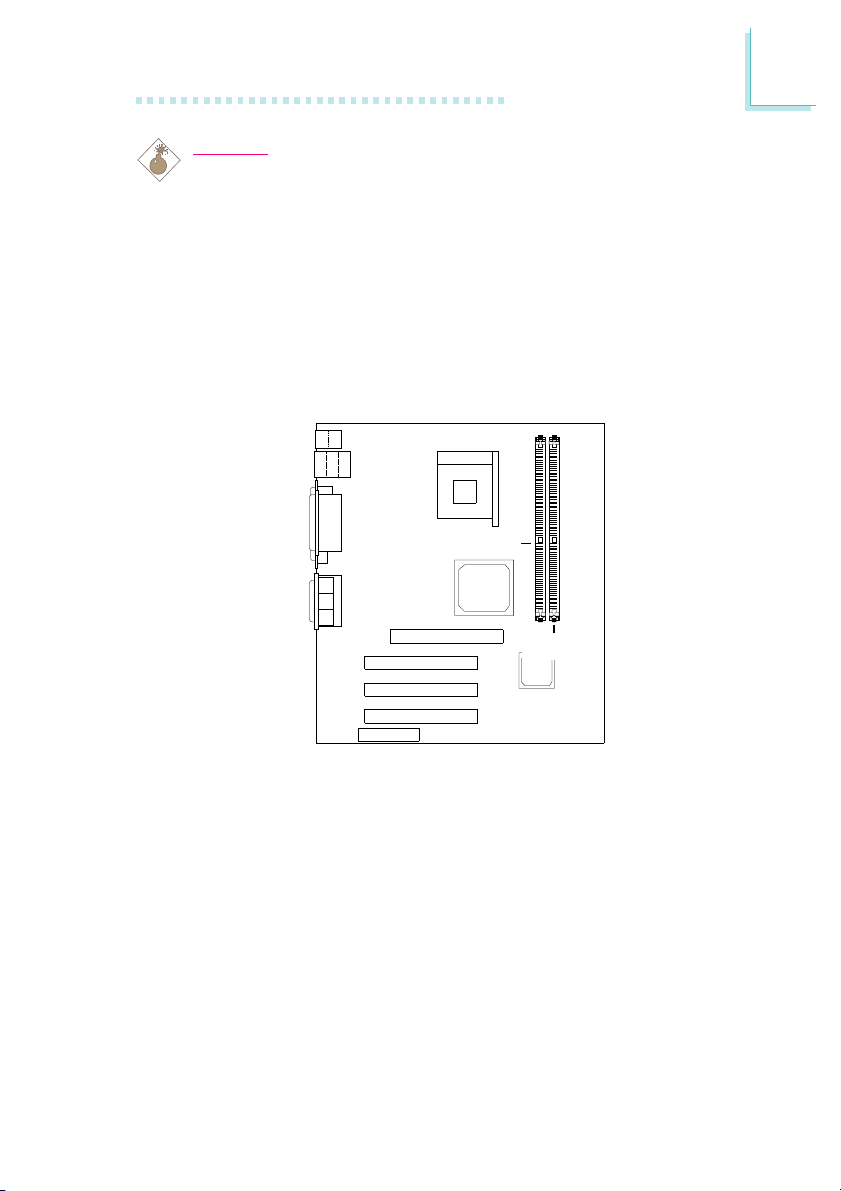

DDR SDRAM

DIMM 1

DDR SDRAM DIMM 2

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

2.2 System Memory

The system board is equipped with two 184-pin DDR SDRAM DIMM (Dual In-line Memory Module) sockets that suppor t 2.5V DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore doubling the speed of data transfer.

Refer to chapter 1 for the type of memory supported by the system board.

Page 20

Hardware Installation

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system board. Pin 1 of the DIM module must correspond with Pin 1 of the socket.

Notch

Key

Tab

Pin 1

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the “notch” in the module aligned with the “key” on the socket.

3. Seat the module vertically into the socket. Make sure it is completely seated. The tabs will hold the DIMM in place.

Tab

Page 21

Hardware Installation

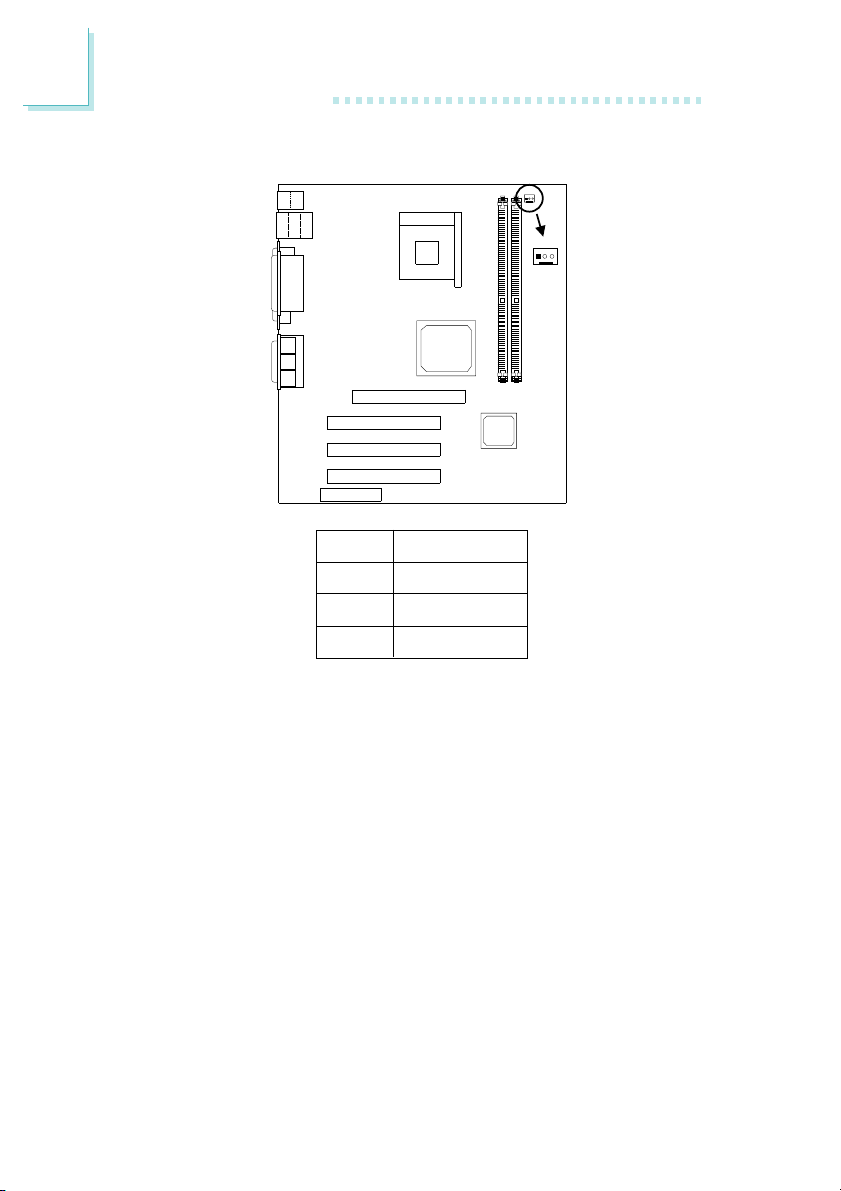

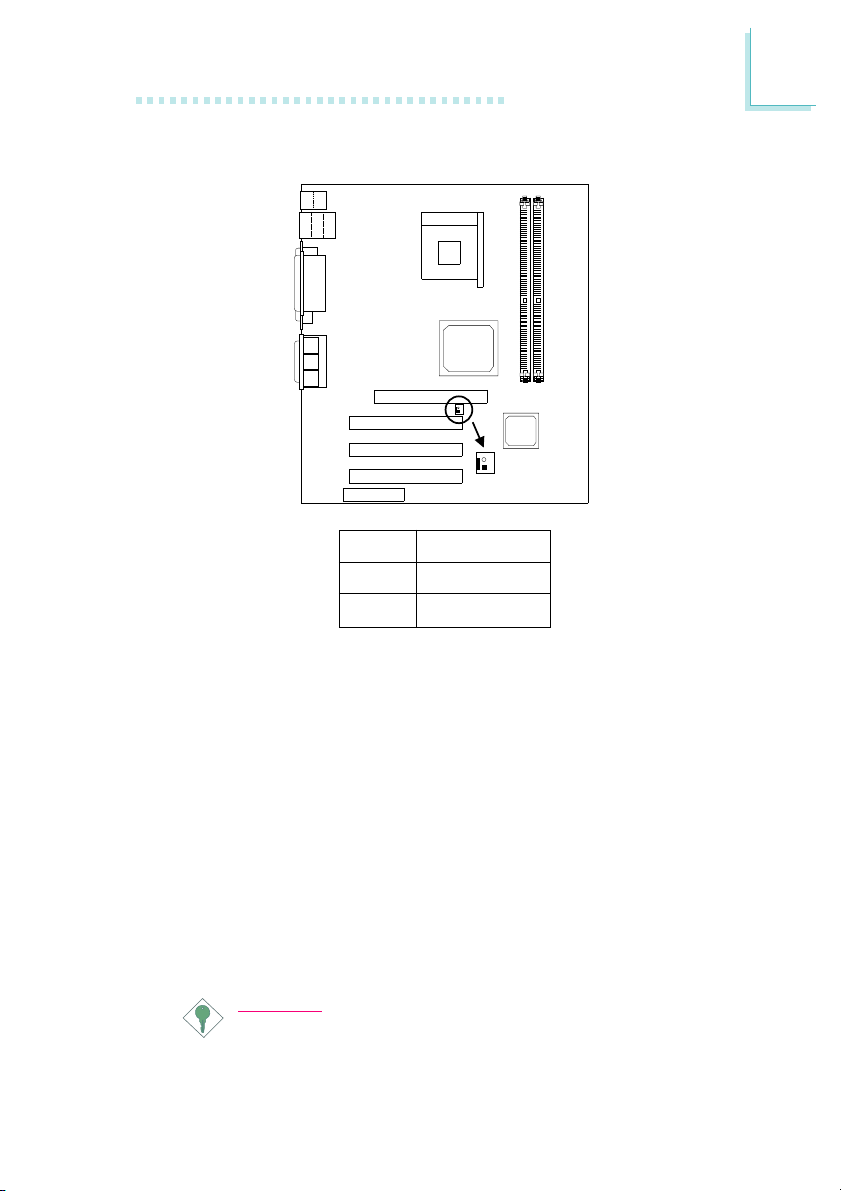

2.3 Jumper Settings for Clearing CMOS Data

1 2

(JP5)

(default)

1-2 On:

Clear CMOS Data

Clear CMOS

2-3 On: Normal

Clear CMOS Data - Jumper JP5

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the keyboard, supervisor or user password. c) You are unable to boot-up the computer system because the

processor’s ratio/clock was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP5 pins 1 and 2 to On. Wait for a few seconds and set JP5 back to its default setting, pins 2 and 3 On.

Page 22

Hardware Installation

3. Now power-on the system.

If your reason for clearing the CMOS data is due to incorrect setting of the processor’s ratio/clock in the BIOS, please proceed to step 4.

4. After powering-on the system, press <Del> to enter the main menu of the BIOS.

5. Select the Frequency/Voltage Control submenu and press <Enter>.

6. Set the “CPU Clock Ratio” or “CPU Host/SDRAM/PCI Clock” field to its default setting or an appropriate frequency ratio or bus clock. Refer to the Frequency/Voltage Control section in chapter 3 for more information.

7. Press <Esc> to return to the main menu of the BIOS setup utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

Page 23

Hardware Installation

123

Wake-On-PS/2 KB/Mouse (JP1)

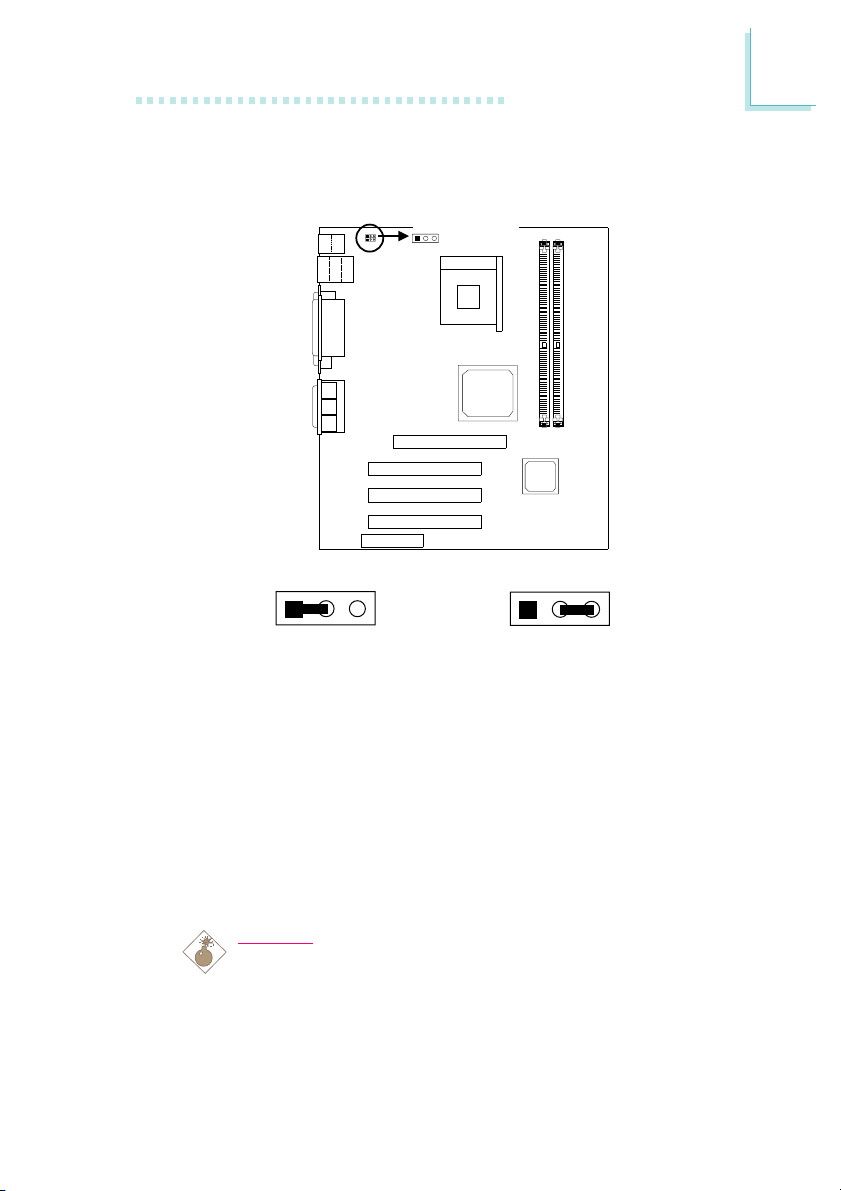

2.4 Jumper Settings for Wake-On-PS/2 Keyboard/Mouse

2-3 On: Enabled - 5V_DUL1-2 On: Disabled - VCC

(default)

123

Wake-On-PS/2 Keyboard/Mouse - Jumper JP1

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on a system from the S3/ S4/S5 state. By default, JP1 is disabled. To use this function, set JP1 to 2-3 On. “PS2 Mouse Power Up Control” and “KB Power On Password” (“PM Wake Up Events” field) in the Power Management Setup submenu of the BIOS must be set accordingly. Refer to chapter 3 for details.

Warning:

• The power button will not function once a keyboard password has been set in the “KB Power On Password” field. You must type the correct password to power-on the system.

• The 5VSB power source of your power supply must support ≥720mA.

Page 24

Hardware Installation

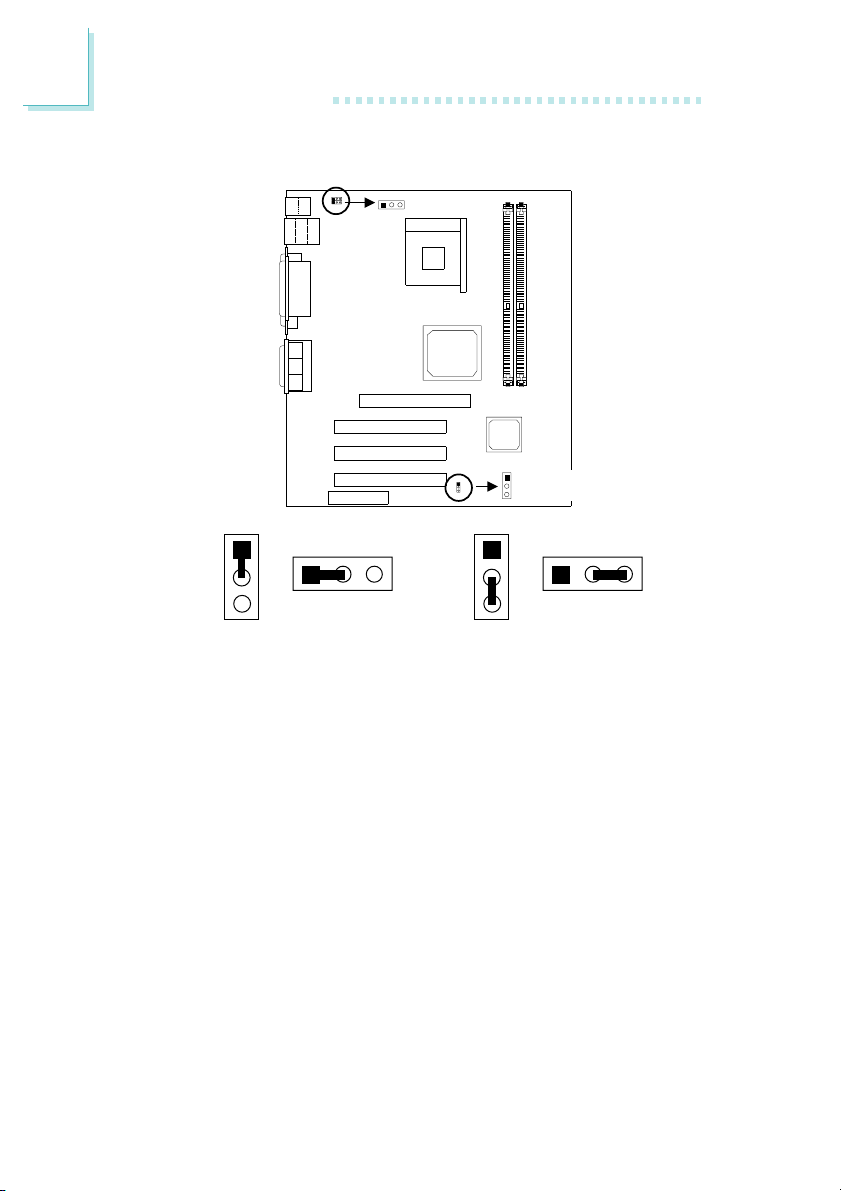

2.5 Jumper Settings for Wake-On-USB Keyboard

123

Wake-On-USB KB forUSB1&2(JP2)

Wake-On-USB KB

for USB 3 to 6 (JP3)

JP3

123

JP2

JP3

123

JP2

2-3 On: Enabled - 5V_DUL1-2 On: Disabled - VCC

(default)

Wake-On-USB Keyboard for USB 1 and 2 - JP2 Wake-On-USB Keyboard for USB 3 to 6 - JP3

The Wake-On-USB Keyboard function allows you to use a USB keyboard to wake up a system from the S3/S4/S5 state.

By default, this function is disabled. To use this function, JP2 or JP3 pins 2 and 3 must be set to On. “USB Port Wake Up Control” (“PM Wake Up Events” field) in the Power Management Setup submenu of the BIOS must also be enabled.

Page 25

Hardware Installation

Important:

• If you are using the Wake-On-USB Keyboard function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard function for 4 to 6 USB ports, the 5VSB power source of your power supply must support ≥2A.

Page 26

Hardware Installation

2.6 Ports and Connectors

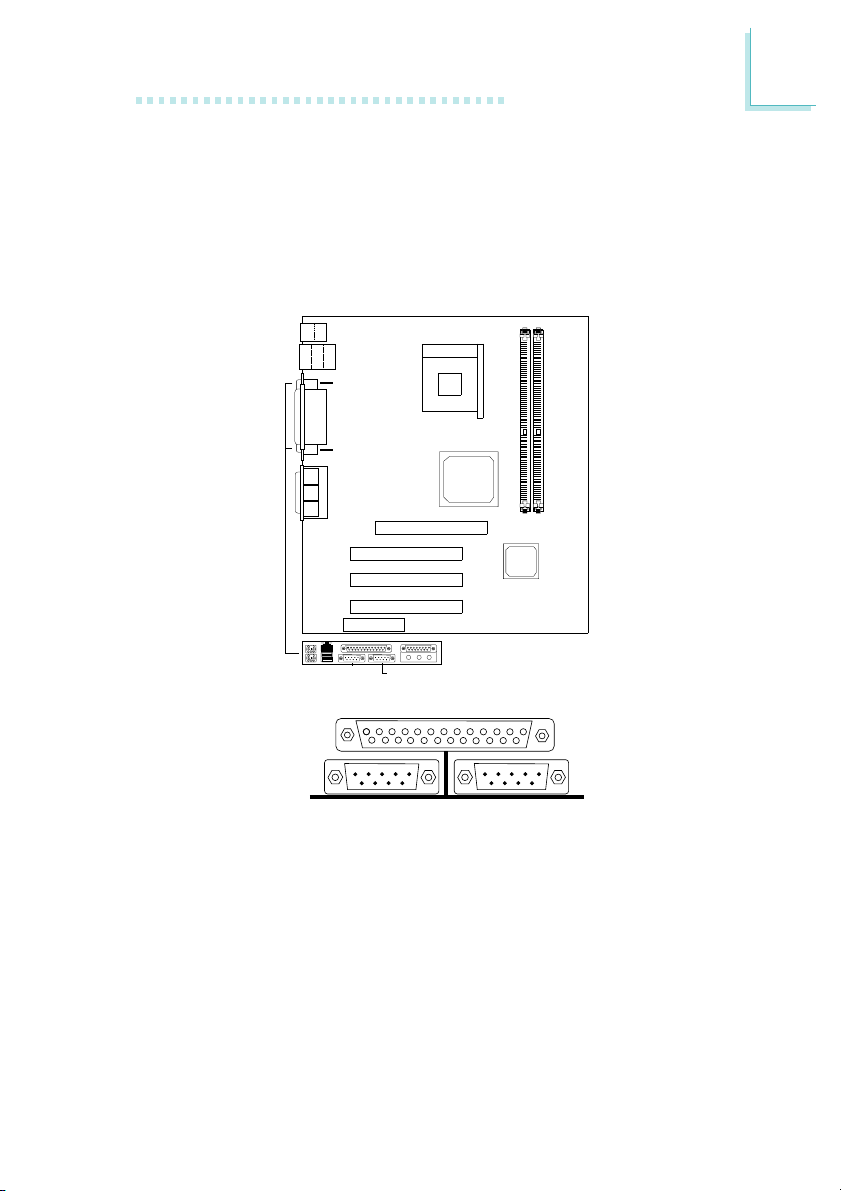

2.6.1 Serial Ports

The built-in serial ports are RS-232C asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. You can set the serial ports’ I/O address in the Integrated Peripherals submenu (“Onboard Super IO Device” field) of the BIOS.

2.6.1.1 NS35-SC and NS35-SL

COM 2 (J6)

COM 1

(Teal/Turquoise)

COM 1

Serial Port

Connecting the Serial Ports

The NS35-SC and NS35-SL system boards are equipped with an onboard serial port (J4 - Teal/Turquoise) for COM 1 primary serial port located at the ATX double deck por ts of the each board. They are also equipped with a 9-pin connector at location J6 for COM 2 secondary serial port.

Page 27

Hardware Installation

One card-edge bracket mounted with a serial port cable is provided with the system board. If you want to use the secondary serial port, connect the serial port cable to connector J6. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of connector J6. Mount the card-edge bracket to the system chassis.

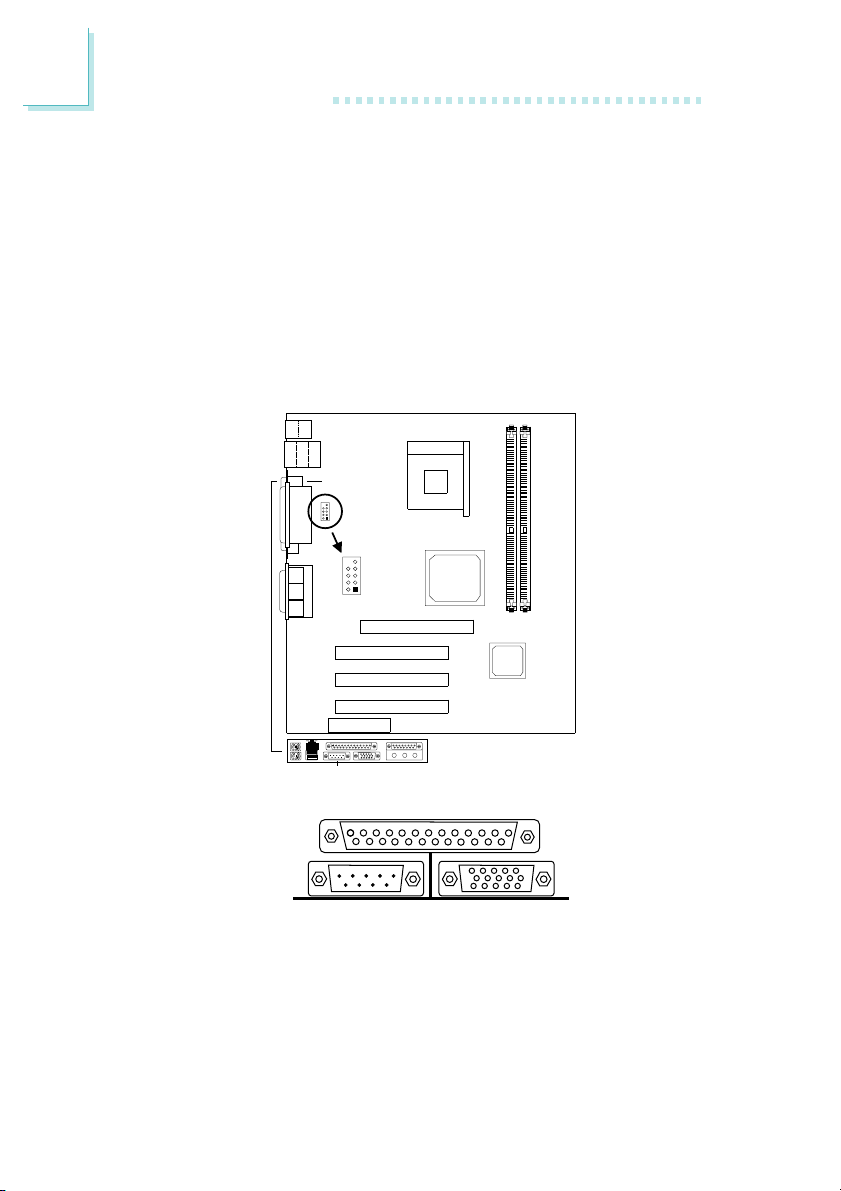

2.6.1.2 NS30-SC and NS30-SL

CN1

COM 1

COM 2

(Teal/Turquoise)

COM 1

Serial Port

The NS30-SC and NS30-SL system boards are equipped with onboard serial ports (COM 1: J4 and COM 2: CN1) - both in Teal/ Turquoise color located at the ATX double deck ports of the each board.

COM 2

Serial Port

Page 28

Hardware Installation

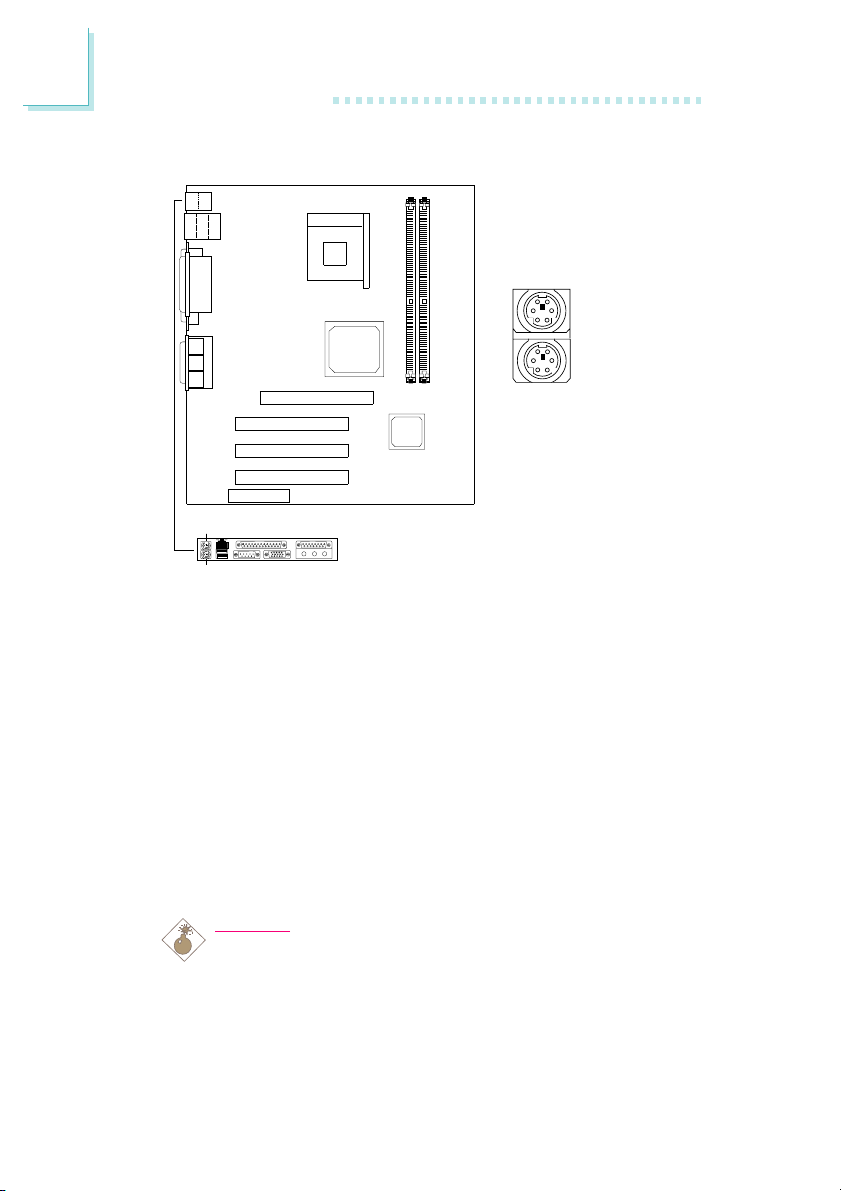

2.6.2 PS/2 Mouse and PS/2 Keyboard Ports

PS/2 Mouse

PS/2 Keyboard

Mouse

(Green)

(Purple)

The system board is equipped with an onboard PS/2 mouse (Green) and PS/2 keyboard (Purple) ports - both at location J2 of the ATX double deck por ts of the system board. The PS/2 mouse port uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to wake up a system from the S3/ S4/S5 state. Refer to “Jumper Settings for Wake-On-PS/2 Keyboard/ Mouse” in chapter 2; and “PS2 Mouse Power Up Control” and “KB Power On Password” (“PM Wake Up Events” field) in the Power Management Setup section in chapter 3 for more information.

Warning:

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

Page 29

2.6.3 Parallel Port

Parallel

(Burgundy)

Parallel Port

Hardware Installation

The system board has a standard parallel por t (J5 - Burgundy) located at the ATX double deck por ts of the board for interfacing your PC to a parallel printer. It supports SPP, ECP and EPP modes. You can set the por t’s mode in the Integrated Peripherals submenu (“Onboard Super IO Device” field) of the BIOS.

Setting

SPP (Standard Parallel Port)

ECP (Extended Capabilities Port)

EPP (Enhanced Parallel Por t)

Allows normal speed operation but in one direction only.

Allows parallel port to operate in bidirectional mode and at a speed faster than the SPP’s data transfer rate.

Allows bidirectional parallel port operation at maximum speed.

Function

Page 30

Hardware Installation

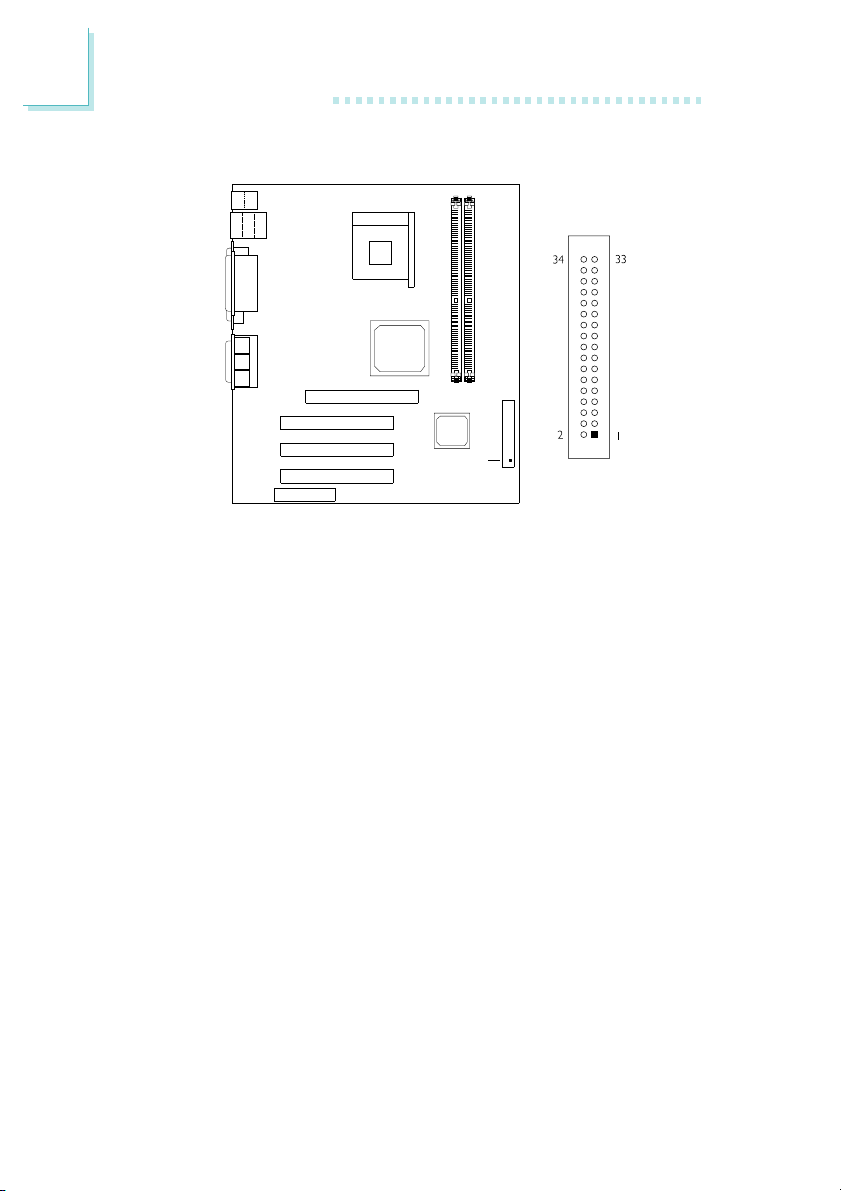

2.6.4 Floppy Disk Drive Connector

FDD (J22)

The system board is equipped with a shrouded floppy disk drive connector that supports two standard floppy disk drives. To prevent improper floppy cable installation, the shrouded floppy disk header has a keying mechanism. The 34-pin connector on the floppy cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable this function in the Integrated Peripherals submenu (“Onboard Super IO Device” field) of the BIOS.

Connecting the Floppy Disk Drive Cable

1. Install the 34-pin header connector of the floppy disk drive cable into the shrouded floppy disk header (J22) on the system board. The colored edge of the ribbon should be aligned with pin 1 of J22.

2. Install the other 34-pin header connector(s) into the disk drive(s). Align the colored edge of the daisy chained ribbon cable with pin 1 of the drive edge connector(s). The end-most connector should be attached to the drive you want to designate as Dr ive A.

Page 31

Hardware Installation

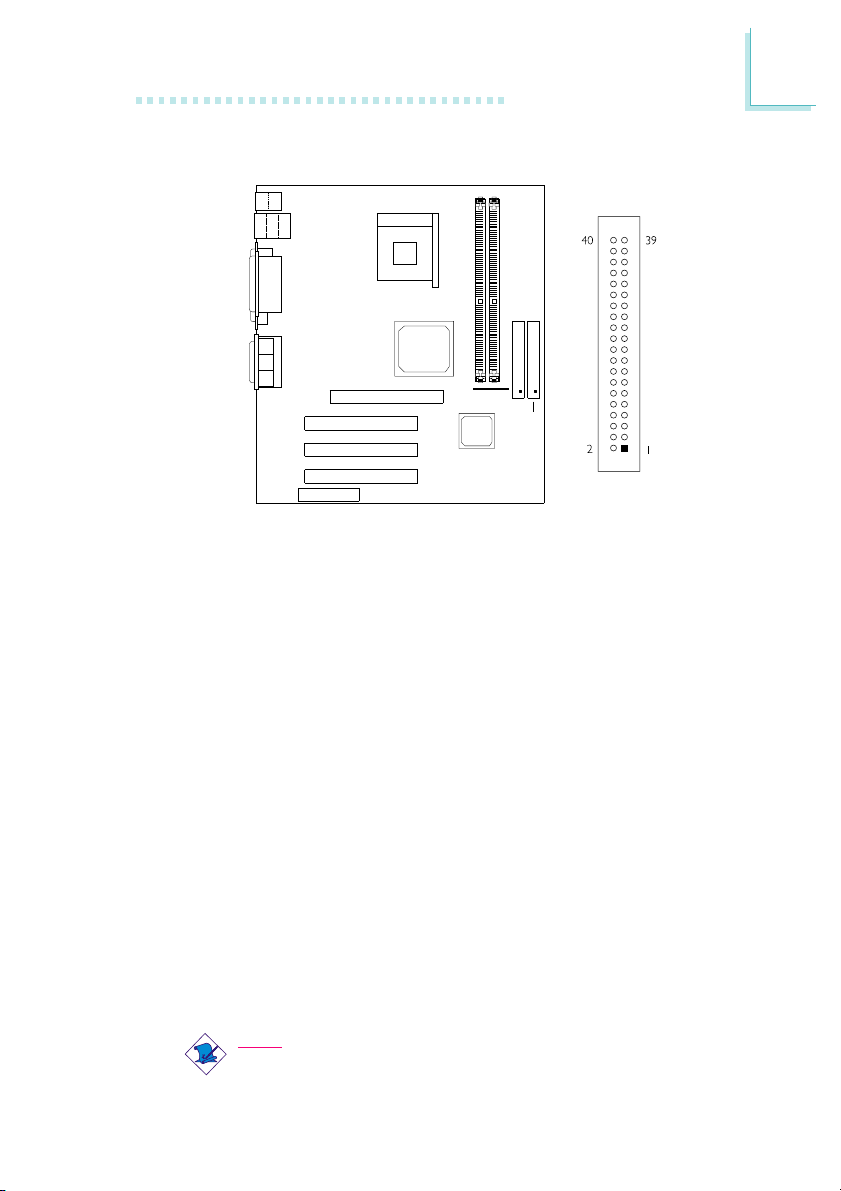

2.6.5 IDE Disk Drive Connector

Secondary IDE

(J17)

Primary

IDE (J18)

The system board is equipped with two shrouded PCI IDE headers that will interface four Enhanced IDE (Integrated Drive Electronics) disk drives. To prevent improper IDE cable installation, each shrouded PCI IDE header has a keying mechanism. The 40-pin connector on the IDE cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable the onboard primary or secondary IDE controller in the Integrated Peripherals submenu (“SIS OnChip IDE Device” field) of the BIOS.

Connecting the IDE Disk Drive Cable

1. If you are connecting two IDE drives, install the 40-pin connector of the IDE cable into the primary shrouded IDE header (connector J18). If you are adding a third or fourth IDE device, install the 40-pin connector of the other IDE cable into the secondary shrouded IDE header (connector J17).

2. Install the other 40-pin header connector(s) into the device with the colored edge of the ribbon cable aligned with pin 1 of the drive edge connector(s).

Note:

Refer to your disk drive user’s manual for information about selecting proper drive switch settings.

Page 32

Hardware Installation

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the dr ives.

The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66 or ATA/100 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function proper ly when used together. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

Page 33

2.6.6 Universal Serial Bus Ports

USB 2 (Black)

USB 1

(Black)

Onboard USB Ports (J3)

USB3&4

11 15

(J25)

Hardware Installation

11 15

USB5&6 (J26)

Additional USB Ports (J25 and J26)

Function

VCC

UP2-

UP2+

Ground

Key

Function

VCC

UP3-

UP3+

Ground

Function

Ground

UP2+

UP2-

VCC

Page 34

Hardware Installation

The system board supports 6 USB ports. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. You must have the proper drivers installed in your operating system to use the USB ports. Refer to your operating system’s manual or documentation.

Two onboard USB ports (J3 - Black) are located at the ATX double deck ports of the board.

Depending on the type of USB port cable that you are using, the J25 and J26 connectors on the system board allow you to connect 4 more optional USB ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. If you wish to use the optional USB ports, install the card-edge bracket to the system chassis then insert the connector that is attached to the USB port cables to J25 or J26.

Insert the USB por t cable connector to pins 1-10 if:

• One of the holes on the cable connector is plugged, meaning the cable connector has a keying mechanism.

Insert the USB por t cable connector to pins 6-15 if:

• None of the holes on the cable connector is plugged, meaning the cable connector has no keying mechanism.

Page 35

Hardware Installation

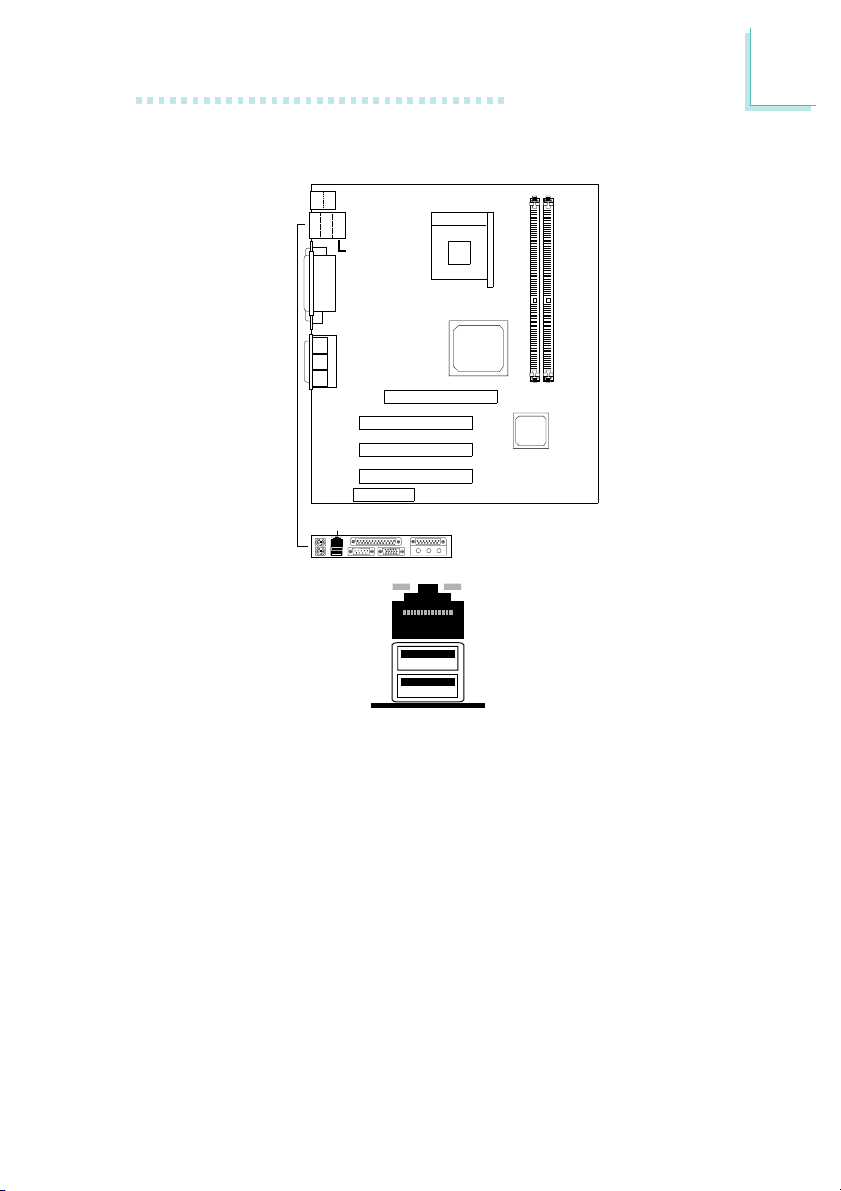

2.6.7 RJ45 Fast-Ethernet Port (NS30-SL and NS35-SL only)

LAN

RJ45 LAN

The NS30-SL and NS35-SL system boards are equipped with an onboard RJ45 fast-ethernet LAN port at location J3 of the ATX double deck ports. It allows the system board to connect to a local area network by means of a network hub.

Page 36

Hardware Installation

2.6.8 VGA Port (NS35-SC and NS35-SL only)

CN1

VGA

(Blue)

VGA Por t

The NS35-SC and NS35-SL system boards can only be used with an analog video monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port (CN1 - Blue) located at the ATX double deck ports of the board. If your monitor supports analog video but does not have a 15-pin D-shell connector, see your monitor dealer for the adapter or optional cable. After you plug the monitor cable into the VGA port, gently tighten the cable screws to hold the connector in place. Some monitors have a switch that chooses between analog and TTL (or digital) operation. If your monitor has such a switch, set it for analog.

Page 37

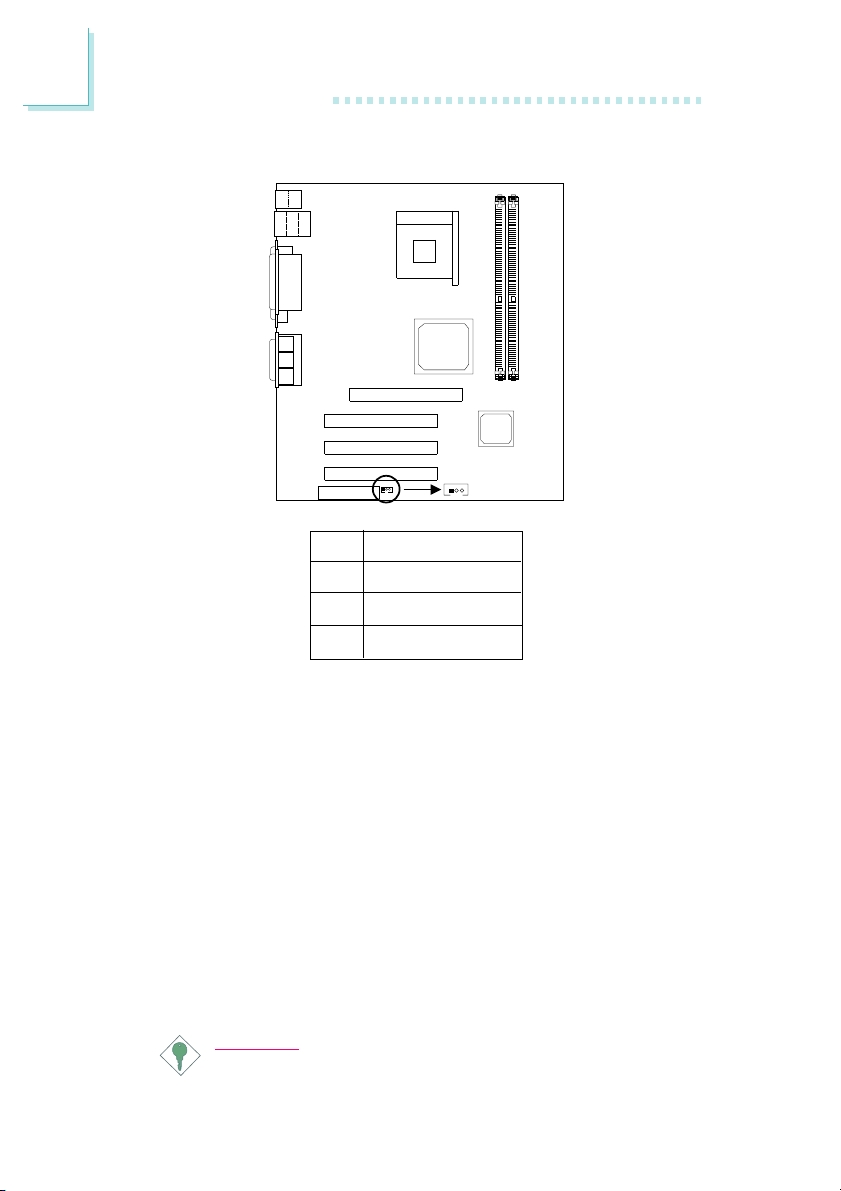

2.6.9 IrDA Connector

12345

IrDA (J20)

Hardware Installation

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

Connect your IrDA cable to connector J20 on the system board. Set “UART2 Mode Select” in the Integrated Peripherals submenu (“Onboard Super IO Device” field) of the BIOS to the type of IrDA standard supported by your device. You must have the proper drivers installed in your operating system to use this connector. Refer to your operating system’s manual or documentation.

Note:

The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board. Make sure to connect the cable to the IrDA connector according to their pin functions.

Function

VCC

Key

IRRX

Ground

IRTX

Page 38

Hardware Installation

2.6.10 CPU Fan Connector

CPU fan

(J1)

321

The processor must be kept cool by using a fan with heatsink. Connect the CPU fan to the 3-pin fan connector at location J1 on the system board. The system is capable of monitoring the speed of the CPU fan.

Function

Ground

Power

Sense

Page 39

2.6.11 System Fan Connector

Hardware Installation

(J12)

321

Function

Ground

On/Off

Sense

System fan

If you are installing a system fan in the system unit, connect the fan’s connector to J12 on the system board. The fan will provide adequate airflow throughout the system to prevent overheating the processor. The system is capable of monitoring and controlling the speed of the system fan. The system fan will automatically turn off once the system enters the Suspend mode.

Page 40

Hardware Installation

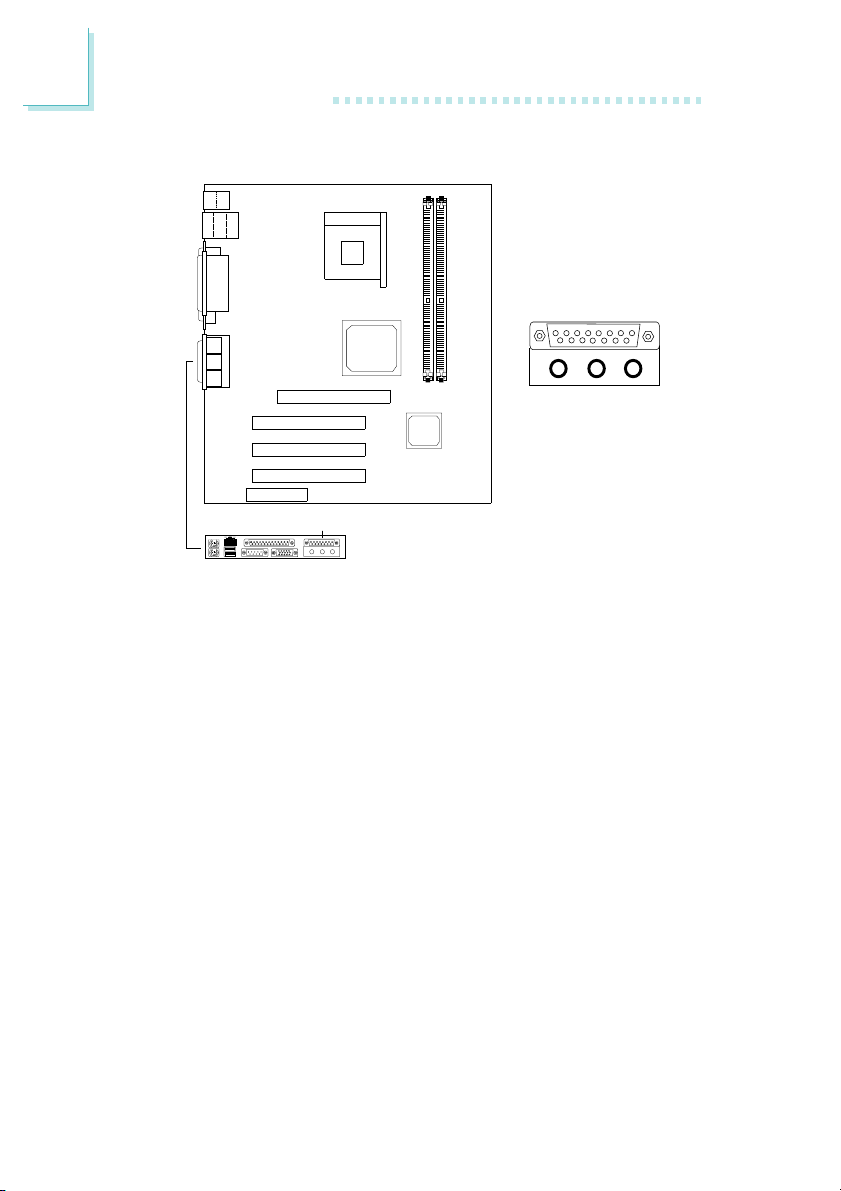

2.6.12 Game/MIDI Port

Game/MIDI Port

J13

Game/MIDI

(Gold)

The Game/MIDI port is identical to that of a standard PC game adapter or game I/O port. Connect an analog joystick to the 15-pin D-sub connector (J13 - Gold) located at the ATX double deck ports of the system board. This por t works well with any application that is compatible with the standard PC joystick.

Page 41

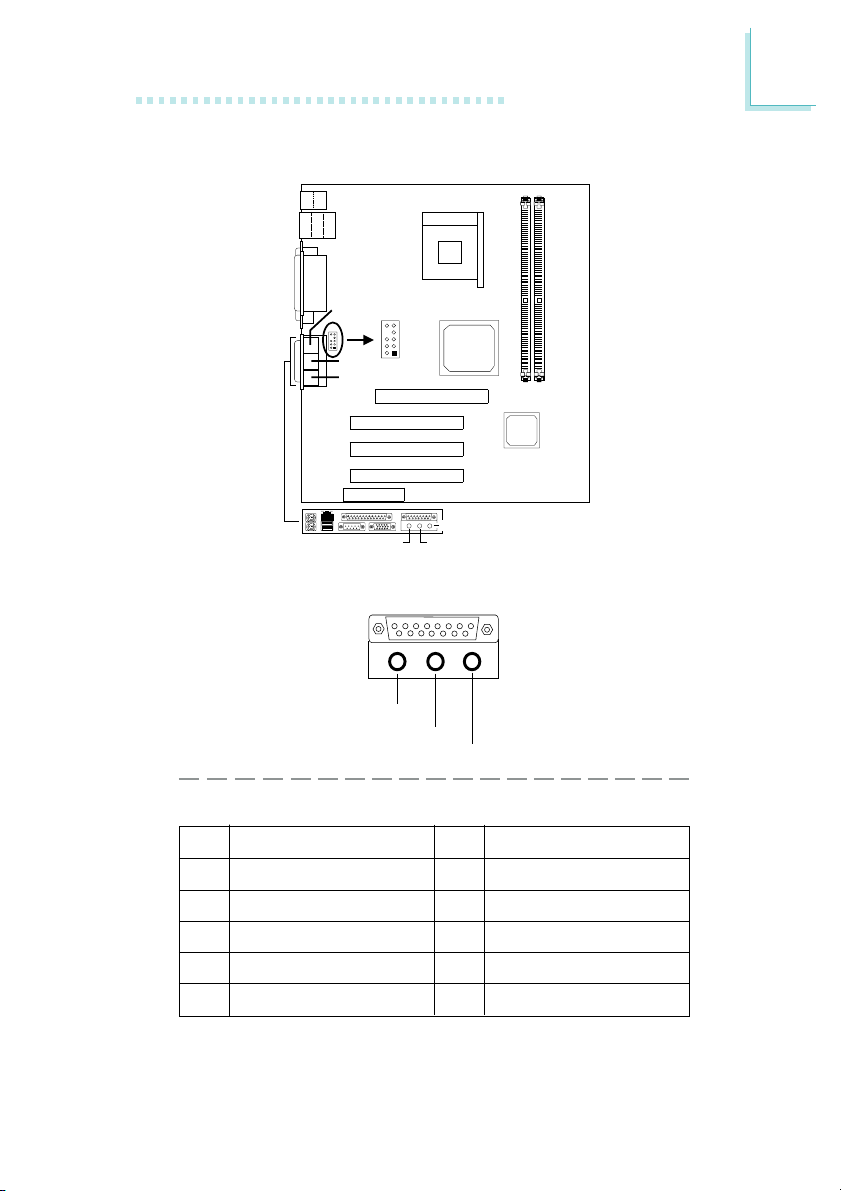

2.6.13 Audio Jacks

J11

J14

Front audio(J10)

Line-out

(Lime)

Mic-in (Pink)

Line-in (Light Blue)

Onboard Audio Jacks

Hardware Installation

Function

Mic+

N. C.

AuD_R_Out

N. C.

AuD_L_Out

Line-out

Line-in

Mic-in

Front Audio (J10)

Function

Ground

AuD_Vcc (Avcc)

N. C.

Key

N. C.

Page 42

Hardware Installation

Onboard Audio Jacks

The system board is equipped with 3 audio jacks. A jack is a onehole connecting interface for inserting a plug.

Line-out Jack (J9 - Lime)

This jack is used to connect external speakers for audio output from the system board.

Line-in Jack (J11 - Light Blue)

This jack can be connected to the line-out jack of any external audio devices such as Hi-fi set, CD player, AM/FM radio tuner, synthesizer, etc. Connect a stereo cable from the line-out jack of your external device to this line-in jack.

Mic-in Jack (J14 - Pink)

Connect a microphone to the mic-in jack.

Front Audio (J10)

J10 provides you the option of connecting another line-out and micin jacks.

Page 43

2.6.14 Internal Audio Connectors

CD-in (J16)

AUX-in (J15)

Hardware Installation

Function

Left audio channel

Ground

Right audio channel

CD-in and AUX-in

These audio-in connectors are used to receive audio from a CDROM drive, TV tuner or MPEG card.

Page 44

Hardware Installation

2.6.15 Wake-On-LAN Connector

123

Wake-On-LAN (J23)

The system board supports the Wake-On-LAN function. This function will allow the network to remotely power-on a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

To use the Wake-On-LAN function, you must enable the “Ring Power Up Control” (“PM Wake Up Events” field) in the Power Management Setup of the BIOS. Your LAN card package should include a cable. Connect one end of the cable to the wakeup header on the card and the other end to location J23 on the system board. The network will detect Magic Packet and assert a wakeup signal to power-up the system. Refer to the add-in card’s manual for details. Note: Your LAN card must support the remote wake up function.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Function

WOL

Ground

+5VSB

Page 45

2.6.16 Wake-On-Ring Connector

Hardware Installation

Wake-On-Ring

(J19)

The Wake-On-Ring connector is used to connect to an internal modem card that has the same connector. It will allow the system that is in the Suspend mode or Soft Power Off mode to wake-up/ power-on to respond to calls coming through the internal modem card.

To use this function, connect one end of the cable (that came with the card) to the card’s wake-on-ring connector and the other end to location J19 on the system board. You must also enable the “Ring Power Up Control” (“PM Wake Up Events” field) in the Power Management Setup of the BIOS.

If you are using an external modem, the ring-on function will come through the serial port where the external modem is connected.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support ≥720mA.

Function

Ground

RI#

Page 46

Hardware Installation

2.6.17 DIMM/PCI Standby Power LED

DIMM standby power LED

3.3VSB standby for PCI (JP6)

DIMM Standby Power LED

This LED will turn red when the system’s power is on or when it is in the Suspend state (Power On Suspend or Suspend to RAM). It will not light when the system is in the Soft-Off state.

PCI standby power LED

PCI Standby Power LED

This LED will turn red when the system is in the power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM) state.

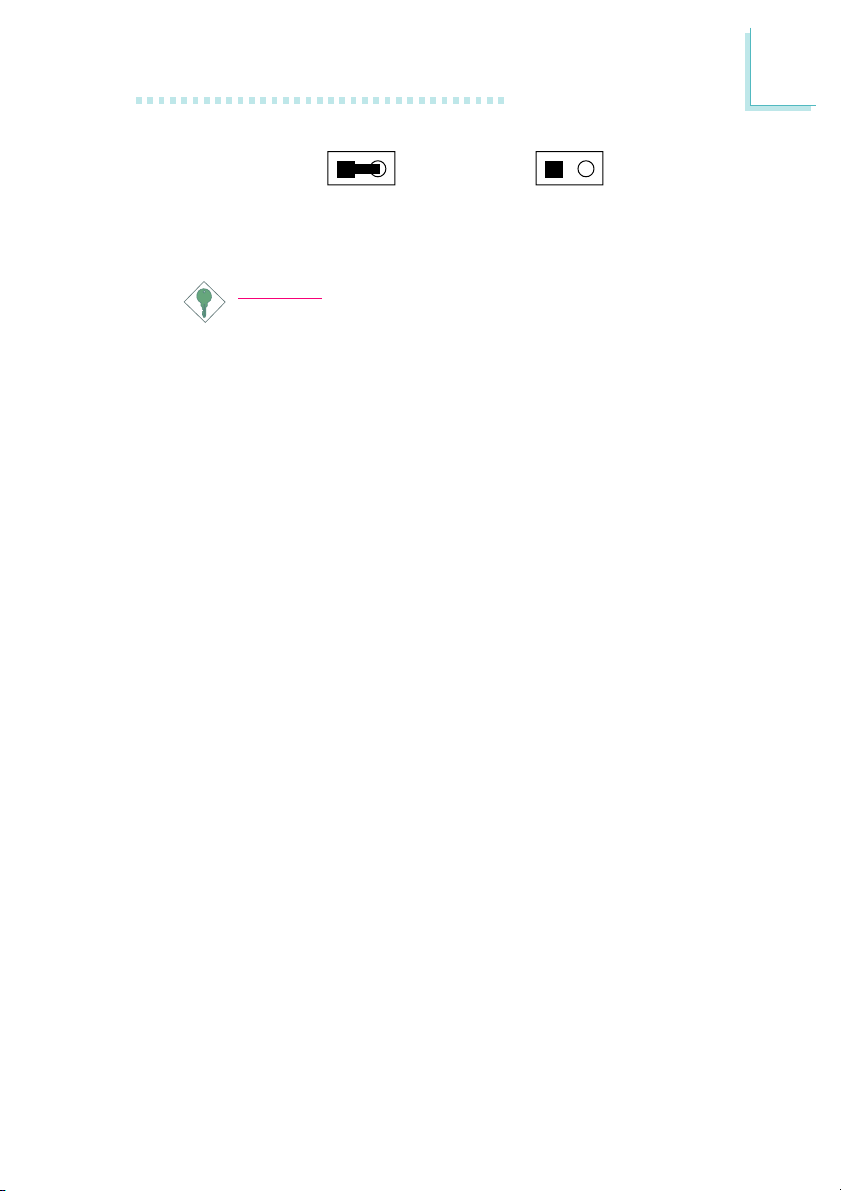

3.3VSB Standby for PCI (Jumper JP6)

The default setting of jumper JP6 is On. It provides 3.3VSB Standby power to the PCI slots. If you are using a PCI modem card that does not comply to the PCI 2.2 specification, please set this jumper to Off. The PCI Standby Power LED’s light will subsequently turn off.

Page 47

Hardware Installation

12 12

On: Default

3.3VSB Standby Power to PCI slots - PCI 2.2 spec.

Important:

Lighted LEDs serve as a reminder that you must power-off the system then turn off the power supply’s switch or unplug the power cord prior to installing any memory modules or add-in cards.

Off:

Non-PCI 2.2 spec.

Page 48

Hardware Installation

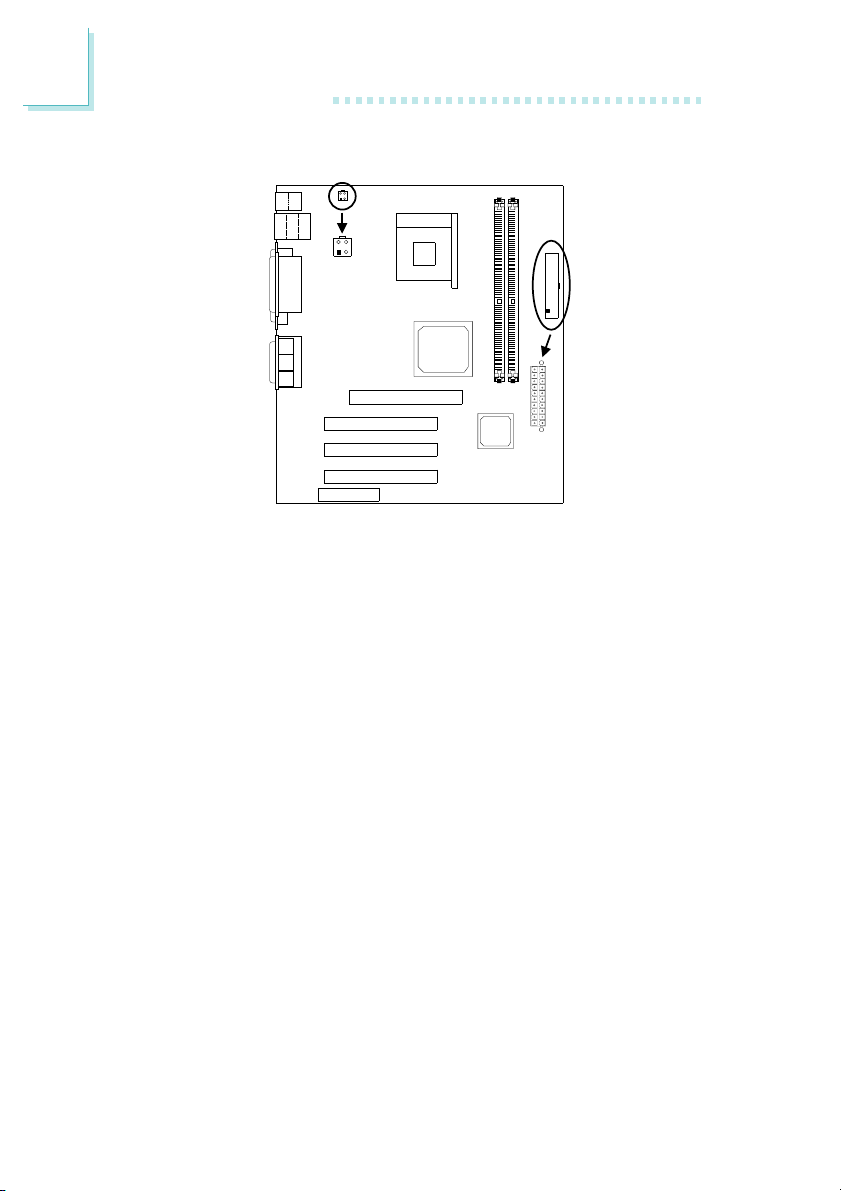

2.6.18 Power Connector

+12V power

(ATXP1)

ATX Power

(J8)

We recommend that you use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. Connect the ATX12V power supply’s 20-pin ATX main power connector and 4pin +12V power connector to J8 and ATXP1 respectively.

The 4-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

The mainboard requires a minimum of 250 Watt power supply to operate. Your system configuration (amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, use a 300 Watt (or greater) power supply.

Page 49

ATX Main Power Connector

Function

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+12V

+12V Power Connector

Function

3.3V

-12V

Ground

PS-ON

Ground

-5V

+5V

Hardware Installation

Function

Ground

+12V

Page 50

Hardware Installation

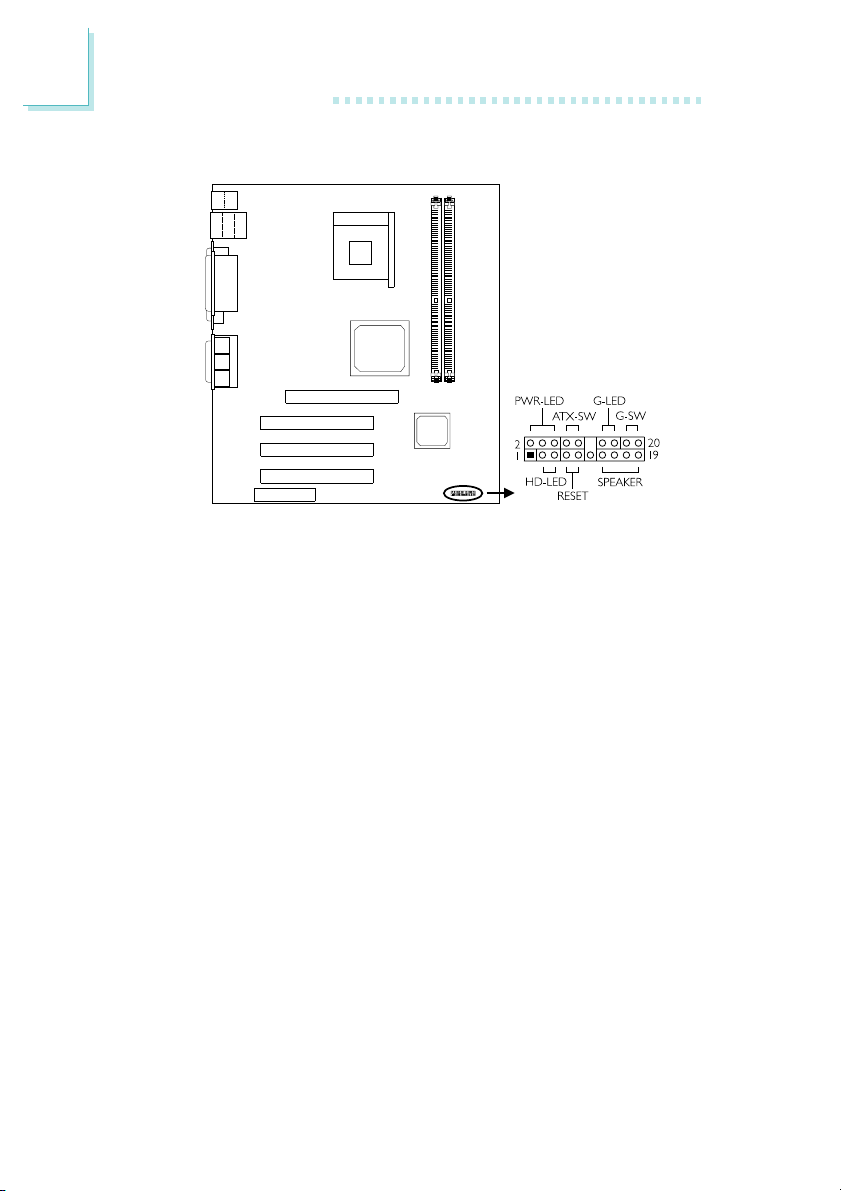

2.6.19 Front Panel Connectors

Front panel

connectors (J27)

HD-LED: Primary/Secondary IDE LED

This LED will light when the hard drive is being accessed.

G-LED: Green LED

This LED will not light when the system’s power is on or when the system is in the S3 (STR - Suspend To RAM) state. It will blink every second when the system is in the S1 (POS - Power On Suspend) state.

ATX-SW: ATX Power Switch

Depending on the setting in the BIOS setup, this switch is a “dual function power button” that will allow your system to enter the SoftOff or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in the Power Management Setup (Chapter 3).

G-SW: Green Switch

This switch will allow your system to enter the Suspend mode.

RESET: Reset Switch

This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector

This connects to the speaker installed in the system chassis.

Page 51

Hardware Installation

PWR-LED: Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

Note:

If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU or memory module was not installed properly. Please make sure they are properly inserted into their corresponding socket.

Pin Assignment

HD-LED

(Primary/Secondary IDE LED)

G-LED

(Green LED)

ATX-SW

(ATX power switch)

G-SW

(Green switch)

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power/Standby LED)

HDD LED Power

HDD

Green LED Power

Ground

PWRBT+

PWRBT-

Ground

SMI

Ground

H/W Reset

Speaker Data

N. C.

Ground

Speaker Power

LED Power (+)

LED Power (-) or Standby Signal

Page 52

Award BIOS Setup Utility

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System

The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features found in this mainboard. This chapter explains the Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appear s on the screen and the memory count begins. After the memor y test, the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or press the “Reset” button. You may also restar t the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Esc

: Quit

F10

: Save & Exit Setup

Time, Date, Hard Disk Type...

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

: Select Item

↑↓→←

3.1.1 Standard CMOS Features

Use the arrow keys to highlight “Standard CMOS Features” and press <Enter>. A screen similar to the one on the next page will appear.

Page 53

Date (mm:dd:yy) Time (hh:mm:ss)



IDE Primary Master



IDE Primary Slave



IDE Secondary Master



IDE Secondary Slave Drive A

Drive B Video

Halt On Base Memory

Extended Memory Total Memory

Award BIOS Setup Utility

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Wed, Jan 16 2002 4 : 35 : 5

Press Enter None Press Enter None Press Enter None Press Enter None

1.44M, 3.5 in. None

EGA/VGA All, But Keyboard

640K 129024K 130048K

Item Help

Menu Level Change the day, month,

year and century

↑↓→← :Move

F5:Previous Values

Enter:Select

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General Help

The settings on the screen are for reference only. Your version may not be identical to this one.

Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1994 to 2079.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

IDE Primar y Master, IDE Primary Slave, IDE Secondary Master and IDE Secondary Slave

Move the cursor to the “IDE Primar y Master”, “IDE Primar y Slave”, “IDE Secondar y Master” or “IDE Secondar y Slave” field, then press <Enter>.

IDE HDD Auto Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

Page 54

Award BIOS Setup Utility

IDE Primary/Secondary Master/Slave

If you wish to define your own drive type manually, select “Manual”. The drive type information should be included in the documentation from your hard disk vendor. If you select ”Auto”, the BIOS will auto-detect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select Normal or Large. Please check your operating system’s manual or Help desk on which one to select.

Drive A and Drive B

These fields identify the types of floppy disk drives installed.

None No floppy drive is installed 360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density drive; 1.2MB capacity 720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

Video

This field selects the type of video adapter used for the primar y system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For

EGA, VGA, SVGA and PGA monitor adapters.

CGA 40 Color Graphics Adapter. Power up in 40-column

mode.

CGA 80 Color Graphics Adapter. Power up in 80-column

mode.

Mono Monochrome adapter. Includes high resolution mono-

chrome adapters.

Page 55

Award BIOS Setup Utility

Halt On

This field determines whether the system will stop if an error is detected during power up. The default setting is All Errors.

No Errors The system boot will not stop for any error s detected. All Errors The system boot will stop whenever the BIOS detects

a non-fatal error.

All, But Keyboard The system boot will not stop for a keyboard

error; it will stop for all other errors.

All, But Diskette The system boot will not stop for a disk error;

it will stop for all other errors.

All, But Disk/Key The system boot will not stop for a disk or

keyboard error; it will stop for all other errors.

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memor y available in the system.

Page 56

Award BIOS Setup Utility

3.1.2 Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the mainboard, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Virus Warning CPU L1 & L2 Cache Quick Power On Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting

Typematic Rate (Chars/Sec)

Typematic Delay (Msec)

Security Option OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability Small Logo(EPA) Show Onboard LAN Boot ROM

Disabled Enabled Fast Floppy HDD-0 LS120 Enabled Disabled Disabled On Disabled

6 250

Setup Non-OS2 Disabled Enabled Enabled

Item Help

Menu Level Allows you to choose

the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep

↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values

The settings on the screen are for reference only. Your version may not be identical to this one.

Virus Warning

This field protects the boot sector and partition table of your hard disk drive. When this field is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive. If an attempt is made to write to the boot sector or partition table of the hard disk drive, the BIOS will halt the system and an error message will appear.

After seeing the error message, if necessary, you will be able to run an anti-virus program to locate and remove the problem before any damage is done.

Many disk diagnostic programs which attempt to access the boot sector table will cause the warning message to appear. If you are running such a program, we recommend that you first disable this field. Also, disable this field if you are installing or running certain

Page 57

Award BIOS Setup Utility

operating systems like Windows® 98/2000/ME/XP or the operating system may not install nor work.

CPU L1 & L2 Cache

These fields speed up the memory access.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) after you power on the system. It allows the system to skip cer tain tests while booting, therefore decreasing the time needed to boot the system.

First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device

Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set “Boot Other Device” to Enabled if you wish to boot from another device.

Swap Floppy Drive

When this field is enabled and the system is booting from the floppy drive, the system will boot from drive B instead of drive A. When this option is disabled and the system is booting from the floppy drive, the system will boot from drive A. You must have two floppy drives to use this function.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish between 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80 tracks. When disabled, the BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360KB.

Page 58

Award BIOS Setup Utility

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Typematic Rate Setting

Disabled Continually holding down a key on your keyboard will

cause the BIOS to repor t that the key is down.

Enabled The BIOS will not only report that the key is down,

but will first wait for a moment, and, if the key is still down, it will begin to report that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys. You can then select the typematic rate and typematic delay in the “Typematic Rate (Chars/Sec)” and “Typematic Delay (Msec)” fields below.

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are accelerated.

Typematic Delay (Msec)

This field allows you to select the delay between when the key was first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the password

- ever ytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

Page 59

Award BIOS Setup Utility

OS Select for DRAM > 64MB

This field allows you to access the memory that is over 64MB in OS/2.

HDD S.M.A.R.T. Capability

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. The default is Disabled. If you are using hard drives that support S.M.A.R.T., set this field to Enabled. SMART is supported in ATA/33 or later hard drives.

Small Logo(EPA) Show

Enabled The EPA logo will appear during system boot-up. Disabled The EPA logo will not appear during system boot-up.

Onboard LAN Boot ROM (NS30-SL and NS35-SL only)

Enable this field if you wish to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly.

If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.

Page 60

Award BIOS Setup Utility

3.1.3 Advanced Chipset Features

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features



DRAM Clock/Drive Control Prefetch Caching AGP Aperture Size AGP Fast Write AGP SideBand Address AGP Capability System Share Memory Size

Press Enter Disabled 64MB Disabled Disabled Auto 32 MB

Item Help

Menu Level

↑↓→← Move

The settings on the screen are for reference only. Your ver sion may not be identical to this one.

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. These items should not

be altered unless necessary. The default settings have been chosen

because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some incompatibility or that data was being lost while using your system.

DRAM Clock/Drive Control

Move the cur sor to this field and press <Enter>. The following fields will appear.

System Performance

This field is used to select the mode that will provide the best performance for your system.

DRAM C AS Latency

This field is used to select the clock cycle of the SDRAM CAS latency time. The option selected specifies the time before SDRAM starts a read command after receiving it.

Page 61

Award BIOS Setup Utility

DDR DRAM Command Rate

The options are Auto, Delay 1T and Delay 2T.

Prefetch Caching

The options are Enabled and Disabled.

AGP Aperture Size

This field is relevant to the memory-mapped graphics data of the AGP card installed in your system. Leave this in its default setting, which is 64MB.

AGP Fast Write

When the AGP Fast Write function is enabled, it will improve the system’s performance.

AGP SideBand Address

When the AGP SideBand Address function is enabled, it will improve the system’s performance.

AGP Capability

Set this field according to the AGP mode supported by your AGP card.

System Share Memory Size

The options are 4MB, 8MB, 16MB, 32MB and 64MB.

Page 62

Award BIOS Setup Utility

3.1.4 Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals



SIS OnChip IDE Device



SIS OnChip PCI Device



Onboard Super IO Device USB Controller USB Keyboard Support IDE HDD Block Mode Init Display First AGP Auto Calibration IDE Access Interface USB1 Access Interface USB0 Access Interface Audio Access Interface

Press Enter Press Enter Press Enter Enabled Disabled Disabled PCI Slot Enabled Embedded Bus Embedded Bus Embedded Bus Embedded Bus

Item Help

Menu Level

↑↓→← Move

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your ver sion may not be identical to this one.

SIS OnChip IDE Device

Move the cur sor to this field and press <Enter>. The following fields will appear.

Internal PCI/IDE

This field allows you to enable or disable the primary and secondar y IDE controller.

Both Allows you to configure the IDE Primary Master/

Slave PIO, IDE Secondary Master/Slave PIO, IDE Primary Master/Slave UDMA and IDE Secondar y Master/Slave UDMA fields.

Disabled Select this option if you want to use a different

hard drive controller.

Primary Allows you to configure the IDE Primary Master/

Slave PIO and IDE Primary Master/Slave UDMA fields.

Secondary Allows you to configure the IDE Secondary Master/

Slave PIO and IDE Secondar y Master/Slave UDMA fields.

Page 63

Award BIOS Setup Utility

IDE Primary Master/Slave PIO and IDE Secondary Master/Slave PIO

PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

Auto The BIOS will automatically set the system ac-

cording to your hard disk drive’s timing.

Mode 0-4 You can select a mode that matches your hard

disk drive’s timing. Caution: Do not use the wrong setting or you will have drive errors.

IDE Primary Master/Slave UDMA and IDE Secondary Master/Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto The BIOS will automatically detect the settings for

you.

Disabled The BIOS will not detect these categories.

IDE Burst Mode

When the IDE Burst Mode function is enabled, it will reduce the latency time between each drive’s read and write cycle. To enable this function, make sure the “Internal PCI/IDE” field is not disabled.

IDE Prefetch Mode

This allows data and addresses to be stored in the internal buffer of the chip, thus reducing access time. Enable this field to achieve better performance.

Page 64

Award BIOS Setup Utility

SIS OnChip PCI Device

Move the cur sor to this field and press <Enter>. The following fields will appear.

SIS-7012 AC97 Audio

Enabled Select this option when using the onboard audio

codec.

Disabled Select this option when using a PCI sound card.

SIS-7013 S/W Modem

Enabled Select this option when using a primar y or second-

ary modem riser card.

Disabled Select this option when using a PCI modem card.

Onboard Super IO Device

Move the cur sor to this field and press <Enter>. The following fields will appear.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller. Disabled Disables the onboard floppy disk controller.

Onboard Serial Port 1 and Onboard Serial Por t 2

Auto The system will automatically select an I/O address

for the onboard serial por t 1 and serial port 2.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to

manually select an I/O address for the onboard serial port 1 and serial por t 2.

Disabled Disables the onboard serial port 1 and/or serial

por t 2.

UART2 Mode Select

The mainboard supports IrDA function for wireless connectivity between your computer and peripheral devices. You may not use IrDA (J20) and the COM 2 serial por t at the same time. If you are using the COM 2 serial port, make sure this field is set to Normal.

Page 65

Award BIOS Setup Utility

To use the IrDA function, follow the steps below.

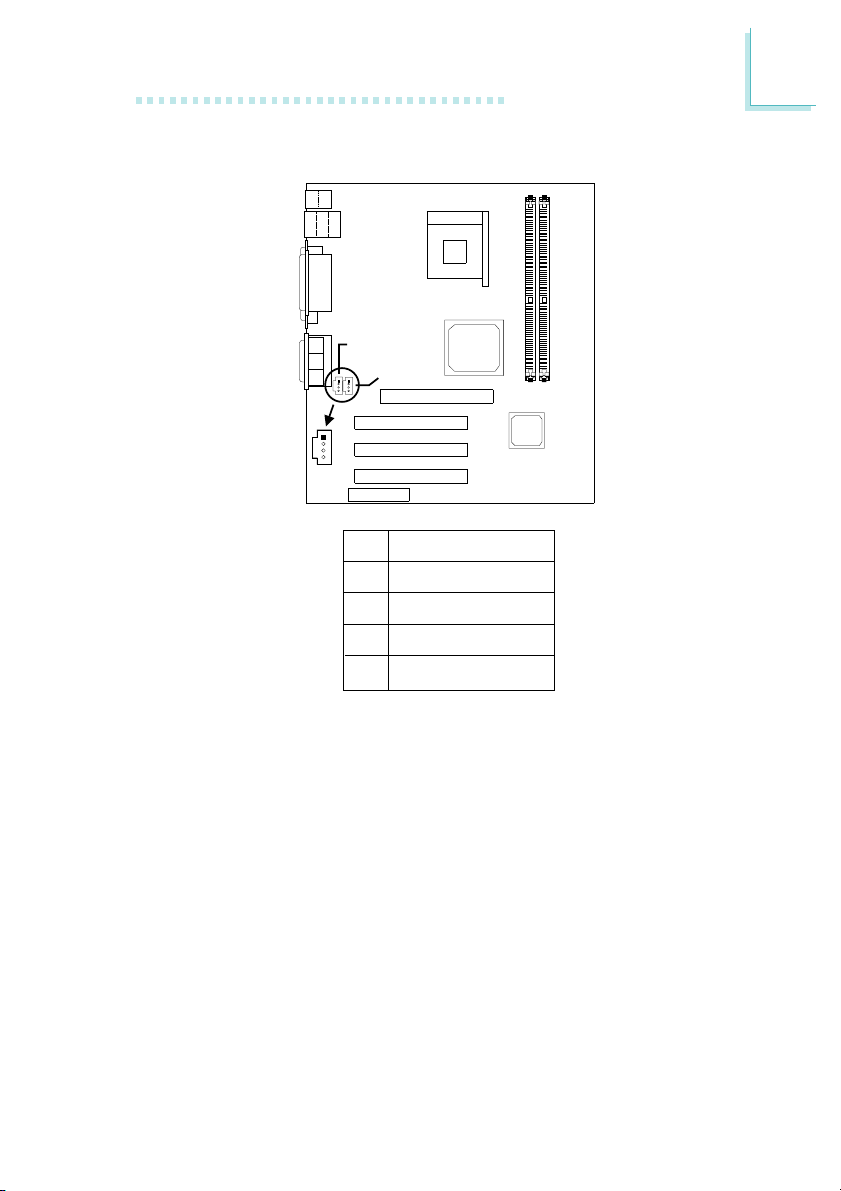

1. Connect your IrDA cable to connector J20 on the mainboard.

2. Set the “UART2 Mode Select” field to the type of IrDA standard supported by your IrDA peripheral/device (IrDA or ASKIR). For better transmission of data, your IrDA peripheral device must be within a 30o angle and within a distance of 1 meter.

3. Set the “RxD TxD Active” and “IR Transmission Delay” fields appropriately.

RxD, TxD Active

The options are Hi, Lo; Lo, Hi; Lo, Lo; and Hi, Hi.

IR Transmission Delay

If this option is Enabled, transmission of data will be slower. This is recommended when you encounter transmission problem with your device.

Onboard Parallel Port

378/IRQ7, 3BC/IRQ7, 278/IRQ5 Selects the I/O address and

IRQ for the onboard parallel port.

Disabled Disables the onboard parallel port.

Parallel Port Mode

The options are SPP, EPP, ECP and ECP+EPP. These appl y to standard specifications and will depend on the type and speed of your device. Refer to your peripheral’s manual for the best option.

SPP

Allows normal speed operation but in one direction only.

“ECP (Extended Capabilities Port)”

Allows parallel port to operate in bidirectional mode and at a speed faster than the normal mode’s data transfer rate.

“EPP (Enhanced Parallel Port)”

Allows bidirectional parallel port operation at maximum speed.

EPP Mode Select

This is used to select the EPP mode.

Page 66

Award BIOS Setup Utility

ECP Mode Use DMA

This is used to select the DMA channel used for the parallel port.

Game Port Address

This field is used to select the game port’s address.

Midi Port Address

This field is used to select the MIDI port’s address. If you have selected the MIDI por t’s address, you may select its IRQ in the “Midi Port IRQ” field.

Midi Port IRQ

This field is used to select the MIDI por t’s IRQ.

USB Controller

We recommend that you leave this field in its default setting Enabled.

USB Keyboard Support

By default, USB Keyboard Support is Disabled. However, if you are using a USB keyboard under DOS, make sure to enable this function.

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

Init Display First

This field is used to select whether to initialize AGP or PCI first when the system boots.

AGP When the system boots, it will first initialize AGP. PCI Slot When the system boots, it will first initialize PCI.

Page 67

Award BIOS Setup Utility

AGP Auto Calibration

When the AGP Auto Calibration function is enabled, it allows the system to automatically calibrate the AGP’s performance. We recommend that you leave this field in its default setting - Enabled.

IDE Access Interface

This field is used to select the access interface of the IDE devices. The options are Embedded Bus and PCI Bus.

USB1 Access Interface and USB0 Access Interface

This field is used to select the access interface of the USB 1 and USB 0 devices. The options are Embedded Bus and PCI Bus.

Audio Access Interface

This field is used to select the access interface of the audio device. The options are Embedded Bus and PCI Bus.

Page 68

Award BIOS Setup Utility

3.1.5 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI Function ACPI Suspend Type Power Management Option Video Off Option Video Off Method Switch Function MODEM Use IRQ HDD Power Down Soft-Off By PWRBTN PWR Lost Resume State



PM Wake Up Events

Enabled S1(POS) User Define Suspend -> Off V/H SYNC+Blank Break/Wake Auto Disable Instant-off Keep Off Press Enter

Item Help

Menu Level

↑↓→← Move

The settings on the screen are f or reference only. Your version ma y not be identical to this one.

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

ACPI Function

This function should be enabled only in operating systems that support ACPI. Currently, only Windows® 98/2000/ME/XP supports this function. If you want to use the Suspend to RAM function, make sure this field is enabled then select “S3(STR)” in the “ACPI Suspend Type” field.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function. If you are us-

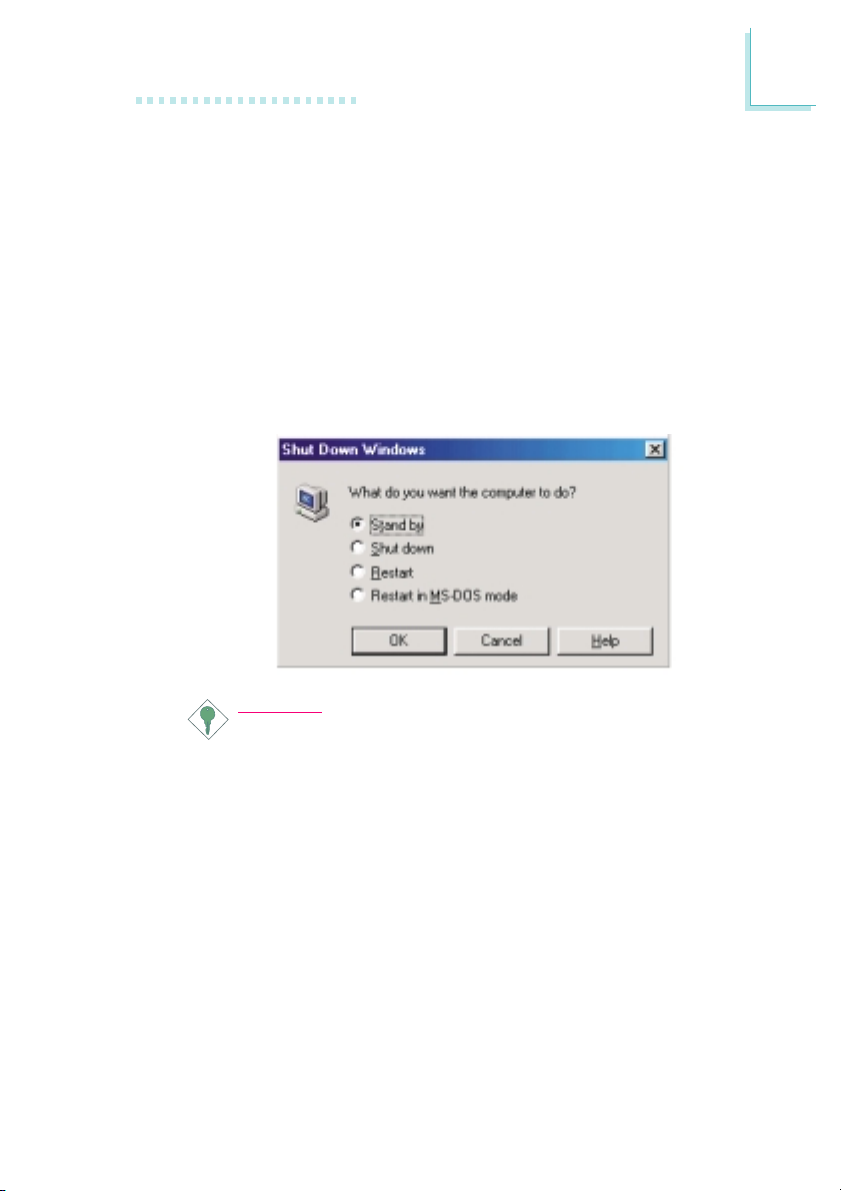

ing the Windows® 98 operating system, refer to “Using the Suspend to RAM Function” in appendix A for more information.

Page 69

Award BIOS Setup Utility

Power Management Option

This field allows you to select the type (or degree) of power saving mode.

Video Off Option

Always On The system BIOS will never turn off the screen. Suspend -> Off The screen is off when the system is in the

Suspend mode.

All Modes -> Off The screen is always Off. Susp, Stby -> Off The screen is off when the system is in the

Suspend or Standby mode.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This will cause the system to turn off the ver-

tical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This only writes blanks to the video buffer. DPMS Support Initializes display power management signaling. Se-

lect this if your video board supports it.

Switch Function

The options are Disabled and Break/Wake.

MODEM Use IRQ

This field is used to set an IRQ channel for the modem installed in your system.

HDD Power Down

After the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Page 70

Award BIOS Setup Utility

Soft-Off by PWRBTN

This field allows you to select the method of powering off your system.

Delay 4 Sec Regardless of whether the Power Management field

is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system.

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

PWR Lost Resume State

Keep Off When power returns after an AC power failure, the

system’s power is off. You must press the Power button to power-on the system.

Turn On When power returns after an AC power failure, the

system will automatically power-on.

Last State When power returns after an AC power failure, the

system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Page 71

Award BIOS Setup Utility

PM Wake Up Events

Move the cur sor to this field and press <Enter>. The following fields will appear.

IRQ 8 Break Suspend

When this field is enabled, access to IRQ 8 will cause the system to wake up from the Suspend mode.

Ring Power Up Control

This field allows you to enable the Wake-On-LAN and Wake-OnRing functions.

• When enabled, the system will power-on to respond to calls

coming through an external or internal modem. Refer to “WakeOn-Ring Connector” in chapter 2 for more information.

• If you are using a LAN card that supports the remote wake

up function, set this field to Enabled. The will allow the network to remotely wake up a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can wake up the system only through an IRQ or DMA interr upt. Your LAN card must support the remote wake up function. Refer to “Wake-On-LAN Connector” in chapter 2 for more information.

PCIPME Power Up Control

This field should be set to Enabled only if your PCI card such as LAN card or modem card uses the PCI PME (Power Management Event) signal to remotely wake up the PC. Refer to the card’s documentation for more information.

USB Port Wake Up Control

This field, when enabled, allows you to use a USB device to wake up the system from the S3/S4/S5 state.

Hot Key Power Up Control

This field allows you to use Hot Keys to wake up the system.

PS2 Mouse Power Up Control

This field allows you to use the PS/2 mouse to wake up the system from the S3/S4/S5 state.

Page 72

Award BIOS Setup Utility

KB Power On Password

To use a password to wake up the system, move the cursor to this field and press <Enter>. Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, then press <Enter>.

Important:

If you forgot the password, you must power-off the system, unplug the power cord and clear the CMOS data. Follow the steps in the “Jumper Settings for Clearing CMOS Data” section in chapter 2.

Power Up By Alarm

Enabled When Enabled, you can set the date and time you

would like the Soft Power Down (Soft-Off) PC to power-on in the “Month Alarm”, “Day of Month Alarm” and “Time (hh:mm:ss) Alarm” fields. However, if the system is being accessed by incoming calls or the network prior to the date and time set in these fields, the system will give priority to the incoming calls or network.

Disabled Disables the automatic power-on function. (default)

Month Alarm

This is used to select the month you would like the PC to power-on.

Day of Month Alarm

0 The system will power-on everyday according to the

time set in the “Time (hh:mm:ss) Alarm” field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time set in the “Time (hh:mm:ss) Alarm” field.

Time (hh:mm:ss) Alarm

This is used to set the time you would like the system to poweron. If you want the system to power-on everyday as set in the “Day of Month Alarm” field, the time set in this field must be later than the time of the RTC set in the Standard CMOS Features submenu.

Page 73

Award BIOS Setup Utility

3.1.6 PnP/PCI Configurations

This section shows how to configure the PCI bus system. It covers some very technical items and it is strongly recommended that only experienced user s should make any changes to the default settings.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

Reset Configuration Data Resources Controlled By

IRQ Resources

PCI/VGA Palette Snoop * PCI IRQ Assignment *

Onboard VGA/Slot 1 Slot 2 Slot 3

Disabled Auto(ESCD)

Press Enter

Disabled

Auto Auto Auto

Item Help

Menu Level Default is Disabled.

Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

↑↓→← Move

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version ma y not be identical to this one.

Reset Configuration Data

Enabled The BIOS will reset the Extended System Configuration

Data (ESCD) once automatically. It will then recreate a new set of configuration data.

Disabled The BIOS will not reset the configuration data.

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically configure all of the boot and Plug and Play compatible devices.

Auto(ESCD) The system will automatically detect the settings for

you.

Manual Choose the specific IRQ resources in the “IRQ Re-

sources” field.

Page 74

Award BIOS Setup Utility

IRQ Resources

Move the cursor to this field and press <Enter>. The “IRQ-3 assigned to” to “IRQ-15 assigned to” fields will appear. Set each system interrupt to either “PCI Device” or “Reserved”.

PCI/VGA Palette Snoop

This field determines whether the MPEG ISA/VESA VGA cards can wor k with PCI/VGA or not. The default value is Disabled.

Enabled MPEG ISA/VESA VGA cards work with PCI/VGA. Disabled MPEG ISA/VESA VGA cards does not work with PCI/

VGA.

PCI IRQ Assignment

By default, an IRQ is automatically assigned to the PCI devices that are installed in the PCI slots.

If a PCI device has not been assigned an IRQ, you must manually assign an IRQ for the device. During system boot-up, you will see “NA” for the device that does not have an IRQ assigned.

Page 75

3.1.7 PC Health Status

Award BIOS Setup Utility

CPU Temp. Prot. Function CPU Temp. Prot. Alarm Current System Temp. Current CPU Temperature Current CPU FAN Speed Current System FAN Speed CPU(V) +3.3

+12

-12

-5

V VBAT(V) 5VSB(V)

↑↓→← Move

F5:Previous Values

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Disabled 70 27C/80F 37C/98F

0 RPM 0 RPM

1.75 V

3.35 V

4.90 V

11.85 V

-11.45 V

-5.14 V

3.24 V

5.37 V

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level

Item Help

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version may not be identical to this one.

CPU Temp. Prot. Function and CPU Temp. Prot. Alarm

The CPU Temperature Protection function has the capability of monitoring the CPU’s temperature during system boot-up. To use this function, set the “CPU Temp. Prot. Function” field to “Enabled” then select the desired CPU temperature limit in the “CPU Temp. Prot. Alarm” field. Once the system has detected that the CPU’s temperature exceeded the limit, 5 warning beeps will sound and at the same time, a warning message will appear on the boot-up screen instructing you to press <Del> in order to enter the main menu of the BIOS. If you did not press <Del>, the system will automatically power-off after the 5 warning beeps. You may either:

1. Press <Del> then enter a new CPU temperature limit;

2. Allow the system to power-off after the 5 warning beeps then check whether the heatsink and fan are mounted properly onto the CPU because high CPU temperature may be due to incorrect fan/ heatsink installation. Now restart the system. If the same problem persist, it may be that the CPU fan is damaged or it is not rotating properly. Try replacing it with a new fan. If it is due to other

Page 76

Award BIOS Setup Utility

contributing factors that resulted to high CPU temperature, you may need to set a lower CPU temperature limit.

CPU Temperature References

When you power-up a system, the BIOS message appears on the screen and the memory count begins. After the memor y test, the CPU temperature range is normally between 32oC and 35oC. When you run an operating system then tried to reboot the system, the CPU temperature range at this time is between 40oC and 45oC. These temperature references serve as a guide when you select the CPU temperature limit.

Current System Temp., Current CPU Temperature, Current CPU Fan Speed and Current System Fan Speed

These fields show the internal temperature of the system, current temperature of the CPU, and the current fan speed of the CPU and system fans in RPM (Revolutions Per Minute).

CPU(V)

These fields show the voltage of the processor.

+3.3V, +5V, +12V, -12V, -5V, VBAT(V) and 5VSB(V)

These fields show the output voltage of the power supply.

Note:

The onboard hardware monitor function is capable of detecting “system health” conditions but if you want a warning message to pop-up or a warning alarm to sound when an abnormal condition occurs, you must install the Hardware Monitor utility. This utility is included in the CD that came with the mainboard. Refer to the Hardware Monitor section in chapter 4 for more information.

Page 77

3.1.8 Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

CPU Clock Ratio Auto Detect DIMM/PCI Clk Spread Spectrum Modulated CPU Host/SDRAM/PCI Clock

8 X Enabled Disabled Default

Award BIOS Setup Utility

Item Help

Menu Level

↑↓→← Move

The settings on the screen are for reference only. Your version ma y not be identical to this one.

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

CPU Clock Ratio

This field is used to select the CPU’s frequency ratio.

Important:

The frequency ratio of some processors may have been locked by the manufacturer. If you are using this kind of processor, setting an extended ratio for the processor will have no effect. The system will instead use its factor y default ratio.

Auto Detect DIMM/PCI Clk

When enabled, the system will automatically send clock signals to existing DIMM or PCI devices.

Spread Spectrum Modulated

Leave this field in its default setting. Do not alter this setting unless advised by an engineer or technician.

Page 78

Award BIOS Setup Utility

CPU Host/SDRAM/PCI Clock

This field provides several options for selecting the external system bus clock of the processor. When selecting the external bus clock, the SDRAM clock and PCI clock will at the same time appear next to the external bus clock selected. For example, if you selected “100/ 100/33MHz”, 100MHz is the external bus clock, 100MHz is the SDRAM clock and 33MHz is the PCI clock. Since the system board uses DDR SDRAM DIMM, the SDRAM clock will run double the speed of that shown in this field. Therefore, if the SDRAM clock shown is “100MHz”, the system will actually run at “200MHz”. Regardless of the type of processor used, the default setting is “Default”. Under this setting, the system will run according to the processor’s clock frequency.

Important:

Overclocking may result in the processor’s or system’s instability and is not guaranteed to provide better system performance.

If, in the “CPU Clock Ratio” or “CPU Host/SDRAM/PCI Clock” field, you selected an option other than the default setting and is unable to boot up the system, there are 2 methods of booting up the system and going back to its default setting.

Method 1: Clear the CMOS data by setting JP5 to 1-2 On. All fields in the BIOS Setup will automatically be set to their default settings.

Method 2: Press the <Insert> key and power button simultaneously, then release the power button first. Keep-on pressing the <Insert> key until the power-on screen appears. This will allow the system to boot according to the FSB of the processor. Now press the <Del> key to enter the main menu of the BIOS. Select “Frequency/Voltage Control” and set the “CPU Clock Ratio” or “CPU Host/SDRAM/PCI Clock” field to its default setting or an appropriate bus clock.

Note:

Use a PS/2 or AT (requires a DIN to mini DIN adapter) keyboard for method 2.

Page 79

Award BIOS Setup Utility

3.1.9 Load Fail-Safe Defaults

The “Load Fail-Safe Defaults” option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these values only if you have hardware problems. Highlight this option in the main menu and press <Enter>. The message below will appear.

Load Fail-Safe Defaults (Y/N)? N

If you want to proceed, type <Y> and press <Enter>. The default settings will be loaded.

3.1.10 Load Optimized Defaults

The “Load Optimized Defaults” option loads optimized settings from the BIOS ROM. Use the default values as standard values for your system. Highlight this option in the main menu and press <Enter>. The message below will appear.

Load Optimized Defaults (Y/N)? N

Type <Y> and press <Enter> to load the Setup default values.

Page 80

Award BIOS Setup Utility

3.1.11 Set Supervisor Password

If you want to protect your system and setup from unauthorized entry, set a supervisor’s password with the “System” option selected in the Advanced BIOS Features. If you want to protect access to setup only, but not your system, set a super visor’s password with the “Setup” option selected in the Advanced BIOS Features. You will not be prompted for a password when you cold boot the system.

Use the arrow keys to highlight “Set Supervisor Password” and press <Enter>. The message below will appear.

Enter Password:

Type in the password. You are limited to eight characters. When done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again. To delete or disable the password function, highlight “Set Super visor Password” and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.

3.1.12 Set User Password

If you want another user to have access only to your system but not to setup, set a user’s password with the “System” option selected in the Advanced BIOS Features. If you want a user to enter a password when trying to access setup, set a user’s password with the “Setup” option selected in the Advanced BIOS Features.

Using user’s password to enter Setup allows a user to access only “Set User Password” that appears in the main menu screen. Access to all other options is denied. To set, confirm, verify, disable or delete a user’s password, follow the procedures described in the section “Set Supervisor Password”.

Page 81

Award BIOS Setup Utility

3.1.13 Save & Exit Setup

When all the changes have been made, highlight “Save & Exit Setup” and press <Enter>. The message below will appear :

Save to CMOS and Exit (Y/N)? N

Type “Y” and press <Enter>. The modifications you have made will be written into the CMOS memory, and the system will reboot. You will once again see the initial diagnostics on the screen. If you wish to make additional changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

3.1.14 Exit Without Saving

When you do not want to save the changes you have made, highlight “Exit Without Saving” and press <Enter>. The message below will appear :

Quit Without Saving (Y/N)? N

Type “Y” and press <Enter>. The system will reboot and you will once again see the initial diagnostics on the screen. If you wish to make any changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

3.2 Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AWDFLASH.EXE. Please contact technical support or your sales representative for these files.

1. Save the BIOS along with the flash utility AWDFLASH.EXE to a floppy disk.

2. Insert the floppy disk into a floppy drive and power-on the system. Press the <Alt> and <F2> keys simultaneously. The utility, which works only in DOS mode, will update the new BIOS file to the programmable flash EEPROM that is on the mainboard. The new BIOS will permanently replace the original BIOS content after flashing.

Page 82

Supported Softwares

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface (DMI)

The system board comes with a DMI built into the BIOS. DMI, along with the appropriately networked software, is designed to make inventory, maintenance and troubleshooting of computer systems easier. With DMI, a network administrator or MIS engineer can remotely access some information about a particular computer system without physically going to it. Quite often a service call may be unnecessar y as the problem can be solved remotely.

The DMI utility in the BIOS automatically records various information about your system configuration. Information about the type and speed of CPU, type and amount of memory for each memory slot, BIOS revision level, types of add-in PCI boards and components, cer tain revision numbers of hardware installed, etc. are automatically detected and stored in the DMI pool, which is a par t of the system board's Plug and Play BIOS. Additional information, such as ISA based peripherals, which may not be automatically detected, can be manually recorded in the DMI pool by using the Add DMI menu. The DMI pool data is then verified or updated whenever the system hardware or setup is altered.

4.1.1 Running the DMI Utility

To run the DMI utility, type: DMICFG.EXE. You can download this utility from ftp.dfiusa.com - /utilities/DMI directory.

The DMI utility must run in real mode with at least 180K of base memory. Memor y managers like HIMEM.SYS (required by Windows) must not be installed. You may do this by using one of the 3 methods listed below.

1. Boot up from a system diskette without the AUTOEXEC.BAT and CONFIG.SYS files,

2. “REM” HIMEM.SYS in the CONFIG.SYS, or

3. Press <F5> during bootup to bypass your AUTOEXEC.BAT and CONFIG.SYS files.

Page 83

Supported Softwares

4.1.2 Using the DMI Utility

[Edit DMI] [Add DMI] [Load DMI File] [Save DMI File]



BIOS



System

Enclosure/Chassis

Processor

Memory Controller

Memory Module Memory Module Memory Module Memory Module

Cache

Cache Port Connector Port Connector Port Connector Port Connector Port Connector Port Connector Port Connector



System Slots

←←

←

←←

Move cursor ENTER-Accept DEL-Delete ESC-Abort&Exit

↑ ↓ ↑ ↓

↑ ↓

↑ ↓ ↑ ↓ →→

→

→→

Type : BIOS Information Handle : 0000

Vendor Name : BIOS Version : BIOS Starting Address Segment : E000 BIOS Build Date : BIOS Characteristics : Size of BIOS ROM : 0256K

The four menus located on top of the DMI Configuration Utility screen are Edit DMI, Add DMI, Load DMI File and Save DMI File. Use the

← or → (left or right) arrow keys to select a menu from the Menu

bar.

On the left side of the screen is a list of the system configuration items.

Use the ↑ or ↓ (up or down) arrow keys to select an item.

*** BIOS Auto Detect ***

The commands at the bottom of the screen will allow you to navigate through the various setup menus.

Edit DMI

1. Use the ← or → arrow keys to select the Edit DMI menu.

2. Highlight the item on the left screen that you would like to edit

by using the ↑ or ↓ arrow keys, then press <Enter>.

3. The cursor will move to the screen you select allowing you to edit information. The screen will also display the auto-detected information.

4. Press <F10> to update the edited information into the flash ROM.

Page 84

Supported Softwares

Add DMI

1. Use the ← or → arrow keys to select the Add DMI menu.

2. Highlight the item on the left screen that you would like to add

by using the ↑ or ↓ arrow keys, then press <Enter>.

3. The cursor will move to the screen you select allowing you to enter information about the added item.

4. Press <F10> to save information into the flash ROM.

To view information about the added items, go to the Edit DMI menu.

Load DMI File

1. Use the ← or → arrow keys to select the Load DMI File menu.

2. The following message will appear.

Press [Enter] to select DMI file for load

Press <Enter>.

3. The DMI files will appear on the screen. Select the file you would like to load and press <Enter>.

4. The following message will appear.

Do you want to execute? (Y/N)

Type <Y>. All previous DMI structures will be destroyed and the new file will be saved into the flash ROM.

Save DMI File

1. Use the ← or → arrow keys to select the Save DMI File menu.

2. The following message will appear.

Press [Enter] to select DMI file for save

Press <Enter>.

3. Enter the directory and filename under which you would like the DMI file saved.

Page 85

Supported Softwares

4.2 Hardware Monitor

The system board comes with the Hardware Monitor utility contained in the provided CD. It is capable of monitoring the system’s hardware conditions such as the temperature of the CPU and system, voltage, and speed of the CPU and system fans. It also allows you to manually set a range to the items being monitored. If the values are over or under the set range, a warning message will pop-up. The utility can also be configured so that a beeping alarm will sound whenever an error occurs. We recommend that you use the “Default Setting” which is the ideal setting that would keep the system in good working condition.

Note:

Use this utility only in Windows® 98, Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT® 4.0 or Windows® XP operating system.

To install the utility, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “Hardware Monitor” button to install the utility. Refer to its “readme” file for instructions on using the utility.

4.3 SiS AGP Driver

The SiS AGP driver includes the SIS VxD driver and SiS Minipor t driver.

To install the driver, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “SIS AGP Driver” button. For installation instructions or information, please refer to the “readme” file in the CD.

Page 86

Supported Softwares

4.4 Realtek Audio Drivers

The Realtek audio drivers support the Windows 98, Windows 98 SE, Windows ME, Windows NT 4.0, Windows 2000 and Windows XP operating systems.

To install the driver s, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “Realtek Audio Driver” button. For installation instructions or information, please refer to the “readme” file in the CD.

4.5 SiS VGA Drivers (NS35-SC and NS35-SL only)

To install the driver s, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “SIS VGA Driver” button. For installation instructions or information, please refer to the “readme” file in the CD.

4.6 Realtek LAN Drivers for Windows (NS30-SL and NS35-SL only)

The onboard LAN drivers included in the CD do not support “Autorun”. Once the system has detected the Realtek RTL8100 fast ethernet controller, it will prompt you to install the driver for the operating system you are using. The drivers are in the “RTL8100” root director y of the CD.

4.7 Microsoft DirectX 8.0 Driver

1. Insert the CD that came with the mainboard package into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.

2. Click “Microsoft DirectX 8.0 Driver”.

3. Click “Yes” to continue.

4. Follow the prompts on the screen to complete installation.

5. Restar t the system.

Page 87

Supported Softwares

4.8 Drivers and Utilities Installation Notes

1. "Autorun" ONLY suppor ts the Windows 98, Windows 98 SE, Windows ME, Windows 2000, Windows NT 4.0 and Windows XP operating systems. If after inser ting the CD, "Autorun" did not automatically start (which is, the Main Board Utility CD screen did not appear), please go directly to the root directory of the CD and double-click "Setup".

2. Please go to DFI's web site at "http://www.dfi.com/support1/ download2.asp" for the latest version of the drivers or software applications.

3. All steps or procedures to install software drivers are subject to change without notice as the softwares are occassionally updated. Please refer to the readme files, if available, for the latest information.

Page 88

Using the Suspend to RAM Function

Appendix A - Using the Suspend to RAM Function

A.1 Using the Suspend to RAM Function

If you are using the Windows® 98 operating system, please follow the steps below.

1. Select “Power Management Setup” in the main menu screen and press <Enter>.

2. In the “ACPI Function” field, select “Enabled”.

3. In the “ACPI Suspend Type” field, select “S3(STR)”.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI Function ACPI Suspend Typ e

Power Management Option Video Off Option Video Off Method Switch Function MODEM Use IRQ HDD Power Down Soft-Off By PWRBTN PWR Lost Resume State



PM Wake Up Events

Enabled S3(STR)

User Define Suspend -> Off V/H SYNC+Blank Break/Wake Auto Disable Instant-off Keep Off Press Enter

Item Help

Menu Level

↑↓→← Move

The settings on the screen are f or reference only. Your version ma y not be identical to this one.

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

4. Press <Esc> to return to the main menu.

5. Select “Save & Exit Setup” and press <Enter>. Type <Y> and press <Enter>.

6. Install Windows® 98 by typing the following parameter. This is to ensure that the ACPI function is supported.

[drive]:>setup /p j

If you have previously installed Windows® 98, you need to upgrade the system in order to support ACPI. Please contact Microsoft for upgrade information.

Page 89

Using the Suspend to RAM Function

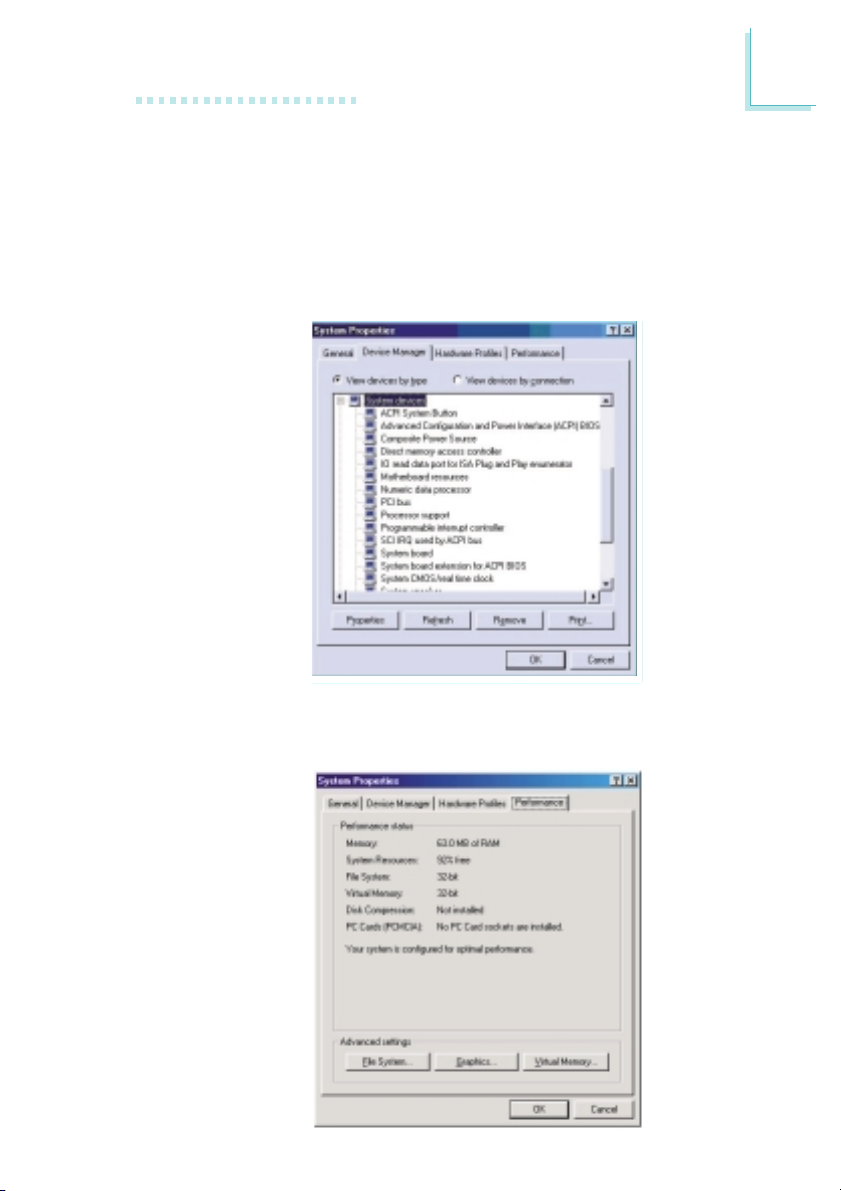

7. Boot Windows® 98. In the Windows® 98 desktop, click the Start button. Move the cursor to Settings, then click Control Panel.

To check whether ACPI was properly installed, double-click the System icon. In the System Properties dialog box, click the “Device Manager” tab. In “View devices by type”, click “System devices”.

8. Double-click the System icon. In the System Proper ties dialog box, click the Performance tab.

Page 90

Using the Suspend to RAM Function

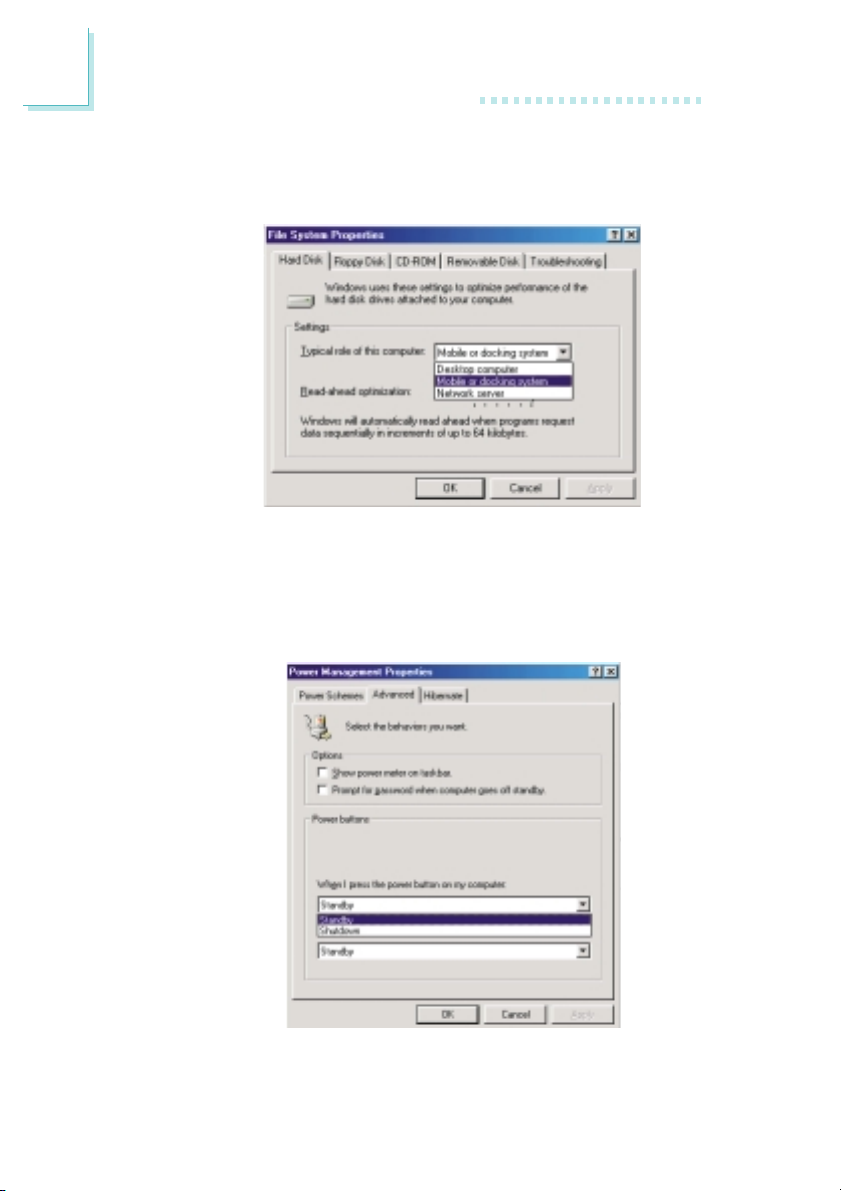

9. Click File System. In the “Typical role of this computer” field, select “Mobile or docking system”. Click Apply, then click OK. Restar t the computer.

10. Repeat step 7 to open the Control Panel dialog box. Doubleclick the Power Management icon.

11. Click the Advanced tab. In the “When I press the power button on my computer” field, select “Standby”.

Page 91

Using the Suspend to RAM Function

12. After completing the steps above and you want to power-off the computer, you do not need to go through the process of closing files, applications and operating system. You can poweroff the computer at once by pressing the power button or selecting “Standby” when you shut down Windows® 98.

To power-on the computer, just press the power button. The operating session where you left off when you power-off the computer will resume in not more than 8 seconds.

If you have changed the color or resolution (in the Display Properties dialog box), do not apply the settings without restarting. You must restart the computer.

Important:

If you are unable to use the Suspend to RAM function (after performing the steps above in Windows® 98 or when you are in-Windows® 2000/ME/XP), please check whether your add-in cards or devices support this function. If this function is not supported, you need to download the appropriate driver from their respective website.

Page 92

System Error Message

Appendix B - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

B.1 POST Beep

There are two kinds of beep codes in the BIOS. One code indicates that a video error has occured and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by three short beeps. The other code indicates that a DRAM error has occured. This beep code consists of a single long beep.

B.2 Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Caution:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different

Page 93

System Error Message

setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Page 94

Troubleshooting

Appendix C - Troubleshooting

C.1 Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob.

Page 95

Troubleshooting

The picture seems to be constantly moving.

1. The monitor has lost its vertical sync. Adjust the monitor’s ver tical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and tr y again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Page 96

Troubleshooting

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable par tition.

Excessively long formatting period.

1. If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Parallel Port

The parallel printer doesn’t respond when you try to print.

1. Make sure that your printer is turned on and that the printer is on-line.

2. Make sure your software is configured for the right type of printer attached.

3. Verify that the onboard LPT port’s I/O address and IRQ settings are configured correctly.

4. Verify that the attached device works by attaching it to a parallel port that is working and configured correctly. If it works, the printer can be assumed to be in good condition. If the printer remains inoperative, replace the printer cable and try again.

Page 97

Troubleshooting

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
