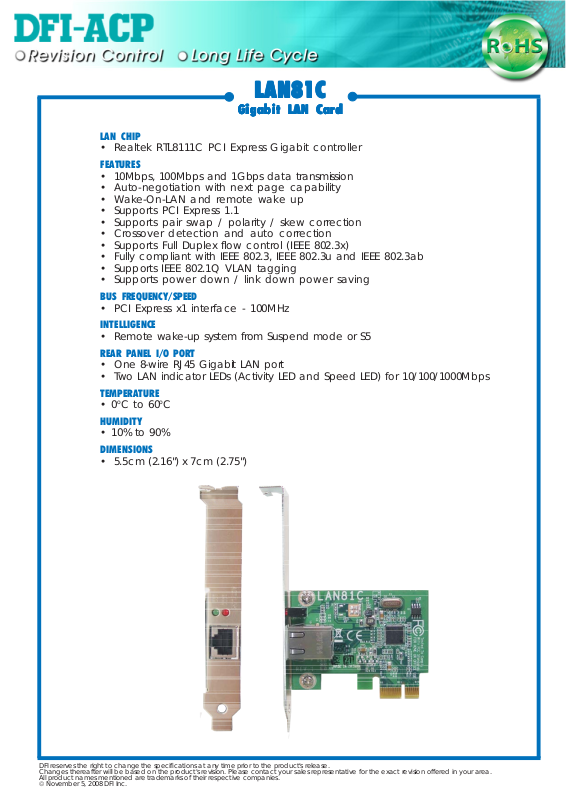

Dfi LAN81C DATASHEET

LAN81CLAN81C

LAN81C

LAN81CLAN81C

Gigabit LAN CardGigabit LAN Card

Gigabit LAN Card

Gigabit LAN CardGigabit LAN Card

LAN CHIP

• Realtek RTL8111C PCI Express Gigabit controller

FEATURES

• 10Mbps, 100Mbps and 1Gbps data transmission

• Auto-negotiation with next page capability

• Wake-On-LAN and remote wake up

• Supports PCI Express 1.1

• Supports pair swap / polarity / skew correction

• Crossover detection and auto correction

• Supports Full Duplex flow control (IEEE 802.3x)

• Fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab

• Supports IEEE 802.1Q VLAN tagging

• Supports power down / link down power saving

BUS FREQUENCY/SPEED

• PCI Express x1 interface - 100MHz

INTELLIGENCE

• Remote wake-up system from Suspend mode or S5

REAR PANEL I/O PORT

• One 8-wire RJ45 Gigabit LAN port

• Two LAN indicator LEDs (Activity LED and Speed LED) for 10/100/1000Mbps

TEMPERATURE

•0oC to 60oC

HUMIDITY

• 10% to 90%

DIMENSIONS

• 5.5cm (2.16") x 7cm (2.75")

DFI reserves the right to change the specifications at any time prior to the product's release. Changes thereafter will be based on the product's revision. Please contact your sales representative for the exact revision offered in your area. All product names mentioned are trademarks of their respective companies.
