Page 1

www.dﬁ .com

Chapter 1 Introduction

KS104-CD

10.4” Touch Panel PC User’s Manual

A34600448

Page 2

www.dﬁ .com

Chapter 1 Introduction

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 3

www.dﬁ .com

Chapter 1 Introduction

Table of Contents

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B ..................................................... 2

About this Manual ..........................................................................................4

Warranty ..............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

Safety Precautions ..........................................................................................5

About the Package .........................................................................................5

Chapter 1 - Introduction .............................................................................6

Overview.........................................................................................................6

Key Features..................................................................................................6

Specifications ................................................................................................7

Getting to Know the KS104-CD ...............................................................8

Mechanical Dimensions ..............................................................................8

Chapter 2 - Getting Started ..................................................................... 10

Preparing the System ...............................................................................10

Installing Devices .......................................................................................10

Configuring the BIOS ................................................................................ 10

Installing the Operating System ............................................................10

Installing the Drivers ................................................................................10

Chapter 3 - Installing Devices ................................................................11

Removing the Chassis Cover ..................................................................11

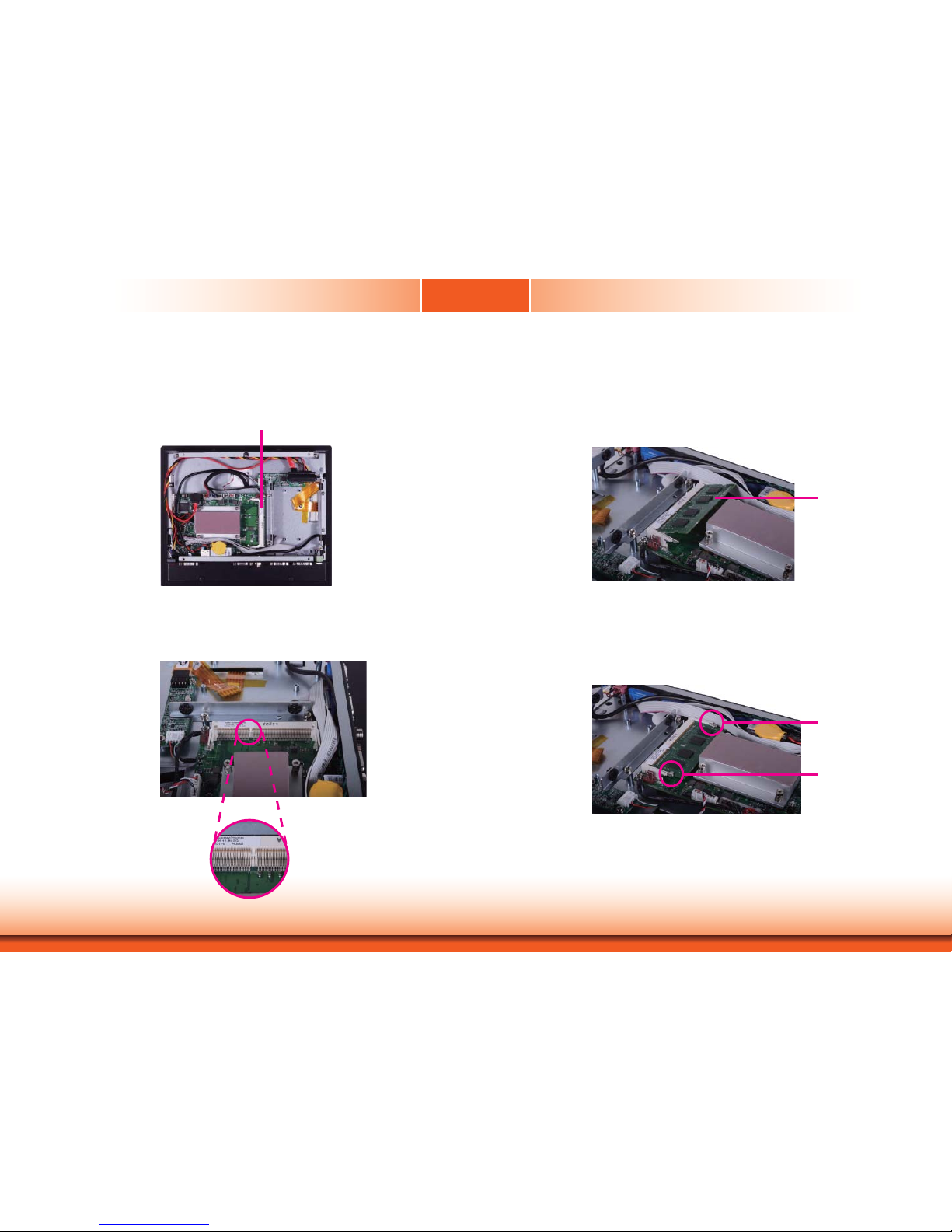

Installing the SODIMM .............................................................................12

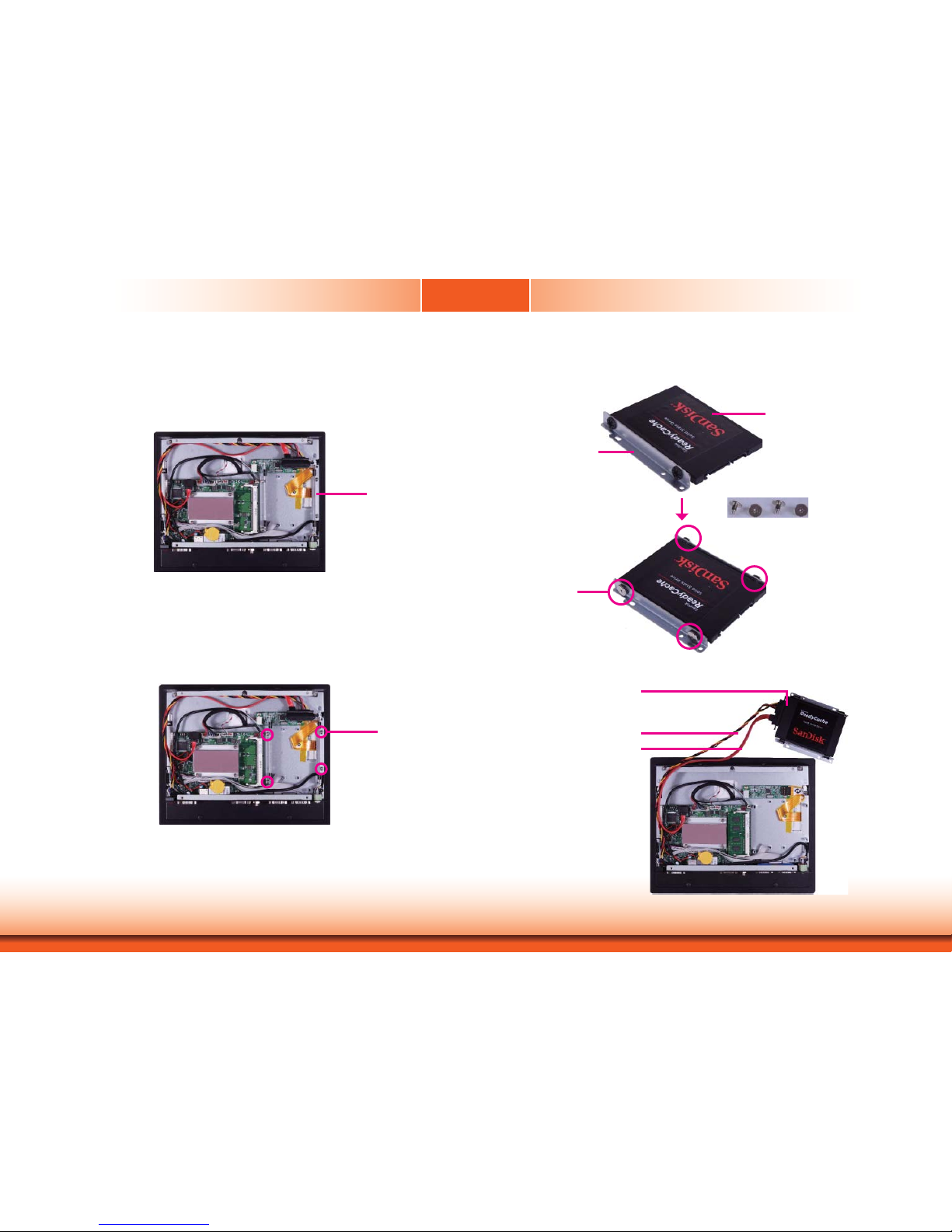

Installing the SATA Drive .........................................................................13

Chapter 4 - Hardware Installation ........................................................15

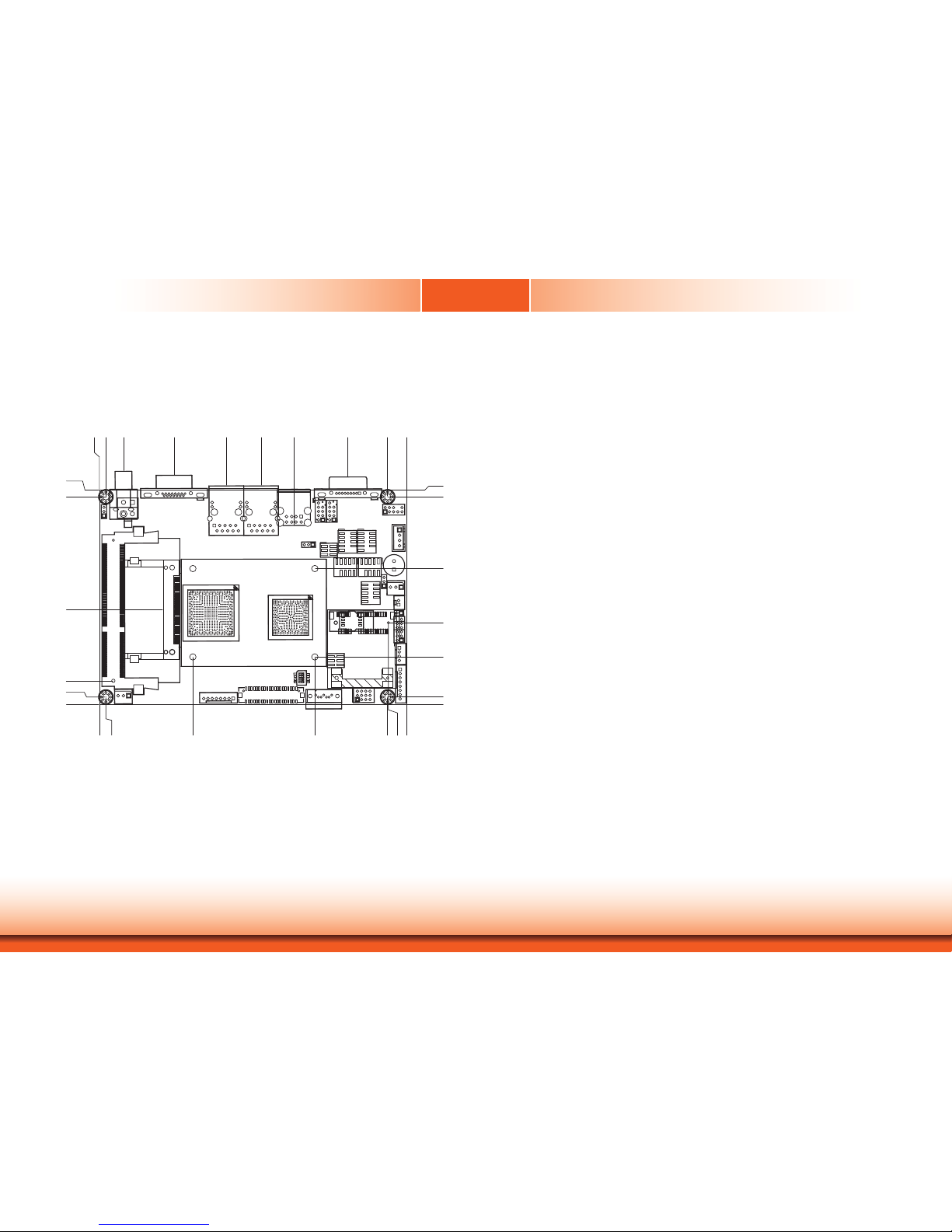

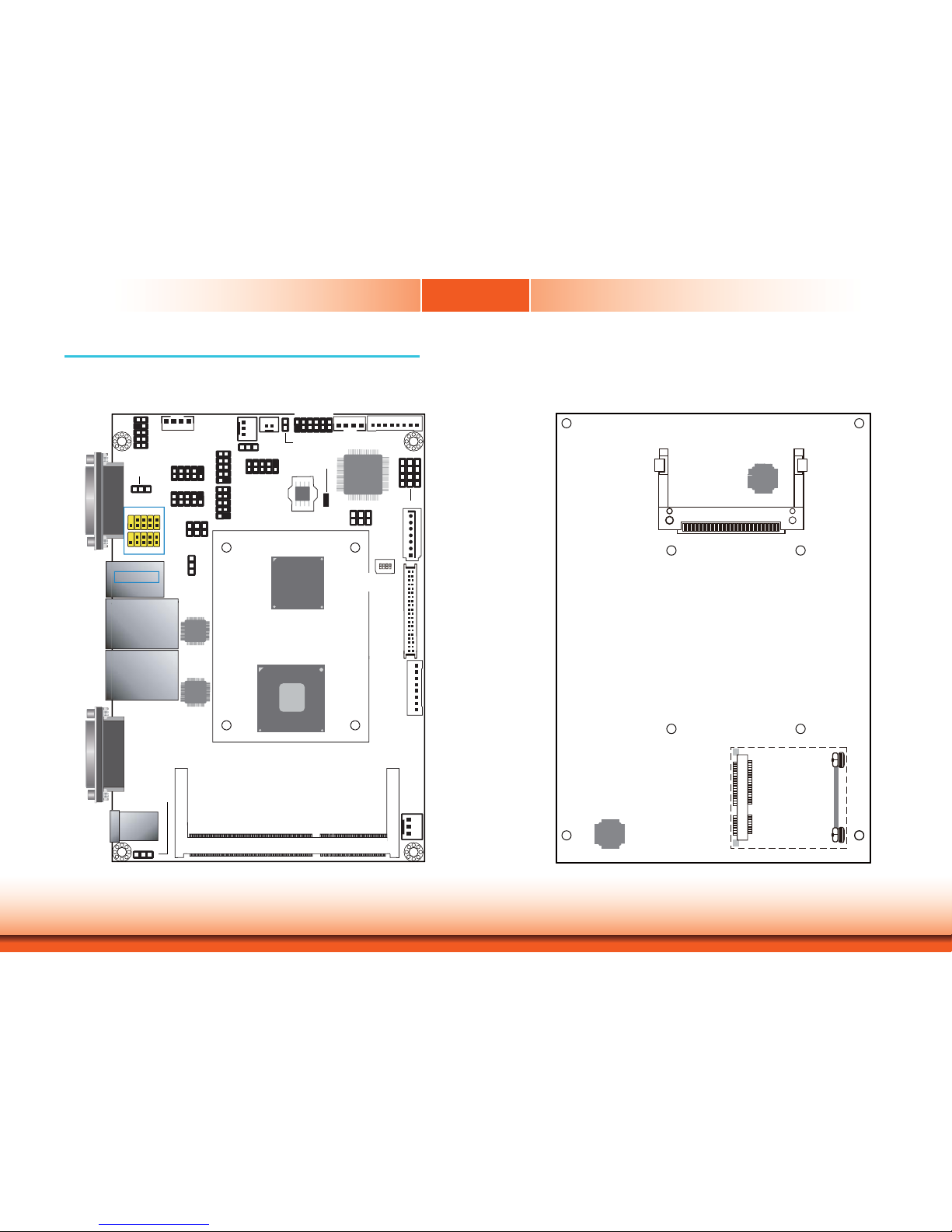

Board Layout ...............................................................................................15

System Memory .......................................................................................... 16

Jumper Settings .........................................................................................16

Clear CMOS Data ....................................................................................... 16

USB Power Select .......................................................................................17

Panel Power Select .....................................................................................17

LVDS Panel Select .......................................................................................18

Power-on Select..........................................................................................19

COM 2 RS232/RS422/RS485 Select .............................................................. 19

Mini PCIe/mSATA Select ..............................................................................20

Ports and Connectors ...............................................................................21

Bottom Panel I/O Ports ............................................................................21

COM (Serial) Ports ...................................................................................... 21

Graphics Interface ...................................................................................... 22

RJ45 LAN Ports ...........................................................................................22

USB Ports ...................................................................................................23

DC-in .........................................................................................................24

I/O Connectors ...........................................................................................24

Digital I/O Connector .................................................................................. 24

Digital I/O Power Connector ........................................................................24

LVDS LCD Panel Connector ......................................................................... 25

LCD/Inverter Power Connector ....................................................................25

Cooling Fan Connectors...............................................................................26

Front Panel Connector ................................................................................26

SATA (Serial ATA) Connector ....................................................................... 27

Front Audio Connector ................................................................................27

Chassis Intrusion Connector ........................................................................28

Standby Power LED ....................................................................................28

CompactFlash Socket ..................................................................................29

Expansion Slot ............................................................................................ 29

Battery ....................................................................................................... 30

Chapter 5 - Mounting Options ................................................................ 31

Wall Mount ................................................................................................... 31

Panel Mount ................................................................................................32

Chapter 6 - BIOS Setup ............................................................................34

Overview.......................................................................................................34

AMI BIOS Setup Utility .............................................................................35

Updating the BIOS ....................................................................................46

Chapter 7 - Supported Software ...........................................................47

Appendix A - Smart Fan Setting Guide ..............................................56

Appendix B - Watchdog Sample Code ................................................62

Appendix C - System Error Message ................................................... 63

Appendix D - Troubleshooting Checklist ............................................64

Page 4

www.dﬁ .com

Chapter 1 Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power cord. Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Page 5

www.dﬁ .com

Chapter 1 Introduction

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• 1 10.4” Touch Panel PC

• 1 Poron foam

• 1 CD disk includes: Manual

• 1 Quick Installation Guide

Optional Items

• Wall Mount kit

• Panel Mount kit

• Power Cord

• Power Adapter

The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Safety Precautions

• Use the correct DC input voltage range.

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

• Keep this system away from humidity.

• Place the system on a stable surface. Dropping it or letting it fall may cause damage.

• The openings on the system are for air ventilation to protect the system from overheating. DO NOT COVER THE OPENINGS.

• Place the power cord in such a way that it will not be stepped on. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the system and that it matches the voltage and current marked on the system’s electrical range label.

• If the system will not be used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

• If one of the following occurs, consult a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated the system.

- The system has been exposed to moisture.

- The system is not working properly.

- The system dropped or is damaged.

- The system has obvious signs of breakage.

• The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace the outlet.

• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

Page 6

www.dﬁ .com

Chapter 1 Introduction

Chapter 1 - Introduction

Chapter 1

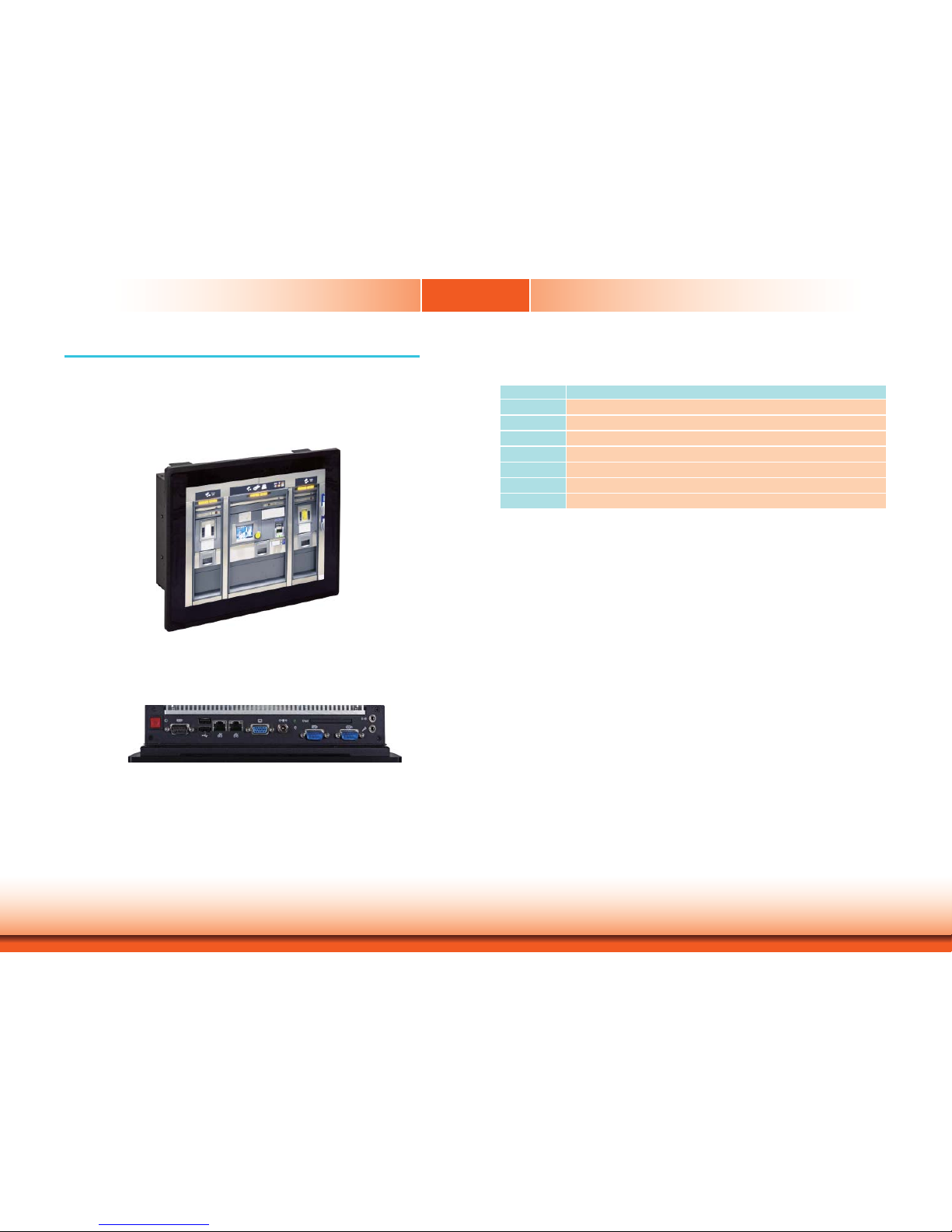

Overview KS104-CD

Bottom View

Side View

Key Features

Model Name KS104-CD Processor

Intel® AtomTM N2800

Chipset Intel® NM10 Express Chipset LAN 2 LAN ports COM 3 COM ports Display 1 VGA USB 2 USB 2.0 ports Audio Realtek ALC886 2-channel High Deﬁ nition Audio

Page 7

www.dﬁ .com

Chapter 1 Introduction

Expansions • 1 Mini PCIe slot

- Supports PCIe (PCIe and USB signals) or mSATA module

- Supports half size card

Environment • Temperature

- Operating: -20

C ~ 45oC (with SSD/HDD)

- Storage: -30

C ~ 80oC

• Relative Humidity

- 85% RH at 45

Vibration • Operating: 1G, 5~500Hz

• Non-operating: 1.5G, 10~500Hz

• IEC 68-2-64 compliant

Shock

• Operating: 3G peak acceleration (11 msec. duration)

• Non-operating: 10G peak acceleration (11 msec. duration)

• IEC 68-2-27 compliant

Front Panel Protection

• IP65 (Dust Tight; Water Proof protection)

Construction • Aluminum front bezel

• Rear panel: aluminum

Mounting* (optional)

• Wall mount (VESA 75x75)

• Panel mount (Mounting clamp)

Dimensions • 270mm x 220mm x 55mm (W x H x D) Weight • 2.86 kg OS Support

• Windows 7 (32-bit), WES 7 (32-bit)

• Linux (Project base upon request only, with 3 months lead time)

Specifications

Processor • Intel® AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core Chipset • Intel® NM10 Express chipset Memory • One 204-pin DDR3 SODIMM socket

• Supports DDR3 1066MHz

• Supports single channel memory interface

• Supports up to 4GB system memory

LCD and Touch Screen

• 10.4” (1024x768) TFT touch screen LCD

• Support projected capacitive touch screen or 5-wire resistive touch screen

• 50,000 MTBF LED backlight

• 350 NITS

Storage • 1 2.5" SATA drive bay

• 1 CompactFlash socket* (optional)

Graphics • Intel® GMA 3650

• Display port: VGA

• VGA: resolution up to 1920x1200 @ 60Hz

LAN • 2 Intel® 82574 Gigabit Ethernet Controllers

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Audio

• Realtek ALC886 2-channel High Deﬁ nition Audio

I/O Ports • Bottom

- 1 DB-9 RS232/422/485 serial port

- 2 DB-9 RS232 serial ports

- 2 Type A USB 2.0/1.1 ports

- 1 DB-15 VGA port

- 2 RJ45 LAN ports

- 1 Line-out jack

- 1 Mic-in jack

- 1 12V DC-in jack

- 1 Power switch

- 1 Power LED

Chapter 1

Note:

*Optional and is not supported in standard model. Please contact your sales representative for more information.

Page 8

www.dﬁ .com

Chapter 1 Introduction

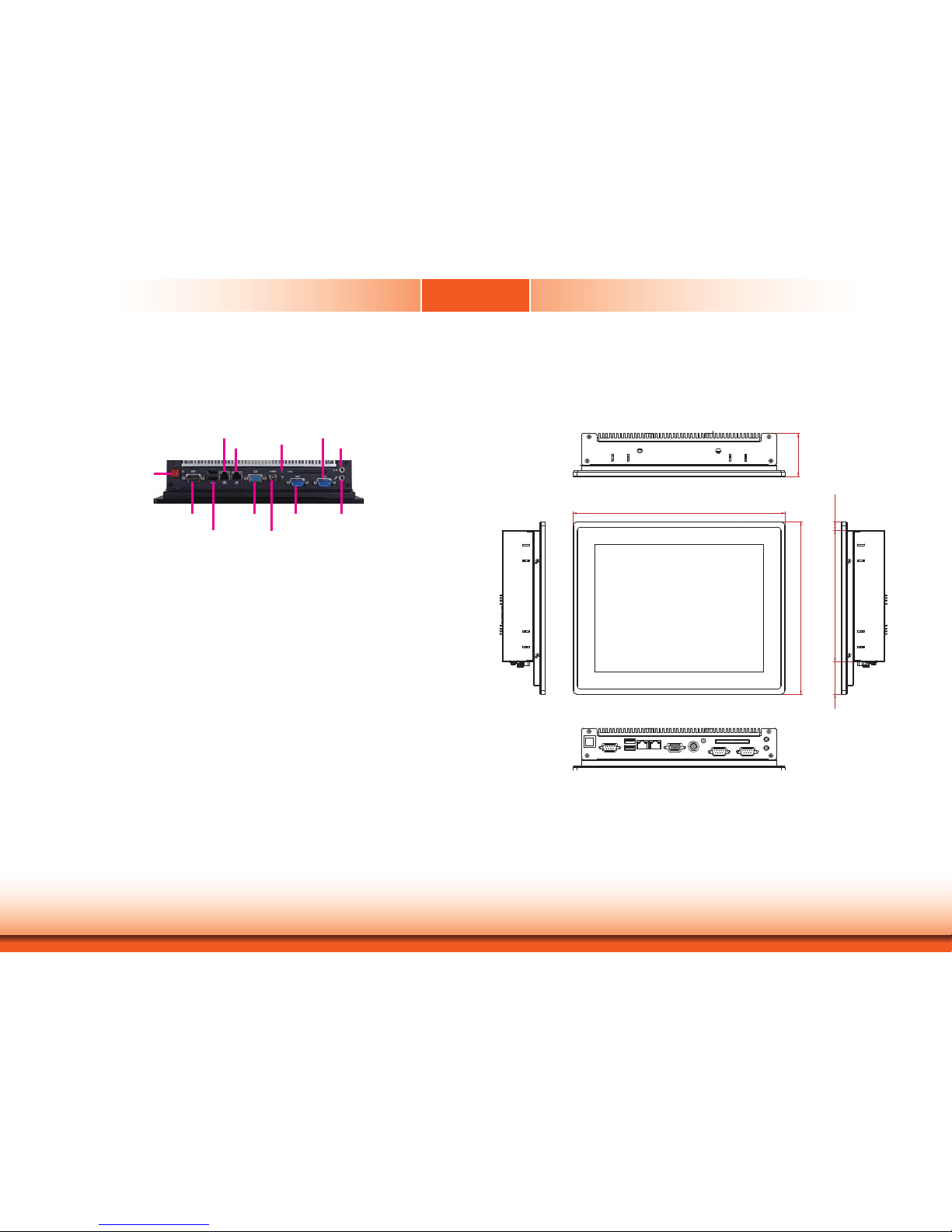

Getting to Know the KS104-CD

Chapter 1

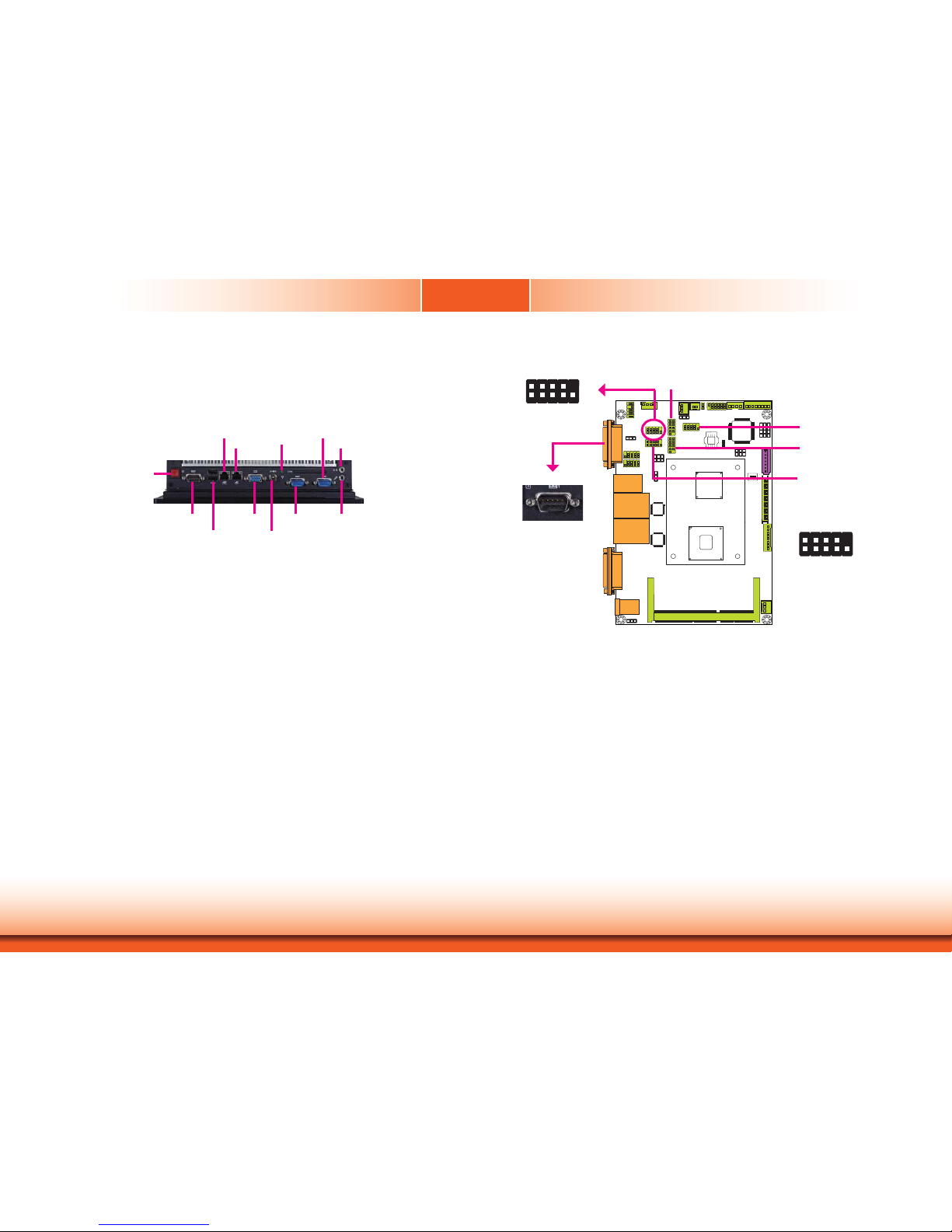

Bottom View

COM Ports

Used to connect a serial device.

USB Ports

Used to connect USB 2.0/1.1 devices.

LAN Ports

Used to connect the system to a local area network.

VGA Port

Used to connect a VGA device.

Line-out

Used to connect to a speaker.

Mic-in jack

Used to connect to a microphone.

DC-in

Used to plug a power adapter.

Power Switch

Press to power-on or power-off the system.

Power LED

Indicates the power status of the system.

Power Switch

Power LED

USB 2.0

DC-in

VGA

COM 3

Mic-in

LAN 2

COM 1

Line-out

COM 2

LAN 1

Mechanical Dimensions KS104-CD

270.00

220.00

55.00

11.00

167.0042.00

Left View

Bottom View

Right View

Top View

Front View

Page 9

www.dﬁ .com

Chapter 1 Introduction

Motherboard Dimension

Chapter 1

0.00

3.20

95.20

98.80

87.47

0.00

3.10

8.40

32.43

57.30

73.80

89.41

115.14

134.00

142.90

0.00

3.10

41.37

99.37

134.00

142.90

0.00

3.20

34.12

76.12

95.20

98.80

53.74

59.86

134.32

Page 10

www.dﬁ .com

Chapter 2 Getting Started

Chapter 2 - Getting Started

Chapter 2

Preparing the System

Before you start using the system, you need the following items:

• SATA hard drive

• AC power adapter

• PS/2 or USB keyboard

• PS/2 or USB mouse

• CD-ROM drive (for installing software/drivers)

• Screwdriver

• Memory module (optional)

Installing Devices

The following are devices that can be installed in the system.

• Memory module

• SATA hard drive

• Mini PCIe card

Configuring the BIOS

To get you started, you may need to change configurations such as the date, time and the type of hard disk drive.

1. Power-on the system.

2. After the memory test, the message “Press DEL to run setup” will appear on the screen.

Press the Delete key to enter the AMI BIOS setup utility.

Installing the Operating System

Most operating system software are provided in a CD therefore you need to install a CD-ROM drive in order to use the CD.

Make sure a 2.5” SATA drive is already installed.

1. Refer to the following chapters for information on connecting a CD-ROM drive and install-

ing a SATA drive.

2. Refer to your operating system manual for instructions on installing the operating system.

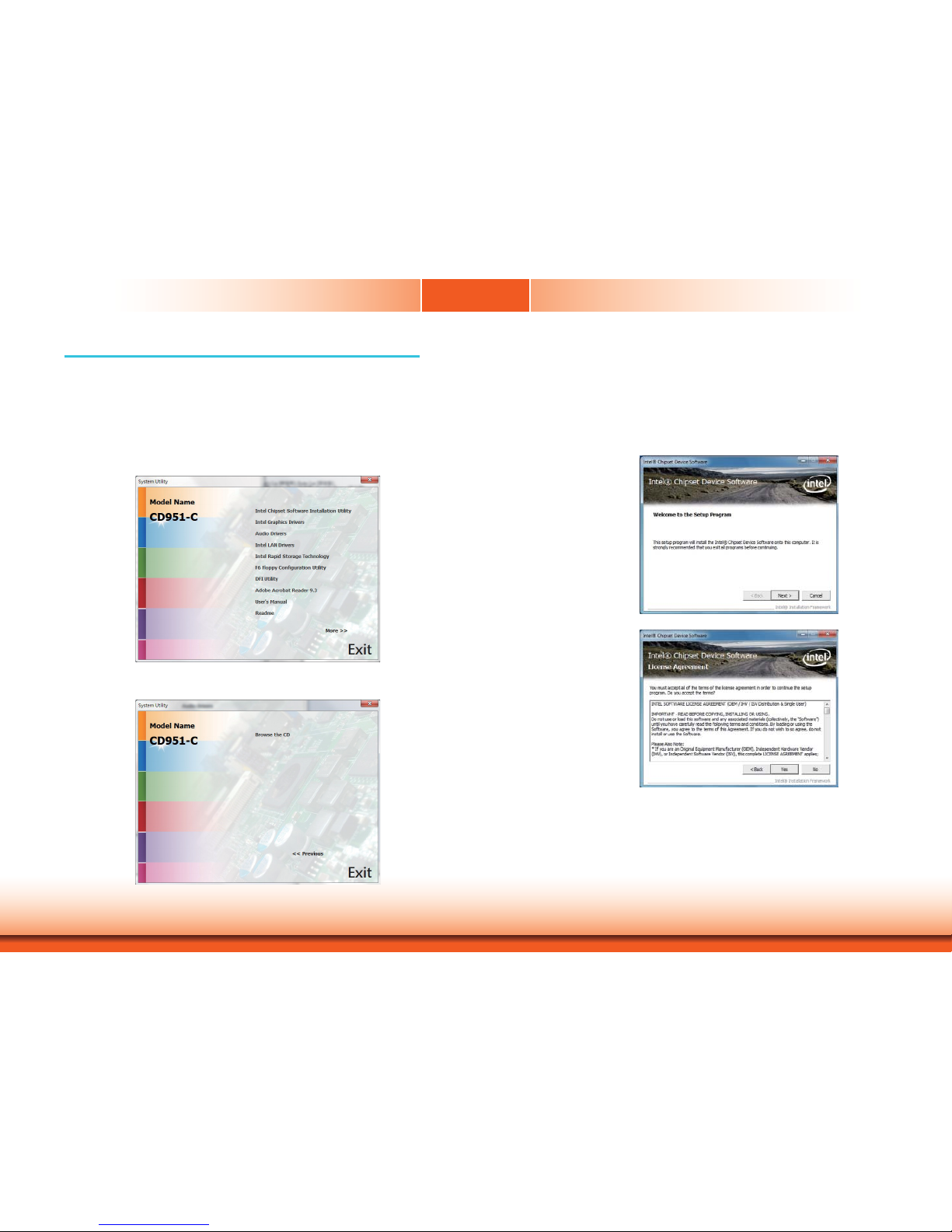

Installing the Drivers

The system package includes a CD disk. The CD includes drivers that must be installed to provide the best system performance. Refer to the Supported Software chapter for instructions on installing the drivers.

Page 11

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

Chapter 3 - Installing Devices

1. Make sure that the system and all other peripheral devices connected to it have been

powered-off.

2. Disconnect all power cords and cables.

3. The 4 mounting screws on the back side of the system are used to secure the cover to the

chassis. Remove these screws and then put them in a safe place for later use.

Removing the Chassis Cover

Mounting Screw

4. After removing the mounting screws, lift the cover up.

5. The SODIMM socket and the SATA drive bay are readily accessible after removing the chassis cover.

Lift the Cover Upward

SODIMM socket

SATA drive bay

Mounting Screw

Page 12

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3Chapter 2

Installing the SODIMM

1. Locate the SODIMM socket on the system board.

SODIMM socket

2. Note the key on the socket. The key ensures the module can be plugged into the socket in one direction only.

3. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

SODIMM Module

4. Push the module down until the clips at each end of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

Clip

Page 13

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

Installing the SATA Drive

SATA drive bay

2. Remove the 4 mounting screws that secure the HDD brackets to the drive bay.

1. Locate the SATA drive bay on the system.

Mounting screw

3. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place.

HDD bracket

SATA drive

Mounting screw

4. Connect the SATA data cable and the SATA power cable to connectors on the SATA drive.

SATA power/data

connector

SATA power cable

SATA data cable

Page 14

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

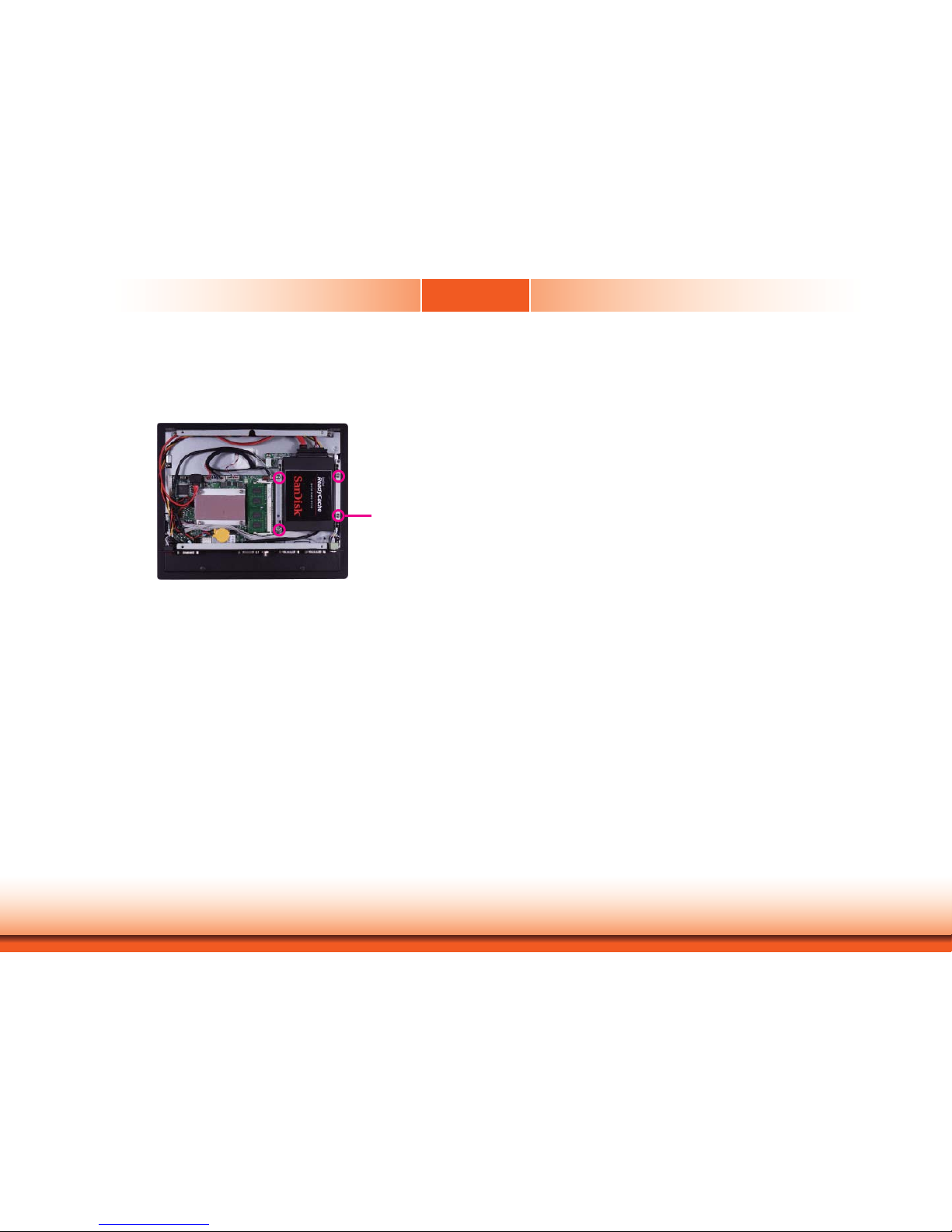

5. Place the SATA drive (with HDD bracket) into the system unit. Tighten the 4 mounting screws you removed in step 2.

Mounting screw

Page 15

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

Chapter 4 - Hardware Installation Board Layout

Intel

NM10

Intel Atom

DC-in

VGA

LAN 2

COM 1

Power-on Select

(JP5)

COM4

COM3

COM6

COM2

COM5

COM2 RS232/422/485 Select (JP3)

LAN 1

System Fan

Battery

Front Panel

DIO

LCD/ Inverter

Power

LVDS LCD

Panel

DDR3 SODIMM

CPU Fan

USB 2-3

1 2

USB 4-5

1 2

Front Audio

125

SPI Flash BIOS

Standby Power LED

SATA 0

USB 0-1

DIO Power

Fintek F81866

Intel WG82574L

SATA Power

Chassis Intrusion

USB 2-5 Power Seletct (JP6)

USB 0-1 Power Select (JP4)

Panel Power

Select (JP2)

Clear CMOS (JP7)

Mini PCIe/mSATA Select (JP8)

D2550/ N2800/ N2600

LVDS Panel Select (SW2)

USB 2.0

Mini PCIe

CompactFlash Socket

Top View

Bottom View

Page 16

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

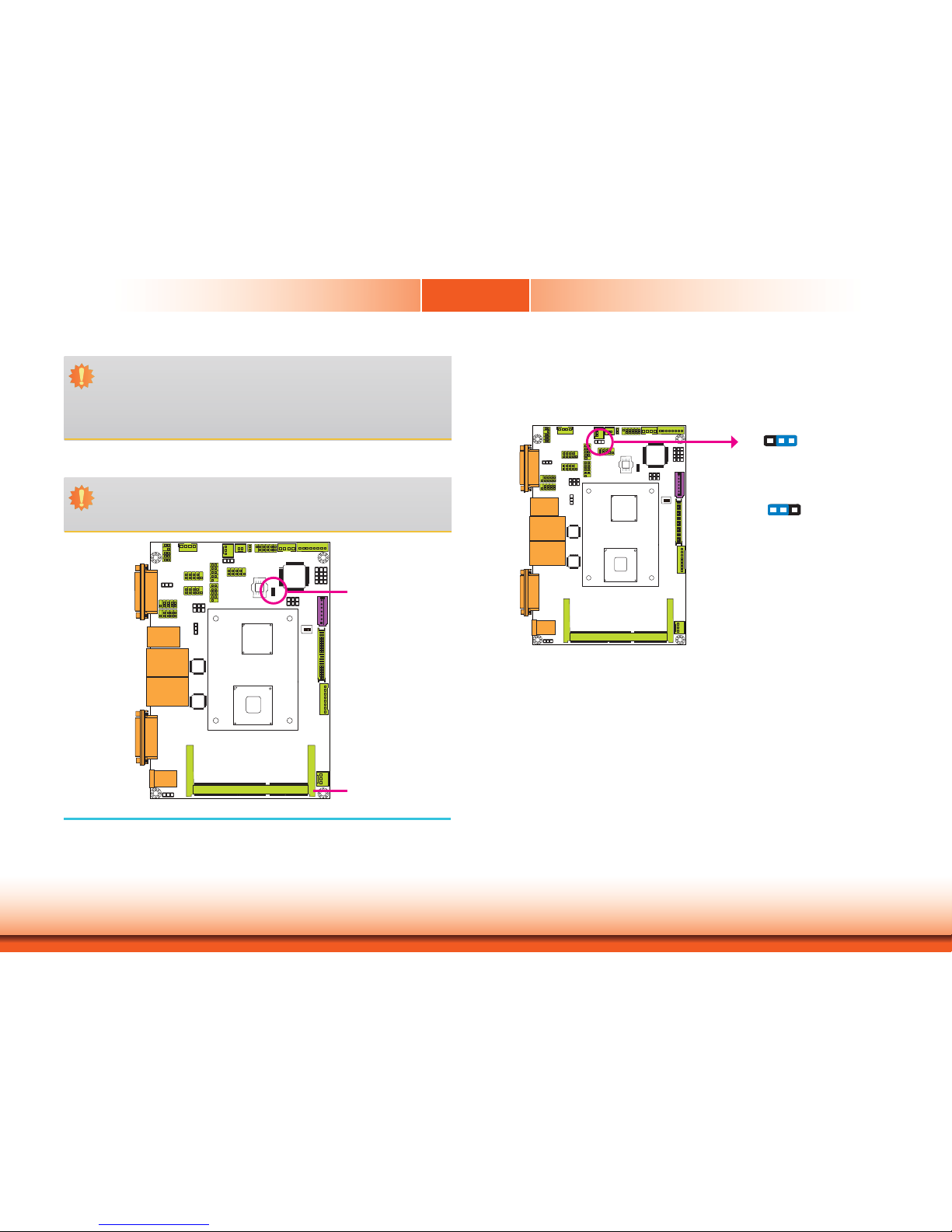

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Important:

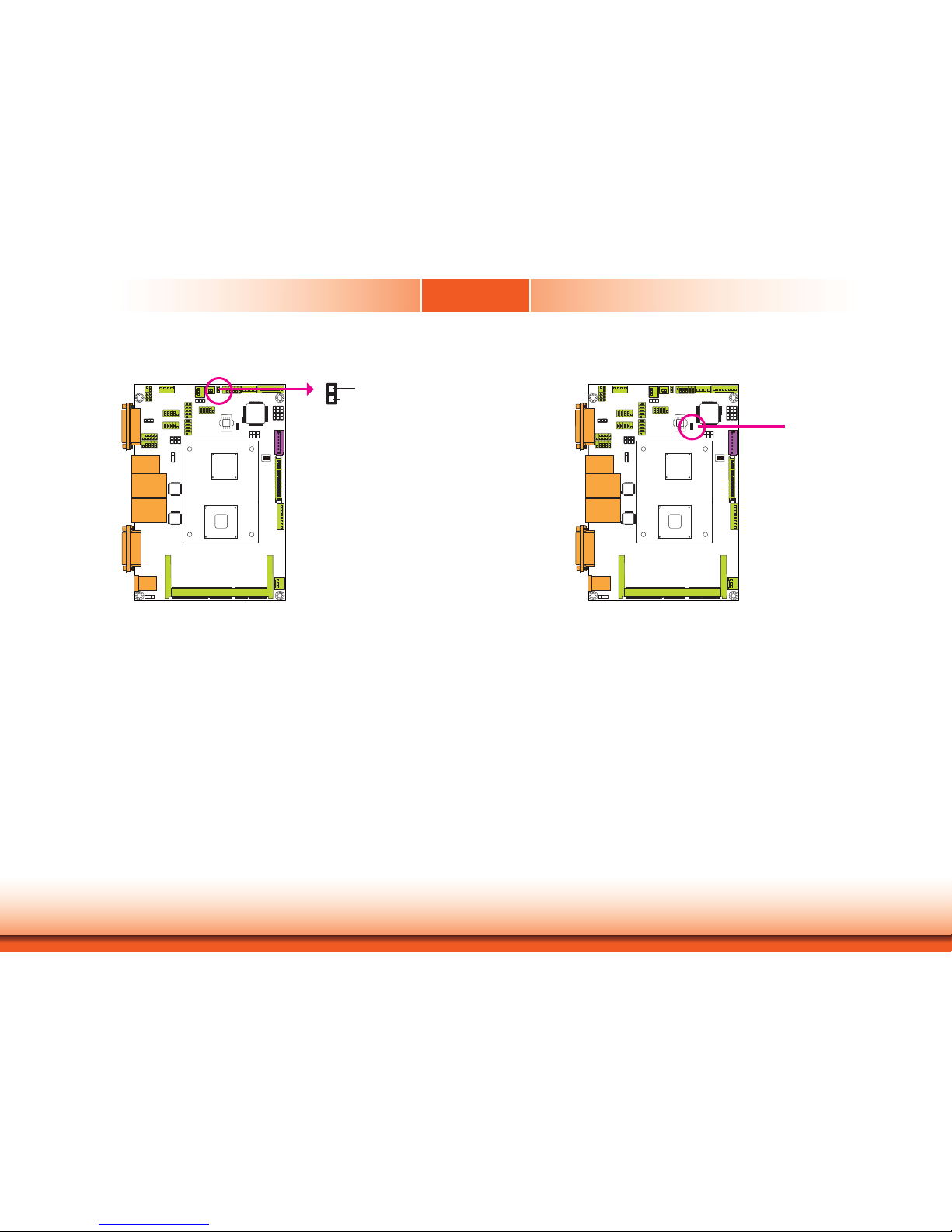

When the Standby Power LED lights red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Features

System Memory

• One 204-pin DDR3 SODIMM sockets

• Supports 800/1066MHz DDR3 SDRAM

• Singal channel memory interface

• Supports maximum of 4GB system memory

DDR3

Standby Power LED

Jumper Settings

Clear CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted.

b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

JP7

2-3 On: Clear CMOS

1-2 On: Normal (default)

132

Page 17

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

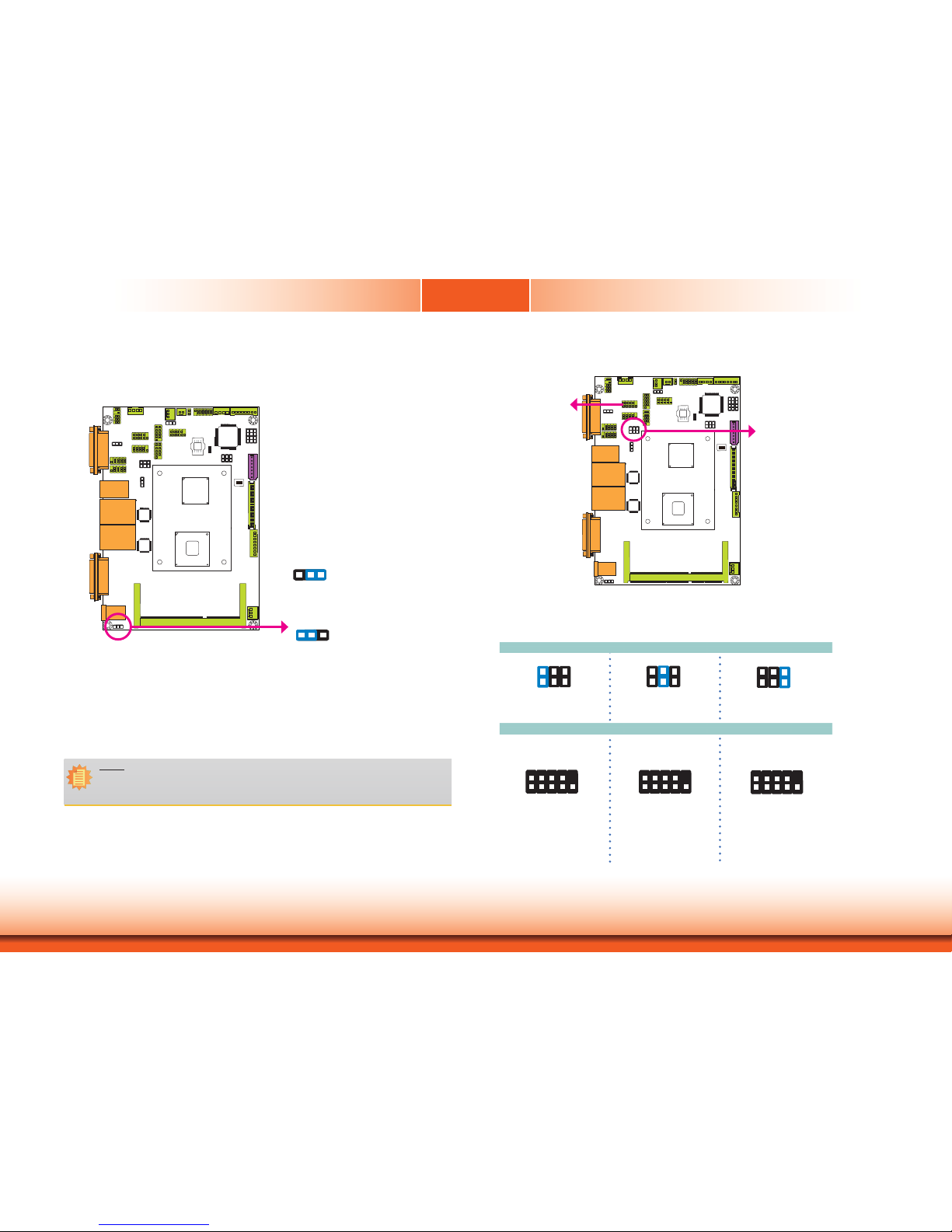

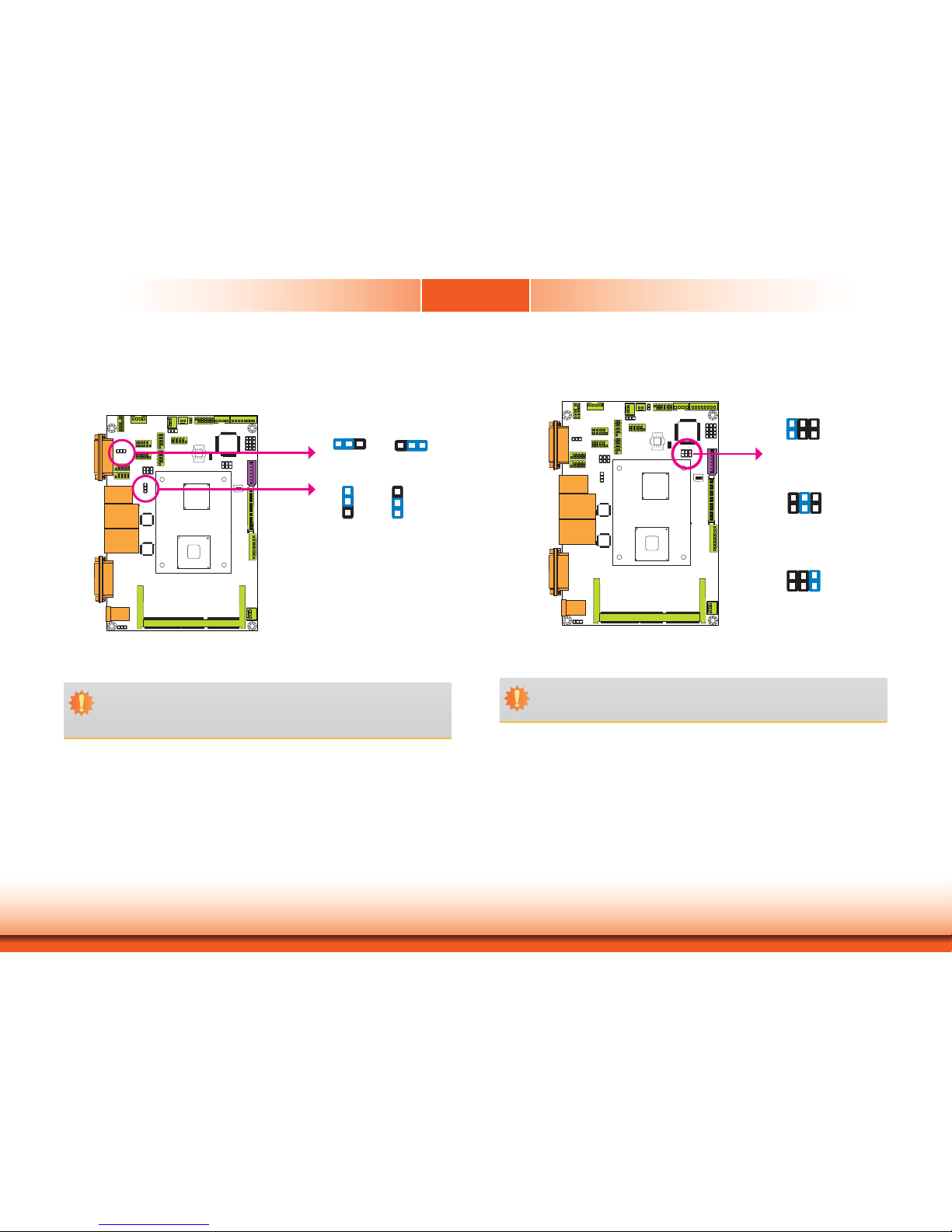

USB Power Select

JP4 and JP6 are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

USB 2-5 (JP6)

USB 0-1 (JP4)

2-3 On:

+5V_standby

(default)

1-2 On: +5V

132

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

Panel Power Select

JP2

JP2 is used to select the power supplied to the LCD panel.

1-2 On: +12V

3-4 On: +5V

5-6 On: +3.3V

(default)

13 5

2 46

Important:

Before powering-on the system, make sure JP2’s setting matches the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.

1-2 On: +5V

2-3 On:

+5V_standby

(default)

Page 18

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

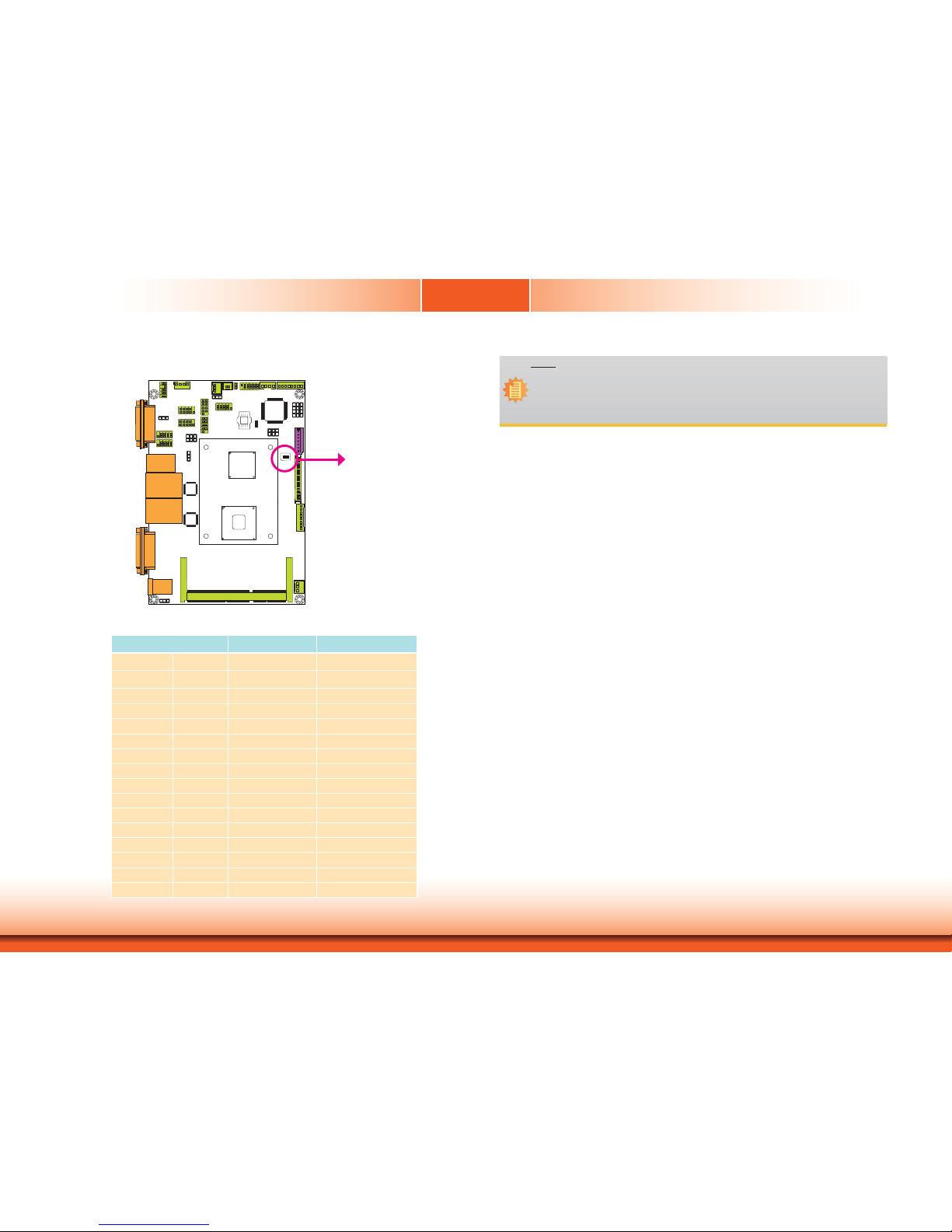

LVDS Panel Select

SW2

SW2 is used to select the resolution of LVDS panel on the system.

LVDS Panel Select Channel SW2

800x600

6/18 bit Single 1-4 On

1024x768

6/18 bit Single 2-4 On, 1 Off

1024x768

8/24 bit Single 1,3,4 On, 2 Off

1280x768

6/18 bit Single 3-4 On, 1-2 Off

1280x800

6/18 bit Single 1,2,4 On, 3 Off

1280x960

6/18 bit Single 2,4 On, 1,3 Off

1280x1024

8/24 bit Dual 1,4 On, 2,3 Off

1366x768

6/18 bit Single 4 On, 1-3 Off

1366x768

8/24 bit Single 1-3 On, 4 Off

1440x900

8/24 bit Dual 2-3 On, 1,4 Off

1400x1050

8/24 bit Dual 1,3 On, 2,4 Off

1600x900

8/24 bit Dual 3 On, 1,2,4 Off

1680x1050

8/24 bit Dual 1-2 On, 3-4 Off

1600x1200

8/24 bit Dual 2 On, 1,3,4 Off

1920x1080

8/24 bit Dual 1 On, 2-4 Off

1920x1200

8/24 bit Dual 1-4 Off

Note:

The default setting is eDP.

1. 1366x768: N2000 series processor supports eDP only.

2. 1600x1200: N2000 series processor supports DP only.

3. 1920x1080: D2000 series processor supports eDP only.

4. 1920x1200: D2000 series processor supports DP only.

Page 19

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

Power-on Select

1-2 On: Power-on via power button (default)

2-3 On: Auto power-on

JP5

JP5 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP5 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.

When using the JP5 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker).

Note:

In order to ensure that power is resumed after a power failure that re covers within a 5 second period, JP5 must be set to pins 2-3 and the “AC Power Lose” in CMOS is set to “On”.

COM 2 RS232/RS422/RS485 Select

5-6 On: RS485

JP3 is used to configure the COM port 2 to RS232, RS422 (Full Duplex) or RS485. The pin function of the COM port will vary according to the jumper’s setting.

JP3

642

COM 2

JP3

RS232 RS422

Full Duplex

RS485

COM 2

642

1-2 On: RS232

(default)

3-4 On: RS422

Full Duplex

2 1

DATA+

N.C.

DATA-

N.C.

RXD+

TXD+

N.C.

RXD-

TXD-

N.C.

2 1

DCD-

GND

RTS-

RI-

DTR-

DSR-

CTS-

2 1

Page 20

www.dﬁ .com

Chapter 4 Hardware Installation

Chapter 4

Mini PCIe/mSATA Select

JP8

1 3

10 12

1 3

2-5-8-11, 3-6-9-12 On: mSATA

1-4-7-10, 2-5-8-11 On: Mini PCIe (default)

JP8 is used to select the Mini PCIe signal.

Page 21

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

Ports and Connectors Bottom Panel I/O Ports

The bottom panel I/O ports consist of the following:

• 1 DB-9 RS232/422/485 serial port

• 2 DB-9 RS232 serial ports

• 2 Type A USB 2.0/1.1 ports

• 1 DB-15 VGA port

• 2 RJ45 LAN ports

• 1 Line-out jack

• 1 Mic-in jack

• 1 12V DC-in jack

• 1 Power switch

• 1 Power LED

Power Switch

Power LED

USB 2.0 12V DC-in

VGA

COM 3

Mic-in

LAN 2

COM 1

Line-out

COM 2

LAN 1

COM (Serial) Ports

COM 1 and COM 3 to COM 6 are fixed at RS232.

The pin function of the COM port 2 will vary according to JP3’s setting. Refer to “COM 2 RS232/RS422/RS485 Select” in this chapter for more information.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

BIOS Setting

Configure the serial ports in the Advanced menu (“Super IO Configuration” submenu) of the BIOS. Refer to chapter 6 for more information.

COM 4

COM 3

COM 2 :

RS232/422/485

COM 3 to COM 6:

RS232

COM 5

COM 2

COM 6

COM 1: RS232

DCD-

TXD

RXD

DTR-

GND

RTS-

DSR-

CTS-

RI-

2 1

Page 22

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

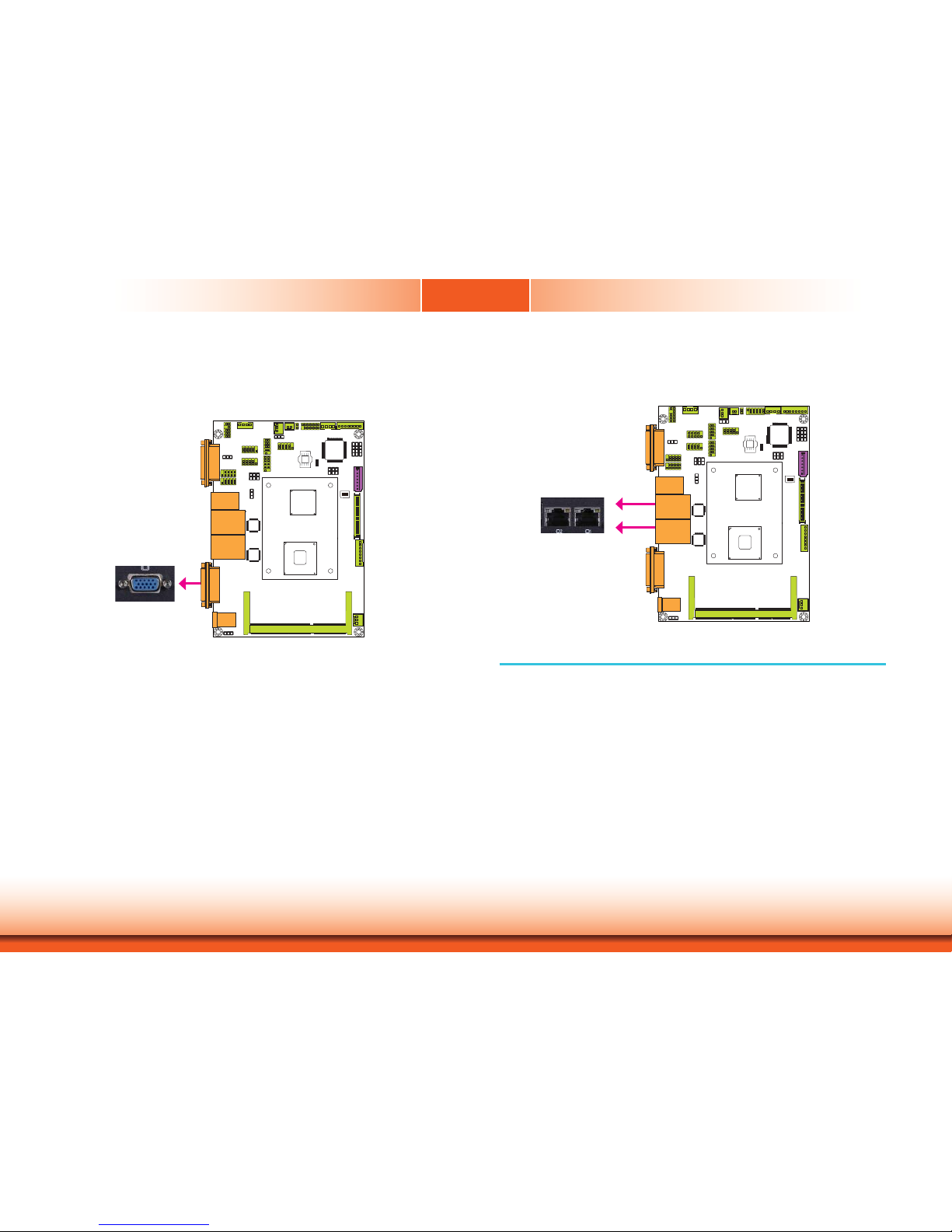

VGA

Graphics Interface

The display port consists of the following:

• VGA port

VGA Port

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the display device in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 6 for more information.

Driver Installation

Install the graphics driver. Refer to chapter 7 for more information.

RJ45 LAN Ports

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Configure the onboard LAN in the Chipset menu (“South Bridge Configuration” submenu) of the BIOS. Refer to chapter 6 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 7 for more information.

LAN 1

Features

• 2 Intel® 82574 Gigabit Ethernet Controllers

LAN 2

LAN 1 LAN 2

Page 23

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

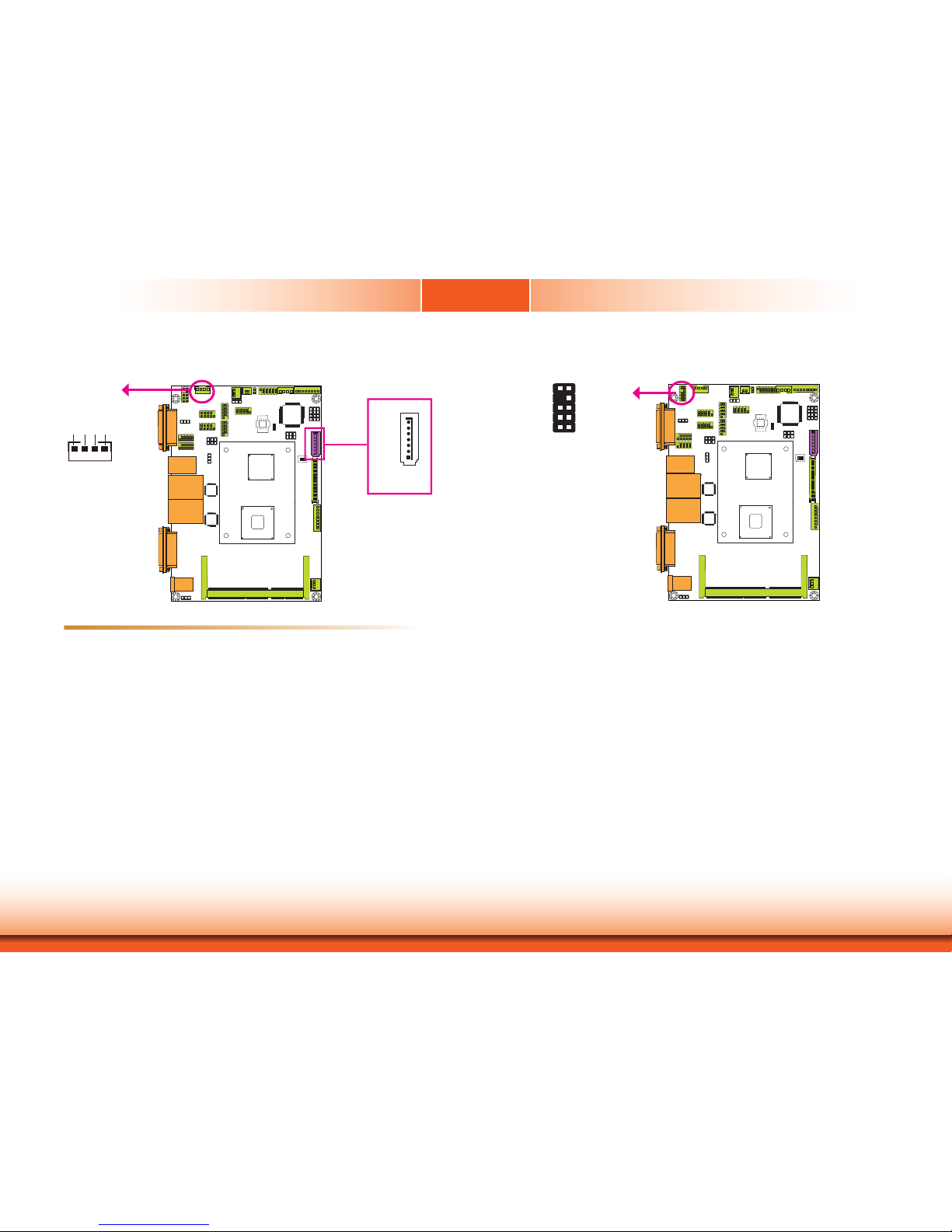

USB Ports

The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with two onboard USB 2.0 ports (USB 0-1). The two 10-pin connectors allow you to connect 4 additional USB 2.0 ports (USB 3-6). The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the BIOS. Refer to chapter 6 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

USB 2-3 USB 4-5

VCC

-Data

+Data

GND

Key

VCC

-Data

+Data

GND

N. C.

1 2

USB 2.0

Important:

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP4 and JP6 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in chapter 4 for more information.

USB 0

USB 1

USB 2.0

Page 24

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

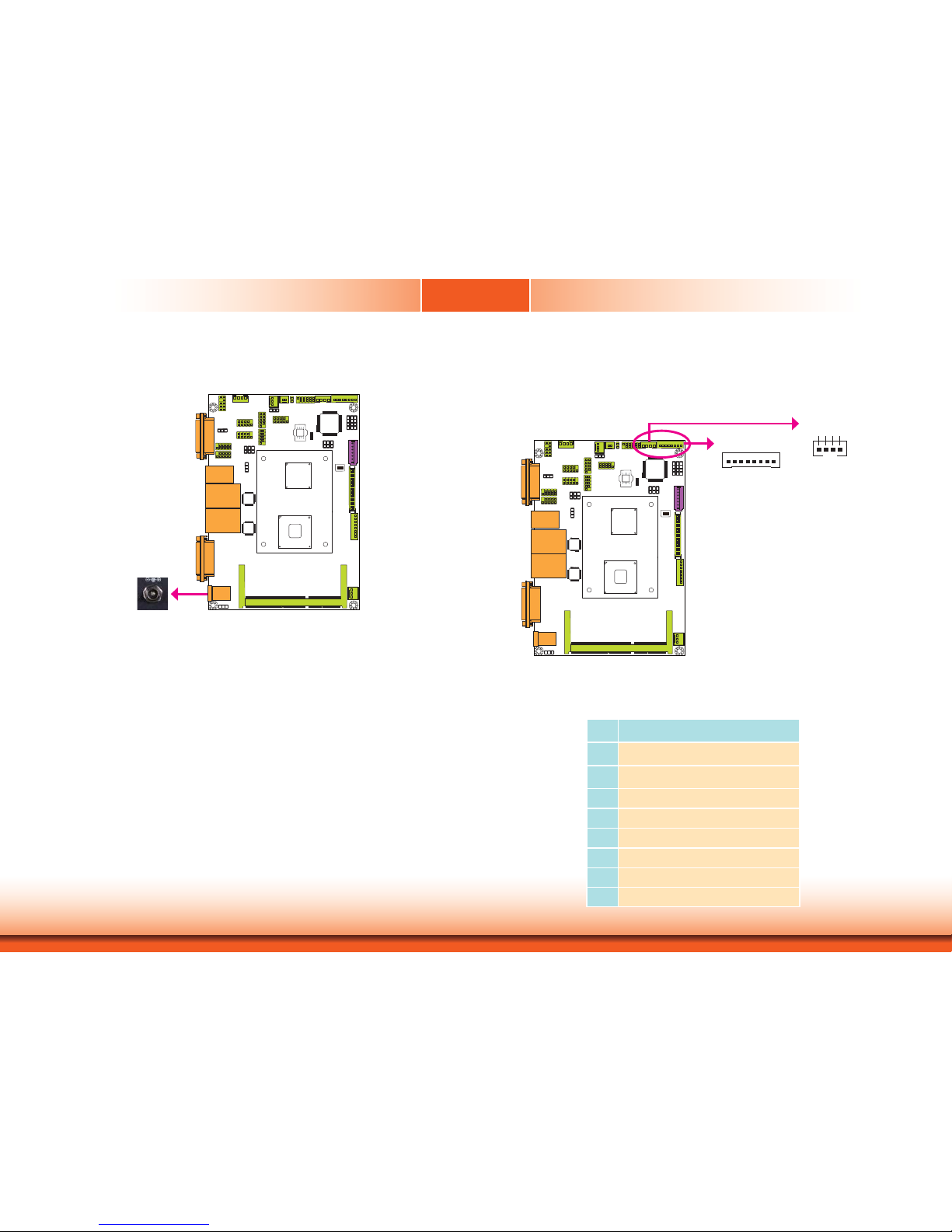

DC-in

This jack provides maximum of 60W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter with 12V DC output voltage. Using a voltage higher than the recommended one may fail to boot the system or cause damage to the system board.

DC-in

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to the connector.

+12V

Ground

5VSB

+5V

Digital I/O power

Digital I/O

I/O Connectors

Digital I/O Connector Digital I/O Power Connector

Digital I/O Connector

Pins Function

DIO0

DIO1

DIO2

DIO3

DIO4

DIO5

DIO6

DIO7

Page 25

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

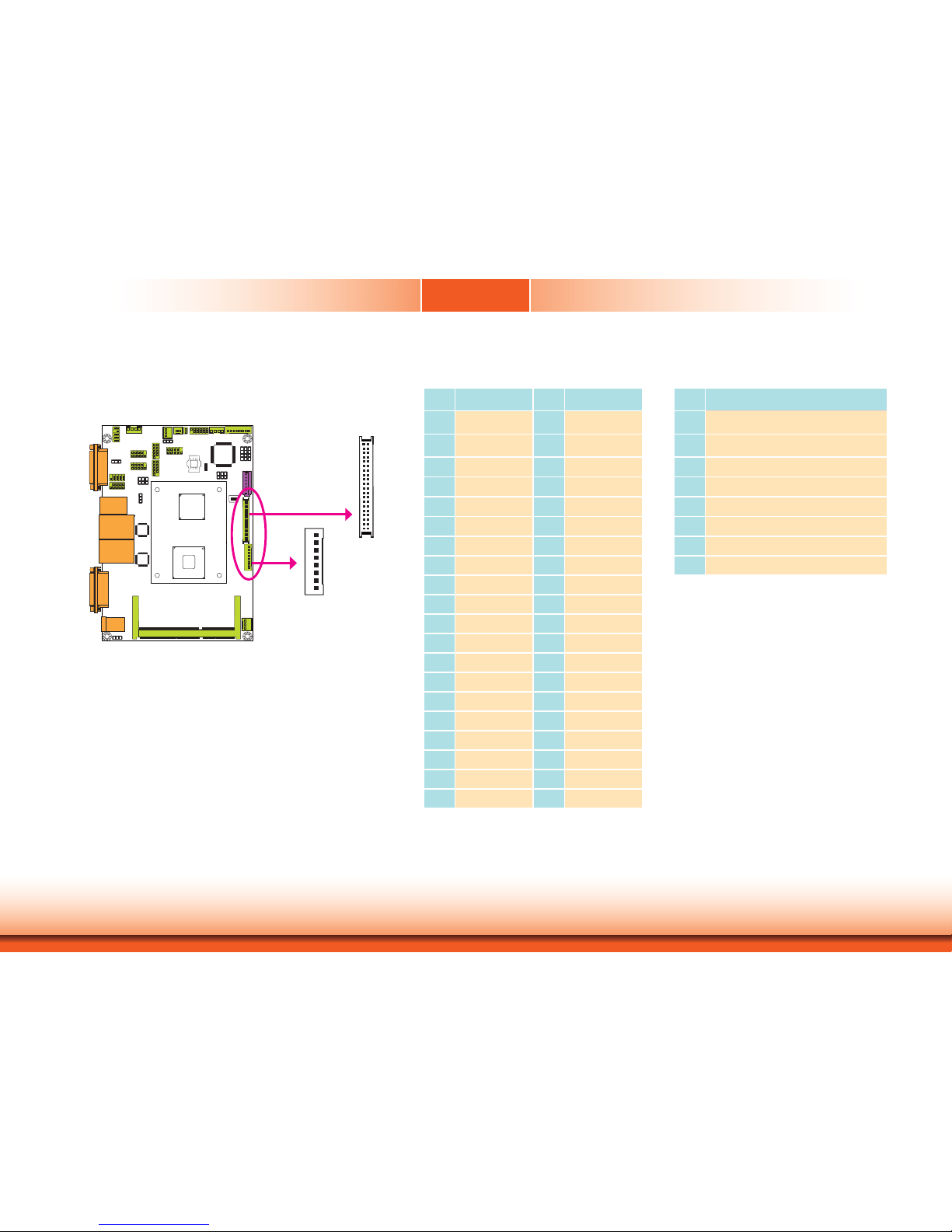

LVDS LCD Panel Connector LCD/Inverter Power Connector

The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel.

Refer to the right side for the pin functions of these connectors.

BIOS Setting

Configure the LCD panel in the Advanced Chipset Features submenu of the BIOS. Refer to chapter 6 for more information.

LVDS LCD

Panel

4039

LCD/Inverter

Power

LVDS LCD Panel Connector LCD/Inverter Power Connector

Pins Function Pins Function

GND

LVDS_Out3+

LVDS_Out7+

LVDS_Out3-

LVDS_Out7-

GND

LVDS_Out2+

LVDS_Out6+

LVDS_Out2-

LVDS_Out6-

GND

LVDS_Out1+

LVDS_Out5+

LVDS_Out1-

LVDS_Out5-

GND

LVDS_Out0+

LVDS_Out4+

LVDS_Out0-

LVDS_Out4-

GND

LVDS_CLK1+

LVDS_CLK2+

LVDS_CLK1-

LVDS_CLK2-

GND

LVDS_DDCCLK

N.C.

LVDS_DDCDAA

N.C.

Panel Power

Pins Function

GND

Panel Inverter Brightness Voltage Control

Panel Power

+3.3V

Panel Backlight On/Off Control

+12V

Page 26

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

Cooling Fan Connectors

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The Advanced menu (“Hardware Health Configuration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 6 for more information.

System Fan

CPU Fan

Sense

Power

Ground

Ground Power Sense

Front Panel Connector

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

HDD-LED

RESET-SW

PWR-LED

PWR-BTN

Pin Pin Assignment Pin Pin Assignment

HDD-LED

3 HDD Power

PWR-LED

2 LED Power

5 Signal 4 LED Power

RESET SW

7 Ground 6 Signal

9 RST Signal

PWR-BTN

8 Ground

11 N.C. 10 Signal

Page 27

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

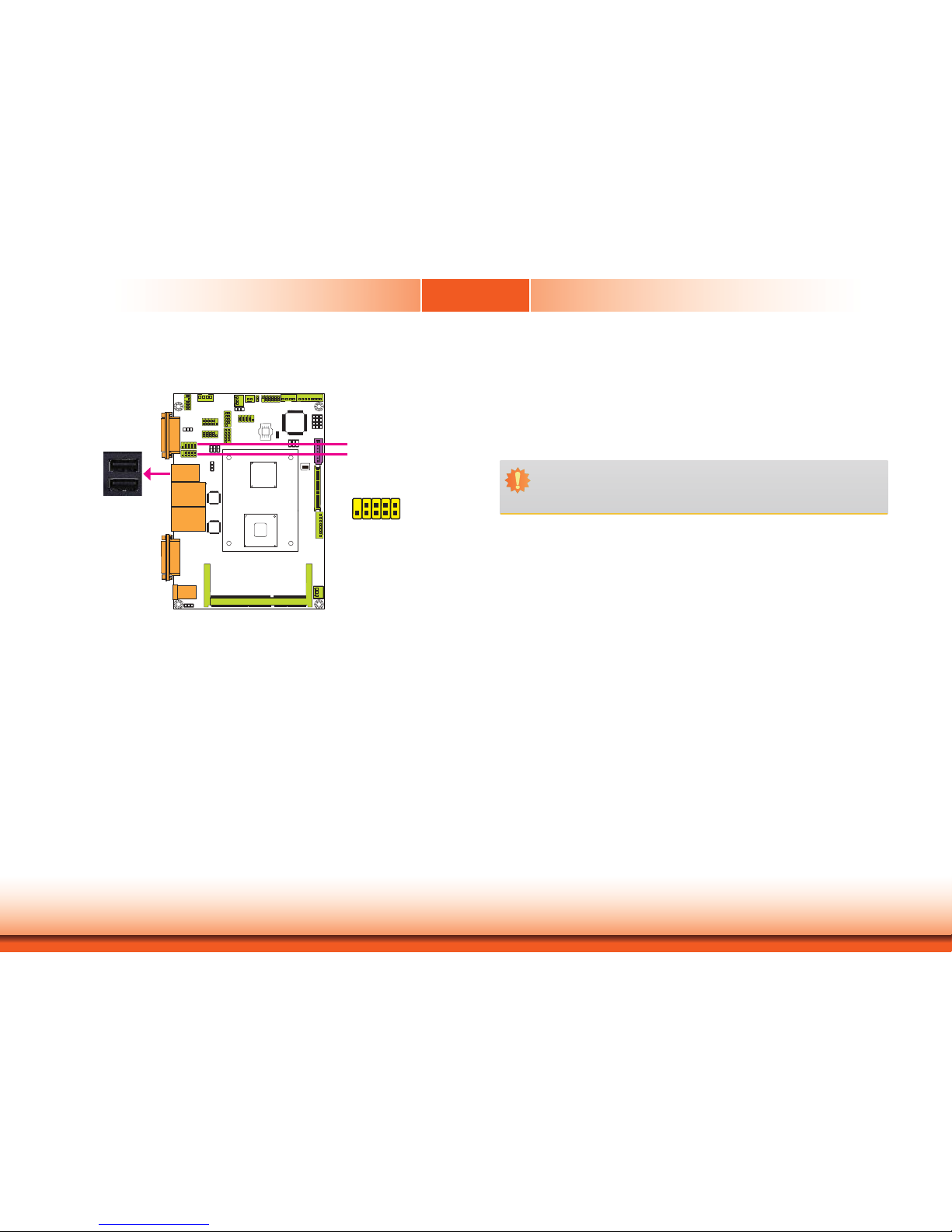

SATA (Serial ATA) Connector

RXN GND

TXP

TXN

GND

RXP

GND

SATA 2.0 3Gb/s

• 1 Serial ATA port

- SATA port 0 with data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

The Serial ATA connector is used to connect the Serial ATA device. Connect one end of the Serial ATA data cable to a SATA connector on the system board and the other end to your Serial ATA device.

The power cable must be connected from the system board’s Serial ATA power connector to the SATA drive’s power connector in order to provide power to the drive.

BIOS Setting

Configure the Serial ATA drives in the Integrated Peripherals submenu (“OnChip IDE Device” section) of the BIOS. Refer to chapter 6 for more information.

SATA Power

Features

SATA 0

+12V

Ground

+5V

Front Audio Connector

Mic IN-L

Line OUT-R

GND

Key

Mic-JD

Line OUT-JD

Mic IN-R

Line OUT-L

The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system.

Page 28

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

Chassis Intrusion Connector

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be configured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

1 2

Ground

Signal

Standby Power LED

This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Page 29

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

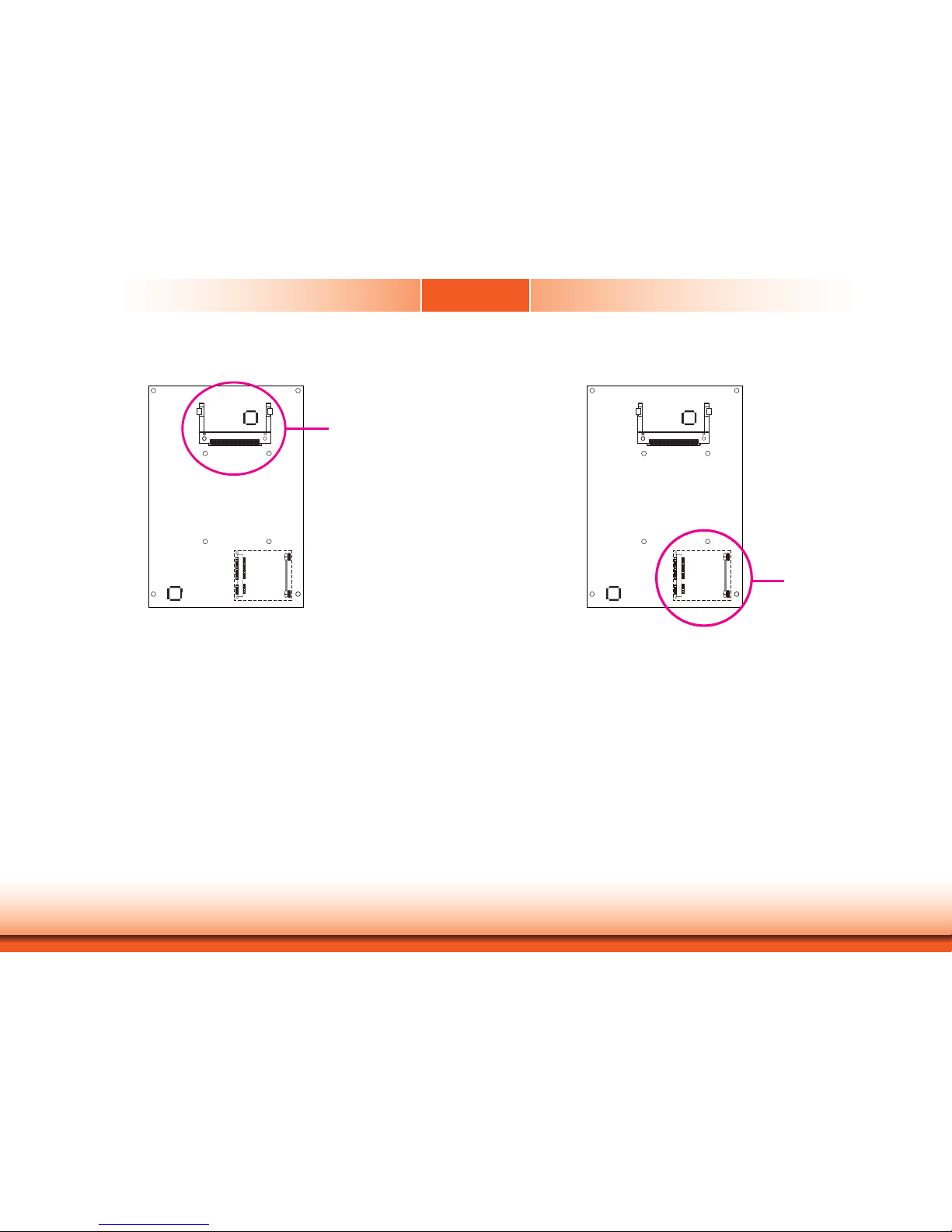

CompactFlash Socket

The CompactFlashTM socket is used for inserting a CompactFlashTM card. CompactFlashTM card is a small removable mass storage device designed with flash technology - a non-volatile storage solution that does not require a battery to retain data indefinitely. The CompactFlashTM technology is widely used in products such as portable and desktop computers, digital cameras, handheld data collection scanners, PDAs, Pocket PCs, handy terminals and personal communicators.

Expansion Slot

Mini PCI Express

Mini PCIe Slot

The Mini PCIe socket is used to install a Mini PCIe card. Mini PCIe card is a small form factor PCI card with the same signal protocol, electrical definitions, and configuration definitions as the conventional PCI.

Page 30

www.dﬁ .com

Chapter 4 Ports and Connectors

Chapter 4

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Battery

Ground

Battery

Connect to the battery connector

battery

Page 31

www.dﬁ .com

Chapter 5 Mounting Options

Chapter 5

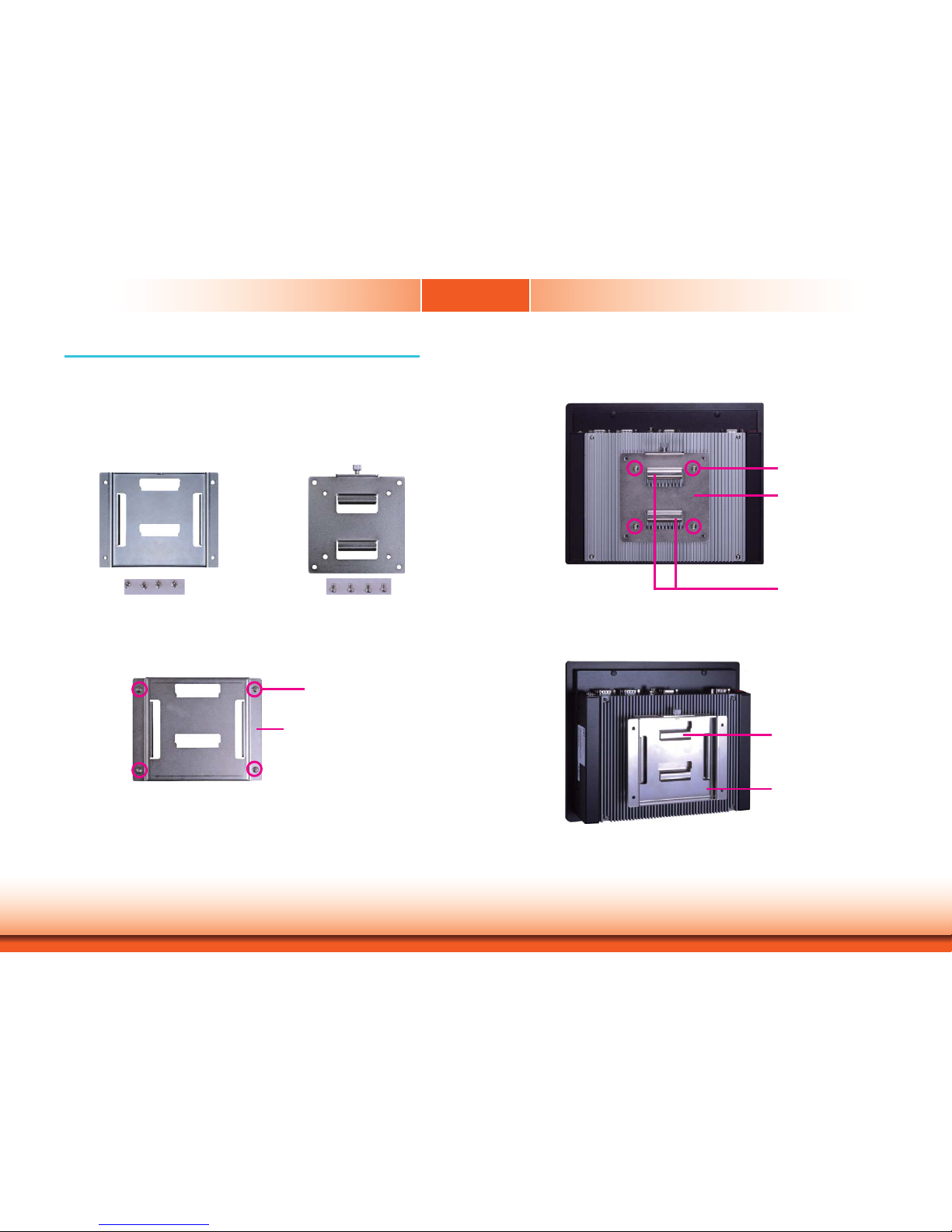

Chapter 5 - Mounting Options Wall Mount

The wall mount kit includes the following:

• 2 Wall mount brackets

• Bracket screws

Wall mount bracket 1 Wall mount bracket 2

1. Select a place on the wall where you will mount the Panel PC.

2. Use the provided mounting screws to attach “wall mount bracket 1” to the wall.

Wall mount bracket 1

Mounting screw

4. Using the hooks on “bracket 2”, slide the Panel PC to “bracket 1”.

3. Attach the other bracket (wall mount bracket 2) to the rear of the Panel PC.

Wall mount bracket 2

Mounting screw

Hooks

Wall mount bracket 1

Wall mount bracket 2

Page 32

www.dﬁ .com

Chapter 5 Mounting Options

Chapter 5

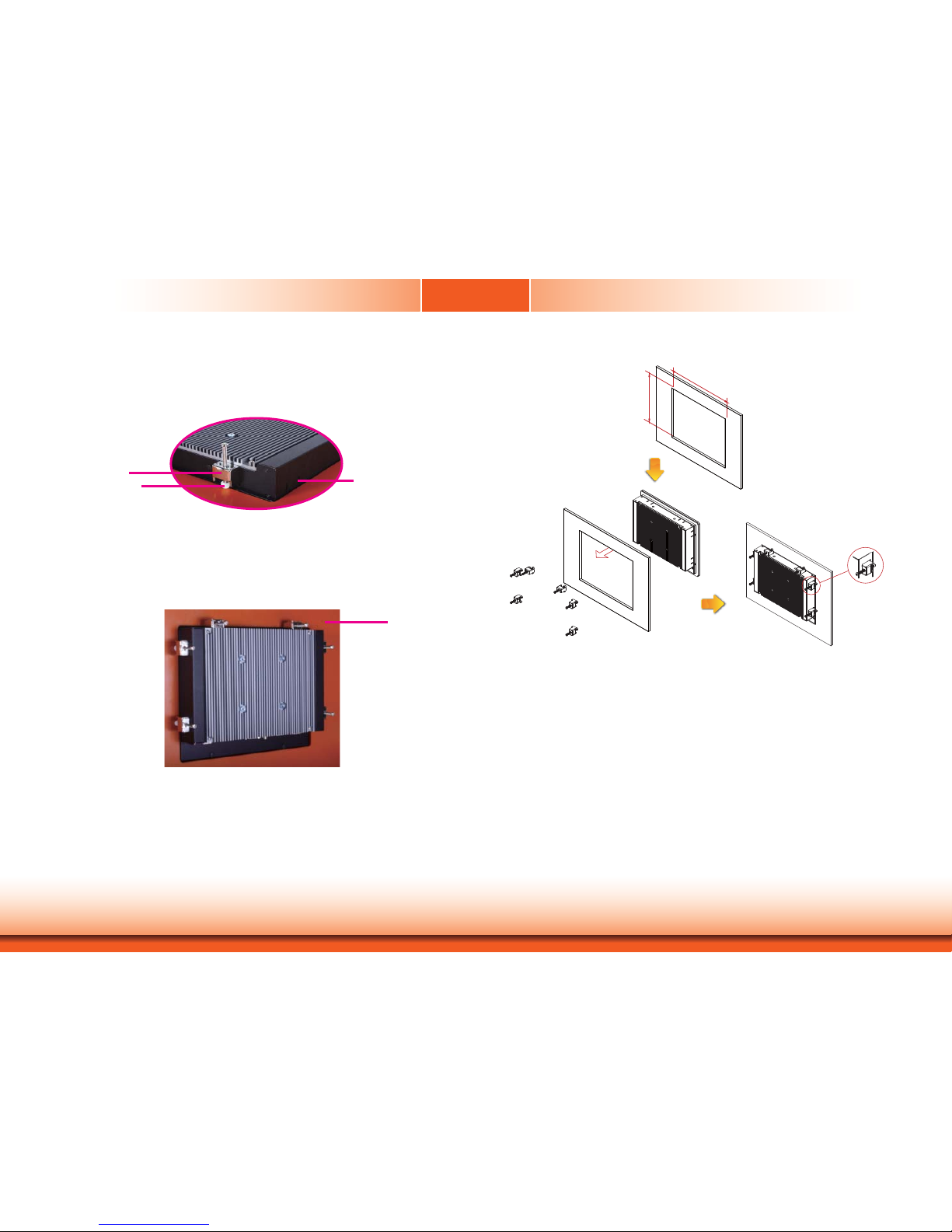

Panel Mount

The panel mounting kit includes the following:

• 6 mounting clamps

1. Select a place on the panel where you will mount the Panel PC.

2. Cut out a shape on the panel that corresponds to the Panel PC’s rear dimensions

(251mm x 201mm).

3. Stick the poron foam on the rear panel.

Poron foam

5. Tighten the screw to hold the assembly in place.

Mounting screw

201.00

251.00

Page 33

www.dﬁ .com

Chapter 5 Mounting Options

Chapter 5

4. Slide the Panel PC through the hole until it is properly ﬁ tted against the panel.

5. Position the mounting clamps along the rear edges of the Panel PC, ﬁ tting them into the slits that are around the Panel PC.

Slit for mounting the clamp

Mounting clamp

White plastic cap

6. The ﬁ rst and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw using an electric screwdriver until the white plastic cap touches the panel. Do not over tighten the screws to prevent damaging the Panel PC. The illustration below shows all clamps properly mounted.

Panel wall

201.00

251.00

Page 34

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Chapter 6 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Legends

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

Keys Function

Right and Left arrows

Moves the highlight left or right to select a menu.

Up and Down arrows

Moves the hightlight up or down between submenu or ﬁ elds.

<Esc>

Exit to the BIOS Setup Utility.

+ (plus key)

Scrolls forward through the values or options of the highlighted ﬁ eld.

- (minus key)

Scrolls backward through the values or options of the highlighted ﬁ eld.

Tab

Select a ﬁ eld.

<F1>

Displays general help

<F2>

Pervious values

<F3>

Optimized defaults

<F4>

Saves and resets the setup program.

<Enter>

Press <Enter> to enter the highlighted submenu.

Page 35

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

AMI BIOS Setup Utility Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect field values may cause the system to malfunction.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Set the date. Use Tab to switch between date elements

Save & ExitChipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information BIOS Vendor Core Version Compliency Project Version Model Name Bios Name Bios Version Build Date and Time

System Date

System Time

Access Level

American Megatrends

4.6.5.1 UEFI 2.3; PI 1.2 1APJK 0.15.013 x64 DFI CD951-C CD9510C9.21A RA15 07/01/2014 17:27:13

[Mon 12/01/2014] [16:52:19]

Administraor

Advanced

Boot Security

Main

F81866A WDT Parameters.

Legacy OpROM Support

Launch I82574 PXE [Disabled] Launch I82574 WOL [Disabled] Launch Resume On Ring [Disabled] Launch Storage OpROM [Enabled]



PCI Subsystem Settings



ACPI Power Management Conﬁ guration



CPU Conﬁ guration



IDE Conﬁ guration



USB Conﬁ guration



Super IO Conﬁ guration



PC Health Status



JMB36X ATA Ctrl Conﬁ g



WatchDog Conﬁ g

Save & ExitChipset Boot Security

Main

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy I82574 PXE

Enable or Disable Boot option for Intel 82574 NIC.

Launch I82574 WOL

Enable or Disable WOL for Intel 82574 LAN Option.

Launch Resume on Ring

Enable or Disable resume on ring option.

Launch Storage OpROM

Enable or Disable Boot Option for Legancy Mass Storage Devices with Option ROM.

Page 36

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

PCI Subsystem Settings

This section is used to configure the PCI Subsystem.

Incase of multiple Option ROMs (Legancy and EFI compatible), speciﬁ es what PCI Option ROM to launch.

PCI Bus Driver Version V 2.05.01

PCI Option ROM Handling

PCI ROM Priority [EFI Compatible ROM]

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Power Management Configuration

This section is used to configure the ACPI Setting.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(CPU Stop Clock) Enables the CPU Stop Clock function. S3(Suspend to RAM) Enables the Suspend to RAM function.

Locke Legancy Resouces

Enables or Disables Lock Legancy Resouces.

USB Device Wake from S3

Enabled or disable the USB device wake form S3.

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

Enables or disables BIOS ACPI Auto Conﬁ guration.

ACPI Power Management Conﬁ guration

Enable ACPI Auto Conf

ACPI Sleep State Lock Legancy Resouces

USB Device Wake from S3 Resume by RTC Alarm

Advanced

[Disabled]

[S3 (Suspend to RAM) ] [Disabled]

[Disabled] [Diasbled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 37

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

CPU Configuration

This section is used to configure the CPU. It will also display the detected CPU information.

Hyper-threading

Enable this field for Windows XP and Linux which are optimized for Hyper-Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 update 3.)

Limit CUPID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or less than 3

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).

CPU Conﬁ guration Processor Type Intel(R) Atom(TM) CPU N2800 @1.86GHz

EMT64 Processor Speed System Bus Speed Ratio Status Actual Ratio Processor Stepping Microcode Revision L2 Cache RAM L3 Cache RAM Processor Core Huper-threading

Hyper-threading

Execute Disable Bit Limit CUPID Maximum

Advanced

Supported 1865 MHz 533 MHz 14 14 30661 268 2x56 k 2x512 k Dual Supported

[Enabled]

[Enabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

IDE Configuration

This section is used to configure IDE functions.

SATA Ports (0-3) device names if present and enabled.

SATA Port0 Not Present SATA Port1 WDC WD800BEVS-(80.0G

SATA Controller(s) [Enabled]

Conﬁ gure SATA as [IDE]

Misc Conﬁ guration for hard disk

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Configure SATA as

Select a configuration for SATA controller.

Page 38

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

USB Configuration

This section is used to configure USB.

Legacy USB Support

Enabled

Enables legacy USB. Disabled

Keeps USB devices available only for EFI applications. Auto

Disables support for legacy when no USB devices are connected.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conﬁ guration USB Devices:

1 Keyboard, 1 mouse

Legacy USB Support

EHCI Hand-off

Advanced

[Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Set Parameters of Serial Port 1 (COMA).

Super IO Conﬁ guration Super IO Chip

 

Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration



Serial Port 3 Conﬁ guration



Serial Port 4 Conﬁ guration



Serial Port 5 Conﬁ guration



Serial Port 6 Conﬁ guration

Restore AC Power Loss Case Open Beep

Advanced

F81866

[Turns Off] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Lost

Turn Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

Turn On

When power returns after an AC power failure, the system will automatically power-on.

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Case Open Beep

Set this field to Enabled to allow the system to alert you of a chassis intrusion event.

Page 39

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Enable or Disable Serial Port (COM)

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port 1 Configuration to Serial Port 6 Configuration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select an Optimal Setting for Super IO device

Serial Port 3 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3E8h; IRQ=5;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select an Optimal Setting for Super IO device

Serial Port 4 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=2E8h; IRQ=5;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 40

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Serial Port

Enables or disables the serial port (COM).

Change Settings

Selects the IO/IRQ setting of the I/O device.

Select an Optimal Setting for Super IO device

Serial Port 5 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3E0h; IRQ=5;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select an Optimal Setting for Super IO device

Serial Port 6 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=2E0h; IRQ=5;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PC Health Status

This section displays the hardware health monitor.

PC Health Status

Smart Fan Function



Smart Fan Mode Conﬁ guration CPU Temperature System Temperature CPU FAN Speed System FAN Speed VCore VCCGFX V_SM

1.05V 5VSB 3VCC 3VSB VBAT

Advanced

[Enabled]

: +34 C : +35 C : 6382 RPM : N/A : +1.064 V : +1.048 V : +1.568 V : +1.064 V : +4.992 V : +3.344 V : +3.360 V : +3.312 V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Mode Conﬁ guration

CPU Fan Smart Fan Con

Temperature 1 Temperature 2 Temperature 3 Temperature 4 Duty Cycle 1 Duty Cycle 2 Duty Cycle 3 Duty Cycle 4

CPU Fan Smart Fan Con Temperature 1 Temperature 2 Temperature 3 Temperature 4 Duty Cycle 1 Duty Cycle 2 Duty Cycle 3 Duty Cycle 4

Advanced

[Auto Duty-Cycle Mode]

60 50 40 30 85 70 60 50

[Auto Duty-Cycle Mode] 60 50 40 30 85 70 60 50

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Mode Configuration

Enable or Disable Smart Fan

Smart Fan Mode Select

Page 41

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

JMB36X ATA Controller Configuration

This section is used to configure the serial port functions.

Select an operative mode for ATA controller

PATA Primary Master

JMB 368 ATA Controller

Advanced

Not Present

[IDE Mode]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

WatchDog Config

This section is used to configure the watchdog functions.

WatchDog function

This field is used to enable or disable the Watchdog timer function.

Enable/Disable F81866 WatchDog Timer.

WatchDog Conﬁ g

WatchDog function

WatchDog Timer

Advanced

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 42

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Chipset

This section configures relevant chipset functions.



Host Bridge



South Bridge

Save & Exit

Advanced

Boot Security

Main

Chipset

Host Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Memory Frequency and Timing



Intel IGD Conﬁ guration

*** Memory Information ***

Memory Frequency 1067MHz (DDR3) Total Memory 2048 MB DIMM#1 2048 MB

Chipset

Conﬁ g Memory Frequen- cy and Time Settings.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Host Bridge

Page 43

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Memory Frequency and Timing

This section is used to configure the TOLUD functions.

Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO lenth of installed graphic controller.

Memory Frequency and Timing

Max TOLUD

Advanced

[Dynamic]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel IGD Configuration

This section is used to select the amount of system memory used by the internal graphics device.

Conﬁ gure ﬁ xed graphics memory size.

Intel IGD Conﬁ guration

Fixed Graphics Memory

Advanced

[128MB]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 44

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6



TPT Devices



PCI Express Root Port 0



PCI Express Root Port 1



PCI Express Root Port 2



PCI Express Root Port 3

SLP_S4 Assertion Widt [1-2 seconds]

Chipset

Enable/ Disable Intel (R) IO Controller Hub (TPT) devices

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

South Bridge

TPT Devices

Enable or disable Intel IO Controller Hub (TPT) devices.

Azalia Controller

Azalia Controller Select USB Mode

UHCI #1 (ports 0 and 1) UHCI #2 (ports 2 and 3) UHCI #3 (ports 4 and 5) UHCI #4 (ports 6 and 7) USB 2.0 (EHCI) Support

Advanced

[HD Audio]

[By Controllers] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select USB Mode

This field is used to select the operation mode for USB ports: By controllers or By ports.

By Controllers Enable or disable the USB function by UHCI controllers. Each controller dominates two

USB ports.

By Ports

Enable or disable the USB function by ports.

USB 2.0 (EHCI) Support

Enable or disable USB 2.0 (EHCI) support.

Page 45

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Option ROM Messages

Set display mode for option ROM.

INT19 Trap Response

BIOS reaction on Int19 trapping by option ROM.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Hard Driver BBS Priorities

Set the order of the legacy devices in this group.

Boot

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Option ROM Messages INT19 Trap Response

Boot Option Priorities

Boot Option #1 Hard Driver BBS Priorities

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[On] [Disabled]

07.69

[Force BIOS] [Postponed]

[SATA SM:WDC WD80...]

Security

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Set Administrator Password.

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

HDD Security Conﬁ guration

Save & ExitChipset

Advanced

Main

Boot Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 46

www.dﬁ .comChapter 6 BIOS Setup

Chapter 6

Save & Exit

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Save as User Defaults

To save changes done so far as user default, select this field and then press <Enter>. A dialog box will appear. Select Yes to save values as user default.

Restore User Defaults

To restore user default to all the setup options, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore user default.

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Save Options

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

SATA SM: WDC ED800BEVS-22VAT0

Chipset

Advanced

Main

Boot Security Save & Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

AMI Firmware Update Utility(APTIO) v2.25

+--------------------------------------------------------------------------------------------------------+

| |

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

done done done done done done done

Page 47

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

Chapter 7 - Supported Software

Auto Run Page (For Windows 7)

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Intel Chipset Software Installation Utility

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

2. Read the license agreement then click Yes.

1. Setup is now ready to install the utility. Click Next.

Page 48

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

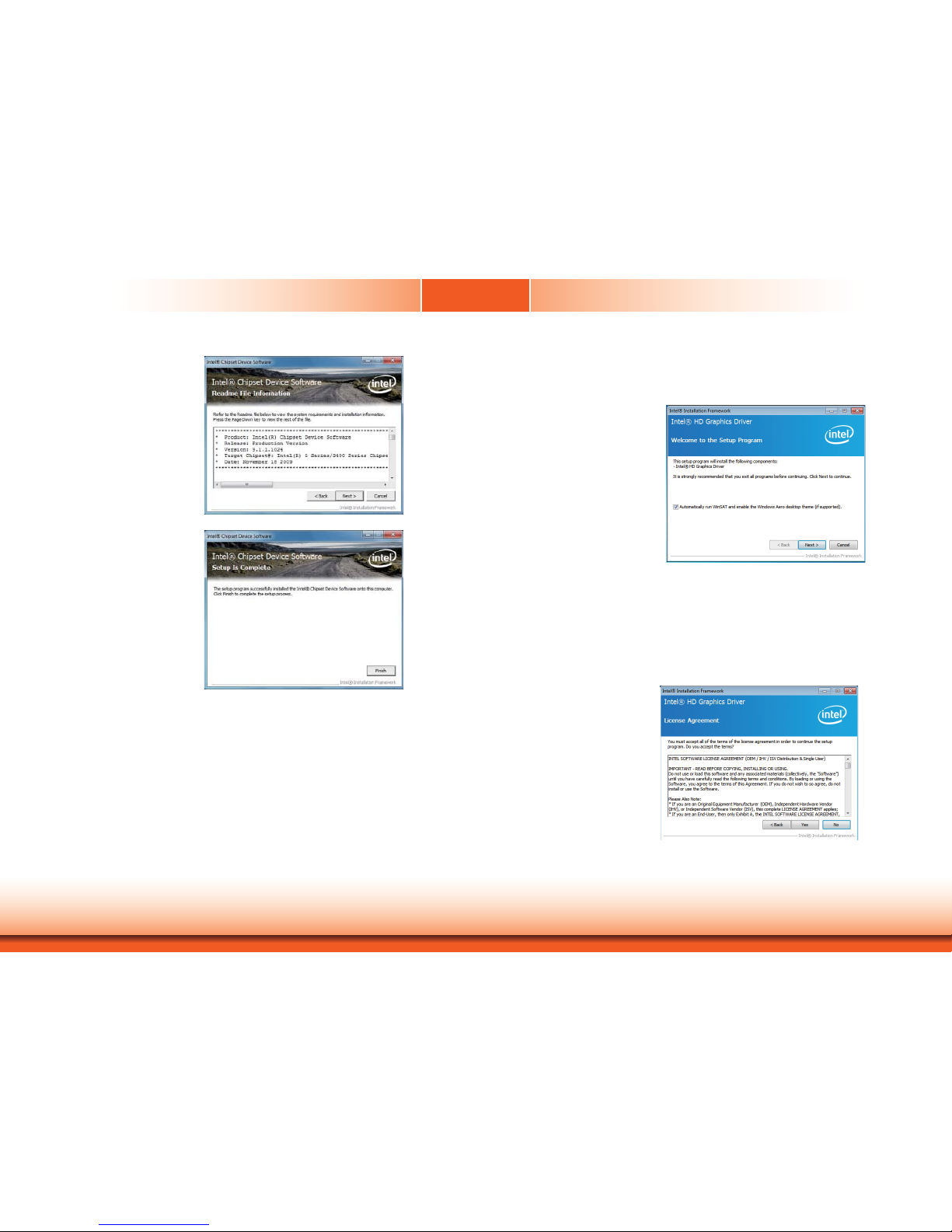

3. Go through the readme document for system requirements and installation tips then click Next.

4. After completing installation, click Finish to exit setup.

Intel Graphics Drivers

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/ Windows 8 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you skip this process by disabling this function then click Next.

2. Read the license agreement then click Yes.

Page 49

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

4. Setup is now installing the driver. Click Next to continue

3. Go through the readme document for system requirements and installation tips then click Next.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

1. Setup is now ready to install the driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

Page 50

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

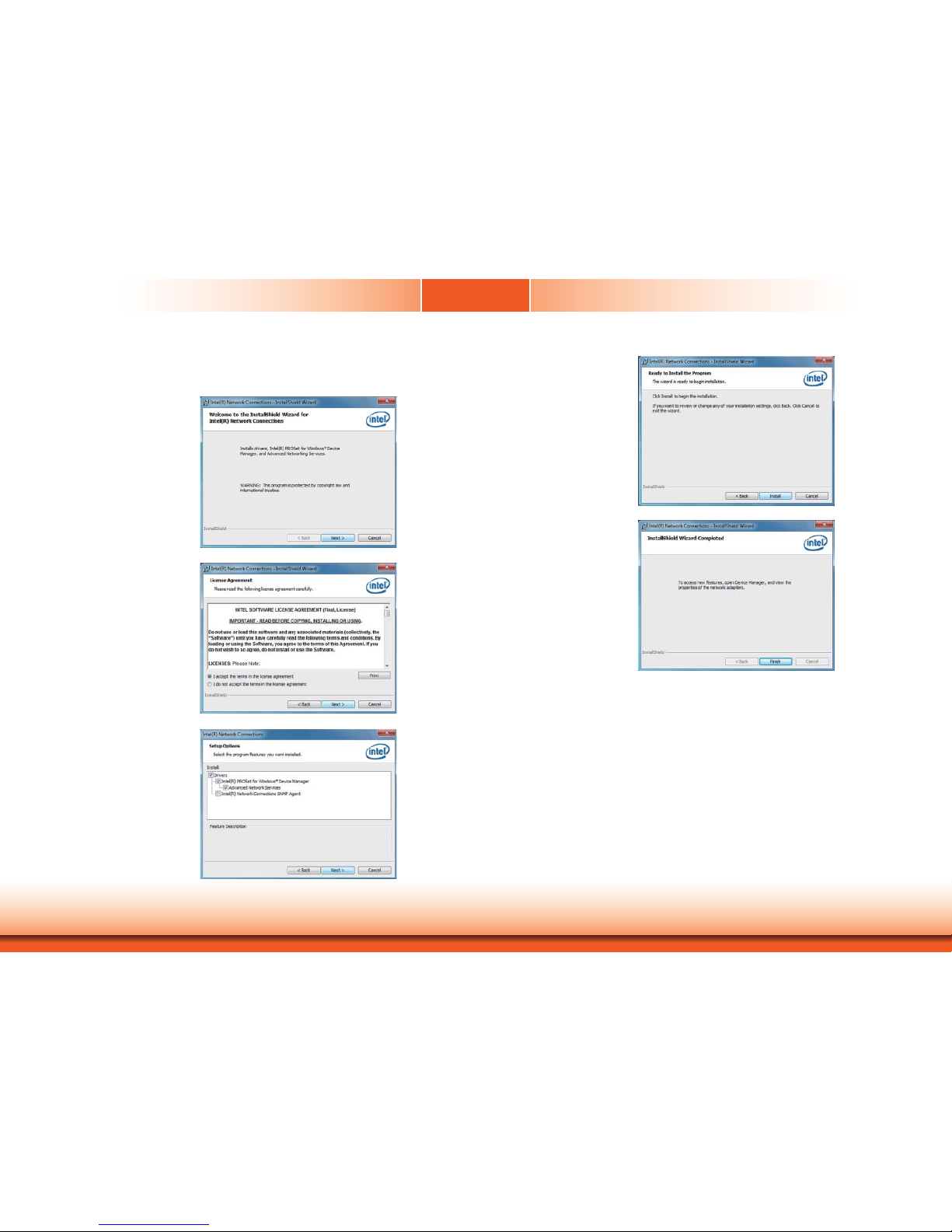

Intel LAN Drivers

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the

driver. Click Next.

2. Click “I accept the terms

in the license agreement” then click “Next”.

3. Select the program features

you want installed then click Next.

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Page 51

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

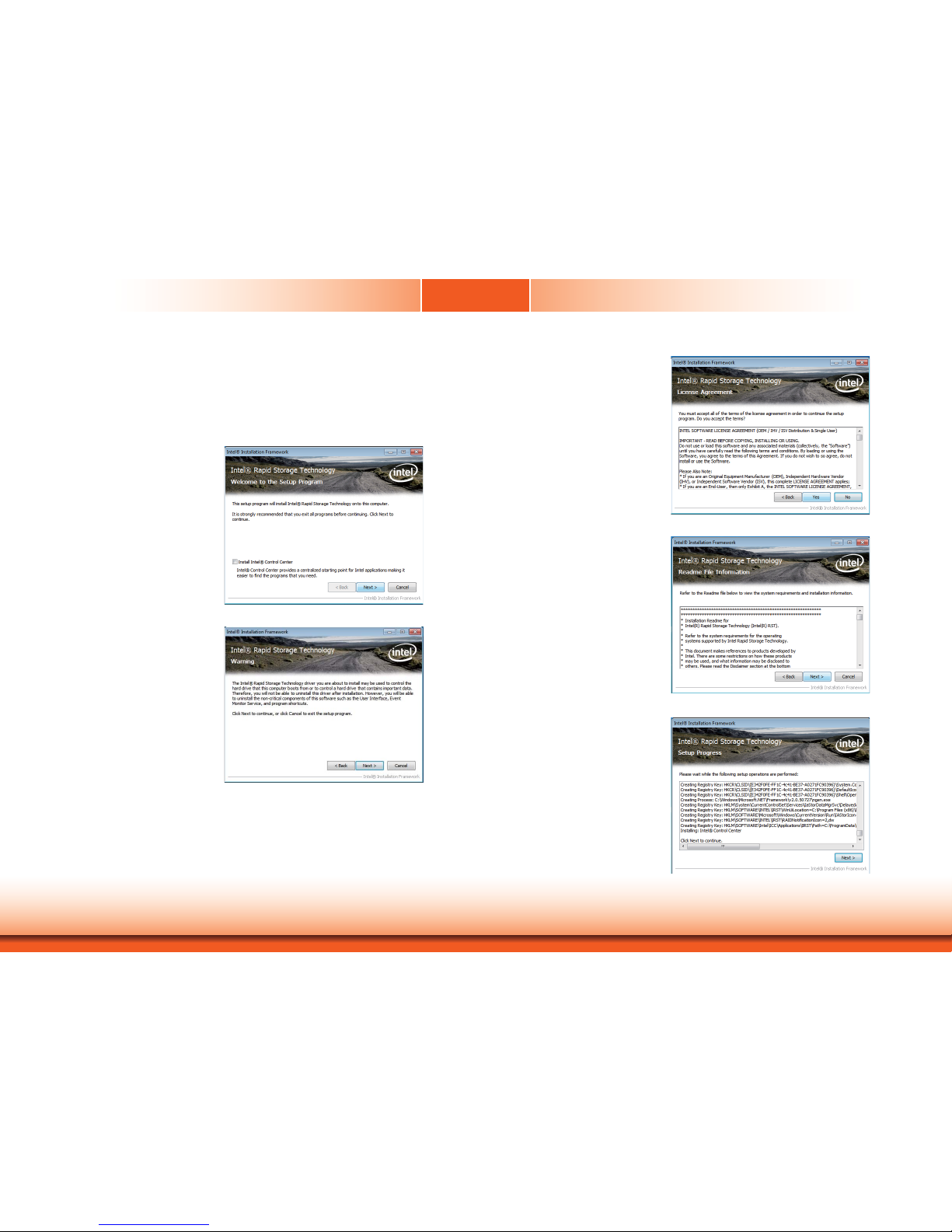

Intel Rapid Storage Technology

The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem.

To install the driver, click “Intel Rapid Storage Technology” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the warning then click Yes.

4. Go through the readme document for system requirements and installation tips then click Next.

5. Setup is now installing the utility. Click Next to continue.

3. Read the license agreement then click Yes.

Page 52

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

6. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

F6 Floppy Configuration Utility

This is used to create a floppy driver diskette needed when you install Windows® XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.

1. Insert a blank floppy diskette.

2. Locate for the drivers in the CD then copy them to the floppy diskette. The CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.

32-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy32

64-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy64

Page 53

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

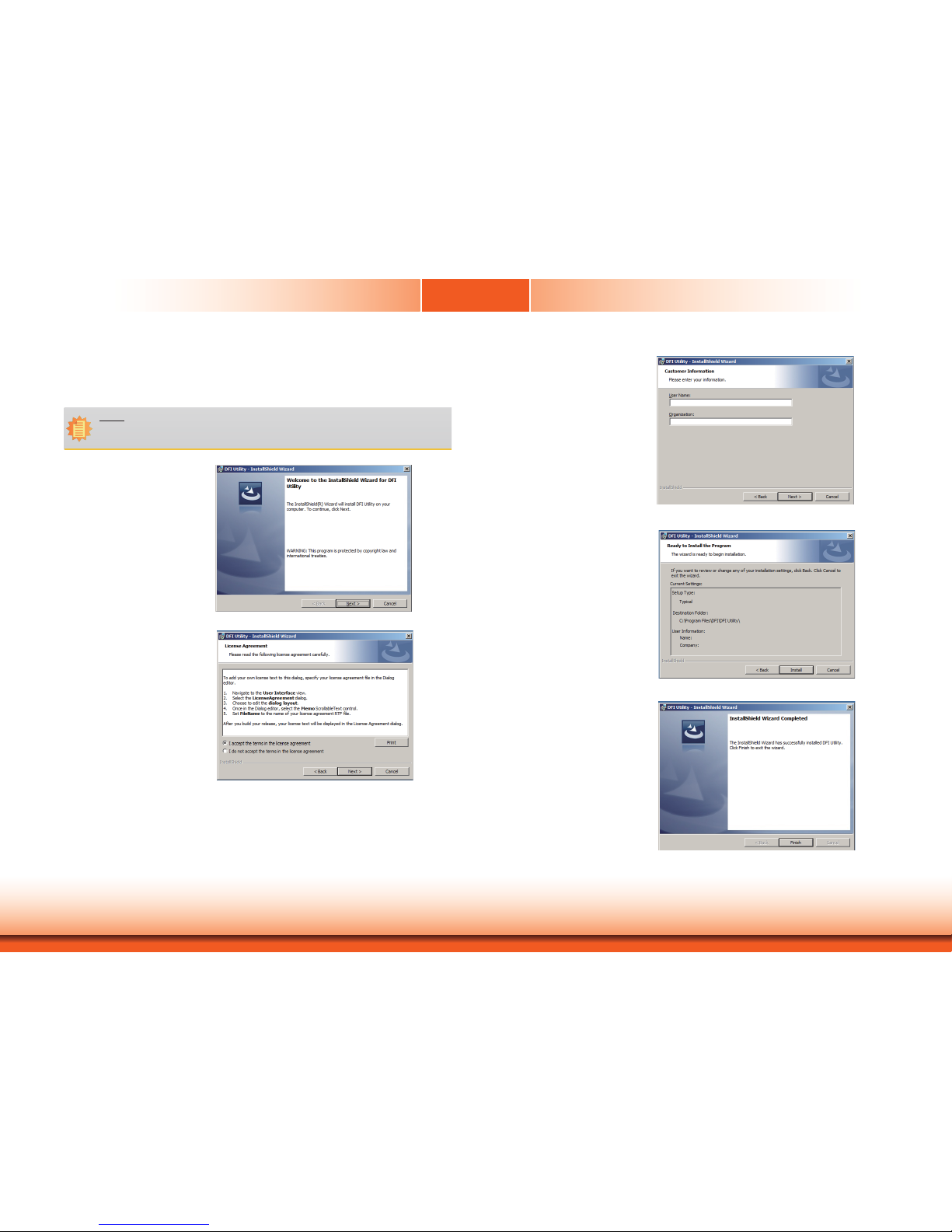

1. Setup is ready to instal the DFI Utility driver Click “Next”.

2. Click “I accept the terms in the license agreement” then click “Next”.

DFI Utility

DFI Utility provides information about the board, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.

Note:

If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.

4. Click “Install” to begin the

installation.

5. After completing installa

tion, click “Finish”.

3. Enter “User name” and

“Organization” information then click “Next”.

Page 54

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

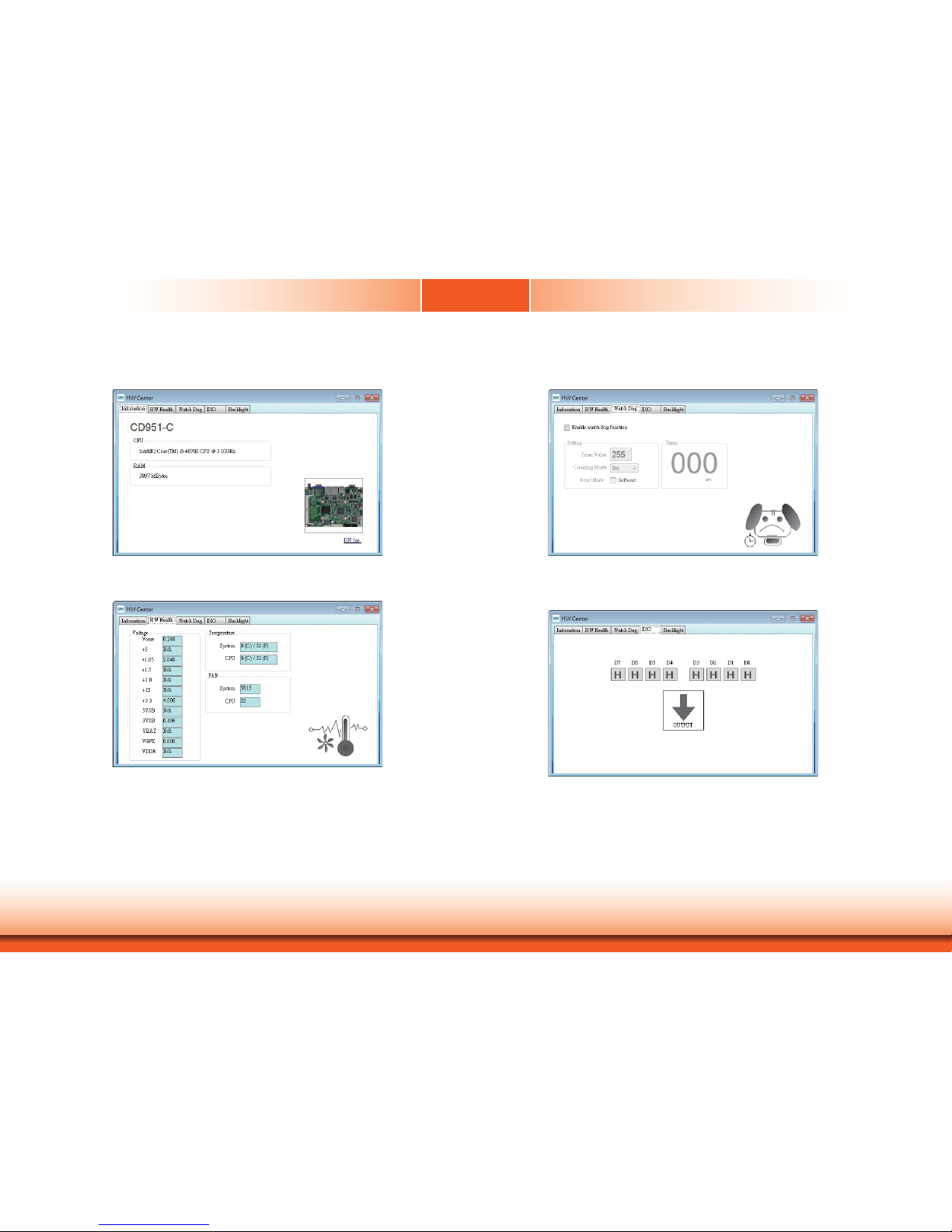

The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.

Information

HW Health

WatchDog

DIO

Page 55

www.dﬁ .com

Chapter 7

Chapter 7 Supported Software

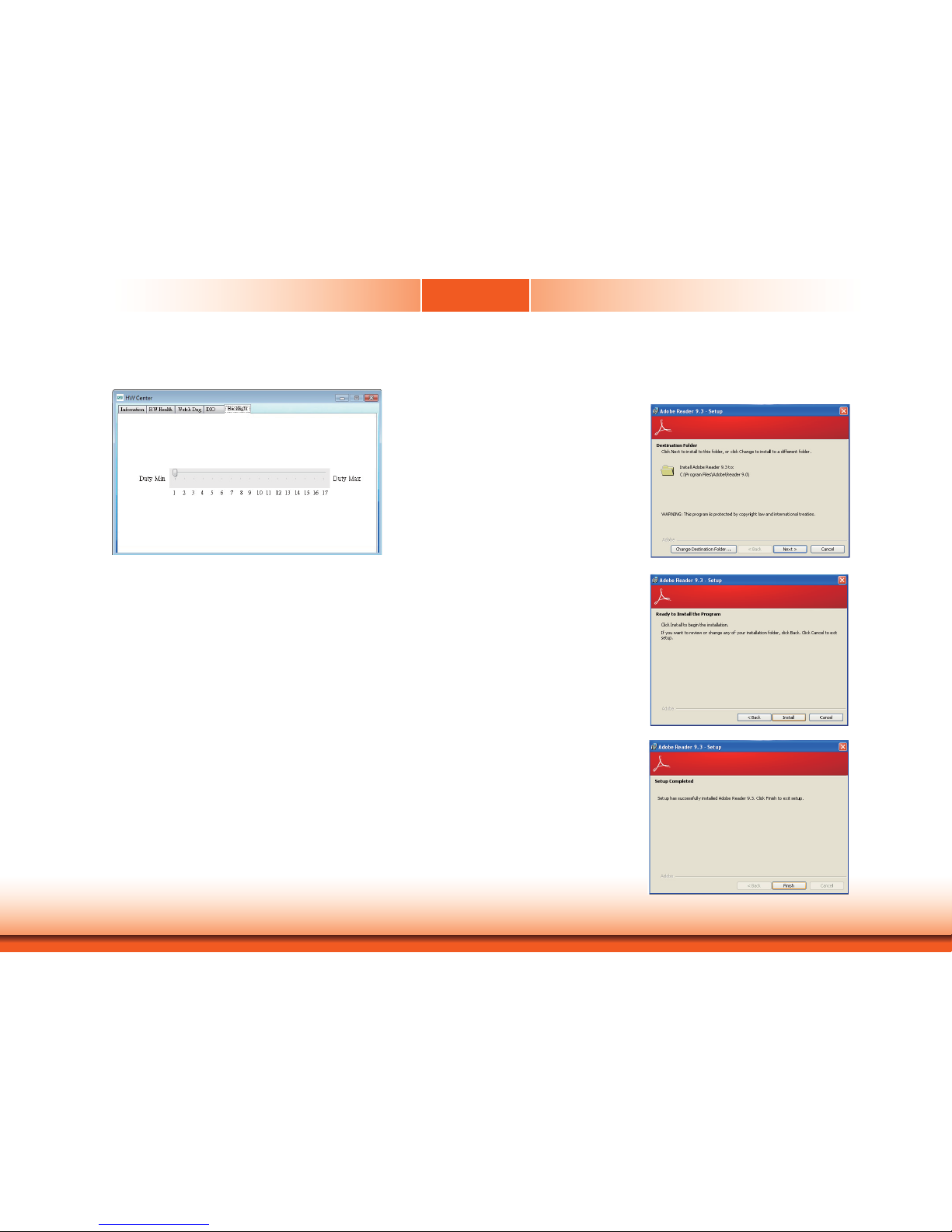

Backlight

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

3. Click Finish to exit installation.

Page 56

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Appendix A - NLITE and AHCI Installation Guide

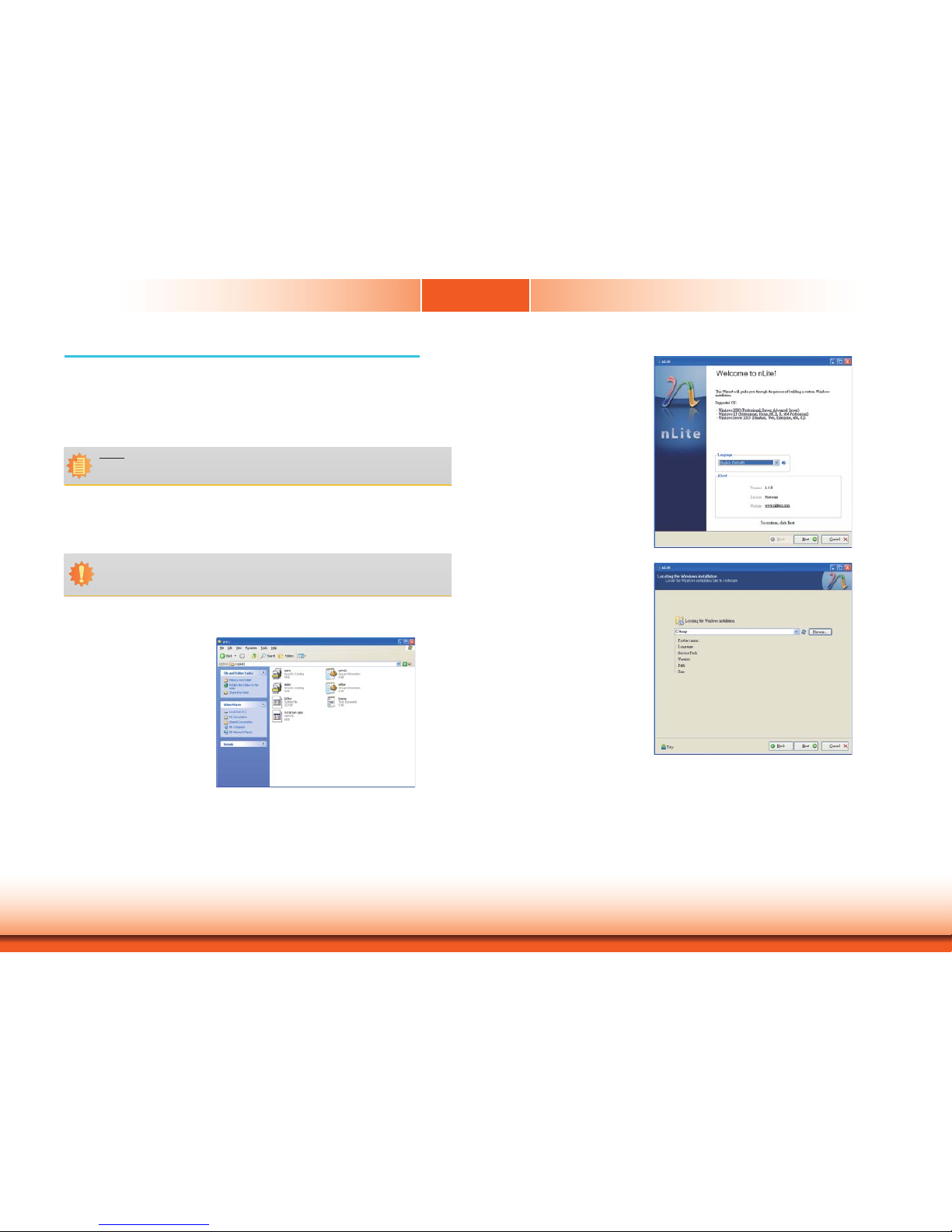

nLite

nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.

1. Download the program from nLite’s offical website.

http://www.nliteos.com/download.html

2. Install nLite.

3. Download relevant RAID/AHCI driver files from Intel’s website. The drivers you choose will depend on the operating system and chipset used by your computer.

The downloaded driver files

should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor. inf, IaStor.sys, license.txt and TXTSETUP.OEM.

4. Insert the XP installation disc into an optical drive.

5. Launch nLite. The Welcome screen will appear. Click Next.

6. Click Next to temporarily save the Windows installation files to the designated default folder.

If you want to save them

in another folder, click Browse, select the folder and then click Next.

Note:

The installation steps below are based on nLite version 1.4.9. Installation procedures may slightly vary if you’re using another version of the program.

Important:

Due to it’s coding with Visual.Net, you may need to first install .NET Framework prior to installing nLite.

Page 57

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

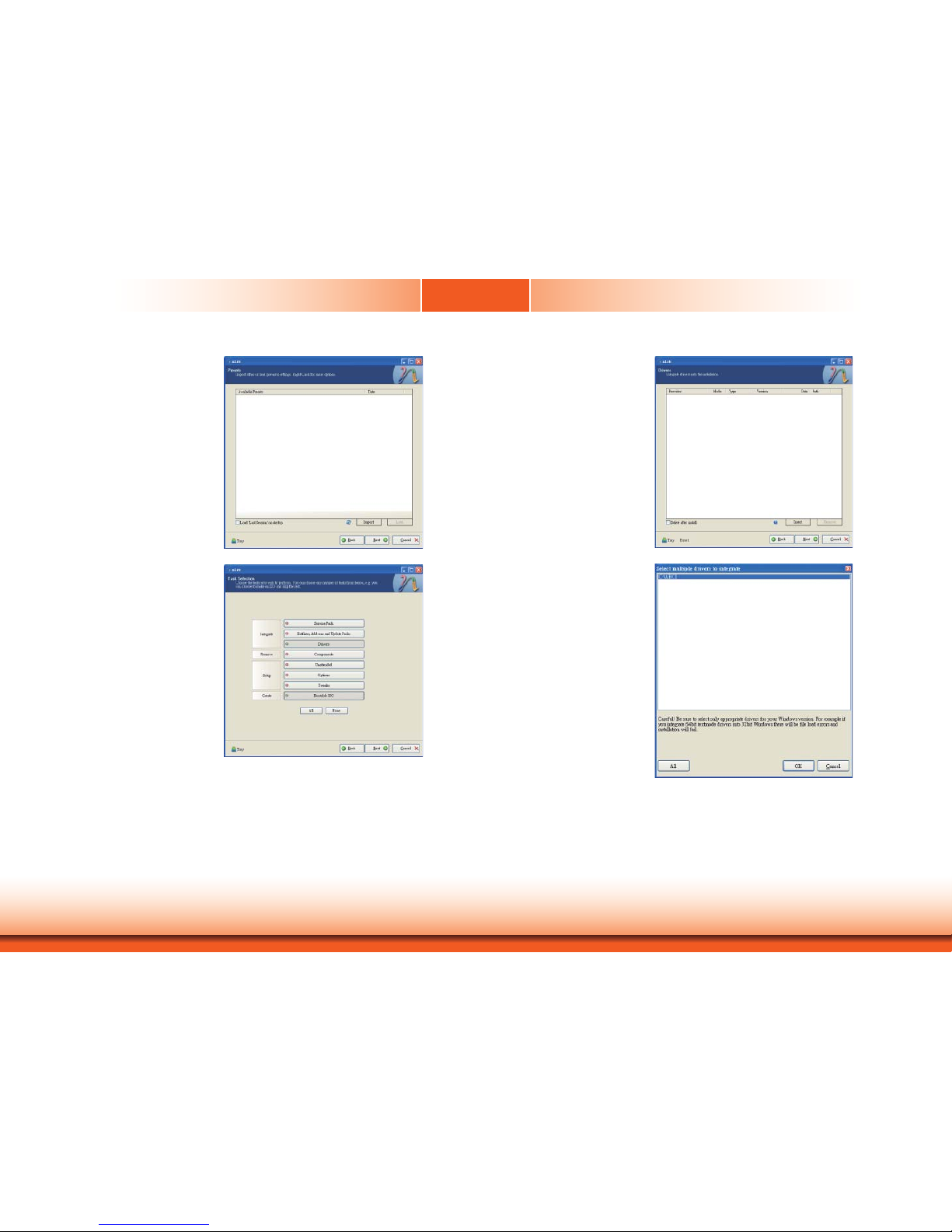

7. Click Next.

8. In the Task Selection dialog box, click Drivers and Bootable ISO. Click Next.

9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next.

10. Select only the drivers ap-

propriate for the Windows version that you are using and then click OK.

Integrating 64-bit drivers

into 32-bit Windows or vice versa will cause file load errors and failed installation.

Page 58

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click OK.

12. Click Next.

13. The program is currently integrating the drivers and applying changes to the installation.

14. When the program is finished applying the changes, click Next.

Page 59

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

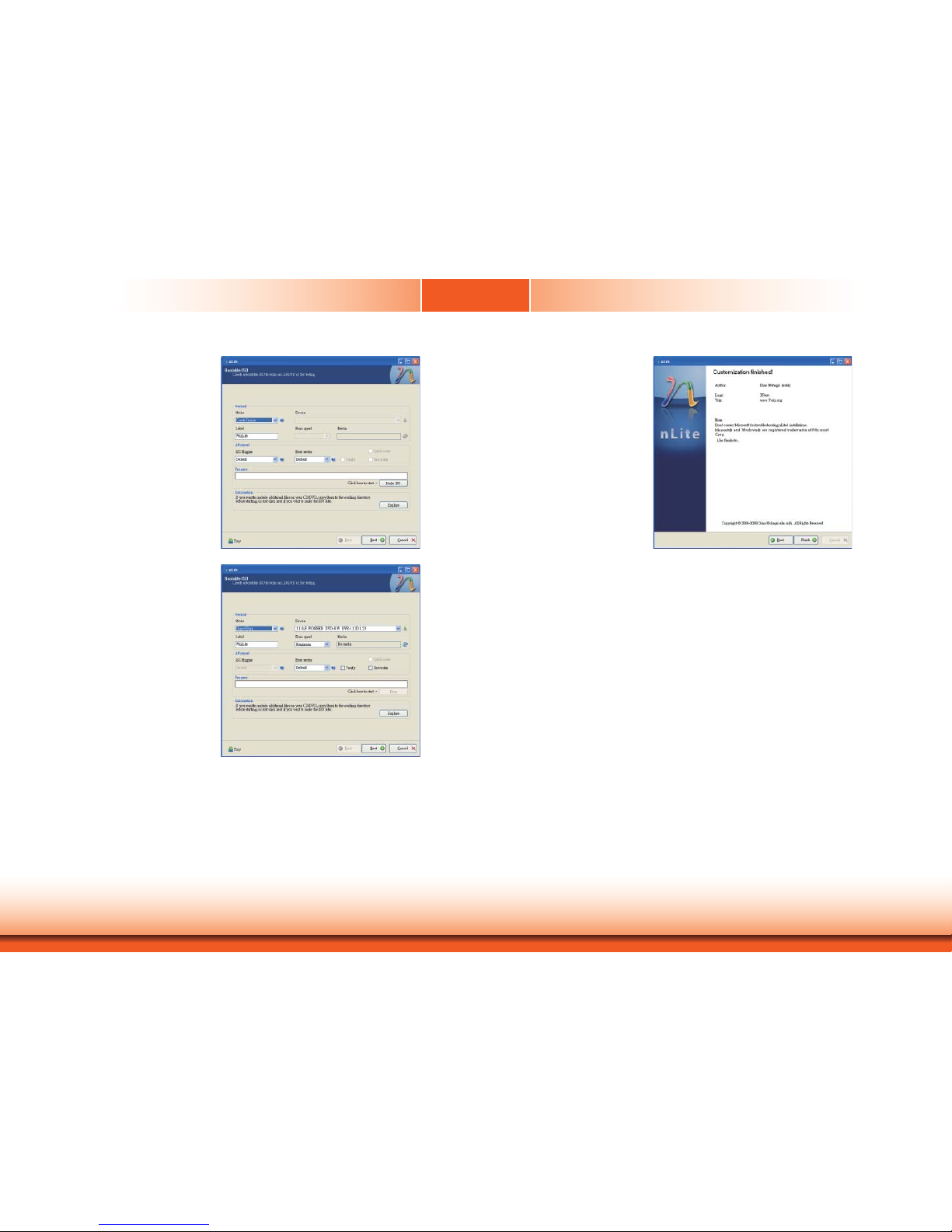

15. To create an image, select the Create Image mode under the General section and then click Next.

16. Or you can choose to burn it directly to a disc by selecting the Direct Burn mode under the General section.

Select the optical device

and all other necessary settings and then click Next.

17. You have finished customizing the Windows XP installation disc. Click Finish.

Enter the BIOS utility to

configure the SATA controller to RAID/AHCI. You can now install Windows XP.

Page 60

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

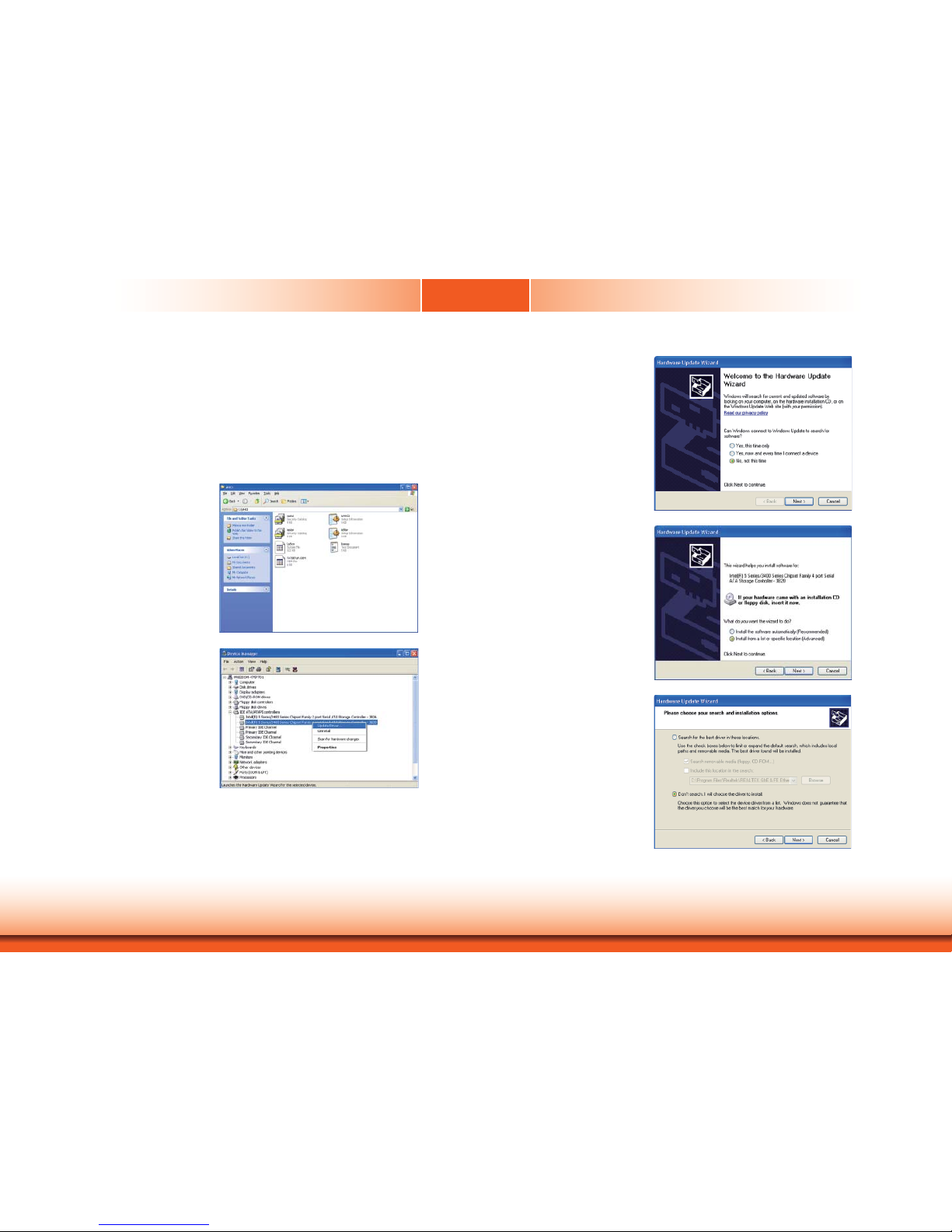

AHCI

The installation steps below will guide you in configuring your SATA drive to AHCI mode.

1. Enter the BIOS utility and configure the SATA controller to IDE mode.

2. Install Windows XP but do not press F6.

3. Download relevant RAID/AHCI driver files supported by the motherboard chipset from Intel’s website.

Transfer the downloaded

driver files to C:\AHCI.

4. Open Device Manager and right click on one of the Intel Serial ATA Storage Controllers, then select Update Driver.

If the controller you

selected did not work, try selecting another one.

5. In the Hardware Update Wizard dialog box, select “No, not this time” then click Next.

6. Select “Install from a

list or specific location (Advanced)” and then

click Next.

7. Select “Don’t search. I

will choose the driver to install” and then click Next.

Page 61

Appendix A

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

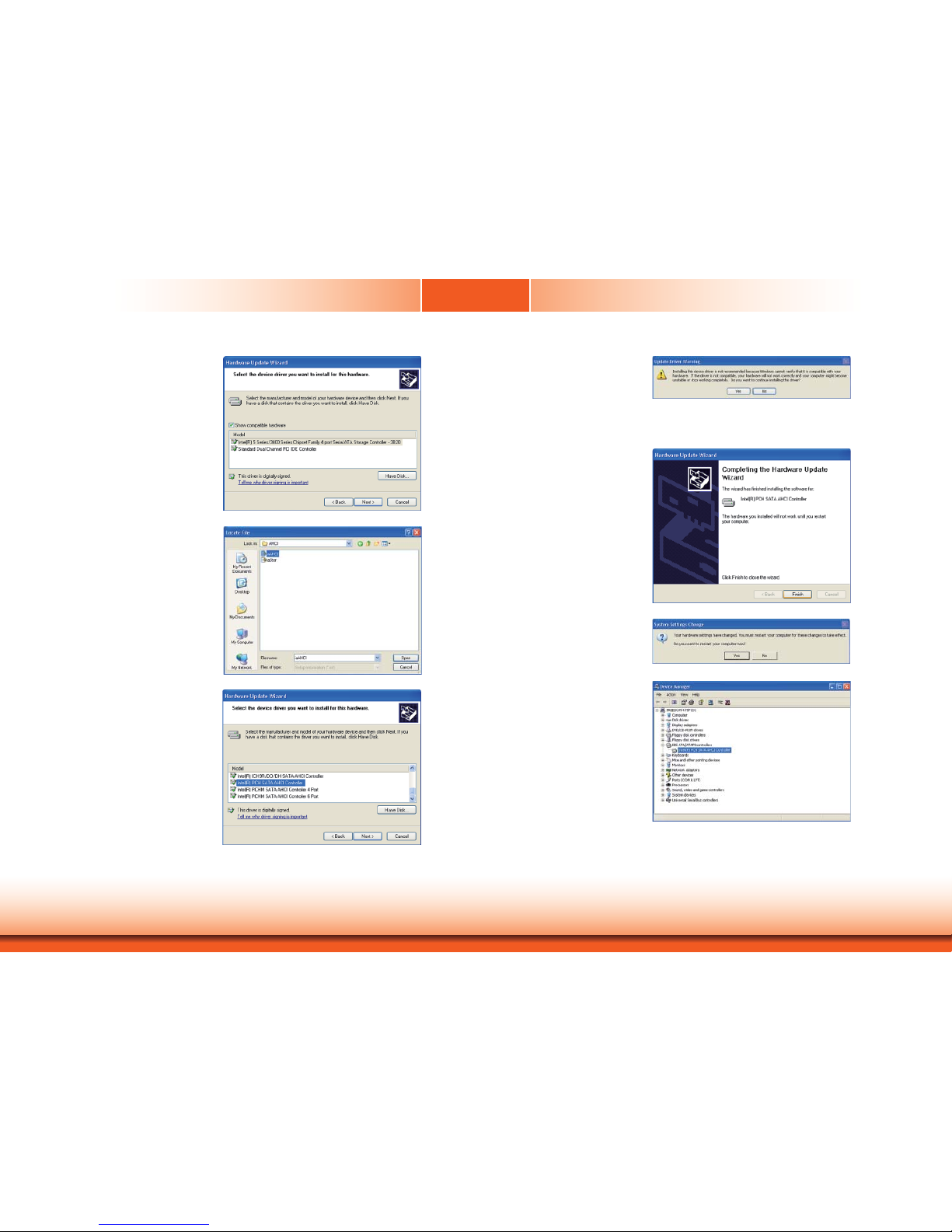

8. Click “Have Disk”.

9. Select C:\AHCI\iaAHCI.inf and then click Open.

10. Select the appropriate

AHCI Controller of your hardware device and then click Next.

11. A warning message appeared because the selected SATA controller did not match your hardware device.

Ignore the warning and

click Yes to proceed.

12. Click Finish.

13. The system’s settings have been changed. Windows XP requires that you restart the computer. Click Yes.

14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the SATA controller that is in AHCI mode.

Page 62

Appendix B

www.dﬁ .comAppendix B Watchdog Sample Code

Appendix B - Watchdog Sample Code

;Software programming example: ;---------------------------------------------

;(1) Enter Super IO Conﬁ guration mode ;--------------------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

;------------------------------------------------------------------------------------------;(2) Conﬁ guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------MOV DX,2EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL

MOV DX,2FH MOV AL,07H ;Select Logical Device 7 OUT DX,AL

MOV DX,2EH MOV AL, F6H ;Select watchdog timer register OUT DX,AL

MOV DX,2FH MOV AL,10H ;Set watchdog timer value OUT DX,AL

MOV DX,2EH MOV AL, F5H ;Select watchdog Control Register OUT DX,AL

MOV DX,2FH MOV AL,61H ;Set Watchdog Control Value OUT DX,AL

;---------------------------------------------------------------;(1) Exit extended function mode ;---------------------------------------------------------------MOV DX,2EH MOV AL,AAH OUT DX,AL

Page 63

Appendix C

www.dﬁ .comAppendix C System Error Message

Appendix C - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Important:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Page 64

Appendix D

www.dﬁ .comAppendix D Troubleshooting Checklist

Appendix D - Troubleshooting Checklist

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor ’s brightness control knob.

The picture seems to be constantly moving.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Page 65

Appendix D

www.dﬁ .comAppendix D Troubleshooting Checklist

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
