Page 1

KB160/KB161 Series

Mini-ITX Industrial Motherboard

User’s Manual

A30410450

Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 3

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B ..................................................... 2

About this Manual ..........................................................................................4

Warranty ............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

About the Package .........................................................................................5

Chapter 1 - Introduction ............................................................................. 6

Specifications ................................................................................................6

Features ..........................................................................................................7

Chapter 2 - Hardware Installation ................................................9

Board Layout ................................................................................................. 9

System Memory ............................................................................................ 9

Installing the DIMM Module ........................................................................ 10

Jumper Settings ......................................................................................... 11

Clear CMOS Data ........................................................................................ 11

Auto Power-on Select .................................................................................. 12

USB Power Select ....................................................................................... 12

Dimming Mode Select ................................................................................. 13

PS/2 Keyboard/Mouse Select ....................................................................... 13

Panel Power Select ..................................................................................... 14

Backlight Power Select ................................................................................ 14

LCD/Inverter Power Select .......................................................................... 15

SATA DOM Power Select ............................................................................. 15

Digital I/O Power Select .............................................................................. 16

Digital I/O Output State .............................................................................. 16

LVDS Channel and bpp Select ..................................................................... 17

Rear Panel I/O Ports .................................................................................18

12V DC-in (default) - KB161 Series .............................................................. 18

Graphics Interfaces ..................................................................................... 19

RJ45 LAN Ports ........................................................................................... 19

USB Ports ................................................................................................... 20

I/O Connectors ........................................................................................... 21

Digital I/O Connector .................................................................................. 21

Digital I/O Power Connector ........................................................................ 21

COM (Serial) Ports ...................................................................................... 21

SATA (Serial ATA) Connectors ...................................................................... 22

SATA (Serial ATA) Power Connectors - KB161 Series ..................................... 22

Cooling Fan Connectors...............................................................................23

Front Panel Connector ................................................................................ 23

LVDS LCD Panel Connector ......................................................................... 24

LCD/Inverter Power Connector .................................................................... 24

ATX Power Connector - KB160 Series .......................................................... 25

Chassis Intrusion Connector ........................................................................ 25

Expansion Slots .......................................................................................... 26

Installing an EXC Board into the EXC Interface for I/O Expansion ......................... 27

EXC Power Connector .................................................................................28

LAN LED Connector .................................................................................... 28

Standby Power LED ....................................................................................29

Battery ....................................................................................................... 29

Chapter 3 - BIOS Setup ............................................................... 30

Overview ..................................................................................................... 30

AMI BIOS Setup Utility ............................................................................. 31

Main .......................................................................................................... 31

Advanced ................................................................................................... 31

Chipset ...................................................................................................... 41

Boot........................................................................................................... 46

Security ...................................................................................................... 47

Save & Exit ................................................................................................48

Updating the BIOS .................................................................................... 48

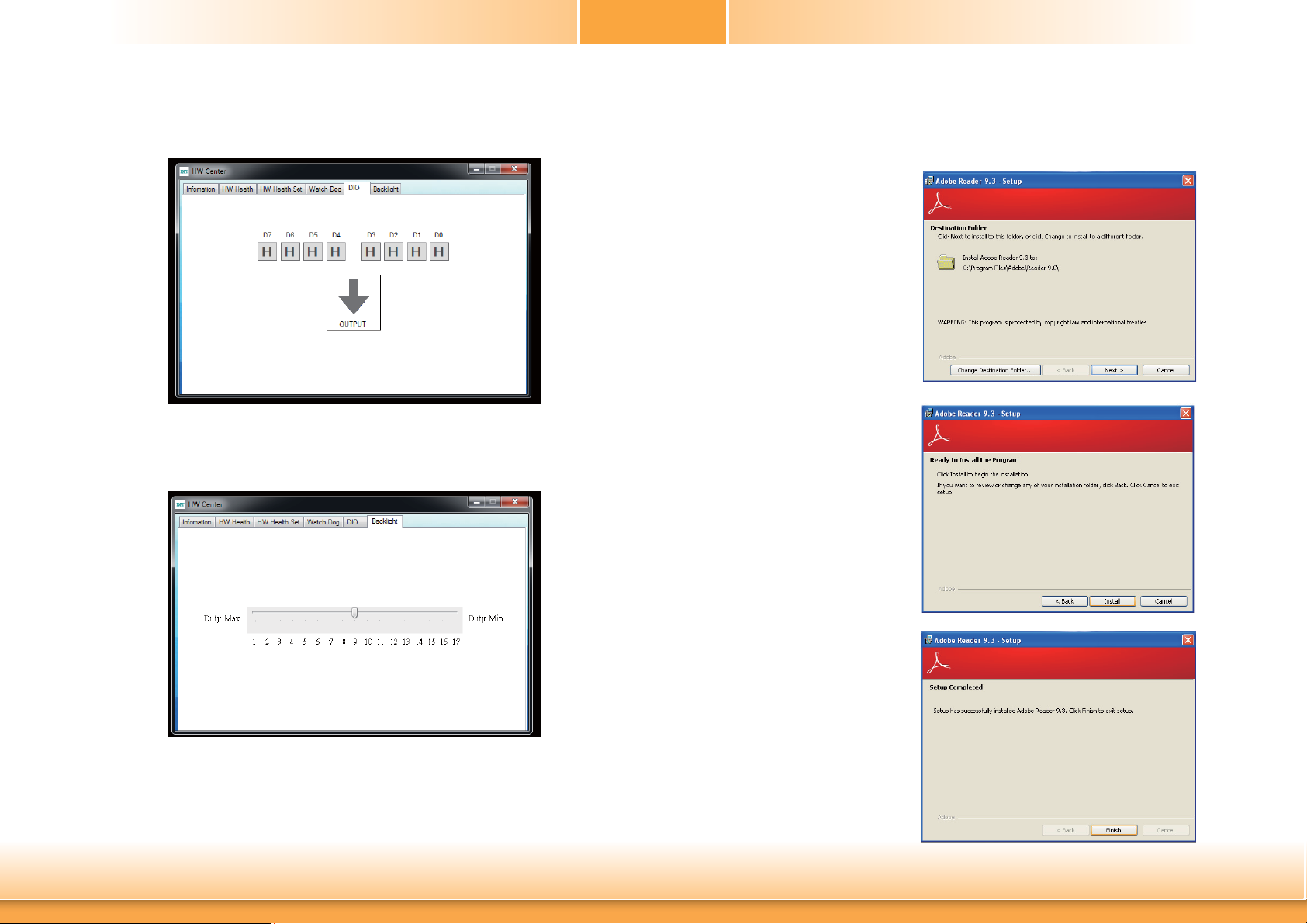

Chapter 4 - Supported Software ........................................................... 49

Chapter 5 - Digital I/O Programming Guide .................................... 57

Appendix A - Troubleshooting ................................................................ 59

Appendix B - Watchdog Sample Code ................................................ 65

Appendix C - System Error Message ................................................... 66

Appendix D - Troubleshooting ................................................................ 67

Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Page 5

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• One KB160/KB161 motherboard

• One Serial ATA data cable - KB160 Series

• One Serial ATA data with power cable - KB161 Series

• One DVD

• One QR (Quick Reference)

The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Optional Items

• USB port cable

• Serial ATA data cable

• Serial ATA data with power cable - KB161 Series

• Power adapter (100W, 12V) - KB161 Series

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 6

Chapter 1 - Introduction

Specifications

Processor

System Memory

Expansion Interfaces

Graphics

LAN

Serial ATA

Trusted Platform Module - TPM* (optional)

Rear Panel I/O Ports

• AMD® Embedded G-Series SoC FT3 BGA

- 420C: AMD

- 415G: AMD

- 217G: AMD

- 210H: AMD

• 28nm process technology

• Two 204-pin DDR3/DDR3L SODIMM sockets

• Supports DDR3/DDR3L 1066/1333/1600MHz

• Supports up to 8GB system memory

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3L DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• 1 PCIe x4 slot

• 1 DFI Proprietary Extension Bus for PCIe/PCI expansion

• 1 Mini PCIe slot

- Supports USB and PCIe signals

- Supports mSATA (optional)

- Supports full size Mini PCIe card

• 1 DFI EXC interface for I/O expansion

- 1 PCIe x1

- 1 High Deﬁ nition Audio

- 2 Serial ports

- 1 PS/2 keyboard/mouse

- 1 USB 2.0

- 1 SMBus

- 1 LPC

• AMD® HD 8000 Series Graphics

• Display ports: VGA, LVDS and DP

• VGA: resolution up to 2560x1600 @60Hz, 24-bit

• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz

• DP: supports DP++, resolution up to 4096x2160 @30Hz

• Supports hardware acceleration for DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC, VC-1 and WMV

• 2 Intel® I210 PCI Express Gigabit Ethernet controllers

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

- SATA port 1 provides adequate space for SATA DOM

- One multiplexed with mSATA (Mini PCIe)* (optional)

• Integrated Advanced Host Controller Interface (AHCI) controller

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

GX420CA, Quad Core, 2M Cache, 2.0GHz, 25W

GX415GA, Quad Core, 2M Cache, 1.5GHz, 15W

GX217GA, Dual Core, 1M Cache, 1.65GHz, 15W

GX210HA, Dual Core, 1M Cache, 1.0GHz, 9W

• 1 12V DC-in jack (default) or 4-pin power connector (optional) - KB161 Series

• 1 DB-15 VGA port

• 1 DP port

• 2 RJ45 LAN ports

• 2 USB 2.0/1.1 ports

• 2 USB 3.0 ports

Chapter 1

I/O Connectors

WatchDog Timer BIOS

Energy Efﬁ cient Design

Damage Free Intelligence

Temperature

Humidity Power

Consumption OS Support

• 1 connector for 2 external USB 2.0/1.1 ports

• 1 vertical USB 2.0/1.1 port* (optional)

• 4 connectors for 4 external serial ports (2.0mm pitch)

- 1 RS485

- 3 RS232

• 1 LVDS LCD panel connector

• 1 LCD/inverter power connector

• 1 8-bit Digital I/O connector

• 1 Digital I/O power connector

• 1 LAN LED connector

• 1 LPC connector

• 2 Serial ATA connectors

• 2 Serial ATA power connectors - KB161 Series

• 1 24-pin ATX power connector - KB160 Series

• 1 front panel connector

• 1 chassis intrusion connector

• 2 fan connectors

• Watchdog timeout programmable via software from 1 to 255 seconds

• AMI BIOS

- 32Mbit SPI BIOS

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse* (optional)

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• AC power failure recovery

• Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/12V/5V/DDR voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Operating: 0oC to 60oC

• Storage: -20

C to 85oC

• 5% to 95%

• TBD

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

Dimensions

• Mini-ITX form factor

• 170mm (6.7") x 170mm (6.7")

Note:

*Optional and is not supported in standard model. Please contact your sales representative for more information.

Chapter 1 Introduction www.dﬁ .com

Page 7

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

• DDR3L

DDR3L is a higher performance DDR3 DRAM interface providing less voltage and higher speed successor. DDR3L DRAM modules support 1066/1333/1600MHz for DDR modules. DDR3L delivers increased system bandwidth and improved performance to provide its higher bandwidth and its increase in performance at a lower power.

• Graphics

The integrated AMD® HD 8000 Series graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports

interfaces for 3 display outputs.

VGA, LVDS and

• PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per second (2 directions).

• Serial ATA

• Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCIe LAN card that uses the PCIe PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can poweron the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.

• RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the set date and time.

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by carrier board design.

• Gigabit LAN

Two Intel® I210 PCI Express Gigabit Ethernet controllers support up to 1Gbps data transmission.

• Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Chapter 1 Introduction www.dﬁ .comChapter 1 Introduction

• ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM

function

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows® without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Page 8

Chapter 1

• Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on automatically.

• USB

The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Chapter 1 Introduction www.dﬁ .com

Page 9

Chapter 2 - Hardware Installation

Board Layout

DC-in

USB 0-1

DisplayPort

VGA

LAN 1

LAN 2

+12V 4-pin power (optional)

USB 1

USB 0

USB 3.0

USB 2.0

DFI Proprietary Extension Bus

EXC

Power

19 20

EXC

PS/2 Keyboard/Mouse Power Select (JP5)

USB3.0 0-1 Power Select (JP11)

ISL62771

CPU Fan

PCIe x4

USB2.0 0-1 Power Select (JP13)

DDR3/DDR3L_1 SODIMM

DDR3/DDR3L_2 SODIMM

AMD

G-Series SoC

Mini PCIe

Chassis Intrusion

Dimming Mode

Select (JP10)

System Fan

LVDS LCD

PTN3460

LVDS Channel

and bpp Select

1 2

(SW1)

SPI Flash BIOS

Note: SATA1 supports SATA DOM.

USB 2-3 Power Select (JP12)

Clear CMOS Data (JP1)

210

COM 2

1 210

COM 3

1 210

COM 4

Backlight Power

LCD/Inverter

LCD/Inverter Power Select

(JP9)

Panel Power Select (JP8)

Panel

USB 2.0

USB 2-3

1122

210

COM 1

Select (JP7)

Power

125

Standby

Power LED

Buzzer

Digital I/O

SATA 3.0

910

SATA 0

LPC

Battery

12 24

ATX

Power

113

Front

Panel

Power

SATA 1

SATA DOM Power Select (JP6)

Chapter 2

Auto Power-on Select (JP2)

DIO 0-3 Output State (JP15)

DIO Power Select (JP14)

DIO 4-7 Output State (JP16)

SATA Power 0

SATA Power 1

LAN1 State LAN1 State LAN2 State LAN2 State

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

Important:

When the Standby Power LED lights red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

DDR3/DDR3L-1 DDR3/DDR3L-2

Rear I/O

Onboard I/O

Storage

Expansion

Features

Standby Power LED

Chapter 2 Hardware Installation

• Two 204-pin DDR3/DDR3L SODIMM sockets

• Supports DDR3/DDR3L 1066/1333/1600MHz

• Supports up to 8GB system memory

www.dﬁ .com

Page 10

Chapter 2

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

DIMMs are on the same channel.

Single Channel

Important:

If you are installing one DDR3/DDR3L SODIMM only, make sure that the SODIMM 2 socket must be populated first.

DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.

Not all slots need to be populated.

Installing the DIMM Module

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM socket on the system board.

4. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 11

Chapter 2

5. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

6. Push down the module until the clips at each end of the socket lock into position. You will

hear a distinctive “click”, indicating the module is correctly locked into position.

Clip

Jumper Settings

Clear CMOS Data

If you encounter the following,

JP1

1 2 3

1-2 On:

Normal (default)

1 2 3

2-3 On:

Clear CMOS Data

Chapter 2 Hardware Installation

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP1 pins 2 and 3 to On. Wait for a few seconds and set JP1 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

www.dﬁ .com

Page 12

Chapter 2

Auto Power-on Select

132

1-2 On: Power-on via power button (default)

JP2

JP2 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP2 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.

132

2-3 On: Power-on via AC power

USB Power Select

USB 2.0 0-1 (JP13)

USB 3.0 0-1 (JP11)

USB 2.0 2-3 (JP12)

JP11, JP12 and JP13 are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

132

1-2 On: +5V

(default)

132

2-3 On:

+5V_standby

When using the JP2 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker).

Chapter 2 Hardware Installation

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

www.dﬁ .com

Page 13

Chapter 2

Dimming Mode Select

JP10

1-2 On: PWM Mode

2-3 On: Voltage Mode

(default)

JP10 allows you to select the mode for the lightness control of the LVDS panel.

PS/2 Keyboard/Mouse Power Select

312

JP5

132

1-2 On: +5V

(default)

132

2-3 On:

+5V_standby

Important:

You need to refer to your panel’s user guide to determine the type of mode (PWM or Voltage) most appropriate for your panel.

Chapter 2 Hardware Installation

JP5 is used to select the power of the PS/2 keyboard/mouse port. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

Important:

1. The +5V_standby power source of your power supply must support ≥720mA.

2. JP5 will be used when an EXC board is installed into the EXC interface on the

motherboard for I/O expansion.

www.dﬁ .com

Page 14

Chapter 2

Backlight Power SelectPanel Power Select

JP8 is used to select the power supplied with the LCD panel.

Important:

Before powering-on the system, make sure that the power settings of JP8 match the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.

JP8

1-2 On: +12V

3-4 On:+5V

5-6 On: +3.3V

(default)

JP7

1-2 On: +3.3V (default)

JP7 is used to select the power level of backlight control: +3.3V (default) or +5V.

Important:

Before powering-on the system, make sure that the power settings of JP7 match the power specification of backlight control. Selecting the incorrect voltage will seriously damage the backlight.

1 2 3

2-3 On: +5V

Chapter 2 Hardware Installation

www.dﬁ .com

Page 15

Chapter 2

LCD/Inverter Power Select

JP9

JP9 is used to select the power level of the LCD/Inverter power connector.

1-2 On: +12V

2-3 On: +5V (default)

132

SATA DOM Power Select

1-2 On: GND (default) 2-3 On: +5V

SATA 1

JP6

3 2 1

Chapter 2 Hardware Installation

JP6 is used to select the power level of SATA DOM.

Note:

1. SATA port 1 provides adequate space for SATA DOM.

2. When SATA port 1 does not operate as the SATA DOM device, JP6 must be set to pins 1-2.

www.dﬁ .com

Page 16

Chapter 2

Digital I/O Power Select

JP14 is used to select the power of DIO (Digital I/O) signal.

JP14

3 2 1

1-2 On: +5V

3 2 1

2-3 On: +5V_standby

(default)

Digital I/O Output State

3 2

DIO 0-3 (JP15)

DIO 4-7 (JP16)

Based on the power level of DIO (Digital I/O) selected on JP14, JP15 (DIO pin 0-3) and JP16 (DIO pin 4-7) are used to select the state of DIO output: pull high or pull low. When selecting pull high, the power selection will be the same as JP14’s setting.

1-2 On: +5V or

+5V_standby

(default)

3 2 1

2-3 On: GND

Chapter 2 Hardware Installation

www.dﬁ .com

Page 17

LVDS Channel and bpp Select

Chapter 2

1 On: Single LVDS

SW1

The Switch 1 is used to select the LVDS channel and the color of bits per pixel on the system.

OFF

1 Off: Dual LVDS

2 On: VESA (24bpp)

2 Off: JEIDA or VESA

OFF

(18bpp)

Chapter 2 Hardware Installation

www.dﬁ .com

Page 18

Chapter 2

Rear Panel I/O Ports

DC-in

USB 3.0

The rear panel I/O ports consist of the following:

• 1 12V DC-in jack (default) or 4-pin power connector (optional) - KB161 Series

• 1 VGA port

• 1 DP port

• 2 RJ45 LAN ports

• 2 USB 2.0/1.1 ports

• 2 USB 3.0 ports

USB 2.0

DisplayPort

VGA

LAN 1 LAN 2

12V DC-in (default) - KB161 Series

DC-in

This jack provides maximum of 100W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter with 12V DC output voltage. Using a voltage higher than the recommended one may fail to boot the system or cause damage to the system board.

The 12V DC-in jack on the system board co-lays with a 4-pin power connector (optional) as the figure displayed below.

Chapter 2 Hardware Installation

4-pin power

+12V

DC-in jack

Ground

www.dﬁ .com

Page 19

Chapter 2

Graphics Interfaces

The display ports consist of the following:

• 1 VGA port

• 1 DisplayPort

DisplayPort

VGA

VGA Port

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

RJ45 LAN Ports

LAN 1

LAN 2

Features

• 2 Intel® I210 PCI Express Gigabit Ethernet controllers

The LAN ports allow the system board to connect to a local area network by means of a network hub.

LAN 1

LAN 2

DisplayPort

The DisplayPort is a digital display interface used to connect a display device such as a computer monitor. It is used to transmit audio and video simultaneously. The interface, which is developed by VESA, delivers higher performance features than any other digital interface.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

Chapter 2 Hardware Installation

BIOS Setting

Configure the onboard LAN in the Advanced menu of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

www.dﬁ .com

Page 20

Chapter 2

USB Ports

USB 3.0

USB 0 USB 1

USB 2.0

USB 1 USB 0

USB 2.0

N. C.

GND

+Data

-Data VCC

USB 2-3

Key GND

+Data

-Data VCC

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP11, JP12 and JP13 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in this chapter for more information.

Important:

These USB devices allow data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with two onboard USB 3.0 ports (USB 0-1) and two onboard USB 2.0 ports (USB 0-1). The 10-pin connector allows you to connect 2 additional USB 2.0 ports (USB 2-3). The additional USB port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 21

Chapter 2

I/O Connectors

Digital I/O Connector Digital I/O Power Connector

+5V

Digital I/O Power

Digital I/O

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Digital I/O Connector

5VSB Ground

+12V

COM (Serial) Ports

CTS-

DSR-

DTR-

RXD

2 1

TXD

GND

DCD-

COM 2/COM 3/COM 4:

RS232

COM 2

COM 3

RI-

COM 4

RTS-

COM 1: RS485

DATA-DATA+

NC.

2 1

TXD NC.

GND

NC.

Pins Function

2 3 4 5 6 7

Chapter 2 Hardware Installation

DIO7

DIO6

DIO5

DIO4

DIO3

DIO2

DIO1

DIO0

COM 1 is fixed at RS485 and COM 2 to COM 4 are fixed at RS232.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

BIOS Setting

Configure the serial COM ports in the Advanced menu (“NCT6106D Super IO Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information.

www.dﬁ .com

Page 22

Chapter 2

SATA (Serial ATA) Connectors

Features

• 2 Serial ATA 3.0 ports

- SATA0 and SATA1 ports with data transfer rate up to 6Gb/s

- One multiplexed with mSATA (Mini PCIe) (optional)

GND

TXP

TXN GND RXN

RXP GND

SATA 0

SATA 1

SATA 3.0 6Gb/s

(SATA port 1 provides adequate space for SATA DOM.)

SATA (Serial ATA) Power Connectors - KB161 Series

SATA Power 0

SATA Power 1

These SATA power connectors supply power to the SATA drive. Connect one end of the provided power cable to the SATA power connector and the other end to your storage device.

+12V

Ground Ground

+5V

• Integrated Advanced Host Controller Interface (AHCI) controller

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA data cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Configure the Serial ATA drives in the Advanced menu (“IDE Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Note:

SATA port 0 will not be populated on the system board while the Mini PCIe interface transmits the mSATA signal.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 23

Chapter 2

Cooling Fan Connectors

Sense

Power

Ground

Ground Power Sense

System Fan

CPU Fan

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The Advanced menu (“NCT6106D HW Monitor” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

Front Panel Connector

PWR-BTN

PWR-LED

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET-SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

RESET-SW

HDD-LED

Chapter 2 Hardware Installation

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

Pin Pin Assignment Pin Pin Assignment

HDD-LED

RESET-SW

3 HDD Power

5 Signal 4 LED Power

7 Ground 6 Signal

9 RST Signal

11 N.C. 10 Signal

PWR-LED

PWR-BTN

2 LED Power

8 Ground

www.dﬁ .com

Page 24

Chapter 2

LVDS LCD Panel Connector LCD/Inverter Power Connector

LCD/Inverter

power

4039

LVDS LCD Panel

The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel.

Refer to the right side for the pin functions of these connectors.

BIOS Setting

Configure the LCD panel in the Advanced/Chipset Features submenu of the BIOS. Refer to chapter 3 for more information.

LVDS LCD Panel Connector LCD/Inverter Power Connector

Pins Function Pins Function

GND

LVDS_Out3+

LVDS_Out3-

GND

LVDS_Out2+

LVDS_Out2-

GND

LVDS_Out1+

LVDS_Out1-

GND

LVDS_Out0+

LVDS_Out0-

GND

LVDS_CLK1+

LVDS_CLK1-

GND

LVDS_DDCCLK

LVDS_DDCDTA

Panel Power

8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40

GND

LVDS_Out7+

LVDS_Out7-

GND

LVDS_Out6+

LVDS_Out6-

GND

LVDS_Out5+

LVDS_Out5-

GND

LVDS_Out4+

LVDS_Out4-

GND

LVDS_CLK2+

LVDS_CLK2-

GND

N.C.

+3.3V

Panel Power

Pins Function

Panel Inverter Brightness Voltage Control

3 4 5 6 7 8

Panel Backlight On/Off Control

GND

Panel Power

+3.3V

LCD/Inverter Power

Note:

DFI board's LVDS connector: Hirose DF13-40DP-1.25V(91)/40P/1.25mm; cable side connector: Hirose DF13-40DS-1.25C.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 25

Chapter 2

ATX Power Connector - KB160 Series

12 24

ATX power

+3.3VDC

+12VDC +12VDC

+5VSB

PWR_OK

GND

+5VDC

GND

+5VDC

GND +3.3VDC +3.3VDC

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1.

GND +5VDC +5VDC +5VDC NC GND GND GND PS_ON# COM

-12VDC +3.3VDC

Chassis Intrusion Connector

Chassis

Intrusion

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

Ground

Signal

The system board requires a minimum of 300 Watt power supply to operate. Your system configuration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.

Important:

Insufficient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 26

Expansion Slots

Chapter 2

DFI Proprietary Extension Bus

Pins Pin Assignment Pins Pin Assignment

EXC

Mini PCI Express

PCI Express x4

DFI Proprietary Extension Bus

EXC Slot

The EXC interface is used to install an EXC board for I/O expansion.

Mini PCIe Slot

The Mini PCIe socket is used to install a half size Mini PCIe card. Mini PCIe card is a small form factor PCI card with the same signal protocol, electrical definitions, and configuration definitions as the conventional PCI. It supports PCIe and USB signals.

PCI Express x4 Slot

Install PCI Express cards such as network cards or other cards that comply to the PCI Express specifications into the PCI Express x4 slot.

A3 A4 A5 A6 A7 A8

A9 A10 A11 A12 A13 A14 A15 A16 A17 A18

GND

+12V

GND

+5V

+3V3

RESET-

GND

CLK+

CLK-

GND

RX+

RX-

GND

B3 B4 B5 B6 B7 B8

B9 B10 B11 B12 B13 B14 B15 B16 B17 B18

+12V

GND

SMB_CLK

SMB_DATA

GND

+3V3

+3VDU

PCIE_WAKE-

PME-

GND

TX+

TX-

GND

PCIECLKRQ-

GND

DFI Proprietary Extension Bus

The DFI Proprietary Extension Bus gold finger is used for customized expansion (PCI or Mini PCIe) via a riser card.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 27

Chapter 2

Installing an EXC Board into the EXC Interface for I/O Expansion

Note:

The system board used in the following illustrations may not resemble the actual one. These illustrations are for reference only.

The EXC board is designed for each customer to expand the I/O capability via the EXC interface.

EXC Board

1 PCIe x1 1 DDI 1 High Definition Audio 2 Serial COM ports 1 PS/2 Keyboard/Mouse 1 USB 2.0 1 SMBus

1 LPC

1. The EXC interface on the EXC board.

2. The EXC interface on the motherboard.

Motherboard

EXC interface

3. Insert the EXC board into the EXC interface on the motherboard for I/O expansion as the photo illustrated below.

Power connector

Chapter 2 Hardware Installation

EXC board

Motherboard

Height: 20mm

EXC interface

www.dﬁ .com

Page 28

Chapter 2

EXC Power Connector

19 20

The EXC power connector provides the power supplement for an EXC card to operate when the EXC card is installed into the EXC interface. The pin functions of the EXC power connector are listed below.

EXC power

LAN LED Connector

LAN 1 State LAN 1 State LAN 2 State LAN 2 State

Pins Pin Assignment Pins Pin Assignment

+12V

GND

+5V

GND

+3.3V

GND

+12V

GND

+12V_IN

GND

Chapter 2 Hardware Installation

The LAN LED connector is used to detect the connection state of RJ45 LAN ports when the connection is made to an active network via a cable. The pin functions of the LAN LED connector are listed below.

Pins Pin Assignment Pins Pin Assignment

Link Activity

GLED_LED_1000-

Link Activity

GLED_LED_1000-

+3V_standby

GLED_LED_100-

+3V_standby

GLED_LED_100-

www.dﬁ .com

Page 29

Chapter 2

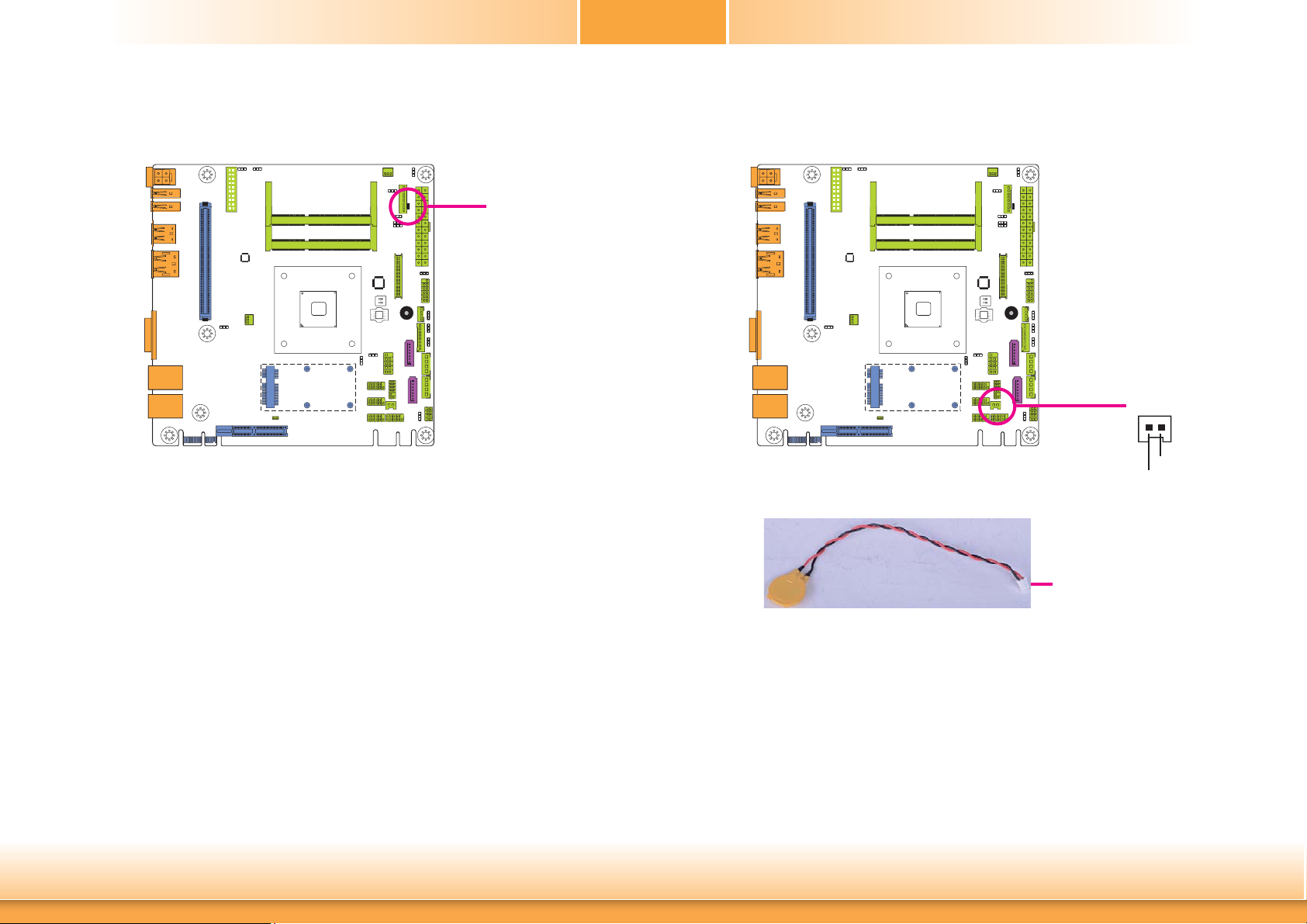

Standby Power LED

This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Battery

GND

+3.3V

Chapter 2 Hardware Installation

Connect to the

Battery

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance

battery connector

www.dﬁ .com

Page 30

Chapter 3

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Legends

Keys Function

Right and Left arrows

Up and Down arrows

<Esc>

+ (plus key)

- (minus key) Tab

<Enter>

Moves the highlight left or right to select a menu.

Moves the hightlight up or down between submenu or ﬁ elds.

Exit to the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted ﬁ eld.

Scrolls backward through the values or options of the highlighted ﬁ eld.

Select a ﬁ eld.

Displays general help

Pervious values

Optimized defaults

Saves and resets the setup program.

Press <Enter> to enter the highlighted submenu.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Chapter 3 BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

www.dﬁ .com

Page 31

Chapter 3

AMI BIOS Setup Utility Advanced Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

BIOS Information BIOS Vendor Build Date and Time

Memory Information Total Memory

System Language

System Date System Time

Access Level

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

Advanced

Boot Security

American Megatrends 04/01/2014 10:09:58

8192 MB (DDR3)

[English]

[Mon 01/03/2011] [22:36:55]

Administraor

Save & ExitChipset

Choose the system default language

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect field values may cause the system to malfunction.

Main



ACPI Settings



Trusted Computing



DFI Wakeup Conﬁ guration



CPU Conﬁ guration



DDR3 Voltage Setting



IDE Conﬁ guration



USB Conﬁ guration



NCT6106D Super IO Conﬁ guration



NCT6106D HW Monitor



NCT6102D Super IO Features



Network Stack



Intel(R) I210 Gigabit Network Connection - 00:01:29:53:......



Intel(R) I210 Gigabit Network Connection - 00:01:29:53:......

Advanced

Save & ExitChipset Boot Security

System ACPI Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 32

Chapter 3

ACPI Settings

This section is used to configure the ACPI settings.

Advanced

ACPI Settings

Enable ACPI Auto Conﬁ guration

Enable Hibernation ACPI Sleep State

[Disabled]

[Enabled] [S3 only (Suspend to...)]

Enables or disables BIOS ACPI Auto Conﬁ guration.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable Hibernation

When this function is enabled, the system will enter the hibernate mode (OS/S4 sleep state). This function is not applicable to some OS.

ACPI Sleep State

Trusted Computing

This section configures settings relevant to Trusted Computing innovations.

Advanced

Conﬁ guration Security Device Support

Current Status Information SUPPORT TURNED OFF

[Disable]

Enables or Disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Security Device Support

This field is used to enable or disable BIOS supporting for the security device. O.S will not show the security device. TCG EFI protocol and INT1A interface will not be available.

Selects the ACPI sleep state and the system will enter when the Suspend button is pressed.

S3(STR) Enables the Suspend to RAM function.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 33

Chapter 3

DFI Wakeup Configuration

This section is used to configure the DFI Wakeup ACPI power management.

Advanced

DFI Wakeup ACPI Power Management Conﬁ guration

Resume by PME

Resume by USB

[Disabled]

About Resume by PME (PCI, PCIE, LAN).

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Resume by PME

Enable this field to use the PME signal to wake up the system.

Resume by USB

When Enabled, this system uses the USB signal to carry out a wakeup event.

CPU Configuration

This section is used to configure the CPU. It will also display the detected CPU information.

Advanced

CPU Conﬁ guration Module Version: 4.6.5.3 KabiniPI 018

AGESA Version: 1.0.0.8

NX Mode

SVM Mode Core Leveling Mode



Node 0 Information

[Enabled]

[Enabled] [Automatic mode]

Enable/disable No-execute page protection function.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

SVM Mode

Enables or disables the CPU virtualization.

Core Leveling Mode

Changes the number of cores in the system.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 34

Chapter 3

Node 0 Information

This field only displays the memory infomation related to Node 0.

Advanced

Socket0: AMD GX-415GA SOC with Radeon(tm) HD Graphics Quad Core Running @ 1520 MHz 1050mV Max Speed: 1500MHz Intended Speed: 1500MHz Min Speed: 800MHz Microcode Patch Level: 700010b

------------ Cache per Compute Unit -----------------------L1 Instruction Cache: 128 KB/2-way L1 Data Cache: 128 KB/8-way L2 Cache: 2048 KB/16-way No L3 Cache Present

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

DDR3 Voltage Setting

This section is used to select the DDR3 voltage setting.

Advanced

DDR3 Voltage setting

[1.5V]

DDR3 Voltage Setting

This field is used to select the DDR3 voltage: 1.5V, 1.35V or 1.25V.

DDR3 Voltage setting.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Chapter 3 BIOS Setup

www.dﬁ .com

Page 35

Chapter 3

IDE Configuration

This section is used to configure IDE devices.

Advanced

IDE Conﬁ guration SATA Port0

SATA Port1

Not present Not present



Select Screen



Select Item

Enter:

Select

+/-:

Change Opt.

F1:

General Help

F2:

Previous Values

F3:

Optimized Defaults

F4:

Save & Reset

ESC:

Exit

USB Configuration

This section is used to configure the USB parameters.

Advanced

USB Conﬁ guration USB Module Version USB Devices:

1 Keyboard, 1 Mouse

Legacy USB Support

EHCI Hand-off USB Mass Storage Driver Support

8.10.27

[Enabled]

[Disabled] [Enabled]

Legacy USB Support

Enabled

Enables legacy USB. Auto

Disables support for legacy when no USB devices are connected. Disabled

Keeps USB devices available only for EFI applications.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI application.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Chapter 3 BIOS Setup

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver Support

Enables or disables the USB Mass Storage Driver support.

www.dﬁ .com

Page 36

Chapter 3

NCT6106D Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

NCT6106D Super IO Conﬁ guration NCT6106D Super IO Chip



Serial Port 0 Conﬁ guration



Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration



Serial Port 3 Conﬁ guration

NCT6106D

Sets Parameters of Serial Port 0 (COMA).

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Serial Port 0 Configuration to Serial Port 3 Configuration

Sets the parameters of serial port 0 (COM A) and serial port 1 (COM D).

Advanced

Serial Port 0 Conﬁ guration

Serial Port

Device Settings

Change Settings RS485 Auto ﬂ ow support

Advanced

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto] [Disable]

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

Enable or Disable Serial Port (COM)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or Disable Serial Port (COM)

Chapter 3 BIOS Setup

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

www.dﬁ .com

Page 37

Advanced

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

Serial Port 3 Conﬁ guration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=10;

[Auto]

[Enabled]

IO=2E8h; IRQ=11;

[Auto]

Enable or Disable Serial Port (COM)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or Disable Serial Port (COM)

Chapter 3

NCT6106D HW Monitor

This section displays the monitor hardware status.

Advanced

PC Health Status

Smart Fan Function

SYS Temperature CPU Temperature SysFan Speed CPUFan Speed VCORE APU VDDNB DDR3 Voltage +12V

[Disabled]

: +31.5 C : +38.0 C : N/A : +6750 RPM : +1.040 V : +0.944 V : +1.504 V : +12.144 V

Enable or disable Smart Fan

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

RS485 Auto Flow Support

Enables or disables the auto flow support.

Serial Port

Enables or disables the serial port (COM).

Change Settings

Selects the IO/IRQ setting of the I/O device.

Chapter 3 BIOS Setup

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

www.dﬁ .com

Page 38

Chapter 3

Smart Fan Mode Configuration

When the smart fan is enabled, the smart fan mode will be selected.

Advanced

PC Health Status

Smart Fan Function



Smart Fan Mode Conﬁ guration

SYS Temperature CPU Temperature SysFan Speed CPUFan Speed VCORE APU VDDNB DDR3 Voltage +12V

Advanced

Smart Fan Mode Conﬁ guration

System Fan Mode

SysFan Temp Target SysFan Temp Tolerance

CPU Fan Mode CPUFan Target Temp CPUFan Tolerance

[Enabled]

: +32.0 C : +38.0 C : N/A : +6617 RPM : +1.040 V : +0.944 V : +1.504 V : +12.144 V

[Thermal CruiseTM Mode]

55 3

[Thermal CruiseTM Mode] 55 3

Smart Fan Mode Select

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Smart Fan Mode Select

System Fan Mode

Selects the system fan’s mode.

SysFan Temp Target

This field is used to enter the target value of the system fan’s temperature.

SysFan Temp Tolerance

This field is used to enter the tolerance value of the system fan’s temperature.

CPU Fan Mode

Selects the CPU fan’s mode.

CPUFan Target Temp

This field is used to enter the target value of the CPU’s temperature.

CPUFan Tolerance

This field is used to enter the tolerance value of the CPU’s temperature.

Chapter 3 BIOS Setup

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

www.dﬁ .com

Page 39

Chapter 3

NCT6102D Super IO Features

This section configures some control function.

Advanced

NCT6102D Super IO Features

Power-Loss State

Case Open Warning WatchDog Count Mode WatchDog TimeOut Value

[Keep last state]

[Disabled] [Second] 0

Control the status when Power loss occurs

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Power-Loss State

Controls the status when the power loss occurs.

Always Off

When power returns after an AC power failure, the system’s power is off. You must

press the Power button to power-on the system.

Always On

When power returns after an AC power failure, the system will automatically power-on.

Network Stack

Advanced

Network Stack

Enables or disables UEFI network stack.

Advanced

Network Stack

Ipv4 PXE Support

Ipv6 PXE Support PXE boot wait time

[Enabled]

[Enabled] [Enabled] 0

Enable or disable UEFI network stack.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Enable or disable UEFI network stack.

Keep Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Case Open Warning

Enables or disables the function of the case open warning.

WatchDog Count Mode

Selects the watchdog count mode: second or minute.

WatchDog TimeOut Value

Fills the watchdog timeout value. 0 means disabled.

Chapter 3 BIOS Setup

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

www.dﬁ .com

Page 40

Chapter 3

Ipv4 PXE Support

When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be created.

Ipv6 PXE Support

When enabled, Ipv6 PXE boot supports. When disabled, Ipv6 PXE boot option will not be created.

PXE boot wait time

Enters the wait time to press ESC key to abort the PXE boot.

Intel(R) I210 Gigabit Network Connection - 00:01:29:53:...

This section is used to configure the parameters of Gigabit Ethernet device.

Advanced

Click to conﬁ gure the

PORT CONFIGURATION MENU



NIC Conﬁ guration

Blink LEDs (range 0-15 seconds)

PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID PCI Bus: Device: Function:

Link Status Factory MAC Address:

Alternate MAC Address:

Intel(R) 1GbE DEV 5.1.00 001300-000 Intel i210 1533 2:0:0

[Disconnected]

00:01:29:53:86:9F

network device port.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

NIC Configuration

This field is used to configure the network device.

Blink LEDs

Blink LEDs for the specified duration (up to 15 seconds).

Chapter 3 BIOS Setup

Link Status

This field indicates the link status of the network device.

Alternate MAC Address

Alternates assigned MAC address of Ethernet port.

www.dﬁ .com

Page 41

Chapter 3

Intel(R) I210 Gigabit Network Connection - 00:01:29:53:...

This section is used to configure the parameters of Gigabit Ethernet device.

Advanced

Click to conﬁ gure the

PORT CONFIGURATION MENU



NIC Conﬁ guration

Blink LEDs (range 0-15 seconds)

PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID PCI Bus: Device: Function:

Link Status Factory MAC Address:

Alternate MAC Address:

Intel(R) 1GbE DEV 5.1.00 001300-000 Intel i210 1533 3:0:0

[Disconnected]

00:01:29:53:86:9E

network device port.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

NIC Configuration

This field is used to configure the network device.

Blink LEDs

Blink LEDs for the specified duration (up to 15 seconds).

Chipset

This section configures relevant chipset functions.

Main



GFx Conﬁ guration



South Bridge



North Bridge



North Bridge LVDS Conﬁ g Select

Advanced

Chipset

Boot Security

Save & Exit

GFx Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Link Status

This field indicates the link status of the network device.

Alternate MAC Address

Alternates assigned MAC address of Ethernet port. .

Chapter 3 BIOS Setup

www.dﬁ .com

Page 42

Chapter 3

GFx Configuration

This section is used to set the GFx configuration.

Chipset

GFx Conﬁ guration

Primary Video Device

Integrated Graphics

[NB PCIe Slot Video]

[Auto]

Primary Video Device

Select the primary video device: IGD Video or NB PCIe Slot Video.

Integrated Graphics

Enables the integrated graphics controller.

Selects Primary Video Device. That BIOS will use to for output.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

South Bridge

This section is used to configure the parameters of South Bridge.

Main



SB SATA Conﬁ guration



SB USB Conﬁ guration



SB HD Azalia Conﬁ guration

Advanced

Chipset

Boot Security

Save & Exit

Options for SATA Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Chapter 3 BIOS Setup

www.dﬁ .com

Page 43

Chapter 3

SB SATA Configuration

This field configures options for SATA devices.

Chipset

OnChip SATA Channel

OnChip SATA Type

[Enabled]

[Native IDE]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

OnChip SATA Type

Seletcs the onchip SATA type: Native IDE, AHCI or Legacy IDE.

SB USB Configuration

This field configures options for SB USB devices.

Chipset

XHCI Controller 0

OHCI HC (Bus 0 Dev 18 Fn 0) EHCI HC (Bus 0 Dev 18 Fn 2) OHCI HC (Bus 0 Dev 19 Fn 0) EHCI HC (Bus 0 Dev 19 Fn 2)

USB Port 0 USB Port 1 USB Port 2 USB Port 3

USB3.0 Port 0 USB3.0 Port 1

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled]

[Enabled] [Enabled]

XHCI Enable Help

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

OHCI HC

Enables or disables the OHCI HC.

EHCI HC

Enables or disables the EHCI HC.

USB Port 0/1/2/3

Chapter 3 BIOS Setup

Enables or disables the USB port.

USB3.0 Port 0/1

Enables or disables the USB 3.0 port.

www.dﬁ .com

Page 44

Chapter 3

SB HD Azalia Configuration

This field configures options for the SB HD Azalia device.

Chipset

HD Audio Azalia Device

[Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

North Bridge

This section is used to configure the parameters of North Bridge.

Main

North Bridge Conﬁ guration

Memory Clock

Memory Clear Memory ECC Feature

Memory Information Memory Clock: 667MHz Total Memory: 8192MB (DDR3)



Memory Conﬁ guration



Socket 0 Information

Advanced

Chipset

Boot Security

[Auto]

[Cleared] [Enabled]

Save & Exit

This option allows user to select different memory clock. Default value is 800MHz.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Memory Clock

This field allows users to select different memory clock. Default value is 800MHz.

Memory Clear

Controls the memory clear functionality.

Chapter 3 BIOS Setup

Memory ECC Feature

Enables or disables the memory ECC feature.

www.dﬁ .com

Page 45

Chapter 3

Memory Configuration

This field configures options for the memory device.

Chipset

Memory Conﬁ guration

Memory Hole Remapping

Memory Hole 15MB-16MB

[Enabled]

[Disabled]

Memory Hole 15MB-16MB

Memory Hole 15MB-16MB for some ISA expansion cards.

Memory Hole Remapping

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Socket 0 Information

This field only displays the information related to the socket 0.

Chipset

Socket 0 Information Starting Address: 0KB

Ending Address: 8388607KB Dimm1: size = 4096MB, Speed = 800MHz

Dimm2: size = 4096MB, Speed = 800MHz

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Chapter 3 BIOS Setup

www.dﬁ .com

Page 46

Chapter 3

North Bridge LVDS Config Select

This field specifies INT15 options for LVDS.

Chipset

Specify INT15 options for LVDS

LVDS Panel Conﬁ g Select

[LVDS option 1 800x6...]

LVDS Panel Conﬁ g Select LVDS Option 1 LVDS Option 2 LVDS Option 3 LVDS Option 4 LVDS Option 5 LVDS Option 6 LVDS Option 7 LVDS Option 8 LVDS Option 9

800x600 1024x768 1280x720 1280x800 1280x1024 1366x768 1440x900 1600x900 1920x1080

LVDS Panel Config Select

Selects the LVDS panel type.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Boot

Main

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

Boot Option Priorities



CSM Parameters

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Advanced

Boot

[On] [Disabled]

Security

Save & ExitChipset

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Chapter 3 BIOS Setup

Quiet Boot

Enables or disables the quiet boot function.

www.dﬁ .com

Page 47

Chapter 3

CSM Parameters

Launch CSM

Boot option ﬁ lter

Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy

Other PCI device ROM priority

Boot

[Enabled]

[UEFI and Legacy] [Do not launch] [Do not launch] [Legacy only]

[UEFI OpROM]

Launch CSM

This option controls if CSM will be launched.

Boot option filter

This option controls what devices system can boot to.

Launch PXE OpROM policy

This option controls if CSM will be launched.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Security

Main

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Sets the administrator’s password.

User Password

Sets the user’s password.

Advanced

Boot Security

Save & ExitChipset

Set Administrator Password.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Controls the execution of UEFI and legacy PXE OpROM.

Launch Storage OpROM policy

Controls the execution of UEFI and legacy storage OpROM.

Launch Video OpROM policy

Controls the execution of UEFI and legacy video OpROM.

Other PCI device ROM priority

For PCI devices other than Network. Mass storage or Video defines which OpROM to launch.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 48

Chapter 3

Save & Exit

Main

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore as User Defaults

Boot Override

Launch EFI Shell from ﬁ lesystem device

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Advanced

Chipset

Boot Security Save & Exit

Reset the system after saving the changes.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

| |

+--------------------------------------------------------------------------------------------------------+

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

AMI Firmware Update Utility(APTIO) v2.25

done done done done done done done

| |

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Save as User Defaults

To save changes done so far as user default, select this field and then press <Enter>. A dialog box will appear. Select Yes to save values as user default.

Restore User Defaults

To restore user default to all the setup options, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore user default.

Launch EFI Shell from filesystem device

Attempts to launch EFI shell application (Shellx64.efi) from one of the available filesystem devices.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 49

Chapter 4 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Chapter 4

AMD Embedded GPU and Chipset Software Installation Utility

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

For Windows 7/8

To install the driver, click “AMD Embedded GPU and Chipset Software Installation Utility” on the main menu.

1. Under the Language Support section, select the language you would like the installation to display and then click Next.

2. Click Install to begin the installation.

Chapter 4 Supported Software

www.dﬁ .com

Page 50

Chapter 4

3. Click Express and then click Next.

4. After completing installation, click Finish.

Intel LAN Driver

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Install Drivers and Sofeware.

2. Setup is now ready to install the LAN driver. Click Next.

Chapter 4 Supported Software

3. Click “I accept the terms in the license agreement” then click Next

www.dﬁ .com

Page 51

Chapter 4

4. Select the program featuers you want installed then click Next.

5. Click Install to begin the installation.

Realtek Audio Driver (optional)

To install the driver, click “Realtek Audio Driver (optional)” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

6. After completing installation, click Finish.

Chapter 4 Supported Software

www.dﬁ .com

Page 52

Chapter 4

TPM Driver and Tools (optional)

To install the driver, click “TPM driver and tools (optional)” on the main menu.

1. The setup program is preparing

to install the driver.

2. The setup program is now ready

to install the utility. Click Next.

4. Enter the necessary information and then click Next.

5. Select a setup type and then click Next.

3. Click “I accept the terms in the license agreement” and then click “Next”.

Chapter 4 Supported Software

6. Click Install.

www.dﬁ .com

Page 53

Chapter 4

7. TPM requires installing the Microsoft Visual C++ package prior to installing the utility. Click Install.

8. The setup program is currently installing the Microsoft Visual C++ package.

10. Click “Yes“ to restart your system.

9. Click Finish.

Chapter 4 Supported Software

www.dﬁ .com

Page 54

Chapter 4

DFI Utility

DFI Utility provides information about the board, HW Health, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.

Note:

If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.

1. Setup is ready to install the DFI

Utility drifer. Click “Next”.

2. Click “I accept the terms in the

license agreement” then click

“Next”

3. Enter “User Name” and “Organization” information then click

“Next”

4. Click Install to begin the installation.

Chapter 4 Supported Software

5. After completing installation, click Finish.

www.dﬁ .com

Page 55

The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.

Chapter 4

Information

HW Health

HW Health Set

WatchDog

Chapter 4 Supported Software

www.dﬁ .com

Page 56

DIO

Chapter 4

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

Chapter 4 Supported Software

3. Click Finish to exit installation.

Backlight

www.dﬁ .com

Page 57

Chapter 5

Chapter 5 - Digital I/O Programming Guide Register Description

The Input Port Register (register 0) reflects the incoming logic levels of the pins, regardless of whether the pin if defined as an input or output by the Configuration Register. They act only on the red operation. Writes to this register have no effect. The default value (X) is determined by the externally applied logic level. Before a red operation, a write transmission is sent with the command byte to indicate to the I accessed next.

BIT I-7 I-6 I-5 I-4 I-3 I-2 I-1 I-0 DEFAULT

The Onput Port Register (register 1) shows the outgoing logic levels of the pins defined as outputs by the Configuration Register. Bit values in this register have no effect on pins defined as inputs. In turns, reads from this register reflect the value that is in the flip-flop contolling the output selection, not the actual pin value.

XXXX X XXX

C device that the Input Port Regiser will be

The Configuration Register (register 3) configures the direction of the I/O pins. If a bit in this register is set to 1, the corresponding port pin is enabled as an input with a high-impedence output driver. If a bit in this register is cleared to 0, the corresponding port is enabled as an input.

BIT C-7 C-6 C-5 C-4 C-3 C-2 C-1 C-0 DEFAULT

1111 1 111

BIT O-7 O-6 O-5 O-4 O-3 O-2 O-1 O-0 DEFAULT

The Polarity Inversion Register (register 2) allows polarity inversion of the pins defined as inputs by the Configuration Register. If a bit in this register is set (written with 1), the corresponding port pin’s polarity is inverted. If a bit in this register is clear (written with a 0), the corresponding port pin’s original polarity is retained.

BIT N-7 N-6 N-5 N-4 N-3 N-2 N-1 N-0 DEFAULT

1111 1 111

0000 0 000

Chapter 5 Digital I/O Programming Guide

www.dﬁ .com

Page 58

Chapter 5

Function Description

I2CWriteByte(SlaveAddr, SubAddr, Data): Write a Byte data to a specified I2C Device.

I2CReadByte(SlaveAddr, SubAddr, *Data): Read a Byte data from a specified I2C Device.

SetBit(*Data, Bit) : Set Data bit n as “1”.

ClrBit(*Data, Bit) : Set Data bit n as “0”.

GetBit(Data, Bit) : Return the value of data bit n.

Sample Code

GPIO Configuration

#deﬁ ne SLAVE_ADDR #deﬁ ne INPUT_PORT

#deﬁ ne OUTPUT_PORT #deﬁ ne INVERSION_PORT #deﬁ ne COMFIG_PORT

GpioConﬁ g(int PinNum, int Mode) { BYTE Data; BYTE TempPinNum = PinNum%8;

//Pin0-7 Input/Output Conﬁ guration I2C_ReadByte(SLAVE_ADDR, CONFIG_PORT, &Data); if(Mode == 1){SetBit(&Data, TempPinNum);} //Input else {ClrBit(&Data, TempPinNum);} //Output I2C_WriteByte(SLAVE_ADDR, CONFIG_PORT, Data);

return 1;

0x42 (Motherboard) 0x40 (EXC interface for I/O expansion) 0x00 0x01 0x02 0x03

GPIO Output Process

#deﬁ ne SLAVE_ADDR #deﬁ ne INPUT_PORT #deﬁ ne OUTPUT_PORT #deﬁ ne INVERSION_PORT #deﬁ ne COMFIG_PORT

GpioOut(int PinNum, int Level) { BYTE Data; BYTE TempPinNum = PinNum%8;

//Pin0-7 I2C_ReadByte(SLAVE_ADDR, OUTPUT_PORT, &Data); if(Level == 0){ClrBit(&Data, TempPinNum);} else {SetBit(&Data, TempPinNum);} I2C_WriteByte(SLAVE_ADDR, OUTPUT_PORT, Data);

return 1;

0x42 (Motherboard) 0x40 (EXC interface for I/O expansion) 0x00 0x01 0x02 0x03

GPIO Iutput Process

#deﬁ ne SLAVE_ADDR #deﬁ ne INPUT_PORT

#deﬁ ne OUTPUT_PORT #deﬁ ne INVERSION_PORT #deﬁ ne COMFIG_PORT

GpioIn(int PinNum, int *Status) { BYTE Data; BYTE Group = PinNum/8; BYTE TempPinNum = PinNum%8;

//Pin0-7 I2C_ReadByte(SLAVE_ADDR, INPUT_PORT, &Data); *Status = GetBit(Data, TempPinNum);

return 1;

0x42 (Motherboard) 0x40 (EXC interface for I/O expansion) 0x00 0x01 0x02 0x03

Chapter 5 Digital I/O Programming Guide

www.dﬁ .com

Page 59

Appendix A

Appendix A - NLITE and AHCI Installation Guide

nLite

nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.

Note:

The installation steps below are based on nLite version 1.4.9. Installation procedures may slightly vary if you’re using another version of the program.

1. Download the program from nLite’s offical website.

http://www.nliteos.com/download.html

2. Install nLite.

4. Insert the XP installation

disc into an optical drive.

5. Launch nLite. The Welcome

screen will appear. Click

Next.

Important:

Due to it’s coding with Visual.Net, you may need to first install .NET Framework prior to installing nLite.

3. Download relevant RAID/AHCI driver files from Intel’s website. The drivers you choose will depend on the operating system and chipset used by your computer.

The downloaded driver files

should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor. inf, IaStor.sys, license.txt and TXTSETUP.OEM.

6. Click Next to temporarily save the Windows installation files to the designated default folder.

If you want to save them

in another folder, click Browse, select the folder and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 60

Appendix A

7. Click Next.

8. In the Task Selection dialog box, click Drivers and Bootable ISO. Click Next.

9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next.

10. Select only the drivers ap-

propriate for the Windows version that you are using and then click OK.

Integrating 64-bit drivers

into 32-bit Windows or vice versa will cause file load errors and failed installation.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 61

Appendix A

11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click OK.

12. Click Next.

13. The program is currently integrating the drivers and applying changes to the installation.

14. When the program is finished applying the changes, click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 62

Appendix A

15. To create an image, select the Create Image mode under the General section and then click Next.

16. Or you can choose to burn it directly to a disc by selecting the Direct Burn mode under the General section.

Select the optical device

and all other necessary settings and then click Next.

17. You have finished customizing the Windows XP installation disc. Click Finish.

Enter the BIOS utility to

configure the SATA controller to RAID/AHCI. You can now install Windows XP.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 63

Appendix A

AHCI

The installation steps below will guide you in configuring your SATA drive to AHCI mode.

1. Enter the BIOS utility and configure the SATA controller to IDE mode.

2. Install Windows XP but do not press F6.

3. Download relevant RAID/AHCI driver files supported by the motherboard chipset from Intel’s website.

Transfer the downloaded

driver files to C:\AHCI.

4. Open Device Manager and right click on one of the Intel Serial ATA Storage Controllers, then select Update Driver.

If the controller you

selected did not work, try selecting another one.

5. In the Hardware Update Wizard dialog box, select “No, not this time” then click Next.

6. Select “Install from a

list or specific location (Advanced)” and then

click Next.

7. Select “Don’t search. I

will choose the driver to install” and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 64

Appendix A

8. Click “Have Disk”.

9. Select C:\AHCI\iaAHCI.inf and then click Open.

10. Select the appropriate

AHCI Controller of your hardware device and then click Next.

11. A warning message appeared because the selected SATA controller did not match your hardware device.

Ignore the warning and

click Yes to proceed.

12. Click Finish.

13. The system’s settings have been changed. Windows XP requires that you restart the computer. Click Yes.

14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the SATA controller that is in AHCI mode.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 65

Appendix B - Watchdog Sample Code

;Software programming example: ;---------------------------------------------

;(1) Enter Super IO Conﬁ guration mode ;--------------------------------------------MOV DX,4EH MOV AL,87H OUT DX,AL OUT DX,AL

;------------------------------------------------------------------------------------------;(2) Conﬁ guration Logical Device 8, register CRF0/CRF1 (WDT Control/WDT timer) ;------------------------------------------------------------------------------------------MOV DX,4EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL

MOV DX,4FH MOV AL,08H ;Select Logical Device 8 OUT DX,AL

MOV DX,4EH MOV AL, F1H ;Select watchdog timer register OUT DX,AL

Appendix B

MOV DX,4FH MOV AL,10H ;Set watchdog timer value OUT DX,AL

MOV DX,4EH MOV AL, F0H ;Select watchdog Control Register OUT DX,AL

MOV DX,4FH MOV AL,02H ;Set Watchdog Control Value OUT DX,AL

;---------------------------------------------------------------;(1) Exit extended function mode ;---------------------------------------------------------------MOV DX,4EH MOV AL,AAH OUT DX,AL

Appendix B Watchdog Sample Code

www.dﬁ .com

Page 66

Appendix C

Appendix C - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Important:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Appendix C System Error Message

www.dﬁ .com

Page 67

Appendix D - Troubleshooting Checklist

Appendix D

The picture seems to be constantly moving.

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Appendix D Troubleshooting Checklist

www.dﬁ .com

Page 68

Appendix D

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled

characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

Appendix D Troubleshooting Checklist

www.dﬁ .com

DFI KB160 User Manual

Copyright

FCC and DOC Statement on Class B

Trademarks

Table of Contents

About this Manual

Static Electricity Precautions

Warranty

Safety Measures

About the Package

Before Using the System Board

Chapter 1 - Introduction

Specifications

Features

Chapter 2 - Hardware Installation

System Memory

Installing the DIMM Module

Jumper Settings

Rear Panel I/O Ports

I/O Connectors

Chapter 3 - BIOS Setup

Overview

Entering the BIOS Setup Utility

Updating the BIOS

Chapter 4 - Supported Software

Appendix A - NLITE and AHCI Installation Guide

Appendix B - Watchdog Sample Code

Appendix C - System Error Message
