DFI COM330-B User Manual

Download

COM330-B

System Board

User’s Manual

A21110401

Copyright

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Trademarks ........................................................................................2

FCC and DOC Statement on Class B ..............................................3

About this Manual .............................................................................6

Warranty ..........................................................................................6

Static Electricity Precautions .............................................................7

Safety Measures .................................................................................7

About the Package ............................................................................8

Before Using the System Board ........................................................8

Chapter 1 - Introduction ..................................................................9

Specifications ..................................................................................9

Chapter 2 - Hardware Installation ..................................................11

System Board Layout .................................................................... 11

Jumper Settings ............................................................................. 12

PS/2 Power Select .................................................................... 12

USB Power Select ..................................................................... 13

Panel Power Select ................................................................... 14

CF Card Power Select ............................................................... 15

Backlight Power Select .............................................................. 16

Clear CMOS ............................................................................. 17

Super IO Enable/ Disable .......................................................... 18

VCC5_In Power Select .............................................................. 19

PCIe x16 Normal/ Reversed....................................................... 20

BIOS Select ............................................................................. 21

FWH Write Protect .................................................................... 22

Function Test Jumper ..................................................................... 23

Battery Low Test ...................................................................... 23

Wake-up Test........................................................................... 24

Thermal Trigger ....................................................................... 25

Rear Panel I/O Ports ..................................................................... 26

PS/2 Ports ..............................................................................27

Serial (COM) Ports ...................................................................28

VGA Port ................................................................................. 29

RJ45 LAN Port .........................................................................30

Universal Serial Bus Connectors ................................................. 31

Audio ...................................................................................... 33

Internal I/O Connectors ................................................................ 34

S/PDIF Connector .....................................................................34

LVDS LCD Panel Connector and LCD/Inverter Power Connector ......35

Digital I/O Connector .............................................................. 37

LPC Connector ......................................................................... 38

SATA (Serial ATA) Connectors .................................................... 39

Cooling Fan Connectors ............................................................. 40

C Connector .......................................................................... 41

SM Bus ................................................................................... 42

Power Connectors ....................................................................43

Standby Power LED .................................................................. 44

Front Panel Connectors ............................................................. 45

Expansion Slots .......................................................................46

Switches ................................................................................. 47

CompactFlash Socket ................................................................ 48

Chassis Instrusion Connector ..................................................... 49

Battery ................................................................................... 50

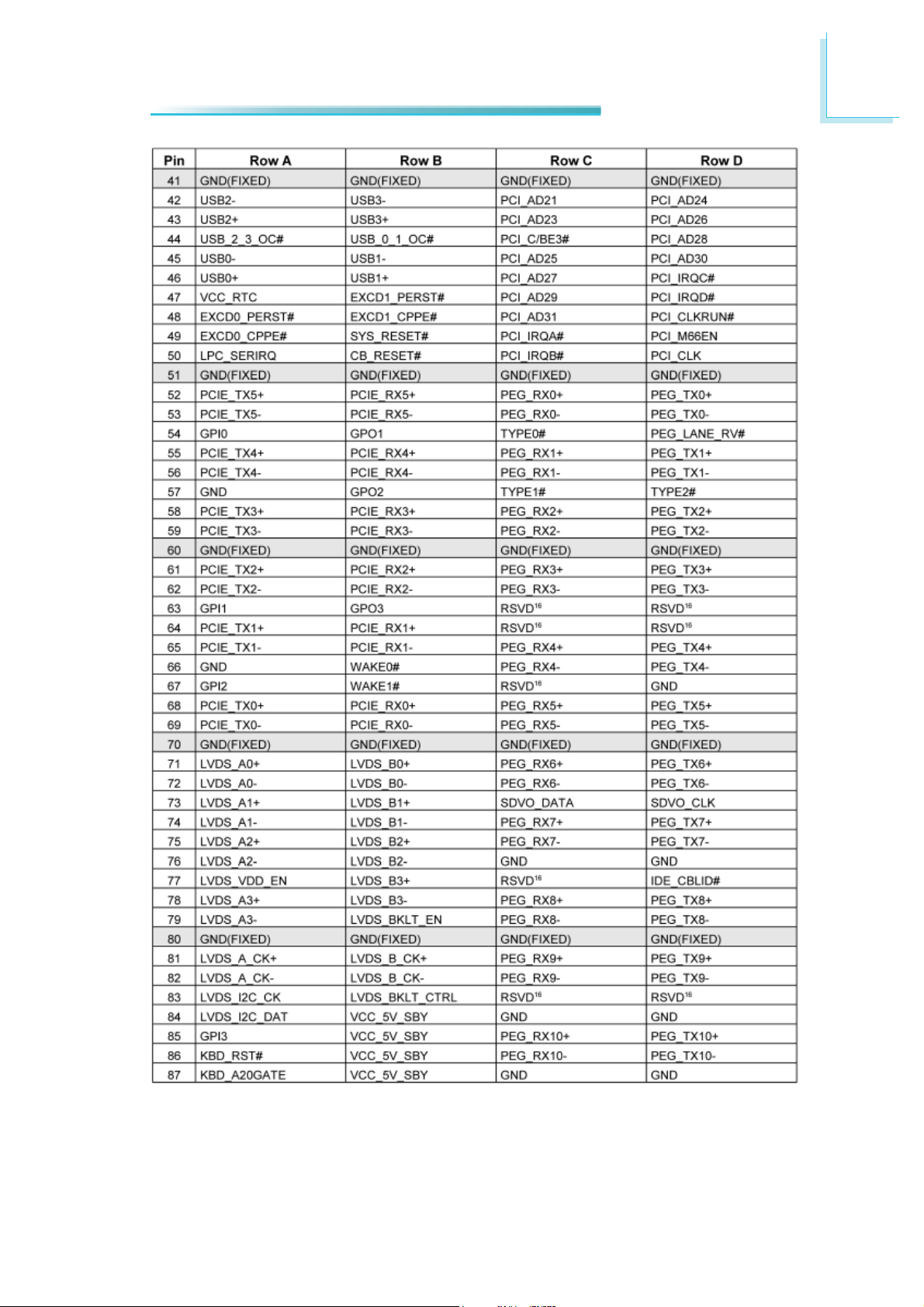

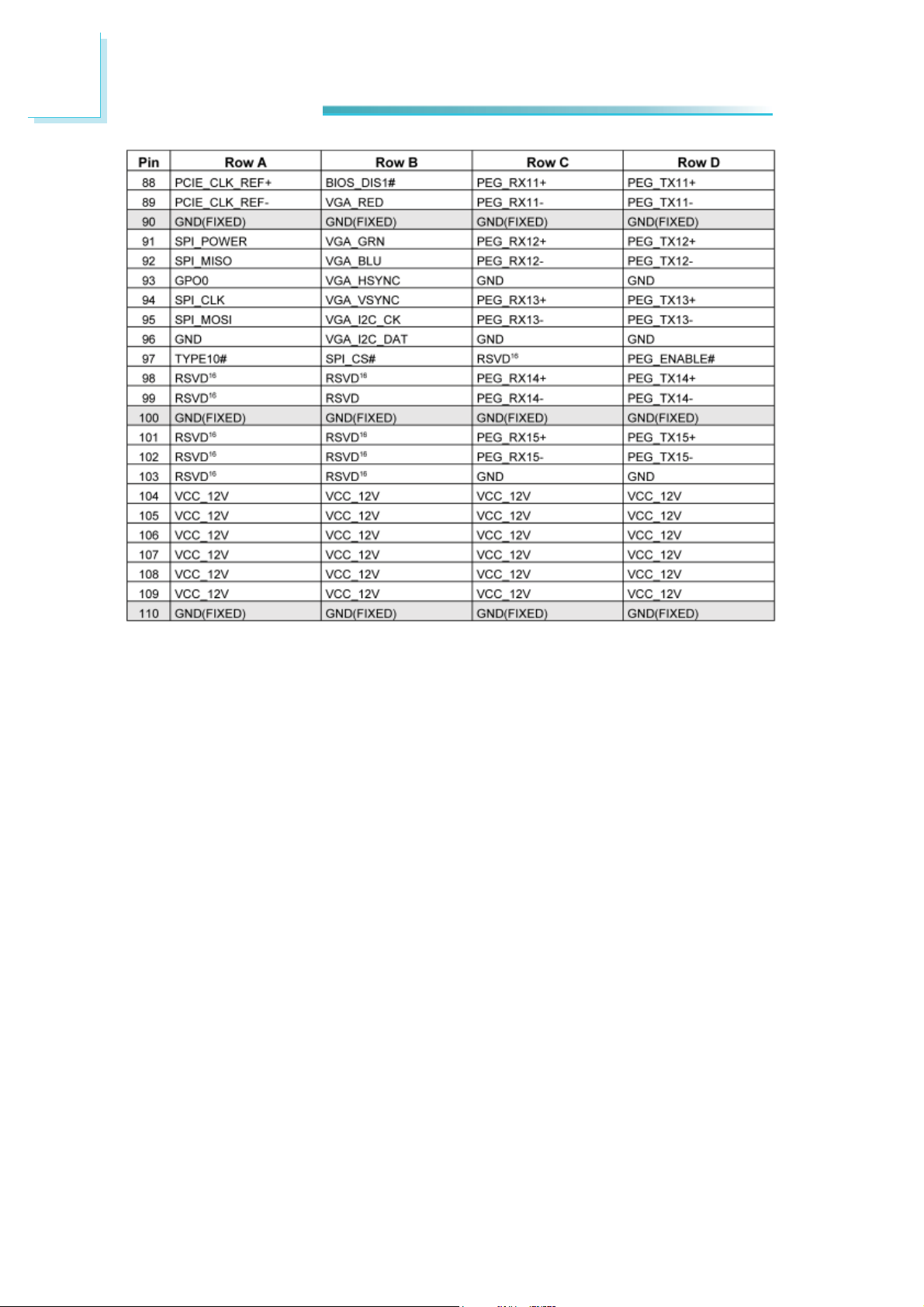

COM Express Connectors .......................................................... 51

Chapter 3 - Supported Software .................................................... 55

Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User ’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Introduction

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

 One COM330-B board  Two Serial ATA data cables  One COM port cable (with bracket)  One USB port cable (with bracket)  One DVD  One I/O shield  One QR (Quick Reference)

Optional Items

 Serial ATA data cable  Serial ATA power cable  USB port cable  COM port cable  I/O shield

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Chapter 1 - Introduction

Specifications

Introduction

Audio

Storage

Digital I/O

Rear Panel I/O Ports

I/O Connectors

Expension Slots

• Realtek ALC886 5.1-channel High Definition Audio

• Audio outputs: Mic-in/Center+Subwoofer, Line-in/Surround and Line-out

• S/PDIF audio interface

• 4 Serial ATA ports

- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

- 2 SATA 2.0 ports with data transfer rate up to 3Gb/s

• 1 CompactFlash socket

• 8-bit Digital I/O connector

- 4-bit GPI (General Purpose Input)

- 4-bit GPO (General Purpose Output)

• 3 DB-9 RS232 serial ports

• 1 DB-15 VGA port

• 1 RJ45 LAN port

• 4 USB 2.0/1.1 ports

• Line-in/Surround, Line-out, Mic-in/Center+Subwoofer jacks

• 1 mini-DIN-6 PS/2 mouse port (option)

• 1 mini-DIN-6 PS/2 keyboard port (option)

• 2 connectors for 4 external USB 2.0/1.1 ports

• 1 connector for 1 external RS232 serial port

• 1 LVDS LCD panel connector

• 1 LCD/inverter power connector

• 1 8-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 S/PDIF connector

• 4 Serial ATA ports

• 1 LPC connector

• 1 I

C connector

• 1 SMBus connector

• 1 24-pin ATX power connector

• 1 4-pin 12V power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 3 fan connectors

• 1 PCIe x16 Gen 3 slot

• 1 PCIe x4 Gen 2 slot

• 1 Mini PCIe slot (PCIe 2.0) (PCIe signal only)

- USB signal: optional

- Supports half/full size Mini PCIe card

• 2 PCI slots (PCI 2.3)

Introduction

COM Express Modules

Damage Free Intelligence

ROM Interface

Temperature

Humidity Power Output

Certification PCB

• Basic

• Compact

• Legacy Super I/O support (option)

- Monitors 5V/1.5V/12V/3.3V

- Monitors SIO_Fan 1/SIO_Fan 2/SIO_Fan 3

• 1 SPI interface

- Supports up to 64Mbit

• 1 LPC/FWH interface

• Operating: 0

• Storage: -20

• 10% to 90%

• 12V, 5VSB, VCC_RTC (ATX mode) 12V, 5V, VCC_RTC (AT mode) 12V, VCC_RTC (AT mode)

• CE, FCC Class B, RoHS

• Dimensions

- microATX form factor

- 244mm (9.6”) x 244mm (9.6”)

• Compliance

- PICMG COM Express R2.0, Type 2

C to 60oC

C to 85oC

Chapter 2 - Hardware Installation

System Board Layout

Super IO enable/disable (JP3)

(JP6)

ATX power

(JP5)

1 1 1

VCC5_IN power select (JP9)

PCIe x16 Normal/ Reversed (JP7)

Compact

+12V power

Basic

PS/2 KB/ MS

COM2 COM1

COM4

VGA

PS/2 power select (JP1)

Chassis instrusion

Wake-up test (J24)

Fintek 81217U

LPC

Fintek

F71879

COM3

BIOS

FWH Write protect (J13)

BIOS Select

Hardware Installation

Buzzer

CompactFlash Socket

SIO_Fan1

2 1

CF card power select (JP15)

DIO

LAN USB 2.0 (0-1)

USB 2.0 (2-3)

Line-in Line-out Mic-in

Realtek ALC886

2 1

S/PDIF

Thermal Trigger (J25)

Battery low test (J23)

Front audio

SATA 1

SATA 0

USB 0-3 power select (JP2)

1 1

SATA 3.0

COM express connector

PCIE x4

COM express connector

SATA 3

SATA 2

SATA 2.0

PCIE x16

PCI 1

D110

C110 B110

A110

LVDS LCD panel

40 39

SPI Flash BIOS

2 1

LCD/ Inverter power

Panel power select(JP11)

SM Bus

Backlight Power

Select(JP12)

Power

Reset

Mini PCIe

2 1

USB 6-7

PCI 2

USB 4-7 power select (JP4)

2 1

USB 4-5

Clear CMOS (JP10)

Battery

SIO_Fan3

SIO_Fan2

Standby Power LED

Front panel

Hardware Installation

Jumper Settings

PS/2 Power Select

JP1

1 2 3

1-2 On: 5V

(default)

1 2 3

2-3 On:

5V_standby

JP1 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

Important:

The 5VSB power source of your power supply must support ≥720mA.

USB Power Select

Hardware Installation

USB 0-3 (JP2)

312

1-2 On: 5V

(default)

USB 4-7 (JP4)

5V_standby

312

2-3 On:

JP2 (for USB 0-3) and JP4 (for USB 4-7) are used to select the power of the USB ports. Selecting 5V_standby will allow you to use a USB keyboard to wake up the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.

Hardware Installation

Panel Power Select

JP11

2 4 6

1 3 5

1-2 On: 12V

2 4 6

1 3 5

3-4 On: 5V

JP11 is used to select the power supplied to the LCD panel.

Important:

Before powering-on the system, make sure JP11’s setting matches the LCD panel’s speciﬁ cation. Selecting the incorrect voltage will seriously damage the LCD panel.

2 4 6

1 3 5

5-6 On:

3V (default)

CF Card Power Select

Hardware Installation

JP15

1-2 On: 5V

1 2

2-3 On:

3.3V (default)

JP15 is used to select the power supplied to the CF card that is on the motherboard. Selecting 3V3 will be the default setting.

Hardware Installation

Backlight Power Select

1 2 3

1-2 On: +5V

JP12

1 2 3

2-3 On: +3.3V

(default)

JP12 is used to select the backlight control level +5V or +3.3V.

Important:

Before powering-on the system, make sure JP12’s setting matches the backlight power’s speciﬁ cation. Selecting the incorrect voltage will seri- ously damage the backlight.

Clear CMOS

If you encounter the following,

Hardware Installation

312

1-2 On: Normal

(default)

312

JP10

2-3 On:

Clear CMOS

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconﬁ gure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP10 pins 2 and 3 to On. Wait for a few seconds and set JP10 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

Hardware Installation

Super IO Enable/ Disable

JP3

1-2 On: Enable

JP3 is used to select enable or disable the super IO select.

2-3 On: Disable

(default)

VCC5_IN Power Select

JP9

Hardware Installation

531

1-2 On: 5VSB

(default)

531

3-4 On: 5V

531

5-6 On: NC

JP9 is used to select the power of the COM Express connector.

Hardware Installation

PCIe x16 Normal/ Reversed

1 2 3

JP7

1-2 On: Normal

(default)

1 2 3

2-3 On: Reversed

(for cards that support

reversed signals)

IF you are installing a PCIe x16 card who’s signal is reversed, set JP7 pins 2 and 3 to on.

BIOS Select

Hardware Installation

JP6: 1-2 OnJP5: 1-2 On

Module SPI BIOS

JP5: 2-3 On

JP6: 1-2 On

Carrier LPC FWH

JP5: 1-2 On

JP6: 2-3 On

Carrier SPI0

JP5: 2-3 On

JP6: 2-3 On

Module SPI0 (Default)

JP5 and JP6 are used to determine the BIOS boot device.

Hardware Installation

FWH Write Protect

J13

1-2 On: Enable

1-2 Off: Disable

(Default)

J13 is used to conﬁ gure the BIOS Write Protect function. When this function is enabled, the system will be protected from unnecessary updating or ﬂ ashing of the BIOS. It secures the BIOS therefore any updates to it will not take effect.

Function Test Jumpers

Battery Low Test

J23

1 2

1-2 On:

Battery low test

1 2

1-2 Off: Normal

(default)

Hardware Installation

This jumper is used to simulate the signal status that indicates the external battery is low. By setting J23 pins 1 and 2 to On, it sends a battery low signal to the module.

Hardware Installation

Wake-up Test

1 2

J24

1-2 On:

Wake-up test

1 2

1-2 Off: Normal

(default)

This jumper is used to simulate the signal status that indicates the wake-on-ring or PME# event from the Super I/O. It is also used to simulate a general purpose wake-up signal such as wake-up on PS/2 keyboard or PS/2 mouse. Set J24 pins 1 and 2 to On to send WAKE# signal to the module.

Thermal Trigger

Hardware Installation

1 2

1-2 On:

Thermal Trigger

J25

1 2

1-2 Off: Normal

(default)

This jumper is used to simulate the signal status that indicates the Over Temperature Signal (OVT) output from the Super I/O F71879. When monitored temperature exceeds the OVT value, OVT# will be asserted until the temperature goes below the hysteresis temperature. Set J25 pins 1 and 2 to On to send THRM# signal to the module.

Hardware Installation

Rear Panel I/O Ports

PS/2 MS

(option)

PS/2 KB

(option)

The rear panel I/O ports consist of the following:

• PS/2 keyboard port

• PS/2 mouse port

• 3 COM ports

• VGA port

• LAN port

• 4 USB ports

• Mic-in jack

• Line-in jack

• Line-out jack

COM 2 COM 4

COM 1 VGA

USB 0-1

LAN

Line-in

Line-out

Mic-in

USB 2-3

Hardware Installation

PS/2 Mouse and Keyboard Port

PS/2 Mouse

and keyboard

(option)

These ports are used to connect a PS/2 mouse and a PS/2 keyboard. The PS/2 mouse port uses IRQ12.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:

• Jumper Setting

JP1 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in

this chapter for more information.

• BIOS Setting

Congure the PS/2 keyboard/mouse wake up function in the Advanced menu (“ACPI Power Management Conguration” submenu) of the BIOS. Refer to chapter 3 for more information.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

Hardware Installation

Serial (COM) Ports

RIRTSGND

DCD-

192

COM 4

CTSDSRDTR-

COM 2

COM 1

COM 3

The system board is equipped with 3 onboard serial port (COM 1, COM2 and COM 4). It is also equipped with a 9-pin connector for connecting an external serial port (COM 3).

The serial ports are RS-232 asynchronous communication ports with 16C550Acompatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. To connect COM 3, please refer to the following description. The serial port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the cable connector to the 9-pin connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the connector.

Hardware Installation

VGA Port

VGA

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

Hardware Installation

RJ45 LAN Port

LAN

The onboard RJ45 LAN port allows the system board to connect to a local area network by means of a network hub.

Universal Serial Bus Connectors

Hardware Installation

USB 2-3

USB 0-1

VCC

-Data

+Data

GND

N. C.

GND

+Data

Key

USB 6-7

USB 4-5

VCC

-Data

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with four onboard USB 2.0/1.1 ports (USB 0-3). The two 10-pin connectors allow you to connect 4 additional USB 2.0/1.1 ports (USB 4-7). The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Congure the onboard USB in the Advanced menu (“USB Conguration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

Hardware Installation

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP2, and/or JP4 must be set to “2-3 On: 5V_standby”. Refer to “USB Power

Select” in this chapter for more information.

Important:

Audio

Line-in

Line-out

Hardware Installation

key

GND

Line2-JD

Line2-L

Rear audio

Front audio

Mic-in

GND

Mic2-L

Mic2-JD

N.C.

Line2-R

Mic2-R

Rear Audio

The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.

• Line-in Jack (Light Blue) This jack is used to connect any audio devices such as Hi- set, CD player,

tape player, AM/FM radio tuner, synthesizer, etc.

• Line-out Jack (Lime) This jack is used to connect a headphone or external speakers.

• Mic-in Jack (Pink) This jack is used to connect an external microphone.

Front Audio

The front audio connector allows you to connect to the second line-out and micin jacks that are at the front panel of your system.

BIOS Setting

Refer to the module’s BIOS for more information.

Driver Installation

Install the audio driver. Refer to chapter 3 for more information.

Hardware Installation

I/O Connectors

S/PDIF Connector

SPDIF in

Ground

+5V

Key

SPDIF out

The S/PDIF connector is used to connect external S/PDIF ports. Your S/PDIF ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the connector.

LVDS LCD Panel Connector LCD/Inverter Power Connector

Hardware Installation

LVDS LCD panel

LCD/Inverter

power

The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel.

Refer to the next page for the pin functions of these connectors.

Jumper Settings

Refer to the “Jumper Settings” section in this chapter for settings relevant to the LCD panel.

Hardware Installation

Pins

LVDS LCD Panel Connector

Function

GND

LVDS_Out3+

LVDS_Out3-

GND

LVDS_Out2+

LVDS_Out2-

GND

LVDS_Out1+

LVDS_Out1-

GND

LVDS_Out0+

LVDS_Out0-

GND

LVDS_CLK1+

LVDS_CLK1-

GND

LVDS_DDCCLK

LVDS_DDCDATA

Panel Power

Pins

LVDS_Out7+

LVDS_Out7-

LVDS_Out6+

LVDS_Out6-

LVDS_Out5+

LVDS_Out5-

LVDS_Out4+

LVDS_Out4-

LVDS_CLK2+

LVDS_CLK2-

Panel Power

Function

GND

N. C.

LCD/Inverter Power Connector

Pins

Function

GND

Panel Inverter Brightness Voltage Control

Panel Power

+3.3V

Panel Backlight On/Off Control

+12V

Digital I/O Connector

Hardware Installation

DIO

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Pin Pin Assignment Pin Pin Assignment

1 GND 2 +12V

3 DIO7(GPO3) 4 +12V

5 DIO6(GPO2) 6 GND

7 DIO5(GPO1) 8 +5V

9 DIO4(GPO0) 10 +5V

11 DIO3(GPI3) 12 GND

13 DIO2(GPI2) 14 5VSB

15 DIO1(GPI1) 16 5VSB

17 DIO0(GPI0) 18 GND

19 GND

Hardware Installation

LPC connector

RST#

FRAME#

LAD3

GND

VCC3

LAD0

CLK

LAD1

LAD2

The Low Pin Count Interface was dened by Intel® Corporation to facilitate the industry’s transition towards legacy free systems. It allows the integration of lowbandwidth legacy I/O components within the system, which are typically provided by a Super I/O controller. Furthermore, it can be used to interface rmware hubs, Trusted Platform Module (TPM) devices and embedded controller solutions. Data transfer on the LPC bus is implemented over a 4 bit serialized data interface, which uses a 33MHz LPC bus clock. For more information about LPC bus refer to the Intel® Low Pin Count Interface Specication Revision 1.1’.

SATA (Serial ATA) Connectors

Hardware Installation

RXN

TXN

GND

TXP

GND

SATA 2.0 3Gb/s

SATA 3

SATA 2

RXP

GND

SATA 3.0 6Gb/s

SATA 1

SATA 0

Features

• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s

• SATA 2 to SATA 3 support data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

• Supports RAID 0, RAID 1, RAID 5 and RAID 10

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Refer to the module’s BIOS for more information.

Hardware Installation

Cooling Fan Connectors

Ground

Power

Sense

SIO_Fan 1

Ground

SIO fan_3

SIO_Fan 2

Sense

Power

Sense

Ground

Power

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airow throughout the chassis to prevent overheating the module and system board components.

I2C Connector

Hardware Installation

Ground

I2C_CLK

I2C_DAT

3V3

4 3

The 1-channel I2C bus interface conforms to the version 2.1 I2C bus specication. It operates as a master or slave device and supports a multi-master bus.

Hardware Installation

SM bus

CLK

3VDU

GND

SM Bus

The SMBus (System Management Bus) connector is used to connect SMBus devices. It is a multiple device bus that allows multiple chips to connect to the same bus and enable each one to act as a master by initiating data transfer.

1 5

Data

ALERT-

Power Connectors

+3.3VDC

Ground

+3.3VDC

Ground

-12VDC

+3.3VDC

Hardware Installation

+12VDC

+5VSB

+5VDC

PWR_OK

Ground

+5VDC

Ground

+5VDC

PS_ON#

Ground

+5VDC

+3.3VDC

+12VDC

+5VDC

Ground

+12V

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 4-pin +12V power connector enables the delivery of more +12VDC current to the COM express module board and carrier board’s PCI/ PCIe device.

The power connectors from the power supply unit are designed to t the 24-pin and 4-pin connectors in only one orientation. Make sure to nd the proper orientation before plugging the connectors.

Important

The system board consumes a minimal amount of power. Due to its low power consumption, you only need a 120W to 150W power supply. Every power supply has its minimum load of power. If you use a greater than 150W power supply, the power consumed by the system board may not attain its minimum load causing instability to the entire system.

Hardware Installation

Standby Power LED

This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Front Panel Connectors

Hardware Installation

HDD-LED

RESET-SW

HDD-LED - HDD LED

PWR-LED

PWR-BTN

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S0 ,S1 (POS - Power On Suspend), S3 (STR - Suspend To RAM) state, it will be always light. When the system is in the S4 (STD - Suspend to Disc), S5 state, it will be light off.

N. C.

HDD-LED

RESET SW

N. C.

Pin Assignment

HDD Power

7 9

RST Signal

N. C.

Signal

Ground

N. C.

PWR-LED

PWR-BTN

Key

Pin Assignment

LED Power

Signal

Ground

Key

Hardware Installation

Expansion Slots

PCI Express x16

PCI Express x4

PCI 1

PCI 2

PCI Express x16 Slot

Install PCI Express x16 graphics card, that comply to the PCI Express specications, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down rmly until it is completely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.

PCI Express x4 Slots

Install PCI Express cards such as network cards or other cards that comply to the PCI Express specications into the PCI Express x4 slot.

Mini PCI Express (PCIe signal only)

PCI Slots

The PCI slots support expansion cards that comply with PCI specications.

Mini PCIe Slot

The Mini PCIe socket is used to install a Mini PCIe card. Mini PCIe card is a small form factor PCI card with the same signal protocol, electrical denitions, and conguration denitions as the conventional PCI.

The Mini PCIe slot supports PCIe signal only. To support both PCIe and USB signals, another version will be provided upon request. Since the USB signal for this slot is shared with USB 6, the said version will not support the USB 6 connector.

Switches

Hardware Installation

Power

Reset

Hardware Installation

CompactFlash Socket

The CompactFlashTM socket is used for inserting a CompactFlashTM card. CompactFlashTM card is a small removable mass storage device designed with ash technology - a non-volatile storage solution that does not require a battery to retain data indenitely. The CompactFlashTM technology is widely used in products such as portable and desktop computers, digital cameras, handheld data collection scanners, PDAs, Pocket PCs, handy terminals and personal communicators.

Chassis Intrusion Connector

Chassis

signal

Ground

Hardware Installation

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

Hardware Installation

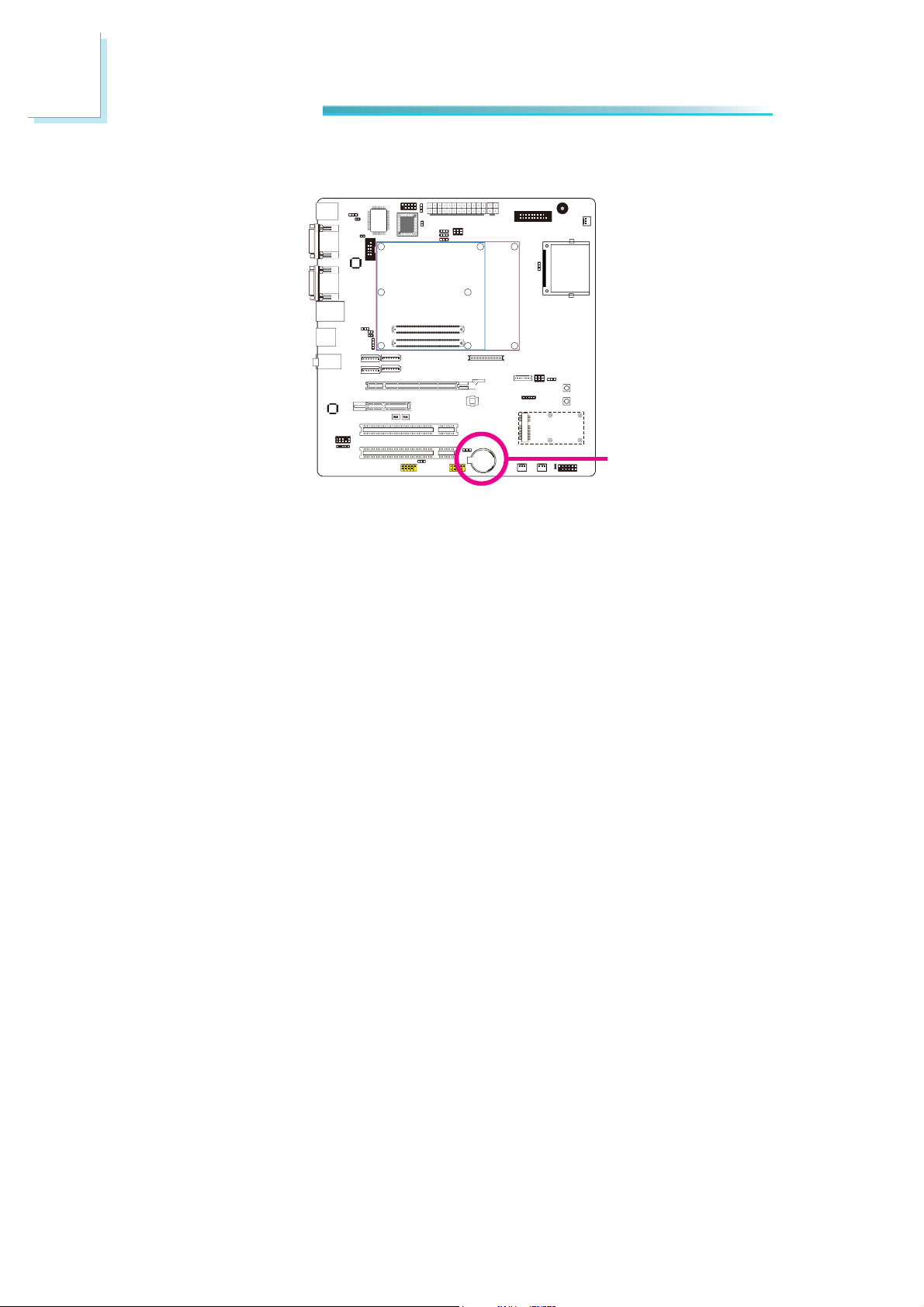

Battery

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Hardware Installation

COM Express Connectors

COM Express Connectors (Type 2)

The COM Express connectors are used to interface the carrier board with a COM Express board. Refer to the following pages for the pin functions of these connectors.

Hardware Installation

Supported Software

Chapter 3 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Supported Software

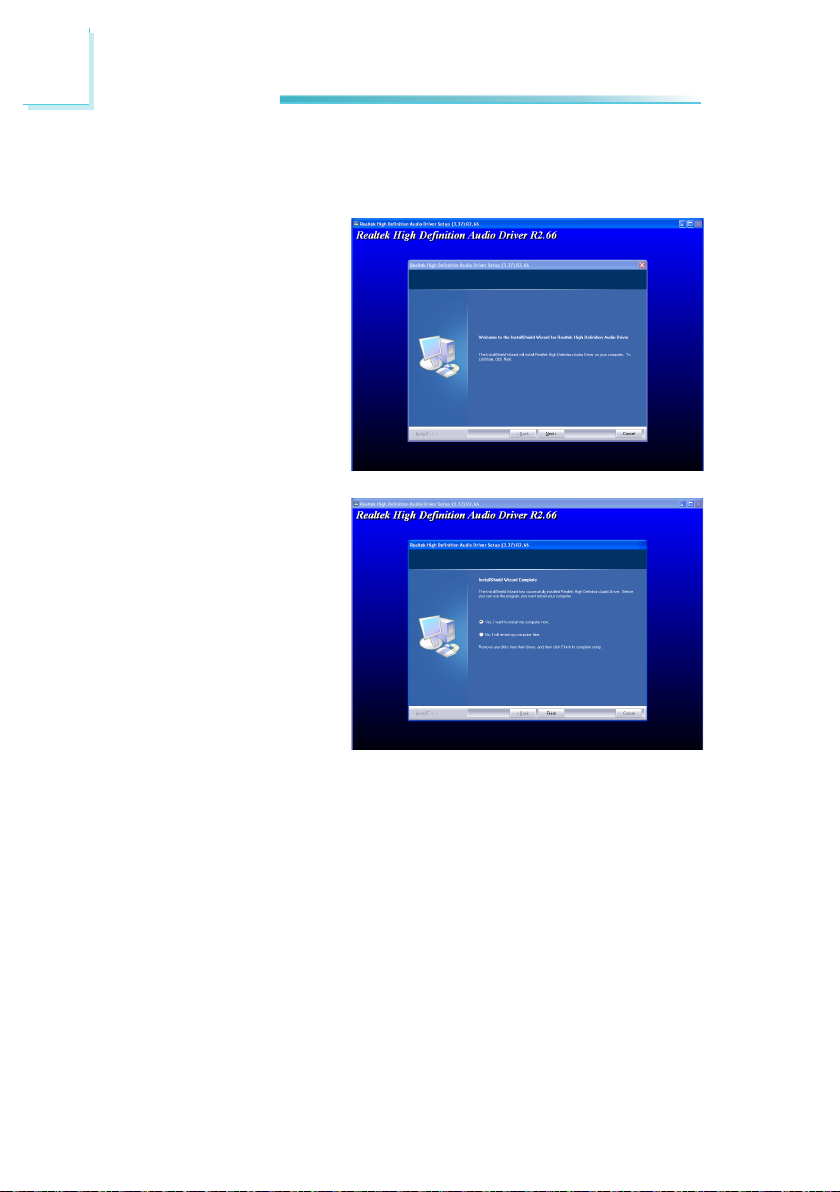

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you

nish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Supported Software

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

3. Click Finish to exit installation.

DFI COM330-B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

Trademarks

FCC and DOC Statement on Class B

Table of Contents

About this Manual

Warranty

Static Electricity Precautions

Safety Measures

About the Package

Before Using the System Board

Chapter 1 - Introduction

Specifications

Chapter 2 - Hardware Installation

System Board Layout

Jumper Settings

Function Test Jumpers

Rear Panel I/O Ports

I/O Connectors

COM Express Connectors

Chapter 3 - Supported Software
