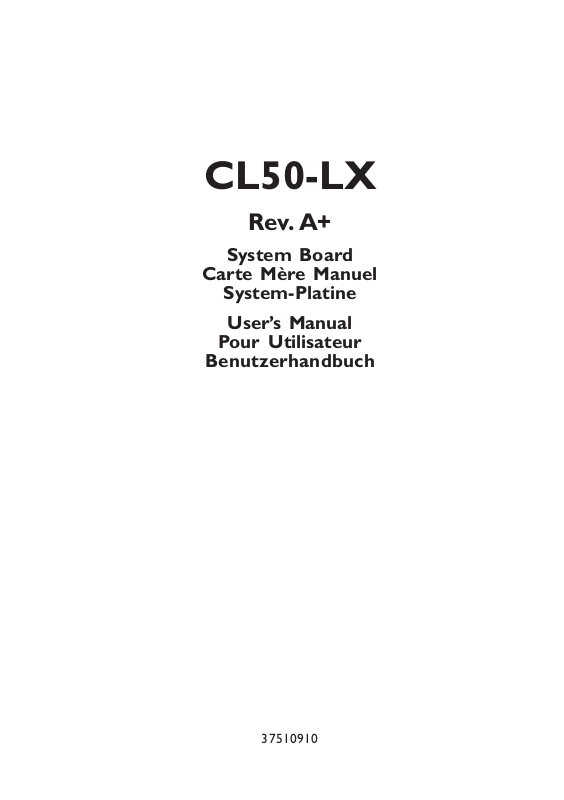

DFI CL50-LX User Manual

Download

CL50-LX

Rev. A+

System Board

Carte Mère Manuel

System-Platine

Users Manual

Pour Utilisateur

Benutzerhandbuch

37510910

This publication contains information that is protected by copyr ight. No part of it may

be reproduced in any form or by any means or used to make any transformation/

adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes

no representations or warranties with respect to the contents or use of this manual and

specifically disclaims any express or implied warranties of merchantability or fitness

for any particular purpose. The user will assume the entire risk of the use or the results

of the use of this document. Fur ther, the manufacturer reserves the right to revise this

publication and make changes to its contents at any time, without obligation to notify

any person or entity of such revisions or changes.

Trademarks

Microsoft

Microsoft Corporation. Intel

MS-DOS®, WindowsTM and Windows® 95 are registered trademarks of

and CeleronTM are registered trademarks of Intel

Corporation. Award is a registered trademark of Award Software, Inc. Other trademarks

and registered trademarks of products appearing in this manual are the proper ties of

their respective holders.

Caution:

Danger of explosion if battery incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the battery manufacturers instructions.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly appro ved by the party

responsible for compliance could void the user's authority to operate the

equipment.

2. Shielded interface cables must be used in order to comply with the emission

limits.

Table of Contents / Sommaire / Inhaltsverzeichnis

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

1.2 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout .............................................................................................

2.2 DIP Switch Settings of the Processors....................................................

2.3 Jumper Settings for Clearing CMOS Data..........................................

2.4 Jumper Settings for Wake-On-Keyboard/Mouse....................................

2.5 Connectors.........................................................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 Entering the Award BIOS Setup Utility....................................................

3.2 Setting the Date and Time..................................................................................

3.3 Selecting the Hard Drive and Floppy Drive Type..........................

3.4 Selecting the Drive to be Searched First for an Operating

System.....................................................................................................................................

3.5 Setting the External System Bus Clock of the Processor.......

3.6 Selecting an IRQ for the External Modem...........................................

3.7 Selecting the Method of Powering-off the System........................

3.8 Loading Fail-Safe Settings/Optimal Settings.........................................

3.9 Setting the Wake-On-Keyboard/Mouse Function...........................

3.10 Selecting the Power Lost Resume State.................................................

3.11 Setting the Supervisor/User Password....................................................

Chapter 4 - Supported Softwares

4.1 Utility.........................................................................................................................................

Appendix A - System Error Messages

A.1 POST Beep.......................................................................................................................

A.2 Error Messages..............................................................................................................

Note:

The users manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesnt

match those shown in this manual, this manual should always be

regarded as the most updated version. To view the users manual,

insert the CD into a CD-ROM drive. The autorun screen (Main Board

Utility CD) will appear. Click Users Manual.

Introduction

Chapter 1 - Introduction / Introduction / Einleitung

1.1 Features and Specifications

Caractéristiques et Spécifications

Leistungsmerkmale und Technische Daten

1.1.1 Features / Caractéristiques / Leistungsmerkmale

Chipset

 Intel 440LX AGPset

Processor

The system board is equipped with Intel Socket 370 for installing

an Intel CeleronTM processor that is packaged in PPGA (Plastic Pin

Grid Array). It is also equipped with a switching voltage regulator

that automatically detects 1.30V to 2.0V.

 300A/333/366/400/433/466MHz CeleronTM PPGA processor

System Memory

The system board supports 16MB to 384MB memor y. It is

equipped with three 168-pin DIMM sockets using unbuffered

SDRAM DIMM (10/12/13ns), 3.3V. It also supports ECC (uses x72

DRAM).

DIMMs

2MBx64/x72

4MBx64/x72

Expansion Slots

The system board is equipped with 1 dedicated AGP slot, 3

dedicated PCI slots, 1 dedicated 16-bit ISA slot and 1 shared PCI/

ISA slot. All PCI and ISA slots are bus masters.

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The

DMI utility in the BIOS automatically records various information

about your system configuration and stores these information in the

DMI pool, which is a part of the system board's Plug and Play

BIOS. DMI, along with the appropriately networked software, is

designed to make inventory, maintenance and troubleshooting of

computer systems easier.

Connectors

 2 connectors for external USB ports

 1 connector for IrDA interface

 2 serial ports

 1 parallel por t

Memory Size

16MB

32MB

DIMMs

8MBx64/x72

16MBx64/x72

Memory Size

64MB

128MB

Introduction

 2 IDE connectors

 1 floppy connector

 1 PS/2 mouse por t

 1 PS/2 or AT keyboard por t

 1 12-pin standard AT power supply connector

 3 fan connectors for CPU, chassis and AGP fans

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices

 Ultra DMA/33 supported (Synchronous Ultra DMA mode -

data transfer rate up to a maximum of 33MB/sec.)

 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up

to 16.6MB/sec.)

 Bus mastering reduces CPU utilization during disk transfer

 Suppor ts ATAPI CD-ROM, LS-120, ZIP and SCSI sequential

boot-up

IrDA Interface

The system board is equipped with an IrDA connector for wireless

connectivity between your computer and peripheral devices. It

supports peripheral devices that meet the IrDA or ASK IR standard.

USB Ports

The system board is equipped with a connector for external USB

ports. USB allows data exchange between your computer and a

wide range of simultaneously accessible external Plug and Play

peripherals.

BIOS

 Award BIOS, Windows 95/98 Plug and Play compatible

 Flash EPROM for easy BIOS upgrades

 Selectable CPU bus frequency (FSB)

- 60/66/68/75/83MHz

 Auto detect CPUs voltage ID

 Quickly boot up Windows or other operating systems

 Y2K compliant

1.1.2 Energy Efficient Design

 System power management supported

 CPU stopped clock control

 Hardware supports SMI green mode

 Microsoft®/Intel® APM 1.2 compliant

 CPU and chassis fans will automatically turn off once the system

enters the Suspend mode

Introduction

1.2 Package Checklist

Liste de Vérification de lEmballage

Verpackungsliste

The system board package contains the following items:

þ The system board

þ A users manual

þ Serial, mouse and printer port cables

Option 1:

- One card-edge bracket with a 9-pin and 25-pin serial port

cables

- One card-edge bracket with a 25-pin printer port cable and

a PS/2 mouse port cable

Option 2:

- One card-edge bracket with two 9-pin serial port cables

and a PS/2 mouse port cable

- One 25-pin printer port cable for chassis mounting

þ One 40-pin IDE hard disk cable

þ One 34-pin floppy disk drive cable

þ One CD

¨ One card-edge bracket with two USB ports (optional)

If any of these items are missing or damaged, please contact your

dealer or sales representative for assistance.

Chapter 2 - Hardware Installation

Installation du Matériel

Installation der Hardware

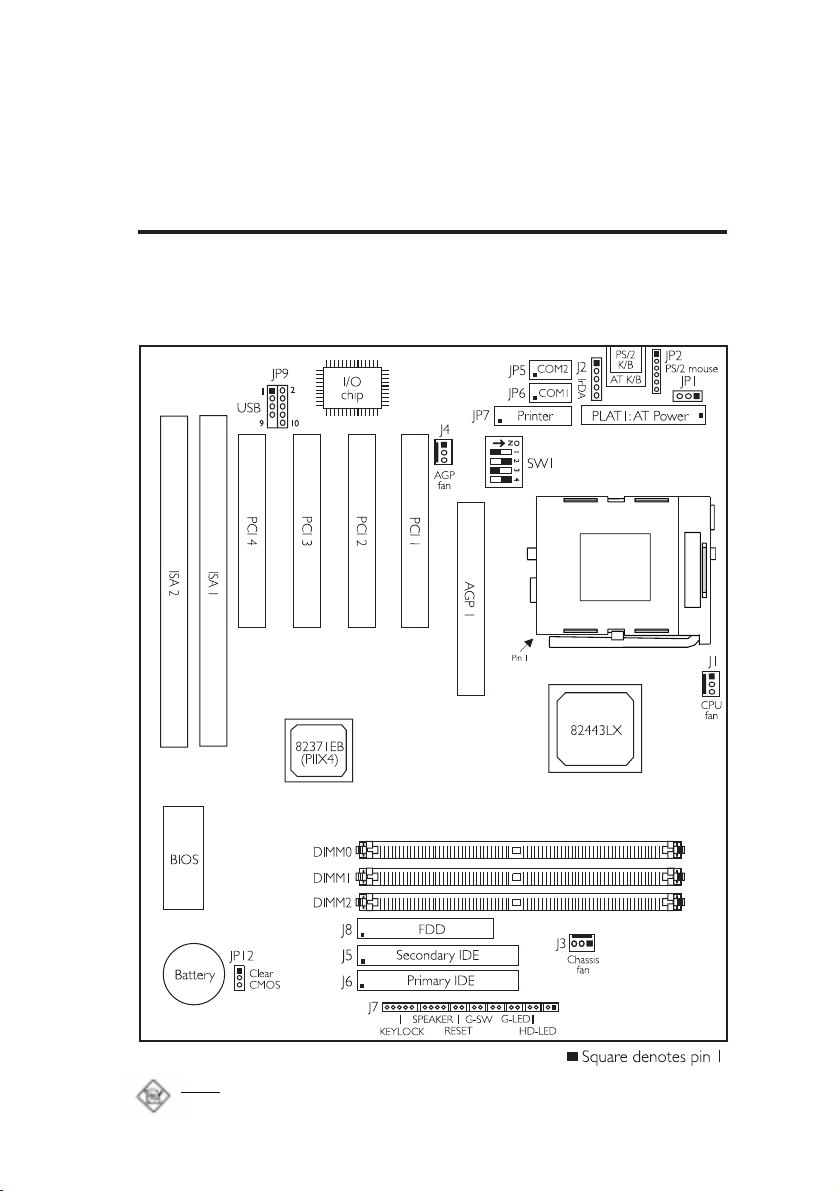

2.1 System Board Layout

Position de la Carte Système

Aufbau der Hauptplatine

Hardware Installation

Note:

Jumper JP1 is for factory use only. Please leave this jumper in its default setting - pins

1 and 2 On.

Hardware Installation

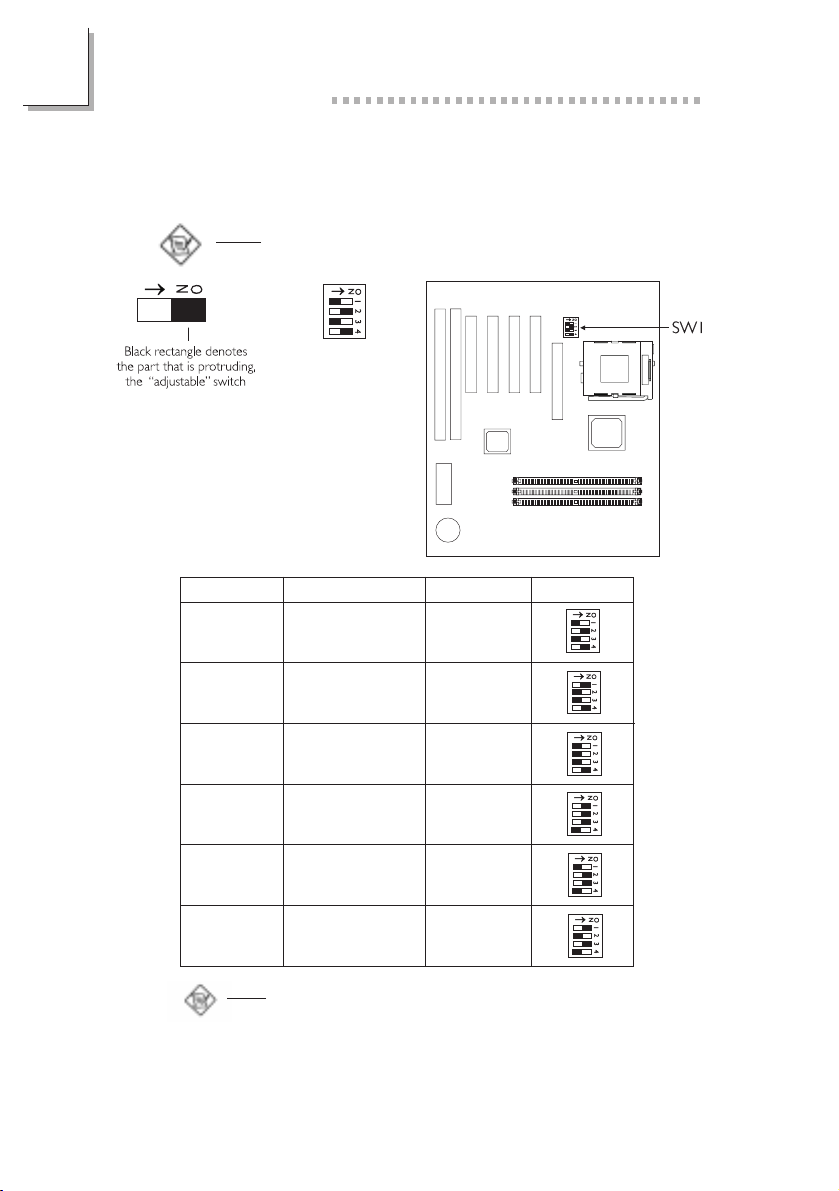

2.2 DIP Switch Settings of the Processors

Positionnement des Cavaliers des Processeurs

DIP Schaltereinstellungen für den Prozessor

Note:

SW1 is for factory use only.

In the example above:

Switch 1: Off

Switch 2: On

Switch 3: Off

Switch 4: On

CPU Frequency

300AMHz

333MHz

Note:

1. Intel CeleronTM PPGA processors support VID (Voltage

2. You cannot overclock an Intel Celeron

Ext. System Bus Clock

66MHz

66MHz366MHz

66MHz433MHz

66MHz466MHz

Identification). The switching voltage regulator on the system

board will automatically set the voltage regulator according to

the voltage of the processor.

because its frequency ratio has been fixed by the

manufacturer. The table above is for factory use only.

Frequency Ratio

4.5x

5.5x

6x66MHz400MHz

6.5x

SW1

PPGA processor

Hardware Installation

2.3 Jumper Settings for Clearing CMOS Data

Positionnement des Cavaliers pour Effacer les Données

CMOS

Jumpereinstellungen zum Löschen der CMOS Daten

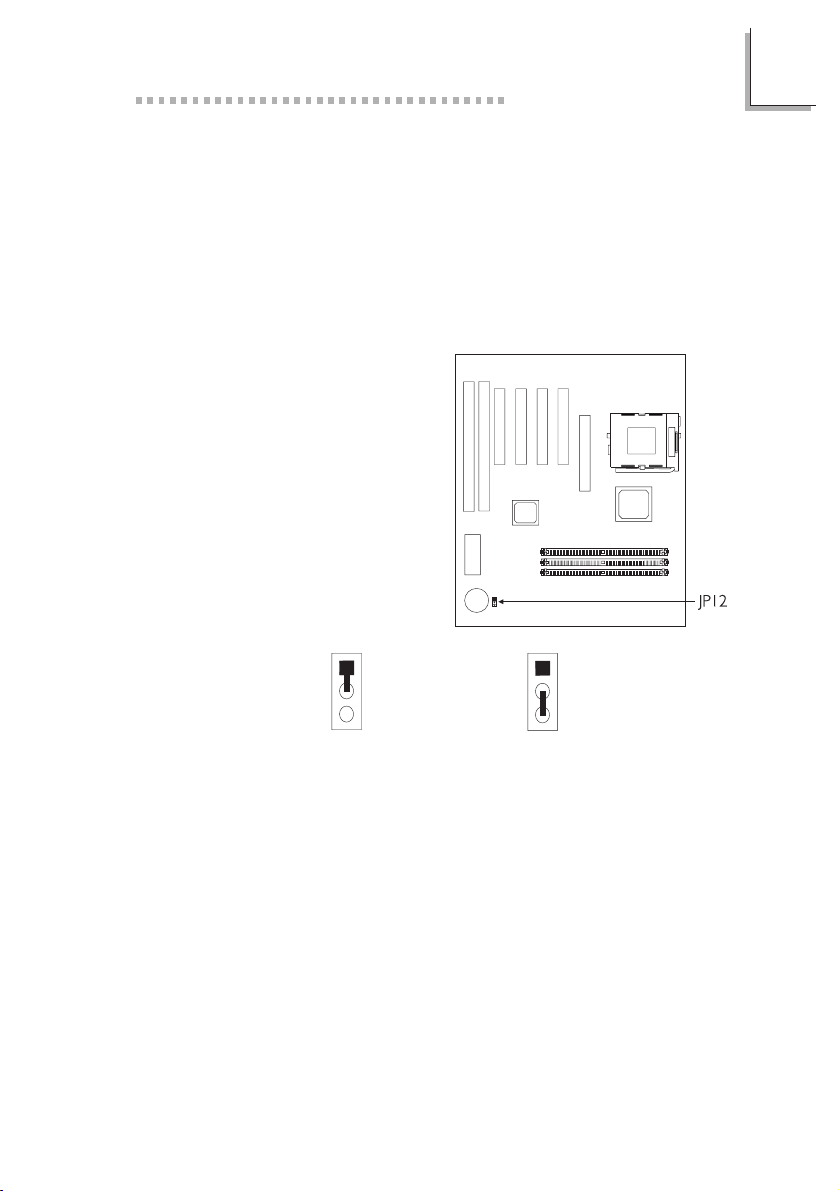

Jumper JP12 - Clear CMOS Data

To load the default values stored in the ROM BIOS, please follow

the steps below.

1. Power-off the system.

2. Set JP12 pins 2 and 3 to

On. Wait for a few seconds

and set JP12 back to its

default setting, pins 1 and 2

On.

3. Power-on the system.

1-2 On: Normal

(default)

2-3 On:

Clear CMOS Data

Hardware Installation

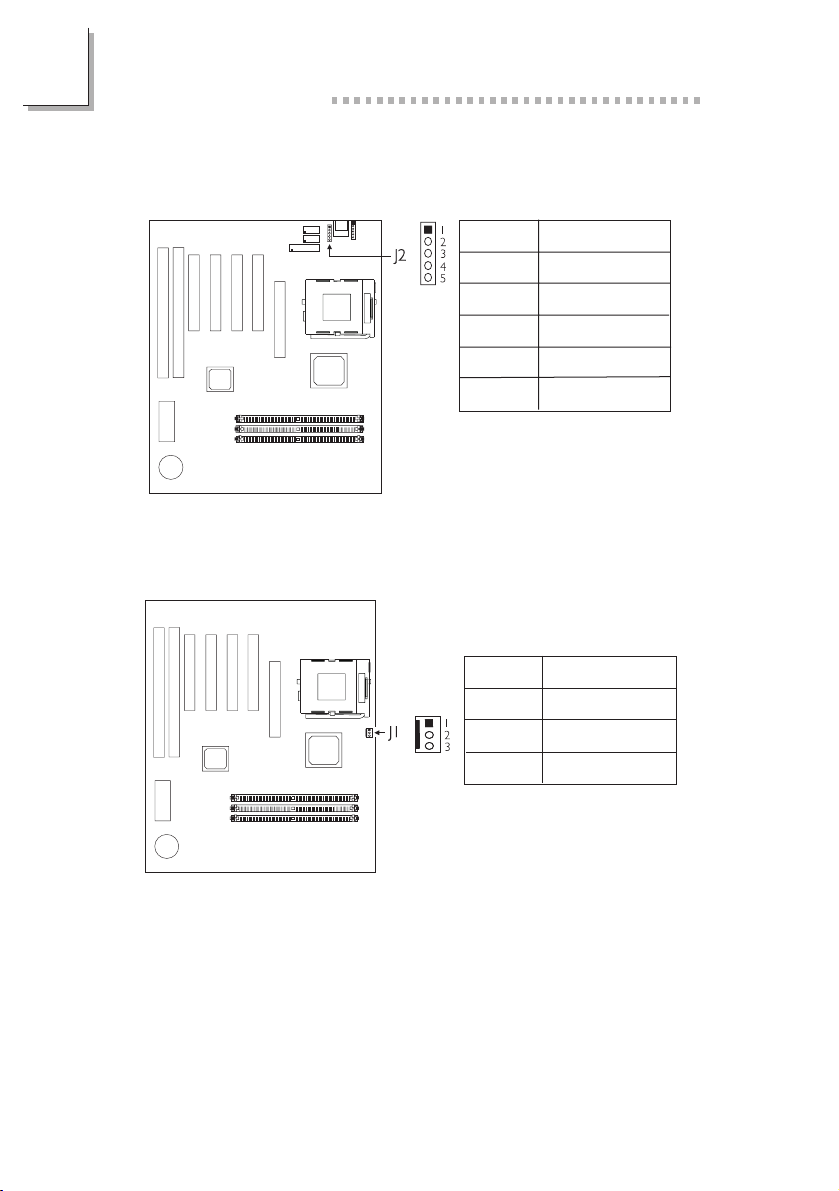

2.4 Connectors / Connecteurs / Anschlüsse

2.4.1 Serial Ports / Parallel Port

Ports Série / Port Parallèle

Serielle Anschlüsse / Paralleler Anschluß

2.4.2 PS/2 Mouse Port

Ports Souris PS/2

PS/2-Maus-Anschluß

Function

Mouse Data

Reser ved

Ground

+5V

Mouse Clock

Reser ved

Hardware Installation

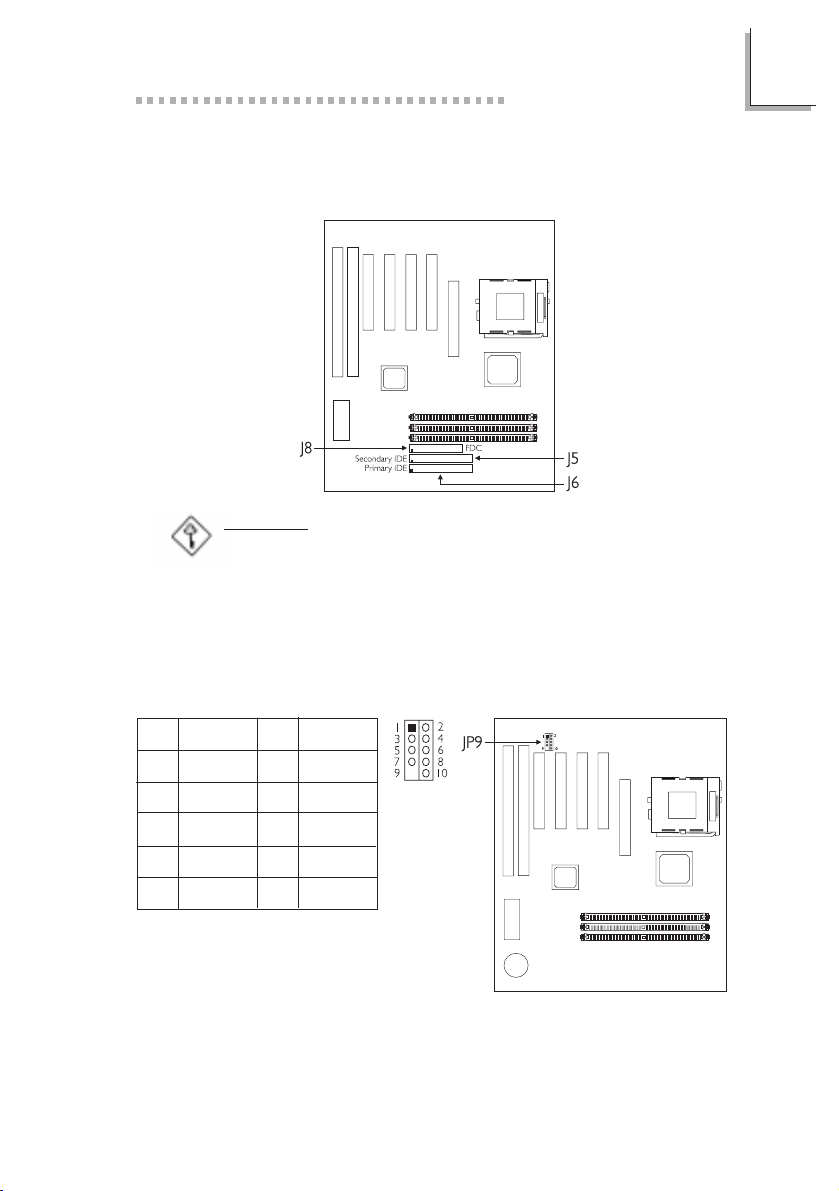

2.4.3 Floppy Disk Drive Controller and IDE Interface

Contrôleur de Lecteur de Disquette et Interface IDE

Diskettenlaufwerkcontroller und IDE Interface

Important:

If you encountered problems while using an ATAPI CD-ROM drive

that is set in Master mode, please set the CD-ROM drive to

Slave mode. Some ATAPI CD-ROMs may not be recognized and

cannot be used if incorrectly set in Master mode.

2.4.4 Universal Serial Bus Ports

Ports de Bus Série Universels

Universelle Serielle Bus-Anschlüsse

Function

+5V

-Data

+Data

Ground

Key

Function

+5V

-Data

+Data

Ground

Hardware Installation

2.4.5 IrDA Connector

Connecteur IrDA

IrDA Anschlüsse

2.4.6 CPU Fan Connector

Connecteur du Ventilateur de CPU

CPU Kühlung Anschluß

Function

IRTX

Ground

IRRX

N. C.

VCC

Function

Control

+12V

N. C .

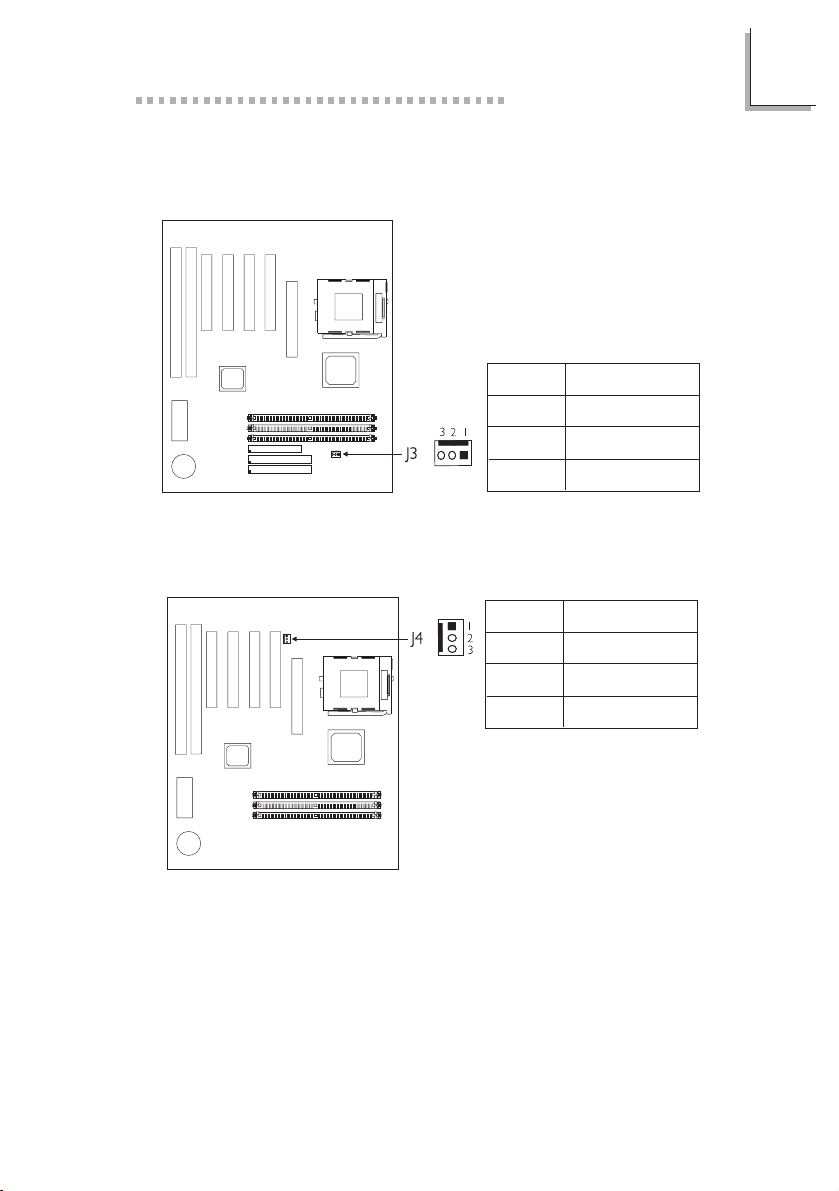

2.4.7 Chassis Fan Connector

Connecteur de Châssis de Ventilateur

Anschluß Kühlungsgehäuse

Hardware Installation

2.4.8 AGP Fan Connector

Connecteur de Ventilateur AGP

Anschluß AGP Kühlung

Function

Control

+12V

N. C.

Function

Control

+12V

N. C.

Hardware Installation

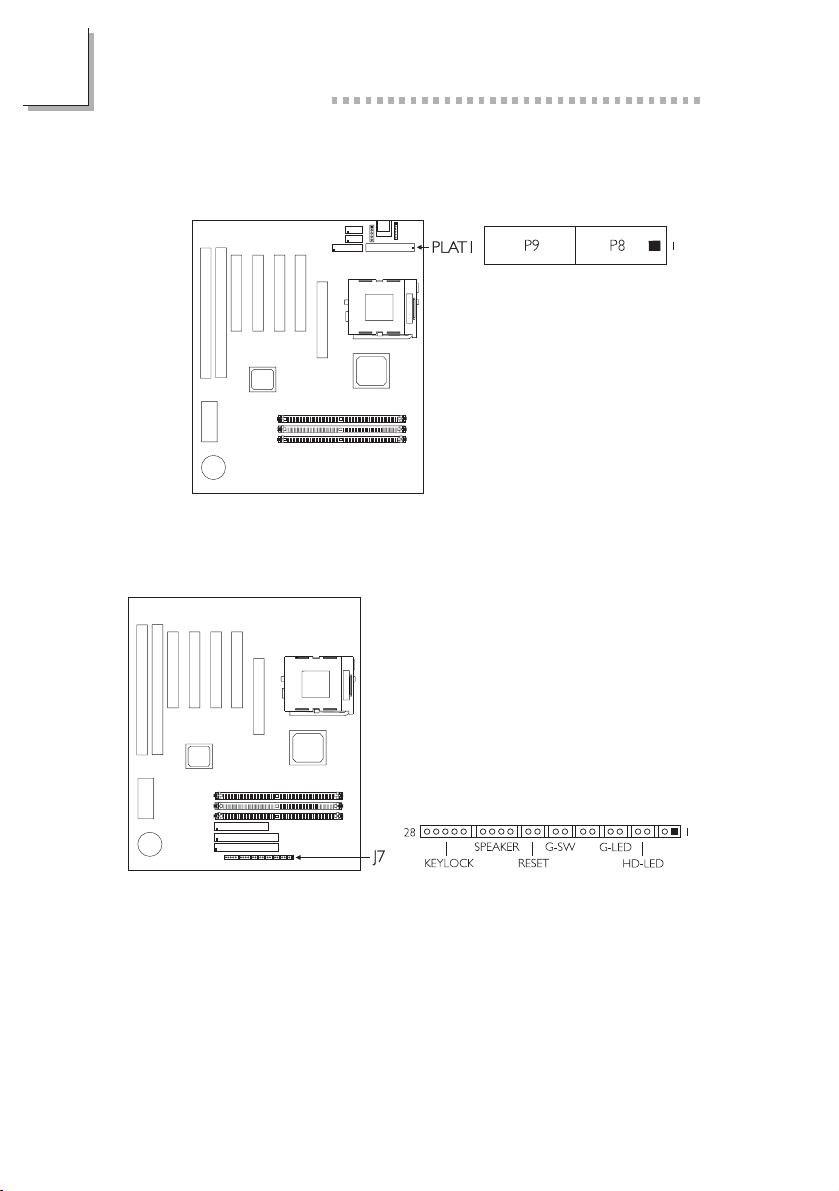

2.4.9 Power Connector

Connecteur dAlimentation

Netzanschluß

2.4.10 LEDs and Switches

Commutateurs et LED

LEDs und Schalter

Hardware Installation

For factory use only

HD-LED

(Primary/Secondary IDE LED)

G-LED

(Green LED)

For factory use only

G-SW

(Green switch)

RESET

(Reset switch)

SPEAKER

(Speaker connector)

KEYLOCK

(Keylock and Power LED

connector)

Pin Assignment

N. C.

LED Power

Signal

N. C.

LED Power

Signal

N. C.

Signal

Ground

N. C.

Signal

Ground

N. C.

Signal

N. C.

Ground

+5V

N. C.

LED Power

N.C.

Ground

Keylock Signal

Ground

Use pins 24 to 26

for the Power LED.

Award BIOS Setup Utility

Chapter 3 - Award BIOS Setup Utility

Utilitaire de Configuration du Award BIOS

AWARD BIOS Konfigurationsprogramm

3.1 Entering the Award BIOS Setup Utility

Entrer Dans lUtilitaire de Configuration du Award BIOS

Aufruf des AWARD BIOS Konfigurationsprogramms

Power-on the system and press <Del> to enter the utility. The main

program screen will appear.

Allumez le Système et appuyez sur <Del> pour entrer dans

lutilitaire. Lécran du programme principal apparaîtra.

Zum Aufrufen des Konfigurationsprogramms drücken Sie während

des Startvorgangs die Taste <Del>. Ein Bildschirm ähnlich dem

folgenden erscheint.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD FAIL-SAFE SETTINGS LOAD OPTIMAL SETTINGS

Esc

: Quit

F10

: Save & Exit Setup

INTEGRATED PERIPHERALS SUPERVISOR P ASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

: Select Item

↑↓→←

: Change Color

(Shift) F2

Award BIOS Setup Utility

3.2 Setting the Date and Time

Paramétrage de la Date et de lHeure

Einstellen des Datums und der Zeit

ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy) :Wed, Jul 1 1998 Time (hh:mm:ss) : 13: 27: 50

HARD DISKS Primary Master Primary Slave Secondary Master Secondary Slave

Drive A : 1.44M, 3.5 in. Drive B : None

Video : EGA/VGA Halt on : All Errors

Esc

: Quit

F10

: Save & Exit Setup

1. Select Standard CMOS Setup in the main program screen and

press <Enter>.

Sélectionnez Standard CMOS Setup dans lécran du programme

principal et appuyez sur <Entrée>.

Standard CMOS Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Set the correct date and time in the Date and Time fie lds

respectively.

Sélectionnez la date et lheure correcte dans les champs Date

et Time respectivement.

Jeweils korrekte Werte in die Eingabefelder Date (Datum) und

Time (Zeit) eingeben.

: : : :

TYPE Auto Auto Auto Auto

SIZE

0 0 0 0

CYLS

↑↓→←

HEAD 0 0 0 0

: Select Item : Change(Shift)F2

0 0 0 0

PRECOMP

LANDZ 0 0 0 0

SECTOR 0 0 0 0

Base Memory : 640K Extended Memory : 64512K Other Memory : 384K

Total Memory : 65536K

PU/PD/+/- : Modify

0 0 0 0

MODE Auto Auto Auto Auto

Award BIOS Setup Utility

3.3 Selecting the Hard Drive and Floppy Drive Type

Sélectionnez le Type de Disque Dur et de Lecteur de

Disquette

Auswahl der Festplatte und des Diskettenlaufwerks

ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy) : Wed, Jul 1 1998 Time (hh:mm:ss) : 13: 27: 50

HARD DISKS

Primary Master Primary Slave Secondary Master Secondary Slave

Drive A : 1.44M, 3.5 in. Drive B : None

Video : EGA/VGA Halt on : All Errors

: Quit

Esc F10

: Save & Exit Setup

1. Select Standard CMOS Setup in the main program screen and

press <Enter>.

Sélectionnez Standard CMOS Setup dans lécran du programme

principal et appuyez sur <Entrée>.

Standard CMOS Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select Auto for the hard disk drive(s) installed in your system.

The BIOS will auto-detect the HDD & CD-ROM drive at the

POST stage and show the IDE for the HDD & CD-ROM drive.

If a hard disk has not been installed, select None and press

<Enter>.

Sélectionnez Auto pour le(s) disque(s) dur(s) installés dans

votre système. Le BIOS détectera automatiquement le Disque

Dur et le Lecteur CD-ROM durant la phase POST et affichera

lIDE du Disque Dur et du Lecteur CD-ROM. Si aucun disque

dur na été installé, sélectionnez None et appuyez sur <entrée>.

Im Eintrag Hard Disk Drive(s) (Festplatte) Auto auswählen.

Das Programm entdeckt die Festplatte sowie das CD-ROM

Laufwerk während der Initialisierung automatisch. Ist keine

Festplatte installiert, aktivieren Sie den Eintrag None.

Eingabetaste (Enter) drücken.

: : : :

TYPE Auto Auto Auto Auto

SIZE

0 0 0 0

CYLS

↑↓→←

HEAD 0 0 0 0

: Select Item : Change(Shift)F2

0 0 0 0

PRECOMP

LANDZ 0 0 0 0

SECTOR 0 0 0 0

Base Memory : 640K Extended Memory : 64512K Other Memory : 384K

Total Memory : 65536K

PU/PD/+/- : Modify

0 0 0 0

MODE Auto Auto Auto Auto

Award BIOS Setup Utility

3. Set the type of floppy drive installed in the Drive A and Drive

B fields. The options are None, 360K, 1.2M, 720K, 1.44M and

2.88M.

Paramétrez le type de lecteur de disquette installé dans les

champs Drive A et Drive B. Les options sont None, 360K,

1.2M, 720K, 1.44M et 2.88M.

Im Eintrag Floppy Drive (Diskettenlaufwerk) wählen Sie Drive

A (Laufwer k A) und Drive B (Laufwerk B). Die Optionen sind

None (Kein), 360K, 1.2M, 720K, 1.44M und 2.88M.

3.4 Selecting the Drive to be Searched First for an

Operating System

Sélectionner le Lecteur qui doit être Détecté en

premier par un Système dExploitation

Auswahl des Bootlaufwerks

ROM PCI/ISA BIOS

BIOS FEA TURES SETUP

AWARD SOFTWARE, INC.

Virus Warning CPU L1 Cache CPU L2 Cache Quick Power On Self Test

Boot Sequence

Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option PCI/VGA Palette Snoop OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability

: Disabled : Enabled : Enabled : Enabled

: A, C, SCSI

: Disabled : Disabled :On : Disabled :6 : 250 : Setup : Disabled : Non-OS2 : Disabled

ESC

: Quit

: Help

: Old Values

: Load Fail-Safe Settings

: Load Optimal Settings

↑↓→←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select BIOS Features Setup in the main program screen and

press <Enter>.

Sélectionnez BIOS Features Setup dans lécran de programme

principal et appuyez sur <Entrée>.

BIOS Features Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select the dr ive to be searched first in the Boot Sequence field.

The default is A, C, SCSI. The other options are: C, A, SCSI; C,

CDROM, A; CDROM, C, A; D, A, SCSI; E, A, SCSI; F, A, SCSI;

SCSI, A, C; SCSI, C, A; C only and LS/ZIP, C.

Award BIOS Setup Utility

Sélectionnez le lecteur qui devra être détecté en premier dans le

champs Boot Sequence. La valeur par défaut est A, C , SCSI.

Les autres options sont: C, A, SCSI; C, CDROM, A; CDROM, C,

A; D, A, SCSI; E, A, SCSI; F, A, SCSI; SCSI, A, C; SCSI, C, A; C

seulement et LS/ZIP, C.

Im Boot Sequence Feld wählen Sie die Sequenz, in welcher der

Computer nach einem Betriebssystem sucht. Die Optionen sind

C, A, SCSI; C, CDROM, A; CDROM, C, A; D, A, SCSI; E, A, SCSI;

F, A, SCSI; SCSI, A, C; SCSI, C, A; nur C und LS/ZIP, C.

3.5 Selecting the External System Bus Clock of the Processor

Paramétrage de lHorloge Externe de Bus Système du

Processeur

Auswahl des externen Systemtaktgebers Ihres Prozessors

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

SDRAM RAS-to-CAS Delay SDRAM RAS Precharge Time SDRAM CAS Latency Time DRAM Data Integrity Mode System BIOS Cacheable Video BIOS Cacheable Video RAM Cacheable 8 Bit I/O Recovery Time 16 Bit I/O Recovery Time Memory Hole At 15M-16M PCI 2.1 Compliance AGP Aperture Size (MB)

CPU Bus Clock

: Slow : Slow :3 : Non-ECC : Disabled : Enabled : Disabled :1 :1 : Disabled : Disabled :64

: 66MHz

ESC

: Quit

: Help

: Old Values

: Load Fail-Safe Settings

: Load Optimal Settings

↑ ↓ → ←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select Chipset Features Setup in the main program screen and

press <Enter>.

Sélectionnez Chipset Features Setup dans lécran de programme

principal et appuyez sur <Entrée>.

Chipset Features Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select the external system bus clock of your processor in the

CPU Bus Clock field. The options are: 50MHz, 60MHz, 66MHz,

68MHz, 75MHz and 83MHz.

Sélectionnez lHorloge Externe de Bus Système de votre

processeur dans le champ CPU Bus Clock. Les options sont

50MHz, 60MHz, 66MHz, 68MHz, 75MHz et 83MHz.

Award BIOS Setup Utility

Im CPU Bus Clock Feld sind folgende Optionen möglich:

50MHz, 60MHz, 66MHz, 68MHz, 75MHz und 83MHz.

Note / Note / Anmerkung:

The default is 66MHz. Do not alter this setting unless

necessary. We do not guarantee your system will work properly

with the other options.

La valeur par défaut est 66MHz. Ne changez pas ce

paramètre sauf en cas de nécessité. Nous ne garantissons pas

que votre système puisse fonctionner avec les autres options.

Die Standardeinstellung ist 66MHz. Diese Einstellung sollte nicht

von Ihnen geändert werden, das Ihr System möglicherweise

nicht mit anderen Einstellungen arbeitet!

3.6 Selecting an IRQ for the External Modem

Sélectionner une IRQ pour le Modem Externe

IRQ Bestimmung für ein externes Modem

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI Function Power Management PM Control by APM Video Off Method Video Off After

MODEM Use IRQ

Standby Mode Suspend Mode HDD Power Down PCI/VGA Act Monitor

: Disabled : User Define :Yes : DPMS : Standby

: Disabled : Disabled : Disabled : Disabled

Resume On Alarm

: Disabled ESC

F1 F5 F6 F7

: Quit : Help : Old Values : Load Fail-Safe Settings : Load Optimal Settings

↑ ↓ → ←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select Power Management Setup in the main program screen

and press <Enter>.

Sélectionnez Power Management Setup dans lécran de

programme principal et appuyez sur <Entrée>.

Power Management Setup in dem Hauptbildschirm auswählen,

und die Eingabetaste (Enter) drücken.

2. Select the MODEM Use IRQ field. The options in this field are

IRQ 3, 4, 5, 7, 9, 10 and 11. Default setting is IRQ 3.

Award BIOS Setup Utility

Sélectionnez MODEM Use IRQ. Les options sont IRQ 3, 4, 5,

7, 9, 10 ou 11. La valeur par défaut est IRQ 3.

Im MODEM Use IRQ Feld sind folgende optionen möglich:

IRQ 3, 4, 5, 7, 9, 10 und 11. Voreinstellung sind IRQ 3.

3.7 Loading Fail-Safe Settings/Optimal Settings

Charger les Paramètres à Sécurité Relative Optimaux

Laden der Fail - Safe Einstellungen / Optimierte

Einstellungen

The Load Fail-Safe Settings option loads the troubleshooting default

values permanently stored in the ROM chips. These settings are not

optimal and turn off all high performance features. You should use these

values only if you have hardware problems. The Load Optimal Settings

option loads optimized settings from the BIOS ROM. Use the Setup

default values as standard values for your system.

Loption Charger les Paramètres à Sécurité Relative charge les

valeurs de recherche de pannes par défaut stockées de manière

permanente dans les puces ROM. Ces paramètres ne sont pas

optimum et désactives toutes les fonctionnalités à haute

performance. Vous pouvez utiliser ces valeurs seulement si vous

rencontrez des problèmes de matériel.

Mit dieser Funktionen lassen sich Standardeinstellungen in dem

permanenten ROM Speicher ablegen, die in Problemfällen geladen

werden. Mit dieser Einstellung läßt sich der Computer im

Standardmodus starten. Sie sollten diese Werte nur dann benutzen,

wenn Hardwareprobleme etc. eine Star ten des Computers nicht

zulassen. Mit der Auswahl Load Optimal Settings lassen sich die

optimierten Einstellungen von dem BIOS ROM abrufen. Die

optimierten Einstellungen sind der Standardwert.

3.8 Setting the Supervisor/User Password

If you want to protect your system and the setup utility from

unauthorized entry, set a password in the Supervisor Password

field. If you want a user to have access only to your system but not

to setup, set a password in the User Password field. Use the

arrow keys to highlight the Supervisor Password or User

Password field and press <Enter>. The message below will appear.

Enter Password:

Award BIOS Setup Utility

Type in the password. You can enter up to eight characters only. You

will then be prompted to confirm the password. Type in exactly the

same password.

Make sure to set the Security Option field in the BIOS Features

Setup to System or Setup. This will depend on when you would

like the system to be prompted with a password.

Définir le Mot de Passe Superviseur/Utilisateur

Si vous désirez protéger votre système et Install contre toute entrée

non autorisée, paramétrez un mot de passe dans le champ

Supervisor Password. Si vous désirez protéger laccès à Install

seulement, mais pas votre système, paramétrez un mot de passe

dans le champ User Password. Utilisez les touches fléchées pour

sélectionner le champ Supervisor Password ou User Password et

appuyez sur <Entrée>. Le message ci-dessous apparaîtra.

Enter Password:

Entrez le mot de passe. Vous êtes limité à huit caractères. Une fois

que cest fait, vous serez invité à confirmer le mot de passe, entrez

exactement le même mot de passe.

Assurez vous de positionner le champs Security Option dans les

BIOS Features Setup sur System ou Setup. Cela dépend du

moment où vous désirez que le système vous demande le mot de

passe.

Aktivieren eines Supervisor / Benutzer Paßwortes

Wenn Sie das Supervisor Password aktivieren, müssen Sie vor dem

Einstieg in das Konfigurationsprogramm ein Kennwort eingeben.,

während das User Password den Zugang zu dem Computer

ermöglicht. Wählen Sie den Eintrag Supervisor Password bzw.

Supervisor Password und betätigen Sie die Eingabetaste (Enter). Im

erscheinenden Dialogfeld.

Enter Password:

Geben Sie Ihr Kennwort mit bis zu 8 Stellen ein. Betätigen Sie die

Eingabetaste und geben Sie das Kennwort als Bestätigung erneut ein.

Es ist darauf zu achten, daß das Feld Security Option in dem BIOS

Features Setup auf System oder Setup gesetzt ist.

Supported Softwares

Chapter 4 - Supported Softwares

Logiciels Supportés

Unterstützte Software

4.1 Utility / Utilitaires / Hilfsprogramme

The CD included in the system board package contains a patch

utility. If you are running Windows 95 (Win95, Win95+, Win95

OSR1: Windows 95 OEM Service Release 1, Win95 OSR2: Windows

95 OEM Service Release 2.0 or Win95 OSR2.1: Windows 95 OEM

Service Release 2.0 plus USB Supplement), you need to run the

patch utility.

Insert the CD into a CD-ROM drive. The autorun screen (Main

Board Utility CD) will appear. Click Patch Utility for Windows 95.

Please refer to its readme file for instructions on installing the utility.

All steps or procedures to install the utility are subject to change

without notice as the utility may occassionally be updated. Please

refer to the readme file for the latest information.

System Error Message

Appendix A - System Error Message

Messages dErreur du Système

Fehlernachricht des Systems

When the BIOS encounters an error that requires the user to

correct something, either a beep code will sound or a message will

be displayed in a box in the middle of the screen and the message,

PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER

SETUP, will be shown in the information box at the bottom. Enter

Setup to correct the error.

A.1 POST Beep / Pip de POST / Akustisches POST-Signal

There are two kinds of beep codes in the BIOS. One code indicates

that a video error has occured and the BIOS cannot initialize the

video screen to display any additional information. This beep code

consists of a single long beep followed by three short beeps. The

other code indicates that a DRAM error has occured. This beep

code consists of a single long beep.

A.2 Error Messages / Messages dErreur / Fehlernachrichten

One or more of the following messages may be displayed if the

BIOS detects an error during the POST. This list indicates the error

messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Caution:

Danger of explosion if battery incorrectly replaced. Replace only

with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the

battery manufacturers instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has

become corrupt. This error may have been caused by a weak

battery. Check the batter y and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either

monochrome or color. This indicates the switch is set to a different

System Error Message

setting than indicated in Setup. Determine which setting is correct,

either turn off the system and change the jumper or enter Setup and

change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is

pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached

correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard

controller is pull low. This is also used for the M/B burn in test at the

factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memor y test fail if the memory has error(s).

DFI CL50-LX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
