Page 1

CD952 Series

Embedded SBC 3.5”

User’s Manual

A25870453

Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 3

Trademarks ........................................................................................................2

I/O Connectors ........................................................................................... 19

Digital I/O Connector (optional)................................................................... 19

Expansion slots ........................................................................................... 19

Chassis Intrusion Connector ........................................................................ 20

Cooling Fan Connectors...............................................................................20

LEDs .......................................................................................................... 21

Battery ....................................................................................................... 21

CompactFlash Socket .................................................................................. 22

FCC and DOC Statement on Class B ..................................................... 2

About this Manual ..........................................................................................4

Warranty ............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

About the Package .........................................................................................5

Chapter 1 - Introduction ............................................................................. 6

Specifications ................................................................................................6

Features ........................................................................................................ 7

Chapter 2 - Hardware Installation ................................................8

Board Layout ................................................................................................. 8

Block Diagram ............................................................................................... 9

Mechanical Diagram ....................................................................................9

System Memory .......................................................................................... 10

Jumper Settings ......................................................................................... 10

Power-on/Clear CMOS ................................................................................ 10

USB Power Select ....................................................................................... 11

COM2/DIO Select .......................................................................................11

Front Panel I/O Ports ................................................................................ 12

USB Ports ................................................................................................... 12

COM1 (Serial) Port ...................................................................................... 13

Mic-in jack.................................................................................................. 14

RJ45 LAN Ports ........................................................................................... 14

Rear Panel I/O Ports .................................................................................15

DVI-I Port ..................................................................................................15

VGA Port .................................................................................................... 16

micro HDMI ................................................................................................ 16

DC-in ......................................................................................................... 17

Line-out jack ..............................................................................................17

COM2 (Serial) Port/Isolated 4-bit DIO .......................................................... 18

Chapter 3 - BIOS Setup ............................................................... 23

Overview ..................................................................................................... 23

AMI BIOS Setup Utility ............................................................................. 24

Main .......................................................................................................... 24

Advanced ................................................................................................... 24

Chipset ...................................................................................................... 30

Boot........................................................................................................... 32

Security ...................................................................................................... 33

Save & Exit ................................................................................................ 33

Updating the BIOS .................................................................................... 34

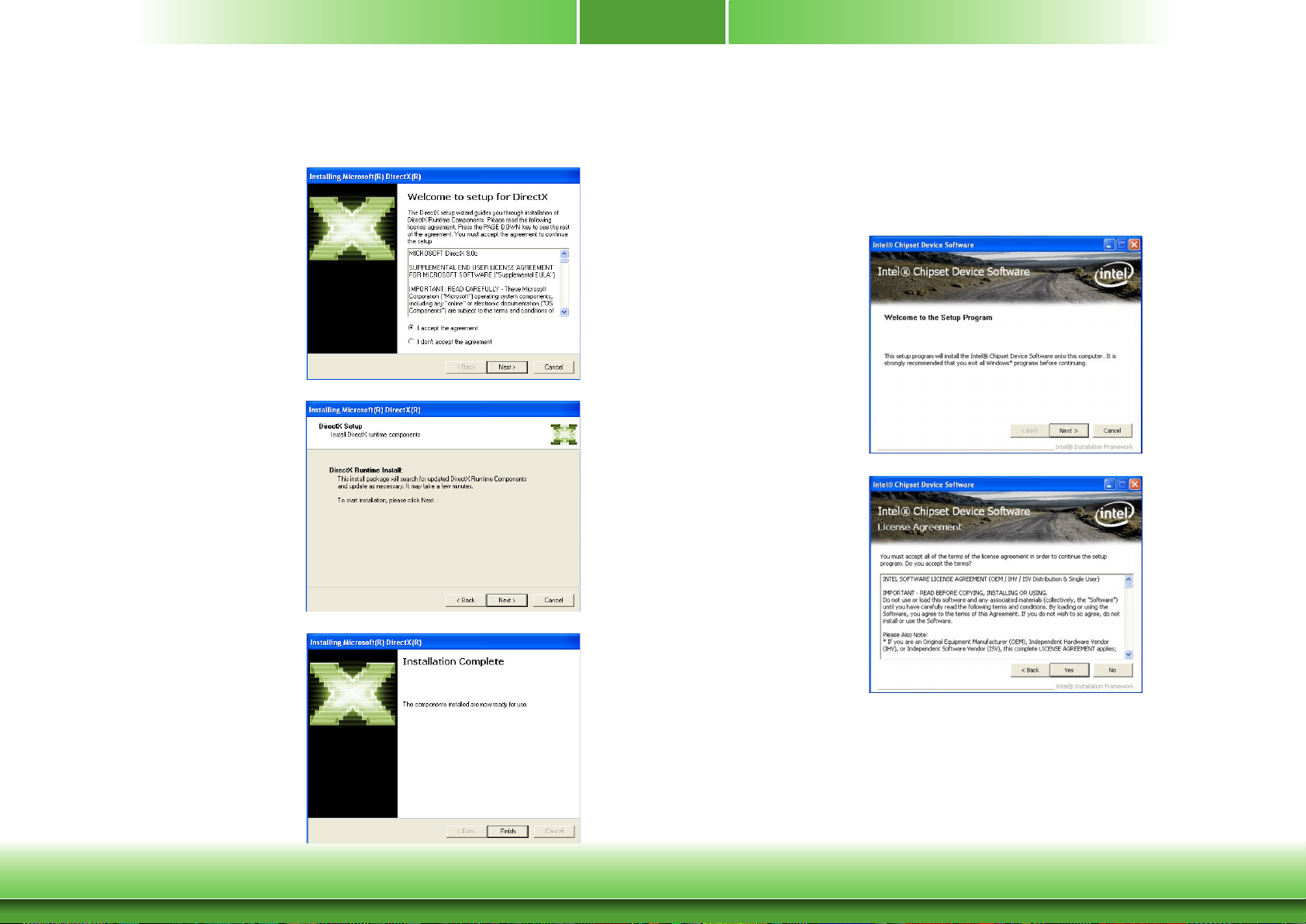

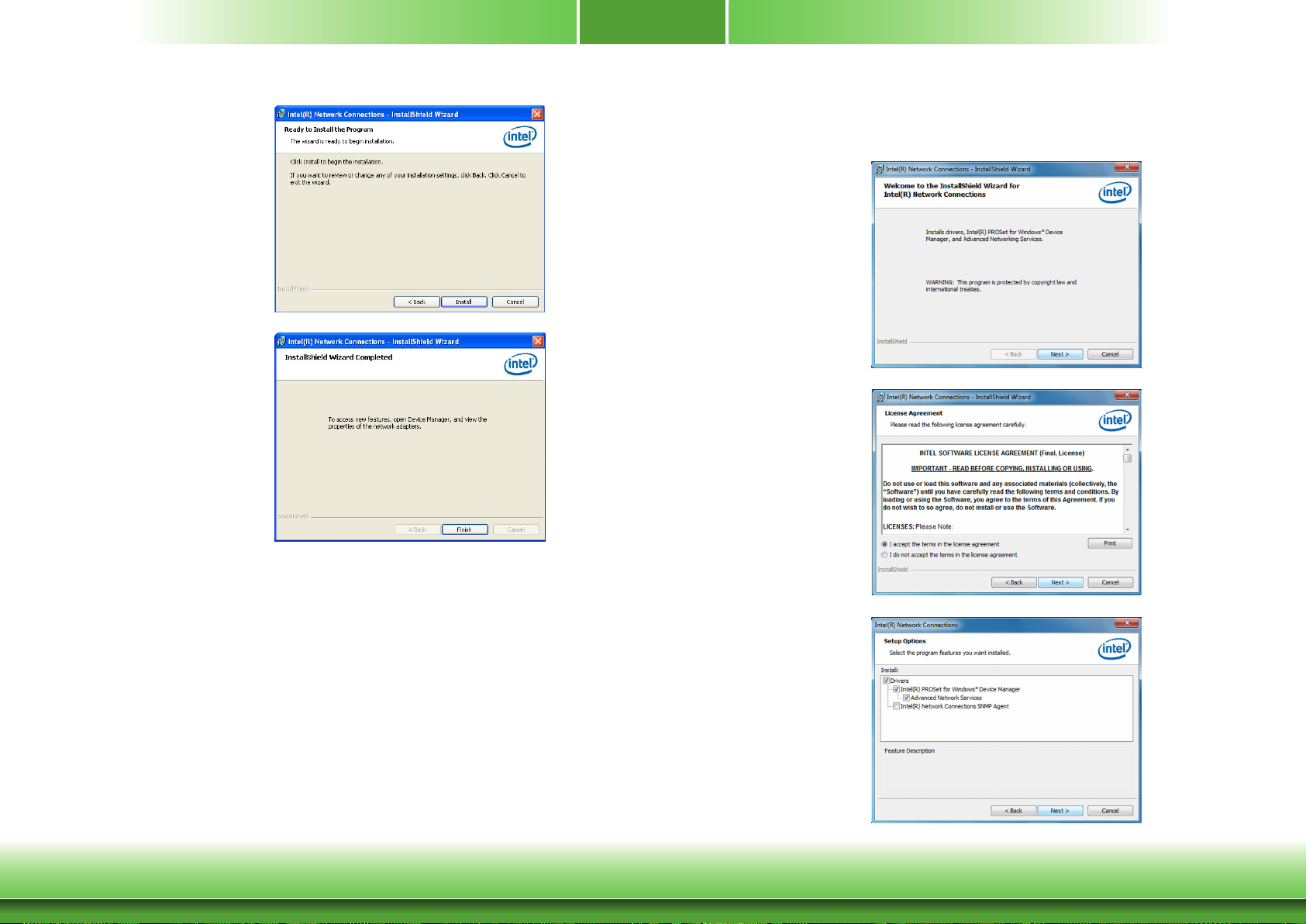

Chapter 4 - Supported Software ........................................................... 35

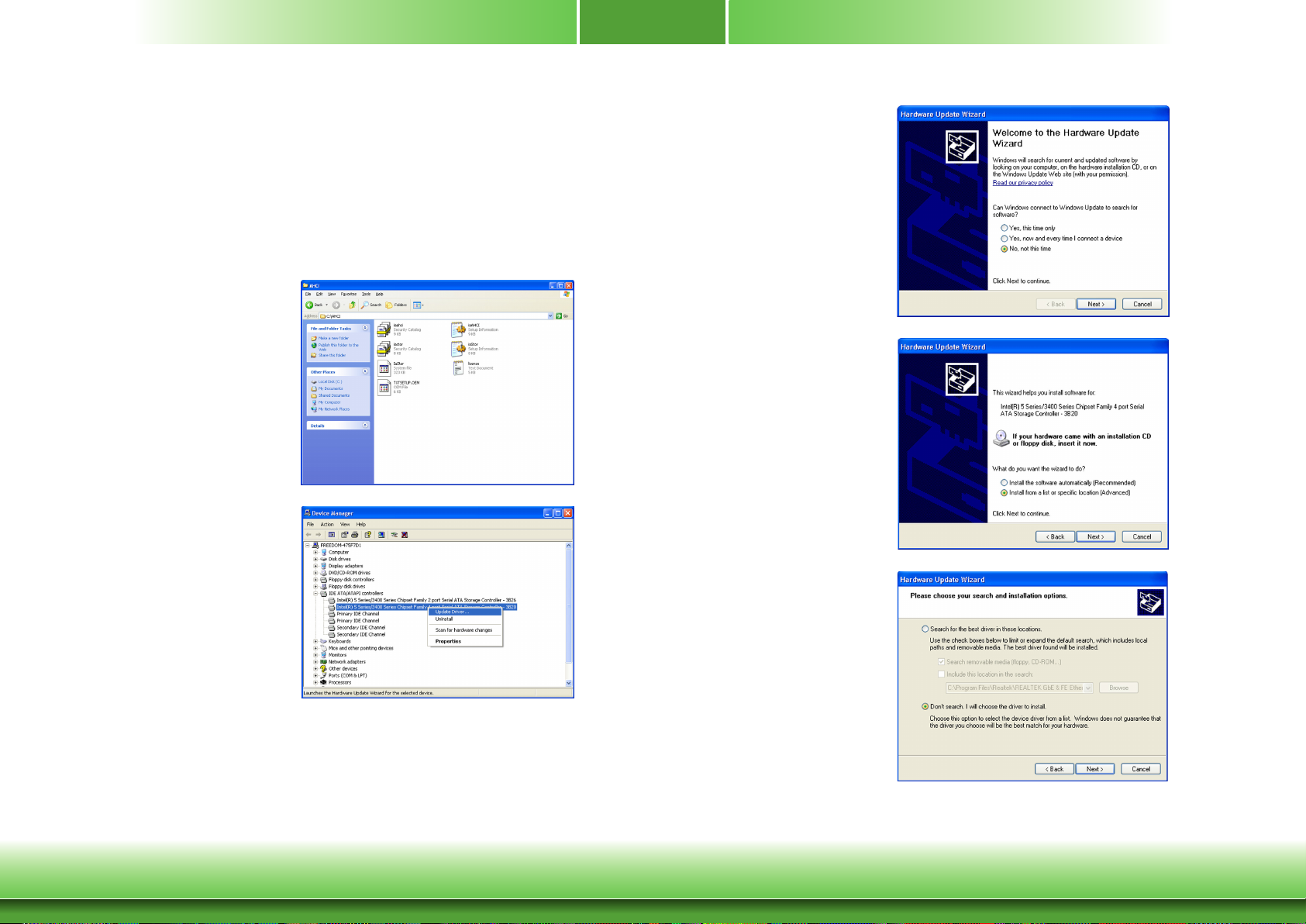

Appendix A - nLite and AHCI Installation Guide ........................... 49

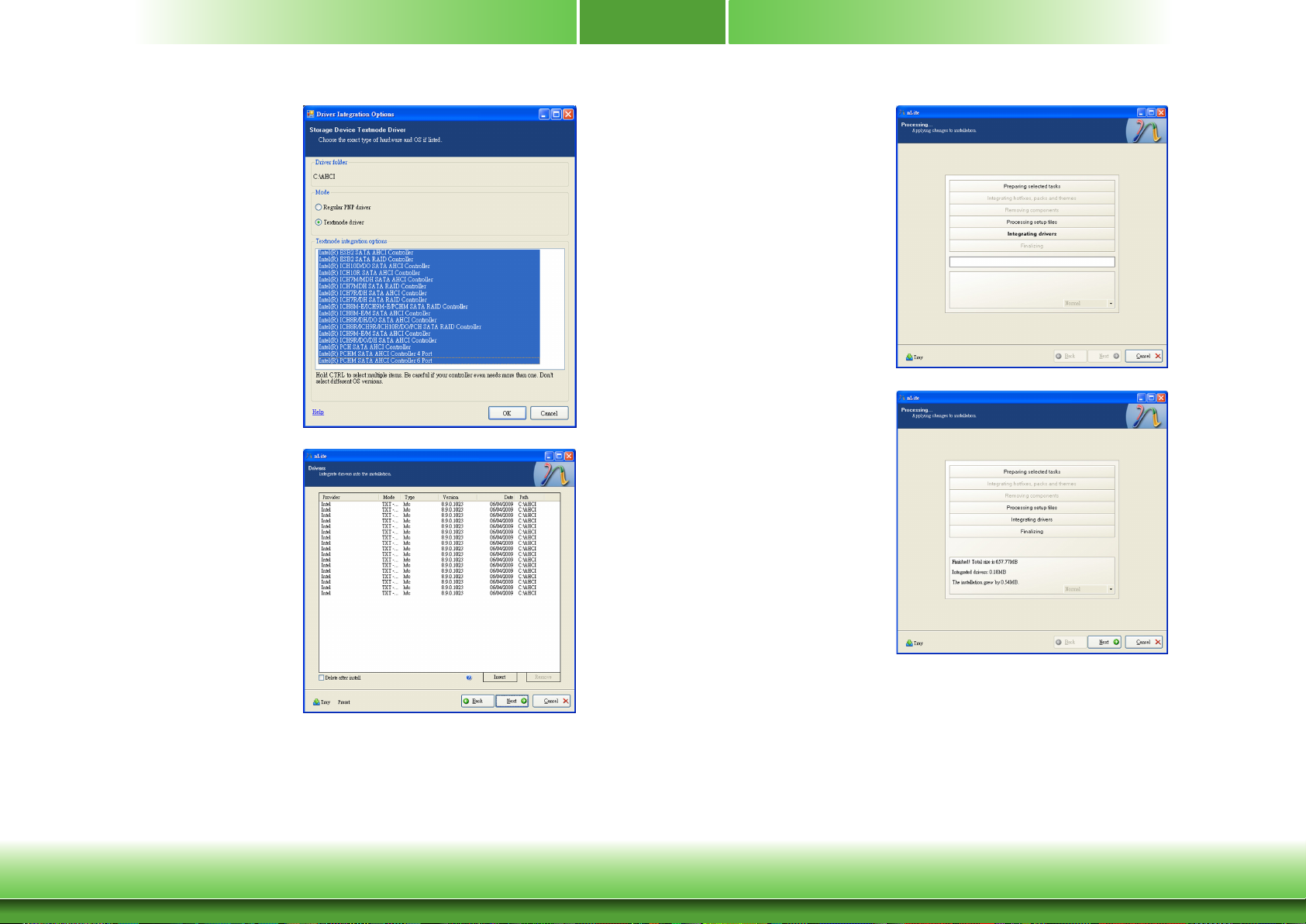

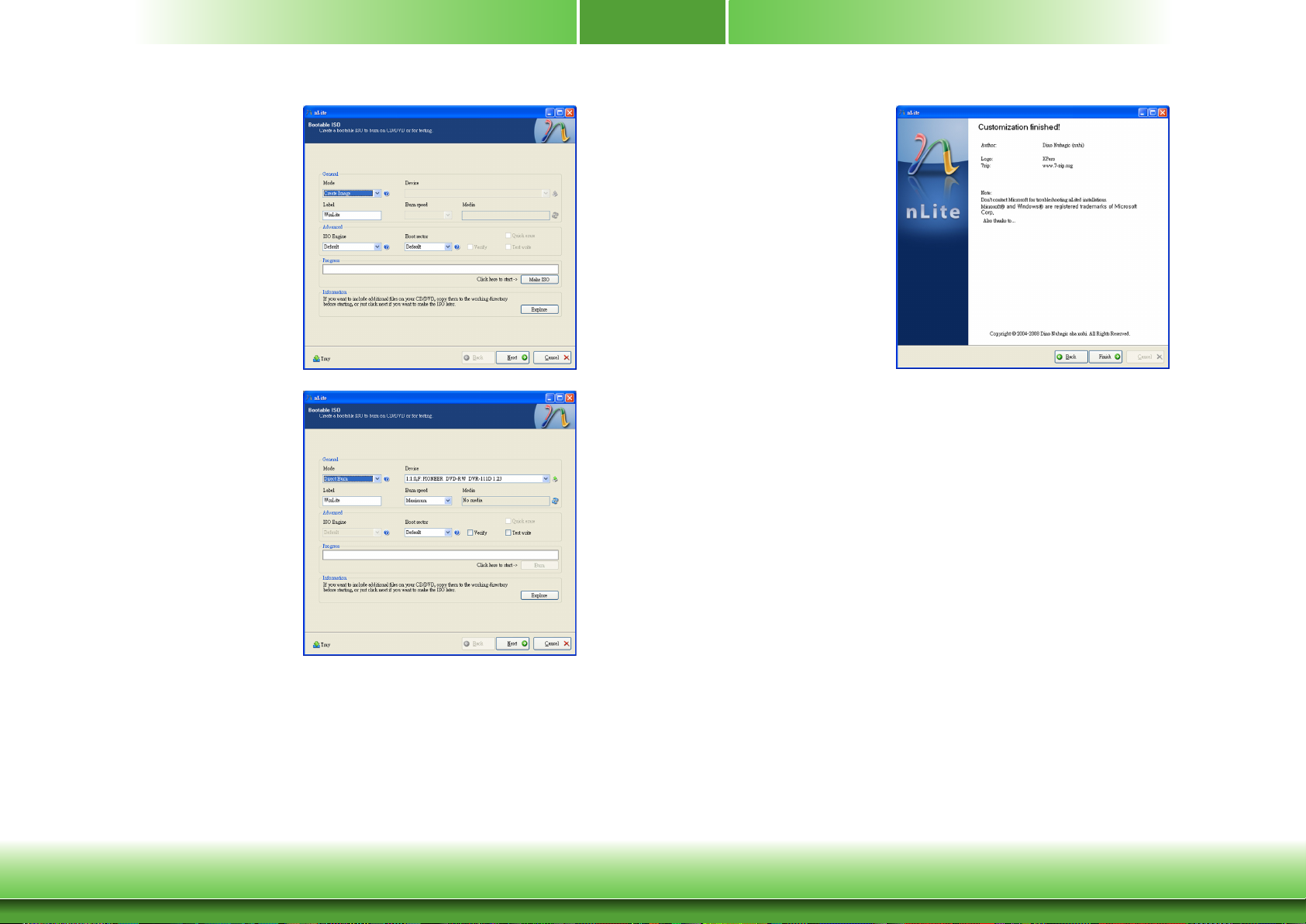

nLite ............................................................................................................... 49

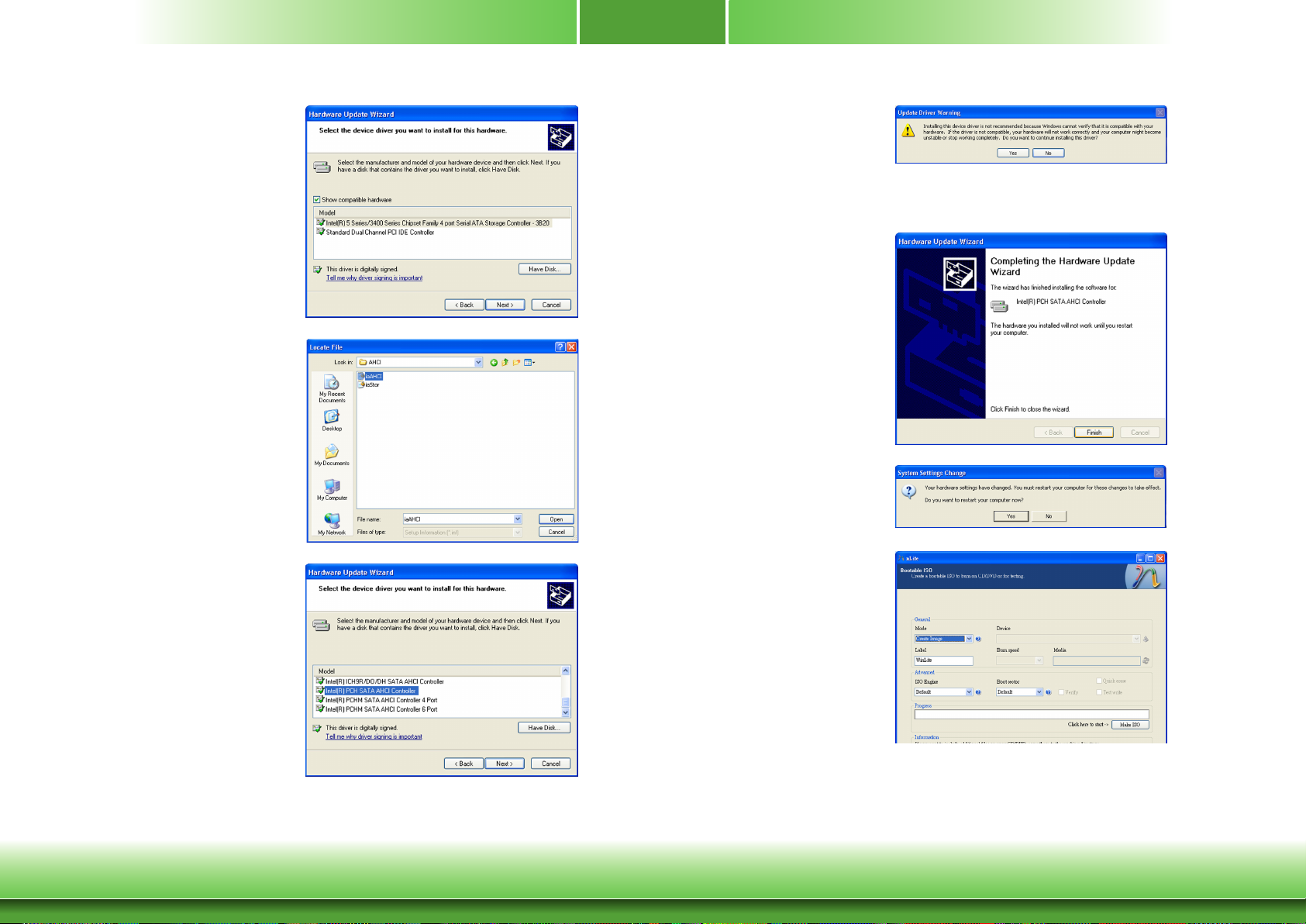

AHCI .............................................................................................................. 53

Appendix B - Watchdog Sample Code ................................................ 55

Appendix C - Troubleshooting ................................................................ 56

Appendix D - Troubleshooting ................................................................ 57

Appendix E - Digital I/O User Guide ................................................... 59

Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Page 5

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• One CD952 board

• One DVD

• One QR (Quick Reference)

Optional Items

• USB port cable

• Power adapter (120W, 19V)

The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components. If you are installing the system board in a new system, you will need at least the following internal components.

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 6

Chapter 1 - Introduction

Specifications

Chapter 1

Processor

Chipset System Memory

Expansion Slots

Graphics

Audio

LAN

COM

Storage

DIO

Front I/O Ports

• Intel® AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core

• Intel

AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core

AtomTM N2600, 1.6GHz, 2x 512K L2, 3.5W TDP, dual-core

• Intel

• Intel® NM10 Express chipset

• 2GB DDR3 onboard (standard)

- Intel

• 3 Mini PCIe slots

- 2 slots for communication : One slot supports PCIe x1, USB, and LPC signals for Wi-Fi/LPC : One slot supports PCIe x1, USB, and 3G signals for 3G/GPRS

- 1 slot for storage : Supports mSATA module

• 1 SIM card socket

• 1 CFast socket

• Intel® GMA 3650 (Intel® AtomTM D2550/N2800)

Intel

• VGA: resolution up to 1920x1600 @60Hz

• HDMI, DVI: resolution up to 1920x1200 @60Hz

• Smooth Video Playback

- Supports hardware decoders (H.264, VC-1, MPEG-4) with Full HD 1080p video playback capability

• Realtek® ALC886 7.1-channel High Deﬁ nition Audio

• 1 line-out and 1 mic-in

• 2 Intel® WG82574L Gigabit Ethernet Controllers

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• 2 DB-9 ports

- 1 DB-9 port supports RS232/422/485 COM port

- 1 DB-9 port supports RS232/422/485 COM or isolated 2-bit In and 2-bit Out DIO

• Supports RS485 auto direction control

• 1 mSATA module via a Mini PCIe slot

• 1 CFast socket

•

1 isolated 4-bit DIO via the DB-9 port (signal+power) or 1 8-bit DIO connector* (optional)

• 1 DB-9 RS232/422/485 COM

• 1 mic-in

• 2 LAN

• 4 USB 2.0 (Type A)

• 1 CFast socket

• 1 reset switch connector

• 1 power button with LED connector

Atom

D2550/N2800 supports up to 4GB (option)

GMA 3600 (Intel® AtomTM N2600)

I/O Connectors

BIOS

Watchdog

• 1 connector for 2 external USB 2.0/1.1 ports

• 1 8-bit DIO connector* (optional)

• 1 chassis intrusion connector

• 1 fan connector

• AMI BIOS

- 16Mbit SPI BIOS

• Software programmable from 1 to 255 seconds

Timer Power Energy Efﬁ cient

Design

Damage Free Intelligence

Power

• 9~24V DC power input voltage

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

• Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm

• Monitors system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• 13.41W with N2800 at 1.86GHz and 1x 2GB DDR3 onboard

Consumption OS Support • Windows XP Professional x86 & SP3 (32-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

Temperature • Operating

- Standard: 0

- Option: -20

• Storage: -20

Humidity PCB

• 10% to 90%

• 146mm (5.75") x 102mm (4.02")

C to 60oC

C to 70oC

C to 85oC

Note:

*Optional and is not supported in standard model. Please contact your sales representative for more information.

Chapter 1 Introduction www.dﬁ .com

Page 7

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

• DDR3

DDR3 delivers increased system bandwidth and improved performance. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

• Graphics

The integrated Intel® GMA graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports DVI and VGA for up to 2 independent displays.

• Gigabit LAN

The Intel® WG82574L Gigabit LAN controller supports up to 1Gbps data transmission.

• Audio

The Realtek ALC886 audio codec provides 7.1-channel High Definition audio output.

• Wake-On-LAN

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can poweron the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Chapter 1 Introduction www.dﬁ .com

Page 8

Chapter 2 - Hardware Installation

Board Layout

Mic-in

Battery

Buzzer

Intel

WG82574L

SIM Card slot

Fintek

F81866

COM 2/ DIO Select (JP10)

COM 2/ DIO Select (JP9)

Intel

NM10

System fan HDD_LED

COM 1

LAN 1

Chassis Intrusion

DIO

13 10

Line-out

HDMI

COM 2/

Isolated 4-bit DIO

Chapter 2

SPI Flash BIOS

Mini PCIe 1 mSATA

9VRS4339

Asmedia ASM1442

ICS

Power-on/ CMOS Select (JP5)

Mini PCIe 2

Realtek ALC886

LAN 2

Intel

WG82574L

USB 0

USB 1

USB 2

USB 0-3/ 4-5

USB 3

Reset

Power

Power Select (JP8)

USB 4-5

DDR3 DDR3 DDR3

Standby_LED

Chapter 2 Hardware Installation

Intel Atom

D2550/ N2800/ N2600

Top View

VGA

DDR3

DVI-I/VGA

DC-IN

DVI-I

/ VGA

CFast

Intersil

ISL95831

DDR3 DDR3

DDR3

Bottom View

www.dﬁ .com

Page 9

Chapter 2

Block Diagram

DC-IN

VGA/DVI

Intel GLAN

Codec

MIC-IN

LINE-OUT

DVI-I

L/R in L/R out

PCIe

HDA

Atom D2550 Atom N2800 Atom N2600

DMI

NM10

SATA

USB 2.0

PCIe

USB

PCIe

USB

DDR3

DDR3 Onboard

mSATA

(Mini PCIe)

CFAST

USB 6x

3G with SIM

(Mini PCIe)

Wi-Fi/BT with

LPC Bus

(Mini PCIe)

CK505

Mechanical Diagram

102.00

98.40

79.32

60.54

44.21

37.32

3.20

0.00

8.90

27.72

27.76

43.53

48.89

60.90

62.50

79.00

85.16

93.35

101.53

100.27

132.80

58.47

117.27

126.04

108.77

134.80

142.90

146.00

DIO

Chapter 2 Hardware Installation

SUPER IO

RS232/422/485

COM 2x

www.dﬁ .com

Page 10

Chapter 2

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

Important:

When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Jumper Settings

Power-on/Clear CMOS

JP5

1-3 On: Power-on via

power button (default)

3-5 On: Auto Power-on

2-4 On: Normal

4-6 On: Clear CMOS

Power-on

JP5 is used to select the method of powering on the system. If you want the system to pow-

DVI-I

VGA

/ VGA

er-on whenever AC power comes in, set JP5 pins 3 and 5 to On. If you want to use the power button, set pins 1 and 3 to On.

When using the JP5 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker).

1 3 5

(default)

1 3 5

2 4 6

Standby

Power LED

Features

• 2GB DDR3 onboard (standard)

- Intel

Atom

D2550/N2800 supports up to 4G (optional)

Chapter 2 Hardware Installation

DDR3

Note:

In order to ensure that power is resumed after a power failure that re covers within a 5 second period, JP5 must be set to pins 3-5 and the “AC Power Lose” in CMOS is set to “On”.

www.dﬁ .com

Page 11

Chapter 2

Clear CMOS

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP5 pins 4 and 6 to On. Wait for a few seconds and set JP5 back to its default setting, pins 2 and 4 On.

3. Now plug the power cord and power-on the system.

USB Power Select

DVI-I

VGA

/ VGA

JP8

USB 0-3

642

531

2-4 On: +5V

642

USB 4-5

642

531

1-3 On: +5V

642

COM2/DIO Select

12 10

VGA

JP9 and JP10

DVI-I

/ VGA

The system board uses JP9 and JP10 to select between RS232/422/485 COM2 or isolated 4-bit DIO at the rear panel.

Note:

You cannot use COM2 and DIO at the same time. Please set up JP9 and JP10 at the same time.

97 64

1-4-7-10, 2-5-8-11

On: COM2 (default)

12 10

97 64

2-5-8-11, 3-6-9-12

On: DIO

531

4-6 On: +5V_standby

(default)

3-5 On: +5V_standby

531

(default)

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 12

Chapter 2

Front Panel I/O Ports

LAN 2

Mic-in

COM

The front panel I/O port consists of the following:

• 4 USB ports

• 1 COM port

• 2 LAN ports

• 1 Mic-in jack

USB Ports

USBLAN 1

DVI-I

VCC

VGA

/ VGA

-Data

+Data

GND

Key

USB 0-3

USB 2.0

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with 4 USB 2.0/1.1 ports (USB 0-3). The 10-pin connector allow you to connect 2 additional USB 2.0/1.1 ports (USB 4-5).

109

USB 4-5

USB 2.0

VCC

-Data +Data GND N. C.

Chapter 2 Hardware Installation

BIOS Setting

Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to chapter 4 for more information.

www.dﬁ .com

Page 13

Chapter 2

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

Jumper Setting

JP8 must be set to “4-6 On: +5V_standby”. Refer to “USB Power Select” in this chapter for more information.

Important:

COM1 (Serial) Port

COM1:

RS232/422/485

DVI-I

VGA

/ VGA

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

BIOS Setting

Configure the serial ports in the Integrated Peripherals submenu (“Onboard I/O Chip Setup” section) of the BIOS. Refer to chapter 3 for more information.

Chapter 2 Hardware Installation

COM 1

TXD

RXD

DTR-

GND

DCD-

2345

6789

RI-

RTS-

CTS-

DSR-

RS232

RX+

TX+

RX-

12345

6789

N.C.

RS422

Full Duplex

TX-

GND

N.C.

DATA-

DATA+

12345

6789

N.C.

RS485

N.C.

GND

www.dﬁ .com

Page 14

Chapter 2

Mic-in jack

Mic-in

DVI-I

VGA

/ VGA

This jack is used to connect an external microphone.

BIOS Setting

Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Refer to chapter 3 for more information.

RJ45 LAN Ports

LAN 1 LAN 2

VGA

Features

• 2 Intel® WG82574L Gigabit Ethernet LAN controllers

The LAN ports allow the system board to connect to a local area network by means of a network hub.

DVI-I

/ VGA

Driver Installation

Install the audio driver. Refer to chapter 4 for more information.

Chapter 2 Hardware Installation

BIOS Setting

Configure the onboard LAN in the Chipset menu (“South Bridge Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

www.dﬁ .com

Page 15

Chapter 2

Rear Panel I/O Ports

DVI-I9~24V DC-in COM

The rear panel I/O ports consist of the following:

• 1 DVI port

• 1 DC-in

• 1 RS232/422/485 COM port or Isolated 4-bit DIO

• 1 Line-out jack

VGA9~24V DC-in COM 2

The rear panel I/O ports consist of the following:

• 1 micro HDMI port

• 1 VGA port

• 1 DC-in

• 1 RS232/422/485 COM port

• 1 Line-out jack

Line-out

micro HDMI

DVI-I Port

DVI-I

VGA

/ VGA

DVI-I

The DVI-I port is used to connect an LCD monitor. Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the display device in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Chapter 2 Hardware Installation

Install the graphics driver. Refer to chapter 4 for more information.

www.dﬁ .com

Page 16

Chapter 2

VGA Port

DVI-I

VGA

/ VGA

VGA

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port

. After you plug the monitor’s cable connector into the VGA port,

gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure VGA in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

micro HDMI

DVI-I

VGA

The HDMI port which carries both digital audio and video signals is used to connect a LCD monitor or digital TV that has the HDMI port.

/ VGA

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 17

Chapter 2

DC-in

DVI-I

VGA

This jack provides maximum of 120W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter within 9~24V DC output voltage. (We only provide 19V DC output in the package contents.) Using a voltage out of the range 9~24V may fail to boot the system or cause damage to the system board.

/ VGA

DC-in

Line-out jack

DVI-I

VGA

This jack is used to connect a headphone or external speakers.

/ VGA

Line-out

Chapter 2 Hardware Installation

www.dﬁ .com

Page 18

COM2 (Serial) Port/ Isolated 4-bit DIO

RS232/422/485 COM2

or Isolated 4-bit DIO

Chapter 2

DCD-

2345

RXD

TXD

DTR-

GND

COM 2

RX+

TX+

RX-

12345

TX-

GND

N.C.

DATA-

DATA+

12345

N.C.

GND

DVI-I

VGA

/ VGA

This DB-9 port can be used as an RS232/422/485 COM port or as an isolated 4-bit DIO. Refer to the jumper setting in this section for its respective configuration.

COM2 (Serial) Port

The serial port is an asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Isolated 4-bit DIO (2-bit in and 2-bit out)

The isolated 4-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Pins

3 4 5 6 7 8 9

6789

RTS-

DSR-

RS232

RI-

CTS-

6789

N.C.

RS422

Full Duplex

N.C.

6789

N.C.

RS485

COM2 Function

DIO Function

RS232 RS422 RS485

DCD RX+ DATA+ DIN0A

RX RX- DATA- DIN0B

TX TX+ NC DIN1A

DTR TX- NC DIN1B

GND GND GND GND

DSR NC NC

RTS NC NC

DOUT0A

DOUT0B

CTS NC NC DOUT1A

RI NC NC DOUT1B

N.C.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 19

Chapter 2

I/O Connectors

Digital I/O Connector (optional)

DVI-I

VGA

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Digital I/O Connector

Pins Function Pins Function

5 7

9 11 13 15 17 19

DIN0A

DIN0B

DIN1A

DIN1B

DIN2A

DIN2B

DIN3A

DIN3B

+5V

GND

/ VGA

1920

4-bit in and 4-bit out

DIO with power

8 10 12 14 16 18 20

DOUT0A

DOUT0B

DOUT1A

DOUT1B

DOUT2A

DOUT2B

DOUT3A

DOUT3B

+5V_standby

GND

Expansion Slots

Mini PCIe slot for PCIe x1, USB, and Wi-Fi signals

SIM slot

Mini PCIe slot for PCIe x1, USB, and 3G signals

Mini PCIe for mSATA

DVI-I

VGA

/ VGA

SIM Slot

The SIM slot on the system board is used to insert a SIM card.

Mini PCI Express Slot

The Mini PCI Express slot on the system board is used to install a half and/or full size Mini PCIe card such as network cards or other cards that comply to the mini PCI Express specifications into the mini PCI Express slot.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 20

Chapter 2

Chassis Intrusion Connector

Ground

Signal

DVI-I

VGA

/ VGA

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be configured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

Cooling Fan Connectors

Ground

Power

Sense

System fan

DVI-I

VGA

/ VGA

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The Advanced menu (“Hardware Health Configuration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 21

Chapter 2

LEDs

HDD LED

DVI-I

VGA

/ VGA

Standby Power LED

This LED will blink when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

HDD LED

The HDD LED will light when the hard drive is being accessed.

Battery

Ground

Battery

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

VGA

Connect to the battery connector

DVI-I

/ VGA

Chapter 2 Hardware Installation

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance

www.dﬁ .com

Page 22

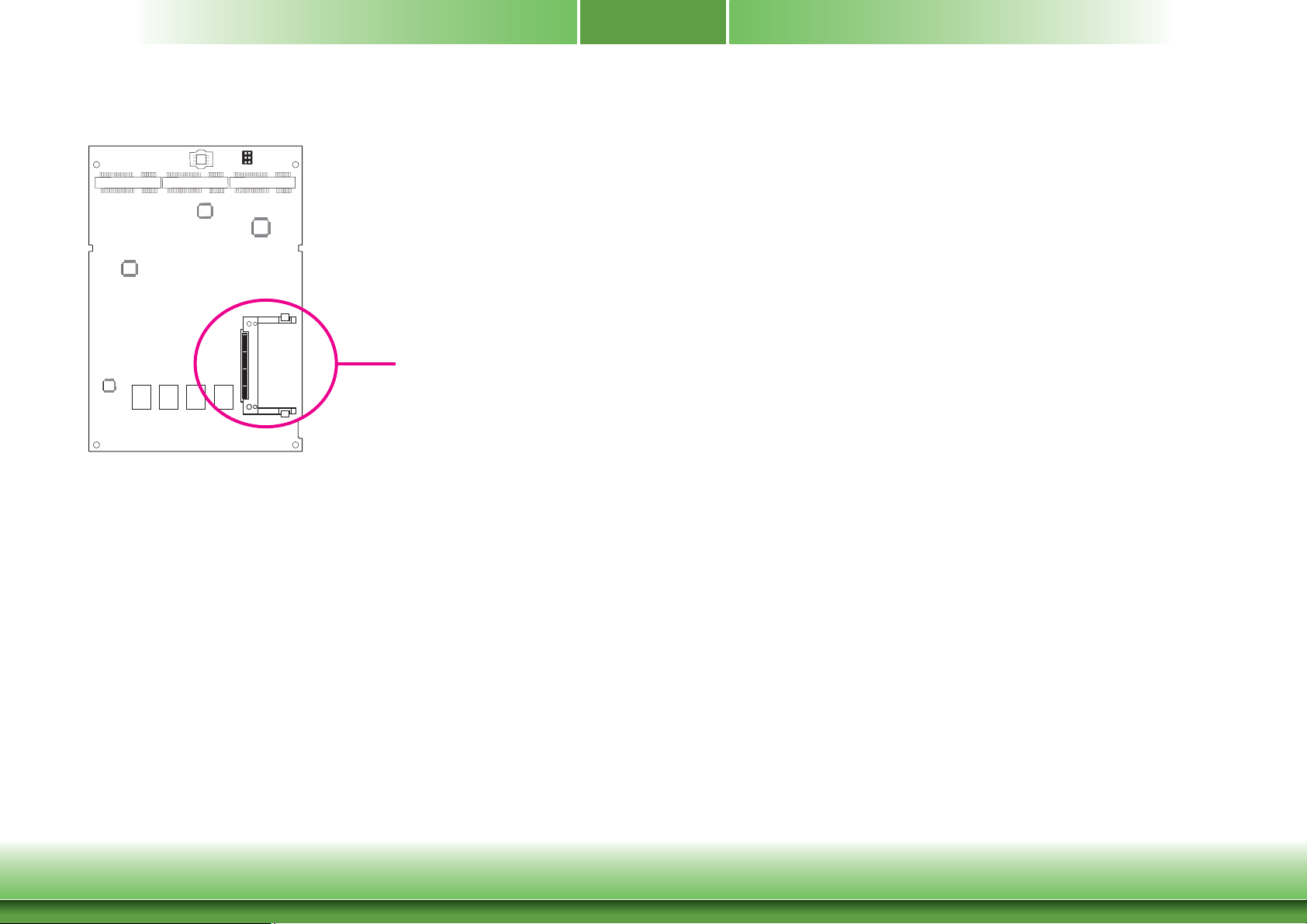

CFast Socket

Chapter 2

CFast Socket

The CFast socket is used to insert a CFast card. A CFast card is a small removable mass storage device designed with flash technology - a non-volatile storage solution that does not require a battery to retain data indefinitely.

Chapter 2 Hardware Installation

www.dﬁ .com

Page 23

Chapter 3

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Legends

Keys Function

Right and Left arrows

Up and Down arrows

<Esc>

+ (plus key)

- (minus key) Tab

<Enter>

Scrolls forward through the values or options of the highlighted ﬁ eld.

Scrolls backward through the values or options of the highlighted ﬁ eld.

Moves the highlight left or right to select a menu.

Moves the hightlight up or down between submenu or ﬁ elds.

Exit to the BIOS Setup Utility.

Select a ﬁ eld.

Displays General Help

Saves and exits the Setup program.

Press <Enter> to enter the highlighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 24

Chapter 3

AMI BIOS Setup Utility Advanced Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

BIOS Information BIOS Vendor Core Version Compliency Project Version Model Name Bios Name Bios Version Build Date and Time

System Date

System Time

Access Level

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Advanced

Boot Security

American Megatrends

4.6.5.1 UEFI 2.3; PI 1.2 1APJK 0.15.013 x64 DFI-CD952 CD9520C5.28A RA07 05/28/2012 23:08:56

[Mon 05/28/2012] [10:44:27]

Administrator

Save & ExitChipset

Set the date. Use Tab to switch between date elements

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect field values may cause the system to malfunction.

Main

Legacy OpROM Support

Launch PCI-E NIC PXE [Disabled] Launch I82574 WOL [Disabled] Launch Resume on Ring [Disabled] Launch Storage OpROM [Enabled]



PCI Subsystem Settings



ACPI Power Management Conﬁ guration



CPU Conﬁ guration



IDE Conﬁ guration



USB Conﬁ guration



Super IO Conﬁ guration



PC Health Status



JMB36X ATA Ctrl Conﬁ g



PPM Conﬁ guration



WatchDog Conﬁ guration

Advanced

Save & ExitChipset Boot Security

F81866A WDT Parameters.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy PCI-E NIC PXE

Enable or Disable Boot option for Realtek 8111DL NIC.

Launch I82574 WOL

Enable or Disable WOL for Intel 82574 LAN Option.

Launch Resume on Ring

Chapter 3 BIOS Setup

Enable or Disable resume on ring option.

Launch Storage OpROM

Enable or Disable Boot Option for Legancy Mass Storage Devices with Option ROM.

www.dﬁ .com

Page 25

Chapter 3

PCI Subsystem Settings

This section is used to configure the PCI Subsystem.

Advanced

PCI Bus Driver Version V 2.05.01

PCI Option ROM Handling

PCI ROM Priority [EFI Compatible ROM]

Incase of multiple Option ROMs (Legancy and EFI compatible), speciﬁ es what PCI Option ROM to launch.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Power Management Configuration

This section is used to configure the ACPI Setting.

Advanced

ACPI Power Management Conﬁ guration

Enable ACPI Auto Conf

ACPI Sleep State Lock Legancy Resouces S3 Video Repost

Resume by RTC Alarm USB Dev Wake from S3

[Disabled]

[S3 (Suspend to RAM) ] [Disabled] [Enabled]

[Disabled] [Disabled]

Enables or disables BIOS ACPI Auto Conﬁ guration.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable ACPI Auto Config

Enables or disables BIOS ACPI Auto Configuration.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

Chapter 3 BIOS Setup

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

Lock Legacy Resources

Enables or Disables Lock Legacy Resouces.

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

USB Dev Wake from S3

This field, when enabled, allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state.

www.dﬁ .com

Page 26

Chapter 3

CPU Configuration

This section is used to configure the CPU. It will also display the detected CPU information.

Advanced

CPU Conﬁ guration Processor Type Intel (R) Atom (TM) CPU

EMT64 Processor Speed System Bus Speed Ratio Status Actual Ratio Processor Stepping Microcode Revision L2 Cache RAM L3 Cache RAM Processor Core Huper-threading

Hyper-threading

Execute Disable Bit Limit CUPID Maximum

Supported 1865 MHz 533 MHz 14 14 30661 268 2x56 k 2x512 k Dual Supported

[Enabled]

[Enabled] [Disabled]

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-threading

Enable this field for Windows XP and Linux which are optimized for Hyper-Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Execute Disable Bit

IDE Configuration

This section is used to configure IDE functions.

Advanced

SATA Port0 Not Present SATA Port1 WDC WD800BEVS-(80.0G

SATA Controller(s) [Enabled]

Conﬁ gure SATA as [IDE]

Misc Conﬁ guration for hard disk

Configure SATA as

Select a configuration for SATA controller.

SATA Ports (0-3) device names if present and enabled.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 update 3.)

Limit CUPID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or less

than 3

Chapter 3 BIOS Setup

www.dﬁ .com

Page 27

Chapter 3

USB Configuration

This section is used to configure USB.

Advanced

USB Conﬁ guration USB Devices:

1 Keyboard, 1 mouse

Legacy USB Support

EHCI Hand-off

[Enabled]

Legacy USB Support

Enabled

Enables legacy USB.

Auto Disables support for legacy when no USB devices are connected.

Disabled Keeps USB devices available only for EFI applications.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Super IO Conﬁ guration Super IO Chip

 

Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration

Restore AC Power Loss Case Open Beep

F81866

[Turns Off] [Disabled]

Set Parameters of Serial Port 1 (COMA).

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Lost

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

When power returns after an AC power failure, the system will automatically power-on.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Chapter 3 BIOS Setup

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Case Open Beep

Set this field to Enabled to allow the system to alert you of a chassis intrusion event.

www.dﬁ .com

Page 28

Chapter 3

Serial Port 1 Configuration to Serial Port 2 Configuration

Advanced

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings COM1 Driver Mode

Advanced

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings COM2 Driver Mode

[Enabled]

IO=3F8h; IRQ=4;

[Auto] [RS232 driver]

[Enabled]

IO=2F8h; IRQ=3;

[Auto] [RS232 driver]

Serial Port

Enables or disables the serial port.

Change Settings

Enable or Disable Serial Port (COM)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PC Health Status

This section displays the hardware health monitor.

Advanced

PC Health Status

Smart Fan Function



Smart Fan Mode Conﬁ guration CPU Temperature System Temperature System FAN Speed VCore VCCGFX V_SM

1.05V 5VSB 3VCC 3VSB VBAT

[Enabled]

: +34 C : +35 C : N/A : +1.064 V : +1.048 V : +1.568 V : +1.064 V : +4.992 V : +3.344 V : +3.360 V : +3.312 V

Smart Fan Mode Configuration

Advanced

Smart Fan Mode Conﬁ guration

System Fan Smart Fan

Temperature 1 Temperature 2 Temperature 3 Temperature 4 Duty Cycle 1 Duty Cycle 2 Duty Cycle 3 Duty Cycle 4

[Auto Duty-Cycle Mode]

60 50 40 30 85 70 60 50

Enable or Disable Smart Fan

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Mode Select

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Selects the IO/IRQ setting of the I/O device.

COM1/2 Driver Mode

Enable or disable serial port (COM)

Chapter 3 BIOS Setup

www.dﬁ .com

Page 29

Chapter 3

PPM Configuration

This section is used to configure the PPM functions.

Advanced

PPM Conﬁ guration

EIST CPU C State Report

[Disabled]

CPU C State Report

Enable/Disable CPU C Status Report to OS.

Enable/Disable Intel SpeedStep

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

WatchDog Configuration

This section is used to configure the watchdog functions.

Advanced

WatchDog Conﬁ guration

WatchDog function

WatchDog Timer

[Disabled]

WatchDog function

This field is used to enable or disable the Watchdog timer function.

Enable/Disable F81866 WatchDog Timer.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 3 BIOS Setup

www.dﬁ .com

Page 30

Chapter 3

Chipset

Configures relevant chipset functions.

Main



Host Bridge



South Bridge

Advanced

Chipset

Boot Security

Save & Exit

Host Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Host Bridge

Chipset



Intel IGD Conﬁ guration

IGFX - Boot Type [VBIOS Default]

Select the Video Device which will be activated during POST. This has no effect if external graphics present.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

IGFX - Boot Type

Select the Video Device which will be activated during POST. This has no effect if external graphics present.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 31

Chapter 3

South Bridge



TPT Devices



PCI Express Root Port 0



PCI Express Root Port 1



PCI Express Root Port 2



PCI Express Root Port 3

Chipset

Enable/ Disable Intel (R) IO Controller Hub (TPT) devices

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

TPT Devices

Enable or disable Intel IO Controller Hub (TPT) devices.

Advanced

Azalia Controller Select USB Mode

UHCI #1 (ports 0 and 1) UHCI #2 (ports 2 and 3) UHCI #3 (ports 4 and 5) UHCI #4 (ports 6 and 7) USB 2.0 (EHCI) Support

[HD Audio]

[By Controllers] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

Azalia Controller

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select USB Mode

This field is used to select the USB’s operation mode.

High Speed If the USB device is a high speed device, it will operate in high speed mode. If it is a

full/low speed device, it will operate in full/low speed mode.

Chapter 3 BIOS Setup

Full/Low Speed

Regardless of the speed of the USB device, it will always operate in full/low speed mode.

UHCI 1~4

Control the USB UHCI (USB 1.1) function.

USB 2.0 (EHCI) Support

Enable or disable USB 2.0 (EHCI) support.

www.dﬁ .com

Page 32

Chapter 3

PCI Express Root Port 0~3

This section is used to configure the PCI Express Root functions.

Advanced

PCI Express Port 0

[Enabled]

PCI Express Port 0~3

Enable/Disable PCI Express Root Port 0~3.

Enable/Disable Intel SpeedStep

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot

Main

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Option ROM Messages INT19 Trap Response

Driver Option Priorities Boot Option Priorities

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Advanced

Boot

[On] [Disabled]

07.69

[Force BIOS] [Postponed]

Security

Save & ExitChipset

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 3 BIOS Setup

Option ROM Messages

Set display mode for option ROM.

INT19 Trap Response

BIOS reaction on Int19 trapping by option ROM.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Hard Driver BBS Priorities

Set the order of the legacy devices in this group.

www.dﬁ .com

Page 33

Chapter 3

Security

Main

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

HDD Security Conﬁ guration

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Advanced

Boot Security

Save & Exit

Save & ExitChipset

Set Administrator Password.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Main

Save Changes and Reset

Discard Changes and Reset

Save Options

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Advanced

Chipset

Boot Security Save & Exit

Reset the system after saving the changes.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 3 BIOS Setup

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Save as User Defaults

To save changes done so far as user default, select this field and then press <Enter>. A dialog box will appear. Select Yes to save values as user default.

Restore User Defaults

To restore user default to all the setup options, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore user default.

www.dﬁ .com

Page 34

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

| |

+--------------------------------------------------------------------------------------------------------+

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

AMI Firmware Update Utility(APTIO) v2.25

done done done done done done done

| |

Chapter 3

After finishing BIOS update, please turn off the AC power. Wait about 10 seconds and then turn on the AC power again.

Chapter 3 BIOS Setup

www.dﬁ .com

Page 35

Chapter 4

Chapter 4 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Auto Run Page (For Windows XP)

Auto Run Page (For Windows 7)

Chapter 4 Supported Software

www.d.com

Page 36

Chapter 4

Microsoft .NET Framework 3.5 (For Windows XP only)

Note:

Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3.

To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.

1. Read the license agreement carefully.

Click “I have read and accept the terms of the License Agree ment” then click Install.

3. Click Exit.

2. Setup is now installing the driver.

Chapter 4 Supported Software

www.d.com

Page 37

Chapter 4

Microsoft DirectX 9.0C (For Windows XP only)

To install the utility, click “Microsoft DirectX 9.0C Driver” on the main menu.

1. Click “I accept the

agreement” then click Next.

2. To start installation, click

Next.

Intel Chipset Software Installation Utility (For Windows XP)

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

3. Click Finish. Reboot the system for DirectX to take effect.

Chapter 4 Supported Software

www.d.com

Page 38

Chapter 4

3. Go through the readme

document for system requirements and installation tips then click Next.

4. Setup is now installing the

driver. Click Next to continue.

Intel Chipset Software Installation Utility (For Windows 7)

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Chapter 4 Supported Software

www.d.com

Page 39

Chapter 4

3. Go through the readme document for system requirements and installation tips then click Next.

4. After completing installation, click Finish to exit setup.

Intel Graphics Drivers (For Windows XP)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Select “Installs driver and application files“ and click Next.

2. Read the license agreement. Then, select “I agree“ and click Install.

Chapter 4 Supported Software

3. Click “Continue Anyway“ to start the installation.

www.d.com

Page 40

Chapter 4

4. Setup is now installing the driver.

5. Click “Yes” to restart this computer now.

Restarting the system will allow the new software installation to take effect.

Intel Graphics Drivers (For Windows 7)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/ Windows 8 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you skip this process by disabling this function then click Next.

Chapter 4 Supported Software

2. Read the license agreement then click Yes.

www.d.com

Page 41

Chapter 4

3. Go through the readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue.

Audio Drivers (For Windows XP)

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

Chapter 4 Supported Software

www.d.com

Page 42

Chapter 4

Audio Drivers (For Windows 7)

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the

driver. Click Next.

2. Follow the remainder of the

steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my

computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

Intel LAN Drivers (For Windows XP)

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

Chapter 4 Supported Software

3. Select the program featuers you want installed then click Next.

www.d.com

Page 43

Chapter 4

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Intel LAN Drivers (For Windows 7)

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

Chapter 4 Supported Software

3. Select the program features you want installed then click Next.

www.d.com

Page 44

Chapter 4

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Intel Rapid Storage Technology

The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem.

To install the driver, click “Intel Rapid Storage Technology” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the warning then click Yes.

Chapter 4 Supported Software

www.d.com

Page 45

Chapter 4

3. Read the license agreement then click Yes.

4. Go through the readme document for system requirements and installation tips then click Next.

6. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

7. Run the Intel Matrix Storage

Console utility to view the hard drives’ configuration.

5. Setup is now installing the utility. Click Next to continue.

Chapter 4 Supported Software

www.d.com

Page 46

Chapter 4

F6 Floppy Configuration Utility

This is used to create a floppy driver diskette needed when you install Windows® XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.

1. Insert a blank floppy diskette.

2. Locate for the drivers in the CD then copy them to the floppy diskette. The

CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.

32-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy32

64-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy64

DFI Utility

DFI Utility provides information about the board, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.

Note:

If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.

1. Setup is ready to instal the DFI Utility driver Click “Next”.

2. Click “I accept the terms in the license agreement” then click “Next”.

Chapter 4 Supported Software

www.d.com

Page 47

Chapter 4

3. Enter “User name” and

“Organization” information then click “Next”.

4. Click “Install” to begin the

installation.

The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.

5. After completing installa

tion, click “Finish”.

Chapter 4 Supported Software

www.d.com

Page 48

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click

Change Destination Folder to select another folder.

2. Click Install to begin installa-

tion.

Chapter 4

3. Click Finish to exit installation.

Chapter 4 Supported Software

www.d.com

Page 49

Appendix A

Appendix A - NLITE and AHCI Installation Guide

nLite

nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.

Note:

The installation steps below are based on nLite version 1.4.9. Installation procedures may slightly vary if you’re using another version of the program.

1. Download the program from nLite’s offical website.

http://www.nliteos.com/download.html

2. Install nLite.

4. Insert the XP installation disc into an optical drive.

5. Launch nLite. The Welcome screen will appear. Click

Next.

Important:

Due to it’s coding with Visual.Net, you may need to first install .NET Framework prior to installing nLite.

3. Download relevant RAID/AHCI driver files from Intel’s website. The drivers you choose will depend on the operating system and chipset used by your computer.

The downloaded driver files

should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor. inf, IaStor.sys, license.txt and TXTSETUP.OEM.

6. Click Next to temporarily save the Windows installation files to the designated default folder.

If you want to save them

in another folder, click Browse, select the folder and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 50

Appendix A

7. Click Next.

8. In the Task Selection dialog box, click Drivers and Bootable ISO. Click Next.

9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next.

10. Select only the drivers ap-

propriate for the Windows version that you are using and then click OK.

Integrating 64-bit drivers

into 32-bit Windows or vice versa will cause file load errors and failed installation.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 51

Appendix A

11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click OK.

12. Click Next.

13. The program is currently integrating the drivers and applying changes to the installation.

14. When the program is finished applying the changes, click Next.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 52

Appendix A

15. To create an image, select the Create Image mode under the General section and then click Next.

16. Or you can choose to burn it directly to a disc by selecting the Direct Burn mode under the General section.

Select the optical device

and all other necessary settings and then click Next.

17. You have finished customizing the Windows XP installation disc. Click Finish.

Enter the BIOS utility to

configure the SATA controller to RAID/AHCI. You can now install Windows X P.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 53

Appendix A

AHCI

The installation steps below will guide you in configuring your SATA drive to AHCI mode.

1. Enter the BIOS utility and configure the SATA controller to IDE mode.

2. Install Windows XP but do not press F6.

3. Download relevant RAID/AHCI driver files supported by the motherboard chipset from Intel’s website.

Transfer the downloaded

driver files to C:\AHCI.

4. Open Device Manager and right click on one of the Intel Serial ATA Storage Controllers, then select Update Driver.

If the controller you

selected did not work, try selecting another one.

5. In the Hardware Update Wizard dialog box, select “No, not this time” then click Next.

6. Select “Install from a

list or specific location (Advanced)” and then

click Next.

7. Select “Don’t search. I

will choose the driver to install” and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 54

Appendix A

8. Click “Have Disk”.

9. Select C:\AHCI\iaAHCI.inf and then click Open.

10. Select the appropriate

AHCI Controller of your hardware device and then click Next.

11. A warning message appeared because the selected SATA controller did not match your hardware device.

Ignore the warning and

click Yes to proceed.

12. Click Finish.

13. The system’s settings have been changed. Windows XP requires that you restart the computer. Click Yes.

14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the SATA controller that is in AHCI mode.

Appendix A NLITE and AHCI Installation Guide

www.d.com

Page 55

Appendix B - Watchdog Sample Code

;Software programming example: ;---------------------------------------------

;(1) Enter Super IO Conﬁ guration mode ;--------------------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

;------------------------------------------------------------------------------------------;(2) Conﬁ guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------MOV DX,2EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL

MOV DX,2FH MOV AL,07H ;Select Logical Device 7 OUT DX,AL

MOV DX,2EH MOV AL, F6H ;Select watchdog timer register OUT DX,AL

Appendix B

MOV DX,2FH MOV AL,10H ;Set watchdog timer value OUT DX,AL

MOV DX,2EH MOV AL, F5H ;Select watchdog Control Register OUT DX,AL

MOV DX,2FH MOV AL,61H ;Set Watchdog Control Value OUT DX,AL

;---------------------------------------------------------------;(1) Exit extended function mode ;---------------------------------------------------------------MOV DX,2EH MOV AL,AAH OUT DX,AL

Appendix B Watchdog Sample Code

www.dﬁ .com

Page 56

Appendix C

Appendix C - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Important:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Appendix C System Error Message

www.dﬁ .com

Page 57

Appendix D - Troubleshooting Checklist

Appendix D

The picture seems to be constantly moving.

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Appendix D Troubleshooting Checklist

www.dﬁ .com

Page 58

Appendix D

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

Appendix D Troubleshooting Checklist

www.dﬁ .com

Page 59

Appendix E - Digital I/O User Guide

CD952 Series: Isolated 8-bit Digital I/O Pin Define

Appendix E

DIN Example with DIN0A/DIN0B

IL max: 50mA

For example: DIN= 5V RL= 500Ω IL= 1mA

DVI-I

VGA

/ VGA

1920

4-bit in and 4-bit out

DIO with power

The 4-bit in and 4-bit out Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Digital I/O Connector

Pins Function Pins Function

11 13 15 17 19

5 7 9

DIN0A

DIN0B

DIN1A

DIN1B

DIN2A

DIN2B

DIN3A

DIN3B

+5V

GND

8 10 12 14 16 18 20

DOUT0A

DOUT0B

DOUT1A

DOUT1B

DOUT2A

DOUT2B

DOUT3A

DOUT3B

+5V_standby

GND

Set DIO at Input Mode

Example1 DIN1= 5V D0 to L.

DFI DIO

Utility D0

DIN1

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 60

Appendix E

DOUT Example1 with Dout0A/Dout0B

DOUT Example2 with Dout0A/Dout0B

VL: 60V max IL max: 600mA

For example: VL= 5V RL= 1KΩ IL= 5mA

DFI DIO

Utility D4

OUT1

L H

Set DIO at Output Mode, Press D4 to H

Example1 OUT1 to Low. Example2 OUT1 to High.

According DIO pin to GPIO Programming Setting

Pins Function

DIN0A

Couple for GPIO 80

DIN0B

Appendix E Digital I/O User Guide

DFI DIO

Utility D4

OUT1

H L

5 7

9 11 13 15 17 19

DIN1A

DIN1B

DIN2A

DIN2B

DIN3A

DIN3B

+5V

GND

Couple for GPIO 81

Couple for GPIO 82

Couple for GPIO 83

www.dﬁ .com

Page 61

Pins Function

Appendix E

DOUT MAP

DIN MAP

10 12 14 16 18 20

6 8

DOUT0A

DOUT0B

DOUT1A

DOUT1B

DOUT2A

DOUT2B

DOUT3A

DOUT3B

+5V_standby

GND

Couple for GPIO 84

Couple for GPIO 85

Couple for GPIO 86

Couple for GPIO 87

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 62

Appendix E

Digital I/O Proramming Guide

1. Pins for Digital I/O

Item Standard

GPIO80 (Pin111) GP80

GPIO81 (Pin112) GPIO82 (Pin113) GP82

GPIO83 (Pin114) GP83 GPIO84 (Pin115) GP84 GPIO85 (Pin116) GP85 GPIO86 (Pin117) GP86 GPIO87 (Pin118) GP87 GPIO71 (Pin104) CTR-GP71 GPIO72 (Pin105) CTR-GP72

2. Programming Guide

3. Relative Registers

GP81

To program the F81866A configuration registers, the following configuration procedures must be followed in sequence:

(1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode

The configuration register is used to control the behavior of the corresponding devices. To configure the register, using the index port to select the index and then writing data port to alter the parameters. The default index port and data port are 0x4E and 0x4F respectively. Pull

down the SOUT1 pin to change the default value to 0x2E/0x2F. To enable configuration, the entry key 0x87 must be written to the index port. To disable configuration, write exit entry key 0xAA to the index port. Following is an example to enable

configuration and disable configuration by using debug.

-o 4e 87

-o 4e 87 (enable configuration)

-o 4e aa (disable configuration)

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 63

Appendix E

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 64

Appendix E

4. Sample Code in C Language

4.1 Control of GP03, GP02 and GP07

#define AddrPort 0x2E #define DataPort 0x2F

<Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) //Must write twice to entering Extended mode

<Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(AddrPort, 0x06) //Select logic device 06h

<Output Mode Selection>//SetGPIO71/72 to output Mode WriteByte(AddrPort, 0x80)// Select configuration register 80h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x06)) //Set (bit 0/1) = (1) to select GPIO 71/72 as Output mode.

<Output Value> WriteByte(AddrPort, 0x81)// Select configuration register 81h WriteByte(DataPort, Value)// Set bit n=(1/2) to output GPI07n as Low or High

<Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA)

4.2 Control of GP80 to GP87

#define AddrPort 0x2E #define DataPort 0x2F

<Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) //Must write twice to entering Extended mode

<Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06)// Select logic device 06h

<Output/Input Mode Selection>//SetGP80 to GP87 I/O Mode WriteByte(AddrPort, 0x88)// Select configuration register 88h WriteByte(DataPort, (ReadByte(DataPort) & 0xXX)) //Set (bit n) = (1/0) to select GP 8n as Output/Input mode. <Get Input Value> WriteByte(AddrPort, 0x8A)// Select configuration register 8Ah Data = ReadByte(DataPort)// The “Data” represent the input value of GP80~87

<Output Value> WriteByte(AddrPort, 0x89)// Select configuration register 89h WriteByte(DataPort, Value)// Set bit n=(0/1) to output GP 8n as Low or High

<Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA)

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 65

Appendix E

CD952 Series: Isolated 4-bit Digital I/O Jumper Setting COM2/DIO Select

12 10

VGA

JP9/JP10

DVI-I

/ VGA

The system board uses JP9 and JP10 to select between RS232/422/485 COM2 or isolated 4-bit DIO at the rear panel.

Note:

You cannot use COM2 and DIO at the same time. Please set up JP9 and JP10 at the same time.

97 64

1-4-7-10, 2-5-8-11

On: COM2 (default)

12 10

97 64

2-5-8-11, 3-6-9-12

On: DIO

COM port mode

DIO mode

CD952 Series: Isolated 4-bit Digital I/O Pin Define COM2 (Serial) Port/ Isolated 4-bit DIO

RS232/422/485 COM2

or Isolated 4-bit DIO

12345

678

Pins DIO Function

DVI-I

VGA

/ VGA

3 4 5 6 7 8 9

DIN0A

DIN0B

DIN1A

DIN1B

GND

DOUT0A

DOUT0B

DOUT1A

DOUT1B

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 66

Isolated 4-bit Digital I/O Input Request

Appendix E

Pins Input Request

4 5

AC or DC

Load

Loading AC or DC 5V~60V

5V~12V

GND

5V~12V

GND

Load

AC or DC

Loading AC or DC 5V~60V

ABSOLUTE MAXIMUM RATINGS SPECIFICATION

*Pin1/Pin3 :

- Diode forward current(DC) rating IF =50mA/ch.

*Pin6/Pin8 :

- MOS FET Continuous Load Current rating IL =600mA.

Appendix E Digital I/O User Guide

www.dﬁ .com

Page 67

Appendix E

4-bit (2-bit in and 2-bit out) description

Pins Input Request

4 5

Load

AC or DC

Loading AC or DC 5V~60V

AC or DC

Loading AC or DC 5V~60V

5V~12V

GND

5V~12V

GND

DOUT Example1 with Dout0A/Dout0B

Pin 1 and 2 are couple, DIN1

Pin 3 and 4 are couple, DIN2

Pin 6 and 7 are couple, OUT1

Pin 8 and 9 are couple, OUT2

VL: 60V max IL max: 600mA

For example: VL= 5V RL= 1KΩ IL= 5mA

DOUT Example2 with Dout0A/Dout0B

Set DIO at Output Mode, Press D4 to H

Example1 OUT1 to Low. Example2 OUT1 to High.

DFI DIO

Utility D4

OUT1

Appendix E Digital I/O User Guide

DFI DIO

Utility D4

H L

OUT1

www.dﬁ .com

Page 68

Appendix E

DOUT Example3 with Dout1A/Dout1B

DOUT Example4 with Dout1A/Dout1B

DFI DIO

Utility D5

H L

OUT2

Set DIO at Output Mode, Press D5 to H

Example3 OUT2 to Low. Example4 OUT2 to High.

DIN Example1 with DIN0A/DIN0B

IL max: 50mA

For example: DIN= 5V RL= 500Ω IL= 1mA

Appendix E Digital I/O User Guide

DFI DIO

Utility D5

H L

OUT2

DFI DIO

Utility D0

OUT1

www.dﬁ .com

Page 69

Appendix E

Set DIO at Input Mode

Example1 DIN1= 5V D0 to L

DIN Example1 with DIN1A/DIN1B

Set DIO at Input Mode

Example2 DIN2= 5V D1 to L

Appendix E Digital I/O User Guide

DFI DIO

Utility D1

H L

OUT2

www.dﬁ .com

DFI CD952 User Manual

Copyright

FCC and DOC Statement on Class B

Trademarks

Table of Contents

About this Manual

Static Electricity Precautions

Warranty

Safety Measures

About the Package

Before Using the System Board

Chapter 1 - Introduction

Specifications

Features

Chapter 2 - Hardware Installation

Board Layout

Block Diagram

Mechanical Diagram

System Memory

Jumper Settings

Front Panel I/O Ports

Rear Panel I/O Ports

I/O Connectors

Chapter 3 - BIOS Setup

Overview

Entering the BIOS Setup Utility

Updating the BIOS

Chapter 4 - Supported Software

Appendix A - NLITE and AHCI Installation Guide

Appendix B - Watchdog Sample Code

Appendix C - System Error Message

Appendix D - Troubleshooting Checklist

Appendix E - Digital I/O User Guide
