DFI CD905-B User Manual

CD905-B Series

COM Express Compact Module

User’s Manual

A22230337

www.dﬁ .comChapter 1 Introduction

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

COM Express Specification Reference

PICMG® COM Express ModuleTM Base Specification. http://www.picmg.org/

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

www.dﬁ .comChapter 1 Introduction

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B .....................................................2

About this Manual ..........................................................................................4

Warranty ..............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

Chapter 4 - BIOS Setup ............................................................... 32

Overview ..................................................................................................... 32

AMI BIOS Setup Utility .............................................................................33

Main ..........................................................................................................33

Advanced ...................................................................................................34

Chipset ......................................................................................................39

Boot...........................................................................................................41

Security ...................................................................................................... 42

Save & Exit ................................................................................................ 42

Updating the BIOS ....................................................................................43

Chapter 5 - Supported Software .......................................................... 44

Appendix A - nLite and AHCI Installation Guide ...........................58

nLite ...............................................................................................................58

AHCI ..............................................................................................................62

About the Package .........................................................................................5

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Features ........................................................................................................7

Chapter 2 - Concept .......................................................................8

COM Express Module Standards ..............................................................8

Specification Comparison Table ...............................................................9

Chapter 3 - Hardware Installation .............................................. 10

Board Layout ...............................................................................................10

Block Diagram .............................................................................................10

Mechanical Diagram ..................................................................................11

System Memory ..........................................................................................12

Installing the DIMM Module ........................................................................ 13

Connectors ...................................................................................................14

CPU Fan Connector .....................................................................................14

COM Express Connectors ............................................................................ 15

COM Express Connectors Signal Discription ..................................................17

Standby Power LED ................................................................................... 29

Cooling Option ............................................................................................29

Installing CD905-B onto a Carrier Board ............................................30

Appendix B - Watchdog Sample Code ................................................64

Appendix C - System Error Message ...................................................65

Appendix D - Troubleshooting ................................................................ 66

www.dﬁ .comChapter 1 Introduction

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

www.dﬁ .comChapter 1 Introduction

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• One CD905-B board

• One DVD

• One QR (Quick Reference)

Optional Items

• COM330-B carrier board

• COM630-B carrier board

• Cable kit for carrier board

• Heat spreader

• Heat sink

• Heat sink with fan

• Heat spreader with heat sink and fan The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components. If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc. You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

www.dﬁ .comChapter 1 Introduction

Chapter 1 - Introduction

Specifications

Processor

Chipset System Memory

Graphics

Audio LAN

Serial ATA

• CD905-B2550:

- Intel

AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core

- Cooling option: heatsink with cooling fan

• CD905-B2800:

- Intel

AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core

- Cooling option: heatsink (fanless solution)

• CD905-B2600:

- Intel

AtomTM N2600, 1.6GHz, 2x 512K L2, 3.5W TDP, dual-core

- Cooling option: heatsink (fanless solution)

• Intel® NM10 Express chipset

• One 204-pin DDR3 SODIMM socket

• Supports DDR3 1066MHz (Intel Supports DDR3 800MHz (Intel

• Supports single channel memory interface

• Supports up to 4GB system memory (Intel Supports up to 2GB system memory (Intel

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• Intel® GMA 3650 (Intel® AtomTM D2550/N2800)

Intel

GMA 3600 (Intel® AtomTM N2600)

• Supports LVDS and VGA interfaces

• LVDS: Chrontel CH7511B, 24-bit, dual channel, display resolution up to 1920x1200

• VGA display resolution up to 1920x1200

• Supports Hardware H.264/AVC, MPEG-2 video decoder,

VC-1, DirectX 9, 1080p decoder

• Supports High Deﬁ nition Audio interface

• Intel® 82574 Gigabit Ethernet Controller

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports wire management

• Supports 2 Serial ATA interfaces

• SATA 2.0 with data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

AtomTM D2550/N2800)

AtomTM N2600)

AtomTM D2550/N2800)

AtomTM N2600)

Chapter 1

Watchdog Timer (optional)

Expansion Interfaces

Damage Free Intelligence

BIOS Power

Consumption OS Support

Temperature

Humidity Power Input

Certiﬁ cation

PCB

• Watchdog timeout programmable via software from 1 to 256 seconds

• Supports 8 USB 2.0 ports

• Supports 4 PCIe x1 interfaces

• Supports 4 PCI interfaces

• Supports 8-bit Digital I/O

• Supports 1 IDE interface

• Monitors CPU temperature and overheat alarm

• Monitors CPU fan speed and failure alarm

• Monitors Vcore/V

GFX

/1.5V voltages and failure alarm

• Watchdog timer function

• 16Mbit SPI BIOS

• 24.51 W with D2550 at 1.86GHz and 1x 1GB DDR3 SODIMM

• Windows XP Professional x86 & SP3 (32-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Operating: 0oC to 60oC

• Storage: -20

C to 85oC

• 10% to 90%

• 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)

• CE

• FCC Class B

• RoHS

• UL

• Dimensions

- COM Express Compact

- 95mm (3.74") x 95mm (3.74")

• Compliance

- PICMG COM Express R2.0, Type 2

www.dﬁ .comChapter 1 Introduction

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

• DDR3

DDR3 delivers increased system bandwidth and improved performance. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

• Graphics

The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports LVDS and VGA for up to 2 independent displays.

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of up to 3Gb/s (SATA 2.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.

• Gigabit LAN

The Intel 82574 Gigabit LAN controller supports up to 1Gbps data transmission.

• USB

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

www.dﬁ .comChapter 1 Introduction

Chapter 2 - Concept COM Express Module Standards

The figure below shows the dimensions of the different types of COM Express modules. CD905-B is a COM Express Compact module. The dimension is 95mm x 95mm.

Common for all Form Factors Extended only Basic only Compact only Compact and Basic only Mini only

Chapter 2

106.00

Extended

91.00

18.00

6.00

0.00

4.00

0.00

16.50

Mini

74.20

80.00

91.00

BasicCompact

70.00

51.00

4.00

121.00

151.00

www.dﬁ .comChapter 2 Concept

Chapter 2

Specification Comparison Table

The table below shows the COM Express standard specifications and the corresponding specifications supported on the CD905-B module.

COM Express Module Base

Connector Feature

A-B A-B PCI Express Lanes 0 - 5 1 / 6 4 A-B LVDS Channel A 0 / 1 4 A-B LVDS Channel B 0 / 1 1 A-B eDP on LVDS CH A pins NA NA A-B VGA Port 0 / 1 1 A-B TV-Out NA NA A-B DDI 0 NA NA

A-B A-B CAN interface on SER1 NA NA

A-B SATA / SAS Ports 1 / 4 2 A-B AC’97 / HDA Digital Interface 0 / 1 1 A-B USB 2.0 Ports 4 / 8 8 A-B USB Client 0 / 1 1 A-B USB 3.0 Ports NA NA A-B LAN Port 0 1 / 1 1 A-B Express Card Support 1 / 2 1 A-B LPC Bus 1 / 1 1 A-B SPI 1 / 2 1 A-B

A-B A-B SMBus 1 / 1 1

A-B I2C 1 / 1 1 A-B Watchdog Timer 0 / 1 1 A-B Speaker Out 1 / 1 1 A-B External BIOS ROM Support 0 / 2 1 A-B Reset Functions 1 / 1 1

Serial Ports 1 - 2 NA NA

SDIO (muxed on GPIO) NA NA General Purpose I/O 8 / 8 8

Specification Type 2

(IDE + PCI)

Max

Min

System I/O

System Management

DFI CD905-B Type 2

• 5 Indicates 12V-tolerant features on former VCC_12V signals.

• 6 Cells in the connected columns spanning rows provide a rough approximation of features sharing connector pins.

COM Express Module Base

Connector Feature

A-B A-B Thermal Protection 0 / 1 A-B Battery Low Alarm 0 / 1 A-B Suspend/Wake Signals 0 / 3 A-B Power Button Support 1 / 1 A-B Power Good 1 / 1 A-B VCC_5V_SBY Contacts 4 / 4

A-B

A-B A-B Trusted Platform Modules NA NA

A-B A-B VCC_12V Contacts 12 / 12

Sleep Input NA NA Lid Input NA NA Fan Control Signals NA NA

Specification Type 2

(IDE + PCI) Min

Max

Power Management

Power

DFI CD905-B Type 2

1 1 2 1 1 4

Module Pin-out - Required and Optional Features C-D Connector. PICMG® COM.0Revision 2.1

COM Express Module Base

Connector Feature

C-D

PCI Express Lanes 16 - 31 0 / 16

C-D

C-D C-D C-D VCC_12V Contacts 12 / 12

PCI Express Graphics (PEG) 0 / 1 Muxed SDVO Channels 1 - 2 0 / 2 PCI Express Lanes 6 - 15 NA NA PCI Bus - 32 Bit 1 / 1 PATA Port 1 / 1 LAN Ports 1 - 2 NA NA DDIs 1 - 3 NA NA USB 3.0 Ports NA NA

Specification Type 2

(IDE + PCI) Min

Max

System I/O

Power

DFI CD905-B Type 2

0 0 0

1 1

www.dﬁ .comChapter 2 Concept

Chapter 3 - Hardware Installation

SATA 2.0 2x

SPI

USB 2.0 8x

HDA

Board Layout

Chapter 3

Block Diagram

IMVP7

(Vcore,Vgfx)

CPU Fan

JMB 368

Standby power LED

iTE

IT8518E

D2550/ N2800/

Intel NM10

Intel Atom

N2600

XIO3130

SPI Flash BIOS

Chrontel CH7511B

(SW1)

DDR3 SODIMM

LVDS Resolution Select (JP18)

PCI Arbiter

SPI

CK505

SODIMM 1x

DDR3 1066MHz

(-B2550/-B2800)

SODIMM 1x

DDR3 800MHz

(-B2600)

PCI 4x

IT8208M

SPI Flash

IDE

C / D

Analog Display

VGA

CORE

eDP to LVDS

DDI

Signal

Top View

SATA 2.0 2x

HDA

USB 2.0 8x

PCIe x1 3x

SPI

LPC Bus

IT8518E

LPC Bus

A / B

Processor

CORE CORE CORE

Intel

Atom™ D2550 (-B2550)

Intel

Atom™ N2800 (-B2800)

Intel

Atom™ N2600 (-B2600)

Graphics

CORE

Intel® NM10

Express Chipset

Memory

Controller

DMI

(Direct Media

Interface)

PCIe x1 1x

JMB 368

Bottom View

D110

COM Express connector

C110

COM Express connector

B1B110

A1A110

GLAN

82574L

PCIe x1 1x

XIO 3130

www.dﬁ .comChapter 3 Hardware Installation

Mechanical Diagram

Chapter 3

33.40

CD905-B Module with Heat Sink

95.00

87.00

76.00

83.50

95.00

4.00

87.00

4.00

Cooler

91.00

87.00

0.00

4.00

95.00

4.00

0.00

CD905-B Module

95.00

87.00

91.00

76.00

91.00

Ø2.70(*4 pcs)

91.00

87.00

0.00

4.00

Top View

23.40

33.40

35.40

2.00

1.60

5.0 or 8.0 mm

Module PCB

Module PCB The height of the highest parts

3.50

Standoff

Carrier Board

Side View of the Module with Heat Sink and Carrier Board

Bottom View

14.00

2.00

0.00

70.20

12.50

0.00

www.dﬁ .comChapter 3 Hardware Installation

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

The system board is equipped with one 204-pin SODIMM sockets that support DDR3 memory modules.

Important:

When the Standby Power LED lit red, it indicates that there is power on the board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the board and components.

Chapter 3

Standby

Power LED

DDR3

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

Installing the DIMM Module

Note:

The system board used in the following illustrations may not resemble the actual one. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM socket on the system board.

4. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.

5. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

6. Push down the module until the clips at each end of the socket lock into position. You will

hear a distinctive “click”, indicating the module is correctly locked into position.

Clip

www.d.comChapter 3 Hardware Installation

Chapter 3

Connectors

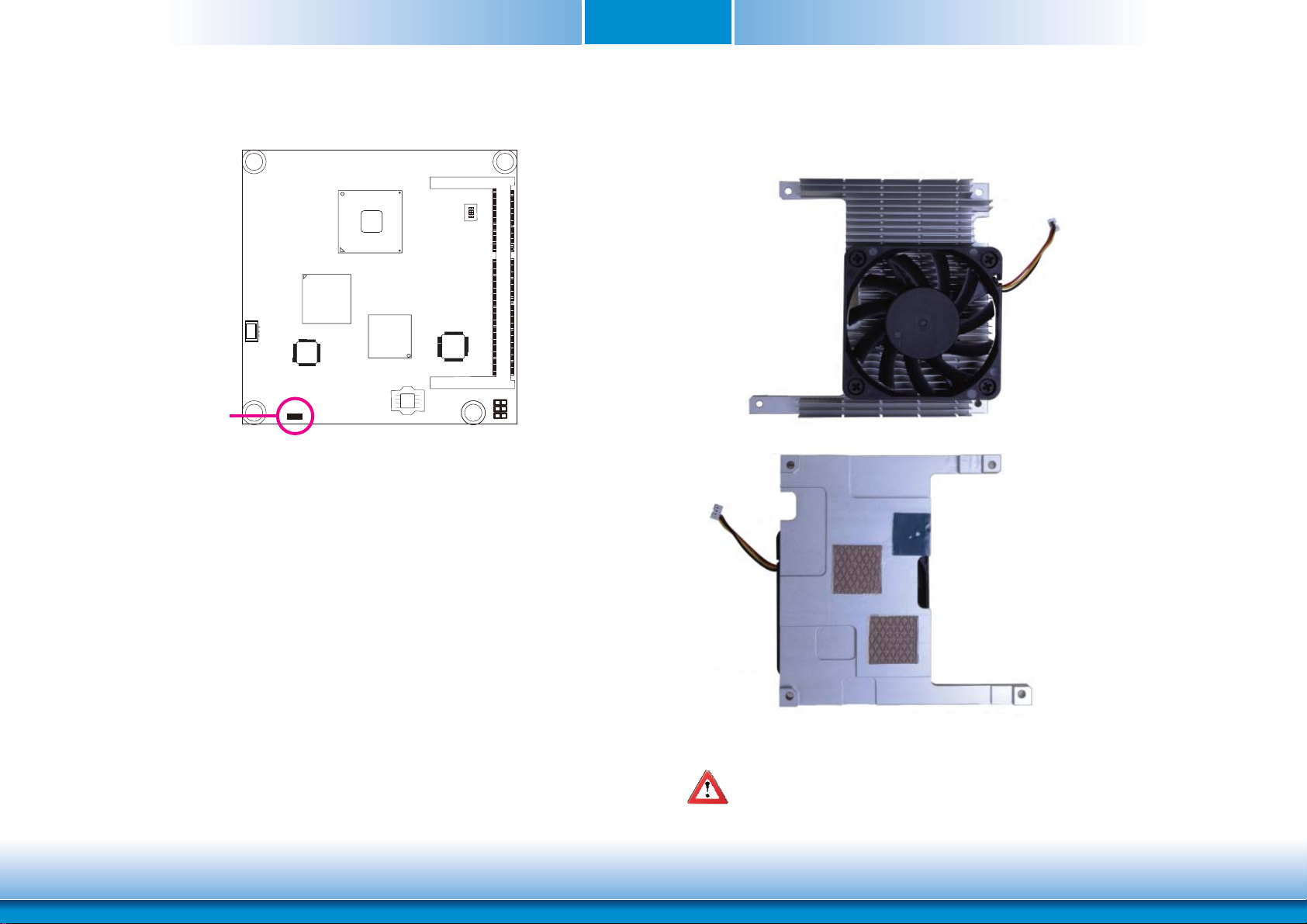

CPU Fan Connector

Sense Power

Ground

Connect the CPU fan’s cable connector to the CPU fan connector on the board. The cooling fan will provide adequate airflow throughout the chassis to prevent overheating the CPU and board components.

BIOS Setting

“Module Board H/W Monitor” submenu in the Advanced menu of the BIOS will display the current speed of the cooling fan. Refer to chapter 3 of the manual for more information

1 3

COM Express Connectors

The COM Express connectors are used to interface the CD905-B COM Express board to a carrier board. Connect the COM Express connectors (lcoated on the solder side of the board) to the COM Express connectors on the carrier board.

Refer to the “Installing CD905-B onto a Carrier Board” section for more information.

COM Express Connectors

Refer to the following pages for the pin functions of these connectors.

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

COM Express Connectors

A1 GND (FIXED) B1 GND (FIXED) A56 PCIE_TX4- B56 NC

RowA RowB RowA RowB

A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 GPO2 A3 GBE0_MDI3+ B3 LPC_FRAME# A58 PCIE_TX3+ B58 PCIE_RX3+ A4 GBE0_LINK100# B4 LPC_AD0 A59 PCIE_TX3- B59 PCIE_RX3A5 GBE0_LINK1000# B5 LPC_AD1 A60 GND (FIXED) B60 GND (FIXED) A6 GBE0_MDI2- B6 LPC_AD2 A61 PCIE_TX2+ B61 PCIE_RX2+ A7 GBE0_MDI2+ B7 LPC_AD3 A62 PCIE_TX2- B62 PCIE_RX2A8 GBE0_LINK# B8 LPC_DRQ0# A63 GPI1 B63 GPO3 A9 GBE0_MDI1- B9 LPC_DRQ1# A64 PCIE_TX1+ B64 PCIE_RX1+ A10 GBE0_MDI1+ B10 LPC_CLK A65 PCIE_TX1- B65 PCIE_RX1A11 GND (FIXED) B11 GND (FIXED) A66 GND B66 WAKE0# A12 GBE0_MDI0- B12 PWRBTN# A67 GPI2 B67 WAKE1# A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+ A14 GBE0_CTREF B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0A15 SUS_S3# B15 SMB_ALERT# A70 GND (FIXED) B70 GND (FIXED) A16 SATA0_TX+ B16 SATA1_TX+ A71 LVDS_A0+ B71 LVDS_B0+ A17 SATA0_TX- B17 SATA1_TX- A72 LVDS_A0- B72 LVDS_B0A18 SUS_S4# B18 SUS_STAT# A73 LVDS_A1+ B73 LVDS_B1+ A19 SATA0_RX+ B19 SATA1_RX+ A74 LVDS_A1- B74 LVDS_B1A20 SATA0_RX- B20 SATA1_RX- A75 LVDS_A2+ B75 LVDS_B2+ A21 GND (FIXED) B21 GND (FIXED) A76 LVDS_A2- B76 LVDS_B2A22 NC B22 NC A77 LVDS_VDD_EN B77 LVDS_B3+ A23 NC B23 NC A78 LVDS_A3+ B78 LVDS_B3A24 SUS_S5# B24 PWR_OK A79 LVDS_A3- B79 LVDS_BKLT_EN A25 NC B25 NC A80 GND (FIXED) B80 GND (FIXED) A26 NC B26 NC A81 LVDS_A_CK+ B81 LVDS_B_CK+ A27 BATLOW# B27 WDT A82 LVDS_A_CK- B82 LVDS_B_CKA28 ATA_ACT# B28 AC_SDIN2 A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL A29 AC_SYNC B29 AC_SDIN1 A84 LVDS_I2C_DAT B84 VCC_5V_SBY A30 AC_RST# B30 AC_SDIN0 A85 GPI3 B85 VCC_5V_SBY A31 GND (FIXED) B31 GND (FIXED) A86 KBD_RST# B86 VCC_5V_SBY A32 AC_BITCLK B32 SPKR A87 KBD_A20GATE B87 VCC_5V_SBY A33 AC_SDOUT B33 I2C_CK A88 PCIE0_CK_REF+ B88 BIOS_DIS1# A34 BIOS_DISABLE# B34 I2C_DAT A89 PCIE0_CK_REF- B89 VGA_RED A35 THRMTRIP# B35 THRM# A90 GND (FIXED) B90 GND (FIXED) A36 USB6- B36 USB7- A91 SPI_POWER B91 VGA_GRN A37 USB6+ B37 USB7+ A92 SPI_MISO B92 VGA_BLU A38 USB_6_7_OC# B38 USB_4_5_OC# A93 GPO0 B93 VGA_HSYNC A39 USB4- B39 USB5- A94 SPI_CLK B94 VGA_VSYNC A40 USB4+ B40 USB5+ A95 SPI_MOSI B95 VGA_I2C_CK A41 GND (FIXED) B41 GND (FIXED) A96 GND B96 VGA_I2C_DAT A42 USB2- B42 USB3- A97 NC B97 SPI_CS# A43 USB2+ B43 USB3+ A98 NC B98 NC A44 USB_2_3_OC# B44 USB_0_1_OC# A99 NC B99 NC A45 USB0- B45 USB1- A100 GND (FIXED) B100 GND (FIXED) A46 USB0+ B46 USB1+ A101 NC B101 NC A47 VCC_RTC B47 EXCD1_PERST# A102 NC B102 NC A48 EXCD0_PERST# B48 EXCD1_CPPE# A103 NC B103 NC A49 EXCD0_CPPE# B49 SYS_RESET# A104 VCC_12V B104 VCC_12V A50 LPC_SERIRQ B50 CB_RESET# A105 VCC_12V B105 VCC_12V A51 GND (FIXED) B51 GND (FIXED) A106 VCC_12V B106 VCC_12V A52 NC B52 NC A107 VCC_12V B107 VCC_12V A53 NC B53 NC A108 VCC_12V B108 VCC_12V A54 GPI0 B54 GPO1 A109 VCC_12V B109 VCC_12V A55 PCIE_TX4+ B55 NC A110 GND (FIXED) B110 GND (FIXED)

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

C1 GND (FIXED) D1 GND (FIXED) C56 NC D56 NC C2 IDE_D7 D2 IDE_D5 C57 NC D57 TYPE2# C3 IDE_D6 D3 IDE_D10 C58 NC D58 NC C4 IDE_D3 D4 IDE_D11 C59 NC D59 NC C5 IDE_D15 D5 IDE_D12 C60 GND (FIXED) D60 GND (FIXED) C6 IDE_D8 D6 IDE_D4 C61 NC D61 NC C7 IDE_D9 D7 IDE_D0 C62 NC D62 NC C8 IDE_D2 D8 IDE_REQ C63 NC D63 NC C9 IDE_D13 D9 IDE_IOW# C64 NC D64 NC C10 IDE_D1 D10 IDE_ACK# C65 NC D65 NC C11 GND (FIXED) D11 GND (FIXED) C66 NC D66 NC C12 IDE_D14 D12 IDE_IRQ C67 NC D67 GND C13 IDE_IORDY D13 IDE_A0 C68 NC D68 NC C14 IDE_IOR# D14 IDE_A1 C69 NC D69 NC C15 PCI_PME# D15 IDE_A2 C70 GND (FIXED) D70 GND (FIXED) C16 PCI_GNT2# D16 IDE_CS1# C71 NC D71 NC C17 PCI_REQ2# D17 IDE_CS3# C72 NC D72 NC C18 PCI_GNT1# D18 IDE_RESET# C73 NC D73 NC C19 PCI_REQ1# D19 PCI_GNT3# C74 NC D74 NC C20 PCI_GNT0# D20 PCI_REQ3# C75 NC D75 NC C21 GND (FIXED) D21 GND (FIXED) C76 GND D76 GND C22 PCI_REQ0# D22 PCI_AD1 C77 NC D77 IDE_CBLID# C23 PCI_RESET# D23 PCI_AD3 C78 NC D78 NC C24 PCI_AD0 D24 PCI_AD5 C79 NC D79 NC C25 PCI_AD2 D25 PCI_AD7 C80 GND (FIXED) D80 GND (FIXED) C26 PCI_AD4 D26 PCI_C/BE0# C81 NC D81 NC C27 PCI_AD6 D27 PCI_AD9 C82 NC D82 NC C28 PCI_AD8 D28 PCI_AD11 C83 NC D83 NC C29 PCI_AD10 D29 PCI_AD13 C84 GND D84 GND C30 PCI_AD12 D30 PCI_AD15 C85 NC D85 NC C31 GND (FIXED) D31 GND (FIXED) C86 NC D86 NC C32 PCI_AD14 D32 PCI_PAR C87 GND D87 GND C33 PCI_C/BE1# D33 PCI_SERR# C88 NC D88 NC C34 PCI_PERR# D34 PCI_STOP# C89 NC D89 NC C35 PCI_LOCK# D35 PCI_TRDY# C90 GND (FIXED) D90 GND (FIXED) C36 PCI_DEVSEL# D36 PCI_FRAME# C91 NC D91 NC C37 PCI_IRDY# D37 PCI_AD16 C92 NC D92 NC C38 PCI_C/BE2# D38 PCI_AD18 C93 GND D93 GND C39 PCI_AD17 D39 PCI_AD20 C94 NC D94 NC C40 PCI_AD19 D40 PCI_AD22 C95 NC D95 NC C41 GND (FIXED) D41 GND (FIXED) C96 GND D96 GND C42 PCI_AD21 D42 PCI_AD24 C97 NC D97 NC C43 PCI_AD23 D43 PCI_AD26 C98 NC D98 NC C44 PCI_C/BE3# D44 PCI_AD28 C99 NC D99 NC C45 PCI_AD25 D45 PCI_AD30 C100 GND (FIXED) D100 GND (FIXED) C46 PCI_AD27 D46 PCI_IRQC# C101 NC D101 NC C47 PCI_AD29 D47 PCI_IRQD# C102 NC D102 NC C48 PCI_AD31 D48 PCI_CLKRUN# C103 GND D103 GND C49 PCI_IRQA# D49 PCI_M66EN C104 VCC_12V D104 VCC_12V C50 PCI_IRQB# D50 PCI_CLK C105 VCC_12V D105 VCC_12V C51 GND (FIXED) D51 GND (FIXED) C106 VCC_12V D106 VCC_12V C52 NC D52 NC C107 VCC_12V D107 VCC_12V C53 NC D53 NC C108 VCC_12V D108 VCC_12V C54 NC D54 NC C109 VCC_12V D109 VCC_12V C55 NC D55 NC C110 GND (FIXED) D110 GND (FIXED)

RowC RowDRowC RowD

www.dﬁ .comChapter 3 Hardware Installation

COM Express Connectors Signal Description

Pin Types I Input to the Module O Output from the Module I/O Bi-directional input / output signal OD Open drain output

AC97/HDA Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Reset output to CODEC, active low. AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Sample-synchronization signal to the CODEC(s). AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Serial data clock generated by the external CODEC(s). AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Serial TDM data output to the CODEC. AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V

Gigabit Ethernet Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend GBE0_MDI0- A12 I/O Analog 3.3V max Suspend GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend GBE0_MDI1- A9 I/O Analog 3.3V max Suspend GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend GBE0_MDI2- A6 I/O Analog 3.3V max Suspend GBE0

MDI3+

GBE0_MDI3- A2 I/O Analog 3.3V max Suspend GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 activity indicator, active low.

GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 link indicator, active low. GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low. GBE0_LINK1000#A5OD CMO

GBE0_CTREF A14 REF GND min 3.3V max 1V9 Reference voltage for Carrier Board Ethernet channel 0 magnetics center

O Analog3.3V max Suspend

3.3V Suspend/3.3V Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.

Chapter 3

Serial TDM data inputs from up to 3 CODECs.

Gigabit Ethernet Controller 0: Media Dependent Interface Differential Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec modes. Some pairs are unused in some modes, per the following: 1000BASE-T 100BASE-TX 10BASE-T MDI[0]+/- B1_DA+/- TX+/- TX+/ MDI[1]+/- B1_DB+/- RX+/- RX+/ MDI[2]+/- B1_DC+/ MDI[3]+/- B1_DD+/-

tap. The reference voltage is determined by the requirements of the Module PHY and may be as low as 0V and as high as 3.3V. The reference voltage output shall be current limited on the Module. In the case in which the reference

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

_REQ

_IRQ

IDE Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description

D0 D7

IDE

D1 C10

IDE

D2 C8

IDE

D3 C4

IDE

D4 D6

IDE IDE

D5 D2 D6 C3

IDE

D7 C2 PD 10

IDE IDE_D8 C6

D9 C7

IDE

D10 D3

IDE

D11 D4

IDE

D12 D5

IDE

D13 C9

IDE

D14 C12

IDE

D15 C5

IDE IDE

A0 D13 A1 D14

IDE

A2 D15

IDE

IOW# D9 O CMOS 3.3V / 3.3

IDE

IOR# C14 O CMOS 3.3V / 3.3

IDE IDE

ACK# D10 O CMOS 3.3V / 3.3

IDE

CS1# D16 O CMOS 3.3V / 3.3

IDE

CS3# D17 O CMOS 3.3V / 3.3

IDE

IORDY C13 I CMOS 3.3V / 5

IDE

RESET# D18 O CMOS 5

IDE IDE IDE_CBLID# D77 I CMOS 3.3V / 5V PD 10K Input from off-Module hardware indicating the type of IDE cable being

D8 I CMOS 3.3V / 5

D12 I CMOS 3.3V / 5

I/O CMOS 3.3V / 5V Bidirectional data to / from IDE device.

O CMOS 3.3V / 3.3V Address lines to IDE device.

I/O write line to IDE device. Data latched on trailing(rising) edge.

PD 5.6

PU 4.7k to 3.3VIDE device I/O ready input. Pulled low by the IDE device to extend the cycle. PU10k to 5 PD 10

I/O read line to IDE device. IDE Device DMA Request. It is asserted by the IDE device to request a data transfer. IDE Device DMA Acknowledge. IDE Device Chip Select for 1F0h to 1FFh range. IDE Device Chip Select for 3F0h to 3FFh range.

Reset output to IDE device, active low. Interrupt request from IDE device.

used. High indicates a 40-pin cable used for legacy IDE modes. Low indicates that an 80-pin cable with interleaved grounds is used. Such a cable is required for Ultra-DMA 66, 100 and 133 modes.

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

SATA Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description SATA0_TX+ A16 O SATA AC coupled on SATA0_TX- A17 O SATA AC coupled on SATA0_RX+ A19 I SATA AC coupled on SATA0_RX- A20 I SATA AC coupled on SATA1_TX+ B16 O SATA AC coupled on SATA1_TX- B17 O SATA AC coupled on SATA1_RX+ B19 I SATA AC coupled on SATA1_RX- B20 I SATA AC coupled on SATA2_TX+ A22 O SATA AC coupled on SATA2_TX- A23 O SATA AC coupled on SATA2_RX+ A25 I SATA AC coupled on SATA2_RX- A26 I SATA AC coupled on SATA3_TX+ B22 O SATA AC coupled on SATA3_TX- B23 O SATA AC coupled on SATA3_RX+ B25 I SATA AC coupled on SATA3_RX- B26 I SATA AC coupled on ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 10K to 3V3 ATA (parallel and serial) or SAS activity indicator, active low.

NC Serial ATA or SAS Channel 2 transmit differential pair.

NC Serial ATA or SAS Channel 2 receive differential pair.

NC Serial ATA or SAS Channel 3 transmit differential pair.

NC Serial ATA or SAS Channel 3 receive differential pair.

PCI Express Lanes Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description PCIE_TX0+ A68 PCIE_TX0- A69 PCIE_RX0+ B68 PCIE_RX0- B69 PCIE_TX1+ A64 PCIE_TX1- A65 PCIE_RX1+ B64 PCIE_RX1- B65 PCIE_TX2+ A61 PCIE_TX2- A62 PCIE_RX2+ B61 PCIE_RX2- B62 PCIE_TX3+ A58 PCIE_TX3- A59 PCIE_RX3+ B58 PCIE_RX3- B59 PCIE_TX4+ A55 PCIE_TX4- A56 PCIE_RX4+ B55 PCIE_RX4- B56 PCIE_TX5+ A52 PCIE_TX5- A53 PCIE_RX5+ B52 PCIE_RX5- B53 PCIE0_CK_REF+ A88 PCIE0_CK_REF- A89

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE AC coupled on

I PCIE AC coupled off

O PCIE PCIE Reference clock output for all PCI Express and PCI Express Graphics lanes.

Module

NC PCI Express Differential Transmit Pairs 4

Module

NC PCI Express Differential Receive Pairs 4

Module

NC PCI Express Differential Transmit Pairs 5

Module

NC PCI Express Differential Receive Pairs 5

Module

Serial ATA or SAS Channel 0 transmit differential pair.

Serial ATA or SAS Channel 0 receive differential pair.

Serial ATA or SAS Channel 1 transmit differential pair.

Serial ATA or SAS Channel 1 receive differential pair.

PCI Express Differential Transmit Pairs 0

PCI Express Differential Receive Pairs 0

PCI Express Differential Transmit Pairs 1

PCI Express Differential Receive Pairs 1

PCI Express Differential Transmit Pairs 2

PCI Express Differential Receive Pairs 2

PCI Express Differential Transmit Pairs 3

PCI Express Differential Receive Pairs 3

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

PEG Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description PEG_TX0+ D52 PEG_TX0- D53 PEG_RX0+ C52 PEG_RX0- C53 PEG_TX1+ D55 PEG_TX1- D56 PEG_RX1+ C55 PEG_RX1- C56 PEG_TX2+ D58 PEG_TX2- D59 PEG_RX2+ C58 PEG_RX2- C59 PEG_TX3+ D61 PEG_TX3- D62 PEG_RX3+ C61 PEG_RX3- C62 PEG_TX4+ D65 PEG_TX4- D66 PEG_RX4+ C65 PEG_RX4- C66 PEG_TX5+ D68 PEG_TX5- D69 PEG_RX5+ C68 PEG_RX5- C69 PEG_TX6+ D71 PEG_TX6- D72 PEG_RX6+ C71 PEG_RX6- C72 PEG_TX7+ D74 PEG_TX7- D75 PEG_RX7+ C74 PEG_RX7- C75 PEG_TX8+ D78 PEG_TX8- D79 PEG_RX8+ C78 PEG_RX8- C79 PEG_TX9+ D81 PEG_TX9- D82 PEG_RX9+ C81 PEG_RX9- C82 PEG_TX10+ D85 PEG_TX10- D86 PEG_RX10+ C85 PEG_RX10- C86 PEG_TX11+ D88 PEG_TX11- D89

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

NC PCI Express Graphics transmit differential pairs 0

NC PCI Express Graphics receive differential pairs 0

NC PCI Express Graphics transmit differential pairs 1

NC PCI Express Graphics receive differential pairs 1

NC PCI Express Graphics transmit differential pairs 2

NC PCI Express Graphics receive differential pairs 2

NC PCI Express Graphics transmit differential pairs 3

NC PCI Express Graphics receive differential pairs 3

NC PCI Express Graphics transmit differential pairs 4

NC PCI Express Graphics receive differential pairs 4

NC PCI Express Graphics transmit differential pairs 5

NC PCI Express Graphics receive differential pairs 5

NC PCI Express Graphics transmit differential pairs 6

NC PCI Express Graphics receive differential pairs 6

NC PCI Express Graphics transmit differential pairs 7

NC PCI Express Graphics receive differential pairs 7

NC PCI Express Graphics transmit differential pairs 8

NC PCI Express Graphics receive differential pairs 8

NC PCI Express Graphics transmit differential pairs 9

NC PCI Express Graphics receive differential pairs 9

NC PCI Express Graphics transmit differential pairs 10

NC PCI Express Graphics receive differential pairs 10

NC PCI Express Graphics transmit differential pairs 11

www.dﬁ .comChapter 3 Hardware Installation

Chapter 3

PEG Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description PEG_RX11+ C88 PEG_RX11- C89 PEG_TX12+ D91 PEG_TX12- D92 PEG_RX12+ C91 PEG_RX12- C92 PEG_TX13+ D94 PEG_TX13- D95 PEG_RX13+ C94 PEG_RX13- C95 PEG_TX14+ D98 PEG_TX14- D99 PEG_RX14+ C98 PEG

RX14- C99 TX15+ D101

PEG PEG_TX15- D102

PEG_RX15+ C101 PEG_RX15- C102 PEG_LANE_RV# D54 I CMOS 3.3V / 3.3V PCI Express Graphics lane reversal input strap. Pull low on the Carrier PEG_ENABLE# D97 I CMOS 3.3V /3.3V Strap to enable PCI Express x16 external graphics interface.

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

O PCIE AC coupled on

Module

I PCIE AC coupled off

Module

NC PCI Express Graphics receive differential pairs 11

NC PCI Express Graphics transmit differential pairs 12

NC PCI Express Graphics receive differential pairs 12

NC PCI Express Graphics transmit differential pairs 13

NC PCI Express Graphics receive differential pairs 13

NC PCI Express Graphics transmit differential pairs 14

NC PCI Express Graphics receive differential pairs 14 NC PCI Express Graphics transmit differential pairs 15 NC PCI Express Graphics receive differential pairs 15

Pull low to enable the x16 PEG interface.

ExpressCard Signals Descriptions

Signal Pin# Pin Type Pwr Rail /Tolerance PU/PD Description EXCD0_CPPE# A49 EXCD1_CPPE# B48 EXCD0_PERST# A48 EXCD1_PERST# B47

I CMOS 3.3V /3.3V PU 10k to 3.3V PCI ExpressCard: PCI Express capable card request, active low, one per card

O CMOS 3.3V /3.3V PCI ExpressCard: reset, active low, one per card

www.dﬁ .comChapter 3 Hardware Installation

+ 47 hidden pages

DFI CD905-B User Manual

Copyright

FCC and DOC Statement on Class B

Trademarks

Table of Contents

About this Manual

Static Electricity Precautions

Warranty

Safety Measures

About the Package

Chapter 1 - Introduction

Specifications

Features

www.dﬁ .comChapter 2 Concept

Specification Comparison Table

Chapter 3 - Hardware Installation

Board Layout

Block Diagram

Mechanical Diagram

System Memory

Installing the DIMM Module

Connectors

COM Express Connectors Signal Description
