BW968
COM Express Compact Module
User’s Manual
A38100644
Page 2
www.d.comChapter 1 Introduction
2
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2016. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
COM Express Specification Reference
PICMG® COM Express ModuleTM Base Specification.
http://www.picmg.org/
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Page 3
www.d.comChapter 1 Introduction
3
Copyright ������������������������������������������������������������������������������������2
Trademarks ���������������������������������������������������������������������������������2
COM Express Specification Reference ��������������������������������2
FCC and DOC Statement on Class B �������������������������������� 2
About this Manual ��������������������������������������������������������������������4
Warranty ����������������������������������������������������������������������������������� 4
Static Electricity Precautions ��������������������������������������������������4
Safety Measures �������������������������������������������������������������������������4
About the Package �������������������������������������������������������������������5
Optional Items ���������������������������������������������������������������������������5
Before Using the System Board ��������������������������������������������5
Chapter 1 - Introduction ��������������������������������������������������������6
Specifications ���������������������������������������������������������������������������������������������������������� 6
Features ����������������������������������������������������������������������������������������������������������������� 7
Chapter 2 - Concept ��������������������������������������������������������������� 8
COM Express Module Standards ��������������������������������������������������������������������� 8
Specification Comparison Table ������������������������������������������������������������������������9
Chapter 3 - Hardware Installation �������������������������������������10
Board Layout��������������������������������������������������������������������������������������������������������10
Block Diagram �����������������������������������������������������������������������������������������������������10
Mechanical Diagram �������������������������������������������������������������������������������������������11
System Memory �������������������������������������������������������������������������������������������������� 12
Connectors ����������������������������������������������������������������������������������������������������������13
CPU Fan Connector ����������������������������������������������������������������������������������������������������������������������� 13
COM Express Connectors �����������������������������������������������������������������������������������������������������������13
COM Express Connectors �����������������������������������������������������������������������������������������������������������14
COM Express Connectors Signals and Descriptions�������������������������������������������������������������15
Standby Power LED ������������������������������������������������������������������������������������������������������������������������23
Cooling Options �������������������������������������������������������������������������������������������������23
Installing BW968 onto a Carrier Board �������������������������������������������������������24
Installing the COM Express Debug Card �����������������������������������������������������26
Chapter 4 - BIOS Setup ��������������������������������������������������������28
Overview ������������������������������������������������������������������������������������������������������������� 28
Insyde BIOS Setup Utility ���������������������������������������������������������������������������������29
Main ���������������������������������������������������������������������������������������������������������������������������������������������������� 29
Advanced ........................................................................................................................ 29
Security ���������������������������������������������������������������������������������������������������������������������������������������������� 35
Boot ���������������������������������������������������������������������������������������������������������������������������������������������������� 35
Exit ������������������������������������������������������������������������������������������������������������������������������������������������������ 36
Updating the BIOS ���������������������������������������������������������������������������������������������37
Notice: BIOS SPI ROM ������������������������������������������������������������������������������������������������������������������ 37
Chapter 5 - Supported Software ����������������������������������������38
Appendix A - Troubleshooting ���������������������������������������������50
Appendix B - Insyde BIOS Standard Status POST Code 52
Table of Contents
Page 4
www.d.comChapter 1 Introduction
4
About this Manual

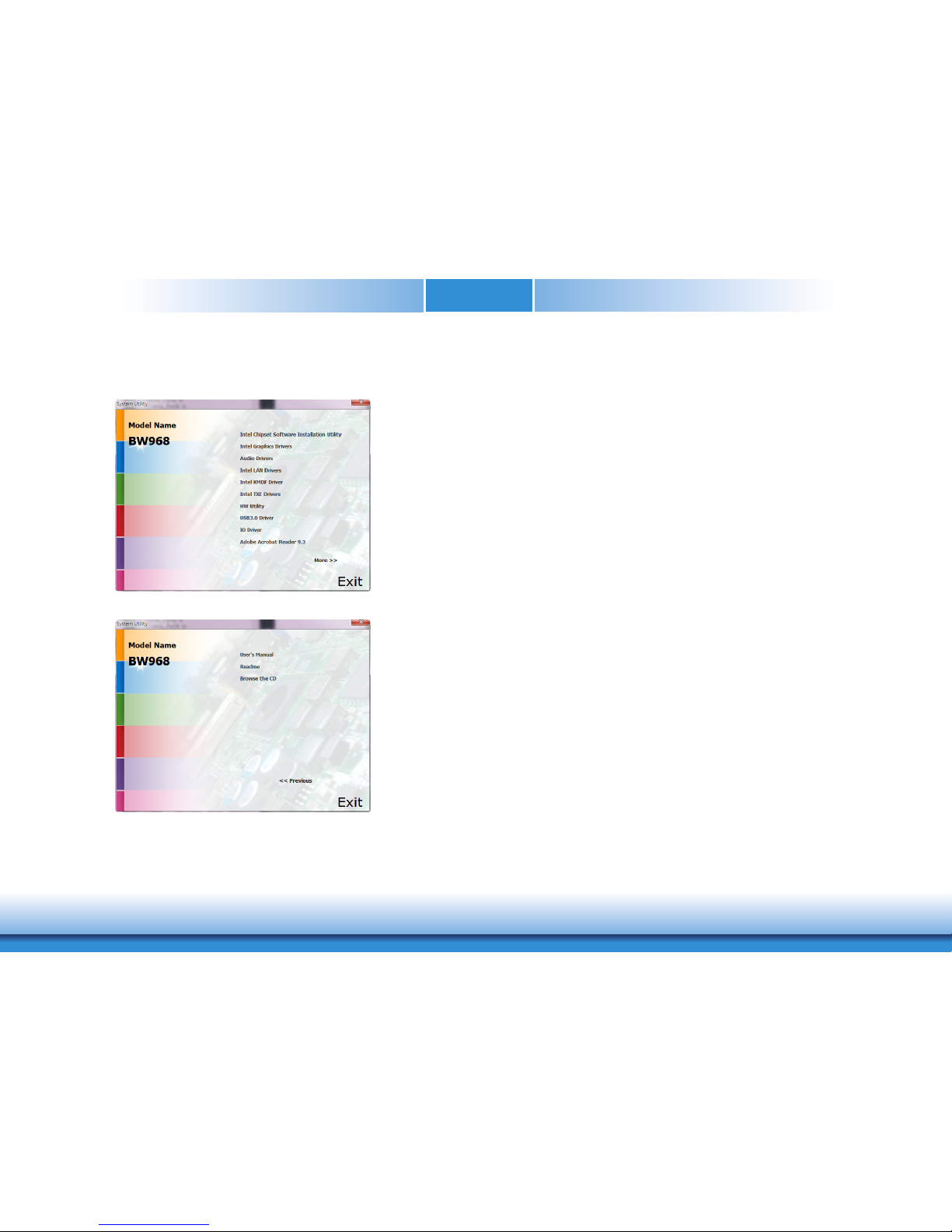

An electronic file of this manual is included in the DVD. To view the user’s manual in the DVD,
insert the DVD into a DVD-ROM drive. The autorun screen (Main Board Utility DVD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.
Page 5
www.d.comChapter 1 Introduction
5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One BW968 board
• One DVD
• One Heat sink (Height: TBD)
Optional Items
• COM332-B carrier board kit
• Heat spreader
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, DVD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
Page 6
www.d.comChapter 1 Introduction
6
Chapter 1 - Introduction
Specifications
Chapter 1
System Processor
Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 (*)
Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 64Mbit
Graphics Controller Intel® HD Graphics
Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display 1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 2560x1440 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
Triple
Displays
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
Expansion Interface 3 x PCIe x1 (Gen 2)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio Interface HD Audio
Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
I/O USB 4 x USB 3.0
8 x USB 2.0
SATA 2 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
WatchDog
Timer
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM Available Upon Request
Power
Type 12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption Typical: N3710: 12V @ 0.28A (3.41Watt)
Max.: N3710: 12V @ 0.61A (7.35Watt)
OS Support
Windows 8.1 64-bit
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
Environment
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF 746,818 hrs @ 25°C; 402,691 hrs @ 45°C; 241,711 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanical
Dimensions COM Express® Compact
95mm (3.74") x 95mm (3.74")
Compliance PICMG COM Express® R2.1, Type 6
*When PXE function is used with the UEFI boot type, the client screen might display partial screen
if the PXE server employs a graphical user interface (GUI)-based management interface. This problem is due to resolution compatibility between the server and the client.
Page 7
www.d.comChapter 1 Introduction
7
Chapter 1
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3L
DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher
speed successor. DDR3L supporting 1600MHz delivers increased system bandwidth and improved performance to provide its higher bandwidth and its increase in performance at a lower
power.
• Graphics
The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports 1 x VGA/DDI, 1 x
LVDS/eDP and 1 DDI interfaces for triple display outputs.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
The Intel® I211AT Gigabit Ethernet controller supports up to 1Gbps data transmission.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
Page 8
www.d.comChapter 2 Concept
8
Chapter 2
Chapter 2 - Concept
106.00
91.00
70.00
51.00
4.00
18.00
6.00
0.00
16.50
4.00
0.00
Extended
BasicCompact
Mini
74.20
80.00
91.00
121.00
151.00
Common for all Form Factors
Extended only
Basic only
Compact only
Compact and Basic only
Mini only
COM Express Module Standards

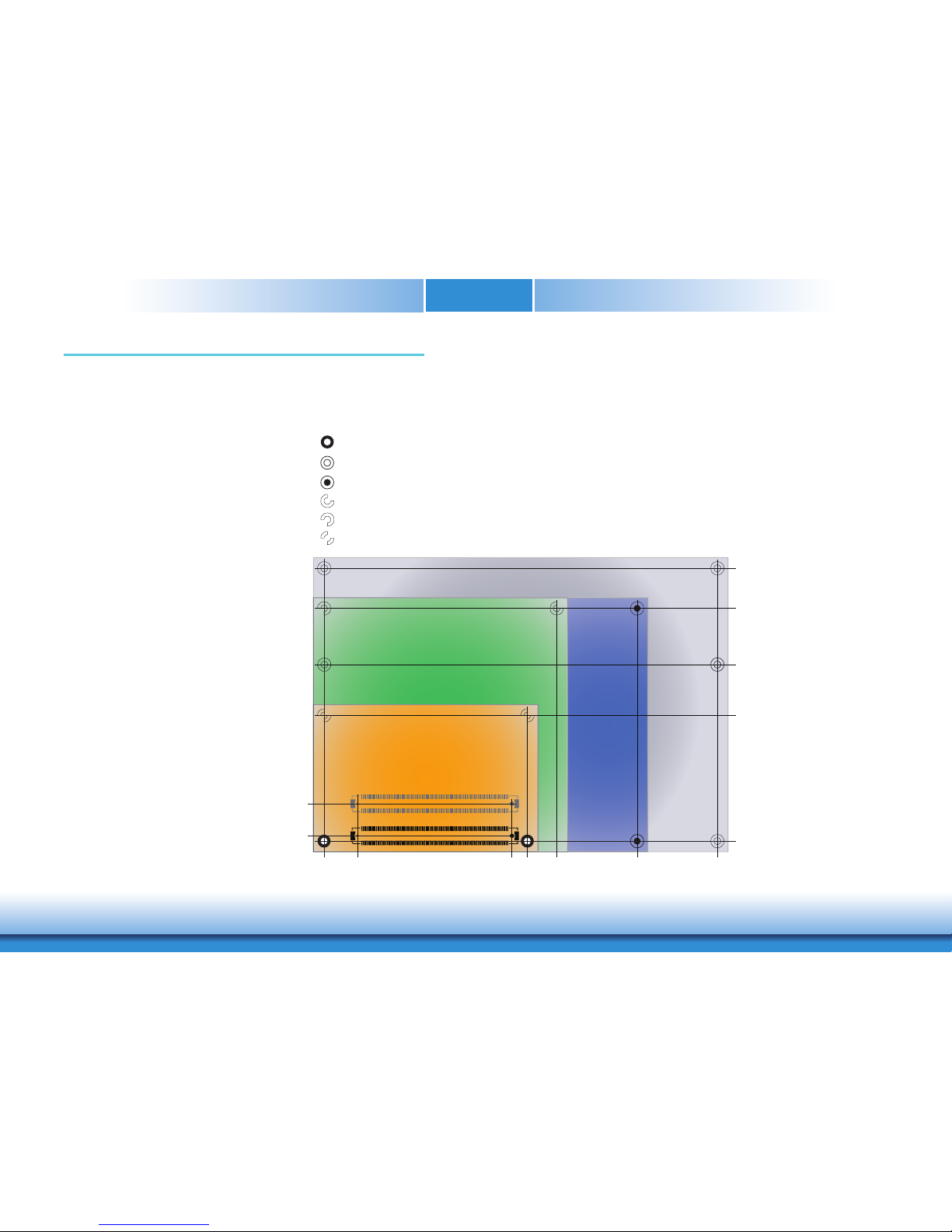

The figure below shows the dimensions of the different types of COM Express modules.
BW968 is a COM Express Compact module. The dimension is 95mm x 95mm.
Page 9
www.d.comChapter 2 Concept
9
Chapter 2
Specification Comparison Table
Module Pin-out - Required and Optional Features C-D Connector. PICMG® COM.0 Revision 2.1
The table below shows the COM Express standard specifications and the corresponding specifications supported on the BW968 module.
• 5 Indicates 12V-tolerant features on former VCC_12V signals.
• 6 Cells in the connected columns spanning rows provide a rough approximation of features
sharing connector pins.
PICMG® COM.0
COM Express® Module Base Specification
o
n 2.1 - Draft 0.92
3 Required and Optional Features
3.2 Module Pin-out Types 1-6 & 10 - Required and Optional Features
COM Express Required and Optional features are summarized in the following table. The features identified as Minimum (Min.) shall be i
m
Table 3.2: Module Pin-out - Required and Optional Features A-B Connector
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
A-B
A-B PCI Express Lanes 0 - 5 1 / 6 3
A-B LVDS Channel A 0 / 1 0 / 1 (Option : eDP or LVDS)
A-B LVDS Channel B 0 / 1 1
A-B eDP on LVDS CH A pins 0 / 1 1 / 0 (Option : eDP or LVDS)
A-B VGA Port 0 / 1 0/1 (Option : DDI2 or VGA)
A-B TV-Out NA NA
A-B DDI 0 NA NA
A-B
5
Serial Ports 1 - 2 0 / 2 2
A-B CAN interface on SER1 0 / 1 0
A-B SATA / SAS Ports 1 / 4 2
A-B AC’97 / HDA Digital Interface 0 / 1 1
A-B USB 2.0 Ports 4 / 8 8
A-B USB Client 0 / 1 0
A-B USB 3.0 Ports NA NA
A-B LAN Port 0 1 / 1 1
A-B Express Card Support 1 / 2 2
A-B LPC Bus 1 / 1 1
A-B SPI 1 / 2 1
A-B
SDIO (muxed on GPIO) 0 / 1 0
General Purpose I/O 8 / 8 8
A-B SMBus 1 / 1 1
A-B I2C 1 / 1 1
A-B Watchdog Timer 0 / 1 1
A-B Speaker Out 1 / 1 1
A-B External BIOS ROM Support 0 / 2 1
A-B Reset Functions 1 / 1 1
A-B
6
Change Key:
System I/O
System Management
PICMG® COM.0
COM Express® Module Base Specification
o
n 2.1 - Draft 0.92
3 Required and Optional Features
3.2 Module Pin-out Types 1-6 & 10 - Required and Optional Features
COM Express Required and Optional features are summarized in the following table. The features identified as Minimum (Min.) shall be i
m
Table 3.2: Module Pin-out - Required and Optional Features A-B Connector
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
A-B
A-B PCI Express Lanes 0 - 5 1 / 6 3
A-B LVDS Channel A 0 / 1 0 / 1 (Option : eDP or LVDS)
A-B LVDS Channel B 0 / 1 1
A-B eDP on LVDS CH A pins 0 / 1 1 / 0 (Option : eDP or LVDS)
A-B VGA Port 0 / 1 0/1 (Option : DDI2 or VGA)
A-B TV-Out NA NA
A-B DDI 0 NA NA
A-B
5
Serial Ports 1 - 2 0 / 2 2
A-B CAN interface on SER1 0 / 1 0
A-B SATA / SAS Ports 1 / 4 2
A-B AC’97 / HDA Digital Interface 0 / 1 1
A-B USB 2.0 Ports 4 / 8 8
A-B USB Client 0 / 1 0
A-B USB 3.0 Ports NA NA
A-B LAN Port 0 1 / 1 1
A-B Express Card Support 1 / 2 2
A-B LPC Bus 1 / 1 1
A-B SPI 1 / 2 1
A-B
SDIO (muxed on GPIO) 0 / 1 0
General Purpose I/O 8 / 8 8
A-B SMBus 1 / 1 1
A-B I2C 1 / 1 1
A-B Watchdog Timer 0 / 1 1
A-B Speaker Out 1 / 1 1
A-B External BIOS ROM Support 0 / 2 1
A-B Reset Functions 1 / 1 1
5
Indicates 12V-tolerant features on former VCC_12V signals.
6
Cells in the connected columns spanning rows provide a rough approximation of features sharing connector pins.
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
A-B
A-B Thermal Protection 0 / 1
1
A-B Battery Low Alarm 0 / 1
1
A-B Suspend/Wake Signals 0 / 3
1
A-B Power Button Support 1 / 1
1
A-B Power Good 1 / 1
1
A-B VCC_5V_SBY Contacts 4 / 4
4
A-B
5
Sleep Input 0 / 1
1
A-B
5
Lid Input 0 / 1
1
A-B
5
Fan Control Signals 0 / 2
2
A-B Trusted Platform Modules 0 / 1
1
A-B
A-B VCC_12V Contacts 12 / 12
12
Power
A-B
6
Change Key:
System I/O
System Management
Power Management
PICMG® COM.0
COM Express® Module Base Specification
o
n 2.1 - Draft 0.92
3 Required and Optional Features
3.2 Module Pin-out Types 1-6 & 10 - Required and Optional Features
COM Express Required and Optional features are summarized in the following table. The features identified as Minimum (Min.) shall be i
m
Table 3.2: Module Pin-out - Required and Optional Features A-B Connector
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
A-B
A-B PCI Express Lanes 0 - 5 1 / 6 3
A-B LVDS Channel A 0 / 1 0 / 1 (Option : eDP or LVDS)
A-B LVDS Channel B 0 / 1 1
A-B eDP on LVDS CH A pins 0 / 1 1 / 0 (Option : eDP or LVDS)
A-B VGA Port 0 / 1 0/1 (Option : DDI2 or VGA)
A-B TV-Out NA NA
A-B DDI 0 NA NA
A-B
5
Serial Ports 1 - 2 0 / 2 2
A-B CAN interface on SER1 0 / 1 0
A-B SATA / SAS Ports 1 / 4 2
A-B AC’97 / HDA Digital Interface 0 / 1 1
A-B USB 2.0 Ports 4 / 8 8
A-B USB Client 0 / 1 0
A-B USB 3.0 Ports NA NA
A-B LAN Port 0 1 / 1 1
A-B Express Card Support 1 / 2 2
A-B LPC Bus 1 / 1 1
A-B SPI 1 / 2 1
A-B
SDIO (muxed on GPIO) 0 / 1 0
General Purpose I/O 8 / 8 8
A-B SMBus 1 / 1 1
A-B I2C 1 / 1 1
A-B Watchdog Timer 0 / 1 1
A-B Speaker Out 1 / 1 1
A-B External BIOS ROM Support 0 / 2 1
A-B Reset Functions 1 / 1 1
5
Indicates 12V-tolerant features on former VCC_12V signals.
6
Cells in the connected columns spanning rows provide a rough approximation of features sharing connector pins.
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
A-B
A-B Thermal Protection 0 / 1
1
A-B Battery Low Alarm 0 / 1
1
A-B Suspend/Wake Signals 0 / 3
1
A-B Power Button Support 1 / 1
1
A-B Power Good 1 / 1
1
A-B VCC_5V_SBY Contacts 4 / 4
4
A-B
5
Sleep Input 0 / 1
1
A-B
5
Lid Input 0 / 1
1
A-B
5
Fan Control Signals 0 / 2
2
A-B Trusted Platform Modules 0 / 1
1
A-B
A-B VCC_12V Contacts 12 / 12
12
Table 3.3: Module Pin-out - Re
q
uired and Optional Features C-D Connector
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI BW968
Type 6
C-D
PCI Express Lanes 16 - 31 0 / 16
0
PCI Express Graphics (PEG) 0 / 1
0
Muxed SDVO Channels 1 - 2 NA
NA
PCI Express Lanes 6 - 15 0 / 2
0
PCI Bus - 32 Bit NA
NA
PATA Port NA
NA
LAN Ports 1 - 2 NA
NA
DDIs 1 - 3 0 / 3
1/2(Option : DDI2 or VGA
)
USB 3.0 Ports 0 / 4
2
C-D
C-D VCC_12V Contacts 12 / 12
12
Power
System I/O
Power
C-D
6
C-D
6
A-B
6
Change Key:
System I/O
System Management
Power Management
Page 10
www.d.comChapter 3 Hardware Installation
10
Chapter 3
Chapter 3 - Hardware Installation
Board Layout

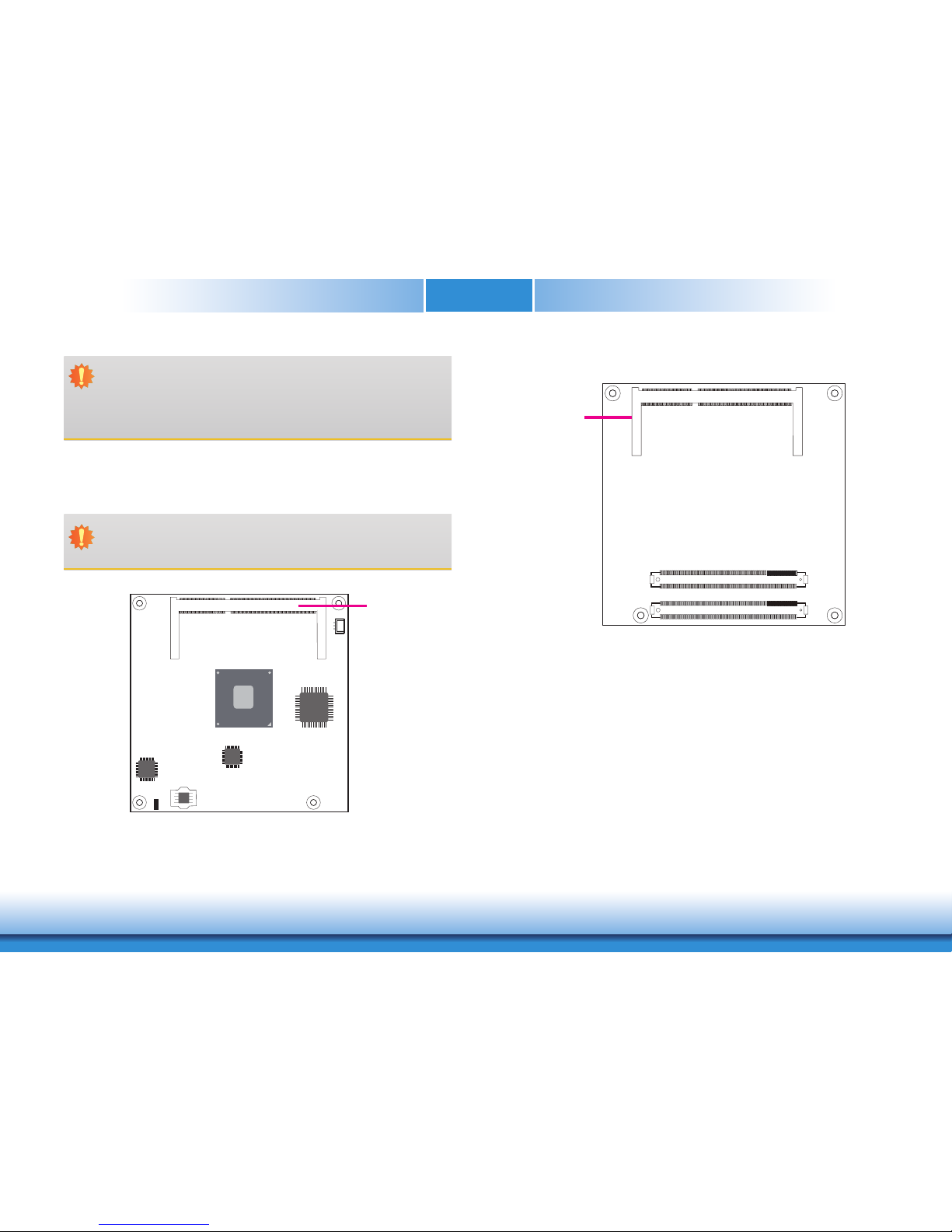

Top View
Bottom View

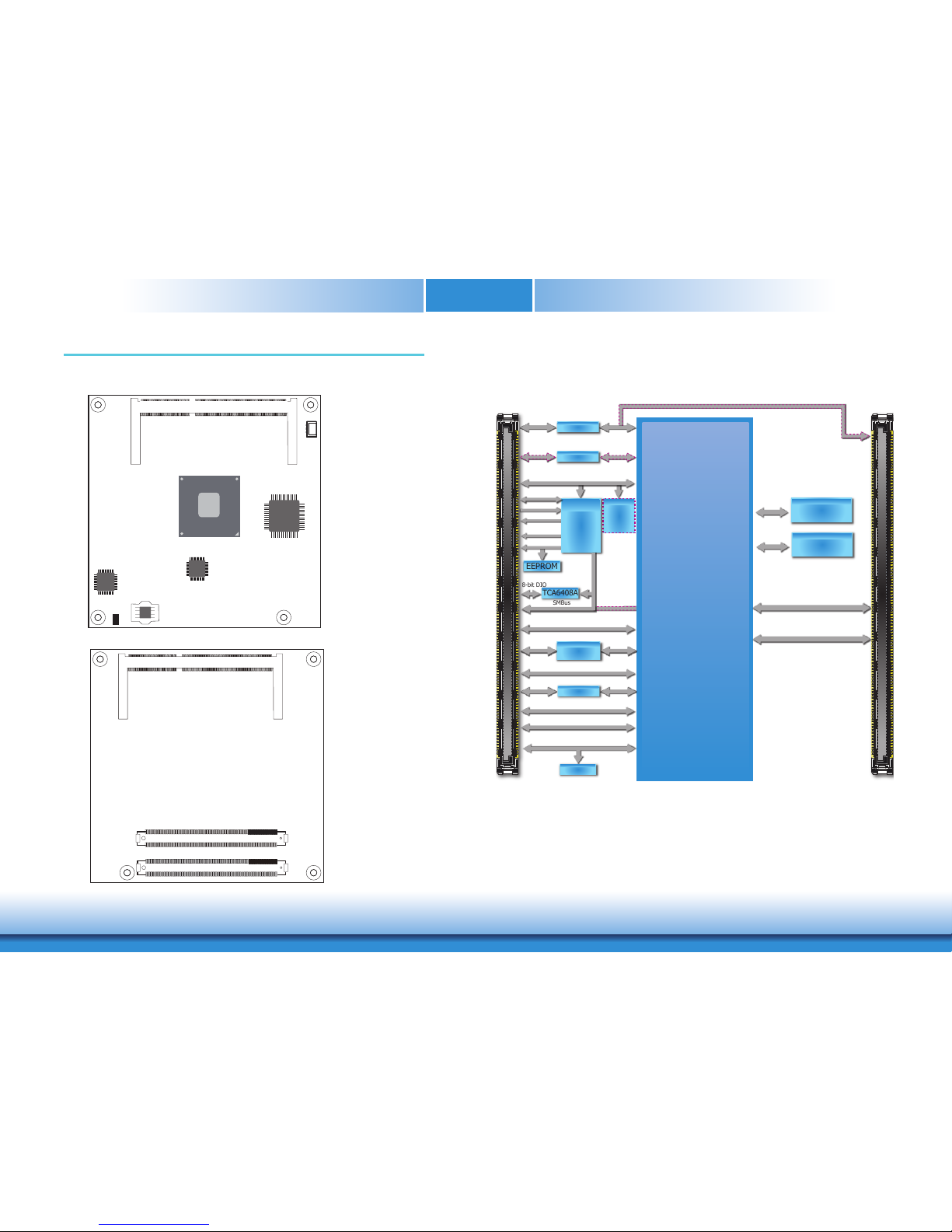

Block Diagram
EEPROM
SATA 3.0 2x
USB 3.0 4x
A / B
SMBus
Pentium/Celeron
N3000 Family
Intel® GLAN
I211AT
MDI
SPI Flash
SPI Bus
C / D
DDR3L 1600MHz
SODIMM
Channel A
PCIe x1
PCIe x1 (3 x1/1 x2, 1 x1)
LPC Bus
8-bit DIO
WDT
I
2
C Bus
TPM
1.2/2.0
(optional)
Serial Port 0,1
Fan PWM/
TACH_IN
SLP/LID
TCA6408A
Embedded
Controller
IT8518E
DDR3L 1600MHz
SODIMM
Channel B
DDI Port 1
HDA
USB 2.0 4x
USB 2.0
USB2517
USB 2.0 4x
eDP/DDI
(optional)
PTN3460
LVDS
(optional)
DDI
(optional)
CH7517
VGA
DDI Port 2
Intel
Pentium
Celeron
SPI
Flash
BIOS
Standby
Power LED
DDR3L_1 SODIMM
Intel
WGI211AT
SMSC
USB2517
iTE
IT8528E
1
CPU Fan
DDR3L_2 SODIMM
COM Express connector
C1
D1
C110
D110
B1
B110
A1
A110
COM Express connector
Page 11
www.d.comChapter 3 Hardware Installation
11
Chapter 3

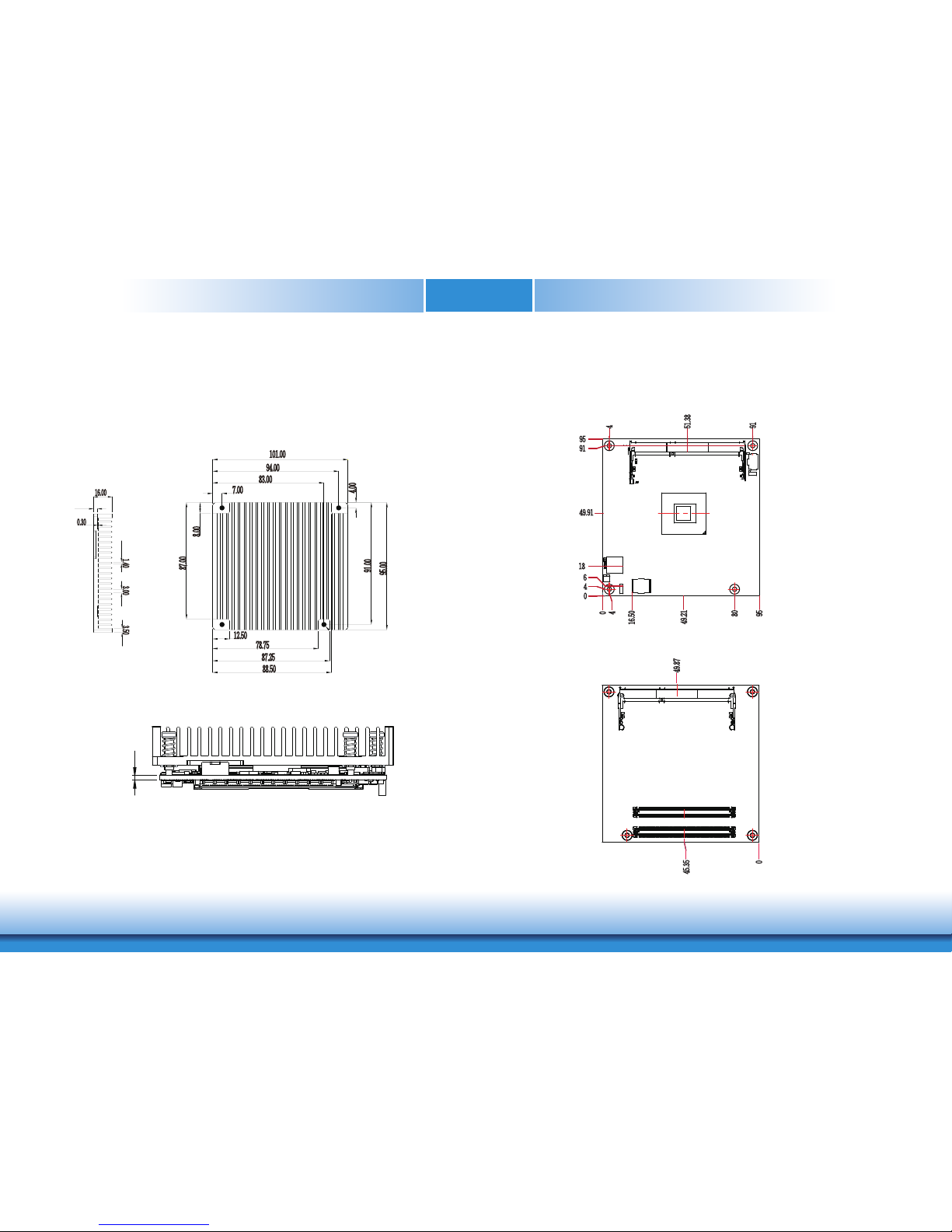

Mechanical Diagram
BW968 Module with Heat Sink
Side View of the Module with Heat Sink
BW968 Module
Top View
Bottom View
16.00
0.30
3.503.001.40
7.00
94.00
95.00
4.00
91.00
83.00
8.00
87.00
12.50
78.75
87.25
88.50
101.00
2
0
4
6
18
91
044
16.50
49.21
809195
49.91
00
45.35
Page 12
www.d.comChapter 3 Hardware Installation
12
Chapter 3
System Memory
The system board is equipped with 2GB/4GB/8GB DDR3L system memory onboard supporting
1600MHz, dual channel memory interface.
DDR3L
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED is red, it indicates that there is power on the board.
Power-off the PC then unplug the power cord prior to installing any devices. Failure to
do so will cause severe damage to the board and components.
Intel
Pentium
Celeron
SPI
Flash
BIOS
Standby
Power LED
DDR3L_1 SODIMM
Intel
WGI211AT
SMSC
USB2517
iTE
IT8528E
1
CPU Fan
System Memory
DDR3L_2 SODIMM
COM Express connector
C1
D1
C110
D110
B1
B110
A1
A110
COM Express connector
DDR3L
Top View
Bottom View
Page 13
www.d.comChapter 3 Hardware Installation
13
Chapter 3
Connectors

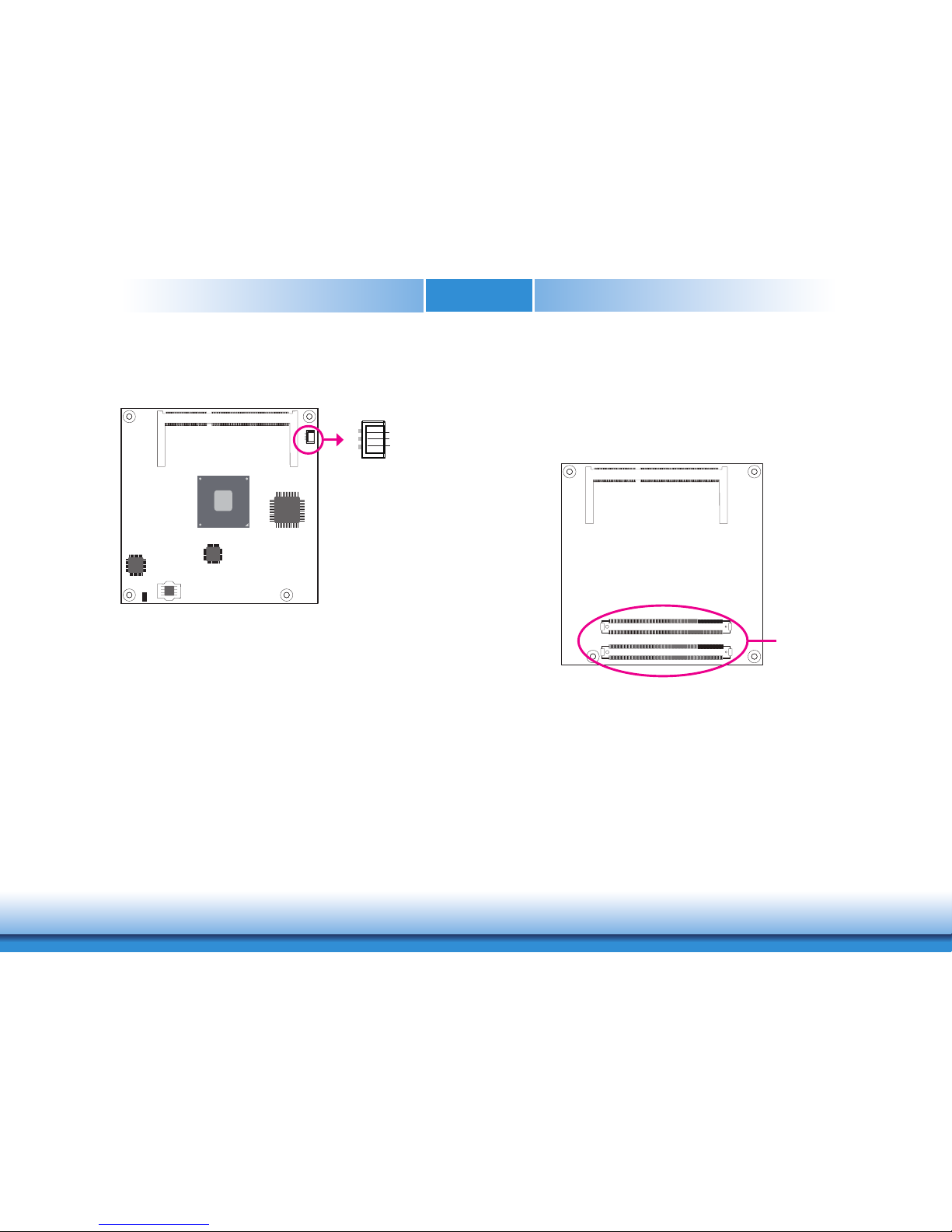

CPU Fan Connector
Connect the CPU fan’s cable connector to the CPU fan connector on the board. The cooling fan
will provide adequate airflow throughout the chassis to prevent overheating the CPU and board
components.
BIOS Setting
“Module Board H/W Monitor” submenu in the Advanced menu of the BIOS will display the current speed of the cooling fan. Refer to chapter 4 of the manual for more information.
3
1
Sense
+12V
Ground
COM Express Connectors
The COM Express connectors are used to interface the BW968 COM Express board to a carrier
board. Connect the COM Express connectors (located on the solder side of the board) to the
COM Express connectors on the carrier board.
Refer to the “Installing onto a Carrier Board” section for more information.
Refer to the following pages for the pin functions of these connectors.
Intel
Pentium
Celeron
SPI
Flash
BIOS
Standby
Power LED
DDR3L_1 SODIMM
Intel
WGI211AT
SMSC
USB2517
iTE
IT8528E
1
CPU Fan
DDR3L_2 SODIMM
COM Express connector
C1
D1
C110
D110
B1
B110
A1
A110
COM Express connector
COM Express Connectors
Page 14
www.d.comChapter 3 Hardware Installation
14
Chapter 3
COM Express Connectors
A1 GND (FIXED) B1 GND (FIXED) A56 NA B56 NA C1 GND (FIXED) D1 GND (FIXED) C56 NA D56 NA
A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 GPO2 C2 GND D2 GND C57 NA D57 NA
A3 GBE0_MDI3+ B3 LPC_FRAME# A58 NA B58 NA C3 USB_SSRX0- D3 USB_SSTX0- C58 NA D58 NA
A4 GBE0_LINK100# B4 LPC_AD0 A59 NA B59 NA C4 USB_SSRX0+ D4 USB_SSTX0+ C59 NA D59 NA
A5 GBE0_LINK1000# B5 LPC_AD1 A60 GND (FIXED) B60 GND (FIXED) C5 GND D5 GND C60 GND (FIXED) D60 GND (FIXED)
A6 GBE0_MDI2- B6 LPC_AD2 A61 PCIE_TX2+ B61 PCIE_RX2+ C6 USB_SSRX1- D6 USB_SSTX1- C61 NA D61 NA
A7 GBE0_MDI2+ B7 LPC_AD3 A62 PCIE_TX2- B62 PCIE_RX2- C7 USB_SSRX1+ D7 USB_SSTX1+ C62 NA D62 NA
A8 GBE0_LINK# B8 NA A63 GPI1 B63 GPO3 C8 GND D8 GND C63 RSVD D63 RSVD
A9 GBE0_MDI1- B9 NA A64 PCIE_TX1+ B64 PCIE_RX1+ C9 USB_SSRX2- D9 USB_SSTX2- C64 RSVD D64 RSVD
A10 GBE0_MDI1+ B10 LPC_CLK A65 PCIE_TX1- B65 PCIE_RX1- C10 USB_SSRX2+ D10 USB_SSTX2+ C65 NA D65 NA
A11 GND (FIXED) B11 GND (FIXED) A66 GND B66 WAKE0# C11 GND (FIXED) D11 GND (FIXED) C66 NA D66 NA
A12 GBE0_MDI0- B12 PWRBTN# A67 GPI2 B67 WAKE1#(LAN_WAKE-) C12 USB_SSRX3- D12 USB_SSTX3- C67 RSVD D67 GND
A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+ C13 USB_SSRX3+ D13 USB_SSTX3+ C68 NA D68 NA
A14 NA B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0- C14 GND D14 GND C69 NA D69 NA
A15 SUS_S3# B15 SMB_ALERT# A70 GND(FIXED) B70 GND (FIXED) C15 NA D15 DDI1_CTRLCLK_AUX+ C70 GND (FIXED) D70 GND (FIXED)
A16 SATA0_TX+ B16 SATA1_TX+ A71 LVDS_A0+ B71 LVDS_B0+ C16 NA D16 DDI1_CTRLDATA_AUX- C71 NA D71 NA
A17 SATA0_TX- B17 SATA1_TX- A72 LVDS_A0- B72 LVDS_B0- C17 RSVD D17 RSVD C72 NA D72 NA
A18 SUS_S4# B18 SUS_STAT# A73 LVDS_A1+ B73 LVDS_B1+ C18 RSVD D18 RSVD C73 GND D73 GND
A19 SATA0_RX+ B19 SATA1_RX+ A74 LVDS_A1- B74 LVDS_B1- C19 NA D19 NA C74 NA D74 NA
A20 SATA0_RX- B20 SATA1_RX- A75 LVDS_A2+ B75 LVDS_B2+ C20 NA D20 NA C75 NA D75 NA
A21 GND (FIXED) B21 GND (FIXED) A76 LVDS_A2- B76 LVDS_B2- C21 GND (FIXED) D21 GND (FIXED) C76 GND D76 GND
A22 NA B22 NA A77 LVDS_VDD_EN B77 LVDS_B3+ C22 NA D22 NA C77 RSVD D77 RSVD
A23 NA B23 NA A78 LVDS_A3+ B78 LVDS_B3- C23 NA D23 NA C78 NA D78 NA
A24 SUS_S5# B24 PWR_OK A79 LVDS_A3- B79 LVDS_BKLT_EN C24 DDI1_HPD D24 RSVD C79 NA D79 NA
A25 NA B25 NA A80 GND (FIXED) B80 GND (FIXED) C25 NA D25 RSVD C80 GND (FIXED) D80 GND (FIXED)
A26 NA B26 NA A81 LVDS_A_CK+ B81 LVDS_B_CK+ C26 NA D26 DDI1_PAIR0+ C81 NA D81 NA
A27 BATLOW# B27 WDT A82 LVDS_A_CK- B82 LVDS_B_CK- C27 RSVD D27 DDI1_PAIR0- C82 NA D82 NA
A28 (S)ATA_ACT# B28 NA A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL C28 RSVD D28 RSVD C83 RSVD D83 RSVD
A29 AC/HDA_SYNC B29 AC/HDA _SDIN1 A84 LVDS_I2C_DAT B84 VCC_5V_SBY C29 NA D29 DDI1_PAIR1+ C84 GND D84 GND
A30 AC/HDA _RST# B30 AC/HDA _SDIN0 A85 GPI3 B85 VCC_5V_SBY C30 NA D30 DDI1_PAIR1- C85 NA D85 NA
A31 GND (FIXED) B31 GND (FIXED) A86 RSVD B86 VCC_5V_SBY C31 GND (FIXED) D31 GND (FIXED) C86 NA D86 NA
A32 AC/HDA _BITCLK B32 SPKR A87 eDP_HPD B87 VCC_5V_SBY C32 DDI2_CTRLCLK_AUX+ D32 DDI1_PAIR2+ C87 GND D87 GND
A33 AC/HDA _SDOUT B33 I2C_CK A88 PCIE0_CK_REF+ B88 BIOS_DIS1# C33 DDI2_CTRLDATA_AUX- D33 DDI1_PAIR2- C88 NA D88 NA
A34 BIOS_DIS0# B34 I2C_DAT A89 PCIE0_CK_REF- B89 VGA_RED C34 DDI2_DDC_AUX_SEL D34 DDI1_DDC_AUX_SEL C89 NA D89 NA
A35 THRMTRIP# B35 THRM# A90 GND (FIXED) B90 GND (FIXED) C35 RSVD D35 RSVD C90 GND (FIXED) D90 GND (FIXED)
A36 USB6- B36 USB7- A91 SPI_POWER B91 VGA_GRN C36 NA D36 DDI1_PAIR3+ C91 NA D91 NA
A37 USB6+ B37 USB7+ A92 SPI_MISO B92 VGA_BLU C37 NA D37 DDI1_PAIR3- C92 NA D92 NA
A38 USB_6_7_OC# B38 USB_4_5_OC# A93 GPO0 B93 VGA_HSYNC C38 NA D38 RSVD C93 GND D93 GND
A39 USB4- B39 USB5- A94 SPI_CLK B94 VGA_VSYNC C39 NA D39 DDI2_PAIR0+ C94 NA D94 NA
A40 USB4+ B40 USB5+ A95 SPI_MOSI B95 VGA_I2C_CK C40 NA D40 DDI2_PAIR0- C95 NA D95 NA
A41 GND (FIXED) B41 GND (FIXED) A96 TPM_PP B96 VGA_I2C_DAT C41 GND (FIXED) D41 GND (FIXED) C96 GND D96 GND
A42 USB2- B42 USB3- A97 NA B97 SPI_CS# C42 NA D42 DDI2_PAIR1+ C97 RSVD D97 RSVD
A43 USB2+ B43 USB3+ A98 SER0_TX B98 RSVD C43 NA D43 DDI2_PAIR1- C98 NA D98 NA
A44 USB_2_3_OC# B44 USB_0_1_OC# A99 SER0_RX B99 RSVD C44 NA D44 DDI2_HPD C99 NA D99 NA
A45 USB0- B45 USB1- A100 GND (FIXED) B100 GND (FIXED) C45 RSVD D45 RSVD C100 GND (FIXED) D100 GND (FIXED)
A46 USB0+ B46 USB1+ A101 SER1_TX B101 FAN_PWMOUT C46 NA D46 DDI2_PAIR2+ C101 NA D101 NA
A47 VCC_RTC B47 EXCD1_PERST# A102 SER1_RX B102 FAN_TACHIN C47 NA D47 DDI2_PAIR2- C102 NA D102 NA
A48 EXCD0_PERST# B48 EXCD1_CPPE# A103 LID# B103 SLEEP# C48 RSVD D48 RSVD C103 GND D103 GND
A49 EXCD0_CPPE# B49 SYS_RESET# A104 VCC_12V B104 VCC_12V C49 NA D49 DDI2_PAIR3+ C104 VCC_12V D104 VCC_12V
A50 LPC_SERIRQ B50 CB_RESET# A105 VCC_12V B105 VCC_12V C50 NA D50 DDI2_PAIR3- C105 VCC_12V D105 VCC_12V
A51 GND (FIXED) B51 GND (FIXED) A106 VCC_12V B106 VCC_12V C51 GND (FIXED) D51 GND (FIXED) C106 VCC_12V D106 VCC_12V
A52 NA B52 NA A107 VCC_12V B107 VCC_12V C52 NA D52 NA C107 VCC_12V D107 VCC_12V
A53 NA B53 NA A108 VCC_12V B108 VCC_12V C53 NA D53 NA C108 VCC_12V D108 VCC_12V
A54 GPI0 B54 GPO1 A109 VCC_12V B109 VCC_12V C54 NA D54 NA C109 VCC_12V D109 VCC_12V
A55 NA B55 NA A110 GND (FIXED) B110 GND (FIXED) C55 NA D55 NA C110 GND (FIXED) D110 GND (FIXED)
Row C Row D
Row A Row B
Row C Row D
Row A Row B
Row C Row D
Row C Row D
Page 15
www.d.comChapter 3 Hardware Installation
15
Chapter 3
COM Express Connectors Signals and Descriptions
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Connect to CODEC pin 11 RESET# Reset output to CODEC, active low.
AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Connect to CODEC pin 10 SYNC Sample-synchronization signal to the CODEC(s).
AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Connect to CODEC pin 6 BIT_CLK Serial data clock generated by the external CODEC(s).
AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Connect to CODEC pin 5 SDATA_OUT Serial TDM data output to the CODEC.
AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V NA
AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V
AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V Connect 33 Ω in series to CODEC0 pin 8 SDATA_IN
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI0+/-
Gigabit Ethernet Controller 0: Media Dependent Interface Differential
Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec
modes. Some pairs are unused in some modes, per the following:
1000BASE-T 100BASE-TX 10BASE-T
MDI[0]+/- B1_DA+/- TX+/- TX+/ MDI[1]+/- B1_DB+/- RX+/- RX+/ MDI[2]+/- B1_DC+/-
MDI[3]+/- B1_DD+/GBE0_MDI0- A12 I/O Analog 3.3V max Suspend
GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI1+/GBE0_MDI1- A9 I/O Analog 3.3V max Suspend
GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI2+/GBE0_MDI2- A6 I/O Analog 3.3V max Suspend
GBE0_MDI3+ A3 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI3+/GBE0_MDI3- A2 I/O Analog 3.3V max Suspend
GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB Gigabit Ethernet Controller 0 activity indicator, active low.
GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V NC Gigabit Ethernet Controller 0 link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
GBE0_LINK1000# A5 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150 Ω to 3.3VSB
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SATA0_TX+ A16 O SATA AC coupled on Module AC Coupling capacitor
SATA0_TX- A17 O SATA AC coupled on Module AC Coupling capacitor
SATA0_RX+ A19 I SATA AC coupled on Module AC Coupling capacitor
SATA0_RX- A20 I SATA AC coupled on Module AC Coupling capacitor
SATA1_TX+ B16 O SATA AC coupled on Module AC Coupling capacitor
SATA1_TX- B17 O SATA AC coupled on Module AC Coupling capacitor
SATA1_RX+ B19 I SATA AC coupled on Module AC Coupling capacitor
SATA1_RX- B20 I SATA AC coupled on Module AC Coupling capacitor
SATA2_TX+ A22 O SATA AC coupled on Module NA
SATA2_TX- A23 O SATA AC coupled on Module NA
SATA2_RX+ A25 I SATA AC coupled on Module NA
SATA2_RX- A26 I SATA AC coupled on Module NA
SATA3_TX+ B22 O SATA AC coupled on Module NA
SATA3_TX- B23 O SATA AC coupled on Module NA
SATA3_RX+ B25 I SATA AC coupled on Module NA
SATA3_RX- B26 I SATA AC coupled on Module NA
ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 10K to 3.3V Connect to LED and recommend current limit resistor 220Ω to 3.3V ATA (parallel and serial) or SAS activity indicator, active low.
Pin Types
I Input to the Module
O Output from the Module
I/O Bi-directional input / output signal
OD Open drain output
A
C97/HDA Signals and Description
s
Serial TDM data inputs from up to 2 CODECs.
Gigabit Ethernet Signals and Description
s
Serial ATA or SAS Channel 0 transmit differential pair.
Connect to SATA0 Conn RX pin Serial ATA or SAS Channel 0 receive differential pair.
Connect to SATA1 Conn TX pin
Connect to SATA2 Conn TX pin
Serial ATA or SAS Channel 3 transmit differential pair.
Serial ATA or SAS Channel 3 receive differential pair.
Connect to SATA2 Conn RX pin Serial ATA or SAS Channel 2 receive differential pair.
Serial ATA or SAS Channel 2 transmit differential pair.
Connect to SATA1 Conn RX pin Serial ATA or SAS Channel 1 receive differential pair.
SATA Signals and Description
s
Connect to SATA0 Conn TX pin
Serial ATA or SAS Channel 1 transmit differential pair.
Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.
Page 16
www.d.comChapter 3 Hardware Installation
16
Chapter 3
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Connect to CODEC pin 11 RESET# Reset output to CODEC, active low.
AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Connect to CODEC pin 10 SYNC Sample-synchronization signal to the CODEC(s).
AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Connect to CODEC pin 6 BIT_CLK Serial data clock generated by the external CODEC(s).
AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Connect to CODEC pin 5 SDATA_OUT Serial TDM data output to the CODEC.
AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V NA
AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V
AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V Connect 33 Ω in series to CODEC0 pin 8 SDATA_IN
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI0+/-
Gigabit Ethernet Controller 0: Media Dependent Interface Differential
Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec
modes. Some pairs are unused in some modes, per the following:
1000BASE-T 100BASE-TX 10BASE-T
MDI[0]+/- B1_DA+/- TX+/- TX+/-
MDI[1]+/- B1_DB+/- RX+/- RX+/-
MDI[2]+/- B1_DC+/-
MDI[3]+/- B1_DD+/-
GBE0_MDI0- A12 I/O Analog 3.3V max Suspend
GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI1+/-
GBE0_MDI1- A9 I/O Analog 3.3V max Suspend
GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI2+/-
GBE0_MDI2- A6 I/O Analog 3.3V max Suspend
GBE0_MDI3+ A3 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI3+/-
GBE0_MDI3- A2 I/O Analog 3.3V max Suspend
GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB Gigabit Ethernet Controller 0 activity indicator, active low.
GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V NC Gigabit Ethernet Controller 0 link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
GBE0_LINK1000# A5 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SATA0_TX+ A16 O SATA AC coupled on Module AC Coupling capacitor
SATA0_TX- A17 O SATA AC coupled on Module AC Coupling capacitor
SATA0_RX+ A19 I SATA AC coupled on Module AC Coupling capacitor
SATA0_RX- A20 I SATA AC coupled on Module AC Coupling capacitor
SATA1_TX+ B16 O SATA AC coupled on Module AC Coupling capacitor
SATA1_TX- B17 O SATA AC coupled on Module AC Coupling capacitor
SATA1_RX+ B19 I SATA AC coupled on Module AC Coupling capacitor
SATA1_RX- B20 I SATA AC coupled on Module AC Coupling capacitor
SATA2_TX+ A22 O SATA AC coupled on Module NA
SATA2_TX- A23 O SATA AC coupled on Module NA
SATA2_RX+ A25 I SATA AC coupled on Module NA
SATA2_RX- A26 I SATA AC coupled on Module NA
SATA3_TX+ B22 O SATA AC coupled on Module NA
SATA3_TX- B23 O SATA AC coupled on Module NA
SATA3_RX+ B25 I SATA AC coupled on Module NA
SATA3_RX- B26 I SATA AC coupled on Module NA
ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 10K to 3.3V Connect to LED and recommend current limit resistor 220Ω to 3.3V ATA (parallel and serial) or SAS activity indicator, active low.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PCIE_TX0+ A68 AC Coupling capacitor
PCIE_TX0- A69 AC Coupling capacitor
PCIE_RX0+ B68
PCIE_RX0- B69
PCIE_TX1+ A64 AC Coupling capacitor
PCIE_TX1- A65 AC Coupling capacitor
PCIE_RX1+ B64
PCIE_RX1- B65
PCIE_TX2+ A61 AC Coupling capacitor
PCIE_TX2- A62 AC Coupling capacitor
PCIE_RX2+ B61
PCIE_RX2- B62
PCIE_TX3+ A58 NA
PCIE_TX3- A59 NA
PCIE_RX3+ B58 NA
PCIE_RX3- B59 NA
PCIE_TX4+ A55 NA
PCIE_TX4- A56 NA
PCIE_RX4+ B55 NA
PCIE_RX4- B56 NA
PCIE_TX5+ A52 NA
PCIE_TX5- A53 NA
PCIE_RX5+ B52 NA
PCIE_RX5- B53 NA
PCIE_TX6+ D19 NA
PCIE_TX6- D20 NA
PCIE_RX6+ C19 NA
PCIE_RX6- C20 NA
PCIE_TX7+ D22 NA
PCIE_TX7- D23 NA
PCIE_RX7+ C22 NA
PCIE_RX7- C23 NA
PCIE0_CK_REF+ A88
PCIE0_CK_REF- A89
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Pin Types
I Input to the Module
O Output from the Module
I/O Bi-directional input / output signal
OD Open drain output
I PCIE AC coupled off Module
I PCIE AC coupled off Module
O PCIE AC coupled on Module
PCI Express Differential Receive Pairs 7
O PCIE PCIE Connect to PCIE device, PCIe CLK Buffer or slot
Reference clock output for all PCI Express and PCI Express Graphics
lanes.
PCI Express Differential Receive Pairs 6
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 7
PCI Express Differential Transmit Pairs 4
PCI Express Differential Receive Pairs 2
PCI Express Differential Transmit Pairs 6
PCI Express Differential Transmit Pairs 3
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 5
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 5
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
AC coupled on Module PCI Express Differential Transmit Pairs 1
PCI Express Differential Receive Pairs 1
PCI Express Differential Receive Pairs 3
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 0
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 2
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 0
I PCIE AC coupled off Module
O PCIE
A
C97/HDA Signals and Description
s
Serial TDM data inputs from up to 2 CODECs.
Gigabit Ethernet Signals and Description
s
PCI Express Lanes Signals and Description
s
Serial ATA or SAS Channel 0 transmit differential pair.
Connect to SATA0 Conn RX pin Serial ATA or SAS Channel 0 receive differential pair.
Connect to SATA1 Conn TX pin
Connect to SATA2 Conn TX pin
Serial ATA or SAS Channel 3 transmit differential pair.
Serial ATA or SAS Channel 3 receive differential pair.
Connect to SATA2 Conn RX pin Serial ATA or SAS Channel 2 receive differential pair.
Serial ATA or SAS Channel 2 transmit differential pair.
Connect to SATA1 Conn RX pin Serial ATA or SAS Channel 1 receive differential pair.
SATA Signals and Description
s
Connect to SATA0 Conn TX pin
Serial ATA or SAS Channel 1 transmit differential pair.
Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.
Page 17
www.d.comChapter 3 Hardware Installation
17
Chapter 3
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Connect to CODEC pin 11 RESET# Reset output to CODEC, active low.
AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Connect to CODEC pin 10 SYNC Sample-synchronization signal to the CODEC(s).
AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Connect to CODEC pin 6 BIT_CLK Serial data clock generated by the external CODEC(s).
AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Connect to CODEC pin 5 SDATA_OUT Serial TDM data output to the CODEC.
AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V NA
AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V
AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V Connect 33 Ω in series to CODEC0 pin 8 SDATA_IN
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI0+/-
Gigabit Ethernet Controller 0: Media Dependent Interface Differential
Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec
modes. Some pairs are unused in some modes, per the following:
1000BASE-T 100BASE-TX 10BASE-T
MDI[0]+/- B1_DA+/- TX+/- TX+/-
MDI[1]+/- B1_DB+/- RX+/- RX+/-
MDI[2]+/- B1_DC+/-
MDI[3]+/- B1_DD+/-
GBE0_MDI0- A12 I/O Analog 3.3V max Suspend
GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI1+/-
GBE0_MDI1- A9 I/O Analog 3.3V max Suspend
GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI2+/-
GBE0_MDI2- A6 I/O Analog 3.3V max Suspend
GBE0_MDI3+ A3 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI3+/-
GBE0_MDI3- A2 I/O Analog 3.3V max Suspend
GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB Gigabit Ethernet Controller 0 activity indicator, active low.
GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V NC Gigabit Ethernet Controller 0 link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
GBE0_LINK1000# A5 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SATA0_TX+ A16 O SATA AC coupled on Module AC Coupling capacitor
SATA0_TX- A17 O SATA AC coupled on Module AC Coupling capacitor
SATA0_RX+ A19 I SATA AC coupled on Module AC Coupling capacitor
SATA0_RX- A20 I SATA AC coupled on Module AC Coupling capacitor
SATA1_TX+ B16 O SATA AC coupled on Module AC Coupling capacitor
SATA1_TX- B17 O SATA AC coupled on Module AC Coupling capacitor
SATA1_RX+ B19 I SATA AC coupled on Module AC Coupling capacitor
SATA1_RX- B20 I SATA AC coupled on Module AC Coupling capacitor
SATA2_TX+ A22 O SATA AC coupled on Module NA
SATA2_TX- A23 O SATA AC coupled on Module NA
SATA2_RX+ A25 I SATA AC coupled on Module NA
SATA2_RX- A26 I SATA AC coupled on Module NA
SATA3_TX+ B22 O SATA AC coupled on Module NA
SATA3_TX- B23 O SATA AC coupled on Module NA
SATA3_RX+ B25 I SATA AC coupled on Module NA
SATA3_RX- B26 I SATA AC coupled on Module NA
ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 10K to 3.3V Connect to LED and recommend current limit resistor 220Ω to 3.3V ATA (parallel and serial) or SAS activity indicator, active low.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PCIE_TX0+ A68 AC Coupling capacitor
PCIE_TX0- A69 AC Coupling capacitor
PCIE_RX0+ B68
PCIE_RX0- B69
PCIE_TX1+ A64 AC Coupling capacitor
PCIE_TX1- A65 AC Coupling capacitor
PCIE_RX1+ B64
PCIE_RX1- B65
PCIE_TX2+ A61 AC Coupling capacitor
PCIE_TX2- A62 AC Coupling capacitor
PCIE_RX2+ B61
PCIE_RX2- B62
PCIE_TX3+ A58 NA
PCIE_TX3- A59 NA
PCIE_RX3+ B58 NA
PCIE_RX3- B59 NA
PCIE_TX4+ A55 NA
PCIE_TX4- A56 NA
PCIE_RX4+ B55 NA
PCIE_RX4- B56 NA
PCIE_TX5+ A52 NA
PCIE_TX5- A53 NA
PCIE_RX5+ B52 NA
PCIE_RX5- B53 NA
PCIE_TX6+ D19 NA
PCIE_TX6- D20 NA
PCIE_RX6+ C19 NA
PCIE_RX6- C20 NA
PCIE_TX7+ D22 NA
PCIE_TX7- D23 NA
PCIE_RX7+ C22 NA
PCIE_RX7- C23 NA
PCIE0_CK_REF+ A88
PCIE0_CK_REF- A89
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PEG_TX0+ D52 NA
PEG_TX0- D53 NA
PEG_RX0+ C52 NA
PEG_RX0- C53 NA
PEG_TX1+ D55 NA
PEG_TX1- D56 NA
PEG_RX1+ C55 NA
PEG_RX1- C56
NA
PEG_TX2+ D58 NA
PEG_TX2- D59 NA
PEG_RX2+ C58 NA
PEG_RX2- C59 NA
PEG_TX3+ D61 NA
PEG_TX3- D62 NA
PEG_RX3+ C61 NA
PEG_RX3- C62 NA
PEG_TX4+ D65 NA
PEG_TX4- D66 NA
PEG_RX4+ C65 NA
PEG_RX4- C66 NA
PEG_TX5+ D68 NA
PEG_TX5- D69 NA
PEG_RX5+ C68 NA
PEG_RX5- C69 NA
PEG_TX6+ D71 NA
PEG_TX6- D72 NA
PEG_RX6+ C71 NA
PEG_RX6- C72 NA
PEG_TX7+ D74 NA
PEG_TX7- D75 NA
PEG_RX7+ C74 NA
PEG_RX7- C75 NA
PEG_TX8+ D78 NA
PEG_TX8- D79 NA
PEG_RX8+ C78 NA
PEG_RX8- C79 NA
PEG_TX9+ D81 NA
PEG_TX9- D82 NA
PEG_RX9+ C81 NA
PEG_RX9- C82 NA
PEG_TX10+ D85 NA
PEG_TX10- D86 NA
PEG_RX10+ C85 NA
PEG_RX10- C86 NA
PEG_TX11+ D88 NA
PEG_TX11- D89 NA
PEG_RX11+ C88 NA
PEG_RX11- C89 NA
PEG_TX12+ D91 NA
PEG_TX12- D92 NA
PEG_RX12+ C91 NA
PEG_RX12- C92 NA
PEG_TX13+ D94 NA
PEG_TX13- D95 NA
PEG_RX13+ C94 NA
PEG_RX13- C95 NA
PEG_TX14+ D98 NA
PEG_TX14- D99 NA
PEG_RX14+ C98 NA
PEG_RX14- C99 NA
PEG_TX15+ D101 NA
PEG_TX15- D102 NA
PEG_RX15+ C101 NA
PEG_RX15- C102 NA
PEG_LANE_RV# D54 I CMOS 3.3V / 3.3V PU 10K to 3.3V
PCI Express Graphics lane reversal input strap. Pull low on the Carrier
board to reverse lane order.
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Pin Types
I Input to the Module
O Output from the Module
I/O Bi-directional input / output signal
OD Open drain output
I PCIE AC coupled off Module
PCI Express Graphics receive differential pairs 14
PCI Express Graphics receive differential pairs 12
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 14
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 15
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 15
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 12
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 11
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 11
PCI Express Graphics receive differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 8
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 8
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 5
O PCIE
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 6
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 5
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 7
AC coupled on Module PCI Express Graphics transmit differential pairs 7
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 6
PCI Express Graphics transmit differential pairs 4
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 3
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 2
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 3
PCI Express Graphics receive differential pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
I PCIE
PCI Express Graphics transmit differential pairs 2
PEG Signals and Description
s
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 0
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 0
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 1
AC coupled off Module PCI Express Graphics receive differential pairs 1
I PCIE AC coupled off Module
I PCIE AC coupled off Module
O PCIE AC coupled on Module
PCI Express Differential Receive Pairs 7
O PCIE PCIE Connect to PCIE device, PCIe CLK Buffer or slot
Reference clock output for all PCI Express and PCI Express Graphics
lanes.
PCI Express Differential Receive Pairs 6
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 7
PCI Express Differential Transmit Pairs 4
PCI Express Differential Receive Pairs 2
PCI Express Differential Transmit Pairs 6
PCI Express Differential Transmit Pairs 3
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 5
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 5
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
AC coupled on Module PCI Express Differential Transmit Pairs 1
PCI Express Differential Receive Pairs 1
PCI Express Differential Receive Pairs 3
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 0
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 2
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 0
I PCIE AC coupled off Module
O PCIE
A
C97/HDA Signals and Description
s
Serial TDM data inputs from up to 2 CODECs.
Gigabit Ethernet Signals and Description
s
PCI Express Lanes Signals and Description
s
Serial ATA or SAS Channel 0 transmit differential pair.
Connect to SATA0 Conn RX pin Serial ATA or SAS Channel 0 receive differential pair.
Connect to SATA1 Conn TX pin
Connect to SATA2 Conn TX pin
Serial ATA or SAS Channel 3 transmit differential pair.
Serial ATA or SAS Channel 3 receive differential pair.
Connect to SATA2 Conn RX pin Serial ATA or SAS Channel 2 receive differential pair.
Serial ATA or SAS Channel 2 transmit differential pair.
Connect to SATA1 Conn RX pin Serial ATA or SAS Channel 1 receive differential pair.
SATA Signals and Description
s
Connect to SATA0 Conn TX pin
Serial ATA or SAS Channel 1 transmit differential pair.
Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Connect to CODEC pin 11 RESET# Reset output to CODEC, active low.
AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Connect to CODEC pin 10 SYNC Sample-synchronization signal to the CODEC(s).
AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Connect to CODEC pin 6 BIT_CLK Serial data clock generated by the external CODEC(s).
AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Connect to CODEC pin 5 SDATA_OUT Serial TDM data output to the CODEC.
AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V NA
AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V
AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V Connect 33 Ω in series to CODEC0 pin 8 SDATA_IN
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI0+/-
Gigabit Ethernet Controller 0: Media Dependent Interface Differential
Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec
modes. Some pairs are unused in some modes, per the following:
1000BASE-T 100BASE-TX 10BASE-T
MDI[0]+/- B1_DA+/- TX+/- TX+/-
MDI[1]+/- B1_DB+/- RX+/- RX+/-
MDI[2]+/- B1_DC+/-
MDI[3]+/- B1_DD+/-
GBE0_MDI0- A12 I/O Analog 3.3V max Suspend
GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI1+/-
GBE0_MDI1- A9 I/O Analog 3.3V max Suspend
GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI2+/-
GBE0_MDI2- A6 I/O Analog 3.3V max Suspend
GBE0_MDI3+ A3 I/O Analog 3.3V max Suspend Connect to Magnetics Module MDI3+/-
GBE0_MDI3- A2 I/O Analog 3.3V max Suspend
GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB Gigabit Ethernet Controller 0 activity indicator, active low.
GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V NC Gigabit Ethernet Controller 0 link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low.
GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
GBE0_LINK1000# A5 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150Ω to 3.3VSB
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SATA0_TX+ A16 O SATA AC coupled on Module AC Coupling capacitor
SATA0_TX- A17 O SATA AC coupled on Module AC Coupling capacitor
SATA0_RX+ A19 I SATA AC coupled on Module AC Coupling capacitor
SATA0_RX- A20 I SATA AC coupled on Module AC Coupling capacitor
SATA1_TX+ B16 O SATA AC coupled on Module AC Coupling capacitor
SATA1_TX- B17 O SATA AC coupled on Module AC Coupling capacitor
SATA1_RX+ B19 I SATA AC coupled on Module AC Coupling capacitor
SATA1_RX- B20 I SATA AC coupled on Module AC Coupling capacitor
SATA2_TX+ A22 O SATA AC coupled on Module NA
SATA2_TX- A23 O SATA AC coupled on Module NA
SATA2_RX+ A25 I SATA AC coupled on Module NA
SATA2_RX- A26 I SATA AC coupled on Module NA
SATA3_TX+ B22 O SATA AC coupled on Module NA
SATA3_TX- B23 O SATA AC coupled on Module NA
SATA3_RX+ B25 I SATA AC coupled on Module NA
SATA3_RX- B26 I SATA AC coupled on Module NA
ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 10K to 3.3V Connect to LED and recommend current limit resistor 220Ω to 3.3V ATA (parallel and serial) or SAS activity indicator, active low.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PCIE_TX0+ A68 AC Coupling capacitor
PCIE_TX0- A69 AC Coupling capacitor
PCIE_RX0+ B68
PCIE_RX0- B69
PCIE_TX1+ A64 AC Coupling capacitor
PCIE_TX1- A65 AC Coupling capacitor
PCIE_RX1+ B64
PCIE_RX1- B65
PCIE_TX2+ A61 AC Coupling capacitor
PCIE_TX2- A62 AC Coupling capacitor
PCIE_RX2+ B61
PCIE_RX2- B62
PCIE_TX3+ A58 NA
PCIE_TX3- A59 NA
PCIE_RX3+ B58 NA
PCIE_RX3- B59 NA
PCIE_TX4+ A55 NA
PCIE_TX4- A56 NA
PCIE_RX4+ B55 NA
PCIE_RX4- B56 NA
PCIE_TX5+ A52 NA
PCIE_TX5- A53 NA
PCIE_RX5+ B52 NA
PCIE_RX5- B53 NA
PCIE_TX6+ D19 NA
PCIE_TX6- D20 NA
PCIE_RX6+ C19 NA
PCIE_RX6- C20 NA
PCIE_TX7+ D22 NA
PCIE_TX7- D23 NA
PCIE_RX7+ C22 NA
PCIE_RX7- C23 NA
PCIE0_CK_REF+ A88
PCIE0_CK_REF- A89
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PEG_TX0+ D52 NA
PEG_TX0- D53 NA
PEG_RX0+ C52 NA
PEG_RX0- C53 NA
PEG_TX1+ D55 NA
PEG_TX1- D56 NA
PEG_RX1+ C55 NA
PEG_RX1- C56
NA
PEG_TX2+ D58 NA
PEG_TX2- D59 NA
PEG_RX2+ C58 NA
PEG_RX2- C59 NA
PEG_TX3+ D61 NA
PEG_TX3- D62 NA
PEG_RX3+ C61 NA
PEG_RX3- C62 NA
PEG_TX4+ D65 NA
PEG_TX4- D66 NA
PEG_RX4+ C65 NA
PEG_RX4- C66 NA
PEG_TX5+ D68 NA
PEG_TX5- D69 NA
PEG_RX5+ C68 NA
PEG_RX5- C69 NA
PEG_TX6+ D71 NA
PEG_TX6- D72 NA
PEG_RX6+ C71 NA
PEG_RX6- C72 NA
PEG_TX7+ D74 NA
PEG_TX7- D75 NA
PEG_RX7+ C74 NA
PEG_RX7- C75 NA
PEG_TX8+ D78 NA
PEG_TX8- D79 NA
PEG_RX8+ C78 NA
PEG_RX8- C79 NA
PEG_TX9+ D81 NA
PEG_TX9- D82 NA
PEG_RX9+ C81 NA
PEG_RX9- C82 NA
PEG_TX10+ D85 NA
PEG_TX10- D86 NA
PEG_RX10+ C85 NA
PEG_RX10- C86 NA
PEG_TX11+ D88 NA
PEG_TX11- D89 NA
PEG_RX11+ C88 NA
PEG_RX11- C89 NA
PEG_TX12+ D91 NA
PEG_TX12- D92 NA
PEG_RX12+ C91 NA
PEG_RX12- C92 NA
PEG_TX13+ D94 NA
PEG_TX13- D95 NA
PEG_RX13+ C94 NA
PEG_RX13- C95 NA
PEG_TX14+ D98 NA
PEG_TX14- D99 NA
PEG_RX14+ C98 NA
PEG_RX14- C99 NA
PEG_TX15+ D101 NA
PEG_TX15- D102 NA
PEG_RX15+ C101 NA
PEG_RX15- C102 NA
PEG_LANE_RV# D54 I CMOS 3.3V / 3.3V PU 10K to 3.3V
PCI Express Graphics lane reversal input strap. Pull low on the Carrier
board to reverse lane order.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
EXCD0_CPPE#
A
49
EXCD1_CPPE# B48
EXCD0_PERST# A48
EXCD1_PERST# B47
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Pin Types
I Input to the Module
O Output from the Module
I/O Bi-directional input / output signal
OD Open drain output
O CMOS 3.3V /3.3V PCI ExpressCard: reset, active low, one per card
I PCIE AC coupled off Module
PCI Express Graphics receive differential pairs 14
PCI Express Graphics receive differential pairs 12
ExpressCard Signals and Description
s
I CMOS 3.3V /3.3V
PCI ExpressCard: PCI Express capable card request, active low, one per
card
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 14
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 15
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 15
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 12
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 11
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 11
PCI Express Graphics receive differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 8
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 8
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 5
O PCIE
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 6
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 5
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 7
AC coupled on Module PCI Express Graphics transmit differential pairs 7
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 6
PCI Express Graphics transmit differential pairs 4
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 3
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 2
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 3
PCI Express Graphics receive differential pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
I PCIE
PCI Express Graphics transmit differential pairs 2
PEG Signals and Description
s
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 0
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 0
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 1
AC coupled off Module PCI Express Graphics receive differential pairs 1
I PCIE AC coupled off Module
I PCIE AC coupled off Module
O PCIE AC coupled on Module
PCI Express Differential Receive Pairs 7
O PCIE PCIE Connect to PCIE device, PCIe CLK Buffer or slot
Reference clock output for all PCI Express and PCI Express Graphics
lanes.
PCI Express Differential Receive Pairs 6
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 7
PCI Express Differential Transmit Pairs 4
PCI Express Differential Receive Pairs 2
PCI Express Differential Transmit Pairs 6
PCI Express Differential Transmit Pairs 3
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 5
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 5
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
AC coupled on Module PCI Express Differential Transmit Pairs 1
PCI Express Differential Receive Pairs 1
PCI Express Differential Receive Pairs 3
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 0
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 2
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 0
I PCIE AC coupled off Module
O PCIE
A
C97/HDA Signals and Description
s
Serial TDM data inputs from up to 2 CODECs.
Gigabit Ethernet Signals and Description
s
PCI Express Lanes Signals and Description
s
Serial ATA or SAS Channel 0 transmit differential pair.
Connect to SATA0 Conn RX pin Serial ATA or SAS Channel 0 receive differential pair.
Connect to SATA1 Conn TX pin
Connect to SATA2 Conn TX pin
Serial ATA or SAS Channel 3 transmit differential pair.
Serial ATA or SAS Channel 3 receive differential pair.
Connect to SATA2 Conn RX pin Serial ATA or SAS Channel 2 receive differential pair.
Serial ATA or SAS Channel 2 transmit differential pair.
Connect to SATA1 Conn RX pin Serial ATA or SAS Channel 1 receive differential pair.
SATA Signals and Description
s
Connect to SATA0 Conn TX pin
Serial ATA or SAS Channel 1 transmit differential pair.
Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.
Page 18
www.d.comChapter 3 Hardware Installation
18
Chapter 3
PCIE_TX3- A59 NA
PCIE_RX3+ B58 NA
PCIE_RX3- B59 NA
PCIE_TX4+ A55 NA
PCIE_TX4- A56 NA
PCIE_RX4+ B55 NA
PCIE_RX4- B56 NA
PCIE_TX5+ A52 NA
PCIE_TX5- A53 NA
PCIE_RX5+ B52 NA
PCIE_RX5- B53 NA
PCIE_TX6+ D19 NA
PCIE_TX6- D20 NA
PCIE_RX6+ C19 NA
PCIE_RX6- C20 NA
PCIE_TX7+ D22 NA
PCIE_TX7- D23 NA
PCIE_RX7+ C22 NA
PCIE_RX7- C23 NA
PCIE0_CK_REF+ A88
PCIE0_CK_REF- A89
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PEG_TX0+ D52 NA
PEG_TX0- D53 NA
PEG_RX0+ C52 NA
PEG_RX0- C53 NA
PEG_TX1+ D55 NA
PEG_TX1- D56 NA
PEG_RX1+ C55 NA
PEG_RX1- C56
NA
PEG_TX2+ D58 NA
PEG_TX2- D59 NA
PEG_RX2+ C58 NA
PEG_RX2- C59 NA
PEG_TX3+ D61 NA
PEG_TX3- D62 NA
PEG_RX3+ C61 NA
PEG_RX3- C62 NA
PEG_TX4+ D65 NA
PEG_TX4- D66 NA
PEG_RX4+ C65 NA
PEG_RX4- C66 NA
PEG_TX5+ D68 NA
PEG_TX5- D69 NA
PEG_RX5+ C68 NA
PEG_RX5- C69 NA
PEG_TX6+ D71 NA
PEG_TX6- D72 NA
PEG_RX6+ C71 NA
PEG_RX6- C72 NA
PEG_TX7+ D74 NA
PEG_TX7- D75 NA
PEG_RX7+ C74 NA
PEG_RX7- C75 NA
PEG_TX8+ D78 NA
PEG_TX8- D79 NA
PEG_RX8+ C78 NA
PEG_RX8- C79 NA
PEG_TX9+ D81 NA
PEG_TX9- D82 NA
PEG_RX9+ C81 NA
PEG_RX9- C82 NA
PEG_TX10+ D85 NA
PEG_TX10- D86 NA
PEG_RX10+ C85 NA
PEG_RX10- C86 NA
PEG_TX11+ D88 NA
PEG_TX11- D89 NA
PEG_RX11+ C88 NA
PEG_RX11- C89 NA
PEG_TX12+ D91 NA
PEG_TX12- D92 NA
PEG_RX12+ C91 NA
PEG_RX12- C92 NA
PEG_TX13+ D94 NA
PEG_TX13- D95 NA
PEG_RX13+ C94 NA
PEG_RX13- C95 NA
PEG_TX14+ D98 NA
PEG_TX14- D99 NA
PEG_RX14+ C98 NA
PEG_RX14- C99 NA
PEG_TX15+ D101 NA
PEG_TX15- D102 NA
PEG_RX15+ C101 NA
PEG_RX15- C102 NA
PEG_LANE_RV# D54 I CMOS 3.3V / 3.3V PU 10K to 3.3V
PCI Express Graphics lane reversal input strap. Pull low on the Carrier
board to reverse lane order.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
EXCD0_CPPE#
A
49
EXCD1_CPPE# B48
EXCD0_PERST# A48
EXCD1_PERST# B47
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
DDI1_PAIR0+/SDVO1_RED+ D26 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR0-
/
SDVO1_RED- D27 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR1+/SDVO1_GRN+ D29 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR1-/SDVO1_GRN- D30 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR2+/SDVO1_BLU+ D32 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR2-/SDVO1_BLU- D33 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR3+/SDVO1_CK+ D36 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR3-/SDVO1_CK- D37 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR4+
/
SDVO1_INT+ C25 N
A
DDI1_PAIR4-/SDVO1_INT- C26 NA
DDI1_PAIR5+/SDVO1_TVCLKIN+ C29 NA
DDI1_PAIR5-/SDVO1_TVCLKIN- C30 NA
DDI1_PAIR6+/SDVO1_FLDSTALL+ C15 NA
DDI1_PAIR6-/SDVO1_FLDSTALL- C16 NA
I/O PCIE AC coupled on Module
PD 100K to GND
(S/W IC between Rpu/PCH)
Connect to DP AUX+ DP AUX+ function if DDI1_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 4.7K to 3.3V, PD 100K to GND
(S/W IC between Rpu/Rpd
resistor)
Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI1_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module
PU 100K to 3.3V
(S/W IC between Rpu/PCH)
Connect to DP AUX- DP AUX- function if DDI1_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 4.7K to 3.3V/PU 100K to 3.3V
(S/W IC between 4.7K/100K
resistor)
Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high
DDI1_HPD C24 I CMOS 3.3V / 3.3V PD 100K to GND PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect
DDI1_DDC_AUX_SEL D34 I CMOS 3.3V / 3.3V PD 1M to GND PU 100K to 3.3V for DDC(HDMI/DVI)
Selects the function of DDI1_CTRLCLK_AUX+ and DDI1_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
DDI2_PAIR0+ D39 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR0- D40 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR1+ D42 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR1- D43 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR2+ D46 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR2- D47 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR3+ D49 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR3- D50 Connect AC Coupling Capacitors 0.1uF to Device
I/O PCIE AC coupled on Module
PD 100K to GND
(S/W IC between Rpu/PCH)
Connect to DP AUX+ DP AUX+ function if DDI2_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 2.2K to 3.3V, PD 100K to GND
(S/W IC between Rpu/Rpd
resistor)
Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module
PU 100K to 3.3V
(S/W IC between Rpu/PCH)
Connect to DP AUX- DP AUX- function if DDI2_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 2.2K to 3.3V/PU 100K to 3.3V
(S/W IC between 4.7K/100K
resistor)
Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high
DDI2_HPD D44 I CMOS 3.3V / 3.3V PD 100K to GND PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect
DDI2_DDC_AUX_SEL C34 I CMOS 3.3V / 3.3V PD 1M to GND PU 100K to 3.3V for DDC(HDMI/DVI)
Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
DDI3_PAIR0+ C39 NA
DDI3_PAIR0- C40 NA
DDI3_PAIR1+ C42 NA
DDI3_PAIR1- C43 NA
DDI3_PAIR2+ C46 NA
DDI3_PAIR2- C47 NA
DDI3_PAIR3+ C49 NA
DDI3_PAIR3- C50 NA
I/O PCIE AC coupled on Module NA DP AUX+ function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLCLK if DDI3_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module NA DP AUX- function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high
DDI3_HPD C44 I CMOS 3.3V / 3.3V NA DDI Hot-Plug Detect
DDI3_DDC_AUX_SEL C38 I CMOS 3.3V / 3.3V NA
Selects the function of DDI3_CTRLCLK_AUX+ and DDI3_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
AC coupled off Module Serial Digital Video Field Stall input differential pair.
O PCIE
O PCIE AC coupled off Module DDI 1 Pair 3 differential pairs/Serial Digital Video B clock output differential pair.
I PCIE
I PCIE AC coupled off Module Serial Digital Video TVOUT synchronization clock input differential pair.
AC coupled off Module
O PCIE AC coupled off Module
DDI 3 Pair 0 differential pairs
O PCIE AC coupled off Module DDI 2 Pair 3 differential pairs
DDI 3 Pair 2 differential pairs
O PCIE DDI 3 Pair 1 differential pairs
DDI3_CTRLCLK_AUX+ C36
DDI3_CTRLCLK_AUX- C37
O PCIE AC coupled off Module
DDI 2 Pair 0 differential pairs
O PCIE AC coupled off Module DDI 3 Pair 3 differential pairs
AC coupled off Module
DDI Signals and Description
s
O PCIE AC coupled off Module DDI 1 Pair 0 differential pairs/Serial Digital Video B red output differential pair
I PCIE
O PCIE AC coupled off Module DDI 2 Pair 2 differential pairs
O PCIE AC coupled off Module DDI 2 Pair 1 differential pairs
O PCIE AC coupled off Module
DDI2_CTRLCLK_AUX+ C32
DDI2_CTRLCLK_AUX- C33
DDI1_CTRLCLK_AUX+/SDVO1_CTRLCLK D15
DDI1_CTRLCLK_AUX-/SDVO1_CTRLDATA D16
AC coupled off Module DDI 1 Pair 2 differential pairs/Serial Digital Video B blue output differential pair
O PCIE AC coupled off Module DDI 1 Pair 1 differential pairs/Serial Digital Video B green output differential pair
Serial Digital Video B interrupt input differential pair.
O CMOS 3.3V /3.3V PCI ExpressCard: reset, active low, one per card
I PCIE AC coupled off Module
PCI Express Graphics receive differential pairs 14
PCI Express Graphics receive differential pairs 12
ExpressCard Signals and Description
s
I CMOS 3.3V /3.3V
PCI ExpressCard: PCI Express capable card request, active low, one per
card
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 14
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 15
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 15
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 13
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 12
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 11
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 11
PCI Express Graphics receive differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 8
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 10
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 9
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 8
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 5
O PCIE
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 6
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 5
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 7
AC coupled on Module PCI Express Graphics transmit differential pairs 7
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 6
PCI Express Graphics transmit differential pairs 4
I PCIE AC coupled off Module
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 3
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 2
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 3
PCI Express Graphics receive differential pairs 4
O PCIE AC coupled on Module
O PCIE AC coupled on Module
I PCIE
PCI Express Graphics transmit differential pairs 2
PEG Signals and Description
s
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 0
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 0
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 1
AC coupled off Module PCI Express Graphics receive differential pairs 1
I PCIE AC coupled off Module
I PCIE AC coupled off Module
O PCIE AC coupled on Module
PCI Express Differential Receive Pairs 7
O PCIE PCIE Connect to PCIE device, PCIe CLK Buffer or slot
Reference clock output for all PCI Express and PCI Express Graphics
lanes.
PCI Express Differential Receive Pairs 6
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 7
PCI Express Differential Transmit Pairs 4
PCI Express Differential Transmit Pairs 6
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 5
I PCIE AC coupled off Module
O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 5
I PCIE AC coupled off Module PCI Express Differential Receive Pairs 4
O PCIE AC coupled on Module
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
Connect to PCIE device or slot
Device - Connect AC Coupling cap 0.1uF
Slot - Connect to PCIE Conn pin
PCI Express Differential Receive Pairs 3
A
/
g
p
s
g
g
p
s
p
g
p
s
g
p
s
Page 19
www.d.comChapter 3 Hardware Installation
19
Chapter 3
PEG_RX14+ C98 NA
PEG_RX14- C99 NA
PEG_TX15+ D101 NA
PEG_TX15- D102 NA
PEG_RX15+ C101 NA
PEG_RX15- C102 NA
PEG_LANE_RV# D54 I CMOS 3.3V / 3.3V PU 10K to 3.3V
PCI Express Graphics lane reversal input strap. Pull low on the Carrier
board to reverse lane order.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
EXCD0_CPPE#
A
49
EXCD1_CPPE# B48
EXCD0_PERST# A48
EXCD1_PERST# B47
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
DDI1_PAIR0+/SDVO1_RED+ D26 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR0-
/
SDVO1_RED- D27 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR1+/SDVO1_GRN+ D29 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR1-/SDVO1_GRN- D30 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR2+/SDVO1_BLU+ D32 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR2-/SDVO1_BLU- D33 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR3+/SDVO1_CK+ D36 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR3-/SDVO1_CK- D37 Connect AC Coupling Capacitors 0.1uF to Device
DDI1_PAIR4+
/
SDVO1_INT+ C25 N
A
DDI1_PAIR4-/SDVO1_INT- C26 NA
DDI1_PAIR5+/SDVO1_TVCLKIN+ C29 NA
DDI1_PAIR5-/SDVO1_TVCLKIN- C30 NA
DDI1_PAIR6+/SDVO1_FLDSTALL+ C15 NA
DDI1_PAIR6-/SDVO1_FLDSTALL- C16 NA
I/O PCIE AC coupled on Module
PD 100K to GND
(S/W IC between Rpu/PCH)
Connect to DP AUX+ DP AUX+ function if DDI1_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 4.7K to 3.3V, PD 100K to GND
(S/W IC between Rpu/Rpd
resistor)
Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI1_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module
PU 100K to 3.3V
(S/W IC between Rpu/PCH)
Connect to DP AUX- DP AUX- function if DDI1_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 4.7K to 3.3V/PU 100K to 3.3V
(S/W IC between 4.7K/100K
resistor)
Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high
DDI1_HPD C24 I CMOS 3.3V / 3.3V PD 100K to GND PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect
DDI1_DDC_AUX_SEL D34 I CMOS 3.3V / 3.3V PD 1M to GND PU 100K to 3.3V for DDC(HDMI/DVI)
Selects the function of DDI1_CTRLCLK_AUX+ and DDI1_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
DDI2_PAIR0+ D39 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR0- D40 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR1+ D42 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR1- D43 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR2+ D46 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR2- D47 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR3+ D49 Connect AC Coupling Capacitors 0.1uF to Device
DDI2_PAIR3- D50 Connect AC Coupling Capacitors 0.1uF to Device
I/O PCIE AC coupled on Module
PD 100K to GND
(S/W IC between Rpu/PCH)
Connect to DP AUX+ DP AUX+ function if DDI2_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 2.2K to 3.3V, PD 100K to GND
(S/W IC between Rpu/Rpd
resistor)
Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module
PU 100K to 3.3V
(S/W IC between Rpu/PCH)
Connect to DP AUX- DP AUX- function if DDI2_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 2.2K to 3.3V/PU 100K to 3.3V
(S/W IC between 4.7K/100K
resistor)
Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high
DDI2_HPD D44 I CMOS 3.3V / 3.3V PD 100K to GND PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect
DDI2_DDC_AUX_SEL C34 I CMOS 3.3V / 3.3V PD 1M to GND PU 100K to 3.3V for DDC(HDMI/DVI)
Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
DDI3_PAIR0+ C39 NA
DDI3_PAIR0- C40 NA
DDI3_PAIR1+ C42 NA
DDI3_PAIR1- C43 NA
DDI3_PAIR2+ C46 NA
DDI3_PAIR2- C47 NA
DDI3_PAIR3+ C49 NA
DDI3_PAIR3- C50 NA
I/O PCIE AC coupled on Module NA DP AUX+ function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLCLK if DDI3_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module NA DP AUX- function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high
DDI3_HPD C44 I CMOS 3.3V / 3.3V NA DDI Hot-Plug Detect
DDI3_DDC_AUX_SEL C38 I CMOS 3.3V / 3.3V NA
Selects the function of DDI3_CTRLCLK_AUX+ and DDI3_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
USB0+ A46
USB0- A45
USB1+ B46
USB1- B45
USB2+ A43
USB2- A42
USB3+ B43
USB3- B42
USB4+ A40
USB4- A39
USB5+ B40
USB5- B39
USB6+ A37
USB6- A36
USB7+ B37
USB7- B36
USB_0_1_OC# B44 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 0 and 1. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_2_3_OC# A44 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 2 and 3. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_4_5_OC# B38 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 4 and 5. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_6_7_OC# A38 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 6 and 7. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_SSTX0+ D4 AC Coupling capacitor
USB_SSTX0- D3 AC Coupling capacitor
USB_SSRX0+ C4
USB_SSRX0- C3
USB_SSTX1+ D7 AC Coupling capacitor
USB_SSTX1- D6 AC Coupling capacitor
USB_SSRX1+ C7
USB_SSRX1- C6
USB_SSTX2+ D10 AC Coupling capacitor
USB_SSTX2- D9 AC Coupling capacitor
USB_SSRX2+ C10
USB_SSRX2- C9
USB_SSTX3+ D13 AC Coupling capacitor
USB_SSTX3- D12 AC Coupling capacitor
USB_SSRX3+ C13
USB_SSRX3- C12
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LVDS_A0+ A71
LVDS_A0- A72
LVDS_A1+ A73
LVDS_A1- A74
LVDS_A2+ A75
LVDS_A2- A76
LVDS_A3+ A78
LVDS_A3- A79
LVDS_A_CK+ A81
LVDS_A_CK- A82
LVDS_B0+ B71
LVDS_B0- B72
LVDS_B1+ B73
LVDS_B1- B74
LVDS_B2+ B75
LVDS_B2- B76
LVDS_B3+ B77
LVDS_B3- B78
LVDS_B_CK+ B81
LVDS_B_CK- B82
LVDS_VDD_EN A77 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel power circuit LVDS panel power enable
LVDS_BKLT_EN B79 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel backlight power circuit. LVDS panel backlight enable
LVDS_BKLT_CTRL B83 O CMOS 3.3V / 3.3V Connect to brightness control of LVDS panel backlight power circuit. LVDS panel backlight brightness control
LVDS_I2C_CK A83 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC clock of LVDS panel I2C clock output for LVDS display use
LVDS_I2C_DAT A84 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC data of LVDS panel I2C data line for LVDS display use
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
AC coupled off Module Serial Digital Video Field Stall input differential pair.
O PCIE
O PCIE AC coupled off Module DDI 1 Pair 3 differential pairs/Serial Digital Video B clock output differential pair.
I PCIE
I PCIE AC coupled off Module Serial Digital Video TVOUT synchronization clock input differential pair.
AC coupled off Module
LVDS Channel B differential clock
O PCIE AC coupled off Module
DDI 3 Pair 0 differential pairs
O PCIE AC coupled off Module DDI 2 Pair 3 differential pairs
DDI 3 Pair 2 differential pairs
O PCIE DDI 3 Pair 1 differential pairs
DDI3_CTRLCLK_AUX+ C36
DDI3_CTRLCLK_AUX- C37
O PCIE AC coupled off Module
DDI 2 Pair 0 differential pairs
O PCIE AC coupled off Module DDI 3 Pair 3 differential pairs
AC coupled off Module
DDI Signals and Description
s
O PCIE AC coupled off Module DDI 1 Pair 0 differential pairs/Serial Digital Video B red output differential pair
I PCIE
O PCIE AC coupled off Module DDI 2 Pair 2 differential pairs
O PCIE AC coupled off Module DDI 2 Pair 1 differential pairs
O PCIE AC coupled off Module
DDI2_CTRLCLK_AUX+ C32
DDI2_CTRLCLK_AUX- C33
DDI1_CTRLCLK_AUX+/SDVO1_CTRLCLK D15
DDI1_CTRLCLK_AUX-/SDVO1_CTRLDATA D16
AC coupled off Module DDI 1 Pair 2 differential pairs/Serial Digital Video B blue output differential pair
O PCIE AC coupled off Module DDI 1 Pair 1 differential pairs/Serial Digital Video B green output differential pair
O LVDS LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
Serial Digital Video B interrupt input differential pair.
O LVDS LVDS
LVDS
Connect to LVDS connector
O LVDS LVDS
O LVDS LVDS
Connect to LVDS connector
LVDS Channel B differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS LVDS
Connect to LVDS connector
Connect to LVDS connector
LVDS Channel A differential clockO LVDS LVDS
Connect to LVDS connector
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD su
pp
ressors to GND to USB
connector
USB differential pairs 7
LVDS Signals and Description
s
O LVDS LVDS
Connect to LVDS connector LVDS Channel A differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
I/O USB
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 2
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 1
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 6
O CMOS 3.3V /3.3V PCI ExpressCard: reset, active low, one per card
3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 4
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 3
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 5
USB Signals and Description
s
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 0
PCI Express Graphics receive differential pairs 14
ExpressCard Signals and Description
s
I CMOS 3.3V /3.3V
PCI ExpressCard: PCI Express capable card request, active low, one per
card
I PCIE AC coupled off Module PCI Express Graphics receive differential pairs 15
O PCIE AC coupled on Module PCI Express Graphics transmit differential pairs 15
I PCIE AC coupled off Module
g
p
s
A
/
g
p
s
g
g
p
s
p
g
p
s
g
p
s
Page 20
www.d.comChapter 3 Hardware Installation
20
Chapter 3
A
/pg
p
/
A
I/O PCIE AC coupled on Module
PU 100K to 3.3V
(S/W IC between Rpu/PCH)
Connect to DP AUX- DP AUX- function if DDI2_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V
PU 2.2K to 3.3V/PU 100K to 3.3V
(S/W IC between 4.7K/100K
resistor)
Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high
DDI2_HPD D44 I CMOS 3.3V / 3.3V PD 100K to GND PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect
DDI2_DDC_AUX_SEL C34 I CMOS 3.3V / 3.3V PD 1M to GND PU 100K to 3.3V for DDC(HDMI/DVI)
Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
DDI3_PAIR0+ C39 NA
DDI3_PAIR0- C40 NA
DDI3_PAIR1+ C42 NA
DDI3_PAIR1- C43 NA
DDI3_PAIR2+ C46 NA
DDI3_PAIR2- C47 NA
DDI3_PAIR3+ C49 NA
DDI3_PAIR3- C50 NA
I/O PCIE AC coupled on Module NA DP AUX+ function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLCLK if DDI3_DDC_AUX_SEL is pulled high
I/O PCIE AC coupled on Module NA DP AUX- function if DDI3_DDC_AUX_SEL is no connect
I/O OD CMOS 3.3V / 3.3V NA HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high
DDI3_HPD C44 I CMOS 3.3V / 3.3V NA DDI Hot-Plug Detect
DDI3_DDC_AUX_SEL C38 I CMOS 3.3V / 3.3V NA
Selects the function of DDI3_CTRLCLK_AUX+ and DDI3_CTRLDATA_AUX-.
DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm
resistor to configure the DDI[n]_AUX pair as the DDC channel.
Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
USB0+ A46
USB0- A45
USB1+ B46
USB1- B45
USB2+ A43
USB2- A42
USB3+ B43
USB3- B42
USB4+ A40
USB4- A39
USB5+ B40
USB5- B39
USB6+ A37
USB6- A36
USB7+ B37
USB7- B36
USB_0_1_OC# B44 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 0 and 1. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_2_3_OC# A44 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 2 and 3. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_4_5_OC# B38 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 4 and 5. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_6_7_OC# A38 I CMOS 3.3V Suspend/3.3V PU 10k to 3V3SB Connect to Overcurrent of USB Power Switch
USB over-current sense, USB channels 6 and 7. A pull-up for this line
shall be present on the Module. An open drain driver from a USB
current monitor on the Carrier Board may drive this line low. Do not
pull this line high on the Carrier Board.
USB_SSTX0+ D4 AC Coupling capacitor
USB_SSTX0- D3 AC Coupling capacitor
USB_SSRX0+ C4
USB_SSRX0- C3
USB_SSTX1+ D7 AC Coupling capacitor
USB_SSTX1- D6 AC Coupling capacitor
USB_SSRX1+ C7
USB_SSRX1- C6
USB_SSTX2+ D10 AC Coupling capacitor
USB_SSTX2- D9 AC Coupling capacitor
USB_SSRX2+ C10
USB_SSRX2- C9
USB_SSTX3+ D13 AC Coupling capacitor
USB_SSTX3- D12 AC Coupling capacitor
USB_SSRX3+ C13
USB_SSRX3- C12
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LVDS_A0+ A71
LVDS_A0- A72
LVDS_A1+ A73
LVDS_A1- A74
LVDS_A2+ A75
LVDS_A2- A76
LVDS_A3+ A78
LVDS_A3- A79
LVDS_A_CK+ A81
LVDS_A_CK- A82
LVDS_B0+ B71
LVDS_B0- B72
LVDS_B1+ B73
LVDS_B1- B74
LVDS_B2+ B75
LVDS_B2- B76
LVDS_B3+ B77
LVDS_B3- B78
LVDS_B_CK+ B81
LVDS_B_CK- B82
LVDS_VDD_EN A77 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel power circuit LVDS panel power enable
LVDS_BKLT_EN B79 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel backlight power circuit. LVDS panel backlight enable
LVDS_BKLT_CTRL B83 O CMOS 3.3V / 3.3V Connect to brightness control of LVDS panel backlight power circuit. LVDS panel backlight brightness control
LVDS_I2C_CK A83 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC clock of LVDS panel I2C clock output for LVDS display use
LVDS_I2C_DAT A84 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC data of LVDS panel I2C data line for LVDS display use
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LPC_AD0 B4
LPC_AD1 B5
LPC_AD2 B6
LPC_AD3 B7
LPC_FRAME# B3 O CMOS 3.3V / 3.3V LPC frame indicates the start of an LPC cycle
LPC_DRQ0# B8 NC NC
LPC_DRQ1# B9 NC NC
LPC_SERIRQ A50 I/O CMOS 3.3V / 3.3V PU 1K to 3.3V LPC serial interrupt
LPC_CLK B10 O CMOS 3.3V / 3.3V LPC clock output - 24MHz nominal
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SPI_CS# B97 O CMO
S
3.3V Suspend/3.3V
Connect to Carrier Board SPI Device CS#
p
in
Chi
p
select for Carrier Board SPI - may be sourced from chipset SPI0 or SPI1
SPI_MISO A92 I CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SO pin Data in to Module from Carrier SPI
SPI_MOSI A95 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SI pin Data out from Module to Carrier SPI
SPI_CLK A94 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SCK pin Clock from Module to Carrier SPI
SPI_POWER A91 O 3.3V Suspend/3.3V
Power supply for Carrier Board SPI – sourced from Module – nominally
3.3V. The Module shall provide a minimum of 100mA on SPI_POWER.
Carriers shall use less than 100mA of SPI_POWER. SPI_POWER
shall only be used to power SPI devices on the Carrier
BIOS_DIS0# A34 PU 10K to 3.3V
BIOS_DIS1# B88 PU 10K to 3.3V
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
VGA_RED B89 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Red for monitor. Analog output
VGA_GRN B91 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Green for monitor. Analog output
VGA_BLU B92 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Blue for monitor. Analog output
VGA_HSYNC B93 O CMOS 3.3V / 3.3V Connect to VGA connector with a3.3V Buffer IC to isolate PCH & Display Device Horizontal sync output to VGA monitor
VGA_VSYNC B94 O CMOS 3.3V / 3.3V Connect to VGA connector with a 33V Buffer IC to isolate PCH & Display Device Vertical sync output to VGA monitor
VGA_I2C_CK B95 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC clock line (I2C port dedicated to identify VGA monitor capabilities)
VGA_I2C_DAT B96 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC data line.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SER0_TX A98 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 0 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER0_RX A99 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 0 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_TX A101 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 1 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_RX A102 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 1 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
Connect to LPC device
Connect to LPC device
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Selection straps to determine the BIOS boot device.
The Carrier should only float these or pull them low, please refer to
COM Express Module Base Specification Revision 2.1 for strapping options of BIOS disable signals.
LVDS Channel B differential clock
LPC Signals and Description
s
DDI 3 Pair 0 differential pairs
DDI 3 Pair 2 differential pairs
O PCIE DDI 3 Pair 1 differential pairs
DDI3_CTRLCLK_AUX+ C36
DDI3_CTRLCLK_AUX- C37
O PCIE AC coupled off Module
O PCIE AC coupled off Module DDI 3 Pair 3 differential pairs
AC coupled off Module
g
p
s
3.3V / 3.3V LPC serial DMA request
SPI Signals and Description
s
O PCIE AC coupled off Module
DDI2_CTRLCLK_AUX- C33
O LVDS LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
I/O CMOS 3.3V / 3.3V
V
GA Signals and Description
s
NA
O LVDS LVDS
LVDS
Connect to LVDS connector
O LVDS LVDS
LPC multiplexed address, command and data bus
O LVDS LVDS
Connect to LVDS connector
LVDS Channel B differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS LVDS
Connect to LVDS connector
Connect to LVDS connector
LVDS Channel A differential clockO LVDS LVDS
Connect to LVDS connector
Serial Interface Signals and Description
s
I CMOS
I CMOS
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD su
pp
ressors to GND to USB
connector
USB differential pairs 7
LVDS Signals and Description
s
O LVDS LVDS
Connect to LVDS connector LVDS Channel A differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
I/O USB
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 2
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 1
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 6
3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 4
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 3
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 5
USB Signals and Description
s
I/O USB 3.3V Suspend/3.3V
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
USB differential pairs 0
p
g
p
s
g
p
s
A
/
g
p
s
g
g
p
s
p
g
p
s
g
p
s
Ref
Line
Bios
Entry
SPI
Descriptor
Carrier
SPI_CS#
Chipset
SPI CS0#
Destination
Chipset
SPI CS1#
Destination
BIOS
DIS0#
BIOS
DIS1 #
1
1
1
1
00
0
0
ModuleModule SPI0/SPI1
SPI1
(Default)
SPI0
High
High
CarrierCarrier
Carrier
(Default)
Module
(Default)
Module
Module
Module
(Default)
Module
ModuleModule
3
2
1
0
Carrier FWH
SPI0/SPI1
(Default)
SPI0/SPI1
Page 21
www.d.comChapter 3 Hardware Installation
21
Chapter 3
A
/pg
p
/
A
USB_SSRX1+ C7
USB_SSRX1- C6
USB_SSTX2+ D10 AC Coupling capacitor
USB_SSTX2- D9 AC Coupling capacitor
USB_SSRX2+ C10
USB_SSRX2- C9
USB_SSTX3+ D13 AC Coupling capacitor
USB_SSTX3- D12 AC Coupling capacitor
USB_SSRX3+ C13
USB_SSRX3- C12
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LVDS_A0+ A71
LVDS_A0- A72
LVDS_A1+ A73
LVDS_A1- A74
LVDS_A2+ A75
LVDS_A2- A76
LVDS_A3+ A78
LVDS_A3- A79
LVDS_A_CK+ A81
LVDS_A_CK- A82
LVDS_B0+ B71
LVDS_B0- B72
LVDS_B1+ B73
LVDS_B1- B74
LVDS_B2+ B75
LVDS_B2- B76
LVDS_B3+ B77
LVDS_B3- B78
LVDS_B_CK+ B81
LVDS_B_CK- B82
LVDS_VDD_EN A77 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel power circuit LVDS panel power enable
LVDS_BKLT_EN B79 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel backlight power circuit. LVDS panel backlight enable
LVDS_BKLT_CTRL B83 O CMOS 3.3V / 3.3V Connect to brightness control of LVDS panel backlight power circuit. LVDS panel backlight brightness control
LVDS_I2C_CK A83 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC clock of LVDS panel I2C clock output for LVDS display use
LVDS_I2C_DAT A84 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC data of LVDS panel I2C data line for LVDS display use
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LPC_AD0 B4
LPC_AD1 B5
LPC_AD2 B6
LPC_AD3 B7
LPC_FRAME# B3 O CMOS 3.3V / 3.3V LPC frame indicates the start of an LPC cycle
LPC_DRQ0# B8 NC NC
LPC_DRQ1# B9 NC NC
LPC_SERIRQ A50 I/O CMOS 3.3V / 3.3V PU 1K to 3.3V LPC serial interrupt
LPC_CLK B10 O CMOS 3.3V / 3.3V LPC clock output - 24MHz nominal
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SPI_CS# B97 O CMO
S
3.3V Suspend/3.3V
Connect to Carrier Board SPI Device CS#
p
in
Chi
p
select for Carrier Board SPI - may be sourced from chipset SPI0 or SPI1
SPI_MISO A92 I CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SO pin Data in to Module from Carrier SPI
SPI_MOSI A95 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SI pin Data out from Module to Carrier SPI
SPI_CLK A94 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SCK pin Clock from Module to Carrier SPI
SPI_POWER A91 O 3.3V Suspend/3.3V
Power supply for Carrier Board SPI – sourced from Module – nominally
3.3V. The Module shall provide a minimum of 100mA on SPI_POWER.
Carriers shall use less than 100mA of SPI_POWER. SPI_POWER
shall only be used to power SPI devices on the Carrier
BIOS_DIS0# A34 PU 10K to 3.3V
BIOS_DIS1# B88 PU 10K to 3.3V
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
VGA_RED B89 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Red for monitor. Analog output
VGA_GRN B91 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Green for monitor. Analog output
VGA_BLU B92 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Blue for monitor. Analog output
VGA_HSYNC B93 O CMOS 3.3V / 3.3V Connect to VGA connector with a3.3V Buffer IC to isolate PCH & Display Device Horizontal sync output to VGA monitor
VGA_VSYNC B94 O CMOS 3.3V / 3.3V Connect to VGA connector with a 33V Buffer IC to isolate PCH & Display Device Vertical sync output to VGA monitor
VGA_I2C_CK B95 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC clock line (I2C port dedicated to identify VGA monitor capabilities)
VGA_I2C_DAT B96 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC data line.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SER0_TX A98 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 0 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER0_RX A99 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 0 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_TX A101 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 1 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_RX A102 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 1 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SPKR B32 O CMOS 3.3V / 3.3V PU 10K to 3.3V
Output for audio enunciator - the "speaker" in PC-AT systems.
This port provides the PC beep signal and is mostly intended for
debugging purposes.
WDT B27 O CMOS 3.3V / 3.3V PD 100K to GND Output indicating that a watchdog time-out event has occurred.
FAN_PWNOUT B101 O OD CMOS 3.3V / 3.3V
Fan speed control. Uses the Pulse Width Modulation (PWM) technique to control the fan's RPM.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
FAN_TACHIN B102 I OD CMOS 3.3V / 3.3V PU 47K to 3V3
Fan tachometer input for a fan with a two pulse output.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
TPM_PP A96 I CMOS 3.3V / 3.3V
Trusted Platform Module (TPM) Physical Presence pin. Active high.
TPM chip has an internal pull down. This signal is used to indicate
Physical Presence to the TPM.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PWRBTN# B12 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3_DU_EC PU 4.7K to 3V3_SB
A falling edge creates a power button event. Power button events can
be used to bring a system out of S5 soft off and other suspend states,
as well as powering the system down.
SYS_RESET# B49 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3SB NC PU 4.7K to 3V3_SB
Reset button input. Active low request for Module to reset and reboot.
May be falling edge sensitive. For situations when SYS_RESET# is
not able to reestablish control of the system, PWR_OK or a power
cycle may be used.
CB_RESET# B50 O CMOS 3.3V Suspend/3.3V
Reset output from Module to Carrier Board. Active low. Issued by
Module chipset and may result from a low SYS_RESET# input, a low
PWR_OK input, a VCC_12V power input that falls below the minimum
specification, a watchdog timeout, or may be initiated by the Module
software.
PWR_OK B24 I CMOS 3.3V / 3.3V PU 10K to 3V3
Power OK from main power supply. A high value indicates that the
power is good. This signal can be used to hold off Module startup to
allow Carrier based FPGAs or other configurable devices time to be
programmed.
SUS_STAT# B18 O CMOS 3.3V Suspend/3.3V PU 1K to 3V3SB Indicates imminent suspend operation; used to notify LPC devices.
SUS_S3# A15 O CMOS 3.3V Suspend/3.3V PD 100K to GND
Indicates system is in Suspend to RAM state. Active low output. An
inverted copy of SUS_S3# on the Carrier Board may be used to
enable the non-standby power on a typical ATX supply.
SUS_S4# A18 O CMOS 3.3V Suspend/3.3V PD 100K to GND Indicates system is in Suspend to Disk state. Active low output.
SUS_S5# A24 O CMOS 3.3V Suspend/3.3V PD 100K to GND Indicates system is in Soft Off state.
WAKE0# B66 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3SB PCI Express wake up signal.
WAKE1# B67 I CMOS 3.3V Suspend/3.3V NA
General purpose wake up signal. May be used to implement wake-up
on PS2 keyboard or mouse activity.
BATLOW# A27 I CMOS 3.3V Suspend/ 3.3V PU 10K to 3V3SB
Indicates that external battery is low.
This port provides a battery-low signal to the Module for orderly
transitioning to power saving or power cut-off ACPI modes.
LID# A103 I OD CMOS 3.3V Suspend/12V PU 47K to 3V3_DU_EC
LID switch. Low active signal used by the ACPI operating system for a LID switch.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
SLEEP# B103 I OD CMOS 3.3V Suspend/12V PU 4.7K to 3V3_DU
Sleep button. Low active signal used by the ACPI operating system to bring the
system to sleep state or to wake it up again.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
THRM# B35 I CMOS 3.3V / 3.3V PU 1K to 3V3 Input from off-Module temp sensor indicating an over-temp situation.
THRMTRIP# A35 O CMOS 3.3V / 3.3V PU 1K to 3.3V Active low output indicating that the CPU has entered thermal shutdown.
SMB_CK B13 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3V3_DU_EC System Management Bus bidirectional clock line.
SMB_DAT B14 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3V3_DU_EC System Management Bus bidirectional data line.
SMB_ALERT# B15 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3_DU_EC
System Management Bus Alert – active low input can be used to
generate an SMI# (System Management Interrupt) or to wake the system.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GPO0 A93
GPO1 B54
GPO2 B57
GPO3 B63
GPI0 A54 PU 47K to 3.3V
GPI1 A63 PU 47K to 3.3V
GPI2 A67 PU 47K to 3.3V
GPI3 A85 PU 47K to 3.3V
Connect to LPC device
Connect to LPC device
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Selection straps to determine the BIOS boot device.
The Carrier should only float these or pull them low, please refer to
COM Express Module Base Specification Revision 2.1 for strapping options of BIOS disable signals.
LVDS Channel B differential clock
LPC Signals and Description
s
g
p
s
3.3V / 3.3V LPC serial DMA request
SPI Signals and Description
s
O LVDS LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
I/O CMOS 3.3V / 3.3V
I CMOS 3.3V / 3.3V
General purpose input pins.
Pulled high internally on the Module.
Power and System Management Signals and Description
s
GPIO Signals and Description
s
O CMOS
General purpose output pins.
Upon a hardware reset, these outputs should be low.
V
GA Signals and Description
s
NA
3.3V / 3.3V
O LVDS LVDS
LVDS
Connect to LVDS connector
O LVDS LVDS
LPC multiplexed address, command and data bus
O LVDS LVDS
Connect to LVDS connector
LVDS Channel B differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS LVDS
Connect to LVDS connector
Connect to LVDS connector
LVDS Channel A differential clockO LVDS LVDS
Connect to LVDS connector
Serial Interface Signals and Description
s
Miscellaneous Signals and Description
s
I CMOS
I CMOS
pp
LVDS Signals and Description
s
O LVDS LVDS
Connect to LVDS connector LVDS Channel A differential pairs
Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-,
LVDS_B_CK+/-) shall have 100Ω terminations across the pairs at the destination. These
terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer
on-board
O LVDS
Connect to LVDS connector
O LVDS LVDS
Connect to LVDS connector
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
O PCIE AC coupled on Module
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional transmit signal differential pairs for the SuperSpeed USB data path.
I PCIE AC coupled off Modul
Connect 90Ω @100MHz Common Choke in series and ESD suppressors to GND to USB
connector
Additional receive signal differential pairs for the SuperSpeed USB data path.
g
p
s
p
g
p
s
g
p
s
A
/
g
p
s
g
g
p
s
p
g
p
s
g
p
s
Ref
Line
Bios
Entry
SPI
Descriptor
Carrier
SPI_CS#
Chipset
SPI CS0#
Destination
Chipset
SPI CS1#
Destination
BIOS
DIS0#
BIOS
DIS1 #
1
1
1
1
00
0
0
ModuleModule SPI0/SPI1
SPI1
(Default)
SPI0
High
High
CarrierCarrier
Carrier
(Default)
Module
(Default)
Module
Module
Module
(Default)
Module
ModuleModule
3
2
1
0
Carrier FWH
SPI0/SPI1
(Default)
SPI0/SPI1
Page 22
www.d.comChapter 3 Hardware Installation
22
Chapter 3
A
/pg
p
/
A
LVDS_BKLT_CTRL B83 O CMOS 3.3V / 3.3V Connect to brightness control of LVDS panel backlight power circuit. LVDS panel backlight brightness control
LVDS_I2C_CK A83 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC clock of LVDS panel I2C clock output for LVDS display use
LVDS_I2C_DAT A84 I/O OD CMOS 3.3V / 3.3V PU 4.7K to 3.3V Connect to DDC data of LVDS panel I2C data line for LVDS display use
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
LPC_AD0 B4
LPC_AD1 B5
LPC_AD2 B6
LPC_AD3 B7
LPC_FRAME# B3 O CMOS 3.3V / 3.3V LPC frame indicates the start of an LPC cycle
LPC_DRQ0# B8 NC NC
LPC_DRQ1# B9 NC NC
LPC_SERIRQ A50 I/O CMOS 3.3V / 3.3V PU 1K to 3.3V LPC serial interrupt
LPC_CLK B10 O CMOS 3.3V / 3.3V LPC clock output - 24MHz nominal
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SPI_CS# B97 O CMO
S
3.3V Suspend/3.3V
Connect to Carrier Board SPI Device CS#
p
in
Chi
p
select for Carrier Board SPI - may be sourced from chipset SPI0 or SPI1
SPI_MISO A92 I CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SO pin Data in to Module from Carrier SPI
SPI_MOSI A95 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SI pin Data out from Module to Carrier SPI
SPI_CLK A94 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33Ω
to Carrier Board SPI Device SCK pin Clock from Module to Carrier SPI
SPI_POWER A91 O 3.3V Suspend/3.3V
Power supply for Carrier Board SPI – sourced from Module – nominally
3.3V. The Module shall provide a minimum of 100mA on SPI_POWER.
Carriers shall use less than 100mA of SPI_POWER. SPI_POWER
shall only be used to power SPI devices on the Carrier
BIOS_DIS0# A34 PU 10K to 3.3V
BIOS_DIS1# B88 PU 10K to 3.3V
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
VGA_RED B89 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Red for monitor. Analog output
VGA_GRN B91 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Green for monitor. Analog output
VGA_BLU B92 O Analog Analog PD 150 to GND PD 150R,connect to VGA connector with EMI filter & ESD protect component. Blue for monitor. Analog output
VGA_HSYNC B93 O CMOS 3.3V / 3.3V Connect to VGA connector with a3.3V Buffer IC to isolate PCH & Display Device Horizontal sync output to VGA monitor
VGA_VSYNC B94 O CMOS 3.3V / 3.3V Connect to VGA connector with a 33V Buffer IC to isolate PCH & Display Device Vertical sync output to VGA monitor
VGA_I2C_CK B95 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC clock line (I2C port dedicated to identify VGA monitor capabilities)
VGA_I2C_DAT B96 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC data line.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SER0_TX A98 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 0 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER0_RX A99 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 0 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_TX A101 O CMOS 3.3V/5V PD 4.7K to GND
General purpose serial port 1 transmitter
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
SER1_RX A102 I CMOS 3.3V/5V PU 10K to 3.3V
General purpose serial port 1 receiver
(
Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V
)
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
SPKR B32 O CMOS 3.3V / 3.3V PU 10K to 3.3V
Output for audio enunciator - the "speaker" in PC-AT systems.
This port provides the PC beep signal and is mostly intended for
debugging purposes.
WDT B27 O CMOS 3.3V / 3.3V PD 100K to GND Output indicating that a watchdog time-out event has occurred.
FAN_PWNOUT B101 O OD CMOS 3.3V / 3.3V
Fan speed control. Uses the Pulse Width Modulation (PWM) technique to control the fan's RPM.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
FAN_TACHIN B102 I OD CMOS 3.3V / 3.3V PU 47K to 3V3
Fan tachometer input for a fan with a two pulse output.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
TPM_PP A96 I CMOS 3.3V / 3.3V
Trusted Platform Module (TPM) Physical Presence pin. Active high.
TPM chip has an internal pull down. This signal is used to indicate
Physical Presence to the TPM.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
PWRBTN# B12 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3_DU_EC PU 4.7K to 3V3_SB
A falling edge creates a power button event. Power button events can
be used to bring a system out of S5 soft off and other suspend states,
as well as powering the system down.
SYS_RESET# B49 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3SB NC PU 4.7K to 3V3_SB
Reset button input. Active low request for Module to reset and reboot.
May be falling edge sensitive. For situations when SYS_RESET# is
not able to reestablish control of the system, PWR_OK or a power
cycle may be used.
CB_RESET# B50 O CMOS 3.3V Suspend/3.3V
Reset output from Module to Carrier Board. Active low. Issued by
Module chipset and may result from a low SYS_RESET# input, a low
PWR_OK input, a VCC_12V power input that falls below the minimum
specification, a watchdog timeout, or may be initiated by the Module
software.
PWR_OK B24 I CMOS 3.3V / 3.3V PU 10K to 3V3
Power OK from main power supply. A high value indicates that the
power is good. This signal can be used to hold off Module startup to
allow Carrier based FPGAs or other configurable devices time to be
programmed.
SUS_STAT# B18 O CMOS 3.3V Suspend/3.3V PU 1K to 3V3SB Indicates imminent suspend operation; used to notify LPC devices.
SUS_S3# A15 O CMOS 3.3V Suspend/3.3V PD 100K to GND
Indicates system is in Suspend to RAM state. Active low output. An
inverted copy of SUS_S3# on the Carrier Board may be used to
enable the non-standby power on a typical ATX supply.
SUS_S4# A18 O CMOS 3.3V Suspend/3.3V PD 100K to GND Indicates system is in Suspend to Disk state. Active low output.
SUS_S5# A24 O CMOS 3.3V Suspend/3.3V PD 100K to GND Indicates system is in Soft Off state.
WAKE0# B66 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3SB PCI Express wake up signal.
WAKE1# B67 I CMOS 3.3V Suspend/3.3V NA
General purpose wake up signal. May be used to implement wake-up
on PS2 keyboard or mouse activity.
BATLOW# A27 I CMOS 3.3V Suspend/ 3.3V PU 10K to 3V3SB
Indicates that external battery is low.
This port provides a battery-low signal to the Module for orderly
transitioning to power saving or power cut-off ACPI modes.
LID# A103 I OD CMOS 3.3V Suspend/12V PU 47K to 3V3_DU_EC
LID switch. Low active signal used by the ACPI operating system for a LID switch.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
SLEEP# B103 I OD CMOS 3.3V Suspend/12V PU 4.7K to 3V3_DU
Sleep button. Low active signal used by the ACPI operating system to bring the
system to sleep state or to wake it up again.
(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)
THRM# B35 I CMOS 3.3V / 3.3V PU 1K to 3V3 Input from off-Module temp sensor indicating an over-temp situation.
THRMTRIP# A35 O CMOS 3.3V / 3.3V PU 1K to 3.3V Active low output indicating that the CPU has entered thermal shutdown.
SMB_CK B13 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3V3_DU_EC System Management Bus bidirectional clock line.
SMB_DAT B14 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3V3_DU_EC System Management Bus bidirectional data line.
SMB_ALERT# B15 I CMOS 3.3V Suspend/3.3V PU 10K to 3V3_DU_EC
System Management Bus Alert – active low input can be used to
generate an SMI# (System Management Interrupt) or to wake the system.
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
GPO0 A93
GPO1 B54
GPO2 B57
GPO3 B63
GPI0 A54 PU 47K to 3.3V
GPI1 A63 PU 47K to 3.3V
GPI2 A67 PU 47K to 3.3V
GPI3 A85 PU 47K to 3.3V
Signal Pin# Module Pin Type Pwr Rail /Tolerance BW968 Carrier Board Description
VCC_12V
A
104~A109
B104~B109
C104~C109
D104~D109
Power Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.
VCC_5V_SBY B84~B87 Power
Standby power input: +5.0V nominal. If VCC5_SBY is used, all
available VCC_5V_SBY pins on the connector(s) shall be used. Only
used for standby and suspend functions. May be left unconnected if
these functions are not used in the system design.
VCC_RTC A47 Power Real-time clock circuit-power input. Nominally +3.0V.
GND
A1, A11, A21, A31,
A41, A51, A57, A60,
A66, A70, A80, A90,
A100, A110, B1,
B11, B21 ,B31, B41,
B51, B60, B70, B80,
B90, B100, B110,
C1, C2, C5, C8, C11,
C14, C21, C31, C41,
C51, C60, C70, C73,
C76, C80, C84, C87,
C90, C93, C96,
C100, C103, C110,
D1, D2, D5, D8,
D11, D14, D21,
D31, D51, D60,
D67, D70, D73,
D76, D80, D84,
D87, D90, D93,
D96, D100, D103,
D110
Power
Ground - DC power and signal and AC signal return path.
All available GND connector pins shall be used and tied to Carrier
Board GND plane.
Connect to LPC device
Connect to LPC device
Selection straps to determine the BIOS boot device.
The Carrier should only float these or pull them low, please refer to
COM Express Module Base Specification Revision 2.1 for strapping options of BIOS disable signals.
LPC Signals and Description
s
g
p
s
3.3V / 3.3V LPC serial DMA request
SPI Signals and Description
s
Power and GND Signals and Description
s
I/O CMOS 3.3V / 3.3V
I CMOS 3.3V / 3.3V
General purpose input pins.
Pulled high internally on the Module.
Power and System Management Signals and Description
s
GPIO Signals and Description
s
O CMOS
General purpose output pins.
Upon a hardware reset, these outputs should be low.
V
GA Signals and Description
s
NA
3.3V / 3.3V
LPC multiplexed address, command and data bus
Serial Interface Signals and Description
s
Miscellaneous Signals and Description
s
I CMOS
I CMOS
pp
g
p
s
g
p
s
p
g
p
s
g
p
s
A
/
g
p
s
g
g
p
s
p
g
p
s
g
p
s
Ref
Line
Bios
Entry
SPI
Descriptor
Carrier
SPI_CS#
Chipset
SPI CS0#
Destination
Chipset
SPI CS1#
Destination
BIOS
DIS0#
BIOS
DIS1 #
1
1
1
1
00
0
0
ModuleModule SPI0/SPI1
SPI1
(Default)
SPI0
High
High
CarrierCarrier
Carrier
(Default)
Module
(Default)
Module
Module
Module
(Default)
Module
ModuleModule
3
2
1
0
Carrier FWH
SPI0/SPI1
(Default)
SPI0/SPI1
Page 23
www.d.comChapter 3 Hardware Installation
23
Chapter 3

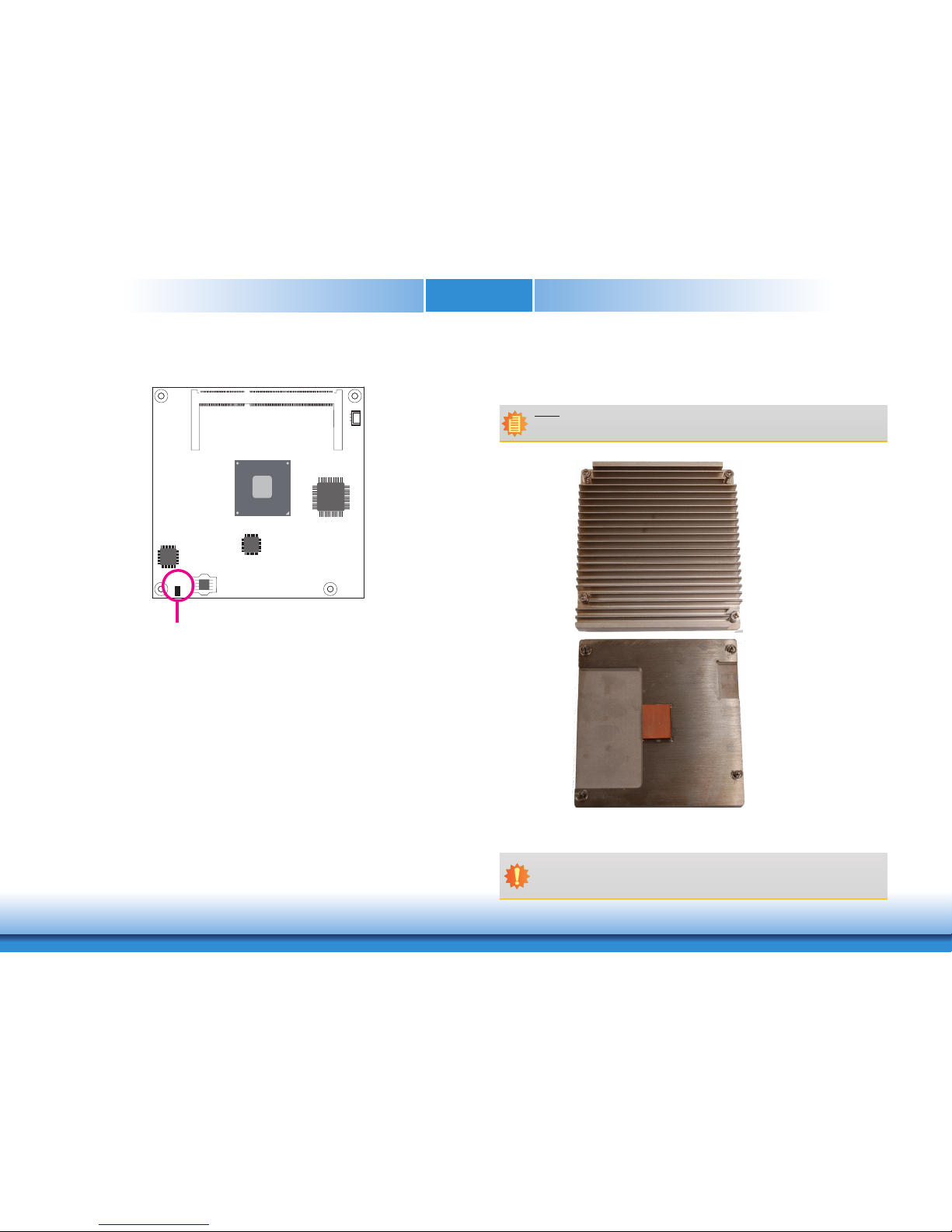

Standby Power LED
This LED will light when the system is in the standby mode.
Intel
Pentium
Celeron
SPI
Flash
BIOS
Standby
Power LED
DDR3L_1 SODIMM
Intel
WGI211AT
SMSC
USB2517
iTE
IT8528E
1
CPU Fan
Cooling Options
Heat Sink with Cooling Fan
• “1” denotes the location of the thermal pad/paste designed to contact the corresponding components that are on BW968.
Top View of the Heat Sink
Important:
Remove the plastic covering from the thermal pads prior to mounting the heat sink
onto BW968.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
Bottom View of the Heat Sink
1
Standby
Power LED
(LED1)
1
Page 24
www.d.comChapter 3 Hardware Installation
24
Chapter 3
Pressing points

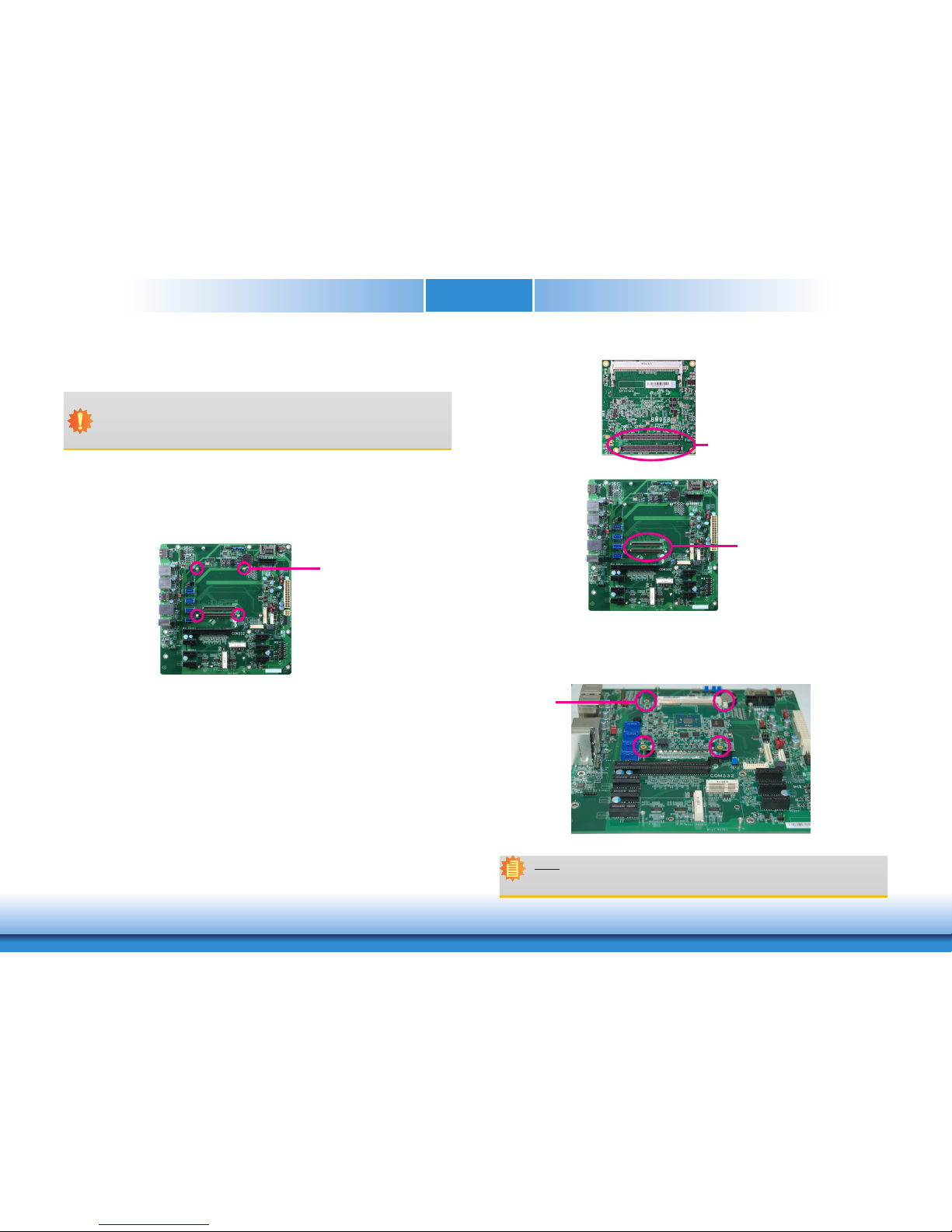

Installing BW968 onto a Carrier Board
1. Install the module and heatsink onto the carrier board. The photo below shows the location of the mounting holes on the carrier board.
Mounting standoffs
Important:
The carrier board (COM332-B) used in this section is for reference purpose only and
may not resemble your carrier board. These illustrations are mainly to guide you on
how to install BW968 onto the carrier board of your choice.
2. Grasp BW968 by its edges and position it on top of the carrier board with the mounting
holes of BW968 aligning with the standoffs on the carrier board. This will also align the
COM Express connectors of the two boards to each other.
COM Express connectors
on BW968
COM Express connectors
on the carrier board
3. Press BW968 down firmly to seat it in the COM Express connectors of the carrier board.
Note:
The above illustration shows the pressing points of the module onto the carrier board.
Be careful when pressing the module to avoid damages to the connectors.
Page 25
www.d.comChapter 3 Hardware Installation
25
Chapter 3

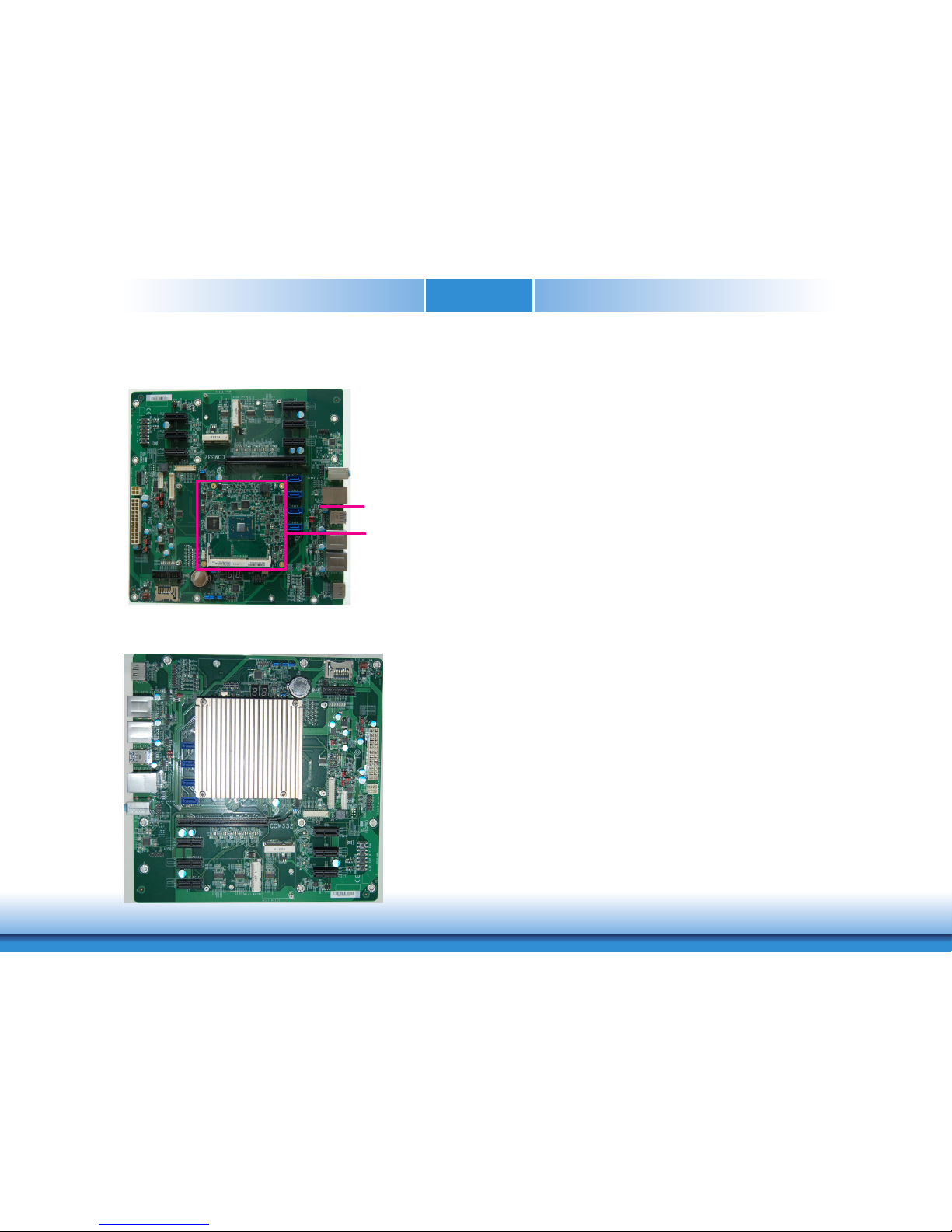

4. Verify that BW968 is firmly seated in the COM Express connectors of the carrier
board.
Carrier board
BW968
5. Install a heat sink onto the BW968 with the carrier board. The photo below shows the
heatsink installed on BW968.
Page 26
www.d.comChapter 3 Hardware Installation
26
Chapter 3

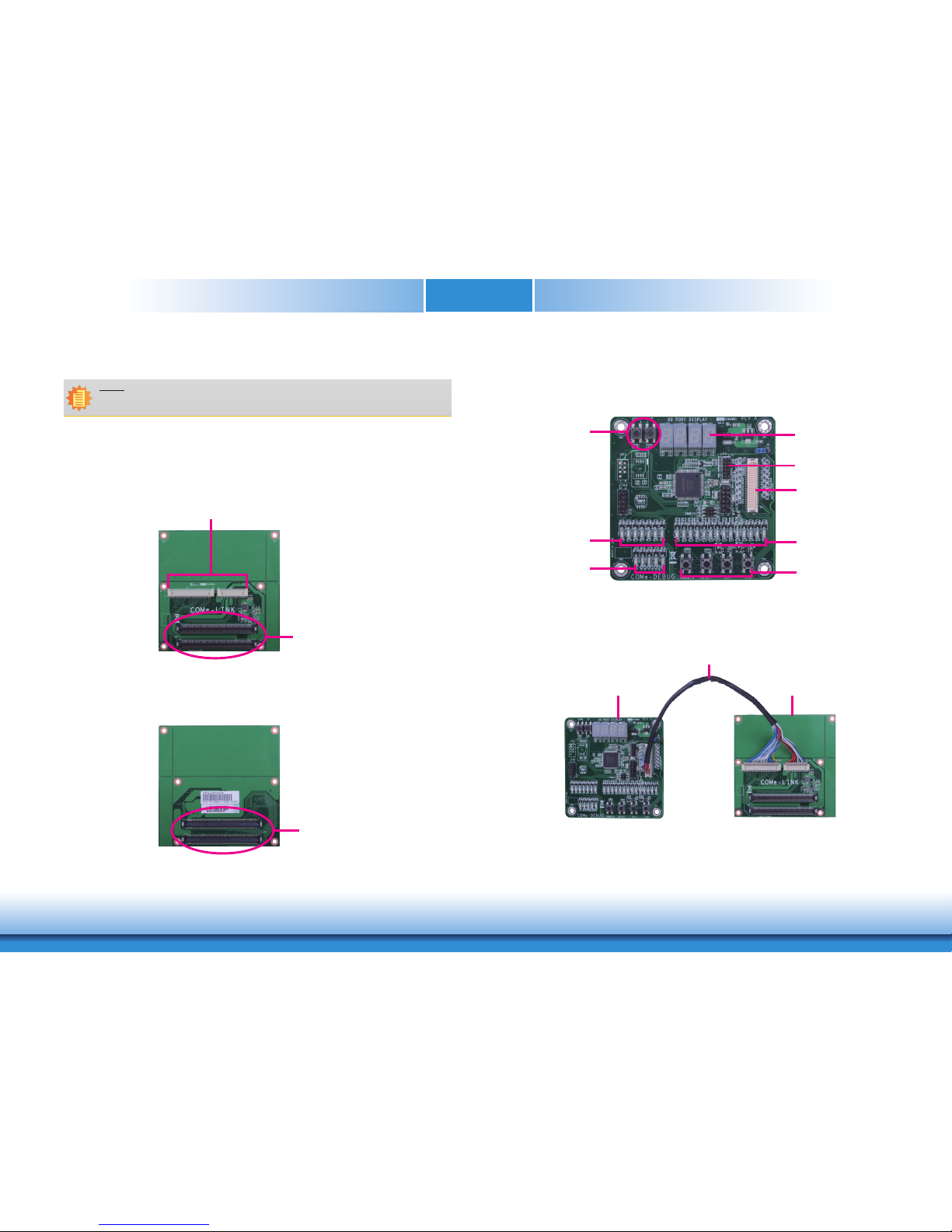

Installing the COM Express Debug Card
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
1. COMe-LINK1 is the COM Express debug card designed for COM Express Compact modules
to debug and display signals and codes of COM Express modules.
COMe-LINK1
Bottom view
Top view
COMe-DEBUG Connector
COM Express
Connectors
2. Connect the COMe-DEBUG card to COMe-LINK1 via a cable.
COMe-DEBUG COMe-LINK1
Cable
COMe-DEBUG
COM Express
Connectors
COMe-LINK1/2
Connector
80 Port Display
LPC
COM Express
Signal Display
Power/Reset/
Sleep/LID control
COM Express
Type Display
Code Review
Control
COM Express
Power Display
Page 27
www.d.comChapter 3 Hardware Installation
27
Chapter 3

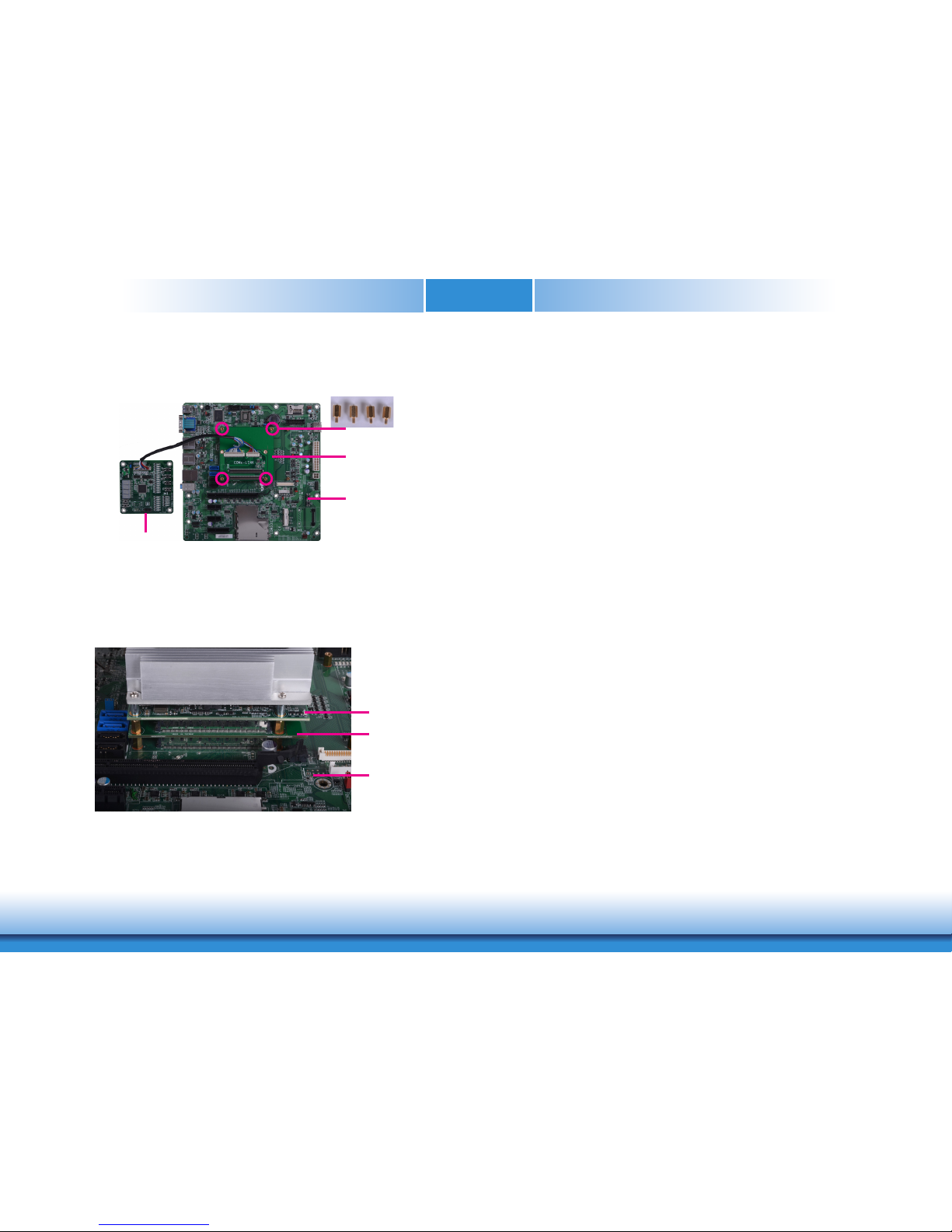

4. Use the provided screws to fix the COMe-LINK1 debug card onto the carrier board.
COMe-LINK1
Carrier Board
5. Then use the instructions from the previous section to install BW968 and heatsink on the
top of the COMe-LINK1 debug card.
Screws
COMe-DEBUG
Side View of the Module, Debug Card and Carrier Board
COMe-LINK1
Carrier Board
BW968
Page 28
www.d.comChapter 4 BIOS Setup
28
Chapter 4
Chapter 4 - BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more
available fields not shown on the screen. Use the up and down arrow keys to scroll through all
the available fields.
Submenu
When ““ appears on the left of a particular field, it indicates that a submenu which contains
additional options are available for that field. To display the submenu, move the highlight to
that field and press <Enter>.
Legends
Overview
The BIOS is a program that takes care of the basic level of communication between the CPU
and peripherals. It contains codes for various advanced features found in this system board.
The BIOS allows you to configure the system and save the configuration in a battery-backed
CMOS so that the data retains even when the power is off. In general, the information stored
in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been
made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need
to install a new CMOS battery and reconfigure the BIOS settings.
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults
settings which are stored in the BIOS or are automatically detected and configured without
requiring any actions. There are a few settings that you may need to change depending on
your system configuration.
Entering the BIOS Setup Utility
The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the
system, the BIOS message appears on the screen and the memory count begins. After the
memory test, the message “Press DEL to run setup” will appear on the screen. If the message
disappears before you respond, restart the system or press the “Reset” button. You may also
restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
Note:
The BIOS is constantly updated to improve the performance of the system board;
therefore the BIOS screens in this chapter may not appear the same as the actual
one. These screens are for reference purpose only.
KEYs
Function
F1 Help
<Esc> Exit
Up and Down Arrows Select Item
Right and Left Arrows Select Item
<F5>/<F6> Change Values
<Enter> Select Submenu
<F9> Setup Defaults
<F10> Save and Exit
Page 29
www.d.comChapter 4 BIOS Setup
29
Chapter 4

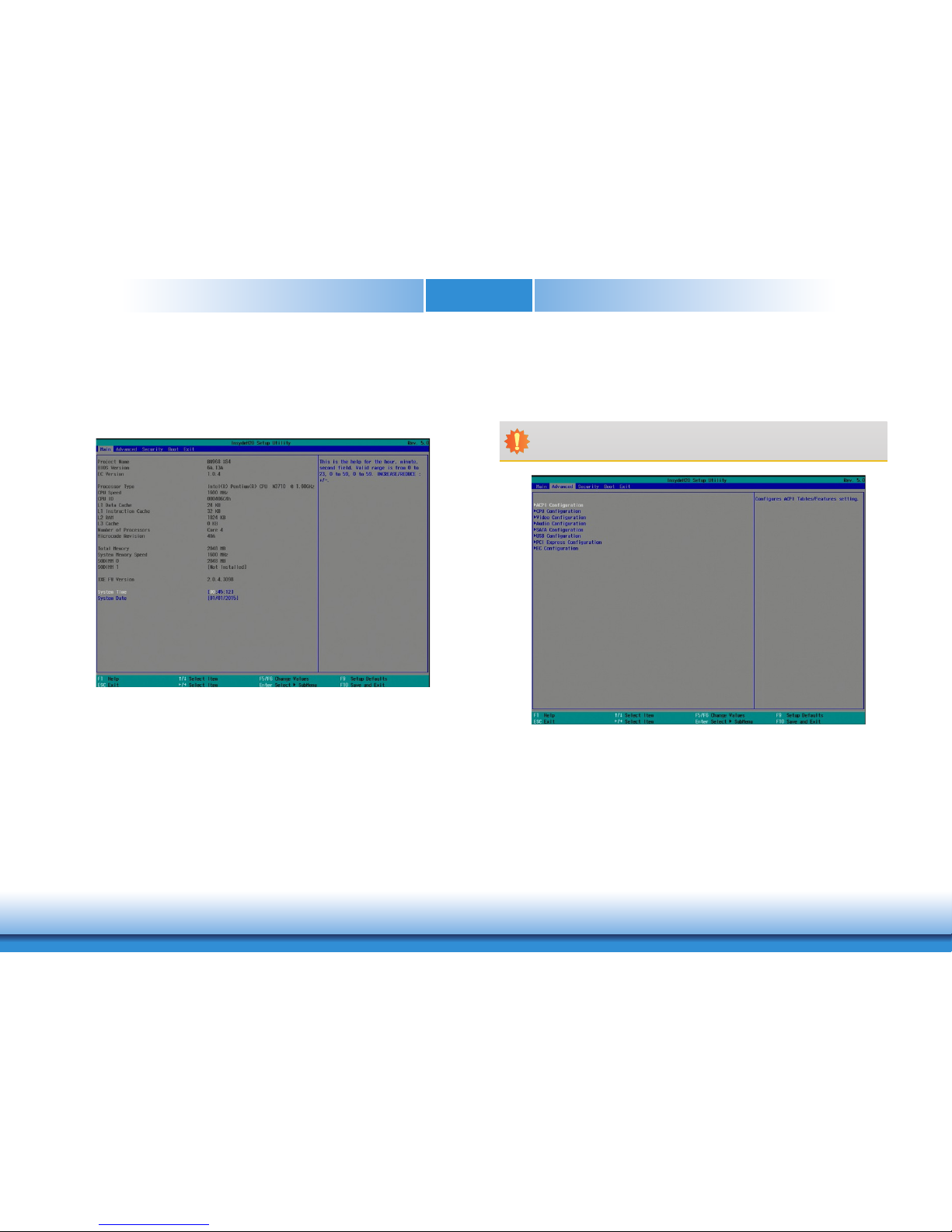

Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
System Date
The date format is <month>, <date>, <year>. Day displays a day, from Sunday to
Saturday. Month displays the month, from January to December. Date displays the
date, from 1 to 31. Year displays the year, from 1980 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Insyde BIOS Setup Utility Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are
defaults required by the system board, while others, if enabled, will improve the performance
of your system or let you set some features according to your preference.
Important:
Setting incorrect field values may cause the system to malfunction.
Page 30
www.d.comChapter 4 BIOS Setup
30
Chapter 4

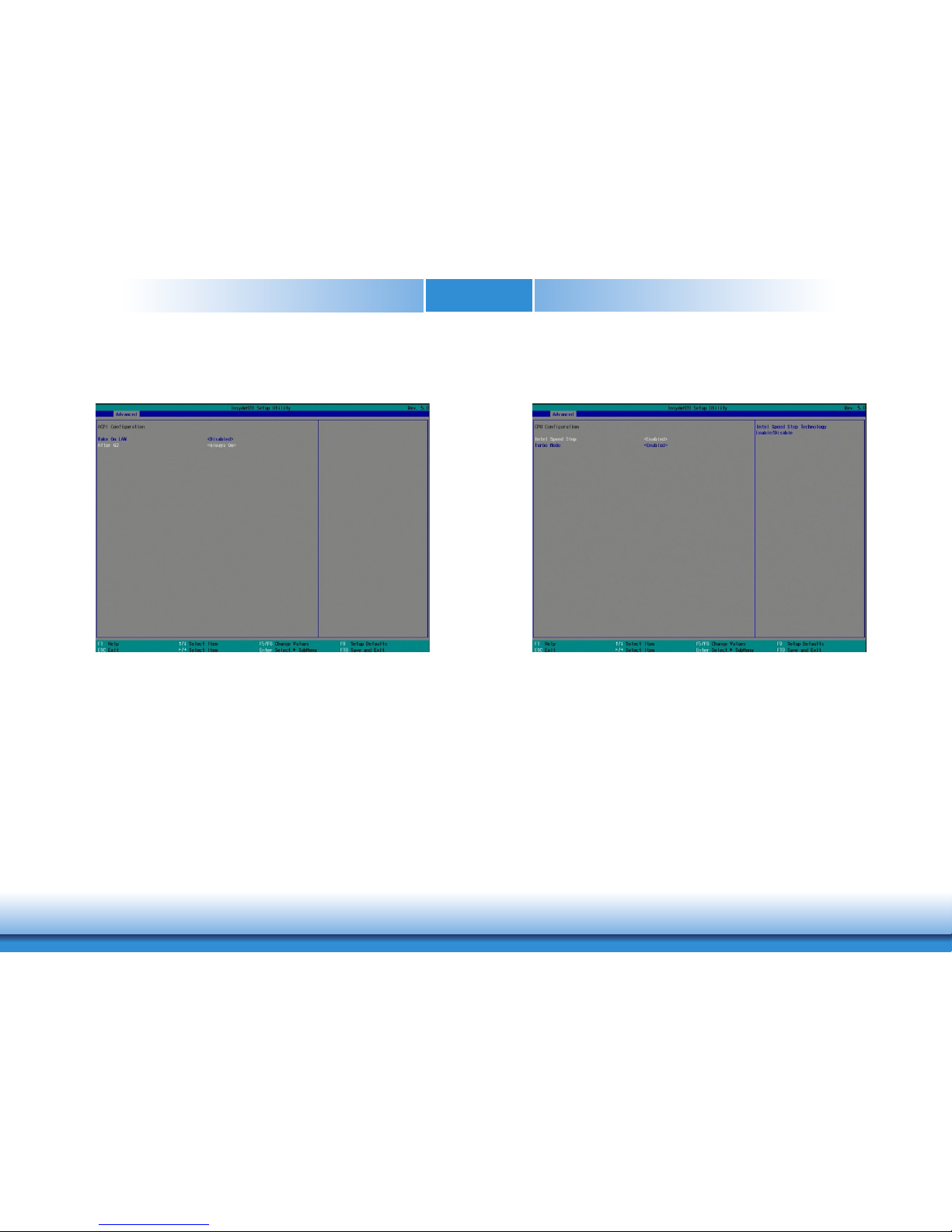

ACPI Settings
This section allows you to configure the ACPI settings.
Wake on LAN
Set this field to enable to wake up the system via the onboard LAN or via a LAN card
that supports the remote wake up function.
CPU Configuration
This section allows you to configure the CPU.
Intel Speed Step
Enable/Disable Intel Speed Step Technology.
Turbo Mode
This field is used to enable or disable processor turbo mode.
After G3
This field is to specify what state to go when power is re-applied after a power
failure (G3 state).
Always On Power on the system when power is re-applied after AC power loss.
Always Off The system will be off when power is re-applied after AC power loss.
Page 31
www.d.comChapter 4 BIOS Setup
31
Chapter 4
Video Configuration
This section allows you to configure the video settings.
Primary Display
Select the primary display: Auto, integrated graphics display (IGD) or PCIe graphics
card (PCIe).
LCD Panel Type
Select the LCD panel resolution.
LCD Panel Color Depth
Select the LCD panel color depth: 18 bit, 24 bit, 36 bit or 48 bit.
Integrated Graphics Device
Enable or disable Integrated Graphics Device when IGD is selected as the primary
display.
Page 32
www.d.comChapter 4 BIOS Setup
32
Chapter 4

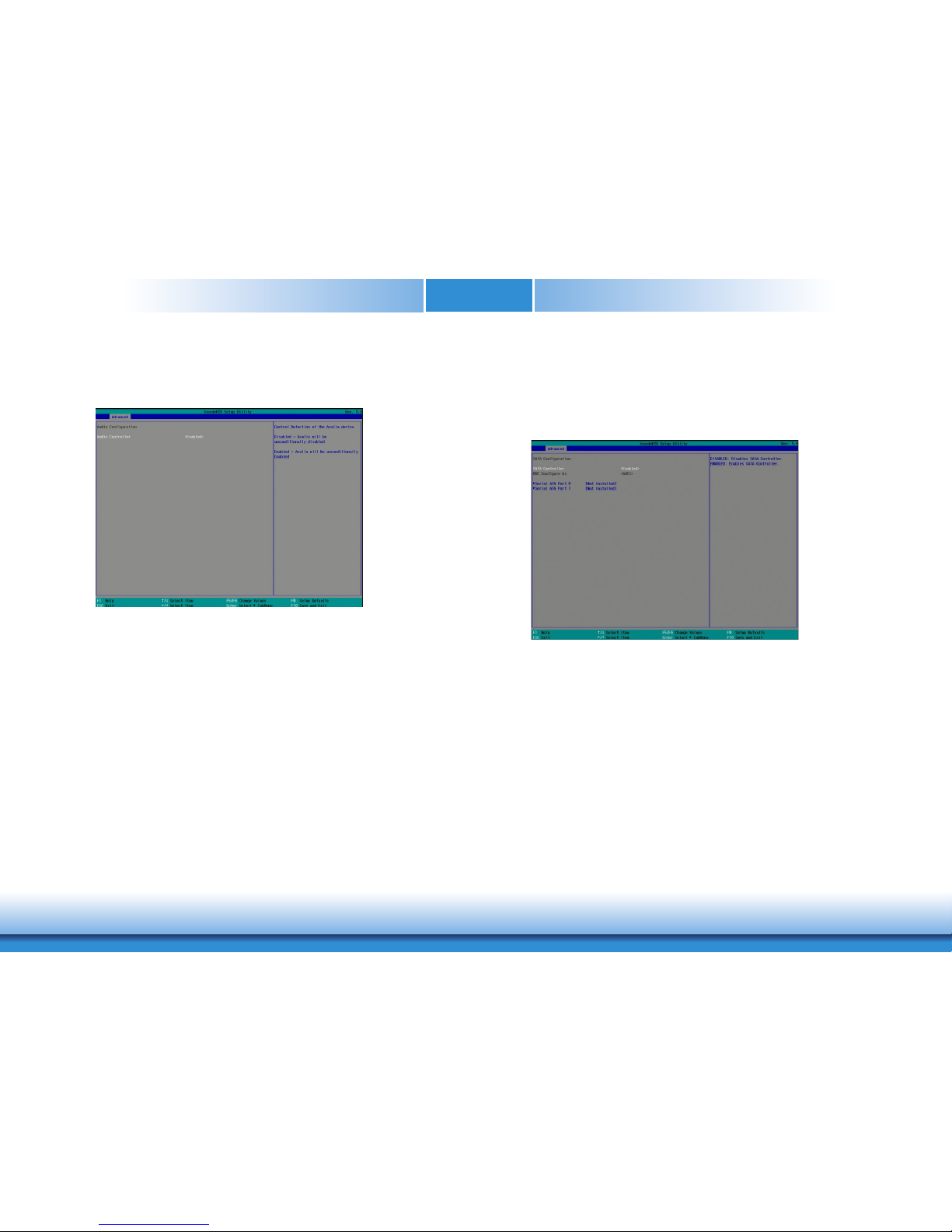

Audio Configuration
This section allows you to configure the audio settings.
Audio Controller
Control the detection of the Azalia device.
Disabled
Azalia will be unconditionally disabled.
Enabled
Azalia will be unconditionally enabled.
SATA Configuration
This section lets you select the SATA controller and the type of hard disk drive installed on the
system.
Serial ATA Port 0 and 1
This field is used to enable or disable the serial ATA port.
SATA Controller
This field is used to enable or disable SATA controller.
Page 33
www.d.comChapter 4 BIOS Setup
33
Chapter 4

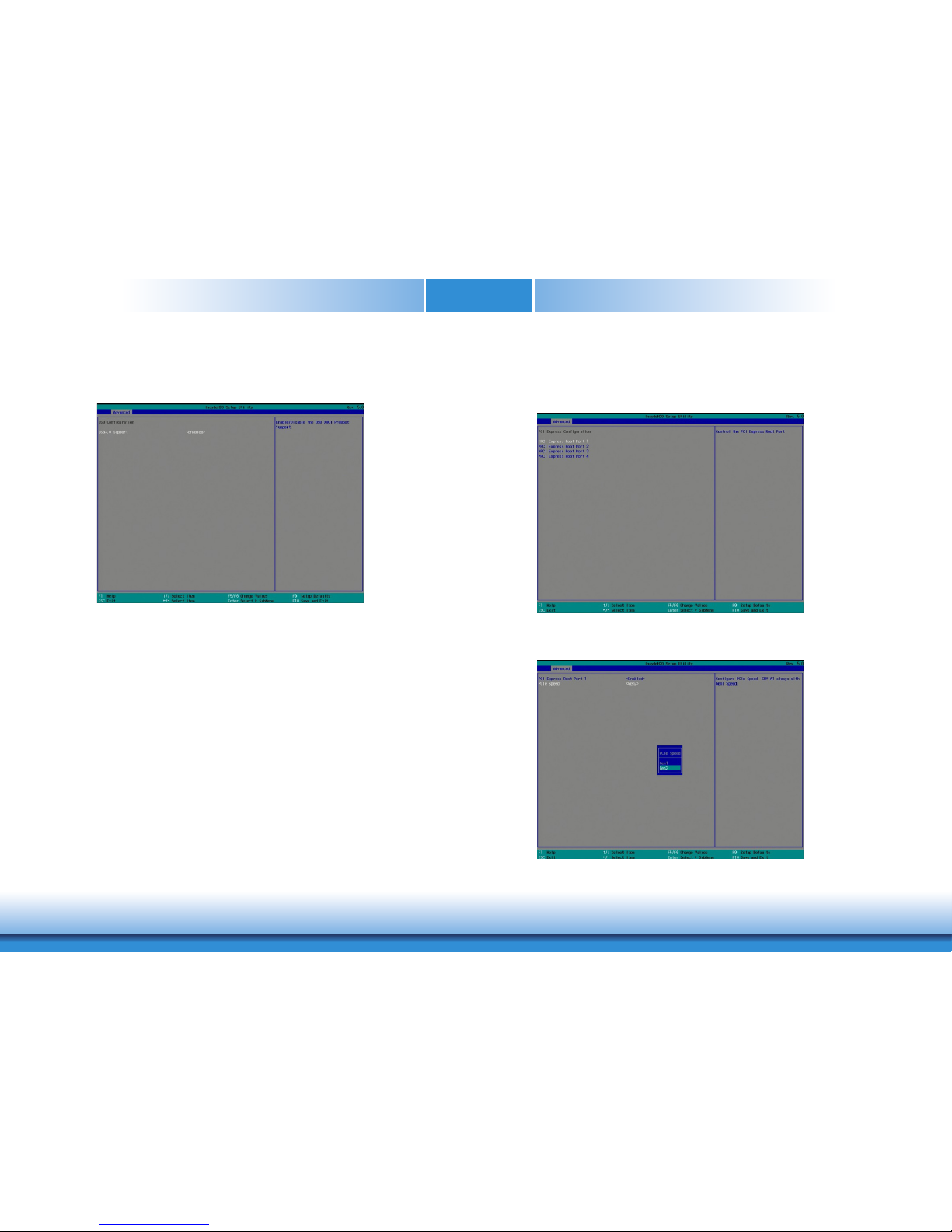

USB Configuration
This section allows you to configure the parameters of the USB device.
USB3.0 Support
Enabled
Enable the USB XHCI PreBoot Support.
Disabled
Disable the USB XHCI PreBoot Support.
PCI Express Configuration
This section configures settings relevant to PCI Express root ports.
PCIe Speed
Select the speed of the PCI Express Root Port: Gen1 or Gen2.
PCI Express Root Port 1 to PCI Express Root Port 4
PCI Express Root Port 1 to 4
This field is used to enable or disable the PCI Express Root Port.
Page 34
www.d.comChapter 4 BIOS Setup
34
Chapter 4

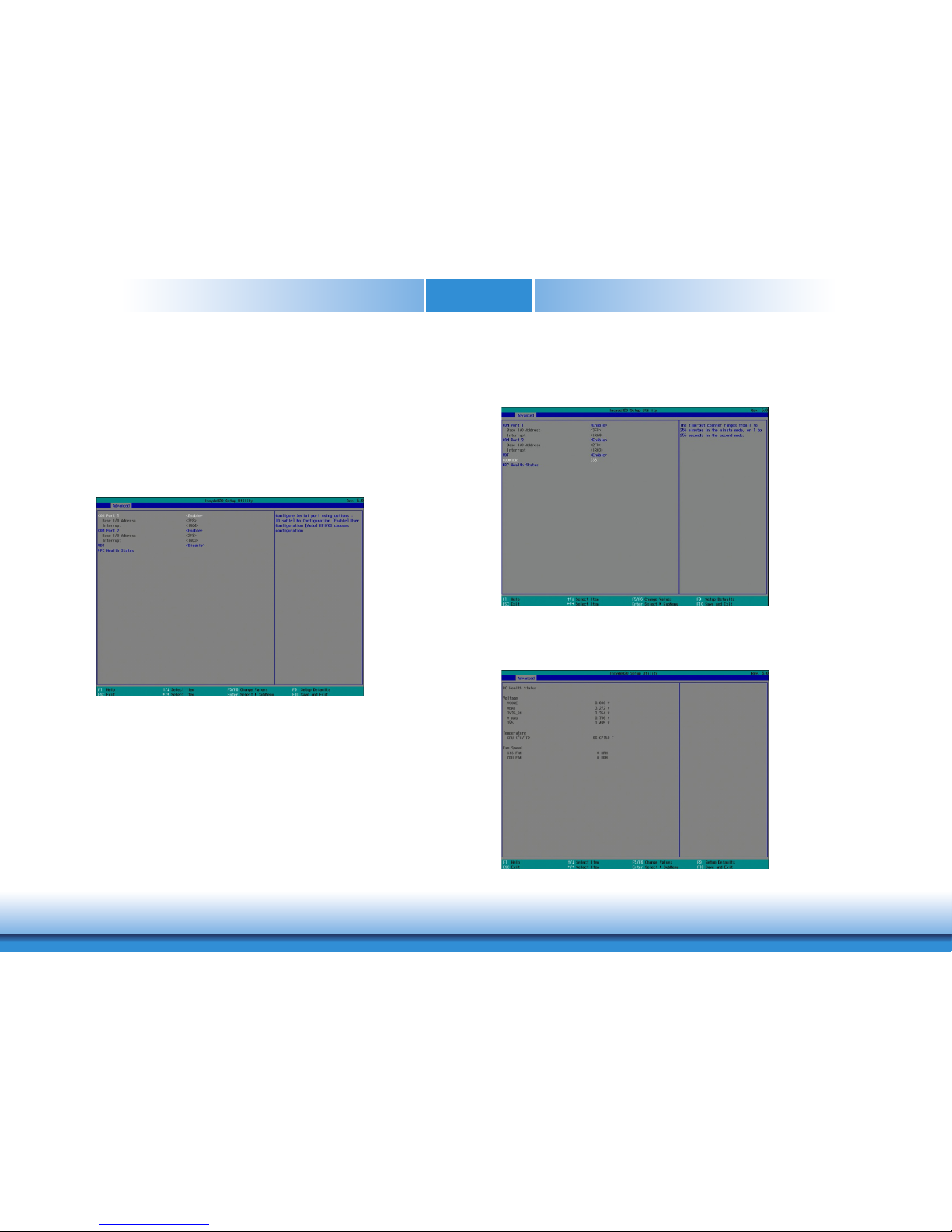

EC Configuration
This section allows you to configure the Embedded Controller (EC) settings.
Disable Disable this COM port.
Enable Enable this COM port.
COM Port 1 to COM Port 2
Configure the settings for each COM port.
WDT
Enable or disable the watchdog function. A counter will appear if you select to enable
WDT. Input any value between 1 to 255 seconds.
PC Health Status
This field only displays the PC health information.
Page 35
www.d.comChapter 4 BIOS Setup
35
Chapter 4

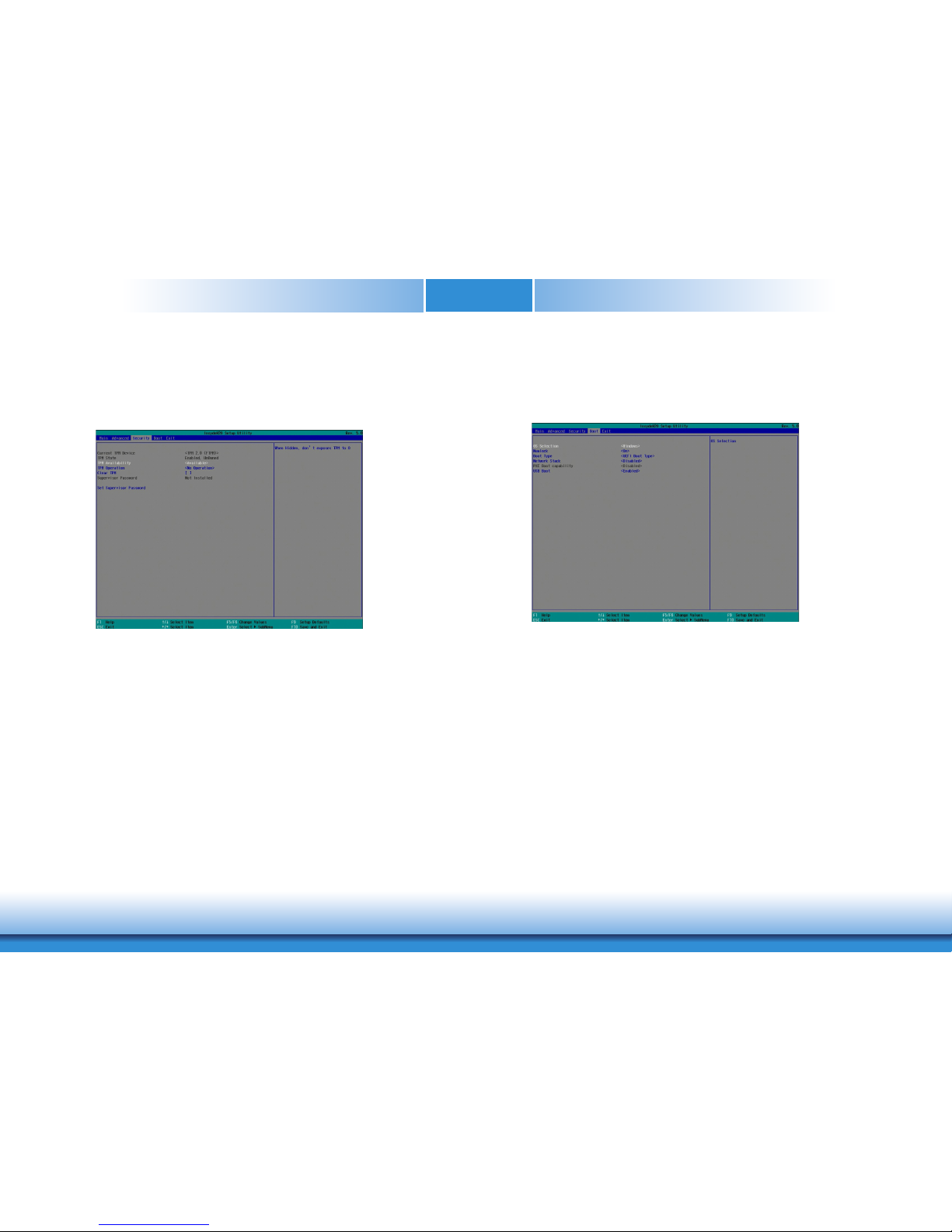

Security
TPM Availability
Select to show or hide TPM configuration options.
TPM Operation
Select “Enable” to enable storage and endorsement hierarchy and “disable” to disable
storage and endorsement hierarchy. Select “No Operation” to make no changes.
Clear TPM
Remove all TPM context associated with a specific owner.
Set Supervisor Password
Set the supervisor’s password and the length of the password must be greater than
one character.
This section allows you to configure the Trusted Platform Module (TPM) on the system.
Boot
Numlock
Select the power-on state for Numlock.
Boot Type
Select the boot type. The options are Dual Boot Type, Legacy Boot Type, and UEFI
Boot Type.
Network Stack
Enable or disable UEFI network stack. It supports the operation of these functions or
software: Windows 8 BitLocker Network Unlock, UEFI IPv4/IPv6 PXE and legacy PXE
Option ROM.
USB Boot
Enable or disable the booting to USB boot devices.
OS Selection
This field is used to select the operating system.
This section shows the available boot options and allows you to configure them for the
system.
Page 36
www.d.comChapter 4 BIOS Setup
36
Chapter 4

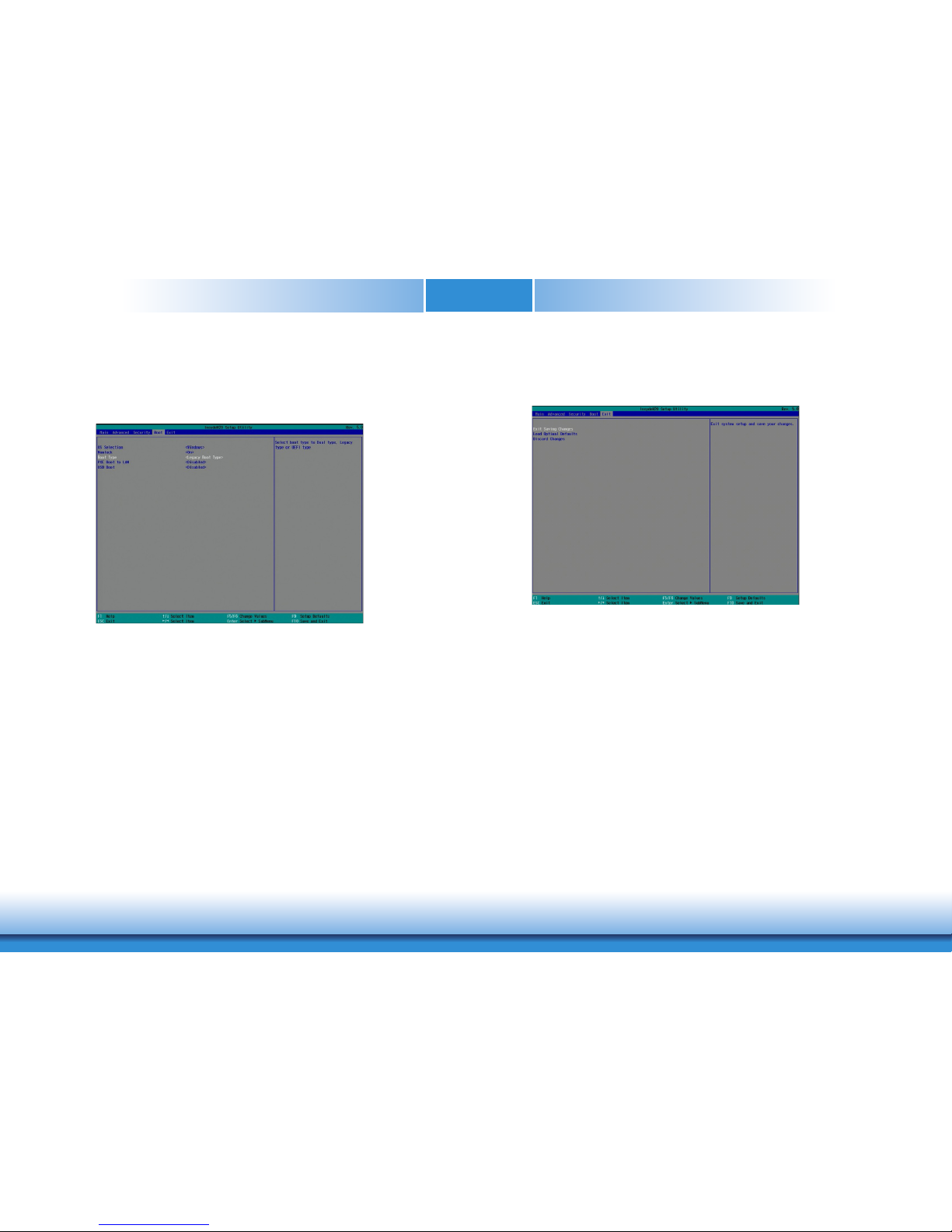

PXE Boot to LAN
If “Legacy Boot Type” is selected for Boot Type, the “PXE Boot to LAN” option will be
shown. This field is used to enable or disable booting the device through the Ethernet
adaptor supporting PXE (Preboot Execution Environment).
Exit
Exit Saving Changes
Select this field and then press <Enter> to exit the system setup and save your
changes.
Load Optimal Defaults
Select this field and then press <Enter> to load optimal defaults.
Discard Changes
Select this field and then press <Enter> to exit the system setup without saving your
changes.
This section shows the exit options of the BIOS setup program.
Page 37
www.d.comChapter 4 BIOS Setup
37
Chapter 4
R
Read le successfully. (path= “platform.ini”)
Insyde H20FFT (Flash Firmware Tool) Version (SEG) 100.00.08.10
Copyright(c) 2012 - 2016, Insyde Software Corp. All Rights Reserved.
Initializing
Current BIOS Model name: BW968
New BIOS Model name: BW968
Current BIOS version: 65.05A
New BIOS version: 65.05A
Updating Block at FFFFF000h
0% 25% 50% 75% 100%
100%
C:\BW968>_
Notice: BIOS SPI ROM
1. The Intel® Management Engine has already been integrated into this system board. Due to
the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board
and used on another system board of the same model.
2. The BIOS (SPI ROM) on this system board must be the original equipment from the factory
and cannot be used to replace one which has been utilized on other system boards.
3. If you do not follow the methods above, the Intel® Management Engine will not be
updated and will cease to be effective.
Note:
a. You can take advantage of flash tools to update the default configuration of the
BIOS (SPI ROM) to the latest version anytime.
b. When the BIOS IC needs to be replaced, you have to populate it properly onto the
system board after the EEPROM programmer has been burned and follow the
technical person's instructions to confirm that the MAC address should be burned
or not.
Updating the BIOS
To update the BIOS, you will need the new BIOS file and a flash utility. Please contact technical support or your sales representative for the files and specific instructions about how to
update BIOS with the flash utility.
When you download the given BIOS file, you may find a BIOS flash utility attached with the
BIOS file. This is the utility for performing BIOS updating procedure. For your convenience, we
will also provide you with an auto-execution file in the BIOS file downloaded. This auto-execution file will bring you directly to the flash utility menu soon after system boots up and finishes
running the boot files in your boot disk.
Information
Please do not remove the AC power
Page 38
www.d.comChapter 5 Supported Software
38
Chapter 5
Chapter 5 - Supported Software
The DVD that came with the system board contains drivers, utilities and software applications
required to enhance the performance of the system board.
Insert the DVD into a DVD-ROM drive. The autorun screen (Mainboard Utility DVD) will appear.
If after inserting the DVD, “Autorun” did not automatically start (which is, the Mainboard Utility
DVD screen did not appear), please go directly to the root directory of the DVD and doubleclick “Setup”.
Auto Run Page (For Windows 10)
Auto Run Page (For Windows 8.1)
Page 39
www.d.comChapter 5 Supported Software
39
Chapter 5
Auto Run Page (For Windows 7)
Page 40
www.d.comChapter 5 Supported Software
40
Chapter 5
Intel Chipset Software Installation Utility
The Intel Chipset Software Installation Utility is used for updating Windows INF files so that
the Intel chipset can be recognized and configured properly in the system.
To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.
2. Read the license agreement
then click Yes.
1. Setup is now ready to install
the utility. Click Next.
3. Go through the readme
document for system requirements and installation tips then
click Next.
4. After completing installation,
click Finish to exit setup.
Page 41
www.d.comChapter 5 Supported Software
41
Chapter 5

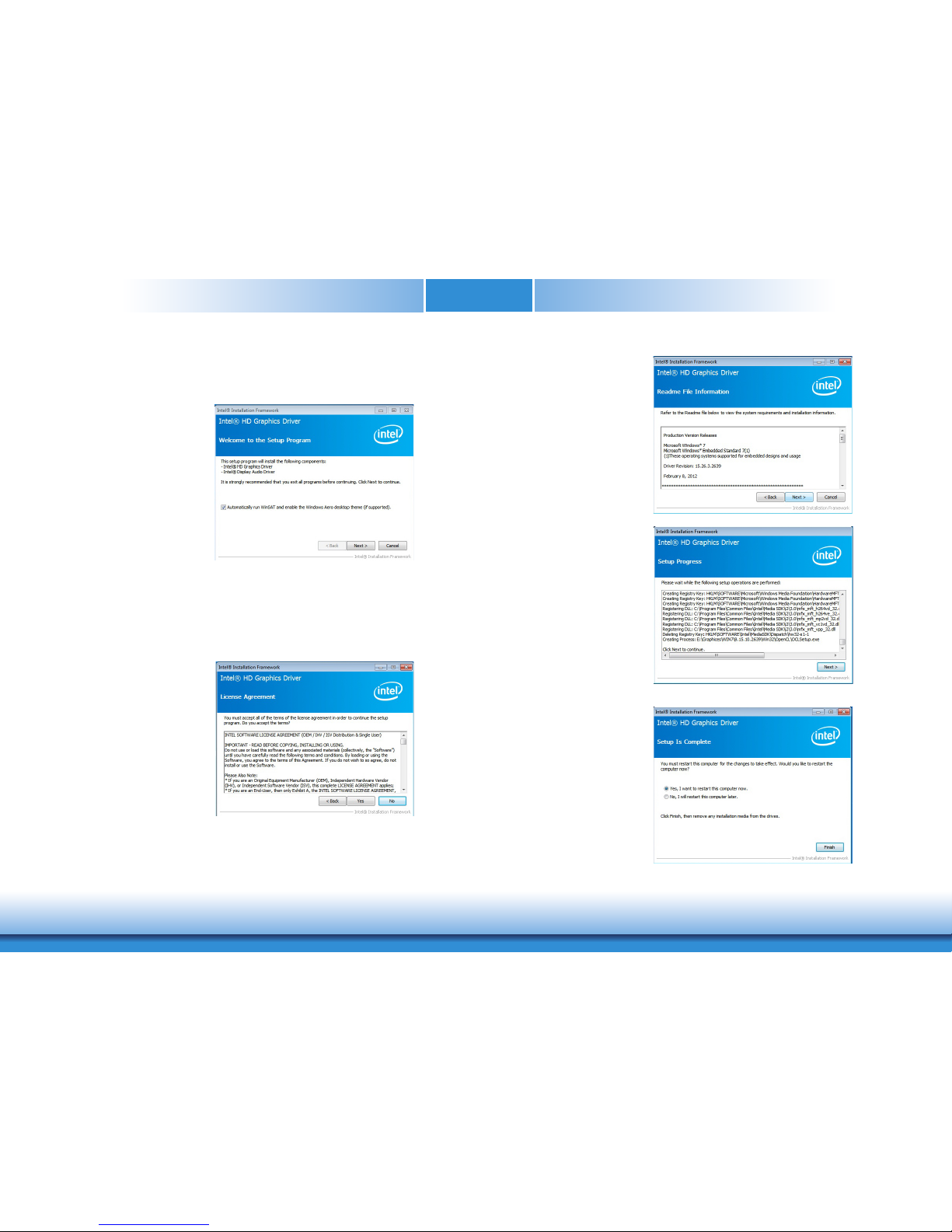

Intel Graphics Drivers
To install the driver, click “Intel Graphics Drivers” on the main menu.
1. Setup is now ready to
install the graphics driver.
Click “Next”.
2. Read the license agreement
then click “Yes”.
By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is
enabled. With this enabled, after installing the graphics driver and the system rebooted, the
screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/
Windows 8.1/ Windows 10 desktop appears. The “blank screen” period is the time Windows is
testing the graphics performance.
We recommend that you skip this process by disabling this function then click “Next”.
4. Setup is now installing
the driver. Click “Next” to
continue.
3. Go through the readme
document for system requirements and installation
tips then click “Next”.
5. Click “Yes, I want to restart
this computer now” then
click “Finish”.
Restarting the system will
allow the new software
installation to take effect.
Page 42
www.d.comChapter 5 Supported Software
42
Chapter 5
1. Setup is now ready to install the
audio driver. Click Next.
2. Follow the remainder of the steps
on the screen; clicking “Next”
each time you finish a step.
3. Click “Yes, I want to restart my
computer now” then click Finish.
Restarting the system will allow the
new software installation to take
effect.
Audio Drivers
To install the driver, click “Audio Drivers” on the main menu.
Intel LAN Drivers
To install the driver, click “Intel LAN Drivers” on the main menu.
1. Setup is ready to install the
driver. Click Next.
2. Click “I accept the terms
in the license agreement”
then click “Next”.
3. Select the program featuers
you want installed then
click Next.
Page 43
www.d.comChapter 5 Supported Software
43
Chapter 5
Kernel Mode Driver (For Windows 7 only)
To install the driver, click “Kernel Mode Driver Framework” on the main menu.
1. Click “Yes“ to install the
update.
2. The update is installed
now.
4. Click Install to begin the
installation.
5. After completing installation, click Finish.
Page 44

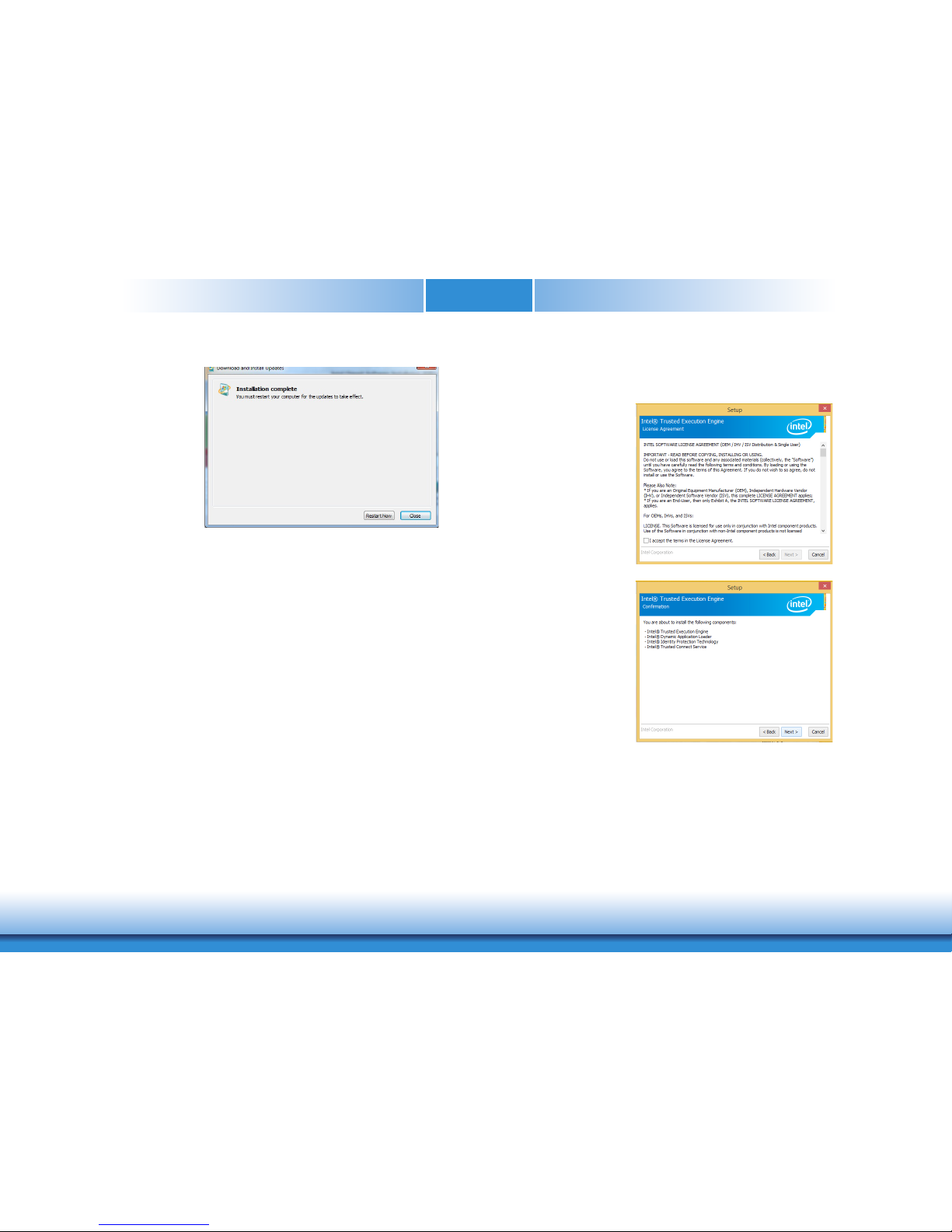

www.d.comChapter 5 Supported Software
44
Chapter 5
Intel Trusted Execution Engine Driver
To install the driver, click “Intel Trusted Execution Engine Driver” on the main menu.
1. Tick “I accept the terms
in the License Agreement“
and then click “Next.”
2. The step shows the
components which will be
installed. Then, Click Next.
3. Click “Restart Now“ to
restart your computer when
the installation is complete.
Page 45

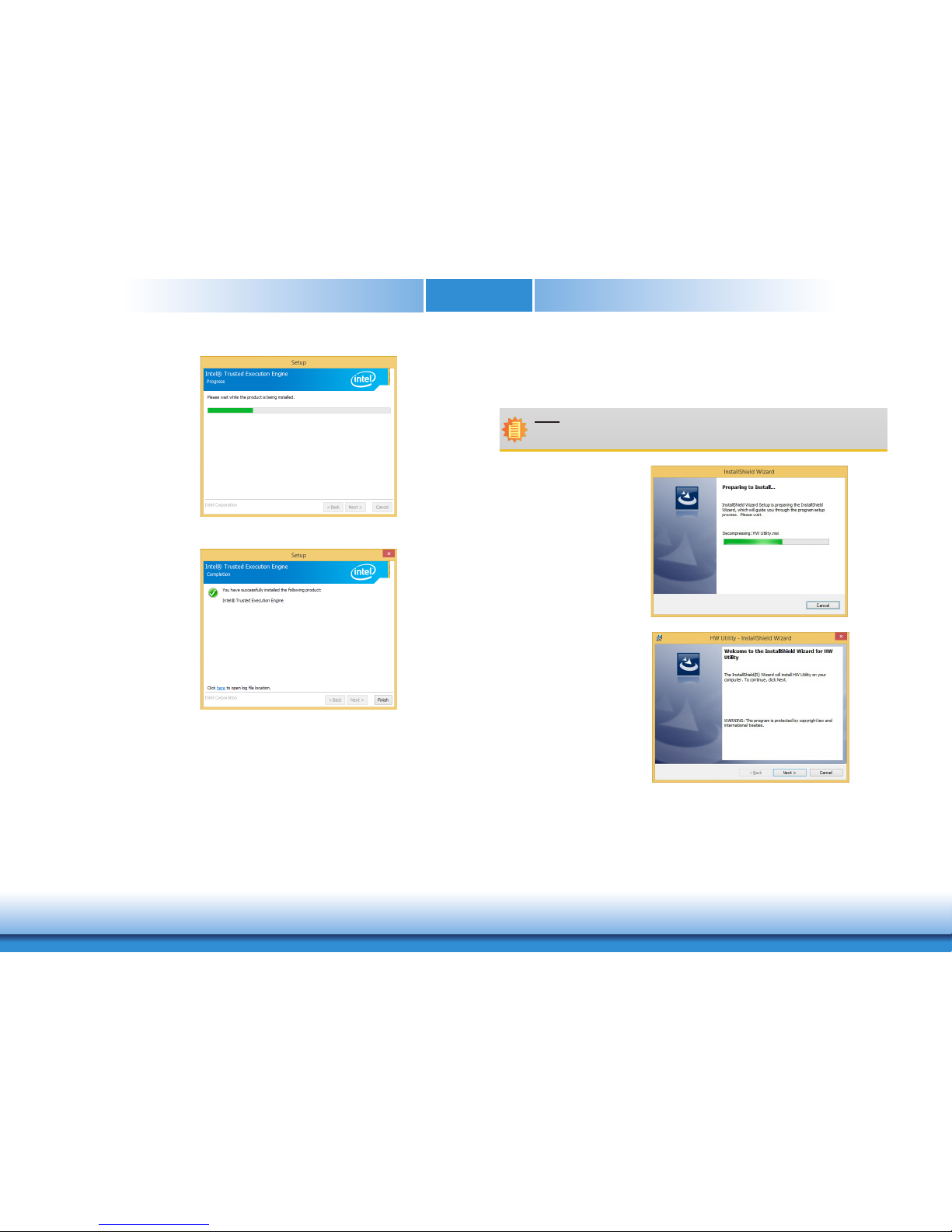

www.d.comChapter 5 Supported Software
45
Chapter 5
3. The step displays the
installing status in the
progress.
4. Click “Finish“ when the
installation is complete.
HW Utility
HW Utility provides information about the board, Watchdog,and DIO. To access the utility, click
“HW Utility” on the main menu.
Note:
If you are using Windows 7 or later versions, you need to access the operating system as an administrator to be able to install the utility.
1. Setup is ready to install the
driver.
2. Click “Next” to continue.
Page 46

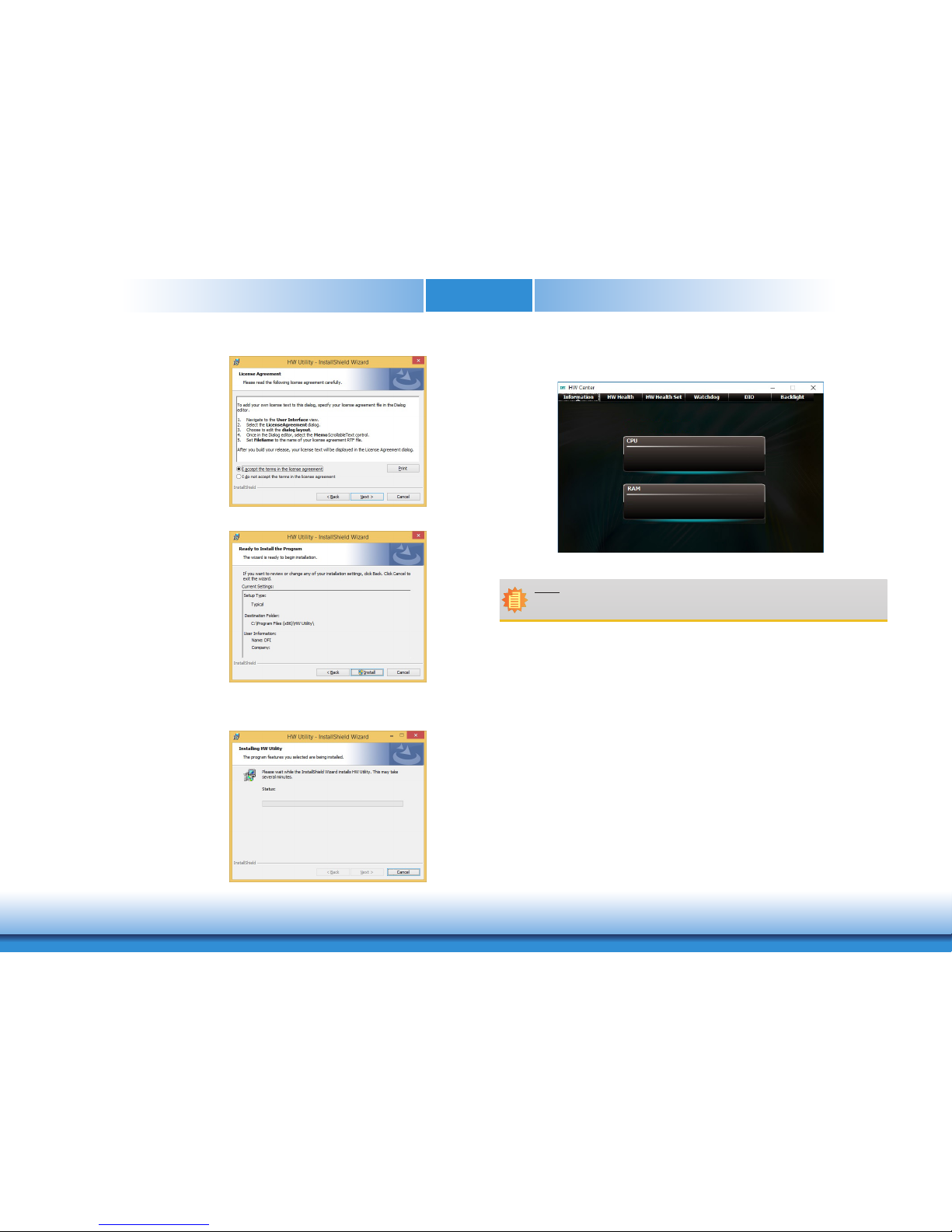

www.d.comChapter 5 Supported Software
46
Chapter 5
3. Read the license agreement
then click “I accept the terms
in the license agreement”.
Click “Next”.
4. The wizard is ready to begin
installation. Click “Install”.
5. Please wait while the program
features are being installed.
The HW Utility icon will appear on the desktop. Double-click the icon to open the utility.
BW968
Note:
Note: The screenshot displayed above is for illustrative purpose only, and may not
resemble the actual screen.
The BW968 HW Utility features the following tabs: Information, HW Health, HW Healthset,
Watchdog, DIO and Backlight. Click on the tabs to access information about the board.
Intel® Pentium®/Celeron® Processor N3000 Family,
BGA 1170
3949 MBytes
Information
Page 47

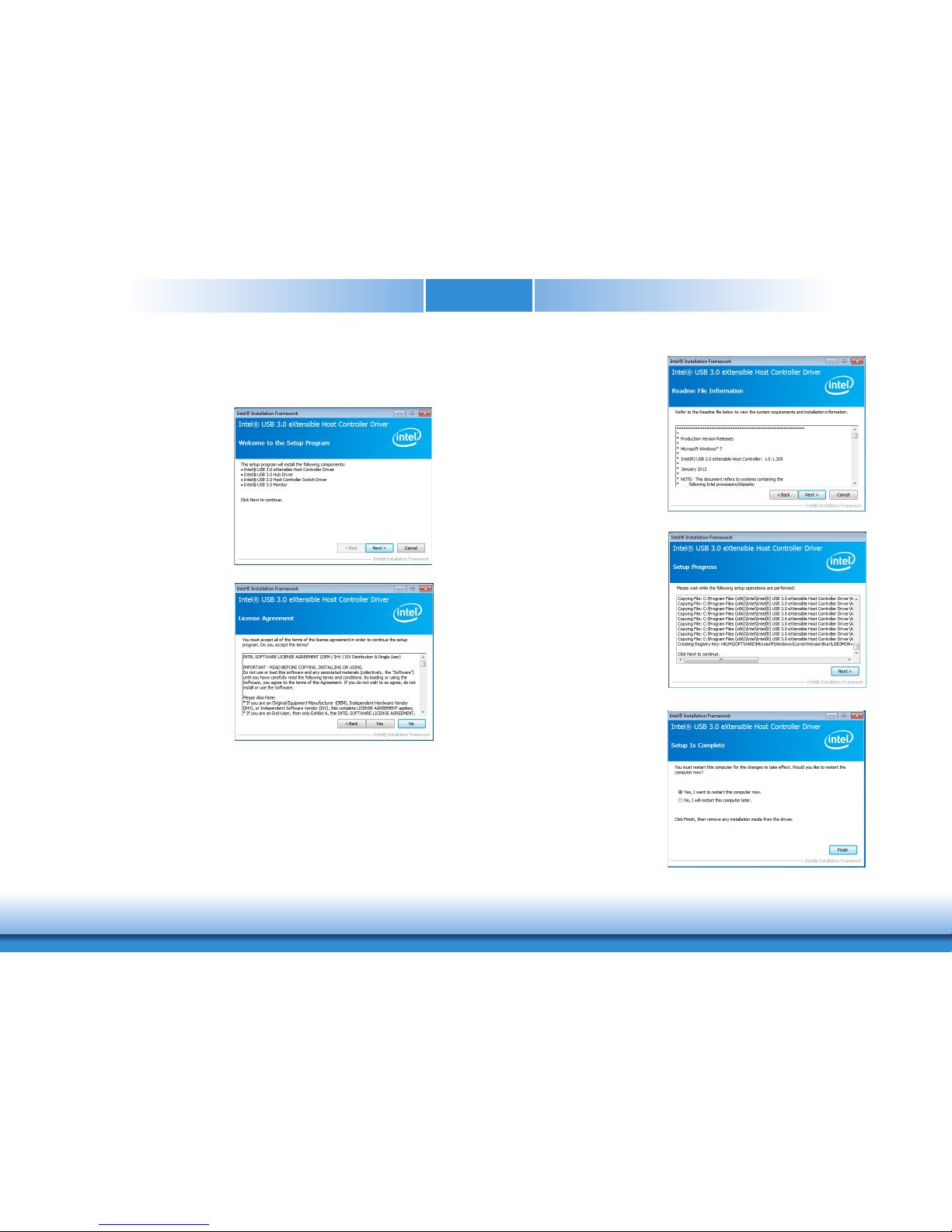

www.d.comChapter 5 Supported Software
47
Chapter 5
Intel USB 3.0 Drivers (For Windows 7 and Windows 8.1)
To install the driver, click “Intel USB 3.0 Driver” on the main menu.
2. Read the license agreement then
click Yes.
1. Setup is ready to install the driver.
Click Next.
3. Go through the readme document for more installation tips
then click Next.
4. Setup is currently installing the
driver. After installation has completed, click Next.
5. After completing installation, click
Finish.
Page 48

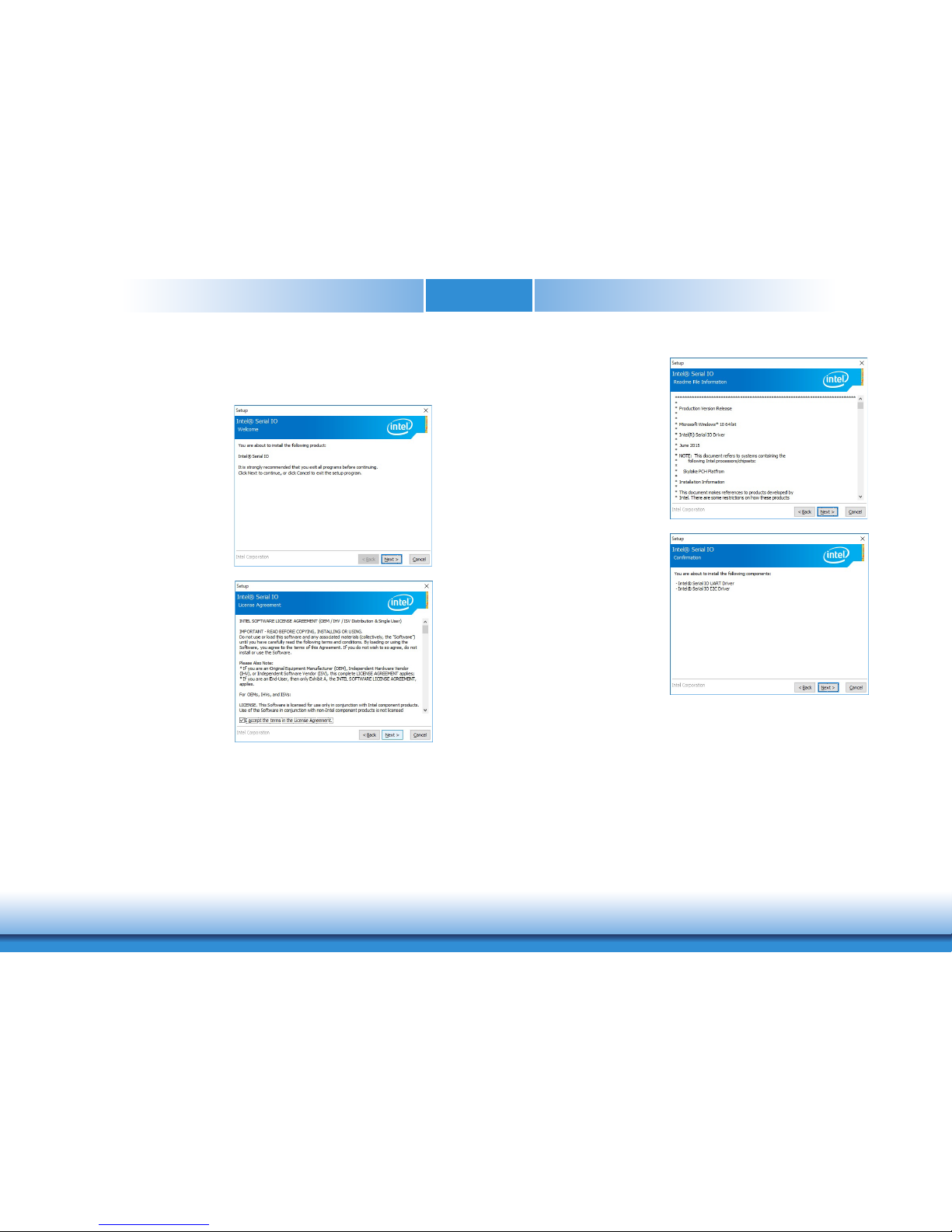

www.d.comChapter 5 Supported Software
48
Chapter 5
IO Driver
To install the driver, click “Intel Serial IO Driver” on the main menu
1. Setup is ready to install the driver.
Click Next.
2. Read the license agreement carefully.
Click “I accept the terms in the Li-
cense Agreement” then click Next.
4. Setup is ready to install the driver.
Click Next.
3. Read the file information then click
Next.
Page 49

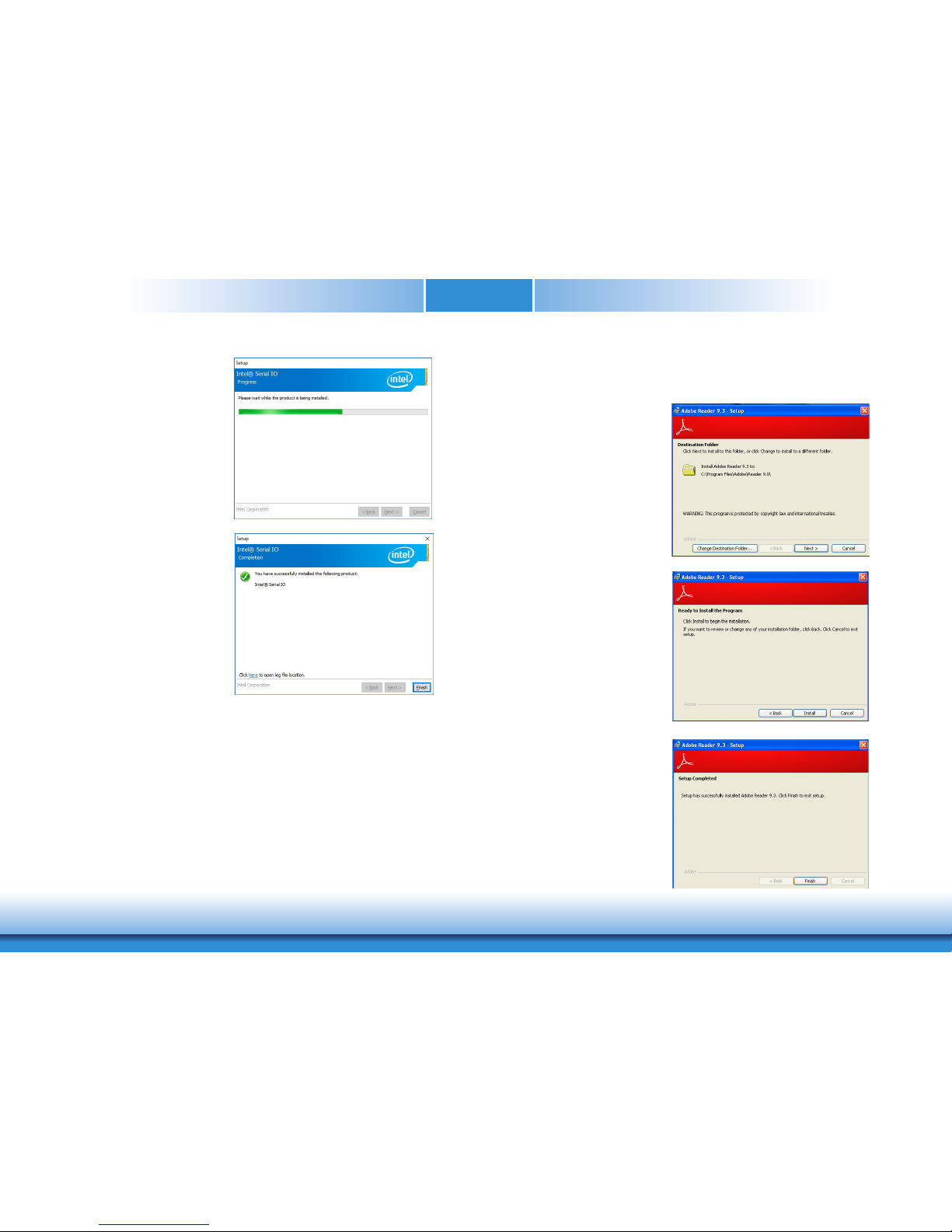

www.d.comChapter 5 Supported Software
49
Chapter 5
Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click
Change Destination Folder to
select another folder.
2. Click Install to begin installation.
3. Click Finish to exit installation.
5. Setup is now installing the
driver.
6. Click Finish.
Page 50
www.d.comAppendix A Troubleshooting
50
Appendix A
Appendix A - Troubleshooting
Troubleshooting Checklist
This chapter of the manual is designed to help you with problems that you may encounter
with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple
causes.
Some of the most common things to check when you encounter problems while using your
system are listed below.
1. The power switch of each peripheral device is turned on.
2. All cables and power cords are tightly connected.
3. The electrical outlet to which your peripheral devices are connected is working. Test the
outlet by plugging in a lamp or other electrical device.
4. The monitor is turned on.
5. The display’s brightness and contrast controls are adjusted properly.
6. All add-in boards in the expansion slots are seated securely.
7. Any add-in board you have installed is designed for your system and is set up correctly.
Monitor/Display
If the display screen remains dark after the system is turned on:
1. Make sure that the monitor’s power switch is on.
2. Check that one end of the monitor’s power cord is properly attached to the monitor and the
other end is plugged into a working AC outlet. If necessary, try another outlet.
3. Check that the video input cable is properly attached to the monitor and the system’s
display adapter.
4. Adjust the brightness of the display by turning the monitor’s brightness control knob.
The picture seems to be constantly moving.
1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.
2. Move away any objects, such as another monitor or fan, that may be creating a magnetic
field around the display.
3. Make sure your video card’s output frequencies are supported by this monitor.
The screen seems to be constantly wavering.
1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off.
Fluorescent lights adjacent to the monitor may also cause screen wavering.
Power Supply
When the computer is turned on, nothing happens.
1. Check that one end of the AC power cord is plugged into a live outlet and the other end
properly plugged into the back of the system.
2. Make sure that the voltage selection switch on the back panel is set for the correct type of
voltage you are using.
3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if
necessary.
Page 51
www.d.comAppendix A Troubleshooting
51
Appendix A
Hard Drive
Hard disk failure.
1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.
2. If the system is configured with two hard drives, make sure the bootable (first) hard drive
is configured as Master and the second hard drive is configured as Slave. The master hard
drive must have an active/bootable partition.
Excessively long formatting period.
If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to
format.
Serial Port
The serial device (modem, printer) doesn’t output anything or is outputting garbled
characters.
1. Make sure that the serial device’s power is turned on and that the device is on-line.
2. Verify that the device is plugged into the correct serial port on the rear of the computer.
3. Verify that the attached serial device works by attaching it to a serial port that is work-
ing and configured correctly. If the serial device does not work, either the cable or the serial
device has a problem. If the serial device works, the problem may be due to the onboard I/O
or the address setting.
4. Make sure the COM settings and I/O address are configured correctly.
Keyboard
Nothing happens when a key on the keyboard was pressed.
1. Make sure the keyboard is properly connected.
2. Make sure there are no objects resting on the keyboard and that no keys are pressed dur-
ing the booting process.
System Board
1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is
loose, power off the system, re-install the card and power up the system.
2. Check the jumper settings to ensure that the jumpers are properly set.
3. Verify that all memory modules are seated securely into the memory sockets.
4. Make sure the memory modules are in the correct locations.
5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.
6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
Page 52
www.d.comAppendix B Insyde BIOS Standard Status POST Code
52
Appendix B
Appendix B - Insyde BIOS Standard Status POST Code
SEC Phase 8-Bit POST Code Values
Functionality Name POST Code Value Description
SEC_SYSTEM_POWER_ON 01 CPU power on and switch to Protected mode
SEC_AFTER_MICROCODE_PATCH 03 Setup Cache as RAM
SEC_ACCESS_CSR 04 PCIE MMIO Base Address initial
SEC_GENERIC_MSRINIT 05 CPU Generic MSR initialization
SEC_CPU_SPEEDCFG 06 Setup CPU speed
SEC_SETUP_CAR_OK 07 Cache as RAM test
SEC_FORCE_MAX_RATIO 08 Tune CPU frequency ratio to maximum level
SEC_GO_TO_SECSTARTUP 09 Setup BIOS ROM cache
SEC_GO_TO_PEICORE 0A Enter Boot Firmware Volume
P
EI Phase 8-Bit POST Code Values
Functionality Name POST Code Value Description
PEI_SIO_INIT 70 Super I/O initialization
PEI_CPU_REG_INIT 71 CPU Early Initialization
PEI_CPU_AP_INIT 72 Multi-processor Early initialization
PEI_CPU_HT_RESET 73 HyperTransport initialization
PEI_PCIE_MMIO_INIT 74 PCIE MMIO BAR Initialization
PEI_NB_REG_INIT 75 North Bridge Early Initialization
PEI_SB_REG_INIT 76 South Bridge Early Initialization
PEI_PCIE_TRAINING 77 PCIE Training
PEI_TPM_INIT 78 TPM Initialization
PEI_MEMORY_INSTALL 80 Simple Memory test
PEI_TXTPEI 81 TXT function early initialization
PEI_MEMORY_CALLBACK 83 Set cache for physical memory
D
XE Phase 8-Bit POST Code Values
Functionality Name Post Code Values Description
DXE_SB_SPI_INIT 41 South bridge SPI initialization
DXE_VARIABLE_RECLAIM 61 Variable store garbage collection and reclaim operation
DXE_FLASH_PART_NONSUPPORT 62 Flash part not supported.
B
DS Phase 8-Bit POST Code Values
Functionality Name
POST Code Value
Description
BDS_ENTER_BDS 10 Enter BDS entry
BDS_INSTALL_HOTKEY 11 Install Hotkey service
BDS_ASF_INIT 12 ASF Initialization
BDS_PCI_ENUMERATION_START 13 PCI enumeration
BDS_BEFORE_PCIIO_INSTALL 14 PCI resource assign complete
BDS_PCI_ENUMERATION_END 15 PCI enumeration complete
BDS_CONNECT_CONSOLE_IN 16 Keyboard Controller, Keyboard and Mouse initializatio
BDS_CONNECT_CONSOLE_OUT 17 Video device initialization
BDS_CONNECT_STD_ERR 18 Error report device initialization
BDS_CONNECT_USB_HC 19 USB host controller initialization
BDS_CONNECT_USB_BUS 1A USB BUS driver initialization
BDS_CONNECT_USB_DEVICE 1B USB device driver initialization
BDS_NO_CONSOLE_ACTION 1C Console device initialization fail
BDS_ENUMERATE_ALL_BOOT_OPTIO
N
27 Get boot device information
BDS_ENTER_SETUP 29 Enter Setup Menu
BDS_ENTER_BOOT_MANAGER 2A Enter Boot manager
BDS_READY_TO_BOOT_EVENT 2E Last Chipset initialization before boot to OS
BDS_GO_LEGACY_BOOT 2F Start to boot Legacy OS
BDS_GO_UEFI_BOOT 30 Start to boot UEFI OS
BDS_LEGACY16_PREPARE_TO_BOOT 31 Prepare to Boot to Legacy OS
BDS_EXIT_BOOT_SERVICES 32 Send END of POST Message to ME via HECI
SEC Phase 8-Bit POST Code Values
Functionality Name POST Code Value Description
SEC_SYSTEM_POWER_ON 01 CPU power on and switch to Protected mode
SEC_AFTER_MICROCODE_PATCH 03 Setup Cache as RAM
SEC_ACCESS_CSR 04 PCIE MMIO Base Address initial
SEC_GENERIC_MSRINIT 05 CPU Generic MSR initialization
SEC_CPU_SPEEDCFG 06 Setup CPU speed
SEC_SETUP_CAR_OK 07 Cache as RAM test
SEC_FORCE_MAX_RATIO 08 Tune CPU frequency ratio to maximum level
SEC_GO_TO_SECSTARTUP 09 Setup BIOS ROM cache
SEC_GO_TO_PEICORE 0A Enter Boot Firmware Volume
P
EI Phase 8-Bit POST Code Values
Functionality Name POST Code Value Description
PEI_SIO_INIT 70 Super I/O initialization
PEI_CPU_REG_INIT 71 CPU Early Initialization
PEI_CPU_AP_INIT 72 Multi-processor Early initialization
PEI_CPU_HT_RESET 73 HyperTransport initialization
PEI_PCIE_MMIO_INIT 74 PCIE MMIO BAR Initialization
PEI_NB_REG_INIT 75 North Bridge Early Initialization
PEI_SB_REG_INIT 76 South Bridge Early Initialization
PEI_PCIE_TRAINING 77 PCIE Training
PEI_TPM_INIT 78 TPM Initialization
PEI_MEMORY_INSTALL 80 Simple Memory test
PEI_TXTPEI 81 TXT function early initialization
PEI_MEMORY_CALLBACK 83 Set cache for physical memory
D
XE Phase 8-Bit POST Code Values
Functionality Name Post Code Values Description
DXE_SB_SPI_INIT 41 South bridge SPI initialization
DXE_VARIABLE_RECLAIM 61 Variable store garbage collection and reclaim operation
DXE_FLASH_PART_NONSUPPORT 62 Flash part not supported.
B
DS Phase 8-Bit POST Code Values
Functionality Name
POST Code Value
Description
BDS_ENTER_BDS 10 Enter BDS entry
BDS_INSTALL_HOTKEY 11 Install Hotkey service
BDS_ASF_INIT 12 ASF Initialization
BDS_PCI_ENUMERATION_START 13 PCI enumeration
BDS_BEFORE_PCIIO_INSTALL 14 PCI resource assign complete
BDS_PCI_ENUMERATION_END 15 PCI enumeration complete
BDS_CONNECT_CONSOLE_IN 16 Keyboard Controller, Keyboard and Mouse initializatio
BDS_CONNECT_CONSOLE_OUT 17 Video device initialization
BDS_CONNECT_STD_ERR 18 Error report device initialization
BDS_CONNECT_USB_HC 19 USB host controller initialization
BDS_CONNECT_USB_BUS 1A USB BUS driver initialization
BDS_CONNECT_USB_DEVICE 1B USB device driver initialization
BDS_NO_CONSOLE_ACTION 1C Console device initialization fail
BDS_ENUMERATE_ALL_BOOT_OPTIO
N
27 Get boot device information
BDS_ENTER_SETUP 29 Enter Setup Menu
BDS_ENTER_BOOT_MANAGER 2A Enter Boot manager
BDS_READY_TO_BOOT_EVENT 2E Last Chipset initialization before boot to OS
BDS_GO_LEGACY_BOOT 2F Start to boot Legacy OS
BDS_GO_UEFI_BOOT 30 Start to boot UEFI OS
BDS_LEGACY16_PREPARE_TO_BOOT 31 Prepare to Boot to Legacy OS
BDS_EXIT_BOOT_SERVICES 32 Send END of POST Message to ME via HECI
P
ostBDS Phase 8-Bit POST Code Values
Functionality Name POST Code Value Description
POST_BDS_NO_BOOT_DEVICE F9 No Boot Device
POST_BDS_JUMP_BOOT_SECTOR FE Try to Boot with INT 19
A
CPI 8-Bit POST Code Values
Functionality Name POST Code Value Description
ASL_ENTER_S1 51 Prepare to enter S1
ASL_ENTER_S3 53 Prepare to enter S3
ASL_ENTER_S4 54 Prepare to enter S4
ASL_ENTER_S5 55 Prepare to enter S5
ASL_WAKEUP_S1 E1 System wakeup from S1
ASL_WAKEUP_S3 E3 System wakeup from S3
ASL_WAKEUP_S4 E4 System wakeup from S4
ASL_WAKEUP_S5 E5 System wakeup from S5
S
MM 8-Bit POST Code Values
Functionality Name POST Code Value Description
SMM_ACPI_ENABLE_END A7 ACPI enable function complete
SMM_S1_SLEEP_CALLBACK A1 Enter S1
SMM_S3_SLEEP_CALLBACK A3 Enter S3
SMM_S4_SLEEP_CALLBACK A4 Enter S4
SMM_S5_SLEEP_CALLBACK A5 Enter S5
Loading...
